Instance Based Schema Matching Framewor

Utilizing Google

Similarity and Regular Expression

Osama A. Mehdi, Hamidah Ibrahim and Lilly Suriani Affendey

Faculty of Computer Science and Information Technology, 43400, Serdang, Malaysia

Keywords: Schema Matching, Instance based Schema Matching, Google Similarity, Regular Expression.

Abstract: Schema matching is the task of identifying correspondences between schema attributes that exist in different

schemas. A variety of approaches have been proposed to achieve the main goal of high-quality match results

with respect to precision (P) and recall (R). However, these approaches are unable to achieve high quality

match results, as most of these approaches treated the instances as string regardless the data types of the

instances. As a consequence, this causes unidentiﬁed matches especially for attribute with numeric instances

which further reduces the quality of match results. Therefore, effort still needs to be done to further improve

the quality of the match results. In this paper, we propose a framework for addressing the problem of

finding matches between schemas of semantically and syntactically related data. Since we only fully exploit

the instances of the schemas for this task, we rely on strategies that combine the strength of Google as a web

semantic and regular expression as pattern recognition. To demonstrate the accuracy of our framework, we

conducted an experimental evaluation using real world data sets. The results show that our framework is

able to find 1-1 schema matches with high accuracy in the range of 93% - 99% in terms of precision (P),

recall (R), and F-measure (F).

1 INTRODUCTION

Schema matching is the problem of finding

correspondences between attributes of two schemas

that are heterogeneous in format and structure (e.g.,

relation attributes or XML tags). This basic problem

needs to be solved in many database application

domains, such as data integration, E-business and

data warehousing (Bernstein et al., 2011).

Performing schema matching from different sources

is not trivial as these sources are developed

independently by different developers, thus leading

to differences in terms of structure, syntactic and

semantics of the schema attributes. Schema

matching attempts to measure the similarities

between schema attributes by considering the

schema information which includes the element

name (schema name, attribute name), description,

data type and schema structure. There are several

approaches that have been developed for handling

schema matching (Doan et al., 2000). Interested

readers may refer to the following surveys (Rahm

and Bernstein, 2001; Shvaiko and Euzenat, 2005;

Blake, 2007; Bernstein et al., 2011) and books

(Euzenat and Shvaiko, 2007; Hai, 2007; Bellahsene

et al., 2011).

In (Rahm and Bernstein, 2001), the existing

schema matching approaches are classified into the

following categories: (i) Schema Level Approaches -

that use schema information, (ii) Instance Level

Approaches - that use the data instances as source

for finding the correspondences of schema attributes,

and (iii) Hybrid Approaches - that combine

information extracted from both the schema and the

instances. However, in some cases it may not be

possible to use the schema information. For instance,

depending on attribute name does not always work

properly since database designers tend to use

compound nouns, abbreviations and acronyms.

Although lexical annotation helps in associating

meaning to attribute names, however, the

performance of lexical annotation methods on real

world schemata suffers from the abundance of non-

dictionary words such as compound nouns,

abbreviations and acronyms. The result of lexical

annotation is strongly affected by the presence of

these non-dictionary words (Cortez et al., 2010).

Hence, exploring the instances can give an accurate

213

A. Mehdi O., Ibrahim H. and Affendey L..

Instance Based Schema Matching Framework Utilizing Google Similarity and Regular Expression.

DOI: 10.5220/0004990102130222

In Proceedings of 3rd International Conference on Data Management Technologies and Applications (DATA-2014), pages 213-222

ISBN: 978-989-758-035-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

characterization of the actual contents of schema

attributes (Rahm and Bernstein, 2001; De Carvalho

et al., 2013).

By analysing the instance based schema

matching approaches, we observed that neural

network, machine learning, theoretic information

discrepancy and rule based have been utilized (Kang

and Naughton, 2003; Chua et al., 2003; Bilke and

Naumann, 2005; Liang, 2008; Kang and Naughton,

2008; Dai et al., 2008). The goal of these approaches

is to discover correspondences between schema

attributes whereby instances including instances

with numeric values are treated as strings. This

prevents discovering common patterns or

performing statistical computation between the

numeric instances (De Carvalho et al., 2013). As a

consequence, this causes unidentiﬁed matches for

numeric instances and further reduces the quality of

match results. Furthermore, textual similarity also is

not the best alternative for numeric instances (e.g.,

page number, year, phone number, price, quantity,

etc.) (De Carvalho et al., 2013; Cortez et al., 2010).

Thus, for instance level approaches, specific

strategies for identifying existing instance patterns

must be deployed.

In this paper, we propose a framework for

instance based schema matching that aims at finding

the correspondences between schema attributes of

two semantically and syntactically related data.

Since we only explore the instances, we rely on

matching strategies that are based on Google

similarity (Cilibrasi and Vitanyi, 2007) and regular

expression (Friedl, 2006; Liu et al., 2012) to find the

correspondences of schema attributes. As pointed

out by (Doan and Halevy, 2005; Li and Clifton,

2000), there are different types of matching

algorithms being applied in this area. However, this

problem is still a research hotspot in order to further

improve the accuracy of schema matching. Thus, our

framework is a step forward towards solving this

problem. The reason for utilizing Google similarity

and regular expression is that Google similarity uses

the World Wide Web as database and Google as

search engine. Whereas regular expressions are an

efficient way to describe text through pattern

(format) matching and provide an efficient way to

identify text. In addition, regular expression is

relatively inexpensive and does not require training

as in learning-based techniques. It can provide a

quick and concise method to capture valuable

knowledge (Doan and Halevy, 2005).

In summary, the main contribution of this paper

is a framework which: (1) uses only the instances to

find matches between schema attributes (1-1

matches) and (2) relies on matching strategies that

are based on Google similarity and regular

expression to find the matches.

The rest of this paper is organized as follows.

Section 2 discusses the related work. Section 3

presents the proposed framework of instance based

schema matching. In Section 4, the evaluation

metrics and the results are presented and discussed.

Finally, Section 5 draws the conclusions and points

out some future work directions.

2 RELATED WORK

Instance based schema matching examines instances

to determine corresponding schema attributes. It

represents a substitutional choice for schema

matching (Rahm and Bernstein, 2001; Bernstein et

al., 2011). Even when substantial schema

information is available, considering instances can

complement schema based approaches with

additional insights on the semantics and contents of

schema attributes and can be beneficial in

uncovering wrong interpretation of schema

information, i.e. it would be helpful to disambiguate

between schema level matches by matching the

attributes whose instances are syntactically and

semantically more similar. Neural network, machine

learning, information theoretic discrepancy and rule

based are approaches used for instance based

schema matching.

Neural network is able to obtain the similarities

among data directly from their instances and

empirically infer solutions from data in the absence

of prior knowledge for regularities. Neural network

is employed to cluster similar attributes, whose

instances are uniformly characterized using a feature

vector of constraint based criteria. For instance

based schema matching, the Back Propagation

Neural Network (BPNN), which can acquire and

store a mass of mappings between input and output,

is ideal. However, neural network can be viewed as

specific tool since it is trained based on domain-

specific training data. It can only be used to resolve

problems associated with that domain (Li et al.,

2000). Furthermore, neural network approaches (Li

and Clifton, 1994; Li and Clifton, 2000; Yang et al.,

2008; Li et al., 2005) for instance based schema

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

214

matching achieved precision (P), recall (R), and F-

measure (F) in the range of 65% - 96%.

Solutions that are based on machine learning

generally employ methods such as Naïve Bayesian

classification to enhance the accuracy of schema

based matching. Learning-based solutions require a

training data set of correct matches that may require

a large training data set to determine the correct

matches. Several approaches have been proposed

(Doan et al., 2001; Berlin and Motro, 2001; Feng et

al., 2009) that employ machine learning techniques

to first learn the instance characteristics of the

matching or non-matching attributes and then use

them to determine if a new attribute has instances

with similar characteristics or not. However, the

precision (P), recall (R), and F-measure (F) achieved

by these approaches are in the range of 66% - 92%.

Many approaches have applied the notion of

information theoretic discrepancy such as mutual

information and distribution values (Liang, 2008;

Kang and Naughton, 2003; Kang and Naughton,

2008; Dai et al., 2009). The main advantages of

applying an information theoretic discrepancy

approach are that its skilfulness and lack of

constraints. However, approaches of information

theoretic discrepancy need some probabilities of

overlapping in the values being compared.

Furthermore, information theoretic discrepancy

approaches for instance based schema matching

achieved precision (P), recall (R), and F-measure (F)

in the range of 45% - 92%.

Rule based approaches enjoy many benefits. The

first benefit of using rule based would be, low cost

and also no requirement for training as in learning-

based techniques. The second benefit, its quick and

concise method to capture valuable user knowledge

about the domain. Finally, rule based approaches for

instance based schema matching (Chua et al., 2003;

Bilke and Naumann, 2005) achieved precision (P),

recall (R), and F-measure (F) in the range of 72% -

87%.

3 THE PROPOSED

FRAMEWORK OF INSTANCE

BASED SCHEMA MATCHING

The major tasks of the proposed framework are to

analyse the instances of the schemas and determine

correspondences of attributes between schemas.

Figure 1 illustrates the proposed framework of

instance based schema matching which consists of

two main components, namely: (i) Pre-Processing

and (ii) Instance matching.

Figure 1: The proposed framework of instance based

schema matching.

3.1 The Sub-components of the

Pre-processing

The Pre-Processing comprises of three sub-

components, namely: Instance Analyser, Schema

Attribute Classifier, and Sample Extractor. These

sub-components are further explained below:

3.1.1 Instance Analyser

This sub-component analyses the instances of each

attribute in a schema in an attempt to identify the

data type of the attribute. The characters of a value

that represent a randomly selected instance of each

attribute are analysed to determine which data type

the attribute belongs to. There are three types of data

type, namely: alphabetic, numeric and mix

(alphabetic, numeric and special characters). The

alphabetic data type is for attributes whose instances

consist of only alphabetic characters ([A...Z, a…z]).

The numeric data type is for attributes whose

instances consist of only digit characters ([0…9]),

whereas the mix data type is for attributes whose

instances consist of combination of alphabetic, digit

PRE-PROCESSING

Instance Analyser

Schema Attribute Classifier

Sample Extractor

INSTANCE MATCHING

Instance Similarity Identifier

Match Identifier

InstanceBasedSchemaMatchingFrameworkUtilizingGoogleSimilarityandRegularExpression

215

and special characters (e.g [-, /, \, ., ]). Whereas, it's

possible to use data type constraints in our

framework by mapping the data types that we are

producing to the equivalent data type constraints.

However, using data type constraints might leads

our framework to be unable to detect the correct

correspondences between the attributes that have the

same data type of instances. For instance, database

designers tend to use string data type for numeric

attributes that do not need any kind of calculating.

Hence, if we used data type constraints we may

classify such attributes in unrelated class for

matching.

3.1.2 Schema Attribute Classifier

This sub-component classifies the attributes of the

schemas into classes based on the data type of each

attribute that has been derived from the Instance

Analyser sub-component. In other words, attributes

of the same data type are gathered in the same class.

The main aim of this phase is to reduce the number

of possible comparisons that needs to be performed

during the matching process. The maximum number

of classes created for each schema is based on the

number of data types that has been determined from

the Instance Analyser sub-component.

3.1.3 Sample Extractor

This sub-component intends to extract instances

from the initial table of data set based on the optimal

sample size and populate them into a table. Each

table consists of a number of attributes from

different schemas which have the same data type.

The optimal sample size represents the size of

samples that achieves the acceptable results of

instance based schema matching in terms of

precision (P), recall (R) and F-measure (F). The

optimal sample size has been chosen through a set of

experiments. More details about these experiments

are discussed in Section 4. The purpose of this sub-

component is to reduce the number of comparisons

between the instances that further reduce the

processing time of instance based schema matching.

3.2 The Sub-components of the Instance

Matching

The instance matching component encompasses two

sub-components, namely: Instance Similarity

Identifier and Match Identifier.

3.2.1 Instance Similarity Identifier

This is the major component in instance matching

which aims at determining whether the instances of

attributes that are in the same class have similarities.

To achieve this, two strategies are adopted to find

the similarities between the attributes that are in the

same class. The strategies are: Google similarity for

calculating the semantic similarity and regular

expression for the syntactic matching.

Google Similarity

For measuring the semantic similarity we have

adopted Google similarity that has been introduced

by (Cilibrasi and Vitanyi, 2007; Cilibrasi and

Vitanyi, 2004). Google similarity uses the World

Wide Web as a database and Google as a search

engine. Google’s similarity of words and phrases

from the World Wide Web uses Google page counts,

as shown in equation (1).

max (log f (x), log f (y)) - log f (x, y)

GSD (x, y) = (1)

log M - min (log f (x), log f (y))

where f (x) is the number of Google hits for the

search term x, f (y) is the number of Google hits for

the search term y, f (x, y) is the number of Google

hits for both terms x and y together, and M is the

number of web pages indexed by Google. The

World Wide Web is the largest database on earth

and the context information entered by millions of

independent users averages out to provide automatic

semantics of useful quality. The Google similarity

calculates the semantic similarity score for the

attributes with alphabetic data type that comprises

instances consisting of only alphabetic characters

([A...Z, a…z]). For instance, if we want to search for

a given term in the Google web pages, e.g. “Msc”,

we will get a number of hits that is 127,000,000.

This number refers to the number of pages where

this term is found. For another term, “Phd”, the

number of hits for this term is 50,600,000.

Furthermore, if we search for those pages where

both terms ” Msc” and “Phd” are found, that gives

us 36,100,000 hits. Consequently, we can use these

numbers of hits for the terms “Msc”, “Phd” and both

terms together in addition to the number of pages

indexed by Google, which is around 3,000,000,000

in the equation (1). The equation produces the

similarity degree between the two terms “Msc” and

“Phd” as follows:

GSD (Msc, Phd) = 0.31

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

216

Regular Expression

Regular expression (known as regexes) is a way to

describe text through pattern (format) matching and

provide an easy way to identify text. Regular

expression is a language used for parsing and

manipulating text (Kleene, 1051). Furthermore,

regular expression is a string containing a

combination of normal characters and special

metacharacters or metasequences (*, +, ?). Table 1

shows the most common metacharacters and

metasequences in regular expression that are used in

our work (Friedl, 2006).

Table 1: The most common metacharacters in regular

expression.

Metacharacter Name Matches

d\ Digit Matches a digit

s\ Whitespace Matches whitespace

[a-z, A-Z] A range of

letters

Matches any letter in

the specified range.

. Dot Matches any one

character

[…] Character

class

Matches any one

character listed

[^…] Negated

character

class

Matches any one

character not listed

? Question One allowed, but it is

optional

* Star Any number allowed,

but all are optional

+ Plus At least one required;

additional are optional

| Alternation Matches either

expression it separates

^ Caret Matches the position

at the start of the line

$ Dollar Matches the position

at the end of the line

{X,Y} Specified

range

X required, max

allowed

The attributes with numeric data type are

attributes whose instances consist of only digit

characters ([0…9]). In creating a regular expression

for an attribute, the minimum and maximum values

of the attribute are required. Thus, three variables

have been identified, namely: nomin, nomax and

uppervalue. Initially, nomin and nomax are assigned

the minimum and maximum values of the attribute,

respectively. However, in the following iterations,

the value of nomin is changed to the last uppervalue

+ 1. The uppervalue is a value which is greater than

the value of nomin and less than the value of nomax;

and is derived based on the following conditions:

 when the nomin's length of digits is less than the

nomax's length of digits, the uppervalue is the

maximum value based on the nomin’s length of

digits and not greater than the value of nomax.

 when the nomin's length of digits is equal to the

nomax's length of digits and the nomin has at least

one zero digit on the right, the uppervalue is

derived using the formula shown in equation (2).

The equation (2) derives the closest uppervalue to

the nomax.

uppervalue = (nomax - (nomax MOD Sumz *10) - 1

)

(2)

where Sumz returns number of zero digits on the

right of the nomin. If the equation (2) returns an

uppervalue which does not satisfy the condition that

we have stated earlier, then the step as mentioned in

(i) above is applied. Table 2 illustrates an example

of the proposed idea for numeric data type.

Table 2: An example of numerical data type.

Iteration Nomin Upper

Value

RegEx Accumulated

RegEx

1 7 9 [7-9] [7-9]

2 10 99 [1-9][0-9] [7-9]|[1-9][0-

3 100 119 1[0-1][0-9] [7-9]|[1-9][0-

9]|1[0-1][0-9]

4 120 123 12[0-3] [7-9]|[1-9][0-

9]|1[0-1][0-

9]|12[0-3]

On the other hand, for the attributes with mix

data type whose instances consist of combination of

alphabetic, digit and special characters (e.g [-, /, \, .,

]), we divide the instances into a set of sub-tokens.

Each sub-token is a sequential set of characters of a

particular data type. Then, a regular expression is

built for each sub-token of the instance. Finally, the

regular expressions of each sub-token are combined

as the regular expression of the instance. Table 3

illustrates an example of the proposed idea for mix

data type.

Table 3: An example of the mix data type.

Instance Regular Expression

255 Courtland d\+\s[a-z, A-Z]+

589/265/954 d\+/d\+/d\+

3.2.2 Match Identifier

This sub-component attempts to determine whether

the identified match between attributes from

different schemas are the same real world entity.

InstanceBasedSchemaMatchingFrameworkUtilizingGoogleSimilarityandRegularExpression

217

For numeric and mix data types the same process

is performed, as they use the concept of regular

expression. First of all, this sub-component specifies

a match by matching the regular expression of the

instances of the source schema attribute derived

from the previous sub-component against sample of

instances of each target schema attribute. Then, it

counts the number of instances of the target schema

attribute that matchs the regular expression. Next,

this sub-component identifies the percentage

similarity for each attribute of the target schema

with the regular expression. The percentage

similarity is identified by dividing the number of

instances that matchs the regular expression with

number of instances of target schema attribute. The

highest percentage is then identified and if it is

greater than 50% , then we can say that these

attributes are correspond to each other.

On the other hand, for the alphabetic data type

this sub-component uses the list of similarity scores

derived from the previous sub-component (utilizing

Google similarity) with a predefined threshold value.

In our work the threshold value is set to 60 as used

by previous work (Khan et al., 2011). The list of

similarity scores contains the average similarity

score for each attribute of the source schema with

each attribute of the target schema. Hence, this sub-

component identifies the highest score of similarity

achieved between the attribute of the target schema

and the attribute of the source schema. If the highest

score is equals to or greater than 50%, then these

attributes are said to correspond to each other.

4 EVALUATION

4.1 Data Set

We used real-world data sets from two different

domains: Restaurant and Census, both of which are

available online (Restaurant, 2014; Census, 2014).

Table 4 shows the characteristics of the data sets. In

our experiments we created two sub-tables by

randomly selecting the attributes from the original

table of the data sets. The number of attributes of

each sub-table is equal to the number of attributes of

the original table. However, these attributes might

occur in different sequence and the same attributes

might be selected more than once. These sub-tables

were populated with instances taken randomly from

the original table of the data sets. The number of

instances of both sub-tables is different to represent

real world cases. We pretended that these sub-tables

were two different tables that needed to have their

schemas matched (Liang, 2008; Kang and

Naughton, 2003; Kang and Naughton, 2008).

Table 4: The Characteristics of the data sets.

Data Set Restaurant Census

Number of

Attributes

5 11

Alphabetic

Attributes

Name, Type of

Food and City

Workclass, Education,

Relationship, Race, Sex, Marital

status, and Native-country

Numeric

Attributes

- Age, Fnlwgt, Education-num

and Ca

ital-

ain

Mix

Attributes

Address and

PhoneNumber

Number of

Records

864 4320

Number of

Instances

32561 358171

4.2 Measurements

The evaluation metrics considered in this work are

precision (P), recall (R) and F-measure (F) shown in

equations (3), (4) and (5), respectively. It is based on

the notion of true positive, false positive, true

negative, and false negative.

 True positive (TP): The number of matches

detected when it is really matches.

 False positive (FP): The number of matches

detected when it is really non-match.

 True negative (TN): The number of non-matches

detected when it is really non-match.

 False negative (FN): The number of non-

matches detected when it is really matches.

Precision= |TP| / |TP| + |FP| (3)

Recall = |TP| / |TP| + |TN| (4)

F-measure = 2 * Precision * Recall / Precision (5)

+ Recall

For each table, we kept the number of attributes to

11 and 5 for Census and Restaurant data sets,

respectively. We repeated each experiment 5 times,

measured the precision (P), recall (R) and F-measure

(F) and averaged these results.

4.3 Result

We have conducted two analyses. They are (i)

Analysis 1 which aims at identifying the optimal

sample size of tuples and (ii) Analysis 2 which aims

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

218

at comparing the performance of our proposed

framework to that of the previous work with respect

to precision (P), recall (R) and F-measure (F). The

details of each analysis are presented in the

following subsections.

4.3.1 Analysis 1

In this analysis, we present the experiments of

selecting the optimal sample size of tuples, which

represents the size of samples that achieves

acceptable results in terms of precision (P), recall

(R), and F-measure (F). The optimal sample size is

the number of tuples that are used during the sub-

component of Sample Extractor of instance based

schema matching. For this analysis several

experiments have been conducted. The experiments

have been designed in such a way that each

experiment will use different size of samples starting

from 5% of the actual table size. The size of samples

is increased either 5% or 10% in the subsequent

experiments. The experiments are ended when the

precision (P), recall (R) and F-measure (F) are at

least 96% which is at least equal to the best results

reported in the previous work (Yang et al, 2008).

From this analysis we found that when the size of

samples reached 50% the results of precision (P),

recall (R) and F-measure (F) are better than the

previous work. Table 5 illustrates the size of samples

considered in each experiment.

Table 5: Size of samples for each experiment.

Experiment Size of Samples

Experiment 1-1 5%

Experiment 1-2 10%

Experiment 1-3 15%

Experiment 1-4 20%

Experiment 1-5 25%

Experiment 1-6 30%

Experiment 1-7 40%

Experiment 1-8 50%

The experiments are labeled as Experiment 1-1,

Experiment 1-2, Experiment 1-3, Experiment 1-4,

Experiment 1-5, Experiment 1-6, Experiment 1-7

and Experiment 1-8. These eight experiments used

the same data sets. To ensure that the results are

consistent through of the experiments. Each

experiment is run 5 times.

Result of Analysis 1

We reported the precision (P), recall (R) and F-

measure (F) for the experiments 1-1, 1-2, 1-3, 1-4,

1-5, 1-6, 1-7 and 1-8 as shown in Table 6 and Table

7. While

Figure 2 and Figure 3 present the precision

(P), Recall (R) and F-measure (F) for the

experiments of this analysis in histogram. The

percentage increases as the sample size increases.

For example, the percentages are 69% and 70% for

precision (P) and recall (R), respectively when the

size of samples is 5%, while these percentages

increased to 87% and 100% when the size of

samples is 25%. Although we have mentioned that

acceptable results mean the results of precision (P),

recall (R) and F-measure (F) are at least equal to the

best results as reported in previous work, however in

this analysis the precision (P) is lower but the recall

(R) and F-measure (F) are higher than those reported

in the previous work (Yang et al, 2008). Compared

to the results shown in Table 6 for the Restaurant

data set there is a slight different in the results of

Census data set as shown in Table 7. For example,

when the size of samples is 5% the precision (P) and

recall (R) achieved for the Restaurant data set are

69% and 70% respectively, while for the Census

data set, the precision (P) and recall (R) are 61% and

80%, respectively. The precision (P) and recall (R)

increased to 81% and 96% respectively when the

size of samples is 25%.

The reason is due to the characteristics of

Restaurant data set that consists of three attributes

with alphabetic data type and two attributes with

mix data types. From the results we can conclude

that 50% of the actual table size is the optimal

sample size that represents the number of tuples that

will be used during the sub-component of Sample

Extractor of instance based schema matching. Thus,

we have stopped the experiments at this stage as the

results achieved with the sample size of 50%

outperformed the results reported in the previous

works in terms of precision (P), recall (R), and F-

measure (F).

Table 6: Results related to the restaurant data set for the

eight experiments.

Experiment

(EX)

Size of

Samples

Precision

(P)

Recall

(R)

F-measure

(F)

Ex 1-1 5% 69% 70% 70%

Ex 1-2 10% 78% 80% 79%

Ex 1-3 15% 80% 94% 87%

Ex 1-4 20% 83% 98% 90%

Ex 1-5 25% 87% 100% 93%

Ex 1-6 30% 86% 100% 92%

Ex 1-7 40% 86% 100% 92%

Ex 1-8 50% 89% 100% 95%

InstanceBasedSchemaMatchingFrameworkUtilizingGoogleSimilarityandRegularExpression

219

Table 7: Results related to the census data set for the eight

experiments.

Experiment

(EX)

Size of

Samples

Precision

(P)

Recall

(R)

F-measure

(F)

Ex 1-1 5% 61% 80% 69%

Ex 1-2 10% 70% 88% 78%

Ex 1-3 15% 74% 93% 85%

Ex 1-4 20% 76% 90% 82%

Ex 1-5 25% 81% 96% 88%

Ex 1-6 30% 86% 100% 92%

Ex 1-7 40% 91% 96% 93%

Ex 1-8 50% 97% 97% 97%

Figure 2: Percentage of P, R and F for the Restaurant data

set samples.

Figure 3: Percentage of P, R and F for the Census data set

samples.

4.3.2 Analysis 2

In this analysis, we present the performance of our

proposed framework and compare it to the previous

work with respect to precision (P), recall (R), and F-

measure (F). Figure 4 presents the results of

accuracy in terms of precision (P), recall (R) and F-

measure (F) for the proposed framework of instance

based schema matching. From the results presented

Figure 4, the following can be concluded: (i) we

achieved 96% for precision (P), 93% for recall (R)

and 95% for F-measure (F) for the Restaurant data

set, while with Census data set we achieved 99% for

precision (P), 96% for recall (R), and 97% for F-

measure (F). The size of samples used is 50% of the

actual table size which has been identified through

experiments; and (ii) our proposed framework

produced high accuracy in spite of the framework

considered a sample of instances instead of

considering the whole instances during the process

of instance based schema matching.

Figure 4: Matching results of Census and Restaurant data

sets.

For comparison purpose, we compared our

framework to the previous approach proposed by

(Dai et al., 2008). We evaluated (Dai et al., 2008)

approach based on the two data sets, namely:

Restaurant and Census.

Figure 5 and Figure 6 show

the results of our proposed framework compared to

the (Dai et al., 2008) in terms of precision (P), recall

(R) and F-measure (F). From these results the

approach proposed by (Dai et al., 2008) achieved

low accuracy which are 66%, 68% and 67% for

precision (P), recall (R), and F-measure (F),

respectively for the Restaurant data set. While for

the Census data set the approach by (Dai et al.,

2008) achieved 83%, 74% and 78% for precision

(P), recall (R) and F-measure (F), respectively. This

is due to the fact that (Dai et al., 2008) approach

depends on the existence of common/identical

instances between the compared attributes.

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

220

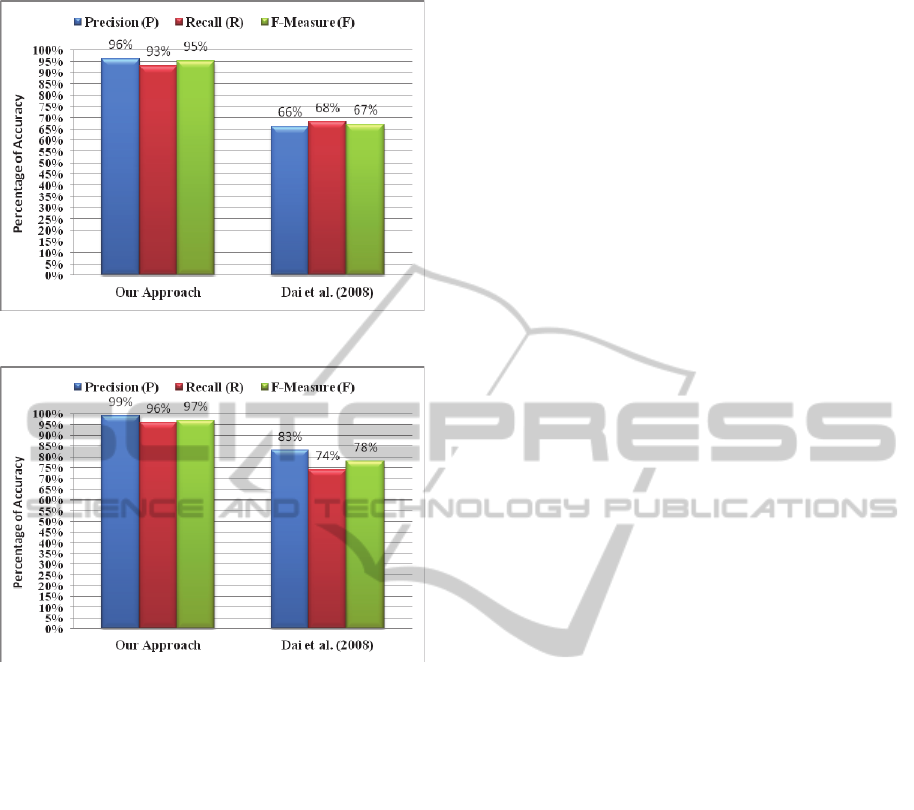

Figure 5: Matching results of the Restaurant data set.

Figure 6: Matching results of the Census data set.

From these experiments, we can conclude that

our proposed framework achieved better results

although only a sample of instances is used instead

of considering the whole instances during the

process of instance based schema matching as used

in the previous works (Dai et al., 2008).

5 CONCLUSIONS

In this paper, we proposed an instance based schema

matching framework to identify 1-1 schema

matching. Our framework rely on strategies that

combine the strengths of Google as a web semantic

and regular expression as pattern recognition. Our

experimental results show that our framework is able

to identify 1-1 matches with high accuracy in terms

of precision (P), recall (R) and F-measure (F)

although only a sample of instances is used instead

of considering the whole instances during the

process of instance based schema matching. In the

near future, we plan to extend our framework to

handle complex schema matching (n-m), since

identifying complex matches is a more challenging

problem.

REFERENCES

Bellahsene, Z., Bonifati, A. and Rahm, E., 2011. Schema

matching and mapping. Springer-Verlag, Heidelberg.

Berlin, J. and Motro, A. 2001. Autoplex: Automated

discovery of content for virtual databases. Cooperative

Information Systems Springer, pp. 108-122.

Bernstein, P.A., Madhavan, J., and Rahm, E., 2011.

Generic schema matching, ten years later.

In Proceedings of the VLDB Endowment, vol. 4, no.

11, pp. 695-701.

Bilke, A. and Naumann, F., 2005. Schema matching using

duplicates. In Proceedings of the 21st International

Conference on Data Engineering (ICDE), IEEE

Computer Society, Washington, USA, pp. 69-80.

Blake, R., 2007. A Survey of schema matching research.

College of Management Working Papers, University

of Massachusetts Boston, Paper 3.

Census 2014, accessed 3 March 2014,<

http://archive.ics.uci.edu/ml/datasets.html >.

Chua, C.E.H., Chiang, R.H. and Lim, E., 2003. Instance-

based attribute identification in database integration.

The VLDB Journal, vol. 12, no. 3, pp. 228-243.

Cilibrasi, R. and Vitanyi, P., 2004. Automatic meaning

discovery using Google. manuscript, CWI.

Cilibrasi, R.L. and Vitanyi, P.M., 2007. The Google

similarity distance. Journal of Knowledge and Data

Engineering, IEEE Transactions, Vol. 19, No. 3, pp.

370-383.

Cortez, E., da Silva, A. S., Gonçalves, M. A., and de

Moura, E. S., 2010. Ondux: on-demand unsupervised

learning for information extraction. In Proceedings of

the 2010 ACM SIGMOD International Conference on

Management of data, pp. 807-818.

Dai, B.T., Koudas, N., Srivastava, D., Tung, A., and

Venkatasubramanian, S., 2008. Validating multi-

column schema matchings by type. Journal of Data

Engineering, 2008. ICDE 2008. IEEE 24th

International Conference on IEEE, pp. 120-129.

De Carvalho, M.G., Laender, A.H., Gonçalves, M.A. and

Da Silva, A.S., 2013. An evolutionary approach to

complex schema matching. Information Systems, vol.

38, no. 3, pp. 302-316.

Doan, A. and Halevy, A.Y., 2005. Semantic integration

research in the database community: A brief survey.

AI magazine, vol. 26, no. 1, pp. 83-94.

Doan, A., Domingos, P. and Halevy, A.Y., 2001.

Reconciling schemas of disparate data sources: A

machine-learning approach. ACM Sigmod Record

ACM, pp. 509-520.

Doan, A., Domingos, P., and Levy, A.Y., 2000. Learning

Source Description for Data Integration. In

Proceedings of the International Workshop on the

Web and Databases (WebDB), Dallas, USA, pp. 81-

86.

InstanceBasedSchemaMatchingFrameworkUtilizingGoogleSimilarityandRegularExpression

221

Euzenat, J., and Shvaiko, P., 2007. Ontology

matching. Springer-Verlag, Heidelberg (DE).

Feng, J., Hong, X., and Qu, Y., 2009. An instance-based

schema matching method with attributes ranking and

classification. In Proceedings of the 6th International

Conference on Fuzzy Systems and knowledge

Discovery, IEEE Press, NJ, USA, Vol. 5, pp. 522-526.

Friedl, J., 2006. Mastering regular expressions, O'Reilly

Media, Inc.

Hai, D., 2007. Schema matching and mapping-based data

integration: Architecture, approaches and

evaluation. VDM Verlag.

Kang, J., and Naughton, J. F., 2003. On schema matching

with opaque column names and data values.

In Proceedings of the 2003 ACM SIGMOD

international conference on Management of data

ACM, pp. 205-216.

Kang, J., and Naughton, J. F., 2008. Schema matching

using interattribute dependencies. Journal of

Knowledge and Data Engineering, IEEE

Transactions on, vol. 20, no. 10, pp. 1393-1407.

Khan, L., Partyka, J., Parveen, P., Thuraisingham, B., and

Shekhar, S., 2011. Enhanced Geographically-Typed

Semantic Schema Matching. Web Semantics: Science,

Services and Agents on the World Wide Web, vol. 9,

no. 1, pp. 52-70.

Kleene, S.C., 1951. Representation of events in nerve nets

and finite automata. Automata Studies, Princeton

University Press, Princeton, NJ, pp. 3-42.

Li, W., and Clifton, C., 1994. Semantic integration in

heterogeneous databases using neural

networks. VLDB, pp. 1-12.

Li, W. and Clifton, C., 2000. SEMINT: A tool for

identifying attribute correspondences in heterogeneous

databases using neural networks. Journal of Data &

Knowledge Engineering, vol. 33, no. 1, pp. 49-84.

Li, W., Clifton, C. and Liu, S., 2000. Database integration

using neural networks: Implementation and

experiences. Knowledge and Information Systems, vol.

2, no. 1, pp. 73-96.

Li, Y., Liu, D., and Zhang, W., 2005. Schema matching

using neural network. Web Intelligence, 2005. In

Proceedings. The 2005 IEEE/WIC/ACM International

Conference onIEEE, pp. 743-746.

Liang, Y., 2008. An instance-based approach for domain-

independent schema matching. In Proceedings of the

46th Annual Southeast Regional Conference (ACM-

SE). ACM, New York, USA, pp. 268-271.

Liu, G., Huang, S. and Cheng, Y., 2012. Research on

Semantic Integration across Heterogeneous Data

Sources in Grid. In Frontiers in Computer Education,

Springer Berlin Heidelberg, pp. 397-404.

Mehdi, O.A., Ibrahim, H. and Affendey, L.S., 2012.

Instance based Matching using Regular Expression. In

Procedia Computer Science, vol. 10, pp. 688-695.

Rahm, E., and Bernstein, P.A., 2001. A survey of

approaches to automatic schema matching. The VLDB

Journal,

vol. 10, no. 4, pp. 334-350.

Restaurant 2014, accessed 3 March 2014,<

http://www.cs.cmu.edu/~mehrbod/RR/>.

Shvaiko, P., and Euzenat, J., 2005. A survey of schema-

based matching approaches. In Journal on Data

Semantics IV Springer, pp. 146-171.

Yang, Y., Chen, M. and Gao, B., 2008. An effective

content-based schema matching algorithm. Future

Information Technology and Management

Engineering, 2008. FITME'08. International Seminar

on IEEE, pp. 7-11.

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

222
