Clustering Users’ Requirements Schemas
Nouha Arfaoui and Jalel Akaichi
BESTMOD – Institut Supérieur de Gestion, 41, Avenue de la liberté,
Cité Bouchoucha, Le Bardo 2000, Tunisie
Keywords: Star Schema, User Requirement, Clustering, k-Mode Extension, Ontology.
Abstract: Data Mining proposes different techniques to deal with data. In our work, we suggest the use of clustering
technique since we want grouping the schemas into clusters according to their similarity. This technique is
applied to variety type of variables. We focus on categorical data. Many algorithms are proposed, but no
one of them takes into consideration the semantic aspect. For this reason, and in order to ensure a good
clustering of the schemas of the users’ requirements, we extend the k-mode algorithm by modifying its
dissimilarity measure. The schemas within each cluster will be merged to construct the schemas of the data
mart.
1 INTRODUCTION
Clustering is the unsupervised classification of
patterns into groups called Clusters (Jain et al.,
1999). It involves dividing a set of data points into
non-overlapping groups, or cluster of points (Faber,
1994). The purpose of the cluster is to maximize the
homogeneity of a partition of a set of variables into
K disjoint clusters (Chavent et al., 2010). There are
two different ways to classify the cluster analysis
methods (Rezankova, 2009): the partitioning
methods which cluster the objects into certain
number of clusters and methods of hierarchical
cluster analysis which make assignment of objects
into different numbers of clusters possible.
The clustering can be applied to different kind
of data: numeric data, binary data, categorical data
and ordinarily data.
In this work, we look for clustering the schemas
corresponding to the users’ requirements so that in
one cluster we will have the set of schemas which
are semantically very close to be able to build the
schemas of the data mart later. The existing
algorithms do not take into consideration the
semantic aspect while comparing the schemas. For
this reason, we propose a new algorithm which is an
extension of k-mode algorithm. This choice will be
argue in the state of the art.
We modify the dissimilarity measure and we
integrate the ontology to deal with the semantic
aspect. Let us give a short presentation of the
ontology. Indeed, it is used, at the beginning, with
the philosophy. It is concerned with the nature of
existence and the cataloguing of the existing entities
(Quine, 1980). It is considered also as a collection of
abstract objects, relationships and transformations
that represent the physical and cognitive entities
necessary for accomplishing some task (Alexander
et al., 1986). It is used mainly to resolve the
heterogeneity problem existing in the information
environments (Alexiev et al., 2005). In our case, it is
used to improve the document quality using the
hierarchical knowledge (Hotho et al., 2003), (Jing et
al., 2006).
The proposed algorithm can be applied in several
areas. We propose its use to build the data mart
schemas from the users’ requirements that are
presented as star schemas. The different users have
different skills and belong to different departments,
which makes the clustering of the schemas a crucial
step to facilitate the schema building.
The outline of this work is as following:
- In the second section, we present the state of
the art where we describe some of the existing
clustering algorithms used to cluster the
categorical data. We also give a comparative
study to argue the extension of k-mode.
- In the third section, we focus on the collection
of the users’ requirements and we give the
structure of the generated schemas.
- In the fourth section, we give the
characteristics of the k-mode algorithm.
15
Arfaoui N. and Akaichi J..
Clustering Users’ Requirements Schemas.
DOI: 10.5220/0004991100150021
In Proceedings of 3rd International Conference on Data Management Technologies and Applications (DATA-2014), pages 15-21
ISBN: 978-989-758-035-2
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
- In the fifth section, we describe our proposed
algorithm. We give its steps, its new
dissimilarity measure, as well as, the ontology
that serves to improve the quality of the
comparison.
- In the sixth section, we present the
implementation of our solution.
- We finish this work with the conclusion and
future work.
2 STATE OF THE ART
In this section, we summarize some existing
algorithms used to cluster the categorical data. Then
we give a comparative study in function of their
complexity to argue the extension of k-mode.
2.1 The Clustering Algorithms
K-Mode: The k-means has the capacity to deal with
large databases (San et al., 2004) and it is efficient
with numerical data (Huang, 2008), (Ng et al.,
2007), but it does not work with categorical data.
The idea is to extend this algorithm to deal with real
world data (including categorical data), hence the
appearance of a new algorithm k-mode (Huang,
2008), (Ng et al., 2007), (San et al., 2004).
ROCK and QROCK: In (Guha et al., 2000), the
authors present the ROCK (RObust hierarchical
Clustering with linKs) which is a hierarchical
clustering algorithm. Since the distance is not
appropriate to deal with categorical data, they
propose the links to measure the similarity/proximity
between a pair of data points.
An improvement has been proposed in (Khan
and Kant, 2007) through QROCK (Quick ROCK)
that computes the clusters by determining the
connected components of the graph which ensures
having a drastic reduction of the computing time
compared to ROCK.
COOLCAT: The proposed algorithm in
(Barbara et al., 2002) uses the notion of entropy
measure to group the records. The choice of the
entropy is because it is a more natural and intuitive
way of relating records and it does not rely in
arbitrary distance metrics.
LIMBO: According to (Andritsos et al., 2004), it
is built on the Information Bottleneck (IB)
framework that is used to define a distance measure
for categorical tuples. It has the capacity to produce
clustering of different sizes in a single execution.
Indeed, there is no need to keep whole tuples or
clusters in the memory, but instead it is sufficient
statistics to describe them.
MULIC: According to (Andreopoulos et al.,
2004), MULIC is an extension of k-mode algorithm.
It starts by clustering objects with high values; it
does not require specifying the number of the
clusters in the beginning since it can change during
the process, it forms clusters gradually and if a new
pattern is discovered, etc.
HIERDENC: The authors (Andreopoulos et al.,
2004) applied this algorithm to categorical datasets.
It clusters the m-dimensional cube with m-
categorical attributes. The algorithm considers an
object’s neighbors that are within a radius of
maximum dissimilarity in order to find the dense
subspace. It starts from the densest subspace of the
cube and it expands outwards from a dense subspace
by connecting nearby dense subspaces.
RAHCA: In (Chen et al., 2006), the authors
propose the use of Rough Set Theory (RST) to
cluster categorical data in order to solve the problem
of similarity measure. The clustering data set is
mapped as the decision table through the
introduction of decision attribute. RST is based on
Euclidean distance.
2.2 Comparative Study
In order to justify our choice, we compare the
previous algorithms according to their complexity as
present in Table 1.
According to Table 1, we can notice that k-mode
has the lowest complexity (O (n)), also, it has the
capacity to deal with huge amount of data and it is
easy to implement. For the cited reasons, we use it.
K-mode, as it is defined, cannot deal with our data.
It does not take into consideration the semantic
aspect of the elements while comparing. For
example if we compare the two dimension tables
“film” and “movie” using the simple matching as
defined in k-Mode, they will not be considered as
the same, although they are two synonymous terms.
So, we need to improve the dissimilarity measure by
integrating other techniques such as the ontology,
synonyms, etc.
More details about the assistant system are given
in (Arfaoui and Akaichi, 2013).
3 THE USER REQUIREMENT
The requirement is a source of pertinent information.
It plays a crucial role in the DW process design. It
can cause the failure of the whole project if it is
DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications
16
Table 1: Comparison of different algorithms used to cluster categorical data.
Algorithm Algorithm type Complexity Coefficient
K-MODE
Partitioning
O (n) Simple Matching
ROCK
Hierarchical clustering O(kn
2
) Links
QROCK
Hierarchical clustering O(n
2
) Threshold
COOLCAT
Hierarchical clustering
O (n
2
) Entropy
LIMBO
Hierarchical clustering
O (nLogn) Information Bottleneck
MULIC
Partitioning
O (n
2
) Hamming measure
HIERDENC
Hierarchical clustering O (n) Simple Matching
RAHCA
Hierarchical clustering O (An
3
) New similarity measure based on Euclidean distance
faulty. It is used to specify “what data should be
available and how it should be organized as well as
what queries are of interest” (Malinowski and
Zimanyi, 2008). It extracts the important elements
related to the multidimensional schema (facts,
measures, dimensions, attributes).
3.1 Collecting the Users’ Requirements
This step is about facilitating to the users the
specification of their requirements. They can find
difficulties to express their needs with the SQL
queries especially when using the GROUP BY
and/or HAVING clauses (Annoni et al., 2006),
(Gyssens and Lakshmanan, 1997).
We propose, as solution, the use of an assistant
system that intervenes by suggesting the possible
multidimensional elements to use. The proposed
system saves the manipulation of each user as a
trace. Then, it exploits the stored experiences by
making a set of comparisons between them and the
current manipulation of the user. Finally, it suggests
the appropriate elements to manipulate.
3.2 Generating the Schemas
To facilitate the manipulation of the users’ needs, we
propose their presentation as star schemas (Figure
1). They have the following structure:
- Fact table corresponds to the subject of
analysis. It is defined by FN and MF{} with:
o FN: is the fact name “Profit”.
o MF {m1, m2, m3, m4, …}: is the set of
measures related to the fact F: “Quantity and
Price”.
- Dimension tables represent the axis of
analysis. Each one is composed by DN and
A{}, with:
o DN: is the dimension name: “Customer,
Supplier, Product etc.”
o A {a1, a2, a3, a4, …}: is the set of attributes
describing the current dimension D:
“FirstName, LastName, Address etc.”.

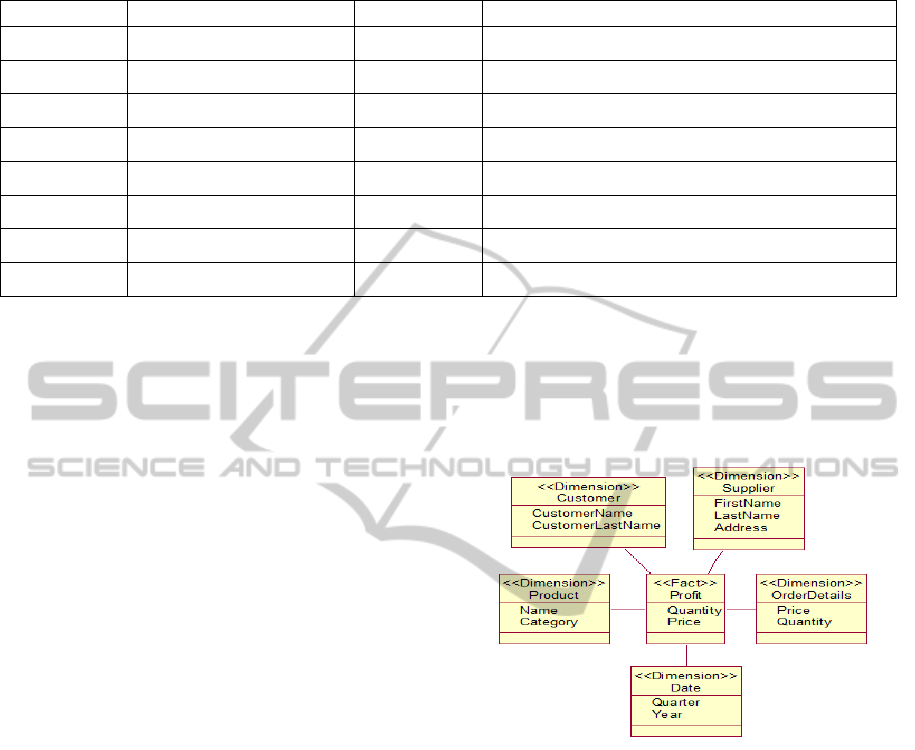

Figure 1: Example of schema corresponding to a user
requirement.
4 THE CHARACTERISTICS OF
K-MODE
The proposed algorithm is an extension of k-mode.
This latter presents some challenges that we present
in the following.
4.1 ‘k’: The Number of Clusters
One of the challenges related to the construct of
clusters is the estimation of the appropriate ‘k’
(Hand et al., 2001). One of the proposed solutions is
the calculation of the validity measure that is based
on the inter-cluster and inter-cluster distance
measures: validity= intra / inter (Malinowski and
ClusteringUsers'RequirementsSchemas
17
Zimanyi, 2008). A second solution consists on using
the gap statistic. It is about comparing the change in
within-cluster dispersion with that expected under an
appropriate reference null distribution (Tibshirani et
al., 2001).
4.2 The Distance
Concerning the distance (Huang, 2008), (Ng et al.,
2007), it is based on the simple matching
dissimilarity measure that takes two values 0 or 1. It
calculates the relative attribute frequencies of the
cluster modes in the dissimilarity measure in the k-
modes objective function. This modification allows
the algorithm to recognize a cluster with weak intra-
similarity, and therefore assigns less similar objects
to such cluster, so that the generated clusters have
strong intra-similarities.
4.3 The Selection of Modes
K-mode is unstable due to non-uniqueness of the
modes (San et al., 2004). The clustering results
depend strongly on the selection of modes during the
clustering process. As solution, the authors propose
“cluster center” represented by the most frequent
values. Their formation is done using Cartisian
product and union operations, and for the
dissimilarity measure, it depends on the relative
frequencies of categorical values within the cluster
and simple matching between categorical values
which can be considered as a categorical counterpart
of the squared Euclidean distance measure.
5 THE PROPOSED ALGORITHM
5.1 The Specification of the New
Algorithm
As we saw, the k-mode presents some
disadvantages. To use it, we propose some
improvements related to the number of clusters and
the used distance.
- “k” the number of clusters: Since we are
looking for grouping the different schemas into
clusters, we suggest considering “k” as the
number of existing domains. By this way, we
are sure that the schemas of one cluster belong
to same domain and they have some common
elements. This choice facilitates the generation
of the schemas of data mart.
- The distance: The k-mode uses the simple
matching dissimilarity measure that is based
on the relative frequencies of items within
clusters. This measure cannot be applied to the
schemas. As consequence, we propose its
extension. The new distance will be detailed
next.
5.2 The Ontology
In order to improve the simple matching
dissimilarity measure, we propose the use of the
ontology. In fact, the traditional measures, those are
used for numerical data, categorical data and even
for heterogeneous data, ignore the semantic
knowledge. This has negatively influences on the
quality of the interpretations (Batet et al., 2008),
especially with the possibility to add semantic
information about the domain in some fields (Studer
et al., 1998).
Our ontology helps to extract the similar
elements belonging to the same category. We need,
then, the following classes:
- Domain: It corresponds to the domain of a
specific schema.
- Schema: It identifies the schemas. It links its
different elements.
- Fact: It corresponds to the subject of analysis.
It includes all the different ways used to
describe one fact.
- Measure: every fact has one or more measures
that are numerical. We keep information about
the different words used to describe a specific
measure.
- Dimension: it corresponds to the axe of
analysis. It serves to group the different ways
to describe one specific dimension.
- Attribute: every dimension has a set of
attributes. We keep information about the
different words used to describe a specific
attribute.
Once we specify the classes, we move to the
relationships, and we have:
- is-Schema (Si, Dj): “Si” is a schema that
belongs to the domain “Dj”.
- is-Fact (Fi, Sj): “Fi” is a fact that belongs to
the schema “Sj”.
- is-Dimension (Di, Fj): “Di” is a dimension that
belongs to the fact “Fj”.
- is-Measure (Mi, Fj): “Mi” is a measure that
belongs to the fact “Fj”
- is-Attribute (Ai, Di): “Ai” is an attribute that is
related to the dimension “Di”.
DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications
18
To exploit the ontology, we propose the
implementation of a method that takes two elements
to return three values: (-1), (0) and (1).
- (-1) implies that at least one of the two
elements does not exist in the ontology.
- (0) implies that the two elements are not the
same.
- (1) implies that the two elements are the same.
In the first case, we calculate the similarity of the
elements of the two schemas taking into
consideration the following points:
- The identical: It is the case where we use the
same elements name in the two schemas.
DeId (e1, e2) =1 if “e1” and “e2” are identical
and 0 if not.
- The synonymous: It is the case where we use
two different names that have the same
meaning.
DeSy (e1, e2) = 1 if “e1” and “e2” are
synonymous, and 0 if not.
- The typos: It is the case where the user makes
mistakes when writing the name of the
element. We calculate the degree of error. If it
is low, we are in the case of typing error. If it is
high we are in the case of two different words.
In the following we only take into
consideration the first case.
DeTy (e1, e2) =1 if “e1” and “e2” are the same
with the existence of typing error.
- The post-fixe: It is the case where we use post-
fixes to design the same thing.
DePost (e1, e2) = 1 if one of the two elements is
the post-fixe of the other, and 0 if not.
- The pre-fixe: It is the case where we use pre-
fixes to design the same thing.
DePre (e1, e2) = 1 if one of the elements is the
pre-fixe of the other, and 0 if not.
Concerning the homonyms, it is taken into
account implicitly. In fact, during the specification
of the user requirements, we specify the domain. By
this way, we adjust the terms so that two identical
terms used in the same domain, denote the same
thing and give the same information.
The degree of similarity of “e1” and “e2”
(DeSim (e1, e2)) is measured by the numeric value
in {0}, {1} using the formula (1).
DeSim (e1, e2) = [DeId (e1, e2) + DeSy (e1, e2) +
DeTy (e1, e2) + DePost (e1, e2) + DePre (e1, e2)]
(1)
The result of this formula is ‘0’ or ‘1’. ‘0’
implies that the two elements are not similar, ‘1’ if
they are. The result is inserted into the ontology.
5.3 The New Dissimilarity Measure
Since we are dealing with star schema, we have as
elements: fact table, dimension tables, measures and
attributes.
The new measure Coef
SM
representing the
coefficient of similarity is presented through the
following formula (2):
Coef
SM
= [ (MaxD – CoefD) / MaxD] +
[(MaxM – CoefM) / MaxM] + [(MaxF – CoefF )
/MaxF] + [ ( MaxA – CoefA ) /MaxA]
(2)
With:
- MaxD: corresponds to the maximum number
of the existing dimension tables.
- MaxM: corresponds to the maximum number
of the existing measures.
- MaxF: corresponds to the maximum number of
the existing fact tables.
- MaxA: corresponds to the maximum number
of the existing attributes.
- CoefD: calculates the number of similar
dimension tables using the formula (1).
- CoefM: calculates the number of similar
measures using the formula (1).
- CoefF: calculates the number of similar fact
tables using the formula (1).
- CoefA: calculates the number of similar
attributes using the formula (1).
5.4 The Algorithm
The new algorithm has the same steps as k-mode:
a) Define the ‘k’ number of existing domains
b) Select ‘k’ initial modes.
c) Allocate a schema to the cluster whose mode is
the nearest to the cluster, using the formula (2):
d) Update the mode of the cluster after each
allocation.
e) After all schemas have been allocated to the
respective cluster, retest the schemas with new
modes and update the clusters.
f) Repeat steps (b) and (c) until there is no
change in clusters.
Concerning the update of the mode, we use the
same method as defined in the k-mode which is
based on the frequency of the elements.
6 THE IMPLEMENTATION
In this section, we present the implementation of our
solution. Figure 2 presents the interface that we use
to collect the users’ requirements.
ClusteringUsers'RequirementsSchemas
19

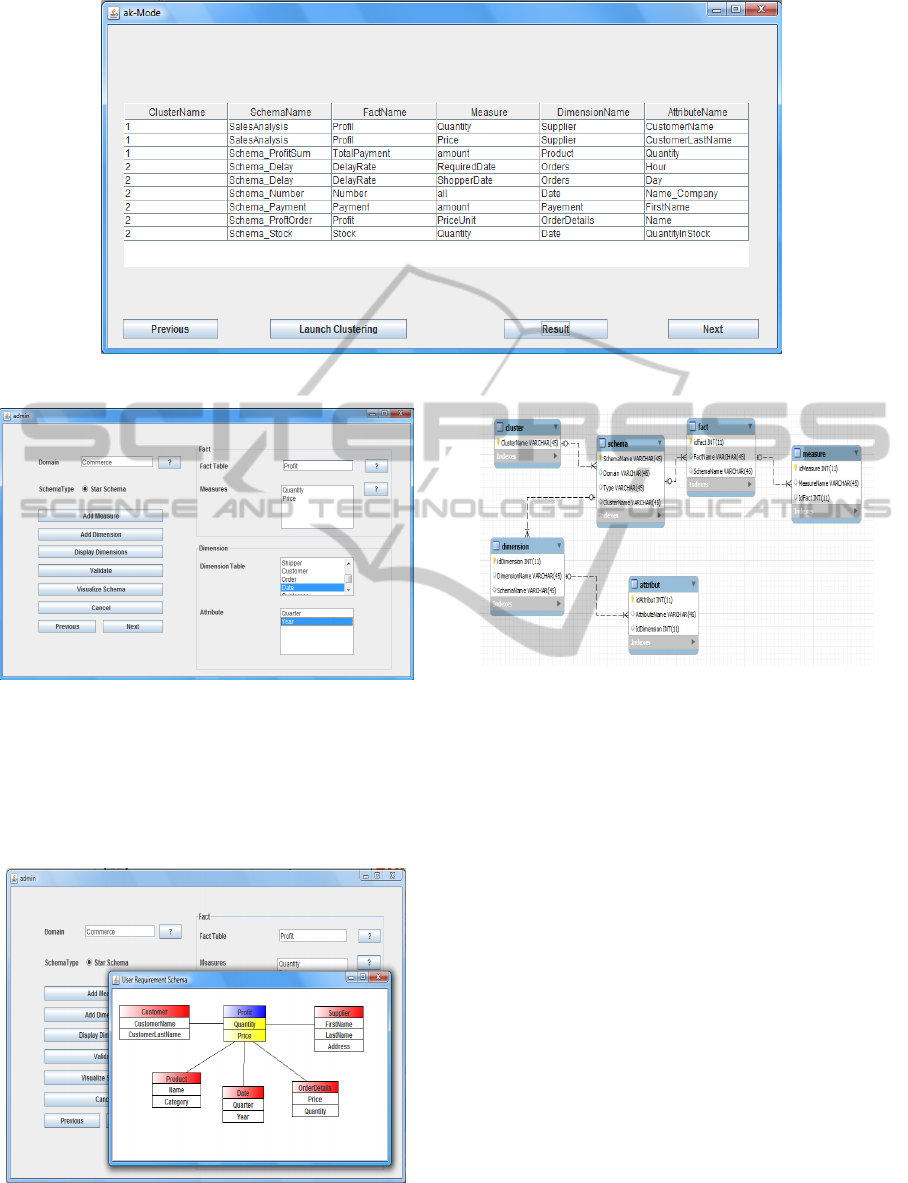

Figure 5: The result of the application of the new algorithm.
Figure 2: The proposed interface to specify the users’
requirements.
Once he finishes all the specifications, the result
of this step is visualized as a star schema as
presented in Figure 3. Such modeling facilitates the
task of clustering.
Figure 3: Example of star schema corresponding to the
user requirement.
Figure 4: The structure of the used database.
The collected schemas are stored into database
(Figure 4). It is composed by 6 classes which are
“Cluster”, “Schema”, “Fact”, “Measure”,
“Dimension” and “Attribute”.
Once we collect the set of schemas
corresponding to the users’ requirements, we move
to the next step where we apply our new algorithm
to cluster them. The result of the clustering is
presented in Figure 5 where we have two clusters.
For each cluster, it visualizes the set of existing
elements.
7 CONCLUSION
In this work, we proposed a new algorithm ak-mode
to cluster the schemas that were generated from the
users’ requirements. The new algorithm is an
extension of k-mode algorithm. It is chosen because
of its capacity to deal with huge amount of data;
also, it has the lowest temporal complexity. The new
algorithm uses the ontology to improve the quality
of the dissimilarity measure to take into
DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications
20
consideration the semantic aspect while comparing
the elements of the schemas. The result of this
algorithm is a set of clusters containing a set of
schemas semantically close.
The new algorithm offers the possibility to deal
with the requirements of different users having
different skills and belonging to different
departments.
As future work, we will merge the schemas
within each cluster using the schema integration
technique to generate data mart schemas.
We propose, also, extending this work to deal
with other structures of schemas corresponding to
the databases schemas.
ACKNOWLEDGEMENTS
We would like to thank everyone.
REFERENCES
Alexander, J. H., Freiling, M. J., Shulman, S. J., Staley, J.
L., Rehfuss, S., and Messick, S. L., 1986. Knowledge
Level Engineering: Ontological Analysis. In
Proceedings of the 5th National Conference on
Artificial Intelligence, AAAI-86, 963-968.
Alexiev, V., Breu, M., De Bruijn, J., Fensel, D., Lara,
R., and Lausen, H., 2005. Information Integration with
Ontologies: Experiences from an Industrial Showcase,
John Wiley & Son.
Andreopoulos, B., An, A., and Wang, X., 2004. MULIC:
Multi-Layer Increasing Coherence Clustering of
Categorical data sets. Technical Report CS-2004-07,
York University.
Andritsos, P., Tsaparas, P., Miller, R. J., and Sevcik, K.
C., 2004. LIMBO: Scalable Clustering of Categorical
Data. In Proceedings of the 9th International
Conference on Extending Database Technology
(EDBT), Heraklion, Greece, 123-146.
Annoni, E., Ravat, F., Teste, O., and Zurfluh, G., 2006.
Towards Multidimensional Requirement Design. In
Proceedings of 8th International Conference Data
Warehousing and Knowledge Discovery (DaWaK),
75-84.
Arfaoui. N., Akaichi. J., 2013. New Approach for the
Collection of Users’ Requirements using DwADS. In
Proceedings of 22nd International Business
Information Management Association (IBIMA),
Rome, Italy,
Barbara, D., Couto, J., and Li, Y., 2002. COOLCAT: An
entropy-based algorithm for categorical clustering. In
Proceedings of the eleventh international conference
on Information and knowledge management, 582-589.
Batet, M., Valls, A., and Gibert, K.., 2008. Improving
classical clustering with ontologies. In Proceedings of
the 4th world conference of the international
association for statistical computing, 137-146.
Chavent, M., Kuentz, V., and Saracco, J., 2010. Clustering
of categorical variables around latent variables.
Cahiers du GREThA 2010-02, Groupe de Recherche
en Economie Theorique et Appliquee.
Chen, D., Cui, D.W., Wang, C.X., and Wang, Z. R., 2006.
A Rough Set-Based Hierarchical Clustering Algorithm
for Categorical Data. International Journal of
Information Technology.
Faber, V., 1994. Clustering and the Continuous k-means
Algorithm. Los Alamos Science, 138-144.
Guha, S., Rastogi, R., and Shim, K.., 2000. ROCK: A
Robust Clustering Algorithm for Categorical
Attributes. In: Inf. Syst., Vol. 25, Nr. 5 Oxford, UK,
UK: Elsevier Science Ltd., 345-366.
Gyssens, M. and Lakshmanan, L. V. S., 1997. A
Foundation for Multi-dimensional Databases.
In Proceedings of 23rd International Conference on
Very Large Data Bases (VLDB), 106-11.
Hand, D., Mannila, H., and Smyth, P., 2001. Principles of
Data Mining. MIT Press, Cambridge, MA.
Hotho, A., Staab, S., and Stumme, G., 2003. Wordnet
improves Text Document Clustering. In Proceedings
of the SIGIR 2003 Semantic Web Workshop.
Huang, Z., 1998. Extensions to the k-Means Algorithm for
Clustering Large Data Sets with Categorical Values.
Data Mining and Knowledge Discovery, 2:283–304.
Jain, A. K., Murty, M. N., and Flynn, P. J., 1999. Data
Clustering: A Review. ACM Comput. Surv., 264-323.
Jing, L., Zhou, L., Ng, M. K., and Huang, J. Z., 2006.
Ontology-based Distance Measure for Text Clustering.
In Proceeding of SIAM International conference on
Text Data Mining, Bethesda.
Khan, S. S., Kant, S., 2007. Computation of Initial Modes
for K-modes Clustering Algorithm using Evidence
Accumulation.
International Joint Conference on
Artificial Intelligence, 2785-2789.
Malinowski, E., and Zimanyi, E., 2008. Advanced Data
Warehouse Design, From Conventional to Spatial and
Temporal Applications, Springer Verlag Berlin
Heidelberg.
Ng, M. K., Li, M. J., Huang, J. Z., and He, Z., 2007. On
the Impact of Dissimilarity Measure in k-modes
Clustering Algorithm. IEEE Transactions on Pattern
Analysis and Machine Intelligence, 29 (3): 503-507.
Quine, W.V.O., 1980. From a Logical Point of View.
Harvard University Press; Cambridge, MA.
Rezankova, H., 2009. Cluster Analysis and Categorical
Data. Statistika, 216-232.
San, O. M., Huynh, V. N., and Nakamori, Y., 2004. An
Alternative Extension Of The K-Means Algorithm For
Clustering Categorical Data. Journal of Applied
Mathematics and Computer Science, No. 2, 241-247.
Studer, R., Benjamins, V. R., and Fensel, D., 1998.
Knowledge Engineering: Principles and Methods.
IEEE Trans on Data and Knowledge Engineering, 25
(1-2): 161-197.
Tibshirani, R., Walther, G.., and Hastie, T., 2001.
Estimating the number of clusters in a data set via the
gap statistic, J. R. Statist. Soc. B, 411-423.
ClusteringUsers'RequirementsSchemas
21
