FunctionGuard

A Query Engine for Expensive Scientiﬁc Functions in Relational Databases

∗

Anh Pham and Mohamed Eltabakh

Computer Science Department, Worcester Polytechnic Institute (WPI), Worcester, MA, U.S.A.

Keywords:

Caching Techniques, Expensive User-deﬁned Functions, Scientiﬁc Applications, Query Processing.

Abstract:

Expensive user-deﬁned functions impose unique challenges to database management systems at query time.

This is mostly due to the black-box nature of these functions, the in-ability to optimize their internals, and the

potential inefﬁciency of the common optimization heuristics, e.g., “selection-push-down’. Moreover, the in-

creasing diversity of modern scientiﬁc applications that depend on DBMSs and, at the same time, extensively

use expensive UDFs is mandating the design and development of efﬁcient techniques to support these expen-

sive functions. In this paper, we propose the “FunctionGuard” system that leverages disk-based persistent

caching in novel ways to achieve across-queries optimizations for expensive UDFs. The unique features of

FunctionGuard include: (1) Dynamic extraction of dependencies between the UDFs and the data sources and

identifying the potential cacheable functions, (2) Cache-aware query optimization through newly introduced

query operators, (3) Proactive cache refreshing that partially migrates the cost of the expensive calls from

the query time to the idle and under-utilized times, and (4) Integration with the state-of-art techniques that

generate efﬁcient query plans under the presence of expensive functions. The system is implemented within

PostgreSQL DBMS, and the results show the effectiveness of the proposed algorithms and optimizations.

1 INTRODUCTION

Database systems provide an eminent support

to scientiﬁc applications in various domains

including biology, healthcare, astronomy, or-

nithology, among others. Many of these ap-

plications utilize DBMSs for managing large-

scale datasets, e.g., biological databases in

Genobase (http://ecoli.naist.jp/GB8/), Ecoli-

House (http://www.porteco.org/), Ensemble project

(http://www.ensembl.org/), and UniProt database sys-

tem (http://www.ebi.ac.uk/uniprot), and healthcare

databases in H.CUP (https://www.hcup-us.ahrq.gov/)

and HealthCatalyst (http://www.healthcatalyst.com/).

All of these databases leverage the desirable char-

acteristics of DBMSs including advanced query

optimization, indexing techniques, concurrency and

recovery control, and ensured consistency.

One of the challenging requirements in scientiﬁc

applications is that the targeted analysis usually goes

beyond the standard SQL operations, e.g., selection,

projection, join, and grouping and aggregation, to

more complex analysis functions such as sequence

∗

This project is partially supported by the NSF-CRI

1305258 grant.

alignment, prediction functions, quality assessment

tools, image processing, feature extraction and di-

mensionality reduction, etc. These functionalities

when integrated inside the DBMS they are typically

modeled as stored procedures or functions, and hence

they are treated as black box operations with very

limited optimizations. Most modern DBMSs support

implementing the user-deﬁned functions in external

languages, e.g., C or Java. Since these functions are

usually expensive, they impose high overhead—and

sometimes a bottleneck—to query execution.

Optimizing such expensive functions has been

addressed in previous work (Hellerstein and Stone-

braker, 1993; Hellerstein and Stonebraker, 1993;

Chaudhuri and Shim, 1996; Scheufele and Moerkotte,

1998; Scheufele and Moerkotte, 1998). Most of these

optimization techniques relay on estimating the cost

of these functions, and then generating query plans

that try to minimize the invocation of expensive func-

tions. For example, if a selection predicate invokes

an expensive UDF, then it can be more efﬁcient not

to use the optimization rule “selection-before-join”,

and instead postpose checking the expensive selec-

tion predicate until after the join operation. Other

techniques use main-memory caching in which the

Pham A. and Eltabakh M..

FunctionGuard - A Query Engine for Expensive Scientiﬁc Functions in Relational Databases.

DOI: 10.5220/0004992300950106

In Proceedings of 3rd International Conference on Data Management Technologies and Applications (DATA-2014), pages 95-106

ISBN: 978-989-758-035-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

invocations within a given single query are cached

in main memory, and then if the same input parame-

ters are used multiple times during the execution, then

the cached results are used to avoid redundant invoca-

tions (Hellerstein and Naughton, 1996).

However, as scientiﬁc functions are getting more

complex and storage is getting less expensive, an

attractive—and yet unexplored—approach is to use

larger and persistent disk-based caches to main-

tain the output from these expensive functions for

longer time. The advantages of this approach in-

clude: (1) Unlike main-memory caches which opti-

mize a single query, persistent caches can optimize

multiple queries, and (2) As the data size is getting

larger, persistent caches will offer much larger space

to store more data, and hence increase the cache hit

ratio and avoid more invocations to these functions.

In this paper, we propose a new mechanism for

optimizing expensive user-deﬁned functions in re-

lational database systems. We propose the Func-

tionGuard system that leverages disk-based persistent

caching to achieve across-queries optimizations sup-

ported by proactive cost-based cache refreshing tech-

niques and cache-aware query optimization. Func-

tionGuard relays on the following novel features:

(1) Dynamic Extraction of Dependencies: We

develop a function analysis tool that automatically ex-

tracts the dependencies of the user-deﬁned functions

from their source codes. These dependencies may in-

clude the input arguments passed to the function, ac-

cess to database tables, external ﬁles, wall clock, and

invocation to other functions. The output from this

process is a complete functional dependency graph

that captures all elements that a given function F de-

pends on.

(2) Identifying Cacheable Functions and

Caching Results: Based on the dependency graph,

the system identiﬁes which functions are cacheable,

i.e., their outputs can be temporarily cached and

re-used across multiple invocations. A cacheable

function must have all its dependencies (immediate

children in the dependency graph) identiﬁed as

trackable, i.e., the DBMS can track whether or

not these dependencies have changed from the last

invocation. For example, an access to a local DB

table is a trackable dependency, whereas an access to

an external DB table is not. For cacheable functions,

their output results are cached for subsequent re-use.

(3) Cache-Aware Query Optimization: We ex-

tend the query engine of FunctionGuard to take into

account the cached results of expensive UDFs. The

caching may partially or completely eliminate the

need for the function invocation at query time. We

propose new query operators and algorithms for ef-

ﬁciently integrating the cached results in the query

pipeline. We also propose cache replacement mecha-

nisms that are suitable for disk-based caches in con-

trast to main-memory caches.

(4) ProactiveExecution and Pre-fetching of Re-

sults: For a cacheable function F, when one of F’s

trackable dependencies change, the output cache will

be invalidated. One possible approach is to wait for

the next invocation of F to refresh its cache. In con-

trast, FunctionGuard deploys a cost-based proactive

mechanism in which the system may proactively re-

fresh F’s cache output using the most recently or fre-

quently used arguments. In that case, the execution

overhead of the function is partially shifted to the

times when the system is idle or under utilized in con-

trast to the query time.

FunctionGuard is not a replacement for the ex-

isting techniques, instead it is complementary to

all algorithms that generate efﬁcient query plans in

the presence of expensive UDFs, e.g., (Hellerstein,

1994; Hellerstein and Stonebraker, 1993; Chaudhuri

and Shim, 1996; Scheufele and Moerkotte, 1998;

Scheufele and Moerkotte, 1998). That is, Func-

tionGuard takes as input a query plan generated from

any of these systems, and then it updates the plan by

replacing the operator used for function invocations

by a more complex cache-aware operators that utilize

the available cache.

The rest of the paper is organized as follows: In

Section 2, we present the related work. In Section 3,

we present the proposed mechanisms for building

the dependency graph and managing the cache. The

cache-aware query processing, and proactive cache

update are presented in Sections 4, and 5, respec-

tively. Finally, the experimental evaluation and con-

clusion remarks are included in Sections 6, and 7, re-

spectively.

2 RELATED WORK

Scientiﬁc algorithms and techniques usually require

super-linear or even N

or N

time complexity to pro-

cess N data points (Gray et al., 2005; Haas et al.,

2001). These expensive functions when implemented

inside the DBMSs represent a major optimization

challenge at query time. Several techniques have been

proposed to optimize the execution of these expen-

sive functions, e.g., predicates that involve expensive

functions or expensive subqueries (Chaudhuri et al.,

2002; Chaudhuri and Shim, 1993; Hellerstein and

Stonebraker, 1993; Munagala et al., 2007). The work

in (Chaudhuri et al., 2002) has explored the usage

of data mining models to derive query predicates,

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

Create Function F1(int x, varchar y)

{

….

Select gene_name

From Gene

Where geneID like JW00%;

….

Execute F2();

}

Create Function F2()

{

Select protein_name

From Protein

Where proteinFunc = ‘Hormonal;

….

IF (condition)

Execute F3()

}

Create Function F3()

{

….

File *f = fopen(c:\\input.txt,r);

….

Execute F2();

}

Arguments (x, y)

Gene table

(geneID like ‘JW001’)

Protein table

ProteinFunc = ‘Hormonal’

File: c:\\input.txt

(a) Expensive functions in the database.

(b) Dependency Graph between functions and data sources.

Figure 1: Examples of expensive UDFs in scientiﬁc applications and their dependency graph.

and then how the predicates can be used for efﬁ-

cient execution. In contrast, the techniques presented

in (Hellerstein, 1994; Hellerstein and Stonebraker,

1993; Chaudhuri and Shim, 1996; Scheufele and

Moerkotte, 1998; Scheufele and Moerkotte, 1998)

have all focused on optimizing the query plan by

not following the traditional heuristic of “predicate-

pushdown” since the predicates in the case of expen-

sive functions can be even more expensive than a join

operation. Thus, these techniques proposed new cost

models and extensions to existing query optimization

techniques to ﬁnd more efﬁcient query plans.

Capturing the semantics of the external functions

has been addressed in (Chaudhuri and Shim, 1993;

Chaudhuri and Shim, 1996). Users provide seman-

tics information and cost estimates for their UDFs,

and these information is integrated with the query

optimizer to choose the cheapest query plan. The

presence of expensive functions in queries has been

addressed in different contexts including multimedia

repositories (Chaudhuri and Gravano, 1996; Zhang

et al., 2012), object-relational databases (Hellerstein,

1998), and continuous queries (Munagala et al., 2007;

Denny and Franklin, 2006). For example, The work

in (Denny and Franklin, 2006) has proposed approxi-

mation techniques to run the expensive UDFs to only

the accuracy needed by the query instead of con-

suming the entire input. The algorithm presented

in (Chang and Hwang, 2002) proposes a strategy to

answer top-k ranking queries with minimal number

of probing to evaluate objects, and hence minimizing

the invocation of the involved expensive functions.

The FunctionGuard system is distinct from the

previous techniques in that: (1) It leverages disk-

based caching techniques, and hence the cached data

will optimize multiple queries and the amount of

cached entries can be more scalable compared to

main-memory caches, (2) The system does not search

for an optimal query plan, and hence it is complemen-

tary to existing techniques, i.e., FunctionGuard can be

used on top the existing techniques, e.g., (Hellerstein,

1994; Hellerstein and Stonebraker, 1993; Chaudhuri

and Shim, 1996; Scheufele and Moerkotte, 1998),

as will be explained in Section 4. And (3) Func-

tionGuard includes novel mechanisms for disk-based

cache maintenance, which are differentfrom those de-

veloped for main-memory caches.

3 DEPENDENCY GRAPH AND

RESULTS CACHING

3.1 Dependency Graph

Maintaining the dependenciesamong the user-deﬁned

functions and the data sources, e.g., database tables,

ﬂat ﬁle, wall clock, or any other sources of data, is

an essential metadata information in the system. This

is because these dependencies will enable the system

to keep track of whether or not a speciﬁc cache (a

materialized output from a function) is still valid. The

cache of a givenfunction F is considered valid as long

as all elements on which F depends do not change.

FunctionGuard constructs a functional depen-

dency graph G based on the functions’ deﬁnitions

(See Figure 1). The graph G = (V, E) is a directed

graph, where the nodes V represent either a UDF or a

data source. Each non-leaf node represents a UDF

and each leaf node represents a data source. Each

FunctionGuard-AQueryEngineforExpensiveScientificFunctionsinRelationalDatabases

Source type Additional Info Trackable

Database table Predicates in the form of

“colum <op> constant”

Yes

External file --- Yes

Wall Clock --- No

Random

Generation

--- No

Other sources --- No

Func Calls --- Yes (if

cacheable)

Figure 2: Types of Data Sources Used in UDFs.

edge e = (v

, v

) ∈ E represents a dependency from

node v

(must be a UDF) to node v

(either another

UDF or a data source), which indicates that v

de-

pends on or accesses v

. For example, the functions

illustrated in Figure 1(a) will map to the dependency

graph in Figure 1(b). Function F

depends on its

two input arguments x and y, the

Gene

table in the

database, and function F

. Therefore, if, for example,

the data in table

Gene

have changed, then the cached

output of F

may be invalidated. After extracting the

dependencies of each of the three functions, the pro-

duced graph will be as depicted in Figure 1(b).

It is worth noting that the graph captures coarse

grained dependencies among the UDFs and the data

sources. This means that a function F depends on

a data source s if there is any execution path of F

that accesses s. And thus, these dependencies are

static based on F’s deﬁnition and independent from

the input arguments passed to F. For example, func-

tion F

depends on F

only under a certain condition.

However, the dependency graph does not capture such

ﬁne-grained dependency because it is very expensive

to capture the dependencies for each execution path

especially is complex functions. The graph may also

contain cycles, e.g., the cycle between functions F

and F

in Figure 1(b). These cycles do not necessarily

mean that there are cycles at execution time because

may be referencing F

in speciﬁc execution paths

or under certain conditions as shown in the ﬁgure.

Graph Construction: To construct the graph, we

built a tool that takes a function’s source code in

C, Java, or PL/SQL, and returns its dependencies.

Hence, given a set of UDFs in the database, the

tool incrementally builds the dependency graph. For

a given function F, the types of the extracted data

sources along with their properties are summarized in

Figure 2. The tool extracts references to database ta-

bles, and for each table T it captures any predicates

on T in the form of “columnName <op> constant”.

These predicates are important as they will help nar-

rowing down the false-positive decisions of invalidat-

ing a cache of a function F although the actual change

to a database table is irrelevant to F’s output. The

database tables are deﬁned as trackable data sources

since FunctionGuard can track whether or not it has

changed from the last invocation. The system also

extracts any access to ﬂat ﬁles in the ﬁle system, and

deﬁnes them as trackable data sources since Func-

tionGuard can track whether or not a ﬁle has changed

by checking its last modiﬁcation timestamp. Refer-

ences to the wall clock, random generation, or other

sources, e.g., references to external databases, are also

extracted and deﬁned as non-trackable. Finally, invo-

cations to other functions are also extracted as illus-

trated in Figure 2.

Based on the extracted dependencies, a function

F is categorized as cacheable iff all its dependent

data sources are trackable and all its dependent func-

tions are cacheable. Otherwise, F is categorized as

non-cacheable. In the presence of a cycle in the de-

pendency graph, if none of the functions involved in

the cycle is categorized as non-cacheable, then all of

them will be categorized as cacheable. For example,

functions F

and F

in Figure 1(b) will be both cate-

gorized as cacheable.

3.2 Cache Management

As an initial setup, the database admin needs to allo-

cate a certain disk space M in the database for the

cache managed by FunctionGuard. Initially, Func-

tionGuard will divide this space equally between the

expensive functions. However overtime, the system

will monitor the usage of these expensive functions

and dynamically assign priorities to them, which will

reﬂect on the amount of cache allocated to each func-

tion. The priorities are computed as follows:

Priorities of Expensive Functions: Assume that

there are N expensivefunctions in the system, denoted

as F = {F

, F

, ..., F

}. Our goal is to make the sys-

tem adaptive to the most recent usage of the expensive

functions and not highly dependent on the old history.

In order to achieve this, the system maintains a cata-

log table that stores for each function F

its usage over

the last K queries executed in the system. The usage

of function F

in query Q

includes two parameters:

.Frequency and F

.TotalTime, where the former

captures the number of times F

is invoked by Q

, and

the latter captures the total time consumed by F

from

all its invocation by Q

. As more queries are executed

by the system, each new query Q

new

referencing func-

tion F

will replace the oldest entry in F

with a new

entry for Q

new

. Moreover, for each function F

′

∈ F

that is not referenced by Q

new

, the oldest entry will be

deleted and a new entry with zero parameters is added

to F

′

history. The mechanism ensures that the system

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

Table-scan

Projection

(Compute F1(R.a))

!"#$

%&!"#'$

Selection

F1(R.a) = …

Q: Select *

From R

Where F1(R.a) = <const>

…

Rest of the plan

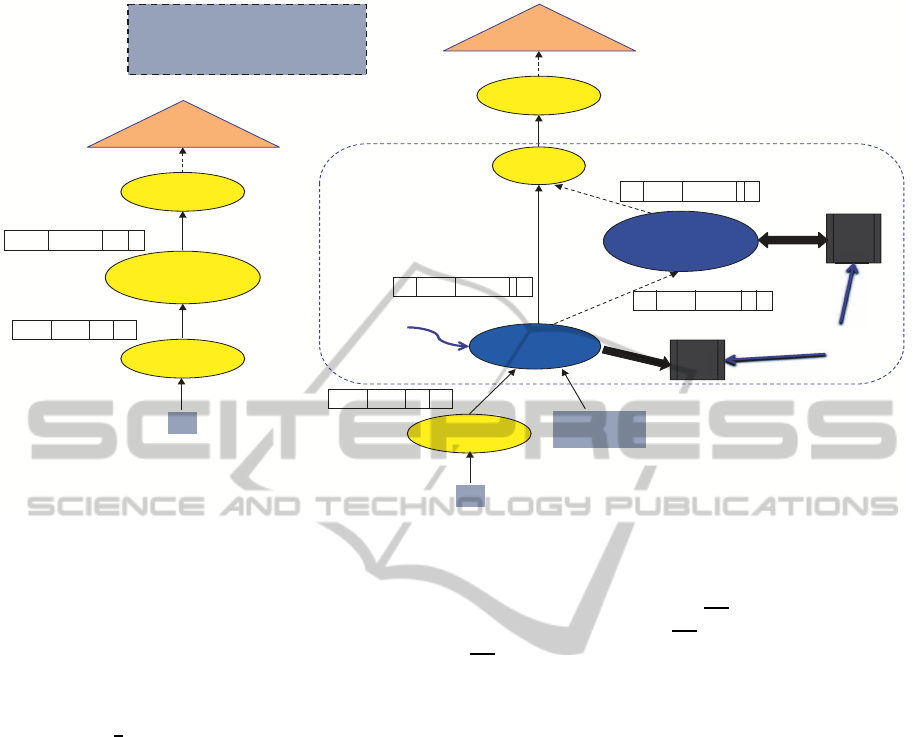

(a) Naïve Plan: For each tuple in R,

invoke F1() to compute its output, and

then apply a selection operator.

Table-scan

!"#$

!"#$$$%&!"#'$

Cache-aware

join

Persistent

cache of F1

$$$$$$!"#$$$$$()**$$

Cache hit

Cache miss

Cache-aware

Projection

(Compute F1(R.a))

Selection

F1(R.a) = …

Rest of the plan

Union All

!"#$$$%&!"#'$

Join based on

the function

arguments R.a

Buffers to update

F1’s cache

miss

hit

(b) Cache-Aware Plan: First probe the

cache (using Left-outer join), and only

for the cache misses, invoke F1().

Three-bundle operators

Figure 3: Example of Cache-Aware Query Plans in FunctionGuard.

will adapt to the most recent K queries in the system.

Given these parameters, the priority of each function

is computed as follows:

.FreqScore =

∑

∀ j ∈ K

.Frequency / SumFreq

.TimeScore =

∑

∀ j ∈ K

.TotalTime / SumTime

.priority =

.FreqScore + F

.TimeScore)

where, SumFreq (and SumTime) is the sum of all

functions’ frequencies (and times) over all K queries.

As a result, each of F

.FreqScore, F

.TimeScore, and

ultimately F

.priority should be between [0,1] in-

terval with total sum of each measure as 1. The

.priority will then be used as the percentage of the

cache allocated to function F

Cache Maintenance: When a function F

is invoked

at query time, the system needs to perform two main

tasks: (1) Identify which cached values for F

can be

re-used, and (2) update the F

’s cache by either adding

more new entries to the cache (if space permits), or

by replacing less important entries with more impor-

tant entries. Since the maintained caches in Func-

tionGuard are disk-based, their manipulation, e.g.,

probing and replacement will be different from main-

memory caches. In this section, we describe the struc-

ture of a cache entry and how to measure its impor-

tance (in the case of replacement), then in Section 4

we present how the cache is efﬁciently manipulated at

query time.

For a given function F

, each entry in the cache

will have three components: (1)

The input arguments

used when invoking F

, (2)

The output results, and

(3) A frequency capturing how many times F

has

been called with these input arguments. An entry with

a larger frequency value means that the corresponding

input arguments are more frequent, and hence this en-

try gets more weight and tend to stay longer in the

cache. More formally, if the cache allotted for F

holds at most Count

entries, then these entries will

be the ones with the highest frequency values.

4 CACHE-AWARE QUERY

PROCESSING

If a user’s query involves an expensive function,

then FunctionGuard will utilize the available caches

to avoid unnecessary invocations of these functions.

By doing so, the execution and response times of a

given query can be signiﬁcantly enhanced—the ex-

periments in Section 6 illustrate that the speedup can

be more than two orders of magnitude. In this sec-

tion, we introduce the cache-aware query processing

operators, how the persistent cache is utilized at query

time, and how the cache is maintained and updated.

FunctionGuard-AQueryEngineforExpensiveScientificFunctionsinRelationalDatabases

4.1 Bundled Cache-aware Operators

Considering the query in Figure 3 that involves an

invocation to an expensive function F

in the Where

clause. Assume that the query plan depicted in Fig-

ure 3(a) is the plan generated from one of the state-of-

art techniques. In this plan, each input tuple from re-

lation R will go through a projection operator to com-

pute F

over attribute R.a. And then, a selection oper-

ator will pass the tuples satisfying the predicate(s) to

the rest of the query plan. Therefore, in this plan, the

dominant factor in the execution time will be (cost(F

)

x |R|), where cost(F

) is the cost for a single invoca-

tion of F

and |R| is the cardinality of R.

In FunctionGuard the query plan will be modiﬁed

by replacing the projection operator that invokes F

by a three-bundle operators, which consist of a newly

introduced cache-aware join operator, a cache-aware

projection operator, and a union all operator (See Fig-

ure 3(b)). The two query plans presented in Figure 3

are equivalent plans, i.e., the produce the same results

given the same input. The three-bundle operators can

be used in replacement for the standard projection op-

erator regardless of whether the function invocation is

in the projection list, Where or Having clauses. The

cache-aware join operator will join the input tuples

with the persistent cache of function F

based on the

input parameters passed to the function, e.g., R.a in

our example. If there is a cache hit, then the output

will be forwarded to the union operator. Otherwise,

the tuples are forwarded to the cache-aware projec-

tion operator as illustrated in the ﬁgure to compute

on these tuples. For each invocation of F

from

the operator, the output value is cached in a main-

memory buffer, termed B

miss

. The usage of this buffer

is twofold. First, subsequent inputs to the cache-

aware projection operator will be checked ﬁrst against

the entries in B

miss

buffer—which acts as a second-

level cache. If an entry is found, then the invocation to

is skipped. Second, this buffer along with the B

hit

buffer will be used to update F

’s persistent cache.

To update F

’s cache, we need to reﬂect the us-

age of the current query on that cache, e.g., how

many times the function is called, each input argu-

ment is used how many times, and the total execution

time consumed by F

. Therefore, the proposed cache-

aware operators maintain main-memory buffers in or-

der to collect these information (Refer to Figure 3(b)).

In Figure 4, we present the algorithm that the cache-

aware join and cache-aware projection operators use

to update the B

hit

and B

miss

buffers, respectively. For

the B

hit

buffer, when the cache-aware join operator

ﬁnds a cache hit in F

’s persistent cache, an entry is

added to B

hit

capturing the function’s input arguments

Managing buffers in the three-bundle operators

Assumptions

- The expensive function is F1

- The input argument to F1 is r.a, where r is a data

tuple and a is a data attribute

hit

Buffer // each entry is: (argument list, frequency)

- For each input tuple r to the cache-aware join operator

- If (cache hit)

- If (an entry for r.a exists in B

hit

)

Then

- Increment its frequency value

- Else

- Add an entry for r.a with frequency= 1

- End If

miss

Buffer // each entry is: (argument list, output value, frequency)

- For each input tuple r to the cache-aware projection operator

- If (an entry for r.a exists in B

miss

) Then

- Retrieve its output value to update r

- increment the frequency for this entry

- Else

- Execute function F1

- Add an entry in B

miss

(r.a, F1 output, 1)

- End If

Figure 4: Managing Buffers in the Three-Bundle Operators.

having a frequency set to 1. Any subsequent appear-

ance of the same input arguments will only increment

the corresponding frequency. For the cache misses

from the join operators, the cache-aware projection

will invoke F1 to compute the functions output, and

an entry consisting of (r.a,F

(r.a),1) will be added to

the B

miss

buffer. Any subsequent appearance for the

same r.a will be served from the B

miss

buffer without

invoking F

as illustrated in Figure 4, and will only

increment the corresponding frequency to keep track

of how many times the same input argument is used.

Memory Constraints for Buffers: it is possible that

the B

hit

and B

miss

buffers get ﬁlled up and cannot take

more tuples. Therefore, both operators cache-aware

join and cache-aware projection have strategies to

spill these buffers to disk when needed. The case of

the B

hit

buffer is easier since the cache-aware join op-

erator is only writing to this buffer without reading

back from it. Hence, when it gets full, its entries are

sorted based on the function’s arguments, e.g., r.a in

our example, and then written to disk. For the B

miss

buffer the scenario is different since the projection op-

erator is writing and reading from it. Therefore, if this

buffer is full, then the cache-aware projection opera-

tor will write any input tuple r that does not have a

successful cache hit in B

miss

to disk without invoking

the F

function. Therefore, when all tuples are con-

sumed, it will be guaranteed at that time that no more

tuples can have a cache hit with the current content of

miss

. Hence, the buffer will be sorted based on the

function’s arguments, and then written to disk. Af-

ter that, the data tuples spilled to disk are read and

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

100

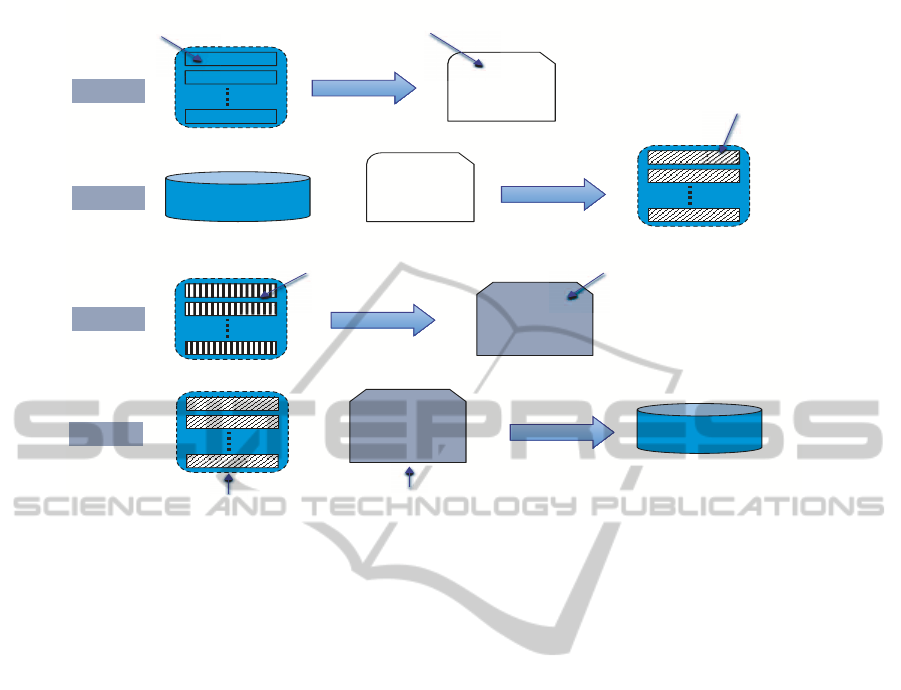

Step 1:

lists sorted on

Input arguments

Merging and

Hashing

Main memory

hash table

Main

Hash Key: Input arguments

Hash Value: frequency

Step 2:

Current Persistent

Cache

Main memory

hash table

Step 2 output

Sorting and

Spilling

Step 3:

Step 3 output

ep 2 o

Merge Sort

New Persistent

Cache

Lists of cache entries

sorted by frequency

Dropping entries

that do not fit in

hit

Buffer

Lists

miss

Buffer

Lists

lists sorted on

Input arguments

Merging and

Sorting

Main memory

table

Sorted on

frequency

Main memory

table

Step 4:

Dropping entries

that do not fit in

Figure 5: Updating a Persistent Cache of an Expensive Function.

processed one at a time and by invoking the F

func-

tion over them. And the B

miss

buffer gets populated

again with the function’s outputs until all tuples are

processed. By deploying these strategies, then the

number of invocations to the expensive function F

is guaranteed to be minimal—The number of invoca-

tion is zero for arguments that exist in the persistent

cache, and it is one for the other argument values.

Special Case− No Persistent Cache: A special case

to the algorithm presented above is that if the expen-

sive function has no persistent cache. This may hap-

pen if it is the ﬁrst time a given function is used within

a query, or if the existing cache is invalidated due to a

change in one of the data sources on which the func-

tion depends. This information is maintained in a sys-

tem catalog table as will be presented in Section 5.

In either case, FunctionGuard will not use the three-

bundle operators since there is no persistent cache

to use. Instead, the system will only use the cache-

aware projection operator to evaluate the expensive

function with each input tuple, caches the results in

the B

miss

buffer, and then the buffer will be written to

the persistent cache after the query ﬁnishes.

4.2 Persistent Cache Update

After the query is completed, the information col-

lected in the B

hit

and B

miss

buffers will be used to up-

date the function’s persistent cache on disk, i.e., the

current most important entries should be kept in the

cache. However, since the cache is persistent on disk,

it is more complicated and expensive to update the

cache compared to main-memory caches. Thus, in

FunctionGuard the cache of a given expensive func-

tion F is not updated after each query, instead it is

updated after β queries referencing F—β is a conﬁg-

uration parameter in the system that can be deﬁned

per function. As a result, the cost of a cache update is

amortized over the β queries.

The procedure for refreshing and updating the

cache of a function F involves four main steps as il-

lustrated in Figure 5. The overall goal from this pro-

cedure is to revisit the cache entries in the persistent

cache as well as the B

hit

and B

miss

buffers (at that

time these buffers are written to disk from the last β

queries), and re-populate the cache to keep the entries

that are referenced more frequently, i.e., the frequency

value is high. The procedure works as follows. In

Step 1, the algorithm reads all B

hit

lists that are written

to disk in parallel. Since each list is sorted based on

the input arguments, then using a multi-way merge,

we can efﬁciently merge all occurrences of a given

input arguments I. The output is stored in a main-

memory hash table, where the hash key is the input

argument I. The hash table does not need to maintain

all the entries—which can be large—, we only main-

tain the entries having the largest frequency that can

ﬁt the hash table. For the other entires, we assume

their frequency is small and we approximate them to

FunctionGuard-AQueryEngineforExpensiveScientificFunctionsinRelationalDatabases

101

zero. The advantage of having the hash table ﬁts in the

main memory will be clear in Step 2 of the update pro-

cedure. In Step 2 (See Figure 5), the algorithm scans

the current persistent cache for function F, and for

each entry e =(Input arguments, output, frequency),

the hash table built in Step 1 is probed (using the in-

put arguments values) to update the frequency of this

entry. Since the hash tables ﬁts in memory, then we

only need one scan over the persistent cache to com-

plete this step. The output from this step is stored in a

memory buffer, and when it gets full, it will be sorted

based on the frequency values and then spilled to disk

as depicted in the ﬁgure.

Step 3 is similar to Step 1 in which the algorithm

will merge the entires in the B

miss

lists to get the to-

tal frequency for each input arguments and produce

the output entry. The main difference is that the out-

put table will not be a hash table, instead it will be

a main memory table sorted based on the frequency

values. This difference is due to the fact that the en-

tries in the B

miss

lists are guaranteed not to exist in the

current persistent cache. In this step, we also use the

same approximation strategy as in Step 1, where the

memory table may not hold all entires from the B

miss

lists, and in that case, we keep only the entires that

have the largest frequencies and approximate the oth-

ers to zero. The ﬁnal step involves one scan over the

lists produced from Step 2 (sorted based on their fre-

quency values) and applying a merge sort algorithm

over these lists and the output from Step 3 (also sorted

based on the frequency values). The output from this

step is the new persistent cache.

5 INVALIDATION AND

PROACTIVE CACHE

REFRESHING

The cached output from an expensive function F re-

mains valid as long as the data sources on which F

depends remain unchanged. These data sources and

dependencies are captured in the dependency graph

maintained by the system (Section 3). The system

keeps track of any changes to the data sources in dif-

ferent ways depending on the source’s type as fol-

lows:

• External Files: FunctionGuard tracks the

changes in the external ﬁles through the operating sys-

tem by checking their last modiﬁcation timestamps.

However, there is no generic way on top of the OS

that detects instantaneously a change in the ﬁle sys-

tem’s information. Nevertheless developing a peri-

odic job that retrieves the last modiﬁcation time of

the ﬁles will not guarantee a timely detection of these

changes. Therefore, FunctionGuard performs this

check at query time, i.e., given a query Q that invokes

functions F

,..., F

, the system will check the de-

pendency graph to ﬁnd which external ﬁles that these

functions depend on, and then it decides on which

functions will have their caches invalidates (if any).

• Database Tables: If a function F depends on

a database table T, the system extracts any predicates

used inside F on table T that limit the scope of T’s tu-

ples accessed by F. These predicates are in the form

of “columnName <op> constant”. When this in-

formation is extracted, FunctionGuard automatically

creates database triggers on T that monitor the in-

sertion, deletion, or update of any data tuples satis-

fying the extracted predicates. These triggers insert

records into the catalog table whenever a change in

T that invalidates F’s cache takes place. With large

number of functions, the number of triggers created

on a given table can be large, which may degrade the

performance of any operation on that table (Hanson

et al., 1999). Therefore, FunctionGuard does not cre-

ate separate triggers, instead it creates one (or few)

triggers and it augments more code to the trigger’s

body with each addition of a new expensive function.

The pseduocode presented in Figure 6 give an exam-

ple of such system-generated triggers. In the exam-

ple, two expensive functions F

and F

depend on the

database table T. Assume Function F

has two sep-

arate select statements; one concerns the tuples sat-

isfying predicate p

, and the other concerns the tu-

ples satisfying predicates p

. In contrast, Function F

contains a select statement having predicate p

on ta-

ble T. Thus, one of the generated triggers on T is

the After Insert trigger containing code as depicted in

the ﬁgure. For example, any inserted tuple that satis-

ﬁes either of predicates p

or p

, will insert a tuple in

the catalog table indicating that an “insertion” oper-

ation in Table “T” at timestamp “timestamp” inval-

idates the cache of function “F

”. This catalog table

is checked by the system to decide whether or not a

speciﬁc cache is invalidated.

Proactive Cache Refreshing: Refreshing and updat-

ing a cache is typically performed in a passive mode,

i.e., when the system detects that a cache is invalid, all

its entries will be deleted and the cache will be pop-

ulated later by the next executed query. The Func-

tionGuard system deploys a more proactive feature

that can save signiﬁcant time at query execution. This

feature works as follows. When the system detects

that a change in a given database table will invalidate

the cache of a given ﬁle F, a set of the input arguments

stored in the cache having the highest frequency will

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

102

Create Trigger FunctionGuard_I

After Insert On T

For each raw

Begin

// ***F1 dependency predicates section***

- If (``new’’ vector satisfies predicates p1) Then

- Insert into the catalog table values

(“T”, “Insertion”, “F1”, timestamp)

- End If;

- If (``new’’ vector satisfies predicates p2) Then

- Insert into the catalog table values

(“T”, “Insertion”, “F1”, timestamp)

- End If;

// ***F2 dependency predicates section***

- If (``new’’ vector satisfies predicates p3) Then

- Insert into the catalog table values

(“T”, “Insertion”, “F2” , timestamp)

- End If;

End;

Figure 6: Example of DB triggers that monitor cache inval-

idation on data source T.

!"#$%&'()&*&

+%,")(-%&+%./01.%&2(3%&4565)&70&!"#$%&

!#$"

!#%"

!#&"

!#'"

(#$"

!)" *)" (!)" $!)" %!)" '!)"

Figure 7: Effect of Caching on Performance.

be extracted before deleting the cache. These input

arguments represent the arguments most frequently

used when invoking function F, and thus they will be

stored in a log table. The database admins can then

schedule the invocation of F using these logged en-

tires to proactively populate F’s cache. Such type of

tasks can be scheduled at the low-utilization time of

the system, and hence the overhead of executing the

expensive functions will be partially shifted from the

query time to the times when the system in under uti-

lized.

6 EXPERIMENTAL EVALUATION

The experiments are conducted using an AMD

Opteron Quadputer compute server with two 16-

core AMD CPUs, 128GB memory, and 2 TBs

SATA hard drive. We used real-world biolog-

ical datasets from the UniProt database system

(http://www.ebi.ac.uk/uniprot), more speciﬁcally the

Protein

table that consists of 200,000 protein tu-

ples occupying around 600MBs in the database. For

the expensive function, we used the BLAST (Basic

Local Alignment Search Tool) program that enables

comparing a given protein sequence with a library

or database of other sequences. The program offers

many functionalities, among which we used

blastp

function that searches protein sequences. The query

we used is a simple select-project query from the

Protein

table that performs a sequential scan over

the table,. The query contains one predicate over

the protein sequence column that compares each se-

quence to the NCBI repository (Protein Data Bank).

The objective from the evaluation is to study: (1)

The effect of caching on the queries’ response time,

(2) The cost involved in the cache update and main-

tenance, (3) The effect of the internal data struc-

tures, e.g., the buffers B

hit

and B

miss

, on the per-

formance, and (4) The effectiveness of the proac-

tive cache update on reducing the overhead at query

time. Notice that we do not compare or study the

performance of different query plans because, as

we mentioned in Section 1, FunctionGuard uses the

state-of-art techniques (Hellerstein, 1994; Hellerstein

and Stonebraker, 1993; Chaudhuri and Shim, 1996;

Scheufele and Moerkotte, 1998; Scheufele and Mo-

erkotte, 1998) as a black box to generate an efﬁcient

plan. And hence, we focus on the cache-related per-

formance.

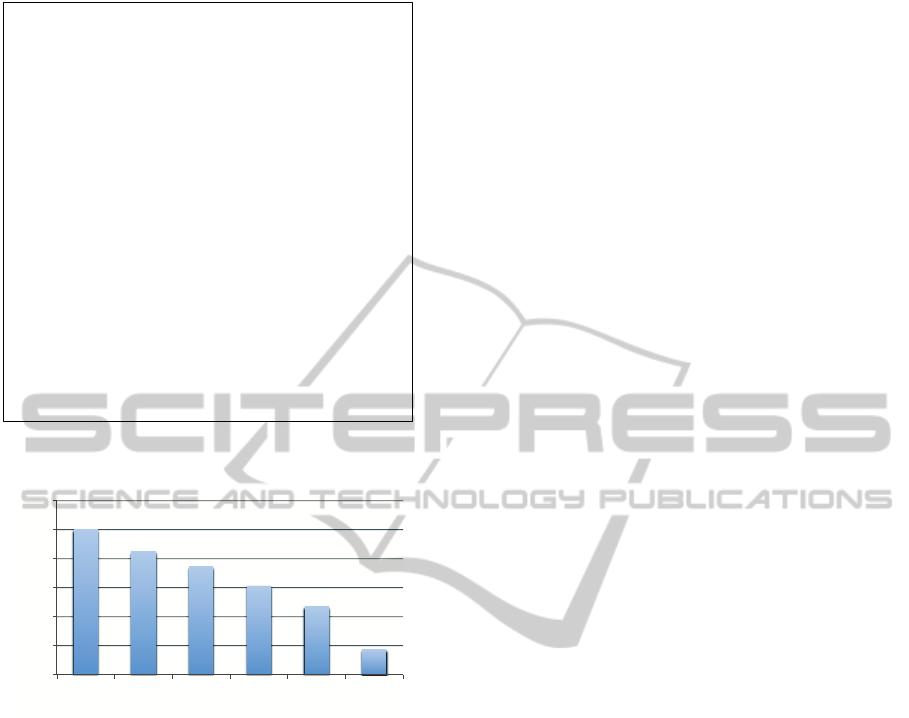

In Figure 7, we study the effect of caching the re-

sults from the expensive predicate and then re-using

it in the next query. The x-axis shows the cache hit

ratio ranging from 0% to 80%, i.e., the ratio at which

the expensive predicate is not executed because the

results was cached. The y-axis shows the relative per-

formance of FunctionGuard compared to having no

cache. Since the expensive predicate is dominating

the cost of the query,the performanceis inverselypro-

portional to the number of cache hits.

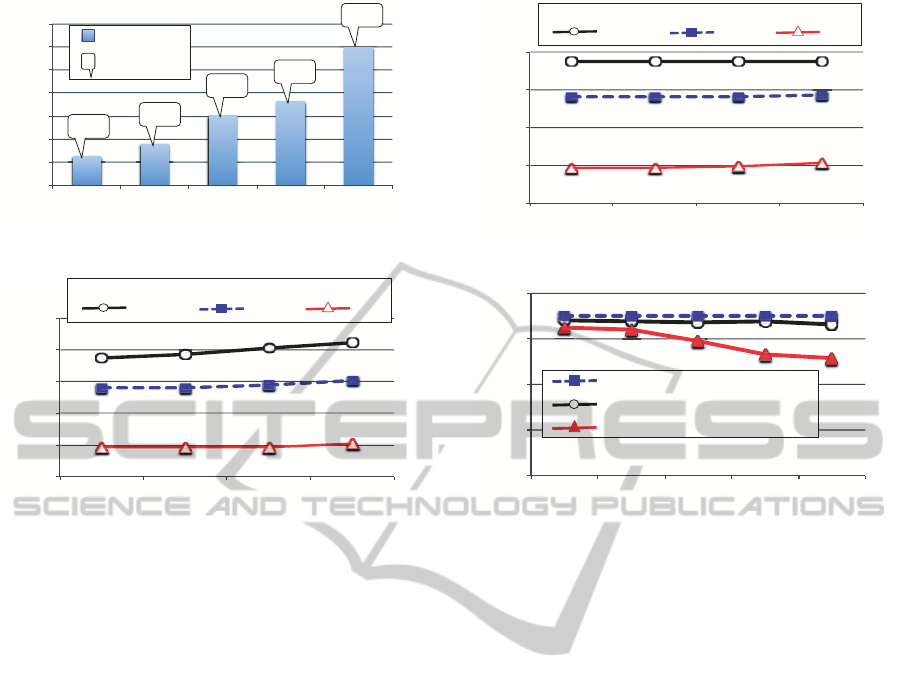

In Figure 8, we illustrate the overhead involved in

updating the content of the cache−Recall that a cache

should maintain only the entires with the highest pri-

ority as presented in Section 4.2. Since the cache is

disk-persistent, the update cost can be expensive. The

algorithm proposed in Section 4.2 amortizes the cost

over multiple queries. The results depicted in Fig-

ure 8 show the total and amortized cost when varying

the number of queries (β) between 1 and 16 (the x-

axis). The ﬁgure indicates that as β increases, the cost

will also increase. This is because the collected infor-

mation from the multiple runs are accumulating, and

hence it takes more time to reﬂect that on the cache.

However, as illustrated in the ﬁgure, the increase is

FunctionGuard-AQueryEngineforExpensiveScientificFunctionsinRelationalDatabases

103

#!"

$!!"

$#!"

%!!"

%#!"

&!!"

&#!"

$" %" '" (" $)"

!"#$%&'()'*"%&+%,'-%./%%0'1/('2345.%,'678'

1(.59':5;<%'2345.%'1+#%''6=%;8'

>?@A'

AA@?'

BC@C'

??@C'

DE@A'

!"#$%&'()*#+,)

-#,./)0#+,)

Figure 8: Cache Update Performance.

#!!"

$!!!"

$#!!"

%!!!"

%#!!"

&" '" %" $"

"#$$

%!&'()%*'+,-%

./$0',$/%1#"/%23/(4%

!"#$

%&'$()*+),'-.)$/0*$'1)$2)*3&3'),'$4-+1)$

5"#$ 6"#$

Figure 9: Effect of B

miss

Block Size on Response Time.

sub-linear and thus the amortized cost is reduced as

β increases. Although higher β means less amortized

cost, it has the drawback of delaying the update of the

cache, and hence some important entries may not be

reﬂected immediately until the next update. There-

fore β is an important conﬁguration parameter that

depends on the query rate, the system load, and the

desired aggressiveness to update the cache. In the

current version of FunctionGuard , β is set by the

database admin, however, we plan to explore, as part

of our future work, a cost model based on which β can

be tuned dynamically.

The previous experiments reported in Figures 7

and 8 assume 8-Block main memory buffers for each

of the B

miss

and B

hit

maintained by the three-bundle

operators. Each block is of size 1MB. In the follow-

ing experiments (Figures 9 and 10), we study the ef-

fect of the buffers’ sizes on the query performance.

We vary the number of blocks assigned to each buffer

over the values from 8 to 1, and measure the query

response time. For the B

miss

buffer, as the size de-

creases, the number of tuples that encounter a cache

miss in the B

miss

buffer increases (See the Cache-

Aware Projection operator in Figure 3). And as this

number increases, the data tuples can be temporar-

ily moved to disk until the ﬁrst scan completes. As

Figure 9 illustrates, for high percentage cache-hit for

the persistent cache, e.g., 80%, most data tuples will

be served by the Cache-Aware Join operator and they

will skip the Cache-Aware Projection operator. In that

#!!"

$!!!"

$#!!"

%!!!"

&" '" %" $"

"#$

%!&'()%*'+,$%

-./0',/.%1#2.%34.(5%

!"#$

%&'$()*+),'-.)$/0*$'1)$2)*3&3'),'$4-+1)$

5"#$ 6"#$

Figure 10: Effect of B

hit

Block Size on Response Time.

#!!"

$!!!"

$#!!"

%!!!"

$" %" &" '" $("

!"#$%&'()*+,$-./')

01$%&'()*+,$-./')231"4,+5)6,+7&,$(8)

!"#$%&'()'*"%&+%,'-%)(&%'./012+314+(/'

5%,6(/,%'7+#%'89%:;'

01$%&'()*+,$-./')297':'()6,+7&,$(8)

Figure 11: Proactive Cache Refreshing.

case, the performance is less sensitive to the size of

the B

miss

buffer. In contrast, with lower percentage

cache-hit for the persistent cache, e.g., 20%, most tu-

ples will be forwarded to the Cache-Aware Projection

operator. As a result, as the buffer size decreases, the

query’s response time increases.

For the B

hit

buffer (Figure 10), the effect of the

cache-hit percentage of the persistent cache is re-

versed. That is, as the hit percentage increases over

20%, 40%, to 80%, the Cache-Aware Join operator

processes more tuples, and hence the utilization of

the B

hit

buffer will be higher. As illustrated in Fig-

ure 10, there is almost no effect on the performance

in the case of 20% cache hit even if the size of the

hit

buffer is one memory block. However, the effect

if clear when the cache hit is 80%. Comparing the

results in the Figures 9 and 10, shows that tuning the

size of B

miss

is more important than B

hit

. The reason is

that the Cache-Aware Join operation is less expensive

than buffering the data tuples (and probably writing

them to disk) and the iterating over them again.

In Figure 11, we study the effect of the proactive

cache refreshing when the cache is invalidated, e.g.,

because on of the dependent sources has changed. In

the experiment, we manually controlled when to in-

validate the cache, i.e., after 1, 2, 4, 8, or 16 user’s

queries (the x-axis in the ﬁgure). The effect of this

is that the if the invalidation takes place after several

queries, then FunctionGuard has a higher chance to

learn more about the invocation pattern of the expen-

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

104

sive function. Hence, the predicted and proactively

cached entires are more likely to be used. To setup

the experiment, we simulated a workload as follows.

We divided the data tuples in the

Protein

table into

5 segments, each one consists of 40K tuples. In the

ﬁrst experiment (labeled “Uniform Workload” in Fig-

ure 11), all segments have the same probability of be-

ing involved in (touched by) a user’s query. There-

fore, it is harder for the system to learn a useful invo-

cation pattern. In contrast, in the second experiment

(labeled “Skewed Workload” in Figure 11), the each

segment has a different probability of being touched

by a user’s query. We set the probabilities to be expo-

nentially decreasing, e.g, Segment s

has double prob-

ability than Segment s

i−1

of being queried. A given

user query will touch 50,000 tuples across the 5 seg-

ments according to the probabilities set in each exper-

iment.

As the experiments show, the beneﬁt from the

proactive execution and quality of the predicted invo-

cation pattern depends on the user’s workload. In the

case of Uniform Workload, all tuples have the same

chances of being queried, higher number of the pred-

icated and proactively cached values are wrong pre-

dictions. Therefore, the savings at query time is not

large even if we increase the number of queries before

a given invalidation. In contrast, the results in the case

of Skewed Workload show larger savings because the

system is able to identify the invocation patterns more

likely to be used in the future. And hence, the cache

hits get higher. This is more effective as the number

of queries before the invalidation is relatively large,

e.g., 8 or 16.

7 CONCLUSION

We proposed the FunctionGuard system for efﬁ-

ciently incorporating expensive functions in relational

database queries. FunctionGuard is distinct from ex-

isting systems in that it leverages disk-based caches

in novel ways to speedup query execution by avoid-

ing unnecessary invocations. It addition, it can be in-

tegrated with any of the state-of-art techniques that

build optimal query plans in the presence of expen-

sive functions. The unique features of FunctionGuard

include: (1) Automated mechanisms for analyzing ex-

pensive functions and building the corresponding de-

pendency graph between functions and data sources,

(2) Cache-aware query processing and optimizations

based on the three-bundle operators to integrate the

cached data into the query pipeline, And (3) mech-

anisms for updating and refreshing the disk-based

caches in batch-optimized and proactive ways. The

empirical evaluation demonstrated the effectiveness

of the proposed system to speedup queries and en-

hance the utilization of the existing cache.

REFERENCES

Chang, K. C.-C. and Hwang, S.-w. (2002). Minimal

probing: Supporting expensive predicates for top-k

queries. In Proceedings of the 2002 ACM SIGMOD

International Conference on Management of Data,

pages 346–357.

Chaudhuri, S. and Gravano, L. (1996). Optimizing queries

over multimedia repositories. pages 91–102.

Chaudhuri, S., Narasayya, V., and Sarawagi, S. (2002). Ef-

ﬁcient evaluation of queries with mining predicates.

In ICD, pages 529–540.

Chaudhuri, S. and Shim, K. (1993). Query Optimization in

the Presence of Foreign Functions. In Proceedings of

the 19th International Conference on Very Large Data

Bases, VLDB ’93, pages 529–542.

Chaudhuri, S. and Shim, K. (1996). Optimization of queries

with user-deﬁned predicates. In ACM Transactions on

Database Systems, pages 87–98.

Denny, M. and Franklin, M. (2006). Operators for expen-

sive functions in continuous queries. In Data Engi-

neering, 2006. ICDE ’06. Proceedings of the 22nd In-

ternational Conference on, pages 147–147.

Gray, J., Liu, D. T., Nieto-Santisteban, M., Szalay, A., De-

Witt, D. J., and Heber, G. (2005). Scientiﬁc Data

Management in the Coming Decade. SIGMOD Rec.,

34(4):34–41.

Haas, L., Schwarz, P., Kodali, P., Kotlar, E., Rice, J., and

Swope, W. (2001). Discoverylink: A system for inte-

grated access to life sciences data sources. IBM Sys-

tems Journal, 40(2):489–511.

Hanson, E. N., Carnes, C., Huang, L., Konyala, M.,

Noronha, L., Parthasarathy, S., Park, J., and Vernon,

A. (1999). Scalable trigger processing. In In Proceed-

ings of the 15th International Conference on Data En-

gineering (ICDE), pages 266–275.

Hellerstein, J. M. (1994). Practical predicate placement.

In In Proceedings of the ACM SIGMOD International

Conference on Management of Data, pages 325–335.

Hellerstein, J. M. (1998). Optimization techniques for

queries with expensive methods. ACM Transactions

on Database Systems (TODS.

Hellerstein, J. M. and Naughton, J. F. (1996). Query Execu-

tion Techniques for Caching Expensive Methods. In

Proceedings of the 1996 ACM SIGMOD International

Conference on Management of Data, SIGMOD ’96,

pages 423–434.

Hellerstein, J. M. and Stonebraker, M. (1993). Predicate

migration: Optimizing queries with expensive pred-

icates. In Proceedings of the 1993 ACM SIGMOD

International Conference on Management of Data,

pages 267–276.

Munagala, K., Srivastava, U., and Widom, J. (2007). Opti-

mization of continuous queries with shared expensive

ﬁlters. In In PODS 07: Proc. of the twenty-sixth ACM

FunctionGuard-AQueryEngineforExpensiveScientificFunctionsinRelationalDatabases

105

SIGMODSIGACT-SIGART symposium on Principles

of. ACM.

Scheufele, W. and Moerkotte, G. (1998). Efﬁcient dynamic

programming algorithms for ordering expensive joins

and selections. In In Proc. of EDBT, pages 201–215.

Zhang, Y., Yu, L., Zhang, X., Wang, S., and Li, H. (2012).

Optimizing queries with expensive video predicates

in cloud environment. Concurr. Comput. :

Pract. Exper., 24(17):2102–2119.

DATA2014-3rdInternationalConferenceonDataManagementTechnologiesandApplications

106
