Pex Extension for Generating User Input Validation Code for Web

Applications

Karel Frajt

ak, Miroslav Bure

s and Ivan Jel

ınek

Department of Computer Science, Faculty of Electrical Engineering, Czech Technical University,

Karlovo n

am. 13, 121 35 Praha 2, Czech Republic

Keywords:

User Input Validation, Code Generation, Web Application Testing.

Abstract:

The code written by a software developer is not always ﬂawless. The more code is created the more errors are

introduced into the system. In web development different programming languages can be used to implement

back–end and front–end sides of the application. For example, it is possible to implement user input validation

multiple times — it validates the input values on client–side using JavaScript before the data is sent to server

and then the received data is validated again on the server–side. The logic is duplicated, changes made to

the validation code must be synchronised on both sides. All implementations must be also unit tested, which

increases the time required to create and maintain multiple sets of unit tests. In this paper, we will describe

how white–box testing tool Pex can be extended to generate user input validation code for ASP.NET MVC

web applications. The validation code won’t be duplicated in JavaScript on the client–side and the application

will be protected from sending invalid input values from the client–side. The testers can focus on testing using

meaningful data input values. Testing of corner cases can be automated thus saving the available resources —

testers involved in testing and time spent on testing.

1 INTRODUCTION

Web applications are usually hybrid applications —

more than one programming language is used in the

development process. Code of back–end (server–

side) part of the application can be written in high

level programming language, like Java, C#, Ruby,

Python, or PHP. Data–driven web applications where

data is stored in database require the knowledge of

database programming language. The client facing

part of the hybrid web application, the front–end, is

created using HTML with the help of JavaScript to

improve the user experience. Other platforms suitable

to create the front–end are available too, like Flash

or Silverlight, but HTML and JavaScript combination

is the most widespread. Knowledge of multiple pro-

gramming languages is therefore essential.

Of course there are exceptions when one sin-

gle programming language can be used to imple-

ment both sides of the web application. WebSharper

(Bjornson et al., 2011) web framework builds both

client and server–side of the web applications with

functional programming language F#. All the code

is written in F# only. Server–side is powered by F#

code, special constructs are used to translate F# code

into JavaScript code that is executed on the client–

side. When developing application for Silverlight ap-

plication platform single .NET Framework language

is required. An alternative in Java world is Google

Web Toolkit (GWT) (Tacy et al., 2013) where parts of

the code written in Java are compiled to JavaScript to

generate the front–end code.

In hybrid web applications the validation code is

implemented on client–side to improve user experi-

ence. The validation code must be also implemented

on the server–side too — the data received from the

client side can not be trusted and must be validated.

Validation code is duplicated on both sides.

In this paper we propose an improvement to web

application unit testing. The client–side JavaScript

code duplicates the logic already created on server–

side. This code must be also properly tested — de-

veloper has to create and maintain another set of unit

tests. Our proposed solution uses white–box testing

tool to generate the client–side validation code from

the server–side validation code. The tool generates

the unit tests for server–side code, extracts the vali-

dation logic and translates it to JavaScript code. This

code then validates the user input values on client–

side.

315

Frajták K., Bureš M. and Jelínek I..

Pex Extension for Generating User Input Validation Code for Web Applications.

DOI: 10.5220/0004994103150320

In Proceedings of the 9th International Conference on Software Engineering and Applications (ICSOFT-EA-2014), pages 315-320

ISBN: 978-989-758-036-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

We’re going to discuss the problems of creating

unit tests to achieve high test coverage in the next

section and brieﬂy describe the white–box testing

method. Our motivation and the reasons we have de-

cided to use Pex and create our extension is explained

in section 4. Our proposed solution is described in

next section 5. And section 6 concludes the results of

our work and describes our future work.

2 IN PURSUIT OF HIGH TEST

COVERAGE

Code that is unit tested since the very beginning is not

error–free, but the number of errors is reduced. Unit

tests are in most cases created by the developers at the

moment of writing the code or in worse case much

later. They are familiar with their code and know the

details of it and know how to write the tests quickly.

The pitfall is that they can introduce a false positive

error. The test does fail to indicate a problem or fail-

ure but it does not verify the correctness of the appli-

cation code. They might have not fully understood the

requirements or the test was created to test their own

incorrect code and system speciﬁcations and require-

ments were ignored. They have created a non–failing

test that veriﬁes incorrect behaviour.

Code coverage is a metric used to describe the de-

gree to which the source code of a program is tested

by a test suite. The higher the number, the better.

But it is quite difﬁcult to create unit tests manually

with very high test coverage. The most difﬁcult is

testing the code paths that result in an exception be-

ing explicitly thrown — when constraint is broken

or a contract validation fails. Tester must set up the

test environment properly and infer the set of input

variables values that when passed to the method will

throw an exception. That means he has to have access

to the source code and be familiar with it. Signiﬁcant

amount of time can be spent on analysing the code

and writing the test case than actual testing.

These corner cases can be tested using white–box

testing tool. We have decided to use a white–box test-

ing tool in our proposed system as it gives a better

insight into the internal structure of the tested code

and it can infer the minimal sets of signiﬁcant input

parameter values.

2.1 Insight Into the Code

White–box tool test internal structures of an applica-

tion, in contrast to black–box testing when only the

public interfaces of the application are tested. The in-

ternals of an application can be analysed statically or

dynamically. Both having its advantages and disad-

vantages but supplementing each other. Static anal-

ysis analyses the code at a higher level than dynamic

analysis and can detect issues that are correct from the

viewpoint of dynamic analysis(Karpov, 2011).

White–box test case generators produce represen-

tative set of tests that can cover most of the applica-

tion code. Test case generator with insight into the

code minimizes the number of generated test cases to

achieve high test coverage.

JWalk(Simons, 2007) is white–box testing tool

targeting Java platform. It supports lazy systematic

unit testing. The tool infers dynamically the evolv-

ing speciﬁcation of an application on the ﬂy by dy-

namic analysis and uses the class state exploration and

then it tests the code systematically and exhaustively

to bounded depths.

Pex(Tillmann and de Halleux, 2008) generates

inputs for parametrized unit tests by analysing the

branch conditions in the .NET platform program. Test

inputs are chosen based on whether they can trigger

new branching behaviours of the program. The anal-

ysis using a dynamic symbol execution (DSE) (Cadar

and Sen, 2013) is an incremental process. It reﬁnes

a predicate along the execution path over the formal

test input parameters over the set of behaviours ob-

served previously. Variants of the previous inputs

are inferred by a constraint solver Z3 (de Moura and

Bjørner, 2008) in order to steer future program execu-

tions along alternative program path.

White–box testing tools help the developers to

create unit tests to test the code on low level. How-

ever it is important for the application to be tested

on higher levels — to meet the speciﬁcation require-

ments, passing user acceptance testing, etc.

3 RELATED WORK

The solution proposed in (Alkhalaf et al., 2012) uses

minimum and maximum input validation policies to

validate user input. These policies are deﬁned as reg-

ular expressions the input value must match. The

JavaScript validation must be deﬁned beforehand and

the extraction is done in runtime, the extracted data

is then analysed using string analysis. In (server side,

2012) the authors are parsing the HTML code of the

page to locate the form and the input elements. For

every element a metadata is created and stored.

As observed in (Jamrozik et al., 2013), Pex does

not produce tests sensitive enough to make a good

regression test suite, sometimes the end users expect

different value or more values ﬁtting given the condi-

tion or program path. A new tool extending Pex was

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

316

proposed with the use of augmented dynamic symbol

execution (ADSE)(Jamrozik et al., 2012). ADSE is

based on exploration of a program through path con-

ditions, but before test data is generated, the condi-

tions are augmented with additional conditions; mul-

tiple test data for the same path condition are derived.

We propose to use existing code without duplica-

tion to create user interface validation code to ver-

ify user input before triggering an action or computa-

tion. The JavaScript code will be generated automati-

cally from the server–side code. It is easier to analyse

server–side C# code than parsing HTML pages and

locating input elements.

4 MOTIVATION

On an e–commerce web site user would like to com-

plete his order. He is asked for his contact details,

shipping address and credit card details in checkout

process. He has to ﬁll several web forms. User does

not want to ﬁll all the data ﬁrst, submit the form,

and wait for the error message when something was

wrong with his data. To improve the usability it is

desired to display an human–readable message to the

user immediately when some of the provided values

are invalid and must be corrected. The code on the

client–side validates the values entered by the user

preventing the form to be submitted when data is not

valid.

We are going to demonstrate Pex capabilities on

a sample method in Listing 2. First the method vali-

dates user’s registration data, then it creates and saves

user and returns the view when everything is all right.

An exception is thrown when validation of input val-

ues fails.

return userName != (string)null &&

7 < userName.Length &&

password != (string)null &&

passwordConfirmation != (string)null &&

(password == passwordConfirmation ||

password.Length ==

passwordConfirmation.Length &&

password.op_Equality((object)

passwordConfirmation) != (sbyte)0) &&

17 < 2014 - dateOfBirth &&

2014 - dateOfBirth < 121;

}

Listing 1: Example of validation code.

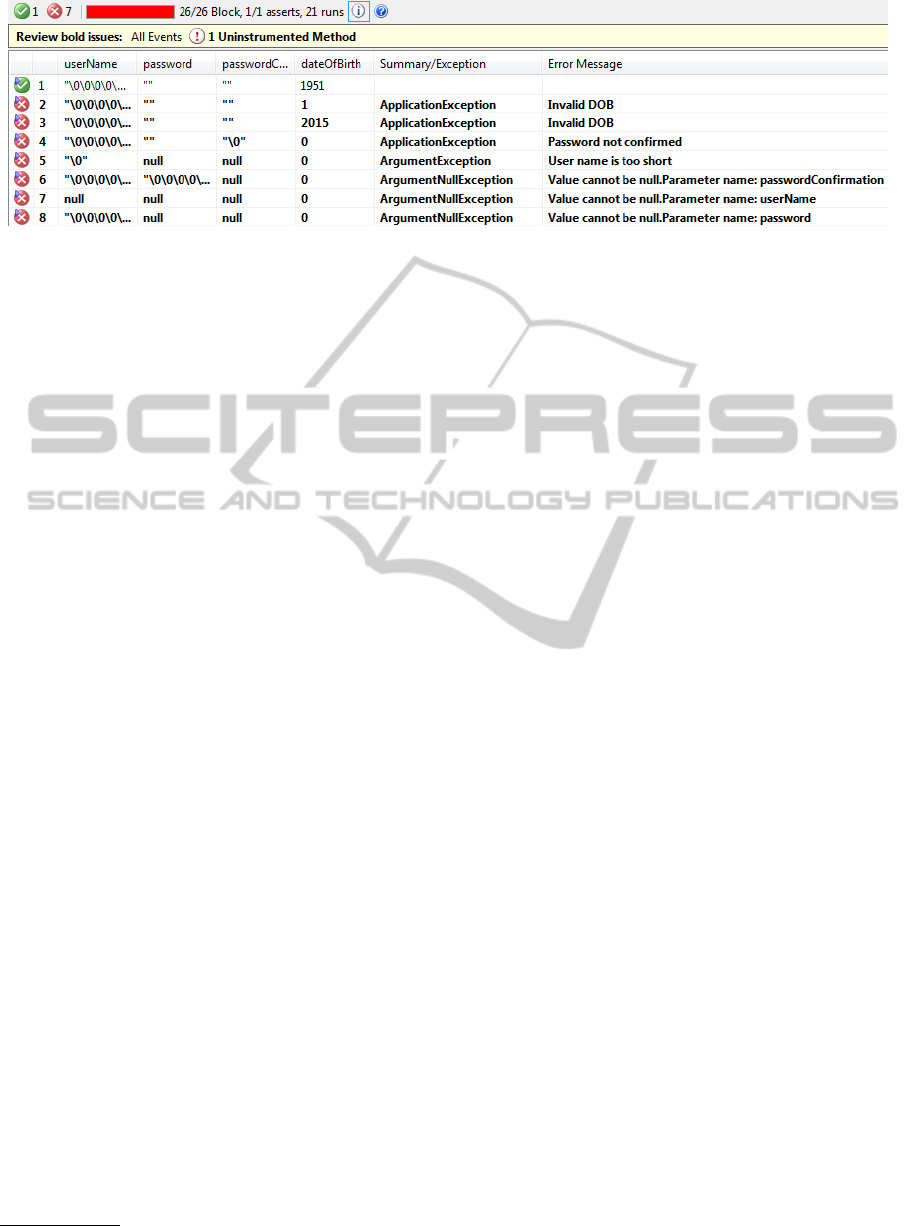

Pex generates unit tests for the trivial observed

values (see Figure 5) for input parameters. If all

conditions are met then the path condition string at

the point of returning boolean true value can be ob-

served (see Listing 1).

Looking at the path condition for year of birth we

can see the power of Pex observations. The required

age for registered user ranges from 18 as the mini-

mum value and 121 as the maximum value. Pex does

not generate tests for all values from this range, but

observes the condition and infers the proper code for

the value to match this constraint. These basic Pex

outputs can not be used to generate user input valida-

tion code.

5 PROPOSED SOLUTION

Our solution uses combination of techniques to

achieve our goal. The process is described as follows:

1. Methods handling incoming user requests are

identiﬁed – the method must be declared in a con-

troller class and it must handle POST requests.

2. Unit tests similar to one in Listing 3 are cre-

ated for each method — the header of the unit

test method is basically header of the inspected

method and all the required information to gener-

ate the code can be fetched by reﬂection API. We

have added a special line to generated test method

that forces Pex to output observed path conditions

(see the last line of code in Listing 3). The ob-

served path conditions are otherwise hidden.

3. Pex explores the method code and our extension

analyses the code of the generated test methods

and outputs the method headers and the observed

path conditions into temporary storage (an XML

document). The method header uniquely identi-

ﬁes the location in code and also the form on the

page — every form is identiﬁed by an action URL

which identiﬁes the controller and action handles

this form data.

4. Extracted C# code is passed to C#/JavaScript

compiler.

5. Generated JavaScript code is embedded into the

assembly to be used later.

All the values of input element are passed to the

validation function (see the code of submitHandler

method in Listing 4) on client–side. If the validation

condition is met, the form is submitted. The form and

the validation logic were generated for the method

shown in Listing 2. All form input values are vali-

dated on form submit.

PexExtensionforGeneratingUserInputValidationCodeforWebApplications

317

public ActionResult Register(string userName, string password, string passwordConfirmation, int yearOfBirth)

{

if (string.IsNullOrEmpty(userName)) throw new ArgumentNullException("userName");

if (userName.Length < 8) throw new ArgumentException("User must be at least 8 characters long");

if (password == null) throw new ArgumentNullException("password");

if (passwordConfirmation == null) throw new ArgumentNullException("passwordConfirmation");

if(password != passwordConfirmation) throw new ApplicationException("Password does not match the confirm

password.");

var thisYear = DateTime.Today.Year;

if (thisYear - yearOfBirth < 18 || thisYear - yearOfBirth > 120)

throw new ApplicationException("Invalid year of birth");

new UserService().CreateUser(userName, password);

return View();

}

Listing 2: Sample method.

[TestClass, PexClass(typeof(UserController))]

public partial class UserControllerTest

{

[PexMethod]

public void Register(

string userName, string password, string

passwordConfirmation, int yearOfBirth)

{

var uc = new UserController();

PexAssert.IsTrue(

uc.Register(userName, password,

passwordConfirmation, yearOfBirth));

PexObserve.ValueForViewing(

"path condition", PexSymbolicValue.

GetPathConditionString());

}

Listing 3: Test method used for Pex explorations.

function __validate(userName, password,

passwordConfirmation, dateOfBirth)

{

return

userName !== null && 7 < userName.length &&

password !== null && passwordConfirmation

!== null && (password ===

passwordConfirmation || password.length ===

passwordConfirmation.length && password

=== passwordConfirmation) &&

17 < 2014 - dateOfBirth &&

2014 - dateOfBirth < 121;

}

$(’#form’).validate({

submitHandler: function(form) {

var _1 = $("#userName").val();

var _2 = $("#password").val();

var _3 = $("#passwordConfirmation").val();

var _4 = $("#yearOfBirth").val();

if(!__validate(_1, _2, _3, _4))

{

// display error message

return false;

}

});

Listing 4: Generated validation code.

We have hit the limit of the current version when

the compilation of the extracted code to JavaScript

either failed (given constructs were not available) or

the generated JavaScript code was not valid and errors

were reported on the client–side. This happened when

the validation code for user input validation methods

used code that can not be evaluated on client–side,

e.g. code accessing database, detecting the existence

of a ﬁle or evaluating session values. We had to skip

the code generation for these methods.

5.1 Validation

The correctness of the auto–generated JavaScript

code is critical for our solution to work seamlessly.

We have used Karma

, a JavaScript test–runner, to

verify the correctness of the code:

1. a unit test case is generated for every JavaScript

validation method generated by our extension

2. the values discovered by Pex are supplied to this

test case

3. the result is veriﬁed

This set of tests is executed only when a change

is made to the application code and all the valida-

tion methods are re–generated. We have experienced

some difﬁculties when using the values Pex discov-

ered as an input to JavaScript test case — particularly

speaking about date and time values and different rep-

resentations of these data types in C# and JavaScript.

It might look like we are adding new tests and in-

creasing the number of executed tests, but all these

tests are generated and executed automatically, no

tester is involved in this process. These tests validate

our approach.

http://karma-runner.github.io/0.8/index.html

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

318

Figure 5: Pex explorations output for method in Listing 2.

5.2 Experimental Veriﬁcation

We have tested our tool on selected applications —

the citations management application and selected

parts of an e–commerce project TheBeerHouse

. The

ﬁrst application was developed using test driven de-

velopment process, the TheBeerHouse project source

code is shipped with number of unit tests.

First we used Pex in the way it was designed —

to automatically generate test suites with high code

coverage for the server–side code. Pex can also gen-

erate tests testing corner case scenarios (see the lines

with red icon in Figure 5) and there was no need to

create these tests manually. After that our extension

was used to generate the test method used to extract

the validation code and to convert it to JavaScript.

The generated code was not fully optimal and in

some case we had to modify the code of the appli-

cation for the JavaScript code to be generated without

any problems and sometimes we had to processing the

method. We have observer that the whole process is

not very smooth and straightforward, but overall the

results are promising.

The JavaScript code is hard to read and understand

and it might be difﬁcult to refactor and reuse the parts

of the code later. This code was generated from a code

of the tested application so we the readbility is not the

most important aspect of this code. The code is also

often regenerated.

5.3 Group Experiment

We have asked a team of 20 developers working on

in–house developed project to participate in our ex-

periment — group A of 10 developers was using our

extension, while group B was not. After setting up the

environment and brief introduction they started to use

our Pex extension. We also ask them to report any

issues. To avoid any misinterpretation of the results

they have been working on the same tasks using the

http://thebeerhouse.codeplex.com/

same code (separate branches were created for each

group). In the end of trial period we asked them to

answer survey questions and evaluate the experience.

• 80% of the selected developers think that the ex-

tension is useful and helpful

• 60% think the extension contributed to their work

and simpliﬁed the testing process

• they also welcome the elimination of writing the

same code twice

• 90% think that the process is not very straightfor-

ward and should be improved

• compared to the group B they were able to com-

plete more tasks in shorter time and ﬁnish the

work on time despite of the later start

6 CONCLUSIONS AND FUTURE

WORK

In this paper we have described our Pex extension

that improves the web application unit testing pro-

cess. The extension leverages the code insight of a

white–box testing tool to extract the code validating

user input values on server–side and generates client–

side validation code. It is no longer needed to du-

plicate the validation code on both sides and mirror

the changes made to the code. The extracted code is

then processed and translated to Javascript methods.

The developer can focus more on server–side code

only without writing the same code (in Javascript) for

client–side. Our solution improves his development

process and helps him to ﬁnish his tasks sooner.

Our solution has known limitations — we do not

support code generation for methods with constraints

that can not be evaluated on client–side without addi-

tional server request, e.g. code accessing ﬁle system

or reading server session variables. Another limita-

tion is that we can not validate more than one form on

a web page. Our tool also fails to generate code for

PexExtensionforGeneratingUserInputValidationCodeforWebApplications

319

methods using C# constructs that can not be translated

to JavaScript. In the future we would like to overcome

these problems and make the whole process transpar-

ent by integrating the code extraction and generation

into build process.

ACKNOWLEDGEMENTS

This research has been supported by M

SMT un-

der research program No. 6840770014 and by

Grant Agency of the CTU in Prague under grant

SGS14/076/OHK3/1T/13.

REFERENCES

Alkhalaf, M., Bultan, T., and Gallegos, J. L. (2012). Verify-

ing client-side input validation functions using string

analysis. In Proceedings of the 34th International

Conference on Software Engineering, ICSE ’12, pages

947–957, Piscataway, NJ, USA. IEEE Press.

Bjornson, J., Tayanovskyy, A., and Granicz, A. (2011).

Composing reactive GUIs in F# using WebSharper. In

Implementation and Application of Functional Lan-

guages, volume 6647 of Lecture Notes in Computer

Science, pages 203–216. Springer Berlin Heidelberg.

Cadar, C. and Sen, K. (2013). Symbolic execution for soft-

ware testing: three decades later. Commun. ACM,

56(2):82–90.

de Moura, L. and Bjørner, N. (2008). Z3: An Efﬁcient

SMT Solver Tools and Algorithms for the Construc-

tion and Analysis of Systems, volume 4963/2008 of

Lecture Notes in Computer Science, chapter 24, pages

337–340. Springer Berlin, Berlin, Heidelberg.

Jamrozik, K., Fraser, G., Tillman, N., and Halleux, J.

(2013). Generating test suites with augmented dy-

namic symbolic execution. In Veanes, M. and Vigan

L., editors, Tests and Proofs, volume 7942 of Lecture

Notes in Computer Science, pages 152–167. Springer

Berlin Heidelberg.

Jamrozik, K., Fraser, G., Tillmann, N., and Halleux, J. D.

(2012). Augmented dynamic symbolic execution.

In Proceedings of the 27th IEEE/ACM International

Conference on Automated Software Engineering, ASE

2012, pages 254–257, New York, NY, USA. ACM.

Karpov, A. (2011). Myths about static analysis. the third

myth - dynamic analysis is better than static analysis

@ONLINE. http://www.viva64.com/en/b/0117/. Ac-

cessed: 2013-09-04.

server side, a. (2012). Automated server-side form valida-

tion. In Informatics, Electronics Vision (ICIEV), 2012

International Conference on, pages 61–64.

Simons, A. (2007). JWalk: a tool for lazy, systematic

testing of java classes by design introspection and

user interaction. Automated Software Engineering,

14(4):369–418.

Tacy, A., Hanson, R., Essington, J., and Tokke, A. (2013).

GWT in Action. Manning Publications.

Tillmann, N. and de Halleux, J. (2008). Pex-white box test

generation for .NET. In TAP, pages 134–153.

ICSOFT-EA2014-9thInternationalConferenceonSoftwareEngineeringandApplications

320
