A Necessary Test for Fixed-Priority Real-Time Multiprocessor Systems

based on Lazy-adversary Simulation

Romulo Silva de Oliveira, Andreu Carminati and Renan Augusto Starke

Department of Automation and Systems, UFSC, Florianopolis, Brazil

Keywords:

Operating Systems, Real-Time Systems, Embedded Systems.

Abstract:

Many embedded systems have real-time requirements which are sometimes hard and must be guaranteed at

design time, although most embedded systems have soft deadlines in the sense that they can be missed without

any catastrophe being caused by that. Scheduling simulations can be used as a necessary but not sufﬁcient

schedulability test that is useful for both hard and soft real-time systems. They help to assess the pessimism

of formal analysis applied to hard real-time systems and they can be used as test-case generators during the

design of soft real-time systems. In this paper, we present a new adversary simulator for multiprocessors

with global task queue and ﬁxed-priority scheduling. We consider sporadic tasks with constrained deadlines

(D ≤ T ). An adversary simulator uses the non-determinism in the arrivals of sporadic tasks to stress the

system scheduler with valid arrival patterns. The simulator proposed in this paper applies a lazy approach that

delays the arrival of high-priority tasks in order to form gangs that will preclude the execution of a victim task.

We show that the new lazy-adversary simulator presented in this paper outperforms the previously existing

necessary schedulability tests.

1 INTRODUCTION

Many embedded systems interact directly with the

physical world and present real-time requirements.

In hard real-time systems, there may be catastrophic

consequences associated with missing a deadline.

Most embedded applications however are soft real-

time systems in the sense that they have timing re-

quirements but there is no catastrophic consequence

associated with missing a deadline.

Schedulability analysis is used to prove that a

hard real-time system will never miss a deadline. It

is based on sufﬁcient tests that produce pessimistic

upper bounds on task response times. While many

schedulable task sets fail these sufﬁcient but not nec-

essary tests, those that pass the test are guaranteed to

never miss a deadline. This kind of analysis is not

appropriate for soft real-time systems since it would

lead to over-designed systems and unnecessarily in-

creased costs.

Schedulability analysis is generally based on iden-

tifying the worst possible sequence of arrivals. Details

of different task models give rise to different possi-

bilities, with various scenarios. In the case of multi-

processors with a single global task queue, there are

several types of anomalies (Andersson and Jonsson,

2002) and that makes the determination of the worst

sequence of arrivals a combinatorial problem.

One difﬁculty in evaluating the efﬁcacy of sufﬁ-

cient schedulability tests is to distinguish the cause

when a task set fails the test. The task set may not be

schedulable, or it may actually be schedulable but the

test itself was too pessimistic. Necessary schedula-

bility tests are used to distinguish between these two

possibilities. A necessary but not sufﬁcient schedula-

bility test is such that if a task set fails the test then

there is a non-zero probability of it missing dead-

lines, while nothing can be said when it passes the

test. Many papers use necessary tests when empiri-

cally evaluating new schedulability tests. Examples

can be found in (Bertogna et al., 2009), (Cirinei and

Baker, 2007), (Davis and Burns, 2011), (Bertogna and

Baruah, 2011), (Lee et al., 2011), (Burns et al., 2012),

and (Back et al., 2012).

The deadlines of soft real-time systems are usu-

ally not guaranteed at design time. Test cases are used

instead to assess the timing behaviour of the system.

The generation of appropriate test cases to stress the

system scheduling is not an easy task due to the com-

binatorial nature of the problem. In this context, a

necessary but not sufﬁcient schedulability test is use-

ful since it can be seen as a test-case generator capable

321

Silva de Oliveira R., Carminati A. and Starke R..

A Necessary Test for Fixed-Priority Real-Time Multiprocessor Systems based on Lazy-adversary Simulation.

DOI: 10.5220/0005008903210329

In Proceedings of the 4th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2014),

pages 321-329

ISBN: 978-989-758-038-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

of generating stressing loads to the system scheduler.

Regarding multiprocessors, probably the most

used necessary test is the one described in (Baker and

Cirinei, 2006) for the feasibility of sets of sporadic

tasks executed on globally scheduled multiprocessor

systems. It is a feasibility test in the sense that if a task

set fails the test then it is not possible to guarantee its

deadlines regardless the scheduler used.

Another approach is to simulate the system and

to observe the simulated response times of each task.

One cannot guarantee that during the simulation it

will be observed the worst-case response time of each

task. But scheduling simulations can be used as a nec-

essary but not sufﬁcient schedulability test since any

task set that misses a deadline shows that its dead-

lines are not guaranteed. It is impossible to simu-

late the entire space of possibilities even for systems

of moderate size. Any non-determinism must be re-

solved during simulation. For example, it is necessary

to deﬁne when sporadic tasks arrive, although with

a minimum time interval between arrivals. Classic

scheduling simulators simply generate as much load

as possible, as soon as possible, but that is not neces-

sarily the worst case for multiprocessors. An example

of the classic approach can be found in (Davis and

Burns, 2011).

In (de Oliveira et al., 2013), an adversary simula-

tor was used as a necessary but not sufﬁcient schedu-

lability test. The adversary simulator generates a pat-

tern of arrivals that is valid, but that also increases the

response time of tasks, acting as an adversary to the

scheduler. The adversary simulator stresses the sys-

tem in such a way that it is a much tighter necessary

but not sufﬁcient schedulability test than the classic

scheduling simulator. In (de Oliveira et al., 2013) it

was described an adversary simulator for multipro-

cessors with a single (global) task queue and FP (ﬁxed

priority) scheduling. It applies a greedy approach that

works well with small systems, but that is not very

stringent as the number of tasks and processors in-

crease.

In this paper, we present a new adversary simu-

lator for multiprocessors with global task queue and

ﬁxed-priority scheduling. We consider sporadic tasks

with constrained deadlines (D ≤ T ). This new simu-

lator applies a lazy approach that is much more effec-

tive for large systems than both the classic simulator

and the greedy-adversary simulator from (de Oliveira

et al., 2013). We compare the three simulators using

both deadline monotonic priority ordering (DMPO)

and deadline minus computation time monotonic pri-

ority ordering (DCMPO).

The remainder of this paper is organized as fol-

low. Section 2 lists the related work. The task model

is described in Section 3. In Section 4 we describe

three existing necessary but not sufﬁcient schedula-

bility tests for sporadic-task sets running on multi-

processors. Section 5 describes a new lazy-adversary

simulator. Its performance is evaluated in Section 6.

Conclusions are presented in Section 7.

2 RELATED RESEARCH

In (Baker and Cirinei, 2007), Baker and Cirinei con-

sidered the schedulability of a set of sporadic hard-

deadline tasks on a multiprocessor. The test is based

on modelling the arrival and scheduling as a ﬁnite-

state system, and enumerating the reachable states.

The computational complexity of the test is too high

to be practical for most real systems.

In (Baker and Cirinei, 2006), it is described a

necessary test for the feasibility of sets of sporadic

tasks. It has pseudo-polynomial complexity and any

task set that fails this test is proved to be infeasible in

globally scheduled multiprocessor systems. This test

is based on concepts originally presented in (Fisher

et al., 2006). This is a feasibility test in the sense that

if a task set fails the test it is not possible to guaran-

tee its deadlines regardless the scheduling algorithm

used.

In (Samii et al., 2008), it is proposed a simulation-

based method for worst-case response time estima-

tion of distributed real-time systems. The simulator

chooses the execution times of the jobs by exploring

the space of execution times so that it maximizes the

response times. In order to guide the execution-time

space exploration, the authors developed optimiza-

tion strategies based on three meta-heuristics: Sim-

ulated Annealing, Tabu Search, and Genetic Algo-

rithms (GAs) (Reeves, 1993). The authors used the

GA-based approach to estimate the pessimism of two

response-time analysis approaches for distributed em-

bedded systems considering two automotive commu-

nication protocols: CAN and FlexRay. The parame-

ters of the heuristic were tuned experimentally.

In (G. Thaker and Price, 2004), it is used simula-

tion to estimate the pessimism in different schedula-

bility tests for end-to-end distributed periodic tasks.

They compared values observed in simulation with

values computed using multiple scheduling theory

techniques. Regarding the simulations, the only deci-

sion was the phase for the ﬁrst release of each periodic

task in a system.

An early work on a similar problem was presented

in (Baruah et al., 1991), but it considers the upper

bound for the cumulative value obtained through the

on-line scheduling of soft real-time aperiodic tasks

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

322

running on uniprocessor and dual processors.

The concept of an adversary simulator was used

by (de Oliveira et al., 2012) to stress the system in

such a way that the simulation will generate tighter

lower bounds for the maximum response time. This

concept was applied to multiprocessors using global

scheduling and ﬁxed priority. The adversary simu-

lator resolves any non-determinism against a victim

task, which results in a valid timeline with a high re-

sponse time for the victim task. The adversary al-

gorithm is speciﬁc to each scheduling solution. In

(de Oliveira et al., 2012), an adversary for global

ﬁxed-priority scheduling was presented for two pri-

ority assignment policies: deadline minus compu-

tation time monotonic priority ordering (DCMPO)

and deadline monotonic priority ordering (DMPO). In

(de Oliveira et al., 2013), an adversary simulator for

global ﬁxed-priority until zero-laxity scheduling was

also described.

In this paper we present a new adversary simulator

for ﬁxed-priority multiprocessor systems that applies

a lazy approach and is more effective for large task

sets than those presented in (de Oliveira et al., 2012)

and (de Oliveira et al., 2013).

3 TASK MODEL

We assume a homogeneous multiprocessor system

comprising m identical processors. There is a static

set τ of n sporadic tasks {τ

,...,τ

}. Each task gives

rise to a potentially inﬁnite sequence of jobs. Each

job of a task may arrive at any time once a minimum

inter-arrival time has elapsed since the arrival of the

previous job of the same task. Tasks are independent

and can not voluntarily suspend themselves.

Each task τ

is characterized by its relative dead-

line D

, worst-case execution time C

, and minimum

inter-arrival time or period T

. The utilization U

each task is given by C

and we assume D

≤ T

The worst-case response time R

of task τ

is deﬁned

as the longest time from a job of the task arriving to

its complete execution.

A global queue exists for all processors. Accord-

ing to global ﬁxed priority pre-emptive scheduling

(FP), the jobs with the m highest priorities execute. As

a result of pre-emption and subsequent resumption, a

job may migrate from one processor to another. The

cost of pre-emption, migration, and the run-time op-

eration of the scheduler is assumed to be either negli-

gible, or subsumed into the worst-case execution time

of each task.

We will consider two popular priority assignment

policies for the ﬁxed-priority global scheduling of

multiprocessors: deadline monotonic priority order-

ing (DMPO) and deadline minus computation time

monotonic priority ordering (DCMPO).

4 EXISTING NECESSARY BUT

NOT SUFFICIENT TESTS

In this section we brieﬂy describe the three most

used necessary but not sufﬁcient schedulability tests

for multiprocessor systems when ﬁxed-priority global

scheduling is applied. These three tests will be com-

pared to the new test described in Section 5.

4.1 Feasibility Test

We use as baseline the necessary feasibility test de-

scribed in (Baker and Cirinei, 2006), which is often

used in empirical evaluations in order to eliminate

task sets that are certainly not schedulable. It uses

the concepts of processor demand bound function and

processor load.

The processor demand bound function h(t) cor-

responds to the maximum amount of task execution

that can be released in an interval [0,t) and also has to

complete in that interval.

h(t) =

∑

i=1

max(0,



t −D



+ 1)C

(1)

The processor load is the maximum value of the

processor demand bound divided by the length of the

time interval.

load(τ) = max

∀t

(

h(t)

) (2)

Baruah and Fisher observed in (Baruah and Fisher,

2005) that a task set cannot possibly be schedulable

according to any algorithm if the total execution that

is released in an interval and must also complete in

that interval exceeds the available processing capac-

ity. The processor load provides a simple necessary

condition for task set feasibility: load(τ) ≤ m, where

m is the number of processors.

In 2006, Baker and Cirinei (Baker and Cirinei,

2006) deﬁned the modiﬁed processor load (load

∗

) as

the processor load including task execution that must

unavoidably take place within an interval [0,t), even

though the release time or deadline is not actually

within the interval. The necessary feasibility test be-

comes load

∗

(τ) ≤ m.

Baker and Cirinei showed that an upper bound on

the modiﬁed processor load

∗

can be found by consid-

ering a synchronous arrival sequence, with the modi-

ﬁed processor load calculated from the modiﬁed pro-

cessor demand bound function for each task:

ANecessaryTestforFixed-PriorityReal-TimeMultiprocessorSystemsbasedonLazy-adversarySimulation

323

∗

(t) = h(t) +

∑

i=1

max(0,t −max(0,



t −D



+ 1)T

− D

) (3)

4.2 Classic Scheduling Simulation

The task model based on sporadic tasks deﬁnes a min-

imum interval of time between two arrivals of the

same task, but there is no maximum interval. The ﬁrst

arrival of each task is not deﬁned. Also, the execution

time of each individual job can be any value smaller

than or equal to the worst-case execution time of the

respective task.

When simulation is used to evaluate the schedu-

lability of sporadic task sets running on multipro-

cessors, it is necessary to resolve issues of non-

determinism of the system, since it is impossible to

simulate the entire space of possibilities.

Most simulations in the literature employ a classic

heuristic to deﬁne the behaviour of the system. The

classic scheduling simulation assumes that the greater

the workload offered to the system, the higher the re-

sponse times. Thus, the simulator tries to increase the

workload as much as possible, as quickly as possible.

We will adopt the behavior described in (Davis and

Burns, 2011) as an example of the classic approach.

In (Davis and Burns, 2011) each simulation runs

for a time interval equal to ten times the longest pe-

riod of any task in the task set. Each simulation starts

with the synchronous release of the ﬁrst job of each

task. Subsequent jobs are released as early as possi-

ble. That means that the minimum inter-arrival time

is always used. Each job requires its worst-case exe-

cution time. The simulation deems a task set schedu-

lable by a given algorithm if it did not ﬁnd a deadline

miss during the time interval simulated, or any un-

avoidable deadline miss for any job that had execution

time remaining at the end of the interval.

4.3 The Greedy-Adversary Simulator

In the classic approach, given the possibility of a job

to arrive sooner or later, the simulator always opts for

having the job arriving as soon as possible. It makes

sense for uniprocessor but this heuristic does not al-

ways performs well on multiprocessors.

In the case of multiprocessors, the worst scenario

for a victim job J

is obtained when jobs with higher

priority than J

occupy all processors. Since task pri-

orities can not be manipulated by the simulator, the

only way to manage the execution order is to control

the arrivals. The goal of an adversary simulator is

not to maximize the processing demand from higher

priority tasks but to organize this demand so higher-

priority tasks hold all processors simultaneously for

as long as possible.

The adversary simulator designed for global

ﬁxed-priority multiprocessor scheduling presented in

(de Oliveira et al., 2012) and (de Oliveira et al., 2013)

chooses a speciﬁc job from a speciﬁc task to be the

victim job. It manipulates non-determinisms in the

task model in an attempt to generate the worst pos-

sible case for the victim. The only source of non-

determinism explored is the arrival time of sporadic

tasks, since the execution time of each task is always

set to its worst-case execution time. Each task is tried

once as the victim.

Let τ

denote the victim task and J

the victim

job. HP(τ

) represents the set of tasks with a prior-

ity higher than or equal to the priority of τ

. The ﬁrst

job of the victim task is the victim job and it is the

ﬁrst job to arrive at t = 0. The adversary heuristic de-

scribed in (de Oliveira et al., 2013) is based on the

following ideas:

• The arrival of jobs associated with tasks in HP(τ

)

is postponed until the arrival of J

• The arrival of jobs associated with tasks in HP(τ

)

is postponed unless there are enough jobs from

HP(τ

) to prevent the execution of J

• Jobs from a task in HP(τ

) arrive as soon as pos-

sible, as long as this task is capable of generating

more jobs before the deadline of J

• When a task in HP(τ

) is such that it will be able

to generate only a single last job before the abso-

lute deadline of J

, this last job will arrive only

when this is necessary to prevent the execution of

. If there are more than one job that satisﬁes this

condition, they arrive in the descending order of

their execution times.

• Any arbitrary tie-break is against the victim task

whenever possible.

This adversary simulator is greedy in the sense

that as soon as there are enough tasks to prevent the

execution of the victim, all enabled tasks are imme-

diately released. It might not be the best approach.

For instance, by waiting a little longer, the adversary

simulator might release a larger number of tasks that

would keep all processors busy for a longer time in-

terval, creating a worse scenario for the victim task.

The exact arrival pattern that will lead to the worst-

case response time of the victim is unknown due to

the combinatorial nature of the problem.

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

324

5 THE LAZY-ADVERSARY

SIMULATOR

In this section, we present a lazy-adversary simula-

tor that also manipulates non-determinisms in the task

model to generate the worst possible case for the vic-

tim task. The only source of non-determinism is again

the arrival time of sporadic tasks, since the execution

time of each task will always be its respective worst-

case execution time. This adversary simulator also

chooses a speciﬁc job from a speciﬁc task to be the

victim job.

The lazy-adversary simulator postpones the re-

lease of enabled tasks in order to form larger gangs

of tasks. A task gang is a set of tasks that have higher

priority than the victim task and execute simultane-

ously in order to occupy all processors and prevent

the victim job from executing. The collective release

of the tasks of the gang creates a busy interval where

task τ

cannot execute. It is important to notice that

the same task may appear more than once in the gang

when its period is smaller than the busy interval cre-

ated by the gang.

Let τ

and J

denote the victim task and the victim

job, respectively. HP(τ

) and LP(τ

) are the sets of

tasks with a priority respectively higher than or equal

to and lower than the priority of τ

. The ﬁrst job of

the victim task is released at time t = 0 and this is the

victim job. D

is the relative deadline of τ

and also

the absolute deadline of J

since it arrives at t = 0.

The lazy-adversary simulator is based on the fol-

lowing ideas:

• The arrival of tasks from HP(τ

) is organized in

gangs.

• No task from HP(τ

) arrives until a gang is

formed.

• No gang is formed until the arrival of J

• A gang is formed by at least m tasks from HP(τ

)

that can release a job immediately.

• Even when m or more tasks from HP(τ

) can re-

lease a job immediately, the gang formation will

be postponed if the following is true: the time un-

til the next task from HP(τ

) completes its mini-

mum time interval between arrivals is less than the

remaining execution time of J

and it is also less

than the execution time of this task from HP(τ

• Once a gang is formed, tasks from this gang arrive

only when this is necessary to prevent the imme-

diate execution of J

• Tasks of the gang arrive in the descending order

of their execution times.

• More tasks from HP(τ

) can be included in the

gang while the gang is executing.

• When there are not enough tasks from HP(τ

)

to prevent the execution of J

then tasks from

HP(τ

) are no longer released until a new gang

can be formed.

• Any arbitrary tie-break is against the victim task

whenever possible. The most obvious example is

when two tasks have the same priority.

At each moment of the simulation, set

waitingTasks contains all tasks that still have to

wait for the minimum time interval between arrivals

before generating a new job. Set enabledTasks

contains all tasks capable of immediately generating

a new job, because it already satisﬁed the minimum

time interval between arrivals since its last arrival.

All tasks enter set enabledTasks at t = 0. Set

enabledTasks is kept sorted by decreasing execution

times.

At any moment, availableProcessors(J

) returns

how many processors are available for job J

. That

depends on the total number of processors and the

number of jobs released but not ﬁnished that have a

higher priority than J

. This value can be obtained

from the global ready queue. Also, e

represents the

amount of processing time still needed to ﬁnish J

At any time t, nextDelta represents the time in-

terval until the next task from set waitingTasks will

be capable of generating a new job and then be trans-

ferred to enabledTasks. nextComp represents the ex-

ecution time of that task. If waitingTasks is empty

then nextDelta = ∞ and nextComp = 0.

The lazy-adversary simulator alternates between

two states: waiting the formation of a new gang

(waitingGang is true) and releasing tasks from a

formed gang (waitingGang is f alse). The ﬁrst gang

is formed at t = 0 and includes all tasks from HP(τ

Initially, waitingGang is set to f alse, since the

victim job has not arrived yet. The ﬁrst time the vic-

tim job is about to execute, tasks from the ﬁrst gang

begin to be released. When there are no more tasks

in set enabledTasks to preclude τ

from executing,

this gang is ﬁnished and waitingGang is set to true.

waitingGang is set to f alse again when a new gang is

formed.

The heuristic described is used by the adversary

simulator when it has to decide whether a task must

be released or not. This happens when a task becomes

capable of generating a new job (becomes enabled)

and when the victim job is about to receive a pro-

cessor. Algorithm 1 is used whenever a task τ

be-

comes enabled (job J

may arrive). Algorithm 2 is

used when job J

is about to receive a processor.

ANecessaryTestforFixed-PriorityReal-TimeMultiprocessorSystemsbasedonLazy-adversarySimulation

325

Algorithm 1 When τ

becomes enabled

if τ

= τ

and t = 0 then

{Victim job arrives at t=0}

from τ

arrives now

exit

end if

if τ

belongs to LP(τ

) then

{Jobs of lower priority than J

are just ignored}

exit

end if

{Task of higher priority than J

becomes enabled}

insert τ

into set enabledTasks

if waitingGang ∧ size(enabledTasks) ≥ m then

if nextDelta < e

∧ nextComp ≥ nextDelta then

{Wait a little longer before starting a gang}

exit

else

{Start a gang right away}

while availableProcessors(J

) > 0 do

extract τ

from set enabledTasks

from τ

arrives now

end while

set waitingGang to f alse

end if

Algorithm 2 When J

is about to execute

if ¬waitingGang then

if size(enabledTasks) ≥ availableProcessors(J

) then

{Release the necessary jobs from enabledTasks}

while availableProcessors(J

) > 0 do

extract τ

from set enabledTasks

from τ

arrives now

end while

else

set waitingGang to true

end if

In this paper we assume a task model where D

≤

. When the deadline does not have to be equal to

the respective task period it is not simple to determine

which task has the biggest chance of missing its dead-

line. In order to avoid having to choose a single vic-

tim task, each task is tried once as the victim. Once a

task misses its deadline, it is proved that the task set is

not schedulable. The algorithm of the lazy-adversary

simulator is very fast, so it is feasible to run the simu-

lator once for each task.

6 EVALUATION OF THE LAZY

ADVERSARY

In order to evaluate the lazy-adversary described in

Section 5, we implemented using the programming

language C all three simulators: the classic, the

greedy-adversary and the new lazy-adversary. The

scheduling of many task sets with different sys-

tem utilizations were simulated considering different

numbers of processors. This empirical experimenta-

tion attempts to compare how many systems are de-

clared schedulable by each simulator.

Since all three simulators are driven by heuristics,

they can only obtain a lower bound for the maximum

response time of each task. The main goal is to de-

termine which one is the more challenging, the one

that will be more effective as a necessary schedulabil-

ity test by generating the most demanding test cases.

We also implemented the necessary feasibility test de-

scribed in (Baker and Cirinei, 2006) as a baseline.

6.1 Simulation Conditions

In order to evaluate the proposed lazy-adversary sim-

ulator, we use here the same conditions described in

(Davis and Burns, 2011) as a representative example

of the conditions generally used in empirical investi-

gations of this kind.

Task utilization’s were generated using the UUni-

fast Discard algorithm (Davis and Burns, 2009), giv-

ing an unbiased distribution. It is based on the UU-

nifast algorithm of Bini and Buttazzo (Bini and But-

tazzo, 2005) adapted to generate task sets with total

utilization greater than one as it happens in multipro-

cessor systems. The minimum time interval between

arrivals were generated according to a log-uniform

distribution with a factor of 1000 difference between

the minimum and maximum values, from 1 ms to 1

second. The log-uniform distribution was used be-

cause it generates an equal number of tasks in each

time band (e.g. 1-10ms, 10-100ms, etc).

Constrained deadlines were assigned according to

a uniform random distribution, in the range [C

Task execution times were set based on the utiliza-

tion and the minimum time interval between arrivals

selected: C

= U

× T

In each experiment, the task set utilization (x-axis

value) was varied from 0.025 to 0.975 times the num-

ber of processors. For each utilization value, 1000

valid task sets were generated and the schedulability

of those task sets determined using the classic and the

two adversary simulators. We also used the necessary

feasibility test described in (Baker and Cirinei, 2006)

as a baseline. We considered three system sizes: 20

tasks running on 4 processors, 80 tasks running on 16

processors and 160 tasks running on 32 processors.

For each system size and each utilization, we are in-

terested in the number of task sets that were approved

by each test. The best necessary test is that one that

approves the minimum number of task sets.

The lines in each graph give the total number of

task sets at each utilization level that was approved

by the respective algorithm. Scheduling is always

based on global FP. Two priority assignment policies

were studied. Deadline monotonic priority ordering

(DMPO) was used because it is the most used order-

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

326

ing when D ≤ T . Deadline minus computation time

monotonic priority ordering (DCMPO) was also used

because, according to simulation studies, it is more

effective than DMPO (Davis and Burns, 2009).

6.2 Simulation Results

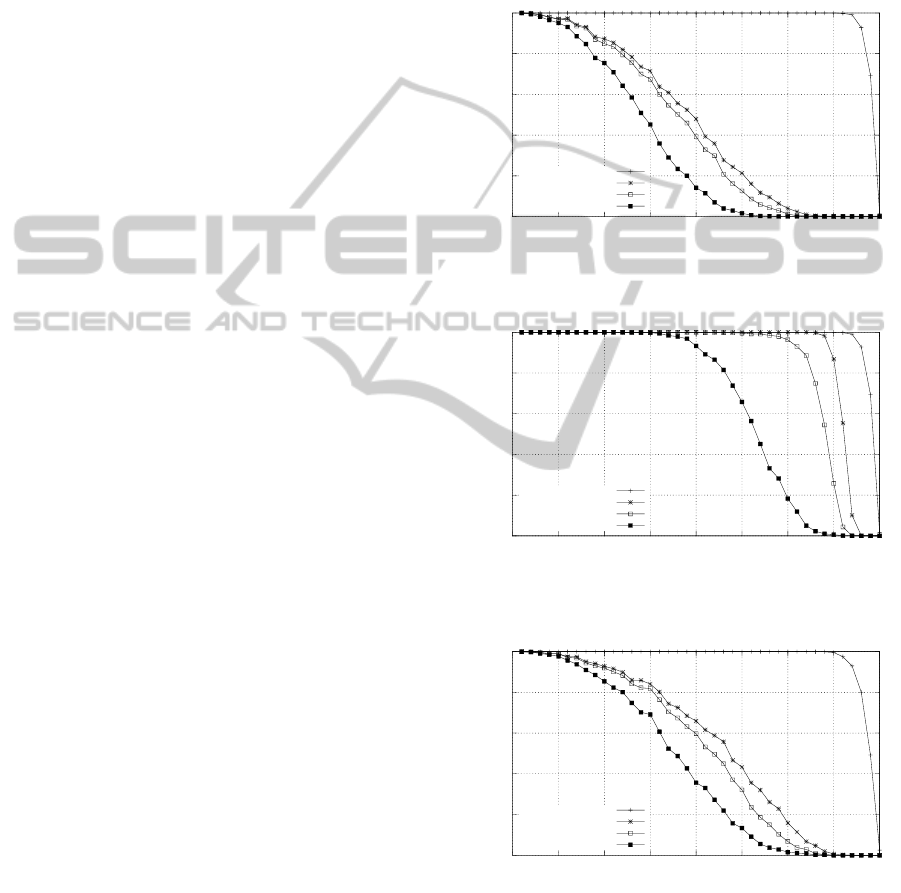

Figure 1 shows the results for 160 tasks on 32 pro-

cessors when DMPO is used. We can see that the

new lazy-adversary simulator is a better necessary but

not sufﬁcient test than the previously existing simula-

tors. All simulators are more effective than the nec-

essary feasibility test for multiprocessors. Figure 2

also clearly shows that the lazy-adversary simulator

is a better necessary test when deadline minus com-

putation time monotonic priority ordering (DCMPO)

is used to assign priorities to tasks.

Figure 3 shows the results for 80 tasks on 16

processors scheduled by ﬁxed priority assigned by

DMPO. Again the graph clearly shows that the lazy-

adversary simulator provides tighter lower bounds

for maximum response times than those generated

by both the classic and the greedy-adversary simula-

tors. Let’s consider for instance an utilization of 10.0.

The classic simulator ﬁnds 43% of all task sets to

be schedulable, the greedy-adversary ﬁnds 32% to be

schedulable, while the lazy-adversary simulator pro-

posed in this paper ﬁnds only 13% of all task sets to be

schedulable. Figure 4 shows similar results for when

DCMPO is used.

Figure 5 shows the results for 20 tasks on 4

processors and DMPO. The lazy-adversary and the

greedy-adversary simulators are better tests than the

classic simulator and the generic feasibility test. But

the lazy adversary is not always better than the greedy

adversary. While the lazy adversary is indeed bet-

ter for low utilization, the greedy adversary is still

better for small systems with high utilization. That

is because fewer tasks generates less opportunities to

form the big higher-priority task gangs that will pre-

vent the execution of the victim task. In this scenario

the greedy approach is capable of rejecting a larger

fraction of task sets. We arrive at these same con-

clusions when DCMPO is used instead of DMPO to

assign priorities to sets with 20 tasks (Figure 6).

All ﬁgures show that the necessary feasibility test

rejects a small number of task sets when compared to

any simulator. That can be explained in part because

the necessary feasibility test only reproves task sets

that can not be scheduled by any scheduler. While the

result of the necessary feasibility test is more general,

when one wants to consider a speciﬁc scheduling al-

gorithm, simulators are better necessary schedulabil-

ity tests, and the lazy-adversary simulator is the best

one. Regarding the classic simulator, it is a better test

than the feasibility test, but it is a worse test than both

greedy-adversary and lazy-adversary simulators.

All ﬁgures also show that DCMPO always en-

hances the schedulability of the system comparing

with DMPO. This is true regardless system size and

adversary simulator used.

200

400

600

800

1000

0 4 8 12 16 20 24 28 32

Schedulable Task Sets

Utilization

Feasibility

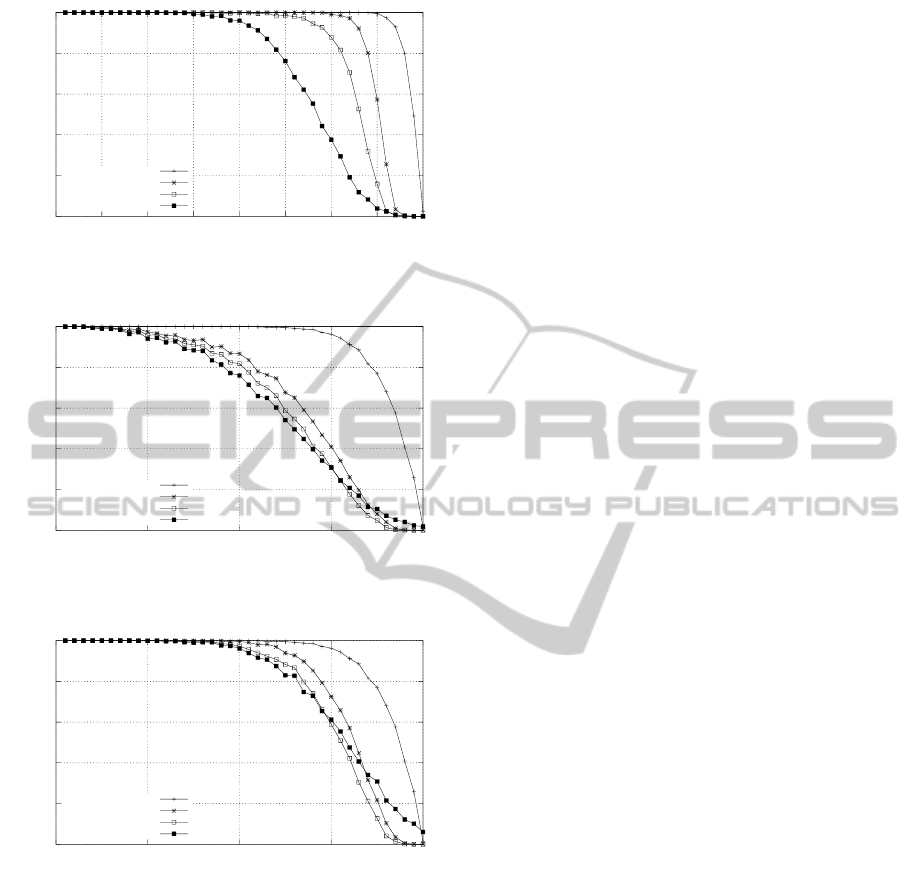

Classic

Greedy-Adversary

Lazy-Adversary

Figure 1: Global DMPO, 32 processors, 160 tasks

200

400

600

800

1000

0 4 8 12 16 20 24 28 32

Schedulable Task Sets

Utilization

Feasibility

Classic

Greedy-Adversary

Lazy-Adversary

Figure 2: Global DCMPO, 32 processors, 160 tasks

200

400

600

800

1000

0 2 4 6 8 10 12 14 16

Schedulable Task Sets

Utilization

Feasibility

Classic

Greedy-Adversary

Lazy-Adversary

Figure 3: Global DMPO, 16 processors, 80 tasks

The time to run a simulation depends on whether

a deadline is missed or not. When the system is

not schedulable the simulation is stopped once a task

misses its deadline so the execution time is very small.

It takes longer to run the simulators when all dead-

lines are met. The classic simulator makes a single

ANecessaryTestforFixed-PriorityReal-TimeMultiprocessorSystemsbasedonLazy-adversarySimulation

327

200

400

600

800

1000

0 2 4 6 8 10 12 14 16

Schedulable Task Sets

Utilization

Feasibility

Classic

Greedy-Adversary

Lazy-Adversary

Figure 4: Global DCMPO, 16 processors, 80 tasks

200

400

600

800

1000

0 1 2 3 4

Schedulable Task Sets

Utilization

Feasibility

Classic

Greedy-Adversary

Lazy-Adversary

Figure 5: Global DMPO, 4 processors, 20 tasks

200

400

600

800

1000

0 1 2 3 4

Schedulable Task Sets

Utilization

Feasibility

Classic

Greedy-Adversary

Lazy-Adversary

Figure 6: Global DCMPO, 4 processors, 20 tasks

run for each system, no matter how many tasks it has.

But it simulates the system for a total simulated time

equal to 10 times the longest period of the task set.

It takes around 0.5 seconds on an ordinary desktop

computer to make a classic simulation of a system of

80 tasks. Both adversary simulators must simulate the

system once for each task, but it simulates the system

only to the point in time equal to the deadline of the

ﬁrst job of the victim task. Those features balance

each other and execution times of all simulators are

not very different. It takes around 0.1 seconds on an

ordinary desktop computer to make a lazy-adversary

simulation of a system of 80 tasks.

7 CONCLUSIONS

In hard real-time systems, formal analysis provides

guarantees for the deadlines, but these analyses are

extremely pessimistic for complex architectures. In

this case, a necessary but not sufﬁcient test is used to

evaluate the pessimism level of the formal analysis,

by differentiating unschedulable task sets from task

sets that can not be proved to be neither schedulable

nor unschedulable.

In this paper we presented a new necessary but

not sufﬁcient schedulability test for this task model.

The new test is based on the concept of an adversary

simulator, but it improves on previously existing algo-

rithms. Like any adversary simulator, it manipulates

the non determinism of load generation in order to

increase the response time of a victim task. But the

new simulator was called a lazy-adversary simulator

because it delays the arrival of high-priority tasks in

order to form gangs that will preclude the execution

of the victim task for a longer time.

Experiments showed that the new lazy-adversary

simulator is a much more effective necessary test

than the previously existing ones when considering

large systems (80 and 160 tasks). For small systems

(20 tasks), the new lazy-adversary simulator is bet-

ter than the classic simulator and the feasibility test,

but it is not better than the previously existing greedy-

adversary simulator for all system utilizations.

The complexity of real-time systems grows each

day, which makes the formal analysis necessary to

guarantee deadlines at design time every more pes-

simistic. We plan to expand the existing adversary

simulators to deal with more complex task models.

ACKNOWLEDGMENTS

The authors would like to thank CAPES and

CNPq for the partial funding of this research.

SIMULTECH2014-4thInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

328

REFERENCES

Andersson, B. and Jonsson, J. (2002). Preemptive multi-

processor scheduling anomalies. In Proceedings of

the 16th IEEE International Parallel and Distributed

Processing Symposium, pages 12–19.

Back, H., Chwa, H. S., and Shin, I. (2012). Schedu-

lability analysis and priority assignment for global

job-level ﬁxed-priority multiprocessor scheduling. In

Real-Time and Embedded Technology and Applica-

tions Symposium (RTAS), 2012 IEEE 18th, pages 297

–306.

Baker, T. P. and Cirinei, M. (2006). A necessary and some-

times sufﬁcient condition for the feasibility of sets of

sporadic hard-deadline tasks. In Real-Time Systems

Symposium, 2006. RTSS ’06. 27th IEEE International,

pages 178 –190.

Baker, T. P. and Cirinei, M. (2007). Brute-force determina-

tion of multiprocessor schedulability for sets of spo-

radic hard-deadline tasks. In Proceedings of the 11th

International Conference on Principles of Distributed

Systems, pages 62–75. Springer-Verlag.

Baruah, S. and Fisher, N. (2005). The partitioned multipro-

cessor scheduling of sporadic task systems. In Real-

Time Systems Symposium, 2005. RTSS 2005. 26th

IEEE International, pages 9 pp.–329.

Baruah, S., Koren, G., Mao, D., Mishra, B., Raghunathan,

A., Rosier, L., Shasha, D., and Wang, F. (1991). On

the competitiveness of on-line real-time task schedul-

ing. In Proceedings of the IEEE Real-Time Systems

Symposium, pages 106–115.

Bertogna, M. and Baruah, S. (2011). Tests for global edf

schedulability analysis. J. Syst. Archit., 57(5):487–

497.

Bertogna, M., Cirinei, M., and Lipari, G. (2009). Schedu-

lability analysis of global scheduling algorithms on

multiprocessor platforms. IEEE Transactions on Par-

allel and Distributed Systems, 20(4):553–566.

Bini, E. and Buttazzo, G. C. (2005). Measuring the per-

formance of schedulability tests. Real-Time Systems,

30:129–154.

Burns, A., Davis, R., Wang, P., and Zhang, F. (2012). Parti-

tioned edf scheduling for multiprocessors using a c=d

task splitting scheme. Real-Time Systems, 48:3–33.

Cirinei, M. and Baker, T. (2007). Edzl scheduling anal-

ysis. In Real-Time Systems, 2007. ECRTS ’07. 19th

Euromicro Conference on, pages 9 –18.

Davis, R. I. and Burns, A. (2009). Priority assignment for

global ﬁxed priority pre-emptive scheduling in mul-

tiprocessor real-time systems. In Proceedings of the

30th IEEE Real-Time Systems Symposium, pages 398–

409.

Davis, R. I. and Burns, A. (2011). Fpzl schedulability anal-

ysis. In Proceedings of the 17th IEEE Real-Time and

Embedded Technology and Applications Symposium,

pages 245–256.

de Oliveira, R. S., Carminati, A., and Starke, R. A. (2012).

On using adversary simulators to obtain tight lower

bounds for response times. In Proceedings of the

27th Annual ACM Symposium on Applied Computing,

pages 1573–1579.

de Oliveira, R. S., Carminati, A., and Starke, R. A. (2013).

On using adversary simulators to evaluate global

ﬁxed-priority and fpzl scheduling of multiprocessors.

Journal of Systems and Software, 86(2):403 – 411.

Fisher, N., Baker, T., and Baruah, S. (2006). Algorithms for

determining the demand-based load of a sporadic task

system. In Embedded and Real-Time Computing Sys-

tems and Applications, 2006. Proceedings. 12th IEEE

International Conference on, pages 135–146.

G. Thaker, P. Lardieri, D. K. and Price, M. (2004). Em-

pirical quantiﬁcation of pessimism in state-of-the-art

scheduling theory techniques for periodic and spo-

radic dre tasks. In Proceedings of the 10th IEEE

Real-Time and Embedded Technology and Applica-

tions Symposium, pages 490–499.

Lee, J., Easwaran, A., Shin, I., and Lee, I. (2011). Zero-

laxity based real-time multiprocessor scheduling. J.

Syst. Softw., 84(12):2324–2333.

Reeves, C. R., editor (1993). Modern heuristic techniques

for combinatorial problems. John Wiley & Sons, Inc.,

New York, NY, USA.

Samii, S., Raﬁliu, S., Eles, P., and Peng, Z. (2008). A sim-

ulation methodology for worst-case response time es-

timation of distributed real-time systems. In Proceed-

ings of Design, Automation and Test in Europe, pages

556–561.

ANecessaryTestforFixed-PriorityReal-TimeMultiprocessorSystemsbasedonLazy-adversarySimulation

329
