Location based Reminder System with Reusable Ontology
Henrihs Gorskis and Arkady Borisov
Institute of Information Technology, Riga Technical University,1 Kalku Street, LV-1658 Riga, Latvia
Keywords: Application Ontology, Domain Ontology, Knowledge Reuse, Method Ontology, Reminder System.
Abstract: This paper provides a description of design of a reminder system that is based on location rather than on
time. The system presented in this paper uses a reusable domain ontology model to access knowledge about
a domain. The domain ontology is merged with a method ontology model in order to create an application
specific ontology. This application ontology is used for communication with the user. It is proposed that
using an ontology model enables the application to interpret the user input more flexibly. The reminder is
triggered when a user is in close proximity to an establishment which is consistent with what was previously
defined in the reminder application by the user with concepts from the domain ontology.
1 INTRODUCTION
The communication between a user and an
application is often based on a checklist and is not
quite dynamic or flexible regarding the input of the
user profile. This paper proposes a system which
uses ontology models for a location-based reminder
system. This system lets the user define the reminder
entry by using concept names from the ontology for
a more dynamic type of user interaction. Using
terminology from the ontology makes it possible for
the system to search the concept model of the
ontology to clarify the user intention. Doing so the
system determines those facts which are applicable
to the problem defined by the user. The system uses
an application specific ontology as the knowledge
base. The application ontology model can be created
from any fitting and reusable domain ontology. This
paper takes a look at a reminder system which
reminds the user to buy something when he is near a
shop. The type of product and shop are picked by the
user, and the shops, which the system reminds the
user of, is based on the user input and location. For
this, an example domain ontology model for the city
of Riga is used, which describes shops, stores, post
offices and other businesses which can be of interest
for the user. This way the system reminds the user to
do something is based on the circumstances rather
than time, which is different from the more classical
approach to reminder systems.
2 REMINDER SYSTEM
DESCRIPTION
The reminder system is based on the user creating
reminder entries and the system constantly checking
whether or not the conditions are met at the time of
the check. This process begins with the user creating
a reminder entry. This paper takes a look only at one
type of reminder, but any number of reminder types
can exist in such a system. The reminder is entered
into the system by the user manipulating the
linguistic sentence which describes the purpose of
the reminder. The sentence is as follows:
“Remind me when I’m near a
[business] where I can [action]
[object].”
The words “business”, “action” and “object” can be
changed by the user in order to describe when the
user wishes to be reminded. These words are directly
linked to concepts within the application ontology
model. They are either replaced by the most abstract
concepts representing the meaning of each word or
they are already the top most concepts for every
branch of the taxonomy. The word “business” points
to the most abstract concepts in the taxonomical
branch for shops, post offices and other places where
the user can perform the actions of which he wishes
to be reminded of. Every action like “buy”, “send”,
“order” etc. must be a sub concept of the concept to
which the word “action” is linked to. The word
“object” is linked to the top most concepts in the
taxonomy, within the ontology, which describes
161
Gorskis H. and Borisov A..
Location based Reminder System with Reusable Ontology.
DOI: 10.5220/0005027501610167
In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2014), pages 161-167
ISBN: 978-989-758-049-9
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
those objects that are the target of the actions. The
words, which the user can substitute, are based
directly on these sub-taxonomies. This would be
useful for preventing nonsense entries and for
optimizing searches within the ontology. For
example, let us say, the user chooses to create the
following reminder sentence:
“Remind me when I’m near a [Store]
where I can [buy] [bread].”
The concepts “Store”, “buy” and “bread” have an
ancestral link to the higher and more abstract
concepts represented by “business”, “action” and
“object”.
Once the user is done substituting the words with the
names of the concepts, from the ontology which
represent most closely the wishes of the user, the
reminder system can begin to process the entry. The
process begins by determining the concepts which
are the closest to the given description. If the
sentence given by the user about buying bread in a
store is analyzed, it becomes clear that the ontology
does not describe a store which sells bread.
However, after searching the ontology and
determining all the links between the concepts
“Store” and “bread” and the property “buy” it can be
determined that there exists the concepts “Food
store” and “Super market” which in fact do sell
“Food products”. Knowing that both “Food store”
and “Super market” are related to the concept
“Store” and “bread” is related to “Food product”, the
system can determine that both locations are what
the user is looking for.
The system described in this paper is location based.
How exactly the location of the user is determined is
not directly part of this paper. It can be assumed that
an analysis of GPS data is performed and the
distances between the user and the different
locations stored in a database are calculated. Also,
whether the database is first searched by location
and then the remaining data entries are checked by
the description, or if the database is first searched by
the description and only then the distances to the
fitting entries are calculated, is left to the system
design. The important aspect of the database is that
it contains data about the individuals of the
ontology. Each individual has a class, a description
of the individual and location data. The class of the
individual links the individual to its parent concept
and through that the ontology as a whole. The
description of the individual is also based on the
description of the parent concept. If the parent
concept is a specific store type and the ontology
states that such a store sells food item, then the
individual of such concept can specify which
specific food items are sold at the specific store. The
data must be testable against the ontology it belongs
to and the location of the user.
The system performs these tests constantly. Once the
system has determined that a business which fits the
description given by the user is located nearby, it
notifies the user. Similarly to a traditional time-
based reminder the user can choose to postpone the
reminder if the situation of the user is unfitting at the
time of the reminder. The delay can be temporal or
based on other factors. The user could also supply
additional data to the system which can be taken into
account for later reminders. For example, the user
could choose to ignore the specific store for all
future searches. This can be useful if the store does
not physically exist anymore or if the user dislikes
the specific store for reasons undeterminable by the
existing ontology or search sentence.
Once the user has performed the action and the
reminder served its purpose, the user can choose to
delete or keep the reminder in an inactive state for a
later time when the reminder entry will be needed
again.
There already exist some reminder systems that use
ontology models and are context aware. One of such
systems is called “Nama” (Kwon, O., Choi, S., Park,
G., 2005). It is a context-aware multi-agent based
web service. The main idea behind this personalized
reminder system is that it tries to proactively identify
the user needs. The reminder system presented in
this paper differs from that system. “Nama” uses it’s
ontology to model user profiles, for explanation and
prediction purposes. The system in this paper uses a
domain ontology model for the purposes of
interpretation.
Another field reminder systems are used in is
medical care (Paganelli, F., Giuli D., 2007). Such
systems also use ontology knowledge to model user
profiles, medical care processes and guidelines.
Again, this differs from the system presented in this
paper, since medical reminder system mostly models
the relations between different steps of the care
process and use existing rule based knowledge with
very little need to interpret situations, except for
those cases where a patients data is analysed using a
disease ontology (Buranarach, M., Chalortham, N.,
2009). From this it is clear, that the idea of using
other factors than time for a reminder system is not
new and an existing field of interest (Ludford, P.,
Frankowski, D., 2006). However, the system
description provided in this paper is different from
those in the related works, because it tries to explain
the exact relationship between the user input and the
KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment
162
Figure 1: The domain ontology for businesses in Riga.
system functionality, through the use of an ontology
model.
2.1 Task Statement
In order to present the design of the system and
show its potential capabilities this paper will do the
following:
Describe the example domain ontology which
provides information about the city of Riga
and some businesses in it;
Describe the user profile and method ontology
for combining the system with an fitting
reusable domain ontology;
Describe the process of merging these two
ontology models and show it on the example
of the Riga ontology;
Define the process of interpreting a user’s
reminder entry and finding more fitting
concepts for the same request;
Define the process of determining which
individuals from the database are applicable
for a given request;
Show an example for a reminder based on the
given city ontology.
These points are addressed successively in the
upcoming sections of this paper.
3 THE DOMAIN ONTOLOGY
The domain ontology describes the basic knowledge
of the system. For this paper we use an example
domain ontology model. In this case the knowledge
describes the city of Riga and the types of shops and
other businesses located in it. The domain ontology
defines the taxonomy of shops in a way which
makes it possible to determine shops from a very
abstract form to a more specific one. For the
purposes of this paper the ontology is essentially
simplified. The taxonomy for shops and items are
quite basic. However, the processes and approaches
described in the next sections are also applicable to
more complex structured ontology models.
As can be seen in Figure 1 the ontology describes
the existence of an abstract business concept which
performs actions with items. In this ontology there
are stores which sell items, post offices which send
items and repair shops which fix items. The sub
concepts of “store” are “Food store”, “Household
shop”, “Clothing store”, “Shoe store” and indirectly
“Supermarket”. The supermarket is a food store and
a household item shop at the same time. The shoe
store is a specialized type of clothing store. Every
store has a property connection to a sub concept of
item which indicates the type of item sold in this
Food item
Household item
Clothing
Fruit Meat
Baked good
Vegetable
Drink
Footwear
Jacket
Shirt
Trousers
Electronics
Cooking utensils
Item
Furniture
Store
Food store
Clothing store
Household shop
Supermarket
Thing
Shoe store
Maxima
IKI
Rimi Hipermarket
Super Neto
Cenuklubs.lv
Elkor
Bershka
Promod
Eiropasapavi
Crocs
Location
Business
Post office
Repair Shop
Post
Letter Parcel
B
u
y
Action
F
i
x
Send
LocationbasedReminderSystemwithReusableOntology
163
type of store. The only exception of this, in the given
ontology, is the supermarket concept which inherits
these connections from its parent concepts. These
properties are part of a hierarchy. The property
between “Food store” and “Food item” is named
“Buy Food” and is a sub property of the more
abstract “Buy”. The same thing applies to the
properties “Buy Household Item”, “Buy Clothing”
and “Buy Footwear”. It is worth noting, that these
are not the only properties in the domain ontology.
Some properties are not shown. This is especially
true for inverse properties. A Store, of course, does
not buy items, it sells them. Selling is the inverse of
buying. The ontology is defined by what a store
sells; however, the user of the reminder system will
be looking for a store where he can buy certain
items. The user will be searching for triplets of the
type {Store, Buy, Item}, as is defined by the
reminder sentence, rather than {Store, Sell, Item}.
4 USER PROFILE AND METHOD
ONTOLOGY
A user profile can include several reminder entries
as well as some user preferences and some
information about the user. The location data can be
user-based or device-specific. Every reminder entry
is linked to concepts within the application ontology
and describes situation as defined by the user. Since
the system relies on reusable domain ontology there
exists a need to make sure that the application
specific ontology, which is a product of the domain
ontology, is valid and usable by the application. To
solve this problem, an ontology model is created that
describes all important concepts and properties of
the functions within the system in a domain
independent way. In this paper this ontology will be
called method ontology. The purpose of the method
ontology is to ensure that after merging it to the
domain ontology, the resulting application ontology
Figure 2: The discussed method ontology for this
application.
contains all the concepts and properties which are
referenced by the systems functions. For this
application the method ontology has to provide a set
of concepts which are the basis for connecting the
domain ontology.
As shown in Figure 2, there are several concepts
which serve as intermediaries for connecting the
method to the domain. To some extent the method
ontology mirrors the structure of the highest level
concepts from the domain ontology. After merging
these concepts they can be left in the application
ontology or be fully replaced. From the method
ontology we can see that the domain ontology must
necessarily have a location concept. This is
important for getting access to the location data in
the individuals. Next, it can be observed that there is
a concept describing an abstract business. A
business must have a location and must be in some
way connected to an object through an action. In the
context of our domain ontology this will be shops
selling products, repair shops fixing items or post
offices sending items. The method ontology also
shows how the reminder entry is liked to a business.
The purpose of this ontology is to provide an access
point to the reminder system. It describes necessary
concepts, properties and restriction for use in the
system. Any domain ontology which can satisfy
these requirements or can be modified to satisfy
these requirements can be used with the system.
The system contains rules or methods or functions
which contain references to the concepts of the
method ontology. Once the method ontology is used
for the creation of the application ontology these
links must be updated. Whether the concepts from
the method ontology were taken into the application
ontology, merged or replaced by concepts from the
domain ontology does not matter as long as the
references are maintained. By calling classes from
the application ontology the system is capable of
performing searches and other necessary actions. At
this point merging is considered to be done manually
by an expert. The result of merging is an ontology
model which has all the necessary traits to be used
with the application.
5 MERGING OF TWO
ONTOLOGY MODELS
Before the system can use the domain ontology
which contains the data of the city of Riga for
understanding and creating the users reminder entry,
the domain ontology has to be merged with the
method ontology, thereby creating the application
Business
Location
Thing
Object
Profile
Reminder
KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment
164
ontology (Rothenfluh T.E., Gennari J.H., 1994). In
the given example of the domain ontology we can
see that the concepts “Business” and “Location” are
the same. Merging in this case is very easy, since
only the concepts “Profile” and “Reminder” have to
be added to the domain ontology, as well as the
property connections between the concepts. There is
also one instance of replacing a concept from the
method ontology with a concept from the domain
ontology. The concepts “Item” and “Object” are in
this case synonyms for the same thing. For the given
example, the concept “Object” will be replaced and
only the concept “Item” will be used. In more
complex ontology models all these concepts could
be added or replaced by other concepts from the
domain ontology. The most important part is that the
application ontology cannot be smaller than the
method ontology and every concept and property
from the methods ontology has to be used in order to
create a link between the system and the application
ontology.

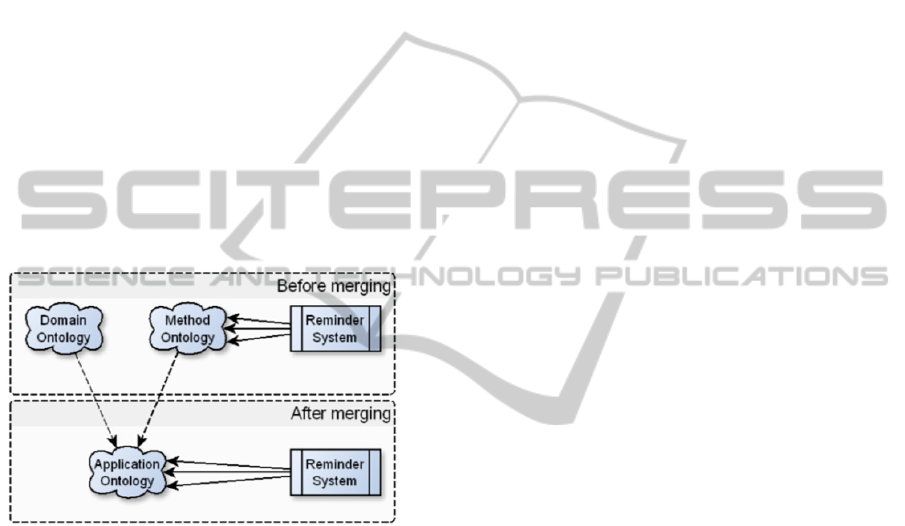

Figure 3: Visualization of the process of merging.
As we can see from Figure 3, the reminder system
uses direct references to the concepts originally
defined in the method ontology for the interpretation
of the concepts from the domain ontology. Without
this, the system would not be capable to determine
which concepts are applicable to the processes in the
system. In case of a more complex domain ontology
where there would be more than one “business”
concept, the concept of business or a renamed
version of this concept could be added to the domain
ontology in order to create this overarching concept
of all businesses required for the reminder system.
Also it is important to remember that in this specific
case we are only interested in businesses which
perform actions with items. The expert merging
these ontology models must remember this, since in
other domains businesses can be defined differently.
During the process of merging it is important to
maintain the references from to system to the
ontology. The way the system keeps track of the
references is specific to the system, but we can think
of it as a list of terms. For example, if the system is
referencing the concept “Object” in the method
ontology, but in the process of merging the expert
chooses to keep the equivalent concept “Item” from
the domain ontology replacing “Object”, the
reference to “Object” from the system must be
updated to correspond to this change. From then on
any functions and actions, which search for or
consider references to “Objects”, must do this with
“Items”. Another part of merging, that needs to be
considered, is the formatting of the location data.
The given example stored location data as
individuals of the concept “Location” with data
properties of the type “double” for longitude and
latitude. Another system might store this data
directly within the individuals of businesses. The
reminder system needs to know how to access the
location data for comparison.
6 INTERPRETATION OF THE
USER REMINDER REQUEST
Before the user can create a reminder entry the
system has to have a connected application ontology
model. Once the reminder entry is defined the
system can start to process it. The created
description of a business could be directly used to
determine how fitting an individual from the data in
the domain ontology is, for example, if the created
reminder stated:
“Remind me when I’m near a [Store]
where I can [buy] [bread].”
The system could look through every individual and
try to determine whether it has a direct or indirect
relative of the concept “Store” and whether the
property individual “to buy bread” is applicable to it.
However since the concepts used in defining the
reminder are part of an ontology, it can be useful to
use the available concept hierarchy in order to
determine the intent and meaning of the user. A
specialized search can be performed to determine
which related concepts and properties best fit the
description. This can be done by passing a triple to
every related concept and property, determining the
distance for all the parts of the triplet and passing the
result to a result collector. This collector only keeps
the same data once (a correct substitute triplet and its
calculated distance from the concepts or property
from which the original triplet was passed to). Once
this is all done the system keeps only the top valid
triplets.
LocationbasedReminderSystemwithReusableOntology
165
Figure 4: Visualization of concept search.
Figure 4 shows a visualization of this process. The
elements with the index 0 represent the original
triplet. The circular element is the domain for the
triplet, the rhombus represents the property and the
rectangle represents the range of the triplet. The
search encompasses all related concepts and
properties. For example, if the user has defined that
he is looking for a triplet {Store, Buy, Item}, the
search references the concept “Store” and
determines that store has in fact a property “Buy”
and the range of the property is “Item”. In this case
the user request was directly found within the
ontology and no further interpretation is required.
However, if the user has created a request for a
triplet {Shop, Buy, Footwear}, the system could
determine that the concept “Shop” has in fact a
property “Buy”, but the range of this property is not
“Footwear” but “Item”. In this case further searching
is required. Since “Footwear” is a type of “Clothing”
and “Clothing” is an “Item” the triplet given by the
user is correct. It can be proposed that more specific
concepts should be held in higher regard than more
abstract concepts, because it requires more work for
the user to pick a specific concept. Keeping this in
mind, “Footwear” should become the centre of
attention for this search. Therefore rather than
simplifying the triplet to {Store, buy, item}, which is
also a viable option, the search should specify the
concept “Store” and the properties related to “Buy”
and determine the possibilities depicted in Table 1.
Any of the triples shown in Table 1 are valid for the
final search for store individuals in the database.
Since the user specifically requested “Footwear” and
{Shoe store, Buy Footwear, Footwear} is consistent
with the original triplet, it can be interpreted that the
user is in fact looking for a shoe store.
Table 1: Inferred triplets.
Domain Property Range
Store Buy Item
Clothing store
Buy Item
Clothing store
Buy Clothing
Clothing store
Buy Clothing Clothing
Shoe store
Buy Item
Shoe store
Buy Clothing
Shoe store
Buy Clothing Clothing
Shoe store
Buy Clothing Footwear
Shoe store Buy Footwear
Footwear
However, since the user did not specify “Shoe store”
to be the store of his choice, it cannot be completely
dismissed that the user is looking for any type of
store which happen to also sell shoes.
Besides analyzing the user preferences,
interpretation can be used to limit the count of active
concepts for a given task. If the ontology would
have been of a very large size and constantly
searching it to determine applicable individuals
would be resource intensive, interpretation could be
viewed as a type of optimization.
7 SEARCHING THE DATA
Once a reminder is added and the system interpreted
the request, the reminder system needs to determine
when to signal the user. If the data set is small
enough, as it is in this paper, it is possible to
constantly check every data entry for businesses in
the city. However, a more full ontology of very
different types of businesses and data for every
store, post office and other establishments in the city
would be very resource intensive to search this way.
There are many ways to optimize a database. One
possibility would be to index the data by concept.
By using the most important concepts determined by
the interpretation step, only the applicable
individuals could be pulled from the database and
tested further. Further searching would also include
determining the proximity of the store. However, if
there are many stores of any given type, or if
interpretation did not narrow the applicable concepts
down enough, this approach would still not be very
effective. Another solution would be to store the
data spatially in the database. This way the test for
proximity would be the first to be performed and
only the closest businesses would be tested for
validity with the user request.
Determining the validity of an individual
business from the concepts involved in the creation
of the reminder entry is done by testing concept-
KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment
166
individual relations, required property relation
existence and disjoint property absence. This means,
that only those individuals, who are directly or
indirectly related to the business concept given, are
eligible. The individuals in question also need to
have the object properties, which are defined in the
reminder. If the reminder is looking for a
Supermarket which sells bread, the individual of a
supermarket concept has to possess this property.
Some such properties can be implied to some extent.
If a supermarket by definition sells bread or food in
general, such a property relation can be deducted.
An individual also must not contain any disjoint
properties which negate the necessary property. For
example, if an individual is of the concept “Food
store” and is therefore assumed to sell all kinds of
foods, but contains a disjoint property “does not
sell” to the food type the reminder is looking for,
this individual cannot be offered to the user. The
result of such a search would be a list of fitting
businesses in the area. This means that the reminder
system is also, to some extent, a recommendation
system. It provides the user with a list of stores that
are fitting with the request he made and are sorted
by proximity to the user.
8 CONCLUSIONS
This paper has proposed and described a reminder
system that reminds the user to perform some tasks
while he is moving through a defined space with
predefined locations in it. This reminder system
relies on its ability to search and use an ontology
model for the purposes of providing the possibility
of flexible input to the user. This gives the user more
freedom and makes it easier to define what the user
is looking for, by letting him use a form which is
closer to natural language. The user is capable of
presenting the reminder system a request which may
be quit abstract. This makes it possible for the user
to define an idea rather than a specific task.
However, by constraining the user input to the
concepts existing in the application ontology errors
are minimized and direct access to the ontology is
possible.
The described system is capable of using
different domain ontology models. This is useful for
having different implementations in different cities
or for the use in completely different domains, as
long as the underling structure is similar enough.
The merging process, which is done before the
reminder system is ready for use, can use any fitting
domain ontology. This way the reminder system is
not constrained to just one problem domain. The
example described in this paper showed a simplified
merging problem, since most of the concepts were
already present in both the domain and the method
ontology. The reminder system depends mostly on
the hierarchical structure of concepts, which makes
it quit easy to perform merging. The expert needs to
pick out the most abstract concepts which represent
the places and actions a user might be looking for.
The system described in this paper is a work in
progress. The description of this system and the
steps and processes stated in this paper are a
foundation for future implementation. Future work
will be focused on building a prototype using
Protégé 4 and geographical data collected about
business locations in the city of Riga.
ACKNOWLEDGEMENTS
We would like to thank Dr.sc.ing. Yuriy Chizhov
(Department of Modelling and Simulation, Riga
Technical University) for his contribution and
assistance in developing the task for a reminder
system based on geographical location using
ontology elements.
REFERENCES
Kwon, O., Choi, S., Park, G., 2005. NAMA: a context-
aware multi-agent based web service approach to
proactive need identification for personalized reminder
systems. In Expert Systems with Applications 29.
ELSEVIER
Paganelli, F., Giuli D., 2007. An Ontology-based Context
Model for Home Health Monitoring and Alerting in
Chronic Patient Care Networks. In National Inter-
University Consortium for Telecommunications, Dept.
of Electronics and Telecommunications. University of
Florence
Ludford, P., Frankowski, D., Reily, K., Wilms, K.,
Terveen, L., 2006. Because I Carry My Cell Phone
Anyway: Functional Location-Based Reminder
Applications. In Proceedings of CHI 2006.
Buranarach, M., Chalortham, N., Chatvorawit, P., Thein,
Y., Supnithi, T., 2009. An Ontology-based Framework
for Development of Clinical Reminder System to
Support Chronic Disease Healthcare. In Proceedings
of ISBME2013.
Rothenfluh T.E., Gennari J.H., Eriksson H., Puerta A.R.,
Tu S.W., Musen M.A., 1994. Reusable Ontologies,
Knowledge-Acquisition Tools, and Performance
Systems: Protégé-II Solutions to Sisyphus-2. In
International Journal of Human-Computer Studies.
ELSEVIER
LocationbasedReminderSystemwithReusableOntology
167
