KEWI

A Knowledge Engineering Tool for Modelling AI Planning Tasks

Gerhard Wickler

, Luk

s Chrpa

and Thomas Leo McCluskey

Artiﬁcial Intelligence Applications Institute, School of Informatics, University of Edinburgh, Edinburgh, U.K.

PARK Research Group, School of Computing and Engineering, University of Huddersﬁeld, Huddersﬁeld, U.K.

Keywords:

Knowledge Engineering, Automated Planning.

Abstract:

This paper introduces the Knowledge Engineering Web Interface (KEWI) which primarily aims to be used for

modelling automated planning tasks in a semi-formal framework. The conceptual model used to represent the

declarative and procedural knowledge in KEWI is described formally. The model consists of three layers: a

rich ontology, a model of basic actions, and more complex methods. It is this structured conceptual model

based on the rich ontology that facilitates knowledge engineering. The focus of this paper is to show how

the central knowledge model used in KEWI differs from a model directly encoded in PDDL, the language

accepted by most existing planning engines. Speciﬁcally, the rich ontology enables a more concise and natural

style of representation. For operational use, KEWI automatically generates PDDL. Initial experiments show

that the generated PDDL can be processed by a planner without incurring signiﬁcant drawbacks.

1 INTRODUCTION

Domain-independent planning has grown signiﬁ-

cantly in recent years mainly thanks to the Interna-

tional Planning Competition (IPC). Besides many ad-

vanced planning engines, PDDL, a de-facto standard

language family for describing planning domains and

problems, has been developed. However, encoding

domain and problem models in PDDL requires a lot

of speciﬁc expertise and thus it is very challenging for

a non-expert to use planning engines in applications.

This paper concerns the use of AI planning tech-

nology in an organisation where (i) non-planning ex-

perts are required to encode knowledge (ii) the knowl-

edge base is to be used for more than one planning

and scheduling task (iii) it is maintained by several

personnel over a long period of time, and (iv) it may

have a range of potentially unanticipated uses in the

future. The ﬁrst concern has been a major obstacle

to using AI-based tools which input formal represen-

tations, in that the expertise required to encode such

representations has only been possessed by planning

experts (e.g. as in NASA’s applications (Ai-Chang

et al., 2004)). The other concerns are often not cov-

ered in the planning literature: in real applications the

knowledge encoding is a valuable, general asset, and

one that requires a much richer conceptual represen-

tation than, for example is accorded by planner-input

languages such as PDDL.

As far as we are aware, very few collaborative,

domain-expert-usable, knowledge acquisition inter-

faces are available that are aimed at supporting the

harvesting of planning knowledge within a rich lan-

guage for use in a number of planning-related appli-

cations. After initial acquisition, the validation, veriﬁ-

cation, maintenance and evolution of such knowledge

is of prime importance, as the knowledge base is a

valuable asset to an organisation.

This paper introduces the Knowledge Engineering

Web Interface (KEWI), which aims to enable the ac-

quisition and modelling of knowledge necessary for

use with automated plan generation tools. Here we

detail the theoretical aspects of KEWI, and evaluate it

using a well-understood planning domain.

2 RELATED WORK

A small number of frameworks exist that support the

formalisation of planning knowledge in shared web-

based systems. Usually, such frameworks build on

existing Web 2.0 technologies such as a wiki. A

wiki that supports procedural knowledge is available

at wikihow.com, but the knowledge remains essen-

tially informal. A system that uses a similar approach,

Wickler G., Chrpa L. and McCluskey T..

KEWI - A Knowledge Engineering Tool for Modelling AI Planning Tasks.

DOI: 10.5220/0005034400360047

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2014), pages 36-47

ISBN: 978-989-758-049-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

namely, representing procedural knowledge in a wiki

is CoScripter (Leshed et al., 2008). However, their

representation is not based on AI planning and thus

does not support the automated composition of pro-

cedures. More recently, an AI-based representation

has been used in OpenVCE (Wickler et al., 2013).

There have been several attempts to create gen-

eral, user-friendly development environments for

planning domain models, but they tend to be limited

in the expressiveness of their underlying formalism.

The Graphical Interface for Planning with Objects

(GIPO) (Simpson et al., 2007) is based on object-

centred languages OCL and OCL

. These formal lan-

guages exploit the idea that a set of possible states of

objects are deﬁned ﬁrst, before action (operator) def-

inition (McCluskey and Kitchin, 1998). This gives

the concept of a world state consisting of a set of

states of objects, satisfying given constraints. GIPO

uses a number of consistency checks such as if the

object’s class hierarchy is consistent, object state de-

scriptions satisfy invariants, predicate structures and

action schema are mutually consistent and task speci-

ﬁcations are consistent with the domain model. Such

consistency checking guarantees that some types of

errors can be prevented, in contrast to ad-hoc meth-

ods such as hand crafting.

itSIMPLE (Vaquero et al., 2012) provides a graph-

ical environment that enables knowledge engineers to

model planning domain models by using the Uniﬁed

Modelling Language (UML). Object classes, predi-

cates, action schema are modelled by UML diagrams

allowing users to ‘visualise’ domain models which

makes the modelling process easier. itSimple incor-

porates a model checking tool based on Petri Nets that

are used to check invariants or analyse dynamic as-

pects of the domain models such as deadlocks.

The Extensible Universal Remote Operations

Planning Architecture (EUROPA) (Barreiro et al.,

2012), is an integrated platform for AI planning and

scheduling, constraint programming and optimisa-

tion. This platform is designed to handle complex

real-world problems, and the platform has been used

in some of NASA’s missions. EUROPA supports two

representation languages, NDDL and ANML (Smith

et al., 2008), however, PDDL is not supported.

Besides these tools, it is also good to mention

VIZ (Vodr

zka and Chrpa, 2010), a simplistic tool

inspired by itSimple, and PDDL Studio (Plch et al.,

2012), an editor which provides users a support by,

for instance, identifying syntax errors or highlighting

components of PDDL.

In the ﬁeld of Knowledge Engineering, method-

ologies have been developed which centre on the cre-

ation of a precise, declarative and detailed model of

the area of knowledge to be engineered, in contrast

to earlier expert systems approaches which appeared

to focus on the “transfer” expertise at a more super-

ﬁcial level. This “expertise model” contains a mix

of knowledge about the “problem solving method”

needed within the application and the declarative

knowledge about the application. Often a key ratio-

nale for knowledge engineering is to create declar-

ative representations of an area to act as a for-

malised part of some requirements, making explicit

what hitherto has been implicit in code, or explicit

but in documents. Knowledge Engineering mod-

elling frameworks arose out of this, such as Com-

monKADS (Schreiber et al., 1999), which were based

on a deep modelling of an area of expertise, and em-

phasising a life-cycle of this model. The “knowledge

model” within CommonKADS, which contains a for-

mal encoding of task knowledge, such as problem

statement(s), as well as domain knowledge, is simi-

lar to the kind of knowledge captured in KEWI. Un-

like KEWI however, this model was expected to be

created by knowledge engineers rather than domain

experts and users.

2.1 AI Planning

The primary aim for KEWI is to ease the formalisa-

tion of procedural knowledge, allowing domain ex-

perts to encode their knowledge themselves, rather

than knowledge engineers having to elicit the knowl-

edge before they formalise it into a representation. We

formally describe the conceptual model which con-

sists of three layers: a rich ontology, a model of ba-

sic actions, and more complex methods. KEWI is

object-centred and allows for a richer representation

of knowledge than PDDL. It is more compact and

more expressive which means models are easier to

maintain, especially for a user who is not an expert

in AI planning. KEWI’s internal representation can

be exported to PDDL and hence standard planning en-

gines can be applied to solve planning problems mod-

elled in KEWI. We demonstrate that PDDL models

exported from KEWI are comparable to hand coded

ones.

AI planning deals with the problem of ﬁnding a

sequences of actions transforming the environment

from a given initial state to a desired goal state (Ghal-

lab et al., 2004). Actions are deﬁned via their precon-

ditions and effects. An action is applicable in a given

state if and only if its precondition holds in that state.

Effects of an action denote how a state where the ac-

tion is applied will change. A planning domain model

consists of a set of predicates and/or ﬂuents describ-

ing the environment and a set of actions modifying

KEWI-AKnowledgeEngineeringToolforModellingAIPlanningTasks

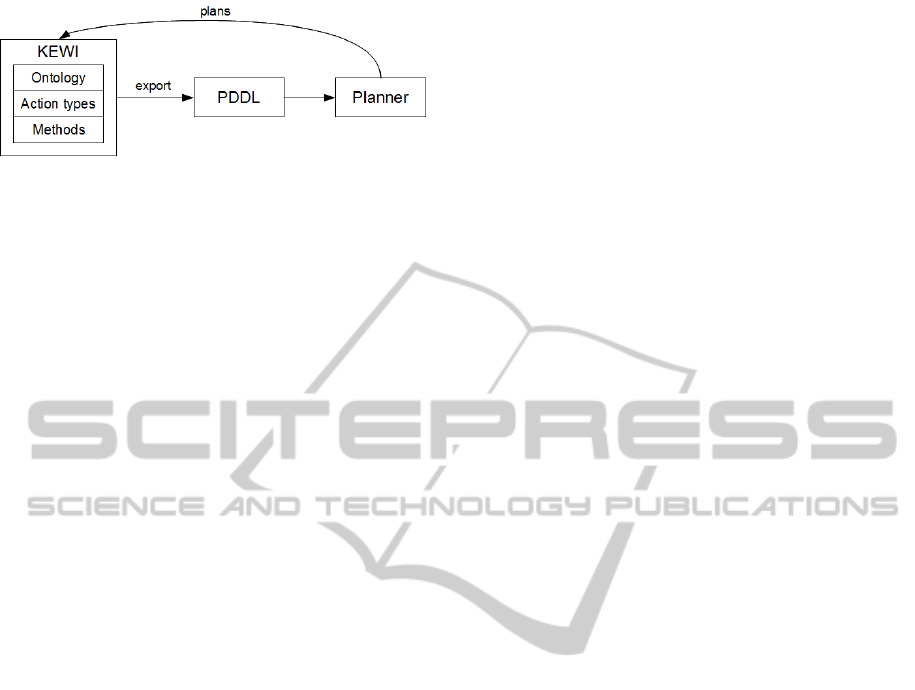

Figure 1: An architecture of KEWI.

the environment. A planning problem consists of a

planning domain model, set of objects, an initial state

and a set of goal conditions.

3 CONCEPTUAL MODEL OF

KEWI

KEWI is a tool for encoding domain knowledge

mainly by experts in the application area rather than

AI planning experts. The idea behind KEWI is to pro-

vide a user-friendly environment as well as a language

which is easier to follow, especially for users who are

not AI planning experts. A high-level architecture of

KEWI is depicted in ﬁgure 1. Encoded knowledge

can be exported into the domain and problem descrip-

tion in PDDL on which standard planning engines can

be applied. Hence, the user does not have to under-

stand, or even be aware, of any PDDL encodings.

A language in which domain knowledge is en-

coded in KEWI has three parts, which are explained

in the following subsections. First, a rich domain on-

tology is deﬁned. The domain ontology consists of

deﬁnitions of classes of objects, hierarchies of classes

and relations between objects. Second, action types

are deﬁned in terms of their action name, logical pre-

conditions and effects. Third, methods deﬁne ways in

which high-level task can be broken down into lower-

level activities, a so-called task network which in-

cludes explicit ordering constraints.

3.1 Ontology: Concepts, Relations and

Properties

Ontological elements are usually divided into con-

cepts and instances. Typically, the concepts are de-

ﬁned in a planning domain whereas the instances are

deﬁned in a planning problem. Since our focus for

KEWI is on planning domains we shall mostly deal

with concepts here.

3.1.1 Concepts

A concept is represented by a unique symbol in

KEWI. The formal deﬁnition of a concept is given

by its super-class symbol and by a set of role con-

straints that deﬁne how instances of the concept may

be related to other concepts. In KEWI, the deﬁni-

tion of a concept also includes other, informal ele-

ments that are not used for formal reasoning. How-

ever, the knowledge engineering value of such infor-

mal elements must not be underestimated, much like

the comments in programming often are vital for code

to be understandable.

Deﬁnition 1 (KEWI Concept). A concept C in KEWI

is a pair hC

sup

, Ri, where:

• C

sup

is the direct super-concept of C and

• R is a set of role constraints of the form hr, n, C

where r is a symbolic role name, C

is a concept

(denoting the role ﬁller type), and n is a range

min

, n

max

] constraining the number of different

instances to play that role.

We assume that there exists a unique root con-

cept often referred to as object or thing that acts

as the implicit super-concept for those concepts that

do not have an explicit super-concept deﬁned in the

same planing domain. Thus, a concept C may be de-

ﬁned as h4, Ri, meaning its super concept is implicit.

This implicit super-concept has no role constraints at-

tached.

For example, in the Dock Worker Robot

(DWR) domain (Ghallab et al., 2004), the con-

cepts container and pallet could be deﬁned with

the super-concept stackable, whereas the concept

crane could be deﬁned as a root concept with no

super-concept (implicitly: 4). A role constraint can

be used to deﬁne that a crane can hold at most one

container as follows: hholds, [0, 1], containeri.

Since super-concepts are also concepts, we can

write a concept C as hhh4, R

i, . . . , R

i, R

i. Then we

can refer to all the role constraints associated with C

as R

∗

= R

∪ . . . ∪ R

∪ R

, that is, the role constraints

that appear in the deﬁnition of C, the role constraints

in its direct super-concept, the role constraints in its

super-concepts super-concept, etc.

The reason for introducing this simple ontology of

concepts is that we can now constrain the set of pos-

sible world states based on the role constraints. States

are deﬁned as sets of ground, ﬁrst-order atoms over

some function-free language L . This language shall

contain symbols to denote each instance of a concept

deﬁned in the ontology (c

, . . . , c

) where the type

function τ maps each instance c

to its type C, a con-

cept in the ontology. The relation symbols of L are

deﬁned through the role constraints.

Deﬁnition 2 (Relations in L ). Let hr, n, C

i be a role

constraint of some concept C. Then the ﬁrst-order

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

language L that can be used to write ground atoms

in a state contains a binary relation C.r ⊆ C ×C

In what follows we shall extend the language to

include further relation symbols, but for now these

relations deﬁned by the ontology are all the relations

that may occur in a state. The reason why the rela-

tion name is a combination of the concept and the role

is simply to disambiguate between roles of the same

name but deﬁned in different concepts. Where all role

names are unique the concept may be omitted.

We can now deﬁne what it means for a state to be

valid with respect to an ontology deﬁned as a set of

KEWI concepts. Essentially, for a state to be valid,

every instance mentioned in the state must respect all

the role constraints associated with the concepts to

which the instance belongs. Since role constraints are

constraints on the number of possible role ﬁllers we

need to be able to count these.

Deﬁnition 3 (Role Fillers). Let s be a state, that is,

a set of ground atoms over objects c

, . . . , c

using

the relations in L . Let hr, n, C

i be a role constraint

of some concept C. Then we deﬁne vals

(C.r, c

) =

|C.r(c

, c

) ∈ s}, c

∈ C, c

∈ C

, that is, the set of

all constants that play role r for c

in s.

Deﬁnition 4 (Valid State). Let C be a KEWI concept.

Then a state s is valid if, for any instance c

of C and

any role constraint hr, n, C

i of C or one of its (direct

and indirect) super-concepts, the number of ground

atoms a = C.r(c

, ∗) must be in the range [n

min

, n

max

i.e. n

min

≤ |vals

(C.r, c

)| ≤ n

max

Thus, a concept deﬁnition deﬁnes a set of role

constraints which can be interpreted as relations in a

world state. The numeric range deﬁnes how many

ground instances we may ﬁnd in a valid state. This is

the core of the ontological model used in KEWI.

For example, let k1 be a crane and ca be a con-

tainer. Then a state may contain a ground atom

crane.holds(k1,ca). If a state contains this atom, it

may not contain another one using the same relation

and k1 as the ﬁrst argument.

3.1.2 Relations

While the relations deﬁned through the concepts in

KEWI provide a strong ontological underpinning for

the representation, there are often situations where

other relations are more natural, e.g. to relate more

than two concepts to each other, or where a relation

does not belong to a concept. In this case relations

can be deﬁned by declaring number and types (con-

cepts) of the expected arguments.

Deﬁnition 5 (Relations in L ). A relation may be de-

ﬁned by a role constraint as described above, or it

may be a relation symbol followed by an appropriate

number of constants. The signature of a relation R is

deﬁned as C

× . . . × C

where C

deﬁnes the type of

the ith argument.

A valid state may contain any number of ground

instances of these relations. As long as the types of

the constants in the ground atoms agree with the sig-

nature of the relation, the state that contains this atom

may be valid.

3.1.3 Properties

In reality, we distinguish three different types of role

constraints: related classes for deﬁning arbitrary re-

lations between concepts, related parts which can be

used to deﬁne a “part-of” hierarchy between con-

cepts, and properties which relate instances to prop-

erty values.

The ﬁrst two are equivalent in the sense that they

relate objects to each other. However, properties usu-

ally relate objects to values, e.g. an object may be of

a given colour. While it often makes sense to distin-

guish all instances of a concept, this is not true for

properties. While the paint that covers one container

may not be the same paint that covers another, the

colour may be the same. To allow for the representa-

tions of properties in KEWI, we allow for the deﬁni-

tion of properties with enumerated values.

Deﬁnition 6 (Properties). A property P is deﬁned as

a set of constant values {p

, . . . , p

It is easy to see that the above deﬁnitions relating

to role constraints and other relations can be extended

to allow properties in place of concepts and property

values in place of instances. A minor caveat is that

property values are usually deﬁned as part of a plan-

ning domain, whereas instances are usually given in a

planning problem.

3.2 Action Types

Action types in KEWI are speciﬁed using an operator

name with typed arguments, a set of preconditions,

and a set of effects. This high-level conceptualisation

of action types is of course very common in AI plan-

ning formalisms. KEWI’s representation is closely

linked with the ontology, however. This will enable a

number of features that allow for a more concise rep-

resentation, allowing to reduce the redundancy con-

tained in many PDDL planning domains.

3.2.1 Object References

In many action representations it is necessary to in-

troduce one variable for each object that is somehow

KEWI-AKnowledgeEngineeringToolforModellingAIPlanningTasks

involved in the execution of an action. This variable is

declared as one of the typed arguments of the action

type. The variable can then be used in the precon-

ditions and effects to consistently refer to the same

objects and express conditions on this object.

Sometimes, an action type may need to refer to

speciﬁc constants in its preconditions or effects. In

this case, the unique symbol can be used to identify a

speciﬁc instance. In the example above, k1 was used

to refer to a crane and ca to refer to a container. In

most planning domains, operator deﬁnitions do not

refer to speciﬁc objects, but constants may be used as

values of properties.

In addition to variables and constants, KEWI also

allows a limited set of function terms to be used to

refer to objects in an action type’s preconditions and

effects. Not surprisingly, this is closely linked with

the ontology, speciﬁcally with the role constraints that

specify a maximum of one in their range.

Deﬁnition 7 (Function Terms). Let hr, n, C

i be a role

constraint of some concept C where n

max

= 1. Then

we shall permit the use of function terms of the form

C.r(t) in preconditions and effects, where t can again

be an arbitrary term (constant, variable, or function

term) of type C

Let s be a valid state, that is, a set of ground atoms

over objects c

, . . . , c

using the relations in L . Then

the constant represented by the function term C.r(c

)

is:

• c

if vals

(C.r, c

) = {c

}, or

• nothing (⊥) if vals

(C.r, c

) =

Note that the set vals

(C.r, c

) can contain at most

one element in any valid state. If it contains an ele-

ment, this element is the value of the function term.

Otherwise a new symbol that must not be one of

the constants c

, . . . , c

will be used to denote that

the function term has no value. This new constant

nothing may also be used in preconditions as de-

scribed below.

The basic idea behind function terms is that they

allow the knowledge representation to be more con-

cise; it is no longer necessary to introduce a variable

for each object. Also, this style of representation may

be more natural, e.g. to refer to the container held by a

crane as crane.holds(k1) meaning “whatever crane

k1 holds”, where the role constraint tells us this must

be a container. As a side effect, the generation of a

fully ground planning problem could be simpler,given

the potentially reduced number of action parameters.

Interestingly, a step in this direction was already

proposed in PDDL 1, in which some variables were

declared as parameters and others as “local” variables

inside an operator. However, with no numeric con-

straints on role ﬁllers or any other type of relation, it is

difﬁcult to make use of such variables in a consistent

way. Similarly, state-variable representations (Jons-

son and B

ackstr

om, 1998) exploit the uniqueness of a

value. However, this was restricted to the case where

min

and n

max

both must be one.

3.2.2 Condition Types

The atomic expressions that can be used in precon-

ditions and effects can be divided into two cate-

gories. Firstly, there are the explicitly deﬁned re-

lations. These are identical in meaning and use to

PDDL and thus, there is no need to discuss these fur-

ther. Secondly, there are the relations based on role

constraints which have the same form as such atoms

in states, except that they need not be ground.

Deﬁnition 8 (Satisﬁed Atoms). Let s be a valid state

over objects c

, . . . , c

. Then a ground atom a is sat-

isﬁed in s (denoted s |= a) if and only if:

• a is of the form C.r(c

, c

) and a ∈ s, or

• a is of the form R(c

, . . . , c

) and a ∈ s, or

• a is of the form C.r(c

, ⊥) and vals

(C.r, c

) =

The ﬁrst two cases are in line with the standard

semantics, whereas the the last case is new and lets us

express that no role ﬁller for a given instance exists

in a given state. Note that the semantics of atoms that

use the symbol nothing in any other place than as a

role ﬁller are never satisﬁed in any state.

The above deﬁnition can now be used to deﬁne

when an action is applicable in a state.

Deﬁnition 9 (Action Applicability). Let s be a valid

state and act be an action, i.e. a ground instance of

an action type with atomic preconditions p

, . . . , p

Then act is applicable in s if and only if every precon-

dition is satisﬁed in s: ∀p ∈ p

, . . . , p

: s |= p.

This concludes the semantics of atoms used in pre-

conditions. Atoms used in effects describe how the

state of the world changes when an action is applied.

This is usually described by the state transition func-

tion γ : S × A → S, i.e. it maps a state and an applica-

ble action to a new state. Essentially, γ modiﬁes the

given state by deleting some atoms and adding some

others. Which atoms are deleted and which are added

depends on the effects of the action. If the action is

not applicable the function is undeﬁned.

Deﬁnition 10 (Effect Atoms). Let s be a valid state

and act be an action that is applicable in s. Then the

successor state γ(s, a) is computed by:

1. deleting all the atoms that are declared as nega-

tive effects of the action,

2. for every positive effect C.r(c

, c

) for role con-

straint hr, n, C

i with n = [n

min

, 1], if C.r(c

, c

) ∈ s

delete this atom, and

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

3. add all the atoms that are declared as positive ef-

fects of the action.

Following this deﬁnition allows for a declaration

of actions using arbitrary relations and state-variables

that may have at most one value. The ontology, more

speciﬁcally the numeric role constraints can be used

to distinguish the two cases.

3.3 Methods

The deﬁnition of methods in KEWI is not yet ﬁnished.

As the framework is at least partially application-

driven, we may need to further reﬁne the conceptual

framework outlined (but not fully deﬁned) below.

The approach adopted in KEWI follows standard

HTN planning concepts: a method describes how a

larger task can be broken down in into smaller tasks

which, together, accomplish the larger task.

A method is deﬁned by a method name with some

parameters. The name usually suggests how some-

thing is to be done and the parameters have the same

function as in action types; they are the objects that

are used or manipulated during the instantiation of a

method. Next, a method must declare the task that

is accomplished by the method. This is deﬁned by

a task name usually describing what is to be done,

and again some parameters. For primitive tasks, the

task name will be equal to the name of an action type,

in which case no further reﬁnement is required. For

non-primitive tasks, a method also includes a set of

subtasks. In KEWI, the ordering constraints between

subtasks are declared with the subtask, rather than as

a separate component of the method. This is simply to

aid readability without changing the expressiveness.

In addition, to these standard components, KEWI

allows the speciﬁcation of high-level effects and

subgoal-subtasks. The aim here is to allow for a rep-

resentation that supports ﬂat, PDDL-like planning do-

mains as well as hierarchical planning domains.

When a method declares that it achieves a high-

level effect, then every decomposition of this method

must result in an action sequence which will achieve

the high-level effect after the last action of the se-

quence has been completed. This could allow a plan-

ner to use a method as if it was an action in a backward

search. An alternative view is that such a method

functions as a macro action type in the domain.

A method may also include subtasks that are ef-

fectively subgoals. For example, the subtask “achieve

C.r(c

, c

)” may be used to state that at the corre-

sponding point in the subtask the condition C.r(c

, c

)

must hold in the state. The idea being that a plan-

ner may revert to ﬂat planning (such as state-space

search) to ﬁnd actions to be inserted into the plan at

this point, until the subgoal is achieved.

This mixed approach is not new and has been used

in practical planners like O-Plan (Currie and Tate,

1991). However, the semantics has not been formally

deﬁned for this approach, something we shall attempt

in future work.

3.4 Export to PDDL

Given that most modern planners accept planning do-

mains and problems in PDDL syntax as their input,

one of the goals for KEWI was to provide a mecha-

nism that exports the knowledge in KEWI to PDDL.

Of course, this will not include the HTN methods

as PDDL does not support hierarchical planning for-

malisms.

3.4.1 Function Terms

The ﬁrst construct that must be removed from

KEWI’s representation are the function terms that

may be used to refer to objects. In PDDL’s precon-

ditions and effects only variables (or symbols) may

be used to refer to objects. The following function

can be used to eliminate a function term of the form

C.r(t) that occurs in an action type O’s preconditions

or effects.

function eliminate-fterms(C.r(t), O)

if is-fterm(t) then

eliminate-fterms(t, O)

v ← get-variable(C.r(t), O)

replace every C.r(t) in O by v

The function ﬁrst tests whether the argument to

the given function term is itself a function term. If

this the case, it has to be eliminated ﬁrst. This guar-

antees that, for the remainder of the function t is ei-

ther a variable or a symbol. We then use the func-

tion “get-variable” to identify a suitable variable that

can replace the function term. Technically, this func-

tion may return a symbol, but the treatment is identi-

cal, which is why we shall not distinguish these cases

here. The identiﬁcation of a suitable variable then

works as follows.

function get-variable(C.r(v), O)

for every positive precondition p of O do

if p = C.r(v, v

) then

if is-fterm(v

) then

eliminate-fterms(v

, O)

return v

retrieve hr, n, C

i from C

add new parameter v

of type C

to O

add new precondition C.r(v, v

) to O

return v

KEWI-AKnowledgeEngineeringToolforModellingAIPlanningTasks

This function ﬁrst searches for an existing, posi-

tive precondition that identiﬁes a value for the func-

tion. Since function terms may only be used for con-

straints that have at most one value, there can only be

at most one such precondition. If such a precondition

exists, its role ﬁller (v

, a variable or a symbol) may

be used as the result. If no such precondition can be

found, the function will create a new one and add it

to the operator. To this end, a new parameter must be

added to the action type, and to know the type of the

variable we need to retrieve the role ﬁller type from

the role constraint. In practise, we also use the type

name to generate a suitable variable name. Then a

new precondition can be added that effectively binds

the function to the role ﬁller. And ﬁnally, the new

variable may be returned.

3.4.2 Handling nothing

The next construct that needs to be eliminated from

the KEWI representation is any precondition that uses

the role ﬁller nothing. Note that this symbol does not

occur in states and thus cannot be bound in traditional

PDDL semantics. Simply adding this symbol to the

state is not an option since other preconditions that

require a speciﬁc value could then be uniﬁed with this

state atom. For example, if we had an explicit atom

that stated holds(k1, nothing) in our state, then the

precondition holds(?k, ?c) of the load action type

would be uniﬁable with this atom. An inequality pre-

condition may solve this problem, but only if the plan-

ner can correctly handle inequalities. The alternative

approach we have implemented in KEWI is described

in the following algorithm.

function eliminate-nothing(O)

for every precondition p = C.r(v, ⊥) do

replace p with C.r. ⊥ (v)

if O has an effect e = C.r(v, v

)

add another effect ¬C.r. ⊥ (v)

The idea behind this approach is to use a new

predicate to keep track of state-variables that have no

values in a state. This is the purpose of the new pred-

icate “C.r. ⊥”, indicating the role r of concept C has

no ﬁller for the given argument. This is a common

approach in knowledge engineering for planning. For

example, in the classic blocks world we ﬁnd a “holds”

relation for when a block is being held, and a predi-

cate “hand-empty” for when no block is held.

The algorithm above uses this technique to replace

all preconditions that have nothing as a role ﬁller

with a different precondition that expresses the non-

existence of the role ﬁller. To maintain this condition,

it will also be necessary to modify the effects accord-

ingly. This is done by adding the negation of this new

predicate to corresponding existing effects.

Since this is pseudo code, the algorithm actually

omits a few details, e.g. the declaration of the new

predicate in the corresponding section of the PDDL

domain, and the fact that the planning problem also

needs to be modiﬁed to account for the new predicate.

Both is fairly straight forward to implement.

3.4.3 State-variable Updates

Finally, the cases in which the value of a state-variable

is simply changed needs to be handled. The approach

we have adopted here is identical to the approach de-

scribed in (Ghallab et al., 2004). That is, when an

effect assigns a new value to a state-variable, e.g.

C.r(v, v

new

), we need to add a precondition to get the

old value, e.g. C.r(v, v

old

), and then we can use this

value in a new negative effect to retract the old value:

¬C.r(v, v

old

4 EVALUATION: THE DOCK

WORKER ROBOTS DOMAIN

In this section we shall describe some experiences

gained while re-engineering an existing and well un-

derstood planning domain, the dock worker robots

(DWR) domain described in (Ghallab et al., 2004).

Basically, a problem in this domain consists of a set

of locations at which containers are piled into stacks.

Cranes at these locations can move the containers

around at the same location, and robots can be used to

move containers between locations. The current state

is a given conﬁguration of containers in piles and the

goal is usually to shift the containers to different piles.

4.1 Ontology

The original planning domain speciﬁed in PDDL de-

ﬁnes a trivial ontology that consists of just the ﬁve

types of objects that are involved in the actions as

shown in ﬁgure 2. There is hierarchy and concepts are

deﬁned by name only. The text following a semicolon

are comments and ignored by the reasoning engine.

Apart from the lack of any intensional knowledge

about these types, this conceptualisation also does not

use a separate type for the pallets that are at the bot-

tom of each pile. In fact, a single pallet is declared as

an instance of type container in the problem ﬁles

and the same pallet is used at the bottom of every

pile. This solution works in a planning engine but is

clearly unsatisfactory from a knowledge engineering

perspective.

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

(:types

location ; there are several connected locations in the harbour

pile ; is attached to a location

; it holds a pallet and a stack of containers

robot ; holds at most 1 container, only 1 robot per location

crane ; belongs to a location to pickup containers

container)

Figure 2: The types declared in the original PDDL domain.

The KEWI version of the domain we have de-

veloped is shown in ﬁgure 3 is obviously much

richer. There is some hierarchical structure, e.g. the

class stackable has two sub-classes, container and

pallet. Most classes have associated role constraints

that provide an intensional deﬁnition of the class. In

addition to the types from the original domain, the

KEWI version also deﬁnes a colour property which

is there solely to illustrate the use of properties and

should be ignored by a planner. Adjacency between

locations is speciﬁed as a relation not associated with

any concept.

The use of an explicit class for pallets is the only

signiﬁcant difference in the original conceptualisation

and the KEWI version of the DWR ontology. What

appears as a complication at ﬁrst is actually a sim-

pliﬁcation since there is no longer a need for piles.

Piles can be identiﬁed by the pallets on which they

are stacked.

When the PDDL version of the domain is gener-

ated from the KEWI environment, most of the onto-

logical information is lost, of course, as PDDL is not

sufﬁciently expressive for the kind of ontology KEWI

uses. However, the information is used to generate

additional relations and modify the operator speciﬁ-

cations that are generated.

4.2 Action Types

The original PDDL speciﬁcation of the DWR domain

speciﬁes ﬁve action types:

• move: a robot moves from one location to an ad-

jacent location

• load: a crane loads the container onto a robot

• unload: a crane unloads a container from a robot

• take: a crane takes a container from a pile

• put: a crane puts the container onto a pile

All of these operators were (manually) re-encoded

in KEWI, exploiting the richer ontology and other

language features described above. The result is a

more concise representation that reduces the need for

certain explicit, but redundant parameters, precon-

ditions and effects. The generation of PDDL from

KEWI results in a speciﬁcation that cannot make ref-

erence to the ontology and therefore is not as concise

as the KEWI version. In fact, as shown is table 1, it

even uses some additional parameters, preconditions

and effects.

Clearly, the KEWI version of the domain is the

most concise. The use of function terms avoids the ex-

plicit introduction of parameters. From a knowledge

engineering perspective, this means the actions can

be speciﬁed in terms of the main objects involved. A

similar construct is available in PDDL, where certain

variables are “local” and not used in the parameter

speciﬁcation. However, this is not widely supported

by planners and used in few domain speciﬁcations.

The KEWI representation also uses fewer precondi-

tions and effects. This is mostly because of the use

of role constraints with nothing as their value. Thus,

both reasons for a more concise representation are di-

rectly related to the richer ontology.

Perhaps the most interesting operator to take a

closer look at is the most complex action type speci-

ﬁed here, the put action. The original PDDL version

is shown in ﬁgure 4. The ﬁrst local variable, ?else,

is a reference to the container (or pallet) that is at the

top of the pile before the action executed. Two of the

preconditions are static, two are dynamic. Interest-

ingly, the last of the preconditions, (top ?else ?p),

is not so much a logical precondition but simply a way

to bind the local variable ?else such that it may be

used in the effects. There are no negative precondi-

tions. The effects are a mixture of four positive and

two negative effects.

Compare this to the KEWI version of the same op-

erator. In the web interface, the normal view provides

many links for navigating the knowledge, whereas the

edit view shows a form with ﬁelds for different parts

of the representation are shown in ﬁgure 5. The ex-

plicit break-down in the edit view is meant to sup-

port the knowledge engineer by listing the compo-

nents available in the language.

The complete formalism specifying the action

KEWI-AKnowledgeEngineeringToolforModellingAIPlanningTasks

(:class agent)

(:class crane

(:super-class agent)

(:role at (:min 1) (:max 1) (:class location))

(:role holds (:max 1) (:class container)))

(:class robot

(:super-class agent)

(:role loaded-with (:max 1) (:class container))

(:property has-colour (:min 1) (:max 1) (:type colour)))

(:class location

(:role occupied-by (:max 1) (:class robot)))

(:class stackable)

(:class container

(:super-class stackable)

(:role on (:max 1) (:class stackable))

(:role piled-on (:max 1) (:class pallet))

(:property paint (:min 1) (:max 1) (:type colour)))

(:class pallet

(:super-class stackable)

(:role at (:min 1) (:max 1) (:class location))

(:role top (:min 1) (:max 1) (:class stackable)))

(:property colour

(:values ( red green blue )))

(:relation adjacent

(:arguments ( (?loc1 location) (?loc2 location) )))

Figure 3: The ontology of the DWR domain in KEWI.

Table 1: Number of parameters, preconditions and effects in the different versions of the DWR domain.

Original PDDL KEWI Generated PDDL

params precs effects params precs effects params precs effects

move 3 3 4 3 3 2 3 3 4

load 4 4 4 3 3 2 4 4 4

unload 4 4 4 3 3 2 4 4 4

take 5 6 6 2 3 4 6 7 8

put 5 4 6 3 4 4 6 7 8

(:action put

:parameters (?k - crane ?c - container ?p - pile)

:vars (?else - container ?l - location)

:precondition (and (belong ?k ?l) (attached ?p ?l)

(holding ?k ?c) (top ?else ?p))

:effect (and (in ?c ?p) (top ?c ?p) (on ?c ?else)

(not (top ?else ?p)) (not (holding ?k ?c))

(empty ?k))))

Figure 4: The original PDDL version of put.

type in KEWI is shown in ﬁgure 6. At ﬁrst glance

it appears less concise, but this is simply because the

symbols are more verbose, e.g. no single letter vari-

ables are used and role constraints make the object

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

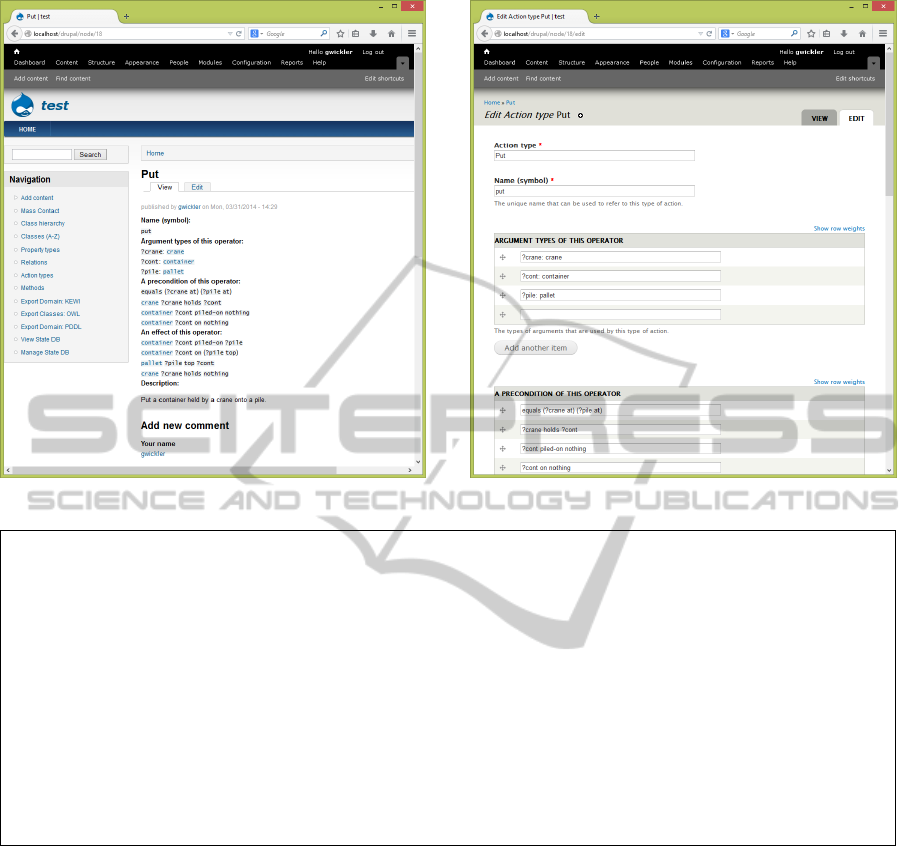

Figure 5: Different views of put in KEWI.

(:action-type put

(:arguments ( (?crane crane) (?cont container) (?pile pallet) ))

(:precondition (:and

(:relation equals ( (crane.at ?crane) (pallet.at ?pile) ))

(:constraint crane.holds ( ?crane ?cont ))

(:constraint container.piled-on ( ?cont nothing ))

(:constraint container.on ( ?cont nothing ))))

(:effect (:and

(:constraint container.piled-on ( ?cont ?pile ))

(:constraint container.on ( ?cont (pallet.top ?pile) ))

(:constraint pallet.top ( ?pile ?cont ))

(:constraint crane.holds ( ?crane nothing )))))

Figure 6: The KEWI version of put.

type explicit. None of the local variables need to be

represented in KEWI as the values they refer to can

be described with functional terms.

The ﬁrst of the preconditions requires the location

of the crane and the location of the pile to be equal.

This corresponds to the ﬁrst two preconditions in the

PDDL version, where the equality is implicit in the

use of the same variable. The main dynamic precondi-

tion, that the crane must hold the container, is present

in both representations. The remaining preconditions

are necessary to make the planner work in both cases,

to bind the local variable ?else or to declare the val-

ues of state-variables before execution. Normally this

is not necessary in KEWI, unless there is no previous

value (i.e. the value is nothing) which is the case

here. This could be avoided through the use of ax-

ioms, which can be declared in the KEWI ontology,

but are not currently used for reasoning. Such an ax-

iom would state that, if a container is held by a crane,

this container is not on another stackable object (con-

tainer or pallet) and that this container is not piled on

any pallet. Using axioms like this would avoid the last

two preconditions shown in the KEWI operator.

The effects of the KEWI version are fairly straight

forward. The ﬁrst effect corresponds to the ﬁrst ef-

fect of the original operator. The second effect cor-

responds to the third original effect, where the previ-

ously top-most container is referred to by a function

term, rather than a local variable. The third KEWI

effect corresponds directly to the second original ef-

KEWI-AKnowledgeEngineeringToolforModellingAIPlanningTasks

fect and the ﬁrst negative effect. The use of a state-

variable makes this more concise in KEWI. The ﬁnal

KEWI effect corresponds to the second negative orig-

inal effect and the ﬁnal positive effect.

The ﬁnal version of the put operator is the PDDL

version that is generated by KEWI. The full speci-

ﬁcation is not shown here as the additional param-

eters, preconditions and effects are just artefacts of

the translation process, and they are not very interest-

ing. For example, the equality precondition in KEWI

translates into two additional parameters and precon-

ditions, one for each function term. Then the equality

itself becomes another precondition on the two new

parameters. Clearly, there is optimisation potential,

but since this representation is not meant for human

consumption and planners should be well capable of

compiling out these redundancies, this is not some-

thing we are going to dwell on.

4.3 Planning with KEWI

More interesting is to see what a planner actually

makes of the PDDL generated by KEWI compared

to the original PDDL version. To this end, we have

taken two DWR problems

and adapted them to the

representation used in the generated KEWI. This has

to be done manually, which is why only two exam-

ples were used. The translation is fairly straightfor-

ward, requiring the change of all predicate names and

in one case swapping the order of the parameters. The

change from a single pallet to multiple pallets but

no piles was surprisingly trivial. The only real dif-

ference is the occupied predicate used in the origi-

nal problems. The KEWI-generated PDDL contains

a location-no-occupied-by predicate which is ef-

fectively the complement of the occupied predicate,

indicating when a location is free.

With these two problems translated (manually) it

was then possible to run a planner on them. We have

chosen the FF planning system, a robust state-space

search planner that supports all the features used in

the original as well as the generated version of the

problem. The result is shown in table 2.

The ﬁrst problem is a very simple case with two

locations, one robot and six containers to be moved

to the other location. The second problem is com-

plex, involving eight locations and three robots that

need to shift more than 20 containers around the lo-

cations. The initial reachability analysis performed

by FF shows that the KEWI generated version has

more facts and actions, which means the additional

predicates give rise to some redundant information

See http://projects.laas.fr/planning/ for a full deﬁnition

of these problems.

that cannot be compiled away by the planner. Inter-

estingly enough, this redundant information leads to

a smaller number of states being explored for both

problems. However, processing the additional infor-

mation incurs an overhead that results in a larger over-

all search time. While this is not good news, it must

also be pointed out that the resulting plan is shorter at

least for the more complex problem. Thus, one could

argue the performance is roughly equivalent for the

original and the KEWI-generated versions.

4.4 Further Evaluation

This work is being carried out with an industrial part-

ner with signiﬁcant experience in control and automa-

tion as well as simulation, and we are using a real ap-

plication of knowledge acquisition and engineering in

their area of expertise. The development of KEWI is

in fact work in progress, and its evaluation is ongo-

ing, and being done in several ways: (i) An expert

engineer from the industrial partner is using KEWI,

in parallel with the developers, to build up a knowl-

edge base of knowledge about artefacts, operations,

procedures etc. in their domain. (ii) We have created

a hand-crafted PDDL domain and problem descrip-

tions of part of the partner’s domain and for the same

problem area we have generated PDDL automatically

from a tool inside KEWI. We are in the process of

comparing the two methods and the PDDL produced.

An interface to a simulation system is being devel-

oped which will help in this aspect. (iii) We are work-

ing with another planning project in the same applica-

tion, which aims to produce natural language explana-

tions and argumentation supporting plans. In the fu-

ture we believe to combine KEWI with this work, in

order that (consistent with involving the user in model

creation) the user will be able to better validate the

planning operation.

5 CONCLUSIONS

In this paper we have introduced KEWI, a knowledge

engineering tool for modelling planning tasks, and we

have given a formal account of parts of its structure

and tools. KEWI represents domain knowledge in an

object-centred way which is more compact and ex-

pressive than PDDL (which uses a literal-centred ap-

proach to representing domain knowledge).

As well as the usual advantages of an object-

centred approach, the use of a rich ontology with

numeric role constraints enables the use of function

terms as object references and explicit non-existence

conditions. This allows for a more concise and

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

Table 2: Running FF on different versions of two DWR problems.

reachable states initial plan total

facts actions searched distance length time

PDDL pb12 121 362 101 25 34 0.00

KEWI pb12 161 506 96 25 34 0.31

PDDL pb38 1453 15306 94265 104 277 2473.12

KEWI pb38 1889 21642 72565 104 235 3637.81

more natural style of representing planning knowl-

edge. Therefore, capturing and maintaining domain

knowledge in KEWI is easier, especially for users

who are not experts in automated planning.

Because most of the existing planning engines

support only PDDL, KEWI is able to export domain

knowledge into PDDL. We demonstrated that there

are no signiﬁcant differences between hand-crafted

and automatically generated PDDL models. More-

over, KEWI has a user-friendly interface which is

simple enough to support domain experts in encod-

ing knowledge and it is designed to enable groups of

users to capture, store and maintain knowledge over a

period of time, thus facilitating knowledge reuse.

In future work, we plan to extend KEWI by (i) ex-

tending the representation to include numeric ﬂuents,

time, and, eventually, continuous processes (ii) devel-

oping validation and veriﬁcation methods which help

users to debug and adapt created planning domain and

problem descriptions (iii) adding automated acquisi-

tion tools which can add to KEWI’s knowledge by

inputting batch or real time data from process simula-

tions inspired by the real domain KEWI is being used

to model.

ACKNOWLEDGEMENTS

The research was funded by the UK EPSRC Au-

tonomous and Intelligent Systems Programme (grant

no. EP/J011991/1). The University of Edinburgh and

research sponsors are authorised to reproduce and dis-

tribute reprints and online copies for their purposes

notwithstanding any copyright annotation hereon.

REFERENCES

Ai-Chang, M., Bresina, J. L., Charest, L., Chase, A., jung

Hsu, J. C., J

onsson, A. K., Kanefsky, B., Morris,

P. H., Rajan, K., Yglesias, J., Chaﬁn, B. G., Dias,

W. C., and Maldague, P. F. (2004). Mapgen: Mixed-

initiative planning and scheduling for the mars ex-

ploration rover mission. IEEE Intelligent Systems,

19(1):8–12.

Barreiro, J., Boyce, M., Do, M., Frank, J., Iatauro, M.,

Kichkaylo, T., Morris, P., Ong, J., Remolina, E., and

Smith, T. (2012). EUROPA: A platform for AI plan-

ning, scheduling, constraint programming, and opti-

mization. In 4th International Competition on Knowl-

edge Engineering for Planning and Scheduling (ICK-

EPS).

Currie, K. and Tate, A. (1991). O-Plan: The open planning

architeture. Artiﬁcial Intelligence, 52:49–86.

Ghallab, M., Nau, D., and Traverso, P. (2004). Automated

Planning. Morgan Kaufmann.

Jonsson, P. and B

ackstr

om, C. (1998). State-variable plan-

ning under structural restrictions: Algorithms and

complexity. Artiﬁcial Intelligence, 100:125–176.

Leshed, G., Haber, E. M., Matthews, T., and Lau, T. A.

(2008). Coscripter: automating & sharing how-to

knowledge in the enterprise. In CHI, pages 1719–

1728.

McCluskey, T. L. and Kitchin, D. E. (1998). A tool-

supported approach to engineering HTN planning

models. In In Proceedings of 10th IEEE International

Conference on Tools with Artiﬁcial Intelligence.

Plch, T., Chomut, M., Brom, C., and Bart

ak, R. (2012).

Inspect, edit and debug PDDL documents: Simply

and efﬁciently with PDDL studio. ICAPS12 System

Demonstration, page 4.

Schreiber, G., Akkermans, H., Anjewierden, A., de Hoog,

R., Shadbolt, N., de Velde, W. V., and Wielinga, B. J.

(1999). Knowledge Engineering and Management:

The CommonKADS Methodology. MIT Press, Cam-

bridge, Mass., 2nd ed. edition.

Simpson, R., Kitchin, D. E., and McCluskey, T. (2007).

Planning domain deﬁnition using gipo. Knowledge

Engineering Review, 22(2):117–134.

Smith, D. E., Frank, J., and Cushing, W. (2008). The anml

language. Proceedings of ICAPS-08.

Vaquero, T. S., Tonaco, R., Costa, G., Tonidandel, F., Silva,

J. R., and Beck, J. C. (2012). itSIMPLE4.0: Enhanc-

ing the modeling experience of planning problems.

In System Demonstration – Proceedings of the 22nd

International Conference on Automated Planning &

Scheduling (ICAPS-12).

Vodr

zka, J. and Chrpa, L. (2010). Visual design of plan-

ning domains. In KEPS 2010: Workshop on Knowl-

edge Engineering for Planning and Scheduling.

Wickler, G., Tate, A., and Hansberger, J. (2013). Using

shared procedural knowledge for virtual collaboration

support in emergency response. IEEE Intelligent Sys-

tems, 28(4):9–17.

KEWI-AKnowledgeEngineeringToolforModellingAIPlanningTasks
