Network-based Intrusion Prevention System Prototype

with Multi-Detection

A Position Paper

Daniel Kavan, Klára Škodová, and Martin Klíma

Department of Applied Research, CertiCon, a. s, Václavská 12, 120 00 Prague 2, Czech Republic

Keywords: Intrusion Prevention System, Intrusion Detection System, Network Behavior Analysis, Signature-based

Detection, CAMNEP, Snort, IDMEF, Iptables, Ipset, PCAP, Netflow, Traffic Generation.

Abstract: The ongoing need to protect key nodes of network infrastructure has been a pressing issue since the outburst

of modern Internet threats. This paper presents ideas on building a novel network-based intrusion prevention

system combining the advantages of different types of latest intrusion detection systems. Special attention is

also given to means of traffic data acquisition as well as security policy decision and enforcement

possibilities. With regard to recent trends in PaaS and SaaS, common deployment specific for private and

public cloud platforms is considered.

1 INTRODUCTION

The protection of local networks is a key goal for the

current network administrators. The cyber war is in

progress and it becomes still more and more difficult

to keep up with the modern threats. We are focusing

on network security, namely on new generation

intrusion prevention systems (IPS) that combine two

major approaches of intrusion detection.

To prevent an intrusion, it has to be identified

first, therefore the problem solution comprises of

two main parts – detection and prevention, together

forming an IDPS

. This paper describes a prototype

of such a system.

1.1 Motivation

There are two major branches of intrusion detection

systems (IDS). One builds on signature based detec-

tion, the second on behavior analysis. Each has

strengths and weaknesses and our challenge is to

combine them into one IPS. (Kazienko & Dorosz,

2003) and (Talawat, 2008) show that:

Intrusion detection and prevention system. The term and an

analysis of the principles used are covered by (Scarfone &

Mell, 2007).

 Signature-based detection works reliably,

but cannot respond to unknown threats.

 Behavior analyzers and anomaly detectors

can reveal previously unseen problems, but

they do not work as fast as signatures and

for known threats they may guess what has

already been proven (signatures exist).

Bare deployment of detectors of both types

would provide a fair chance to capture problematic

behavior from both categories. (Gómez, et al., 2009)

demonstrates it is not uncommon to combine known

detection approaches to achieve better results.

However, our ambitions go beyond such simple

solution by incorporating different detection tech-

niques, consuming the knowledge they provide

about the traffic, and attempting to deduce further

information based on the combination of data

evaluation. Such combination can yield additional

knowledge about actual threats and means to react.

1.2 Objectives

Our aim is to create an intrusion prevention system

composed of complementary detection modules.

Such system should function in regular (enterprise)

networks as well as private/public cloud environ-

ments.

Our solution is based on sets of rules to be en-

forced within the network environment.

417

Kavan D., Škodová K. and Klíma M..

Network-based Intrusion Prevention System Prototype with Multi-Detection - A Position Paper.

DOI: 10.5220/0005102204170425

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 417-425

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

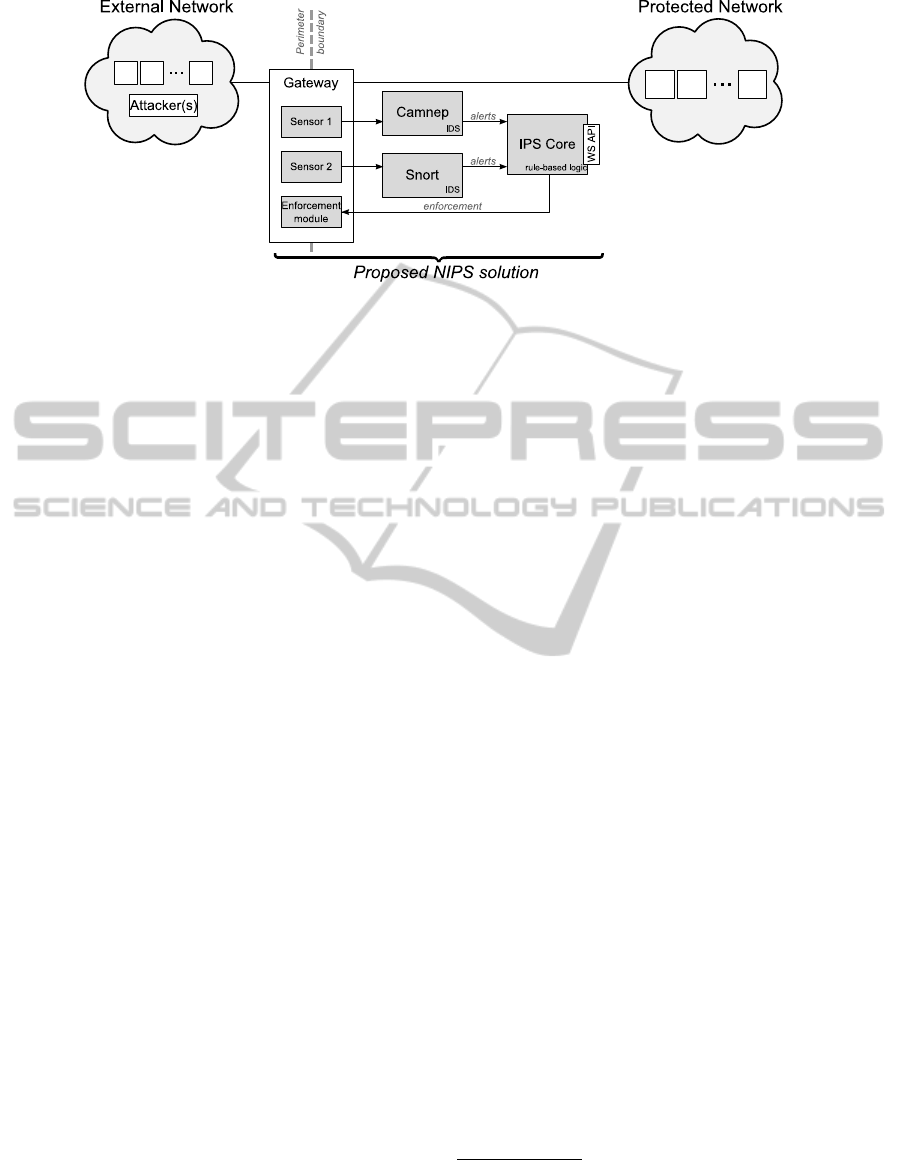

Figure 1: Protected segment schema.

An important objective was to research ways to use

the derived enforcement actions, considering the

limits of particular enforcement-point platforms.

We want to combine the detection capabilities of

IDS and based on this, to introduce the prevention,

e.g. to enforce network traffic shaping.

We strive to demonstrate that the additional logic

added to the used detection modules will yield bene-

fits compared to simple combined deployment of

detectors unaware of each other.

2 RELATED WORK

We build on existing ideas from fields of both signa-

ture-based and behavior detection. The advantages

and drawbacks of both these approaches are outlined

in Section 1.1. For our prototype purposes, these two

groups are represented by Snort and CAMNEP,

respectively.

(Roesch, 1999) published an initial form of his

lightweight NIDS Snort. Since then the design was

improved heavily while the key concept was kept –

network traffic is checked against a database of

known signatures in order to identify a threat.

(Rehák, et al., 2008) introduced the project

CAMNEP as a representative of behavior network

intrusion detection system (A-NIDS) strongly

relying on agent technology based on A-Globe

platform (Šišlák, et al., 2005).

According to the taxonomy by (García-Teodoro,

et al., 2009), CAMNEP can be described as statisti-

cal and machine-learning-based detector featuring

fuzzy logic techniques, clustering and outlier detec-

tion. (Lim & Jones, 2008) would identify CAMNEP

as ‘learned-model-based’ as it automatically creates

its model of normal network behavior.

Even though CAMNEP is based on previously

described detection techniques, due to the employ-

ment of agent-based collective trust aggregation or

history integration it is able to function with signifi-

cantly lower rate of false positives than common

anomaly detectors, (Rehák, et al., 2008).

3 PROPOSED SOLUTION

An intrusion prevention system consists of three

basic modules: a sensor providing the input data ac-

quisition, a data processor evaluating the input and

deciding about actions to be performed, and an

executor responsible for the results enforcement.

For the data evaluation, we choose a combina-

tion of signature-based detection tool Snort (that can

work as a simple IPS as well) and CAMNEP, NBA

anomaly detector developed by Cognitive Security /

Cisco Systems. Conceptually, other similar tools can

be used; specific conditions when and how this can

be done are described in section 5.1.

The initial IPS prototype relied on network beha-

vior analysis provided by CAMNEP based on the

traffic coming from a NetFlow

sensor

. Following

engagement of Snort's output allowed building a

versatile network-based intrusion prevention system.

Figure 1 depicts the resulting schema: Traffic

coming from the external network enters the protect-

ed network via a gateway where the passing data can

be collected for an analysis within the NIPS. Various

aspects that can affect traffic data gathering by sen-

sors are introduced in section 3.2. A behavioral and

a signature-based detection system are engaged to

compensate weaknesses of each other as discussed

in section 3.1. Section 3.4 explains how alerts

network behavior analysis

metadata format described by (B. Claise, 2004)

also known as „probe“

SECRYPT2014-InternationalConferenceonSecurityandCryptography

418

exported from both IDS are processed by the IPS

core (configurable via a web service). The resulting

actions are enforced by a specialized module at the

gateway as described in section 3.5. Additionally,

also other ways of intrusion prevention can be

employed (see section 3.3).

Event data from detectors are preferably ob-

tained as XML files in standard Intrusion Detection

Message Exchange Format (IDMEF)

supported by

the CAMNEP IDS. Alternative security alert retriev-

al methods can be used – e.g. IDS Snort alerts are

obtained via shared MySQL database access.

3.1 Symbiosis of Signature and

Behavior Detection

The NBA-only IDS core is not sufficient on its own

to provide reliable information for actions to control

the network traffic. Many known attacks do not

display any statistical anomalies and therefore can-

not be revealed by a behavior detector. Moreover,

even a very specific output of an NBA analyzer

points always to only a suspicious behavior and

without information context, significant risk of false

positive detection and thus an encroachment might

occur. False alarms are considered even more harm-

ful than false negatives (especially when used for

automated responses).

However, the necessary context information

related to the detected event can be delivered to the

IPS by the other detector, the signature IDS core.

The advantage of the signature approach is its

promptness allowing real-time interventions, high

specificity and full sensitivity

. These qualities are

redeemed by the dependency on the signatures de-

veloper and frequent regular database updates. In

comparison, the behavior analysis is not only com-

putationally expensive but it also needs a time to

collect traffic flow sets and to compare the observed

data with a previously built statistical model (further

referred to as “model”). CAMNEP is capable to

provide output in 5min intervals at the best, which

can become critical for the intrusion prevention.

A considerable property of the NBA is concealed

in its strength – the ability of the model to learn over

time can cause a creeping adaptation to an anoma-

lous traffic that becomes a part of the norm.

standardized by (Debar, et al., 2007) in RFC 4765

this is the prevailing opinion supported not only by (Rehák, et

al., 2008)

This is true for all threats previously described in the signature

database. Sensitivity is also known as recall.

In spite of all its drawbacks, the NBA proves to

be irreplaceable in case of long-term enterprise

network issues, important data leaks or suspicious

events where no signature detectors can discover any

problem. Employment of an NBA-based detector

usually assumes a human-expert participation to

investigate the conditions and circumstances. Such

manual intervention could be replaced by a rule

system based on the previous knowledge in order to

provide the protective decision supporting informa-

tion.

Symbiosis of both detection types (compared in

Table 1) leads to an increase of overall capabilities

of the newly developed IPS.

Table 1: Behavior and signature analysis comparison.

Property NBA Signature-

based

determinism anomaly

detection

reliable attack

detection

specificity suspicious

activity

precise threat

identification

efficiency time-

expensive

real-time

autonomy independent updates

necessary

adaptability ability to learn

new threats

only known

signatures

3.2 Traffic Data Acquisition

All analyzers are directly dependent on the incoming

data extracted from the network traffic using a sen-

sor. The sensor must either be placed in the course

of the data packets (an in-line sensor) or be sent a

copy.

An example is a network tap or a spanning port

directing all data coming through the network device

also towards the listening hardware or software sen-

sors. However, this solution requires a special hard-

ware that may not be available in the target network.

Another option for the information gathering is

offered by the network-card promiscuous mode that

enables “sniffing” of packets destined for other

nodes in the local network. This way, both the inner

traffic and the communication with external hosts

can be evaluated. Nevertheless, many architectures

do not allow promiscuous mode for security reasons.

differences between these two are illustrated in (Network

Instruments, 2013)

Network-basedIntrusionPreventionSystemPrototypewithMulti-Detection-APositionPaper

419

Alternative means of data acquisition can be

provided by promiscuity emulation. The iptables

tool on the entry node of the observed network seg-

ment can be instructed to duplicate all the incoming

traffic and forward it to a specified host via the non-

terminating TEE target. This solution assumes

administrative privileges in the gateway.

An important decision to be made about the

position of the sensor is related to the network ad-

dress translation (NAT). If NAT is performed on the

entry point, placing the sensor in front of it can lead

to a considerable loss of available data as the pro-

tected nodes are not individually observable and the

internal communication is not visible at all. On the

other hand, gathering data from inside of the protect-

ed segment causes missing the information about the

traffic already blocked on the gateway. The previ-

ously mentioned iptables TEE target at the very

beginning of the forward chain of the mangle table

is the most appropriate solution (see Figure 2).

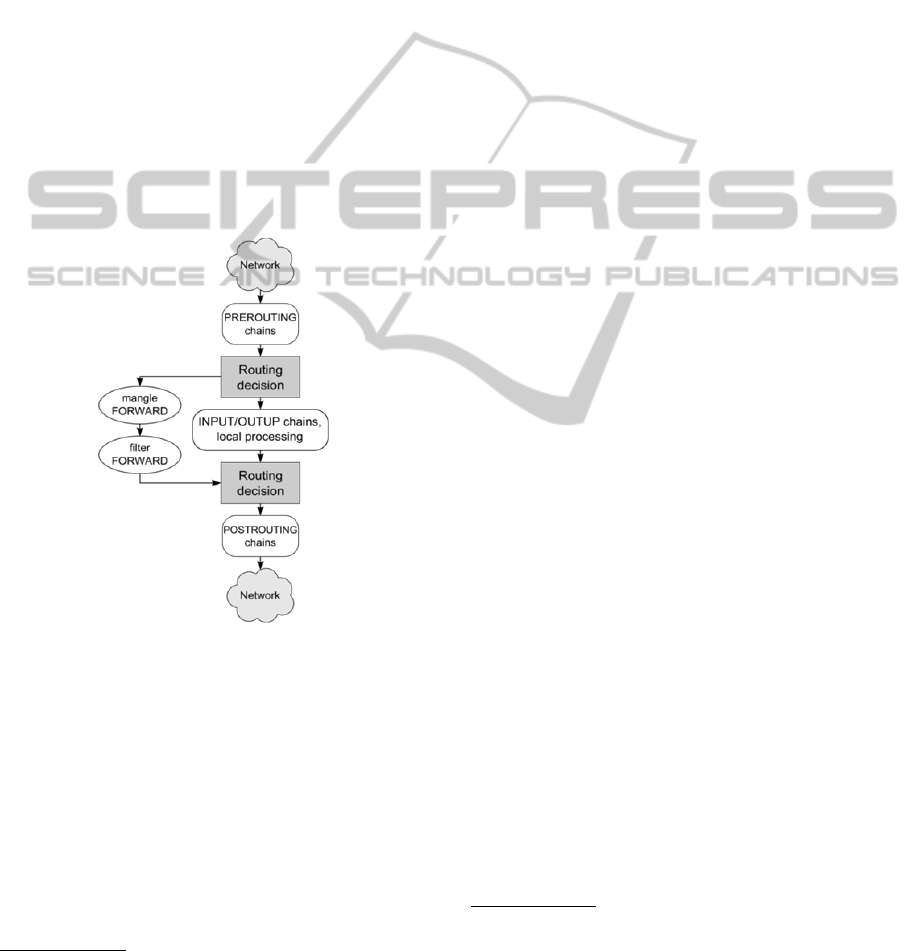

Figure 2: Simplified iptables traversal schema.

3.3 Dual Usage of Snort

Snort can be used either purely as an intrusion-de-

tection product or also its prevention capabilities can

be leveraged.

An active sensor, located directly in the flow of

all data incoming and outgoing to/from the protected

network, enables immediate control over the passing

packets. The control actions include dropping, band-

width limiting, and modification in form of normali-

zation or sanitation. However, severe bottleneck is-

a user-space application for Linux allowing kernel firewall

management

sues are imminent using the in-line sensor at inten-

sive traffic load. When the sensor is flooded with

data and not able to accomplish their processing in

real-time, high network latency or even loss of pack-

ets may occur or unchecked flows may pass through.

In our IPS prototype, a trade-off between such

unintentional traffic limiting and a delayed interven-

tion caused by the analyzer overhead and by internal

processing was inevitable. We use an active sensor

for the fast signature-based Snort in-line enforce-

ment combined with passive collecting and/or

thorough examination of data by both IDS modules

(CAMNEP and Snort).

The optional protection feature of the Snort de-

tector is available in several data acquisition modes

(DAQ). The “NFQ”

was chosen as the most appro-

priate one for our purposes because it collaborates

with the iptables allowing for user-space packets

processing

. The active Snort sensor provides fast

and reliable signature-based decision on blocking

the malicious packet. In order to prevent unneces-

sary workload, this step can be prepended to the

more complex evaluation by the passively listening

analyzers controlled by the IPS-configuration rules.

A way to achieve this setup is enqueuing the Snort’s

NFQ into the forward chain of the mangle table

while placing the enforcement of the IPS system in

the forward chain of the filter table – see Figure 2.

3.4 Prevention Logic

The prototype was constructed as a rule system con-

sisting of dynamic and static rules (see Figure 3).

Dynamic rules sequentially process incoming events

(alerts from IDS of various types, e.g. “port scan”,

“DNS tunnel”, “attempted reconnaissance”) and

respond with primary actions (traffic limiting and

modification) and supplementary secondary actions

(logging or user notification). Static rules setting is

provided by whitelist and blacklist definitions and a

default policy (packets “deny” or “allow”).

The 3-dimensional space of network connection

endpoints (see Figure 4) is described by “tokens”,

the substituting symbols for a range of IP addresses,

set of L3/L4 protocols and a range of port numbers

in case the protocol supports ports. As an example,

an inline module for Linux leveraging the QUEUE target in

netfilter to move packets from the kernel-space to user-space

for evaluation – see (Snort Team, 2013)

(Leblond, 2013) refers to this act as “issuing a verdict”.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

420

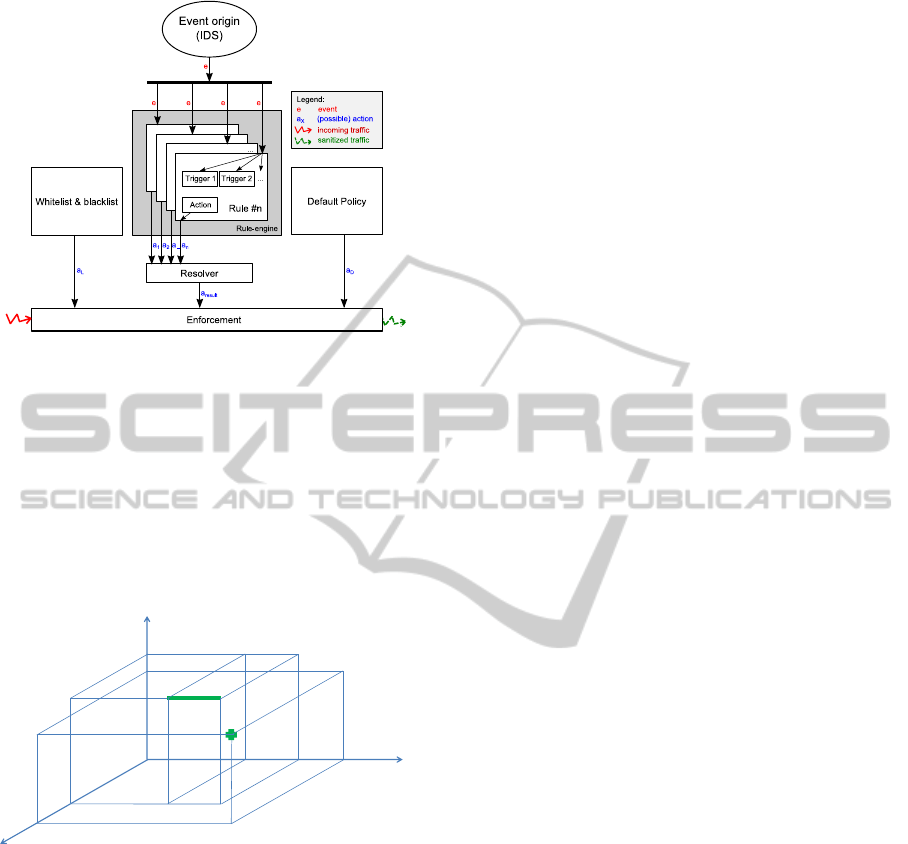

Figure 3: Event processing into actions.

the depicted token t1 defines a set of hosts within the

IP range ip1–ip2 communicating via the UDP proto-

col on port p1; the token t2 defines a node with the

ip3 address at the TCP protocol on the port p2. Such

tokens are used to describe the hosts or host groups

identified as carrying on the suspicious communica-

tion reported in an IDS alert. Another application of

tokens is to determine the enforcement-action target

as explained later.

Figure 4: 3D network space described by tokens.

The “rule-engine” uses a set of dynamic rules. A

rule includes one or more triggers and a single

enforcement action. The enforcement action, such as

packet dropping, rejecting, or limiting, is applied to

a set of tokens provided by the rule after its activa-

tion. So e.g., a “drop” action applied to the t2 token

from Figure 4 directs the gateway to drop all packets

from or to a host with the ip3 address sent via the

TCP protocol on the host’s port p2.

A “trigger” can be thought of as a definition of

the rule’s area of interest and if activated, it provides

output tokens that are eventually used for the rule’s

enforcement action as documented in Listing 1.

process_alert(alert_type,alert_tokens)

 for‐eachrule

for‐eachtrigger

iftrigger_regular

ifalert_type∉trigger_types

 trigger_ignore_alert//continue

trigger_output

:=alert_tokens∩trigger_tokens

iftrigger_outputempty

 trigger_ignore_alert//continue

activate_trigger

iftrigger_rule

ifnotdependee_rule_acivated

 trigger_ignore_alert//continue

trigger_output

:=get_tokens_from_dependee_rule

activate_trigger

if

notall_triggers_activated

rule_ignore_alert//continue

enforcement_action_input

:=∩

all_triggers

trigger_output

submit_enforcement_action



Listing 1: General incoming alert processing.

A regular trigger consists of a set of alert types

and a set of tokens that the trigger should react to if

a corresponding alert occurs. Such trigger is activat-

ed by an incoming alert if the alert type matches a

type defined within the trigger and if the intersection

of both the alert’s and the trigger’s tokens is not

empty; this intersection constitutes the activated trig-

ger’s output.

A special kind of trigger, a “ruletrigger”, repre-

sents a link to another rule, so (de)activation of the

referenced rule implies (de)activation of such rule-

trigger. The presence of ruletriggers allows creating

trees of dependent rules.

In order for the rule enforcement action to be

applied, all triggers within the rule must be activat-

ed. In case of activation of a trivial rule (with only

one trigger), the enforcement action is applied on the

network space defined by the trigger’s output. In

case of a more complex rule (with multiple triggers),

the logic works alike – the individual triggers’ out-

puts are further intersected with each other and only

the result is applied via enforcement.

A rule with only some triggers activated is in a

partially excited state, which is remembered for a

defined time interval. If also the rest of triggers get

activated within this period then the whole rule is ac-

tivated; otherwise the activation of triggers expires.

As a demonstration of this mechanism, consider

a rule with two triggers defined by the “port scan”

and “reconnaissance” alert type, respectively, and a

common IP range 198.51.100.0/24. The former trig-

ger is activated by an incoming “port scan” alert

identified in the traffic from the 198.51.100.101 and

198.51.100.102 addresses. A following “reconnais-

sance” alert warning against the 198.51.100.102 and

198.51.100.103 hosts activates the latter trigger.

IPaddress

ort

protocol

255.255.255.255

65535

0.0.0.0

UDP

TCP

ip1 ip2

ip3

Network-basedIntrusionPreventionSystemPrototypewithMulti-Detection-APositionPaper

421

This causes activation of the whole rule. The activat-

ed rule uses the token intersection of both the

triggers’ outputs, i.e. the 198.51.100.102 IP address,

to enforce the “reject” action on the gateway of the

protected network.

For cases when the rule’s action is being already

enforced, the system configuration allows an exten-

sion of the rule impact. In this way, other incoming

relevant alerts can cause (a) an extension of the set

of tokens, subject to the enforcement action, by a

newly detected attacker address, (b) action amplifi-

cation or action duration extension (e.g. packets

being rejected by now become being dropped), or (c)

a combination of both.

3.5 Enforcement

Network nodes protection can be reached by dif-

ferent means depending on the point of intervention

in the data flow or the level of ISO/OSI model

be affected. Network-based protection constitutes

the only available solution for securing hosts of an

undefined platform, which the protected nodes do

not need to know of at all.

Access to L3/L4 (our target level) can be

configured to a great extent, thus it is possible by

various administration tools. Probably the most well-

known of these tools is iptables which has also been

employed within this IPS.

Network protection settings must be modified

atomically in order to avoid exposing the internal

network to the outside world while not missing any

packets. Iptables itself is capable of such behavior,

but a reasonable and common practice is using the

ipset

tool in cooperation with iptables to simplify

IP addresses and/or ports definitions. For such com-

bination, a specific approach has to be applied to

preserve the atomicity of the key operation. This

approach is shown in Figure 5:

defined in (International Organization for Standardization,

1996)

user-space tool for organizing (mostly) IP addresses for

efficient lookup, integrated with iptables

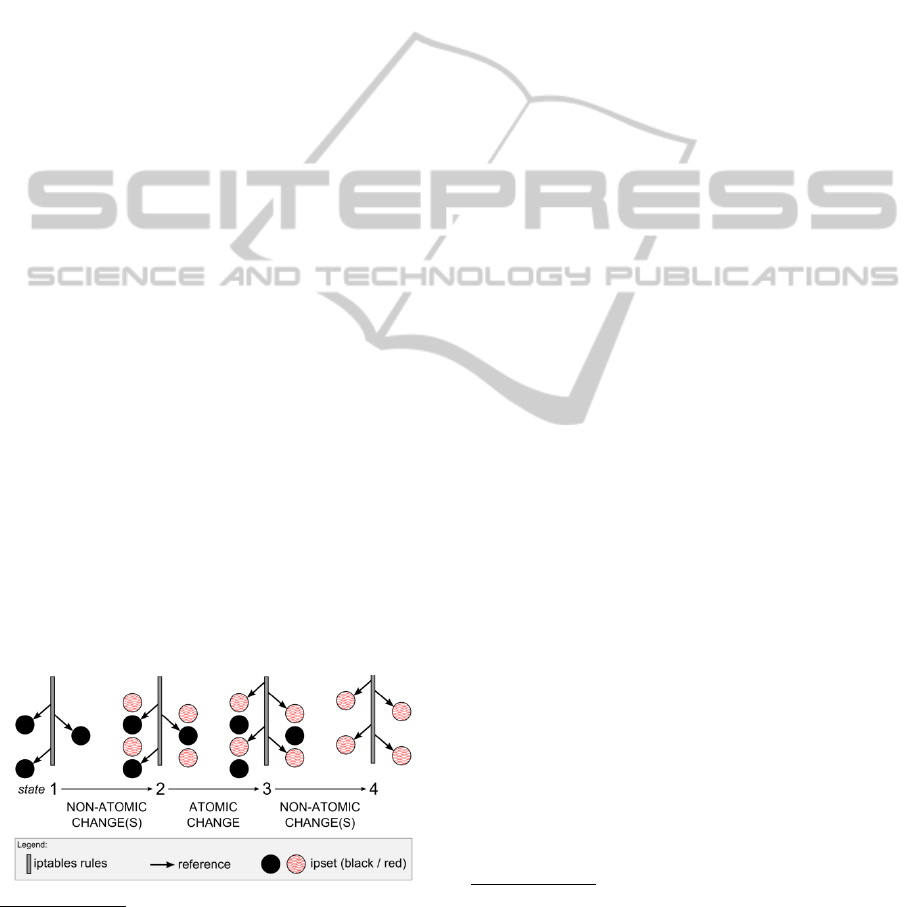

Figure 5: Atomic iptables and ipsets workaround.

The newly needed ipsets (thought of as “red” in

an alternating red-black sequence) have to be created

first (non-atomically one by one as they are not used

yet – state transition 1-2). Then the iptables chains

referencing the old ipsets (called “black”) have to be

flushed and simultaneously the new chains with re-

ferences to the new red ipsets imported (which hap-

pens atomically via the “iptables-restore” command;

2-3). The old black ipsets can be non-atomically

deleted after that as they are no longer referenced

and used (3-4). In the next enforcement turn, new

black sets can be created and applied analogically.

4 EXPERIMENTS

The prototype behavior has been evaluated in seve-

ral environments emulating different network setups

from cloud to a local deployment in a small to

middle-sized enterprise network. Experiments were

performed in a dedicated network segment repre-

senting a set of running services in cloud or in a cor-

porate network (possibly a demilitarized zone). Ex-

perimental intrusion attempts were conducted from

the outside of NAT to simulate an external attacker.

All traffic for this model was generated artificial-

ly. The traffic consisted of generated attacks and ar-

tificial background. Legitimate UDP communication

between individual hosts was simulated with the

RUDE and CRUDE

tools. A source for massive

traffic to camouflage malicious actions was the Li-

nux netcat utility. Netcat CLI was used to emulate a

web server, to run as a port scanner or to be used as

an HTTP client on both UDP and TCP protocols.

The IDPS-testing framework Pytbull

provided

prepared experiments covering a range of paramete-

rized attacks (its modules comprise fragmented

packets, evasion techniques, shell codes, denial of

service and other types of exploits). We also used

the Python API to extend the tests and adjust them to

our needs.

Hydra

was used for multi-threaded cracking of

various services authentication. A DoS attack effect

was reached by flooding the target using LOIC

, the

http://rude.sourceforge.net, “Collector for RUDE”, resp.

http://www.howtoforge.com/useful-uses-of-netcat

http://pytbull.sourceforge.net

http://thc.org/thc-hydra

http://sourceforge.net/projects/loic

SECRYPT2014-InternationalConferenceonSecurityandCryptography

422

ping tool, hping

or by target resource exhaustion

with Slowloris

). Network reconnaissance attempts

including horizontal and vertical scanning were

accomplished by the Nmap security scanner

The tcpdump

and tcpreplay

provided a way of

capturing and emitting network traffic in the form of

PCAP files. Contagio Malware Dump

served as a

public source of current intrusion traffic recordings

for our experiments.

Finally, two penetration-testing Linux distribu-

tions, BackTrack and Kali, were engaged for ad-

vanced simulation of threats.

A different setup was designed for real-world

traffic observations – e.g. a network tap placed on

our company’s outer gateway to the Internet.

4.1 Testing Results

Using Pytbull test-sets, that are close to real attack

schemas, we were able to induce all possible combi-

nations of our analyzers detection, i.e. situations

where only signatures indicate a threat, where only

behavior analysis signals an alert, and where both or

none of them succeed. This result demonstrates the

added value of the detection methods combination.

The Hydra experiments confirmed that a massive

clutter with legitimate connection requests on a ser-

vice could not be caught by signature detector while

its quantitative anomality and time distribution allow

safe identification of an attack. The DoS and Nmap

related tests confirmed shortcomings of a signature-

based approach as well.

Data obtained from the Contagio Malware Dump

database split up into an undetected part, almost

52 % detected by Snort, and roughly 9 % which both

types of IDS warned about. Thus for the malware

communication typically displaying statistical insig-

nificance of traffic features, the necessity of the

signature-based detection was demonstrated.

5 CONCLUSION

This paper presents ideas and technological methods

for building a network-based intrusion prevention

system with an ample potential.

http://hping.org

http://ha.ckers.org/slowloris

http://nmap.org

http://www.tcpdump.org

http://tcpreplay.synfin.net

Security database; http://contagiodump.blogspot.com

Approaches to employ multiple detection en-

gines have been outlined and prototyped, with

emphasis on signature-based and anomaly-based

(NBA) detection composition, specifically using

Snort and CAMNEP, respectively. Projected bene-

fits of such arrangement have been explained in the

manner where the resulting system should be able to

protect key nodes or subnets against threats that

neither of the detection subsystems would reliably

react to on their own.

Configuration logic of the prototype provides

means for modeling of arbitrary dependency trees

including alerts combined from the different detec-

tion subsystems, their evaluation and enforcement

actions for entry-point firewall application.

At the moment, enforcement can be performed

on Linux gateways via iptables and ipset which safe

ways of operating have been found for.

5.1 Arbitrary Detection Integration

During the design and implementation phases of the

project, we have always had detection extensibility

in mind. We chose IDMEF (as discussed in section

3) to be the cornerstone exchange format as it is de-

signed exactly for this purpose – to exchange intru-

sion detection information – and serves this function

better than its counterparts (e.g. in comparison with

CEF

New detection modules can be used to enhance

capabilities of our prototype and depending on their

output details (whether they implement IDMEF and

how), changes to the prototype, needed to be done in

order to integrate them, may even be little to none.

Employment of an IDS using different export

structure and/or format should be possible as well,

but the complexity of such integration process can

vary dramatically. A successful proof-of-concept of

such approach is the Snort integration we have con-

ducted as described in section 3. In that case, the

prototype is able to read intrusion event data from a

shared database.

When the detection composition schema is

changed (because of a new detection unit), the IPS

configuration must be brought up-to-date. Configu-

ration of the complete system needs to respect new

types of events the joint IDSs produce. The XML-

based rules configuration is extendable, hence this is

possible. However, the logic of the events should be

revised and tested in order for the combination of

Common Event Format (ArcSight, Inc., 2009)

Network-basedIntrusionPreventionSystemPrototypewithMulti-Detection-APositionPaper

423

chosen detection subsystems to interact sensibly and

offer practical benefits.

5.2 Future Work

There are matters that need further work and re-

search. The prototype is at the point of being further

tested. Experiments outlined in section 4 yielded

promising results regarding the combined detection

capabilities of the prototype. Real-world employ-

ment, result evaluation and tuning are a next logical

step along our efforts. We have to prove to what ex-

tent the solution resists against new, still unknown

attacks.

Current rulesets used for our testing deployments

need improving, as they may be too naive for real-

world malware and threats. Based on detection and

environment knowledge, extended sets of rules must

be developed for particular cases tailored to given

production environments to fully utilize the project-

ed advantages of these and other detection combina-

tions. This is also a key requirement for demonstra-

ting potential capabilities of the prototype. General

rulesets may also be created, but the full extent of

the beneficial impact is yet to be determined.

Areas regarding deployment and enforcement

possibilities have been considered and a noticeable

amount of ground research has been done, however

there is also still much to work on:

Cloud platforms are a prime candidate for our

solution. However, inquiries done in this field show

that along with them striving to deliver all-around

secure environment, they also severely limit the

execution possibilities for employment of different

intrusion detection methods compared to classic

LAN cases (promiscuous mode, iptables kernel

support, custom routing and network management as

analyzed in section 3.2).

As for enforcement, our current implementation

leverages iptables and ipset for Linux. There are

other similar tools available on different platforms

(access-lists on Cisco network devices, PF

for

BSD, and RRAS

in Windows Server), their en-

gagement is potentially possible (we have briefly

experimented with a few in order to confirm this),

but whether such usage would be entirely practical is

yet to be confirmed.

Considering the near-future course of our IPS

prototype development, some of the main subjects of

stateful packet filter comparable to iptables

Routing and Remote Access Service – http://

technet.microsoft.com/en-us/library/dd469714.aspx

the work to be done are large data measurements in

both artificial and real enterprise networks with

actual imminent threats present.

ACKNOWLEDGEMENTS

This research has been supported by Czech Ministry

of the Interior within the project named “Applied

research of a method of an efficient management of

network security of data centers, servers and cloud

services verified by practical measurements”, grant

number VG20122014086, PID VG2VS/242.

REFERENCES

ArcSight, Inc., 2009. Common Event Format. [Online]

Available at: http://mita-tac.wikispaces.com/file/

view/CEF+White+Paper+071709.pdf [Accessed

December 2013].

B. Claise, E., 2004. Cisco Systems NetFlow Services

Export Version 9. [Online] Available at:

http://tools.ietf.org/html/rfc3954

Debar, H., Curry, D. & Feinstein, B., 2007. The Intrusion

Detection Message Exchange Format. [Online]

Available at: http://tools.ietf.org/html/rfc4765

Fielding, R. T., 2000. Representational State Transfer. In:

Architectural Styles and the Design of Network-based

Software Architectures. Irvine: University of Califor-

nia, pp. 76-97.

García-Teodoro, P., Diaz-Verdejo, J., Maciá-Fernández,

G. & Vázquez, E., 2009. Anomaly-based network in-

trusion detection: Techniques, systems and challenges.

Computers & Security, 28(1-2), pp. 18-28.

Gómez, J. et al., 2009. Design of a snort-based hybrid

intrusion detection system. In: Distributed Computing,

Artificial Intelligence, Bioinformatics, Soft Computing,

and Ambient Assisted Living. Berlin: Springer, pp.

515-522.

International Organization for Standardization, 1996.

ISO/IEC standard 7498-1:1994. [Online].

Kazienko, P. & Dorosz, P., 2003. Intrusion Detection

Systems (IDS) Part I. [Online] Available at:

http://www.systemcomputing.org/ssm10/intrusion_det

ection_systems_architecture.htm [Accessed February

2014].

Leblond, E., 2013. Using NFQUEUE and

libnetfilter_queue. [Online] Available at:

https://home.regit.org/netfilter-en/using-nfqueue-and-

libnetfilter_queue/ [Accessed November 2013].

Lim, S. Y. & Jones, A., 2008. Network anomaly detection

system: The state of art of network behaviour analy-

sis.. s.l., s.n., pp. 459-465.

Network Instruments, 2013. TAP vs SPAN. [Online]

Available at:

SECRYPT2014-InternationalConferenceonSecurityandCryptography

424

http://www.networkinstruments.com/includes/popups/

taps/tap-vs-span.php [Accessed February 2014].

Rehák, M. et al., 2008. CAMNEP: An intrusion detection

system for high-speed networks. In Progress in Infor-

matics, number 5, pp. 65-74.

Roesch, M., 1999. Snort: Lightweight Intrusion Detection

for Networks. Seattle, WA, s.n., pp. 229-238.

Scarfone, K. & Mell, P., 2007. Guide to intrusion detec-

tion and prevention systems (idps). NIST special pub-

lication, Volume 800, p. 94.

Snort Team, 2013. SNORT Users Manual 2.9.6. [Online]

Available at: http://s3.amazonaws.com/snort-

org/www/assets/166/snort_manual.pdf

Šišlák, D. et al., 2005. A-globe: Agent development plat-

form with inaccessibility and mobility support. Soft-

ware Agent-Based Applications, Platforms and Devel-

opment Kits, pp. 21-46.

Talawat, T., 2008. Five major types of IDS. [Online]

Available at: http://advanced-network-

security.blogspot.com/2008/04/three-major-types-of-

ids.html [Accessed November 2013].

Network-basedIntrusionPreventionSystemPrototypewithMulti-Detection-APositionPaper

425
