Combining Aspect-orientation and UPPAAL Timed Automata

Dragos Truscan

, J

uri Vain

and Martin Koskinen

Abo Akademi University, Turku, Finland

Tallinn University of Technology, Tallinn, Estonia

Keywords:

Aspect-oriented Modeling, UPPAAL Timed Automata.

Abstract:

We discuss an approach to combine aspect-oriented concepts with UPPAAL timed automata (UPTA) with the

focus on providing a systematic constructive approach and automation tool support for model weaving. Our

approach allows for decoupling the design of different aspects of the system and suggests the use of explicit

composition patterns to weave the aspects together. We exemplify with an auto-off lamp example.

1 INTRODUCTION

Aspect-oriented modeling (AOM) (Clarke and Ba-

niassad, 2005; France et al., 2004) is a paradigm

inspired from aspect-oriented programming (Filman

et al., 2005; Kiczales et al., 1997), which promotes

the idea of separation of concerns in order to build

more modular and easy to update speciﬁcations. An

aspect describes a particular concern of the system

from a particular viewpoint, allowing the developers

to focus on individual features of the system in isola-

tion.

An aspect model consists of an advice model (a

model fragment describing a new functionality), a

pointcut model (a model fragment specifying where

the aspect can be composed to a base model) and a

composition protocol (how the advice model is con-

nected via the pointcut model). An aspect model can

be woven with the base model in many places (called

join points) and in different ways. The result of com-

posing advice models and a base model is called com-

posite model. The composition process is also called

model weaving.

According to Sutton, aspect-oriented software de-

velopment (AOSD) provides improved separation of

concerns, ease of maintenance, evolution and cus-

tomization, and greater ﬂexibility in development

(Sutton, 2006). Other researchers report in a survey of

industrial projects (Rashid et al., 2010) that AOSD’s

main beneﬁts are the substantial reduction in model

size and the improved design stability. However, the

main body of AOSD and AOM technologies provide

a conceptual framework, leaving room for relatively

loose semantic interpretation. Still, the main research

challenge remains in hiding the complexities of the

composition mechanisms from the user and in devel-

oping the associated tool support.

In this paper, we suggest the used aspect-oriented

methods in the context of UPPAAL timed automata

(UPTA) with the focus on providing a constructive

approach accompanied by automated tool support for

model weaving. Our suggestion would allow for de-

coupling the design of different aspects of the sys-

tem and the use of explicit composition patterns to

weave the aspects together. The approach will take

advantage of the precise semantics of UPTA and

their expressiveness when specifying behavioral as-

pects: incorporate timing constraints explicitly, multi-

processes, synchronization and data structures. In ad-

dition, one can take advantage of the good tool sup-

port for model-checking in UPPAAL and of the avail-

able test generation tools using UPPAAL, which have

been used in many industrial projects.

In the following, we discuss related works in Sec-

tion 2. Section 3 will provide a short introduction to

timed automata. Our aspect-oriented modeling ap-

proach is described in Section 4. Section 5 exem-

pliﬁes our modeling approach. We conclude with a

preliminary analysis of the approach and future work.

2 RELATED WORK

There is a large body of work applying AOM espe-

cially in the context of UML. The reader is deferred

for more details to (Wimmer et al., 2011). How-

ever, aspect operation used in the context of UML

lack clear semantics and constructive deﬁnitions. Al-

159

Truscan D., Vain J. and Koskinen M..

Combining Aspect-orientation and UPPAAL Timed Automata.

DOI: 10.5220/0005105101590164

In Proceedings of the 9th International Conference on Software Paradigm Trends (ICSOFT-PT-2014), pages 159-164

ISBN: 978-989-758-037-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

though UPTA is less expressive than UML, they allow

more rigourous semantic deﬁnition. In our approach,

we suggest the use of UPPAAL timed automata for

specifying aspect models and their weaving without

extending the formalism.

To our best of knowledge the only attempt to com-

bine aspect-orientation and UPPAAL timed automata

has been suggested by Sarna and Vain (Sarna and

Vain, 2012). They provide an approach for including

aspects in the construction of test models by formal

reﬁnements of UPTA speciﬁcations. The difference

to our paper is that they used aspects for reﬁning the

system speciﬁcation in place, whereas in this paper

aspects for extending the functionality of the system

with new features. Such an approach allows one to de-

ﬁne features aspect-wise, while aspect weaving rules

provide discipline for structural modeling.

3 PRELIMINARIES OF UPTA

An UPTA model M is a closed network of extended

time automata A

, . . . , A

, that are called processes.

The processes are combined into a single system by

the CCS

parallel composition A

k . . . k A

(Bengts-

son and Yi, 2004, Sec. 5.1, pp. 25). Synchronous

communication between the processes is by hand-

shake synchronization links that are called channels.

Each channel has related to input (from the channel)

and output (to the channel) actions. The action al-

phabet is assumed to consist of symbols for input ac-

tions denoted ch?, output actions denoted ch!, where

ch denotes a channel name, and internal actions Act of

, . . . , A

. Asynchronous communication between

processes is done by shared variables.

Each UPTA process A

is given as a tuple

(L;E;V;Cl;Init;Inv;T L) where L is a ﬁnite set of lo-

cations, E is the set of edges deﬁned by E ⊆ L ×

G(Cl;V ) × Sync × Act × L, where G(Cl;V ) is the set

of enabling conditions - guards. Sync ⊆ Σ is a set of

synchronisation actions over the channels the process

is linked to the network. In the graphical notation,

the locations are denoted by circles and edges by ar-

rows (see Figure 2). The set Act of internal actions

is a set of sequences of assignment actions with in-

teger and boolean expressions as well as with clock

resets r. V denotes the set of integer and boolean

variables. Cl denotes the set of real-valued clocks

(Cl ∩ V = ). Init ⊆ Act is a set of assignments

that assigns the initial values to variables and clocks.

Inv : L → I(Cl;V ) is a function that assigns an invari-

ant I to each location, I(Cl;V ) is the set of invariants

Calculus of Communicating Systems

over clocks Cl and variables V . T

: L → {ordinary,

urgent, committed} is the function that assigns the

type to each location of the automaton.

The semantics of UPTA M = A

k . . . k A

is given

in terms of labelled transition systems (LTS) (Bengts-

son and Yi, 2004). A state of a network is a pair hL, ui,

where L denotes a vector of current locations of the

network, one for each process A

, . . . , A

and u is a

clock assignment reﬂecting the current values of the

clocks in M. A network may perform two types of

transitions, delay transitions and discrete transitions.

Besides clock variables UPTA may have boolean

and integer variables, each with bounded domain and

initial value. Predicates over these variables can be

used as guards of the edges and they can be updated

using resets on the edges. The semantics of the mod-

els that include such variables is extended in natural

way, i.e. for an action transition to be enabled, the ex-

tended clock assignment must also satisfy all integer

guards on the corresponding edges and when a tran-

sition is taken the assignment is updated according to

the boolean, integer and clock resets.

To model atomic sequences of actions, e.g. atomic

broadcast or multicast, UPTA support a notion of

committed locations. A committed location is a lo-

cation where no delay is allowed. In a network, if any

process is in a committed location then only action

transitions starting from such a committed location

are allowed. Thus, processes in committed locations

may be interleaved only with processes in a commit-

ted location.

4 INTRODUCING ASPECTS IN

UPTA

As discussed in the introduction, the concerns of a

system are developed in weakly related parts (mod-

els) called aspects. An aspect model is composed of

a pointcut and an advice. Pointcuts identify points in

the execution model referred to as join points.

With respect to UPTA, a pointcut can be a guard

or set of guards applied to any combination of UPTA

elements (model fragments) that are accessible via

edges to which the pointcut guards are attached. Con-

sequently, a join point is a place in the base UPTA

model where the advice model is superimposed and

the pointcut deﬁnes under what conditions the advice

can be entered in the base model.

Both the base model and advice model are as-

sumed to be UPTA and this model class is conser-

vative under weaving operations described below. We

suggest four types of advice weaving: before, after,

around, and conditional. The ﬁrst three follow the

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

160

same semantics as in AspectJ, while the fourth has a

different one, as it will be discussed later on.

A composed model or woven model is a network

of automata interacting via join points. The composi-

tion protocol is given by an adapter that implements

the composition protocol. During the composition

the same aspect can be woven in several places (join

points) in the base model.

4.1 Generic Process

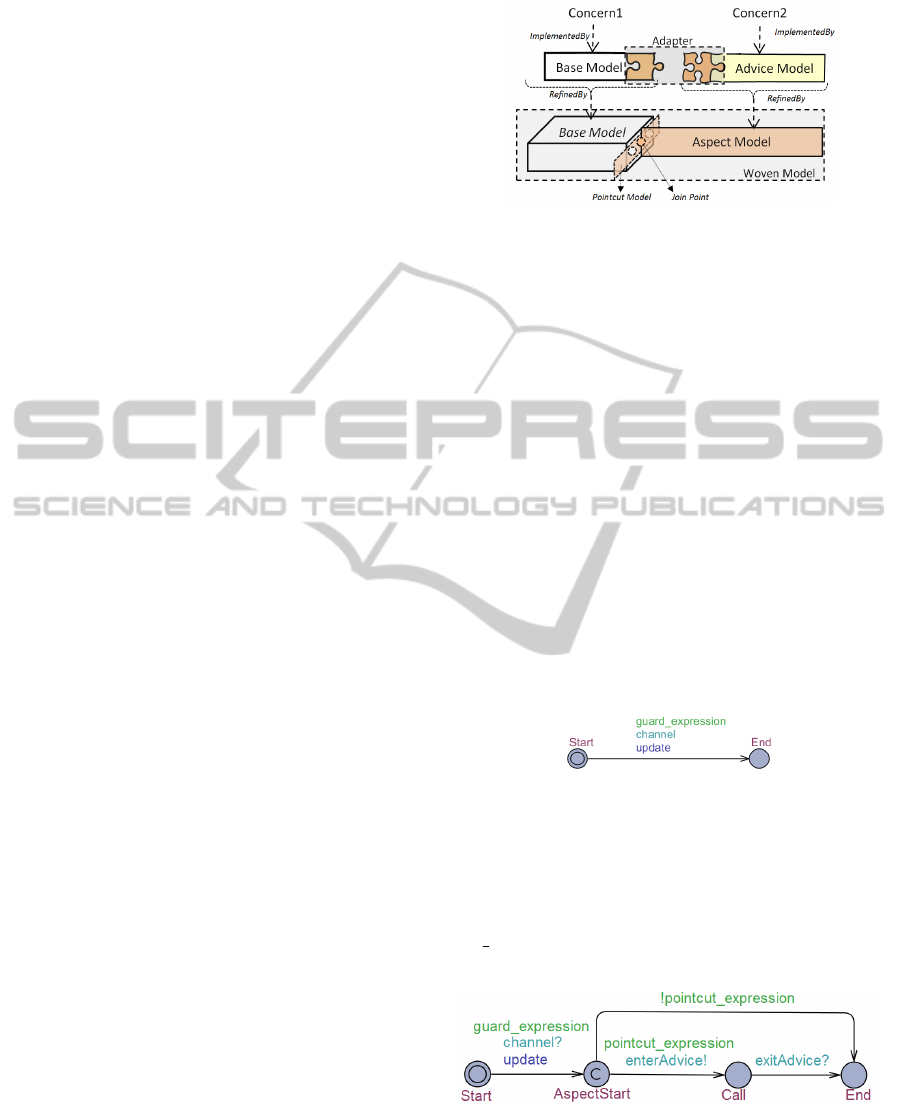

The generic weaving process is shown in Figure 1.

In this ﬁgure, two independent UPTA models, Base

Model and Advice Model implement two cross-

cutting concerns, Concern1 and Concern2, respec-

tively. When the two models are composed a woven

model is created.

Let Base Model be the base model to which the

functionality of Advice Model is composed, result-

ing in a UPTA network. We deﬁne an Adapter as a

model fragment which introduces weaving informa-

tion in both models. Basically, the adapter introduces

a JoinPoint in the base model, and the correspond-

ing entry and exit points of the advice that matches

to the join point. JoinPoint encodes one of the fol-

lowing composition rules: before, after, around, and

conditional. These rules specify when the behavior

introduced by the advice should be executed with re-

spect to a join point and how the control should be

returned to the base model. In our approach, we make

several assumptions:

• Although the same advice model template can be

shared between several join points of a base model,

we assume that unique instances of that advice model

are woven to each join point, i.e., no waiting or race

for an advice.

• The execution of an advice is atomic w.r.t. its base

model. That is, once an aspect advice model is en-

tered from a join point, the base model waits for the

aspect to complete before exiting the join point.

• An aspect model has one entry point and one or sev-

eral exit points which return to the same join point.

• The base model and the advice model can be wo-

ven using UPTA-speciﬁc communication and syn-

chronization assumptions, e.g. synchronizing the en-

try and exit of advice model with wait in the base

model, sharing or reﬁning data between base and ad-

vice model, etc.

4.2 Join Point Adapters

For the purpose of making weaving operators con-

structive, we suggest several join point adapters pro-

viding support for weaving before, after, around, and

Figure 1: Generic weaving architecture for UPTA.

conditional advices, respectively. These adapters al-

low one to decide, based on the pointcut condition,

whether the aspect should be invoked at a given join

point. Our approach allows systematic and mecha-

nized weaving of aspects into the base models.

The adapters we deﬁne can be applied for reﬁn-

ing a channel synchronization, generically shown as

the model fragment in Figure 2. The channel rep-

resents a synchronization between edges of parallel

automata, whereas the direction of the synchroniza-

tion is speciﬁed by sufﬁxes of the channel name, e.g.

channel! denotes the sending and channel? the re-

ceiving side of the channel. The synchronization can

take place whenever both edges linked with a channel

are enabled by their guards. During the synchroniza-

tion, the variable updates speciﬁed on the synchro-

nized edges are performed. In the following, in order

to save space, we only present the adapters that can

be applied to a receiving model fragment.

Figure 2: Model fragment with channel synchronization.

The after adapter (Figure 3) allows the execution

of an advice after a channel synchronization. It re-

ﬁnes the End location with two new locations As-

pectStart and Call, as well as with two new channels

enterAdvice! and exitAdvice?. Whenever the point-

cut expression is true, the advice is executed, other-

wise the base behavior is executed.

Figure 3: Generic after adapter.

The corresponding adapter introduced to the ad-

vice model during the weaving is shown in Figure 4.

As one may notice, the execution of the advice model

is triggered from the base model via the join point by

receiving the enterAdvice? synchronization and, after

CombiningAspect-orientationandUPPAALTimedAutomata

161

executing the advice functionality, it returns the con-

trol via the exitAdvice! synchronization.

Figure 4: Generic advice.

The before adapter (Figure 5) allows the exe-

cution of the advice model before the base model

reaches its fragment. The same generic advice model

as in Figure 4 can be used.

Figure 5: Generic before adapter.

The third adapter, the around adapter (Figure 6),

allows the weaving of around advices by starting the

execution of the advice model before the one of the

base model fragment and returning from the advice

model afterwards. The same generic advice model as

in Figure 4 can be used. This is the most complex

adapter type, and it can be used to both overload and

override the functionality of the base model fragment.

Figure 6: Generic around adapter.

Finally, the conditional adapter (Figure 7) intro-

duces new functionality to the same base model frag-

ment in Figure 2. The new functionality decides

whether the execution of the base model continues af-

ter executing the advice or returns to a previous loca-

tion. Compared to the previous adapters, the condi-

tional adapter will allow the base model to consume

the channel? synchronization, but the advice will de-

cide if the same synchronization should be executed

again via exitAdviceRepeat or the base model should

proceed to the next location via exitAdviceContinue.

The corresponding generic aspect model for this

advice is shown in Figure 8. As one may notice, this

model can return to the join point via two different

channels. If needed the adapter may be extended with

Figure 7: Generic conditional adapter.

more complex behavior, for instance with multiple

exit points, which we defer for future work.

Figure 8: Generic conditional aspect.

Tool Support for Weaving. Since the composition

mechanisms are speciﬁed explicitly via the generic

adapters the weaving of aspects is completely auto-

mated via a Python-based tool. The tool has a graph-

ical user interface in which the user can select from

UPPAAL model ﬁles the template for the base model,

the advice model template, the channel used as join

point and the type of the advice. A new model ﬁle is

created containing the woven aspect.

Veriﬁcation of the Woven Model. Extending the

base models with new functionality may imply the

changing of timing behavior of the woven models.

Since the weaving rules proposed do not pose re-

strictions on the advice models, there are no veriﬁ-

cation rules that could be speciﬁed generically, ex-

cept the deadlock condition and the advice atomicity

w.r.t. base model described in Section 4.1. Speciﬁc

veriﬁcation rules, including time-related ones, could

be speciﬁed in TCTL (timed computation tree logic)

(Alur et al., 1990) on a case-by-case basis.

5 CASE STUDY: AUTO-OFF

LAMP

We exemplify our approach with an example origi-

nally found as a demo model in the documentation of

the UPPAAL TRON tool (Hessel et al., 2008), under

the name auto-off lamp controller.

5.1 Base Model-revisited

The purpose of the lamp controller is, that once it is

tuned on, it will wait for a given time period before

turning off, unless there are user inputs (“touches”)

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

162

which reset its auto-off function. The demo is com-

posed of two models: a lamp and a user model. The

lamp model (Figure 9-left) reacts to events, on the

touch channel, and synchronizes to the user via the

done channel. When the lamp is in the OFF loca-

tion and the touch synchronization arrives, the inter-

nal clock x of the lamp is set to zero at the same time

as the lamp transitions to the switchON location. The

lamp is allowed to stay in this location for tolerance

time units, during which it has to change the lamp-

state modeling variable n to value 10 and synchronize

its location to the environment on the done channel.

After that, the lamp is in ON location, where it can

accept new touch events.

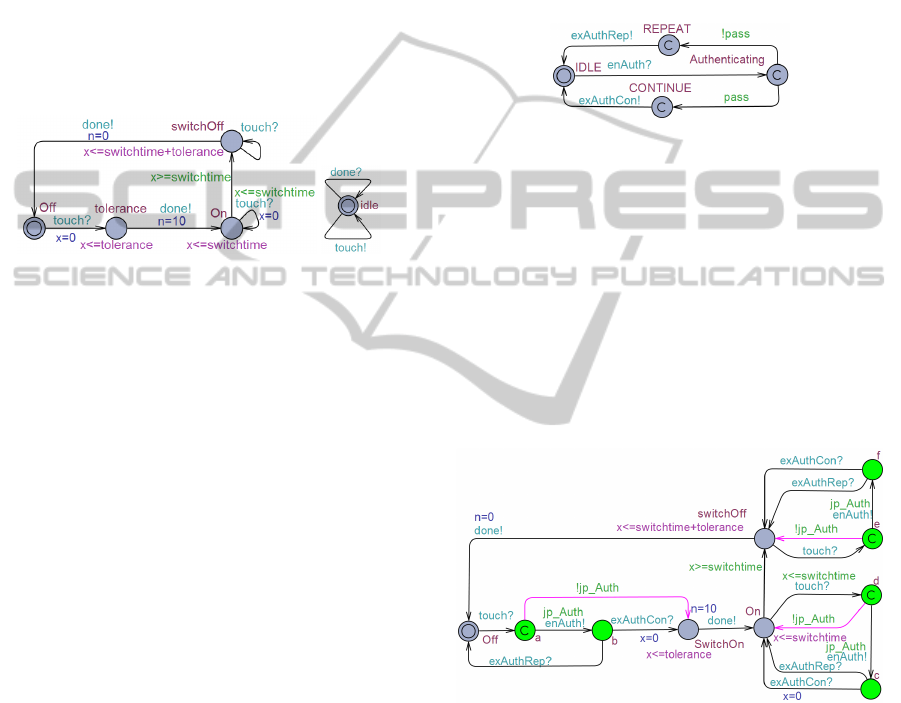

Figure 9: Original lamp (left) and user (right) models.

The lamp will stay in the ON location for

switchtime time units, unless a touch event is received

during its allowed stay and the clock is reset. When

switchtime time units have elapsed the lamp transi-

tions to switchOFF location and the n variable is set

to zero. In this location the lamp will continue to ac-

cept touch events, even though these have no effect. A

location change synchronization on done channel will

take place from the switchOFF location to the OFF

location within switchtime + tolerance time units.

This implies that the lamp is allowed to stay in the

switchOFF location for tolerance time units.

The model of the environment is presented in Fig-

ure 9-right. Its functionality is to emit touch events

when the lamp is in a receiving state or to accept con-

ﬁrmation that the lamp level has changed.

5.2 Introducing New Functionality

We introduce two new orthogonal concerns to the

lamp speciﬁcation:

• Authentication: the user has to authenticate success-

fully before being allowed to change the lamp state

from ON to OFF or reset the auto-off timer;

• Logging: log failed authentication attempts.

Each concern will be implemented separately as

a stand-alone advice and woven in the base model of

the lamp using the adapters described in Section 4.

5.2.1 Authentication Aspect

The ﬁrst step is to create an advice model which im-

plements the authentication. Since the authentication

can result either in a successful or in a failed attempt,

the advice model will have two exit points and thus

should be compatible with a conditional adapter. The

authentication advice (Figure 10) is entered via the

enAuth? synchronization, after which, depending on

the result of the authentication, it will exit via either

exAuthCon! or exAuthRep!. For simplicity, the au-

thentication is discriminated by a pass variable shared

with the user model.

Figure 10: Advice handling authentication.

Intuitively, we would like to extend the behavior

of our lamp model, to accept only touch events from

authenticated users. If the user is not authenticated,

the touch event is received but it has no effect on

the lamp. In order to weave the authentication ad-

vice with the base model, the conditional adapter has

to be applied to the base model in all possible loca-

tions. The target locations are all those edges hav-

ing a touch? channel synchronization. The result of

weaving authentication using the conditional adapter

is shown in Figure 11.

Figure 11: Lamp woven with authentication advice.

The behavior of the lamp model is the same with

the base model whenever the authentication is suc-

cessful. When the authentication fails, the control is

returned to the location preceding touch, ignoring the

user touch.

5.2.2 Logging Aspect

The logging aspect is introduced in a similar manner.

Figure 12 shows and advice model for logging which

has been already reﬁned with an adapter. The advice

is entered via the enLog? synchronization and it exits

CombiningAspect-orientationandUPPAALTimedAutomata

163

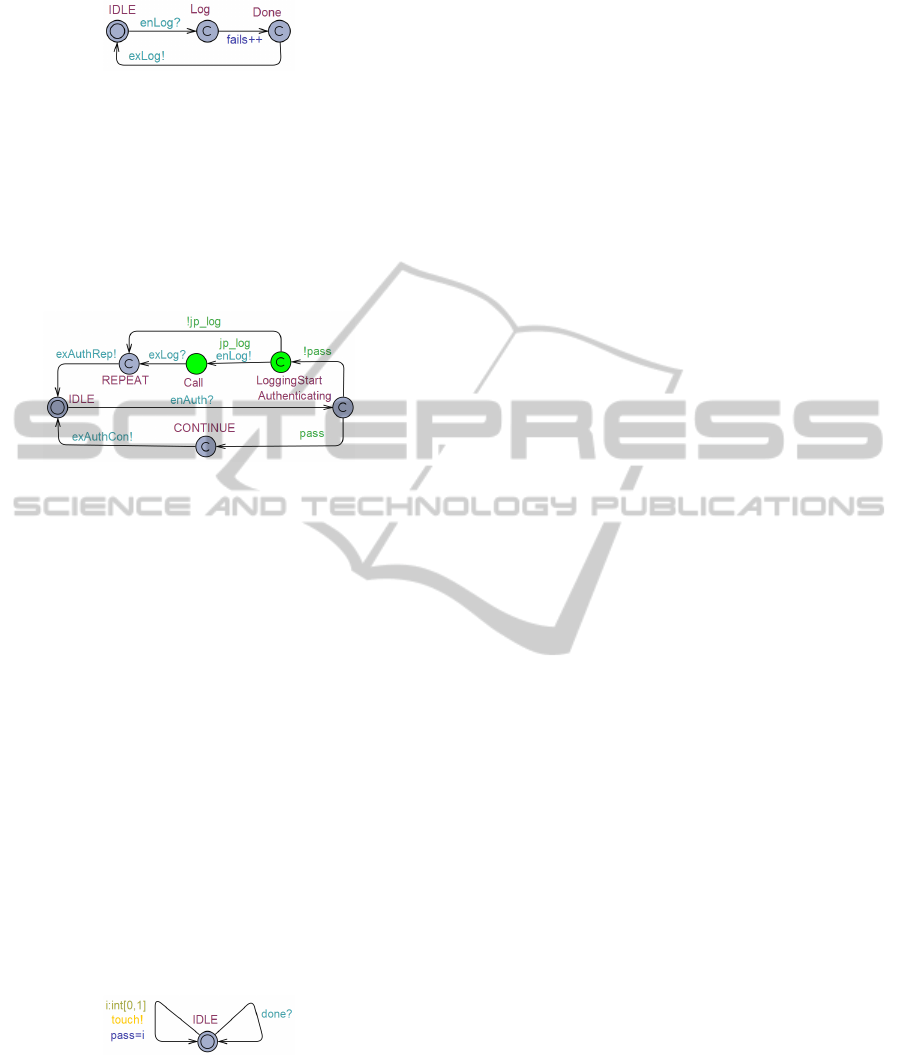

Figure 12: Logging advice.

via the exLog! synchronization after incrementing the

number of failed authentications.

In order to weave this aspect with its base model,

in this case the Authentication advice model, we re-

ﬁne exAuthRep! edge in Figure 10 using the be-

fore adapter deﬁned in Figure 5, obtaining the model

shown in Figure 13.

Figure 13: Weaving the Logging advice into Authentica-

tion.

Based on the new advice, whenever the authenti-

cation fails, the event is logged by invoking the Log-

ging advice via the enLog! synchronization and after

receiving exLog?, the original exAuthRep! is synchro-

nized to the lamp model.

5.2.3 Environment With Authentication

The original user model in Figure 9 is updated to

provide simple, both valid and invalid, authentica-

tion credentials via the global integer variable pass, as

shown in Figure 14. Instead of having a complete set

of correct and incorrect authentication credentials, we

used only two values, one to represent all the success-

ful cases and one to represent the unsuccessful cases.

We also consider the authentication to take place at

the same time as the touch event. Therefore the touch

channel has not changed name. The new functionality

could have been also introduced via a new aspect, but

we decided to keep the example simple.

Figure 14: Environment model with authentication.

6 CONCLUSIONS AND FUTURE

WORK

We suggested the introduction of aspects-oriented

concepts in the context of UPTA models with the pur-

pose of creating more modular, manageable and easy

to update speciﬁcations. More speciﬁcally, we have

proposed a set of generic adapters that can be used

for systematic and tool-supported weaving of UPTA-

based aspect models. Our approach allows to employ

aspect-oriented concepts without modifying the un-

derlying UPTA formalism. In addition, it allows one

to take advantage of the veriﬁcation engine of UP-

PAAL to ensure the validity of the resulting models.

Preliminary evaluation shows that creating and

updating aspect models becomes easier following our

approach and that weaving of models does not have

a dramatic effect on the state space of the resulting

models. However a more thorough evaluation is sub-

ject to future work.

REFERENCES

Alur, R. et al. (1990). Model-checking for real-time sys-

tems. In Logic in Computer Science, 1990. LICS’90,

Proceedings., Fifth Annual IEEE Symposium on e,

pages 414–425. IEEE.

Bengtsson, J. and Yi, W. (2004). Timed automata: Seman-

tics, algorithms and tools. In Desel, J., Reisig, W., and

Rozenberg, G., editors, Lectures on Concurrency and

Petri Nets, volume 3098 of Lecture Notes in Computer

Science, pages 87–124. Springer Berlin Heidelberg.

Clarke, S. and Baniassad, E. (2005). Aspect-Oriented Anal-

ysis and Design. The Theme Approach. Addison-

Wesley.

Filman, R. E. et al. (2005). Aspect-Oriented Software De-

velopment. Addison-Wesley, Boston.

France, R. B. et al. (2004). An aspect-oriented approach

to design modeling. IEE Proceedings - Software, Spe-

cial Issue on Early Aspects: Aspect-Oriented Require-

ments Engineering and Architecture Design, 151(4).

Hessel, A. et al. (2008). Testing Real-Time systems using

UPPAAL. In Formal Methods and Testing, pages 77–

117. Springer-Verlag.

Kiczales et al. (1997). Aspect-Oriented Programming. In

ECOOP ’97 - Object-Oriented Programming, volume

1241 of LNCS, pages 140–9. Springer-Verlag.

Rashid, A. et al. (2010). Aspect-Oriented Software Devel-

opment in Practice: Tales from AOSD-Europe. Com-

puter, 43(2):19–26.

Sarna, K. and Vain, J. (2012). Exploiting aspects in model-

based testing. In Proceedings of the Eeleventh work-

shop on Foundations of Aspect-Oriented Languages,

FOAL ’12, pages 45–48, New York, NY, USA. ACM.

Sutton, StanleyM., J. (2006). Aspect-Oriented Software De-

velopment and Software Process. In Li, M., Boehm,

B., and Osterweil, L., editors, Unifying the Software

Process Spectrum, volume 3840 of Lecture Notes in

Computer Science, pages 177–191. Springer Berlin

Heidelberg.

Wimmer, M. et al. (2011). A Survey on UML-based

Aspect-oriented Design Modeling. ACM Comput.

Surv., 43(4):28:1–28:33.

ICSOFT-PT2014-9thInternationalConferenceonSoftwareParadigmTrends

164
