Differential Fault Attacks against AES Tampering with

the Instruction Flow

Silvia Mella

, Filippo Melzani

and Andrea Visconti

Universit`a degli Studi di Milano, Milano, Italy

STMicroelectronics, Agrate Brianza, Italy

Keywords:

Fault Attacks, AES, Differential Fault Analysis.

Abstract:

Most of the attacks against the Advanced Encryption Standard based on faults mainly aim at either altering the

temporary value of the message or key during the computation. Fewother attacks tamper the instruction ﬂowin

order to reduce the number of round iterations to one or two. In this work, we extend this idea and present fault

attacks against the AES algorithm that exploit the misbehavior of the instruction ﬂow during the last round.

In particular, we consider faults that cause the algorithm to skip, repeat or corrupt one of the four AES round

functions. In principle, these attacks are applicable against both software and hardware implementations, by

targeting the execution of instructions or the control logic. As conclusion countermeasures against fault attacks

must also cover the instruction ﬂow and not only the processed data.

1 INTRODUCTION

The idea of applying faults to attack implementations

of cryptographic algorithms was presented by Boneh

et al. in 1997 (Boneh et al., 1997) against RSA

and was then extended to symmetric ciphers (Biham

and Shamir, 1997). The technique introduced against

block ciphers is referred to as Differential Fault Anal-

ysis (DFA) and consists of analyzing the difference

between correct and faulty ciphertexts in order to ob-

tain information on the secret key.

The most known DFA attacks against AES imply

fault models where the fault injection modify either a

state (Giraud, 2003; Piret and Quisquater, 2003; Tun-

stall and Mukhopadhyay, 2009; Moradi et al., 2006;

Mukhopadhyay,2009) or a round key (Chen and Yen,

2003; Kim and Quisquater, 2008) or the total amount

of round iterations (Park et al., 2011).

In this work, we present four DFA attacks that ex-

ploit faults causing a misbehavior of the process dur-

ing the ﬁnal round.

In Section 2 we describe how the instruction ﬂow

can be affected both in software and hardware imple-

mentations. In Section 3 we recall the AES algorithm

and in Section 4 we present a detailed description of

our attacks. In Section 5 we describe some methods

to obtain the desired fault models. Finally, in Section

6 we discuss how the effectiveness of some counter-

measures against faults is affected by our attacks.

2 TAMPERING WITH THE

INSTRUCTION FLOW

Most of the known DFA attacks against AES require

to corrupt a small portion of the message (or the key)

at a given cycle. Then, depending on the injection

technique, the target of the attack is either the stor-

age for the data, the bus, or the computing units while

processing the data.

But effective fault attacks can also be mounted by

tampering with the sequence of the instructions exe-

cuted by the cryptographic algorithm (Bar-El et al.,

2004). An example of tampering the instruction ﬂow

is provided in (Schmidt and Herbst, 2008), where the

target of the attack is a software implementation of

RSA. The injected faults aim at skipping speciﬁc op-

erations within the algorithm, similarly to the attacks

we introduce in the next sections.

A practical attack of such a kind against a soft-

ware implementation of AES has been presented in

(Choukri and Tunstall, 2005). The authors were able

to skip the instruction that drives the repetition of the

rounds, effectively obtaining the AES internal state

after only one round.

These works demonstrates that attacks based on

the alteration of the sequence of instructions (even by

just skipping a single instruction) are indeed a con-

cern for software implementations of cryptographic

439

Mella S., Melzani F. and Visconti A..

Differential Fault Attacks against AES Tampering with the Instruction Flow.

DOI: 10.5220/0005112104390444

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 439-444

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

algorithms.

But the same reasoning can be applied to hard-

ware implementations, too. An hardware implemen-

tation of the AES algorithm can be split into three

main parts: the storage for the data, the function that

updates the data and the controller. These parts have

different logical functionalities.

The storage for the data holds the message to pro-

cess, the round keys and all the intermediate states

during the computation. Usually, the result of a round

replaces the previous state within the same memory

cells.

The function that updates the data refers to all the

combinatorial logic that is needed to compute the next

values starting from the current data. In practice, it

implements the round function and the key schedule.

The controller manages the execution, allowing to

properly drive the data through the computation. It

is composed by a mix of registers and combinatorial

logic and it is everything else that does not fall in the

two previous classes (e.g. the counter for the rounds).

An alteration of the instruction ﬂow can be

achievedby tampering either the function that updates

data or the controller.

3 DESCRIPTION OF AES-128

The AES-128 algorithm works on 128-bit blocks by

performing a round function that involves a secret key

of 128 bits.

The 128-bit block to process can be conveniently

organized as an array of 4×4 bytes, which is the AES

state. The AES algorithm combines the plaintext P

and the key K through the bitwise XOR operation:

= P⊕ K. The round function is then applied to the

AES state 10 times.

The round function is composed by four transfor-

mations:

• SubBytes: Each byte of the state is substituted

by a new byte computed applying inversion in

GF(2

) and an afﬁne transformation over GF(2);

• ShiftRows: The rows of the state are cyclically

rotated by different offsets;

• MixColumns: Each column of the state is multi-

plied in GF(2

) by a ﬁxed matrix;

• AddRoundKey: The whole state is bitwise xored

with a round key of 128-bits. The round keys are

derived from the secret key, by using a KeySched-

ule procedure.

Notice that the ﬁnal round of the AES algorithm

does not include the MixColumns transformation.

For details on the transformations of AES and on

the KeySchedule procedure, we remind to (National In-

stitute for Science and Technology (NIST), 2001).

4 ATTACKS

In this section, we present in theory four speciﬁc at-

tacks that target the last round of AES-128. Then, in

Section 5, we will give some examples on how to ob-

tain the desired faults.

The fault injection we consider in this section

causes the process either to skip one of the trans-

formations of the last round or to execute the Mix-

Columns transformation also during the last round.

In each attack we exploit the difference between

correct and faulty ciphertexts to obtain the value of

the temporary state just before the attacked transfor-

mation. Then, we derive the last round key K

, by

using the correct ciphertext, and ﬁnally we get the se-

cret key K, by inverting the KeySchedule transforma-

tion on K

Notice that, similar attacks can be conducted

against the decryption function. In this case, we will

compare correct and faulty plaintexts, directly obtain-

ing the secret key.

Before presenting the attacks, recall that, by deﬁ-

nition, the correct ciphertext is

C = ShiftRows(SubBytes(S

)) ⊕ K

(1)

where S

represents the AES state at the beginning of

the last round.

4.1 SubBytes

In this attack we consider a fault that causes the exe-

cution to skip the last SubBytes operation.

Depending on the granularity of the implementa-

tion, the AES process can handle one or more bytes

per clock cycle. Therefore, the fault injection can

cause the SubBytes transformation to be not executed

either on a single byte or on the whole AES state (or

on any combination in between). Since all the bytes

are computed independently each other, the attack ap-

plies in any case.

For the sake of simplicity, we now consider that

the fault injection causes the skipping of the SubBytes

transformation for the whole state. This leads to a

faulty ciphertext

∗

= Shi ftRows(S

) ⊕ K

(2)

and to an observed difference between correct and

faulty ciphertexts

∆ = C⊕C

∗

= Shi ftRows(SubBytes(S

) ⊕ S

) (3)

SECRYPT2014-InternationalConferenceonSecurityandCryptography

440

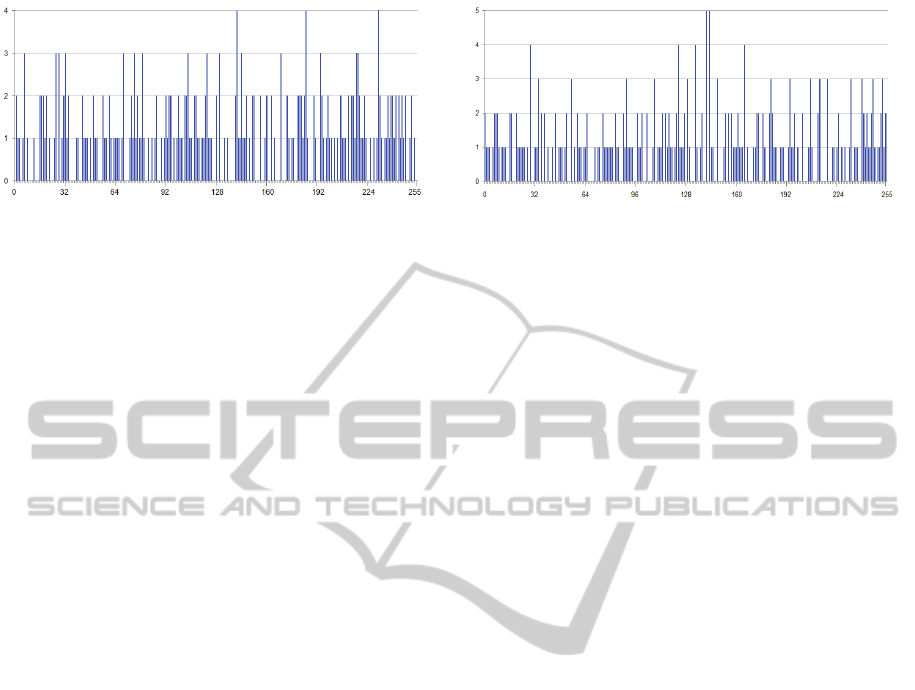

Figure 1: For any δ ∈ [0, . . . , 255], the number of bytes x

such that x⊕SubBytes(x) = δ is given.

Let us denote by i

′

the position of the i-th byte of

the state after applying the ShiftRows transformation.

Hence, for any i, we have C

′

= SubBytes(S

) ⊕ K

′

and C

∗

′

= S

⊕ K

′

It follows that the observed difference between

correct and faulty bytes is

∆

′

= C

′

⊕C

∗

′

= SubBytes(S

) ⊕ S

(4)

Before starting the analysis, it is possible to pre-

compute for any byte x ∈ [0, 255] the value:

δ = x⊕ SubBytes(x) (5)

It is then possible to ﬁll out a table where for each

δ the bytes x that satisfy (5) are given. Figure 1

shows the number of such x for each possible δ.

We can notice that several δ’s can never occur and

that for the other δ’s the number of occurrences is

very small. In particular, in the worst case (when

δ ∈ {

0x8D

0xB9

0xE7

}) it is equal to 4.

It follows that, given ∆

′

only a limited number of

candidates for S

satisfy (4). Consequently, also the

set of possible candidates for K

′

= C⊕SubBytes(S

)

has been considerably reduced.

It follows that, in the worst case the search space

for K

has been reduced to 32 bits (2 bits for each

byte) and the attacker can obtain K with an exhaus-

tive search. Alternatively, with other pairs of correct

and faulty ciphertexts (at most three), obtained using

different plaintexts and the same key K, only the right

value of K

′

is expected to appear in the set of key

candidates of each execution.

Now, we would like to underline the fact that it

is possible to modify the fault model, provided that

it continues to leak some information on the secret.

For instance, we can consider fault models where the

SubBytes transformation is executed twice or is re-

placed by its inverse. The principles of the attack still

hold. Actually, as shown below, we can still analyze

an equation similar to 5, ﬁll out the correspondingdis-

tribution table and observe which candidates satisfy

the obtained difference between correct and faulty ci-

phertexts.

Figure 2: For any δ ∈ [0, . . . , 255], the number of bytes x

such that InvSubBytes(x) ⊕SubBytes(x) = δ is given.

4.1.1 InvSubBytes/SubBytes

As a variant of the previous attack, we can consider

the case where a fault injection cause the inverse of

the SubBytes transformation to be executed instead

of the SubBytes itself. Such a scenario can happen

in hardware implementations that share most of the

datapath between the encryption and the decryption

functionalities. In these designs the entities for the

direct and the inverse SubBytes are both instantiated

and a multiplexer selects between the two depending

on the control bit that sets encryption or decryption.

The attack is mainly the same with the difference

that

∆

′

= C

′

⊕C

∗

′

= SubBytes(S

) ⊕ InvSubBytes(S

)

(6)

For any possible value of ∆

′

, the number of oc-

curences is given in Fig. 2. Again, with two or three

pair of correct and faulty ciphertexts, the attacker can

obtain the secret key.

4.2 ShiftRows

Now we present a possible attack when the fault

causes the skipping of the last ShiftRows operation.

Similarly to Sec. 4.1, this attack applies when the

fault injection affects whether a single row or the

whole state, since the ShiftRows operation transforms

each row independently. We consider the second case

and use the same faulty ciphertext to analyze all the

rows contemporarly.

Let us denote by s the temporary state

after the last SubBytes transformation, i.e.

s = SubBytes(S

). The observed differ-

ence between correct and faulty ciphertexts is

∆ = C⊕C∗ =







0 0 0 0

⊕ s







(7)

Notice that we cannot deduce any information

from ∆ about the ﬁrst row of the state (and of the key),

because the fault injection has no effect over it. On

DifferentialFaultAttacksagainstAESTamperingwiththeInstructionFlow

441

the contrary, for the other three rows we can solve the

corresponding linear systems derived from equation

(7).

Indeed, for the second row of the state, we have







1 1 0 0

0 1 1 0

0 0 1 1

1 0 0 1

























∆







(8)

The matrix is singular with rank 3. Hence, the the

set of possible candidates for the 4-uple [s

, s

]

has dimension 2

Similarly, for the third and fourth row we obtain

and 2

candidates, respectively.

The search space for the state s, and consequently

for the last round key (since K

= s ⊕ C), has been

reduced from 128 to 64 bits (32 bits for the ﬁrst row,

8 bits for the second and fourth rows and 16 bits for

the third row).

4.3 MixColumns

By deﬁnition, in the last round of AES the Mix-

Columns transformation is not executed. By inducing

a fault (for instance, by targeting the round counter),

we can make the algorithm to execute it, obtaining the

faulty ciphertext:

∗

= MixColumns(ShiftRows(SubBytes(S

))) ⊕ K

(9)

Let us denote by s the temporary state af-

ter the last ShiftRows transformation, i.e. s =

Shi ftRows(SubBytes(S

)). The observed difference

between correct and faulty ciphertexts is

∆ = C ⊕C

∗

= s⊕ MixColumns(s) (10)

By considering (10), for any column of s we have:







3 3 1 1

1 3 3 1

1 1 3 3

3 1 1 3

























∆







(11)

The matrix is singular with rank 3. Hence, the

set of possible candidates for each column of s has

dimension 256. It follows that the dimension of the

state space, and consequently of the key space, has

been reduced to 2

. With an exhaustive search, the

attacker can obtain the whole key.

Similarly to the previous attacks, we can consider

a fault injection to affect a single column of the state.

In this case, we need to conduct the attack for each

column by generating different faulty ciphertexts.

4.4 AddRoundKey

In this attack, we consider a fault that causes the exe-

cution to skip the last AddRoundKey operation.

Suppose that the fault injection affects the whole

state. This leads to a faulty ciphertext

∗

= Shi ftRows(SubBytes(S

)) (12)

The attacker can then simply add correct and faulty

ciphertexts, obtaining the last round key: C ⊕ C

∗

. By inverting the KeySchedule on K

, the secret

key K is obtained with a single pair of correct and

faulty ciphertexts.

If the fault affects only a part of the state, it is

possible to obtain the remaining bytes of the key by

generating other faulty ciphertexts.

5 FAULT INJECTION

TECHNIQUES

The attacks described in Section 4 require the abil-

ity to alter the sequence of operations executed by the

device. Such an effect can be achieved on both soft-

ware and hardware implementations. For instance, in

software implementations, it is possible to cause the

algorithm to skip an instruction. Namely, either to

skip one operation among SubBytes, ShiftRows and

AddRoundKey, or to skip the test instruction on the

round counter, in order to execute the MixColumns

also during the last round. Whereas, in hardware ar-

chitectures, it is possible to either tamper with the

controller or change the control signals that drive part

of the computational logic. For instance, the control

bit that sets encryption or decryption or the bits that

control the round counter.

Some of the methods described in literature that

allows to obtain needed effects are:

• Power spikes: The induction of power spikes can

cause the skipping of an instruction or the gather-

ing of a wrong data from a bus (K¨ommerling and

Kuhn, 1999; Bar-El et al., 2004);

• Clock Glitches: By supplying an external clock

signal, with a period signiﬁcantly shorter than

the one needed by the device, the next instruc-

tion is executed before the previous one was ﬁn-

ished (K¨ommerling and Kuhn, 1999; Bar-El et al.,

2004; Balasch et al., 2011);

• Eddy currents: An external electromagnetic ﬁeld

can induces eddy currents on the surface of

the chip, which can cause a single bit fault

(Quisquater and Samyde, 2002);

SECRYPT2014-InternationalConferenceonSecurityandCryptography

442

• Laser beam: Because of the sensitivity of semi-

conductors to strong light exposure, with a fo-

cused laser beam it is possible to cause a fault

on the target chip. Even a single bit can be set

or reset (Skorobogatov and Anderson, 2002; van

Woudenberg et al., 2011).

In order to clarify the feasibility of the attacks pre-

sented in this work, we now describe how desired

faults can be injected on a software implementation

of AES on a microcontroller, using power and clock

glitches. In order to do it, we leverage on some re-

sults presented in previous works that applied these

techniques (Choukri and Tunstall, 2005; Schmidt and

Herbst, 2008; Bar-El et al., 2004). In particular, in

(Choukri and Tunstall, 2005), a software implemen-

tation of AES on a smart card is considered where the

round steps are sequentially executed and a jump con-

dition manages the round counter. With a single glitch

on the power supplied to the smart card, they are able

to skip exactly the “conditional jump”, with the effect

of reducing the number of rounds to one. Whereas,

in (Schmidt and Herbst, 2008; Bar-El et al., 2004) the

RSA and DES algorithm are attacked by skipping tar-

get instructions, always by using power glitches.

A ﬁrst step for the attack consists of the character-

ization of the device by determining the conﬁguration

that causes the proper glitch. This can be achieved by

conducting several experiments where the clock pe-

riod, the applied voltage and the duration of the glitch

are varied.

As a second phase, the portion of the code where

to inject a fault must be determined. This can be

achieved by examining the executed code in details

and by estimating the length of interesting instruc-

tions in terms of clock cycles.

A third phase consists of determining when the

target instruction is executed by the device. By mea-

suring the current consumption of the smart card, it

is possible to observe a pattern that repeats itself nine

times and a shorter ﬁnal pattern due to the absence of

the MixColumns operation in the ﬁnal round.

Once the right position and the size of the glitch

have been found, the power supply is interrupted or

lowered. This results in operations to be skipped.

For a detailed experiment on a speciﬁc device, we

remind to (Choukri and Tunstall, 2005), where con-

crete parameter settings and time costs are provided.

Also for hardware implementations, the described

techniques can cause desired faults. For instance, a

clock glitch in a speciﬁc clock cycle allows to skip an

instruction.

6 COUNTERMEASURES

The presented attacks can affect the effectiveness of

some countermeasures that protect AES implemen-

tations against fault attacks. In particular counter-

measures based on redundancy are concerned. For

a description of such countermeasures, we remind

to (Schmidt and Medwed, 2012; Bousselam et al.,

2012).

A class of countermeasures uses coding tech-

niques to add redundancy on the AES computation.

In most of the proposed cases such error detec-

tion/correction codes are applied to the AES state and

key only. This means for instance that when an oper-

ation is skipped the encoding of the data can be still

valid and then the countermeasure fails in detecting

the attack.

Some form of redundancy can be introduced with

the round counter, in order to protect the “conditional

jumps” and make the attack in (Choukri and Tunstall,

2005) unfeasible. However, this kind of countermea-

sure will not be successful against the attacks pre-

sented in this work, even if the attacker is using the

same resources and techniques of the attacker that re-

duces the number of rounds.

Another countermeasure is based on the duplica-

tion of all, or parts of, the algorithm. This would make

the attacks more difﬁcult, since a double fault injec-

tion would be necessary. However, such a solution

has a signiﬁcant impact on the performance of the al-

gorithm and is not recommended.

The inclusion of a random delay in the algorithm

makes the detection of target instructions more com-

plicated. This results in a more difﬁcult achievement

of successful attacks, but it is still possible to design

the attack in order to ignore the random effects.

An additional method for protecting against fault

attacks consists of using sensors on the microcon-

trollers to detect fault injections. But, different sen-

sors should be used for different fault injection tech-

niques and this can be an excessively expensive solu-

tion for general purpose microcontrollers.

7 CONCLUSIONS

Most of the known attacks based on faults against

AES speciﬁcally target the processed data, i.e. the

message or the key. But the memory that stores the

intermediate data is not the only portion of the device

where faults can occur. Actually, a small number of

attacks in literature is based on the alteration of the

instruction ﬂow, speciﬁcally on the reduction of the

number of rounds to one or two.

DifferentialFaultAttacksagainstAESTamperingwiththeInstructionFlow

443

By extending the idea of targeting the instruction

ﬂow, instead of the data, we presented some new at-

tacks against AES that exploit misbehaviors of the al-

gorithm execution. In particular, we have shown how

a differential fault analysis can be conducted when the

main operations that compose the AES round func-

tion are corrupted, skipped or repeated during the ﬁ-

nal round.

We have also provided some examples of the in-

jection techniques that may lead to desired faults,

such as power and clock glitches, and we have shown

how common countermeasures against fault attacks

behave against our new attacks.

REFERENCES

Balasch, J., Gierlichs, B., and Verbauwhede, I. (2011). An

in-depth and black-box characterization of the effects

of clock glitches on 8-bit mcus. In (Breveglieri et al.,

2011), pages 105–114.

Bar-El, H., Choukri, H., Naccache, D., Tunstall, M., and

Whelan, C. (2004). The sorcerer’s apprentice guide

to fault attacks. IACR Cryptology ePrint Archive,

2004:100.

Biham, E. and Shamir, A. (1997). Differential fault analysis

of secret key cryptosystems. In Jr., B. S. K., editor,

CRYPTO, volume 1294 of Lecture Notes in Computer

Science, pages 513–525. Springer.

Boneh, D., DeMillo, R. A., and Lipton, R. J. (1997). On

the importance of checking cryptographic protocols

for faults (extended abstract). In Fumy, W., editor,

EUROCRYPT, volume 1233 of Lecture Notes in Com-

puter Science, pages 37–51. Springer.

Bousselam, K., Natale, G. D., Flottes, M.-L., and Rouzeyre,

B. (2012). On countermeasures against fault attacks

on the advanced encryption standard. In (Joye and

Tunstall, 2012), pages 89–108.

Breveglieri, L., Guilley, S., Koren, I., Naccache, D., and

Takahashi, J., editors (2011). 2011 Workshop on Fault

Diagnosis and Tolerance in Cryptography, FDTC

2011, Tokyo, Japan, September 29, 2011. IEEE.

Chen, C.-N. and Yen, S.-M. (2003). Differential fault anal-

ysis on aes key schedule and some coutnermeasures.

In Safavi-Naini, R. and Seberry, J., editors, ACISP,

volume 2727 of Lecture Notes in Computer Science,

pages 118–129. Springer.

Choukri, H. and Tunstall, M. (2005).

Round reduction using faults.

http://www.geocities.ws/mike.tunstall/papers/CT05.

Giraud, C. (2003). Dfa on aes. IACR Cryptology ePrint

Archive, 2003:8.

Joye, M. and Tunstall, M., editors (2012). Fault Analysis

in Cryptography. Information Security and Cryptog-

raphy. Springer.

Kim, C. H. and Quisquater, J.-J. (2008). New differen-

tial fault analysis on aes key schedule: Two faults are

enough. In Grimaud, G. and Standaert, F.-X., editors,

CARDIS, volume 5189 of Lecture Notes in Computer

Science, pages 48–60. Springer.

K¨ommerling, O. and Kuhn, M. G. (1999). Design

principles for tamper-resistant smartcard processors.

https://www.cl.cam.ac.uk/ mgk25/sc99-tamper.pdf.

Moradi, A., Shalmani, M. T. M., and Salmasizadeh, M.

(2006). A generalized method of differential fault at-

tack against aes cryptosystem. In Goubin, L. and Mat-

sui, M., editors, CHES, volume 4249 of Lecture Notes

in Computer Science, pages 91–100. Springer.

Mukhopadhyay, D. (2009). An improved fault based attack

of the advanced encryption standard. In Preneel, B.,

editor, AFRICACRYPT,volume 5580 of Lecture Notes

in Computer Science, pages 421–434. Springer.

National Institute for Science and Technol-

ogy (NIST) (2001). Advanced En-

cryption Standard (FIPS PUB 197).

http://www.csrc.nist.gov/publications/ﬁps/ﬁps197/ﬁps-

197.pdf.

Park, J., Moon, S., Choi, D., Kang, Y., and Ha, J. (2011).

Differential fault analysis for round-reduced aes by

fault injection. In ETRI Journal, volume 33, pages

434–442.

Piret, G. and Quisquater, J.-J. (2003). A differential fault

attack technique against spn structures, with applica-

tion to the aes and khazad. In Walter, C. D., C¸ etin

Kaya Koc¸, and Paar, C., editors, CHES, volume 2779

of Lecture Notes in Computer Science, pages 77–88.

Springer.

Quisquater, J.-J. and Samyde, D. (2002). Eddy current for

Magnetic Analysis with Active Sensor. In Esmart

2002, Nice, France.

Schmidt, J.-M. and Herbst, C. (2008). A practical fault

attack on square and multiply. In Breveglieri, L.,

Gueron, S., Koren, I., Naccache, D., and Seifert, J.-P.,

editors, FDTC, pages 53–58. IEEE Computer Society.

Schmidt, J.-M. and Medwed, M. (2012). Countermeasures

for symmetric key ciphers. In (Joye and Tunstall,

2012), pages 73–87.

Skorobogatov, S. P. and Anderson, R. J. (2002). Opti-

cal fault induction attacks. In Jr., B. S. K., C¸ etin

Kaya Koc¸, and Paar, C., editors, CHES, volume 2523

of Lecture Notes in Computer Science, pages 2–12.

Springer.

Tunstall, M. and Mukhopadhyay, D. (2009). Differential

fault analysis of the advanced encryption standard us-

ing a single fault. IACR Cryptology ePrint Archive,

2009:575.

van Woudenberg, J. G. J., Witteman, M. F., and Menarini,

F. (2011). Practical optical fault injection on secure

microcontrollers. In (Breveglieri et al., 2011), pages

91–99.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

444
