Smoothed Surface Transitions for Human Motion Synthesis

Ashish Doshi

iMinds, EDM, University of Hasselt, Wetenschapspark 2, 3590 Diepenbeek, Belgium

Keywords:

3D Human Motion, 3D Synthesis, 3D Surface Transition, Feature Detection.

Abstract:

Multiview techniques to reconstruct an animation from 3D video have advanced in leaps and bounds in re-

cent years. It is now possible to synthesise a 3D animation by fusing motions between different sequences.

Prior work in this area has established methods to successfully identify inter-sequence transitions of differ-

ent or similar actions. In some instances however, the transitions at these nodes in the motion path would

cause an abrupt change between the motion sequences. Hence, this paper proposes a framework that allows

for smoothing of these inter-sequence transitions, while preserving the detailed dynamics of the captured

movement. Laplacian based mesh deformation, in addition to shape and appearance based feature methods,

including SIFT and MeshHOG features, are used to obtain temporally consistent meshes. These meshes are

then interpolated within a temporal window and concatenated to reproduce a seamless transition between the

motion sequences. A quantitative analysis of the inter-sequence transitions, evaluated using three dimensional

shape based Hausdorff distance is presented for synthesised 3D animations.

1 INTRODUCTION

3D human motion synthesis is increasingly an impor-

tant part of motion animation, especially in movie,

games, tele-medicine and broadcasting industries. It

is laborious work for an animator to manually edit

an animation between different movements, i.e. mo-

tion compositing. As such, reusing captured motion

sequences to create a new animation saves time as

well as money. In (Huang et al., 2009), a 3D tem-

poral shape similarity measure was used to automati-

cally ﬁnd the closest match between different motion

actions. Although not clearly visible, sometimes the

inter-sequence dynamic deformation causes an unin-

tentional discontinuity in the motion. As such, we

build on the work of (Huang et al., 2009), (de Aguiar

et al., 2008) to obtain a realistic motion deformation

that preserves the dynamic motion shape and appear-

ance at each surface transition point.

The framework presented in this paper is outlined

as follows. Figure 1(a) shows an example database of

3D video sequences obtained from either (Starck and

Hilton, 2007) or (Vlasic et al., 2008). In Figure 1(b), a

surface motion graph is constructed using 3D tempo-

ral shape similarity measures as proposed in (Huang

et al., 2009). This in turn yields an adaptive tempo-

ral window of length, N

which depicts the number of

frames before and after each inter-sequence transition

node to be used. If a ﬁxed window is used, the abrupt

change would still occur in some transitions because

of the differences in speed of motion between the ac-

tion sequences.

Figure 1(c) shows surface feature matching per-

formed on inter-sequence pairs within the window.

Appearance based multiview correspondences are de-

tected using SIFT (de Aguiar et al., 2008),(Lowe,

2003) in the 2D image domain and using Mesh-

HOG (Zaharescu et al., 2009) from the 3D surface

geometry. This combination of features has proved

to be most consistent for 3D surface feature matching

and tracking. Robust matching is then obtained be-

tween pairs of frames between the sequences within

the transition window.

Matching correspondences are used as soft con-

straints for a volumetric mesh deformation which

tetrahedralises the source mesh and then warp to

ﬁt the target mesh, as shown in Figure 1(d). The

main purpose of using volumetric mesh deformation

is to obtain a consistent mesh structure for the inter-

sequence frames. Figure 1(e) shows a synthesised

interpolated 3D mesh extracted between the source

and target meshes based on the corresponding blend-

ing weight that ﬁt within the framework. Finally,

a collection of linear interpolations between the se-

quences within the window is concatenated to obtain

a dynamic smoothed motion between the sequences

Doshi A..

Smoothed Surface Transitions for Human Motion Synthesis.

DOI: 10.5220/0005122400730079

In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2014), pages 73-79

ISBN: 978-989-758-046-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

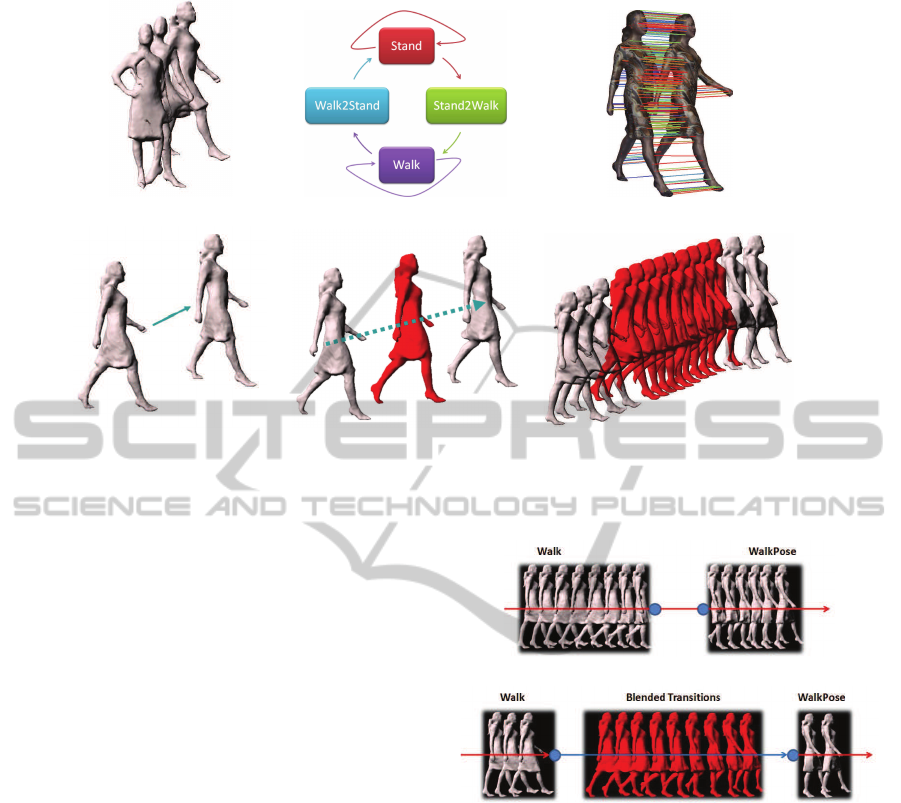

(a) 3D video sequence (b) Surface motion graph (c) Surface feature matches

(d) Mesh deformation (e) Mesh interpolation (f) 3D synthesis

Figure 1: Different consecutive steps of the smoothed motion path framework: (a) input 3D video database; (b) surface

motion graph; (c) surface feature matching from SIFT and MeshHOG; (d) mesh deformation; (e) mesh interpolation; (f) new

3D animation with blended meshes in red.

as presented in Figure 1(f). The ﬁnal outcome will

be a new 3D video animation. A side-view example

of standard and temporally smoothed transitions be-

tween the sequences is shown in Figure 2.

Figure 2(a) shows the transition between

Walk and WalkPose sequences from the Fashion1

dataset (Starck and Hilton, 2007). The transition

occurs between frame 38 of Walk sequence and

frame 23 of WalkPose sequence as indicated by

blue nodes in the ﬁgure. In comparison, Figure 2(b)

shows the transition between Walk and WalkPose

sequences with temporal blending. However, instead

of the transition occuring at frame 38 of the Walk

sequence, it now occurs over a window between

frame 33 and frame 27 of the WalkPose sequence.

The meshes in red indicate interpolated meshes

between frames from Walk and its correponding

frames in the WalkPose sequence within the temporal

window.

Prior work as presented in Section 2 suggests

that synthesising a new 3D video sequence from a

database of available 3D video sequences is possible.

However, the inter-sequence transitions in the video

remain choppy especially with signiﬁcant dynamic

change of the surface geometry and would need user

intervention to generate smooth transitions. The pur-

pose of this paper is to present a novel framework of

post-processing surface geometry that combines the

best of 3D human motion synthesis, surface feature

matching, mesh deformation and interpolation (Sec-

tion 3) to obtain a smooth 3D video sequence that

(a) Without blending

(b) With temporal motion blending

Figure 2: Inter-sequence transitions between Walk and

WalkPose sequences: (a) Walk frames 31-38, WalkPose

frames 23-28; (b) Walk frames 31-33, Blended frames

{34(Walk),18(WalkPose)}-{42(Walk),26(WalkPose)},

WalkPose frames 27-28.

preserves the dynamic movement of the surface. Re-

sults and quantitative analysis is presented in Sec-

tion 5 with conclusions drawn from this work high-

lighted in Section 6.

2 RELATED WORK

Concatenating physically simulated and scripted mo-

tion is a tricky task, even for an experienced anima-

tor. Hence, motion editing of temporal and dynamic

unstructured mesh sequences remains an open and

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

challenging problem. Similar to the 3D motion com-

positing, (Sch¨odl et al., 2000) used temporal similar-

ity based metrics between still frames to subsequently

create a new video sequence. They suggested that it

is not possible to extend 2D similarity based metrics

to 3D deformable surfaces.

Starck et.al. (Starck et al., 2005) proposed an ani-

mation control algorithm based on motion graph and

spherical matching method to optimise mesh blend-

ing. Their motion blending approach incorporates a

coarse-to-ﬁne optimisation algorithm which is depen-

dent on multiview surface correspondences. In ad-

dition, Kircher and Garland (Kircher and Garland,

2008) discusses the virtues of absolute, linear and rel-

ative blending methods for dynamic meshes in their

method. Their proposed method is based on using tri-

angles instead of the standard vertex based blending,

which has been shown to yield excellent results.

Interestingly, Baran et.al. (Baran et al., 2009) sug-

gested using semantic based correspondences to de-

form a mesh based on its relative movement. In con-

trast, Xu et.al. (Xu et al., 2009) proposed using mod-

iﬁed Dijkstra algorithm in the motion graph to gen-

erate new animation, though their method does have

the limitation that they allow large discontinuities be-

tween transitions, as long as it is visually accept-

able. Hsieh et.al. (Hsieh et al., 2005) proposed us-

ing a skeletal correspondences to help in the blend-

ing of transition nodes. The workﬂow that they pre-

sented is based on using user-deﬁned skeletal infor-

mation. Their method reduces the surface geometry

to metaskeletons which they are able to match be-

tween poses of different action sequences. Similarly,

Arikan et.al (Arikan and Forsyth, 2002) proposed mo-

tion synthesis of articulated data by concatenating

frames from a database. They also use similarity mea-

sures for matching skeletal data. Other prior work

that uses skeletal data for concatenative synthesis of

human motion is presented in (Kovar et al., 2002).

Mesh deformation using volumetric based meth-

ods is actually quite a common thing to do (de Aguiar

et al., 2008; Zhou et al., 2005), since this maintains

the volume of the mesh and preserves ﬁne details of

the surface geometry. A typical technique is using the

graph Laplacian method. However, when applied to

large deformations with insufﬁcient constraints, facet

pinching and intersection artifacts become apparent.

Hence, the motivation to perform mesh interpolation

based on feature correspondences to ensure non-rigid

shape and dynamic preservation.

3 HUMAN MOTION SYNTHESIS

Transition points between 3D video sequences are

identiﬁed without temporal correspondences using a

3D shape similarity metric. The motion synthesis is

dependent on two stages. The ﬁrst is construction of

the surface motion graph which is used to identify

possible inter-sequence transitions and the second, a

motion path optimisation algorithm that satisﬁes user

deﬁned constraints.

Motion sysnthesis is obtained by minimising the

transition cost between keyframes whilst observing

spatial and temporal constraints. The transition cost

is dependent on three measures, i.e. total transition

cost, C

(F) which is the sum of all dissimilarities of

transitions concatenated for the path F, distance cost,

(F) deﬁned as the difference between target dis-

tance and travelled distance along the path and time

cost, C

(F) deﬁned as difference between user speci-

ﬁed target time and actual travelled time. Hence, the

transition cost is

C(F) = C

(F) + w

(F) (1)

with w

and w

being weights for distance and time re-

spectively. The optimised path for the motion synthe-

sis is found by minimising the cost function in Equa-

tion (1), i.e.

opt

= argmin

{C(F)} (2)

Further details of solving Equation (2) using Inte-

ger Linear Programming (ILP) method can be found

in (Huang et al., 2009).

4 SMOOTH MOTION

TRANSITION

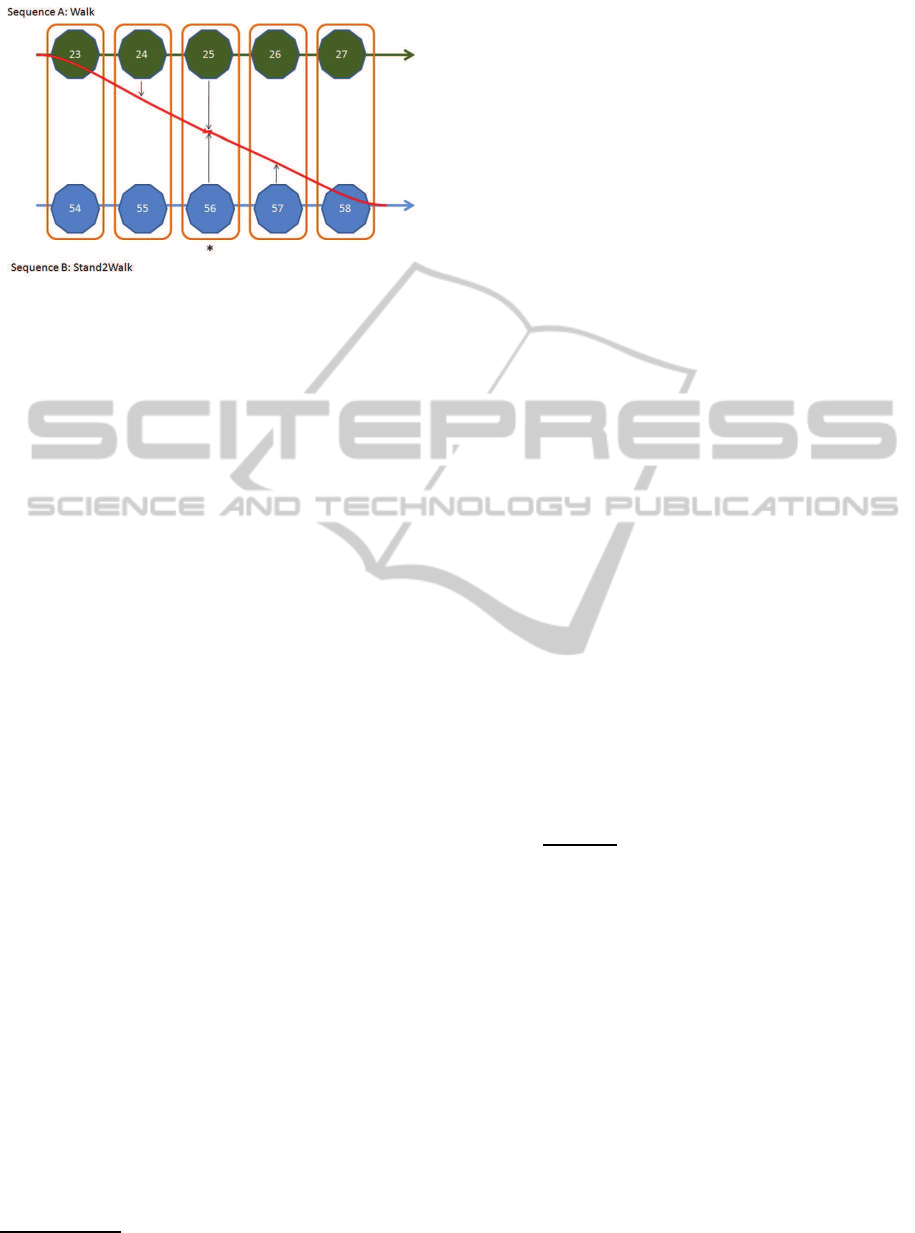

Figure 3 shows the process of obtaining smooth mo-

tion transitions between sequences. For example,

A represents the Walk sequence and B represents

the Stand2Walk sequence of a surface captured game

character. The numbers in each node represent the

frame position in the sequence. The star (*) in Fig-

ure 3 shows where the initial transition nodes are that

would switch the sequence from A to B. The frames

that represent each of these nodes is shown in Fig-

ure 2. It can be observed that when the transition

occurs between frame 25 and 56, a discontinuity ap-

pears. Therefore, there is a need to obtain a blending

path that is smooth and progressivelypropagates from

sequence A to B.

SmoothedSurfaceTransitionsforHumanMotionSynthesis

Figure 3: Smooth motion path: In green is sequence A with

its respective numbered nodes, blue is sequence B with its

respective numbered nodes. Orange boxes highlight pair-

wise frames for robust multiview feature matching. Black

arrows show direction for interpolation, with source having

higher blending weight. Red arrows show path of deforma-

tion. ’*’ marks the optimised transition nodes.

4.1 Surface Feature Matching

For the transition to occur between frames 25 and 56

of this example, an optimal window length, n = 5 is

obtained from (Huang et al., 2009). Robust sparse

multiview correspondences between pairwise texture

images, I

are obtained, with I and c representing an

image and camera number respectively and k depict-

ing frame number. The correspondences are obtained

using SIFT

and 3D MeshHOG (Zaharescu et al.,

2009), and is pruned through matching as follows

c,e

(p,q) =k f

c,p

− f

c,q

k ∀p ∈ f

,q ∈ f

(3)

where dd

c,e

(p,q) is the Euclidean distance list be-

tween two feature descriptor sets in each camera view,

c,p

in the source frame and f

c,q

in the target frame.

Matched features are obtained using nearest neigh-

bour method

(p,q) ≤ βdd

(p,q+ 1) ∀p ∈ f

,q ∈ f

(4)

and is projected to 3D space. The nearest neighbour

ratio, β is typically set at 0.4. Only mutually con-

sistent correspondences which are bijective is kept.

Though not included here, a detailed analysis of fea-

ture detection and matching for 3D human motion

from video can be found in (Doshi et al., 2010).

4.2 Mesh Deformation & Interpolation

It is assumed that the surface captured 3D meshes

used are unstructured. In order to obtain a reliable

interpolation of the mesh, both the source and the tar-

get meshes have to be structured. This is performed

SIFT source obtained from http://www.vlfeat.org

by ﬁrst tetrahedralising the source mesh, M

yield-

ing a tetraheral mesh, M

which is volumetric. This

means that if M

is deformed either translationally

or rotationally, the Laplacian deformation technique

preserves the volume of the mesh.

Next, a volumetric Laplacian mesh deformation

technique (Sorkine, 2006) is applied to obtain the syn-

thesised target mesh M

following

argmin

{k Lv− L

} (5)

where L represents the graph Laplacian operator con-

structed from source mesh vertices,

v is the vertex

location of the target mesh, v is the vertex location

of the source mesh and

are the sparse constraints

(from previous section) to warp the source mesh to

target mesh.

In order to obtain a smooth motion path between

the sequences, it is pertinent that the dynamic meshes

being warped are of consistent structures. With both

the source and target meshes having the same struc-

ture, it is easier to perform interpolation. As per stan-

dard practice, a linear blending method as shown in

Equation (6) is used to obtain interpolated meshes.

= (1− α

+ α

(6)

where z

denotes the blended frame and α

is the

blending weight for the corresponding source and tar-

get meshes.

Although the computation of blending weight is

trivial, it remains an important step as this determines

how much the source and target meshes are to be in-

terpolated. The blending weight, α is set as the in-

verse of the optimised window length, n

opt

. Hence,

for each frame set, α is shown to be

opt

+ 1

∀i = K − n

opt

,... ,K + n

opt

(7)

with K depicting the center frame of the dynamic

window. Therefore, for the example shown in Fig-

ure 2(b), n

opt

= 4. Hence, the blending weights for

the meshes within the window in Figure 2(b) will be

= {1/N

,..., N

}, with N

= 2∗ n

opt

+ 1 rep-

resenting the total size of the window.

5 RESULTS & DISCUSSION

Synthesised character animations are created from

a publicly available 3D video database (Starck and

Hilton, 2007). The database consists of four character

sets; (1) Character 1 - game character, (2) Fashion 1

- fully textured long ﬂowing dress and (3) Fashion 2 -

shorter, plain and tighter ﬁtting dress, all of which are

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

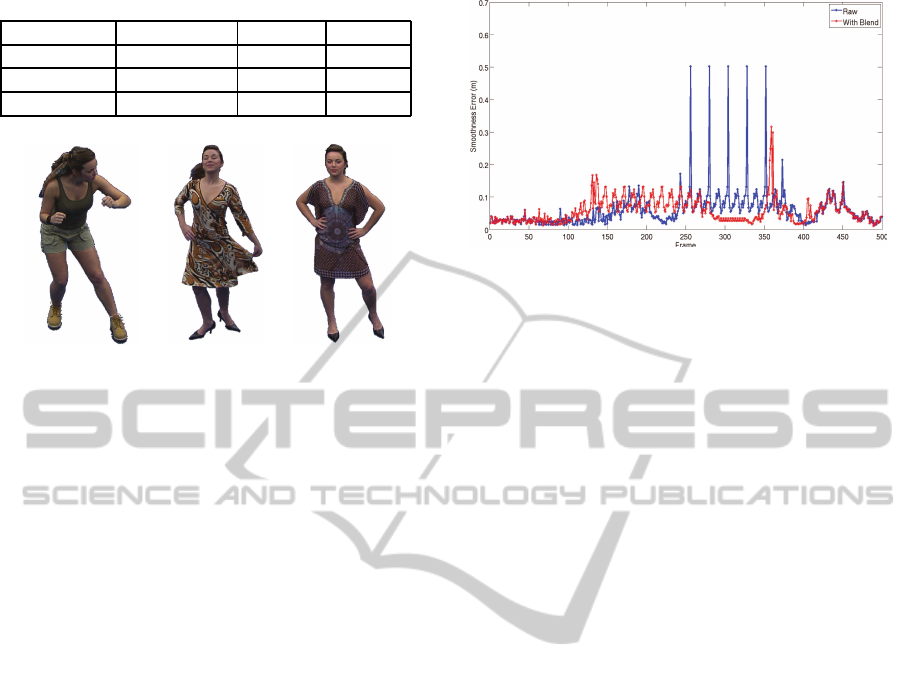

Table 1: Information on 3D video sequences used.

3D Seq. Action Seq. Frames Images

Character1 10 442 3536

Fashion1 6 418 3344

Fashion2 6 432 3456

(a) Character1 (b) Fashion1 (c) Fashion2

Figure 4: Example frames from the 3D video database.

challenging for re-animation. The characteristics of

the datasets used is presented in Table 1 with example

frames for each dataset shown in Figure 4.

A total of over 3000 meshes (>100k vertices each)

and over 30000 texture images (from 8 cameras) have

been used to construct surface motion graphs. From

the motion graphs, three test 3D animations havebeen

synthesised for analysis.

The smoothness error, measured in centimetres is

evaluated using the Metro (Cignoni et al., 1998) tool

which calculates the Hausdorff distance between two

surfaces in three dimensional space using

H(S

) = max{h(S

),h(

)} . (8)

where

h(S

) = max

v∈S

min

ˆv∈

kv− ˆvk . (9)

where v and ˆv are vertices of the source surface geom-

etry S

and of reference surface

, respectivelywithin

the synthesised animation sequence, and k · k denotes

the Euclidean distance between the vertices in spatial

space. i and j are surface transition indices within the

synthesised 3D video sequence.

The graph in Figure 5 shows the error between

successive frames in the Fashion2 synthesised 3D

video sequence. Because the female model is moving

slowly in the beginning, the change between the sur-

faces is reasonably low. However, as she starts walk-

ing at approximately the 120th frame of the sequence,

the error increases because of the differences between

the surface geometry. The largest spike in the raw se-

quence, with error of 50.17cm occurs at a point when

the model is walking with larger footsteps. From the

ﬁgure, sequential patterns of peaks and troughs is due

to motion loops occuring. Smoothness errors for the

Figure 5: Fashion2: Graph of smoothness error between

successive frames in the 3D synthesised animation.

blended sequences is highlighted in red. The differ-

ence in change of error is apparent between the raw

and blended sequences.

Spikes in the blended squence which do not have

a corresponding spike in the raw sequence relate to

large changes between the frames. It is worth not-

ing that for mesh deformation to work properly, the

surface correspondences has to be as accurate as pos-

sible. Even with minimal inaccuracies, the mis-

matches can cause abnormal deformations, i.e. facet

self-intersections or collapsing faces. Another impor-

tant fact is that if a geometry causes an irregular dis-

tribution of the correspondences, then it is likely that

the output from the mesh deformation would also ex-

hibit abnormal deformity in some regions of the sur-

face. All these situations can cause 3D synthesis er-

rors which in turn means large changes between the

frames can occur. This can be related to the spikes in

the blended squence which do not have a correspond-

ing spike in the raw sequence.

An error distribution snapshot between frames

292 and 299 of the graph in Figure 5 is presented

in Figure 6. The colour distribution in the ﬁg-

ure is highlighted as: < 3cm → Red to Yellow; <

6cm → Yellow to Green; < 9cm → Green to Cyan;

< 12cm → Cyan to Blue and Blue for errors larger

than 12cm. It can be seen that large error occurs when

there is large movement present. The motion in the

sequences at these correponding frames differ signif-

icantly, i.e. in Figure 6(a), the model is still walking

and in Figure 6(b), the model is standing still. By

using blended frames in the sequence, it is shown

(Figure 5) that the model have been synthesised to

stop walking earlier in the sequence and is standstill,

whilst the model is about to stop walking in the raw

sequence.

SmoothedSurfaceTransitionsforHumanMotionSynthesis

(a) Fashion2: Raw sequence frames 292-299

(b) Fashion2: Blended sequence frames 292-299

Figure 6: Smoothness error distribution on the surface between frames.

6 CONCLUSIONS

In conlusion, the process that have been presented

provides a smooth motion path for concatenation of

human motion synthesis from 3D video sequences.

In contrast to using depth cameras (Microsoft Kinect)

and annotated markers (Flagg et al., 2009), we have

shown that in the absence of skeletal information, us-

ing automatically detected surface correspondences

from SIFT and MeshHOG, an intermediate surface

motion can be reconstructed to create a seamless mo-

tion transfer between sequences. The process in-

cludes using Laplacian mesh deformation and linear

blending methods to preserve the non-rigid dynam-

ics of the surface. Work is in progress to include ad-

ditional coarse correspondences for ﬁlling in regions

without any features to facilitate greater ﬂexibility in

the re-use of motion sequences. Further emphasis

is being placed on making surface feature matching

temporally consistent, similar to that of (Budd et al.,

2013) which uses patch mesh, to allow reliable esti-

mation of a consistent structure.

REFERENCES

Arikan, O. and Forsyth, D. A. (2002). Interactive mo-

tion generation from examples. In ACM SIGGRAPH,

pages 483–490.

Baran, I., Vlasic, D., Grinspun, E., and Popovi´c, J. (2009).

Semantic deformation transfer. In ACM SIGGRAPH,

pages 1–6.

Budd, C., Huang, P., Klaudiny, M., and Hilton, A. (2013).

Global non-rigid alignment of surface sequences. In-

ter. Journal of Computer Vision, 102(1-3):256–270.

Cignoni, P., Rocchini, C., and Scopigno, R. (1998). Metro:

measuring error on simpliﬁed surfaces. Computer

Graphics Forum, 17(2):167–174.

de Aguiar, E., Stoll, C., Theobalt, C., Ahmed, N., Seidel,

H.-P., and Thrun, S. (2008). Performance capture

from sparse multi-view video. In ACM SIGGRAPH.

Doshi, A., Starck, J., and Hilton, A. (2010). An empirical

study of non-rigid surface feature matching of human

from 3d video. Journal of Virtual Reality and Broad-

casting, 7(2010)(3).

Flagg, M., Nakazawa, A., Zhang, Q., Kang, S. B., Ryu,

Y. K., Essa, I., and Rehg, J. M. (2009). Human video

textures. In Symposium on Interactive 3D Graphics

and Games, pages 199–206.

Hsieh, M.-K., Chen, B.-Y., and Ouhyoung, M. (2005). Mo-

tion retargeting and transition in different articulated

ﬁgures. In 9th Inter. Conf. on Computer Aided Design

and Computer Graphics.

Huang, P., Hilton, A., and Starck, J. (2009). Human motion

synthesis from 3D video. In IEEE Conf. on Computer

Vision and Pattern Recognition.

Kircher, S. and Garland, M. (2008). Free-form motion pro-

cessing. ACM Transactions on Graphics, 27(2):1–13.

Kovar, L., Gleicher, M., and Pighin, F. (2002). Motion

graphs. In ACM SIGGRAPH.

Lowe, D. (2003). Distinctive image features from scale-

invariant keypoints. Inter. Journal of Computer Vision,

20:91–110.

Sch¨odl, A., Szeliski, R., Salesin, D., and Essa, I. A. (2000).

Video textures. In ACM SIGGRAPH, pages 489–498.

Sorkine, O. (2006). Differential representations for mesh

processing. Computer Graphics Forum, 25(4):789–

807.

Starck, J. and Hilton, A. (2007). Surface capture for per-

formance based animation. Computer Graphics and

Applications, 27(3):21–31.

Starck, J., Miller, G., and Hilton, A. (2005). Video-based

character animation. In Symposium on Computer An-

imation.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

Vlasic, D., Baran, I., Matusik, W., and Popovi´c, J. (2008).

Articulated mesh animation from multi-view silhou-

ettes. ACM Transactions on Graphics, 27(3):97.

Xu, J., Yamasaki, T., and Aizawa, K. (2009). Motion edit-

ing for time-varying mesh. EURASIP Journal on Ad-

vances in Signal Processing, 2009.

Zaharescu, A., Boyer, E., Varanasi, K., and Horaud, R. P.

(2009). Surface feature detection and description

with applications to mesh matching. In IEEE Conf.

on Computer Vision and Pattern Recognition, Miami

Beach, Florida.

Zhou, K., Huang, J., Snyder, J., Liu, X., Bao, H., Guo, B.,

and Shum, H.-Y. (2005). Large mesh deformation us-

ing the volumetric graph Laplacian. ACM Transac-

tions on Graphics, 24(3):496–503.

SmoothedSurfaceTransitionsforHumanMotionSynthesis
