A SCTP-based Authentication Protocol: SCTPAP
Malek Rekik
1
, Amel Meddeb-Makhlouf
2
, Faouzi Zarai
1
, Mohammad S. Obaidat
3
and K.F. Hsiao
4
1
LETI laboratory,University of Sfax, Tunisia
3
Computer Science and Software Engineering Department, Monmouth University, NJ 07764, USA
4
Dep. of Information Management, Ming-Chuan University, Taoyuan County 333, Taiwan
Keywords: Multihoming, SCTP, Security, Authentication, AVISPA, SPAN.
Abstract: Multihoming is among the features of SCTP (Stream Control Transmission Protocol), which makes it more
robust and efficient than TCP(Transmission Control Protocol)but more vulnerable under attack.
Nevertheless, a strong security can degrade the QoS(Quality of Service) by adding additional delay.
Therefore, we propose in this paper, a secure authentication protocol that supports the establishment of
multiple connections to protect multihoming networks with the least number of messages, number of
parameters in each message and number of communicating nodes. The proposed scheme provides lower
delay of authentication and protects against several attacks. Our devised protocol is analyzed using SPAN
(Security Protocol Animator) for AVISPA (Automated Validation of Internet Security Protocols and
Applications) tool. The obtained validation results show that the scheme is safe.
1 INTRODUCTION
Multihomed protocol is a mechanism that makes the
host able to connect several networks under different
IP (Internet Protocol) addresses by using different
network interfaces. With traditional TCP, multiple
connections are required to provide multihoming
services, which involves the use of multiple ports.
This makes the network management difficult and
the communication during the change of address
may be interrupted. Nevertheless, SCTP (Cano,
2011), which is a recent IETF transport layer
protocol, supports multihoming. Indeed, it ties one
connection called association in SCTP to several
network interfaces at each communicating node.
Transport addresses are exchanged during the
initialization phase of an SCTP association. This
phase
consists of four-way handshake to protect
against denial-of-service attacks. Even though,
SCTP is more robust against network failures or
congestion by dynamically selecting a path. Its
features make it more vulnerable to the man-in-the-
middle and hacking attacks. Among the related
security solutions proposed by researchers are:
SCTP over IPsec (Internet Protocol Security)
(Bellovin et al., 2003), SCTP-under-TLS (Transport
Layer Security) (Jungmaier et al., 2002), Secure
SCTP (Hohendorf et al., 2006), and the extension
AUTH-SCTP (Tuexen et al., 2007).
In this paper, we will introduce the proposed
protocol, called secure optimized authentication for
SCTP (SCTPAP) scheme. Our goal is to secure
SCTP communication considering the following
requirements in the design of SCTP AP:
- Integrity
- Confidentiality
- Mutual authentication
- Mutual belief on the session key
- Delay of authentication and re-authentication
We will use AVISPA tool for validation and
security analysis of the proposed protocol.
The rest of this paper is organized as follows:
Section II presents some existing security solutions,
where their limitations are highlighted. Section III
describes our SCTPAP scheme. Section IV contains
the validation and analysis of the proposed algorithm
using the AVISPA tool. Finally, conclusion and
future works are provided in section V.
2 RELATED WORK
2.1 SCTP over IPsec
The feature of SCTP is not well supported by IPsec.
The ref (Cano, 2011) identifies the problem of SCTP
47
Rekik M., Meddeb-Makhlouf A., Zarai F., Obaidat M. and Hsiao K..
A SCTP-based Authentication Protocol: SCTPAP.
DOI: 10.5220/0005123400470053
In Proceedings of the 5th International Conference on Data Communication Networking (DCNET-2014), pages 47-53
ISBN: 978-989-758-042-0
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
over IPsec: the SCTP sessions combine a group of
senders at a group of receivers.
This has two impacts on the tunnel establishment
procedure of IPsec, (Cano, 2011) where:
- The SPD must find a unique SA from a new
type of triplet ({destination address group},
SPI (Security Parameters Index), AH / ESP
(Authentication Headers / Encapsulating
Security Payloads)). So, it is recommended that
the SPD (Security Policy Database) entries are
generalized in the form of groups address
- The protocols of keys exchange/generation of
security associations must assume the
complexity of SCTP. Thus, the work proposed
in (Cano, 2011)
recommends the construction
of a new type ID for ISAKMP: ID_LIST, which
represents a set of identities. However,
using these lists of identities has its own
drawbacks. For example, for IKEv1, a signature
must be linked to a unique identity along all the
same phase. But in the context of SCTP, the
signer is not necessarily the same for each
message. Accordingly, the signatory groups
must share the same key, which involves
security weaknesses in these practices on a
large scale. Moreover, this work proposes an
encoding multiple identities within a single
certificate (for a single public key), but the
support of this feature in the implementation of
certification systems is dubious.
Another disadvantage of the use of SCTP with
IPsec is that each SCTP packet is secured separately
by IPsec. Hence, it increases the overhead when we
have long messages that must be fragmented by
SCTP,because several SCTP packets per message
have to be secured.
Moreovere, there is a lack of efficiency in this
security method that can decrease throughput and
performance of the communication
2.2 SCTP-under-TLS
The use of TLS over SCTP is described in (Bellovin
et al., 2003). TLS is currently mainly used on top of
the TCP. But for TLS over SCTP, one TLS session
must be established per stream. This leads to
performance problems when many streams need to
be secured. Every message is secured separately by
TLS. Then, it is sent over SCTP. In case of sending
many small messages, there will be an increased
overhead compared to a solution that secures a
complete SCTP packet containing several bundled
messages.
2.3 Secure SCTP
To overcome the different problems of using TLS or
IPsec to secure , Secure SCTP integrates
cryptographic functions into SCTP (Jungmaier, A.,
Rescorlaand, E., Tuexen, M., 2002). Like TLS and
IPsec, itprovides authentication, integrity and
condentiality since it uses the same standard cipher
and HMAC algorithms as these standardized security
solutions.
Nevertheless, SSCTP has a disadvantage
compared to TLS over SCTP. Indeed, when long
messages have to be fragmented at the SCTP layer,
TLS secured rstly the whole message before
fragmenting it. However, SSCTP has to secure each
packet fragmented separately, which adds overhead.
Moreover, SSCTP has to complete a secure session
with messages and news chunks before securing data
transmission, which causes more communication
delay.
2.4 AUTH-SCTP
The extension presented in [4] provides a
mechanism for deriving shared keys for each
association. It defines a new chunk type, several
parameters, and procedures for (SCTP).
Authentication Chunk (AUTH) is the new chunk
type added by this extention, which is used to
authenticate SCTP. Random Parameter (RANDOM),
Chunk List Parameter (CHUNKS)and Requested
HMAC Algorithm Parameter (HMAC-ALGO)are the
new parameters that are used to negotiate the
authentication during association setup and establish
the shared keys. However,authors in this work
didnot definehow shared keys are exchanged.
Another disadvantage of this extention is the
increasing of the complexity of SCTP by adding new
parameters, new chunk and proceduresthat add delay
or degrad the quality of service.
3 SCTPAP SCHEME
In this paper, we propose the secure optimized
authentication for SCTP (SCTPAP) scheme, which
approaches the problem of the security during a
node’s authentication to connect for a first time to
the network. The proposed algorithm uses an
initialization phase to generate and exchange keys
and public parameters recorded when the node wants
access to the network for the first time. When the
node obtains, at the end of this step, a secret key
shared with the authentication server AS, it can
DCNET2014-InternationalConferenceonDataCommunicationNetworking
48
connect with any legitimate node. If the connection
is interrupted and the mobile node wants to re-
connect with the same node, the procedure of re-
authentication will be triggered.
In the proposed scheme, we assume that the
network layer is secured by a tunnel IPsec and we
protect the transport layer by the authentication
procedure. The considered scenarios are between
two nodes that should support symmetric and
asymmetric encryption mechanisms. The proposed
scheme uses the authentication server AS to achieve
authentication procedure.
3.1 Initialization Phase: Node’s
Recording
The node must subscribe to the AS directly to gain
access to the wireless network. We present the
recording process as follows:
The node A computes its identity “IDA” by
applying the hash functions on the concatenation of
all its addresses. IDA is a unique identity of the node
A. Node A generates a random number x. To send the
two parameters x and IDA to AS server for recording,
node A follows the following steps:
It generates a random key KS
It computes and sends m1, which is the
encryption of key KS by the AS ' public key
serv-n
m1= {KS}
serv-n
(1)
Then, it sends m2 which is the encryption of x
and IDA by this key KS.
After receiving m1 and m2, AS decrypts m1 by
its private key to get the key KS and decrypts m2 by
KS to get x and IDA. Then, AS selects randomly a
number y and calculates D, which is the encryption
(AS-ID || y) by the key x, as follows: D = Ex (AS-ID
|| y) (2).
AS calculates the master key K = (IDA || AS-ID ||
x || y) (3) and sends the D to node A. This one
decrypted D to get AS-ID and y and hence it can
calculate the key K.
3.2 Initial Authentication
After the recording phase, the node A, wishing to
connect with a node B, executes the initial
authentication process, illustrated by Figure 1.
As illustrated in this figure, after the
establishment of a IPsec tunnel between the two
nodes (step 1) and after the initialization phase of the
SCTP-AUTH connection establishment in step 2 and
step 3, node A follows these steps:

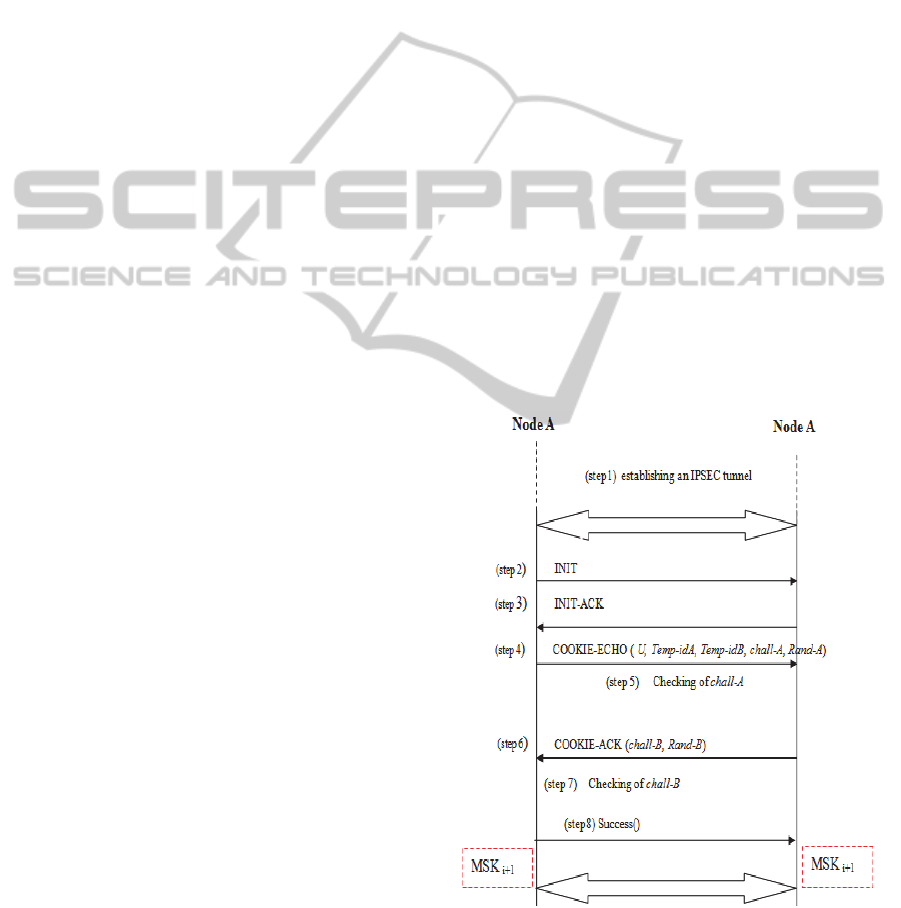

Figure 1: Initial authentication.
It generates Nonce-A: a random number,
It calculates MKA = f (KA || Nonce-A) where f
is a hash function
It calculates the challenge Auth-A = f(MKA ||
Nonce-A || IDA)
It sends to node B a COOKIE-ECHO, which
contains an U bit set to 0 informing that it is
the initial authentication, its identity IDA, the
random number Nonce-A encrypted by the
server’s public keyserv-n and the challenge
AUTH-A (step 4).
Node B sends a Request to AS (step 5) which
contains (IDB, {Nonce-B, AUTH-B }serv-n) to prove
its legitimacy to AS and (IDA, {Nonce-A}serv-n to
compute Auth-A and send it to node B. After
receiving these parameters, (step 6) AS calculates and
verifies the equality Auth-B = f (MKB || Nonce-B
||IDB) to ensure the legitimacy of the node B. If the
Auth-B calculated locally is equal to Auth-B received
by the node B, AS generates the followings:
MKA= f(KA || Nonce-A)
Auth-A = f(MKA || Nonce-A || IDA)
MSK
1
= f (MKA || MKB|| NonceA || NonceB)
which is a session key for encrypting data
that will be transmitted between node A and
node B after the initial authentication phase.
ASCTP-basedAuthenticationProtocol:SCTPAP
49
In Step 7, the server sends an Access-
Challenge to node B, which contains Auth-A,
the set {Nonce-A, Nonce-B, IDA, IDB, MSK1}
encrypted by the A’s cipher key KEA and the
set {Nonce-B, Nonce-A, IDA, MSK1}
encrypted by the B’s cipher key KEB. In Step 8,
Node B compares Auth-A sent by the server
with Auth-A sent by node A. If they are equal
(Step 9), it sends a COOKIE-ACK containing
the parameters (IDB, {Nonce-A, Nonce-B, IDA,
IDB, MSK1}KEA, {Nonce-A, Nonce-B}MSK1,
Temp-idB, RES-B)) to node A. On receiving this
message, (Step 10) node A finds the temporal
ID of B which is Temp-idB with its digest RES-
B=f(Temp-id-B||MSK1), then deciphers the
encrypted parameters by its cipher key KEA.
Finding the recent Nonce-A and IDA, it ensures
the legitimacy of AS and finds the new session
key MSK1 with the Nonce-B. It will prove more
its legitimacy to node B and that it has received
MSK1 by sending a success containing the
Nonce-B encrypted by MSK1 and a temp-IDA
with its RES-A for this new communication
(Step 11). Decrypting the second set received
from B {Nonce-A, Nonce-B, Temp-idB}
MSK1
,
node A verifies the legitimacy of B and that it
has received MSK1. Both nodes calculate their
temporary identities (Temp-idA and Temp-idB)
that they will use during this session.
Temp-idA= f(IDA||SPI)
Temp-idB= f(IDB||SPI)
If node A changes its current address, it
sends a status-chunk that contains the bit U set
to 1 to inform B that its address has changed and
consequently node B will change the destination
address of the association between node A and
node B in different databases IPsec to not
establish a new IPsec association.
3.3 Re-Authentication between the
Same Nodes
When a node A that is already connected to a node B
is suddenly disconnected due a failure for example
and then tries to connect again to the same node B, it
must be re-authenticated. The re-authentication
procedure is shown by Figure 2.
After establishing a channel IPsec tunnel
between the two nodes and the initialization of the
connection SCTP-AUTH (step 2), (step 3), and (step
4), node A sends the U bit set to 1 to inform that it is
re-authenticating its previous temporary identity, the
previous temporary identity of node B, a new Nonce-
A and Auth-A. On receiving these parameters, node
B notices that this is a re-authentication by
examining the U bit. Then, the procedure of re-
authentication begins by verifying the previous
temporary identity of nodeA in its database. If it
exists, it checks its temporary identity claimed by
node A. If it is equal to its temporary identity that
exists in its database associated with the previous
association between it and node A, it calculates the
Auth-A = f (MSKi||Rand-A) and (step 5) compares
Auth-A locally computed with the one sent by node
A. If they are equal, node B sends a COOKIE-ACK,
which contains (Auth-B, Nonce-B) to authenticate
node A. Node A calculates and verifies the chall-B.
If the computed one is equal to that sent, then it
sends a success message to allow a new association
between these two nodes. Finally, the two nodes
compute the new temporary identity (Temp-idA+1 et
Temp-idB+1) that they will use during this session,
where:
Temp-idA+1= f(Temp-idA||SPI)
Temp-idB= f(Temp-idB||SPI)
and compute MSKi +1 = f (MSKi||Rand-A||Rand-
B).The database in each node is updated at the end
of re-authentication process, where the updated
parameters are SPI, Temp-idA, Temp-idB and MSK
i
.

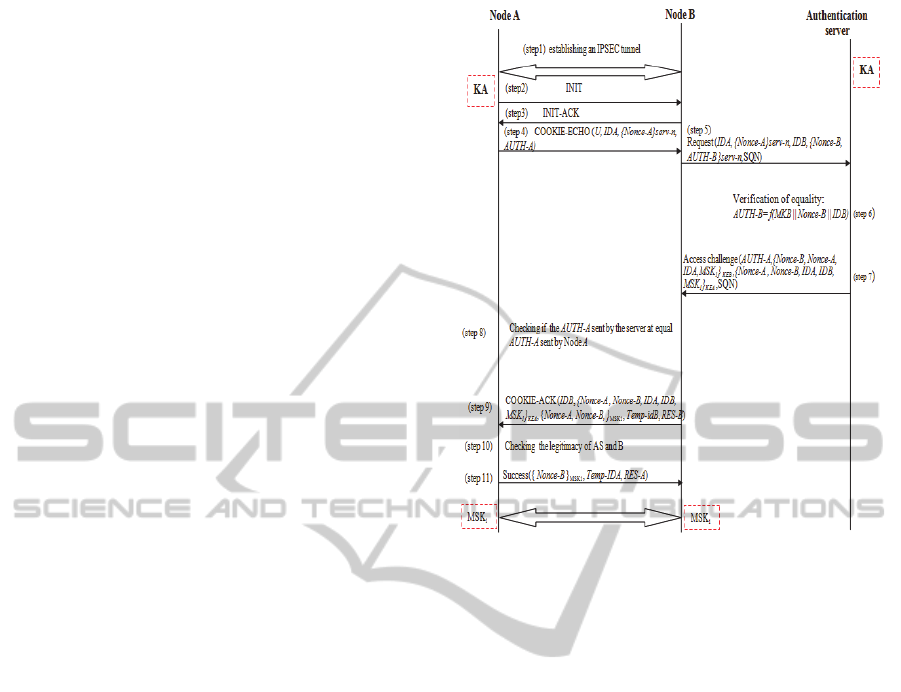

Figure 2: Re-authentication procedure between the same
nodes.
DCNET2014-InternationalConferenceonDataCommunicationNetworking
50
4 ANALYSIS AND VALIDATION
OF THE PROPOSED SCTPAP
Our authentication protocol is a deliberate
compromise between security and QoS. Indeed, the
stronger the security is the higher delay of
authentication is. However, increasing
authentication’s delay can interrupt the connection
or degrades the QoS. Therefore, our scheme uses the
most necessary parameters to protect against
different attacks with lower delay of authentication.
This section presents security analyze of the
proposed
SCTPAP with the AVISPA (Automated
Validation of Internet Security Protocols and
Applications) tool (www.avispa project.org) without
modeling tunnel IPsec in network layer. The tool
attempts to detect attacks against protocols tested
and tries to prove the validity of these protocols.
High Level Protocol Specification Language
(HLPSL) is a modeling language that AVISPA uses
to write specifications for security protocols. We
define three roles in our HLPSL specification of
SCTPAP: NodeA, NodeB and HAAA. In each role,
we specify its public and local parameters in
addition to the messages sent and received by this
role. We use the software SPAN (Security Protocol
Animator) for AVISPA to verify the security of our
protocol.
We can see the results of this verification by the
OFMC (On-the-Fly Model-Checker) in figure 3 and
CL-ATSE (Constraint-Logic-based Attack Searcher)
in figure 4. Both of these AVISPA backends show
that our protocol is safe as it is shown in figures 3
and 4.
Span uses multiple attack scenarios to verify the
security of the implemented protocol. Figure 5
shows the worst scenarios where the attacker
captures wholes messages sent between the two
nodes. However, we can see that all the messages
captured by the attacker are neither modified nor
exploited. Hence, our scheme is safe even against
the worst attack scenarios. Indeed, all the parameters
in each message captured are the same in the
message, sent to the appropriate node. So the
attacker can’t:
see the confidential parameters because
they are encrypted,
usurp (grab) the identity of any node or
server, and
modify the exchanged messages between
the two nodes and the server AS.

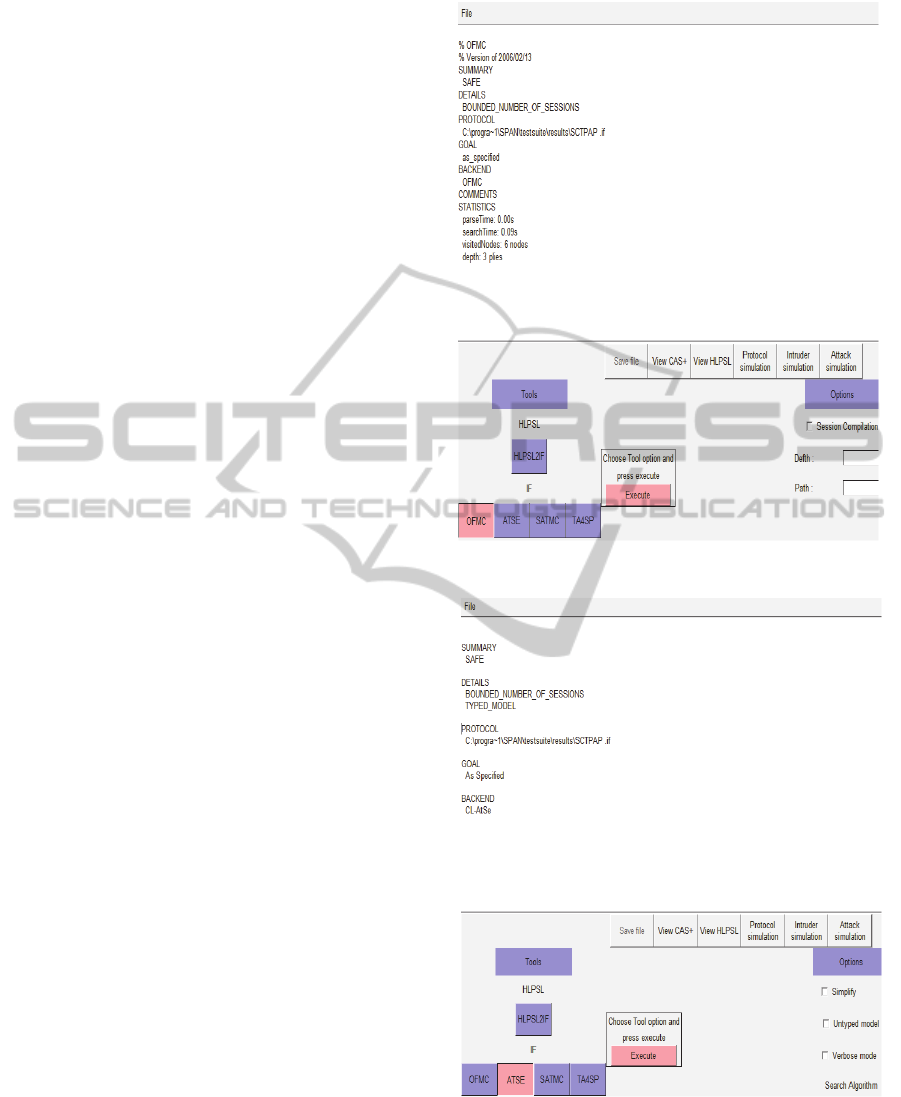

Figure 3: OFMC results.
Figure 4: ATSE results.
ASCTP-basedAuthenticationProtocol:SCTPAP
51

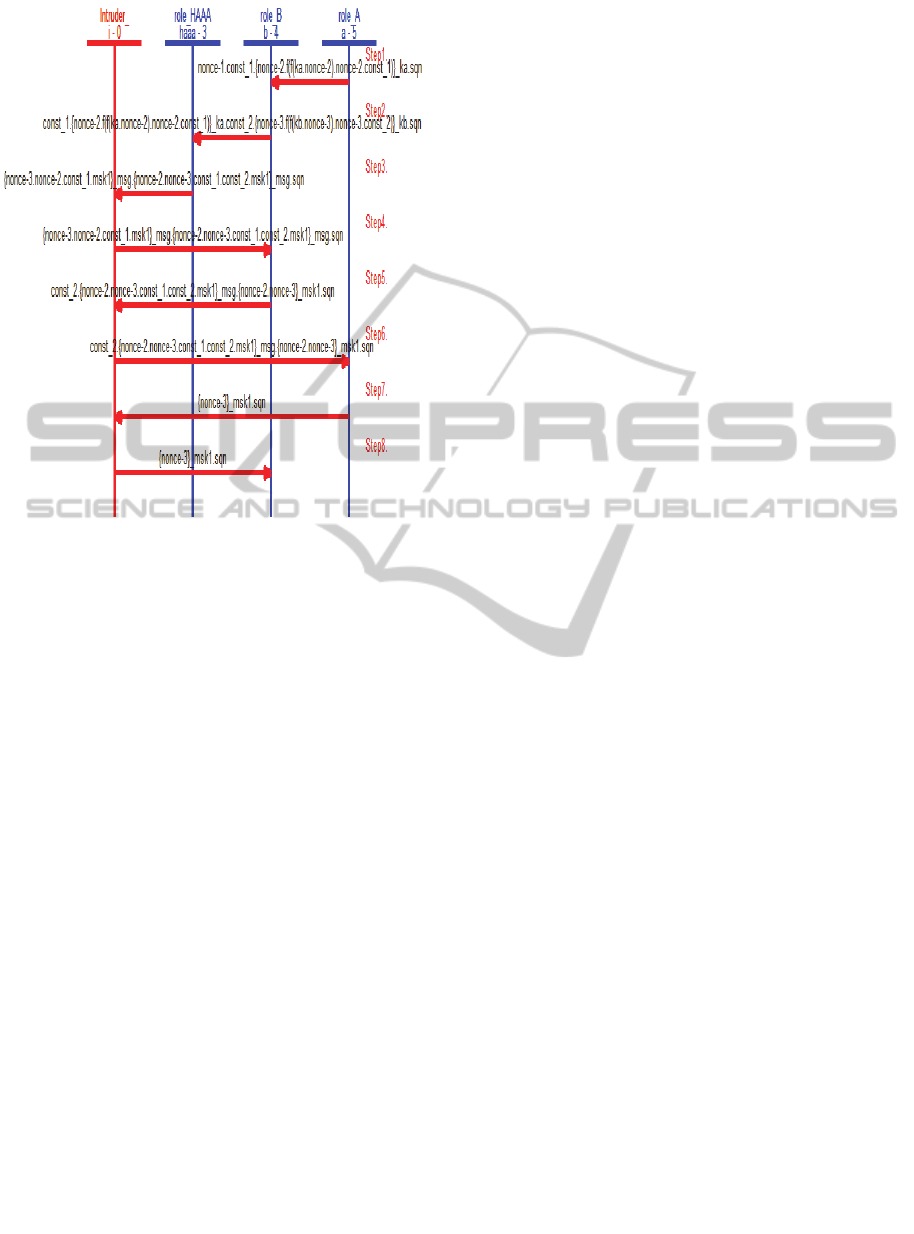

Figure 5: Attack scenario.
Not only SCTPAP is protected against different
attacks according to the SPAN (safe), but also it has
several strengths of security which are:
Mutual Authentication: Nodes are mutually
authenticated via the AS and each node is
mutually authenticated with AS.
Confidentiality: Not only the channel of
communication is secured with tunnel IPsec,
the confidential parameters are also encrypted
by a dynamic cipher key and the Nonce of
each node is sent ciphered to the AS by its
public key.
Integrity: The contents of the Auth-A and
Auth-B with its Nonce-A and Nonce-B can’t
be modified by any malicious node.
Degrees authentication: Mutual belief on the
MSK key between A and B.
5 CONCLUSIONS
In this paper, we have performed an authentication
protocol to secure a multi-homing connection
between two nodes by keeping the same association
IPsec when changing multi-homing IP addresses of
these two nodes and by encrypting their
communication with a dynamic session key. The
proposed scheme, called SCTPAP, offers a
compromise between security and QoS. In fact, with
a minimum of messages and parameters, it protects
the communicating nodes against attacks, where we
used the SPAN tool to simulate the authentication
procedure without the tunnel IPsec and we found it
is safe.
The next step in the development of SCTPAP is
to make it mobile suitable for heterogeneous
wireless networks. Then, we will simulate the whole
mechanism and qualitatively compare it with the
other existing security solutions described in this
paper. Moreover, the QoS evaluation will be more
considered in future work.
REFERENCES
Cano, M.D., 2011. “On the Use of SCTP in Wireless
Networks, Recent Advances in Wireless
Communications and Networks”. Jia-Chin Lin (Ed .),
ISBN: 978-953-307-274-6.
Bellovin, S., Ioannidis, J., Keromytis, A., Stewart, R.,
2003. RFC3554: “On the Use of Stream Control
Transmission Protocol (SCTP) with IPsec”,July 2003.
http://tools.ietf.org/html/rfc3554
Jungmaier, A., Rescorlaand, E., Tuexen, M., 2002. RFC
3436: “Transport Layer Security over Stream Control
Transmission Protocol”, December 2002.
http://tools.ietf.org/html/rfc3436
Hohendorf, C., Unurkhaan, E., Dreibholz, T., 2006.
“Secure SCTP draft-hohendorf-secure-sctp-02.txt”,
August 2006. http://tools.ietf.org/html/draft-hohendorf
-secure-sctp-02
Tuexen, M., Stewart, R., Leiand, P., Rescorla, E., 2007.
RFC 4895: “Authenticated Chunks for the Stream
Control transmission Protocol (SCTP)”, August 2007.
http://www.ietf.org/rfc/rfc4895.txt
The avispa project. http://www.avispa project.org/
El Bouabidi, I., Zarai, F., Obaidat, M. S., Kamoun, L.,
2014. “An efficient design and validation technique
for secure handover between 3GPP LTE and WLANs
systems” , Journal of Systems and Software (JSS),
“Elsevier”, Vol. 91, pp. 163-173, (Impact Factor =
1.135).
Samoui, S., El Bouabidi, I., Obaidat, M. S., Zarai, F.,
2014. “Improved IPsec tunnel establishment for
3GPP–WLAN interworking”, International Journal of
Communication Systems (IJCS), “Wiley”, Vol. 27, No.
2 (Impact Factor = 0.712)
El Bouabidi, I., Zarai, F., Obaidat, M. S., Kamoun, L.,
2012. “Secure Host-based Mobility Protocol for
Wireless Heterogeneous Networks” Proceedings of the
12
th
IEEE International Conference on Scalable
Computing and Communications (ScalCom 2012),
Changzhoun, Chine, 17-19.
DCNET2014-InternationalConferenceonDataCommunicationNetworking
52
Smaoui, S., Zarai, F., Obaidat, M. S., Kamoun, L., 2012.
''Authentication Optimization for Vertical Handover in
Heterogeneous Wireless Networks,” Proceedings of
the 2012 International Conference on Wireless
Information Networks and Systems, WINSYS 2012-
Part of ICETE 2012, 2012, pp. 249-254.
ASCTP-basedAuthenticationProtocol:SCTPAP
53
