Localization of Visual Codes in the DCT Domain Using

Deep Rectiﬁer Neural Networks

eter Bodn

, Tam

as Gr

osz

, L

aszl

o T

oth

and L

aszl

o G. Ny

University of Szeged, Department of Image Processing and Computer Graphics,

Szeged, Hungary

MTA-SZTE Research Group on Artiﬁcial Intelligence,

Hungarian Academy of Sciences and University of Szeged, Szeged, Hungary

Abstract. The reading process of visual codes consists of two steps, localization

and data decoding. This paper presents a novel method for QR code localization

using deep rectiﬁer neural networks, trained directly in the JPEG DCT domain,

thus making image decompression unnecessary. This approach is efﬁcient with

respect to both storage and computation cost, being convenient, since camera

hardware can provide JPEG stream as their output in many cases. The structure

of the neural networks, regularization, and training data parameters, like input

vector length and compression level, are evaluated and discussed. The proposed

approach is not exclusively for QR codes, but can be adapted to Data Matrix

codes or other two-dimensional code types as well.

1 Introduction

Two-dimensional visual codes are widely used at industrial setups and private projects

as well. QR codes had a decent increase of usage in the last couple of years, more

than other patented code types, like Aztec codes or Maxicodes. This is due to its well-

constructed error correction scheme that allows recovery of damaged codes up to cca.

30 % of damage. Image acquisition techniques and computer hardware have also im-

proved signiﬁcantly, that made automatic reading of QR codes available. State of the

art algorithms [8, ?] do not require human presence and assumptions on code orienta-

tion, position and coverage rate in the image any longer. However, image quality and

acquisition techniques vary considerably and each application has its own requirements

for detection speed and accuracy, making the task more complex.

Speed is a general challenge in image processing, and in many cases, on-line execu-

tion of the algorithms is required. Usage of mathematical morphology or convolutions

for edge or corner detection can greatly decrease performance. Machine learning tech-

niques can overcome this issue and produce efﬁcient solutions with respect to speed

and accuracy.

In the last few years, there has been a renewed interest in applying neural networks,

especially deep neural networks to various tasks. As the name suggests, deep neural

networks (DNN) differ from conventional ones in that they consist of several hidden

layers. However, to properly train these deep networks, the training method requires

modiﬁcations, as the conventional backpropagation algorithm encounters difﬁculties

Bodnár P., Grósz T., Tóth L. and G. Nyúl L..

Localization of Visual Codes in the DCT Domain Using Deep Rectiﬁer Neural Networks.

DOI: 10.5220/0005125700370044

In Proceedings of the International Workshop on Artiﬁcial Neural Networks and Intelligent Information Processing (ANNIIP-2014), pages 37-44

ISBN: 978-989-758-041-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

(“vanishing gradient” and “explaining away” effects). In this case the “vanishing gra-

dient” effect means that the error might vanish as it gets propagated back through the

hidden layers [1]. In this way some hidden layers, in particular those that are close to the

input layer, may fail to learn during training. At the same time, in fully connected deep

networks, the “explaining away” effects make inference extremely difﬁcult in practice

[3]. Several solutions have been proposed to counter these problems. These solutions

modify either the training algorithm by extending it with a pre-training phase [3, 7], or

the architecture of the neural networks [2].

JPEG [11] is one of the most common still image formats, and provides efﬁcient

data storage and transfer. Most cameras can acquire images directly to JPEG format,

some devices even can output a stream of JPEG images, which motivates research of

image processing methods using this format. In this paper, we propose a neural network

that works directly with the DCT coefﬁcients of the JPEG image. Using this approach,

only the ﬁrst steps of the decoding have to be performed, while the most complex step,

inverse DCT can be skipped.

2 The Proposed Method

The JPEG decoding process can be stopped at the point where quantized DCT coef-

ﬁcients are restored from the ﬁle, right after the execution of the inverse of RLE and

Huffman-coding. The matrix of coefﬁcients that represent a 8× 8 px block in the image,

serves as the input vector of the DNN. For the order of the coefﬁcients, the zigzag pat-

tern is appropriate as it is deﬁned by the JPEG standard, since learning efﬁciency does

not differ when using differently ordered vectors of the same training set, but this order

represent the “importance level” of the coefﬁcients, and therefore it is recommended

for evaluation of DNN performance using only the ﬁrst n elements.

Each vector representing an image block is processed by the neural network indi-

vidually and a measure is assigned which reﬂects the probability of presence of a QR

code part in that block. After the evaluation of all image blocks, a matrix is formed with

the probability values (Fig. 1). This can be considered as a feature image, downsampled

by a factor of 8 from the original resolution. The next step of the process is to ﬁnd clus-

ters in this matrix that has sufﬁcient size, compactness and high values of probability to

form a QR code.

2.1 The Neural Network

Vectors are passed to the core of this approach, which is the neural network. We propose

using deep rectiﬁer networks instead of conventional ones, since they perform better at

MNIST and other various image classiﬁcation tasks, according to the ﬁndings of Glorot

et al. [2].

Deep Rectiﬁer Neural Networks (DRN) alter the hidden neurons in the network and

not the training algorithm by using rectiﬁed linear units. These rectiﬁed units differ

from standard neurons only in their activation function, as they apply the rectiﬁer func-

tion max(0, x) instead of the sigmoid or hyperbolic tangent activation. Owing to their

properties, the DRNs do not require any pre-training to achieve good results [2].

(a) real-life image example (b) feature image using JET color palette

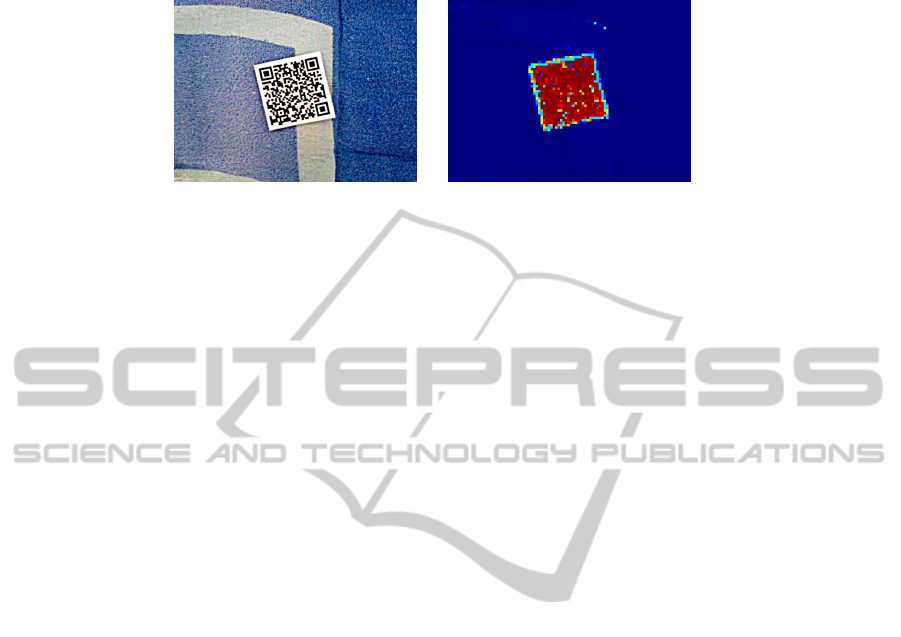

Fig. 1. Image captured by a phone camera (a) and visualized feature image according to the output

of the neural network (b).

The rectiﬁer function has two important properties, namely its hard saturation at 0

and its linear behaviour for positive input. The ﬁrst property means that only a subset of

neurons will be active in each hidden layer. For example, when we initialize the weights

uniformly, around half of the hidden units output are zeros. In theory, this hard satura-

tion at 0 could harm optimization by blocking gradient backpropagation. Fortunately,

experimental results do not support this, showing that the hard non-linearities do no

harm as long as the gradient can propagate along some path [2]. Owing to the other

property of the rectiﬁed units, namely the linear behaviour of the active units, there is

no “vanishing gradient” effect [2]. This linear behaviour also means that the compu-

tational cost will be smaller, as there is no need to compute the exponential function

during the activation calculation, and the sparsity can also be exploited. Unfortunately,

there is a disadvantage because of this linearity, the “exploding gradient” effect, which

means that the gradients can grow without limit. To prevent this, we applied L1 normal-

ization by scaling the weights such that the L1 norm of each layer’s weights remained

the same as it was after initialization. What makes this possible is that for a given input

the subset of active neurons behaves linearly, so a scaling of the weights is equivalent

to a scaling of the activations.

Our deep networks consisted of three hidden layers and each hidden layer had 1000

rectiﬁed neurons, as DRN with this structure yielded the best results on the development

sets.

The output layer of the neural networks consisted of two softmax neurons, one for

the positive and one for the negative label, allowing the networks to output not only

classiﬁcation decisions but also posterior probabilities. As error function we applied

the cross entropy function.

In our study were utilized two regularization methods to prevent overﬁtting, namely

early stopping and weight decay. Early stopping was achieved by stopping the training

when there was no improvement in two subsequent iterations on the validation set. As

weight decay regularization the weights were scaled back after each iteration, forcing

them to converge to smaller absolute values than they otherwise would.

The neural networks were trained using semi-batch backpropagation, the batch size

being 100. The initial learn rate was set to 0.001 and held ﬁxed while the error on the

development set kept decreasing. Afterwards, if the error rate did not decrease in the

given iteration, then the learn rate was subsequently halved.

We used our custom implementation for neural networks, which was implemented

to run on GPU. The training of a DRN on the synthetic dataset took less than 8 minutes

using an NVIDIA GTX-770 graphics card.

2.2 Input Data

The training vectors are labeled positive if the QR code coverage ratio is higher than

a selected T

threshold for that block. Typically, F-score peaks at T

≈ 0.5, while

≈ 0.1 leads to better recall (hit rate). However, the number of these partially covered

blocks is one scale smaller than the one of empty and fully covered blocks, therefore T

is not a determinative parameter of the training. Furthermore, even if the DRN misses

partially covered blocks, that only means it misses the perimeter of the code object, and

expansion of the positively classiﬁed cell groups of the feature matrix overcomes this

issue.

The input vectors for the DRN are one-dimensional vectors, formed by the quan-

tized DCT coefﬁcients of a 8×8 px block. During the decoding, the multiplication with

the quantization table can be omitted for two reasons. On one hand, due to the non-

linear nature of neural networks, they are capable to learn on a vector set and on the

same set multiplied element-wise with another ﬁxed vector, with similar efﬁciency. The

other reason is that, the components of the input vectors were normalized as described

in [4] to have zero mean and unit variance. This normalization improved the numerical

condition of the optimization problem during training, ensuring faster convergence.

According to this setup, the DRN has to be trained using images of the same com-

pression level as images of the end-user application, since we are not using the original

DCT matrix, which would require a multiplication by the quantization table. Without

de-quantization, different levels of compression applied to the same image content lead

to different vectors. These vectors can be far away from the training samples of a spe-

ciﬁc compression level. To overcome this, DRNs can be trained using the de-quantized

coefﬁcient vectors, which are roughly the same on similar compression levels. Detailed

evaluation of this concept is in the Results section (Fig. 4).

3 Evaluation and Results

The test database consists of 10 000 synthetic and 100 arbitrarily acquired images con-

taining QR code. The synthetic examples are built with a computer-generated QR code

containing all of the lower- and uppercase letters of the alphabet in random order. This

QR code was placed on a random negative image, with perspective transformation.

After that, Gaussian smoothing and noise have been gradually added to the images,

ranging [0,3] for the σ of the Gaussian kernel. For noise, a noise image (I

) was gener-

ated with intensities ranging from [-127, 127] following normal distribution, and added

gradually to the original 8-bit image (I

) as I = αI

+(1−α)I

, with α ranging [0, 0.5].

Some samples with parameters being in the discussed ranges are present in (Fig. 2). A

total number of 42 million vectors were extracted from those images, about 10 mil-

lons of them are labeled as positive. Real images were taken with a 3.2 Mpx Huawei

hand-held phone camera. Signiﬁcant smoothing is present on those images due to the

absence of ﬂash and precise focusing capability. These images contain a printed QR

code that mostly suffer from minor bending, placed on various textured backgrounds,

like creased cloth, carpet, marble or cover page of a book (Fig. 1(a)), in order to cre-

ate high background variability and to make the classiﬁcation task more complex. The

arbitrarily acquired image set roughly had QR codes of the same size as the artiﬁcial

set, and its extracted vector set consisted about 750 000 vectors, about 180 000 of them

being positive.

(a) σ = 0.07,

α = 0.39

(b) σ = 0.65,

α = 0.77

α = 0.05

(d) σ = 1.88,

α = 0.95

(e) σ = 2.86,

α = 0.65

(f) σ = 2.99,

α = 0.69

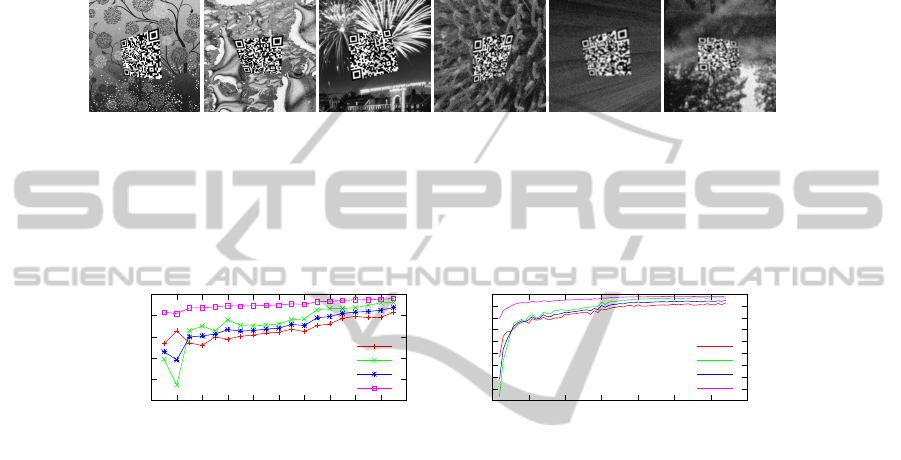

Fig. 2. Samples of the training database with different amount of smoothing and noise.

We examined the effect of compression to DRN performance. As expected, better

image quality yield to better training results, as shown on Fig. 3(a).

0.75

0.8

0.85

0.9

0.95

0 10 20 30 40 50 60 70 80 90 100

JPEG quality

precision

recall

F-score

Accuracy

Performance

(a)

0.55

0.6

0.65

0.7

0.75

0.8

0.85

0.9

0.95

precision

recall

F-score

Accuracy

Performance

0 10 20 30 40 50 60 70

training vector length

(b)

Fig. 3. DRN performance with respect to (b): the quality of the data set and (b): the length of the

training vectors

Since the zigzag pattern represents the order of coefﬁcients with respect to visual

importance, it raises the question of how many elements are needed from this vector

for efﬁcient classiﬁcation. Fig. 3(b) shows performance measures of DRNs trained on

the ﬁrst n elements of the vectors. It is shown that roughly the ﬁrst 10 elements of

the coefﬁcient vector are sufﬁcient for training a DRN that has F-score above 0.9, and

performance only slightly increases when using more than half of the vector.

All networks trained to a test set of speciﬁc quality also have been evaluated on all

sets, thus showing robustness of the networks with respect to difference of compression

levels between the training and test sets (Fig. 4). Results show that DRNs are somewhat

speciﬁc to the quality they were trained on, but still perform well up to a cca. 10–15 %

tolerance. According to these results, training of a DRN to a speciﬁc image quality is not

required, however they perform the best when both images are of the exact same quality.

An analogous rule applies when training the DRN using all vectors extracted from

images of various JPEG qualities. The DRN trained to those vectors would perform

inferior to the one trained with the same JPEG quality as the end-user scenario.

10 20 30 40 50 60 70 80 90

Test set JPEG quality

100

Training set JPEG quality

0.7

0.75

0.8

0.85

0.9

0.95

Fig. 4. Performance map of the trained DRNs used on images having the same content but differ-

ent JPEG quality.

After all these experiments, a DRN has been trained with the best experimental

training setup, in order to compare it with other localization methods of the literature.

According to Table 1, NN training is proven to be a viable option for real-time efﬁcient

QR code localization, compared to the works of Ohbuchi et al. [6] and Lin et al. [5].

However, precision of the DRN on the real set is inferior, which is probably due to

the smaller number of training vectors. Furthermore, the QR codes were slightly larger

compared to the training set, which resulted in less prominent patterns to learn within an

8×8 px block. High-resolution images having QR code structure elements larger than

the JPEG block size are required to have been downsampled before processing. This

also has a positive effect to processing speed, since it greatly reduces the number of

blocks that have to be evaluated. The downsampled image computation can be avoided

by setting the camera to acquire lower resolution images in case we have assumption

on the expected QR code size.

DRNs have to be trained to vectors that come from QR codes of comparable size to

the expected test images. This limitation can be overcome using multiple DRNs trained

on vectors of various QR code sizes, or one single DRN trained on all expected sizes,

which will have inferior overall performance than the speciﬁc neural networks.

Performance measures were computed considering each block individually. How-

ever, groups of blocks with appropriate size and shape have to be extracted from this

feature map by clustering or connected component labeling, and bounding boxes have

to be deﬁned in order to send cropped image regions to decoding algorithms [10, ?].

We used our custom implementation for neural networks, which was implemented

to run on GPU. The training of a DRN on the synthetic dataset took less than 8 minutes

using an NVIDIA GTX-770 grapics card. The computation power of this setup allowed

to process about 450 000 vectors per second, which means real-time processing of 800×

600 px images with cca. 60 FPS, and 1600 × 1200 px images with cca. 15 FPS.

Table 1. Performance comparison of the proposed DRN and other REF-OHBUCHI [6] and REF-

LIN [5].

Data set Algorithm Precision Recall Accuracy

Synthetic Proposed 0.9607 0.9770 0.9899

Synthetic REF-OHBUCHI 1.0000 0.8370 0.8730

Synthetic REF-LIN 0.9340 0.9490 0.8890

Real Proposed 0.8379 0.8935 0.9715

Real REF-OHBUCHI 0.9500 0.8750 0.8360

Real REF-LIN 0.9400 0.8930 0.8450

4 Concluding Remarks

Usage of neural networks is a viable approach for real-time localization of visual codes.

We have examined performance of deep rectiﬁer neural networks trained on the DCT

coefﬁcients of JPEG image blocks, without accessing actual pixel data. Using this ap-

proach, the most complex step of the JPEG decoding process, the inverse DCT can be

omitted. We have proven efﬁciency of NNs on a large amount of input blocks of both

synthetic and real input images.

NNs can also be trained on vectors of a speciﬁc compression level, and using these

networks on images of the same level, the multiplication of the coefﬁcients with the

quantization table can also be omitted, thus further speeding up the process.

Our future work includes examination of the JPEG coefﬁcients considering data

of adjacent blocks, and the construction of post-processing steps aiming to increase

compactness of block groups.

Acknowledgements

This publication is supported by the European Union and co-funded by the Euro-

pean Social Fund. Project title: Telemedicine-oriented research activities in the ﬁelds

of mathematics, informatics and medical sciences. Project number: T

AMOP-4.2.2.A-

11/1/KONV-2012-0073.

References

1. Glorot, X., Bengio, Y.: Understanding the difﬁculty of training deep feedforward neural net-

works. In: Proc. AISTATS. pp. 249–256 (2010)

2. Glorot, X., Bordes, A., Bengio, Y.: Deep sparse rectiﬁer networks. In: Proc. AISTATS. pp.

315–323 (2011)

3. Hinton, G. E., Osindero, S., Teh, Y. W.: A fast learning algorithm for deep belief nets. Neural

Computation 18(7), 1527–1554 (2006)

4. LeCun, Y., Bottou, L., Orr, G., Muller, K. R.: Efﬁcient backprop. In: Orr, G., K., M. (eds.)

Neural Networks: Tricks of the trade. Springer (1998)

5. Lin, D. T., Lin, C. L.: Automatic location for multi-symbology and multiple 1D and 2D

barcodes. Journal of Marine Science and Technology 21(6), 663–668 (2013)

6. Ohbuchi, E., Hanaizumi, H., Hock, L. A.: Barcode readers using the camera device in mobile

phones. In: Cyberworlds, 2004 International Conference on. pp. 260–265 (2004)

7. Seide, F., Li, G., Chen, X., Yu, D.: Feature engineering in context-dependent deep neural

networks for conversational speech transcription. In: Proc. ASRU. pp. 24–29 (2011)

8. S

os, G., Fl

orkemeier, C.: Blur-resistant joint 1D and 2D barcode localization for smart-

phones. In: Proceedings of the 12th International Conference on Mobile and Ubiquitous

Multimedia. pp. 11:1–11:8. MUM ’13 (2013)

9. Szentandr

asi, I., Herout, A., Dubsk

a, M.: Fast detection and recognition of qr codes in high-

resolution images. In: Proceedings of the 28th Spring Conference on Computer Graphics.

pp. 129–136. SCCG ’12 (2013)

10. Tekin, E., Coughlan, J.: A bayesian algorithm for reading 1D barcodes. In: Proceedings of

the 2009 Canadian Conference on Computer and Robot Vision. pp. 61–67. CRV ’09, IEEE

Computer Society, Washington, DC, USA (2009)

11. Wallace, G. K.: The JPEG still picture compression standard. Consumer Electronics, IEEE

Transactions on 38(1), xviii–xxxiv (Feb 1992)

12. Wang, K., Zou, Y., Wang, H.: Bar code reading from images captured by camera phones. In:

Mobile Technology, Applications and Systems, 2005 2nd International Conference on. p. 6

(2005)
