Fuzzy Rule Based Quality Measures for Adaptive Multimodal

Biometric Fusion at Operation Time

Madeena Sultana

, Marina Gavrilova

and Svetlana Yanushkevich

Dept. of Computer Science, University of Calgary, 2500 University Drive NW, Calgary, AB, Canada

Dept. of Electrical and Computer Engineering, University of Calgary, 2500 University Drive NW, Calgary, AB, Canada

Keywords: Adaptive Multimodal Fusion, Fuzzy Quality Measure, Non-intrusive Biometrics, Quality Score Fusion.

Abstract: Sample quality variation at operation time is one of the major concerns of real time biometric authentication

and surveillance systems. Quality deviations of samples affect the performance of many benchmark

biometric trait recognition systems. Moreover, large variation between enrolled and probe samples is very

uncertain since it may arise at operation time for various reasons. In this paper, a novel adaptive multimodal

biometric system is presented that can adapt the uncertainty of the quality degradation during operation.

Fuzzy rule based method is applied for the first time to calculate the quality score of template-probe pairs

dynamically. Feature extraction is accomplished using a novel shift invariant multi-resolution fusion

approach. Finally, face and ear modalities are fused adaptively at rank level based on the quality scores.

Proposed method relies more on good quality samples and disregards misclassification of poor quality

samples. Experimental results demonstrate significant performance improvement of the proposed adaptive

multimodal approach over baseline i.e. non-adaptive method.

1 INTRODUCTION

Person identification or authentication is a basic

requirement of preventing the adverse effects of

growing security threats all over the world. From

smart phone to immigration system, person is

needed to be identified to get the right access of the

right information or service. Although passwords

remain the most common mechanism of person

authentication, reports on security of traditional

password based systems point out how easy it is

nowadays to break majority of "strong" passwords

(Monwar and Gavrilova, 2009). Moreover,

passwords or tokens could be either forgotten,

stolen, or lost. To overcome these drawbacks,

biometric-based authentication systems have an

increasing demand for many security applications

(Jain and Kumar, 2012). Scientific research revealed

that multimodal biometric provides a higher

recognition accuracy over single biometrics (Ross et

al., 2006; Bhanu and Govindaraju, 2011).

However, biometric trait recognition is still a

challenging problem due to large variations between

enrolled and probe samples (Yampolskiy and

Gavrilova, 2012; Sultana and Gavrilova, 2013).

Sample variations mostly occur during the

acquisition time for several reasons such as lightning

variation, camera movement, pose variation, mood

of the subject, clothing and accessories, human-

sensor interaction, multiple acquisition devices,

image capturing distance, quality of the sensor or

acquisition equipment etc. Performance of a

biometric system may compromise significantly for

the presence of large variation between enrolled and

probe images (Poh et al., 2012; Sultana et al., 2014).

Most importantly, the aforementioned factors are

very uncertain and may arise any time after

deploying the biometric authentication system. For

example, large variations in lightning at different

time of the day may be observed if a camera is

placed in a glass surrounded room or corridor. In

such case, biometric samples such as face, ear etc.

may suffer a significant amount of lightning

varioations if acquired at different day times or from

different viewpoints. Another very common problem

of surveillance systems is low resolution images are

captured from long distances (Marciniak, 2013). A

novel multimodal biometric system capable of

adapting uncertain illumination and resolution

degradation is presented in this paper to address

these issues. Our fuzzy inference system can

measure the degree of quality deviation of samples

146

Sultana M., Gavrilova M. and Yanushkevich S..

Fuzzy Rule Based Quality Measures for Adaptive Multimodal Biometric Fusion at Operation Time.

DOI: 10.5220/0005126301460152

In Proceedings of the International Conference on Fuzzy Computation Theory and Applications (FCTA-2014), pages 146-152

ISBN: 978-989-758-053-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

during operation. Proposed fuzzy quality scores are

fused adaptively in a multimodal system to enhance

the confidence of the classifier of good sample. For

example, if a face biometric sample receives bad

quality score and ear sample obtains good quality

score then the person would be identified mostly

relying on ear rather than both. In this way, the

overall recognition performance would be

maximized and the proposed multimodal biometric

system would be fully adaptive to resolution and

illumination changes at operational time.

2 RELATED WORK

Multimodal biometric traits maximize the

recognition performance over single biometrics by

reinforcing one another’s confidence level (Ross et

al., 2006). It also extends users acceptance allowing

alternate traits for being recognized. A number of

state-of-the-art multimodal architectures, sources,

learning and fusion strategies, and novel research

directions have been summarized by Gavrilova and

Monwar (2013). Multimodality remained a hot topic

of research over last couple of years due to growing

demand of security applications and surveillance

systems. However, performance of the conventional

multimodal systems may compromise significantly

if the quality of acquired biometric samples degrades

at operation time.

Quality degradation have always been

considered as an image restoration problem and

attempted to be solved by various preprocessing

techniques. For example, the most common

approach of illumination quality enhancement is

preprocessing all enrolled and probe images using a

blind normalization. However, blind normalization

of biometric samples may degrade the quality of

good samples and not all normalization methods

perform equally well at different degree of

illumination change (Sellahewa and Jassim, 2010).

Therefore, conventional pre-processing approaches

only deal with predefined problems and unable to

adapt uncertain degradation of samples during

operation time. The concept of quality adaptive

biometrics has been emerged lately to address such

uncertain issues. The aim of adaptive biometric

systems is to adapt the variations in samples

observed during operation without compromising

the overall performance of the system (Poh, and J.

Kittler, 2012, Fernandez et al., 2010). However, Jain

and Kumar (2012) mentioned in their book chapter,

“It is not easy to design adaptive multimodal

biometrics systems that are ﬂexible enough to

consider user preference for biometric modalities,

user constraints, and/or varying biometric image

quality.” Moreover, quality fusion in multimodal

system itself is very challenging because of the

multi-faceted data, different quality measures,

system dependency, different application scenarios

etc. (Nandakumar et al., 2006; Abaza and Ross,

2009). Most of the existing quality score based

biometric systems are designed for fingerprint and

iris. Dong et al. (Dong et al., 2009) reported that

quality adaptive approach for selecting the decision

threshold of iris recognition system improves

recognition performance. Performance improvement

of score level and rank level quality score fusion of

fingerprints have been studied by Nandakumar et al.

(2006) and Abaza and Ross (2009), respectively.

Nowadays, non-intrusive biometric traits such as

face, ear etc. have increasing demand to enhance the

security in public sectors (Sultana et al, 20104,

Kumar and Wu, 2012). Illumination variation and

low resolution at operation time are two of the most

common causes of quality deviation of non-intrusive

biometrics (Marciniak, 2013; Sellahewa and Jassim,

2010). Therefore, in this paper we are proposing a

novel non-intrusive multimodal system using face

and ear that is capable of adapting uncertain

lightning and resolution change. Proposed fuzzy rule

based inference system overcomes the problems of

multi-faceted and multi ranged data of different

quality measures. In addition, it makes our system

extendable for more quality measures being

integrated.

3 METHODOLOGY

An adaptive multimodal biometric system is

proposed in this article, which is capable of adapting

quality degradation of samples at operation time. In

other words, the performance of the proposed

biometric recognition system will not be

compromised due to quality degradation of the

acquired samples up to a certain level. We

developed a novel fuzzy multi-modal inference

system is to assign quality scores on acquired

(probe) samples according to the degree of

deviation. Initially, face and ear biometrics are

identified separately as unimodal systems. Our

newly developed shift invariant multi-resolution

Fusion (MRF) approach is applied for feature

extraction from each modality. Finally, ranks of each

modality are fused adaptively based on the quality

scores of the samples instead of using predefined

weights. Proposed adaptive multimodal fusion

FuzzyRuleBasedQualityMeasuresforAdaptiveMultimodalBiometricFusionatOperationTime

147

improves the confidence of a good quality sample

and degrades the confidence of the bad quality

sample. The former improves the genuine

recognition rate while the latter degrades the false

acceptance rate of the system. The proposed method

has three important phases: fuzzy quality measure,

unimodal trait identification, and adaptive

multimodal fusion. The detailed descriptions of the

three major stages are presented hereafter.

3.1 Fuzzy Quality Measure

In real scenarios of non-intrusive biometric

recognition systems, enrolled or template images are

mostly obtained under uniform lightning conditions

with good resolution. Image quality drastically

varies at operation time due to uncertain factors.

Therefore, in the proposed method, quality of the

probe image is measured with respect to the average

quality of enrolled samples. In this work, we are

interested in measuring illumination and resolution

quality of the probe image. The Illumination Quality

(IQ) of the probe image is measured as luminance

distortion in comparison to a reference image. The

average of all enrolled images is considered as the

reference image. Luminance distortion is calculated

using the following equation of Wang and Bovik’s

universal quality measure (Wang and Bovik, 2002).

)()(





(1)

where x={x

| i=1,2,…,N}is the probe image and

y={y

| i=1,2,…,N} is the reference image.

and

are the average intensity of probe image and

reference image.









(2)

The value of luminance distortion ranges from 0

to 1. The authors of (Marciniak, 2013) demonstrated

that low resolution has serious impact on the

performance of biometric recognition. Therefore, we

also measured the ratio of resolution degradation of

probe image compared to enrolled images. For this

purpose, the average resolution of enrolled images is

considered as reference. Resolution degradation is

calculated as the ratio of the size of probe image and

the reference. If the resolution of the probe image is

better than the reference then the ratio is considered

as 1.

A fuzzy inference system is developed to

measure the degree of quality deviation of the probe

image based on the quality scores of illumination

and resolution. We defined four fuzzy linguistic

variables, extremely bad, bad, moderate, and good

for illumination quality (IQ) as follows:



















4.0,_

4.06.0,

6.85.0,mod

85.0,

IQbadextremely

IQbad

IQerate

IQgood

(3)

Four fuzzy linguistic variables for Resolution

Quality (RQ) are defined as follows:



















1.0,_

1.04.0,

4.6.0,

6.0,

RQlowextremely

RQlow

RQmedium

RQhigh

(4)

We defined eight fuzzy rules to combine the

illumination quality (IQ) and the resolution quality

into a single Fuzzy Quality (FQ) score. The four

linguistic variables of our final fuzzy quality score

are extremely poor, poor, average, and excellent.

Fig. 1 shows the rules of our fuzzy inference system.

The flow diagram of the proposed quality measure

method is depicted in Fig. 2.

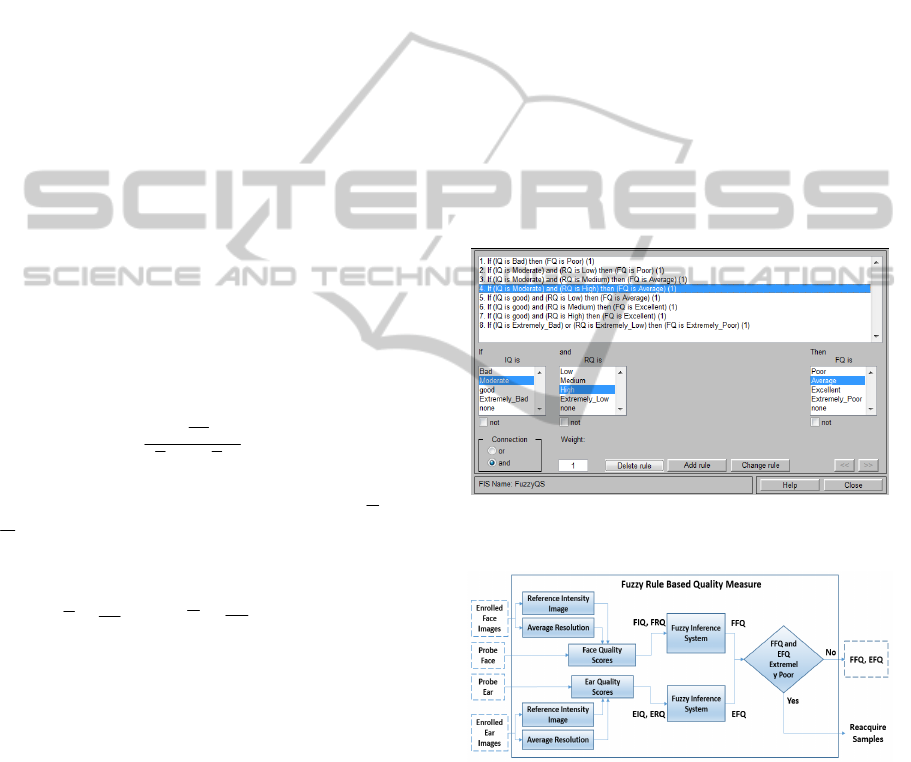

Figure 1: Fuzzy rules to measure the quality of biometric

samples.

Figure 2: Flow diagram of the proposed quality measure.

At first, the RQ score is calculated for each probe

image. Then the probe image is resized to the size of

reference image and IQ score is measured. Next, IQ

and RQ scores of face and ear are computed and fed

to the fuzzy inference system. Finally, fuzzy quality

scores of face (FFQ) and ear (EFQ) are computed

based on fuzzy rules. The membership function of

FQ assigns a singleton score zero if the quality of

any modality is extremely poor. Therefore, if any of

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

148

the modalities (face or ear) has extremely poor

quality, recognition would entirely be determined

based on the other modality. If both of the

modalities have extremely poor quality, both would

be rejected and needed to be reacquired. Thus, the

proposed method enhances user acceptability by

reducing the number of reacquisition of biometric

samples as long as the quality of one modality

remains within an acceptable range.

3.2 Unimodal Trait Identification

In the proposed method, face and ear traits are

identified independently. Fig. 3 shows the block

diagram of unimodal face and ear enrolment and

recognition process. We introduce feature extraction

method called multi-resolution fusion (MRF) to

extract features from face and ear. Shift invariance

and computational efficiency are the two major

advantages of MRF feature extraction method.

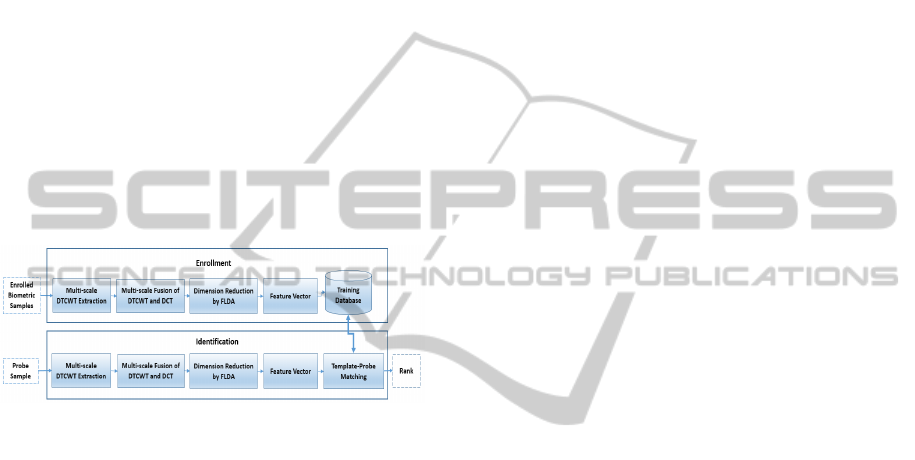

Figure 3: Flow diagram of unimodal trait (face/ear)

enrollment and identification.

In MRF, the multi-scale property of 2D Dual-

Tree Wavelet Transform (DTCWT) (Kingsbury,

1998) has been utilized to enhance the accuracy and

robustness of biometric recognition system. The first

step of MRF method is to apply 2D DTCWT on

face/ear image until 4

level, which generates a

series of different scale subband images. The

magnitude subimages of DTCWT provide accurate

measures of energy and are approximately shift

invariant. Therefore, magnitude images of 24

complex bandpass subimages are computed as

multi-scale feature set. The lowpass real image from

level is also included in the feature set since it

contains large amount of information of the input

image. However, the main obstacle of using the

multi-scale property is the high dimensional feature

set. DTCWT of an image of size 128× 128 until 4

scale produces a feature vector of size 32640, which

is computationally very expensive. This problem is

overcome by fusing 2D Discrete Cosine Transform

(DCT) to obtain decorrelated features from each

scale. Therefore, the second step of MRF method is

to compute 2D DCT coefficients from 24 multi-scale

bandpass and one lowpass subimages. Then 8×8

DCT coefficients from the upper left corner of each

coefficient matrix of every subband are extracted.

Each matrix is converted to a row vector of size 64

and all are concatenated to form a feature descriptor

of each image. This process allows extracting the

most informative coefficients from each subband.

Lastly, Fisher’s Linear Discriminant (FLD) is

applied to the above feature vector to reduce

redundancy and extract a small sized feature

descriptor containing the most discriminative

biometric information. Therefore, finally, a shift

invariant, non-redundant, and computationally

efficient feature vector is formed by applying MRF

method on each modality. The feature vectors of

enrolled images are stored in training database. Face

and ear modality of each person is then separately

matched against the enrolled face and ear vectors.

Euclidian distance is used to compute the ranked

similarity score of each modality. Ranks of each

modality accompanying with corresponding fuzzy

quality scores are then fused adaptively to obtain the

final recognition result.

3.3 Adaptive Multimodal Fusion

Final decision is obtained by adaptively fusing face

and ear biometrics along with corresponding quality

scores at rank level. In the proposed system, a

variant of the Borda count method (Ross et al.,

2006) has been exploited to derive the final ranks.

Traditional Borda count method calculates final

ranks by summing up all ranks from independent

matchers and assumes that all matchers perform

equally. In the proposed method, we computed the

weighted sum from face and ear matchers in lieu of

adding ranks of each modality. The weights are the

fuzzy quality (FQ) scores calculated by the proposed

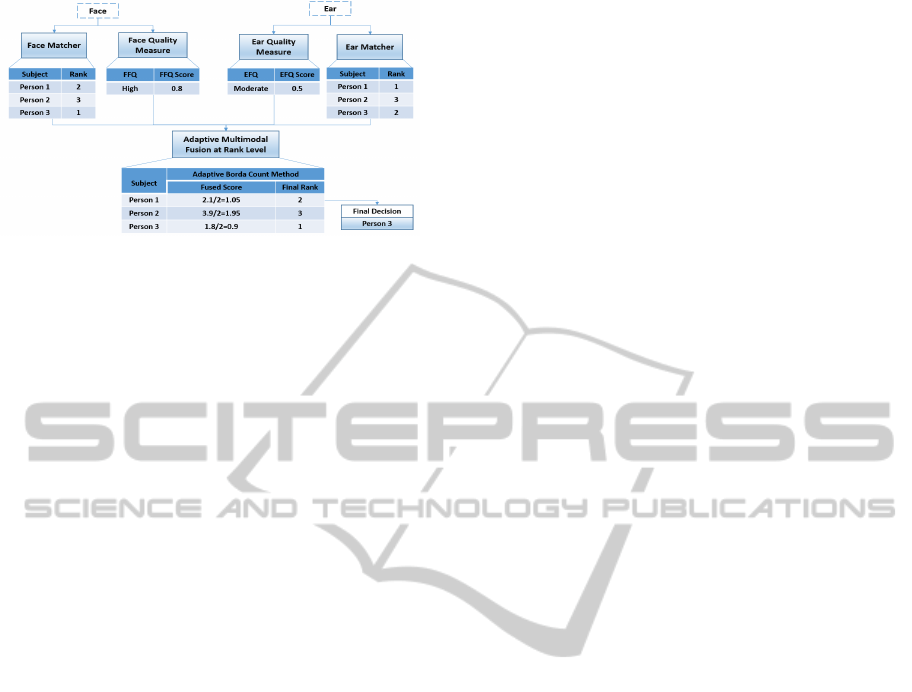

fuzzy inference system. Fig. 4 shows an example of

the proposed adaptive multimodal fusion of ranks

and FQ scores. In this example, the ranks of person

three are 1 and 2 from face and ear matcher,

respectively.

The quality of face sample (FFQ) is high

whereas the quality of ear sample (EFQ) is

moderate. Therefore, the face matcher should

produce more reliable result than the ear matcher

should. In the proposed adaptive multimodal fusion,

ranks of face matcher are weighted with high score

and ranks of ear matcher are weighted with

moderate score. Thus, the final rank of person 3

using adaptively weighted Borda count method is 1.

In this way, the proposed adaptive multimodal

system can obtain maximum recognition rate with

low quality samples at operation time.

FuzzyRuleBasedQualityMeasuresforAdaptiveMultimodalBiometricFusionatOperationTime

149

Figure 4: Adaptive multimodal fusion at rank level.

4 EXPERIMENTAL RESULTS

Experimentation is conducted to evaluate the

performance of the proposed adaptive multimodal

biometric recognition system. Due to lack of

existing publicly available multimodal dataset

containing face and ear, we have created our own

multimodal virtual database to conduct the

experiments. We have used FERET (Phillips et al.,

2000) and USTB-II (USTB Ear Database, 2014),

two most widely used publicly available biometric

databases, to create virtual multimodal database.

FERET consists of 14051 eight-bit grayscale face

images of resolution 256×384 of 1199 individuals.

Images samples have different facial expressions,

poses, elevations, and illumination conditions. In

this study, frontal faces with different expressions

and illuminations are considered. USTB database II

contains total 308 ear images of size 300×400 pixels

of 77 subjects. The first and the fourth samples

having different illuminations are used in our study.

The goal of our experimentation is to demonstrate

the adaptiveness of the proposed method under

uncertain resolution and illumination distortions.

Therefore, a training database is created using

mostly good and uniform samples whereas four test

databases are created containing large variations of

size and illumination of samples to provide

reasonable amount of quality difference during

operation.

Training DB: The first profile images of 77

subjects are selected from USTB II. Corresponding

face images of 77 subjects are randomly picked up

from FERET database having uniform illumination.

The two reference images are created by averaging

the intensities of all face and ear images in training

database. The reference resolution of face and ear

samples are 128×128 and 128×192, respectively.

Good-FaceDB: Single samples under different

lightning conditions of the 77 subjects are selected

from FERET database. Illumination qualities of the

images mostly fall into ‘moderate’ category and

resolution is same as of the training samples.

Poor-FaceDB: This database is created by

randomly downsampling all the samples of Good-

FaceDB four to ten times. Therefore, it comprises of

samples having both illumination and resolution

distortions.

Good-EarDB: The fourth image of each of the

77 subjects from USTB-II database is selected for

this database.

Poor-EarDB: For this database, all images of

Good-EarDB are accumulated and downsampled

four to ten times randomly.

Three sets of experiments have been conducted

to evaluate the recognition performance of unimodal

and multimodal systems. Each set of experiment has

been conducted five times using different set of 77

face samples from FERET database. All experiments

were carried out on Windows 7 operating system,

2.7 GHz Quad-Core Intel Core i7 processor with

16GB RAM using Matlab R2013a. Experimental

results are represented by plotting the Receiver

Operating Characteristic (ROC) curves of unimodal

face, unimodal ear, non-adaptive multimodal, and

the proposed adaptive multimodal methods. During

the first experiment, the test set comprises of ‘good’

faces and ‘poor’ ears. The ROC curves of this

experiment are plotted in Fig. 5 (a). Fig. 5 (a) shows

that ‘poor’ quality of ear samples could not degrade

the performance of the proposed adaptive approach.

The proposed method obtained 94% Genuine

Acceptance Rate (GAR) at 0.1% False Acceptance

Rate (FAR) whereas unimodal face, ear, and non-

adaptive multimodal systems have only 83%, 73%,

and 85% GAR, respectively.

For the second experiment, the test set is created

using ‘poor’ faces and ‘good’ ears. ROC curves of

this experiment are plotted in Fig 5 (b). In Fig. 5 (b),

similar performance improvement of the proposed

method is observed for ‘poor’ face and ‘good’ ear

quality over unimodal and non-adaptive multimodal

systems. The third experiment is conducted using

test set containing ‘good’ faces and ‘good’ ears.

ROC curves of this experiment are shown in Fig 5

(c). A performance boost of the proposed method

over unimodal and non-adaptive multimodal systems

is observed even for good face and ear samples. This

is because of the proposed system is adaptively

weighting the corresponding modality based on its

illumination condition. However, quality deviation

of one modality significantly affects the perfor-

mance of unimodal and non-adaptive multimodal

biometric systems. Results also show that the

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

150

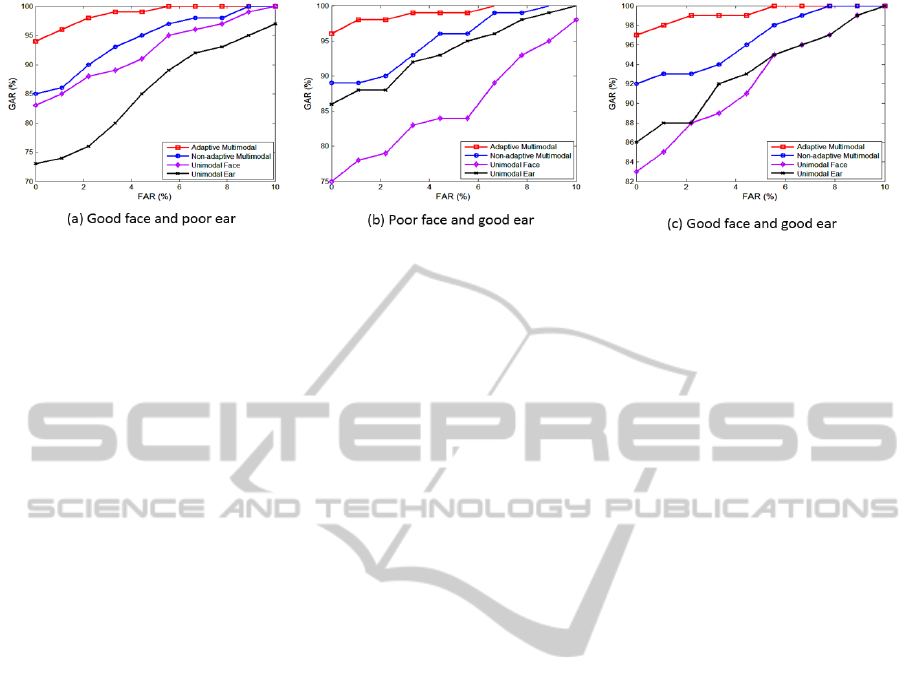

Figure 5: ROC curves of different biometric systems for a) GOOD face and POOR ear recognition, b) POOR face and

GOOD ear recognition, and c) GOOD face and GOOD ear recognition.

proposed method is capable of adapting uncertain

quality deviation.

5 CONCLUSIONS

This paper proposes to consider biometric sample

quality variation during operation time to improve

biometric authentication. To accomplish this goal, a

novel adaptive multimodal biometric system using

fuzzy quality scores is presented. Proposed adaptive

fusion scheme strengthens the confidence of good

samples and reduces misclassification due to poor

samples. Therefore, the issue of performance

degradation for poor samples during operation has

been overcome. Experimental results show that

significant quality distortion of one modality has no

impact on the overall performance of our system.

Comparative analysis to non-adaptive multimodal

and unimodal approaches demonstrates the

superiority of the proposed method with poor quality

samples. Future research will look into incorporating

more quality factors and higher granularity quality

classification to improve the recognition rate further.

ACKNOWLEDGEMENTS

Authors would like to thank NSERC, NSERC

Vanier CGS, and URGC Seed grant for partial

support of this project.

REFERENCES

Abaza, A., Ross, A., 2009. Quality based rank-level fusion

in multibiometric systems. BTAS, 1-6.

Bhanu, B., V. Govindaraju, V. (Eds), 2011.

Multibiometrics for Human Identification. Cambridge

University Press.

Dong, W., Sun, Z., Tan, T., Wei, Z., 2009. Quality-based

dynamic threshold for iris matching. ICIP, 1949-1952.

Fernandez, F. A., Fierrez, J., Ramos, D., Rodriguez, J. G.,

2010. Quality-based conditional processing in multi-

biometrics: application to sensor interoperability.

IEEE SMCA, 40(6), 1168-1179.

Gavrilova, M. L., Monwar, M., 2013. Multimodal

biometrics and intelligent image processing for

security systems. IGI Global.

Jain, A. K., Kumar, A., 2012. Biometric recognition: An

overview. Second Generation Biometrics: The Ethical,

Legal and Social Context, 49-79. Springer.

Kingsbury, N. G., 1998. The dual-tree complex wavelet

transform: a new efficient tool for image restoration

and enhancement. EUSIPCO, 98, 319-322.

Kumar, A., Wu, C., 2012. Automated human identification

using ear imaging. Pattern Recognit., 45(3), 956-968.

Marciniak, T., Chmielewska, A. Weychan, R., Parzych,

M., Dabrowski, A., 2013. Influence of low resolution

of images on reliability of face detection and

recognition. Multimedia Tools and Applications, 1-21.

Monwar, Md. M., Gavrilova, M. L., 2009. Multimodal

biometric system using rank-level fusion approach.

IEEE Trans. SMCB, 39(4), 867–878.

Nandakumar, K., Chen, Y., Jain, A. K., Dass, S. C., 2006.

Quality-based score level fusion in multibiometric

systems. ICPR, 4, 473-476.

Phillips, P. J., Moon, H., Rauss, P. J., Rizvi, S., 2000. The

FERET evaluation methodology for face recognition

algorithms. IEEE TPAMI, 22(10), 1090–1104.

Poh, N., Kittler, J., 2010. A unified framework for

biometric expert fusion incorporating quality

measures. IEEE TPAMI, 34(1), 3-18.

Poh, N., Rattani, A., Roli, F., 2012. Critical analysis of

adaptive biometric systems. Biometrics, IET, 1(4),

179-187.

Ross, A., Nandakumar, K., Jain, A. K., 2006. Handbook of

Multibiometrics, New York: Springer-Verlag.

Sellahewa, H, Jassim, S. A., 2010. Image-quality-based

adaptive face recognition. IEEE TIM, 59(4), 805-813.

Sultana, M., Gavrilova, M., 2013. A content based feature

combination method for face recognition. CORES,

197-206.

Sultana, M., Gavrilova, M., Yanushkevich, S., 2014.

Expression, pose, and illumination invariant face

FuzzyRuleBasedQualityMeasuresforAdaptiveMultimodalBiometricFusionatOperationTime

151

recognition using lower order pseudo Zernike

moments, VISAPP, 1, 216-221.

USTB Ear Database, available at http://www.ustb.edu.cn/

resb/ Accessed on August 13, 2014.

Wang, Z., Bovik, A. C., 2002. A universal image quality

index. IEEE Signal Processing Letter, 9(3), 81–84.

Yampolskiy, R., Gavrilova, M., 2012. Artimetrics:

Biometrics for artificial entities. IEEE Robot. Autom.

Mag., 19(4), 48-58.

FCTA2014-InternationalConferenceonFuzzyComputationTheoryandApplications

152
