Multimedia Analysis of Video Sources

Juan Arraiza Irujo

, Montse Cuadros

, Naiara Aginako

, Matteo Raffaelli

Olga Kaehm

, Naser Damer

and Joao P. Neto

Vicomtech-IK4, Paseo Mikeletegi 57, 20009 Donostia-San Sebastin, Spain

Synthema, 56121 Pisa, Italy

Fraunhofer Institute for Computer Graphics Research (IGD), 64283 Darmstadt, Germany

VoiceInteraction, 1000-029 Lisbon, Portugal

Keywords:

Multimedia Analysis, Video Processing, Multimodal Surveillance, Decision Support Systems.

Abstract:

Law Enforcement Agencies (LEAs) spend increasing efforts and resources on monitoring open sources,

searching for suspicious behaviours and crime clues. The task of efﬁciently and effectively monitoring open

sources is strongly linked to the capability of automatically retrieving and analyzing multimedia data. This

paper presents a multimodal analytics system, created in cooperation with European LEAs. In particular it

is described how the video analytics subsystem produces a workﬂow of multimedia data analysis processes.

After a ﬁrst analysis of video ﬁles, images are extracted in order to perform image comparison, classiﬁcation

and face recognition. In addition, audio content is extracted to perform speaker recognition and multilingual

analysis of text transcripts. The integration of multimedia analysis results allows LEAs to extract pertinent

knowledge from the gathered information.

1 INTRODUCTION

The digital age has produced unparalleled access to a

proliferation of multimedia data. A huge amount of

multimedia data (video, image, audio and text con-

tents) is now available in open sources. The digital

age has also facilitated the growth of organized crime

in the same way that it has reduced barriers for en-

terprises. The richness and quantity of information

available from open sources, if properly gathered and

processed, can provide valuable intelligence. That is

the reason why Law Enforcement Agencies (LEAs)

are becoming more inclined to using open source in-

telligence (OSINT) tools.

This paper presents an OSINT system, created in

cooperation with European LEAs, for the detection

and prevention of organized crime. The system is able

to gather and process raw open source data, heteroge-

neous both for source, format, protocol and language,

with the aim of retrieving social networks. These

are ﬁnally explored using Visual Analytics (VA) tech-

nologies. In particular, we focus here on the video

analytics subsystem. We describe the workﬂow of

multimedia data analysis processes that is generated

by the system once a video has been crawled.

The system crawler allows to retrieve multimedia

contents in four ways: (1) Looking for a parametric

number of documents on the web with a key-words

search; (2) Looking for documents in a given Uniform

Resource Locator (URL) until a parametric depth of

levels, based on speciﬁed key-words; (3) Crawling

Online Social Networks (OSNs), in particular Face-

book’s User Generated Contents (UGCs), focusing

on the information contained in posts (textual con-

tent, photos, videos, creation time, etc.); (4) captur-

ing all of the free-to-air signals (television and radio

programs) that are received in a speciﬁc location or

environment. Once a video has been crawled (either

from the web, from Facebook or from a tv program),

it is reduced to its base components and the following

analysis workﬂows are automatically launched:

1. Image Analysis: Images are extracted and com-

pared with a set of reference images, providing a

similarity score and a class belonging probability.

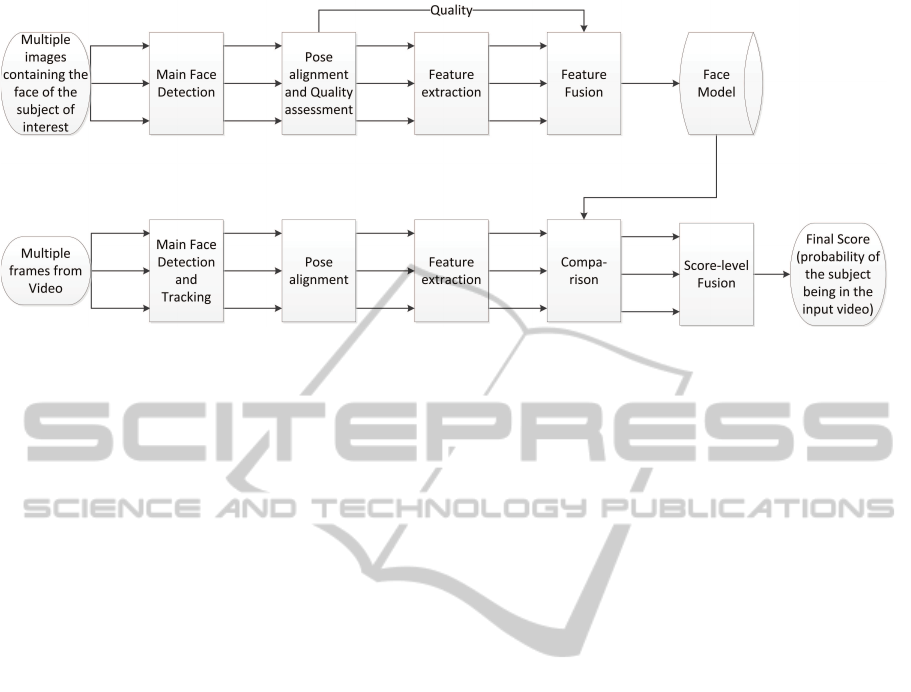

2. Face Recognition: Automatic face recognition

services are applied to the images of a face avail-

able in a video stream for person identiﬁcation

and veriﬁcation.

3. Audio Analysis: Audio content is extracted and

346

Arraiza Irujo J., Cuadros M., Aginako N., Raffaelli M., Kaehm O., Damer N. and P. Neto J..

Multimedia Analysis of Video Sources.

DOI: 10.5220/0005126903460352

In Proceedings of the 11th International Conference on Signal Processing and Multimedia Applications (MUSESUAN-2014), pages 346-352

ISBN: 978-989-758-046-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

processed for speaker recognition and tracking,

gender and age identiﬁcation, etc.

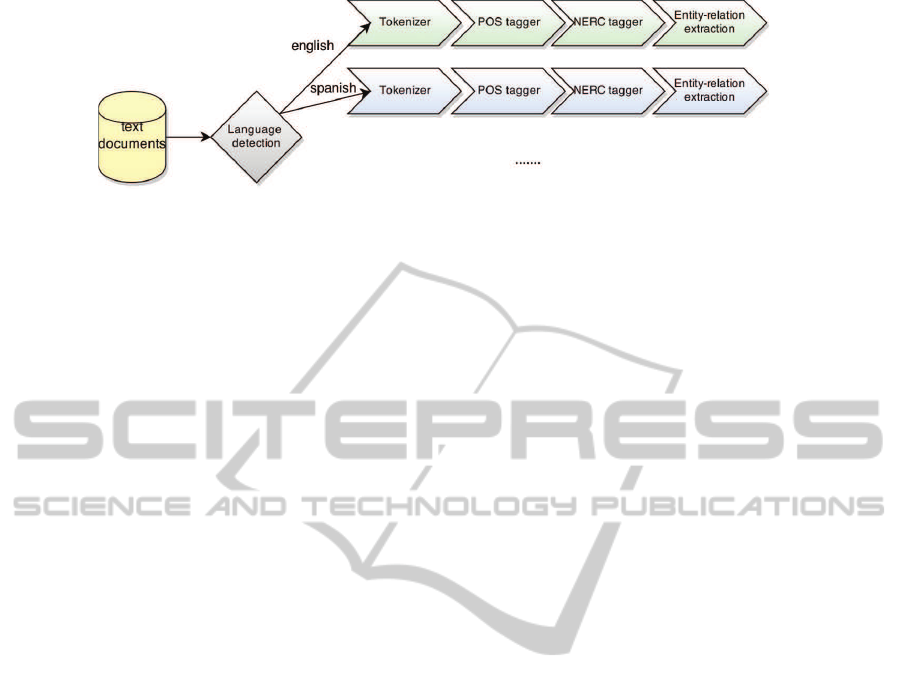

4. Text Analysis: Multilingual text analysis is ap-

plied to the text transcripts of the extracted au-

dio content. Natural Language Processing (NLP)

techniques are used to retrieve entity relation-

ships.

In this paper, we will begin by giving a quick

overviewof currently available solutions for multime-

dia analysis. We will then outline the system archi-

tecture, focusing on the different analysis workﬂows

mentioned above.

2 RELATED WORK

Current solutions regarding the analysis of video, im-

age, audio and text contents from open sources are

not reported here in detail. Regarding complete video

analysis there are known projects such as Kinesense-

VCA

, where advanced video analysis technologies

are implemented in order to help investigators in de-

tecting suspicious behaviors in videos. Another rel-

evant solution for video surveillance in the security

domain is the one offered by IKUSI

. In addition,

current European projects such as SAVASA

or MO-

SAIC

are developing solutions for the creation of

video archive search and analysis platforms that also

include semantic tools.

The variety of image analysis platforms is huge.

The most famous and widely used one among them

is Google Image Search, that introduced in 2011 the

Search by Image functionality

. Other widely used

applications are TinEye

and CamFind

, that allow

to ﬁnd different kinds of information about the input

image.

Regarding text analysis, many platforms are avail-

able. Most of these platforms perform textual analy-

sis in only a few languages, and only a few of these

platforms are endowed with crawling or visualization

capabilities. Additionally, they usually do not include

speciﬁc knowledge integrated such as domain ontolo-

gies. The most common platforms are AlchemyAPI

http://www.kinesense-vca.com/product/

http://www.ikusi.com/en/sport/solutions/security/

video-surveillance-and-advanced-video

http://www.savasa.eu/

http://www.mosaic-fp7.eu/

http://www.google.com/insidesearch/features/images/

searchbyimage.html

https://www.tineye.com/

http://camﬁndapp.com

http://www.alchemyapi.com/

GATE

, Lexalytics

or LanguageWare

. An inter-

esting approach is Attensity

, which relies mostly on

social media sources. The most similar text analysis

tool to our proposal is the one from BasisTech

cov-

ering up to 55 languages, using Google technology.

All these platforms tackle the analysis of diverse

multimedia contents as independent solutions, but the

real challenge appears to be the creation of a unique

platform that integrates the most important multime-

dia analysis technologies. As aforementioned, the

presented system encompasses all the analysis meth-

ods necessary for an integrate processing of the input

multimedia streams. The capability of extracting in-

terrelated knowledge from the input data allowsLEAs

to signiﬁcantly reduce data collection, evaluation and

integration efforts.

3 METHODOLOGY

3.1 Architecture Description

The OSINT system described in this paper includes

several distributed components. The back-bone of the

system is an Enterpise Service Bus (ESB), which has

been conﬁgured to allow integration, communication,

and orchestration of all those independent but mutu-

ally interacting components. These components are

loosely coupled and they integrate using Service Ori-

ented Architecture (SOA) services. Each component

has published a description of the web service and op-

erations it offers using the Web Services Description

Language (WSDL).

It is worth mentioning that the components might

run in different operating systems, might have been

developed in different programming languages, and

might use internally as many repositories or other re-

sources as needed. The overall system relies on each

component to implement and offer what has been de-

ﬁned in its WSDL. As long as those services and op-

erations respond well, the rest of the system does not

need to know how that work has been implemented.

One beneﬁt of this approach is that it allows replac-

ing one component by another one as long as the new

one complies with the deﬁned integration interface,

in other words, as long as it complies with the deﬁned

WSDL.

http://gate.ac.uk/

http://www.lexalytics.com/

http://www-01.ibm.com/software/ebusiness/jstart/

downloads/LanguageWareOverview.pdf

http://www.attensity.com/home/

http://www.basistech.com/

MultimediaAnalysisofVideoSources

347

ESB

Shared

repository

Crawler


analysis

Social

Media

analysis

Audio

analysis

Text

analysis

Biometric

analysis

Video

analysis

Configuration

Management

Application

End-User

Visual Analytics

Figure 1: High level view of the architecture.

Another important component is the common (or

shared) repository. This repository is a Not Only

Structured Query Language (NoSQL) repository and

has three logical views. In the ﬁrst one the original

version of the crawled content is stored; this view

is known as the original repository. A different log-

ical view stores the normalized version of the crawled

content. The crawler converts each content type to

one of the accepted normalized formats that the anal-

ysis components can process; this second view is

known as the normalized repository. Finally, a third

view stores the output of the analysis modules; this

view is known as the knowledge repository. Besides

the analysis components, the visual analytics compo-

nent also accesses this repository third view.

3.2 Video Analysis

As aforementioned, the video analystics subsystem is

the starting point of the analysis process. In the last

years, the retrieval of highly representative informa-

tion from videos has become one of the main topics

of the research community. Moreover, automatic con-

tent analysis is very important for the efﬁcient inter-

pretation of all the information encompassed in the

multimedia stream (Maybury, 2012). The considera-

tion within the project of video ﬁles as the highest rep-

resentative of the compilation of diverse contents en-

genders the necessity for the development of a video

analysis module.

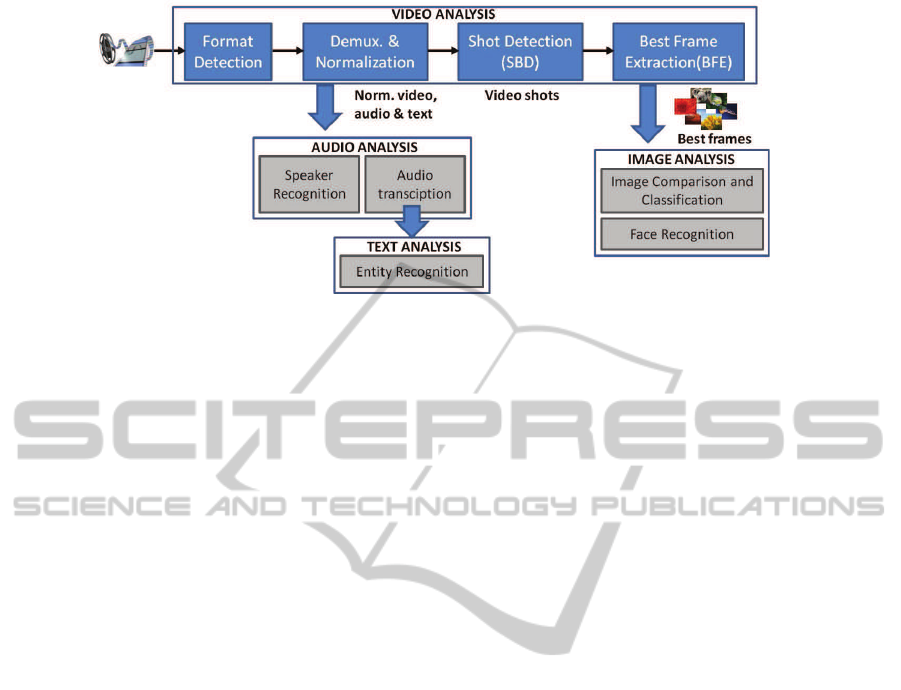

The ﬁrst step for the consumption of the video

content is the demultiplexation of the diverse nature

tracks and their transcodiﬁcation to more appropriate

formats in order to ease the analysis. These consid-

ered tracks are classiﬁed as text, audio and images

which represent the input units for the other analy-

sis modules deployed in the project. While audio and

text contents are directly obtained after the demulti-

plexation of the video ﬁle, the extraction of the rel-

evant images for the analysis constitute a trade-off.

The implemented Shot Boundary Detection (SBD)

(Zhang et al., 2012)(Zhang et al., 1993) and Best

Frame Extraction (BFE) (Rui et al., 1998)(Ejaz et al.,

2012)(Sun and Fu, 2003) approaches tackle this prob-

lem.

Video content segmentation or structuring has

been deﬁned as the hierarchical decomposition of

videos into units. In this solution, shots are consid-

ered as the representative units of the video content,

so SBD detectors have been implemented to extract

these basic units. Two different detectors are available

in the platform, the ﬁrst based on contiguous frames

histogram similarity analysis and the second based on

Discrete Cosine Transform (DCT) components calcu-

lated for different compression and codiﬁcation pur-

poses. Once the shots are identiﬁed, one frame for

each shot is selected for the further image analysis

to dismiss the high data redundancy in videos, which

slows down the analysis process. The frame is se-

lected considering the information contained within

each shot. To that end, a feature vector is calculated

for all the frames and the one with the minimum dis-

tance to the rest of the frames is extracted.

Once the information of the video content has

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

348

Figure 2: High level view of the video analytics subsystem architecture.

been separated, more speciﬁc analysis for each type

of content is invoked to give the platform the most

concise information about the multimedia content.

3.3 Image Analysis on Video Frames

Once a video has been processed, the most signiﬁcant

videoimages (best frames) are extracted and saved in

the normalized repository of the system, becoming

available for the image analysis module.

There are two functionalities related with image

analysis, image comparison and image classiﬁcation.

As mentioned above in 3.1, before launching a Re-

search Line (RL), the user conﬁgures the system and

can introduce among other parameters different sets

of images. One kind of set represents images that the

user wants to detect in collected data by image com-

parison, and the other one is used as the training set

for the classiﬁcation process. All the images belong-

ing to the same classiﬁcation set contain objects of the

same class.

Once video analysis has been performed and the

best frames have been uploaded into the normal-

ized repository, the orchestrator calls the image anal-

ysis module to process them. First of all, feature

points and their descriptors are extracted for each im-

age (Tuytelaars and Mikolajczyk, 2008)(Bay et al.,

2006)(Lowe, 2003). Depending on the process func-

tion, the module loads the RefModel from the Knowl-

edge Repository which contains the descriptors or the

class model of the already preprocessed Reference

Sets. Afterwards, a comparison between the input im-

age and the RefSet images or the classiﬁcation of the

input image is performed (Chen et al., 2001). Based

on the calculated descriptor and feature extraction al-

gorithm implemented, a matching algorithm calcu-

lates a similarity score that indicates the visual sim-

ilarity level between images, and the classiﬁcation al-

gorithm decides if the input image belongs to the re-

quired reference classes or not. The resulted scores

along with the IDs of the compared images or, in

the case of the classiﬁcation function, the decision

whether the input image belongs to the inquired class

or not, are sent to the Knowledge Repository as an

Extensible Markup Language (XML) ﬁle that will be

available to the system.

In this way users can detect required images not

only among other images but also broaden the results

looking inside the videos crawled by the system as

additional information.

3.4 Face Recognition on Video Frames

In the context of the discussed solution, biometrics

is used to search for predeﬁned subjects of interest

within the processed videos. Face biometrics tech-

nology is utilized in this task as it represents the most

clearly available biometric characteristic in such a

scenario, as well as being one of the most thoroughly

studied and widely accepted biometric solutions. A

biometric solution consists of two processes, the en-

rolment and the recognition. Enrolment deﬁnes a ref-

erence model for the subject of interest where the

recognition process identiﬁes or veriﬁes the identity

of the captured subject. In the following, both pro-

cesses are discussed.

For enrolment, a number of face images are used

to create a biometric reference for the subject of inter-

est. Those images can be different frames of a video

sequence or static images of the same subject. The

main face is detected in each image using multi-scale

sliding window detection as proposed by Viola and

Jones (Viola and Jones, 2001). The detected faces

are normalized then passed on to the pose alignment

module. Pose alignment here is based on the unsuper-

vised joint alignment of complex images presented by

Huang et. al. (Huang et al., 2007). A binary feature

vector based on the Local Binary Linear Discriminant

MultimediaAnalysisofVideoSources

349

Figure 3: Overview of the proposed face recognition in video solution.

Analysis (LBLDA) (Fratric and Ribaric, 2011) is ex-

tracted from each face image. Those feature vectors

are then fused to create a robust feature vector that

represents the subject of interest.

To search for the subject of interest in a video

sequence, faces are detected and tracked across the

frames (when possible). Those faces are normalized,

the face pose is aligned and then passed on to feature

extraction. Each feature vector (resulted from one

face image) is compared to the reference face model

resulting in a similarity score value. The score val-

ues related to the tracked face in different frames (if

available) are fused using simple combination score-

level fusion rules (Damer et al., 2013). The result-

ing fused score indicates the probability that the pro-

cessed video (or image) contains the face of the sub-

ject of interest. An overview on the proposed biomet-

ric solution is presented in Figure 3.

3.5 Speaker Identiﬁcation

In the workﬂow of the proposed solution, speaker

identiﬁcation is performed on the audio crawled or

extracted from a video and saved in the shared repos-

itory.

The algorithm creates models for a set of speakers

associated to the speciﬁc RL and searches for those

speakers in all audio ﬁles processed by the system.

It is responsibility of the system operator to deﬁne

the speakers of interest and to request the creation of

speaker models to the system. When an audio is pro-

cessed, the algorithm loads the current speaker mod-

els, provides audio analysis and outputs an XML ﬁle

per audio ﬁle with the speaker segments belonging to

the speaker models.

The algorithm works in two steps: creating mod-

els for speciﬁc speakers and audio analysis to identify

the speakers previously deﬁned by models. The al-

gorithm is based on a Bayesian Information Criterion

(BIC) segmentation followed by a BIC clustering. It

starts by detecting speaker turns using BIC, where

change points are detected through generalized like-

lihood ratio (GLR), using Gaussians with full covari-

ance matrices. Speech-Non-Speech (SNS) segments

are also modeled with Full Gaussian and compared

with the current speaker Full Gaussian. If the BIC

score is lower than 0, then a merge is performed be-

tween the current SNS Full Gaussian and the current

speaker Full Gaussian. If the BIC score is higher than

0, then a new speaker Full Gaussian is created and a

hierarchical clustering is performed for the previous

speaker cluster. In our hierarchical clustering algo-

rithm, the current speaker cluster, provided by turn

detection and modeled with Full Gaussian, is com-

pared with the clusters obtained so far. This method

allows on-line processing of the clusters.

The speaker identiﬁcation component works af-

ter the speaker clustering. Our speaker identiﬁcation

component uses the low-dimensionality total variabil-

ity factors (i-vector) produced by the Total Variability

technique to model known speaker identities (Dehak

et al., 2011). Since this component works on-line,

every time an unseen speaker starts talking, the com-

ponent is incapable of knowing the speaker identity

immediately. To overcome this problem, a ﬁrst es-

timate for his/her identity is produced(if he/she is a

known speaker) after 10 seconds of speech and a ﬁnal

identity estimation after 30 seconds. Since the zero

and ﬁrst-order sufﬁcient statistics (and the respective

i-vectors) from Total Variability are associated with

the cluster, the speaker information is immediately

available whenevera cluster with a known identity ap-

pears.

As output of the algorithm an XML ﬁle is gener-

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

350

Figure 4: Overview of text analysis architecture.

ated with the timing information of all speaker clus-

ters and the IDs associated to the segments whose

speakers are registered and of which the system has

models.

3.6 Text Analysis: Entity and Entity

Relationship Recognition

In the workﬂow of the proposed solution, textanalysis

is performed on the audio extracted and transcribed

from videos and saved in the shared repository.

The text analysis module is the responsible for the

analysis in different languages of any input given in

the project. The languages considered are Catalan,

Spanish, English, French, Italian, Portugues, German,

Romanian, Basque, Chinese, Japanese, Hebrew, Ara-

bic and Russian.

The workﬂow used in particular for the last part of

the workﬂow chain focused on the text analysis con-

tains 4 different core components. The ﬁrst compo-

nent named language detection detects the language

of the document. The second component named Part-

of-Speech (POS) tagger analyzes the morphosynthac-

tic category of each word in a document. The third

component named Named Entity Recognition and

Classiﬁcation (NERC) (Nadeau and Sekine, 2007)

detects and categorizes the Named Entities (NE) con-

tained in a document. The main clustered categories

are Person, Location, and Organization. Finally, the

fourth and last component uses the extracted NEs to

give an output based on the relationship (weighted-

distance based) between the different entities in the

whole document. This last component is used in

the Visual Analytics component for visualization pur-

poses.

Text analysis is performed in a webservice based

architecture where the different language processors

are host in different servers.

Figure 4 shows the general schema of the Text

Analysis workﬂow. The language identiﬁcation com-

ponent detects the document language and sends it to

the language processor for that language.

NE networks as the result of text analysis are en-

coded in a layered XML-based format named Knowl-

edge Annotation Format (KAF) (Bosma et al., 2009),

which is saved in the shared repository once the pro-

cessing has ﬁnished.

4 CONCLUSIONS AND FUTURE

WORK

The increasing need of LEAs for the monitoring and

analysis of open sources boosts the implementation

of systems capable of extracting relevant information

from multimodal data. This work presents an effec-

tive platform for the analysis of all these crawled data

and an intuitive results presentation that eases the cues

searching process. The high implication of European

LEAs has bolstered the development of the required

solutions leading the presented system to the achieve-

ment of its goals.

Validation of this OSINT system has not been un-

dertaken yet. The system ﬁnal version’s integration

is currently ongoing and its validation by LEA end-

users will take place by the end of the project.

In order to validate the results of the system a test

scenario has been deﬁned. LEA end users will run the

test in two parallel researches, one using their exist-

ing tools and another one using the new OSINT sys-

tem. Several metrics have been deﬁned to assess not

only the quantity and quality of the results obtained

by each method, but also the time spent (human ef-

fort) and the total duration of the process.

As aforementioned, the validation process is still

pending, but the undertaken tests have so far high-

lighted the necessity of approaches that nourish the

system with deeper knowledge about the gathered in-

formation. This knowledge is foreseen to be extracted

by the implementation of new analysis modules con-

nected to the CMA. Still more, the integration of

advanced visual analytics algorithms for the results

presentation interface will tackle the current situation

where a huge amount of data does not directly imply

a huge amount of insight.

MultimediaAnalysisofVideoSources

351

REFERENCES

Bay, H., Tuytelaars, T., and Gool, L. V. (2006). Surf:

Speeded up robust features. In In ECCV, pages 404–

417.

Bosma, W., Vossen, P., Soroa, A., Rigau, G., Tesconi,

M., Marchetti, A., Monachini, M., and Aliprandi, C.

(2009). Kaf: a generic semantic annotation format.

In Proceedings of the GL2009 Workshop on Semantic

Annotation.

Chen, Y., Zhou, X., and Huang, T. S. (2001). One-class svm

for learning in image retrieval. pages 34–37.

Damer, N., Opel, A., and Shahverdyan, A. (2013). An

overview on multi-biometric score-level fusion - ver-

iﬁcation and identiﬁcation. In Marsico, M. D. and

Fred, A. L. N., editors, ICPRAM, pages 647–653.

SciTePress.

Dehak, N., Kenny, P., Dehak, R., Dumouchel, P., and Ouel-

let, P. (2011). Front-end factor analysis for speaker

veriﬁcation. Audio, Speech, and Language Process-

ing, IEEE Transactions on, 19(4):788–798.

Ejaz, N., Tariq, T. B., and Baik, S. W. (2012). Adaptive key

frame extraction for video summarization using an ag-

gregation mechanism. Journal of Visual Communica-

tion and Image Representation, 23(7):1031–1040.

Fratric, I. and Ribaric, S. (2011). Local binary lda for

face recognition. In Proceedings of the COST 2101

European conference on Biometrics and ID manage-

ment, BioID’11, pages 144–155, Berlin, Heidelberg.

Springer-Verlag.

Huang, G. B., Jain, V., and Learned-Miller, E. G. (2007).

Unsupervised joint alignment of complex images. In

ICCV, pages 1–8. IEEE.

Lowe, D. G. (2003). Distinctive image features from scale-

invariant keypoints.

Maybury, M. T. (2012). Multimedia Information Extrac-

tion: Advances in Video, Audio, and Imagery Analysis

for Search, Data Mining, Surveillance and Authoring.

Wiley.

Nadeau, D. and Sekine, S. (2007). A survey of named entity

recognition and classiﬁcation. Lingvisticae Investiga-

tiones, 30(1):3–26.

Rui, Y., Huang, T., and Mehrotra, S. (1998). Exploring

video structure beyond the shots. In Multimedia Com-

puting and Systems, 1998. Proceedings. IEEE Inter-

national Conference on, pages 237–240.

Sun, Z. and Fu, P. (2003). Combination of color- and object-

outline-based method in video segmentation.

Tuytelaars, T. and Mikolajczyk, K. (2008). K.: Local invari-

ant feature detectors: A survey. FnT Comp. Graphics

and Vision, pages 177–280.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In Computer Vi-

sion and Pattern Recognition, 2001. CVPR 2001. Pro-

ceedings of the 2001 IEEE Computer Society Confer-

ence on, volume 1, pages I–511–I–518 vol.1.

Zhang, H., Kankanhalli, A., and Smoliar, S. W. (1993). Au-

tomatic partitioning of full-motion video. Multimedia

systems, 1(1):10–28.

Zhang, J. F., Wei, Z. Q., Jiang, S. M., Li, J., Xu, S. J., and

Wang, S. (2012). An improved algorithm of video shot

boundary detection. Advanced Materials Research,

403:1258–1261.

SIGMAP2014-InternationalConferenceonSignalProcessingandMultimediaApplications

352
