Self-Service Data Discovery and Information Sharing

Fostering the Engineering Capacity of the Data-Driven Mindset

Kurt Englmeier

and Hugo Román

Faculty of Computer Science, Schmalkalden University of Applied Science, Blechhammer, Schmalkalden, Germany

Soluciones S.A., 33 Nueva York, Santiago, Chile

Keywords: Data Discovery, Information Integration, Language Pattern, Natural Language, Data Governance,

Simplicity, Information Extraction, Metadata.

Abstract: People dealing with information in IT-based environments tend to develop a data-driven mindset that

constitutes shallow engineering knowledge and turns them into tech-savvy information consumers. We

argue that these consumers can manage data discovery and information sharing on their own without

explicit support from IT. We argue furthermore that user-driven discovery can even be mandatory when

mainstream discovery concentrates on facts appearing massively in data and bypasses the little and

unspectacular facts consumers expect to discover in their data. Finally we argue that tech-savvy users can

depict blueprints of these facts using a pattern language that combines the user’s work jargon with a simple

syntax. We present a working solution for such an easy-to-learn pattern language for self-service data

discovery and information sharing (DISL). The language has been developed in an industry-academia

partnership and was applied in the area of assessment in the real estate sector in Chile. A prototypical

discovery service operating on DISL gathers information from contracts and related certificates and

prepares the discovered facts for information sharing.

1 INTRODUCTION

Information discovery requires, in general, profound

technical and linguistic skills. Systems designed in

close cooperation between IT specialists and

knowledge management experts serve the need for

mainstream discovery from business and other areas.

Mainstream discovery addresses facts that are

massively observable in data and thus commonly

described in global metadata descriptions like

schema.org or addressed by the organization's

master data management. Example addressees are

named entities like “organization”, or “person”,

“location”, monetary expressions, or temporal

expressions. Pattern recognition as well as linguistic

and probabilistic methods serve to identify candi-

dates in data that match these schemas. Mainstream

discovery defines also the qualities that make up the

facts to be discovered. These definitions are not

quite sensitive to the peculiarities of individual

discovery requests. They have to serve data patterns

that are generic enough in order to justify the

development of the corresponding discovery systems

from an economic point of view. Industrial practice,

however, shows that there are many “light-weight”

discovery requests that are not addressed by

mainstream discovery. The inclusion of the

information consumers' individual requirements into

application development is usually considered as too

expensive or too time-consuming. Further-more,

their requests tend to change dynamically. Even

when addressing the same data collection, different

users are likely interested in different facts and,

furthermore, this interest may vary over time. Users

may analyze complaints of clients about machine

failures, for instance. One user may be interested in

the affected part of the machine, while the other one

wants to explore the cause of the failure. In many a

case, discovery and its corre-sponding data

descriptions even serve only a one-time purpose,

that is, they are disposable artifacts. In short,

discovery can address very specific, small-scale, and

ad hoc contexts that lie outside the scope of

mainstream information discovery. Consequently,

users have to handle many of their individual

requests manually, they have to check data and

extract the required facts by hand.

We present here a working solution for self

339

Englmeier K. and Román H..

Self-Service Data Discovery and Information Sharing - Fostering the Engineering Capacity of the Data-Driven Mindset.

DOI: 10.5220/0005153303390345

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2014), pages 339-345

ISBN: 978-989-758-050-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

-service IT that enables tech-savvy end-users to

design and manage their discovery processes and to

share their findings with their colleagues. Its

objective is merging smoothly two knowledge areas,

namely domain knowledge and engineering knowl-

edge required for “light-weight” data extraction and

information sharing. We want to encourage users to

translate their vision of the facts they expect to

discover in data directly into machine-processable

instructions.

In this article we explain the principles of self-

service information discovery and the role and

significance of the information consumer’s data-

driven mindset. The practical part outlines our data

discovery and information sharing language (DISL),

emerging from the rationale of self-service dis-

covery. It also provides results from the first

application in the area of assessment in the real

estate sector and describes how data integration and

information sharing is supported. Even though DISL

focuses on discovery in unstructured data in general,

here we concentrate on its application on texts.

2 DATA-DRIVEN MINDSET

What we want to discover in data is facts. For

instance, we want to know “the birthdate of Bert

Brecht” or the “the age of the broken machine part,

as indicated by the customer in his mail”. The facts

emerge from data that depict certain qualities. With a

blueprint of these facts in mind we can steer our

discovery process and detect these facts in structured

as well as unstructured data.

People working with information have a data-

driven mindset per se (Pentland, 2013; Viaene,

2013), that is, they resort to mental models (Norman,

1987) that abstractly reflect the facts they expect to

encounter in their information environment (Brandt

and Uden, 2003). This mindset enables them to

sketch blueprints of the things they are looking for.

We argue that their computer literacy helps them to

express these blueprints in forms that can be

processed by machines. These expressions are far

from being programming instructions but reflect the

users’ “natural” engineering knowledge. The

machine then takes the blueprints and identifies

these facts in data, even though the blueprint

abstracts away many details of the facts.

Experimenting with data is an essential attitude

that stimulates data discovery experiences. People

initiate and control discovery by a certain belief -

predisposition or bias reinforced by years of

expertise - and gradually refine this belief. They

gather data, try their hypotheses in a sandbox first

and check the results against their blueprints, and

then, after sufficient iterations, they operationalize

their findings in their individual world and then

discuss them with their colleagues. After having

thoroughly tested their hypotheses, information

consumers institutionalize them to their corporate

world, that is, cultivate them in their information

ecosystem. The language knowledge and their

mental models constitute shallow knowledge

necessary and sufficient to engineer statements that

are processable by the discovery services (Sawyer et

al., 2005).

The blueprints thus serve two purposes: they

reflect semantic qualities of the facts the discovery

engine shall locate and extract. Simultaneously, they

are the building blocks of the meta-language that,

when correctly syndicated, support data integration

and sharing. While syndicating metadata along their

domain competence, users foster implicitly active

compliance with organizational data governance

policies.

The design of DISL is guided by the paradigm of

simplicity in IT (Magaria and Hinchey, 2013). We

want users to concentrate on discovery and sharing,

to stick to their data-driven mindset, and to express

their requests as far as possible in their own

language. A good starting point therefore is the

workplace jargon of information consumers. To

avoid any irritations or ambiguities, people try to be

quite precise in their descriptions. Even though these

descriptions are composed of natural language terms

and statements, humans are quite good in safe-

guarding literal meaning in their descriptions

(Iwanska, 2000). We avail ourselves of literal

meaning because we can interpret statements

correctly in the absence of any further explicit and

implicit context. This aspect is also important when

it later comes to machine interpretation of these

statements. In the end, we need discovery engines

that support semantic search (Ding et al., 2005;

Zhao, 2007). They operate on data enriched by

annotations that make implicit meaning explicit.

They also set up the semantic skeleton of the

information ecosystem where search and discovery

happens. This skeleton represented as a network of

metadata emerges from the domain knowledge of

the information consumers. For us, the data-driven

mindset becomes evident when users can turn their

domain and shallow engineering knowledge into

machine instructions suitable for the precise

detection and extraction of the facts they expect to

discover.

KMIS2014-InternationalConferenceonKnowledgeManagementandInformationSharing

340

3 SELF-SERVICE DISCOVERY

Information discovery starts with information

extraction (IE) (Cowie and Lehnert, 1996) that

distils text or even scattered documents to a germ of

the original raw material. IT experts engineer

information extraction systems that operate on

templates for the facts to be extracted. Labelled slots

constitute these templates whereby the labels

represent annotated terms.

Self-service information discovery starts with

user-driven IE. The users first have to engineer their

extraction templates that can also be considered as

entity recognizers. This means, a certain amount of

engineering is indispensable in IE. The key question

is whether information consumers have the neces-

sary engineering knowledge to handle discovery

services on their own. This shallow knowledge is

assumed to be acquire easily and thoroughly specific

to the task at hand (Fan et al., 2012). The assumption

in self-service discovery is that users with their

domain competence and shallow engineering knowl-

edge are in the position to manage a certain level of

data discovery and information sharing on their own.

The users' blueprints may be simple and concise,

but they are comprehensive enough to cover their

request. This, in turn, fosters the control of the

discovery process. A template with, say eight to

twelve slots, can comprehensively cover real-world

requests in small-scale domains. This low level of

complexity makes it easy for the information

consumer to manually control discovery. Whenever

they encounter unfilled slots or mistakenly filled

slots they may check the corresponding document

for obvious errors. On the other hand, they may

adapt their blueprint if the representation of a fact

appears to be sound in text, but the slots do not

consistently correspond to the qualities of the fact.

3.1 Basic Language Elements

IE knows a lot of methods to match text excerpts

(i.e. candidates for information entities) with slot

keys (i.e. labels) and to fill the slots. In our approach

we focus on pattern recognition. Each template slot

is thus linked to a descriptive pattern that is rendered

as Regular Expression in combination with key

terms. Regular Expressions are a powerful instru-

ment to precisely detect all kind of patterns in data.

Their application is in particular useful for the

detection of facts in unstructured information.

Furthermore, they offer the opportunity to sketch a

variety of patterns for a particular fact that may

appear in many variant forms. A date, for instance,

can be expressed in different forms even within the

same language. Regular Expressions have a partic-

ular advantage, too, if data represent a named entity,

e.g. as combination of numerical data and words. A

birthdate may be rendered by keywords (“born on”)

or symbols (an asterisk) forming a specific pattern

with an adjacent date. The position within text may

also suffice to qualify a date as birthday: “Franz

Kafka (3 July 1883 – 3 June 1924)”.

In each text we can identify numerous facts of

different complexities. Many of them can be

identified in patterns that comprise facts located in

close proximity. Information on a person may span

over more basic facts like name, tax payer number,

birthdate, address, etc. Some fact may comprise

constituent facts that are widely scattered over a

broader area of the data, even over more text pages

or documents for instance.

Regular Expressions are a powerful, but abso-

lutely not a user-friendly instrument. They require

special skills and are not easy to handle, in

particular, when they are addressing complex, i.e.

real-world, patterns. Besides, Regular Expressions

representing high level facts are extremely complex

and barely manageable, even for professionals. Their

application also has limitations, when relevant

elements (qualities) of facts are too dispersed over

the data set, that means when too much “noise”

appears between facts or their qualities. We therefore

propose a language for discovery and sharing that

adopts Regular Expressions but shields users from

their complexity. IT provides users with a stock of

labelled Regular Expressions addressing entities like

“word”, “tax payer number”, “phrase”, “decimal”

etc. (see Figure 1). Instead of defining Regular

Expressions, the users compose their patterns by

resorting to these basic patterns or to the patterns

they have already defined by themselves. The DISL

syntax serves to describe how facts, as the

constituent parts of the fact requested by the user,

appear as sequences of word patterns in data. The

corresponding descriptive pattern gradually aggreg-

ates into the complex pattern for the requested fact.

Figure 1: Examples of basic patterns (entity recognizer).

Usually, IT experts provide these patterns to information

consumers that construct their patterns from here.

Self-ServiceDataDiscoveryandInformationSharing-FosteringtheEngineeringCapacityoftheData-DrivenMindset

341

3.2 The Syntax of DISL

The users achieve the definition of complex

descriptive patterns by iteratively aggregating their

pattern definitions starting from the basic patterns

(see Figure 1) provided by their IT colleagues. This

means, any pattern (if not a basic pattern) can be

decomposed into smaller units from top to bottom,

eventually into basic patterns and key terms. The

discovery service sees any pattern as more or less

big Regular Expression. We call the patterns at the

bottom layer also “connector patterns” because they

link to the respective data representation technique,

used by the service, in our case Regular Expressions.

They act as primitive data types.

Table 1: Operators of the discovery language.

The dot indicates strong sequence

(“followed by”). The fact indicated

before the dot must be located before the

one indicated after the dot.

Comma means weak sequence. Some of

indicated facts (at least one) shall appear

sequentially in the data. However, they

may appear in any order (inclusive

combination).

;

The semicolon is used to indicate an

exclusive combination. Just one of the

facts ought to be located.

Labeling operator: the name after the

colon is assigned to facts or a group of

facts. Labeling serves the implicit

introduction of (local) nested patterns.

(...)

Parentheses serve to indicate a group of

facts. Grouping only makes sense

together with the labeling operator.

The question mark indicates that a fact or

group of facts can be optional, that is, the

corresponding fact can but need not be

located in the data sources.

“keyword”

The discovery service treats keywords

indicated between quotation marks as

fixed expressions. If it represents a verb,

the keyword is reduced to its principal

part. Each noun or adjective is expanded

to a Regular Expression covering their

possible grammatical forms (flections).

Three dots (...) within a constant indicate

that there may appear a small number of

irrelevant terms between the elements of

the fixed expressions.

The syntax for the definition of patterns is quite

simple. It supports a handful of operators the users

employ to define a descriptive pattern as a sequence

of constituent elements, i.e. word patterns.

The following generic definition of a descriptive

pattern summarizes the syntax of our DISL for

discovery and integration, Table 1 explains in more

detail the functionality of the operators:

concept, concepts = element1.element2;

element3.(element4,element5):name.?elem

ent6

On the left side of the equation the user defines

the name of the pattern. The right side of the

equation lists the sequence of pattern elements. The

pattern can be assigned to a singular term and

optionally also to its corresponding plural term.

When defining their own patterns, people intuitively

apply both forms.

4 EXPERIMENTS AND RESULTS

4.1 Illustrative Example

To illustrate DISL we delegated a request to our

discovery engine and let it operate on the (English)

Wikipedia collection. We wanted to extract birth and

death dates of German writers and to list their works

with their original title and the corresponding

English translation of the title. By checking a sample

Figure 2: Original text sections from a larger sample of

texts. The snippets contain the requested information on

the authors’ birth and death date and on the titles of their

works.

KMIS2014-InternationalConferenceonKnowledgeManagementandInformationSharing

342

of Wikipedia pages, we familiarized ourselves with

the way how these facts are represented (Figure 2)

and defined the corresponding descriptive patterns

using DISL (Figure 3). The discovery engine applied

our blueprints on this collection and returned the

extracted information in XML format (Figure 4).

The example illustrates also the rationale for data

integration and information sharing behind DISL

that supports the collaborative development of a

metadata schema. This schema can constitute the

semantic skeleton of an information ecosystem on

group or organizational level. In this context, self-

service discovery and integration supports “active

compliance”, that is, the collaborative agreement on

a unified overarching metadata schema.

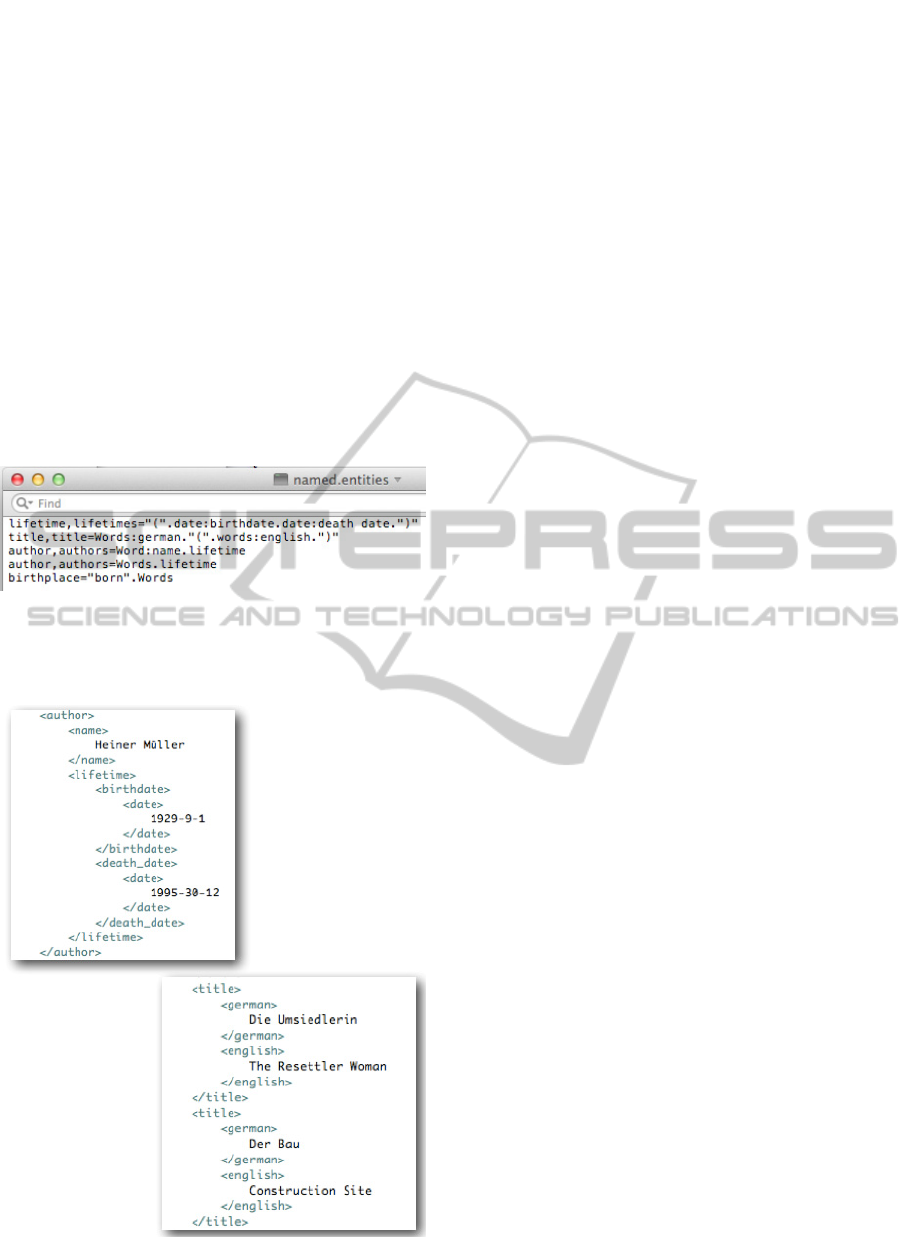

Figure 3: Patterns to discover information on birth and

death dates of (German) writers and the titles of their

works (original title and English translation). On the left

side appear the labels of the patterns.

Figure 4: Example of the results rendered in XML. The

discovery engine takes the patterns as defined by the users

(similar to those in Figure 3), detects the corresponding

data in the texts (like the ones shown in Figure 2), extracts

these data and stores them in XML. The tags of the XML

elements (or slots) correspond to the pattern labels.

As already said, self-service discovery addresses,

among other things, ad hoc requests for discovery

that, like in the example above, are not too complex.

The integration in terms of consolidating metadata

schema on a broader organizational level is thus not

the only issue in integration. Many blueprints for

small-scale and ad hoc requests are disposable

artifacts for individual purposes. The integration into

the technical environment is more important for

discovery requests that need to be shared. What kind

of input formats are supported by the discovery

service, how are the results presented? For the time

being, our service accepts input such as HTML,

PDF, or plain text documents. The output is simply

rendered in XML, in order to enable a smooth

integration into follow-up processes for data

analytics, visualization, reporting and the like. The

slots (with annotated terms) capture the facts

according to the users’ pattern definitions render

them by XML elements. Basic patterns are treated

like primitive data types; entity elements that

correspond to them are not explicitly tagged.

4.2 Results from the First Application

The design of DISL had a highly experimental

character. The examples above relate to experiments

we ran with Wikipedia articles on writers. However,

we applied DISL and our discovery service on legal

texts addressing real estate contracts and related

certificates from land registries. The objective was a

cross-collection search for comprehensive infor-

mation on vendors, purchasers, and real estates. The

application passed through a number of cycles until

it reached a sufficient level of maturity and

acceptance. At the same time, the language has been

tested by a mixed group of domain experts (lawyers

and their assistants), students, and programmers.

The over-arching objective was and still is to

ensure that the language has a high level of usability,

in particular in terms of learnability, memorability,

and ease of use. During the iterative design we got

familiar with the shared mental model information

consumers have about appearance and nature of

descriptive (word) patterns: entities corresponding to

an information blueprint can be dispersed over a

number of text blocks (facts), for instance: [vendor]

sells [object] to [buyer]. Within each block, terms

may appear in arbitrary order, like the characteristics

of a person or organization. Some terms are optional

and there are keywords like “sell” or “buy” that

essentially characterize the fact “transaction pur-

chase”. The question then was, how the appearance

of terms and term blocks can be expressed by

Self-ServiceDataDiscoveryandInformationSharing-FosteringtheEngineeringCapacityoftheData-DrivenMindset

343

operators.

The operators as listed above (see Table 1) and

their functionality turned out to be “intuitive”, i.e.

matching the information consumers’ mental model.

There were syntax elements considered as highly

intuitive, like the quotation marks indicating some

sort of fixed text in an otherwise parametric

presentation of a pattern. The users immediately

perceived dots as separators of building blocks of

their patterns. The role of the comma was apparent,

too. However, there were also things to learn, the

difference between comma and semicolon, for

instance. Some had to learn that the question mark

has to be put ahead of the expression to mark it as

optional rather than thereafter. For others, however,

it was more intuitive for this purpose to have a

leading question mark than a trailing one.

We ran our experiments with about 2000

documents (real estate contracts with related

certificates) distributed over 18 data sources. In the

first place, this sample may seem small to validate

our approach or to underpin its scalability. However,

the inherent character of basically unstructured data

distributed over different sources reflects the nature

of the challenge we face in data discovery, even

within the context of Big Data. The language applied

in contracts and related certificates is quite uniform

and not narratively complex. We are convinced that

our document sample covers this language in its

entirety, and thus scales for even larger collections.

In many information ecosystems we barely have to

deal with highly complex narrative forms. Due to

this fact, we consider our approach as scalable also

towards thematic areas outside legal information as

long as the narrative nature is relatively uniform,

such as is the case for legal texts.

5 CONCLUSION

Our work-in-progress demonstrates the feasibil-ity

of self-service data discovery and information

sharing. With a simple instrument like DISL the

information consumers can leverage their shallow

engineering knowledge for managing discovery

services on their own. Over the time, information

consumers naturally develop a data-driven mindset

and with their computer literacy a certain level of

“natural” engineering knowledge that enables them

to handle these discovery tools, including the tools’

command language. Our experiments indicate that

users can develop shallow engineering knowledge

without much effort. If the discovery tool requires

not more than that level of knowledge they can

transform their domain knowledge easily into

machine instructions. This smooth integration of

domain and tool knowledge completes the picture of

self-service discovery that meanwhile is also

demanded by the industry (Sallam et al., 2014).

There are many discovery tasks that serve

individual, ad hoc, and transient purposes. Main

stream discovery, in contrast, supports reoccurring

discovery requests commonly shared by large user

communities and operates on large data collection,

including sometimes the entire Web. We can

conceive manifold scenarios for non-mainstream

discovery. Users may have to analyse from time to

time dozens of failure descriptions or complaints, for

instance. The corresponding data collections are

personal or shared among small groups and consist

of bunches of PDF files or emails, for instance,

barely documents on the Web. Dynamically

changing small-scale requests would mean

permanent system adaptation, which is too intricate

and too expensive in the majority of cases. With a

flexible self-service solution like DISL information

consumers can reap the benefits of automatic

information discovery and sharing and avoid the

drawbacks of mainstream discovery.

REFERENCES

Brandt, D. S., Uden, L., 2003. Insight Into Mental Models

of Novice Internet Searchers, Communications of the

ACM, vol. 46 no. 7, pp. 133-136.

Cowie, J., Lehnert, W., 1996. Information Extraction,

Communications of the ACM, vol. 39 no. 1, pp. 80-91.

Ding, L., Finin, T., Joshi, A., Pan, R., Peng, Y., Reddivari,

P., 2005. Search on the Semantic Web, IEEE

Computer, vol. 38, no. 10, 2005, pp. 62-69.

Fan, J., Kalyanpur, A., Gondek, D.C., Ferrucci, D.A.,

2012. Automatic knowledge extraction from

documents. IBM Journal of Research and

Development, vol. 56, no 3.4, pp.: 5:1-5:10

Iwanska, L.M., 2000. Natural Language Is a Powerful

Knowledge Representation System: The UNO Model,

in: L.M. Iwanska and S.C. Shapiro (eds.), Natural

Language Processing and Knowledge Representation,

AAAI Press, Menlo Park, USA, pp. 7-64.

Magaria, T., Hinchey, M., 2013. Simplicity in IT: The

Power of Less, IEEE Computer, vol. 46, no. 11, pp.

23-25.

Norman, D., 1987. Some observations on mental models.

D. Gentner; A. Stevens, (Eds.) Mental Models,

Lawrence Erlbaum, Hillsdale, NJ.

Pentland, A., 2013. The data-driven society. Scientific

American, vol. 309, no. 4, pp. 64-69.

Sallam, R., Tapadinhas, J., Parenteau, J., Yuen, D.,

Hostmann, B., 2014. Magic Quadrant for Business

Intelligence and Analytics Platforms, February 2014,

KMIS2014-InternationalConferenceonKnowledgeManagementandInformationSharing

344

retrieved at: http://www.gartner.com/technology/

reprints.do?id=1-1QYL23J&ct=140220&st=sb on

June 12, 2014.

Sawyer, P., Rayson, P., Cosh, K., 2005. Shallow

knowledge as an aid to deep understanding in early

phase requirements engineering. IEEE Transactions on

Software Engineering, vol. 31, no. 11, pp. 969 – 981.

Viaene, S., 2013. Data Scientists Aren’t Domain Experts,

IT Professional, vol. 15, no. 6, pp. 12-17.

Zhao, H., 2007. Semantic Matching, Communications of

the ACM, vol. 50 no. 1, 2007, pp. 45-50.

Self-ServiceDataDiscoveryandInformationSharing-FosteringtheEngineeringCapacityoftheData-DrivenMindset

345
