A Variable Neighborhood Search for Solving Sudoku Puzzles

Khorshid Adel Hamza and Aise Zulal Sevkli

Fatih University, Department of Computer Engineering, 34500 Buyukcekmece, Istanbul, Turkiye

Keywords: Sudoku Puzzles, Variable Neighbourhood Search, Neighbourhood Structures, Metaheuristics.

Abstract: Sudoku is a well-known puzzle that has achieved international popularity in the latest decade. Recently,

there are explosive growths in the application of metaheuristic algorithms for solving Sudoku puzzles. In

this paper, an algorithm based on Variable Neighborhood Search (VNS) is proposed to solve the Sudoku

problem and the details of the implementation such as problem representation, neighbourhood structures are

explained. The proposed algorithm is tested with Sudoku benchmarks which have been used in previous

studies. The experimental results indicate that VNS is able to produce competitive results in easy level

puzzles and promising results in medium and hard level puzzles.

1 INTRODUCTION

The Sudoku game is one of the most interesting

challenging games which have been well known

around the world. It is spread through different kinds

of media, from newspapers to internet sites as well

as mobile applications. Beside the popularity of the

game, Sudoku is known as a NP-complete problem

(Yato and Seta, 2003); these factors attract many

researchers to apply different metaheuristics

algorithms to solve Sudoku puzzles. The difference

between researcher’s results lies in their algorithms’

abilities to reach Sudoku optimal solution in

reasonable time, so the rate of success and the

number of iterations and elapsed times are the most

important factors in comparing their performance.

First, we will shed lights on previous researches

which submitted for solving Sudoku game; we found

that most of these implementations use population-

based metaheuristics such as Genetic algorithm

(GA) , Harmony Algorithm (HA), Ant Colony

Optimization (ACO) etc. On the other hand, there

are a few trajectory-based metaheuristic

implementations in this field, the earlier one was

used Simulated Annealing in 2006. In this paper we

proposed a trajectory-based VNS algorithm to solve

different levels of Sudoku problem and tested our

algorithm with the benchmarks that used in the

previous studies.

2 SUDOKU GAME

Sudoku has been claimed to be very popular and

even addictive because it’s easy to play as it doesn’t

require general knowledge, linguistic ability or even

mathematical skills, with simple rules but very

challenging game with different levels.

Figure 1: A Sample of Sudoku puzzle.

Sudoku puzzle with order 9×9 are composed of a

9 × 9

boxes (cells) namely of 81 positions as shown

in Figure 1, they divided into nine 3×3 sub-blocks.

When the Sudoku game is prepared to play, there are

some pre-filled (fixed) numbers which are not

allowed to changed or moved during the process of

solving Sudoku puzzles, then you will start to fill

other unfilled boxes (unfixed) in such way so that

each row, column and 3×3 sub-blocks contain each

integer {1,2,3,4,5,6,7,8,9} once and only once.

Filling all the cells in Sudoku will be the solution.

Finally, in solving Sudoku puzzles, we deal with

FixedCell

Row

Column

Sub‐

block

326

Hamza K. and Sevkli A..

A Variable Neighborhood Search for Solving Sudoku Puzzles.

DOI: 10.5220/0005154903260331

In Proceedings of the International Conference on Evolutionary Computation Theory and Applications (ECTA-2014), pages 326-331

ISBN: 978-989-758-052-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

puzzles that have unique solution. We can

summarize rules to solve Sudoku into three rules

(Satyendra and Saumi, 2013):

- Rule 1: Each row should contain values from 1 to 9

without repeating any number.

- Rule 2: Each column should contain values from 1

to 9 without repeating any number.

- Rule 3: The sub-block should contain only values

from 1 to 9 without repetition.

3 RELATED WORK

Many algorithms were proposed for solving and

generating Sudoku problems. A number of studies

can definitely solve Sudoku problems by using exact

methods (Crawford et.al, 2008), (Gunther and

Moon, 2012) and (Simonis, 2005). By using these

exact methods, easy level Sudoku problems can be

solved in a reasonable amount of time. However,

when the level gets harder, the computational time

grows exponentially and these methods become

impractical. Therefore, many researchers focus on

heuristic algorithms.

Various population-based metaheuristics have

been proposed such as ant colony optimization

algorithm (ACO) (Asif, 2009), genetic algorithm

(GA) (Xiuqin, Yongda and Ruichu, 2012), (Li and

Deng, 2011) and (Mantere and Koljonen, 2007),

harmony search algorithm (HS) (Satyendra and

Saumi, 2013). In the paper (Asif, 2009), the author

employs as heuristic information the number of

digits correctly placed on the board. However, the

best value reached is 76 where 81 being the global

optimum. Li and Deng (2011) proposed a modified

genetic algorithm for solving Sudoku games under

the name of Improved Genetic Algorithm. The

results were good in solving easy levels but it was

unable to solve higher levels. They followed their

algorithm with New Genetic algorithm (NGA)

(Xiuqin, Yongda and Ruichu, 2012) which contains

many major modifications. The results were

significantly improved in solving all Sudoku levels

even when comparing the results with other

population algorithms like GA (Mantere and

Koljonen, 2007), Cultural Algorithm (CA) (Mantere

and Koljonen, 2008) and ACO (Mantere and

Koljonen, 2009).

Another algorithm has been published by

Satyendra and Saumi (2013) using harmony

algorithm. The algorithm in addition to solving

different levels of Sudoku, it can determine the level

of the Sudoku game. The results were quite good in

solving easy levels with success rate of 100%, but

these rates are decreased along with levels of

difficulty to be 10% in the hardest level (level 5).

Although there are many population based

heuristic algorithms, there are a few trajectory-based

algorithms for solving Sudoku games. Lewis (2007)

proposed a simulated annealing algorithm to solve

different level types of (3 * 3) Sudoku games as well

as (4

* 4) games. In addition, he developed an

algorithm to create solvable problem instances with

different levels by using some rules and criteria. The

results were amazing as the algorithm solved all

samples of all levels in short time, but with more

times in solving 4 * 4 Sudoku problems. The main

factor of

reducing running time was in calculating

the fitness function by recalculating only affected

rows and columns by the swap neighborhood

structure operation. Unfortunately, the data set used

in experiments is unavailable to compare his results

with our results.

4 VNS IMPLEMENTATION

In this paper we propose a Variable Neighborhood

Search (VNS) algorithm to solve Sudoku problem.

Variable Neighborhood Search has been proposed

by Mladenovic and Hansen (1997). The basic idea of

VNS is to successively explore a set of predefined

neighborhoods to provide a better diversification of

solution. It explores either at random or

systematically a set of neighborhoods to get different

local optima and to escape from local optima. VNS

Figure 2: Pseudo-code of GVNS algorithm.

Input: a set of neighborhood structures N

for k = 1,,

max

for shaking.

a set of neighborhood structures N

for l = 1,.. l

max

for

local search.

x = x

;

Repeat

For k=1 to k

max

Shaking: pick a random solution xʹ′from the k

neighborhood N

(x) of xʹ ;

Local search by VND ;

For j=1 To j

max

Find the best neighbor x′′ of x′ in N

(x′) ;

If f (x′′) < f (x′) Then x′= x′′ ; j=1 ;

Otherwise j=j+1;

Move or not:

If local optimum is better than x Then x = xʺ

Continue to search with N

(k = 1) ;

Otherwise k=k+1 ;

Until stopping criteria

Output: Best found solution

AVariableNeighborhoodSearchforSolvingSudokuPuzzles

327

algorithm has three main phases: Shake, Local

Search and Move or Not. While shake diversifies the

solution, local search explores local area thoroughly.

Variable Neighborhood Descent (VND) is a

variation of the VNS. It explores local optima with

using various neighborhood structures only. VND

can be used as a part of VNS in the local search

phase which is called general VNS (GVNS).

In this study, a GVNS algorithm where the

simple local search procedure is replaced by the

VND algorithm is used. The pseudo-code of GVNS

algorithm is described in Figure 2.

4.1 The Fitness Function

The initial solution is created based on rule 3 which

keeps the numbers between 1 and 9 without

repeating in every sub-block. It’s clear that

appropriate fitness function is obviously one that

searches for violations of the remaining two rules

(rule 1 and 2). To calculate fitness value, repeating

number at each row and column are calculated. Total

of these numbers give the fitness value of the

candidate solution. Calculation of fitness value for a

sample Sudoku puzzle is given in Table 1.

Obviously, fitness value of an optimal solution is

zero. Note that to calculate the missed numbers in

row and column, we count number which are

repeated more than one; then it subtracted by 1. For

instance, if a number repeated two times in a row,

counter equals 2-1=1, if a number repeated three

times it will be 3-1=2 etc. this is because if 2

numbers repeated in row, it means that one numbers

is missed, and if we have three numbers then we

have 2 missed numbers. This calculation makes for

every the rows and columns. The total fitness will be

the summation of all rows and columns fitness as

showed in Table 1.

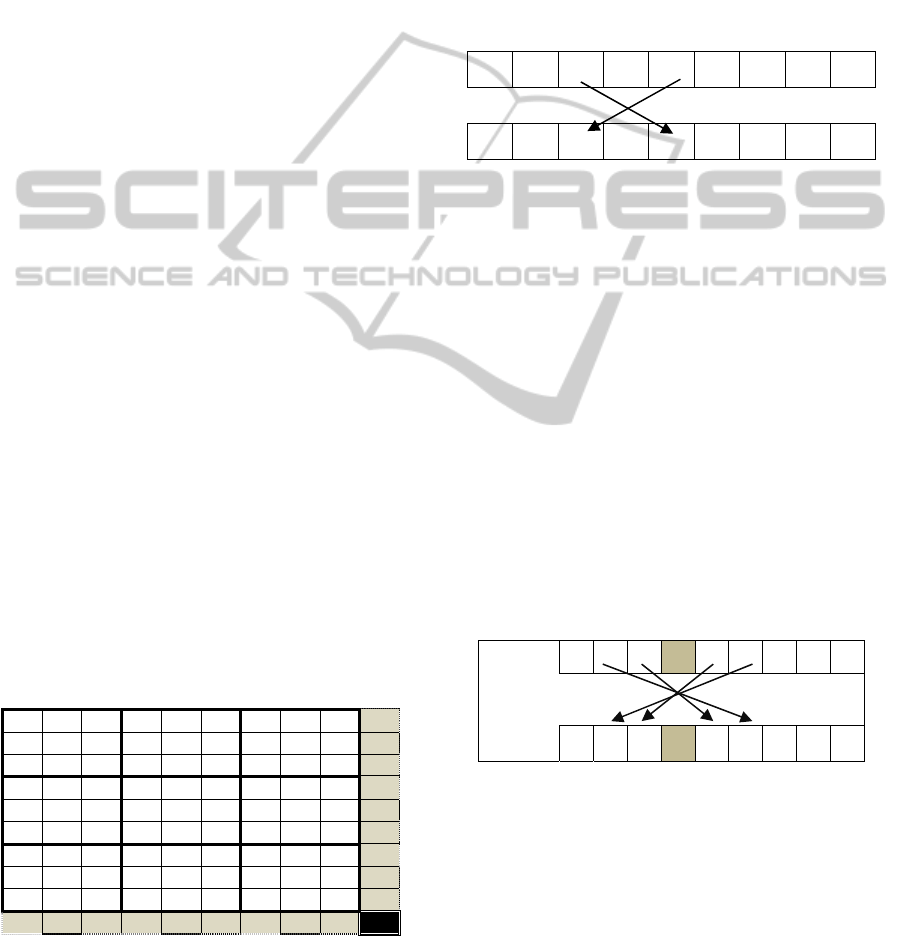

Table 1: Calculation of fitness of the sample Sudoku

puzzle

2 5

4 1

6 3

9 8

1 3

6 4 3

9 8 1

2 9 6 3

4 8

7 1 0

1 3 6 7 9 8 2 4 5 0

4 8

7 5

1 2 6 3

6 1

4 2 8

6 3

5 3 3

9 2

5 9

9 1

4 3

1 2 1 0 1 1 3 1 2

4.2 Neighbourhood Structures

The variety of neighborhood structures is an initial

condition to escape from local optima in order to

find the optimal solution. For this purpose, we

defined four neighborhood structures (NS).

Following sections describes each of them. While

the first three NS are used in VND local search

phase, the last one is used in shaking phase.

4.2.1 Exchange

In this structure, two non-fixed boxes in the same

sub-block selected randomly. Then they are simply

swapped as shown in Figure 3.

2 3 4 5 6 7

2 5 4 3 6 7

Figure 3: An example of exchange NS inside sub-block.

4.2.2 A Centered Point Oriented Exchange

(CPOEx)

This structure is used to explore new solutions in a

little further vicinity of a current solution. At first, a

box is selected randomly in a sub-block. NS is used

this box as a centered point to find exchange pairs.

Starting from the nearest boxes to the centered point,

exchange-pairs are determined and then applied

exchange NS. The CPOex continues to find

appropriate exchange-pairs until one or both boxes

of pair consisted of a fixed cell. A sample of CPOEx

is illustrated in Figure 4. The shaded box indicates a

centered point (cell 4) and bold numbers are fixed

(cell 1 and 8). In this example CPOEx are stands for

two exchange operations, but number of exchanges

depend on the location of the center point and fixed

cells in sub-block.

Before

2 3 4 5 6 7

After

6 5

4 3 2 7

Figure 4: Example of CPOEx with no changes in a sub-

block.

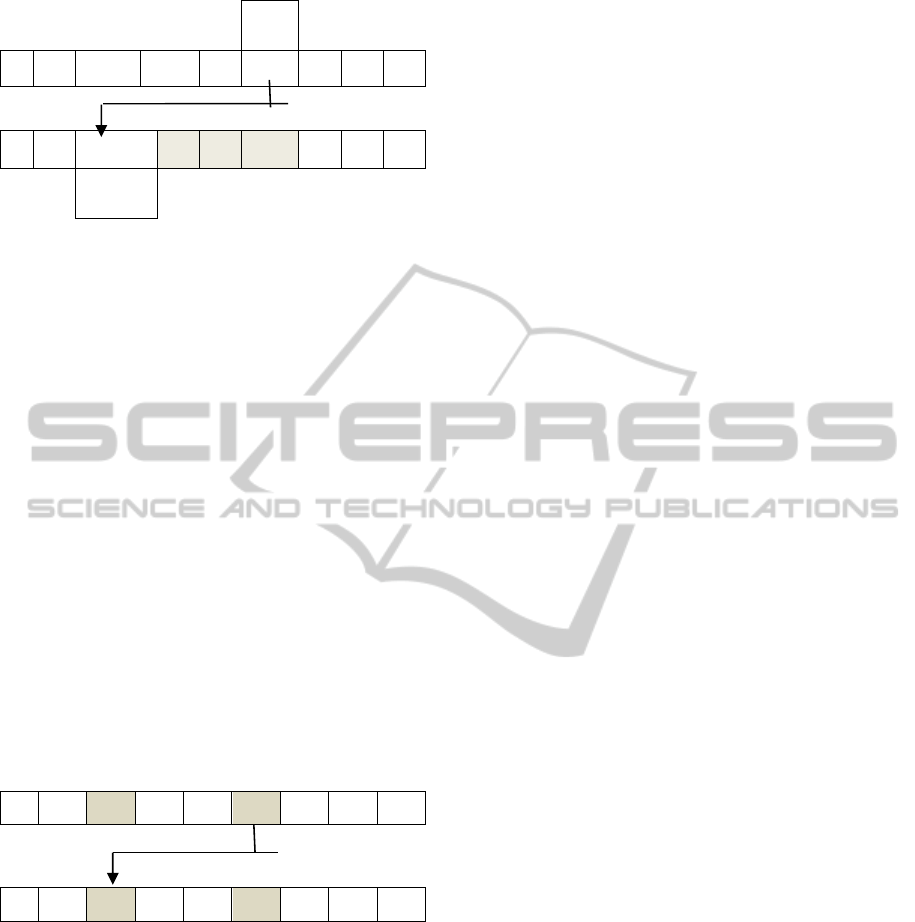

4.2.3 Insert

Another NS used in this study is inserting. This

structure performs an insertion of a box chosen

randomly from the sub-block, in front of another

randomly chosen box. An example of insert NS is

given in the Figure 5.

ECTA2014-InternationalConferenceonEvolutionaryComputationTheoryandApplications

328

Start

Point

2 3 4 5 6 7

2 6

3 4 5 7

Insertion

Point

Figure 5: Insert NS operation.

First we choose a random number as start point,

(box 6), then we choose another random number as

inserting point (box 3). The procedure is done by

inserting the number in box (6) in front of the box

(3). This operation will shift right

hand numbers.

Notice that the fixed box (8) wasn’t affected by the

fixed cells. If insertion of a box is fixed, the insert

does not work. But the other box is fixed the

insertion could be done without affecting the places

of fixed boxes.

4.2.4 Invert

The last NS is used in the shaking phase of GVNS.

The idea is to select two boxes in the sub-block

randomly, then invert a subsequence of boxes

between two selected boxes. Both the boxes outside

the range and the fixed boxes in the range are not

affected by the invert operation. In figure 6, we

randomly select cell 3 and 6 which means we have

four boxes {3,4,5, 6}. The inverse of these values we

get {6, 5, 4, 3}

3 4 5 6 7

2 6 5 4 3 7

Figure 6: Invert NS operation.

4.3 The Procedure

The algorithm starts with a generating initial

solution x randomly but at the same time we should

satisfy the third rule which ensures that no values are

repeated inside sub-blocks. In the course of

following two nested loops, the algorithm explores

the solutions and tries to find the best solution. Local

search and Shake functions perform this exploration,

systematically. The function Shake updates the

solution x, with another solution x’, by applying

Invert NS to some sub-blocks of the problem.

NSs are usually ranked in such a way that VNS

algorithm explores increasingly further away from

the incumbent solution. In our proposed algorithm,

we ordered NSs in local search phase as follows:

exchange, insert, and CPOEx. The tests also showed

that these order are more efficient than other orders.

The result of Shake, x’, is used as the starting point

for the local search. Starting from the first sub-

block, all variations of exchange pairs are

experimented. If the best solution of exchange NS xʺ

better than x’, the local search starts all over again

from exchange NS. Otherwise, local search

continues from next neighborhood structure. This

local search loop is terminated after all

neighborhood structures are exhausted. If the best

solution of local search xʺ better than x , algorithm

starts all over again from Shaking phase with xʺ

otherwise with x. This procedure goes on until

stopping condition is met. Possible stopping

conditions include maximum CPU time allowed,

maximum number of iterations or maximum number

of iterations between two improvements.

5 EXPERIMENTAL RESULTS

To test our VNS implementation with Sudoku

games, we choose 15 benchmark of Sudoku samples

(

http://lipas.uwasa.fi/~timan/sudoku/) which has been

used in testing GA based algorithm (Xiuqin et al.,

2012). The experiments are done 10 times for every

game sample with maximum iterations 10000. The

experimentation has been carried out on a PC

equipped with Intel(R) Core (TM) i3 2.53 GHz

processor and 4GB memory. The software coded in

Visual C#. The results are shown in Table 2.

We choose first five problem sets which

numbered from 1 to 5. Level 1 stand for easier level

and level 5 for the most difficult level. Each level

has three instances labeled as (a, b and c). From the

Table 2, results show that our VNS experiments with

maximum 10000 iterations can solve easy level

problems (level 1) including all three instances (a, b

and c) with high success ratio (100%, 90 and 80%)

respectively. This is a high rate of success exactly as

we expect. Also the time to solve this level is

acceptable except c instance which takes average

time more than others. The success rate is still high

in level 2 which is more difficult than level 1. The

iterations needed to solve level 2 become larger and

this increases the time as well. Level 3 can only

solve type (a) in high success rate. Other b and c can

be solved only 2 times out of 10 (20%). Level 5

which is the difficult level is a serious challenge to

AVariableNeighborhoodSearchforSolvingSudokuPuzzles

329

Table 2: Results on 15 Sudoku samples (i: iterations, t:

time in seconds.

#prb

success

rate%

maxi mini avgi

max

t

avgt

1

a 100 568 30 188 30 9.7

b 90 320 2 52 14 2.4

c 80 5472 243 2298 281 113

2

a 90 3427 616 1765 179 90

b 80 6994 858 2962 345 149

c 30 2007 367 952 95 45

3

a 80 1923 432 1156 96 59

b 20 8046 4116 6081 404 307

c 20 1434 918 1176 73 59

4

a 30 1831 874 1214 89 61

b 0 ‐‐‐‐ ‐

c 40 4165 343 1982 236 105

5

a 20 5345 123 2734 274 126

b 20 5036 4318 4677 235 222

c 10 4210 4210 4210 207 207

our VNS, even it failed to solve level 4 label b

within 10 tries, but it shows an acceptable rate of

success equal to 30% and 40% for labels a and c

respectively. The worst results are in level 5 with

only 10% successfully, the most difficult level (level

5) needs average of iterations between 2000 and

4000 to solve it 2 times out of 10 in a and b.

5.1 Comparing with HS

Harmony Search (HS) algorithm is tested with five

Sudoku instances in (Satyendra and Saumi, 2013).

Table 3 shows that our algorithm

outperform HS in

most of the experiments except the first problem

which is supposed to be the easier one among 5

problems. Our algorithm can solve this problem only

Table 3: Comparing VNS with HS.

#problem

HS VNS

SuccessRate% SuccessRate% timeavg

1 100 30 14.4

2‐ 90 1.7

3 35 100 0.051

4 15 40 19.9

5 10 90 27.5

3 times out of 10 tries. Interestingly, we can solve

instance of level 3 in very short time with average of

51 ms in rate of success equal to 100%. It seems not

to be so difficult or at least it has medium difficulty

because it has 52 fixed cells which seems to be solve

easily even by human. It’s clear that our algorithm

outperforms HS in success rate with fast average

time equal to 12.65 second.

5.2 Comparing with CA and GA

Finally, we compare our results with the results of

CA (Mantere and Koljonen, 2008), and NGA

(Xiuqin, Yongda and Ruichu, 2012) in Table 4.

Because that our algorithm is a trajectory-based

metaheuristic and their algorithms are population-

based algorithms, we think it’s not fair to comparing

number of generations with our number of iterations

as a comparing criterion. Instead, we believe rate of

success is important criterion as well as it is

common criterion between different algorithms. The

values in the table stand for success of rate in

finding optimal solution (fitness 0). As example the

first value under column (a) of CA algorithm means

the CA can solve the instance (a) 56 times out of

100, or the success rate is 56%. In NGA algorithm,

(<10) means that in 100 times trying, it can solve the

instance less than 10 times. From Table 4 we can

conclude that our algorithm gives us very

competitive results. The bold numbers mean the best

results in this table. It’s clear that our algorithm have

higher results in 10 instances and competitive results

in general.

Table 4: Comparison between CA, NGA and VNS in

terms of success rate.

CA NGA VNS

a b c a b c

a b c

100

90 80

40 30

90 80

20 10

80 20

4 7 7

5 4 8 9

20 20 10

6 CONCLUSIONS

In this paper, we propose a VNS-based algorithm for

solving the Sudoku problem and examine the

ECTA2014-InternationalConferenceonEvolutionaryComputationTheoryandApplications

330

performance of our algorithm based on solution

quality. Well-known variation of VNS which is the

combination of VNS and VND is implemented and

tested on three different levels Sudoku problems.

The proposed algorithm gives competitive results in

easy level and promising results in medium levels

problems.

This is a preliminary work on the Sudoku. In the

future we would like to improve our proposed VNS

algorithm by testing new combination of

neighborhood structures and other variation of VNS:

Reduced VNS in local search phase to improve

solution quality and execution time.

REFERENCES

Asif, M., 2009. ‘Solving NP-complete problem using

ACO algorithm’, in Proceedings of International

Conference on Emerging Technologies, IEEE

Computer Society pp. 13–16.

Crawford, B., Aranda, M., Castro, C., & Monfroy, E.,

2008. ‘Using constraint programming to solve Sudoku

puzzles’, in Proceedings of the third international

conference on convergence and hybrid information

technology (ICCIT),IEEE Computer Society, pp. 926–

931.

Gunther, J., & Moon, T. K., 2012. Entropy minimization

for solving Sudoku, IEEE Transactions on Signal

Processing, 60(1), pp. 508–513.

Lewis, R., 2007. Metaheuristics can solve Sudoku Puzzles,

Journal of Heuristics, pp.387-401

Li, Y.D.

，

Deng, X.Q., 2011. Solving Sudoku puzzles base

on improved genetic algorithm, Comput. Appl. Softw.

, vol. 28(3), pp.68-70.

Mladenovic, M., Hansen, 1997. Variable neighborhood

search,Computers and Operations Research, Vol.24,

pp. 1097–1100

Mantere, T. and Koljonen, J., 2007. Solving, Rating and

Generating Sudoku Puzzles with GA, in Proceedings

of the 2007 IEEE Congress on Evolutionary

Computation-CEC2007, Singapore, pp. 1382-1389 .

Mantere, T. and Koljonen, J., 2008. Solving and analyzing

Sudokus with cultural algorithms, in Proceedings of

the 2008 IEEE Congress Computational Intelligence -

WCCI2008, 1-6 June, Hong Kong, China, pp. 4054-

4061.

Mantere, T., Koljonen, J., 2009. Ant Colony Optimization

and a Hybrid Genetic Algorithms for Sudoku Solving,

in Proceedings of the 15th International Conference

on Soft Computing, Brno, Czech Republic, Mendell,

pp.41-48.

Satyendra, M., Saumi, S., 2013. Solution and Level

Identification of Sudoku Using Harmony Search, I.J.

Modern Education and Computer Science, pp. 49-55.

Simonis, H., 2005. Sudoku as a constraint problem, in

Proceedings of the 4th International workshop on

modelling and reformulating constraint satisfaction

problem, pp. 13–27.

Xiuqin, D., Yongda, Y., Ruichu, C., 2012. Sudoku with

New Genetic Algorithm, in Proceedings of the

international Conference on Artificial Intelligence and

Soft Computing Lecture Notes in Information

Technology, Vol.12, pp 431-440

Yato, T. and Seta, T., 2003. Complexity and Completeness

of Finding Another Solution and Its Application to

Puzzles, IEICE Trans. Fundamentals, E86-A (5),

p.1052– 1060.

AVariableNeighborhoodSearchforSolvingSudokuPuzzles

331
