Guidelines and Tool for Meaningful OWL-S Services Annotations

Domenico Redavid, Stefano Ferilli, Berardina De Carolis and Floriana Esposito

Computer Science Department, University of Bari “Aldo Moro”, Via E. Orabona, 4, Bari, Italy

Keywords:

Semantic Web Services, OWL-S Annotation, OWL, SWRL.

Abstract:

The current tools to create OWL-S annotations have been designed starting from the knowledge engineer’s

point of view. Unfortunately, the formalisms underlying Semantic Web languages are often incomprehensible

to the developers of Web services. To bridge this gap, it is desirable that developers are provided with suitable

tools that do not necessarily require knowledge of these languages in order to create annotations on Web

services. With reference to some characteristics of the involved technologies, this work addresses these issues,

proposing guidelines that can improve the annotation activity of Web service developers. Following these

guidelines, we also designed a tool that allows a Web service developer to annotate Web services without

requiring him to have a deep knowledge of Semantic Web languages. A prototype of such a tool is presented

and discussed in this paper.

1 INTRODUCTION

Ontologies are written by knowledge engineers and

require speciﬁc skills for their use (Staab and Studer,

2004). Formalisms such as Description Logics

(Baader et al., 2003), underlying the Web Ontology

Language (OWL)

standards, are incomprehensible

to the developers of Web services (Erl, 2005). As

it happened for the Web, where increasingly power-

ful browsers have allowed ordinary users to use the

Internet without knowing languages such as HTML

or XML, in order to promote the technologies related

to Semantic Web Services (SWS) (McIlraith et al.,

2001), it is desirable that developers are provided with

tools that do not necessarily require knowledge of

languages such as Resource Description Framework

(RDF)

, OWL, OWL for services (OWL-S)

and Se-

mantic Web Rule Language (SWRL)

The objective of this work is to propose solutions

that simplify the process of annotating SWSs in order

to facilitate the operation of automatic service com-

position. The technical experts that are in charge of

writing the Web services must be able to apply for

compositions of services that meet given goals and re-

quirements, and to get results expressed in languages

and formalisms that are easy to understand according

to their knowledge.

http://www.w3.org/TR/owl2-new-features

http://www.w3.org/RDF

http://www.w3.org/Submission/OWL-S

http://www.w3.org/Submission/SWRL

2 TECHNOLOGICAL

BACKGROUND

A Web service, as deﬁned by the World Wide Web

Consortium (W3C)

is a software system designed to

support interoperability between different machines

on the same network. It has an interface that de-

scribes the service in a suitable language, through

which other machines can interact with it. This in-

teraction takes place through the exchange of SOAP

messages, formatted according to the XML standard

and typically exchanged using the HTTP protocol.

A Web service is an abstract interface that needs to

be implemented by a software agent. The agent is

the concrete part (software or hardware) that sends

and receives messages, while the Web service is a

resource that contains the abstract set of functional-

ities provided by the agent. In a practical context, the

agent maintaining the same functionalities can vary

continuously. For example, the agent’s implementa-

tion might be modiﬁed or rewritten in a different lan-

guage, while the Web service stays unchanged over

time. Thus, a Web service is independent from both

implementation language and platform type. For it to

be used, in general, a service must be described and

advertised (Walsh, 2002). The Web Service Descrip-

tion Language (WSDL) speciﬁcations

have been de-

signed for this purpose. WSDL provides all the de-

http://www.w3.org

http://www.w3.org/TR/wsdl

130

Redavid D., Ferilli S., De Carolis B. and Esposito F..

Guidelines and Tool for Meaningful OWL-S Services Annotations.

DOI: 10.5220/0005160601300137

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2014), pages 130-137

ISBN: 978-989-758-049-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tails needed to invoke the service operations. Once

the WSDL is created, it can be published in a regis-

ter called universal Universal Description Discovery

and Integration (UDDI)

. Using WSDL and UDDI

any requester may seek for an appropriate service

(i.e., having the desired characteristics) and under-

stand how to invoke it.

The strengths of Web services can be summarized

as follows:

• they allow interoperability between different

software applications and on different hard-

ware/software platforms;

• they are speciﬁed using a text-based data format,

which is more understandableand easier to use for

developers;

• as they are based on the HTTP protocol, no

change is required to the security rules used as

ﬁrewall ﬁlters;

• once published, they can be combined with each

other (no matter who provides them and where

they are made available) to form integrated com-

plex services;

• they allow reuse of already developed applica-

tions;

• as long as the interface remains constant, the

changes made to the service remain transparent.

Despite their many strengths, Web services have

limitations for which solutions must be found. The

tasks of search, selection, composition and execution

of Web services are delegated to the developers, since

they know the semantics underlying each service. In

this way, they can obtain suitable combinations which

result in complex applications. In this practice lies the

main limitation of the commonly used Web services.

Indeed, since Web services were created to be used

by machines, delegating to humans such tasks as dis-

covery, selection and composition is too strict a con-

straint. To be able to automate these steps, machines

should be able to understand the semantics of the ser-

vices. This is achieved by enriching the existing Web

services with a semantic layer that expresses the func-

tionality of the service in a machine-understandable

way.

The choice of enriching existing resources is

clearly important in the context of the Web, where

rewriting the information architecture is not feasible.

The key to overcoming the syntax limitations is pro-

vided by the Semantic Web(Berners-Lee et al., 2001).

Making the Web machine-understandable is the spe-

ciﬁc aim of the Semantic Web. Currently, the ma-

chines maintain information without understanding

http://www.uddi.org/pubs/uddi

v3.htm

its meaning. When a search engine like Google stores

Web pages in its cache, it is not able to distinguish

whether the word ‘espresso’ refers to a train or a type

of coffee, or if ‘verdi’ is a color or the name of a com-

poser. With the Semantic Web this limitation is over-

come, since the resources in the network are associ-

ated with information that speciﬁes their semantics in

a format suitable to be interpreted and processed au-

tomatically.

2.1 OWL-S and SWRL Characteristics

OWL-S enables semantic descriptions of Web ser-

vices using the Service Model ontology, that deﬁnes

the OWL-S process model. Each process is based

on an IOPR (Inputs, Outputs, Preconditions, and Re-

sults) model. The Inputs represent the information

that is required for the execution of the process. The

Outputs represent the information that the process re-

turns to the requester

. Preconditions are conditions

that are imposed over the Inputs of the process and

that must hold for the process to be successfully in-

voked. Since an OWL-S process may have several

results with corresponding outputs, the Results en-

tity of the IOPR model provides a means to spec-

ify this situation. Each result can be associated to

a result condition, called inCondition, that speciﬁes

when that particular result may occur. It is assumed

that such conditions are mutually exclusive, so that

only one result can be obtained for each possible sit-

uation. When an inCondition is satisﬁed, there are

properties associated to this event that specify the cor-

responding output (withOutput property) and, pos-

sibly, the Effects (hasEffect properties) produced by

the execution of the process. Effects are changes

in the state of the world. The OWL-S conditions

(Preconditions, inConditions and Effects) are repre-

sented as logical formulas. Since OWL-DL offers

limited support to formulate constructs such as prop-

erty compositions without becoming undecidable, a

more powerful language is required for the represen-

tation of OWL-S conditions. For this reason, in OWL-

S these logical formulas are represented as simple

string literals or XML literals. The former allow to

use languages such as Planning Domain Deﬁnition

Language (PDDL) (McDermott, 1998) and Knowl-

edge Interchange Format (KIF)

, on which efﬁcient

process-oriented reasoning systems can be applied.

Since these systems work under the Closed World As-

sumption, a change of representation language from

Inputs, Outputs and Local variables (entities used within the

process) are SWRL variables and their types are deﬁned in the do-

main ontology.

http://www-ksl.stanford.edu/knowledge-sharing/kif

GuidelinesandToolforMeaningfulOWL-SServicesAnnotations

131

DL is required. This requirement is the main dis-

advantage, since it generates a change of semantics

where the presence of all necessary semantic con-

structs is not guaranteed (Borgida, 1996). The latter

allows to use languages whose standard encoding is

in XML, such as SPARQL

and SWRL (Horrocks

et al., 2005). Since these are SW languages, their

use overcomes the loss of semantics. SPARQL, how-

ever, was born as a query language for RDF, there-

fore the OWL-DL representation of effects is prob-

lematic. Moreover, SWRL is undecidable. A solution

for this problem has been proposed in (Motik et al.,

2005), where decidability is achieved by restricting

the application of SWRL rules only to the individu-

als explicitly introduced in the ontology. This kind

of SWRL rules, called DL-safe, makes this language

the best candidate for representing OWL-S condi-

tions (Redavid et al., 2013). Let us now brieﬂy men-

tion the features of SWRL that are relevant to our

aims. WRL extends the set of OWL axioms to in-

clude Horn-like rules in the form of implications be-

tween an antecedent (body) and consequent (head),

both consist of zero or more conjunctive atoms hav-

ing one of the following forms:

• C(x), with C an OWL class, P(x, y), with P an

OWL property,

• sameAs(x, y) or differentFrom(x, y), equivalent to

the respective OWL properties,

• builtIn(r, z

, . . . , z

), functions over primitive

datatypes.

where x, y are variables, OWL individuals or OWL

data values, and r is a built-in relation between

, . . . , z

(e.g., builtIn(greaterThan, z

, z

)). The in-

tended meaning can be read as: whenever the condi-

tions speciﬁed in the antecedent hold, then the con-

ditions speciﬁed in the consequent hold also. A rule

with conjunctive consequent can be transformed into

multiple rules by means of Lloyd-Topor transforma-

tions. Each rule has an atomic consequent.

2.2 Related Works

To the best of our knowledge, there are no recent pro-

posal of OWL-S tools for the OWL-S annotation. The

Prot´eg´e (Knublauch et al., 2004) plugin called OWL-

S Editor (Elenius et al., 2005) is most popular tool for

the creation of OWL-S descriptions.

The OWL-S tab can be considered as the main

point of user interaction, providing a more direct view

of the OWL-S classes and instances than what Prot´eg´e

provides by default. It contains the necessary panel

http://www.w3.org/TR/rdf-sparql-query

representing all instances of the main OWL-S classes:

Service, Proﬁle, Process, and Grounding. Further-

more, it has the following

• WSDL Support to create a “skeleton” of OWL-S

description based on a preexisting WSDL ﬁle.

• IOPR description and management.

• Graphical Overview of the “forest” of relation-

ships.

• an integrated execution environment for the

OWL-S so that developers could verify that their

speciﬁcations reﬂect their intentions, and to try

out different possibilities before deploying their

services.

• Process Modeling to model composite processes.

A composite process is constructed from subpro-

cesses that can in turn be composite, atomic, or

simple.

This plugin is available only for an old version of

Prot´eg´e having a limited suport to OWL.

The OWL-S IDE project

is also concerned with

the development of OWL-S services. The OWL-S

IDE is a plugin for Eclipse

, which attempts to in-

tegrate the semantic markup with the programming

environment. Developers can write their Java code in

Eclipse, and run an ad hoc tool to generate an OWL-S

“skeleton” directly from the Java sources. The idea

of integrating SWSs more closely with the program-

ming environ- ment used to develop the service im-

plementations is a good one. However, Eclipse does

not support ontology editing, and there is no KB from

which to choose the domain concepts to which the

OWL-S ﬁles should relate. Furthermore, it will of-

ten be more useful to generate the semantic markup

before the Java (or other) code, as the semantic de-

scriptions can be seen as a higher level of abstraction

of the programming modules. The OWL-S IDE does

not provide any graphical visualization of services or

processes.

Another OWL-S Editor is presented in (Scicluna

et al., 2004). It is a stand-alone program, providing

WSDL import as well as a graphical editor and visu-

alization for control ﬂow and data ﬂow deﬁnition. It

is not integrated with an ontology editor and shares

some of the drawbacks of the OWL-S IDE.

ODE SWS is a tool for editing SWSs “at the

knowledge level” (G´omez-P´erez et al., 2004), de-

scribing services following a Problem-Solving Meth-

ods (PSMs) (Fensel and Motta, 2001) approach. The

annotation task plays a subordinate role in this envi-

http://projects.semwebcentral.org/projects/owl-s-ide

www.eclipse.org

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

132

ronment, whereas a simpliﬁed vision of the OWL-S

annotation procedure is the main focus of our work.

The manage of SWRL rules the most popular tool

is the SWRLTab a development environment inte-

grated in Prot´eg´e-OWL

. It supports the editing and

execution of SWRL rules and includes a set of li-

braries that can be used in rules, including libraries

to interoperate with XML documents, and spread-

sheets, and libraries with mathematical, string, RDFS,

and temporal operators. A SWRL-based OWL query

language called SQWRL (Semantic Query-Enhanced

Web Rule Language)(O’Connor and Das, 2008) is

also provided. This plugin wasdevelopedfor Prot´eg´e-

OWL version 3. Although keeps unchanged the

SWRL semantics, it presents some issues: the OWL’s

open world assumption is not guaranteed leading, in

some situations, to nonmonotonicity. Unlike OWL

and SWRL, SQWRL adopts the unique name as-

sumption when querying.

The main difference between these tool and our

proposal lies in the fact that they are oriented to

knowledge engineering rather than a WSDL devel-

oper.

3 GUIDELINES FOR A CORRECT

ANNOTATION

With reference to the OWL-S and SWRL character-

istics described in Sect. 2.1, we propose the follow-

ing guidelines for encoding an OWL-S process into

SWRL rules. These guidelines provide precise indi-

cations to develop a prototype.

1. For every result of the process, there exists an in-

Condition that expresses the binding between in-

put variables and that particular result’s (output or

effect) variables.

2. Every inCondition related to a particular result

will appear in the antecedent of each resulting

rule, whilst the Result will appear in the conse-

quent. An inCondition is valid if it contains all

the variables appearing in the Result.

3. If the Result contains an Effect made up of many

atoms, the rule will be split into as many rules as

the atoms. Each resulting rule will have the same

inCondition as the antecedent and a single atom

as the consequent.

4. The Preconditions are conditions that must be true

in order to execute the service. Since these con-

ditions involve only the process Inputs, they will

http://protegewiki.stanford.edu/wiki/Protege-OWL

appear in the antecedent of each resulting rule to-

gether with inConditions. In this work we con-

sider all the Preconditions as being always true.

The ﬁrst guideline is necessary because there may

be processes where the binding is implicit. For exam-

ple, consider an atomic process having a single out-

put. Due to the single output, an explicit declaration

of the inCondition is not necessary. However, if the

inCondition is not speciﬁed, the second guideline is

not applicable. To overcome this problem, we add a

new inCondition that makes explicit the implied bind-

ing in an atomic processes with one output. This in-

Condition will be represented as an SWRL atom that

is always true, and therefore as an OWL property, that

will bind input and output in explicit way. In addition,

in order to represent SWSs using SWRL rules, one

needs to represent in them also preconditions, inCon-

ditions and effects explicitly declared in the service,

that is, the entire IOPR model. Preconditions, in-

Conditions and effects are represented as SWRL log-

ical formulas (i.e., as an antecedent or a consequent).

These logical formulas can be combined in order to

obtain SWRL rules as reported in Table 1.

Table 1: OWL-S representation by means of a SWRL rule.

BODY HEAD

Preconditions ∧ inCondition {Outputs} ∧ Effect

Finally, a general problem concerns how the Web

services are annotated. Web services must be anno-

tated using ontological classes only, without ever us-

ing primitive types (string, int, etc.) as their seman-

tics is too general. For example, consider an SWS for

searching for books, with the following input:

<process:Input rdf:ID="_CAR">

<process:parameterType

rdf:resource="xsd:#string"/>

</process:Input>

*where xsd = http://www.w3.org/2001/XMLSchema

Due to the fact that

process:parameterType

declared as a datatype, the class of this input is an

XML Schema datatype (string) instead of being an

entity belonging to the domain ontology. This prob-

lem becomes critical during the operation of SWS

composition. In fact, suppose that we need to ﬁnd

a service whose output type is the same as the input

type deﬁned in the example. Since such an input is

of type string, any service returning a string can be

composed with that SWS. In this way, the ﬁnal result

might be incorrect due to the semantics of the prim-

itive types. The problem is solved by annotating the

parameters of the input and output using ontological

classes without ever using primitive types. Referring

GuidelinesandToolforMeaningfulOWL-SServicesAnnotations

133

to the previous example, the input parameter should

annotated with the class Car of an ontology describ-

ing vehicles.

<process:Input rdf:ID="_CAR">

<process:parameterType

rdf:resource="&kb;#Car"/>

</process:Input>

*where &kb; is the ontology URI of Car

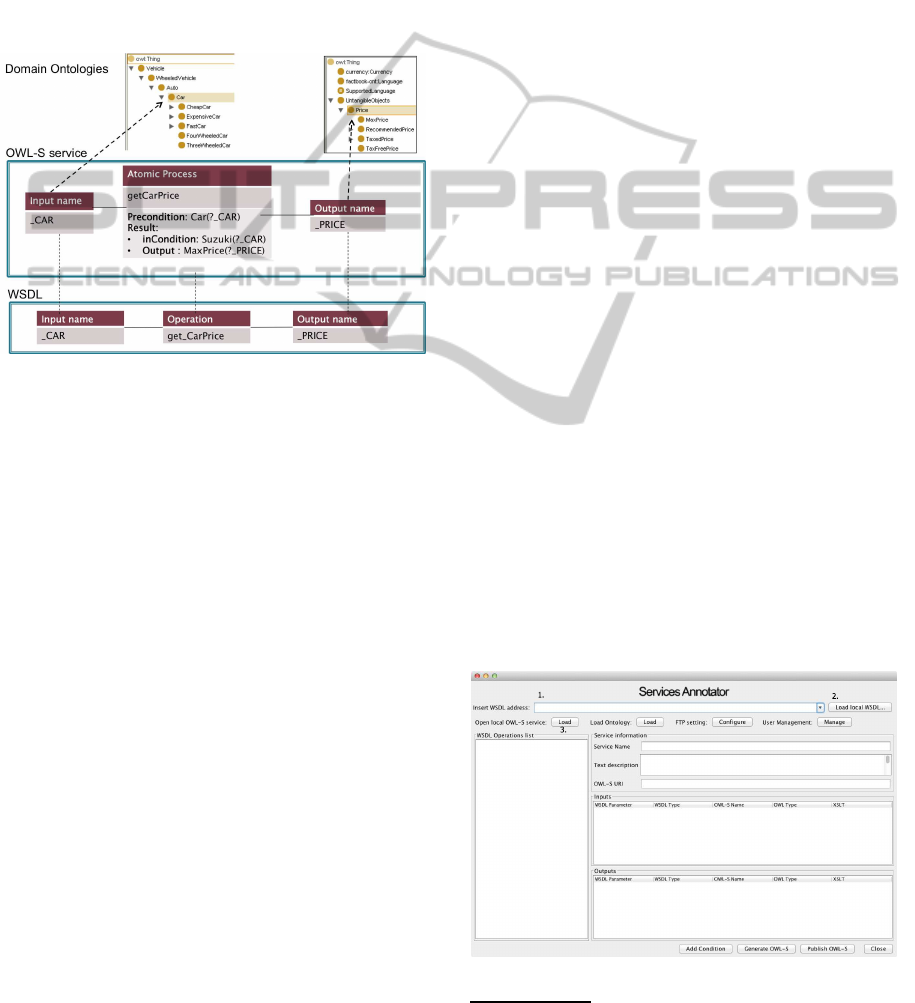

The Fig. 1 show the correct placing and relations

between Web service and SWS.

Figure 1: SWS abstraction layer.

4 OWL-S SEMANTIC

ANNOTATOR

To ensure the proper annotation of Web services and

a proper division of tasks among different users, we

have developed a tool that allows ad hoc annota-

tion using only the classes in the domain ontolo-

gies, thereby taking into proper consideration the di-

chotomy between the knowledge engineer and the de-

veloper of Web services. Thus, the developer of Web

services will be able to annotate Web services with-

out necessarily knowing the Semantic Web ontology

and rule languages. Moreover, in a context where

there are various professional roles, each in charge of

speciﬁc tasks, a clear division of tasks must be en-

sured. For example, there may be users in charge

of annotating Web services and others that must re-

lease them after checking. Once Web services are

annotated, it is necessary to ensure their persistence

in such a way that reusability is guaranteed. In this

way, it will be possible to search for existing OWL-S

descriptions through the Web before creating a new

one. At the end of this section an abstract solution to

manage OWL-S description will be proposed.

To ensure that every user has a deﬁned role that al-

lows him to perform only certain operations, the fol-

lowing subdivision of roles have been identiﬁed:

1. Annotators: can only create the OWL-S descrip-

tions.

2. Publishers: can also publish the OWL-S descrip-

tions.

3. Group Leaders: can assign permissions (Anno-

tator, Publisher, Group Leader) to existing users,

edit their data (username and password) or create

new users.

4. Administrators: can perform all the operations of

group leaders, and also manage the settings for the

connection to the repository for the publication of

OWL-S descriptions.

For it to be published, an OWL-S description re-

quires a common Web server that can potentially be

deployed anywhere on the Web. Once it has been cre-

ated, a mechanism is needed that allows the localiza-

tion of the resource on a physical machine which may

be different from the one where the OWL-S annotator

works. Currently, our prototype uses the File Transfer

Protocol (FTP)

for this purpose.

4.1 A Prototype Implementation

In this section we present the details about the an-

notation procedure of the OWL-S annotator. Start-

ing from a WSDL document, the user can create an

OWL-S service by simply choosing an OWL domain

ontology and annotating every single parameter of the

service with an ontology class selected from the on-

tological class hierarchy (i.e., the taxonomic view of

the ontology). Furthermore, once inputs and outputs

have been annotated, the user can declare logical con-

ditions corresponding to preconditions, inConditions,

and Effects in an intuitive manner.

Figure 2: OWL-S annotator main page.

http://www.w3.org/Protocols/rfc959/

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

134

The interface shown in Fig. 2 allows to:

1. enter the URL of the WSDL of the Web service to

be annotated;

2. select a local WSDL document to be annotated;

3. load a previously created OWL-S description for

editing purposes.

After loading a WSDL or an existing OWL-S de-

scription, the functionality of the various numbered

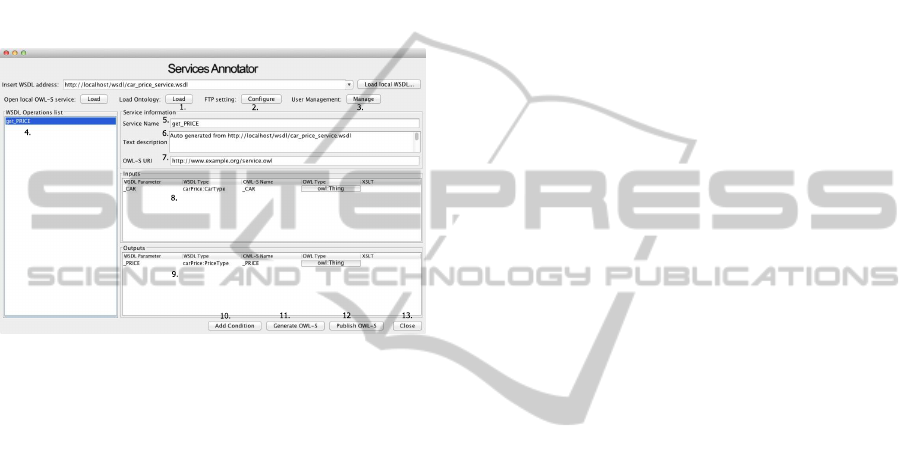

items in the graphical interface shown in Fig. 3) is as

follows:

Figure 3: OWL-S annotator core characteristics.

1. allows to choose the domain ontologies to be used

for annotating the parameters;

2. allows to conﬁgure the default settings for the

publication of OWL-S (this option is available

only to the Administrator);

3. is a button to access the panel that allows to man-

age users, register new ones, change their user-

name and password and assign a set of permis-

sions;

4. contains the list of all operations in the selected

WSDL (for each of these operations an OWL-S

atomic service can be created);

5. reports the name of the OWL-S service;

6. reports a text description of the OWL-S service;

7. reports the URI of the OWL-S service;

8. is the list of input parameters (for each of them,

the name in OWL-S can be changed and an anno-

tation can be made by clicking in the ’OWL class’

column);

9. is the list of output parameters (for each of them,

the name in OWL-S can be changed and an anno-

tation can be made by clicking in the ’OWL class’

column);

10. is a button to access the panel for the inserting

SWRL logical constructs;

11. is a button for generating the OWL-S description;

12. is a button for publishing the OWL-S description

on the Web (this option is not permitted to Anno-

tator users);

13. is a button to close the application.

4.2 SWRL Annotation

Once all the service parameters have been annotated,

one may create the service or continue with the ad-

dition of SWRL logical formulas by clicking on the

‘SWRL constructs’ panel. More speciﬁcally, it:

1. includes a Tab to enter preconditions;

2. includes a Tab to enter output, effects, and under

what conditions they occur;

3. can be used to insert an OWL class in precondi-

tions, selecting it from a tree view of the taxon-

omy (as in the case of record of the parameters of

the service);

4. can be used to insert an OWL Property in precon-

ditions.

5. after selecting a class or property, allows to enter

the process parameter that will be the argument of

the selected class or property;

6. after selecting a class or property, allows to en-

ter the individual who will be the argument of the

selected class or property;

7. displays in a comprehensible way all atoms en-

tered for the SWRL construct;

8. allows to cancel the atoms entered for the SWRL

construct;

9. allows to add the SWRL construct to the process;

10. contains a complete list of all the SWRL con-

structs entered in the process;

11. allows to save the changes.

By opening the ‘Output/Effects’ panel, the win-

dow shown in Fig. 4 is displayed. It consists of a

panel that includes three tabs. These tabs allow to

specify ‘Output’, ‘Effects’ and ‘Conditions’, respec-

tively. In the Output panel the user can select the out-

put to be returned, by clicking on the ‘Output’ but-

ton. Then, if the process returns multiple outputs, he

will be asked to select which output must be returned.

Let us now turn to examine the remaining tabs: ‘Ef-

fects’ and ‘Conditions’. The elements contained in

these tabs are the same as those appearing in the tab

‘Preconditions’. The buttons carry out the same func-

tions as those described for the Preconditions tab, as

well. The difference lies in the fact that by selecting

some items from the Preconditions tab they will be

GuidelinesandToolforMeaningfulOWL-SServicesAnnotations

135

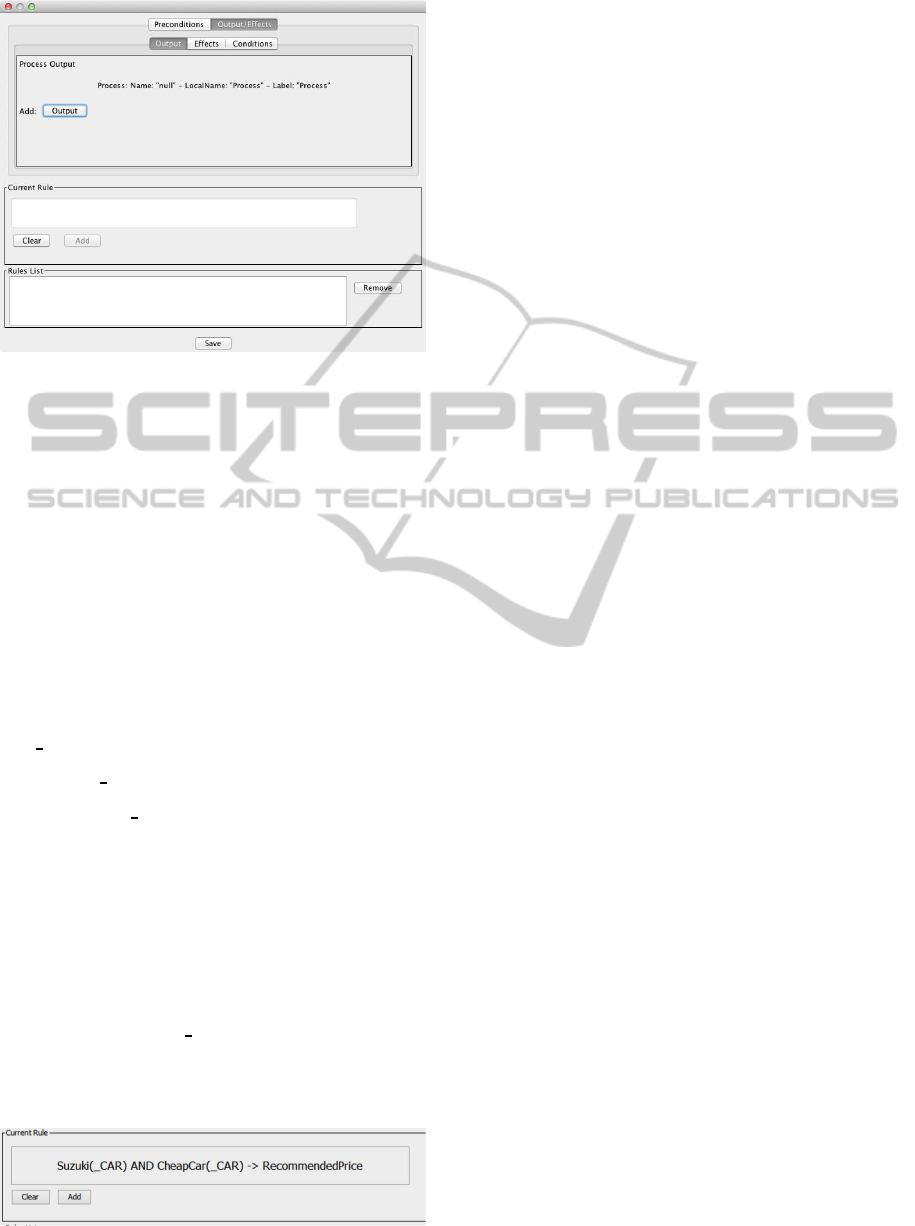

Figure 4: The “Output / Effects” panel.

added as preconditions of the process, while select-

ing them from the Effects tab they will be added as

the effects of the process, and selecting them from the

Conditions tab they will be added as necessary condi-

tions to return speciﬁc effects and/or speciﬁc output.

Let us now show an example of insertion. Our

SWRL construct will contain two conditions that are

combined in order to form a logical condition. When

these conditions are veriﬁed, the returned output will

belong to a particular OWL class. Speciﬁcally, sup-

pose the user wants to deﬁne that “the price of Suzuki

cheap cars the service will return must be of type Rec-

ommendedPrice” (an OWL class). Then he must de-

ﬁne the following two conditions on the input param-

eter

CAR:

• Suzuki(? CAR),

• CheapCar(? CAR).

To deﬁne these conditions he opens the tab ‘Out-

put and Effects’, selects the tab ‘Conditions’ and

clicks on the button to select the class ‘Suzuki’. Once

the class is selected, he clicks on the button ‘Variable’

and selects the parameter. He repeats the same pro-

cedure for the second condition, this time selecting

the class ‘CheapCar’. Now he must deﬁne the fact

that the output returned by the service will be of type

‘RecommendedPrice(? CAR)’. To do this, he selects

the tab ‘Output’ and, after clicking on the ‘Output’

button, he selects the class ‘CheapCar’. The entered

SWRL construct will be displayed as shown in Fig. 5.

Figure 5: SWRL construct display panel.

Through this view he may have a summary of the

SWRL atoms included in the construct. After enter-

ing all the constructs he deems as appropriate, he can

go back to the main screen and generate the OWL-

S service he has just created by means of the button

‘Generate OWL-S’. Later, he will also be able to pub-

lish it on the Web using the button ‘Publish’.

5 CONCLUSIONS AND FUTURE

WORKS

This work aimed at providing a tool for manual an-

notation of Web services, that would take into ac-

count the strengths and weaknesses of Semantic Web

technologies. We started from the description of

Web services, by specifying their meaning within

the Web community and describing the WSDL, the

de facto XML-based standard that allows to abstract

away from the concrete implementation of the ser-

vice. Then we analyzed the syntactic limitations of

Web Services, and speciﬁcally their constraining hu-

man experts to search, select, compose and execute

the Web Service. The key to overcoming the syn-

tax limitations is provided by the Semantic Web. In

particular, OWL allows to specify formal ontologies

that can be used to attach a meaning to WSDL inputs

and outputs. OWL-S is an OWL ontology that models

Web services at the abstract level by simplifying the

semantic association to the input parameters and out-

put. In order to specify the process model of a service,

rule based languages are necessary. As we have seen,

OWL-S allows to specify logical constructs in SWRL,

an extension of OWL, which enables the description

of preconditions and effects.

This paper proposed a set of guidelines for a cor-

rect annotation, and implemented them in a tool that

can be used by a Web service developer that is not an

expert in Semantic Web technologies in order to an-

notate his services. As future works we plan to extend

the ontology management tab in order to further facil-

itate the developer during the annotation procedure,

and to introduce the management of OWL-S compos-

ite processes, a validator that will allow to check the

correctness of the descriptions before generating the

OWL-S service, and a graphical tab to visualize the

complex services. Furthermore, and most important,

we plan to introduce additional modules that exploit

NLP approaches able to suggest the most appropriate

OWL entities to be used for annotation.

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

136

ACKNOWLEDGEMENTS

This work was partially funded by the Ital-

ian PON 2007-2013 project PON02

00563 3489339

‘Puglia@Service’.

REFERENCES

Baader, F., Calvanese, D., McGuinness, D., Nardi, D., and

Patel-Schneider, P., editors (2003). The Description

Logic Handbook. Cambridge University Press.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

Semantic Web. Scientiﬁc American.

Borgida, A. (1996). On the relative expressiveness of de-

scription logics and predicate logics. Artif. Intell.,

82(1-2):353–367.

Elenius, D., Denker, G., Martin, D., Gilham, F., Khouri, J.,

Saadati, S., and Senanayake, R. (2005). The OWL-S

Editor - A Development Tool for Semantic Web Ser-

vices. In G´omez-P´erez, A. and Euzenat, J., editors,

ESWC, volume 3532 of Lecture Notes in Computer

Science, pages 78–92. Springer.

Erl, T. (2005). Service-Oriented Architecture: Concepts,

Technology, and Design. Prentice Hall PTR, Upper

Saddle River, NJ, USA.

Fensel, D. and Motta, E. (2001). Structured Development of

Problem Solving Methods. IEEE Trans. Knowl. Data

Eng., 13(6):913–932.

G´omez-P´erez, A., Gonz´alez-Cabero, R., and Lama, M.

(2004). Development of Semantic Web Services at the

Knowledge Level. In Zhang, L.-J., editor, ECOWS,

volume 3250 of Lecture Notes in Computer Science,

pages 72–86. Springer.

Horrocks, I., Patel-Schneider, P. F., Bechhofer, S., and

Tsarkov, D. (2005). OWL rules: A proposal and pro-

totype implementation. J. of Web Semantics, 3(1):23–

40.

Knublauch, H., Fergerson, R. W., Noy, N. F., and Musen,

M. A. (2004). The Prot´eg´e OWL Plugin: An Open

Development Environment for Semantic Web Appli-

cations. In McIlraith, S. ., Plexousakis, D., and van,

Harmelen, r. a. n. k., editors, The Semantic Web ISWC

2004, volume 3298 of Lecture Notes in Computer Sci-

ence, chapter 17, pages 229–243. Springer Berlin /

Heidelberg, Berlin, Heidelberg.

McDermott, D. (1998). PDDL — the planning domain def-

inition language.

McIlraith, S. A., Son, T. C., and Zeng, H. (2001). Semantic

Web Services. IEEE Intelligent Systems, 16(2):46–53.

Motik, B., Sattler, U., and Studer, R. (2005). Query An-

swering for OWL-DL with rules. Journal of Web Se-

mantics: Science, Services and Agents on the World

Wide Web, 3(1):41–60.

O’Connor, M. J. and Das, A. K. (2008). SQWRL: A

Query Language for OWL. In Hoekstra, R. and Patel-

Schneider, P. F., editors, OWLED, volume 529 of

CEUR Workshop Proceedings. CEUR-WS.org.

Redavid, D., Ferilli, S., and Esposito, F. (2013). Towards

Dynamic Orchestration of Semantic Web Services. T.

Computational Collective Intelligence, 10:16–30.

Scicluna, J., Abela, C., and Montebello, M. (2004). Vi-

sual Modelling of OWL-S Services. In IADIS Inter-

national Conference WWW/Internet.

Staab, S. and Studer, R., editors (2004). Handbook on

Ontologies. International Handbooks on Information

Systems. Springer.

Walsh, A. E., editor (2002). Uddi, Soap, and Wsdl: The

Web Services Speciﬁcation Reference Book. Prentice

Hall Professional Technical Reference.

GuidelinesandToolforMeaningfulOWL-SServicesAnnotations

137
