Cognitive Systems in Intelligent Vehicles

A New Frontier for Autonomous Driving

Elvio Amparore

, Marco Beccuti

, Simona Collina

Flavia De Simone

, Susanna Donatelli

and Fabio Tango

Department of Computer Science, Università di Torino, C.so Svizzera 187, Torino, Italy

Facoltà di Scienze della Formazione, Università degli Studi Suor Orsola Benincasa, Napoli, Italy

Centro Ricerche FIAT (CRF), Via Principe Amedeo, 12, Torino, Italy

Keywords: Partial Autonomous Driver Assistance Systems (PADAS) and Advanced Driving Assistance Systems

(ADAS), Intelligent Vehicles, Autonomous Driving, Human-Automation Interaction, Artificial Cognitive

Systems, Markovian Decision Process (MDP), Petri Nets (PN).

Abstract: This position paper introduces the concept of “artificial co-pilot” (that is, a driver model), with a focus on

driver’s oriented cognitive cars, in order to illustrate a new approach for future intelligent vehicles, which

overcomes the limitations of nowadays models. The core consists in adopting the human cognitive frame-

work for vehicles, following an artificial intelligent approach to take decisions. This paper illustrates in de-

tails these concepts, as they are under development in the EU co-funded project HOLIDES.

1 INTRODUCTION

Nowadays, automation systems to support, or even

to replace, human drivers have become a trend in the

current Intelligent Transportation Systems research.

They are called Advanced Driver Assistance Sys-

tems (ADAS) or Partially Autonomous Driving

Assistance Systems (PADAS), depending on the

level of automation considered; anyway, their goal is

to strengthen driver’s sensing ability, to warn / in-

form in case of errors and to reduce the control ef-

forts of the vehicle itself. In fact, drivers are limited

in recognizing, interpreting, understanding and oper-

ating in critical situations; moreover, they are prone

to errors and to get tired (many accidents are due to

human wrong behaviour, drowsiness, or inattention

in general (Tango, 2013)). Therefore, these

ADAS/PADAS can effectively avoid some acci-

dents, by cooperating with the driver and assuring

the mutual understanding between the human-agents

and the machine-agents, in order to reduce or avoid

conflicts. This principle of smart collaboration be-

tween humans and machines have been the focus of

a number of theoretical studies, such as (Inagaki,

2008), (Flemisch, 2003), (Heide and Henning,

2006), (Li, 2012), in which full automation can be

regarded as one extreme point of interaction spec-

trum.

In particular, for Li and colleagues, the concept of a

“cognitive vehicle” was proposed and defined as

cognitive driving assistance systems, which – utiliz-

ing the findings of multidisciplinary engineering and

cognition science – is able to monitor and detect the

errors of human drivers and correctly respond / in-

tervene to avoid accidents. As mentioned by Da Lio

and colleagues, depending on its application context,

a system capable to determine how a human expert

should drive, can be regarded as an artificial co-

driver, which is considered a symbiotic system, that

is, it is described using the rider-horse metaphor (or

H-metaphor), in which an animal can “read” human

intentions and, reciprocally, the rider can “read” the

animal’s intentions.

The goal of this position paper is to illustrate a

new approach for the implementation of this virtual

driver (hereafter, co-pilot), which adopts a human

cognitive framework as basis and follows an artifi-

cial intelligence approach. This activity is carrying

out inside the European co-funded project

HOLIDES, whose main goal is to design adaptive

cooperative systems, focussing on the optimization

of the distribution of workloads between humans

and machines, to compensate losses of capacities for

instance in stress situations (http://www.holides.eu/).

817

Amparore E., Beccuti M., Collina S., De Simone F., Donatelli S. and Tango F..

Cognitive Systems in Intelligent Vehicles - A New Frontier for Autonomous Driving.

DOI: 10.5220/0005160808170822

In Proceedings of the 11th International Conference on Informatics in Control, Automation and Robotics (IVC&ITS-2014), pages 817-822

ISBN: 978-989-758-040-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 MODELLING THE DRIVER

Theories of cognition can be divided in two separate

classes according to the role that context plays in

cognitive processes. The implication for the artificial

systems lays at the core of the debate among these

different perspectives. The new embodied view,

aiming at reducing the relationship between the

individual and the environment in the cycle percep-

tion-action, suggests that information needed to act

on the environment are given by the context, without

any intervention of high cognitive processes (as in

(Da Lio, 2013)). On the contrary, classic views of

cognition divide between low and high cognitive

processes being the high level of processing abstract

and independent from the sensor modality through

which information is acquired. Active Control of

Thought – Reflexive (hereafter ACT-R) is a compu-

tational model aimed to simulate the behaviour of a

driver (Salvucci, 2006) following the second per-

spective. ACT-R emphasizes the effort to integrate

different sources as the task that a person is going to

perform, the artefact necessary to perform the task

and the cognition through which a person perceives,

reasons and acts. ACT-R is an example of how cog-

nitive processes are inserted into computational

models to simulate driving behaviour. However, it

reflects also the limits and the gaps between research

on cognition and their implementations. The cogni-

tive module is embodied in nature but inserted in a

modular architecture and without a clear explanation

about how the different processes interact each oth-

er.

Starting from ACT-R, but with the specific aim

to improve safety control and to reduce the number

and the impact of human errors in human-machine

interaction, the Cognitive Architecture for Safety

Critical Task Simulation (hereafter CASCaS) archi-

tecture has been developed. As described by Lüdtke,

Weber, Osterloh and Wortelen (2009), the CASCaS

model is a three layers architecture, which distin-

guishes the human behaviour on the base of different

intentional demands:

1) autonomous behaviour: the level of “acting

without thinking”; it is the level of the manual con-

trol which controls everyday low level actions;

2) associative behaviour: the level of actions

based on plans elaborated in familiar contexts;

3) cognitive behaviour: the level of elaboration

of new plans in new contexts.

In short, the functioning of the model is based on

rules stored at the associative level in a memory

component. Each rule has an “if…then” structure

which relies an action on a goal, a series of sub-

goals and conditions imposed by the context.

Unlike the ACT-R architecture, CASCaS model

allows parallelism between autonomous and associa-

tive layer simulating the human ability to manage

two tasks simultaneously.

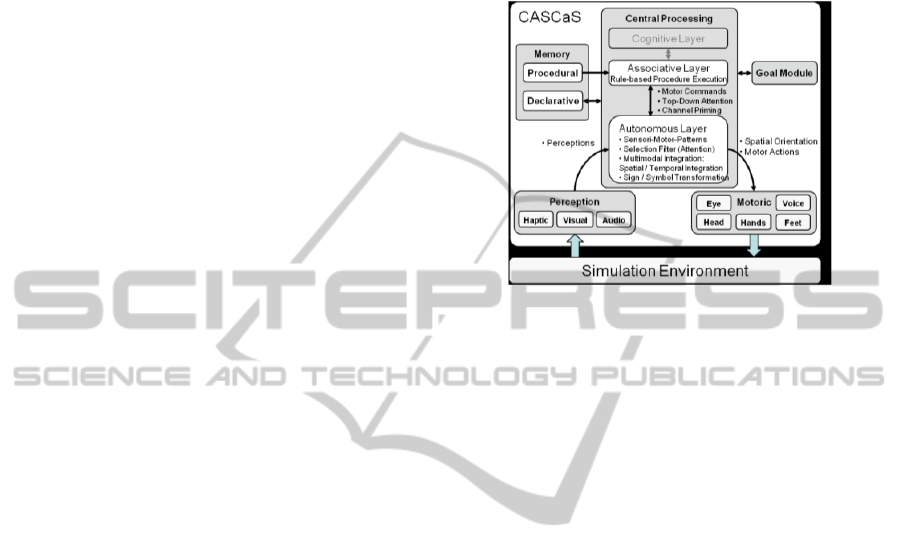

Figure 1: the cognitive architecture CASCaS.

For the implementation of the co-pilot in the

HOLIDES vehicle demonstrator, we have adopted

the CASCaS architecture as a basis, reproducing the

autonomous behaviour and the associative behaviour

into the co-pilot architecture (the cognitive layer can

be foreseen as a further step of model development).

The adopted probabilistic approach is described in

the following sections.

3 IMPLEMENTING THE DRIVER

MODEL

The new artificial driver solution we propose ex-

ploits probabilistic techniques, in particular Markov

Decision Process (MDP) (Howard, 1960; Bellman,

1957) which we briefly recall in the following to

pave the way to the explanation of how MDPs are

been applied inside the CASCaS architecture, for the

case under study.

3.1 Markov Decision Processes

MDP is a mathematical formalism introduced in the

1950s by Bellman and Howard (Howard, 1960;

Bellman, 1957) in the context of operations research

and dynamic programming. It has been used in a

wide area of disciplines including economics, manu-

facturing, robotics, automated control and communi-

cation systems. More precisely, it is a stochastic

control process, where, at each time step, the process

is in some state ∈, and a decision maker may

choose any action ∈ that is available in s. Then,

ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics

818

the process responds by randomly moving into a

new state s’ according to a specified transition prob-

ability, and giving to the decision maker the corre-

sponding reward (cost) R

(s,s’) (depending by the

chosen action and by the source and destination

state).

A key notion for MDPs is the strategy, which de-

fines the choice of action to be taken after any pos-

sible time step of the MDP. Analysis methods for

MDPs are based on the identification of the strate-

gies that maximize (or minimize) a target function

based on the MDP’s rewards (or costs).

It has been proved that the maximal (or minimal)

reward and its associated optimal strategy for an

MDP can be computed in polynomial time using

linear programming techniques. However this is not

practical for large MDPs, and alternative solution

techniques based on iterative methods have been

proposed, such as value iteration and policy itera-

tion. Roughly speaking, value iteration (Bellman,

1957) consists in the successive approximation of

the required values. At every iteration, a new value

for a state is obtained by taking the maximum (or

minimum) of the values associated with the state’s

outgoing actions. A value of an action is derived as a

weighted sum over the values, computed during the

previous iteration, of the possible next states, and

where the weights are obtained from the probability

distribution associated with the actions. Each itera-

tion can be performed in time O(





∙



), where S

is the state space set and A the set of all the possible

actions. Instead the policy iteration algorithm (How-

ard, 1960) alternates between a value determination

phase, in which the current policy is evaluated, and a

policy improvement phase, in which an attempt is

made to improve the currently computed policy. The

policy improvement step can be performed in





∙



), while the value determination phase in





) by solving a system of linear equations. In

this regard, a critical issue for the application of

MDPs to realistic complex problems is scalability

with respect to the MDP size: for MDPs with very

large or infinite state space, these algorithms may be

inapplicable, and approximate solution techniques

are the only viable approach.

In this paper we focus on sparse sampling tech-

niques (Kearns et al., 1999), which do not need a

complete description of the MDP, but that only

require access to a generative model that can be

queried to generate, from an initial state, a smaller

MDP that is still sufficient to compute a near-

optimal strategy. Hence, the complexity of these

approaches does not have dependence on the global

MDP size, but it is exponential in the solution hori-

zon time (which depends on the desired degree of

approximation of the optimal policy).

Obviously a crucial aspect of this technique is

the definition of the generative model which, taking

in input a state-action pair



, 



, must be able to

randomly generate a next state s’ according to a

transition probability P

s,a

(



In this paper, we propose to exploit the high level

formalism, called Markov Decision Petri Net

(MDPN) as starting point for the generative model.

A MDPN models a system in terms of its events,

while for an MDP the system evolution has to be

expressed by explicitly describing all possible states,

actions and probabilistic transitions. The high level

description of the MDPN can ease the modeller task

and can reduce the risk of introducing errors.

3.2 Markov Decision Petri Nets

The MDPN formalism provides a graphical descrip-

tion of the system, where a complex non-

deterministic or probabilistic behaviour is described

as a composition of simpler nondeterministic or

Figure 2: sub-net for the vehicle speed.

probabilistic steps in which the probabilistic behav-

iour is clearly distinct from the non-deterministic

one. In details, a MDPN model is composed by two

Petri nets: the probabilistic subnet N

(enriched with

a transition weight function) and the non-

deterministic subnet N

. These subnets represent the

probabilistic and non-deterministic behaviours of the

underlying MDP, respectively.

Figure 2 shows a simple probabilistic sub-net

modelling the vehicle speed. According to PN

notation the places, graphically represented as cir-

cles, correspond to the state variables of the system

(i.e. Low, Normal and High), while the transitions

(graphically represented as boxes) correspond to the

events that can induce a state change (i.e. Decreas-

, IncreaseS

, and StableS

). The arcs connecting

places to transitions and vice versa express the rela-

tion between states and event occurrences. Each

place can contain tokens, drawn as black dots. The

number of tokens in each place defines the state,

Vehicle speed

Low

Normal

High

DecreaseS

IncreaseS

St abl eS

DecreaseS

IncreaseS

St abl eS

CognitiveSystemsinIntelligentVehicles-ANewFrontierforAutonomousDriving

819

Figure 3: sub-net for the co-pilot’s actions.

called “marking”. The evolution of the system is

given by the firing of an enabled transition

, which

removes a fixed number of tokens from its input

places and adds a fixed number of tokens into its

output places (according to the cardinality of its

input/output arcs).

Figure 3 shows a non-deterministic subnet N

which the automatic driver can choose among three

possible actions: break, do no action, or send a

warning.

Observe that N

and N

can share places (as

shown in Figure 3, where the places L

…L

belong

to a probabilistic sub-model describing the level of

driver's attention), but they cannot share transitions.

Moreover, an MDPN model must have an asso-

ciated reward function defined in terms of its places'

markings and of transition firings; such reward func-

tion is used to compute the corresponding MDP

reward to be optimized.

The generation of the MDP corresponding to a

given MDPN has been described in details in (Bec-

cuti et al., 2007): it consists of (1) a composition

step, merging the two subnets in a single net, (2) the

generation of the RG of the composed net, (3) two

reduction steps transforming each PR and ND se-

quence in the RG into a single MDP transition.

3.3 The MDPN Model

The MDPN model that we use to derive the MDP of

our co-driver requires defining first a multi-interval

discretization of all the continuous-valued measures

collected by the sensors (i.e. frontal Long Range

Radar, Lane Recognition Camera and rear Short

Range Radar for the blind-spot areas). Obviously a

higher number of intervals increase the quality of the

solution, but it makes the model more complex.

Therefore, the most appropriate trade-off is an im-

portant part of our planned investigation during the

HoliDes project.

The second step is a careful selection of which sys

A transition is enabled if each input place contains a number of

tokens greater or equal than a given thresh-old, and each inhibitor

place contains a number of to-kens strictly smaller than a given

threshold.

tem's components have to be modelled. Our initial

proposal is to consider the following system's com-

ponents:

 A vehicle component describing the vehicle

dynamic status (according to the infor-

mation available on CAN bus);

 A driver component describing the driver

status as reported in section 2;

 An obstacle component describing the ob-

stacle status in terms of its relative speed

and position (longitudinal and lateral) w.r.t.

our vehicle;

 An action component describing the possi-

ble actions (e.g. to break, to do no action, to

send a warning) that the artificial driver can

execute.

It naturally follows that the first three compo-

nents will be used to generate the corresponding N

net, while the last one the N

net.

Moreover, the reward function for this MDPN

model can be defined by combining the following

transition reward:

 if action Break is selected then it returns

Cost

Break

;

 else if action SendWarning is selected then

it returns Cost

SendWarning

else it returns 0;

with the following marking reward:

 if place Collision is marked then it returns

Cost

Collision

else it returns 0;

with Cost

Collision

≫Cost

Break

≥ Cost

SendWarning

This obtained reward function is hence able to

assure that the system goal is to avoid collision min-

imizing the total number of actions Break and

SendWarning. Obviously, more complex reward

functions could be also investigated during the pro-

ject.

3.4 Integration in the Vehicle

Vehicle integration is shown in Figure 4, where the

On-line Sparse Sampling Algorithm (OSSA) uses

the MDP derived automatically by MDPN model as

generative model. Practically, data collected by the

vehicle's sensors are discretized to map them on a

specific MDP state s.

Then, such MDP state is passed as input to the

OSSA, which will return a small “sub-MDP” to be

solved to derive a near-optimal strategy.

In details, starting from state s the OSSA will

query the generative model N times on each possible

pair

〈

, 



〉

. Then, this step is recursively applied on

any generated states up to a selected time horizon H.

Driver StatusPossible actions

Brake

NoAction

SendW ar n i ng

ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics

820

Figure 4: schema of vehicle integration.

This essentially generates a sub-MDP with a tree

structure (as shown in Figure 4) where the number

of children for each node s is N·|A

|, assuming A

be the set of all the available actions in s. Moreover

H gives the tree depth.

Finally this generated sub-MDP is solved (using

policy or value iteration algorithms) to derive a near-

optimal strategy, which is used to suggest the next

action to the current driver.

4 DISCUSSION AND

CONCLUSIONS

Researchers have widely investigated the possibility

to reduce or eliminate the accidents due to driver’s

errors or inappropriate behaviors, by using specific

ADAS/PADAS applications that warn the driver or

even by using automated systems that can replace

the human user, by taking control of the vehicle in a

proper time. In this position paper, we have selected

an appropriate cognitive model and related architec-

ture (CASCaS) of the driver and implemented an

artificial co-pilot starting from it and reproducing the

autonomous and associative layers. To achieve that,

we follow a probabilistic approach, described in

terms of Markov Decision Petri Net formalism. In

Figure 5, the architectural scheme of the co-pilot is

shown. Under normal condition, the driver (the hu-

man-agent) perceives the environment, evaluating

the possible risks (using the information from the

co-pilot as a support). Based on these results, the

driver formulates an intention and plans the next

action (a trajectory in the future), which are imple-

mented by acting on the pedals and on the steering.

In the meanwhile, if a co-pilot is present, it analyzes

the environment as well, and predicts the possibility

to have a crash or a potentially critical situation.

Thus, the co-pilot assesses risks creating its own

driving plan, comparing this maneuver with the one

that the driver is actually performing and taking into

consideration the intention of the driver. This deter-

mines how dangerous a given situation can be, and

thereby the level of automation which is necessary

(e.g. by displaying a warning signal or some infor-

mation to the human-agent, or whether an automatic

intervention is needed).

Figure 5: co-pilot scheme in HoliDes.

With respect to the current state of the art, we

consider the works of Da Lio and colleagues, of Wu

and colleagues and also of Li and colleagues. In (Da

Lio, 2006) the perception-action framework is con-

sidered (embodied view); in this paper, we regard

the “classical” view of cognition as the most appro-

priate, because we can reproduce the different levels

of cognition in a hierarchical way which can be

reproduced in a system architecture and implement-

ed by a computational point of view. In this context,

our choice of using CASCaS is motivated by its

goal-oriented model, for which its predictions are

easier to be generalized respects to a task-oriented

model (e.g. it can be applied to automotive domain

or to aeronautics domain, indifferently), by using a

probabilistic approach, such as the one described.

In this sense, we follow the line indicated by Li

and colleagues, with their concept of “cognitive

car”, where our co-pilot can be regarded as an in-

stantiation. Another contribution of our work is

about the understanding of which functions can be

automated next and to which extent. This could

provide a kind of roadmap towards the realization of

fully autonomous vehicles in a near or far future,

where the co-pilot can substitute the human driver

(although the introduction of more automated hu-

man-machine systems should occur gradually).

Finally, it is worth to mention the work of NaiQi

Wu and colleagues, since they adopted Coloured

Hybrid Petri Nets (CHPN). Their goal was to show a

model based on CHPN to describe cooperation be-

haviour between a driver and a co-pilot in an ADAS

samplin

numbe

st at e s

horizon

Online sparse

sampling algorithm

Transition

function

Actions

gene

ated sub-MD

MDP Solver

Policy iteration

Value iteration

Policy and value iteration

…

a2a1 a2a1 a2a1 a1 a2

a1 a2

a1 a1 a2a2

a1 a2

... ...

at egy

Environment*

Driver*(human*agent)*

Percep5on*

Situa5on*

assessment*(incl.*

risk*evalua5on)*

Maneuver*(by*

user)*

Planning*

Co?pilot**

(machine*agent)*

Percep5on*

Situa5on*

assessment*(incl.*

risk*evalua5on)*

Co?pilot*

Maneuver*

Planning*

Driver**

Inten5on*

Driving*Mode*

Selec5on*(LOA)*

Control*

Actuators*

Control*

Manual*mode**

(warning*/*info*

to*the*driver)*

Automa5c*system*interven5on)*

CognitiveSystemsinIntelligentVehicles-ANewFrontierforAutonomousDriving

821

application. They showed that their model is dead-

lock-free and conflict-free. In our case, Petri Nets

are used instead as a high level formalism for the

MDP, which derives the strategy of the co-pilot

itself and the intelligence of the automated system.

To sum up, in this position paper we have at-

tempted a new technological system for co-pilot

implementations, using MDP for the computational

implementation of the cognitive system. Since

HOLIDES project have just started October 2013,

the development of the proposed framework is in its

initial phase. The next steps consist now in the prep-

aration and execution of the experimental phase on

the field with the demonstrator vehicle to collect

real-time and on-line data for the tuning and the

evaluation of the MDP co-pilot. This phase, together

with the prototype set-up, is foreseen in this year and

at the beginning of 2015; while the final implemen-

tation and assessment of the co-pilot will be the

activity to carry out within the end of the project

(August 2016).

One important future work will be to investigate

the possibility of extending this approach using

Partially Observable MDP (POMDP) (Leslie,

1995)). Indeed, a POMDP is a generalization of an

MDP, in which an agent must base its decisions on

incomplete information about the state of the envi-

ronment. Hence, POMDP can be used more effi-

ciently to model systems where the agent cannot

directly observe the complete underlying state.

However, POMDPs are often computationally in-

tractable to solve a real system and its approximate

solution techniques for POMDPs could not provide a

sub-optimal solution that satisfies the time con-

straints imposed by our application.

In addition, another important achievement is

represented by the full exploitation of the CASCaS

framework, in particular for the cognitive behaviour.

In this context, the integration of driver’s state clas-

sifier inside the co-pilot (driver state becomes an

input in this case) is a crucial point for deciding the

level of automation.
