Apogee: Application Ontology Generation from Domain

Ontologies

Iaakov Exman and Danil Iskusnov

Software Engineering Department, The Jerusalem College of Engineering - Azrieli

POB 3566, Jerusalem, 91035, Israel

Abstract. To achieve runnable knowledge from the highest abstraction level of

an application one needs to start with a set of application ontologies. But

application ontologies are not readily available in the literature. One needs to

generate dedicated and smaller application ontologies from larger generic

domain ontologies. The main problem to be solved is to generate application

ontologies with optimal size given two opposing criteria: to enlarge the selected

domain ontology segments to include most relationships between relevant

concepts, as opposed to reduce the same segments to exclude irrelevant terms.

The proposed solution is to traverse the domain ontology just one level upward

from the last relevant keywords found. The work also describes a chain of

algorithms and practical techniques to reach the proposed solution stage.

Finally, case studies are used to actually illustrate the whole approach.

Keywords. Application ontology, Domain ontology, Keyword extraction,

Classification, Optimal Application Ontology Size.

1 Introduction

Recently [8], [18] we have been extending MDE (Model Driven Engineering), which

starts software system development from a UML design model, to KDE (Knowledge

Driven Engineering) in which one starts from one level of abstraction higher, viz.

from a set of ontologies. This set of ontologies is what we call application ontologies.

Application ontologies are dedicated to a chosen software system that one wishes

to develop. Thus they are much smaller than the generic domain ontologies, whose set

of concepts contain the respective application ontologies’ concepts as sub-sets.

The main issue of this paper is a systematic procedure to obtain the desired set of

application ontologies, given the generic domain ontologies. Our approach is to

combine a chain of existing algorithms within an integrated tool – coined Apogee –

for generation of specific application ontologies.

A central stage of the referred algorithm chain is to decide the optimal size of the

resulting application ontology, such that it may still be considered a legitimate

ontology – including most of the relationships among relevant keywords – while

excluding as far as possible terms irrelevant to the specific application.

Exman I. and Iskusnov D..

Apogee: Application Ontology Generation from Domain Ontologies.

DOI: 10.5220/0005181000310042

In Proceedings of the 5th International Workshop on Software Knowledge (SKY-2014), pages 31-42

ISBN: 978-989-758-051-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

1.1 Related Work

Literature reviews concerning ontologies are available in refs. Guarino [9],[10] and

Nguyen [13].

There exist some types of generic ontologies as mentioned in the next section of

this paper, and specific types of ontologies for various purposes. Among the latter,

one finds reputation ontologies (e.g. Chang et al. [1]) and opinion ontologies (e.g.

Exman [7]).

Tools of interest for operations involving ontologies include among others,

Ontobraker (Decker et al. [4]) for ontology based accessing distributed information,

Swoogle (Ding et al. [5]) a search engine for the semantic web and ontologies, and

Protégé (from Stanford University [14]) for ontology editing and other operations.

A sample of application oriented papers are Jean-Mary et al. [11] for ontology

matching with semantic verification, Luke et al. [12] about ontology-based web-

agents, and Swab-Zamazal [16] about the influence of pattern-based ontology

refactoring on ontology matching.

A project having some similarity to ours is ReDSeeDS, viz. Requirements-Driven

Software Development System [15]

The remaining of the paper is organized as follows. We describe types and sizes of

ontologies (section 2), introduce the goal of our work (section 3), outline the solution

chain of algorithms in the overall process from domain to application ontologies

(section 4), overview the software architecture and implementation of our Apogee

tool (section 5), present case studies as an illustration of the approach (section 6) and

conclude with a discussion (section 7).

2 Ontology Types and Sizes

One can roughly classify ontologies into specific and generic types. Specific types of

ontologies have a narrowly defined purpose, and a relatively small size, such as

reputation ontologies (e.g. [1]). Generic types can refer to whole domains, and diverse

applications, and are mostly of large size.

In this paper we continue our investigation of special purpose, small ontologies. In

particular, we deal with the extraction of specific/small ontologies from generic/large

ones.

2.1 Domain Ontologies

A domain ontology is characterized by being comprehensive, i.e. to encompass all

possible concepts that may appear in a given domain of discourse. Domain ontologies

are usually of large sizes and may have a complicated structure, containing generic

concepts, their sub-types, instances and properties.

2.2 Application Ontologies

Application ontologies are a notion proposed in our work. We assume that a given

software system or application is defined in its highest abstraction level by a set of

related application ontologies.

For instance, the development of a software application dealing with purchases in

the internet – as was dealt with in ref. [18] – may be started from two ontologies: one

defining the “shopping cart” and another one defining a “product”.

Typical concepts in the shopping cart ontology are: products, items per product,

tax, current price and total price. Common concepts in the product ontology can be:

product name, product price, serial number and part number.

Concepts in an application ontology are either candidates for UML classes or for

these classes’ attributes.

3 The Goal: From Domain to Application Ontologies

In this section we motivate the need for systematic extraction procedures of smaller

ontologies dedicated to a desired application from generic domain ontologies.

3.1 KDE: Knowledge Driven Engineering

In our recent approach (see e.g. [8]) to develop software systems from a higher

abstraction level than UML, i.e. starting from a set of application ontologies, these

ontologies serve to provide semantics for scenarios describing possible behaviors of

the system.

The application ontologies have been formulated manually a priori, and were

gradually refined as needed, when new scenarios were added to describe the system

more precisely.

For instance, in the internet purchase example, we have used an application

ontology for the shopping cart as seen in Fig.1.

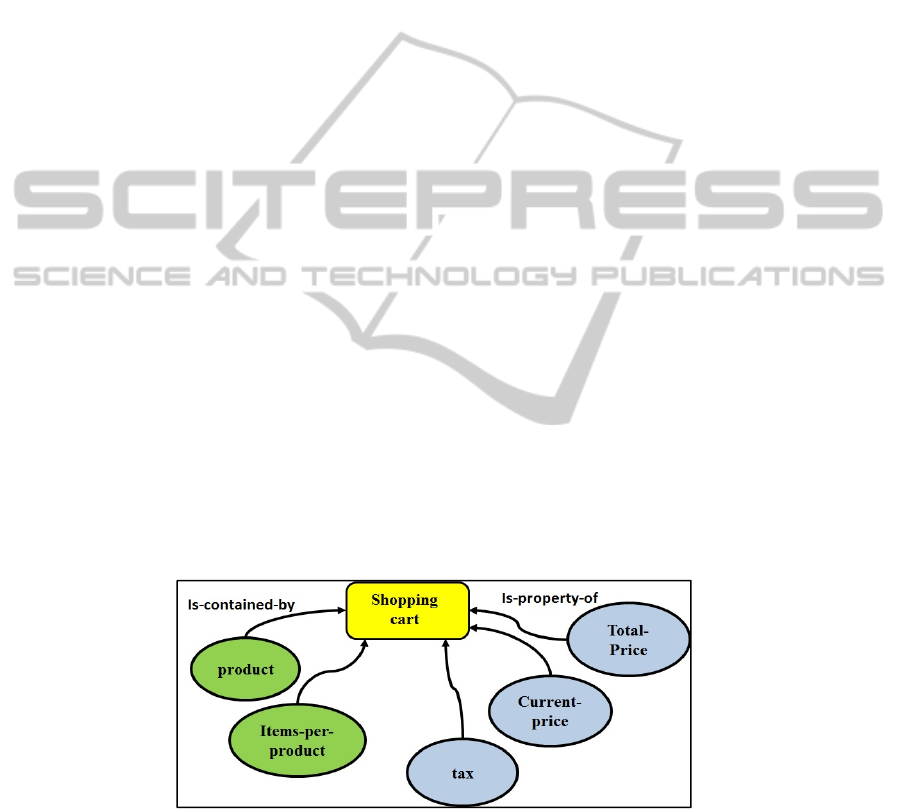

Fig. 1. Sample shopping-cart ontology for an Internet Purchase – this ontology was formulated

manually ad hoc. In the l.h.s. of the ontology {product, items-per-product} have the Is-

contained-by relationship. In the r.h.s. {Total-price, Current-price, tax} have the Is-property-of

relationship to Shopping-cart.

A typical scenario for the same internet purchase example is shown in Fig. 2.

Fig. 2. Sample Scenario for an Internet Purchase – Note that the terms {product, items-per-

product, shopping-cart} appear in the shopping-cart ontology, but the term {payment} does not

appear in the ontology.

Note the lack of correspondence of terms in the ontology to terms in the scenario.

Some of the terms in the ontology do not appear in the scenario and vice-versa.

3.2 The Problems

Problems with the manual ad hoc formulation of application ontologies include

among others:

 Lack of Systematic Approach – no guarantee of consistency within an

application ontology and along time;

 Lack of Knowledge Reusability – formulation needs to be done anew even

for similar systems in the same domain.

Thus, we are led to seek a systematic procedure to obtain application ontologies

from domain ontologies.

4 The Solution: From Keywords to an Optimal Size Ontology

In this section we propose our solution, on how to deal with the process leading from

generic domain ontologies to smaller ontologies dedicated to a desired application.

We describe the chain of relevant algorithms, starting from the inputs to the process

and emphasizing the main issue of attaining an optimal size for the application

ontology.

The overall idea is that a software stakeholder or the software developer knows at

least the desired behavior of the software system. This behavior is expressed in a text,

say a scenario like that in Fig. 2. From this knowledge one will extract keywords, to

characterize the suitable domain ontologies. Then we get into techniques to reduce the

latter into smaller application ontologies.

4.1 Inputs

The inputs to the process are:

 bank of ontologies – a bank of potentially useful domain ontologies;

 text – typically user provided scenarios that should be executable by the

application.

Internet Purchase – Sample Scenario

Pick a shopping-cart;

Put one item of product A in the shopping-cart;

Put three items of product B in the shopping-cart;

Proceed to payment.

4.2 The Chain of Relevant Algorithms

The proposed chain of algorithms relevant to the generation of application ontologies

from domain ontologies is as follows:

 Keyword Extraction – from the input text (scenario) select relevant application

keywords. For the internet purchase example these could be: shopping-cart,

item, product, payment.

 Domain Classification – assign keywords to a domain, in order to select

potential domain ontologies from the bank of ontologies. For instance

‘payment’ belongs to the ‘financial’ domain. An important issue here is to

resolve ambiguities: does ‘bridge’ refer to card games or to civil engineering

structures?

 Matching Ontology Segments – perform matching of the keywords in the

keyword list to selected domain ontologies’ and extract segments of those

ontologies including the matched keywords. Here resides the main problem

concerning the optimal size of the application ontology. This will be explained

in detail in sub-section 4.3.

 Compose New Application Ontology – from matching ontology segments;

 Check Composed Application Ontology – for consistency and relationships

subsumption among classes.

4.3 The Optimal Size of the Application Ontology

Here we focus on the main issue of optimal size of the application ontology, which

occurs in the matching ontology segments stage. We first explain the problem, then

propose our specific solution.

The matching of ontology segments starts by searching, for all keywords, all the

appearances of a given keyword in the relevant domain ontology. For each such

appearance, one traverses the domain ontology graph upwards, until one either gets to

the root (say “thing”) or there is a criterion which tells one to stop earlier. All the

terms before stopping are included in the current ontology segment.

The referred criteria are the significant part of the solution. An example of

criterion is “one encounters a term in a previously found segment”, thus one can

coalesce the new segment with the previous one.

Our solution proposes the following criterion. The upward traversing stops “one

level above the last term relevant to the set of keywords”. The specific meaning of

relevance should be formally further specified.

This last criterion strives to include all the relevant terms and relationships, while

excluding irrelevant terms, to achieve an optimal size of the application ontology.

5 Apogee: Design and Implementation

Apogee is the tool that we have designed and implemented to generate dedicated

application ontologies from larger generic domain ontologies. As far as possible, we

have reused external tools by means of calls to their APIs.

5.1 Apogee Design

The modules of the Apogee tool are schematically shown in Fig. 3. It contains core

internal modules and external tools called by means of APIs.

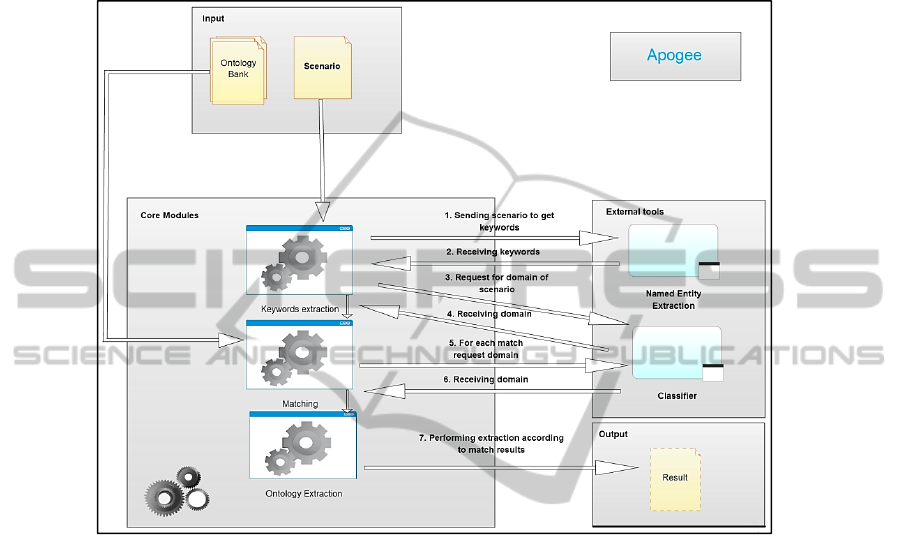

Fig. 3. Apogee Schematic Design – It shows: a- Input; b- External tools called by core modules;

c- Core Apogee modules; d- Output. Arrows display the order of execution.

5.2 Apogee Implementation

Apogee core modules were implemented in Java. They use Java libraries such as:

 OWL API – for creating, manipulating and serializing OWL ontologies;

The external tools used were:

 dataTXT-NEX – as Named Entity Extraction [2];

 dataTXT-CL – as text classifier [3].

The output format is textual OWL.

6 Case Studies

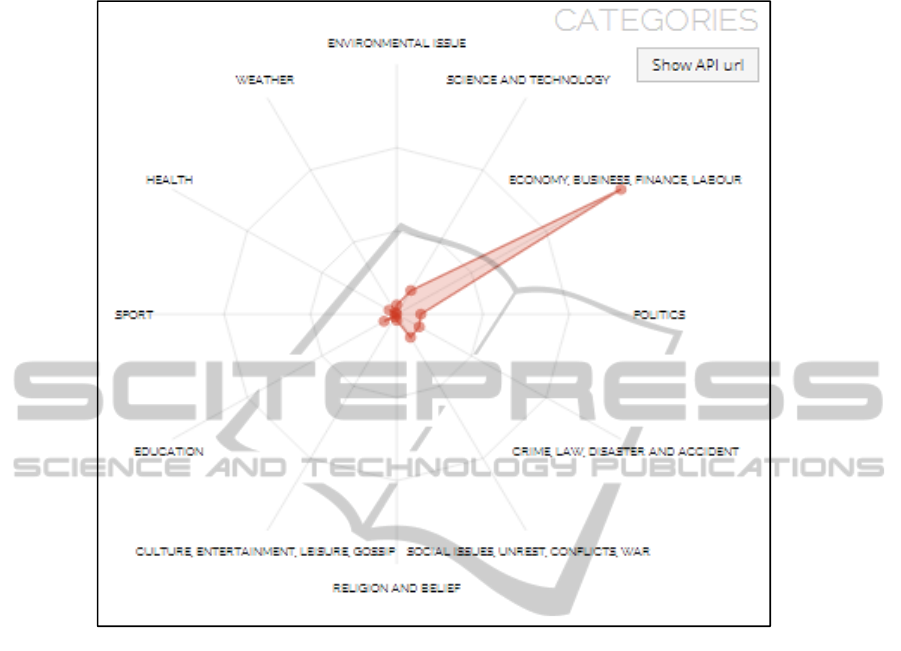

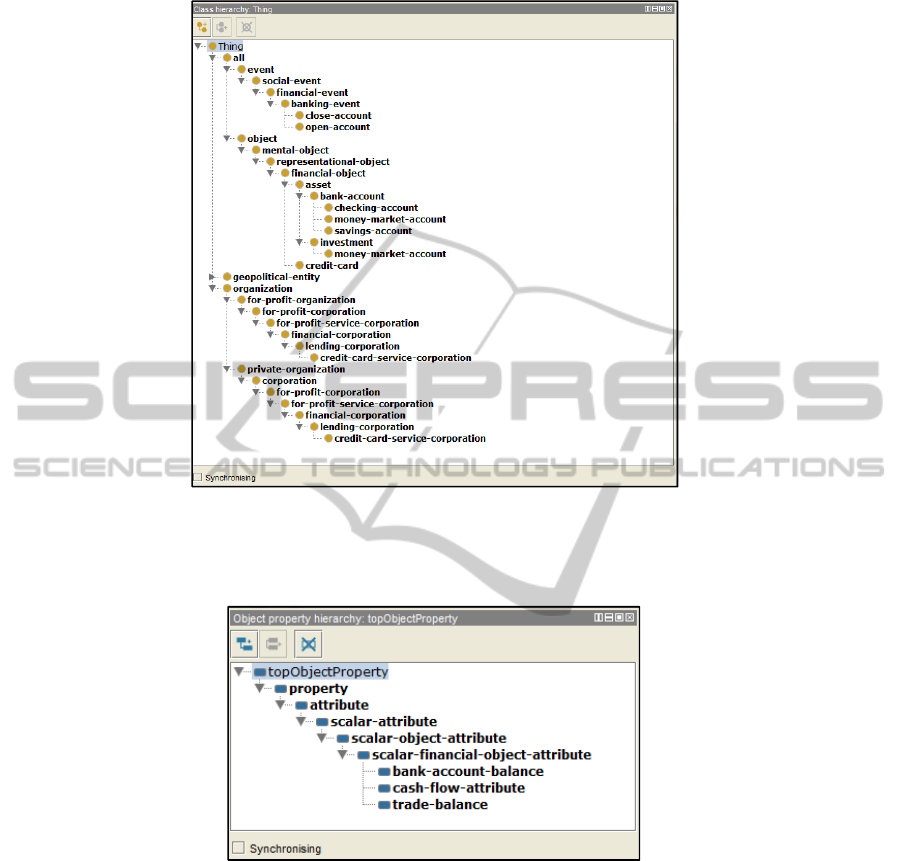

We have made experiments with several case studies to validate the approach. These

included diverse specific variations such as providing as input to the domain classifier

the whole scenario, or sentence by sentence individually.

Here we show one of the case studies, the ATM cash withdrawal, to illustrate

results and difficulties.

6.1 Case Description: ATM Cash Withdrawal

In Fig. 4 one can see a sample input text and selected keywords. It uses a Gherkin

syntax in the easily applied and understood [Given, When, Then] format, used by the

Cucumber [17] tool, to describe the scenario.

These scenarios can be input in various “natural” languages. Note that the syntax

does not demand grammatically well-formed sentences.

Fig. 4. ATM Cash Withdrawal Sample Input scenario and selected keywords – The scenario

uses the Gherkin [Given, When, Then] format. Selected keywords have a green background.

It is probably preferable to input the scenario as a whole to the domain classifier,

instead of sentence by sentence. For instance, suppose that the second sentence is just:

Given the balance is 100.

In the context of the whole scenario, a human would certainly understand this

sentence, assuming that balance refers to the account. But as an individual sentence,

balance is ambiguous and could have several different meanings in various domains.

6.2 Domain Classifier: ATM Cash Withdrawal

The domain classifier outcome for the above ATM Cash Withdrawal scenario is seen

in Fig. 5 below.

ATM Cash Withdrawal – Sample Scenario

Account has sufficient funds.

Given the account balance is 100.

And the Card is valid.

And the ATM contains 50.

When the Account requests cash 20.

Then the account balance should be 80.

And the card should be returned.

Fig. 5. ATM Cash Withdrawal Classifier Outcome – From the categories suggested by the

classifier, the chosen category is “ECONOMY, BUSINESS, FINANCE, LABOUR” as shown

by the biggest red pointer in the figure.

One should note that a keyword consisting of “balance” alone, without account,

could give a completely different result. Balance of forces has a physical meaning,

fitting “SCIENCE AND TECHNOLOGY”. Balance can refer to balance of power

among parties, fitting “POLITICS”. Balance can be a quality of a basketball player or

a characteristic of a judo competition, fitting “SPORT”. Balance between preys and

predators, fits “ENVIRONMENTAL ISSUE”.

6.3 Application Ontology Results

The application ontology for the previous values of the classifier is shown in Fig. 6.

Ontology segments were obtained by going upwards from the matched keyword. The

textual OWL output was inserted into Protégé [14] for display purposes.

Fig. 6. ATM Cash Withdrawal Application Ontology Classes – This is the class hierarchy

displayed by the Protégé tool.

Next in Fig. 7 one sees the object properties of the same application ontology.

Fig. 7. ATM Cash Withdrawal Application Ontology Object Properties – This is the object

property hierarchy displayed by the Protégé tool.

6.4 Application Ontology Analysis

The above application ontology results for the ATM Cash Withdrawal case study

show both the quality and the difficulties of the outcome, enabling a better

understanding of the optimal size problem concerning the application ontology.

On the positive side, one can see that relevant terms – such as bank-acount, close-

account, open-account, credit-card – and properties – such as bank-account-balance –

indeed appear in the application ontology.

On the negative side, it is quite obvious that a lot of the included terms are either

too generic – e.g. social event, above financial event – or irrelevant to the ATM Cash

Withdrawal – e.g. for-profit-service-corporation, in fact all terms containing

‘corporation’.

These considerations show that going upwards from say ‘bank account’ to the root

class “thing” is far from optimal. One can see that besides the abstract criterion to

stop “one level above the last term relevant to the set of keywords”, which in the case

of ‘bank account’ would be ‘asset’, one needs concrete formulas to apply the criterion

in practice.

7 Discussion

This work proposes the generation of small specific application ontologies from much

larger and comprehensive domain ontologies, in an almost fully automatic way. The

approach has been actually implemented into the Apogee tool. The tool was tested by

case studies. A sample case study was shown in this paper to illustrate the ideas and

the approach.

7.1 Open Issues and Future Work

Several issues have been raised along this work.

Concerning the input composition and size, there is a trade-off. If one inputs a full

scenario at once to Apogee, the many keywords facilitates resolution of domain

ambiguity, on the other hand may introduce additional noise which is difficult to

control. The alternative is to input the scenario line by line, in which case ambiguity is

more prevalent, but one has less noise. The issue seems to be incompletely resolved.

Regarding the output, again one could decide a priori, by human intervention, the

number of output application ontologies: one single larger application ontology or two

smaller ones, etc. One would like to be able to formulate criteria to solve this issue in

a more clear-cut way.

With respect to the main issue of optimal size of the application ontology, one

needs quantitative formulas for the criteria on how to include/exclude terms in the

vicinity of the selected keywords. The ‘one level above the keywords’ is ad-hoc and

still needs deeper testing. Possible quantitative formulas to eliminate irrelevant terms

include those found in data mining areas, say TfIdf and the notion of Relevance

within the context of the interestingness approach [6]. This issue deserves extensive

investigation.

The whole line of research about special purpose small or nano-ontologies, is still

in need of a unified approach, in particular referring to their semantic significance and

their “legitimate” status as first-class citizens of the ontology world.

An interesting open issue is the demands from application ontologies in order to

enable their reuse for different systems having the same requirements and purpose.

The current Apogee is an initial prototype. A second version – after

comprehensive testing of the current version – could be much more flexible, e.g. to

include APIs for various alternative external tools.

7.2 Main Contribution

The main contribution of this work is a systematic approach for generation of specific

smaller application ontologies from much larger and comprehensive domain

ontologies. A particular problem of interest is emphasized, viz. the optimal size of the

application ontologies.

References

1. Chang, E., Hussain, F.K. and Dillon, T., “Reputation ontology for reputation systems”, in

SWWS International Workshop on Web Semantics, pp. 957-966, Springer-Verlag (2005).

DOI: 10.1007/11575863_117.

2. dataTXT-NEX – dandelion named entity extraction API. Web site: https://dandelion.

eu/products/datatxt/nex/demo/

3. dataTXT-CL – dandelion text classification API. Web site: https://dandelion.

eu/products/datatxt/cl/demo/

4. Decker, S., Erdmann, M., Fensel, D. and Studer, R., “Ontobroker: Ontology based access to

distributed and semi-structured information”, In Proc. DS-8, pp. 351-369, (1999).

5. Ding, L., Finin, T., Joshi, A., Peng. Y., Cost, R.C., Sachs, J., Pan, R., Reddivari, P. and

Doshi, V., “Swoogle: A Semantic Web Search and Metadata Engine”, in Proc. CIKM’04,

ACM (2004). Tool web site: http://swoogle.umbc.edu/

6. Exman, I., “Interestingness – A Unifying Paradigm – Bipolar Function Composition”, in

Fred, A. (ed.) Proc. KDIR’2009 Int. Conference on Knowledge Discovery and Information

Retrieval, pp. 196-201, (2009).

7. Exman, I., “Opinion-Ontologies: Short and Sharp”, accepted for publication in 6

KEOD,

Int. Conf. on Knowledge Engineering and Ontology Development (2014).

8. Exman I. and Yagel R.: "ROM: An Approach to Self-Consistency Verification of a

Runnable Ontology Model", in A. Fred, J.L.G. Dietz and J. Filipe (eds.) Knowledge

Discovery, Knowledge Engineering and Knowledge Management, 4

International Joint

Conference IC3K, Revised Selected Papers, CCIS, vol. 415, pp. 271-283, Springer Verlag,

Berlin, Germany (2012).

9. Guarino, N. “Semantic Matching: Formal Ontological Distinctions for Information

Organization, Extraction and Integration”, Summer School on Information Extraction,

Frascati, Italy, in LNCS Vol. 1299, pp. 139-170, Springer-Verlag (1997).

10. Guarino, N. “Formal ontology in information systems”, in Guarino, N., (ed.), Formal

Ontology in Information Systems, pages 3–18, Amsterdam. IOS Press, (1998).

11. Jean-Mary, Y. R., Shironoshita, E.P. and Kabuka, M.R., “Ontology Matching with

Semantic Verification”, Web. Semant. Vol. 7 (3), pp. 235-251, (September 2009). DOI:

10.1016/j.websem.2009.04.001.

12. Luke, S., Spector, L., Rager, D. and Hendler, J., “Ontology-based web agents”, In Proc.

AA97 1

Int. Conf. on Autonomous Agents, pp. 59-66, (1997).

13. Nguyen, V., “Ontologies and Information Systems: A Literature Survey”, Technical Report

DSTO-TN-1002, Australian Government, Defence Science and Technology Organization,

(2011). Web site: http://digext6.defence.gov.au/dspace/bitstream/1947/10144/1/DSTO-TN-

1002 PR.pdf

14. Protégé - A free, open-source ontology editor and framework for building intelligent

systems. Web site: http://protege.stanford.edu/.

15. ReDSeeDS – Requirements-Driven Software Development System. Web site:

http://smog.iem.pw.edu.pl/redseeds/ (2014).

16. Svab-Zamazal, O., Svatek, V., Meilicker, C. and Stuckenschmidt, H., “Testing the Impact

of Pattern-Based Ontology Refactoring on Ontology Matching Results”, in Proc. Ontology

Matchin Workshop, hosted by ISWC 2008, 7

Int. Semantic Web Conference, pp. 229-233,

(2008).

17. Wynne, M. and Hellesoy, A.: The Cucumber Book: Behaviour Driven Development for

Testers and Developers, Pragmatic Programmer, New York, USA, (2012).

18. Yagel, R., Litovka, A. and Exman I.: KoDEgen: A Knowledge Driven Engineering Code

Generating Tool, in Proc. 4

SKY’2013 International Workshop on Software Knowledge,

hosted by IC3K, pp. 24-33, Vilamoura, Portugal, (2013).
