Aggregate Callback

A Design Pattern for Flexible and Robust Runtime Model Building

Gábor Kövesdán, Márk Asztalos and László Lengyel

Department of Automation and Applied Informatics, Budapest University of Technology and Economics,

Budapest, Hungary

Keywords: Modeling, Domain-Specific Modeling, Model Transformation, Code Generation, Design Pattern, Agility.

Abstract: In modern software engineering environments, tools that use Domain-Specific Languages (DSLs) are often

applied. The usual workflow of such tools is that the textual input written in the DSL is parsed and a semantic

model is instantiated. This model is later passed to another software component that processes it, e.g. a model

transformation, a code generator or a simulator. Building the semantic model inside the parser is often a

complex task. The model must be built in such a way that the constraints of the problem domain are enforced

so that the consistency of the output is guaranteed. This paper presents a design pattern, referred as Aggregate

Callback that supports enforcing constraints in the model and thus helps creating correct models. We have

found that the Aggregate Callback pattern is useful for tool developers that build models in their applications.

1 INTRODUCTION

Model-Driven Development (MDD) (Brambilla,

Cabot and Wimmer, 2012) relies on modeling the

problem and using that model through an arbitrary

number of refinement steps, called model transfor-

mations (Syriani and Vangheluwe, 2009). This model

is often used later for code generation. It facilitates

and speeds up software development since the model

does not have to include all of the implementation de-

tails that are added later by the refinement steps. This

approach provides several advantages, e.g. improves

product quality and reusability. As a consequence, de-

velopers can focus on the real problem instead of mo-

notonous coding. However, the resulting software can

only be expected to be correct if the model is con-

structed in the way as expected by the code generator.

To ensure this, modelers first define the metamodel

of the models (Kühne, 2006), also called abstract syn-

tax. The metamodel is a type that defines the possible

structure of model instances that are created from the

metamodel. Apart from this, other requirements that

are not captured in the structure can be added through

constraints. Before the model is processed, a valida-

tion step (Brambilla et al., 2012) is performed, which

checks whether the model is valid, that is, if it con-

forms to the metamodel and to the constraints.

However, validation is purely a passive check. If

the model does not conform to the metamodel or the

constraints, an error is emitted with the location of the

problem and the developers have to manually fix the

model. In Domain-Specific Modeling (DSM) (Fowler

2010) (Kelly and Tolvanen, 2008) tools, validation is

not sufficient for building a robust modeling tool.

When the model is built in the program, for example

as a result of traversing the parse tree of an input

script written in a Domain-Specific Language (DSL)

(Fowler, 2010) (Kelly and Tolvanen, 2008), the pro-

gram must ensure that the created model is valid.

DSLs raise the abstraction level at which problems

are described. This means that DSM tools encompass

domain knowledge. Some interrelations and con-

straints among model objects, such as dependency,

exclusion, calculated attribute, etc. can be inferred

from the nature of the problem domain. These details

do not have to be described by the user of the DSL

but it is the responsibility of the tool to handle such

cases correctly. If the DSL required developers to de-

scribe these inferable details, the language would not

be so concise and we would lose its common ad-

vantages, such as higher abstraction level and quick

development. So in these cases, the tool is responsible

for ensuring some of the constraints of the problem

domain correctly. Validation can point out incon-

sistent models that are the result of a software bug.

However, validation itself does not facilitate organiz-

ing well the source code of the tool so it is desired to

find a way that helps ensuring that the tool produces

valid models.

149

Kövesdán G., Asztalos M. and Lengyel L..

Aggregate Callback - A Design Pattern for Flexible and Robust Runtime Model Building.

DOI: 10.5220/0005197901490156

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 149-156

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

In this paper, we present a design pattern, called Ag-

gregate Callback, which helps tool developers to

structure the code in a way that makes the model

building logic more flexible and robust. We believe

that this design pattern will greatly help developers of

modeling tools in designing agile tools that are easier

to maintain and extend. We have used this design so-

lution in earlier tools but the detailed description of

this approach as a reusable design pattern is a new

contribution in this paper.

The rest of this paper is organized as follows. Sec-

tion 2 lists existing work available about the subject.

Section 3 describes the design pattern in a format that

is similar to those that are used in design pattern

catalogs. Section 4 concludes the paper.

2 RELATED WORK

The first well-known work that proposed the reuse of

working solutions to common software engineering

problems and their description in design pattern cata-

log was the one published by Gamma et al. (Gamma

et al., 1995). This work was followed by the Pattern-

Oriented Software Architecture (POSA) series

(Buschmann et al., 1996) (Schmidt et al. 2000)

(Kircher and Jain, 2004) (Buschmann, Henney and

Schmidt, 2007a) (Buschmann, Henney and Schmidt,

2007b). Apart from the design patterns applicable in

general software engineering problems that were de-

scribed in these books, more specific design patterns

have also been published. In the field of DSLs,

(Fowler, 2010) provides a pattern catalog, covering

several different aspects of DSLs and code genera-

tion. This is a rich source of information but it has a

more general view than this paper and does not in-

clude the pattern described herein. Apart from this,

(Nguyen, Ricken and Wong, 2005) provides some

practical uses of general object-oriented design pat-

terns in recursive descent parsers and (Schreiner and

Heliotis, 2001) describes how a parser generator uses

object-oriented design patterns. These are specific

uses of general design patterns and these papers do

not include more specialized patterns specific to mod-

eling. A paper have been published with a pattern cat-

alog (Kövesdán, Asztalos and Lengyel, 2014a) of ar-

chitectural design patterns that can be used in lan-

guage parsers. Another paper (Kövesdán, Asztalos

and Lengyel, 2014b) introduces Polymorphic Tem-

plates, a design pattern that provides a solution for

implementing flexible code generators. An additional

case study (Kövesdán, Asztalos and Lengyel, 2014c)

briefly describes the use of the Aggregate Callback

and the Polymorphic Templates design patterns.

However, the Aggregate Callback design pattern is

only shortly outlined in this earlier paper. It has not

been elaborated at the level of detail as done herein.

Apart from the works cited above, we have not found

other works that provide more specialized design pat-

terns that apply to modeling.

The design pattern is useful on its own but it is

also a part of a longer work that the authors have been

doing. A more extensive method is being elaborated

that helps the development of code generation tools

supported by DSLs.

3 THE AGGREGATE CALLBACK

DESIGN PATTERN

This section describes the design pattern in catalog

format similar to what is used in the POSA series.

Namely, the following sections are applied:

 Example: a concrete use case in which the pat-

tern has been applied.

 Context: the context in which the design pattern

is applicable.

 Problem: the challenges that suggest the appli-

cation of the pattern.

 Solution: the way how the pattern solves or mit-

igates the problems.

 Structure: the main participants and their rela-

tionships and responsibilities in the pattern.

 Dynamics: the interaction of the participants of

the pattern.

 Implementation: techniques and considerations

for implementing the pattern.

 Consequences: advantages and disadvantages

that the application of the pattern implies.

 Example Resolved: the short description of how

the initially presented example has been re-

solved by using the pattern.

 See Also: references to related design patterns.

The Known Uses section is omitted. Describing more

known uses is out of scope of this paper.

3.1 Example

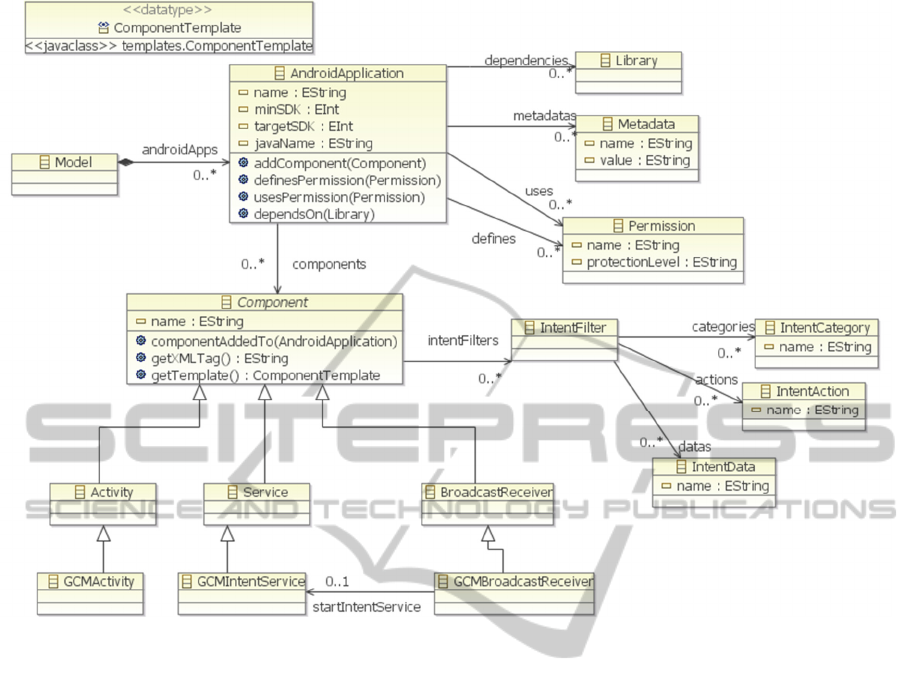

Applications written for the Android platform have

several different component types and artefacts,

namely Activities, Services, Content Providers, In-

tents, Intent Filters etc. Some of them have more spe-

cific subtypes, such as IntentService. In the meta-

model of our component modeling tool, they are or-

ganized into a class hierarchy. The AndroidApplica-

tion model class aggregates an arbitrary number of

Components, regardless of their concrete type.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

150

Certain component types imply some constraints that

must be enforced in order to have a consistent model

that represents a working Android application. For

example, if a GCMBroadcastReceiver is added to the

application to handle Google Cloud Messaging

(GCM) (Google, n.d.) notifications, the main Activity

of the application must initialize the GCM service and

the Manifest file must declare some permissions and

metadata related to message handling. Validation can

detect if the developer did not specify a GCMActivity

but the permissions and the metadata are not de-

scribed in the input text by design. If they were also

described, the DSL would not be as concise as it

should be. These details can be inferred so they must

be added to the model when a GCM-related Compo-

nent is added to AndroidApplication.It seems logical

to handle this in the AndroidApplication class. How-

ever, the code of the class would include too much

information about component types in this way,

which limits the flexibility because of the lack of the

separation of concerns. Extending the solution with

support for other component types would be difficult

since the aggregate class would require modifications

to enforce new constraints.

3.2 Context

The pattern is used in modeling tools that build mod-

els at runtime and must enforce some constraints

among model elements as the model elements are ag-

gregated in the model.

3.3 Problem

When complex models are processed from template

languages a number of challenges arise:

 Limited Functionality. If the constraints are only

validated and are not enforced, constraint viola-

tions can only be detected but it is not possible

to enforce constraints. This requires the DSL

that is used for modeling to describe each detail

of the model, even those that could have been

inferred by the specific characteristics of the

problem domain. Easy to use DSLs should

achieve conciseness by not describing inferable

details of the model.

 High Complexity. If dependency handling and

other constraints are implemented in a central-

ized way – either in the application or in the ag-

gregate model object – the complexity becomes

high. The logic will be implemented as a big

piece of code without proper decomposition.

 Lack of Encapsulation and Separation of Con-

cerns. Such implementation does not encapsu-

late the code that deals with constraints based on

what model class they belong to.

 Poor Readability. Because of the lack of encap-

sulation, the overall effect of the code is hard to

understand.

 Poor Extensibility. Because of the lack of encap-

sulation, several isolated parts of the code must

be modified if a new model class is added to the

metamodel. Not only the model class must be

implemented, but the centralized constraint han-

dling logic must also be updated on a regular ba-

sis. This limits extensibility.

 Error-prone Application. The former problems

lead to an error-prone application because it is

easy to make human errors.

3.4 Solution

Make enforcing constraints a responsibility of the ag-

gregated model objects. When a new model object is

added to the model, a callback method is called on the

object. Through the callback method, the object re-

ceives the reference of the model and by using it, will

be able to walk along other objects already aggre-

gated into the model and apply the changes that are

necessary to enforce constraints.

3.5 Structure

A possible structure of the pattern is depicted in Fig-

ure 1. The nomenclature reflects a dependency con-

straint but the pattern can be used for other kinds of

constraints as well. The pattern has the following el-

ements:

 Application: the main application logic that

creates the Model and its aggregated instances

of ModelClass.

 Model: the model itself that aggregates several

instances of ModelClass.

 ModelClass: abstract class, whose instances

may be added to the Model.

 DependencyModelClass: a concrete subclass

of ModelClass that may be used as a depend-

ency for other instances of ModelClasses.

 DependentModelClass: a concrete subclass of

ModelClass, whose instances depend on in-

stances of DependencyModelClass.

AggregateCallback-ADesignPatternforFlexibleandRobustRuntimeModelBuilding

151

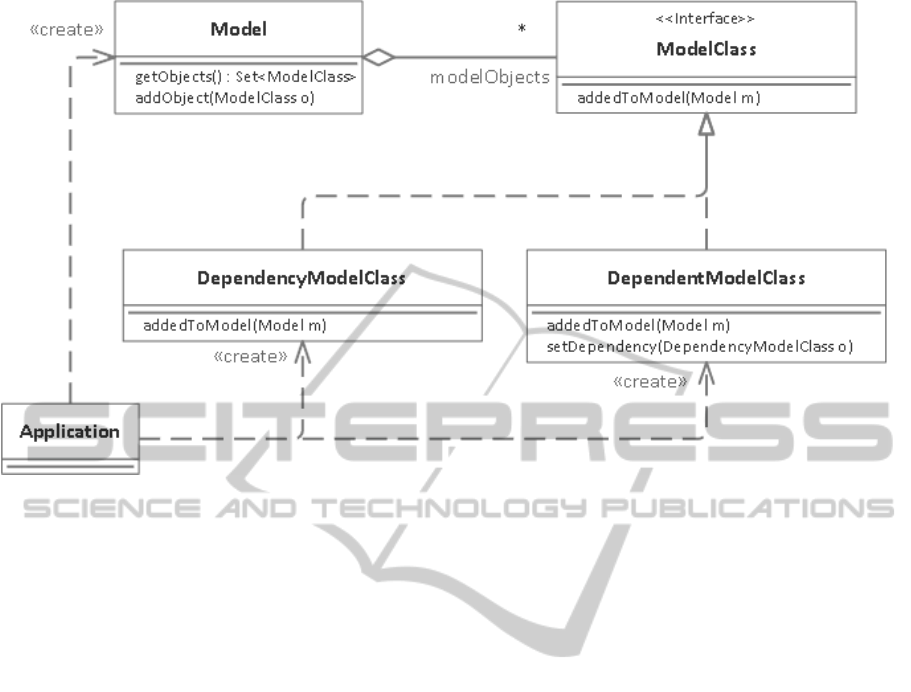

Figure 1: A possible structure of the participants in the Aggregate Callback pattern.

3.6 Dynamics

The dynamics are demonstrated on enforcing a de-

pendency relation. The Application creates the Model

and instantiates the objects that will be added to the

model. Usually, standalone objects are added first that

do not enforce any dependency relations. Later, fur-

ther objects may be added, that depend on other ob-

jects added earlier. If the order in which objects are

added to the model is not guaranteed, the constraint

must be checked and enforced in all objects that are

affected by the particular constraint. If objects are

added in a fixed order, it is sufficient to enforce the

constraint.

Objects are added with the addObject() method of

Model. After adding an object, the Model calls back

its addedToModel() method, passing itself as a pa-

rameter. Concrete ModelClasses use this method to

implement the necessary logic for enforcing con-

straints, such as dependency relations. It is possible to

query other objects from the Model by calling its

getObjects() method, walking on the other objects

and modifying them. When a DependentModelClass

is added, it can traverse ModelClasses and check if a

proper DependencyModelClass exists in the Model.

Such a scenario is depicted in the sequence diagram

of Figure 2. The reference to the dependency class is

stored by calling the setDependency() method.

3.7 Implementation

The following techniques should be considered for

the implementation of the pattern:

 The pattern can be applied to the complete

model or any other subset that contains an ag-

gregate object and associated aggregated ob-

jects.

 In the description of the pattern, aggregation is

mentioned, however, the pattern is also applica-

ble to associations. The concept that is empha-

sized with the name of the pattern is that it works

among objects that together form the model or a

logical set of objects.

 Constraints may be of various types: depend-

ency, exclusion, calculated value etc.

 From the callback method, it is possible to

simply modify attributes of other model objects

or performing more complex operations as well,

such as, adding or removing object or associa-

tions.

 There may be constraints that involve more than

two model objects. The developer should care-

fully consider in which model class to imple-

ment the constraint enforcement. If it is guaran-

teed that they are added to the model in a spe-

cific order, enforcing constraints in the last

model class is a reasonable solution

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

152

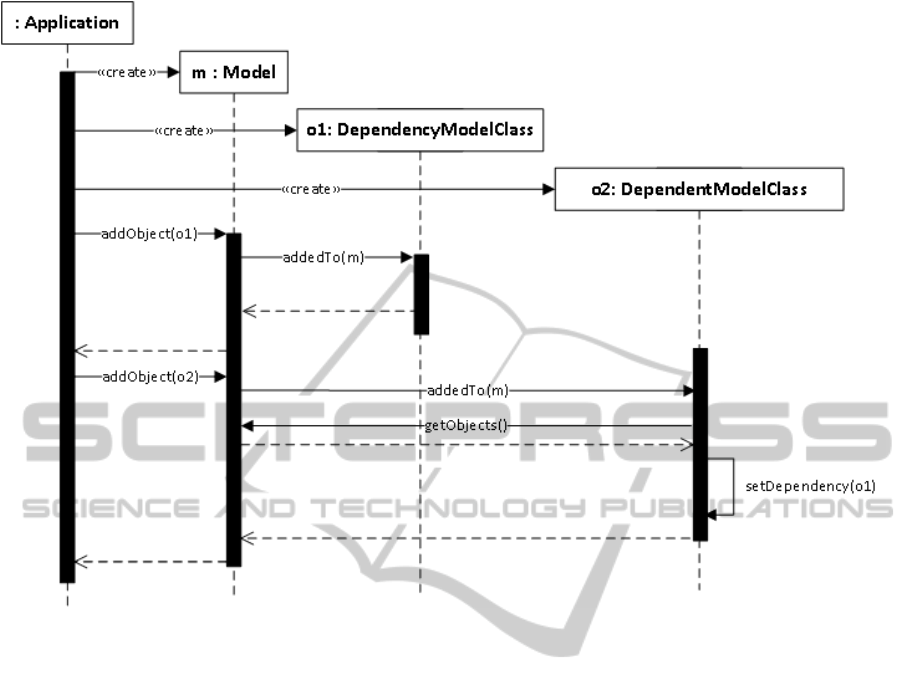

Figure 2: The interaction of the participants in the Aggregate Callback pattern.

Otherwise, it is recommended to implement con-

straint check and enforcement in all participants. This

may be done with inheritance to avoid redundancy in

the code. This solution has a performance hit since the

constraint check is performed several times. How-

ever, if the model is used in a code generator, this is

not a problem since it does not affect the performance

of the final (generated or partly generated) software

product.

3.8 Consequences

The pattern achieves the following advantages:

 Separation of Concerns in the Modeling Tool.

Each model class is responsible for checking

and enforcing the related constraints.

 Easy Maintainability and Extensibility. When

adding model classes, new and related con-

straints can be implemented in the callback

method of the new model class. Optionally,

some old model classes that also participate in

new constraints will need to be updated. Apart

from this, the code does not require modifica-

tions.

 Robust Application. Structuring the code in this

way helps to systematically implement con-

straint enforcement and ensure that the tool pro-

duces a valid model.

The application of the pattern also has a disadvantage:

 Hard to See all the Constraints and the Overall

Effects of Callbacks. The constraint enforcing

logics are decomposed based on what model

class they belong to. From a responsibility point

of view, this achieves good separation of con-

cerns since a specific logic is encapsulated into

the model class, which is involved in the spe-

cific constraints. However, if we want to review

constraint enforcing as a whole, we face diffi-

culties since the code is scattered across model

classes. This is a direct consequence of the ap-

plication of the pattern since its main idea was

to decompose constraint enforcement logic.

Therefore, this is not a serious disadvantage. A

possible way to mitigate this problem is to factor

out different constraint checks into methods of a

single class and calling these from the callbacks.

In this way, all of the advantages of the design

pattern apply and the constraint checking code

remains easier to understand.

AggregateCallback-ADesignPatternforFlexibleandRobustRuntimeModelBuilding

153

Figure 3: The metamodel used in the AndroidModeler tool.

3.9 Example Resolved

In the AndroidModeler tool (Kövesdán, Asztalos and

Lengyel, 2014c), the pattern has been successfully ap-

plied. The metamodel has been created with the

Eclipse Modeling Framework (EMF) (Steinberg et al,

2008). The EMF framework leverages round-trip

code generation and allows for defining methods on

model classes in Java. This made it easy to implement

the callback methods on Components. The meta-

model used in the tool is depicted in Figure 3. The

AndroidApplication model class defines an

addComponent() method that can be used to add

Components to the application model. This method

stores the new Component and then calls back the

componentAddedTo() method on the Component,

passing the this reference as a parameter. From this

method, concrete subtypes of the abstract Component

class can traverse and modify other elements of the

model, thus enforcing the constraints. When an An-

droid application uses GCM, some constraints must

be enforced. This could be done from the callback of

any of the three GCM-related components, namely

GCMActivity, GCMBroadcastReceiver or

GCMIntentService. It was chosen to enforce these

constraints in the GCMBroadcastReceiver compo-

nent, since it is the main component that initializes

GCM and it is obligatory in each GCM-enabled ap-

plication. The callback first creates a Metadata model

object with the name com.google.android.gms.

version and the value as the current GCM version

number and adds it to the application. This is required

by the GCM framework. After this, several types of

Permissions are created. Most of these are declared as

used by the application but there is also a Permission

defined by the application. This serves for receiving

GCM messages. Finally, an IntentFilter is set up to

route GCM messages properly.

As outlined earlier, details such as the metadata

on the GMS version or the different kinds of permis-

sions are not part of the textual description. These are

details that can be inferred and are not relevant at the

level of the component modeling. Therefore, these

should be added automatically in the tool. Validation

can be used in a later phase to check whether these

constraints hold but such validation only works as a

test for the software. It does not validate input coming

from the user. Provided that the tool works correctly,

it will always pass. To highlight the difference be-

tween the objectives of the Aggregate Callback des

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

154

ign pattern and validation, we will explain a different

aspect of the tool. The components that are used to

handle GCM messaging are specified in the DSL. A

GCMActivity is always obligatory. It is the main com-

ponent that registers the application to the servers of

Google. Apart from this, a GCMBroadcastReceiver is

also necessary to receive incoming cloud messages. It

is a common practice to dispatch the handling of

Intents in an IntentService. To facilitate such a solu-

tion, a GCMIntentService component type has been

also introduced. This component is optional in GCM-

enabled applications. If added to the application, such

a BroadcastReceiver is generated that dispatches the

event handling to the IntentService. Since these com-

ponents are configured in the textual description, the

generated components depend on the intentions of the

user. Therefore, in this case, validation should be used

to check whether the specified component structure is

valid.

In the AndroidModeler tool, the application of the

pattern achieved good separation of concerns. The

code that handles these constraints was encapsulated

into the GCMActivity class. Other pieces of the code

are not affected by the constraints and the

AndroidApplication class is not polluted by code that

logically belongs to the constraints of individual com-

ponents. The tool is still in an early phase but it will

be easy to add further specialized component types

because the existing code will not require modifica-

tions. Besides, the constraints on these specific model

classes will surely hold in the resulting model since

the tool is written with this in mind. The disadvantage

of the pattern was that it is not straightforward to find

these pieces of code. It may take an effort for devel-

opers unfamiliar with the code to understand the inner

working of the tool. The empty callback method is

defined on the abstract type of the aggregated compo-

nents, that is, Component, but concrete implementa-

tions may freely override it. This requires the devel-

oper to read all the descendants of Component in or-

der to understand the overall effect of the code. Fur-

thermore, as outlined in Section 3.7, constraints that

involve several Components, can be enforced in any

of them. This makes it even more difficult to under-

stand the code. In the AndroidModeler tool, it did not

cause problems because the tool aims to only generate

a skeleton, so it is an inherently simple application. In

more complex code generator tools, this may be a
