A Database-oriented Workﬂow Scheduler with Historical Data and

Resource Substitution Possibilities

Tibor Dulai and

Agnes Werner-Stark

Department of Electrical Engineering and Information Systems, University of Pannonia,

Egyetem str. 10, Veszpr´em, Hungary

Keywords:

Database, Workﬂow Scheduler, Resource Substitution, Historical Data.

Abstract:

This paper presents the database of a novel workﬂow scheduler that is able to handle resource substitution

and takes into account historical data. The generated schedule can be optimized either in time or cost. The

scheduler enables a resource substitution in case of an immediate event or when cost- or time-efﬁciency-related

reasons necessitates it. The underlying database is able to handle complex workﬂows, represents the ﬂeet of

various resources and supports data mining from the data of the logged execution of the schedule in order to

further improving the schedule. The database and the scheduler is a part of a complex project which schedules

workﬂows described in XPDL by an agent system taking into account the real-time events and historical data

served by process mining. Our scheduler system is intended to be applied both in business and industrial

processes.

1 INTRODUCTION

Scheduling has huge importance for several reasons:

companies are to increase their productivity with

maintain their cost as low as possible. Nowadays the

serious impact of some industrial processes is also re-

alized, that’s why the reduction of environment pollu-

tion is also an important goal of production planning.

Suitable scheduling reduces the redundant use of pol-

luting resources resulting greener processes. These

factors motivated us in our work. We intend to de-

velop a system which ensures effectivescheduling ca-

pabilities both for business and industrial processes.

Next to the usual functionalities of schedulers – e.g.,

resource allocations and optimization for time or cost

domain – our system makes possible to take into ac-

count resource substitution possibilities an the expe-

riences of previous executions. Resource substitution

can take place in case of immediate events, e.g., when

a resource breaks down and is not able to carry out its

previously assigned tasks. The experiences from the

previous executions are collected by the tools of pro-

cess mining: historical data may improve the schedul-

ing by using information e.g., about the trustworthi-

ness or power of the resources in different circum-

stances.

For reaching our goals we had to create an ap-

propriate data-model based database which has cen-

tral role during the ﬂexible and adaptive scheduling

process. The database has to support the solution of

wide-scale of scheduling problems where

• the processes to schedule haveappropriate – in the

database interactively predeﬁned (via the user in-

terface) – structure of jobs,

• each job may have arbitrary precondition(s),

whose possible values have to be previously de-

ﬁned in the database,

• every resources of the problem have to be prede-

ﬁned in the database arbitrarily via the user inter-

face,

• all the possible resource-job pairs with their prop-

erties (e.g. cost, operation time, resource opera-

tion mode, capacity, resource failure probability

has to be previously deﬁned in the database,

• all the entity types (e.g. process, job, resource

type, resource) which can be related to a mined

knowledge has to be previously deﬁned in the

database.

The goal of this paper is to introduce the structure of

the database and the thoughts behind it, that made the

creation of the adaptive scheduler possible.

Scheduling is widely investigated topic related to

the execution of processes on computers or computer

networks. Moreover,in case of business process plan-

ning and industrial production processes scheduler al-

gorithms also have huge roles. Although, these algo-

325

Dulai T. and Werner-Stark Á..

A Database-oriented Workﬂow Scheduler with Historical Data and Resource Substitution Possibilities.

DOI: 10.5220/0005204803250330

In Proceedings of the International Conference on Operations Research and Enterprise Systems (ICORES-2015), pages 325-330

ISBN: 978-989-758-075-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

rithms are mainly applied before the processes starts,

in ofﬂine manner. When circumstances change and

an immediate event happens, the previously produced

schedule is not usable or is not optimal any more.

These cases necessitate real-time schedulers. Adap-

tive real-time schedulers are a relatively new top-

ics of OR, see e.g., (Nandanwar and Shrawankar,

2012). Mainly these schedulers are constructed to ap-

ply them in multiprocessor computer systems (Rat-

tanatamrong and Fortes, 2010), (Rattanatamrong and

Fortes, 2011). We intend our system to respond to

immediate events by taking into account the possible

substitution of resources. Literature review showed

that cooperation between the resources increases the

effectiveness of the schedule, see e.g., (Murthy et al.,

1997). Resource allocation and the whole scheduling

can be improved when experiences from the past are

used (Gregg et al., 2011). (Li, 2006) used data min-

ing for collecting historical data about the behaviour

of the schedule in the past. We acquire information

about experiences of past executions also by applying

process mining methods. (Ejarque, 2010) used histor-

ical data for predicate the behaviour of the tasks and

resources in the system and for collecting information

about the failures in the past. Next to these goals in

our work we apply historical data for increasing the

optimality of the prepared schedule.

A scheduler system is created for reaching all of

these goals. We intend to include handling of real-

time events, cooperation of the resources, adaptiv-

ity as well as mining and using of historical data

into our interactive scheduler. The proposed system

makes possible for the users to give different input

data (workﬂow, resource properties, product types,

etc.) via a graphical interface. It is capable to handle

workﬂows in XPDL. Our sub-team gets these data in

Json format and creates an agent system for dealing

with them. As Figure 1 represents, there is a special

agent for scheduling the resources which are repre-

sented by separate agent, there is an agent for mining

data from the log entries of the previous executions,

and there is an agent which deals with the database

connection and operations.

The database of the system has a central role

in supporting the process model representation, the

scheduling and process mining functionalities in an

easily usable way. In this paper this database is high-

lighted and the main functions are introduced based

on its structure. Section 2 describes the structure and

the intended content of the database. Based on the

tables of the database and their relations Section 3

shows how we implement the two main function of

the system: scheduling and process mining. Finally,

Section 4 concludes our work.

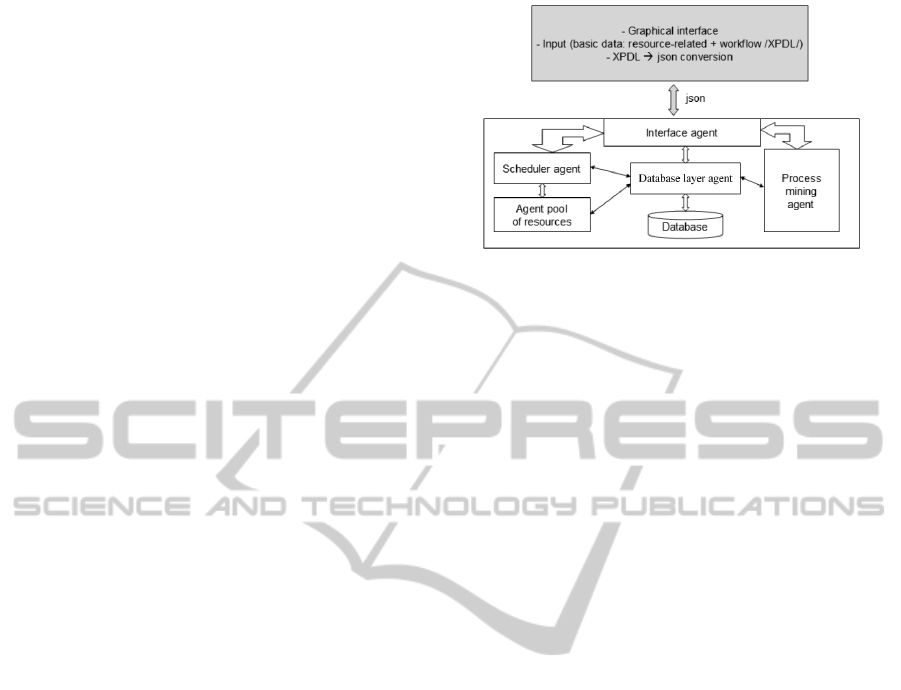

Figure 1: Overview of our scheduler system.

2 THE DATABASE OF THE

SCHEDULER SYSTEM

The database of the system was created to make the

resource-related data handling, the preparation of the

schedule and process mining easy. The structure of

the database is based on the formal model of the

scheduler, which was presented in our former paper

(Dulai et al., 2013).

The tables of the database can be clustered into

three main groups:

• tables related to the workﬂow

• tables related to the resources

• tables related to process mining

These groups are introduced in the following subsec-

tions.

2.1 Workﬂow-related Tables of the

Database

The workﬂow-related tables (see Figure 2) contain the

workﬂow-model and the processes of the real execu-

tions, too, in the same structure. Each workﬂow be-

longs to a project, ensuring that users from different

companies are able to use the system without mixing

up their data. Project table contains the names of the

different projects and its entries are linked to the data

of the different users (companies).

The main goal of these table is to represent the

structure of the actions in the processes. Important

information of the processes – like e.g., its start and

its latest possible ﬁnish time – are stored in the Pro-

cess table. The elements of the processes are the ac-

tions, its main properties – e.g., its name, the real start

time of the action, whether it is a pause, on which

product type is it carried out, how many pieces of the

product type are involved into this action, what is the

maximal pause after executing the action which is tol-

erated, how the default operation time and cost are

ICORES2015-InternationalConferenceonOperationsResearchandEnterpriseSystems

326

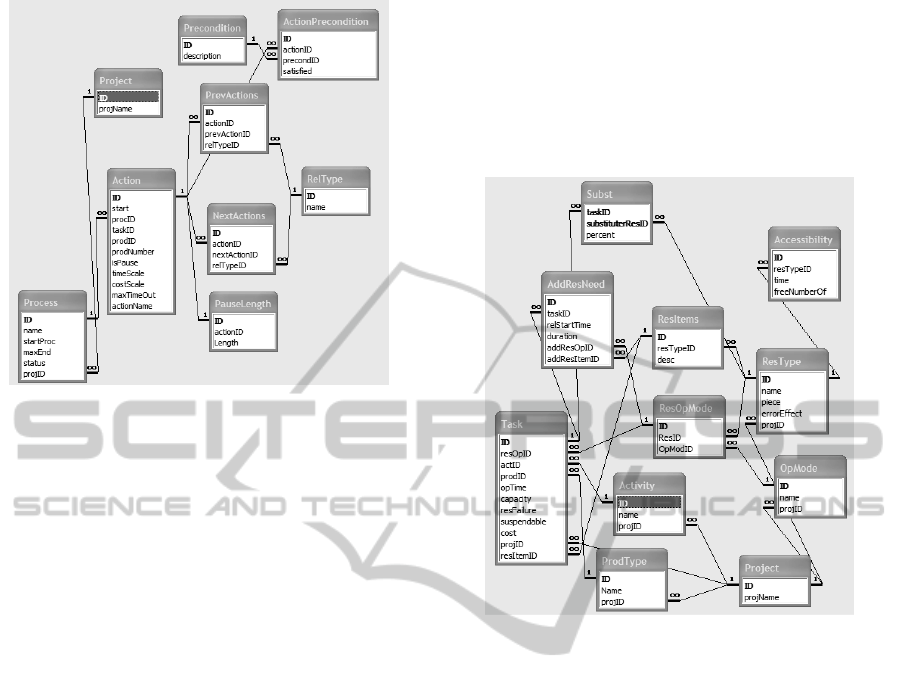

Figure 2: The workﬂow-related tables of the database.

scaled by the user – can be found in the Action table

of the database. Actions of a process may have dif-

ferent relations with each others (e.g., an action may

have 4 different direct following actions where all of

them have to be executed or there is only one follow-

ing action in direct sequential relation or there may

be any other relation between the actions of a pro-

cess). This ﬂexibility has to be ensured by the data

representation in the database, too. It is done by the

PrevActions and NextActions tables which have to

be handled together. These tables are for describing

the neighbouring actions of a process, while a spe-

cial table (RelType) represents the relation type of the

neighbouring actions. This way the possible relation

types can be deﬁned arbitrarily.

There may exist a special case: an empty action,

the pause. During pause there is no need for resource

in the process execution, we only have to wait. The

pause is represented by a special action, which has

only one important property: its length, which is con-

tained in the PauseLength table.

There are cases when actions may be executed

only when some preconditions are satisﬁed. The

database makes possible to deﬁne arbitrary precondi-

tions in its Precondition table. These can be assigned

to the actions of processes via creating entries in Ac-

tionPrecondition table. It makes possible to deﬁne

actions without precondition, while there may exist

different actions which have the same precondition.

2.2 Resource-related Tables of the

Database

This section describes the part of the database which

belongs to the concrete schedule and execution of the

processes. When a process is scheduled, its model

is concretized by assigning its actions to concrete re-

sources with concrete parameters. The same can be

stated for the case of executed processes, too. These

tables for containing concrete resource-related and

process execution related information can be seen in

Figure 3.

Figure 3: The resource-related tables of the database.

The system we created deals with resource types.

Companies can determine how many pieces of the dif-

ferent resource types they have, what is their name

and in case of failure how long are they unusable.

These properties of a resource type can be found in

the ResType table. Table Accessibility describes how

many resource of a given resource type is available –

in fact this table contains the timestamps when the

availability of a resource changes and the cardinality

of the set of the available resources of the referred

type starting from the timestamp. In some cases re-

source type is not enough, we have to refer a concrete

resource for information assignment (e.g., by apply-

ing process mining different efﬁciency can be deter-

mined for different resources of the same type). Table

ResItem makes possible the identiﬁcation and char-

acterization of a concrete resource.

An important property of the resource types –

which makes possible them to substitute other re-

source types – is that a resource type may have dif-

ferent operation modes. The database makes possible

to deﬁne operation modes in OpMode table and to as-

sign them to resources by writing ResOpMode table.

In our system the basic properties of the process-

ing of an action by a resource is determined by four

different factors:

ADatabase-orientedWorkflowSchedulerwithHistoricalDataandResourceSubstitutionPossibilities

327

• the resource (or the type of the resource)

• the applied operation mode of the resource

• the activity which is carried out by the resource

• the product type the action is applied on – its

names are stored in table ProdType

This quartet determines the main properties of the

concrete execution of an action, like the duration of

the operation, its cost, its failure probability, and the

capacity of the resource. These data are stored in

the Task table. One more property belongs here,

which is important in real-time scheduling: it indi-

cates whether the action is suspendable during the ex-

ecution without starting it from its beginning again.

Users may name the concrete executed actions, this

data is placed into table Activity.

Some actions require additional resources during

the part (or the whole time) of their execution. These

needs are stored in the AddResNeed table, where

next to the ID of the additional resource and its opera-

tion mode the starting time and duration of the needed

usage can also be set.

In the creation of optimal schedule table Subst has

huge importance. This table stores the basic informa-

tion about the substitution capability of the resource

types. Of course different resource types may carry

out the same action with different efﬁciency, e.g., re-

source B needs twice more time or cost for doing the

same action on a product than resource A. This rela-

tion of the substitutable resource types is also stored

in the table.

Similarly to the workﬂow-related data, resource-

related basic data are also project-dependent, they are

assigned to the entries of table Project.

2.3 Process Mining-Related Tables of

the Database

Process mining algorithms are used for extracting im-

portant historical data from former process execution

logs. Then, these data are used to reﬁne the schedule.

The database is prepared for supporting process min-

ing and the storage of the mined information. Figure

4 shows the tables which are responsible for dealing

with historical data.

Log table stores the event log entries. The main

purpose of this block was to be general enough be-

cause of the wide usability. In this table the timestamp

of the log entry, its description and status are stored,

together with the identiﬁcation of the related action.

This action has further information about the circum-

stances of the formation of the log entry in the Task

table whose relevant entry is referenced in the Action

table.

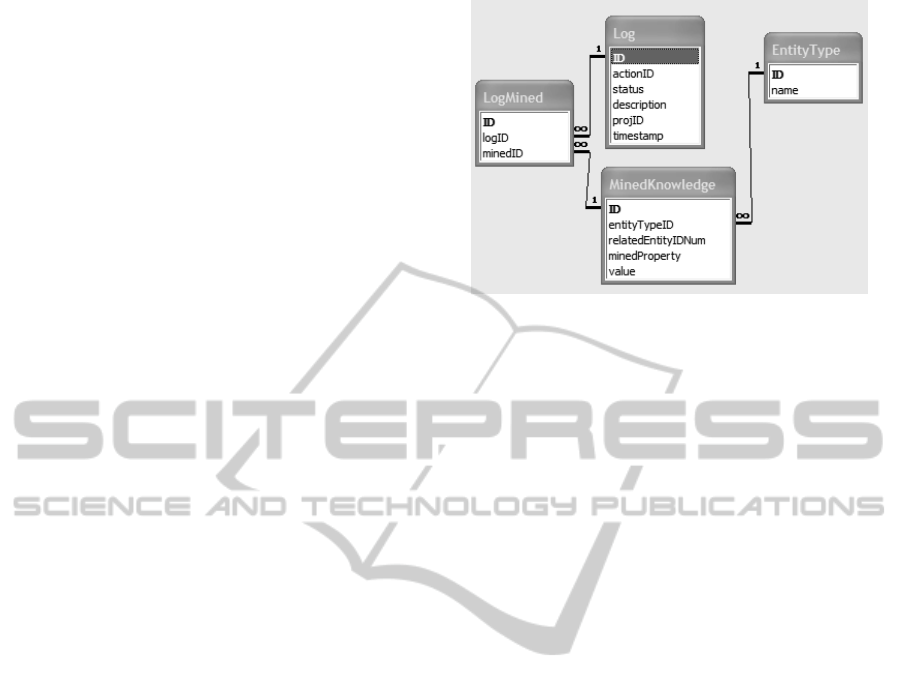

Figure 4: The process mining-related tables of the database.

After process mining algorithm processed the log

entries, mined knowledge is issued. This knowledge

is stored in the MinedKnowledge table. As the mined

information can be varied, the structure of its storage

has to be ﬂexible. We store general property-value

pairs in the table. Of course we should know which

entity (action, resource, etc.) the mined knowledge

refers. The type of the referred entity (which has to be

previously declared in the EntityType table) and its

ID are also stored together with the mined knowledge

in the table. Finally, the origin of the mined knowl-

edge (which log entry or log entries are they origin

from) can be assigned in the LogMined table.

3 SCHEDULING AND PROCESS

MINING FUNCTIONS OF THE

SYSTEM

Based on our previously introduced database, in this

section we brieﬂy present the main functions of the

scheduler system: how the scheduler algorithm works

taking into account the possible resource substitution

and how historical data are used for improving the

schedule. Finally, we collect the advantages of our

approach, these advantages origin from the structure

of the database.

3.1 Basic Scheduling Method Built on

Resource Substitution Possibilities

The initial state our scheduling system is count on that

the basic data are written into the database. These data

are the types of the resources which are at service at

the company; the properties – like possible operation

modes, cost, operation time, etc. – of these resource

types; the activities which have to be carried out, etc.

ICORES2015-InternationalConferenceonOperationsResearchandEnterpriseSystems

328

After these data are entered via the GUI, the sys-

tem can handle the workﬂows as follows:

• A model of the workﬂow has to be created by the

user. It has to express the desirable operation of

the workﬂow. It means the identiﬁcation of the

proper sequence of the actions of the workﬂow

and the desires resource allocation. In this phase

the user does not have to deal with the availability

of the resources.

• Based on the workﬂow model and the basic data

of the resources stored in the database, the sched-

uler allocates the proper resources to the proper

actions of the workﬂow. In our case it is done fol-

lowing the goal that an action has to be started as

soon as possible. If the resource which was as-

signed in the model is not available – it has to be

veriﬁed in the Accessibility table of the database –

, then the scheduler looks for a possible substitute

based on the Subst table of the database. When

there is not free resource to carry out the action,

then the beginning of the action has to be shifted

in time forward while a resource becomes free

which can carry out the action. Following these

steps for action to action, the ﬁnal schedule will

be prepared.

• When the real execution of the workﬂow takes

place, the steps of the execution are written into

the database the same way as in case of the work-

ﬂow model. Next to the ﬁxation of the real se-

quence of the actions and the resources which

were involved into the execution, the logs of the

actions are prepared, too, and are written into the

Log table of the database. Of course, immediate

events may result that the real execution differs

from the schedule.

• Based on the time to time updated content of the

log table, the process miner agent collects data

which are written into the MinedKnowledge table

of the database. These collected information can

be used by the scheduler agent in later schedules

and for improving recent schedules, too.

3.2 Usage of Historical Data for

Improving Scheduling

The Process Mining agent collects experiences about

the real executions of workﬂows which can be use-

ful for later schedules. These experiences are infor-

mation which characterize the different elements of

the process execution: the resources, the actions, etc.

Mined information are stored in the MinedKnowledge

table of the database. We collect information for get-

ting knowledge about:

• Which resource is the most time- or cost-effective

in average in carrying out a given action?

• Which resources are overloaded?

• Does the direct previous action of a resource inﬂu-

ence its time- or cost-efﬁciencyduring performing

an action?

• Does the simultaneous operation of two resources

inﬂuence their time- or cost-efﬁciency during per-

forming actions?

• Does the absolute time of the work inﬂuence the

time- or cost-efﬁciency of performing an action

by a resource?

• How the failure-probability – or other important

properties – of the resources change over time?

• Which action resulted the most failure?

• etc.

These information can be used by the scheduler

agent in resource selection for carrying out an action.

Historical data may be talkative about the expectable

performance of the resources.

In the future we intend to implement more sched-

uler algorithms (e.g., heuristic schedulers) and com-

pare their efﬁciency. Moreover, our goal is to collect

several information of the past workﬂow executions

and implementing more and more process mining al-

gorithms for improving the ﬁnal schedule, while ver-

ifying the impact of the application of the mined in-

formation on the efﬁciency.

3.3 Advantages of the Approach which

origin of the Database Structure

and Content

The database presented in Section 2 makes the reach

of our goals possible: the inclusion of the wide spec-

tra of improvementsinto our scheduler,related to both

the reaction to the immediate dynamic events, the

cooperation of the resources and the improvements

helped by mined historical data. The structure and

the content of the database ensure the following pos-

sibilities:

• The system is able to handle several separate

projects parallel.

• the suspendability of the activities can be taken

into account during the creation of the schedule.

It may result that an ongoing action can be sus-

pended to share its resource with an action which

begins later without starting the former action

again from its beginning.

• Possibility of resource failure can be taken into

account during schedule preparation.

ADatabase-orientedWorkflowSchedulerwithHistoricalDataandResourceSubstitutionPossibilities

329

• Experiences of the ongoing execution can inﬂu-

ence in real-time the parameters of the schedule.

• Different operation modes of the same resource

can be taken into account.

• The substitutability of resources and its scale – the

difference of different resources performing the

same action – can be handled.

• Preconditions can be assigned to the actions.

More than one action can have the same precon-

dition, too.

• Historical data can be stored.

• The results of process mining can be identiﬁed,

collected, their relation with their origin and sub-

ject can be expressed.

These advantages ensure that a ﬂexible and up-

to-date scheduling system can be created which meet

with our exceptions.

4 CONCLUSIONS

This paper presented an ongoing research of a work-

ﬂow scheduler which takes into account resource sub-

stitution possibilities and historical data which origin

from past executions. This scheduler is a part of a

complex system which is developed for scheduling

business processes, however, we intend to apply it for

other processes, too.

The paper places the database of the scheduler into

the centre. This database stores properties of the re-

sources, stores the model of the workﬂow and after

scheduling its result is also written into the database.

Moreover during the real execution, log entries and

the possible changes are also ﬁxed in the database.

The paper details the structure of the database, and

highlights the relation of the main functions of the

scheduler and the database tables. For extracting use-

ful information of historical data we implement pro-

cess mining algorithms. We intend to analyze their

effect on the efﬁciency of the scheduler. Moreover,

implementing more scheduler algorithms we want to

use our system for comparing them in the future.

ACKNOWLEDGEMENTS

This publication/research has been supported by the

European Union and Hungary and co-ﬁnanced by the

European Social Fund through the project TAMOP-

4.2.2.C-11/1/KONV-2012-0004 National Research

Center for Development and Market Introduction

of Advanced Information and Communication Tech-

nologies.

We acknowledge the ﬁnancial support of the

Hungarian State and the European Union under the

TAMOP-4.2.2.A-11/1/KONV-2012-0072.

The authors wish to thank Prof. Katalin M. Han-

gos from Computer and Automation Research Insti-

tute, Budapest, Hungary, for her advices during the

creation of this paper.

REFERENCES

Dulai, T., Werner-Stark, A., and Hangos, K. (2013). Imme-

diate event-aware model and algorithm of a general

scheduler. Hungarian Journal of Industry and Chem-

istry, 41(1):27–34.

Ejarque, Jorge; Micsik, A. S. R. P. P. K. L. B. R. M.

(2010). Semantic resource allocation with historical

data based predictions. Proc. of Cloud Computing

2010 : The First International Conference on Cloud

Computing, GRIDs, and Virtualization, pages 104–

109.

Gregg, C., Boyer, M., Hazelwood, K., and Skadron, K.

(2011). Dynamic heterogeneous scheduling decisions

using historical runtime data. Proc. 2

Workshop

on Application for Multi- and Many-Core Processors.

San Jose, CA.

Li, X. (2006). Application of data mining in scheduling of

single machine system. PhD dissertation. Iowa State

University.

Murthy, S., Akkiraju, R., Rachlin, J., and Wu, F. (1997).

Agent-based cooperative scheduling. Proc. AAAI

Workshop on Constraints and Agents, pages 112–117.

Nandanwar, J. and Shrawankar, U. (2012). An adaptive real

time task scheduler. IJCSI International Journal of

Computer Science Issues, 9(6/1):335–340.

Rattanatamrong, P. and Fortes, J. A. B. (2010). Real-time

scheduling of mixture-of-experts systems with limited

resources. In Johansson, K. H. and Yi, W., editors,

HSCC, pages 71–80. ACM.

Rattanatamrong, P. and Fortes, J. A. B. (2011). Real-

time scheduling of ensemble systems with limited re-

sources. PhD dissertation. University of Florida.

ICORES2015-InternationalConferenceonOperationsResearchandEnterpriseSystems

330
