DipBlue: A Diplomacy Agent with Strategic and Trust Reasoning

Andr

e Ferreira

, Henrique Lopes Cardoso

1,2

and Lu

ıs Paulo Reis

2,3

DEI/FEUP, Faculdade de Engenharia, Universidade do Porto, Porto, Portugal

LIACC – Laboratrio de Intelig

encia Artiﬁcial e Ci

encia de Computadores, Porto, Portugal

DSI/EEUM – Escola de Engenharia da Universidade do Minho, Guimar

aes, Portugal

Keywords:

Diplomacy, Strategy, Negotiation, Trust.

Abstract:

Diplomacy is a multi-player strategic and zero-sum board game, free of random factors, and allowing negotia-

tion among players. The majority of existing artiﬁcial players (bots) for Diplomacy do not exploit the strategic

opportunities enabled by negotiation, instead trying to decide their moves through solution search and the use

of complex heuristics. We present DipBlue, an approach to the development of an artiﬁcial player that uses

negotiation in order to gain advantage over its opponents, through the use of peace treaties, formation of al-

liances and suggestion of actions to allies. A simple trust assessment approach is used as a means to detect and

react to potential betrayals by allied players. DipBlue was built to work with DipGame, a multi-agent systems

testbed for Diplomacy, and has been tested with other players of the same platform and variations of itself.

Experimental results show that the use of negotiation increases the performance of bots involved in alliances,

when full trust is assumed. In the presence of betrayals, being able to perform trust reasoning is an effective

approach to reduce their impact.

1 INTRODUCTION

Since the beginning of Artiﬁcial Intelligence as a re-

search ﬁeld, game playing has been a fertile envi-

ronment for the development of novel approaches to

build intelligent machines. Most approaches to game

playing, however, have been based mainly on (adver-

sarial) search techniques and sophisticated domain-

speciﬁc heuristics. Complex adversarial multi-player

games pose new challenges to multi-agent systems

(MAS) research: multi-player games with search

spaces big enough to render ineffective any approach

based solely on search.

Diplomacy is a military strategy multi-player si-

multaneous move board game, created by Allan B.

Calhamer (Calhamer, 2000) and distributed by Has-

bro since 1954. Its most interesting attributes include,

according to (Hall and Loeb, 1995), the enormous

size of its search tree, the difﬁculty of determining

the true strength of a position, and negotiation, whose

support brings a competitive advantage to develop so-

phisticated players.

The fact that adversaries may negotiate through-

out the game makes Diplomacy a very appealing

sandbox for multi-agent research: while players are

competing against each other, they must also cooper-

ate to win the game. To do so, players may need to

build trust, maintain relationships and negotiate deals

through argumentation.

This work proposes an approach to the creation of

an artiﬁcial player that takes advantage of negotiation

and trust in order to increase its performance. The

main goal is to develop a bot capable of surpassing its

opponents by the use of negotiation and trust reason-

ing. Our bot, DipBlue, works with the MAS testbed

DipGame (Fabregues and Sierra, 2009) and has been

tested with another player of the same platform and

with variations of itself.

The rest of the paper is structured as follows. Sec-

tion 2 brieﬂy describes the rules of Diplomacy and

highlights the properties of the game that make it ap-

pealing for MAS research. Section 3 reviews related

work on Diplomacy platforms and bots. In Section 4

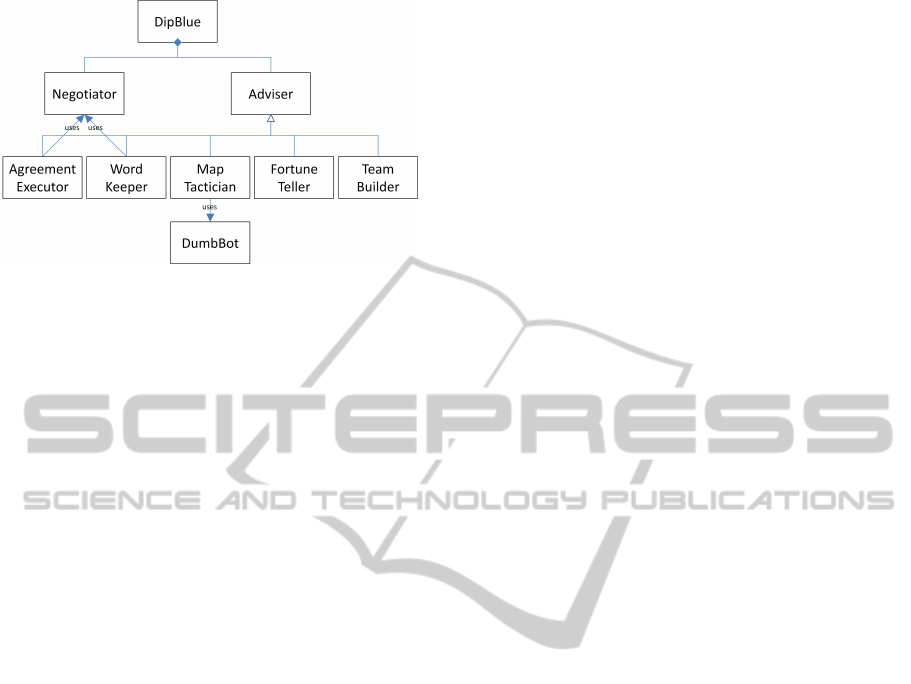

we describe DipBlue’s architecture and archetypes.

Section 5 presents an experimental evaluation of Dip-

Blue, and puts forward a set of Diplomacy-related hy-

potheses on the expected results. Section 6 presents

and discusses the obtained results. In Section 7 we

draw conclusions of the work done, and we point out

directions for future work.

Ferreira A., Lopes Cardoso H. and Reis L..

DipBlue: A Diplomacy Agent with Strategic and Trust Reasoning.

DOI: 10.5220/0005205400540065

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence (ICAART-2015), pages 54-65

ISBN: 978-989-758-073-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Standard Diplomacy map of Europe

2 DIPLOMACY: THE GAME

Diplomacy takes place in the turn of the 20th century

in the years before World War I. Each player repre-

sents one of the following countries or world powers:

England, France, Austria, Germany, Italy, Turkey and

Russia. The main goal of the game is to conquer Eu-

rope, which is achieved by acquiring a minimum of 18

from a total of 34 supply centers throughout the map

(see Figure 1). During the game, each player com-

mands its units in the map by giving them orders to

hold, move to adjacent regions (also termed attack), or

support other units’ actions (holds or moves of units

from either the same or other players). Move actions

to occupied regions originate conﬂicts (standoffs); the

strongest unit (attacker or defender) wins the standoff,

where strength is increased by backing up units with

supports from other neighboring units. Some moves

may invalidate other moves or cut supports. It is the

conjunction of all orders that determines what actu-

ally happens in each round of the game

Before each round of orders, the players are able

to communicate willingly with each other, enduring

only the restrictions they set among and for them-

selves. In the negotiation phase of the game players

can communicate with each other both publicly and

privately. Although these conversations and arrange-

ments are a huge part of the game-play, they hold ab-

solutely no real power in the game itself: a player can

commit to execute an action in exchange of informa-

tion and, after acquiring it, decide not to fulﬁll its part

of the agreement.

Diplomacy is characterized by having no random

factors (besides the initial assignment of world pow-

ers to players) and being a zero-sum game. How-

ever, the size of the game’s search tree is enormous

and impossible to search systematically even at low

Detailed rules of the game can be found in (Calhamer,

2000).

depths. To address this problem, in most games the

tree is pruned using heuristics that assess the state of

the game in a given time and compare it with future

game states. However, this technique cannot be di-

rectly applied to Diplomacy, given the fact that the

game is played in a multi-agent partially observable

environment (Russell et al., 1995), and thus not fully-

deterministic from an agent’s point of view – the cho-

sen orders of a player are not necessarily effective,

given its lack of knowledge about other agents’ ac-

tions.

In common solution search problems, the perfect

or optimal solution is given in a certain depth of the

tree and the algorithm proceeds to making the deci-

sions that lead to the optimal solution found. How-

ever, when applied to adversary games the solution

tree is built with alternate layers of decisions made

by the player and decisions made by the opponents.

Therefore, the player does not have full control of the

course of the game. To deal with the search of the so-

lution space several algorithms were developed over

the years, such as Branch and Bound and A*. Since

adversary games have a particular kind of search tree,

speciﬁc algorithms were created to deal with the lay-

ered tree, one of the most well-known being Mini-

max. However, one of the most important aspects

of search algorithms is the heuristics used to assess

game states. According to some attempts at creating

heuristics for Diplomacy, a player can be overlooked

as a weak opponent when considering only the num-

ber and placement of its armies; and yet, when having

strong alliances, a player can win the game or anni-

hilate another player in a few turns. This makes the

creation of an effective heuristic a difﬁcult challenge.

This rich environment provided by Diplomacy

promotes the development of bots capable of domi-

nating their opponents through negotiation, which in-

creases the need for trust reasoning capabilities to al-

low players to protect themselves.

3 RELATED WORK

A short description of testbeds for Diplomacy and

bots developed speciﬁcally for this game is provided

here. We also review some of the main strategies used

in the game, both in terms of evaluation heuristics and

negotiation.

3.1 Diplomacy Testbeds

Although there are several different testbeds for MAS

in general, there are a few speciﬁc for Diplomacy. The

two most inﬂuential are brieﬂy described here.

DipBlue:ADiplomacyAgentwithStrategicandTrustReasoning

The Diplomacy Artiﬁcial Intelligence Develop-

ment Environment (DAIDE

) (DAIDE, 2013) assists

the development of Diplomacy bots by taking care

of all the logic concerning moves validation and the

generation of the new game states. It also provides a

communication server that allows players to exchange

messages between them during certain phases of the

game. This communication server provides several

layers of supported syntax in a way to allow for sim-

pler or more complex negotiator bots. The communi-

cation layers are referred to as Press levels and there

are 15 distinct ones, ranging from most basic (no

communication at all) to the more complex level, able

to negotiate in free text. Both server and bots are writ-

ten in C/C++.

DipGame

(Fabregues and Sierra, 2009) is a

testbed created at IIIA-CSIC that uses the DAIDE

server to handle moves resolution and generation of

new game states. Although DAIDE already supports

a communication server and its own syntax, DipGame

introduces its own server and creates a new commu-

nication syntax known as L Language (see Figure 2).

DipGame and its bots are implemented in Java. Ad-

ditionally, DipGame provides an improved logging

system and a web interface where anyone can play

against some DipGame bots.

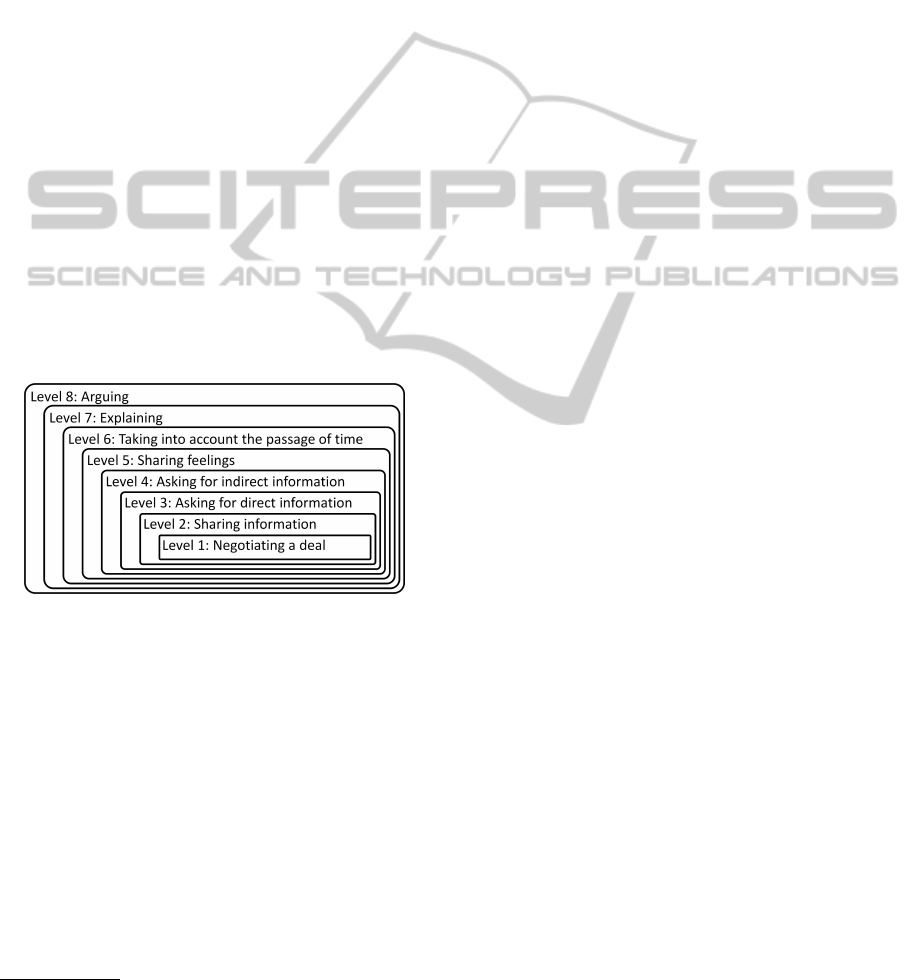

Figure 2: Layers of the L Language of DipGame (adapted

from (Fabregues and Sierra, 2009)).

3.2 Diplomacy Bots

Some popular and pertinent bots developed for Diplo-

macy are analyzed here. These bots have different

approaches, and some of them have been used as an

inspiration during the creation of DipBlue.

Israeli Diplomat (Sarit Kraus, 1987) was devel-

oped in 1988 by Kraus et al. to work with a propri-

etary testbed. It uses an architecture that distributes

responsibilities according to the nature of the tasks.

This architecture has served as an inspiration for other

bots, such as the Bordeaux Diplomat. The bot has

http://www.daide.org.uk/

http://www.dipgame.org/

several well designed strategies to deal with so-

lution search and negotiation with opponents.

The Bordeaux Diplomat (Hall and Loeb, 1995)

was created by Loeb and has a partitioned structure

like the Israeli Diplomat, separating negotiation from

solution search. The latter ignores the world power

that owns each region and does an impartial evalua-

tion of sets of actions by using a best ﬁrst algorithm.

The bot keeps a social relations matrix to determine

the opponents that are more likely to betray.

DumbBot (Norman, 2013) is probably the most

popular and common bot available for DAIDE. Even

though it is not optimized and performs only a small

tactical analysis, DumbBot performs relatively well,

beating some attempts to create complicated heuris-

tics and tactics. It does not perform negotiation of

any sort – the only actions made are game-related

orders. The bot has been the target of many stud-

ies and has been used as a benchmark for testing

other bots. A replica of DumbBot was developed for

DipGame (Jonge, 2010), different only on the lack of

support for a move called Convoy, which is not avail-

able in DipGame.

The Albert (van Hal, 2013) bot was developed by

Jason van Hal and is, up until now, the best bot for

DAIDE by far. It is the only Press Level 30 bot avail-

able. Because of its efﬁciency and high performance,

it has been used as a benchmark by many researchers

who try to out-perform it.

BlabBot was created by John Newbury (Webb

et al., 2008) and builds on DumbBot by implementing

negotiation on top of it. BlabBot follows a “peace-to-

all” strategy by sending peace offers to all players,

decreasing the value of regions owned by players ac-

cepting those peace offers.

DarkBlade (Ribeiro et al., 2009) is a no-press bot

built by Jo

ao Ribeiro, which tries to combine the best

tactics and strategies used by other Diplomacy agents.

DarkBlade follows a modular architecture similar to

Israeli Diplomat (see below), and is modeled as an

internal MAS, using so-called sub-agents.

HaAI (Johansson and H

a rd, 2005) was devel-

oped by H

ard and Johansson. It uses a MAS struc-

ture inside the bot itself, in which each unit owned by

the player is represented as an individual sub-agent.

Each sub-agent tries to choose its own action accord-

ing to what it considers to be the best option, while

at the same time interacting as a team with the other

sub-agents of the same player.

SillyNegoBot (Polberg et al., 2011) is a DipGame

bot developed by Polberg et al. and is an exten-

sion to the SillyBot, a bot similar to DumbBot (with-

out communication capabilities). SillyNegoBot adds

L Language Level 1 communication and includes a

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

BDI architecture. The bot has proven to be success-

ful when matched with DumbBot but too naive when

confronted with betrays. It uses the concept of per-

sonality with ratios for aggression/caution.

A few other works worth mentioning include an

approach to optimize a Diplomacy bot using genetic

algorithms (Jonge, 2010), and a bot that takes advan-

tage of a moves database, based on abstract state tem-

plates, providing the best set of actions for a given

map and units with the goal of acquiring certain re-

gions (Deyllot, 2010).

3.3 Strategies for Diplomacy

Evaluating board positions is crucial for effective

Diplomacy playing. However, as explained before,

board evaluation is particularly complex in Diplo-

macy, both because of the partially observable envi-

ronment a player is facing and the potential use of

negotiation to establish temporary alliances between

players.

The province destination value is used by Dumb-

Bot to assign a value to each region (Jonge, 2010).

This metric takes into account the player that owns

the region, and the amount of allied and enemy units

in surrounding regions. The blurred destination value

is a variation of the previous metric that spreads the

value of a certain node to its neighbors. This way,

the surrounding regions reﬂect that either the region

itself is valuable or is near a valuable region. Values

assigned to near regions can be obtained in a number

of ways, e.g. by applying a Gaussian or linear blur.

Negotiation strategies often used in Diplomacy

try to limit the search space by establishing coop-

eration agreements among players. However, when

time comes such agreements may be simply ignored,

and betrays come into play. This is why the estab-

lishment of an alliance does not per se comprise a

real enhanced power to the players: the competitive

advantage obtained by negotiating an agreement is

based on the assumption of compliance, and thus any

agreement is on shaky ground in a zero-sum game like

Diplomacy.

Some of the main negotiation tactics that have

been proposed in Diplomacy literature are brieﬂy

mentioned here. Many of these tactics are used by

human players in real board games. However, they

typically use concepts that are simple for humans but

complicated for computers, like small hints gathered

just by looking at the opponents and the conﬁdence

the player has on other players.

The peace-to-all strategy is used in BlabBot, and

tries to provide a certain level of security by quickly

establishing alliances (Webb et al., 2008). Players

outside this set of alliances have a high chance of

being eliminated, and the bot will progressively be-

tray the player that is considered the most convenient

to leave the allied group, usually the stronger player

available.

Back-stab is a tactic used by BlabBot for deciding

when to betray alliances or for guessing when these

will be betrayed by adversaries (Webb et al., 2008).

This tactic consists of keeping a threat matrix between

the player and the opponents (and vice-versa): the

higher the value, the more likely the player is to betray

an alliance.

The power-cluster strategy is an approach to de-

termine what world powers the player should ask for

alliances and which ones to keep the longest. The

strategy has evolved using clustering techniques over

several games in order to identify which groups of

powers have higher probability of succeeding, when

allied.

4 DipBlue

DipBlue

is an artiﬁcial player for Diplomacy built

with the purpose of assessing and exploring the im-

pact of negotiation in a game that natively relies on

communication. Since the main difﬁculty when cre-

ating a Diplomacy bot is the size of the search tree for

the game, a different approach was adopted to ten-

tatively implement an effective Diplomacy bot: Dip-

Blue uses negotiation as its main tool to gain advan-

tage over its competitors, and applies trust reasoning

to understand and react when betrayed.

4.1 Architecture

The architecture developed to implement DipBlue has

the purpose of being ﬂexible and easily extendible

through the use of a highly modular approach, which

evaluates and determines the set of orders in each turn

from different perspectives. Figure 3 shows a class di-

agram comprising an overview of DipBlue’s architec-

ture, including two main components: Negotiator and

Adviser (further explained in Section 4.3). Different

advisers may be added as needed to the bot, enabling

its extensibility. This modular implementation also

allows an easy customization of the bot, resulting in a

vast array of possible conﬁgurations of bots that differ

in their capabilities and behaviors. In Section 4.4 we

discuss some of such conﬁgurations.

Figure 3 also shows the relation between one of

the advisers and DumbBot, the bot it is based on. In

DipBlue is named in honor of the supercomputer Deep-

Blue, and of the platform, DipGame, it is built to play on.

DipBlue:ADiplomacyAgentwithStrategicandTrustReasoning

Figure 3: DipBlue architecture.

other terms, DubmBot could, in principle, be thought

of DipBlue conﬁgured with a single adviser: MapTac-

tician (see also Section 4.3.

The negotiation capability of DipBlue is mate-

rialized in the Negotiator component, responsible

for handling received messages and for determining

which messages are to be sent. Negotiation tactics

are included in this component. The actual orders to

be executed by each of the player’s units, however, are

dictated by Advisers. Any negotiated agreements that

are to have an effect in further DipBlue actions need

thus to be taken into account by some advisers (e.g.

AgreementExecutor and WordKeeper in Figure 3).

4.2 Negotiation and Trust

DipBlue is a negotiating bot with the ability to com-

municate in L Language level 1 (see Figure 2), whose

format is explained in (Fabregues and Sierra, 2009).

This layer of the language allows for three types of

requests: peace, alliance and order requests.

Peace requests reﬂect the intention for truce to oc-

cur among players and it can be understood as a re-

quest for cease-ﬁre or simply to achieve neutrality. In

an attempt to reduce the probability of conﬂict with

the most players possible, peace messages are sent to

all negotiating players in the beginning of the game.

DipBlue then opts to break truce with the player con-

sidered to be the least beneﬁcial, taking into account

the number of supply centers held by the other powers

and the proximity between the power under analysis

and DipBlue in the map.

Alliance requests are handled by using two clus-

ters of powers – allies and enemies – with the purpose

of joining the efforts of the allied powers in order to

defeat the enemies. DipBlue sends alliance requests

to all players with whom it is in a state of peace, tar-

geting the strongest non-ally power as an enemy. This

results in a joint effort to eliminate the biggest threat

at each phase of the game. Once the previously tar-

geted enemy is weakened enough, the new strongest

non-ally power is targeted, and so on. DipBlue ac-

cepts requests from other players if they are in a state

of peace and if the targeted enemy is not an ally itself.

An order request contains an order regarding a

unit of the player to whom the request is sent. It has

the purpose of suggesting the other player orders for

its units. DipBlue uses these messages as a way to

request for additional support to moves adjacent to al-

lied units. Since the L Language supports messages

with negative connotation, players can ask their allies

not to perform actions that interfere with their own.

DipBlue accepts order requests if the sender is an ally

and if the requested order has a value higher than the

action DipBlue had selected for the envisaged unit.

Orthogonal to the use of this negotiation strategy

is the maintenance of a trust ratio reﬂecting the rela-

tionship between the player and each opponent. Ini-

tially all players are neutral, meaning they have a trust

ratio of 1. This ratio is converted into a friction ratio

Friction = 1/Trust, used by the bot to decide on mak-

ing alliances or to adjust the odds on the fulﬁllment

of deals. It also determines when certain deals are ac-

cepted or rejected. The value of orders requested by

other players is scaled with the trust ratio of the sender

– players with a higher trust ratio have a higher prob-

ability of having their requests accepted.

Trust (or friction) ratios are updated during the

course of the game. Events that decrease trust (and

thus increase friction) include attacks and betrayals.

Likewise, the lack of attacks by players in close dis-

tance or the fulﬁllment of agreements bring an in-

crease on trust (and thus a decrease on friction). The

magnitude of the impact of these events on trust de-

pends on the current trust held by the player: trust in

currently untrustworthy players is less affected; on the

other hand, trustworthy players get a higher impact

on their assigned trust value. This choice is meant

to emphasize the role of betrayals during the game,

since this way an attack made by an ally (a currently

trustworthy opponent) has a higher increase of fric-

tion than the same attack made by a current enemy.

Given the nature of alliances in Diplomacy, which are

not on solid ground and may suddenly be broken, with

this approach we try to quickly capture such changes

in the game.

Along with the trust ratio, a state is associated

with each opponent that also reﬂects the current re-

lationship. This state is originally neutral and may

change to war or peace according to the trust ratio

and the outcome of negotiations (namely peace and

alliance requests). This state is used to enhance the

impact of the trust ratio, by increasing its effect when

assessing actions related to a given opponent. When

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

a new alliance is started, all enemy player states are

changed to war, thus reducing their trust ratio and in-

creasing aggressiveness towards them.

4.3 Advisers

Advisers are the components of DipBlue that assess

possible orders and determine what to do. Each of

them is individual and can be used without the others,

providing modularity and extensibility to the archi-

tecture. In the process of determining which actions

to perform, the opinions of all advisers are taken into

account.

A ranking of possible orders for each unit is cre-

ated. The method used to calculate the value assigned

to each action is a weighted accumulation similar to

a voting system, considering the numerical evaluation

each adviser provides (see Eq. 1, where n is the num-

ber of advisers, w

is the weight of Adviser i and v

Order

is the value Adviser i assigns to Order).

Order

∑

i=1

Order

(1)

While accumulating values, these can actually be

either summed or multiplied, as for some advisers the

assigned value has no meaning by itself (e.g. the prob-

ability of an order being successful), and should be

interpreted as a scaling factor – the adviser is simply

increasing or decreasing the importance of the order.

This also means that the order of execution of advisers

is important.

Finally, the best order for each unit is selected, en-

suring they do not collide with each other. This veriﬁ-

cation is important because, for instance, if two units

happen to attack the same region, a conﬂict arises

and neither unit is successful, nulling out each other

moves.

Initially, advisers have equal weights, which can

then be adjusted in order to ﬁne-tune the bot. Along

with these weights, advisers themselves have intrinsic

parameters that can be adjusted for obtaining differ-

ent behavior variations. The adjustment of these pa-

rameters allows the creation of behavioral archetypes

and personality, such as aggressive, naive, friendly or

vengeful players. An optimization approach may be

used to ﬁnd out the optimal performance, following

the approach in (Jonge, 2010).

We now provide short descriptions of the advisers

illustrated in Figure 3.

MapTactician is the base adviser, serving as a

starting point for all the following advisers to work

upon. It is based on the behavior of DumbBot (see

Section 3.2). This adviser performs an assessment of

the map in terms of raw power, amount of enemy units

and their positions, following a province destination

value heuristic (see Section 3.3).

FortuneTeller takes into account the basic rules

for resolving actions in Diplomacy to predict if an

action will succeed, giving a probabilistic view of

the evaluated move actions. Since Diplomacy has a

complex set of rules with many exceptions and prece-

dences between them, determining if one action in a

given set is going to be successful is not a trivial task.

Given the size of the search tree, it can also be quite

time consuming. In order to alleviate this problem,

FortuneTeller disregards the possibility of chain ac-

tions that may nullify each other, thus often obtaining

optimistic probabilities of success.

The role of TeamBuilder is to promote support

actions. Supports related with move actions that are

highly ranked have their value increased, as a way to

increase the probability of success of the move. Fur-

ther in the process of choosing the actions for each

unit, with this adviser a unit may forfeit its highest

ranked action to support some neighbor with a high

need for support, particularly when the move of such

neighbor has a value higher than the original action

of the supporting unit. Changing the weight of this

adviser results in a higher cooperation in attacking

moves, thus enhancing team play.

AgreementExecutor takes into account the deals

made by DipBlue and decides how they should be per-

formed. The value of each deal is assessed by taking

into account the trust ratio with the deal counterpart.

Given the dynamics of the game, a deal may be pro-

posed or accepted when the powers are in a friendly

state but then be poorly rated because of the decrease

of trust between both parties.

WordKeeper is the adviser in charge of reﬂect-

ing the inﬂuence of trust/friction regarding each op-

ponent. WordKeeper scales the value of the actions

according to the trust ratio of the player the action is

directed to. This way, the value associated with an at-

tack to an ally is reduced, while the value associated

with an attack to an enemy is increased.

4.4 Archetypes

Throughout the development of the DipBlue bot some

distinct aspects were created, such as the ability to

negotiate, propose deals and perform trust reasoning.

In order to test some of these aspects individually,

some different bots were created according to generic

archetypes. Each archetype is deﬁned by the set of ad-

visers it uses and by the way the bot reacts to certain

events, such as peace and action requests. Archetypes

can be seen as different conﬁgurations of DipBlue,

and were deﬁned to overcome the lack of DipGame

DipBlue:ADiplomacyAgentwithStrategicandTrustReasoning

bots available for testing purposes. With the excep-

tion of NoPress, every other archetype described be-

low uses all the advisers presented in Section 4.3.

NoPress is the most basic version of DipBlue. It

does not perform negotiation of any kind and is un-

able to perform trust reasoning. It is very similar to

DumbBot in terms of capabilities. Advisers: Map-

Tactician, FortuneTeller, TeamBuilder.

Slave has the ability to communicate although it

does not take the initiative to start negotiations. Slave

makes the same evaluation of actions as NoPress, au-

tomatically accepts every requests and follows them

blindly (as long as they are executable). All agree-

ments have higher priority as compared to the actions

determined by the bot itself. This is the best bot to

have as an ally.

Naive is endowed with the ability to propose deals

of any supported kind to other players. When re-

ceiving incoming requests it has the ability to rea-

son whether it should accept them based on a sim-

ple evaluation of both the request and the requesting

player. Deals proposed by allies or players with very

high trust ratio are inﬂated, while requests made by

players the bot is in war with are almost always re-

jected. However, Naive lacks the ability to perceive

when agreements are not fulﬁlled, and thus cannot be

said to perform trust reasoning.

DipBlue is the more complete bot: it has the same

setting as Naive with the addition of being able to per-

form trust reasoning. This allows DipBlue to detect

hostile actions from other players and to assess how

they fulﬁll agreements. Due to the trust ratios and us-

ing the AgreementExecutor and WordKeeper advis-

ers, DipBlue is also capable of betraying other play-

ers.

In Algorithm 1 a high-level speciﬁcation of Dip-

Blue’s operation is listed. As mentioned in Sec-

tion 4.2, the bot starts by proposing peace agreements

to all adversaries (lines 1-3), and according to re-

ceived responses updates the set P of opponents that

are in peace.

When playing Diplomacy, in each season the play-

ers go through different phases, in the following

sequence: spring, summer, fall, autumn and win-

ter. Spring and fall are the so-called diplomatic

phases, where players are able to negotiate cooper-

ation (lines 6-11). DipBlue starts by revising peace

agreements (line 7), taking into account what has hap-

pened in the previous phases. Friction ratios are up-

dated and peace is broken for those opponents with a

ration above a given threshold. DipBlue will then se-

lect the highest power (line 8) as a target, proposing

to all opponents currently in P an alliance to defeat it

(line 9). Sets P and W are updated according to the

Algorithm 1: DipBlue’s high-level algorithm.

Require: gameState {current state of the game}

A {advisers to use}

X {list of opponents}

P {list of opponents in peace and their friction ratios}

W {list of opponents in war and their friction ratios}

1: for all op ∈ X do

2: negotiatePeaceAgreement(op,P )

3: end for

4: while alive do

5: switch (phase(gameState))

6: case Spring, Fall:

7: updatePeaceAgreements(P )

8: hp ← highestPower(gameState)

9: negotiateAlliance(hp,P ,W )

10: O ← selectMoveOrders(gameState,A)

11: requestSupports(O,P )

12: case Summer, Autumn:

13: O ← selectRetreatOrders(gameState,A)

14: case Winter:

15: O ← selectBuildOrRemoveOrders(gameState,A)

16: end switch

17: executeOrders(gameState,O)

18: for all op ∈ X do

19: for all o ∈ executedOrders(gameState, op) do

20: if isMoveTo(o) and target(o) = me then

21: updateRatio(op,P ,W )

22: end if

23: end for

24: end for

25: end while

responses received. Advisers in A are then used to

evaluate and select move orders to be executed for

each of the bot’s units (line 10). Finally, for the se-

lected orders support actions are requested from any

opponent in P having a neighboring region.

Summer and autumn are phases where orders are

executed (lines 12-13), and in case of standoffs losing

units need to retreat to an empty neighboring region

or removed from the game. DipBlue uses its advisers

in A to decide which retreat orders to execute for each

dislodged unit (line 13).

Finally, winter is the phase where players earn ad-

ditional units or lose exceeding ones according to the

number of supply centers they occupy (lines 14-15).

Again, DipBlue uses its advisers to decide where to

place its newly acquired units or which units to re-

move (line 15).

After submitting its orders to the game for execu-

tion (line 17), DipBlue will analyze every executed

order from its opponents (lines 18-24), and update ra-

tios (line 21) for those players that have decided to

attack it, i.e., that have executed move actions to one

of its controlled supply centers (line 20).

It is important to emphasize that, for the sake of

clarity, we have left outside this algorithm DipBlue’s

behavior in terms of responses to incoming peace, al-

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

Table 1: Testing scenarios.

Scenario Conﬁguration Purpose

1 1x NoPress

6x DumbBot

Test the baseline version of DipBlue, which is theoretically equivalent to Dumb-

Bot

2 1x DipBlue

6x DumbBot

Test the performance of DipBlue when facing DumbBots, without players to

negotiate with

3 1x Slave

1x Naive

5x DumbBot

Test the performance of the Naive archetype in the presence of a Slave

4 1x Slave

1x DipBlue

5x DumbBot

Test the performance of DipBlue in the presence of a Slave, an agent that accepts

and follows any proposed and feasible deal

5 1x Naive

1x DipBlue

5x DumbBot

Test the performance of DipBlue in the presence of a Naive, a deliberative team-

player

6 2x DipBlue

5x DumbBot

Test the performance of DipBlue when paired with an equal player, which is

also able to detect betrayals

7 7x NoPress Test the baseline version of DipBlue without DumbBots’ inﬂuence

8 7x DipBlue Test DipBlue without DumbBots’ inﬂuence

9 2x DipBlue

5x NoPress

Test the performance of DipBlue when paired with an equal player, without

DubmBots’ inﬂuence

liance or order requests. This behavior is informally

described in Section 4.2.

5 EXPERIMENTS

To test the performance of DipBlue archetypes, a

number of scenarios have been created, as listed in Ta-

ble 1. In each scenario 70 games were made with the

same speciﬁcations, and average data has been com-

puted. Following Diplomacy’s rules, in each game 7

players are in play, which are randomly assigned to 7

different world powers.

In addition to these scenarios, and in order to bet-

ter understand the strategic advantage of DipBlue, a

number of hypotheses have been formulated, namely:

H1: Close distance allies bring a better perfor-

mance than long distance ones, as adjacent

allies provide lesser contact with enemies

and are able to support each other actions.

H2: Being in war with farther opponents is

better than with closer ones, as the bigger

the distance the less opportunities there

are for attacks.

H3: Negotiation is a competitive advantage in

Diplomacy, as it endows the player with

the ability to temporarily team up with

other players.

H4: Trust reasoning increases the perfor-

mance of the player, as it is able to de-

termine betrayals or aggressive attitudes

from its opponents.

H5: Being caught betraying is worst than not

being caught, as previous allies may retal-

iate.

6 RESULTS

After collecting results from several games in each of

the scenarios, we have analyzed the results in order to

extract useful information.

6.1 Overall Performance

The most relevant result is the position in which the

bot ends the game, since it provides a direct insight to

the bot’s performance. In games made with 7 Dumb-

Bots, the average position is the 4th place – since all

players have equal performance, there is an even dis-

tribution of wins.

By analyzing the average position obtained by No-

Press in Scenario 1, which, as shown in Figure 4, is

4.3, it is possible to conclude that the performance

of the bot is lower than the performance of Dumb-

Bot. Because of this handicap and since NoPress is

the foundation for all other bots and has no negoti-

ation capabilities, the best way to measure the im-

provements of the remaining bots is to compare them

with NoPress, rather than DumbBot. From this point

forward, all references to gain or loss in performance

are relative to the values achieved by NoPress.

In Scenario 2, DipBlue faces 6 DumbBots, being

therefore unable to take advantage of negotiation, and

uses the same heuristics as NoPress plus trust reason-

ing based on the opponents actions. DipBlue was ex-

DipBlue:ADiplomacyAgentwithStrategicandTrustReasoning

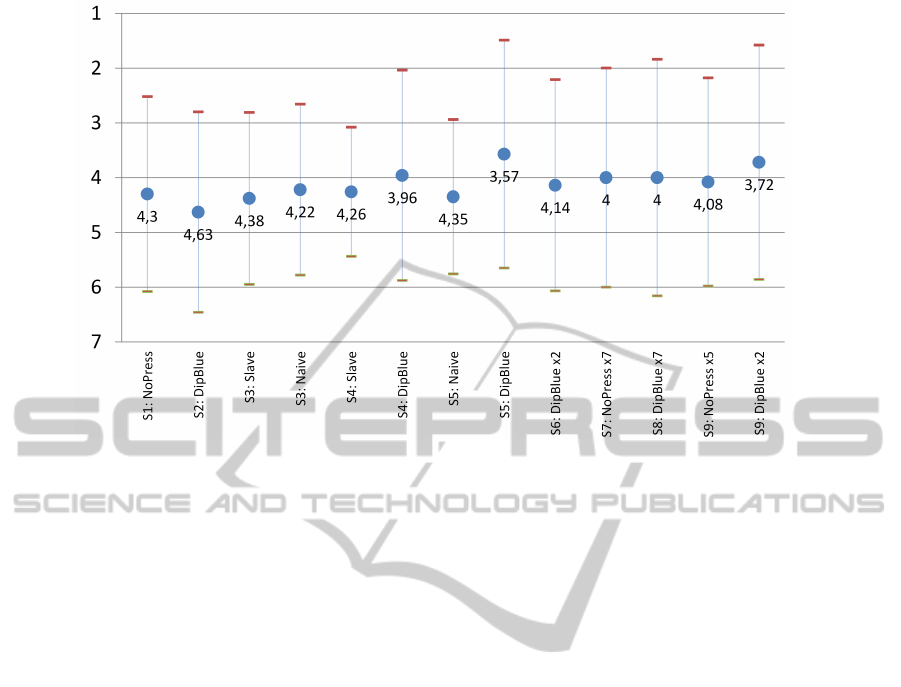

Figure 4: Average and standard deviation of the ﬁnal position of the bot in each scenario.

pected to perform better than NoPress, given that it

has more capabilities. However, it actually performs

worst than NoPress, decreasing the average position

to 4.63. Since the only difference between both bots,

in this particular scenario, is the addition of trust rea-

soning, a possible reason is that changing trust ratios

based on attacks of nearby opponents may not be an

optimal strategy since it will increase aggressiveness

towards those opponents. In fact, as analyzed in Sec-

tion 6.2, the player performs better the farthest its en-

emies are.

Scenarios 3 and 4 are used to assess how Naive

and DipBlue act when in the presence of a Slave. A

Slave may behave like a support player when allied to

a player with the proper negotiation capabilities; the

Slave can be seen as a lever to other players and not as

the subject of study itself. When paired with Naive,

Slave loses performance; however, the Naive bot has

a slight increase in performance, which demonstrates

the ability to make use of another player for personal

beneﬁt, through the use of negotiation. Furthermore,

when paired with DipBlue, Slave gains performance

and DipBlue displays an advantage over both NoPress

and Naive. This indicates that both Naive and Dip-

Blue are able to perform better when in the presence

of a Slave and it also shows that DipBlue is capable

of a better performance than Naive, due to its trust

reasoning.

In Scenarios 5 and 6, DipBlue is paired with a

Naive and another DipBlue, respectively, to measure

the impact of betrayals and the way DipBlue detects

and reacts to them. In Scenario 5, Naive has worst

performance than NoPress, than Naive in Scenario 3

and even than Slave when it was also paired with

DipBlue in Scenario 4. On the other hand, in Sce-

nario 5 DipBlue achieves the highest score from all

tested scenarios, due to its ability to betray the Naive

bot and the inability of the latter to detect or react to

the betrayal. The results of Scenario 5 are ideal to

demonstrate the need for trust reasoning when in the

presence of possible betrayals, while it also illustrates

the advantages of a player being able to betray its al-

lies.

For Scenario 6, Figure 4 shows the average po-

sition of both DipBlues. When paired with another

instance of itself, DipBlue is able to detect betrayals

and is vulnerable to be detected betraying. Therefore,

when two instances of this bot are matched there is

a high probability of conﬂict between two former al-

lies. The results highlighted by this scenario display

an increase of performance when compared to Naive

in Scenario 3 and NoPress in Scenario 1; however,

there is a decrease when compared to the performance

of DipBlue in Scenario 5. While in that scenario Dip-

Blue was able to betray alliances without repercus-

sions, in Scenario 6 betrayals can be detected, which

leads to a decrease of performance of both bots.

To evaluate how the bots behave when matched

against each other without the interference of Dumb-

Bots, Scenarios 7 and 8 have been created. Since

in both scenarios the performance of every bot was

being tracked and all bots were equal to each other,

the average position is 4, similarly to when 7 Dumb-

Bots are matched. Further analysis of these scenarios

revealed that when 7 instances of the same bot are

matched against each other, the outcome is the same

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

in all games and the performance of a single instance

is determined by the world power the bot is assigned

to. The reason why this happens with NoPress and

DipBlue but not with DumbBot is because DumbBot

has some randomness in the process of choosing the

actions, while NoPress and DipBlue have not. There-

fore, in each game the player associated with a spe-

ciﬁc world power will have the same behavior as any

equal player that has occupied that world power in a

previous game.

Scenario 9 is similar to Scenario 6 in the sense

that it matches 2 DipBlues with 5 non-negotiating

bots, with the difference of using NoPress as the non-

negotiation bot instead of using DumbBot. As ex-

pected, DipBlue performs better than NoPress and

better than DipBlue in Scenario 6. Since all bots in

this scenario lack random factors, the outcome is also

dependent on the world powers both DipBlues repre-

sent, similar to what happens in Scenarios 7 and 8.

6.2 Correlation of Variables

In order to deepen the analysis of the obtained results,

an inspection of dependencies between variables is

needed. In order to better understand this depen-

dency a correlation coefﬁcient between variables has

been calculated. All correlation coefﬁcients regard

the player position, which represents the ranking of

the player. Therefore, negative coefﬁcients mean the

bigger the value of the variable the better the player’s

rank.

Figure 5 displays the inverse correlation coefﬁ-

cients using aggregated data from all scenarios. Vari-

ables represent: number of years the game takes to

end, distance to allies and enemies, percentage of

moves cut (i.e. moves invalidated by other player

moves), and the number of holds, moves and sup-

ports. Given that correlation coefﬁcients proved to

be mostly negative, all values were inverted for better

understanding and display purposes.

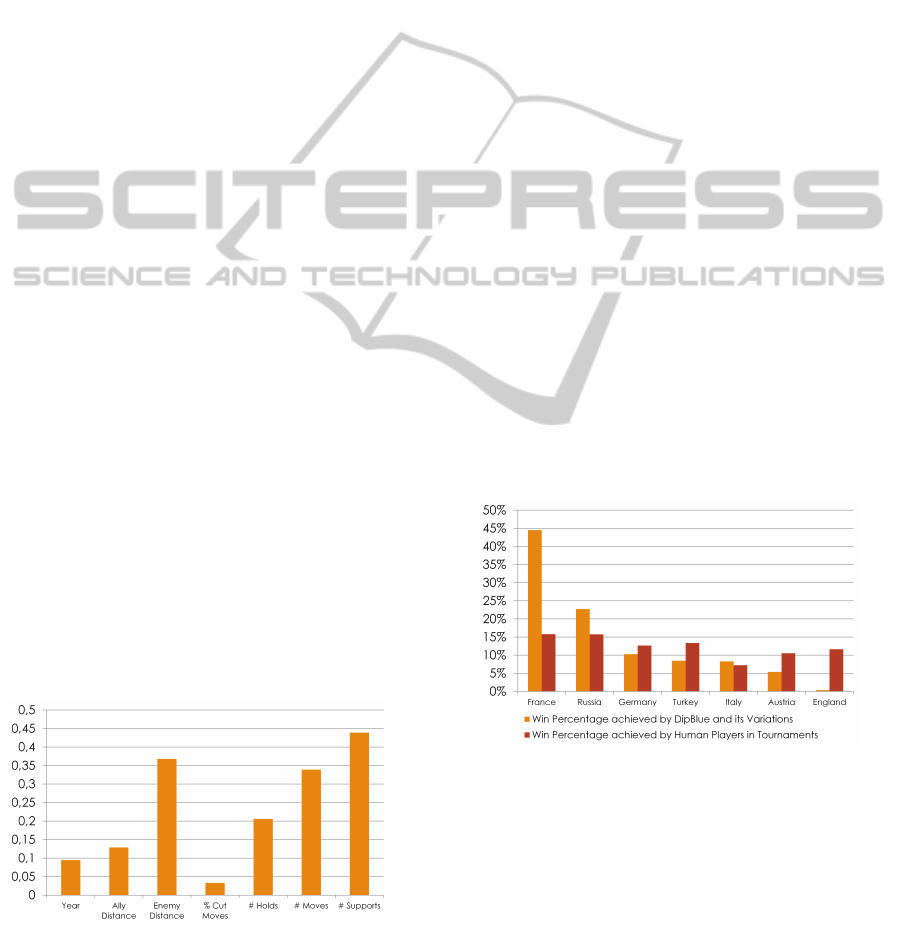

Figure 5: Inverse correlation with ﬁnal position of the bot.

The correlation of the ﬁnal position with the years

the game takes to end is very reduced, meaning there

is not a signiﬁcant dependency between the length of

the game and the performance of the bot. The same

applies to the percentage of moves that have been cut.

The correlation of the distance to allies has a low

positive value, which indicates that a slight tendency

of a gain in performance is obtained with the increase

of the distance. However, it is not signiﬁcant. Re-

garding the distance to enemies, Figure 5 shows a sig-

niﬁcant correlation, which indicates that the farther

the enemies are from the player, the better its perfor-

mance.

Regarding the number of holds, moves and sup-

ports, these values display a high correlation with the

ﬁnal position, explained by the fact that when a player

owns several units, these units will in turn perform

several actions. Additionally, having several units is

correlated with having a higher number of supply cen-

ters, which means the player is likely to win the game.

Therefore, the number of actions has a direct impact

on the position of the player.

6.3 Impact of World Power

In games played by humans there is a slight dif-

ference in performance depending on the power the

players are assigned to. One study made by Eric

Hunter (Hunter, 2014) shows a discrepancy between

the powers in tournament games played by humans,

which is illustrated in Figure 6. The results show an

advantage of nearly double win percentage between

France and Italy.

Figure 6: Average position of the bot for each power.

To better understand how the bots behave, the

same analysis was made and its results are presented

in Figure 6 in comparison with the values obtained by

Eric Hunter. Bots display a higher disparity of values

as compared to the human tournament results. While

the human tournament win percentage ranges from

7.23% to 15.8%, bots win percentages ranged from

0.36% to 44.5%, which indicates that the bots have an

accentuated difference in performance depending on

the world power they are assigned to. Although the

DipBlue:ADiplomacyAgentwithStrategicandTrustReasoning

difference between the powers is much larger than in

human games, the most successful world powers are

the same.

6.4 Revision of Hypotheses

We turn our attention to the hypotheses laid out in

Section 5. Hypothesis 1, suggesting an alignment be-

tween proximity to allies and performance, was re-

jected by the results shown in Section 6.2.

Similarly, Hypothesis 2 suggested an alignment

between distance to enemies and performance. Ac-

cording to Figure 5, the distance to enemies does have

a positive impact on the performance of the player,

thus validating this hypothesis.

Hypothesis 3, stating that a bot with negotiation

capabilities performs better than a bot without them,

can be veriﬁed by comparing the results of NoPress

with the results of bots that are not being used as a

support player, such as DipBlue, as discussed in Sec-

tion 6.1.

Hypothesis 4 pointed out trust reasoning as an as-

set. Since trust reasoning was implemented with two

distinct elements – based on the actions performed by

the opponents and based on the messages sent and re-

ceived – both variations are analyzed. Following the

results discussed in Section 6.1, games played against

6 DumbBots point to the rejection of the hypothe-

sis for action-based trust reasoning, given that No-

Press has a better performance than DipBlue. As for

negotiation-based trust reasoning, DipBlue achieves

a better performance when matched with Naive than

when matched with another DipBlue, also capable of

betraying and detecting betrayals. This result also val-

idates Hypothesis 5, which states that a bot loses per-

formance if its betrayals are detected.

7 CONCLUSIONS AND FUTURE

WORK

Addressing multi-player games with cooperative

strategies is a challenging domain for multi-agent sys-

tems. In this paper we have put forward an initial ap-

proach to develop negotiation-based agents for play-

ing Diplomacy. The proposed modular architecture

for DipBlue allowed us to test our bot using several

different archetypes. The test scenarios had the pur-

pose of highlighting certain aspects of the bots or their

combination, producing results that allow to verify the

validity of the proposed approach.

As a summary, we conclude that the proposed ap-

proach, DipBlue, successfully takes advantage of ne-

gotiation, as an alternative (or complement) to tra-

ditional solution search approaches. The lack of

DipGame bots that are able to enter into negotiations

has prevented us from a deeper analysis of our bots

virtues. Nevertheless, we may say that negotiation

is proven to be a very powerful approach in games

where (temporary) cooperation between the players

can take place. Furthermore, trust reasoning is a

promising direction to address the breaking of agree-

ments.

In the near future we would like to build, using

DipBlue’s architecture, different deliberative strate-

gies for the game, better exploring negotiation fea-

tures. This will also allow us to enrich our experi-

ments by populating them with different negotiation-

able bots for DipGame. Consequently, it will also en-

able us to make a deeper evaluation of the competitive

advantages of each strategy as compared to the others.

Some promising improvements to DipBlue are

planed, along the following lines.

Performance of World Powers. Bots performance

varies greatly according to the world power they are

assigned to. Reducing this effect would be beneﬁcial

to achieve a more stable and robust player, capable

of having a good performance regardless of the world

power assigned to it.

Communication Capabilities. Negotiation strate-

gies rely on communication. One of the most valuable

improvements to be made is to increase the commu-

nication capabilities of the bot towards higher levels

of the L Language.

Trust Reasoning. DipBlue performs a very simplistic

trust reasoning. Being able to combine the previous

actions of players with the current state of the game

should enable a better assessment of the odds related

with establishing or breaking agreements.

Optimization. Following the approach described

in (Jonge, 2010), which applies genetic algorithms to

optimize DumbBot (Norman, 2013), it should be pos-

sible to determine the best conﬁguration of DipBlue,

in order to achieve an optimal bot.

Learning. Using machine learning techniques, the

bot can be endowed with the ability to learn from

its previous experiences and opponents after a fair

amount of games. This could be used to learn when to

play each available action during the game or to im-

prove negotiation tactics. Learning could also be used

to predict the next opponent moves.

REFERENCES

Calhamer, A. B. (2000). The Rules of Diplomacy. Avalon

Hill, 4th edition.

DAIDE (2013). DAIDE Homepage. http://www.daide.

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

org.uk / w/index.php? title=Main Page. Accessed:

15-07-2013.

Deyllot, R. J. G. (2010). Diplomacy Base de Dados de

Movimentos para Controlar Prov

ıncias. Master the-

sis, Universidade de Aveiro.

Fabregues, A. and Sierra, C. (2009). A Testbed for Mul-

tiagent Systems (Technical Report IIIA-TR-2009-09).

Technical report, IIIA-CSIC.

Hall, M. R. and Loeb, D. E. (1995). Thoughts on Program-

ming a Diplomat. Heuristic Programming in Artiﬁcial

Intelligence.

Hunter, E. (2014). Solo Percentages. http://

www.diplom.org/Zine/W2003A/Hunter/Solo-

Percentages.html. Accessed: 04-01-2014.

Johansson, S. J. and H

a rd, F. (2005). Tactical coordina-

tion in no-press diplomacy. Proceedings of the fourth

international joint conference on Autonomous agents

and multiagent systems - AAMAS ’05, page 423.

Jonge, D. D. (2010). Optimizing a Diplomacy Bot Using

Genetic Algorithms. Master thesis, UAB.

Norman, D. (2013). David Norman’s Dumb-

Bot. http://www.daide.org.uk/w/index.php?

title=DumbBot

Algorithm. Accessed: 12-07-2013.

Polberg, S., Paprzyck, M., and Ganzha, M. (2011). De-

veloping intelligent bots for the Diplomacy game. In

Computer Science and Information Systems, pages

589–596.

Ribeiro, J. a., Mariano, P., and Seabra Lopes, L. (2009).

Darkblade: A program that plays diplomacy. In

Lopes, L. S., Lau, N., Mariano, P., and Rocha, L. M.,

editors, Progress in Artiﬁcial Intelligence, volume

5816 of Lecture Notes in Computer Science, pages

485–496. Springer Berlin Heidelberg.

Russell, S., Norvig, P., Canny, J., Malik, J., and Edwards,

D. (1995). Artiﬁcial intelligence: a modern approach.

Prentice Hall, 3rd edition.

Sarit Kraus, D. L. (1987). Diplomat, an Agent in a Multi

Agent Environment: An Overview. Technical report,

Leibniz Center for Research in Computer Science.

van Hal, J. (2013). Jason van Hal’s Homepage. https://

sites.google.com/site/diplomacyai/ home. Accessed:

15-07-2013.

Webb, A., Chin, J., and Wilkins, T. (2008). Automated ne-

gotiation in the game of diplomacy. Technical report,

Imperial College London.

DipBlue:ADiplomacyAgentwithStrategicandTrustReasoning
