Architecture Framework for Modeling the Deployment of Parallel

Applications on Parallel Computing Platforms

Bedir Tekinerdogan

and Ethem Arkin

Information Technology Group, Wageningen University, Wageningen, Netherlands

Aselsan A.Ş., Ankara, Turkey

Keywords: Parallel Computing, Architecture Modeling, Architecture Viewpoint.

Abstract: To increase the computing performance the current trend is towards applying parallel computing in which the

tasks are run in parallel on multiple nodes. Current approaches in parallel computing tend to focus on mapping

parallel algorithms to parallel computing platforms. However, the complexity and variety of current software

systems goes beyond the notion of algorithms only, and needs to consider the design from a broader

application perspective that requires explicit design abstractions. For this purpose, we propose an architecture

framework for modeling parallel applications to support the communication among the stakeholders, to reason

about the design decisions and to support the analysis of the architectural design. The architecture framework

consists of six coherent set of viewpoints which addresses different concerns in the design of parallel

applications. The architecture framework is based on a metamodel that is derived after a thorough domain

analysis on parallel computing. To support the architecture design process we have also developed the

corresponding tool set that implements the architecture framework. The application of the architecture

framework is illustrated for an order management application.

1 INTRODUCTION

It is now increasingly acknowledged that the

processing power of a single processor has reached

the physical limitations and likewise serial computing

has reached its limits. To increase the performance of

computing approaches the current trend is towards

applying parallel computing on multiple nodes

typically including many CPUs. In contrast to serial

computing in which instructions are executed serially,

in parallel computing multiple processing elements

are used to execute the program instructions

simultaneously. To benefit from the parallel

computing power, usually parallel algorithms are

defined that can be executed simultaneously on

multiple nodes. As such, increasing the processing

nodes will increase the performance of the parallel

programs.

Different studies have been carried out on the

design and analysis of parallel algorithms to support

parallel computing (Amdahl, 2007) (Frank, 2002)

(Pllana and Fahringer, 2002). These studies have

provided useful results and further increased the

performance of parallel computing. Several important

challenges have been identified and tackled in parallel

computing related to activities such as the analysis of

the parallel algorithm, the definition of the logical

configuration of the platform, and the mapping of the

algorithm to the logical configuration platform. The

research on parallel algorithms and its mapping to

parallel computing platforms is still ongoing.

Together with the overall developments in

parallel computing we can also observe the increasing

complexity and variety of current software systems.

Here the design problem goes beyond the notion of

algorithms and data structures of the computation,

and the design of the overall system structure of the

parallel computing systems emerges as an important

problem. In this context in particular the architecture

design and modeling of parallel computing systems is

important to support the communication among the

stakeholders, to reason about the design decisions

during the mapping process and to analyze the

eventual design. In current parallel computing

approaches, however, there do not seem to be

architectural modeling approaches for supporting the

design and analysis of parallel computing systems.

Most approaches seem either to adopt conceptual

modeling approaches in which the parallel computing

elements are represented using idiosyncratic models

or are generally low level and machine specific

(Patyart et. al., 2012). A few approaches borrow for

185

Tekinerdogan B. and Arkin E..

Architecture Framework for Modeling the Deployment of Parallel Applications on Parallel Computing Platforms.

DOI: 10.5220/0005229301850192

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 185-192

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

example models from embedded and real time

systems and try to adapt these for parallel computing

but do not provide dedicated modeling support for

communication and analysis of the concerns of

parallel computing architectures. The lack of a clear

and precise modeling approach with first class

abstractions for parallel computing obviously

impedes the solutions for analyzing, designing and

communicating the decisions on parallel computing.

Our focus in this paper is on architectural

modeling in the context of parallel computing. In the

architecture design community broad knowledge has

now been gained on modeling the systemic structure

and behavior of systems. An important practice is to

model and document different architectural views for

describing the architecture according to the

stakeholders’ concerns. An architectural view is a

representation of a set of system elements and

relations associated with them to support a particular

concern. Having multiple views helps to separate the

concerns and as such support the modeling,

understanding, communication and analysis of the

software architecture for different stakeholders.

To provide dedicated support for parallel

computing concerns we propose an architecture

framework for supporting the modeling of parallel

computing architectures. For this, we first provide the

overall metamodel that defines the concepts required

in modeling parallel computing system architectures.

The metamodel is derived after a thorough domain

analysis to parallel computing and the related

problems. Based on this metamodel we introduce six

coherent set of architecture viewpoints each of which

focuses on a particular concern in parallel computing.

The architecture framework is supported by the

corresponding tool workbench that can be used by

parallel computing architects to design the parallel

computing system.

The remainder of the paper is organized as

follows. In section 2, we describe the background on

parallel computing and software architecture

viewpoints, and describe the problem statement.

Section 3 presents the metamodel for parallel

applications. Section 4 describes the viewpoints and

the approach for using these viewpoints. In section 5,

we present the implementation and the toolset for the

architecture framework. Section 6 presents the related

work and finally we conclude the paper in section 7.

2 BACKGROUND AND

PROBLEM STATEMENT

To increase the performance of computing the current

trend is towards applying parallel computing on

multiple nodes. Unlike serial computing in which

instructions are executed serially, multiple processing

elements are used to execute the program instructions

simultaneously. To benefit from the parallel

computing power usually parallel algorithms are

defined that can be executed simultaneously on

multiple nodes. Hereby, increasing the number of

processing nodes usually increases the performance

of the parallel programs (Amdahl, 2007)(Gustafson,

1988)(Hill and Marty, 2008). In general, a parallel

algorithm can be mapped in different alternative ways

to the processing nodes and research has been carried

out to optimize the algorithm and the mapping

process. This problem has gained even more attention

with the dramatic increase of the processing nodes to

tens and hundreds of thousands of nodes providing

processing performance from petascale to exascale

levels (Kogge et. al., 2008). Once a feasible mapping

is selected the parallel algorithm needs to be

transformed to the target parallel computing platform

such as MPI, OpenMP, MPL, and CILK (Talia,

2001).

Despite of the interesting development the

challenges in parallel computing are still active. In

this paper we focus on the challenges with respect to

software architecture modeling. A close analysis of

parallel computing research shows that the well-

defined concept of algorithm is prevailing and the

broader consideration of software application and its

mapping to parallel computing platform does not

seem to have got much attention. To illustrate the

problem we will use the Order Management

Application architecture as an example. The Order

Management application is typically a critical part of

commercial systems including, for example,

packages like Order Entry, Financial and Inventory.

To increase the performance of such a system several

modules need to be run in parallel. Here we can

already observe that the parallel modules are not just

well-defined algorithms but can also consist of

domain-specific modules of the application. For

example, it might be decided that modules such as

Order Change and Order Validation in the example

should run in parallel over multiple nodes. Obviously

for modeling the mapping of parallel applications to

parallel computing platforms we need to address

more than the mapping of a parallel algorithm to a

selected computer architecture. Given the current

architectural modeling approaches no direct and

integrated support is provided to model the above

concerns. Some approaches focus on a particular

concern but to the best of our knowledge none of the

approaches provide an integrated approach for

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

186

architectural modeling of the mapping of parallel

applications to parallel computing platforms. In the

subsequent sections we will describe the architecture

framework for addressing each of these concerns.

3 ARCHITECTURE

VIEWPOINTS

To explicitly address the concerns related to the

design of parallel computing systems we present an

architecture framework that defines a coherent set of

viewpoints. An architecture framework organizes

and structures the proposed architectural viewpoints.

To define the viewpoints we will adopt the

recommended standard for architecture description as

it is defined in (ISO/IEC 42010:2011). Figure 1

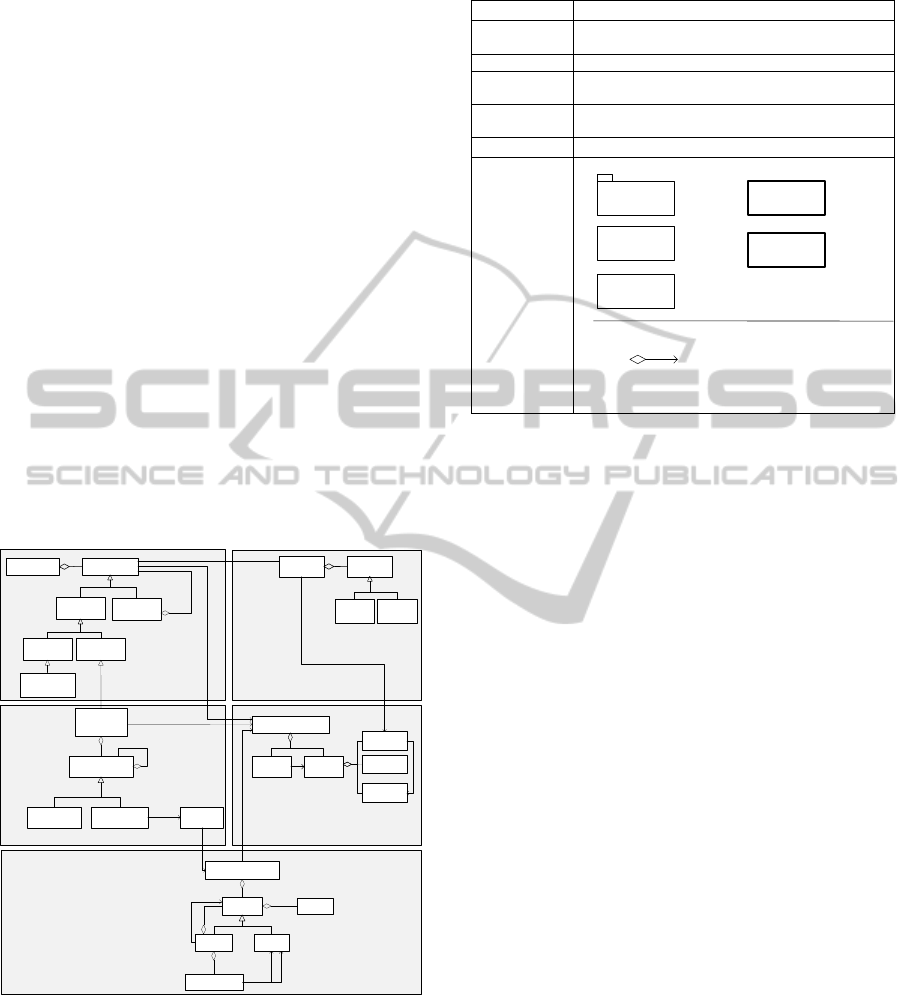

shows the metamodel on which the architecture

framework and the corresponding viewpoints will be

based. Based on the metamodel of Figure 1 we define

the architecture framework consisting of a coherent

set of viewpoints for parallel computing systems. The

viewpoints aim to address the concerns of parallel

applications in particular.

Component

Application

Module Element

1..n

Interface

Provides

Interface

Requires

Interface

1..n

Parallel

Algorithm

Module

Section

SerialSection ParallelSection Operation

maps on

Package

Module

Serial

Module

Parallel

Module

PhysicalConfiguration

Node

Bus

Network

Memory

Processing

Unit

compiled to

LogicalConfiguration

Tile

CorePattern

Communication

from to

Data

deployed on

maps to

realize

1..n

dominating

Serial Algorithm

Module

maps to

Figure 1: Metamodel for the parallel computing system.

3.1 Application Decomposition

Viewpoint

The application decomposition viewpoint is shown in

Table 1.

Table 1: Application Decomposition Viewpoint.

Section Description

«Viewpoint

Name»

Application Decomposition Viewpoint

«Overview» The decomposition of the application to modules

«Concerns» What is the decomposition of the application?

How much of the application can be parallel?

«Typical

Stakeholders»

Software Architect

«Constraints » A module can be either serial or parallel

«Model types

and notation»

Package

Parallel

Module

Serial

Module

Parallel

Algorithm

Name

<<Algorithm>>

Name

Serial

Algorithm

<<Algorithm>>

Name

part-of

Relations

(decomposition can also be shown using nesting)

The viewpoint is used to indicate the modules from

which the application is composed, and on the other

hand defines the parallelism property for each

module. In alignment with the metamodel the

application can consist of modules or algorithms

which can be serial or parallel. Each module can be

either serial or parallel. Hence we have defined four

different types of modules, Serial Module, Parallel

Module, Serial Algorithm, and Parallel Algorithm.

Package is the conventional grouping module for

grouping a set of modules together. Based on the

metamodel we have defined the Application

Decomposition Viewpoint as shown in Table 1.

Using the viewpoint we can now model the

application decomposition view for the given

example. Figure 2 shows an example Order

Management Application Decomposition view that

includes three packages.

In the example, the Order Entry package consists

of seven modules, a serial module for Exception

Management, a parallel algorithm module Shipping

Calculations and five other parallel modules Initiate

Order, Modify Order, Order Validation. Order

Notification and Order Creation. The Financial

package has a parallel module Payment Engine, two

serial modules Account Management and Fraud

Detection, and an algorithm module Tax

Calculations. The Inventory package has the serial

modules Inventory Management and Loss

Management, and a parallel module Inventory

Planning.

Note that this is an example decomposition that is

decided by the architect. In principle other

decomposition might be possible based on different

ArchitectureFrameworkforModelingtheDeploymentofParallelApplicationsonParallelComputingPlatforms

187

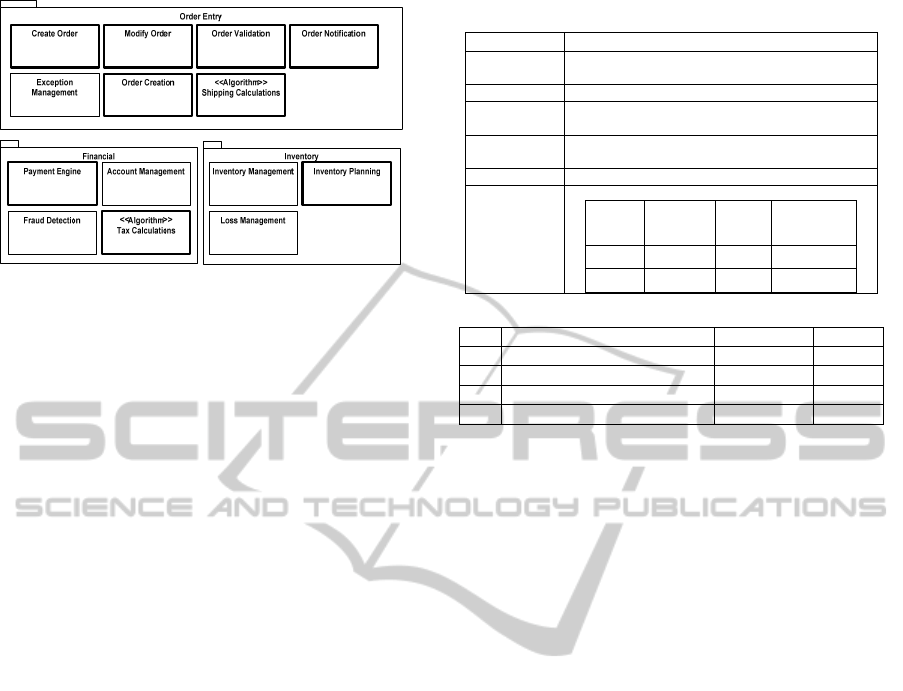

Figure 2: Order Management Application Decomposition

View.

design heuristics as discussed in the parallel

computing literature (Foster, 1995). Before

decomposing the system it will be important to

determine whether or not the considered modules can

actually be parallelized and where most of the real

work is being done. Hereby, the module that account

for little computing power could be decided as serial.

Using such different design heuristics other

decompositions could be investigated to find feasible

alternatives. In fact, by providing an explicit view for

this we aim to support this design process.

3.2 Algorithm Decomposition

Viewpoint

Parallel modules are run in parallel as one unit on

multiple nodes and as such will be integrated in a

SIMD architecture. Since parallel algorithms are

considered as consisting of multiple instructions it is

important to analyze the algorithm first and define the

serial and parallel sections. To support this we have

defined the Algorithm Decomposition Viewpoint that

is shown in Table 2.

In the Application Decomposition View of the

Order Management application in Figure 2, we can

identify two parallel algorithms Tax Calculations and

Shipping Calculations. As such we can have two

algorithm decomposition views for the application.

As an example we have defined the algorithm

decomposition view for Shipping Calculations as

shown in Figure 3. The algorithm is decomposed into

two serial and two parallel sections. The first section

is a serial section that initializes the cost parameters

per city. The second section distributes the cost

parameters to processing units to calculate

concurrently. The third section serially calculates the

cost per shipping on a processing unit. In the last

section, the results for shipping calculations are

retrieved from all processing units.

Table 2: Algorithm Decomposition Viewpoint.

Section Description

«Viewpoint

Name»

Algorithm Decomposition Viewpoint

«Overview» The decomposition of the parallel algorithm

«Concerns» What is the decomposition of the algorithm?

Which section can be either serial or parallel?

«Typical

Stakeholders»

Algorithm Analyst,

System Engineer

«Constraints » A section can be either serial or parallel

«Model types

and notation»

Index

Algorithm

Section

Type

Operation

Ind. Algorithm Section Section Type Operation

Initialize cost parameters per city Serial

Distribute cost parameters Parallel

Scatter

Calculate cost per shipping Serial

Get results for shipping calculations Parallel

Gather

Figure 3: Shipping Calculations Algorithm Decomposition

View.

3.3 Physical Configuration Viewpoint

Table 3 shows the Physical Configuration Viewpoint

for representing the physical parallel computing

platform. The viewpoint defines explicit notations for

Node, Processing Unit, Network, Memory Bus and

Memory that are main physical structures of

computer architecture.

In alignment with the Flynn’s taxonomy (Flynn,

1972), the physical configuration can be defined as

shared memory that has multiple processing units that

use the same memory, distributed memory in which

each node has its own memory, or hybrid memory

that has also multiple nodes as distributed memory

and each node has multiple processing units with a

shared memory.

Figure 4 shows two alternative physical

configuration view examples. In Figure 4a, the

physical configuration is constructed with building

blocks over a network. This presentation shows

networks and buses explicitly, but for large scale

physical configuration views it is hard to present this

view. In Figure 4b the physical configuration is

presented in a unified structure, that the processing

units are represented by rectangles, nodes, buses and

networks are represented implicitly in the

presentation. This presentation alternative can be

more suitable for very large scale parallel computing

platforms.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

188

Table 3: Physical Configuration Viewpoint.

Section Description

«Viewpoint

Name»

Physical Configuration Viewpoint

«Overview» The physical structure of the parallel computing

platform.

«Concerns» What are the structures of the physical computing

platform?

The configuration is shared memory, distributed

memory or hybrid?

«Typical

Stakeholders»

System Engineer

«Constraints » There exists only one Network in a Physical

Configuration.

There exists only one Bus and a Memory in a Node.

If there is one Processing Unit in a Node, there is no

need for a Bus.

«Model types and

notation»

Node

Memory

<<Memory>>

Name

Processing Unit

<<Node>>

Name

<<PU>>

Name

Network

Bus

Network

Bus

part-of

Relations

(decomposition can also be shown using nesting)

n,p

n: the id of the node in the

physical configuration

p: the id of the processing unit

in the node

(a)

(b)

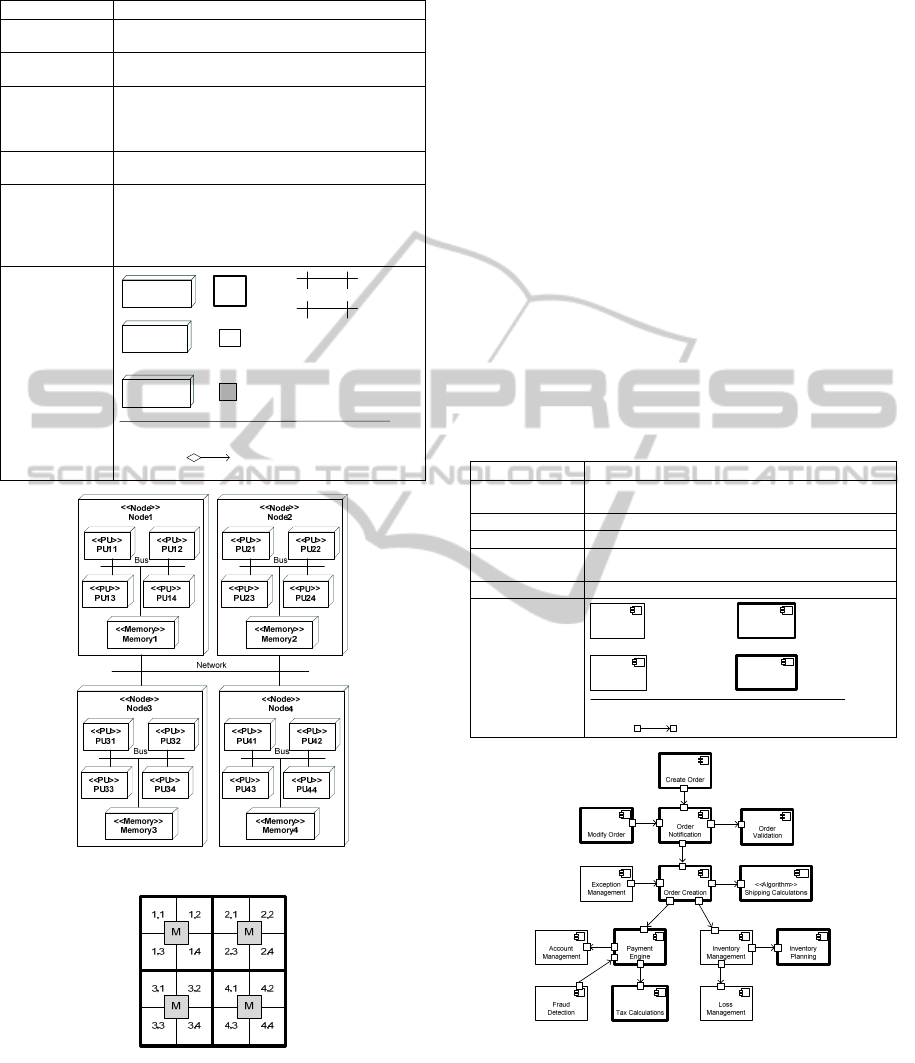

Figure 4: Physical Configuration Views using two different

notations.

3.4 Component Viewpoint

The Component Viewpoint is shown in Table 4. The

component viewport is used for defining the

component structure of the parallel application. The

components are compiled from the modules that are

decomposed in application decomposition view. The

components are classified as serial component, serial

algorithm component, parallel component, and

parallel algorithm component, based on the module

that is compiled from. Each component can provide

an interface for another component and each

component can require an interface from another

component. The interface relations are defined

between the components.

Based on the application decomposition view for

order management application, the component view

is shown in Figure 5. Here the parallel and serial

components are represented according to the modules

defined in application decomposition view. The

interface relations between the components are also

represented in the view.

Table 4: Component Viewpoint.

Section Description

«Viewpoint

Name»

Component Viewpoint

«Overview» The component structure for the parallel application

«Concerns» What are the interface relations between components?

«Typical

Stakeholders»

Software Architect,

System Engineer

«Constraints » Each module must have at least one component.

«Model types and

notation»

(Serial)

Component

Relations

interface

(Serial) Algorithm

Component

Parallel

Component

Parallel Algorithm

Component

<<Algorithm>>

Name

<<Algorithm>>

Name

Figure 5: Order Management Component View.

3.5 Deployment Viewpoint

The components defined in the component view must

be deployed on processing units defined in the

physical configuration. Here, a serial module or a

serial algorithm module can be deployed on a single

ArchitectureFrameworkforModelingtheDeploymentofParallelApplicationsonParallelComputingPlatforms

189

processing unit. A parallel module or a parallel

algorithm module can be deployed on different

processing units. The parallel module runs the same

instruction sets on multiple processing units and

provides output to other components. The parallel

algorithm module runs different instruction sets and

coordinate data between themselves to calculate a

specific algorithm using different processing units.

The Deployment Viewpoint is shown in Table 5.

Similar to the physical configuration view, the

deployment view can also be defined in alternative

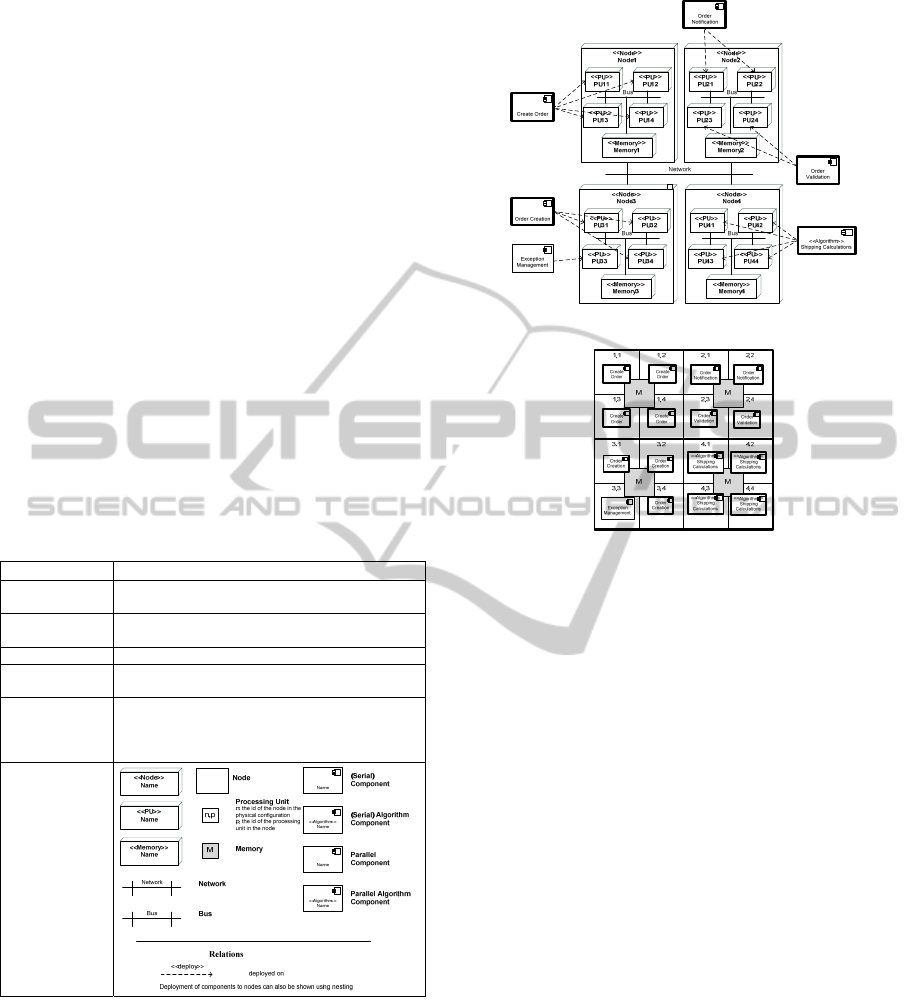

representations. Figure 6 shows two alternative

representation of the order management deployment

view. In Figure 6(a), the deployment view is based on

the physical configuration view of Figure 4(a), where

the relations are shown using <<deploy>> relation. In

Figure 6(b), the deployment view is based on the

physical configuration view of Figure 4(b) and the

relations are shown using nesting. Again, the second

deployment view is more suitable for very large scale

physical configurations, while the first deployment

view represents networking structures explicitly.

Table 5: Deployment Viewpoint.

Section Description

«Viewpoint

Name»

Deployment Viewpoint

«Overview» The deployment for the modules of the parallel

application

«Concerns» Which component runs on which processing unit?

«Typical

Stakeholders»

System Engineer

«Constraints » Parallel component can be deployed on different

processing units.

Serial component can be deployed on a single

processing unit.

«Model types and

notation»

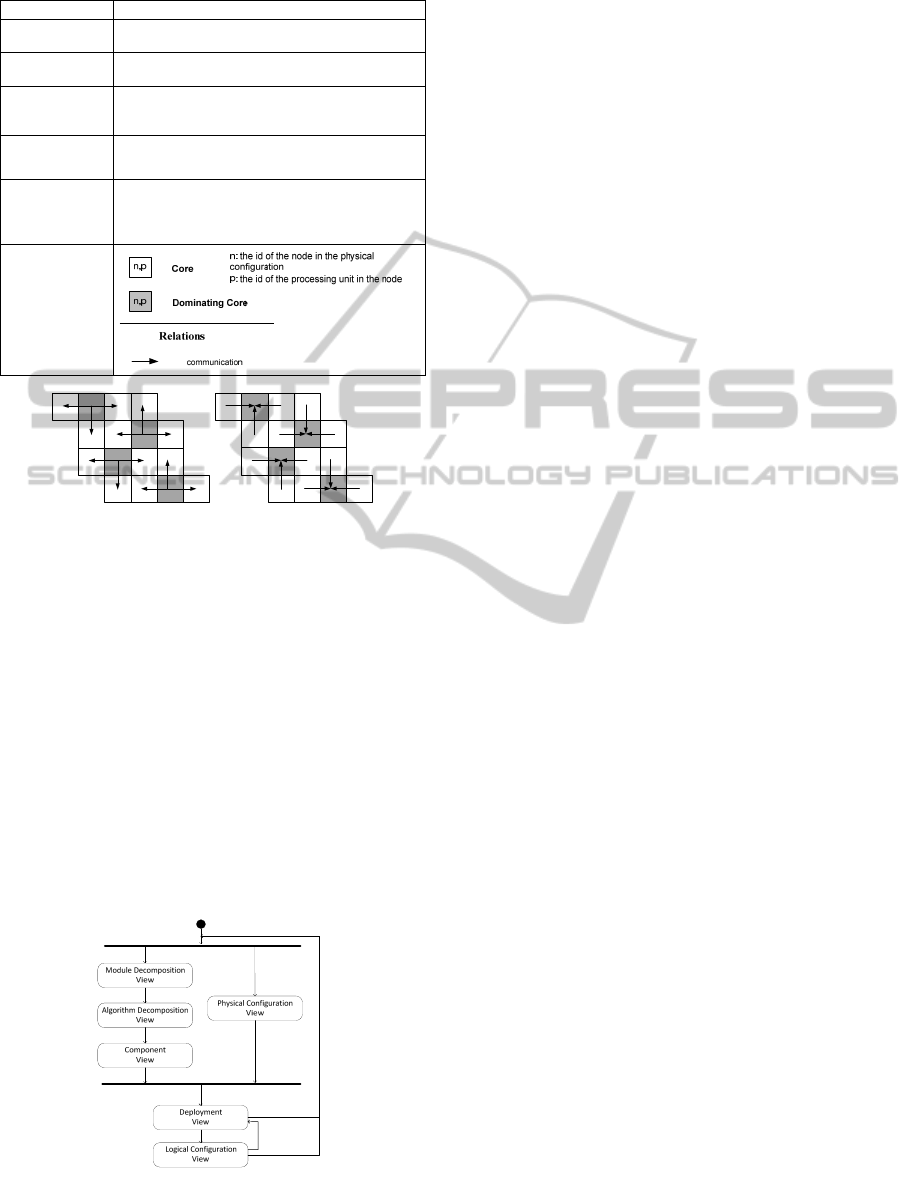

3.6 Logical Configuration Viewpoint

Table 6 shows the Logical Configuration Viewpoint,

which presents the mapping of the parallel algorithm

module to physical configuration together with the

required communication links for the algorithm

operations.

The previously introduced physical configuration

defines the actual physical configuration of the

system with the physical communication links among

(a)

(b)

Figure 6: Order Management Deployment Views.

the processing units. The deployment view defines on

which processing units the parallel algorithm module

is deployed. The logical configuration is a view of the

physical configuration that provides the logical

communication structure among the physical nodes.

Typically, for the same physical configuration we can

have many different logical configurations. To

represent the mapping of the parallel algorithm to the

logical configuration, the cores are identified using

the identification values of nodes and processing

units. The number of cores should be equal to the

selected processing units in the deployment view.

As stated before for each parallel algorithm a

corresponding algorithm view is provided. In

addition, a logical configuration view needs to be

defined to present the communication structures of

the physical nodes to realize the parallel algorithm.

For example, the earlier introduced algorithm

decomposition view for the Shipping Calculation

algorithm included two parallel sections that

implement the Scatter and Gather operations. The

mapping for these operations is defined in the logical

configuration view as communication relations

between core elements on which the parallel

algorithm is deployed. Figure 7 shows an example

logical configuration view for both scatter and gather

operations.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

190

Table 6: Logical Configuration Viewpoint.

Section Description

«Viewpoint

Name»

Logical Configuration Viewpoint

«Overview» The logical structure of the parallel computing

platform.

«Concerns» What are the primitive tiles to map on physical

configuration?

What are the communication patterns to use?

«Typical

Stakeholders»

Algorithm Analyst,

System Engineer

«Constraints » The number of cores should be equal to the processing

units in the deployment view.

The numbering of the cores should match the

numbering in the physical configuration.

«Model types and

notation»

Figure 7: Shipping Algorithm Logical Configuration View.

(a) Scatter operation, (b) Gather operation.

3.7 Approach for using Viewpoints

In the previous section we have provided the

architecture framework consisting of a coherent set of

viewpoints for analysis and design of parallel

computing systems. Figure 8 shows the UML activity

diagram that represents the process for applying the

viewpoints. The process starts initially with the

definition of application decomposition and physical

configuration views. In principle, for each parallel

algorithm module an algorithm decomposition view

can be provided. The component view is defined

according to the modules as presented in the

application decomposition view. The deployment

Figure 8: Approach for Design and Analysis of Parallel

Computing System.

view is defined by using both the component view

and the physical configuration view. Finally for each

algorithm decomposition view, the logical

configuration view is defined according to the

deployment view. Iterations to the start of the process

take place from the deployment view and logical

configuration view. Also there are iterations between

logical configuration view and deployment view.

4 RELATED WORK

Applying viewpoints to manage parallelism has been

proposed by several studies. Rozanski and Woods

(2011) propose the concurrency viewpoint for

describing concerns related to the communication and

synchronization mechanisms of concurrent systems.

Further they also propose the deployment viewpoint,

which addresses how to describe the environment into

which the system will be deployed. The viewpoints

that we have described could be considered as a more

domain-specific extension to these viewpoints.

Muhammed et al. (2011) propose the parallelism

viewpoint to analyze parallelism related overheads in

existing parallelism-intensive software systems. The

targeted overheads include excessive context

switches, uneven distribution of read/write operations

and complex thread management structure. The

authors propose one viewpoint with five different

model kinds including, Time Distribution, Task

Distribution, Task Type, Thread Behaviour and

Thread Management. In our approach we have

provided an architecture framework consisting of a

coherent set of six viewpoints each of which has one

or two different kind of notations. We did not directly

focus on analyzing parallelism related overheads but

focused on the deployment of the modules and

algorithms to a parallel computing platform in a

parallel application. Arias et al. (2011) focus on the

runtime behavior and structure of a software-

intensive systems. For this they propose an approach

for defining, validating and documenting a set of

execution viewpoints to support the construction and

use of execution views for large software-intensive

systems. Ortega-Arjona (2006) defined a parallel

application as a specification of a set of sequential

process and communication among themselves.

According to this definition they propose a

performance model and architectural patterns for

parallel application.In the literature of parallel

computing the particular focus seems to have been on

parallel programming models such as MPI, OpenMP,

CILK etc. (Talia, 2001) but the design and the

modeling got less attention. Several papers have



1,21,1

1,41,3

2,2 2,1

2,42,3

3,23,1

3,4 3,3

4,24,1

4,44,3

1,21,1

1,41,3

2,2 2,1

2,42,3

3,23,1

3,4 3,3

4,24,1

4,44,3

ArchitectureFrameworkforModelingtheDeploymentofParallelApplicationsonParallelComputingPlatforms

191

focused in particular on higher level design

abstractions in parallel computing and the adoption of

model-driven development.

In our earlier study (Arkin et. al., 2013)

(Tekinerdogan and Arkin, 2013), we have proposed

an architecture framework for mapping parallel

algorithms to parallel computing platforms. In that

study we only focused on parallel algorithms and did

not consider the broader concept of application. Also

we assumed a distributed memory model in which

each node has its own memory unit and, as such,

targeted the MISD architecture of the Flynn’s

taxonomy. The current approach focuses on software

application and is more general in the sense that it

supports both modules and algorithms, can represent

different memory models, and supports modeling

different computing architectures.

5 CONCLUSIONS

The current trend towards increased parallelization of

software systems requires proper architecture design

approaches for modeling and analysis of concerns

related to parallel computing. In this paper we have

primarily focused on the mapping of parallel

applications on parallel computing platforms. In the

current parallel computing literature the focus has

been mainly on mapping algorithms to computing

platform. Our approach adopts a broader perspective

and considers the mapping of software application

consisting of modules and algorithms to different

computing platforms. Although various viewpoints

exist in the software engineering community to cope

with parallelism the architecture framework is novel

since it provides a coherent and integrated set of

viewpoints dedicated for mapping parallel

applications to parallel computing platforms. In

addition to the viewpoints we have also provided the

corresponding approach that describes the logical

order in defining the views. We have illustrated the

approach for the Order Management case study. The

architecture framework is useful in supporting the

architecture design process of parallel applications

and supports the communication among stakeholders,

the guidance of the development of the system and

the analysis of the system. In our future work we will

further refine the tool support and elaborate on the

design of parallel applications using the presented

architecture framework.

REFERENCES

Amdahl, G.M., 2007. Validity of the Single Processor

Approach to Achieving Large Scale Computing

Capabilities, Re. fr. the AFIPS Conf. Proc., Vol. 30

(Atlantic City, N.J., Apr. 18–20), AFIPS Press, Reston,

Va., 1967, pp. 483–485, Solid-State Circuits

Newsletter, IEEE, vol.12, no.3, pp.19,20.

Arias, T.B.C., Avgeriou, P., America, P., 2011. Defining

and documenting execution viewpoints for a large and

complex software-intensive system. Elsevier Journal of

Systems and Software 84 1447– 1461.

Arkin, E., Tekinerdogan, B., Imre. K., 2013. Model-Driven

Approach for Supporting the Mapping of Parallel

Algorithms to Parallel Computing Platforms. Proc. of

the ACM/IEEE 16th Int. Conf. on Model Driven

Engineering Languages and System.

Flynn, M., 1972. Some Computer Organizations and Their

Effectiveness, Computers, IEEE Transactions on, vol.

C-21, no.9, pp.948, 960.

Foster, I., 1995. Designing and Building Parallel Programs:

Concepts and Tools for Parallel Software Engineering.

Addison-Wesley Longman Publishing Co., Boston,

MA, USA.

Frank, M.P., 2002. The physical limits of computing,

Computing in Science & Engineering, vol.4, no.3,

pp.16, 26.

Gustafson, J.L., 1988. Reevaluating Amdahl's law,

Communications of the ACM, v 31, n 5, p 532-533.

Hill, M.D., Marty, M.R., 2008. Amdahl's Law in the

Multicore Era, Computer, vol.41, no.7, pp.33, 38.

[ISO/IEC 42010:2011], 2011. Systems and Software

Engineering – Architecture Description.

Kogge, P., et al. 2008. Exascale Computing Study:

Technology Challenges in Achieving Exascale Systems.

DARPA.

Ortega-Arjona, J.L., 2006. Architectural Patterns for

Parallel Programming: Models for Performance

Estimation, Phd. Thesis, Dept. of Computer Science,

University College London.

Pllana, S., Fahringer, T., 2002. UML based modeling of

performance oriented parallel and distributed

applications, Simulation Conf., 2002. Proceedings of

the Winter, vol.1, no., pp.497, 505 vol.1, 8-11.

Rozanski, N., Woods, E., 2011. Software Systems

Architecture: Working with Stakeholders Using

Viewpoints and Perspectives, Second Edition,

Addison-Wesley.

Talia, D., 2001. Models and Trends in Parallel

Programming. Parallel Algorithms and Applications

16, no. 2: 145-180.

Tekinerdogan, B., Arkin, E., 2013. Architecture

Framework for Mapping Parallel Algorithms to Parallel

Computing Platforms, Proc. of the 2nd Int. Workshop

on Model-Driven Engineering for High Performance

and CLoud computing., Miami.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

192
