Automated Model-based Testing Based on an Agnostic-platform

Modeling Language

Concepci´on Sanz

, Alejandro Salas

, Miguel de Miguel

1,2

, Alejandro Alonso

1,2

Juan Antonio de la Puente

1,2

and Clara Benac

1,3

Center for Open Middleware, Universidad Polit´ecnica de Madrid (UPM),

Campus de Montegancedo, Pozuelo de Alarc´on, Madrid, Spain

DIT, Universidad Polit´ecnica de Madrid (UPM), Madrid, Spain

LSIIS, Universidad Polit´ecnica de Madrid (UPM), Madrid, Spain

Keywords:

Model-based Testing, Automated Testing, Agile Development.

Abstract:

Currently multiple Domain Speciﬁc Languages (DSLs) are used for model-driven software development, in

some speciﬁc domains. Software development methods, such as agile development, are test-centered, and

their application in model-based frameworks requires model support for test development. We introduce a

speciﬁc language to deﬁne generic test models, which can be automatically transformed into executable tests

for particular testing platforms. The resulting test models represent the test plan for applications also built

according to a model-based approach. The approach presented here includes some customisations for the

application of the developed languages and transformation tools for some speciﬁc testing platforms. These

languages and tools have been integrated with some speciﬁc DSL designed for software development.

1 INTRODUCTION

Along time, different methodologies have been ap-

plied to software development in order to improve the

product quality and reduce the time-to-market with

tight budgets. From the most traditional approaches -

such as waterfall development-, to the latest variations

of agile development, testing has been a key phase

to perform due to the need for detection and correc-

tion of defects as soon as possible; but it is also costly

and highly time consuming. As companies tend to

apply methodologies which shorten the software de-

velopment lifecycle, it is necessary to adapt testing to

more demanding scenarios where time and resources

are limited. For instance, in agile methodologies test-

ing activities are performed during the whole lifecy-

cle. This means that it is possible to start the design

of a test plan as early in the development process as

the requirements speciﬁcation phase, and evolve it in

parallel to software. In this scenario, an adaptive and

responsive framework to design tests and allow their

automation increases productivity, specially when re-

gression and integration tasks need to be carried out.

Other challenges linked to testing come from the dif-

ferent target platforms and development technologies

that can be involved in the process, which are usu-

ally known only by testers. This complexity prevents

other prospective users, such as application develop-

ers, from doing their own tests. Moreover, testing can

be so coupled to speciﬁc management tools that any

migration could have a quite signiﬁcant impact.

This work proposes a testing framework for test-

ing model-based software applications. The testing

framework is based on a model-driven approach, hav-

ing developed a modelling language that allows to

build test models which are agnostic about the ﬁnal

testing platform. In this way, the complexity is hidden

to users, who only manage high-level concepts, eas-

ing the integration of test frameworks into software

development frameworks. The reuse and customiza-

tion of models are allowed, avoiding unnecessary rep-

etition along test design. Once test plans are built

as agnostic platform models, the framework is also

responsible for transforming them, in an automatic

way, into executable tests for speciﬁc target testing

platforms. Some examples of testing platforms and

frameworks are JUnit (Tahchiev et al., 2010), Sele-

nium (Holmes and Kellogg, 2006) and QTP-HP (Rao,

2011). The automation of the transformation process

eases regression tasks, as well as maintenance, since

239

Sanz C., Salas A., de Miguel M., Alonso A., Antonio de la Puente J. and Benac C..

Automated Model-based Testing Based on an Agnostic-platform Modeling Language.

DOI: 10.5220/0005237802390246

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 239-246

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

only abstract test models need to be changed.

The approach presented here has been applied to

a speciﬁc modelling framework, BankSphere, a tool

suite created by the Santander Group which integrates

model-based design tools in a deployment and run-

time environment. This suite, used by the large com-

munity of developers existing in Santander Group,

reduces signiﬁcantly the development time of new

banking software.

The rest of the paper is structured as follows. Sec-

tion 2 summarizes different approaches linked to test-

ing. Section 3 gives an overview of the test architec-

ture proposed in this work. Section 4 depicts the main

concepts contained in the developed language, pro-

viding a case study for a better comprehension. Sec-

tion 5 shows a case where the presented approach has

been applied to generate executable tests. Finally, 6

summarizes the main results of this work and sketches

the lines for future work.

2 RELATED WORK

Model-based testing is the paradigm by which test

cases are automatically generated using models that

describe the functional behaviour of the system un-

der test. This approach allows testers focusing on the

design of better test plans instead of wasting effort

in coding tasks, increasing productivity and product

quality due to the automation. Models are designed

using from formal speciﬁcations (e.g. B, Z) (Utting

and Legeard, 2007; Cristi´a and Monetti, 2009) to a

large variety of diagrams, such as state charts, use

case, sequence diagrams (Briand and Labiche, 2001),

(extended) ﬁnite state machines (Pedrosa et al., 2013;

Karl, 2013) or graphs. Most of research in models

for testing is focused on UML modeling language

(Fowler, 2003). A common practice is using sequence

diagrams to represent the system behaviour for use

case scenarios. Diagrams are then transformed into

test case models -such as xUnit (Meszaros, 2006)- by

means of model-to-model transformations, before be-

ing transformed -model-to-text - into executable tests

for a speciﬁc platform (Javed et al., 2007).

The widespread use of UML in testing has led to

the development of a speciﬁc standard proﬁle, UML

2.0 Testing Proﬁle -U2TP- (Baker et al., 2004), an

extension to deﬁne and build test cases for software

systems. Different authors have used it to derive test

artefacts from systems previously described in UML

(Lamancha et al., 2009; Wendland et al., 2013; Baker

et al., 2007). Although U2TP bridges the gap between

system and test development by using the same mod-

elling notation, public implementations are incom-

plete (Wendland et al., 2013; Eclipse(a), 2011). Im-

plementations are focused mainly on the Test Archi-

tecture section and partially on Test Behaviour, where

not all the deﬁned concepts are covered. Other sec-

tions, such as Test Data, are usually also skipped.

UML is the most widespread modelling language,

but some other DSLs are also used for software de-

velopment (Fowler, 2010). UML proﬁles are UML

dependent and they are not applicable on DSL. The

languages introduced in this paper are independent of

development languages.

In contrast to most of literature on model-based

testing, the proposal described here does not derive

test models from other models which represent the

system behaviour (Javed et al., 2007; Lamancha et al.,

2009). The executable tests are neither derived from

code or system requirements (Wendland et al., 2013).

Instead, this work proposes a UML-independent ap-

proach, where test models are designed by testers and

automatically translated to be executable.

3 TEST ARCHITECTURE

In this section, the architecture proposed is brieﬂy de-

picted before being explained more deeply next. The

aim of the architecture is the building of generic test

models, agnostic about any testing platform.

3.1 Architecture Overview

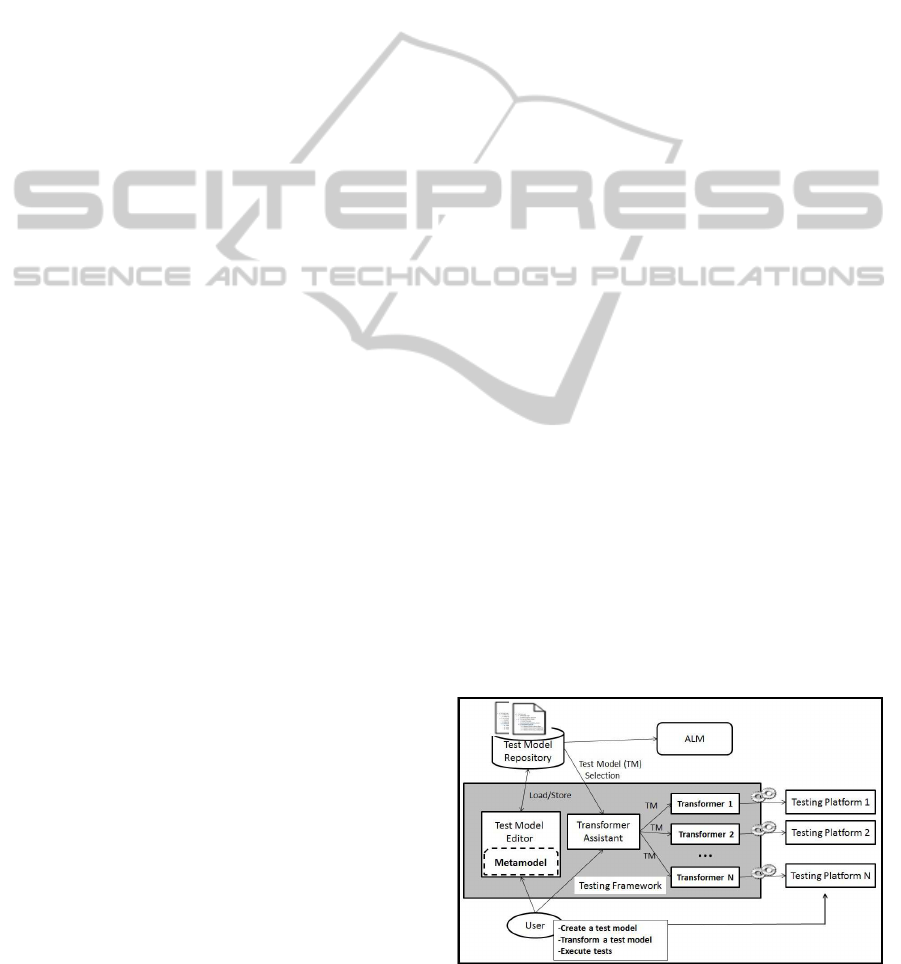

The architecture proposed in this work is shown in

Figure 1, as well as the role played by users. The core

of the architecture is the testing models, whose main

concepts will be described in Section 4. The test-

ing modelling language is supported by an editor spe-

cially developed to help users to design test models

graphically, improving the user experience and hiding

Figure 1: The proposed architecture allows users to be ag-

nostic about the ﬁnal target platform, focusing the effort on

building of test models.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

240

the complexity of the language. The resulting mod-

els conform the developed modelling language and its

constraints. These models are then stored in a regular

repository in order to be accessible by different ele-

ments in the architecture and from outside. Inside the

architecture, the stored models are accessed by: (1)

the editor, in case of performing modiﬁcations in the

test models; (2) the transformer assistant, when users

select models to be transformed into executable tests.

From outside, the repository can be accessed by ap-

plication lifecycle management tools (ALM) for life-

cycle supervision activities. From these three actors,

only the editor can update the repository, being used

in a read-only mode by the others.

A test plan based on the proposed language can

be transformed in executable tests for speciﬁc testing

platforms. For this task, a transformer assistant helps

users to select a model from the repository, and the

target platform where tests will be ﬁnally executed.

Then, the assistant delegates the test model to the right

engine, which will apply speciﬁc transformation rules

to automatically translate the agnostic model into a

collection of tests executable in the chosen platform.

Due to the agnostic nature of test models and the ex-

istence of speciﬁc transformation engines, the same

model can be executed in more than one testing plat-

form. The engines are responsible for the appropri-

ate adaptation of models to each platform. When the

transformation process ends, the resulting test collec-

tion is available in the ﬁnal testing platform for execu-

tion, which in case of being also automated, hides the

potential complexity of the process. Information ob-

tained as a result of the executions should be retrieved

to be included in the repository,being associated to its

corresponding test model and target platform.

The advantages of agnostic testing models are nu-

merous. Firstly, since models are independent from

the management solution (ALM) adopted by the com-

pany, migration from one tool to another due to

changes in the business strategy just requires an adap-

tor between the model repository and the new tool to

populate it with the required information in each case.

Models are not altered in this process. Secondly, once

a test model has been built, it can be executed as many

times as needed due to the automation of the transfor-

mation process, providing time saving when regres-

sion tests are needed. This automation hides the com-

plexity of the target testing platform and reduces fail-

ures due to human action. Thirdly, when application

functionalities are modiﬁed, it is only necessary to

adapt the associated model, instead of the executable

tests. Moreover, any modiﬁcation in the testing plat-

form only affects to the transformation engines. Fi-

nally, models can be built and used by people who

are not necessarily test experts, broadening the use of

tests in the development process and focused on each

user’s expertise area.

3.2 Testing Modelling Language

Overview

The abstract syntax has been implemented using

Eclipse Modeling Framework (EMF) (Eclipse(c),

2013). The number and nature of the concepts man-

aged make necessary to build the main speciﬁcation

as a group of smaller packages, each of them focused

on a group of concepts closely related among them.

The core of the speciﬁcation are four packages which

covers concepts regarding structure, behaviour, con-

text and results respectively. There is also a last pack-

age to manage common concepts such as data or ﬁl-

ters. The three ﬁrst packages are the most evolved at

the moment, being deeply described in Section 4.

3.3 Test Model Editor

A graphical editor has been developed using Graphi-

cal Modeling Framework -GMF- (Eclipse(b), 2010).

Depending on the test plan to build, the design can be

complex enough to be difﬁcult to visualize and man-

age in a single diagram. For this reason, the devel-

oped editor distinguishes among different diagrams,

each of them focused on a portion of the proposed lan-

guage. Thus, different diagrams allow to design tests

at different levels, providing from a general overview

of the test plan to a lower granularity focused on the

test case level. There are three kind of diagrams to

visualize different aspects of the structural design,

whereas there is only one speciﬁc diagram to describe

contextual information. The combination of several

of these diagrams gives rise to a whole test model.

3.4 Test Model Transformation

The transformation from agnostic test models to col-

lections of speciﬁc tests for particular testing plat-

forms is performed currently by using the operational

QVT language (OMG, 2011), the OMG’s standard

to perform model-to-model transformations between

EMF models. In case that test plans in the target plat-

form could not be described by its own metamodel,

model-to-text transformations would be required in-

stead.

AutomatedModel-basedTestingBasedonanAgnostic-platformModelingLanguage

241

4 TESTING MODELLING

LANGUAGE

The core of the proposed architecture is the test mod-

els mentioned previously. For the sake of clarity, only

the main concepts related to structure, behaviour and

context will be depicted in this section. For a bet-

ter explanation of the concepts managed, a case study

will be used to give some examples about the potential

of the developed modelling language. The examples

will be based on a banking application described next.

4.1 PiggyBank: A Case Study

PiggyBank is the experimental use of case chosen

to show the concepts managed in the developed lan-

guage. It is a simpliﬁed application to access a

banking system, frequently used to study the test-

ing approaches in model-based software develop-

ment. The application has been created using a fully

model-drivenapproach, where everyfunctionality has

been built with the modelling framework BankSphere

based on extended state diagrams. The framework

translates automatically each of the models into exe-

cutable code for web applications. PiggyBank’s main

functionalities are: (1) a login process, mandatory to

gain access to banking tasks; (2) balance visualiza-

tion; (3) money transfer; and (4) system disconnec-

tion. Having this application as case study, the aim is

to build a complete test plan for it using the designed

language, a test plan agnostic about any testing plat-

form.

4.2 Structure Package

This package groups all the elements which provide

a hierarchical structure to the test plan. The concepts

managed are ﬂexible enough to create a large vari-

ety of hierarchies, from the most simple ones to the

most complex, being able to build nested structures

and reuse elements from other test plans already de-

signed. A summary of this package can be seen in

Figure 2. The most important relations with concepts

from other packages are also shown.

The main concepts managed in this package are

TestProject, TestSuite and TestCaseBase. TestProject

is the root for any test plan, identifying the System-

Under-Test (SUT) to consider and grouping all the

functionalities to test in the application. This element

contains an undeﬁned number of TestSuites, each of

them can be described as a set of test cases which

are functionally related. This TestSuite concept pro-

vides complexity to the test plan since it can contain

more TestSuites and point to other structural elements,

allowing the reuse of testing structures. Finally, a

TestSuite - which represents a particular functionality-

contains the TestCaseBase concept, this is each in-

dividual test that need to be considered in the test

plan. These three elements have a common super-

class (StructuralTestElement) which, among other at-

tributes, owns: information about the result of the ex-

ecution of that element, annotations to customize at-

tributes when an element is being reused, and a Con-

text attribute to provide behavioural information as

well as other kind of parameters necessary at run-

time. Another attribute contains the set of require-

ments covered by a structural element, easing the

gathering of elements affected by changes in a re-

quirement. TestCaseBase elements are slightly differ-

ent from the other structural elements since they are

the ones that will provide a unique behaviour to each

test. In such a way, TestCaseBase is similar to an ac-

tivity diagram in a traditional UML approach. This el-

ement, apart from the context with certain behavioural

information, it owns another attribute to complete the

expected behaviour and validations for the test (link

to BehaviouralObject in Figure 2).

A novelty in this package is the concept of

TestScenario, which is only contained by TestCase-

Base elements. This concept allows to set the data

that will be executed at runtime for a particular Test-

CaseBase, and represents a possible extension to the

set of validations already deﬁned in the TestCaseBase

element. The set of validations at TestCaseBase level

are common to all the TestScenarios existing in the

structural element. However, the extra validations

at TestScenario level indicates speciﬁc checkers that

need to be added for execution, which will proba-

ble depends of the speciﬁc data set in the TestSce-

nario. Thus, TestScenarios represent variations of a

TestCaseBase depending on the input data selected.

Data collections set at TestScenario level are deﬁned

at pools, which act as repositories to reuse informa-

tion. Data own a speciﬁc structure that allows to use

them as a collection (valid/invalid customers), or as

a kind of registers, being able to reference speciﬁc

ﬁelds (e.g. name, surname, etc).

Considering our experimental application, Piggy-

Bank, the concepts described here can be used to de-

sign the core of the test plan as follows. Since Pig-

gyBank has a reduced number of functionalities, the

test plan for the whole application can be built us-

ing a unique TestProject. This project will contain

a TestSuite element for each functionality, i.e. Lo-

gin, Money Transfer, Display Balance and Discon-

nect. Suppose the login access is a common task in

most of the applications, not only PiggyBank, and it

has been established a ﬁxed building pattern to cod-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

242

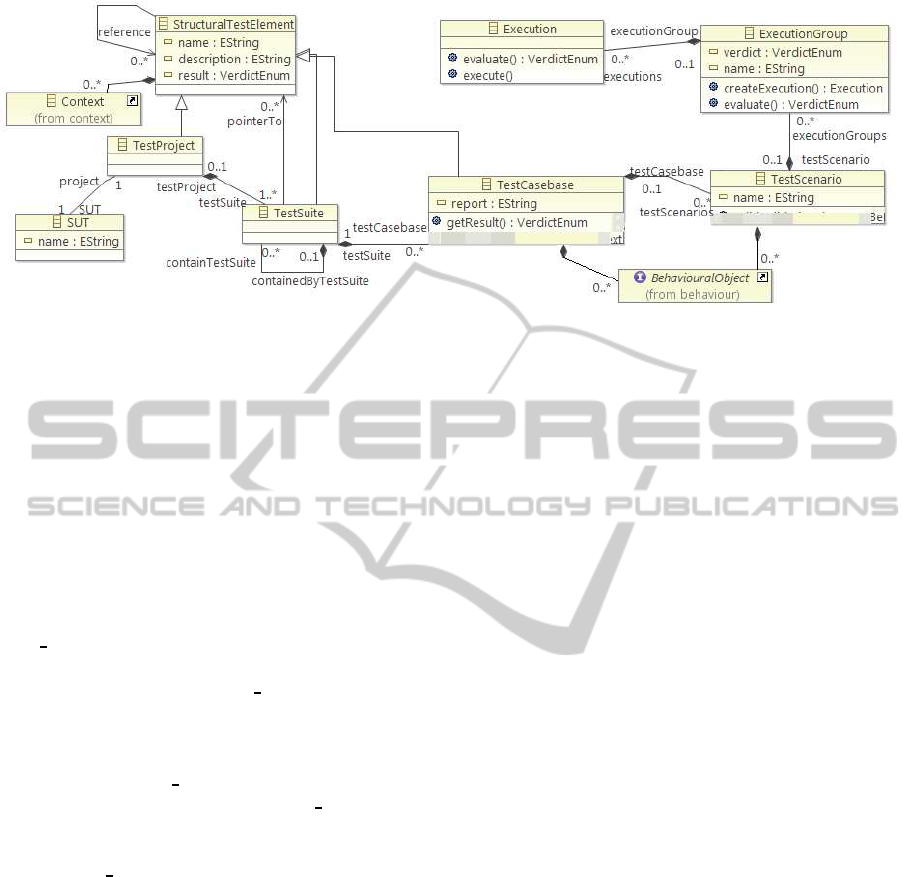

Figure 2: Structure package.

ify this task. In this situation it could make sense that

the login access owns its own test plan in a speciﬁc

TestProject, independent from the rest of the applica-

tions. This test plan could be reused in the TestSuite

propriate attribute. Thus, it would be only necessary

to use annotations to rename some data if necessary.

Neither of the remaining suites would require further

complexity except being containers for TestCaseBase

elements. For instance, considering the TestSuite Dis-

play Balance, there would be a TestCaseBase to check

the existence of a return button in the page (testCase-

Base

1) and another one to check the existence of a

message with the customer name and the balance of

the bank account (testCaseBase

2). At TestCaseBase

level there would be deﬁned validations to check the

appropriate information in each case. The data used at

runtime would be set on TestScenarios. As an exam-

ple, for testCaseBase

1 any set of valid users would

be possible. However, for testCaseBase 2 it would be

necessary, for instance, to divide valid users depend-

ing on their balance, positive or negative. In this case,

testCaseBase

2 would require two TestScenarios, one

to point to a set of registers of customers with positive

balance and a second scenario pointing to registers of

customers with negative balance. Probably, in case of

negative balance, extra validations would be required,

such as checking that a special message also appears

on the web page. This extra validations would be indi-

cated at TestScenario level, not at TestCaseBase level

since it only affects a speciﬁc group of users.

To conclude with the Structure package, and in or-

der to keep information about the execution of a par-

ticular test plan, at TestScenario level there are struc-

tures to save a number of basic details about each exe-

cution performed at the testing platform. These struc-

tures are ExecutionGroup and Execution. Each indi-

vidual execution would keep a report of the data used

for that particular execution and its result. These data

could be the name of the browser, the user and pass-

word used in the login process, etc. Executions are

grouped on ExecutionGroups, giving a unique verdict

for the whole set of executions. These structures col-

lect results from the target testing platform and pro-

vide verdicts which are moved up in the test structure

until the TestProject level is reached and a unique ver-

dict for the whole test plan can be provided.

4.3 Behaviour Package

This package groups the elements that provide the

workﬂow of a test. A summary of this package can

be seen in Figure 3.

The most important concept is the Be-

haviouralElement, which contains the smallest

elements with behaviour in a test, ActionElements

and ValidationElements. These elements will have

a direct translation to one or more basic execution

units (functions, services, etc.) in each target testing

platform, being the transformation engines the

responsible for providing the right translation in each

case. ValidationElements represent only validating

and checking behaviours. They own an attribute type

which can be used to set how important is the result

of a particular validation. Thus, a validation that

fails when the user expects a successful result can be

reported just as a warning if type is weak, or as an

error or an exception if type has been set to strong.

These kind of attributes needs also to be considered

during the codiﬁcation of each transformation engine

to provide the right translation. ActionElements

represent non-validating behaviours, such as ﬁlling

or clicking. These behavioural elements contain

attributes to customize the behaviour (i.e. a text that

needs to be checked or references to data from pools).

Action and validation elements can be grouped in

a speciﬁc sequence in order to create a single reusable

unit, a BehaviouralGroup. Thus, a group can be cre-

AutomatedModel-basedTestingBasedonanAgnostic-platformModelingLanguage

243

Figure 3: Behaviour Package.

ated once, and used several times. The reuse of Be-

haviouralElements is performed due to the existence

of BehaviouralReferences, a special behavioural ob-

ject which allows to point to any BehaviouralElement

and customize their attributes to adapt them to each

particular situation. A BehaviouralGroup can also in-

clude references among its collection of elements.

BehaviouralElements can be considered as prede-

ﬁned behaviours, generated by expert tests developers

and accessible from pools, which act as repositories

for being reused among different users and test plans.

Apart from the predeﬁned elements, it is also pos-

sible for a user to create their own behavioural ele-

ments. The user would indicate the behaviour of the

element and set the collection of attributes which need

to be considered for its right execution. These new be-

haviours will not have a direct translation in transfor-

mation engines unless they are speciﬁcally included

if its considered necessary. The advantage of creating

behavioural elements is that the update of transforma-

tion engines is based on users’ needs.

The described BehaviouralObjects are used in

very few parts of the whole developed package.

Regarding the elements in the Structure Package,

only TestCaseBase owns a list of BehaviouralObjects.

TestScenarios, due to its nature only owns a list of

ValidationElements or references to those kind of ele-

ments. Apart from these structural elements, no other

elements contain behaviour except for Context, an el-

ement contained in the package context, explained

next.

4.4 Context Testing Language

This last package is focused on the concept of con-

text, which can be understood as a collection of in-

formation which: (1) helps the system to reach a spe-

ciﬁc execution point before going on with the test; It

moves the system from a state A to another B, which

is considered the right starting point for the test to ex-

ecute; and (2) ensures that the system has reached that

execution point.

The concepts contained in this package, extended

with some auxiliary terms from other packages for

better understanding, can be seen in Figure 4.

A context includes behavioural elements -

BehaviouralObjects of any kind-, and parameters -

ConﬁgurationParameter-. The behavioural elements

are the responsible for moving the system from one

state to another, in a similar way to concepts such as

’set-up’ and ’tear-down’ in JUnit. The parameters are

pairs attribute-valuein order to set information related

with the testing environment to use at runtime. Ex-

amples of parameters for a web application such as

PiggyBank can be the list of browsers where an entire

test plan or a particular test need to be successfully

executed or some constant value to be used as a con-

ﬁguration option. These parameters can be as com-

plex as needed since they can be nested for a better

description of the execution environment. An exam-

ple of this nested description, and continuing with the

example of browsers for PiggyBank, we could imag-

ine a test for which a particular navigator should be

checked for a set of speciﬁc versions, while for others

this version speciﬁcation would not be necessary. The

parameter browser could be described then as:

Browser={IE={version=21, version=22}, Firefox }.

Contexts can also include some other contexts al-

ready deﬁned. This is interesting for avoiding repeti-

tions when several structural elements have the same

behaviour in their contexts or it is necessary a slightly

extension of a context. Finally, a context can also

point to a speciﬁc StructuralTestElement o TestSce-

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

244

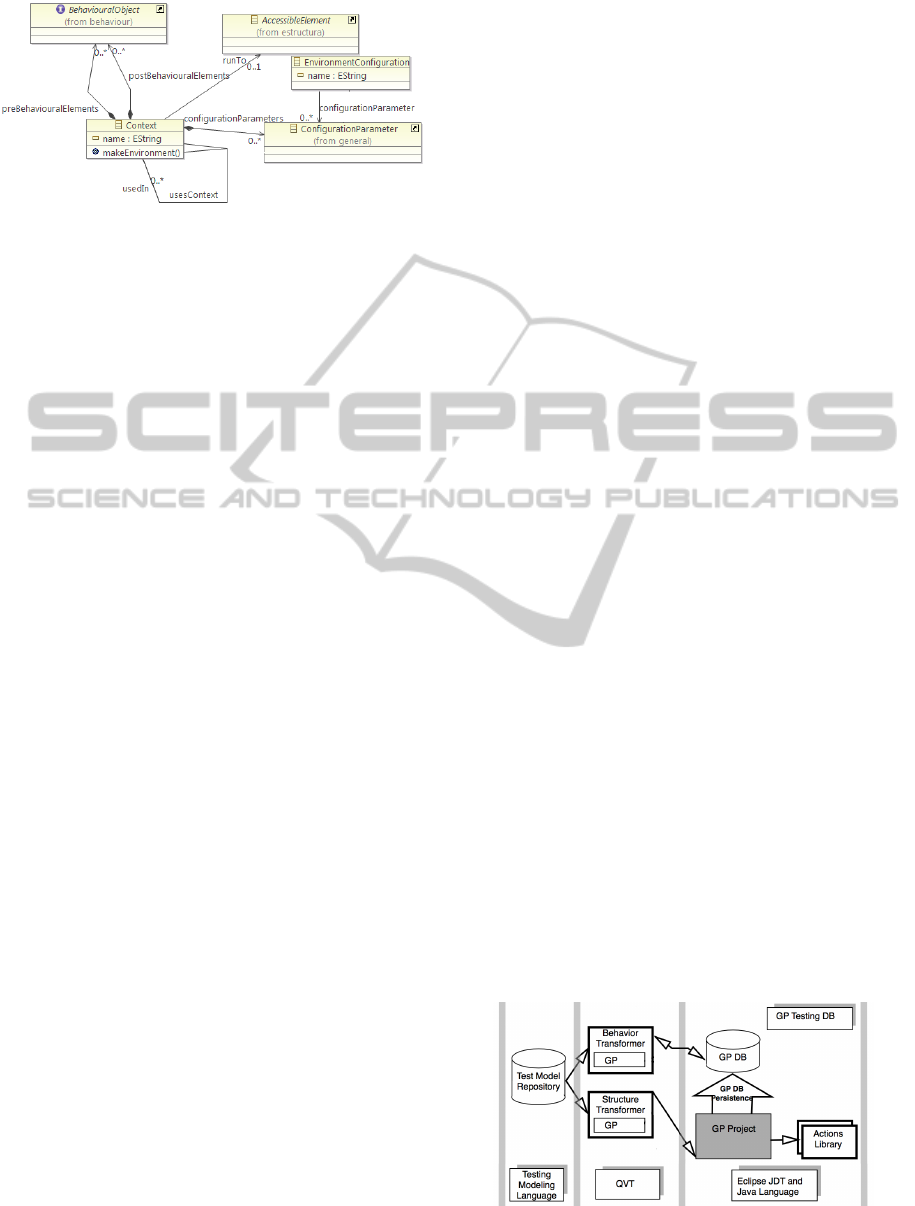

Figure 4: Context Testing Language.

nario (AccesibleElement). At runtime, this last fea-

ture would execute all the necessary behavioural ele-

ments to reach that point and use it as starting point

for the rest of the test. To clarify this concept, imagine

the TestSuite Display Balance. To perform any of the

tests contained in the TestSuite, it is necessary to ex-

ecute a login process. A common solution would be

repeating the login process again in the context of the

TestSuite Display Balance. However, this can be done

just pointing to the TestCaseBase which describes the

the user can continue designing the test suite related

to checking the balance.

Only the structural elements which are a kind of

StructuralTestElement own a context attribute. The

aim is the design of test plans minimizing the number

of elements to manage, since the elements deﬁned in

a context can be shared by a large number of struc-

tural elements. Focusing on ConﬁgurationParame-

ters, a parameter in a context set at a certain level

in the structural hierarchy will be visible by any of

its descendant structural elements. As an example, a

parameter deﬁned at TestProject level will be seen by

anyone down in the project, while a parameter deﬁned

at TestCaseBase will only have inﬂuence in that ele-

ment. Something similar happens with behavioural

elements deﬁned in the context of a structural ele-

ment. Those ones will be visible and performed by

any descendant of that element in the hierarchy.

ConﬁgurationParameters deﬁned as shown allow

to reduce the complexity at design time since the

transformation engines will be the responsible for ex-

ploding all the information contained in these param-

eters, giving rise to a large number of individual tests

in the testing platform that otherwise would be dif-

ﬁcult to manage by users. Using PiggyBank as ex-

ample, and given that it is a web application, a con-

text element could be set at TestProject level con-

taining all the information that will be common to

all the test plan. This information can include Ac-

tionElements, such as OpenBrowser(

browser) and

GoToURL(

url), which will be necessary to perform

by any test, but also parameters such as the list of

browsers to use at runtime. At a lower level, TestSuite

tions related with the ﬁlling of the access form, since

the information to reach that point comes from its par-

ent, the TestProject element.

5 FROM TESTING LANGUAGES

TO TESTS EXECUTIONS

Section 3 and Figure 1 introduced the general struc-

ture for integrating testing platforms and testing mod-

elling language. This approach is based on transfor-

mations that generate automatically the inputs of test-

ing platforms based on the testing models.

The testing platform considered in this work uses

a database technology for the representation of test-

ing objects and their properties. Examples that use

this storage approach are: HP QTP (QuickTest Pro-

fessional) (Rao, 2011), IBM RFT (Davis et al., 2009)

and GP in Santander Group. In this work, GP is the

platform chosen as example of transformation. It is

currently used for testing different kinds of software,

mainly, model-based banking systems, but also their

own modelling tools. GP reuses some other testing

technologies such as Selenium. GP, as the other plat-

forms based on databases, can be addressed through

model-to-model transformations since the store that

support the platform can be formalized with a schema,

which we can reuse for the construction of an interme-

diate target modelling language. This language will

represent the database of the target testing platform,

using Eclipse projects such as Teneo and CDO to sup-

port the persistence into the database of models that

conform the intermediate language.

Figure 5 shows the general structure of transfor-

mation from agnostic testing models to executable GP

test projects. The structure of the transformation is

decomposed into two QVT transformations; the ﬁrst

one uses the testing model to create the GP structure

model, while the second one updates that model to in-

clude speciﬁc behaviour and validation elements. The

Figure 5: Generation of Test Projects for a database-kind

testing platform.

AutomatedModel-basedTestingBasedonanAgnostic-platformModelingLanguage

245

QVT transformer maps agnostic-platform behaviour

from the testing model into speciﬁc elements of the

target platform. This second transformation, also re-

trieve data and context information, generating all the

possible combinations for testing. Each combination

will result in a single executable test in GP. When the

transformation is completed, it can be persisted into

the database. Finally, once tests are executed in GP,

using its API, results are integrated in the source test-

ing model.

6 CONCLUSIONS

An architecture has been proposed for testing follow-

ing a model-based approach. The developed mod-

elling language allows to design test plans which are

agnostic about the ﬁnal target platform. It represents

architectural and behavioural aspects using an inte-

grated notation, and provides notation for test data

and context information. Models designed accord-

ing to this language become a generic repository to

be used in any testing environment. Transformation

engines with the appropriate transformation rules are

responsible for generating the right test cases for each

target platform. The language includes the reuse of

concepts, reducing design time. Transformation en-

gines are also aware of these reuse possibilities, since

they would be written by experts in each target testing

platform and the modelling language. This approach

allows a quick starting of the testing phase, right when

the developmentprocess begins with the requirements

speciﬁcation. The test plan can be enhanced in an

iterative way as more information is obtained from

the development process until it captures all the needs

established. The graphical editor and transformation

engines hides the complexity of testing languages and

platforms from non-expert testers, being possible that

more people include tests in their working routine.

In the future, behavioural options should be en-

riched, since only sequential behaviour is considered

right now. Results from test executions will be re-

trieved and included in the models at the repository.

In the long term, some support to deal with changes

in the SUT could be also considered. Increasing the

available transformation engines should be also con-

sidered.

ACKNOWLEDGEMENTS

The work for this paper was partially supported by

funding from ISBAN and PRODUBAN, under the

Center for Open Middleware initiative.

REFERENCES

Baker, P., Dai, Z. R., Grabowski, J., Haugen, O., Samuels-

son, E., Schieferdecker, I., and Williams, C. E. (2004).

The UML 2.0 Testing Proﬁle.

Baker, P., Dai, Z. R., Grabowski, J., Haugen, O., Schiefer-

decker, I., and Williams, C. (2007). Model-Driven

Testing: Using the UML Testing Proﬁle. Springer-

Verlag New York, Inc., Secaucus, NJ, USA.

Briand, L. C. and Labiche, Y. (2001). A UML-Based Ap-

proach to System Testing. In Proc. of the 4th Int. Con-

ference on The Uniﬁed Modeling Language, Model-

ing Languages, Concepts, and Tools, pages 194–208,

London, UK, UK. Springer-Verlag.

Cristi´a, M. and Monetti, P. R. (2009). Implementing and

applying the stocks-carrington framework for model-

based testing. In ICFEM, pages 167–185.

Davis, C. et al. (2009). Software Test Engineering with IBM

Rational Functional Tester: The Deﬁnitive Resource.

IBM Press, 1st edition.

Eclipse(a) (2011). Eclipse Foundation: Test & Performance

Tools Platform (TPTP). http://www.eclipse.org/tptp.

Eclipse(b) (2010). Eclipse Graphical Modeling Framework

(GMF). www.eclipse.org/modeling/gmf/.

Eclipse(c) (2013). Eclipse Modeling Framework (EMF).

www.eclipse.org/modeling/emf/.

Fowler, M. (2003). UML Distilled: A Brief Guide to

the Standard Object Modeling Language. Addison-

Wesley Longman Publishing Co., Inc., Boston, MA,

USA, 3rd edition.

Fowler, M. (2010). Domain Speciﬁc Languages. Addison-

Wesley Professional, 1st edition.

Holmes, A. and Kellogg, M. (2006). Automating functional

tests using Selenium. In Agile Conf., pages 270–275.

Javed, A. Z., Strooper, P., and Watson, G. (2007). Auto-

mated generation of test cases using model-driven ar-

chitecture. In Automation of Software Test , 2007. AST

’07. 2nd Int. Workshop on, pages 3–3.

Karl, K. (2013). GraphWalker. www.graphwalker.org.

Lamancha, B. P. et al. (2009). Automated Model-based

Testing Using the UML Testing Proﬁle and QVT. In

Proc. of the 6th Int. Workshop on Model-Driven Engi-

neering, Veriﬁcation and Validation, MoDeVVa ’09,

pages 1–10, New York, NY, USA. ACM.

Meszaros, G. (2006). XUnit Test Patterns: Refactoring Test

Code. Prentice Hall, Upper Saddle River, NJ, USA.

OMG (2011). Meta Object Facility (MOF) 2.0

Query/View/Transformation Speciﬁcation, v1.1.

Pedrosa, C., Lelis, L., and Vieira Moura, A. (2013). In-

cremental testing of ﬁnite state machines. Software

Testing, Veriﬁcation and Reliability, 23(8):585–612.

Rao, A. (2011). HP QuickTest Professional WorkShop Se-

ries: Level 1 HP Quicktest. Outskirts Press.

Tahchiev, P., Leme, F., et al. (2010). JUnit in Action. Man-

ning Publications Co., Greenwich, CT, USA.

Utting, M. and Legeard, B. (2007). Practical Model-Based

Testing: A Tools Approach. Morgan Kaufmann Pub-

lishers Inc., San Francisco, CA, USA.

Wendland, M.-F. et al. (2013). Fokus!MBT: A Multi-

paradigmatic Test Modeling Environment. In Proc.

of the Workshop on ACadeMics Tooling with Eclipse,

ACME ’13, pages 1–10, New York, NY, USA. ACM.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

246
