GP-based Methodology for HW/SW Co-synthesis of Multiprocessor

Embedded Systems with Increasing Number of Individuals Obtained

by Mutation

Adam Górski

and Maciej Ogorzałek

Department of Information Technologies, Jagiellonian University in Cracow, Reymonta 4, Cracow, Poland

Department of Information Technologies, Jagiellonian University in Cracow, Cracow, Poland

Keywords: Embedded Systems, Genetic Programming, Genetic Algorithm, Architecture, Hardware/Software

Co-Design, Multiprocessor System.

Abstract: In this work, a genetic programming methodology for co-synthesis of multiprocessor systems is presented.

Genotype is a tree which nodes include system construction procedures. Thus the design methodology is

evolving. Next generations are obtained using genetic operators: mutation, reproduction and crossover.

Unlike other algorithms in presented methodology number of individuals obtained by mutation operator is

not const. Therefore number of individuals in each population is increasing. The size of final generation is

found by the algorithm.

1 INTRODUCTION

Nowadays embedded systems (Acasandrei and

Barriga 2012) can be find almost everywhere:

mobile phones, digital cameras, modern cars, etc.

Embedded systems are also used to help

coordination of different teams in crisis management

(Mahdjoub and Rousseaux 2014). First embedded

systems were not too much complicated. Therefore

it was not necessary to find special methodologies

for designing them. While complexity of embedded

systems was increasing (Kopetz 2008) more

effective design methodologies were needed (Martin

2006, Henzinger, Sifakis 2006). Co-synthesis is a

process which automatically generates an

architecture of embedded system using specification

contained in a task graph. The goal of the process is

to optimize parameters such cost, time or power

consumption. Most of existing solutions (eg. Jiang,

Eles and Peng 2012) assume distributed target

architecture. The architecture consists of many

processing elements (PEs). PEs can be divided into

two groups: programmable processors (PPs) and

hardware cores (HCs). PPs can execute more than

one task thus theirs cost is low but they are not very

fast. HCs can execute only one task thus the time of

task execution is reduced, but cost of the resource is

relatively high.

Co-synthesis process consists of three phases:

1. resource allocation – selection of number and

types of PEs and communication channels; 2. task

assignment – choice of PE for each task and

transmission between resources; 3. task scheduling –

determining when each task should begin its

execution.

Existing methodologies can be divided on two

basic groups. The most popular are iterative

improvement algorithms (Deniziak 2004, Yen and

Wolf 1995, Górski and Ogorzałek 2014a) which

start from sub-optimal solution and refine systems

by making local changes (moving task between PEs,

allocating or removing PEs from system). Usually,

as the initial solution, the fastest architecture is

selected. Unfortunately the results obtained by most

of these methodologies are still sub-optimal.

The second group includes constructive

algorithms (eg. Dave, Lakshminarayana and Jha

1997). In those methodologies system is built by

choosing PE for each task separately. Therefore

those algorithms are tend to stop in local minima of

optimizing parameters.

Probabilistic solutions, especially genetic

algorithms (Chehida and Auguin 2002; Purnaprajna,

Reformat and Pedrycz 2007) can escape from local

minima. This group of algorithms contains for

example simulated annealing (Eles, Peng,

Kuchciński and Doboli 1997). Especially good

275

Górski A. and Ogorzalek M..

GP-based Methodology for HW/SW Co-synthesis of Multiprocessor Embedded Systems with Increasing Number of Individuals Obtained by Mutation.

DOI: 10.5220/0005238702750280

In Proceedings of the 5th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2015), pages

275-280

ISBN: 978-989-758-084-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

results were obtained using developmental genetic

programming (Deniziak and Górski 2008). In this

algorithm genetic programming evolves design

methodology to obtain the best system.

Adaptive algorithms are also more and more

popular in computer system design process

(Shankaran, Roy, Schmidt, Koutsoukos, Chen,

and Lu, 2008, Górski and Ogorzałek 2014b).

Genetic programming (Koza, Bennett III, Lohn,

Dunlap, Keane and Andre, 1997) extends genetic

algorithms (Holland, 1992). In genetic programming

there is a strong the difference between phenotype

and genotype. The genotype is a tree which consists

of computer programs. The phenotype is the final

solution. Genetic programming is wildly used

amount other things in: machine learning (Krawiec

2002), design problems like synthesis computational

circuits (Koza, Bennett III, Lohn, Dunlap, Keane

and Andre, 1997) and in medicine for example

in prediction survival in cancer (Giacobini, Provero,

Vanneschi and Mauri 2014).

In every genetic methodology number of

individuals obtained in every population is constant.

Therefore large number of individuals have to be

generated to make the algorithm effective. In the

environment the situation is completely different.

The number of individuals in most of species

increases.

In this article a new approach based on

developmental genetic programming (Koza 2010) is

presented. Unlike other methodologies in presented

algorithm the number of individuals obtained by

mutation operator in each generation is increasing.

In section 3 the methodology is described. Sections

4 and 5 present experimental results (obtained using

set of benchmarks with 10, 20 and 30 nodes) and

conclusions.

2 PRELIMINARIES

Like in many works (eg. Engelhardt, Dallou,

Elhossini and Juurlink 2014) we assume, that the

behaviour of embedded system is described by an

acyclic, directed graph called the task graph

G = {V, E}. Each node v



V represents task, and

edge e



E presents dependence between tasks.

Label d

describes the amount of data that has to be

transferred between two connected tasks (v

and v

Transmission t

is defined as follows:

t 

(1)

where: b

is a bandwidth which characterises

communication link (CL).

As an example we use task graph proposed by

Górski and Ogorzalek (Górski and Ogorzałek 2014).

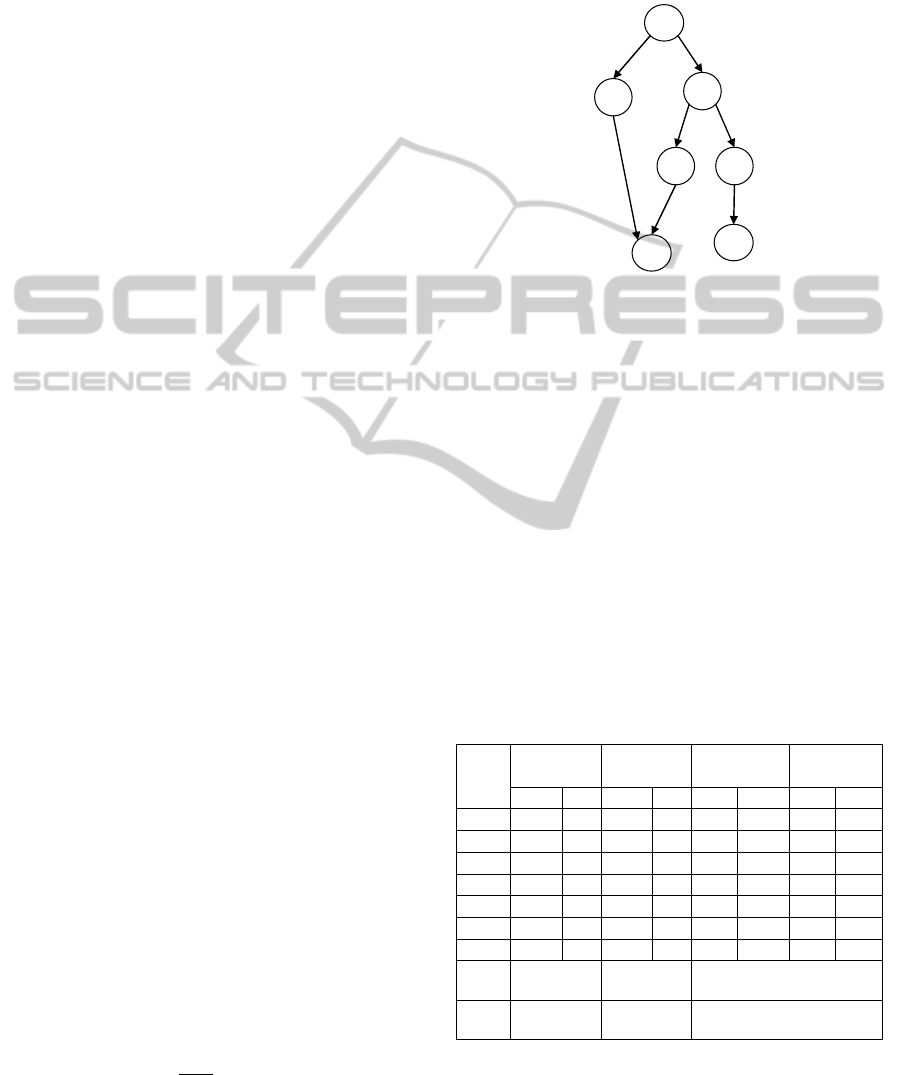

It is presented on fig. 1. The graph includes 7 tasks.

T3 T4

114 114

Figure 1: Example of task graph.

An example of a resource database for the system

described by the graph above is presented in table 1.

It contains two communication links (CL1 and CL2)

and four PEs: two programmable processors (PP1

and PP2), two Hardware cores (HC1 and HC2).

Every task is defined by area occupied by this task

(s) and a time of execution (t). Areas occupied by

the tasks mean the size of memory needed to execute

these tasks. Communication links are defined by

a bandwidth (b) and an area (s) occupied by the link

connected to PE. Table 1 also includes the area (S)

occupied by each PE. The area of the tasks

implemented in HC includes the area occupied by

the core.

Table 1: Resource database.

Task

PP1

S=200

PP2

S=300

HC1 HC2

t s t s t s t s

T0 150 4 120 6 50 180 30 250

T1 40 3 35 2 14 100 10 140

T2 - - 320 17 250 200 150 650

T3 235 10 220 15 140 160 90 200

T4 165 8 150 10 65 100 40 140

T5 70 4 40 5 25 100 - -

T6 23 2 20 1 5 40 2 80

CL1,

b=6

s=2 s=2 s=10

CL2,

b=15

- s=2 s=15

Task T2 is not compatible with PP1, and task T5

cannot be implemented in HC2. Communication link

CL2 is not compatible with PP1.

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

276

The final architecture of designing system

contains p communication links and m

programmable processors and hardware cores,

(selected from table 1.) which execute n processes.

Overall area (S

) of the system is described by the

following formula:







PCCL

PEo

iki

ssSS

(2)

The goal of co-design is to find an architecture

with the lowest S

value. The value must satisfy time

constrains.

3 INITIAL POPULATION

In genetic programming it is strong difference

between genotype and phenotype. According to

genetic programming rules in this methodology

genotype is a system construction tree, which

evolves. The phenotype is the final solution. At the

beginning embryo is created. The embryo is an

randomly implementation of the first task. The

number of possible embryos is the number of

possible PEs in the database. Every next node in the

genotype describes system constructing decision. To

ensure that system executes all tasks the structure of

genotype has to be based on the task graph. Each

node in the tree must correspond to equal system

constructing function. The options for constructing

system are presented in table 2. To check the

efficiency of proposed methodology we decided to

use the same system constructing function as were

proposed by Deniziak and Górski in DGP08

algorithm (Deniziak and Górski 2008). However

there are differences in evolution process. Therefore

we are certain that quality of obtained solutions is

a result of using presented methodology. The last

column includes probability of selection of system-

construction options. The initial population contains

of randomly generated genotypes. П

is the size of

initial population:

= *n*p





(3)

where: n – number of tasks in task graph,

p – number of possible embryos, α – control

parameter which determines the number of

individuals in populations; it is set manually.

The system is constructed by executing functions

in order corresponding to the level of the node in the

genotype tree. Then solutions are sorted by the

lowest cost.

Table 2: Options for constructing system.

Step Option Probability

a. Used PE 0.6

b. The smallest area 0.1

c. The fastest 0.1

d. Min (s*t) 0.1

e. The least used 0.1

Used PE

a1. The smallest area 0.2

a2. The fastest 0.2

a3. The lowest

utilization

0.2

a4. Idle for the longest

time

0.2

a5. The same as a

predecessor

0.2

a. Used CL 0.5

b. The highest b 0.2

c. The last used 0.2

d. The smallest area 0.1

Used CL

a1. The smallest area 0.3

a2. The fastest 0.3

a3. The lowest

utilization

0.2

a4. Idle for the longest

time

0.2

Task

scheduling

list scheduling 1

4 EVOLUTION

To obtain new population we used standard genetic

operators: crossover, mutation and reproduction. The

number of individuals obtained by using genetic

operators is given:

 Φ = β*П – individuals obtained by

reproduction;

 Ψ = γ*П – individuals obtained by crossover;

 Ω = δ*П – individuals obtained by mutation;

Parameters β, γ, δ are used to control the evolution

process. They are set manually.

Unlike other methodologies number of

individuals in each population is not const. Thus:









(4)

Reproduction randomly copies the Φ genotypes

from the current population. Individuals are chosen

randomly but with different probability P.

The probability depends on the position q in rank

list. It is described as follow:









(5)

in formula above is a size of current

GP-basedMethodologyforHW/SWCo-synthesisofMultiprocessorEmbeddedSystemswithIncreasingNumberof

IndividualsObtainedbyMutation

277

population. It can be defined as follows:

()*





   

(6)

Crossover chooses randomly the Ψ solutions.

The crossing point is selected randomly. It is the

same for both genotypes. Afterwards the sub-trees

are substituted.

Mutation is responsible for providing fresh genes

to the environment. Thus we decide to increase

number of individuals obtained using mutation

operator. The operator randomly selects one

individual and one node, than changes option in this

node to a different one from the option list.

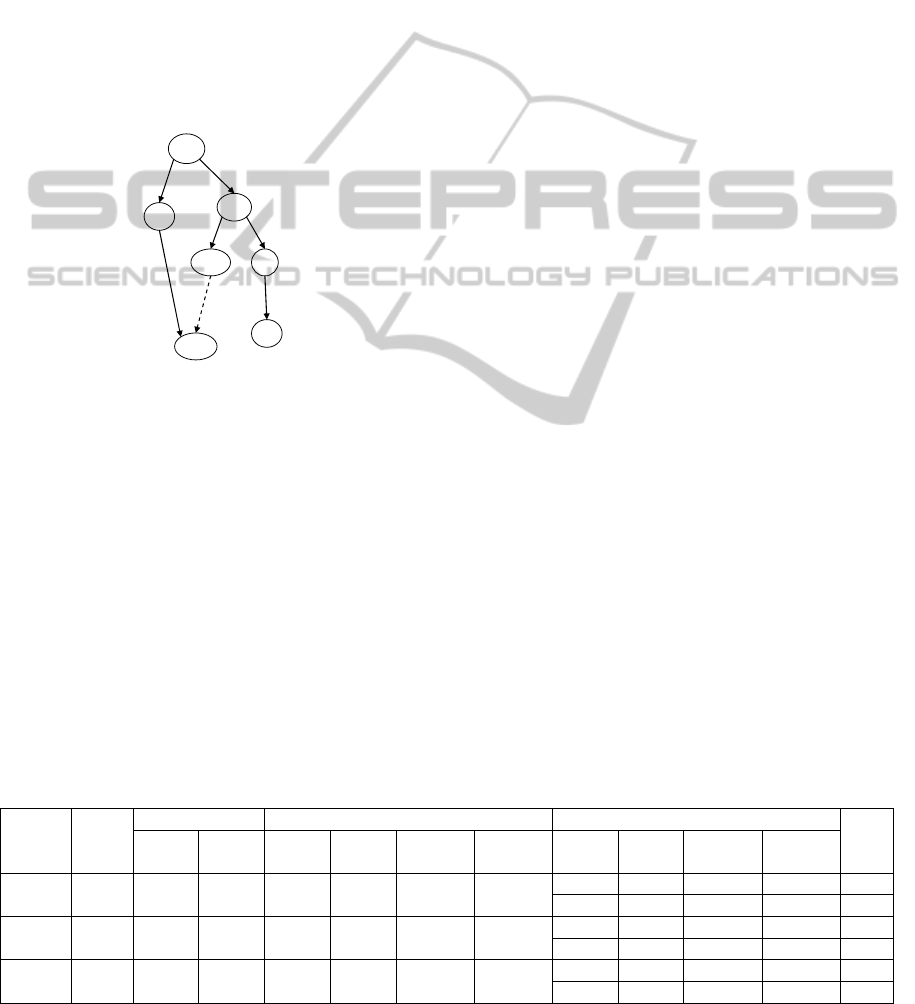

Figure 2 shows an example of genotype for the

task graph of figure 1.

a4/b

PP0

b/a2

a1/a1 a3/c

a5/a4

c/d

Figure 2: Example of genotype.

After generating new population new rank list is

created. The process is stopped when cheapest

solution which satisfies time constrains wasn’t found

in next ε steps (last ε generations). Parameter ε is set

manually.

5 EXPERIMENTAL RESULTS

Because of very large computational complexity of

the co-design problem, the best way to check

effectiveness of proposed methodology is to

compare the performance with other existing

methods. All experiments were carried out on

benchmarks with 10, 20 and 30 nodes. We compared

presented methodology with algorithm DGP08

(Deniziak and Górski, 2008) and algorithm Ewa

(Deniziak, 2004). DGP08 is genetic programming

algorithm for co-synthesis. It was compared with

algorithm Yen-Wolf (Yen and Wolf 1995) for co-

synthesis. Algorithm Ewa was proved to be more

effective than MOGAC (Dick and Jha, 1998).

MOGAC is a genetic algorithm for co-synthesis.

Therefore we believe that this comparison is the best

to check effectiveness of the proposed methodology.

Because of probabilistic nature of the

methodologies, for each graph 30 tries were made.

In table 3 the comparison results are presented.

In the table the best and average values of cost and

execution time for the algorithms are presented. For

both genetic methodologies parameters α=100,

β=0,2, γ=0,7 and ε=5. For algorithm DGP08 δ=0,1.

The time constrains were set as follow: 350 for

graph with 10 nodes, 500 for graph with 20 nodes,

800 for graph with 30 nodes. In table 4 values of

δ parameter for algorithm GP 2015 are given. We

decided to check efficiency of proposed algorithm

with δ values 0,2 and 0,3. In all of the experiments

parameter α=100.

For graph with 10 nodes the best result obtained

for all of the genetic methodologies has cost 1590

and time 326. However average cost is lower for the

methodology presented in this paper. For DGP08

average cost is 1602. In our algorithm average costs

are: 1594 when parameter δ=0,2 and the lowest 1593

when δ=0,3. The same situation can be observed for

the rest of graphs. Best average results were

obtained when parameter δ=0,3. For graph 20

average cost was: 2652 when δ=0,2 and 2649 when

δ=0,3, while for DGP08 it was 2669. For both

genetic methodologies the best obtained cost was

2649. For bigger graph (with 30 nodes) the results

indicates on high efficiency of proposed solution.

The average cost for DGP08 was 3130, while for

presented approach was 3107 (when δ=0,2) and

3074 (when δ=0,3). What is worth to underline the

Table 3: Experimental results.

Graph T

max

Ewa DGP08

GP 2015

time cost time cost

average

time

average

cost

time cost averag

e time

averag

e cost

10 350 204 2975 326 1590 296 1602

326 1590 308 1594 0,2

326 1590 316 1593 0,3

20 500 457 3020 396 2649 396 2649

396 2649 396 2652 0,2

396 2649 396 2649 0,3

30 800 789 5330 792 3081 793 3130

792 3081 792 3107 0,2

792 3056 792 3074 0,3

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

278

average cost obtained by presented algorithm for

graph with 30 nodes when δ=0,3 (3074) is lower

than the best obtained result using DGP08 (3081).

For presented methodology, when δ=0,2, the best

obtained solution is the same as for DGP08 (3081).

Results obtained by algorithm Ewa was: time 204,

and cost 2975 for graph 10, for graph with 20 nodes

the execution time was 457 while cost was 3020.

Also for bigger graph (with 30 nodes) the results

were much worse that obtained by DGP08 and

GP2015 – obtained time was 789 and cost was 5330.

6 CONCLUSIONS

In this paper we present a new methodology based

on genetic programming for hardware/software co-

synthesis. Unlike other genetic programming

approaches the number of individuals in populations

is not const. Moreover the number of individuals

increases in each population. This is achieved by

increasing number of individuals obtained using

mutation operator.

First obtained results indicates that the results

obtained by proposed methodology are better than

obtained using other algorithms. In every genetic

approach number of individuals in each population

has to be large. Presented methodology allows to

generate less individuals in initial population and

obtain good solutions during evolution process. The

size of final population will be found by the

algorithm.

Some test like t-test, Mann-Whittey test or

Wilcoxon test (Ruxton, 2006) can be made to

compare DGP08 and GP 2015, but we were afraid

that they may underestimate the true significance of

obtained results.

The future work will concentrate on examining

the influence of another genetic operators on quality

of the results and different representation of

genotype tree. We will also test different genetic

operators and chromosomes.

ACKNOWLEDGEMENTS

This work is supported by the Foundation for Polish

Science, under grant “Mistrz 2012” No. 9/2012:

“New computational approaches for solving next

generation microelectronic design problems”.

REFERENCES

Acasandrei, L., Barriga, A., 2012. FPGA implementation

of an embedded face detection system based on

LEON3. In Proceedings of the International

Conference on Image Pro-cessing, Computer Vision,

and Pattern Recognition.

Mahdjoub, J., Rousseaux, F., 2014. Planning and

Optimization of Resources Deployment: Application

to Crisis Management. In Proceedings of the 11th

IEEE International Conference on Embedded

Software and Systems.

Kopetz, H., 2008. The complexity challenge in embedded

system design. In Proceedings of the 11th IEEE

International Symposium on object Oriented Real-

Time Distributed Computing.

Martin, G., 2006. Overview of the MPSoC Design

Challenge. In Proceedings of the 43rd annual Design

Automation Conference.

Henzinger, T.A., Sifakis, J., 2006. The Embedded Systems

Design Challenge. In Lecture Notes in Computer

Science, vol. 4085, pp 1-15.

Jiang, K., Eles, P., Peng, Z., 2012. Co-design techniques

for distributed real-time embedded systems with

communication security constrains. Design

Automation and Test in Europe (DATE 2012).

Deniziak, S., 2004. Cost-efficient synthesis of

multiprocessor heterogeneous systems. In Control and

Cybernetics, vol. 33, No. 2.

Yen, T., Wolf, W., 1995. Sensivity-Driven Co-Synthesis

of Distributed Embedded Systems. In Proceedings of

the International Symposium on System Synthesis.

Górski, A., Ogorzałek, M., 2014a. Iterative Improvement

methodology for hardware/software co-synthesis of

embedded systems based on genetic programming. In

Proceedings of the 11th IEEE International

Conference on Embedded Software and Systems

(Work in Progress session).

Dave, B., Lakshminarayana, G., Jha, N., 1997. COSYN:

Hardware/software Co-synthesis of Embedded

Systems. In Proceedings of the 34th annual Design

Automation Conference (DAC’97).

Chehida, K., B., Auguin, M., 2002. HW/SW Partitioning

Approach for Reconfigurable System Design. In

Proceedings of the International Conference on

Compilers, Architectures and Synthesis for Embedded

Systems, CASES 2002.

Purnaprajna, M., Reformat, M., Pedrycz, W., 2007.

Genetic algorithms for hardware-software partitioning

and optimal resource allocation. In Journal of Systems

Architecture, 53(7).

Eles, P., Peng, Z., Kuchciński, K., Doboli, A., 1997.

System Level Hardware/Software Partitioning Based

on Simulated Annealing and Tabu Search. In Design

Automation for Embedded Systems, vol. 2, No 1.

Deniziak, S., Górski, A., 2008. Hardware/Software Co-

Synthesis of Distributed Embedded Systems Using

Genetic programming. In Proceedings of the 8th

International Conference Evolvable Systems: From

GP-basedMethodologyforHW/SWCo-synthesisofMultiprocessorEmbeddedSystemswithIncreasingNumberof

IndividualsObtainedbyMutation

279

Biology to Hardware, ICES 2008. Lecture Notes in

Computer Science, Vol. 5216. Springer-Verlag.

Shankaran, N., Roy, N., Schmidt, D. C.,

Koutsoukos, X. D. C., Chen, Y., Lu, C., 2008. Design

and performance evaluation of an adaptive resource

management framework for distributed real-time and

embedded systems. EURASIP Journal on Embedded

Systems.

Górski, A., Ogorzałek, M., 2014b. Adaptive GP-based

algorithm for hardware-software co-design of

distributed embedded systems. In Proceedings of the

4th International Conference on Pervasive and

Embedded Computing and Communication Systems.

Koza, J., R., Bennett III, F., H., Lohn, j., Dunlap, F.,

Keane, M., A., Andre, D., 1997. Automated synthesis

of computational circuits using genetic programming.

In Proceedings of the IEEE Conference on

Evolutionary Computation. IEEE.

Holland., J., H., 1992. An Introductory Analysis with

Applications to Biology, Control, and Artificial

Intelligence. IN MIT Press, Cambridge, MA.

Krawiec, G., 2002. Genetic programming-based

construction of features for machine learning and

knowledge discovery tasks. In Genetic Programming

and Evolvable Machines, vol. 3, No. 4., pp. 329–343.

Giacobini, M., Provero, P., Vanneschi L., Mauri, G. 2014.

Towards the Use of Genetic Programming for the

Prediction of Survival in Cancer. In Evolution,

Complexity and Artificial Life, pp177-192.

John R. Koza. 2010. Human-competitive results produced

by genetic programming. In Genetic programming and

evolvable machines, vol. 11, issue 3-4. Springer-

Verlag.

Engelhardt, N., Dallou, T., Elhossini, A., Juurlink, B 2014.

An Integrated Hardware-Software Approach to Task

Graph Management. In Proceedings of the 16th IEEE

International Conference on High Performance and

Communications.

Dick, R., P., Jha, N., K., 1998. MOGAC: a multiobjective

Genetic algorithm for the Co-Synthesis of

Hardware-Software Embedded Systems. In IEEE

Trans. on Computer Aided Design of Integrated

Circiuts and systems, vol. 17, No. 10.

Ruxton., G., D., 2006. The unequal variance t-test is an

underused alternative to Student’s t-test and the

Mann–Whitney U test. In Behavioral Ecology, 17(4).

doi:http:// dx.doi.org/10.1093/beheco/ark016.

PECCS2015-5thInternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

280
