A Novel Anonymous Authenticated Key Agreement Protocol for

Vehicular Ad Hoc Networks

Carsten Büttner

and Sorin A. Huss

Advanced Technology, Adam Opel AG, Rüsselsheim, Germany

Integrated Circuits and Systems Lab, Technische Universität Darmstadt, Darmstadt, Germany

Keywords:

Anonymous Authentication, Vehicular Ad-hoc NETworks, Key Agreement, Ring Signatures.

Abstract:

Privacy in Vehicular Ad-hoc NETworks (VANETs) is one of the most important issues to attract users to this

new technology. In this paper we propose a novel protocol that allows vehicles using the same application in a

VANET to agree on an encryption key to exchange conﬁdential data while preserving the privacy. We do this

by combining the Elliptic Curve Integrated Encryption Scheme (ECIES) with ring signatures and we evaluate

the protocol with respect to the privacy of the vehicle. These results clearly demonstrate that the privacy of

vehicles can be preserved while reducing considerably the number of necessary pseudonyms in comparison to

exploiting ECIES only.

1 INTRODUCTION

For safety reasons vehicles in Vehicular Ad-hoc NET-

works (VANETs) use broadcast over ITS-G5 to in-

form other vehicles in the communication range about

their current status, including position, heading and

speed. All safety messages are digitally signed to

prove the integrity of the message and eligibility of

the sender. Since every participant shall receive and

interpret these messages as fast as possible, they are

in general not encrypted. Besides this safety relevant

communication, there are other applications available

where the data exchanged between vehicles is conﬁ-

dential and therefore needs to be encrypted.

Consider a service provider that collects data

about potholes on roads in a certain area. Vehicles

thus record data about potholes and report it to the

service provider, which offers the data to other service

providers or local administrations. However, the data

sent to the service provider contains privacy related

data like the location of the pothole and a coarse time,

when it was detected. If all vehicles would simply

sent their detected data to the service provider, then

this entity may create movement proﬁles of the vehi-

cles from the reported data. In order to preserve the

privacy of its users and to advertise the privacy con-

siderations, the service provider decides to implement

a privacy preserving mechanism. This mechanism re-

quires that the vehicles exchange their collected data

between each other prior uploading. When using this

mechanism the vehicles report pothole locations de-

tected by other vehicles too. Therefore, the service

provider can no longer determine where a speciﬁc ve-

hicle was driving at the given point in time and can no

longer create movement proﬁles of this vehicle. The

service provider may decide to use the ETSI ITS-G5

network to exchange the data between the vehicles,

because it is free of charge. In addition, the service

provider enforces an encrypted data exchange policy,

so no attacker can record and sell the collected data

next to the service provider. The exchange of the en-

crypted data shall also be privacy preserving.

There are three problems to be considered, when

conﬁdential data is being exchanged between vehi-

cles: (i) How does a vehicle ensure whether the other

vehicle is eligible to receive conﬁdential data? (ii)

How do vehicles exchange the key for encrypting the

communication data? (iii) How can the ﬁrst two prob-

lems be solved while preserving the privacy of the ve-

hicles?

For safety-related communications in VANETs

each vehicle uses a pseudonym to sign all messages.

To ensure the privacy of the vehicle the pseudonym is

changed on a regular basis, so that two pseudonyms

cannot be linked to the same vehicle. Of course, a

vehicle might simply use an own set of pseudonyms

for each application by encoding the application into

the pseudonym, and exploit well-known key agree-

ment protocols like the Elliptic Curve Integrated En-

cryption Scheme (ECIES) as standardized in (IEEE

259

Büttner C. and A. Huss S..

A Novel Anonymous Authenticated Key Agreement Protocol for Vehicular Ad Hoc Networks.

DOI: 10.5220/0005238902590269

In Proceedings of the 1st International Conference on Information Systems Security and Privacy (ICISSP-2015), pages 259-269

ISBN: 978-989-758-081-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

1609.2, 2013) to authenticate against each other and

ﬁnally to agree on an encryption key. However, the

vehicle then needs to change its pseudonym for the

application at hand at the same time as the one in-

tended for safety-related communication to prevent

linking of pseudonyms. This introduces a cost over-

head both for additional secure storage for the private

keys and for the data transmission aimed to obtain

new pseudonyms. Therefore, we propose in the se-

quel a novel protocol that solves all three outlined

problems and at the same time reduces the number

of necessary pseudonyms in comparison to exploiting

ECIES only. In order to do so we pick up the concept

of k-anonymity (Sweeney, 2002), combine ring sig-

natures (Rivest et al., 2001) with the ECIES scheme

and evaluate the resulting protocol with respect to the

privacy of the vehicles.

The rest of this paper is organized as follows: In

Section 2 we discuss the term of application-speciﬁc

pseudonyms. The state of the art of anonymous au-

thenticated key agreement protocols is reviewed in

Section 3. We then introduce the new anonymous au-

thentication scheme in Section 4. The evaluation of

this protocol is presented in Section 5. Finally, we

conclude the paper in Section 6.

2 APPLICATION-SPECIFIC

PSEUDONYMS

Each vehicle participating in a VANET is equipped

with a set of certiﬁcates to sign safety messages.

These certiﬁcates are named pseudonyms, since they

do not leak the identity and therefore preserve the pri-

vacy of the vehicle. In this paper we assume that each

application such as the outlined pothole detection ser-

vice issues its own pseudonyms, thus proving that the

owner of the corresponding private key is eligible to

run the application. So, only vehicles equipped with a

valid pseudonym can get access to it. We name such

pseudonyms application-speciﬁc pseudonyms.

An unique identiﬁer is assigned to each applica-

tion in order to determine which pseudonym belongs

to which application. In case that this identiﬁer is

also part of the pseudonym, the application can check,

whether the pseudonym is eligible to use the service.

Pseudonyms used in VANETs contain an ITS Appli-

cation ID (ETSI TS 103 097, 2013), which may be

exploited for this purpose.

3 RELATED WORK

The IEEE Standard 1609.2 for Wireless Access in

Vehicular Environments (IEEE 1609.2, 2013) uses

the hybrid encryption scheme ECIES to encrypt mes-

sages between vehicles. In ECIES both parties agree

on a key to encrypt and exchange an AES key. This

AES key is later on used to encrypt the exchanged

data. However, since it is necessary that the vehi-

cles change all their identities each time the safety

pseudonym changes, one set of pseudonyms with the

same size as the one for safety messages would be

necessary for each single application to prevent link-

ing pseudonyms. We reduce the size of the sets nec-

essary for each application by combining ECIES with

ring signatures.

Ring signatures based on RSA and Rabin’s sig-

nature scheme have been introduced in (Rivest et al.,

2001). In order to create a signature, the signer takes

in addition to his own private key the public key of

n other entities to sign the message. To verify the

message, the public key of the signer and the n pub-

lic keys of the other entities are necessary. The veri-

ﬁer of a ring signature cannot distinguish who of the

n +1 entities actually signed the message because the

probability of each signer equals to 1/(n + 1). The

authors of (Lin et al., 2007) propose ring signatures

for anonymous routing in wireless ad-hoc networks,

but they did not evaluate related ring building strate-

gies nor the size of the protocol nor multiple own

pseudonyms. In (Freudiger et al., 2009) the authors

advocate ring signatures in mobile ad-hoc networks

for authentication of neighbor nodes. They did inves-

tigate ring building strategies, but most of their strate-

gies require either a central server or the nodes have

to be a-priori aware of the pseudonyms of all other

nodes. In addition, these authors only considered the

case where each node has just one pseudonym and

elaborated a general formula to calculate the trans-

mission overhead, but they did not evaluate their sug-

gestion.

Secret Handshakes (Balfanz et al., 2003; Castel-

luccia et al., 2004) are used to identify secretly if two

persons belong to the same group. Even if the hand-

shake fails, both parties cannot retrieve the group of

the opposite. Accordingly, a third party is never able

to retrieve the afﬁliation of a participant to a group.

To reach unlinkability between different handshakes,

a different pseudonym has to be used for each hand-

shake. Otherwise an attacker may eventually link dif-

ferent handshakes to one user. This method is sim-

ilar to the usage of ECIES in VANETs with regu-

lar pseudonym changes. However, we aim to sig-

niﬁcantly reduce the amount of required pseudonyms

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

260

compared to this method.

Group Signatures (Chaum and Heyst, 1991) allow

a member of a group to create a signature on behalf of

the group. The veriﬁers can only prove that the signa-

ture was created by a member of the group but not by

whom. Unfortunately, group signatures are not suit-

able for the envisaged scenario, because each time a

user leaves the group, new credentials have to be dis-

tributed to all group members. This property obstructs

in our case the scalability of the approach because of

the high probability that multiple vehicles leave the

group every day. More over, we cannot assume that

all vehicles are quipped with mobile communication

devices to obtain the required information from the

central entity.

An Anonymous Credential (Camenisch and

Lysyanskaya, 2001) is a set of attributes issued by

a trustworthy entity. An user can prove a subset of

her attributes to a veriﬁer without revealing her iden-

tity, whereas several proofs cannot be linked. Again,

Anonymous Credentials are not suitable in our case,

because they require a regular connection to a cen-

tral entity to get revocation information. As before,

we cannot assume that all vehicles have a connection

to a central entity, because we cannot assume that all

vehicles are equipped with a mobile communication.

In addition proofs of attributes show a high computa-

tional complexity and do not establish an encryption

key.

Matchmaking Protocols (Baldwin and Gramlich,

1985) are intended to authenticate two members of the

same group without revealing their group to others.

However, this scheme does not hide the identity of the

members, it hides only the group they are a member

of. In contrast, we need to hide the identity of the

members and not of the group.

K-anonymity as deﬁned in (Sweeney, 2002) pro-

vides a metric to measure the anonymity of a subject,

where k denotes the number of subjects it is indistin-

guishable from. This metric will be exploited in the

sequel for the envisaged scenario.

4 ANONYMOUS

AUTHENTICATION

In this section we ﬁrst specify the requirements of the

anonymous authenticated key agreement protocol and

then present it in detail. We also characterize possi-

ble attacks and comment on the protocol parameters

considered so far.

An anonymous authenticated key agreement pro-

tocol allows two parties, who are members of the

same group, to establish a conﬁdential communica-

tion. To achieve this goal, both parties have to agree

on a session key to encrypt the exchanged messages.

The identity of the other party is unknown at the be-

ginning of the protocol and both parties are not will-

ing to expose for privacy reasons their application-

speciﬁc identity to anyone. In addition, it shall be

possible to revoke access for single parties and only

members of the same group shall be able to agree on

the session key. The protocol shall fail, if one party is

not a member of the group. Not eligible parties shall

gain as few information as possible about the other

party. We only consider single-hop connections, be-

cause multi-hop connections are difﬁcult to maintain

in VANETs due to frequent topology changes.

4.1 Protocol

The advocated anonymous authenticated key agree-

ment protocol takes the ECIES scheme and combines

it with ring signatures. Such a signature is intended to

sign the transmitted ECIES parameters. By combin-

ing ECIES with ring signatures, the vehicles agree on

a symmetric encryption key as standardized in (IEEE

1609.2, 2013) and bind this key to a speciﬁc appli-

cation with the help of a ring signature created with

application-speciﬁc pseudonyms. This generic ap-

proach has the advantage that the vehicles can use

the safety identities already known to each other for

ECIES and hide the application-speciﬁc identity by

means of ring signatures. So, it is no longer possible

to identify the entity which actually created the sig-

nature. The only information to be derived points to

the set of pseudonyms present in the ring. Therefore,

the application-speciﬁc pseudonyms can be reused af-

ter a pseudonym change without any link to safety

pseudonyms. As a consequence, less application-

speciﬁc pseudonyms are necessary. We exercise the

ring signature scheme based on elliptic curves as pro-

posed in (Lin et al., 2007). We favor this scheme,

since elliptic curves provide the same security level

with a much shorter signature length compared to

RSA. In addition, we propose a second version of

the protocol, where the pseudonyms of the ring sig-

nature are encrypted together with the signature. We

denote these protocol versions as non-encrypted and

encrypted, respectively.

We introduce the following notation for the de-

scription of the protocol: ServiceAnnouncement de-

notes a service announcement according to (ETSI TS

102 890-2, 2010). V , C and T are deﬁned according

to (IEEE 1609.2, 2013). V is the public key of the

sender, the parameter C is the symmetric AES key K

encrypted by ECIES, while T denotes the authentica-

tion tag of ECIES. The pseudonym of entity X is de-

ANovelAnonymousAuthenticatedKeyAgreementProtocolforVehicularAdHocNetworks

261

noted as Cert

. The ring signature consists of n differ-

ent pseudonyms Cert

, where one is an application-

speciﬁc pseudonym of the respective signer and the

others are collected application-speciﬁc pseudonyms.

The values x

are necessary to validate the ring sig-

nature. The actual ring signature is denoted as σ.

When Y is encrypted with the encryption key K, it

is denoted as E

(Y ).

The non-encrypted version of the protocol works

as follows:

(1) A → *: ServiceAnnouncement

(2) B → A: V,C,T,

Cert

,...,Cert

,...,x

(σ)

(3) A → B: Cert

,...,Cert

,...,x

(σ)

In Step 1 Alice (A) announces that she offers a ser-

vice that uses the anonymous authenticated key agree-

ment protocol.

Assuming Bob (B) receives the service announce-

ment from Alice and wants to use this service, he ﬁrst

generates an AES key K as payload for ECIES and

calculates V , C and T according to the ECIES scheme.

Then he selects n − 1 pseudonyms from his collected

pool and one of his own pseudonyms in order to cal-

culate the ring signature σ over V , C and T . Then,

he encrypts σ with the symmetric key K. Finally, he

sends V , C, T , the ring signature, and everything nec-

essary for validation to Alice (Step 2).

After reception Alice decrypts the AES key K ac-

cording to the ECIES scheme and applies it to decrypt

σ before validating the ring signature. When the val-

idation was successful, she selects one of her own

pseudonyms and n − 1 collected pseudonyms. With

this set of pseudonyms she calculates a ring signature

σ over V , C and T , and encrypts it with K. Then she

sends the ring signature and everything necessary to

validate it to Bob (Step 3).

When Bob receives the ring signature from Alice,

he decrypts σ and validates the ring signature. When

the validation was successful, he starts the conﬁden-

tial communication with Alice.

After the execution of the protocol, Alice and

Bob know that the other party is authorized to use

the service. In addition, both are in possession of

the same encryption key K still without knowing the

application-speciﬁc identity of the other party.

The encrypted version of the protocol differs in

Steps 2 and 3. The difference to the non-encrypted

one is, that not only σ is encrypted, but additionally

all necessary data to validate the ring signature. This

version works as follows:

) B → A: V,C,T,

(Cert

,...,Cert

,...,x

,σ)

) A → B: E

(Cert

,...,Cert

,...,x

,σ)

Given that the other party and a potential at-

tacker already know the pseudonym used for safety

messages, the identity applied to execute the ECIES

scheme does not give an attacker any new knowledge.

These safety pseudonyms should change on a regular

basis and not be reused. Therefore, they cannot be

exploited to track anything. The goal of an attacker

is to determine the application-speciﬁc pseudonym of

a vehicle, since this shall be reused in different ring

signatures and may therefore be used to link differ-

ent safety identities of the vehicles. This can be done,

when a vehicle exploits the same application-speciﬁc

pseudonym twice, but with different pseudonyms for

safety communication in VANETs. Then, an attacker

can link the two safety pseudonyms, because they

are used in combination with the same application-

speciﬁc pseudonym.

Consider that Alice applies the safety pseudonym

Cert

and application-speciﬁc pseudonym Cert

at the same time. Then, she changes her

safety pseudonym to Cert

, while still using the

application-speciﬁc pseudonym Cert

. An at-

tacker now may link Cert

and Cert

because they

were exploited with the same application-speciﬁc

pseudonym.

We assume that each vehicle may have multi-

ple valid application-speciﬁc pseudonyms at a time.

So, the vehicles can change their application-speciﬁc

pseudonym they use for building the ring signature

regularly with their pseudonyms for safety relevant

communication to avoid being tracked by means of

the pseudonyms not being changed.

Multiple pseudonyms confuse an attacker consid-

erably, since each vehicle has multiple identities and

these identities may be used at the same time in ring

signatures of different vehicles. We evaluate the im-

pact of multiple parallel pseudonyms in Section 5.

For the outlined protocol we stick to the same

pseudonym format already existing in VANETs to

sign safety messages, however we bind them to a spe-

ciﬁc application. We also use elliptic curve cryptog-

raphy and ECIES, which is already standardized for

safety communication. Therefore, this protocol ﬁts

very well in the VANET environment.

It is possible to exclude a vehicle from suc-

cessfully executing the protocol by revoking its

application-speciﬁc pseudonyms. The revocation can

be done in the same way as for safety pseudonyms.

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

262

Table 1: Capabilities of different attackers.

Attacker Protocol Ring size Alice Bob

Passive

Non-Encrypted X X X

Encrypted X O O

Active without Non-Encrypted X X X

pseudonyms Encrypted X O O

Active with Non-Encrypted X X X

safety pseudonyms Encrypted X X O

Active with Non-Encrypted X X X

application pseudonyms Encrypted X O X

Active with safety and Non-Encrypted X X X

application pseudonyms Encrypted X X X

4.2 Attacker

4.2.1 Capabilities

We distinguish between passive and active attackers.

A passive attacker can only listen to and record ex-

changed messages, while active attackers can also

replay and send messages under a forged identity.

We consider four types of active attackers that dif-

fer in their access to pseudonyms. The least power-

ful attacker has no access to any valid pseudonyms.

Another attacker has only access to pseudonyms

for safety relevant communication. The third one

has only access to application-speciﬁc pseudonyms,

while the most powerful attacker is an insider and has

access to both pseudonym types.

Table 1 compares the encrypted and non-

encrypted version of the protocol regarding the infor-

mation the different attacker types can yield. We con-

sider the size of the ring and the pseudonyms used by

Alice and Bob as critical. When the attacker can get

the respective information, it is denoted as X, other-

wise as O.

Regardless of the used version of the protocol,

all attackers can calculate the current ring size from

the message size. When the non-encrypted version

is used, all attackers can get the pseudonyms used

by Alice and Bob, since they are transmitted in plain

text. Therefore, only the capabilities of the attack-

ers regarding the encrypted version of the protocol are

discussed in the sequel.

The passive attacker cannot get the pseudonyms

of Alice and Bob when the encrypted version is used,

since they are encrypted and the attacker cannot de-

rive the encryption key K just by listening to the ex-

changed messages.

Without access to valid pseudonyms, an active at-

tacker is not able to successfully inject any message,

since all of them are either signed or encrypted. If

the attacker replays the ﬁrst message, she cannot en-

crypt the second or reply a valid third message, since

she does not know and cannot calculate the encryption

key. If she replays the second message, she is not in

the position to decrypt the pseudonyms used by Bob

in Step 3, since she does not know and cannot calcu-

late the encryption key. Therefore, all active attackers

are not able to get any information by replaying mes-

sages.

An active attacker with access to pseudonyms for

safety relevant communication may generate and send

the ﬁrst messages. If she sends the ﬁrst message, she

cannot replay with the third step, because she has no

application-speciﬁc pseudonym available in order to

generate a valid ring signature. However, she can de-

crypt the pseudonyms used by Alice in Step 2 by cal-

culating the encryption key K and therefore can get

the pseudonyms used by Alice.

An active attacker, who has only access to

application-speciﬁc pseudonyms, cannot generate and

send a valid service announcement, but may answer to

one, since she is able to calculate V , C, T , and a valid

ring signature. Therefore, she decrypts the message

sent by Bob in Step 3 and gets his pseudonyms.

If an active attacker has access to both a

pseudonym for safety relevant communications and

to an application-speciﬁc pseudonym, she is now in

the position to send and to answer to all messages of

the protocol and therefore gets the pseudonyms used

by Alice and Bob.

This analysis shows, that only the most power-

ful active attacker is able to unveil the identities used

by Alice and Bob when the encrypted version of the

protocol is being applied. However, lots of sophisti-

cated work will be necessary to implement this type

of attacker in practice, since the private keys of the

pseudonyms are in general stored on a hardware se-

curity module (HSM) inside the vehicle. Of course, if

the HSM fails and an attacker is thus able to extract

the private keys, she can get both the valid safety and

the application-speciﬁc pseudonyms and send valid

ANovelAnonymousAuthenticatedKeyAgreementProtocolforVehicularAdHocNetworks

263

1: // Count pseudonym usage

2: Create hashmap hm for pseudonym usage

3: for each colected message m do

4: for each used pseudonym p in m do

5: if hm.contains(p) then

6: hm.put(p, hm.get(p) + 1)

7: else

8: hm.put(p, 1)

9: end if

10: end for

11: end for

12: // Select relevant pseudonyms

13: Create list relevantPseudonyms

14: for each pseudonym p in hm do

15: if p > DaysObserving/PseudonymPoolSize

then

16: relevantPseudonyms.add(p)

17: end if

18: end for

Figure 1: Pseudonym ﬁltering algorithm used by the passive

attacker.

fake messages. However, then the attacker may also

extract only the private keys of the safety pseudonyms

and link them directly or send valid fake safety mes-

sages. In general, it is possible to detect and to revoke

the affected vehicle, which also works with the pro-

posed protocol. However, failed HSMs are a general

problem in VANETs and we will therefore not inves-

tigate it in more detail in this paper.

4.2.2 Behavior

In this section we detail the behavior of the consid-

ered attacker. The attacker is a passive one aiming at

the non-encrypted version of the protocol. This at-

tacker type is sufﬁcient, because even the most pow-

erful attacker aiming at the encrypted version cannot

gain more information. The attacker tries to identify

the application-speciﬁc pseudonym of a vehicle from

the ones used in the ring signature. The behavior of

the attacker can be divided into three stages.

In the ﬁrst stage the attacker records the ex-

changed messages.

After recording, the attacker counts how of-

ten each pseudonym has been applied. Then,

she selects the relevant pseudonyms, which are

used at least DaysObserving/PseudonymPoolSize

times, where DaysObserving denotes the number

of days the attacker recorded the messages and

PseudonymPoolSize the number of own pseudonyms

each vehicle has at the same time, respectively. Thus,

only pseudonyms used regularly are considered. The

ﬁltered ones might be introduced to the communica-

1: do

2: reduced = f alse

3: // Identify unambiguous pseudonyms

4: Create list unambiguousPseudonyms

5: for each collected message m do

6: for each pseudonym p in m do

7: if m.relevantPseudonyms == 1 then

8: unambiguousPseudonyms.add(p)

9: end if

10: end for

11: end for

12: // Reduce ring sizes

13: for each collected message m do

14: for each pseudonym p in m do

15: if p ∈ unambiguousPseudonyms ∧

m.day == unambiguousPseudonyms.get(p).day

then

16: m.delete(p)

17: reduced = true

18: end if

19: end for

20: end for

21: // Handle different ring sizes

22: if di f f erentRingSizes then

23: for each collected message m do

24: for each pseudonym p in m do

25: if p ∈ unambiguousPseudonyms∧

p.ringSize! = m.ringSize then

26: m.delete(p)

27: reduced = true

28: end if

29: end for

30: end for

31: end if

32: while reduced == true

Figure 2: Ring size reduction algorithm used by the passive

attacker.

tion by vehicles driving only once the observed street.

The pseudocode for this stage is shown in Figure 1.

The the third and last stage starts with the iden-

tiﬁcation of unambiguous pseudonyms and is shown

as pseudocode in Figure 2. An pseudonym is unam-

biguous, if it is the only relevant pseudonym of a ring.

Therefore, this pseudonym must be the identity of the

vehicle.

Afterwards, these unambiguous pseudonyms are

deleted from all rings of the other vehicles on this

day. By ’delete’ we mean that it is now clear that

this pseudonym does not belong to the vehicle and we

therefore do no longer need to consider it in the re-

spective rings.

If each vehicle applies an own ring size, unam-

biguous pseudonyms are also deleted from the ve-

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

264

hicles using a different ring size in other days. By

’own ring size’ we mean that not all vehicles use

the same number of pseudonyms to construct their

ring signature. We may delete these pseudonyms, be-

cause we know the ring size of the vehicle owning the

pseudonym is different.

If any pseudonyms were deleted, the attacker tries

to identify new unambiguous pseudonyms, otherwise

the attacker is ﬁnished.

Now the attacker has reduced the ring size of the

vehicles by excluding pseudonyms, which cannot be

the identities of the vehicles. We evaluate in Sec-

tion 5.2 by how much the attacker can reduce the ring

size and therefore the k-anonymity in presence of dif-

ferent parameters.

4.3 Considered Parameters

The anonymity of the vehicles is inﬂuenced by var-

ious parameters when they use the proposed anony-

mous authentication protocol. We considered the fol-

lowing parameters in the subsequent simulation runs:

Ring Size: The number of pseudonyms present in

the ring signature. Unless explicitly mentioned, we

used the maximum possible ring size of 10 according

to Figure 3.

Fraction of One Time Vehicles: These vehicles

use a set of pseudonyms in their ring that is com-

pletely unknown to the other vehicles. They shall re-

ﬂect, that most vehicles drive the same route each day,

but there are always vehicles that normally do not take

this route in rush-hour, e.g., trucks. Unless explicitly

mentioned, we consider 30% of such one time vehi-

cles.

Standard Deviation of the Starting Times: The

starting times of the vehicles are assumed to be nor-

mally distributed. The standard deviation has an in-

ﬂuence on the potential communication partners. Un-

less explicitly stated we use a standard deviation of 5

minutes.

Ring Building Strategy: When ring signatures

are in place, a vehicle is one of n possible signers.

It is important to apply a good ring building strategy,

because a poor strategy can lead to revealing of most

or even all of the non-signers, so the anonymity of the

signer decreases. In the following we suggest some

appropriate strategies to build a ring. We evaluate

these strategies later on in Section 5.

All: The vehicles collect and save all pseudonyms

they receive from other vehicles. When the vehicles

need to build a new ring, they randomly select the re-

quired number of pseudonyms from their pools.

SameDirection: Vehicles using this strategy col-

lect and save all pseudonyms they receive from other

vehicles driving in the same direction. The basic idea

behind is that vehicles in rush-hour drive every day

at approximately the same time in the same direction.

Therefore, an attacker cannot delete the pseudonyms

of the vehicles driving each day in the opposite direc-

tion from the ring. The same ring building strategy as

for "All" is applied.

SameDirectionLastX: This strategy is similar to

"SameDirection". The only difference is that the ve-

hicles discard pseudonyms they met more than X days

ago. The reason for this is that each day the vehicles

collect pseudonyms of one time vehicles they never

met before and unlikely meet again. If a vehicle uses

such pseudonyms in its ring, an attacker can identify

and remove them to get the identity of the victim ve-

hicle. This can be done because they are less used

than other pseudonyms. When limiting the number of

pseudonyms by the number of previous days, the in-

ﬂuence of these vehicles decreases. Unless explicitly

mentioned, we use this ring building strategy.

SameDirectionLastXDifferentSizes: This strategy

works like "SameDirectionLastX", but each vehicle

applies an own ring size. This strategy is evaluated

later on to assess the inﬂuence of different ring sizes

on the anonymity of the vehicles.

Number of Own Pseudonyms: The number of

own pseudonyms a vehicle has at the same time. Each

time a ring is being build, the vehicle randomly selects

one. Unless explicitly stated, we exploit 10 simulta-

neous pseudonyms.

Duration of the Attack: The duration denotes the

number of days the attacker listens to the exchanged

messages. Unless explicitly mentioned, we consider

an attack duration of thirty days.

Number of Previous Days: This parameter de-

notes the number of days a vehicle stores the col-

lected pseudonyms in the strategies SameDirection-

LastX and SameDirectionLastXDifferentSizes.

5 EVALUATION

5.1 Ring Size

The ring size denotes the number of pseudonyms

used in the ring signature. It is obvious that the k-

anonymity of the vehicle increases with the ring size.

Since we want the maximum possible anonymity for

the vehicles, we try to make the ring as large as pos-

sible, but we also have to avoid as far as possible any

fragmentation at the MAC layer (ETSI ES 202 663,

2009).

To determine the maximum feasible message size,

we measured the size of the largest message in the

ANovelAnonymousAuthenticatedKeyAgreementProtocolforVehicularAdHocNetworks

265

500

1000

1500

2000

2500

3000

3500

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Message size [byte]

Ring size

ECIES

Ring

RingEncrypted

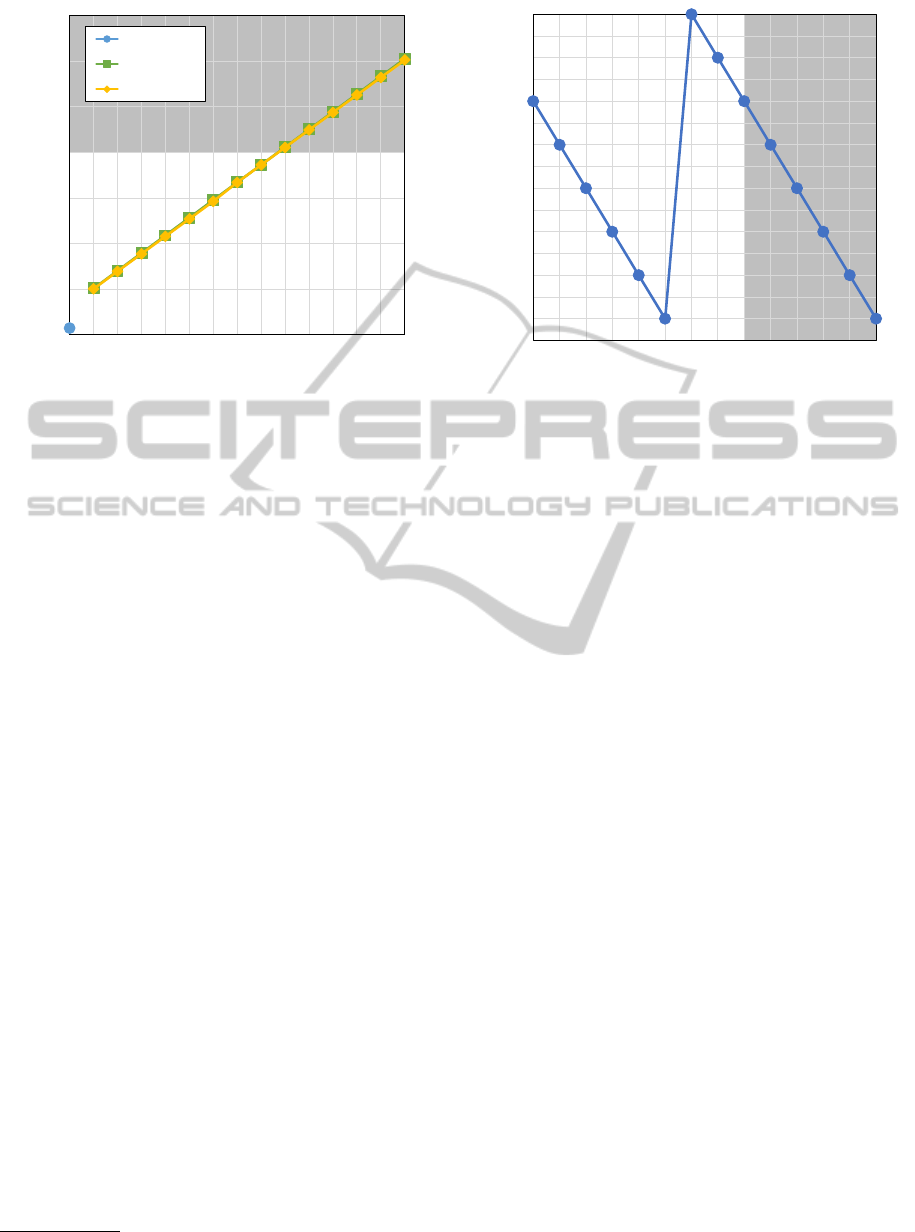

Figure 3: Message size as a function of ring size: Size of

largest message.

protocol. In this implementation we exploited the el-

liptic curve ring signature scheme proposed in (Lin

et al., 2007) with curve P-256 and ECIES as described

in (IEEE 1609.2, 2013). For the pseudonym size we

took 161 bytes, which is the size of a pseudonym cer-

tiﬁcate of the Pilot PKI of the Car-2-Car Communica-

tion Consortium

. We also took advantage of ellip-

tic curve point compression (Vanstone et al., 2000) to

minimize the size of the messages.

The size of the largest message as a function of

the ring sizes as well as for ECIES without ring sig-

natures is shown in Figure 3. The darker area indi-

cates the Maximum Transmission Unit (MTU), which

is expected to be larger than 2.000 bytes (ETSI TS

102 636-6-1, 2011). ECIES without the ring signa-

tures has the lowest message size at an anonymity of

1. For ring signatures the message size increases lin-

early with the ring size. Due to the ﬁxed size of V

(33 bytes), C (20 bytes) and T (16 bytes) the size of

the message increases with every ring member by the

size of a Cert (161 bytes) and an x (32 bytes), which

are in total 193 bytes. The graph indicates that de-

pending on the MTU ring signatures with 10 or more

members are the ones with the maximum anonymity

in VANETs, when fragmentation at the MAC layer

shall be avoided. Although 10 denotes not that a large

set, we show in the following that this is sufﬁcient for

the protocol and use case presented in order to pre-

serve the privacy of the vehicles while reducing the

number of necessary pseudonyms.

Messages of this size are much larger than safety

messages. However, they are sent at a much lower

frequency. Safety messages are sent up to 10 times a

www.car-2-car.org

-15

-14

-13

-12

-11

-10

-9

-8

-7

-6

-5

-4

-3

-2

-1

2 3 4 5 6 7 8 9 10 11 12 13 14 15

Message size difference [byte]

Ring size

Figure 4: Message size as a function of ring size: Size dif-

ference of encrypted and plain message.

second, whereas the messages in the proposed proto-

col for the envisaged use case will be sent only a few

times per hour. The messages are also sent on a dif-

ferent channel as the safety messages and do not have

critical time constraints like safety messages. The en-

visaged channel is expected to be also used for Inter-

net browsing, video streaming or software updates.

Figure 4 shows the difference of the largest mes-

sage of the encrypted and non-encrypted version in

bytes. The negative values indicate that the encrypted

version of the protocol has a smaller message size.

When the non-encrypted version is applied only the

signature is encrypted. It has a length of 33 byte

and is therefore encrypted in three AES blocks of 16

bytes, where the last block is padded with 15 bytes

to a multiple of the block size. In the encrypted ver-

sion of the protocol more data is encrypted, whereby

less padding bytes are used and therefore the overall

message size is reduced. The darker area indicates the

ring size when the MTU is in operation.

5.2 Simulation

5.2.1 Setup

For the simulation of the protocol we exploited the

VSimRTI tool set (Schünemann, 2011). As simula-

tion scenario we selected the motorway A60 south of

Rüsselsheim, Germany. At each junction of the mo-

torway one RSU is placed, which is assumed to be

under control of an attacker, who can record all mes-

sages exchanged in the communication range. The

vehicles enter the simulation area at two points: One

in the east, for the vehicles driving westbound, and

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

266

one in the west of the map for vehicles driving east-

bound.

Normally the same vehicles drive the same way

every day during rush-hour. Because these are ideal

conditions for an attacker to link pseudonyms used

at different days, we evaluated the privacy proto-

col under this condition. According to the trafﬁc

density categorization in (Forschungsgesellschaft für

Straßen- und Verkehrswesen, 2005) we used a high

density of vehicles in one and a low density in the

other direction. Three classes of vehicles are consid-

ered in the simulation: The fast ones have a maxi-

mum speed of 130 km/h, the regular ones a maximum

speed of 110 km/h, and the slow ones of 80 km/h. The

different vehicle classes are equally distributed. The

vehicles only drive the maximum speed if the trafﬁc

conditions allow it. They also overtake only if there

is space to do so. Ten percent of the vehicles are

equipped with an application software that uses the

proposed anonymous key agreement protocol.

The envisaged simulation duration is 60 minutes.

Since it takes some time until the simulation is ad-

justed, we cut 10 minutes both at the beginning and at

the end of the simulation. Due to the long simulation

duration, we decided to run the simulation without a

speciﬁc ring building strategy. Instead, we log which

vehicles establish a session key to map the ring build-

ing strategies afterwards on the vehicles. To evaluate

more than 50 days, we randomly select as much sim-

ulation results as necessary from the pool of all 50

simulation runs and map the recurring vehicles after-

wards into the simulation results.

The elaborated results show that every day each

vehicle executes the protocol at least once in the com-

munication range of each RSU. Thus, an attacker

needs only one RSU under her control to get the rings

of all passing vehicles. The attacker would also not

get any beneﬁt by having control over some of the

vehicles, because it is not possible to get more infor-

mation in this way.

5.2.2 Inﬂuence of the Considered Parameters

Ring Size: The k-anonymity of the vehicles, calcu-

lated according to (Sweeney, 2002), increases linearly

with the ring size from 7.0, when a ring size of 10 is

used, up to 10.3 when a ring size of 15 is being used.

Fraction of One Time Vehicles: The k-

anonymity of the vehicle increases from 4.7, when 55

% of the vehicles are one time vehicles, up to 8.6,

when only 11 % of the vehicles in the simulation ap-

pear only once. The reason for this is that there are

more new pseudonyms in the simulations, which are

considered by the vehicles during ring building.

1 2 3 4 5 6 7 8 9 10 11 12

k-anonymity

Months

All

SameDirection

SameDirectionLastX

DifferentSizes

Figure 5: Impact of ring building strategies.

Standard Deviation of the Starting Times: An

increase or decrease of the standard deviation of

the starting times had no notable inﬂuence on the

anonymity of the vehicles.

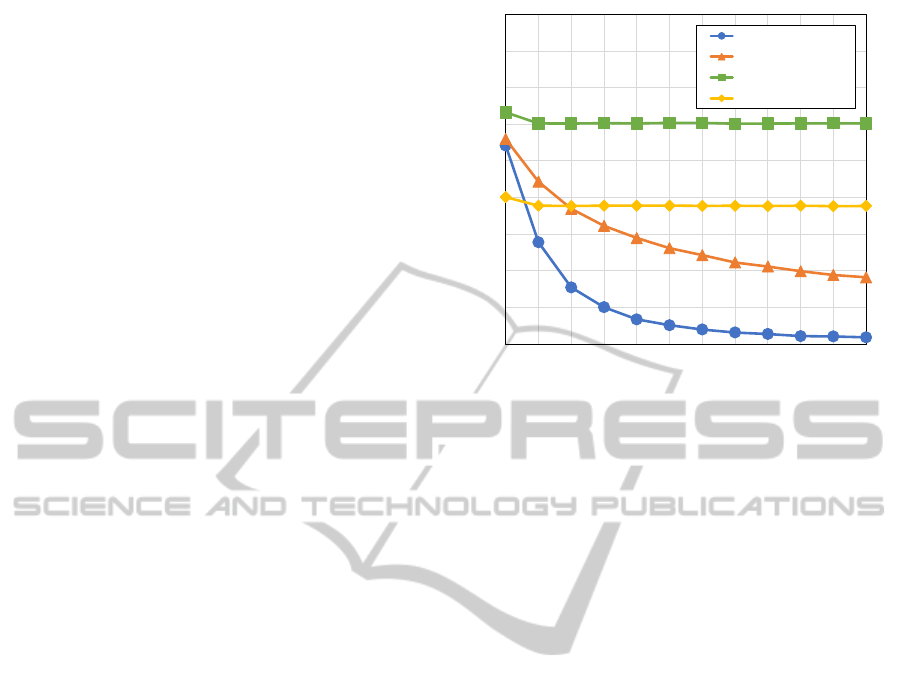

Ring Building Strategy: The inﬂuence of the

ring building strategy to the k-anonymity is shown

in Figure 5. The x-axis displays the month in which

the attacker analyzes the messages since the start of

pseudonyms usage. Month 1 is therefore the analysis

of the ﬁrst month and so on.

The k-anonymity value decreases over time from

6.4 in the ﬁrst month down to 1.2 in the twelfth month,

when the strategy "All" is in operation. The average

k-anonymity value when using the "SameDirection"

strategy is 6.6 in the ﬁrst month and steadily decreases

over time down to 2.8 after twelve months. When us-

ing the "SameDirectionLastX" strategy, the vehicles

have a constant k-anonymity of 7.0 from the second

month on. For the strategy "SameDirectionLastXD-

ifferentSizes" the k-anonymity value drops from 7.0

to 4.8 compared to the case when the same sizes are

used after the ﬁrst month.

These results show, that all vehicles should use the

same ring size to keep the k-anonymity at a high level.

If only pseudonyms received in the last X days are

considered, then the k-anonymity of the vehicles does

not decrease over time.

Number of Previous Days: To get the optimal

number of previous days, we ran simulations with

different day values for the various pseudonym pool

sizes. Based on the outcome of these runs, we se-

lected the most appropriate numbers of days.

Number of own Pseudonyms and Duration of

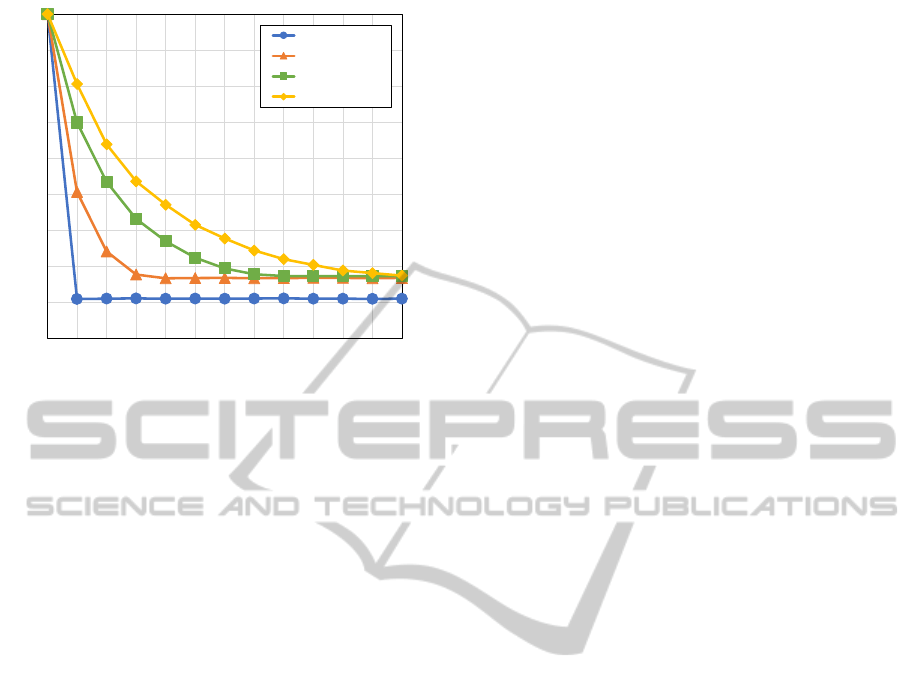

the Attack: Figure 6 illustrates the k-anonymity

of the vehicles for different numbers of own

ANovelAnonymousAuthenticatedKeyAgreementProtocolforVehicularAdHocNetworks

267

1 30 60 90 120 150 180 210 240 270 300 330 360

k-anonymity

Days

1 Pseudonym

5 Pseudonyms

10 Pseudonyms

15 Pseudonyms

Figure 6: Impact of pseudonym pool size.

pseudonyms as a function of the number of days an

attacker records the exchanged messages. It shows

that the k-anonymity value decreases with the num-

ber of days an attacker listens to the exchanged mes-

sages. In addition, the k-anonymity value increases

with the number of own pseudonyms. Depending on

the assumed attack duration, either more pseudonyms

have to be used or the pseudonyms have to be re-

newed more often in order to maintain a certain level

of anonymity.

If an service provider aims to, for example, at a

k-anonymity of at least 5 for its users, the vehicles

could use a new set of 5 pseudonyms every 30 days,

a set of 10 pseudonyms every 60 days or a set of

15 pseudonyms every 90 days. This sums up to 60

pseudonyms per year. If we compare this value to

the safety pseudonyms, where the pseudonym is to

obe changed at least with every trip, we can easily

see that the proposed protocol reduces the number of

necessary pseudonyms considerably.

6 CONCLUSION

In this work we proposed a novel anonymous au-

thenticated key agreement protocol which combines

ECIES with ring signatures and we elaborated recom-

mendations for an appropriate ring size for the com-

munication between vehicles in a VANET.

We showed that the anonymity of the vehicles in-

creases signiﬁcantly when a good ring building strat-

egy is applied. We also demonstrated that the num-

ber of pseudonyms each vehicle uses at the same time

and the duration of the attack have a clear inﬂuence

on the anonymity level of the vehicles. In compari-

son to safety-related communication less pseudonyms

for each vehicle over time are necessary to main-

tain a high level of anonymity, because they can be

reused without the risk of being linked by an attacker.

Therefore, the amount of pseudonyms, which have to

be loaded onto the vehicles, is signiﬁcantly reduced,

which saves storage space and communication over-

head and thus helps to reduce costs.

The proposed protocol is not restricted to VANET

use cases, but it is especially well-suited for VANETs,

because in such a context it is both expensive and

some times rather difﬁcult to obtain new pseudonyms.

In addition the well-known pseudonyms for safety-

related communication can be reused by binding them

to speciﬁc applications.

In the next future we plan to implement the out-

lined protocol into real vehicles and to take measure-

ments to validate the presented simulation results.

REFERENCES

Baldwin, R. and Gramlich, W. (1985). Cryptographic pro-

tocol for trustable match making. In IEEE Symposium

on Security and Privacy.

Balfanz, D., Durfee, G., Shankar, N., Smetters, D., Staddon,

J., and Wong, H.-C. (2003). Secret handshakes from

pairing-based key agreements. In Security and Pri-

vacy, 2003. Proceedings. 2003 Symposium on, pages

180 – 196.

Camenisch, J. and Lysyanskaya, A. (2001). An efﬁcient

system for non-transferable anonymous credentials

with optional anonymity revocation. In Proceedings

of the International Conference on the Theory and Ap-

plication of Cryptographic Techniques: Advances in

Cryptology, EUROCRYPT ’01, pages 93–118, Lon-

don, UK, UK. Springer-Verlag.

Castelluccia, C., Jarecki, S., and Tsudik, G. (2004). Secret

handshakes from ca-oblivious encryption. In Lee, P.,

editor, Advances in Cryptology - ASIACRYPT 2004,

volume 3329 of Lecture Notes in Computer Science,

pages 293–307. Springer Berlin Heidelberg.

Chaum, D. and Heyst, E. (1991). Group signatures. In

Davies, D., editor, Advances in Cryptology — EURO-

CRYPT ’91, volume 547 of Lecture Notes in Computer

Science, pages 257–265. Springer Berlin Heidelberg.

ETSI ES 202 663 (2009). Intelligent Transport Systems

(ITS); European proﬁle standard for the physical and

medium access control layer of Intelligent Transport

Systems operating in the 5 GHz frequency band.

ETSI TS 102 636-6-1 (2011). Intelligent Transport Systems

(ITS); Vehicular Communications; GeoNetworking;

Part 6: Internet Integration; Sub-part 1: Transmission

of IPv6 Packets over GeoNetworking Protocols.

ETSI TS 102 890-2 (2010). Intelligent Transport Systems

(ITS); Facilities Layer Function, Part 2: Services An-

nouncement.

ICISSP2015-1stInternationalConferenceonInformationSystemsSecurityandPrivacy

268

ETSI TS 103 097 (2013). Intelligent Transport Systems

(ITS); Security; Security header and certiﬁcate for-

mats.

Forschungsgesellschaft für Straßen- und Verkehrswesen

(2005). Handbuch für die Bemessung von Straßen-

verkehrsanlagen (HBS).

Freudiger, J., Raya, M., and Hubaux, J.-P. (2009). Self-

organized Anonymous Authentication in Mobile Ad

Hoc Networks. In Security and Privacy in Communi-

cation Networks, pages 350–372.

IEEE 1609.2 (2013). Standard for Wireless Access in Ve-

hicular Environments - Security Services for Appli-

cations and Management Messages, IEEE Standard

1609.2.

Lin, X., Lu, R., Zhu, H., Ho, P.-H., Shen, X., and Cao, Z.

(2007). ASRPAKE: An Anonymous Secure Routing

Protocol with Authenticated Key Exchange for Wire-

less Ad Hoc Networks. In IEEE International Con-

ference on Communications, ICC 2007, pages 1247

–1253.

Rivest, R. L., Shamir, A., and Tauman, Y. (2001). How

to leak a secret. In Advances in Cryptology – ASI-

ACRYPT, pages 552–565.

Schünemann, B. (2011). V2X simulation runtime infras-

tructure VSimRTI: An assessment tool to design smart

trafﬁc management systems. Computer Networks,

55:3189–3198.

Sweeney, L. (2002). k-anonymity: A model for protecting

privacy. International Journal of Uncertainty, Fuzzi-

ness and Knowledge-Based Systems, 10(05):557–570.

Vanstone, S. A., Mullin, R. C., and Agnew, G. B. (2000). El-

liptic curve encryption systems. Patent, US 6141420.

ANovelAnonymousAuthenticatedKeyAgreementProtocolforVehicularAdHocNetworks

269
