Migrating Healthcare Applications to the Cloud through
Containerization and Service Brokering
François Andry, Richard Ridolfo and John Huffman
Philips Healthcare, 4100 E. Third Avenue, Suite 101, Foster City, CA 94404, U.S.A.
Keywords: Cloud, IaaS, PaaS, SaaS, Containerization, Security, Interoperability, Data Privacy, Healthcare, Wellness
Applications, Big Data, Micro Services, IHE, High Availability, Performance, Elasticity, Development,
Monitoring, Support.
Abstract: New business models and technologies offer unique opportunities of combining patient demographics and
clinical data with general consumer data. We are building a digital health platform using a new paradigm
based on an open platform as a service (PaaS) that delivers data and analytics across a wide variety of cloud
computing topologies. This new architecture gives us the ability to integrate devices, data sources and
services very quickly to create, refactor, migrate, deploy and maintain scalable, secure, high quality
healthcare and wellness applications while reducing the total cost of ownership.
1 INTRODUCTION
New business models and emerging technologies
offer unique opportunities for existing healthcare
solutions vendors to undertake strategic
reengineering of their technology and infrastructure
stack, development process, deployment and support
models. This is even more relevant for large
organizations where years of organic growth and
acquisitions and often have led to IT, technology and
information systems silos.
These new models are based on cloud computing
which offers on-demand access to a shared pool of
configurable and elastic computing resources
(networks, servers, storage, services).
The goal is to reduce IT expenses and operating
costs by purchasing processing, bandwidth and data
storage resources as needed. This is particularly
critical in healthcare where competition, new
delivery models and commoditization is forcing
solution vendors to envision new ways to cut cost
(Armbrust et al. 2010) and bring new applications
and products to the market faster.
Organizations that are building their own cloud
infrastructure from scratch or rely uniquely only on
an infrastructure as a service (IaaS) from a provider,
risk spending valuable resources and time building a
specialized platform instead of focusing on their
core business. On the other hand, organizations who
adopt a turnkey proprietary cloud stack will lack
flexibility and may end up locked into a specific
technology or vendor.
Instead of designing the cloud architecture from
the bottom up or the top down, a better strategy is to
design from the inside out. By starting with the
platform as a service (PaaS) as the central critical
layer and creating ways to use various IaaS models
and offerings in generic ways, it is possible to create
a flexible and efficient lifecycle for the services and
applications running on the platform.
In fact, PaaS that are built on top of IaaS layers
(He et al. 2013) are now becoming the central layer
for building cloud based applications (Vaquero et al.
2011).
In healthcare, this new cloud model facilitates
the rapid creation and migration of existing
applications towards better user engagement,
increasing collaboration between care givers and
improving the lives of patients, while reducing the
total cost of ownership (TCO).
2 PLATFORM FOUNDATION
The foundation of our digital healthcare platform is
built on Cloud Foundry, a new generation PaaS
architecture. At the core of this platform is an elastic
runtime self-service application execution
component, coupled with an automation engine for
application deployment and lifecycle management.
164
Andry F., Ridolfo R. and Huffman J..
Migrating Healthcare Applications to the Cloud through Containerization and Service Brokering.
DOI: 10.5220/0005249601640171
In Proceedings of the International Conference on Health Informatics (HEALTHINF-2015), pages 164-171
ISBN: 978-989-758-068-0
Copyright
c
 2015 SCITEPRESS (Science and Technology Publications, Lda.)

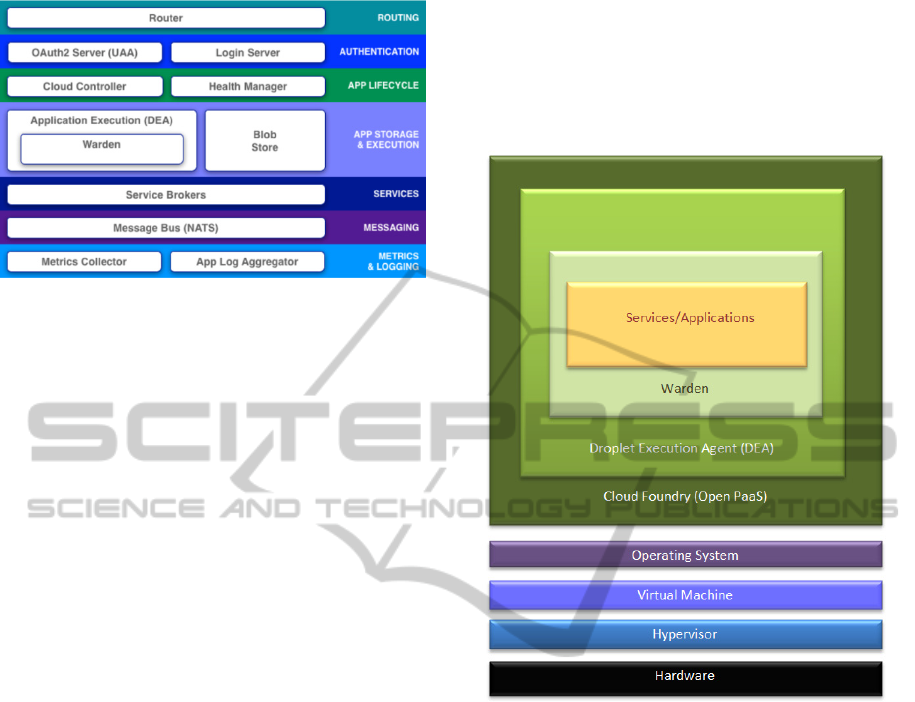

Figure 1: Cloud Foundry PaaS Components.
The router is responsible for dispatching
incoming traffic (e.g., client applications requests) to
cloud controller to a running application contained
in a droplet execution engine (DEA) node.
The authentication layer provides identity
management via OAuth2 and a login server
component.
The cloud controller and the health manager
manage the lifecycles of the applications hosted in
the platform.
The Cloud Foundry unit of execution is called a
droplet. It is pre-built, pre-configured, stored in the
blob store, and dynamically deployed inside a Cloud
Foundry DEA node as needed.
The message bus uses network address
translation (NAT), queueing and a publish/subscribe
mechanism for internal component communication
and outbound traffic management.
The service brokers are components that provide
back-end service instances and bind these services to
an application at runtime.
Metrics collector and log aggregator components
are used to collect events for developers and
operators of the platform.
The main characteristics of this platform are:
 Application containerization
 Optimized application scaling
 Application to service brokering
 Abstraction of IaaS
 Excellent application lifecycle management
 Automatic middleware stack and operating
system configuration
 Advanced application monitoring
2.1 Containerization
The principle of containerization is to ensure that
application instances run in isolation without
interference from other tenant applications while
retaining full access to their assigned and dedicated
share of resources from the IaaS layer. In this
platform, application instances live inside a warden
container, which provides an API for managing the
creation, configuration, usage and destruction of
these isolated environments.
Figure 2: Containerization in Cloud Foundry.
Isolation is achieved by associating name spaces
to the underlying operating system kernel resources.
As a result, each container has its own network,
Process ID and mount namespaces.
Each container is assigned a network interface
(managed by the NAT component), offering fine-
grained network traffic network management at the
container level. In addition to this, containers also
receive a private root file system.
Control groups help manage resources and
provide a way to precisely control memory, CPU,
disk and network access for each container.
2.2 Elasticity and Scalability
Above all, Cloud Foundry manages elasticity
extremely well. In fact, it is considered by many
that “elasticity, is the true golden nugget of cloud
computing, and brings to the IT infrastructure what
Henry Ford has brought to the automotive industry
with assembly lines and mass production:
MigratingHealthcareApplicationstotheCloudthroughContainerizationandServiceBrokering
165

affordability and substantial improvements on time
to market” (Owens, 2010).
Application software needs to scale down as
rapidly as it scales up, which is a new requirement
(Armbrust et al. 2010).
Applications deployed on the open PaaS can be
scaled up and down extremely rapidly without any
loss of transaction or data, which is particularly
critical when dealing with a healthcare application.
The platform has been designed with specific
new cloud application design principles in mind,
such as those that can be found at http://12factor.net.
One of these principles states that processes inside a
container are disposable and can be started or
stopped at any time. As a result, applications must
be stateless so no local data is lost. The platform
shuts down processes gracefully by refusing any
new request while completing the current
transaction, thereby making the corresponding
operation idempotent.
Cloud Foundry scales up and down by
provisioning or terminating application instances
extremely quickly inside a set of DEA nodes, across
availability zones.
In addition, the platform has four mechanisms to
ensure a high level of availability:
 Automatic reboot of a container when an
application fails
 Automatic reboot of the platform component in a
new virtual machine (VM)
 Built-in VM monitoring to mitigate operating
system (OS) failures
 Spreading applications across availability zones
to mitigate geographic failures
2.3 Service Brokering
In this architecture, backing services (e.g., databases,
caching systems, other data services (e.g., Amazon
S3), messaging/queueing systems, SMTP services,
various external APIs (Google Maps, terminology
services, healthcare registry services) are just
attached resources. For example, there is a
distinction between a local digital imaging and
communications in medicine (DICOM) local image
store and a remote, 3
rd
party DICOM picture
archiving and communication system (PACS)
service hosted in the cloud (Bastião Silva et al.
2012).
Each service that an application requires needs a
service broker. This broker is provided by the
platform out-of-the-box for the common services
(e.g., MySQL, MongoDB, MemCached, Redis). For
other services, custom service brokers are created—

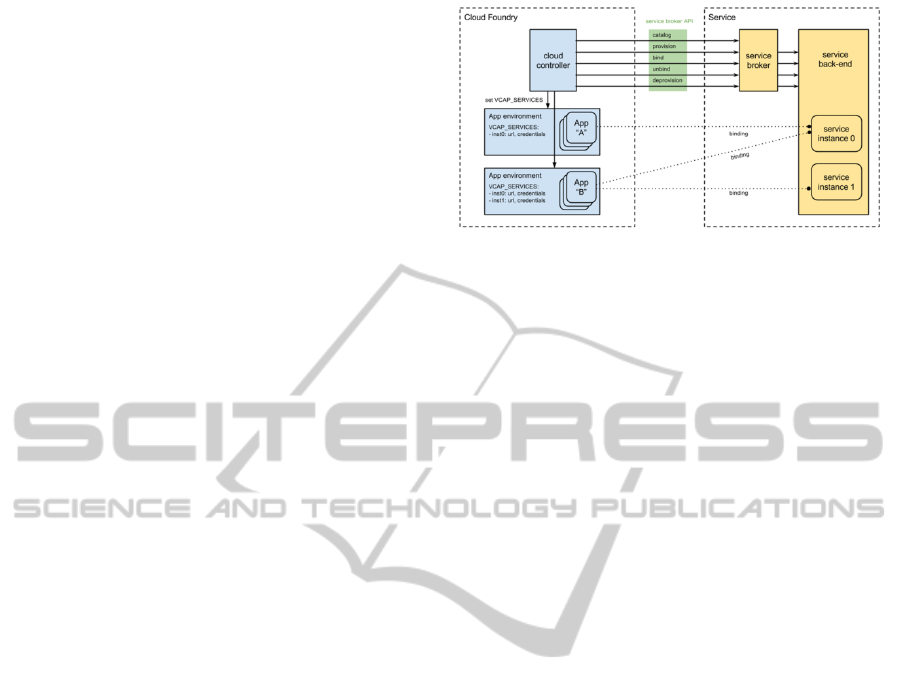

Figure 3: Cloud Foundry Service Brokering.
this includes IHE profiles web services similar to
those described in (Ribeiro et al. 2011).
The platform is especially suitable managing
micro services, which allows better
componentization, development and testing
processes, decentralized governance, resilience and
maintainability. These services, especially when
they are based on a RESTful architecture, are
extremely easy to build, integrate, test, extend, and
maintain, and are extremely adapted for mobile
applications integration (Andry et al. 2011).
A service broker offers an API to fetch the
catalogue of services (HTTP/S endpoints), provision
service instances, bind or unbind services, and
remove instances of these services.
2.4 IaaS Layer Abstraction
One of our requirements for the underlying PaaS
layer was the ability to abstract the IaaS
infrastructures models and vendors that the platform
can use: private, public, on premise, or any hybrid
combination, for the various healthcare solutions
that need hosting. This approach has also been
proposed by (Kolodner et al. 2011).
This is essential in countries where certain large
public cloud vendors are not yet present. This is also
crucial for on premise, limited footprint, and
deployment of the platform for healthcare
applications used in small and remote clinics,
including in developing countries.
The advantage of abstracting the IaaS layer
access through a common API is that there no need
to have multiple versions of application code for
each deployment model. The same code will work
and be monitored the same way for all deployment
models.
Another advantage is that the abstraction limits
the situation of cloud IaaS vendor lock-in as
described in (Sultan 2012).
HEALTHINF2015-InternationalConferenceonHealthInformatics
166

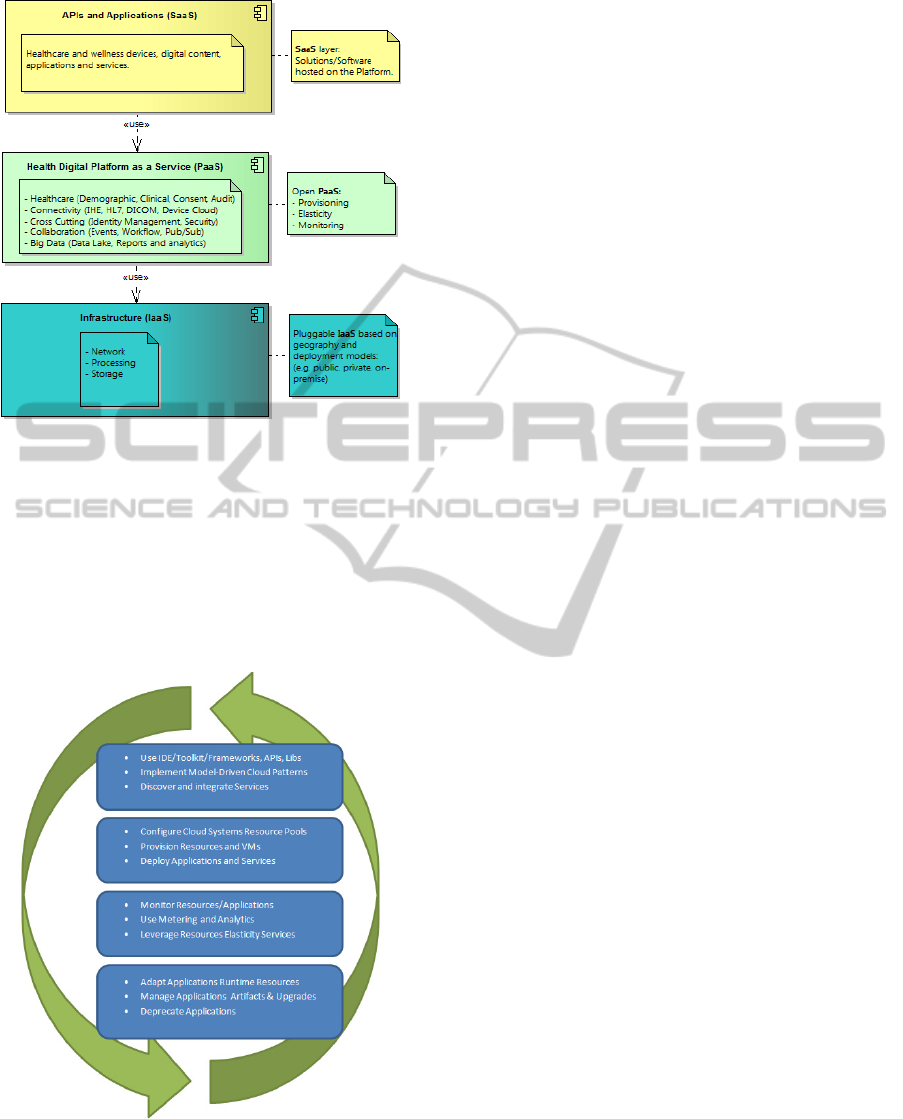

Figure 4: Open PaaS Hosting Healthcare Solutions.
2.5 Application Lifecycle Management
Good and efficient lifecycle management is
important to produce and maintain high quality
software. This is particularly important in healthcare
where the patient life is at risk or a breach of privacy
could occur as a result of poor quality software (Al-
Khanjari 2014).
Figure 5: Application Lifecycle Management Steps.
The health platform being built leverages the
cloud functionalities exposed by Cloud Foundry,
then extends that functionality with custom stools,
services and processes specific to healthcare. These
extensions are used throughout the development
lifecycle of applications.
Based on the type of application (healthcare or
wellness), a development team might first use a set
of interactive development environment (IDE)
plugins and toolkits to either design the front-end of
the application and/or look at a catalogue of web
services to consume. Then the application can be
developed using pre-determined best practices cloud
patterns such as 12factors application patterns
described in §2.2.
When the application is ready to be built and
deployed, cloud resources from the IaaS layer pool
are configured via the platform and the application is
deployed. By default, especially if the initial
expected volume is low, the number of application
instances could be as low as one.
Developers and operators bind services to the
application as required and the application
monitored. The resource pool (CPU, memory,
bandwidth, IP addresses, disk) can be adjusted as
needed.
Patches and new versions of applications are
deployed quickly without downtime in a continuous
delivery model, mode where the platform router can
toggle between an active version of the software,
waiting for all new equivalent slices (web server,
application server, back-end) and the new version
waiting to be ready. Then all incoming requests are
redirected to the new version components. The old
components become idle and are recycled. This
deployment model experiences no downtime and is
completely transparent for the end-user since
application instances can be fired-up and down
extremely quickly. This model also offers a rapid
rollback option if necessary.
The upgrade of the platform code itself can also
be done without downtime.
Finally, deprecating applications can be
completed and executed with total control, as
monitoring tools offer a holistic view with fine-grain
analysis of application usage, which is helpful with
complex lifecycle processes in the heavily-regulated
healthcare domain.
2.6 Application Stack Configuration
In our platform, the application stack is defined as a
buildpack which provides framework and runtime
support for our applications including all
dependencies needed. For example, a Java buildpack
might include dependencies for JRE, Spring
framework, JDBC connectors, Servlet container,
MigratingHealthcareApplicationstotheCloudthroughContainerizationandServiceBrokering
167

logging and utilities.
Standard buildpacks are offered for various
programming languages (e.g., Go, Java, Node.js,
PHP, Python, Ruby, .NET) and they can also be
customized. This is highly important in healthcare
because large software assets have sometimes been
developed over decades in various languages and are
very difficult to re-write quickly due to their size and
complexity.
A buildpack can either be described in a manifest
file or specified during deployment as a github
resource:
$ cf push my-new-phr-portal -b
git://github.com/acme-hc-dev/a-
buildpack.git
2.7 Monitoring
Operators can monitor instances of applications on
the SaaS layer, health of the PaaS components, as
well as IaaS resources, including the status of
particular virtual machines (VM) where services and
cloud foundry components are running. Examples of
VM data points can consist of jobs, IP addresses,
CPU load, memory consumption, swap statistics,
and disk usage.
3 HEALTHCARE PLATFORM
On top of the generic open PaaS infrastructure, we
are adding generic and cross-cutting capabilities not
part of the original platform including:
 Identity management to allow customers, patients
and consumers to be accurately and uniquely
recognized by using an enterprise master patient
index (eMPI) for patients and a lightweight
directory access protocol (LDAP) based directory
for healthcare providers and consumers.
 Security: authentication, authorization, and single
sign-on, all critical to secure provider, patient,
and consumer applications (Löhr H., Sadeghi A.,
Winandy M., 2010) and in certain cases, can be
addressed by declarative proxification of these
services (Faravelon 2013).
 Cloud-based, connected device management:
device registration, discovery, routing,
diagnostics, remote control, firmware
provisioning, data collection, device-app-user
pairing (we are currently supporting 6 million
active consumer devices).
 Open cloud based clinical workflow
collaboration capabilities
 Secure cloud-based big data store and analytics
capability (e.g., to store patient’s observations
and genomic data)
We are also creating and exposing healthcare and
wellness related services that applications can
consume:
 IHE-based demographic, clinical, providers web
services (e.g., PIX/PDQ, XDS, HPD)
 A virtual longitudinal healthcare record and
associated services
 ATNA-based auditing services
 Consent and delegation services
Our healthcare platform offers high availability,
scalability, privacy and security compliance with
regulations (e.g., HIPAA, HITECH) and standards
(e.g., NIST SP800-53, ISO 27001) using multi-
tenancy, redundancy, 24/7 monitoring and
operations, and disaster recovery.
3.1 User Management and Federated
Identity
The applications can be used by different categories
of users according to the context for which they are
employed.
In healthcare applications, the users are patients
or providers. The registration of those users is
typically accomplished by healthcare professionals
with strong permission management to secure
authorized access for credited professionals and
access to regulated and consented patient data
records: aggregate virtual health record (VHR)
coming out of electronic medical record (EMR)
systems within an organization.
The patient does not have direct access to his/her
clinical data part of the VHR, but can request that
the data being exported to a personal health record
(PHR) that the patient can then fully managed.
Within the same healthcare organization, patient
identity will be reconciled via Patient Identifier
Cross-Reference HL7 V3 (PIXV3) and Patient
Demographic Query HL7 V3 (PDQV3) IHE web
services fronting an enterprise master patient index
(EMPI).
The EMPI stores a set of mapped fragment
identifiers (medical records as well as internal
Philips identifiers) for each patient.
For patient federation reconciliation across
organizations, we are planning to use a mechanism
comparable to a Cross-Community Patient
Discovery (XCPD) web service.
In wellness and consumer lifestyle applications,
the user is a consumer. The registration is usually
HEALTHINF2015-InternationalConferenceonHealthInformatics
168

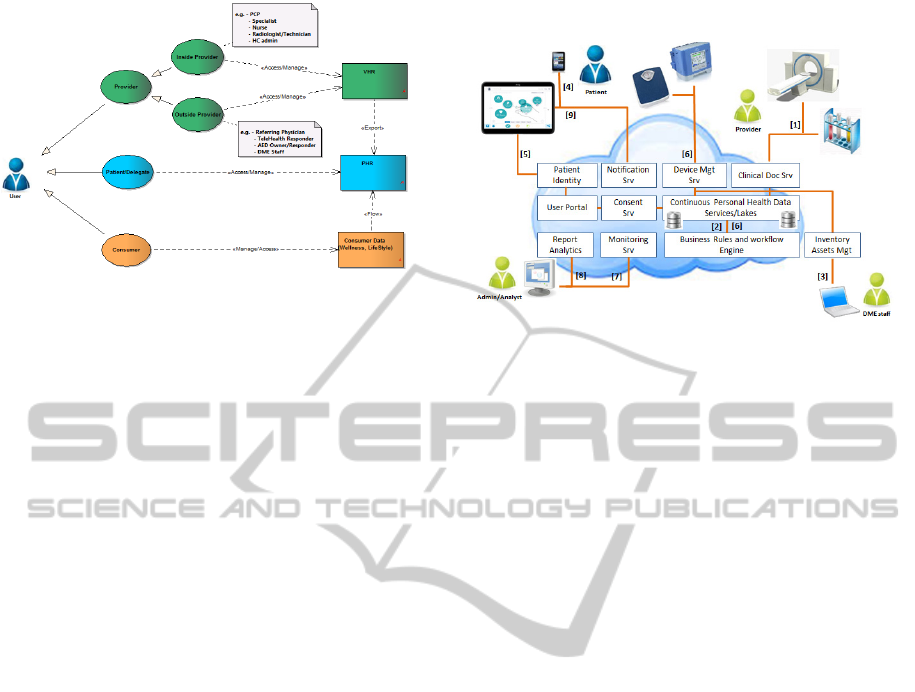

Figure 6: User Identity Federation and Data Access.
done by the consumers themselves using their
preferred social account (e.g., Facebook, Google+,
LinkedIn, Twitter) or via a traditional web form
based registration where login and password
credentials are associated to a basic profile
information (e.g., name, email).
Subsequent accesses are done via the same
credentials. Wellness and lifestyle data can be
merged with PHR-based clinical data. The
advantage of using social sign-on is that it is
possible to collect automatically demographic and
psychographic information such as email, address,
name, geo-location, birth date, gender, interests,
hobbies, friend lists, etc. This information, usually
always up-to-date, can be reused over and over for
various types of applications.
3.2 Platform Integration Use Case
In this example, a patient has been hospitalized and
their demographic information and clinical data (e.g.
observation, labs, scans, medication …) has been
stored via the DHP clinical document service (1) on
premise and optionally on the cloud (2).
After leaving the hospital, the patient needs some
medical equipment (e.g., respirator) that is provided
by a durable medical equipment (DME) company
(3).
The patient receives a notification that an
account on the DHP user portal is available (4).
The patient completes the registration and has
access to their PHR extracted from their hospital
clinical record (5).
Data coming from devices that the patient is
using is collected, processed and routing via a rule
based workflow engine to storage (6).
In parallel, admin staff can monitor the platform
and associated applications (7), while analysts can
use reports to improve the business process overall
and help create new services and solutions (8).
Figure 7: DME Home Care Delivery Use Case.
Actionable events can trigger notifications to the
patient or his/her care giver and specific reports are
added to the patient’s PHR and portal application
(9).
4 DEVELOPMENT
Cloud based patterns and best service-oriented
architecture (SOA) practices are used to externalize
and store metadata (e.g., configuration data) for the
applications, allowing them to be cloud-ready.
Good practices include the 12factor app
methodology:
 Using declarative formats for setup automation,
to minimize time and cost for new developers
joining the project
 Having a clean contract with the underlying
operating system, offering maximum portability
between execution environments
 Providing applications suitable for deployment
on modern cloud platforms, eliminating servers
and systems administration
 Minimizing divergence between development
and production, enabling continuous
deployment for maximum agility
 Designing applications that scale without
significant changes to tooling, architecture, or
development practices
The developers of these applications integrate
and consume shared health-related and cross-cutting
services such as identity federation, security, consent
and access control, logging, auditing, all kinds of
services for device-agnostic connectivity, as well as
various others from a marketplace of services.
When applications deal with patients’ private and
consented data, complex security solutions have to
MigratingHealthcareApplicationstotheCloudthroughContainerizationandServiceBrokering
169

be put in place such as the ones described in
(Dölitzscher et al., 2010), (Narayanan and Günes
2011), (Ermakova et al. 2013) and (Juels and Oprea
2013).
Most complex build, assembly and deployments
steps to testing and staging environments are
automatically handled by the platform and can be
initiated by a developer instead of a dedicated build
manager saving time and cost:
 Uploading and storing application definition files
 Examining and storing application metadata
 Examining and storing application metadata
 Creating a virtualized unit of execution for the
application
 Selecting an appropriate execution agent to run
the unit of execution
 Starting, monitoring and automatically restarting
the application when necessary
The platform is being developed in small units of
agile scrum teams (ten engineers and testers,
maximum) and delivered in small, but regular
increments, in sprints of three weeks with close to
twenty teams and growing, spread around the globe
in five different time zones.
5 OPERATIONS AND SUPPORT
With this new platform, the IT operations and
support team have many additional tools to deploy
the applications in production, monitor and maintain
them.
The platform provides real-time analytics and
alerts to monitor the health and status of the
deployed applications (e.g., CPU, memory, disk,
network, middleware components, completed and
outstanding requests). These tools aggregate and log
events as they are produced (e.g., from execution
agents, VMs, routers and runtime resources).
The platform capacity can be scaled vertically by
adding CPU, memory and disk, or horizontally by
adding more VM instances for particular
applications.
There are several ways to scale the platform for
high availability:
 For components that support multiple instances,
increase the number of instances to achieve
redundancy
 For components that do not support multiple
instances, choose a strategy for dealing with
events that degrade availability
Maintaining an application deployed on a PaaS
involves deploying patches, new versions, new
buildpacks for OS and middleware upgrades,
possibly new platform versions, and ultimately
retiring applications.
The advantage of our foundation platform is that
common middleware components and services (e.g.,
security, caching, data services and health enterprise
services) are ready-made with no need to re-
assemble the stacks and tiered components since a
new VM is instantiated for new upgrade and patch.
For data services, the platform will configure and
provide robust backup and restoration mechanisms,
to provide robust availability and integrity of all
data.
The healthcare platform operations cover many
activities including but not limited to monitoring,
release management, and incident response. The
activities are defined by written and monitored
operational-level and service-level agreements
(OLAs/SLAs) and metrics. This is important since
enterprise SLAs are simultaneously of high business
value and technically challenging to implement
(Lango 2014).
6 CONCLUSIONS
Adding new services and components on top of our
digital healthcare platform enables new types of
healthcare and wellness applications to be hosted,
new types of data to be stored and new services to be
exposed, increasing the complexity of the resulting
platform.
However, it is not necessary to deploy all the
components of the digital health platform in every
configuration. For example, hosting a complex
PACS solution within a hospital has few
components in common with a set of services hosted
in a public cloud that manages wellness data.
Nevertheless, the underlying PaaS layer needs a
certain minimum of resources (e.g., memory, CPU,
IPs, VMs) to operate. This could be an obstacle to a
small footprint deployment if the required set of
resources is too large.
In addition, the foundation platform that we are
using needs to be large enough to support buildpacks
for all existing assets required (e.g., programming
languages, operating systems, framework), and will
benefit greatly by migrating to the cloud.
We anticipate a re-architecting of the way
containers are managed and applications are
deployed (e.g., docker will replace warden soon) in
the foundation platform which will be more efficient
and portable.
HEALTHINF2015-InternationalConferenceonHealthInformatics
170

ACKNOWLEDGEMENTS
We would like to thank Jeroen Tas and Dale
Wiggins for their leadership and support in this long
term and important project. Thank you also to
Goutham Naval and Kyle Nguyen for helping
bootstrap this new technology and Umang Nayyar
for his great collaboration on this project.
Our appreciation to Ernest Angles Isern for
sharing his knowledge in the domain of the device
cloud.
We would also like to thank all members of
HISS and DHP teams, in particular Eldo Issac, Ben
Hallam, Brian Key, Vijayananda J. and Chad Evans
for their contributions on this project. Thank you
also to all business groups at Philips for their
contribution and input to this new healthcare
platform.
We are also very grateful to the Pivotal team,
especially Yogesh Gupta, James Watters and Zach
Brown for sharing their enthusiasm and experience
of the Cloud Foundry platform.
REFERENCES
Al-Khanjari, Z., Al-Ani, A., Al-He for Establishing
Privacy Domains in Systems of E-Health Cloud, in
International Journal of Engineering Research and
Applications, Vol. 4, Issue 7, pp.66-72.
Andry, F., Wan, L., Nicholson, D., 2011, REST-Style
Architecture and the development of Mobile Health
Care Solutions, in Biomedical Engineering Systems
and Technologies, series Communications in
Computer and Information Science (CCIS), pp. 301-
311, Springer Verlag.
Armbrust, M., Fox, A., Griffith, R., Joseph, A., Katz, R.,
Konwinski, A., Lee, G., Patterson, D., Ariel, Rabkin
A., Stoica, I., Zaharia, M., April 2010, A View of
Cloud Computing, in Communications of the ACM,
Vol 53 Issue 4, pp. 50-58.
Bastião Silva, L., Carlos, C., Oliveira., J., 2012, DICOM
relay over the cloud, in International Journal of
Computer Assisted Radiology and Surgery, pp. 323-
333., Springer.
Cloud Foundry, Cloud Foundry Components - 2014 -
http://docs.cloudfoundry.org/concepts/architecture.
Dölitzscher, F., Reich, C., Sulistio, A., 2010, Designing
Cloud Services Adhering to Government Privacy
Laws, in 10th IEEE International Conference on
Computer and Information Technology, CIT,
Bradford, West Yorkshire, UK.
Ermakova, T., Fabian, B., Zarnekow, R., 2013, Security
and Privacy System Requirements for Adopting Cloud
Computing in Healthcare Data Sharing Scenarios,in
Proceedings of the Nineteenth Americas Conference
on Information Systems, Chicago, Illinois.
Faravelon A. et al., 2012., Configuring private data
management as access restrictions: from design to
enforcement, In Service-Oriented Computing, ICSOC
2012, pp. 344-359.
He, K., Fisher, A., Wang, L., Gember, A., Akella, A.,
Ristenpart, T., 2013, Next Stop, the Cloud:
Understanding Modern Web Service Deployment in
EC2 and Azure, in Internet measurement conference,
ACM, NY, pp. 177-190.
Juels A., Oprea A., 2013, New Approaches to Security and
Availability for Cloud Data in Communications of the
ACM, Vol. 56 No. 2, Pages 64-73.
Lango, J., 2014, Toward Software-Defined SLAs in
Communications of the ACM, Vol. 57 No. 1, Pages 54-
60.
Kolodner, E. et al., 2011, A Cloud Environment for Data-
intensive Storage Services, in 3rd International
Conference on Cloud Computing Technology and
Science, CloudCom, IEEE, Athens, Greece.
Löhr, H., Sadeghi, A., Winandy, M., 2010, Securing the
E-Health Cloud, in International Health Informatics
Symposium, IHI, Arlington, VA, USA.
Narayanan, H., Günes, M., 2011, Ensuring access control
in cloud provisioned healthcare systems in Consumer
Communications and Networking Conference
(CCNC), IEEE.
Owens, D., 2010, Securing Elasticity in the Cloud, in
Communications of the ACM, Vol 53, No 6, pp. 46-51.
The Twelve-Factor App, 2012 - http://12factor.net/
Ribeiro, L., Costa, C., Blanquer, I., Oliveira, J., 2011, On
Demand IHE XDS Document Registries on the Cloud
in Conference: 29th International EuroPACS Meeting,
Vol 6.
Sultan, N., 2012, Making use of cloud computing for
healthcare provision: Opportunities and challenges, in
International Journal of Information Management
34(2): pp. 177–184.
Vaquero, L., Rodero-Merino, L., Buyya, B., 2011,
Dynamically Scaling Applications in the Cloud, in
ACM SIGCOMM Computer Communication Review,
Vol 41, Number 1.
MigratingHealthcareApplicationstotheCloudthroughContainerizationandServiceBrokering
171
