Towards Human Pose Semantic Synthesis in 3D based on Query

Keywords

Mo’taz Al-Hami and Rolf Lakaemper

Department of Computer & Information Sciences, Temple University, Philadelphia, PA 19122, U.S.A.

Keywords:

Human-pose, 2D Human-pose Estimation, 3D Human-pose Reconstruction, Silhouette Value, Hierarchical

Clustering.

Abstract:

The work presented in this paper is part of a project to enable humanoid robots to build a semantic understand-

ing of their environment adopting unsupervised self-learning techniques. Here, we propose an approach to

learn 3-dimensional human-pose conformations, i.e. structural arrangements of a (simpliﬁed) human skeleton

model, given only a minimal verbal description of a human posture (e.g. "sitting", "standing", "tree pose").

The only tools given to the robot are knowledge about the skeleton model, as well as a connection to the

labeled images database "google images". Hence the main contribution of this work is to ﬁlter relevant results

from an images database, given a human-pose speciﬁc query words, and to transform the information in these

(2D) images into a 3D pose that is the most likely to ﬁt the human understanding of the keywords. Steps

to achieve this goal integrate available 2D human-pose estimators using still images, clustering techniques to

extract representative 2D human skeleton poses, and the 3D-pose from 2D-pose estimation. We evaluate the

approach using different query keywords representing different postures.

1 INTRODUCTION

Humanoid robots are increasingly adapting to phys-

ically mimic human actions and poses, which re-

quire an understanding of human poses and how they

can be captured with relation to the robot’s joint

movements. While the translation of a known tar-

get pose to (rotational) joint positioning is a gener-

ally solved problem in inverse kinematics, this paper

aims to generate a target pose description, given a

simple verbal description ("stand", "warrior pose"). It

therefore aims at adding semantic content to a given

query words and their relation to the robot’s skele-

ton model, which represents the robot’s physical self-

understanding. In short, this approach enables the

robot to experience the posture related meaning of

words descriptions. Other than supervised learning

settings, e.g. simulations of children’s training and

learning (Ikemoto et al., 2012), this project is based

on unsupervised self-learning. While the (Ikemoto

et al., 2012) project focuses on improving the interac-

tion with human counterpart, our project is more prag-

matic in the sense that it should quickly and efﬁciently

enable the robot to understand its environment. With

such a goal in mind, extending the humanoid robot’s

capability to support self-learning is, for obvious rea-

sons (no supervision needed, no ground truth labeled

data needed), an important step.

Recent works (Mu and Yin, 2010), (Jokinen and

Wilcock, 2014) started to improve Internet-based spo-

ken dialogue between a human and a humanoid robot.

The humanoid robot’s side in this conversation uses

an active source, Wikipedia, to improve spoken dia-

logue capabilities. This kind of research opens the

door to think about a different data source, e.g. im-

ages, to act as the basic descriptor for posture relating

tasks. The motivation for using images is their abil-

ity to provide a visual description of a query’s key-

words. This style of analyzing queries could also han-

dle conceptual issues for many applications like (Mu

and Yin, 2010), (Jokinen and Wilcock, 2014).

For non-rigid objects like human-pose, it is im-

portant to understand the relation between the search

query (i.e. keywords representing a human-pose con-

formation) and its related pose conformation, such

that there is a clear description for this query key-

words using images. For example, we want the robot

to learn the posture "standing pose" without any hu-

man intervention. The robot is only allowed to query

a general 2D images database, here google images.

From the image results that google returns from the

query "standing pose", the robot needs to decide, what

420

Al-Hami M. and Lakaemper R..

Towards Human Pose Semantic Synthesis in 3D based on Query Keywords.

DOI: 10.5220/0005258704200427

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 420-427

ISBN: 978-989-758-091-8

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

the skeleton expression of "standing pose" is. Apply-

ing the search on a "standing pose" query would re-

trieve a group of images which are strongly related to

the query "standing pose", a group of images which

are weakly related to the query, and a group of out-

liers (false positive images) which are completely un-

related. The question now is how to capture the query

related images from the set of all retrieved images.

Next, how to establish a single general pose from

these images which is able to capture the main prop-

erties of the "standing pose" keywords.

In this paper, we propose a framework which

uses query keywords related to speciﬁc human-

pose conformation as our input and returns back

a 3D human-pose as output. The importance of this

work is its ability to bridge the gap between estimat-

ing the human pose in 2D images and constructing 3D

human pose from 2D image. To clarify and summa-

rize the approach:

After using a query keywords as an input to

google, and working on the retrieved images, the pro-

posed framework focuses on processing all the re-

trieved images and extract a reliable poses from these

images. Second, based on the extracted poses, ap-

proximate one general pose as a representative pose

for the query. Finally, construct a 3D human pose re-

lated to the approximated 2D pose. This kind of self

awareness allows humanoid-robots to perform a self-

motivated tasks rather than predeﬁned ones.

Our main contributions in this work can be sum-

marized as follows: (1) Propose a hierarchical binary

clustering approach intended to ﬁlter poses iteratively

in order to get a consistent and representative clus-

ter of poses. (2) Approximate the representative clus-

ter of poses using one general pose summarizing the

query keywords semantic. The paper is organized

as follows. Related work is described in Section 2.

Human-pose estimation process is discussed in Sec-

tion 3. Extracted human-poses clustering and evalu-

ation are discussed in Section 4 and 5. Finally, con-

clusion remarks appear in Section 6.

2 RELATED WORK

Human-pose consists of a set of related parts, and

these parts are arranged according to a valid hierar-

chical structure. Human-pose estimation in still im-

ages focuses on how to detect a pose and localize its

parts within a 2D image. Many works like (Ramanan

and Sminchisescu, 2006), (Ramanan, 2006), (Fergus

et al., 2003), (Ioffe and Forsyth, 2001), (Ferrari et al.,

2008) use deformable model to create part based tem-

plates, and discover the relationship between parts.

The power of this approach comes from its ability to

detect pose without a prior knowledge about the back-

ground or appearance (i.e. clothes, skin).

Shape matching has been applied in (Gavrila,

2000) to generate a shape template using a distance

transform approach. This template is intended to cap-

ture the objective shape variability. In (Ren et al.,

2005) pairwise constraints between human-pose parts

supported with an image segmentation approach is

used. To locate the candidate parts in a 2D image,

a bottom-up approach is applied.

In (Mori and Malik, 2002), the work provides an

attempt to construct a 3D human-pose model. In addi-

tion to an unseen 2D image, the approach uses a set of

labeled examplers representing different viewpoints

with respect to the used camera. Next, the approach

ﬁnds a sufﬁcient match for the unseen image in the

examplers set, and then a 3D model is constructed

based on the labels of these sufﬁcient examplers. The

work in (Yao and Fei-Fei, 2010) focuses on studying

activities that include human object interaction like

many sport activities (i.e. tennis, football). The work

proposes a mutual context approach between human-

pose and objects. This mutual context facilitates the

recognition process of an object and the estimation of

a human-pose as well.

Mixed Bayesian model has been used in (Lan and

Huttenlocher, 2004). The approach consists of hid-

den Markov model and pictorial structure to estimate

human-pose. Since human-pose has a high symme-

try between limbs (i.e. right arm with left arm, and

right leg with left leg), work in (Lan and Huttenlocher,

2005) incorporates this symmetry with tree structure

by taking into account balancing symmetric limbs.

In (Eichner et al., 2012), the work focuses on detect-

ing upper body parts and uses the deformable model

with extension to reduce the search space for parts

localization. The work uses some prior assumption

about the human-pose. These assumptions describe

the relation between the head and the torso and their

upright appearance.

For more human and robot interaction, work

in (Jokinen and Wilcock, 2014) improves social hu-

man robot communication through using a WikiTalk

application. This application provides a social con-

versation system aided with Internet based capability

(i.e. connected to Wikipedia). The humanoid robot

NAO was used as a testing platform for the Wik-

iTalk and improved with gesturing movements. The

work in (Al-Hami and Lakaemper, 2014) applies the

genetic algorithm on NAO humanoid robot pose to

ﬁt well on unknown sittable objects including (boxes

and balls).

TowardsHumanPoseSemanticSynthesisin3DbasedonQueryKeywords

421

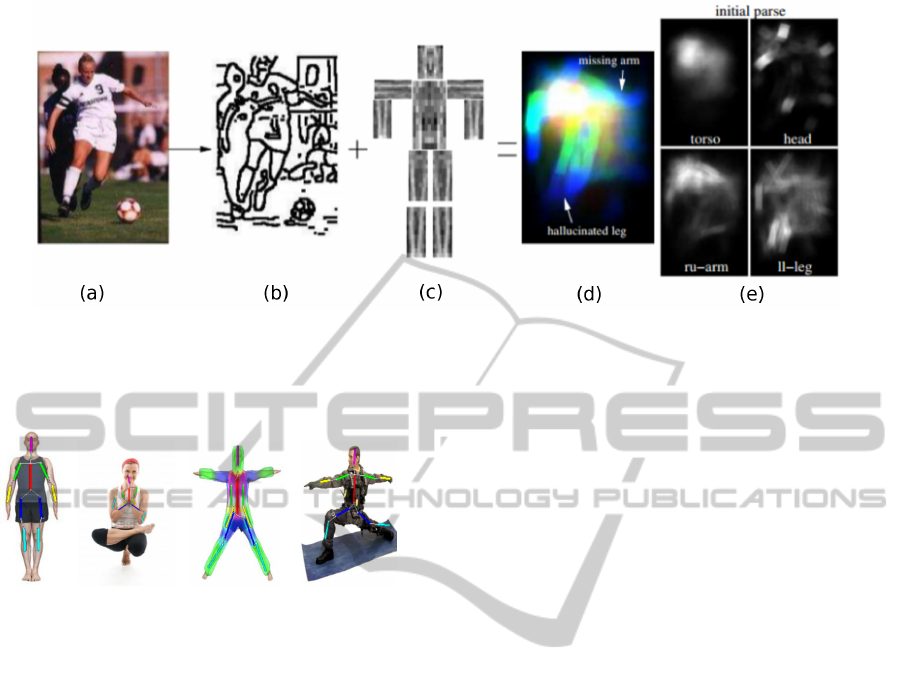

Figure 1: Deva Ramanan pictorial structure deformable model approach for human-pose estimation (Ramanan, 2006). (a)

original image, (b) constructed edge map from the original image, (c) Spatial priors (templates) are used based on the learned

spatial priors from a database of labeled joints images, (d) initial parsed model for the whole pose, and (e) initial parsed model

for independent joints.

(a) Standing (b) Sitting (c) Standing (d) warrior

Figure 2: Some examples of human-pose estimation results

when applying approach in (Ferrari et al., 2008) on retrieved

images by google for different pose conformations. The

labels under ﬁgures refer to the used query keywords for

these images.

3 HUMAN-POSE ESTIMATION

Human-pose consists of a non-rigid articulated object

having a large number of degrees of freedom. Such

pose structure (shown in Table 1) leads to a high di-

mensional space of possible pose conformations. Pic-

torial structure introduced by Martin Fischler in (Fis-

chler and Elschlager, 1973) has been used to represent

human-pose parts model. The approach takes into ac-

count the spatial conformation and the parts appear-

ance of a pose within an image. For the sake of clar-

ity, assume that the human-pose L consists of m joints

L = {l

,...,l

} where l

is the location of i

joint in

that pose. Each joint in the model has a speciﬁc con-

formation describes its appearance in a 2D image and

identiﬁed by the conformation triple [x

,θ

]. (x

)

represents the location and θ

is the orientation of that

joint. The goal of such a model is to detect a human-

pose/poses in an unseen 2D image, then to ﬁnd each

part in each pose appears in that image.

3.1 Spatial Priors

The process of recognizing a human-pose in a 2D im-

age requires a knowledge about each joint exists in

this pose conformation. Machine learning approaches

have been applied on a set of labeled images including

human-poses. This set of images is labeled human-

pose parts. The task is to learn the localization of

each part in a pose such that the localization should

satisfy some criteria like maximum likelihood (ML)

solution (Ramanan, 2006). The output of this learn-

ing process is a general spatial prior template (local

information template describes part appearance in an

image and its localization) for the human-pose like

the one shown in Fig. 1(c).

In the spatial priors model, a human-pose uses

parameters which capture two main aspects in the

model, spatial relationship S, and appearance A. For

such model M = (S,A), the required parameters are

learned using machine learning approaches using a

data set of labeled images. The process of build-

ing spatial priors (i.e. template for each joint in the

human-pose which favors a certain triple [x

,θ

]) is

concerned with how to determine the P(L) as a prior

distribution.

3.2 Iterative Parsing Approach

Iterative parsing approach proposed by Deva Ra-

manan (Ramanan, 2006) is a general approach (i.e.

does not depend on speciﬁc features like clothes,

color, or skin) which is able to recognize a human-

pose’s joints in a 2D image. The contribution in this

approach is its ability to detect and localize a pose’s

joints using iterative parsing process applied on a 2D

image. Throughout each iteration a better features can

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

422

be learned and tuned to a speciﬁc 2D image, resulting

in an improved pose detection and joints localization.

In the ﬁrst parse iteration, a spatial priors are used

to produce soft (i.e. roughly) estimate for a pose

joints. This estimate is rough since the spatial priors

are trained on a general labeled database of 2D im-

ages. After the ﬁrst parsing iteration, the spatial priors

starts to be tuned towards the current image features

(i.e. the iterative parsing approach tune the general

template to more speciﬁc one related to the current

image).

The approach in Fig. 1 focuses on building joint-

based region model which determines each human-

pose joint location. In the ﬁrst iteration, edge map is

used with the spatial priors to generate the initial soft

parse, after that the regions generated in each parse

iteration are used to enhance the pose estimation pro-

cess in the next iteration.

For estimating human-pose joints, the approach

emphasizes the importance of the conditional likeli-

hood model, rather than the classical maximum like-

lihood model. For conditional likelihood the goal is:

max P(L\I, Θ) (1)

which means maximizing the likelihood estimate that

produces the best estimate when applied to labeling a

human-pose parts in a given 2D image I. Based on a

group of labeled training images, the learned model Θ

focuses on learning the model parameters which sat-

isfy this conditional likelihood model. Assuming the

relation between a pose’s joints can be represented as

a tree structure where there is a relation between each

joint and its parent. Using such structure, the log-

linear deformable model can be represented by the

conditional likelihood model:

P(L\I,Θ) ∝ exp(

∑

i, j∈E

ψ(l

) +

∑

φ(l

)) (2)

In this model, ψ(l

) shows the spatial prior for joint

using its relative arrangement to joint l

which both

have a connection in the tree structure. This prior

captures the joint spatial arrangement. The term φ(l

)

captures appearance prior for each joint, and serves as

a local image evidence for these joints. For more de-

tails about this log-linear deformable model see (Fer-

rari et al., 2008), (Ramanan and Sminchisescu, 2006).

3.3 Poses Skeletons Extraction

Applying the iterative parsing approach as mentioned

earlier on the retrieved images would produce a

database of extracted poses skeletons. Many im-

plausible skeletons are excluded from the database

Table 1: The used tree structure for representing a human-

pose.

Number Joint Parent

01 Torso -

02 Left Upper Arm Torso

03 Right Upper Arm Torso

04 Left Upper Leg Torso

05 Right Upper Leg Torso

06 Left Lower Arm Left Upper Arm

07 Right Lower Arm Right Upper Arm

08 Left Lower Leg Left Upper Leg

09 Right Lower Leg Right Upper Leg

10 Head Torso

(a) Pose Structure (b) Feature Space

Figure 3: (a): Human-pose structure used in this work. (b):

The used distances which appended in the feature vector.

(we kept only poses where the distances between a

pose joints according to the tree structure is less than

distance σ threshold). Applying the pose estimator

on the retrieved images revealed many limitations.

Some examples from the retrieved results are shown

in Fig. 2. We noticed some wrong segmentation (sep-

arating the human-pose from the background in a 2D

image) for many images (see 2(b)). Another limita-

tion happens in a human-pose estimation even with

correct segmentation, where the estimator localizes

wrongly some of a pose joints (see 2(c)). However,

the estimator was able to segment and estimate many

poses correctly like ones shown in 2(a), 2(d). Since

human-poses in the retrieved images appear at differ-

ent depths and different scales, all extracted human-

poses are scaled to a one uniﬁed bounding box.

4 EXTRACTED HUMAN-POSES

CLUSTERING

The poses extraction process suffers from limitations

mentioned earlier. To address such problems, a hier-

archical binary clustering approach is used to extract

a sufﬁcient representative set of human-poses skele-

TowardsHumanPoseSemanticSynthesisin3DbasedonQueryKeywords

423

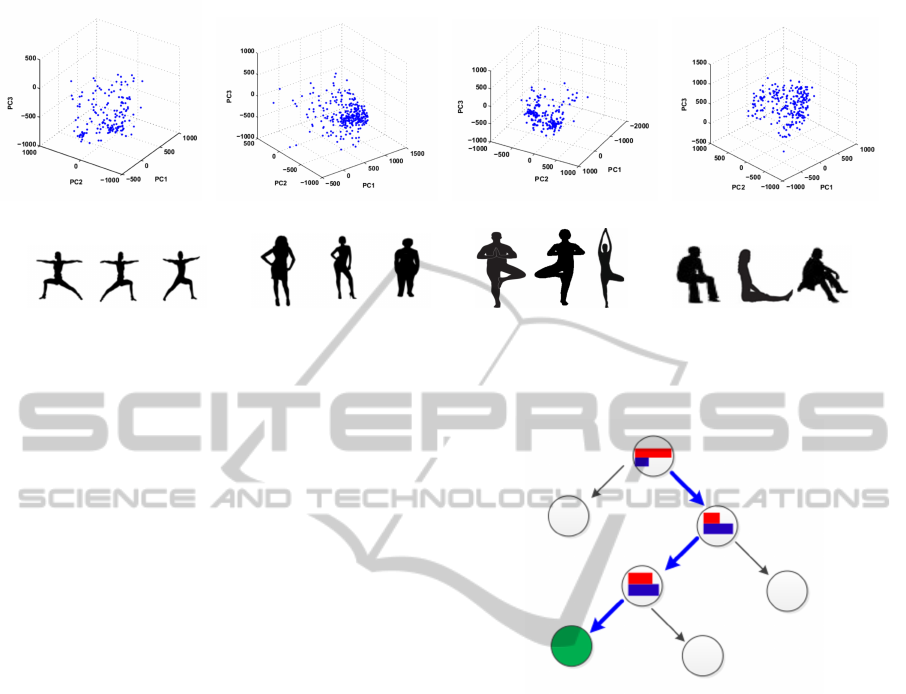

(a) warrior Pose PCA (b) Standing Pose PCA (c) Tree Pose PCA (d) Sitting Pose PCA

(e) WarriorII Pose Variations. (f) Standing Pose variations. (g) Tree Pose Variations. (h) Sitting Pose Variations.

Figure 4: Poses appearance in space after scaling to a predeﬁned bounding box. (a)-(d) show the plot of the ﬁrst three principal

components of the poses after transforming the poses space into a new space using PCA analysis. (e)-(h) show a common

typical variation for each pose in the real life.

tons. The basic idea depends on the existing consis-

tency between poses skeletons which are strongly re-

lated to the query keywords. Using a consistency as a

criteria for the selected poses skeletons, we can focus

our attention towards ﬁnding a consistent representa-

tive set from human-poses skeletons. Since the avail-

able database (i.e. retrieved human-pose skeletons)

are high dimensional, the consistency is coupled with

poses spatial localization in the space. This spatial

localization in the space depends on the used feature

vector structure (described later).

In Fig. 4 we used principal component analysis

(PCA) to show the database of human-poses in the

space for different pose conformations as well as their

typical variation in real life. By plotting the ﬁrst three

principal components of the used feature vector, the

localization of poses shows some areas where there

are a high density spots of poses while others are

spread out randomly.

Highlighting the cluster consistency between the

cluster members can offer clues about the main char-

acteristics of a pose conformation. By using a suit-

able feature vector (described later) and using the

iterative hierarchical binary clustering approach us-

ing kmeans clustering agorithm, we can cluster the

poses skeletons. The clustering approach separates

the poses points iteratively into two clusters, one of

them (which has a higher consistency value) is se-

lected to be the cluster of interest while the other one

is discarded. The clustering procedure is repeated

multiple times on the selected cluster until the clus-

ter consistency value (Silhouette value) is more than

a threshold t (see Fig. 5). Obtaining a consistent rep-

resentative cluster provides a subset of related real

poses.

Figure 5: Hierarchical binary clustering approach. At each

level, poses skeletons are divided into two clusters, one of

them which is more consistent is selected while the other

one is discarded. The process is repeated until the repre-

sentative cluster consistency exceeds a threshold value t.

Kmeans clustering algorithm is used in this approach.

4.1 Feature Vector

Kmeans clustering approach separates data points

(poses) based on their proximity to clusters centroids.

The used feature vector structure for representing a

pose is described in Table 2. The feature vector con-

sists of two main parts. The ﬁrst part keeps center

points of a pose joints as shown in Fig. 3(a) while

the second part keeps distances between a pose joints

as shown in Fig. 3(b). The motivation of using such

structure can be described as follows. The ﬁrst part

captures a pose joints absolute spatial location using

center points, while the second part captures a pose

joints locations relative to their parent joints and their

peer joints as well.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

424

Table 2: Structure of the used feature vector consists of two parts, one of them captures the spatial localization (center points)

while the other one captures the joints relations (distances). Numbers in the ﬁrst part refer to center points of speciﬁed joints

(i.e. x offset and y offset of a center point). d[a,b] in the second part refers to the Euclidian distance between center points of

joints a and b.

Feature vector structure

Absolute spatial arrangement Relative spatial arrangement

Center points Distances

01 02 03 04 05 06 07 08 09 10 d[2,3] d[6,7] d[2,6] d[3,7] d[4,5] d[8,9] d[4,8] d[5,9]

4.2 Silhouette Value

Silhouette value analysis measures a cluster quality

and consistency. In this analysis each pose in a cluster

is assigned a normalized similarity value (S

). This

value reﬂects a pose similarity to poses in the same

cluster when compared to poses in the other cluster.

= (b

− a

)/max(a

) (3)

The similarity is captured through average Euclid-

ian distance from a given pose to all other poses in the

same cluster (a

). The other criteria which is the aver-

age Euclidian distance from a pose to all poses from

the other cluster (b

). Silhouette values range is be-

tween [-1,1]. To assign a cluster a single silhouette

value, we use the average of all poses silhouette val-

ues in that cluster as representative silhouette value.

The resulted value is used as the criteria in the hier-

archical binary clustering. It decides which cluster is

the relevant one and which cluster has to be discarded.

4.3 Approximate Pose Skeleton Model

Model approximation captures the general character-

istics of a cluster. By approximation, each joint in

the approximate pose skeleton represents the median

orientation of that joint of all poses within a cluster

independently of other joints. Median is chosen since

average is sensitive to outliers. The approximation

process enables us to track the cluster changes at each

level in the hierarchical binary clustering.

4.4 3D Human-pose Reconstruction

The work in (Ramakrishna et al., 2012) constructs a

3D human-pose using a 2D image with landmarks lo-

cated at speciﬁc positions and specifying positions of

a human pose in that image. The approach uses a pro-

jected matching pursuit algorithm in order to mini-

mize the error amount between the original landmarks

in the 2D image and the projected ones from the con-

structed 3D model. Assuming a ﬁxed intrinsic cam-

era parameters, the approach is able to approximate

the extrinsic camera parameters and a 3D model us-

ing a corpus (database) of 3D poses. In this work,

(a) L 01 (b) L 02 (c) L 03 (d) L 04 (e) L 05

Figure 6: Warrior approximation pose at different hierarchi-

cal binary clustering levels.

we use approximate poses generated from representa-

tive clusters to be used for 3D reconstruction. Since

the joints positions (x offset and y offset) are already

known, we can automatically mark the required land-

marks.

5 EVALUATION

In experiments, we try to show the effect of the used

hierarchical binary clustering approach in producing a

representative subset of poses. The approach has been

applied to three different queries. Since the extracted

human-poses from the retrieved images (varies be-

tween 700 to 900 images in our experiments) might

include implausible poses, we ﬁltered the extracted

human-poses to plausible ones (the Euclidean dis-

tance between related joints in the hierarchy is below

that a threshold value). Using the ﬁltered set of poses

the hierarchical binary clustering approach is applied

iteratively. The goal is to cluster poses until we get

a consistent cluster (average cluster silhouette value

is at least 0.8). The ﬁrst query was "warrior pose".

After applying the hierarchical binary clustering ap-

proach 5 levels, we were able to get a consistent clus-

ter. Fig. 6 shows the approximate pose at each level in

the clustering approach. As far as we perform more

iterations in the clustering approach, the pose confor-

mation moves towards a sufﬁcient representative ap-

proximate pose for the original query keywords "war-

rior pose".

The second query in the experiment was "tree

pose". Following the same approach, after 9 levels of

clustering we were able to reach a consistent cluster.

Fig. 7 shows the approximate pose at each level in the

clustering approach. The approximate pose is able to

TowardsHumanPoseSemanticSynthesisin3DbasedonQueryKeywords

425

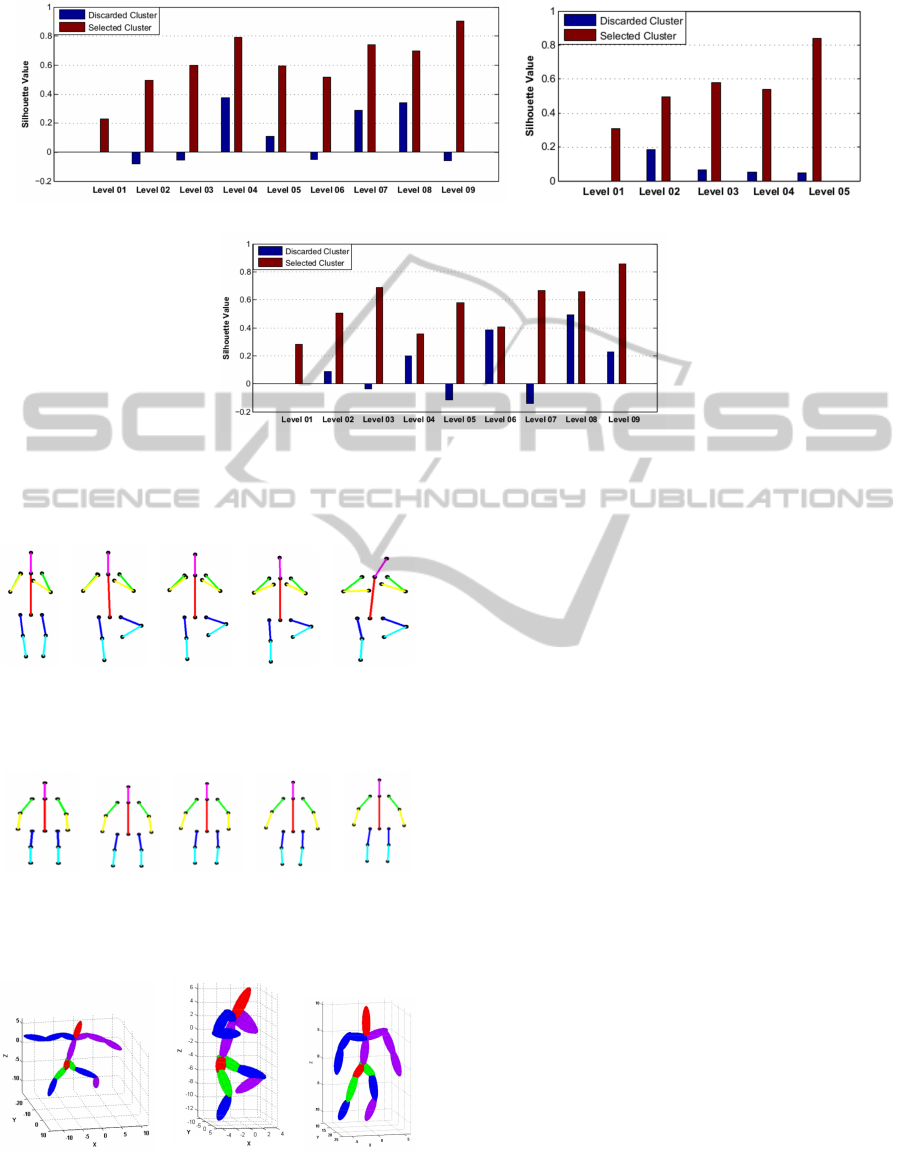

(a) Tree pose hierarchical binary clustering Silhouette values (b) warrior pose hierarchical binary clustering Silhouette values

Figure 10: Average Silhouette value at each level in the hierarchical binary clustering approach for the selected and discarded

clusters for three different queries. The stop condition for the clustering process is an average Silhouette value exceeds 0.8.

(a) L 01 (b) L 03 (c) L 05 (d) L 07 (e) L 09

Figure 7: Tree pose approximation pose at different hierar-

chical binary clustering levels.

(a) L 01 (b) L 03 (c) L 04 (d) L 07 (e) L 09

Figure 8: Standing pose approximation pose at different hi-

erarchical binary clustering levels.

(a) Warrior pose (b) Tree pose (c) Standing pose

Figure 9: Reconstructing 3D human-pose models based on

approximate 2D human-pose models.

capture the common characteristic of a real tree pose.

The third query was "standing pose". After 9 levels

of clustering we got a consistent cluster as shown in

Fig. 8.

In Fig. 10, average silhouette values for the se-

lected and discarded clusters are measured at each

clustering level for queries used in each experiment.

As the silhouette value decreases, the amount of in-

consistent poses appearing within a cluster increases.

The last stage uses obtained results from the hi-

erarchical binary clustering approach and translates

them into an approximate 3D human-pose model.

The motivation is to build a 3D model which allows

us to get an automatic visual translation of a query

keywords of a human-pose conformation. Using the

approach in (Ramakrishna et al., 2012), we applied

the projected matching pursuit algorithm on approx-

imate poses. Fig. 9 shows the obtained 3D human-

pose model for each approximate pose.

A case where this approach does not work well,

is when the iterative parsing approach mentioned in

section 3 produces a weak and inaccurate estimation.

In the case of sitting pose, the joints might have

many overlaps, and this makes the estimation process

weak in a majority of cases. A clear example of the

estimated poses are shown in 2(b). In addition to that,

the variations that might occur in the sitting pose is

also high (person might sit on the ﬂoor, on different

types of chairs, or might sit with cross legged). Ap-

plying the hierarchical binary clustering approach on

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

426

the estimated poses in this case would not pro-

duce a sufﬁcient representative cluster.

6 CONCLUSION

In this paper, we presented a hierarchical binary clus-

tering approach which bridges the gap between 2D

human-pose estimation in an image, and 3D human-

pose reconstruction from 2D human-pose skeleton.

Using this approach we are able to translate query

keywords representing a human-pose conformation

into an approximate 3D human-pose skeleton. The

work in (Al-Hami and Lakaemper, 2014) uses the ge-

netic algorithm to adjust a humanoid robot pose, so

the robot would ﬁt well on an unknown sittable object.

Extending such approach could be accomplished by

allowing the humanoid robot to adopt self-leaning us-

ing simple verbals describing a speciﬁc human-pose.

This style of query analysis allows us to extend the

humanoid robots ability toward self-motivated learn-

ing, allowing them to move forward in many applica-

tions. We discussed a hierarchical binary clustering

approach to extract a consistent representative subset

of human-poses. Silhouette value measurement was

used to capture a cluster consistency, and cost trans-

formation was used to rank poses within a cluster ac-

cording to their closeness to the approximate model.

For future work, we want to improve pose estimation

accuracy in 2D images. Also we want to improve the

3D reconstruction performance by forcing joint valid

rotation ranges, such that the constructed 3D pose is

within a valid joints rotations.

REFERENCES

Al-Hami, M. and Lakaemper, R. (2014). Sitting pose gener-

ation using genetic algorithm for nao humanoid robot.

In IEEE Workshop on Advanced Robotics and its So-

cial Impacts (ARSO), 2014, pages 137–142. IEEE.

Eichner, M., Marin-Jimenez, M., Zisserman, A., and Fer-

rari, V. (2012). 2d articulated human pose estimation

and retrieval in (almost) unconstrained still images.

International Journal of Computer Vision, 99(2):190–

214.

Fergus, R., Perona, P., and Zisserman, A. (2003). Ob-

ject class recognition by unsupervised scale-invariant

learning. In IEEE Computer Society Conference on

Computer Vision and Pattern Recognition (CVPR).

2003, volume 2, pages II–264. IEEE.

Ferrari, V., Marin-Jimenez, M., and Zisserman, A. (2008).

Progressive search space reduction for human pose es-

timation. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), 2008, pages 1–8.

IEEE.

Fischler, M. A. and Elschlager, R. A. (1973). The repre-

sentation and matching of pictorial structures. IEEE

Transactions on Computers, 22(1):67–92.

Gavrila, D. (2000). Pedestrian detection from a moving ve-

hicle. In Computer Vision ECCV 2000, pages 37–49.

Springer.

Ikemoto, S., Amor, H. B., Minato, T., Jung, B., and Ishig-

uro, H. (2012). Physical human-robot interaction:

Mutual learning and adaptation. Robotics & Automa-

tion Magazine, IEEE, 19(4):24–35.

Ioffe, S. and Forsyth, D. A. (2001). Probabilistic methods

for ﬁnding people. International Journal of Computer

Vision, 43(1):45–68.

Jokinen, K. and Wilcock, G. (2014). Multimodal open-

domain conversations with the nao robot. In Natural

Interaction with Robots, Knowbots and Smartphones,

pages 213–224. Springer.

Lan, X. and Huttenlocher, D. P. (2004). A uniﬁed spatio-

temporal articulated model for tracking. In IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition (CVPR), 2004, volume 1,

pages I–722. IEEE.

Lan, X. and Huttenlocher, D. P. (2005). Beyond trees:

Common-factor models for 2d human pose recovery.

In Tenth IEEE International Conference on Computer

Vision (ICCV), 2005, volume 1, pages 470–477. IEEE.

Mori, G. and Malik, J. (2002). Estimating human body con-

ﬁgurations using shape context matching. In Com-

puter Vision ECCV 2002, pages 666–680. Springer.

Mu, Y. and Yin, Y. (2010). Human-humanoid robot inter-

action system based on spoken dialogue and vision.

In 3rd IEEE International Conference on Computer

Science and Information Technology (ICCSIT), 2010,

volume 6, pages 328–332. IEEE.

Ramakrishna, V., Kanade, T., and Sheikh, Y. (2012). Re-

constructing 3d human pose from 2d image land-

marks. In Computer Vision ECCV 2012, pages 573–

586. Springer.

Ramanan, D. (2006). Learning to parse images of articu-

lated bodies. In Advances in Neural Information Pro-

cessing Systems, pages 1129–1136.

Ramanan, D. and Sminchisescu, C. (2006). Training de-

formable models for localization. In IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, 2006, volume 1, pages 206–213. IEEE.

Ren, X., Berg, A. C., and Malik, J. (2005). Recovering

human body conﬁgurations using pairwise constraints

between parts. In Tenth IEEE International Confer-

ence on Computer Vision (ICCV), 2005, volume 1,

pages 824–831. IEEE.

Yao, B. and Fei-Fei, L. (2010). Modeling mutual context

of object and human pose in human-object interaction

activities. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), 2010, pages 17–24.

IEEE.

TowardsHumanPoseSemanticSynthesisin3DbasedonQueryKeywords

427
