Integrating Adaptation Patterns into Agent Methodologies to Build

Self-adaptive Systems

Mariachiara Puviani

, Giacomo Cabri

and Letizia Leonardi

DIEF - Universit

a degli Studi di Modena e Reggio Emilia, Via Vignolese 905/b, Modena, Italy

FIM - Universit

a degli Studi di Modena e Reggio Emilia, Via Campi, 213/A , Modena, Italy

Keywords:

Multi-Agent System, Adaptation Pattern, Methodology.

Abstract:

Agent systems represent a very good example of complex and self-adaptive systems. Adaptation must be

conceived not only at the level of single components, but also at the system level, where adaptation must

concern the entire structure of one system; adaptation patterns have been proposed to address both levels.

Many methodologies have been proposed to support developers in their work, but they lack in addressing

the choice and the exploitation of adaptation patterns. In this work, we propose an integration of adaptation

patterns in agent-oriented methodologies, exploiting an existing methodology to concretely show how such an

integration can be enacted.

1 INTRODUCTION

Nowadays intelligent software systems take places in

different domains, characterised by mobility, rapid

changes in operation conditions along with changes in

the systems’ environment, and so on. Self-adaptation

has been proposed as a solution to manage the grow-

ing complexity of intelligent systems. With the con-

tinuous increasing in runtime scale and complexity of

software systems, self-adaptation has assumed a cen-

tral role in the software engineering development, and

has often been mentioned as one of the challenges for

the discipline (Fernandez-Marquez et al., 2012).

Self-adaptation is the ability of a software system

or an application to automatically modify its structure

and behaviour at runtime in order to ensure, maintain

or recover some functional or extra-functional prop-

erties, even in the face of unexpected changes to op-

erating conditions or user requirements.

To develop self-adaptive systems, in general two

approaches exist: parameter adaptation and compo-

sitional adaptation (McKinley et al., 2004). Param-

eter adaptation concerns adapting the system’s be-

haviour through changing parameters, while compo-

sitional adaptation is described as change of compo-

nents (in terms of behaviour or whole structure). In

our work, we focus on compositional adaptation, but

in a more speciﬁc way: we do not aim to simply

change the components in a system, but we aim to

modify their behaviour (deﬁned as the pattern that

describes it) inside the system. This will lead not to

change a component, but to change its internal struc-

ture in order to make it behave differently.

In our studies, we found a lack of reusable and

well-deﬁned processes and components for explicitly

designing and implementing self-adaptive systems.

Designers often start from scratch. Moreover, the

integration of the concepts into a framework that is

enhanced with tools of process deﬁnition (as a well

known methodology) and of means that enable to in-

troduce adaptation, would simplify the development

of self-adaptive systems and result in fast and less

error-prone development.

Studying adaptation patterns, we have seen that

they are considered as a useful means to introduce

adaptation into a system, and more in details, in a

methodology for developing self-adaptive systems.

In our work, we aim at creating a complete ap-

proach that will guide developers from the system’s

speciﬁcation to the system’s implementation. We

would like to create a complete framework that per-

mits to develop a self-adaptive system. This ongoing

work is made of different steps:

1. analysis of Multi-Agent methodologies and inte-

gration of adaptation pattens into the chosen ones;

2. modiﬁcation of the tools that support the chosen

methodologies, for the creation of adaptive sys-

tems;

3. creation of a middleware that will merge the

Puviani M., Cabri G. and Leonardi L..

Integrating Adaptation Patterns into Agent Methodologies to Build Self-adaptive Systems.

DOI: 10.5220/0005276800990106

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence (ICAART-2015), pages 99-106

ISBN: 978-989-758-073-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

concepts coming from methodologies’ tools, by

means of Java classes;

4. evaluation of the framework, experimenting the

creation of self-adaptive systems.

As a ﬁrst step, we think that integrating adapta-

tion patterns into methodologies will aid in realising

this approach of supporting the development of a self-

adaptive system. To be more concrete, in this paper,

we speciﬁcally apply this approach to some method-

ologies to develop multi-agent systems, which well

represent complex and adaptive systems. In this pa-

per, we present how adaptation patterns can be inte-

grated in a multi-agent methodology, in order to ob-

tain a methodology for creating self-adaptive systems.

The reminder of this paper is as follows: in Sec-

tion 2, we present the Catalogue of adaptation Pat-

terns, explaining its importance in connection with

adaptive systems and methodologies. Further on, in

Section 3 we introduce some selected agent-oriented

methodologies, along with the criteria we used to se-

lect them, and we show how and where the Catalogue

of Patterns can be included into these methodologies.

In Section 5 we present some work related to our ap-

proach and at the end, in Section 6 we conclude the

paper and present some future works.

2 THE CATALOGUE OF

ADAPTATION PATTERNS

Closed to self-adaptation are Service-based systems

and Agent-based systems. In Service-based systems,

services are designed independently by different ser-

vice providers and are composed to achieve a prede-

ﬁned goal (i.e., user tasks (Kazhamiakin et al., 2010)

or business goals (Marconi et al., 2008)); while in

Agent-based systems activities of different actors are

regulated by certain collectively deﬁned rules (Lav-

inal et al., 2006). In these different approaches, the

focus of research on adaptation has not been put on

adaptive behaviour of the whole system yet, but it

is limited to the deﬁnition of adaptation solutions for

speciﬁc entities (they try to adapt the behaviour of the

single component and not of the whole system). In-

stead, our aim is to move from individual-based com-

ponents to entire systems proposing adaptation tech-

niques that support adaptation for the ensemble. To

overcame this limitation we introduce the adaptation

pattern approach (Puviani et al., 2013).

In literature design patterns (or simply patterns)

are deﬁned as reusable solutions to recurring design

problems and are a mainstream of software reuse

practice (Gamma et al., 1995; Morandini et al., 2010).

They crystallize a general solution to a common

problem, so software developers can beneﬁt from

their reuse to develop systems. An adaptation pat-

tern is a conceptual scheme that describes a speciﬁc

adaptation mechanism. It speciﬁes how the compo-

nent/system architecture can express adaptivity.

An important task to develop a well performing

self-adaptive system, is to understand which pattern

to choose. In order to deﬁne how a pattern works in

a self-adaptive system and which kind of systems is

covered by a speciﬁc pattern, we wrote a Catalogue of

Adaptation Patterns (Puviani et al., 2013). In this Cat-

alogue, the different patterns are presented, and each

of them describes the features of a speciﬁc adaptive

system.

The adaptive behaviour inside a component or an

ensemble is described in terms of feedback loops. In

the Catalogue, the patterns are proposed with a spe-

ciﬁc description by means of a template, and with ex-

amples of the use of the patterns in real systems, in

order to simplify the selection of the right pattern to

use. The use of a pattern permits the developer to

be guided to make the system exhibit a required be-

haviour, even when unexpected situations occur.

The use of adaptation patterns to create self-

adaptive systems, has been tested in different ﬁeld, in

many applications (Mayer et al., 2013; Puviani et al.,

2014b), and guarantees correct results in systems that

are frequently changing, not only in their internal con-

ditions, but also in the environment where they are

operating.

As said in the Introduction, the use of a methodol-

ogy could be very useful to develop self-adaptive sys-

tems. However, the current methodologies consider

adaptation only at level of single components, instead

of at the system’s level. That is the reason why we

consider necessary to introduce the Catalogue of Pat-

terns into methodologies: it will enact adaptivity at

the level both of single component, and of the entire

system. In fact the Catalogue of Patterns will sup-

port the methodologies in the creation of an adaptive

system where the structural adaptation of the whole

system is considered very relevant.

3 AGENT-ORIENTED

METHODOLOGIES FOR

ADAPTIVE SYSTEMS

In order to support application developers during the

creation of an adaptive system, it is necessary to pro-

vide a methodology that support adaptation mecha-

nisms starting from the system requirements. The ini-

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

100

tial idea is not to propose a methodology from scratch,

but to have as a base a stable and well known method-

ology.

Moreover, we consider that “agents” are one

of the most useful paradigms to build intelligence

distributed systems, so we would like to use that

paradigm to create adaptive systems. To do that, we

started from the study of agent-oriented methodolo-

gies as a starting point to introduce adaptation fea-

tures while building a system.

Considering MASs (Multi Agent Systems), it

is generally accepted that analysis and design of

agent-based systems require an Agent-Oriented Soft-

ware Engineering (AOSE) methodology. There are

now many mature AOSE methodologies (Henderson-

Sellers and Giorgini, 2005), (Bergenti et al., 2004),

including MaSE (DeLoach et al., 2001), Tro-

pos (Bresciani et al., 2004), Gaia (Zambonelli

et al., 2003), Prometheus (Padgham and Winikoff,

2005), INGENIAS (Pav

on et al., 2005), ADEM

ADELFE (Bernon et al., 2003), SODA (aliCE Re-

search Group et al., 2009) and PASSI (Cossentino,

2005).

After different studies (Puviani et al., 2012), we

found out that to create a uniﬁed methodology that

may have the most powerful features of every of

the starting ones, is very difﬁcult. For example, we

are not able to prove if a new uniﬁed methodology

covers all the possible scenarios, as happened for

MAR&A (Cabri et al., 2009), that is a composed

methodology, but is not applicable to adaptive sys-

tems. Moreover, not all the composing methodolo-

gies use the same language or the same concepts,

and translating them into uniﬁed terms will not be al-

ways easy. Furthermore, creating a new methodology

for adaptive systems from scratch will not be easy as

well. It may be yet another methodology, and there is

no guarantee that it will be able to build all the adap-

tive systems.

All these reasons suggested us to not create a

methodology dedicated to self-adaptive system, or to

compose a methodology, but to start from well known

and well deﬁned methodologies, and to insert the Cat-

alogue of Patterns into them in order to have self-

adaptive feature.

Starting from our previous work (Puviani et al.,

2010), we found out that some AOSE methodologies,

even if they are well known, are not up to date, or no

more utilised to develop intelligent complex agents

systems. So we selected only few methodologies that

we consider suitable to build a self-adaptive system.

The methodologies that we selected have some com-

mon features:

http://www.whitestein.com/adem

• they are updated (e.g. a new version of the

methodology has been released in the last years);

• they have been tested in different distributed sys-

tems;

• they use well known paradigms like UML or the

SPEM approach (Seidita et al., 2009), (Puviani

et al., 2009) that will be very useful in order to

introduce adaptation patterns;

• they use the concept of “role” to deﬁne adaptation

patterns in a system;

• they have a supporting tool, or speciﬁc indication

for the development of a system.

The methodologies we selected for our work are:

ADELFE, PASSI2 and SODA. For space reasons, in

this paper we describe only PASSI2, along with the

indications on where introducing the Catalogue of

Patterns.

As said before, a common point of these method-

ologies is that all of them have been described us-

ing the SPEM (Software Process Engineering Meta-

model) approach (Object Management Group, 1997).

This will be useful in order to insert the Catalogue of

Patterns in terms of SPEM fragments. In this way,

it will be possible to better deﬁne the concepts pre-

sented in patterns and to insert them into the different

methodologies.

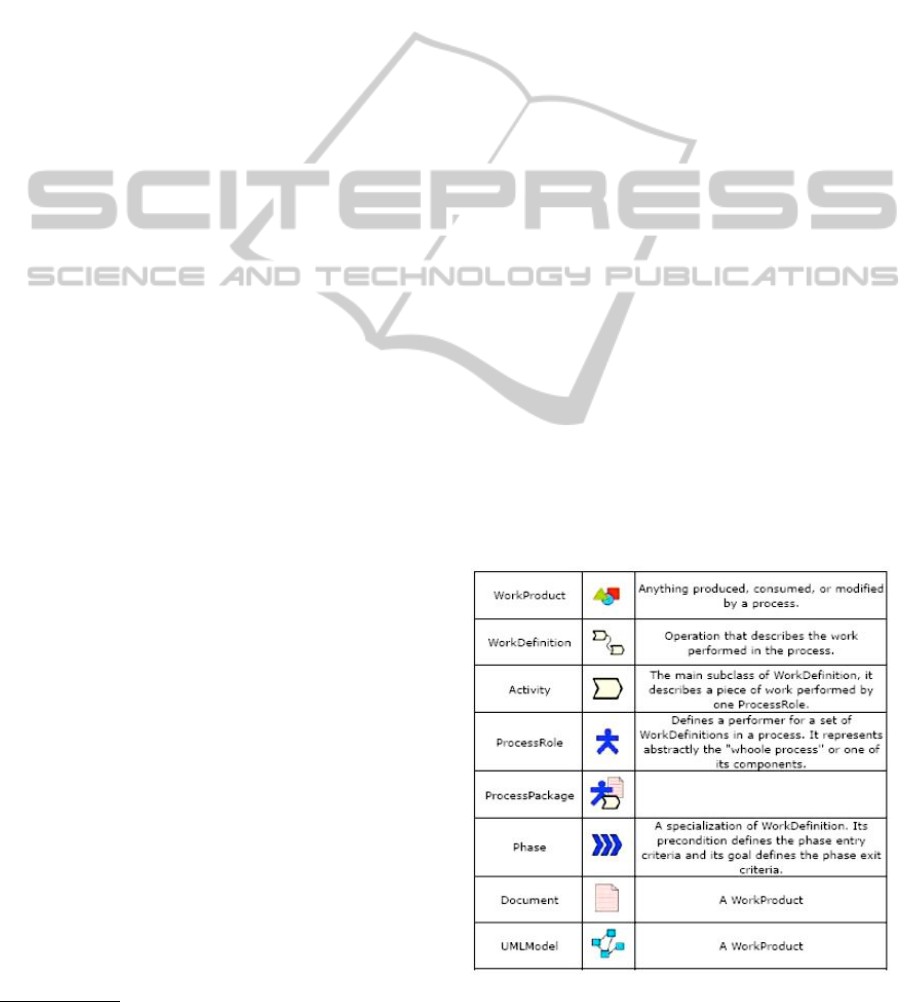

To improve reading of the paper, in Figure 1 we

report the deﬁnitions of some common notations used

by SPEM.

Figure 1: SPEM notations.

IntegratingAdaptationPatternsintoAgentMethodologiestoBuildSelf-adaptiveSystems

101

4 EXAMPLE: PASSI2

PASSI2 (Process for Agent Society Speciﬁcation and

Implementation) (Cossentino and Seidita, 2009) is the

evolution of PASSI (Cossentino, 2005), a methodol-

ogy that aims at covering all the phases of a system

development from the requirements’ analysis to the

deployment conﬁguration, coding, and testing.

It is based on a meta-model describing the el-

ements that constitute the system to be designed

(agents, tasks, communications, roles) and what are

the relationships among them. The importance of

this description is in the lack of a universally ac-

cepted meta-model of MASs (differently from object-

oriented systems) that makes unclear any agent design

process that does not precisely deﬁne the structure of

the system it aims to produce. PASSI2 has been de-

signed keeping in mind the possibility of designing

systems with the following peculiarities: (i) highly

distributed, (ii) subject to a (relatively) low rate of

requirements changes, (iii) openness (at runtime ex-

ternal systems and agents that are unknown at de-

sign time will interact with the system to be built).

Robotics, workﬂow management, and information

systems are the speciﬁc application areas where it has

been wildly applied.

PASSI2 is composed of three models that address

different design concerns and nineteen phases, as we

can see in Figure 2. An important aspect of PASSI2

is that it uses standards as UML and adapts it to the

need of representing agent systems through its ex-

tension mechanisms (constraints, tagged values and

stereotypes).

Synthetically, the models and phases of PASSI2

are:

1. System Requirements Model. A model of the sys-

tem requirements in terms of agency and purpose.

Developing this model involves:

• Domain Description (DD). A functional de-

scription of the system using conventional use-

case diagrams.

• Agent Identiﬁcation (AId). Separation of re-

sponsibility concerns into agents, represented

as UML packages.

• Role Identiﬁcation (RId). Use of sequence dia-

grams to represent each agent’s responsibilities

through role-speciﬁc scenarios.

• Agent Structure Exploration (ASE). An

analysis-level description of the agent structure

in terms of tasks required for accomplishing

the agent’s functionalities.

• Task Speciﬁcation (TSp). Speciﬁcation

through state/activity diagrams of the capabil-

ities of each agent.

2. Agent Society Model. A model of the social in-

teractions and dependencies among the agents in-

volved in the solution. Developing this model in-

volves ﬁve phases:

• Domain Ontology Description (DOD). Use of

class diagrams to describe domain categories

(concepts), actions that could affect their state

and propositions about values of categories.

• Communication Ontology Description (COD).

Use of class diagrams to describe agents’ com-

munications in terms of referred ontology, in-

teraction protocol and message content lan-

guage.

• Role Description (RD). Use of class diagrams

to show distinct roles played by agents, the

tasks involved what the roles involve, commu-

nication capabilities and inter-agent dependen-

cies in terms of services.

• Multi-Agent Structure Deﬁnition (MASD).

Use of conventional class diagrams to describe

the structure of solution agent classes at the so-

cial level of abstraction.

• Multi-Agent Behaviour Description (MABD).

Use of activity diagrams or state-charts to de-

scribe the behaviour of individual agents at the

social level of abstraction.

3. Implementation Model. A model of the solution

architecture in terms of classes, methods, deploy-

ment conﬁguration, code and testing directives; it

is composed of seven phases, the ﬁrst two are per-

formed at both the multi-agent (whole agent soci-

ety) and single-agent abstraction level:

• Single-Agent Structure Deﬁnition (SASD).

Use of conventional class diagrams to describe

the structure of solution agent classes at the im-

plementation level of abstraction.

• Single-Agent Behaviour Description (SABD).

Use of activity diagrams or state-charts to de-

scribe the behaviour of individual agents at the

implementation level of abstraction.

• Deployment Conﬁguration (DC). Use of de-

ployment diagrams to describe the allocation of

agents to the available processing units and any

constraints on migration, mobility and conﬁgu-

ration of hosts and agent-running platforms.

• Code Reuse (CR). A library of patterns with as-

sociated reusable code to allow the automatic

generation of signiﬁcant portions of code.

• Code Completion (CC). Source code of the tar-

get system that is manually completed.

• Agent Test. Veriﬁcation of the single behaviour

with regards to the original requirements of the

system solved by the speciﬁc agent.

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

102

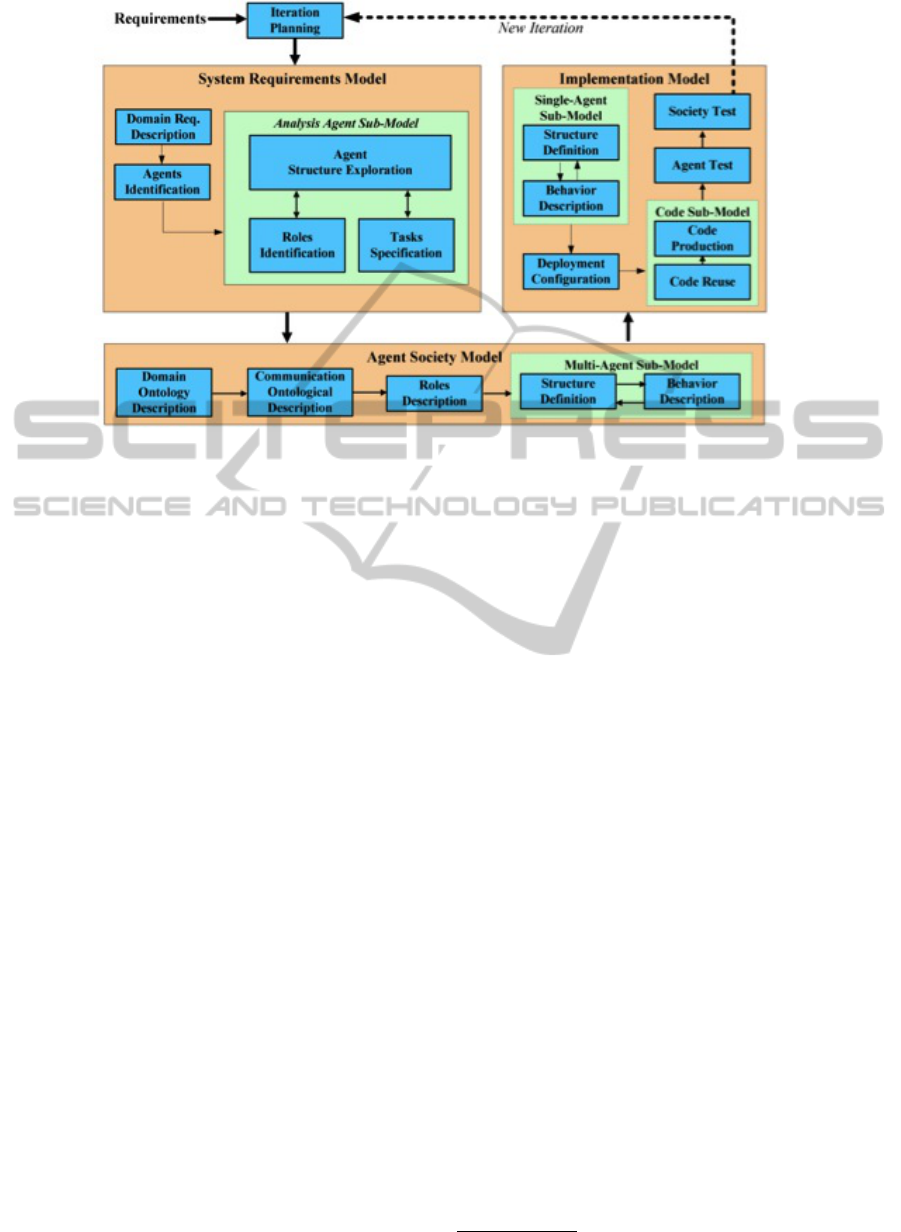

Figure 2: PASSI2 models and phases.

• Society Test. Validation of the correct interac-

tion of the agents, performed in order to verify

that they actually concur in solving problems

that need cooperation. This test is done in the

most real situation that can be simulated in the

development environment.

The Iteration Planning activity is positioned at a

higher level of abstraction, above the logical sequence

of models and phases. It is at the base of every iter-

ative incremental process and in our case consists of

the analysis of the Problem Statement and all the other

available documents (for instance outputs of previous

iterations) in order to identify the requirements (and

related risks) that should be faced in the next iteration

(that is considered as the nineteen phase).

An important concept in PASSI2 is that of “role”.

A role is deﬁned by the set of responsibilities deﬁning

the subjective behaviour of an agent in an interaction

(conversation) with another one or in providing some

service in one or more scenarios; an agent may play

one or more roles at the same time. Roles are very im-

portant because they are considered a useful paradigm

that can used to deﬁne the different patterns in a sys-

tem (Puviani et al., 2014a).

Two are the main phases that involved roles: the

Role Identiﬁcation phase, into the System Require-

ments Model (Figure 3), and the Role Description

phase into the Agent Society Model (Figure 4).

The Roles Identiﬁcation phase produces a set of

sequence diagrams that specify scenarios from the

agents’ identiﬁcation use case diagram. In this phase,

the Catalogue of Patterns is added as input, in or-

der to create speciﬁc roles able to describe an adap-

tive system. In this context, it is also particularly

important to investigate all the paths involving inter-

agent communications, and fortunately some guide-

lines can be considered: (1) such communication

paths are shown in the AId diagram by the presence of

a relationship between two agents with the communi-

cation/instantiation stereotype; (2) each relationship

may belong to several scenarios; (3) for each relation-

ship in a speciﬁc scenario of the AId diagram, there

is at least one message in the sequence diagram of

the RId phase. In that phase, roles are identiﬁed in

the sense that agents’ external manifestations are cap-

tured in sequence diagrams where agents participate

playing one or more roles concurring to the evolution

of the system dynamic.

Moreover, the Catalogue of patterns is introduced

in the Roles Description phase. This phase consists

in modelling the lifecycle of each agent, looking at

the roles it can play, the collaboration it needs, the

communications in which it participates and, with the

inclusion of the Catalogue of Patterns, the adaptive

system to develop. In the RD diagram all the rules

of the society, laws of the society and the domain in

which the agent operates are introduced. They could

be expressed in plain text or OCL

in order to have a

more precise, formal description.

In PASSI2, a role is a portion of the social be-

haviour of an agent that is characterized by some

speciﬁcations such as a set of attributes (for exam-

ple responsibilities, permissions, activities, and proto-

cols) or providing a functionality/service. Most com-

monly, roles are devoted to provide services, share

Object Constraint Language

IntegratingAdaptationPatternsintoAgentMethodologiestoBuildSelf-adaptiveSystems

103

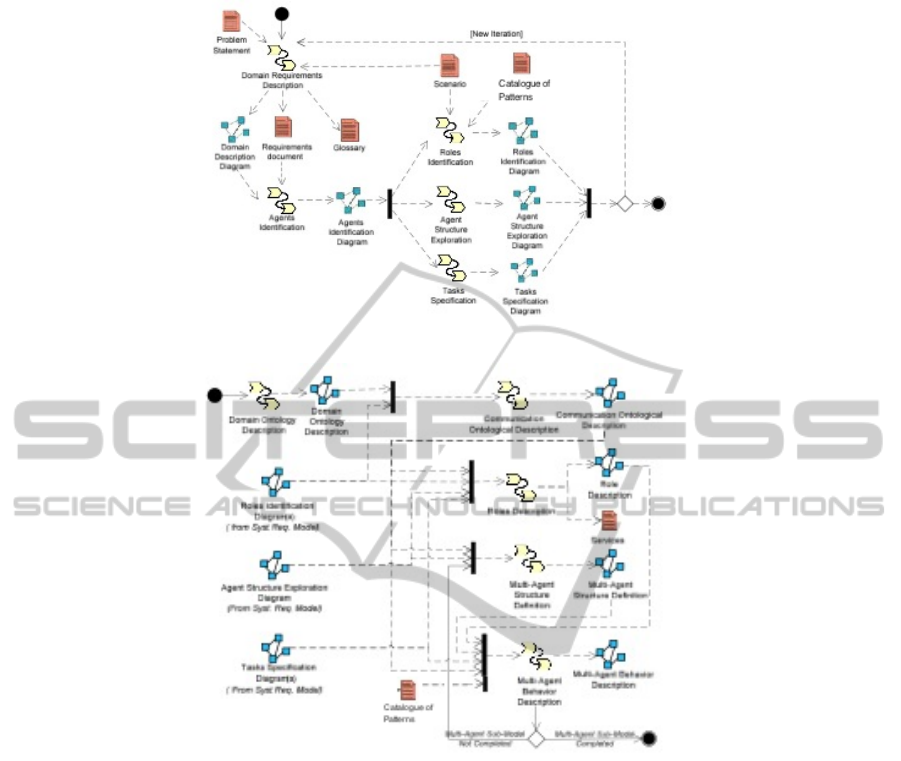

Figure 3: PASSI2: System Requirements Model activities and resulting work products.

Figure 4: PASSI2: Agent Society Model activities and resulting work products.

resources or achieving a goal (this is always related

to ensuring the fulﬁlment of the functionalities that

can be deducted from the use cases assigned to the

agent). The deﬁned RD diagram is a class diagram

where roles are classes grouped in packages repre-

senting agents. Roles can be connected by relation-

ships representing changes of role, by dependencies

for a service or the availability of a resource and by

communications.

Speciﬁcally, in the Agent Society Model, the Cat-

alogue of Patterns is introduced for the Multi-Agent

Behaviour Description (MABD), where agents are

described in terms of their behaviour both from the

social-exterior point of view and the internal ﬂow of

control, as we can see in Figure 4. Here the Catalogue

is necessary to identify which role to choose to obtain

the system adaptation in the considered environment.

PASSI2 does not have a real Code Production

Phase, but each programmer has to complete the code

of the application starting from the design of the

skeletons produced by the methodology.

The PASSI2 design methodology is supported by

a speciﬁc design tool, granting a large number of au-

tomatisms during the design, and a pattern reposi-

tory for the reuse practice; these are determinant in

cutting down the time and cost for developing sys-

tems (Chella et al., 2004). The toolkit is PTK (PASSI

ToolKit). The PTK add-in can generate the code for

all the skeletons of the agents, tasks and other classes

included in the project. The pattern repository con-

sists of a serie of reusable portions of agents and tasks.

The repository also includes a list of tasks that can be

applied to existing agents.

5 RELATED WORK

In literature, many approaches on patterns for self-

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

104

adaptation exist, like the one of (Ramirez and Cheng,

2010), (Cabri et al., 2011) and (Weyns et al., 2012).

However, in this paper we do not focus on the use

of adaptation pattern to create self-adaptive systems,

but on the deﬁnition of a useful methodology to cre-

ate this kind of systems, with the aid of the patterns’

approach.

In the last years, engineering research has tackled

a well-deﬁned problem and has carefully selected and

combined existing solution into a comprehensive de-

velopment framework for self-adaptive systems.

A lot of projects like MADAM project

and

the MUSIC project

tried to address adaptation in

different scenarios, from both the theoretical and

the practical perspective. For example, the MU-

SIC project (Hallsteinsen et al., 2012) would like

to introduce a model-driven development methodol-

ogy (Geihs et al., 2009) for self-adaptive context-

aware applications. Different from us, this approach

was to write a new methodology instead of exploiting

the power of existing ones.

Other approaches as CARISMA (Capra et al.,

2003) and RAINBOW (Garlan et al., 2004) propose

self-adaptation middleware or architectural styles to

develop self-adaptive software, but they do not pro-

pose any methodology that will guide developers

from the collection of requirements to implementa-

tion. Moreover, MOCAS (Model of Components

for Adaptive Systems) propose a generic state-based

component model which enables the self-adaptation

of software components along with their coordina-

tion (Ballagny et al., 2009); but like the other ap-

proaches, there are not concrete guidelines, consid-

ered as a methodology.

6 CONCLUSIONS

In this paper, we propose an approach to enrich

methodologies for addressing adaptation in building

self-adaptive systems. We considered in particular

some speciﬁc agent-oriented methodologies, and we

introduced in these the Catalogue of Patterns that will

help in deﬁning self-adaptive systems. We think that

this enrichment can be done in any methodologies for

building adaptive systems. The possibility of easily

inserting the Catalogue of Patterns inside a method-

Mobility and Adaptation-enabling Middleware, sup-

ported by the European Union under research grant 004159

lasting from September 2004 to March 2007.

Self-Adapting Applications for Mobile Users in Ubiq-

uitous Computing Environments, supported by the Euro-

pean Union under research grant IST-035166 lasting from

October 2006 to March 2010.

ology (using the SPEM notation), permits harnessing

the power of the selected methodologies.

As an ongoing work we are testing these modiﬁed

methodologies in different scenarios, to have quanti-

tative and qualitative results of the effectiveness of the

methodologies. Moreover, as future work, we would

like to complete the methodologies process, introduc-

ing the Catalogue of Patterns also in the supporting

tools, in order to have all the steps completed. Then

we will create a framework that will permits match-

ing the methodologies’ concepts into agents’ infras-

tructures.

ACKNOWLEDGEMENTS

The work is supported by the “Linea strategica

SMART ICT FOR SMART SOCIAL WORLDS” of

the Universit

a di Modena e Reggio Emilia.

REFERENCES

aliCE Research Group et al. (2009). Soda home page.

Ballagny, C., Hameurlain, N., and Barbier, F. (2009).

Mocas: A state-based component model for self-

adaptation. In Self-Adaptive and Self-Organizing Sys-

tems, 2009. SASO’09. Third IEEE International Con-

ference on, pages 206–215. IEEE.

Bergenti, F., Gleizes, M.-P., and Zambonelli, F. (2004).

Methodologies and software engineering for agent

systems: the agent-oriented software engineering

handbook, volume 11. Springer.

Bernon, C., Gleizes, M.-P., Peyruqueou, S., and Picard, G.

(2003). Adelfe: A methodology for adaptive multi-

agent systems engineering. In Engineering Societies

in the Agents World III, pages 156–169. Springer.

Bresciani, P., Perini, A., Giorgini, P., Giunchiglia, F., and

Mylopoulos, J. (2004). Tropos: An agent-oriented

software development methodology. Autonomous

Agents and Multi-Agent Systems, 8(3):203–236.

Cabri, G., Puviani, M., and Leonardi, L. (2009). The mar&a

methodology to develop agent systems. In ICAART,

pages 501–506.

Cabri, G., Puviani, M., and Zambonelli, F. (2011). Towards

a taxonomy of adaptive agent-based collaboration pat-

terns for autonomic service ensembles. In CTS, pages

508–515. IEEE.

Capra, L., Emmerich, W., and Mascolo, C. (2003).

Carisma: Context-aware reﬂective middleware system

for mobile applications. Software Engineering, IEEE

Transactions on, 29(10):929–945.

Chella, A., Cossentino, M., and Sabatucci, L. (2004).

Tools and patterns in designing multi-agent systems

with passi. WSEAS Transactions on Communications,

3(1):352–358.

IntegratingAdaptationPatternsintoAgentMethodologiestoBuildSelf-adaptiveSystems

105

Cossentino, M. (2005). From requirements to code with

the passi methodology. Agent-oriented methodolo-

gies, 3690:79–106.

Cossentino, M. and Seidita, V. (2009). Passi2–going to-

wards maturity of the passi process.

DeLoach, S. A., Wood, M. F., and Sparkman, C. H. (2001).

Multiagent systems engineering. International Jour-

nal of Software Engineering and Knowledge Engi-

neering, 11(03):231–258.

Fernandez-Marquez, J. L., Serugendo, G. D. M., Snyder,

P. L., and Valetto, G. (2012). A pattern-based ar-

chitectural style for self-organizing software systems.

Drexel University, Department of Computer Science,

Tech. Rep, 6.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design Patterns. Addison Wesley, Reading (MA).

Garlan, D., Cheng, S.-W., Huang, A.-C., Schmerl, B., and

Steenkiste, P. (2004). Rainbow: Architecture-based

self-adaptation with reusable infrastructure. Com-

puter, 37(10):46–54.

Geihs, K., Reichle, R., Wagner, M., and Khan, M. U.

(2009). Modeling of context-aware self-adaptive ap-

plications in ubiquitous and service-oriented environ-

ments. In Software engineering for self-adaptive sys-

tems, pages 146–163. Springer.

Hallsteinsen, S., Geihs, K., Paspallis, N., Eliassen, F., Horn,

G., Lorenzo, J., Mamelli, A., and Papadopoulos, G. A.

(2012). A development framework and methodology

for self-adapting applications in ubiquitous comput-

ing environments. Journal of Systems and Software,

85(12):2840–2859.

Henderson-Sellers, B. and Giorgini, P. (2005). Agent-

oriented methodologies. IGI Global.

Kazhamiakin, R., Paolucci, M., Pistore, M., and Raik,

H. (2010). Modelling and automated composition

of user-centric services. In On the Move to Mean-

ingful Internet Systems: OTM 2010, pages 291–308.

Springer.

Lavinal, E., Desprats, T., and Raynaud, Y. (2006). A

generic multi-agent conceptual framework towards

self-management. In Network Operations and

Management Symposium, 2006. NOMS 2006. 10th

IEEE/IFIP, pages 394–403. IEEE.

Marconi, A., Pistore, M., and Traverso, P. (2008). Au-

tomated composition of web services: the astro ap-

proach. IEEE Data Eng. Bull., 31(3):23–26.

Mayer, P., Klarl, A., Hennicker, R., Puviani, M., Tiezzi,

F., Pugliese, R., Keznikl, J., and Bure, T. (2013).

The autonomic cloud: a vision of voluntary, peer-2-

peer cloud computing. In Self-Adaptation and Self-

Organizing Systems Workshops (SASOW), 2013 IEEE

7th International Conference on, pages 89–94. IEEE.

McKinley, P. K., Sadjadi, S. M., Kasten, E. P., and Cheng,

B. H. (2004). Composing adaptive software. Com-

puter, 37(7):56–64.

Morandini, M. et al. (2010). On the use of the Goal-

Oriented Paradigm for System Design and Law Com-

pliance Reasoning. In iStar, volume 586, pages 71–

75. CEUR-WS.org.

Object Management Group (1997). SPEM. http://

www.omg.org/technology/documents/formal/spem.htm.

Padgham, L. and Winikoff, M. (2005). Developing intel-

ligent agent systems: A practical guide, volume 13.

John Wiley & Sons.

Pav

on, J., G

omez-Sanz, J. J., and Fuentes, R. (2005).

The ingenias methodology and tools. Agent-oriented

methodologies, 9:236–276.

Puviani, M., Cabri, G., and Leonardi, L. (2014a). En-

abling self-expression: the use of roles to dynamically

change adaptation patterns. In FOCAS 2014. IEEE

Computer Society.

Puviani, M., Cabri, G., and Zambonelli, F. (2013). A tax-

onomy of architectural patterns for self-adaptive sys-

tems. In Proceedings of the International C* Confer-

ence on Computer Science and Software Engineering,

pages 77–85. ACM.

Puviani, M., Cabri, G., and Zambonelli, F. (2014b). Agent-

based simulations of patterns for self-adaptive sys-

tems. In ICAART 2014 - Proceedings of the 6th Inter-

national Conference on Agents and Artiﬁcial Intelli-

gence, Volume 1, ESEO, Angers, Loire Valley, France,

6-8 March, 2014, pages 190–200. IEEE Computer So-

ciety.

Puviani, M., Cossentino, M., Cabri, G., and Molesini, A.

(2010). Building an agent methodology from frag-

ments: the mensa experience. In Proceedings of the

2010 ACM Symposium on Applied Computing, pages

920–927. ACM.

Puviani, M., Serugendo, G. D. M., Frei, R., and Cabri,

G. (2009). Methodologies for self-organising sys-

tems: a spem approach. In Proceedings of the 2009

IEEE/WIC/ACM International Joint Conference on

Web Intelligence and Intelligent Agent Technology-

Volume 02, pages 66–69. IEEE Computer Society.

Puviani, M., Serugendo, G. D. M., Frei, R., and Cabri, G.

(2012). A method fragments approach to methodolo-

gies for engineering self-organizing systems. ACM

Transactions on Autonomous and Adaptive Systems

(TAAS), 7(3):33.

Ramirez, A. and Cheng, B. (2010). Design patterns for

developing dynamically adaptive systems. In Pro-

ceedings of the 2010 ICSE Workshop on Software En-

gineering for Adaptive and Self-Managing Systems,

pages 49–58. ACM.

Seidita, V., Cossentino, M., and Gaglio, S. (2009). Us-

ing and extending the spem speciﬁcations to repre-

sent agent oriented methodologies. In Agent-Oriented

Software Engineering IX, pages 46–59. Springer.

Weyns, D., Malek, S., Andersson, J., and Schmerl, B.

(2012). Introduction to the special issue on state of

the art in engineering self-adaptive systems. Journal

of Systems and Software, 85(12):2675–2677.

Zambonelli, F., Jennings, N. R., and Wooldridge, M.

(2003). Developing multiagent systems: The gaia

methodology. ACM Transactions on Software Engi-

neering and Methodology (TOSEM), 12(3):317–370.

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

106
