Mean BoF per Quadrant

Simple and Effective Way to Embed Spatial Information in Bag of Features

Joan Sosa-Garc

ıa and Francesca Odone

Dipartimento di Informatica, Bioingegneria, Robotica e Ingegneria dei Sistemi,

Universit

a degli Studi di Genova, Genova, Italy

Keywords:

Content-based Image Retrieval, Image Description, Embedding Space Information.

Abstract:

This paper proposes a new approach for embedding spatial information into a Bag of Features image descrip-

tor, primarily meant for image retrieval. The method is conceptually related to Spatial Pyramids but instead of

requiring ﬁxed and arbitrary sub-regions where to compute region-based BoF, it relies on an adaptive proce-

dure based on multiple partitioning of the image in four quadrants (the NE, NW, SE, SW regions of the image).

To obtain a compact and efﬁcient description, all BoF related to the same quadrant are averaged, obtaining

four descriptors which capture the dominant structures of the main areas of the image, and then concatenated.

The computational cost of the method is the same as BoF and the size of the descriptor comparable to BoF,

but the amount of spatial information retained is considerable, as shown in the experimental analysis carried

out on benchmarks.

1 INTRODUCTION

In recent years, Content-Based Image Retrieval

(CBIR) has been a very active research area (Liu et al.,

2007; Rui et al., 1999). Besides its natural applica-

tion to image datasets browsing, CBIR has been ex-

ploited in diverse domains, including location recog-

nition (Crandall et al., 2009), image compression (Wu

et al., 2014; Dai et al., 2012), Structure from Motion

(Gherardi et al., 2011; Agarwal et al., 2009). Com-

mon to all these application domains is the need to

represent, store, and access a huge number of im-

ages. Besides that, different applications pose differ-

ent challenges and provide different insights.

Therefore, when designing image descriptors for

CBIR engines, one must be aware about the pecu-

liarities of the target application. For instance, in

partial-duplicate image search the goal is to identify

images containing the same scene captured from dif-

ferent point of views or variants of the query image

altered in scale, contrast, containing occlusions or de-

rived by cropping. In this case very accurate image

descriptors are required, possibly robust to geomet-

ric transformations, noise, and appearance changes.

Instances of this problem may be found in a variety

of applications, ranging from copyright violation de-

tection to place localization. Typically, this problem

has been addressed by using local feature matching,

which is not appropriate for large-scale datasets. In-

stead, pure semantic-search grounds on the idea that

query and target images share the same concept more

than content. Usually it addresses the problem of ﬁnd-

ing images containing objects of the same category to

the query or somehow semantically related. In this

setting the image descriptor should be able to capture

the essence of the content, ideally discarding the in-

ﬂuence of the speciﬁc instance.

Today most CBIR state-of-the-art methods rely on

the Bag-of-Features (BoF) representations (Sivic and

Zisserman, 2003; Nister and Stewenius, 2006; Csurka

et al., 2004) or its derivatives (Perronnin et al., 2010;

Lazebnik et al., 2006; Boureau et al., 2011). This ap-

proach has established a general framework of image

retrieval. The n dataset images are scanned for rep-

resentative elements and a descriptor is computed for

each element (feature extraction). These descriptors

are then clustered into a vocabulary of visual words

(visual dictionary), and each descriptor is mapped to

the closest visual word (vector quantization). An im-

age is then represented as a bag of visual words (im-

age representation), and these image descriptors will

be used later for retrieval (search) through an appro-

priate similarity measure. The main idea of using the

BoF model is to mimic text retrieval systems, and in

particular to exploit the inverted ﬁle indexing struc-

ture (Zobel et al., 1998), which is efﬁcient to compute

Minkowski distance (Nister and Stewenius, 2006) be-

tween high dimensional sparse vectors.

The main drawback of the BoF model is that it

disregards all information about the spatial distribu-

297

Sosa-Garcia J. and Odone F..

Mean BoF per Quadrant - Simple and Effective Way to Embed Spatial Information in Bag of Features.

DOI: 10.5220/0005281002970304

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (VISAPP-2015), pages 297-304

ISBN: 978-989-758-090-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

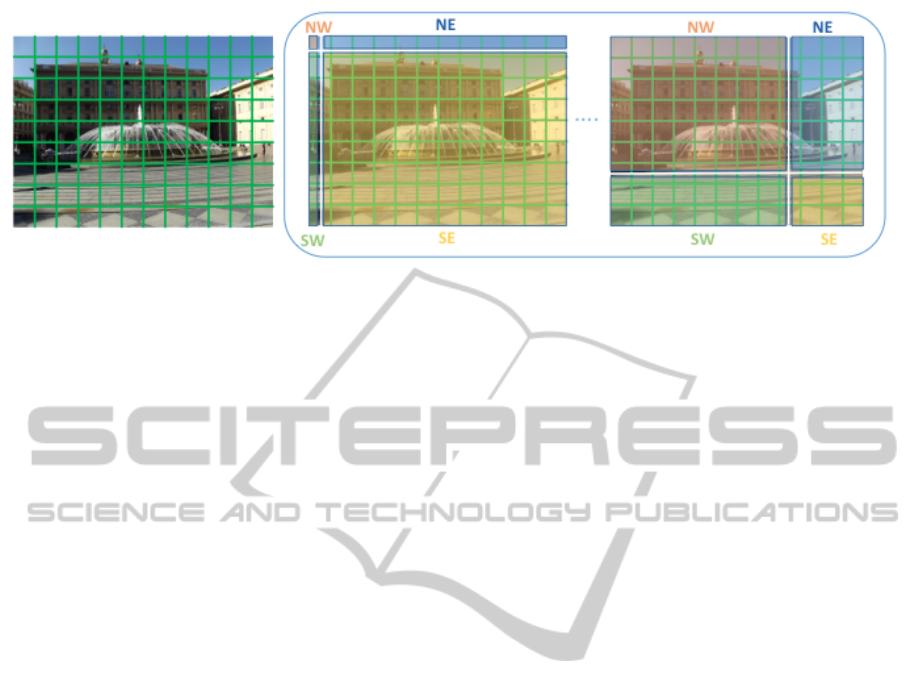

Figure 1: Image representation based on MBoFQ approach. A dense grid of local features is considered (left). Then different

image partitioning in 4 quadrants are considered (right): each quadrant is associated with a different color and a label (NW

- north west; NE - north east; SW - south west; SE - south east). A BoF descriptor is computed at each quadrant for all

possible partitioning. An average of all BoF derived from each quadrant is obtained. Finally, a global vector concatenates the

4 quadrant descriptors.

tion of the visual words, which greatly reduces the de-

scriptive power of the image representation and thus

leads to inaccurate search results. Many approaches

have been proposed to improve different stages of the

classical pipeline based on BoF. To increase the quan-

tization efﬁciency, hierarchical quantization (Nister

and Stewenius, 2006), soft assignment (Philbin et al.,

2008) and Hamming embedding (J

egou et al., 2010a)

have been proposed. Alternative one may resort to

quantization techniques producing very compact rep-

resentations (e.g. 20 bytes), such as Fisher Kernel

(Jaakkola and Haussler, 1999) or Vector of locally

Aggregated Descriptors VLAD (J

egou et al., 2010b),

followed by dimensionality reduction and appropriate

indexing (Jegou et al., 2011). These recent methods

provide excellent search accuracy with a reasonable

vector dimensionality. However, these methods can-

not work well in partial-duplicate image search where

the object of interest only takes a small image region

with cluttered background.

Some other schemes, particularly effective for

partial-duplicate image search, improve the image

search performance in the post-processing stage.

RANSAC and neighboring-feature geometric consis-

tency veriﬁcation have been proposed to re-rank the

results returned from BoF model and demonstrated

that the spatial constraints consistently improve the

search quality (Jegou et al., 2008; Philbin et al.,

2007). This step is computationally expensive, since

it is applied on a large number of local features, and

is therefore non suitable for large scale image re-

trieval. Besides the above spatial veriﬁcation tech-

niques, query expansion is another important post-

processing strategy. It reissues the initial highly

ranked results to generate new queries so as to im-

prove the recall performance (Chum et al., 2007; Kuo

et al., 2009).

Incorporating spatial information a priori into the

image descriptor is another relevant solution to im-

prove the retrieval accuracy. There exist several pa-

pers in the literature for integrating spatial informa-

tion into the image content descriptor (J

egou et al.,

2010a; Zhou et al., 2010), which will be described in

some details in the next section, where we also high-

light the beneﬁts of our contribution.

In this paper we propose a new approach to embed

spatial information into the ﬁnal image descriptors

for image retrieval tasks. The method we propose,

the Mean Bag-of-Features per Quadrant (henceforth

MBoFQ) is inspired by the reasoning behind Spatial

Pyramid Matching (SPM)(Lazebnik et al., 2006) but,

instead of considering ﬁxed hand crafted image par-

titioning, it considers multiple partitioning of the im-

age in a four-cell grid and then it averages contribu-

tions obtained by the different partitioning. MBoFQ

is more accurate than the BoF model, but still appro-

priate for semantic search. We adopt multiple parti-

tioning of the image in four quadrants — north east

(NE), north west (NW), south east (SE), south west

(SW) — obtained by varying the origin of the consid-

ered reference system across the position of all possi-

ble image features (see Figure 1 for a visual impres-

sion of the concept). This multiple partitioning allows

us to discover the different structures spread on the

image, encode their relationships without the need to

choose a ﬁxed hand crafted partitioning before hand

(as it is common practice in Spatial Pyramid models

(Lazebnik et al., 2006)). All these partitioning pro-

duce a set of intermediate descriptors which are then

averaged in a single low dimensional vector. The pro-

posed approach can easily be used in conjunction with

inverted ﬁle structure and its performances can be fur-

ther boosted by adopting appropriate similarity mea-

sures (J

egou and Chum, 2012).

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

298

The remainder of this paper is organized as fol-

lows: Section 2 reviews state-of-the-art on encoding

spatial information into image descriptors. Section 3

describes the proposed method. Section 4 reports an

exhaustive experimental analysis on benchmark im-

age retrieval datasets, while Section 5 provides a ﬁnal

discussion.

2 RELATED WORKS ON SPATIAL

INFORMATION EMBEDDING

Integrating information about the spatial distribution

of visual words into the image descriptor is a chal-

lenging task because of the combinatorial number of

local features involved. However, several methods

have been proposed in the last few years: the authors

of (Wang et al., 2008) ﬁrst cluster the salient regions

into groups of neighbours, providing a set of visual

constellations and second by representing each con-

stellation with a BoF model. In (Sivic et al., 2005),

the authors extend the BoF vocabulary to include dou-

blets, i.e. pairs of visual words which co-occur within

a local spatial neighborhood. Similarly, correlograms

(Savarese et al., 2006) describe pairwise features in

increasing neighborhoods or by appending the fea-

ture coordinates to their descriptors before building

the dictionary (Mbanya et al., 2011). In (Yang et al.,

2007), a descriptor is proposed to model the spatial re-

lationship of visual words, by computing the average

of the spatial distribution of a cluster center (called

keyton) relative to all the key points of another cluster

center. In (Yuan et al., 2007) the authors propose a

higher-level lexicon, i.e.visual phrase lexicon, where

a visual phrase is a set of spatially co-occurring visual

words that form a pattern. This higher-level lexicon

is less ambiguous than the lower-level one. Instead,

∆-TSR (Ho

ang et al., 2010), describes triangular spa-

tial relationships among visual entities with the aim

of being invariant to image translation, rotation, scale

and ﬂipping. Many of these methods produce high-

dimensional descriptors. Also, some approaches are

very speciﬁc and appropriate for partial-duplicate im-

age search (J

egou et al., 2010a; Zhou et al., 2010),

therefore their use for semantic-search application is

not straightforward.

Other important approaches describe the spatial

layout into a hierarchy of local features. Bouchard et

al. (Bouchard and Triggs, 2005) propose a generative

model that encodes the geometry and appearance of

generic visual object categories as a hierarchy of parts

(the lowest level are local features), with probabilistic

spatial relations linking parts to subparts. The Spa-

tial Pyramid (SP) (Lazebnik et al., 2006) partitions

the image into increasingly ﬁner spatial subregions

and computes a BoF vector from each sub-region. Al-

though different image sub-divisions have been con-

sidered, typically, 2

× 2

subregions, l = 0, 1,2 are

used. All the BoF vectors are weighted according to

their level on the pyramid and concatenated to build

the ﬁnal image descriptor. The SPM model is a com-

putationally efﬁcient extension of the orderless BoF

model, and has shown very promising performance

on many image classiﬁcation and retrieval tasks. The

main drawback of SP is related to the dimension of the

image descriptor (21K for a 2 level pyramid, being K

the vocabulary size), and for this reason SP is usually

not applied to retrieval problems. Also, a hand crafted

image partitioning is not always appropriate unless

we know in advance the data we are considering suf-

fer from some spatial bias. It is worth mentioning the

fact that SP has instead proved very effective for im-

age classiﬁcation. In this domain various extensions

to the scheme have been proposed (Boureau et al.,

2011; Yang et al., 2009; Feng et al., 2011; Fanello

et al., 2014).

The method we propose is related to the original

Spatial Pyramid, as we use the same manner of parti-

tioning the image into quadrants and obtain a descrip-

tor for each quadrant. In our method, we only divide

the image in four cells (equivalent to the ﬁrst level of

the pyramid), but this four-cell grid is moved among

all local descriptors of the dense grid providing mul-

tiple 4-cell partitioning which capture the dominant

structure of the image content and are not inﬂuenced

by small changes in the scene. The size of the ﬁnal

descriptor is much smaller than a SP (4K instead than

21K), but the amount of spatial information retained

is very meaningful.

3 THE PROPOSED IMAGE

DESCRIPTOR

In this section, we present the main principles of our

approach for incorporating spatial information into a

BoF image descriptor. We ﬁrst start by summarizing

the general pipeline we refer to, then we describe our

image descriptor, also discussing implementation and

computational complexity issues.

3.1 The BoF Pipeline

We ﬁrst review the stages of the standard BoF pipeline

for what concerns data representation.

Local Features. In general image retrieval methods

start by considering a feature detection step which se-

lects meaningful local elements. As an alternative one

MeanBoFperQuadrant-SimpleandEffectiveWaytoEmbedSpatialInformationinBagofFeatures

299

could consider a dense grid over the image, where

each cell may be seen as a local feature. Regardless

its origin, each local feature is normally associated

with a local feature descriptor such as SIFT. Dense

sampling usually inserts more information and more

noise within the descriptor, thus is usually adopted

primarily in image categorization (in this case noise

may be ﬁltered out by learning a discriminating func-

tion from many examples). Its main beneﬁt is that

it does not require a feature detection step and, also,

it is equally applicable to different types of images,

including the ones depicting poorly textured objects.

In what follows we simply consider we have a set of

N local features each one described by a local fea-

ture vector x

∈ R

, i = 1, ...,N. In this work we ex-

tract 128-dimensional SIFT descriptors densely over

the image (Lazebnik et al., 2006).

Quantization. In this phase we assume we have a

dictionary of visual words, which is a matrix D of size

K ×d, where K is the size of the dictionary (number of

atoms or visual words) and d is the dimensionality of

the local descriptor. This dictionary is in general pre-

computed on an appropriate training set of images, for

instance by clustering local features computed over

the training data. The dictionary visual words are in

this case the clusters centroids. At run time, each lo-

cal feature is assigned to one visual word, via approx-

imate nearest neighbor search (Csurka et al., 2004;

Sivic and Zisserman, 2003). In this work we consider

a hard assignment, where one local feature is associ-

ated with one visual word only. This choice produces

a considerable sparseness, and introduces some level

of arbitrarity.

3.2 Mean BoFs per Quadrant

In this section we describe the MBoFQ method for

representing the image content developed with the

purpose of retaining information on the spatial dis-

tribution of local features, and at the same time pro-

ducing a relatively compact feature vector.

Figure 1 provides a pictorial description of the

procedure, for each local feature x

extracted in the

image, we set its position p

on the image plane as

the origin of a 2D reference system. For each p

we partition the image according to such a refer-

ence system obtaining a partitioning in 4 quadrants

= {NE

,NW

,SE

,SW

}. We then compute a BoF

representation for each quadrant, producing a BoF

vector which embeds information on the different im-

age structures belonging to the quadrant:

∈ R

q ∈ {NE,NW,SE, SW}, i = 1 . . . ,N.

To obtain a compact descriptor, we average all BoF

vectors related to each quadrant, as follows

avg

∑

i=1

. (1)

The ﬁnal image global feature vector MBoFQ ∈ R

is deﬁned as follows

MBoFQ = [avg

,avg

The proposed description captures adaptively the

dominant structure of image content on the four main

regions of the image. This represents an improvement

with respect to SPM because we are not considering a

single ﬁxed partition of an individual image on a ﬁxed

point, instead, we consider multiple possible parti-

tioning. The immediate beneﬁt for this is the reduced

risk of arbitrarily dividing elements belonging to the

same object; also our description is more robust to

small view point changes, while it gives more weight

to persistent structures.

Descriptor normalization. In each step of the al-

gorithm we treat each quadrant of the image partition

as a subimage. In order to avoid the negative effect

of combining vectors coming from subimages with

different sizes, after computation each BoF vector b

is normalized with respect to the area of the current

quadrant or subimage. The area of a quadrant is the

number of local features inside a quadrant. The ob-

tained normalized vector

is used to compute the

average description of quadrant q (as in Eq. (2)).

Implementation details. Instead of computing the

mean BoF vectors after all partitions have been pro-

duced, we simply update cumulative averages as a

new BoF vector becomes available. Let us assume we

visit the local features row-wise, At iteration i + 1 of

the algorithm, while we are considering the position

of the i +1-th feature as a reference system center, the

accumulated BoF vector of the quadrant q (avg

i+1

) it

is updated with the new BoF vector of the quadrant

i+1

), as follows:

avg

i+1

+ i · avg

i + 1

, (2)

where the ﬁnal descriptor avg

= avg

. For efﬁ-

ciency, at iteration i+1 the new vectors b

i+1

are com-

puted from the previous ones (b

) by adjusting the

contributions of the current column. b

i+1

and b

i+1

vectors are updated by adding the appropriate local

features, b

i+1

and b

i+1

are updated by subtracting the

same features.

Computational complexity. The time complexity

of the proposed approach is O(N), recalling N is the

number local features. The traditional BoF model has

also a time complexity O(N). The total number of

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

300

densely located patches N, is deﬁned by two parame-

ters: distance between each patch center and the size

of the patches (see section 4 for details). The order

of the algorithm (O (N)) is due to the fact that in the

ﬁrst step of the algorithm all local features need to be

used to obtain a BoF vector for each quadrant. Subse-

quently, when a new origin is selected, only one col-

umn at a time is considered.

4 EXPERIMENTAL ANALYSIS

In this section, we evaluate the performance of

MBoFQ with respect to the image descriptors pre-

viously introduced in the image retrieval literature.

As we focus on the intrinsic quality of our proposed

approach, we do not apply the post-processing stage

which is usually performed on a shortlist to ﬁlter out

geometrically inconsistent results. We start by re-

viewing the properties of the benchmark datasets we

consider.

4.1 Datasets

INRIA Holidays (Jegou et al., 2008) is a dataset

mainly containing high resolution holidays photos.

The images were taken on purpose to test the ro-

bustness to various attacks: image rotation, view-

point and illumination changes, blurring, etc. The

dataset includes a very large variety of scene types:

natural, man-made, water and ﬁre effects, etc. This

dataset contains 1491 holiday images of 500 objects

and scenes manually annotated to provide a ground

truth. In the experimental protocol suggested in (Je-

gou et al., 2008) one image per object/scene is used as

a query to search within the remaining 1490 images.

The retrieval performance is measured in terms of

mean average precision (mAP) over the 500 queries.

This dataset is targeted at large scale content-based

image retrieval rather than object retrieval, due to

limited changes in viewpoint and scale of each ob-

ject/scene. Queries are deﬁned only in terms of com-

plete images and not speciﬁc image regions (objects).

Note that the query image is ignored in retrieval re-

sults, unlike for Oxford 5k and Paris 6k datasets

where it is counted as a positive.

Oxford 5k (Philbin et al., 2007) consists of 5062 high-

resolution images collected from Flickr using queries

such as ”Oxford Christ Church”, ”Oxford Radcliffe

Camera” and ”Oxford”. The collection has been man-

ually annotated to generate a comprehensive ground

truth for 11 different landmarks, each represented by

5 possible queries. This gives a set of 55 queries

over which an object retrieval system can be evalu-

ated. Each of the 55 queries is deﬁned by a rectan-

gular region delimiting a building on an image. The

relevant results for a query are images of this building.

The accuracy is measured by mAP. This dataset was

originally built for object retrieval and it is quite chal-

lenging due to substantial variations in scale, view-

point, occlusions, distorsion and lighting conditions

for a single object.

Datasets for the Learning Stages. Following a com-

mon practice in the literature, we use an independent

dataset for building the vocabulary and for the other

learning stages when evaluating on Holidays dataset.

This independent dataset consists of 12502 images

(Flickr 12k) selected from Flickr100K (Philbin et al.,

2007). Instead we use Paris 6k to learn the meta-data

associated with the evaluation on Oxford 5k. Anal-

ogously to Oxford 5k, the Paris 6k dataset (Philbin

et al., 2008) consists of 6412 images collected from

Flickr by searching for particular Paris landmarks. As

it contains images of Paris it is considered to be an

independent dataset from Oxford 5k and thus com-

monly used to test effects of computing a visual vo-

cabulary from it while evaluating performance on Ox-

ford 5k.

4.2 Experimental Protocol

Features. We extract 128-dimensional SIFT descrip-

tors densely over the images similarly to (Lazebnik

et al., 2006). Each image is ﬁrst resized proportion-

ally, to a maximum value of width and height of 600

pixels. The SIFT features are extracted from densely

located patches centered at every 8 pixels on the im-

age and the size of the patches is ﬁxed as 16 × 16

pixels. The number of samples used to build the dic-

tionary is 1M, selected randomly from all local fea-

tures of the current independent dataset (Flickr 12k

or Paris 6k). Each SIFT descriptor is encoded into a

K-dimensional code vector, based on the learnt dic-

tionary, by hard vector quantization.

Improving Image Retrieval Quality. Simple tech-

niques may help improving the quality of BoF and

VLAD representations (J

egou and Chum, 2012).

These heuristics include (i) a transformation of the

original vector representation v = v − α ·

v which al-

lows a similarity measure such as the cosine transform

to appreciate the co-occurrence of missing words in

two different feature vectors; (ii) a whitening the vec-

tor space jointly with the dimensionality reduction

(PCA). The beneﬁt of these heuristics will be assessed

in the reminder of the section.

MeanBoFperQuadrant-SimpleandEffectiveWaytoEmbedSpatialInformationinBagofFeatures

301

0 0.2 0.4 0.6 0.8 1 1.2

0.25

0.3

0.35

0.4

0.45

0.5

0.55

0.6

0.65

Alpha

mAP

mAP on Holidays

MBoFQ-learnt on Flickr 12k (K=4k)

BoW-learnt on Flickr 12k (K=16k)

SPM-learnt on Flickr 12k (K=768)

0 0.2 0.4 0.6 0.8 1 1.2

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

Alpha

mAP

mAP on Oxford

MBoFQ-learnt on Flickr 12k (K=4k)

MBoFQ-learnt on Paris 6k (K=4k)

BoW-learnt on Paris 6k (K=16k)

SPM-learnt on Paris 6k (K=768)

Figure 2: Different descriptors for Holidays and Oxford 5k datasets and the effect of co-missing words (see text).

4.3 Co-missing Visual Words Effect

As a ﬁrst experiment we evaluate the appropriateness

of our descriptor on the benchmark retrieval tasks pre-

viously described and, contextually, analyze the bene-

ﬁts of applying the vector normalization heuristic de-

scribed above followed by cosine similarity (J

egou

et al., 2012). To this purpose, we mimic the exper-

imental setup of (J

egou and Chum, 2012), but using

dense extraction instead of interest-point detector. We

learn the vocabulary D and estimate the mean vector

( ¯v) on Paris 6k and Flickr 12k for the Oxford 5k tests

and on Flickr 12k for the Holidays tests. We also re-

port the performance of SPM and BoW descriptors.

The vector size is 16k for all descriptors compared in

Figure 2. Notice the value α = 0 corresponds to the

case of non-transformation and thereby are using the

original image descriptors. Figure 2 illustrates the im-

pact of the novel cosine similarity as a function of α.

It can be observed that the proposed update of the de-

scriptors produces signiﬁcant improvements: for Ox-

ford 5k dataset there is an increase in performance

of about 2.5% with respect to the original formula-

tion (corresponding to α = 0) for the best increase

(MBoFQ-learnt on Paris 6k) with α = 0.8, while for

Holidays it is almost 1% (MBoFQ-learnt on Flickr

12k) with α = 0.3. The results reported on the next

sections are those corresponding to the best value of

α for each conﬁguration.

4.4 Comparative Analysis

We now perform a comparative analysis with other

descriptors from the literature.

Full Size Feature Vectors. We ﬁrst report, in Table

Table 1: Full size image descriptors. Comparison of im-

age descriptors of medium-dimensionality (20k-D to 32k-

D). Reference results are obtained from J

egou et al. (J

egou

et al., 2012). For fair comparison, we also include our im-

plementation of VLAD, SPM and BoW using dense fea-

tures (denoted by: Dense: Method).

Method size Holidays Oxford

BoW 200k-D 200k 0.540 0.364

BoW 20k-D 20k 0.452 0.354

Improved Fisher 20 − 32k 0.626 0.418

VLAD 20 − 32k 0.526 -

VLAD+SSR 20 − 32k 0.598 0.378

Dense : V LAD 16k 0.547 0.266

Dense : SPM 16k 0.605 0.367

Dense : BoW 16k 0.390 0.117

MBoFQ

K=2048

8192 0.583 0.286

MBoFQ

K=4096

16384 0.627 0.357

1, the performance of image representation based on

our approach against the current state-of-the-art for

descriptors of medium dimensionality (20k-D to 30k-

D). It is worth emphasizing that our approach only

uses dense features and the reported results employ

sparse features. Therefore, for fair comparison we

also include our implementation of VLAD, SPM and

BoW using dense features and with vector sizes com-

parable to our descriptors. The retrieval accuracy of

the full size vectors of our approach is evaluated at

different vocabulary sizes. For the Holidays dataset,

the proposed approach is in line with the best per-

forming method (Improved Fisher), while it outper-

forms the rest of the state-of-the-art. It is worth noting

that the vector size of our descriptors is much lower

than the others. Instead, the results achieved by our

method on the Oxford 5k dataset are not as encourag-

ing. The reason is the fact our descriptor is primarily

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

302

Table 2: Low dimensional image descriptors. Compar-

ison of image descriptors of low dimensionality (128-D).

Most reference results are obtained from the paper of J

egou

et al. (J

egou et al., 2012). Multiple vocabulary (Multi-

voc) methods are from (J

egou and Chum, 2012). For fair

comparison, we also include our implementation of VLAD,

SPM and BoW using dense features (denoted by: Dense:

Method).

Method Holidays Oxford 5k

GIST 0.365 -

BoW 0.452 0.194

Improved Fisher 0.565 0.301

VLAD 0.510 -

VLAD+SSR 0.557 0.287

Multivoc-BoW 0.567 0.413

Multivoc-VLAD 0.614 -

Dense : V LAD 0.553 0.266

Dense : SPM 0.620 0.322

Dense : BoW 0.388 0.122

MBoFQ

K=2048

0.641 0.296

MBoFQ

K=4096

0.665 0.325

meant for image retrieval and not for object retrieval,

and indeed it tends to favor the overall image struc-

ture including the background information, which is

not beneﬁcial for object retrieval.

Low Dimensional Feature Vectors. Today, in im-

age retrieval, is common practice to include a dimen-

sionality reduction step over the ﬁnal feature vector.

This process helps reducing the size of the descrip-

tor, improving retrieval performances, but as an addi-

tional beneﬁt controls data redundancy. Table 2 com-

pares our descriptor with others in the literature, af-

ter a PCA and whitening procedure (see (J

egou and

Chum, 2012)). The image vectors are produced in-

dependently, using the method described in Section

3.2 and then l

normalized. The different descriptors

are reduced into vectors of 128 components by us-

ing PCA and whitening. We mimic the experimental

setup of (J

egou and Chum, 2012) (but using dense

features), and learn the vocabulary and PCA on Paris

6k for the Oxford 5k tests. For the Holidays tests it

is used Flickr 12k for learning the PCA and vocab-

ulary. Table 2 also reports the results of our imple-

mentation of VLAD, SPM and BoW with dense fea-

tures. Here, for the Holidays dataset we outperform

the best method proposed so far (Multivoc-VLAD) by

5%. It should also be noticed that Multivoc-VLAD

uses multiple vocabularies to obtain multiple VLAD

descriptions of one image; instead we use only one

vocabulary prior dimensionality reduction with a ben-

eﬁt on a reduced computation to obtained the descrip-

tor. Also, it can be observed how, in this case, di-

mensionality reduction greatly improves the accuracy

we obtained with the original descriptor. All these

elements strongly speak in favor of the appropriate-

ness of our descriptor for an image retrieval prob-

lem. Instead, here again, on the Oxford 5k our per-

formances are lower than the best performing method

(Multivoc-BoF which uses again multiple vocabular-

ies). It should be noticed, though, how the perfor-

mances of our descriptor are stable to the reduction

of dimensionality, while most of the other methods

experience a remarkable decrease of performances.

5 DISCUSSION

In this paper we presented a new approach for in-

corporating spatial information into BoF image de-

scriptors. The image was partitioned adaptively by

using different four-quadrant partitioning and BoFs

were computed within each quadrant. Then all BoF

relative to a given quadrant were averaged to obtain

a robust overall description of an image region. The

main advantage of the proposed approach is that it re-

lies on simplicity to embed spatial information within

the widely spread BoF.

Experimental analysis on two different bench-

marks highlighted how the proposed method is very

appropriate for image retrieval and quasi-duplicate

search. This opens the possibility to apply the method

to view-based localization and way-ﬁnding, which are

our reference applications. As expected, the method

is not as effective when object retrieval is needed, as

it provides a structured global picture of the image

content. Further evaluations need to be performed in

the case of large-scale image retrieval (up to 10 mil-

lion images), to asses our representation in this sce-

nario. An analysis of the possible beneﬁts of detect-

ing sparse features is necessary and will be carried out

in future works. Also, the proposed approach only

takes into consideration the quantized local features

(hard assignment) within a quadrant in the image par-

tition and build a BoF vector from this information.

The representation can be easily extended for the case

of soft assignment. Also, more effective aggregation

procedures, e.g. pooling operations, may also be ap-

plied.

REFERENCES

Agarwal, S., Snavely, N., Simon, I., Seitz, S. M., and

Szeliski, R. (2009). Building rome in a day. In ICCV,

pages 72–79. IEEE.

Bouchard, G. and Triggs, B. (2005). Hierarchical part-

based visual object categorization. In CVPR, vol-

ume 1, pages 710–715. IEEE.

MeanBoFperQuadrant-SimpleandEffectiveWaytoEmbedSpatialInformationinBagofFeatures

303

Boureau, Y., Le Roux, N., Bach, F., Ponce, J., and LeCun,

Y. (2011). Ask the locals: multi-way local pooling for

image recognition. In ICCV, pages 2651–2658. IEEE.

Chum, O., Philbin, J., Sivic, J., Isard, M., and Zisserman,

A. (2007). Total recall: Automatic query expansion

with a generative feature model for object retrieval. In

ICCV, pages 1–8.

Crandall, D. J., Backstrom, L., Huttenlocher, D., and Klein-

berg, J. (2009). Mapping the world’s photos. In Proc.

WWW, pages 761–770. ACM.

Csurka, G., Dance, C., Fan, L., Willamowski, J., and Bray,

C. (2004). Visual categorization with bags of key-

points. In (SLCV, ECCV 2004, volume 1, page 22.

Dai, L., Yue, H., Sun, X., and Wu, F. (2012). Imshare:

instantly sharing your mobile landmark images by

search-based reconstruction. In Proc. MM.

Fanello, S., Noceti, N., Ciliberto, C., Metta, G., and Odone,

F. (2014). Ask the image: supervised pooling to pre-

serve feature locality. In CVPR.

Feng, J., Ni, B., Tian, Q., and Yan, S. (2011). Geometric

-norm feature pooling for image classiﬁcation. In

CVPR, pages 2609–2704. IEEE.

Gherardi, R., Toldo, R., Garro, V., and Fusiello, A. (2011).

Automatic camera orientation and structure recovery

with samantha. ISPRS, pages 38–5.

ang, N. V., Gouet-Brunet, V., Rukoz, M., and Manou-

vrier, M. (2010). Embedding spatial information into

image content description for scene retrieval. Pattern

Recognition, 43(9):3013–3024.

Jaakkola, T. and Haussler, D. (1999). Exploiting generative

models in discriminative classiﬁers. NIPS, pages 487–

493.

egou, H. and Chum, O. (2012). Negative evidences and

co-occurences in image retrieval: The beneﬁt of pca

and whitening. In ECCV, pages 774–787.

Jegou, H., Douze, M., and Schmid, C. (2008). Ham-

ming embedding and weak geometric consistency for

large scale image search. In ECCV, pages 304–317.

Springer.

egou, H., Douze, M., and Schmid, C. (2010a). Improving

bag-of-features for large scale image search. IJCV,

87(3):316–336.

Jegou, H., Douze, M., and Schmid, C. (2011). Product

quantization for nearest neighbor search. PAMI, IEEE

Trans., 33(1):117–128.

egou, H., Douze, M., Schmid, C., and P

erez, P. (2010b).

Aggregating local descriptors into a compact image

representation. In CVPR, pages 3304–3311. IEEE.

egou, H., Perronnin, F., Douze, M., Schmid, C., et al.

(2012). Aggregating local image descriptors into com-

pact codes. PAMI, IEEE Tran. on, 34(9):1704–1716.

Kuo, Y.-H., Chen, K.-T., Chiang, C.-H., and Hsu, W. H.

(2009). Query expansion for hash-based image object

retrieval. In Proc. MM, pages 65–74. ACM.

Lazebnik, S., Schmid, C., and Ponce, J. (2006). Beyond

bags of features: Spatial pyramid matching for recog-

nizing natural scene categories. In CVPR, volume 2,

pages 2169–2178. IEEE.

Liu, Y., Zhang, D., Lu, G., and Ma, W.-Y. (2007). A sur-

vey of content-based image retrieval with high-level

semantics. Pattern Recognition, 40(1):262–282.

Mbanya, E., Gerke, S., and Ndjiki-Nya, P. (2011). Spa-

tial codebooks for image categorization. In ICMR,

page 50. ACM.

Nister, D. and Stewenius, H. (2006). Scalable recognition

with a vocabulary tree. In CVPR, volume 2, pages

2161–2168. IEEE.

Perronnin, F., S

anchez, J., and Mensink, T. (2010). Improv-

ing the ﬁsher kernel for large-scale image classiﬁca-

tion. In ECCV, pages 143–156. Springer.

Philbin, J., Chum, O., Isard, M., Sivic, J., and Zisserman, A.

(2007). Object retrieval with large vocabularies and

fast spatial matching. In CVPR, pages 1–8. IEEE.

Philbin, J., Chum, O., Isard, M., Sivic, J., and Zisserman,

A. (2008). Lost in quantization: Improving particu-

lar object retrieval in large scale image databases. In

CVPR, pages 1–8. IEEE.

Rui, Y., Huang, T. S., and Chang, S.-F. (1999). Image re-

trieval: Current techniques, promising directions, and

open issues. Journal of visual communication and im-

age representation, 10(1):39–62.

Savarese, S., Winn, J., and Criminisi, A. (2006). Discrimi-

native object class models of appearance and shape by

correlatons. In CVPR, volume 2, pages 2033–2040.

Sivic, J., Russell, B. C., Efros, A. A., Zisserman, A., and

Freeman, W. T. (2005). Discovering objects and their

location in images. In ICCV, pages 370–377.

Sivic, J. and Zisserman, A. (2003). Video google: A text

retrieval approach to object matching in videos. In

ICCV, pages 1470–1477. IEEE.

Wang, W., Luo, Y., and Tang, G. (2008). Object retrieval

using conﬁgurations of salient regions. In CIVR, pages

67–74. ACM.

Wu, X., Hu, S., Li, Z., Tang, Z., Li, J., and Zhao, J. (2014).

Comparisons of threshold ezw and spiht wavelets

based image compression methods. TELKOMNIKA.

Yang, J., Yu, K., Gong, Y., and Huang, T. (2009). Linear

spatial pyramid matching using sparse coding for im-

age classiﬁcation. In CVPR, pages 1794–1801. IEEE.

Yang, L., Meer, P., and Foran, D. J. (2007). Multiple class

segmentation using a uniﬁed framework over mean-

shift patches. In CVPR, pages 1–8. IEEE.

Yuan, J., Wu, Y., and Yang, M. (2007). Discovery of collo-

cation patterns: from visual words to visual phrases.

In CVPR, pages 1–8. IEEE.

Zhou, W., Lu, Y., Li, H., Song, Y., and Tian, Q. (2010). Spa-

tial coding for large scale partial-duplicate web image

search. In Proc. ICMM, pages 511–520. ACM.

Zobel, J., Moffat, A., and Ramamohanarao, K. (1998). In-

verted ﬁles versus signature ﬁles for text indexing.

ACMTDS, 23(4):453–490.

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

304
