Tool Facilitating Construction of Ontologies on the KIM Platform

Roman Mou

cek

1,2

, Jan Smitka

and Petr Je

zek

1,2

Department of Computer Science and Engineering, Faculty of Applied Sciences, University of West Bohemia,

Univerzitn

ı 8, 306 14 Plze

n, Czech Republic

New Technologies for the Information Society, Faculty of Applied Sciences, University of West Bohemia,

Univerzitn

ı 8, 306 14 Plze

n, Czech Republic

Keywords:

Electrophysiology, Semantic Repository, Semantic Web, Ontology, KIM Platform, KIM-OWLImport,

EEG/ERP Portal, EEGbase.

Abstract:

During research based on experimental work vast amounts of data and associated metadata are usually pro-

duced. This is also the case of experimental work using the techniques of electroencephalography and event

related potentials. The collected data and associated metadata have to be stored, analyzed, and eventually

shared among research groups. Beside storing data and metadata from experiments, it is often beneﬁcial to

collect additional information from other sources related to the kind of experiment performed. These infor-

mation sources are mostly scientiﬁc and technical publications, manuals describing the used infrastructure,

and topical discussions appearing on the web. This article deals deals with selection and use of a semantic

repository for such information sources. Development of a simple prototype ontology is shortly presented and

a tool that facilitates construction of ontologies on the KIM platform is described. Sets of test documents are

used to verify the functionality of the tool.

1 INTRODUCTION

During research based on experimental work vast

amounts of data and associated metadata are usu-

ally produced. This is also the case of experimen-

tal work using the techniques of electroencephalogra-

phy (EEG) and event related potentials (ERP). The

collected data and associated metadata have to be

stored, analyzed and eventually shared among re-

search groups.

For performing electrophysiological experiments

our research group (Neuroinformatics research group,

2014) uses the software and hardware infrastructure

described in (Moucek et al., 2014). Experimental data

and metadata are stored in EEG/ERP Portal (EEG-

base) (Jezek and Moucek, 2012) that is available as

an online tool (Neuroinformatics research group, Uni-

versity of West Bohemia, 2014) for storage, manage-

ment, and sharing of electrophysiological data. These

data and metadata, enriched by additional semantic

constructions written as a part of code annotations,

can be also published as dump ﬁles by using the lan-

guages of the Semantic Web. Through the use of

these open standards for data exchange and subse-

quent integration of the EEG/ERP Portal into the Neu-

roscience Information Framework (NIF) (Gupta et al.,

2008) the portal data are available to other researchers

via both the EEG/ERP portal and NIF interfaces.

Beside storing data and metadata from experi-

ments, it is often beneﬁcial to collect additional in-

formation from other sources related to the kind of

experiment performed. These information sources are

scientiﬁc and technical publications, manuals describ-

ing the used infrastructure, and topical discussions ap-

pearing on the web. Search in these sources is not

easy. Leaving aside the overall number of these in-

formation sources, other troubles come with different

terminology used by individual authors. Individual

facts can be even indicated by using different key-

words. It often happens that it is necessary to refor-

mulate the search query several times and enter dif-

ferent keywords to ﬁnd desired information.

The aim of this work is to ﬁnd a suitable solution

for aggregating, storing and searching unstructured

electrophysiological data (mostly in the form of text

documents) that contain additional, supporting or ex-

plaining information related to the experimental work

conducted. The secondary aim is to use up and/or

extend the already existing description of the domain

and use knowledge of the Semantic Web languages

and technologies.

The article is organized in the following way. Sec-

659

Mou

cek R., Smitka J. and Ježek P..

Tool Facilitating Construction of Ontologies on the KIM Platform.

DOI: 10.5220/0005295806590665

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2015), pages 659-665

ISBN: 978-989-758-068-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

tion 2 shortly introduces the basic terminology, lan-

guages, and technologies of the Semantic Web to en-

sure that even the reader unfamiliar with the Semantic

Web could follow the text. In the next section appro-

priate repositories for storing semantic data that en-

able users to use full-text search are compared. The

basic features of the selected semantic repository are

also described. Section 4 completes requirements on

the documents stored in the selected semantic reposi-

tory and introduces a part of the domain ontology that

is used to describe domain knowledge. Section 5 de-

scribes a tool named KIM-OWLImport that was cre-

ated to facilitate the ontology development. The next

section presents the veriﬁcation process and results of

full-text search when using the domain ontology and

the KIM-OWLIMport tool. The last section summa-

rizes the whole work and outlines the possible further

development of the implemented solution.

2 STATE OF THE ART

This section very brieﬂy introduces the basic termi-

nology used in the Semantic Web. At ﬁrst, it is im-

portant to mention that the initial idea of the Semantic

Web has been continuously changing from the very

complex view of this phenomenon as an organized

layered system of standards, languages, and technolo-

gies to the practical (and often separate) use of spe-

ciﬁc resources.

RDF (Miller and Manola, 2004) is a language for

representation of knowledge about sources. These

sources can be identiﬁed and referenced via their Uni-

form Resource Identiﬁer (URI) in the WWW net-

work. Knowledge is then organized as a graph struc-

ture and represented by triples (subject, predicate, ob-

ject). RDF schema (RDFs) adds a type system to

RDF; it is possible to deﬁne a hierarchy of classes.

Classes and properties deﬁned by RDFS can be found

in (Guha and Brickley, 2004).

Web Ontology Language (OWL) is a language

based on description logic that provides means for ex-

pressing richer semantic relationships. It is used for

creating ontologies. Documents in RDF and OWL

can be stored in various syntaxes, for example RD-

f/XML, OWL/XML or Turtle. While the RDF lan-

guage was generally well adopted by a larger com-

munity, the OWL language due to its complexity is

understandable to a substantially smaller community

of experts.

Semantic repositories store Semantic Web data in

RDF graphs. These data can be queried using spe-

ciﬁc query languages. The most used language is the

SPARQL language (Harris and Seaborne, 2013) that

is standardized by W3C.

3 SELECTION OF SEMANTIC

REPOSITORY

This section describes the process of selecting seman-

tic repository that would be appropriate for our aim.

We deﬁned the following criteria to select a semantic

repository that are ordered by their importance to our

task:

• possibility and quality of full-text search,

• performance,

• RDF and OWL support.

There are several benchmarks that deal with the

comparison of performance of semantic repositories.

We used the Berlin SPARQL Benchmark (BSBM) to

compare the performance of a selected set of semantic

repositories. There were used two data sets containing

100 000 748 triplets (100M) and 200 031 975 triplets

(200M). The results (time to import the entire data

set and the number of queries per time unit with the

different number of simultaneously connected clients)

are available in Tables 1 and 2.

Table 1: Time to import the entire data set.

Repository 100M dataset 200M dataset

4store 26min 42s 1h 12min 04s

BigData 1h 03min 47s 3h 24min 25s

BigOwlim 17min 22s 38min 36s

TDB 1h 14min 48s 2h 45min 13s

Virtuoso 1h 49min 26s 3h 59min 38s

Table 2: The number of queries per time unit.

Repository 100M dataset 200M dataset

4store 5589 4593

BigData 2428 1795

BigOwlim 3534 1795

TDB 2274 1443

Virtuoso 7352 4669

Finally we chose the semantic repository OWLIM

with the KIM platform (named BigOwlim in Tables 1

and 2) that provided extended search and automated

annotation of documents. This repository also pro-

vided good performance results as it can be seen in

Tables 1 and 2.

The KIM platform is a product that enables users

to upload documents in various formats (e.g. HTML,

XML, RTF or PDF documents are supported) into

a semantic repository. It also provides resources

for automated annotation of repository documents

according to prepared ontologies and resources for

HEALTHINF2015-InternationalConferenceonHealthInformatics

660

subsequent search in them. The principle of auto-

mated annotation and its implementation is available

in (Kiryakov et al., 2003). The KIM platform works

over the OWLIM repository. Processing and anno-

tation of input documents is implemented using the

tools of the GATE project. The functionality of the

KIM platform is provided using the SOAP web ser-

vices and JAVA RMI interface. The OWLIM reposi-

tory is used for example for BBC Sport web (Rayﬁeld,

2012) or the National Archives in Great Britain (On-

totext AD, 2012a).

The knowledge base used in the OWLIM repos-

itory is based on the PROTON ontology (Ontotext

AD, 2012b). This ontology is divided into three mod-

ules and create a suitable cornerstone for the ontolo-

gies speciﬁc to elaborated domains. The KIM World

Knowledge Base as a part of the KIM platform is also

based on this ontology. Documents can be stored in

three supported repositories: Apache Lucene, Seman-

tic Annotation Repository, and Mimir.

To use the semantic repository for a speciﬁc do-

main thus means to deﬁne a domain ontology. All

classes of this ontology have to be subclasses of the

class Entity from the Proton ontology.

4 REQUIREMENTS AND

DOMAIN ONTOLOGY

Before we started to create a domain ontology we

had to decide what documents and in which for-

mats would be stored in the selected semantic repos-

itory. Finally we decided to index two types of doc-

uments: scientiﬁc and other technical publications in

pdf format and discussions in expert electrophysiol-

ogy groups published in the social network LinkedIn.

The typical domain information searched in these

sources could be, for example, as the following one:

”I want to ﬁnd a discussion about the matching pur-

suit method that is used to investigate the existence

of the P3 component”. The aim of the proposed so-

lution is to ﬁnd the relevant information for this kind

of query. It is also necessary to easily ﬁnd the query

results in original documents.

Beside necessary installation and conﬁguration of

the KIM platform the domain ontology that enables

an advanced search has to be created. Since the on-

tology serves for the evaluation of functionality of the

semantic repository, it was not proposed to be con-

structed using the best principles for creating ontolo-

gies like looking for terms in the ontologies cover-

ing similar domains. As a result a simple prototype

of the domain ontology using the data model of the

EEG/ERP Portal enriched by deﬁning terms and rela-

tionships from speciﬁc parts of the domain was devel-

oped.

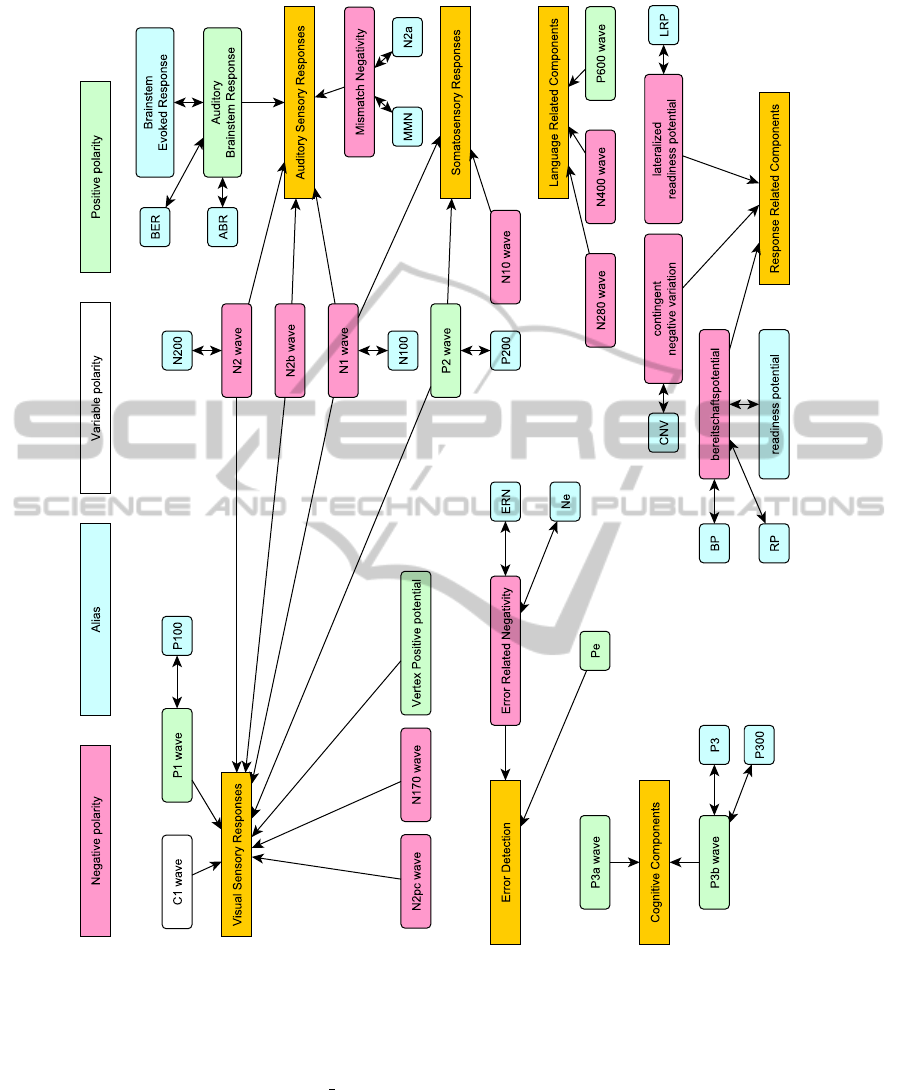

The base of this ontology is a collection of evoked

potentials components (Figure 1) and methods used

for EEG/ERP signal processing. The graph descrip-

tion of the components includes individual compo-

nents, their polarity and their group membership.

Some components also have their aliases which can

be found in the literature. When creating these aliases

we took into account some terminological customs,

for example the component P3 is usually used as an

alias to the component P3b and not as a superior term

for all P3 components. That is why the component P3

is considered as an alias to the P3b component in the

graph structure and not as a super class denoting the

whole family of components. This graph as well as

the graph representing the signal processing methods

was expressed as an ontology in the OWL language.

The KIM platform imposes additional require-

ments on the form of ontologies, for example, all

created terms have to be marked as trusted. How-

ever, when creating an ontology is better to focus

on description of knowledge and extend the ontol-

ogy by additional information later. A tool named

KIM-OWLImport was proposed and developed to fa-

cilitate development of ontologies for the KIM plat-

form and OWLIM repository. It enables users to focus

on the ontology development itself while it automat-

ically transforms it into/from the OWLIM repository

in structures relevant to the Proton ontology.

5 KIM-OWLImport

The KIM-OWLImport is a tool that allows extend-

ing an existing ontology in a way that it can be used

within the KIM platform (trusted resources have to be

deﬁned, all classes have a supeclass Entity or eventu-

ally a more speciﬁc class from a limited set, visibility

in the web interface is ensured). Moreover, the tool is

designed to be easily extensible by the possible future

conditions deﬁned within the KIM platform. The tool

has a graphical user interface in which users can add,

create and/or edit their ontologies. For each ontology

it is possible to deﬁne a set of rules that are applied

back to the ontology. The tool does not work with

the basic RDF/XML syntax but works directly with

triples using the Sesame library (Sesame developers,

2012). Sesame provides API that is used (in this case)

to access a semantic repository OWLIM-Lite. Sesame

also supports its query language SeRQL. The follow-

ing query (Figure 2) shows the case when individual

entities are extended with the property generatedby;

the property value is a trusted resource.

ToolFacilitatingConstructionofOntologiesontheKIMPlatform

661

Figure 1: Ontology of ERP Components.

The query ﬁnds all the entities which type is a di-

rect instance of the owl:Class type. For the entities

which are found the triplet appearing in the CON-

STRUCT part is generated. The parameter sourceUri

has to be completed with the URI of a trusted re-

source. The outputs from all queries are stored us-

ing the Sesame API that provides classes for storing

triplets in various formats.

The UML diagram of the most important classes

and interfaces of the KIM-OWLImport is shown in

Figure 3.

The ﬁles containing ontologies are uploaded into

semantic repositories. The class RepositoryManager

ensures the management of these repositories. Each

created repository has its own conﬁguration and it

is accessed using the RepositoryWrapper class. An

ontology is represented by the class AbstractSource.

Ontology construction is ensured by the implementa-

tion of the ISourceFactory interface. The parameters

necessary for creating a speciﬁc resource (URL, ﬁle

path) are passed by the class implementing the ISour-

ceParams interface. All resources and their factories

HEALTHINF2015-InternationalConferenceonHealthInformatics

662

CONSTRUCT DISTINCT { E n t i t y } p r o t o n s : g e n e rate d B y { s o u r c e U r i }

FROM { E n t i t y } r d f : t y p e {Type } , { Type } sesame : d i r e c t T y p e { C l a s s T y p e }

WHERE C l a s s T y p e = owl : C l a s s

USING NAMESPACE

p r o t o n s = < h t t p : / / p r o t o n . se m a n t ic w e b . or g / 2 0 0 6 / 0 5 / p r o t o n s #>

Figure 2: Entities extended with the property generatedby.

GUI

SourceManager

«interface»

ISourceFactory

AbstractSource

RuleManager

«interface»

IRuleFactory

RepositoryWrapper

RepositoryManager

AbstractRule

creates

1..*

creates

imported to

creates and shutdowns

1..*

queries

exported by

11..*

creates

Figure 3: KIW-OWLImport - UML diagram of the most

important classes and interfaces.

are managed by the SourceManager class.

A number of rules, which ensure construction of

triplets, can be assigned to each resource. The archi-

tecture is very similar to the management of ontolo-

gies. Speciﬁc rules that implement the AbstractRule

class are created by the factories implementing the

IRuleFactory interface. Rules parameters are repre-

sented by the classes implementing the IRuleParams

interface. Individual factories are managed by the

class RuleManager, the rules are aggregated in a col-

lection belonging to the resource. Rules parameters

are conﬁgured after the construction of the rule, while

ontology resources are conﬁgured at the construction

time.

The rules method getStatements() performs

queries on the semantic repository and returns a re-

sult. Individual triplets are then stored in the collec-

tion implementing the interface Iteration that is pro-

vided by Sesame.

6 RESULTS

The functionality of the KIM-OWLImport tool was

veriﬁed using two following approaches. The ﬁrst ap-

proach involved the semantic annotation according to

created ontology, while in the second approach a spe-

ciﬁc query was tested. Both tests were performed

using the test documents in which the results had

been known in advance and using the real documents

stored in the semantic repository.

For the veriﬁcation of the functionality of the se-

mantic annotation the test document containing all the

terms (including aliases) from the ontology was cre-

ated. Each term was placed in a simple sentence that

simulates the neighbourhood of the term. The whole

text was uploaded to the KIM platform. The anno-

tated document is available in Figure 4.

Figure 4: A part of the annotated document shown in the

KIM user interface. Annotated terms are highlighted in

bold.

Except for one single term all keywords were cor-

rectly recognized. The difﬁculty was with the term

ART2 , which contains letters and numerals. Only the

number identiﬁed as a numeral was recognized in this

term, the rest of the term was not recognized. The

terms containing one letter followed by one or more

digits were recognized correctly.

Then 76 documents from public sources were up-

loaded to the semantic repository and annotated. An

example of annotated document is available in Fig-

ure 5.

The search in the semantic repository was veriﬁed

using the search scenario: ”I want to ﬁnd a discus-

sion about the matching pursuit method that is used to

investigate the existence of the P3 component.” The

query contains the following keywords: ”matching

pursuit”, ”P3”, and ”existence”. For testing a set of

ToolFacilitatingConstructionofOntologiesontheKIMPlatform

663

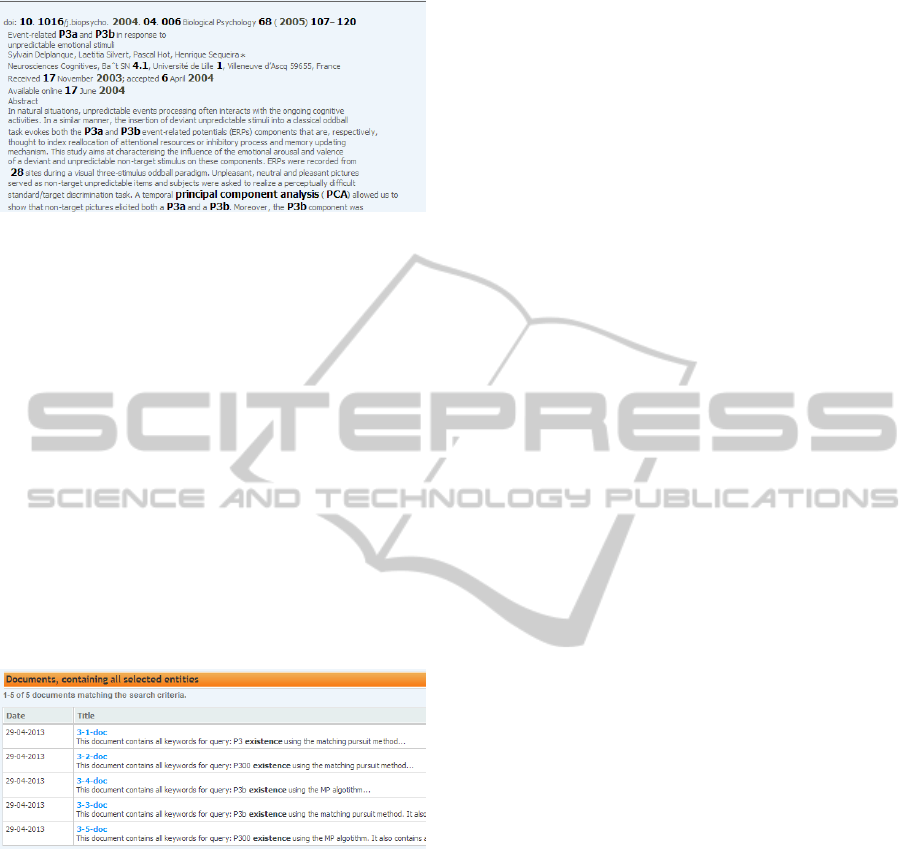

Figure 5: Annotated document dealing with P3a and P3b

components shown in the KIM Platform user interface.

15 documents was created. These documents were

divided into three groups:

• Documents containing none of the keywords in

the query.

• Documents containing any subset of the keywords

in the query, eventually the aliases of the entities

”P3” and ”matching pursuit”.

• Documents containing all the keywords from the

query and aliases of the entities ”P3” and ”match-

ing pursuit”.

The set of documents was uploaded to the KIM plat-

form and the query described above was applied. The

results are shown in Figure 6. As it was expected the

search results included only documents that contained

all the keywords.

Figure 6: Results of searching entities ”P3b”, ”matching

pursuit”, and the keyword ”existence”.

When forming a query any alias for the selected

entity can be entered. Apart from ontology entities it

is also possible to enter any keyword, which will be

subsequently used for full-text search.

7 CONCLUSIONS

This article at ﬁrst brieﬂy deals with the principles and

technologies of the Semantic Web. It is followed by

a short overview of the widespread semantic reposito-

ries, which are compared in performance tests. Based

on the features and the use in real projects the seman-

tic repository OWLIM and the KIM Platform were se-

lected for storing documents in the electrophysiology

domain.

The KIM Platform allows semantic annotation of

documents based on ontology, which is stored in the

semantic repository. The annotated documents can be

searched and by using ontology terms it is possible to

get more relevant results than in the case of common

full-text search. The used ontology must be based

on the PROTON ontology and has to meet additional

conditions for the full functionality of the platform.

Semantic annotation thus requires an ontology,

which contains deﬁnitions and classiﬁcation of do-

main terms. Since the ontology fully covering the

electrophysiology domain does not exist yet, a proto-

type ontology containing a part of domain knowledge

was developed.

To facilitate the development of the ontology,

which meets the requirements of the KIM Platform,

a tool named KIM-OWLImport was designed and im-

plemented. This tool is able to load the selected ontol-

ogy in the semantic repository in memory and extend

it according to deﬁned rules in a way so that it can

be used for semantic annotation of documents (in our

case scientiﬁc and technical documents and discus-

sions from the social network LinkedIn).

Downloaded documents are annotated and in-

dexed within the KIM Platform. Subsequent search is

made possible through the web interface, which is the

part of the KIM platform. Search functionality was

veriﬁed on a set of test documents and on scientiﬁc

publications dealing with research in event related po-

tentials domain.

The tool KIM-OWLImport thus can be used for

automated transfer to any ontology structure, which

corresponds to the PROTON ontology required by the

KIM Platform. The tool is easily extensible by addi-

tional rules and may become a full-ﬂedged transfor-

mation tool.

Within the further development it is necessary to

replace the prototype ontology with the complex on-

tology, which will include a larger number of the key

terms from the electrophysiological domain. This on-

tology is currently being developed within Ontology

for Experimental Neurophysiology (OEN) group.

ACKNOWLEDGEMENTS

This work was supported by the UWB grant SGS-

2013-039 Methods and Applications of Bio- and

Medical Informatics and by the European Regional

Development Fund (ERDF), Project ”NTIS - New

Technologies for Information Society”, European

Centre of Excellence, CZ.1.05/1.1.00/02.0090.

HEALTHINF2015-InternationalConferenceonHealthInformatics

664

REFERENCES

Guha, R. V. and Brickley, D. (2004). RDF vocabulary de-

scription language 1.0: RDF schema. Recommenda-

tion, W3C.

Gupta, A., Bug, W., Marenco, L., Qian, X., Condit, C., Ran-

garajan, A., Mller, H., Miller, P., Sanders, B., Grethe,

J., Astakhov, V., Shepherd, G., Sternberg, P., and Mar-

tone, M. (2008). Federated access to heterogeneous

information resources in the neuroscience informa-

tion framework (nif). Neuroinformatics, 6:205–217.

10.1007/s12021-008-9033-y.

Harris, S. and Seaborne, A. (2013). SPARQL 1.1 Query

Language. Recommendation, W3C.

Jezek, P. and Moucek, R. (2012). System for EEG/ERP

Data and Metadata Storage and Management. Neural

Network World, 22(3):277–290.

Kiryakov, A., Popov, B., Ognyanoff, D., Manov, D., Kir-

ilov, A., and Goranov, M. (2003). Semantic annota-

tion, indexing, and retrieval. In 2nd International Se-

mantic Web Conference. Springer-Verlag Berlin Hei-

delberg.

Miller, E. and Manola, F. (2004). RDF primer. Recommen-

dation, W3C.

Moucek, R., Bruha, P., Jezek, P., Mautner, P., Novotny,

J., Papez, V., Prokop, T., Rondk, T., tebetk, J., and

Vareka, L. (2014). Software and hardware infrastruc-

ture for research in electrophysiology. Frontiers in

Neuroinformatics, 8(20).

Neuroinformatics research group (2014 [cited

10. 10. 2014]). Neuroinformatics research group web

portal.

Neuroinformatics research group, University of West Bo-

hemia (2014). EEG/ERP Portal (EEGBase) eeg-

database.kiv.zcu.cz.

Ontotext AD (2012a). The national archives: Semantic

knowledge base.

Ontotext AD (2012. [cit. 21. 10. 2012]b). Proton ontology.

Rayﬁeld, J. (2012). Sports refresh: Dynamic semantic pub-

lishing.

Sesame developers (2012. [cited 21. 10. 2012]). Sesame

User Guide: rdf:about Sesame 2. Sesame developers.

ToolFacilitatingConstructionofOntologiesontheKIMPlatform

665
