Probabilistic Modeling of Real-world Scenes in a Virtual Environment

Frank Dittrich, Stephan Irgenfried and Heinz Woern

Institute for Anthropomatics and Robotics (IAR),

Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany

Keywords:

Virtual Environment, Scene Modeling, Real-world Modeling, Synthetic Data, Probabilistic Modeling,

Probabilistic Graphical Models, Image Processing, Computer Vision.

Abstract:

In this paper we present an approach for the automated creation of real-world scenes in an virtual environment.

Here we focus on human-robot interaction and collaboration in the industrial domain, with corresponding vir-

tual object classes and inter-class constellations. As the basis for the sample generation process, we probabilis-

tically model essential discrete and continuous object parameters, by adapting a generic mixed joint density

function to distinct scene classes, in order to capture the speciﬁc inter- and intra-class dependencies. To pro-

vide a convenient way to assert these object interactions, we use a Bayesian Network for the representation of

the density function, where dependencies can directly be modeled by the network layout. For the conditioned

and uncertain descriptions of object translations, we use hierarchical Gaussian Mixture Models as geometrical

sampling primitives in the 3D space. In our paper, we show how the combination of a Bayesian Network with

these sampling primitives can directly be used for the automated collision avoidance of objects, during the

sampling process. For the illustration of the applicability and usefulness of our approach, we instantiate the

generic and abstract concept using an example with reduced complexity.

1 INTRODUCTION

The application of the here proposed approach for

probabilistic modeling of real-world scenes in virtual

environments is intended in research scenarios related

to safe human-robot cooperation (SHRC) and interac-

tion (SHRI) in the industrial domain. In our experi-

mental environment we allow for a shared workspace

with no spatial and temporal separation between hu-

man worker and industrial-grade components and

robots. In the context of SHRC and SHRI, we fo-

cus on the intuitive and natural human-robot interac-

tion, safety considerations and measures in a shared

work environment, the enabling of cooperative pro-

cesses and the interaction optimization.

All elements of our research spectrum thereby rely

on information related to activities in the workspace.

As a basis for the information generation on differ-

ent levels of abstraction, we use a multi-sensor setup

which delivers RGB-D data in a high frequency. This

sensor data is then further processed by low-level im-

age processing approaches for optical ﬂow estimation

or pixel-wise object class segmentation, by mid-level

approaches for object class detection and human body

posture recognition and by high-level approaches for

gesture and action recognition. The results from the

different approaches are thereby interchanged, and

the hierarchical scene analysis represents the core of

our modular cognitive system for safe human-robot

collaboration, which is the basis for rational decision

making and system adaptation.

For the training of the machine vision compo-

nents of the modular system, we thereby need a large

amount of sensor data which depicts possible constel-

lation and parameterizations of the objects in the real-

world scene, with a high degree of variation, and in

multiple perspectives. The collection of such data,

using real-world sensors, is not a simple or even a

nearly impossible task, especially if ground truth data

is needed for the supervised training of the prediction

models. One way to avoid the collection of such data

by hand, is to use synthetic data. Here, the data is

created in a virtual environment, using virtual objects

and sensors. The parameterization of the objects and

the sensors is done automatically by an algorithm, and

the fast sampling of highly varying data with sensors

in various perspectives is automated and convenient.

One problem which arises when using synthetic

sensor data, is that one has to determine whether the

similarity between real-world data and the data pro-

duced by the virtual components is sufﬁcient for the

speciﬁc prediction model. Here, similarity can be di-

165

Dittrich F., Irgenfried S. and Woern H..

Probabilistic Modeling of Real-world Scenes in a Virtual Environment.

DOI: 10.5220/0005313301650173

In Proceedings of the 10th International Conference on Computer Graphics Theory and Applications (GRAPP-2015), pages 165-173

ISBN: 978-989-758-087-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

vided up into two classes. First the degree of realism

of the appearance of objects in a scene, which in case

of an RGB sensor would be the similarity of the syn-

thetic image and the output of a real camera sensor.

Second, the similarity of the statistics of object con-

stellations and parameterizations in the virtual and the

real world. In a scene or room which contains a ta-

ble, person, chair and laptop, we would expect certain

constellations to appear more often than others. The

chair would be most likely somewhere around the ta-

ble in close proximity, the human would be expected

to be somewhere in the room and the laptop would be

most likely on the table. Also a situation where the

person is standing in the table or the chair, would be

highly unlikely or just impossible.

In our approach we try to tackle the problem of

similarity of the second type. Our goal is to provide

a framework, where constellations and parameteri-

zations can be modeled probabilistically as a mixed

joint density function, by domain experts. In order

to produce similar statistics, when generating a large

amount of data, the joint density function is used for

the sampling of scene instances in a virtual environ-

ment, which are the basis for the generation of syn-

thetic sensor data.

The remainder of this paper is organized as fol-

lows. In Section 2 related work concerning the ap-

plication of synthetic data in machine vision applica-

tions is presented. In Section 3 the generic concep-

tional design of our probabilistic modeling scheme is

described. In Section 4, the application and useful-

ness of the generic concept is illustrated by a use case

with reduced complexity. Finally, in Section 5, a con-

clusion is drawn and hints for future work are given.

2 RELATED WORK

In this section we focus on work done by other au-

thors on the pros and cons of using artiﬁcially cre-

ated images and ground truth for evaluation of com-

puter vision algorithms. As stated by Rachkovskij

and Kussul (Rachkovskij and Kussul, 1998), Frasch

et. al (Frasch et al., 2011) and Kondermann (Konder-

mann, 2013), computer vision and machine learning

algorithm selection, training and evaluation requires

a representative set of image data to be processed to-

gether with the results expected from processing, the

ground truth. For computer vision applications, sam-

ple image data can either be captured with real-world

imaging sensors or created artiﬁcially based on direct

image statistics modeling or from 3D scenes using

computer graphics. Major drawbacks of using real

world sensor data for this task have been identiﬁed by

the aforementioned and other authors:

1. Creation of these datasets using real world sen-

sors is, for many applications, expensive in terms

of equipment and time or in case humans can be

injured or material can be damaged, even impos-

sible (Meister et al., 2012)(Geiger et al., 2012).

2. Manual effort has to be made to label objects in

the images and/or add high level context infor-

mation (Utasi and Benedek, 2012). Human ob-

servers have to annotate each frame with pixel-

wise ground truth information or at least control

the correctness of semi-automatic labeling.

3. Manually added ground truth information is

highly subjective as shown by Martin et al. (Mar-

tin et al., 2001) for the Berkeley Segmentation

Dataset and Benchmark BSDS300

. With the im-

age capturing of the real sensor, a lot of the infor-

mation present in the scene is lost for later pro-

cessing, especially contextual information or sur-

face data of occluded parts. A human annotating

a given image is interpreting the scene based on

his knowledge and may annotate it different to the

original scene.

4. It is not fully known, how well the sample data re-

ﬂects the statistical characteristics of the real ap-

plication, especially in terms of edge cases(Frasch

et al., 2011). One would manually have to evalu-

ate the statistical properties of the whole dataset

and needs to know the setup of the real-world

scenes to gauge the coverage of real scenes statis-

tics by the sample dataset.

Although there are numerous drawbacks of using real

sensors to create sample data for vision and machine

learning applications, there are still much more of

these datasets used than synthetic ones (Frasch et al.,

2011). Regarding to Kondermann(Kondermann,

2013), this is the case because the data created ar-

tiﬁcially has been considered too unrealistic. For a

discussion on the impact of visual object appearance,

sensor models and light propagation in the scene for

creating synthetic datasets and ground truth we re-

fer to the work of Meister and Kondermann (Meister

and Kondermann, 2011). With the recent advances

made in the physical correct rendering in the ﬁeld

of computer graphics, this prejudice is diminishing

and synthetic datasets are moving into focus of com-

puter vision researchers more and more(Frasch et al.,

2011). An approach how to evaluate driver assistance

systems using synthetic image data was presented by

von Neumann-Cosel, who described a simulation en-

vironment Virtual Test Drive (Neumann-Cosel et al.,

http://www.eecs.berkeley.edu/Research/Projects/CS/

vision/bsds/

GRAPP2015-InternationalConferenceonComputerGraphicsTheoryandApplications

166

2009) which is used to test and optimize a driver as-

sistance lane tracker in an virtual system-in-the-loop

environment. Similar did Haltakov et al. in (Haltakov

et al., 2013) to create camera images, depth maps and

ground truth for optical ﬂow maps by extending the

Open Source driving simulator VDrift

. Shotton et al.

describe their work on how to use computer graphics

to create large depth data sample sets of human poses

based on motion capture data and discrete variation in

body size in (Shotton et al., 2011). Similar did Jie et

al. by augmenting real world images of pedestrians

with a synthetic image of a human for video surveil-

lance application(Jie et al., 2010).

3 BASIC CONCEPT

As described in Section 1, for the training of the ma-

chine vision components of our modular cognitive

system, we want to use synthetic data. In order to

produce good prediction results, not just for synthetic

testing data, but especially for real-world testing data,

we must provide training samples which are consis-

tent with the real-world.

3.1 Synthetic Data Creation

For the synthetic ground truth data generation, we

use the virtual robot experimentation platform V-REP

(E. Rohmer, 2013). This framework allows for a re-

mote access on parts of its functionality via a C/C++

API, and synthetic KINECT sensors are already in-

cluded. Also, the full version of the software is free

for educational and academic use. Here we can use

virtual representations of humans, furniture, robots

etc., in order to model scenes which are consistent

with our work environment and the application do-

main of our cognitive system. The choice of possible

object classes and constellations thereby deﬁne the

virtual scene type or domain.

We differentiate between static and dynamic ob-

jects, where in the ﬁrst case the transformation, mean-

ing translation and rotation of the objects’ base coor-

dinate system, is static, or in the second case, can be

changed for every scene instance. For the creation of

synthetic data, we ﬁrst transform all dynamic objects

and set up other possible parameters for all objects,

and then use virtual sensors in a distinct perspective

for the generation of the data. It should be men-

tioned, that in this paper and especially the presented

use case, we only use the depth information from vir-

tual RGB-D sensors. We consider V-REP not suited

http://vdrift.net/

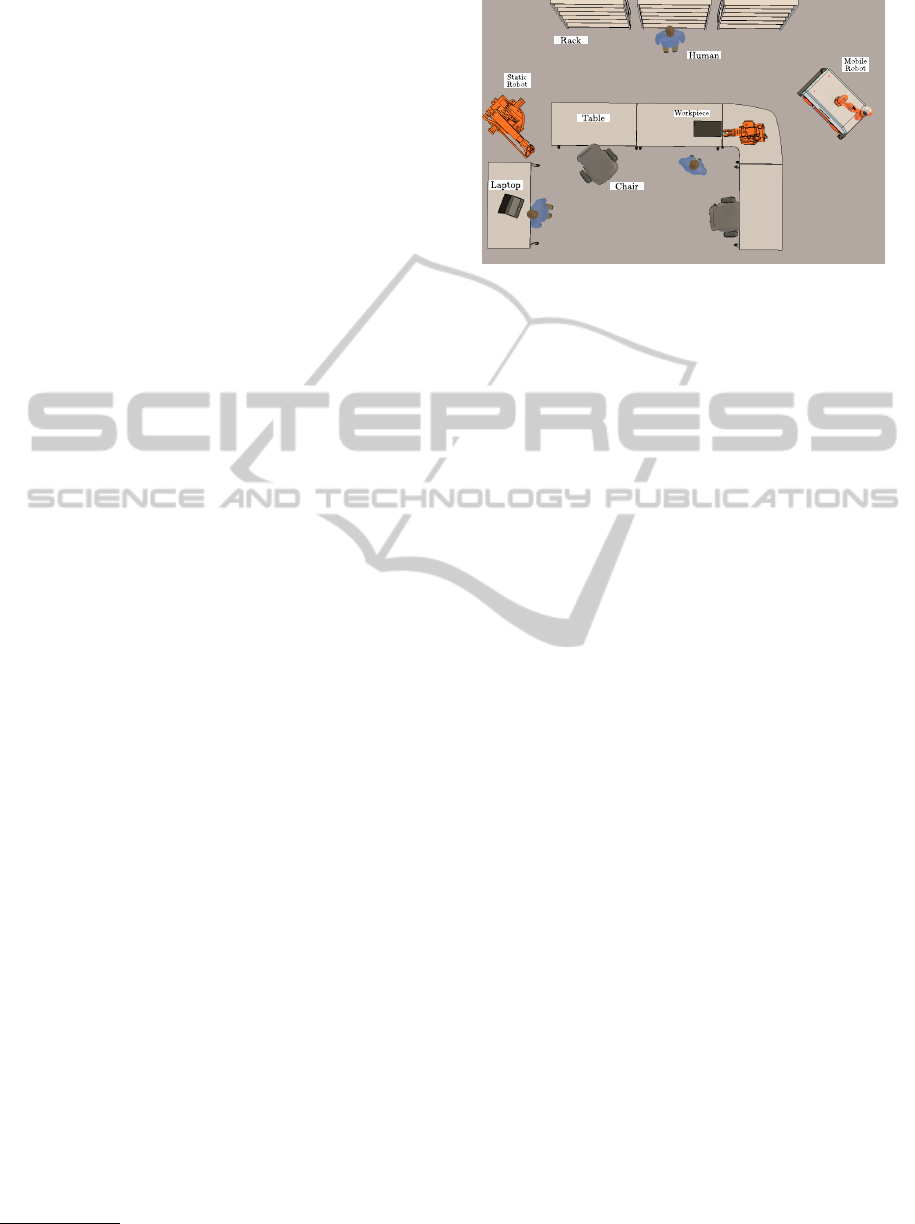

Figure 1: Instantiation of a virtual scene in the SHRC and

SHRI domain, using the virtual robot experimentation plat-

form V-REP. Occurring object classes are human, mobile

and static robot, table, laptop, workpiece, rack and chair.

The transformations of the tables, the static robots and the

racks are static and constrain the subset of dynamic object

constellations which are consistent with the real world.

for creating synthetic RGB-images datasets due to its

lack in realism regarding illumination and surface ap-

pearance modeling as well as not supporting complex

light sources or shadows.

Fig.1 shows a scene instance in the domain of

SHRI or SHRC, where humans and (safe) static and

mobile robots are working in a shared workspace. All

tables, the static robots and all racks are thereby static

objects, and the human worker, mobile robot, laptop

and workpiece are dynamic objects. In this example

domain, all dynamic objects can be transformed, and

the posture of the human can also be set up with a

sample posture from a distinct choreography set. Ex-

amples for such choreographies are for instance walk-

ing, standing, working at a table or reaching for some-

thing. Our goal is now to generate scene instances

which are consistent with our deﬁnition of the real-

world. Also we want to generate samples, where the

statistical characteristics of our real-world are con-

tained, when sampling a large number scenes.

3.2 Probabilistic Scene Modeling

In the following, we want to show how to probabilis-

tically model the object parameters p

of all objects o

in a mixed joint density function (JDF). The parame-

ters are thereby restricted for all objects to the trans-

formation, with p = (x, α), where x = (x, y, z) depicts

the translation in the scene, and α is the scalar rota-

tion angle in the scene ﬂoor plane. In case of human

objects, the parameters are extended to p = (x, α, c),

where c is a discrete value which depicts the chore-

ography type. The sets O, O

, O

and O

depict the

indices of all objects, the static objects, the dynamic

objects and the objects which are in the human object

ProbabilisticModelingofReal-worldScenesinaVirtualEnvironment

167

class respectively, with O = O

∩ O

and O

⊆ O

Also, N

depicts the number of all, static, dynamic

and human objects respectively.

3.2.1 A Simple Approach

The easiest way to model a JDF over the object pa-

rameters P = (p

, p

, . . . , p

), would be a density

function with no dependencies between all parame-

ters, where all factors would be uniform:

f (P) =

∏

i∈O

) f

(α

)

∏

j∈O

(1)

The densities f

, f

and f

are indepen-

dent of the speciﬁc object and uniform over

[0, X ], [0, Y], [0, Z] and [0, 2π] respectively, with

(X, Y, Z) as translation limits in the virtual space. The

distribution P

is also independent of the speciﬁc

human object and uniform over the the discrete set

{1, . . . , N

} of the N

choreographies.

In case of such a simple model, no expert knowl-

edge except the translation limits and available chore-

ographies would be encoded in the structure of the

density function. Fig.2 shows examples of erroneous

or highly unlikely constellations and parameteriza-

tions, which were generated when using this density

function for the sampling of scene instances. Look-

ing at these examples, expert knowledge could for in-

stance be, that static and dynamic objects can’t col-

lide, as illustrated in Fig.2, Left, Center, or that it is

in our real world, that chairs are always on the ﬂoor

and therefore never on a table Fig.2, Right. In case of

the latter, one could of course argue, that chairs some-

times appear on the tables in the real-world, even if it

is not very likely.

A prediction model trained on data created by this

density function, would therefore probably show a

very good generalization performance, while the col-

lisions samples would probably decrease the overall

performance, because of the training on erroneous

data. However, because of the complexity of the here

presented scene, it would also probably take a very

large number of samples, to gain good overall perfor-

mance measures, when granting maximum freedom

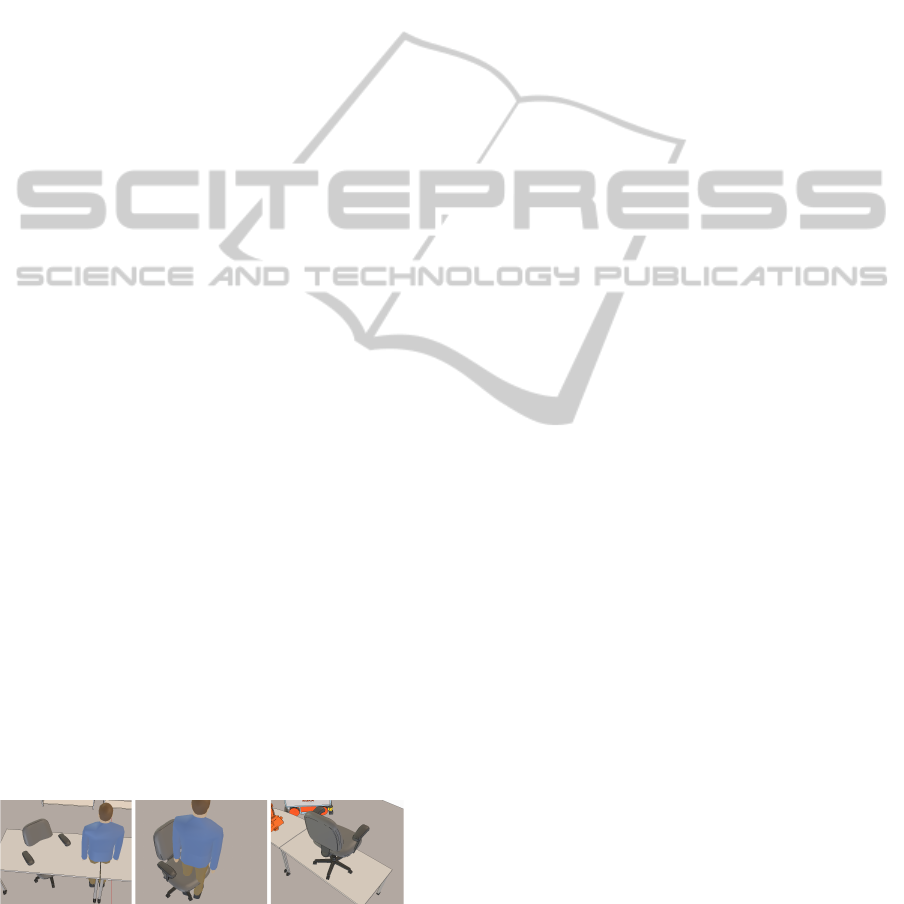

Figure 2: Examples where the simple modeling approach

(1) generates erroneous or highly unlikely constellations

and parameterizations. Left: Collision between dynamic

and static objects. Center: Collision between two dynamic

objects. Right: Transformation of a chair, which would be

considered by us as highly unlikely in the real world.

in the synthetic data creation process, especially when

special cases are as likely as common cases. Consid-

ering, that the creation of synthetic data and especially

the training of prediction models is very time consum-

ing, it is our goal to reduce the number of training

samples.

Based on these assumptions, we therefore try not

only to implement collision avoidance for static and

dynamic objects, but also want to adapt the scene

sampling process to the real-world. As described in

Section 1, this means that we want to adapt the sta-

tistical characteristics of the object constellations and

parameterizations to the real world. In case of the

chair, this could for instance mean, that a chair will

never be on a table, or that the probability of such

a constellation would be modeled as very less likely

than a chair standing on the ﬂoor and in close prox-

imity to a table. Hence the goal is, less scene sam-

ples, with the focus more on the common cases, and

less on the special and highly unlikely cases. Then, if

the expert knowledge reﬂects the real-world, a predic-

tion model trained on data created by such a density

function, would probably show a better overall per-

formance in real-world instances of this scene type,

than a prediction model trained on the density func-

tion presented in (1). Especially when a static ob-

ject layout is given, the subset of dynamic object con-

stellations which are consistent with the real world, is

highly constrained (Fig.1).

In the following section, we show how to imple-

ment such expert knowledge in a probabilistic model,

for the generation of consistent synthetic scenes.

3.2.2 A Sophisticated Approach

One way to model the statistical characteristics of the

real-world in a joint density function, would be using

an inductive approach, where one would record many

constellations and parameterizations of the real-world

objects and then train a Probabilistic Graphical Model

(PGM) based on that data. However, we don’t have

this data, so our approach is to use a Bayesian Net-

work (BN), which is also a PGM, and model the den-

sity function structure by hand, based on our expert

knowledge.

We will give a very short overview over the princi-

ple of BNs, in order to motivate the different parame-

ters and components, which is the basis for modeling

approach. A comprehensive description of BNs and

PGMs can be found in (Koller and Friedman, 2009).

A Bayesian Network represents a joint distribu-

tion or in our case a joint density function, where

a directed acyclic graph (DAG) is used for the de-

scription of the conditional dependencies of the ran-

dom variables. Here, the random variables are repre-

GRAPP2015-InternationalConferenceonComputerGraphicsTheoryandApplications

168

sented as graph nodes, and the directed graph edges

describe the conditional dependencies between the

random variables. A joint density with the same con-

ditional dependencies between the random variables

then factorizes into the following conditional density

functions (CDF):

f (x) =

∏

i=1

|pa(x

)) , (2)

where x = (x

, x

, . . . , x

) describes the vector of

all N

random variables and f

|pa(x

)) is the condi-

tional density function of the variable x

, conditioned

on the parents pa(x

) of x

, according to the DAG from

the BN. For the modeling of our joint density function

as a BN, we can therefore use the DAG structure and

the conditional density functions in order to imple-

ment our expert knowledge.

First we want to implement the translation of dy-

namic objects, in dependence or respectively condi-

tioned on the translation of other static and dynamic

objects. Fig.4 shows examples of distinct areas in

the virtual scene. The walking or driving area for

humans and mobile robots (Fig.4, Left), the area in

front of and on tables, and the area in front of racks

(Fig.4, Center), and the dynamic area conditioned on

the transformation of a dynamic object (Fig.4, Right).

In order to describe these areas or respectively a com-

bination of these areas probabilistically in a condi-

tional density function, and to later sample from these

CDFs, we need a probabilistic modeling of geometric

primitives.

As basis for this task, we use Gaussian Mixture

Models (GMM) where the components are uniformly

weighted and the means are equidistantly aligned

along a line, with the same diagonal covariance for

all components (Fig.3, Left). With this line model, it

is easy to form more complex 2D and 3D geometric

shapes (Fig.3, Right).

We now use the line models in order to probabilis-

tically describe the translation areas of every dynamic

object o

. For this we deﬁne a CDF:

(x|rel

)) =

∑

j=1

(x|rel

)) ,

∑

j=1

= 1 . (3)

The CDF f

(x|rel

)) is deﬁned as a weighted

sum of probabilistic area descriptions f

(x|rel(o

)).

Both, f

and the area descriptions f

are thereby con-

ditioned on rel

), which depicts the transformation

parameters p of static and dynamic objects which are

Figure 3: 10000 3D samples (white) created using a Gaus-

sian Mixture Model with uniform weighting of the compo-

nents, equidistant means (red) and the same diagonal co-

variance for all components. Left: Component means (red)

are aligned along a line. Right: Component means (red) are

aligned along a line, and the line is used to form a ﬁlled

rectangle in the 2D plane.

relevant for the translation areas of the object o

. The

components f

are thereby line models.

A laptop object can now be modeled as always on

top of one of the tables. Here we use area descriptions

which cover the tabletops in the correct height

(Fig.4, Center (dark red)), and are therefore depen-

dent on the position and transformation of a certain

table. By adapting the weights w

we could then also

model, that the laptop is more likely on certain tables.

A chair object can now be modeled as most likely

in front of one of the tables. Here we use area descrip-

tions f

which depict the areas in front of the tables

(Fig.4, Center (light red)), and also the walking and

driving area description (Fig.4, Left (dark grey)). The

chairs’ CDF is therefore dependent on all static ob-

jects. By adapting the weights w

we can now model,

that the chair is more likely in close proximity of a ta-

ble and less likely in the walking area, by assigning

small values to the weights from the walking area de-

scription. In addition we could model highly unlikely

case of a chair on a table, by adding the area descrip-

tions used in the laptop example, to the product of the

chairs’ CDF (3) and adapt the weights accordingly.

As described before, for all object classes other

than the human, we model the random parameters as

the object transformation p = (x, α) = (x, y, z, α), so

that the objects’ full CDF must be extended:

(p|rel

)) = f

(x|rel

)) · u

0:2π

(α) , (4)

where u

0:2π

(α) depicts the uniform density func-

tion over the range of [0, 2π]. This means, that the

rotation is independent of the translation, and always

uniform over [0, 2π].

In case of the human, the random parameters

= (x, α, c) are mixed continuous and discrete, with

c ∈ {1, . . . , N

} depicting the choreography type. The

extended CDF for human objects has the form:

ProbabilisticModelingofReal-worldScenesinaVirtualEnvironment

169

Figure 4: Different types of translation sampling areas for dynamic object, which are determined by static and dynamic

objects. Left: The walking or driving area for humans and mobile robots (dark grey), which is dependent on the layout of all

static objects. Center: Areas which are related to tables (light and dark red) and racks (blue). Right: Dynamic area around a

mobile robot (green).

|rel

)) = f

(x, c|rel

)) · u

0:2π

(α) ,

(x, c|rel

)) =

∑

j=1



(x|rel

)) · P

(c)



(5)

where the choreography distribution P

pendent on the area type, but independent of the ob-

ject translation. This means, that we want to model

semantics as expert knowledge about certain area

types. For instance, when in front of the rack, the hu-

man most likely performs reaching choreographies,

or when in the walking and driving area, the human

most likely performs the standing or walking chore-

ography.

In order to model all object parameters in a joint

density function, we deﬁne a BN using the object

CDFs. Here we consider the object parameters p

single random objects and model them as the nodes in

the DAG. We then add directed edges from the rele-

vant object nodes to the object node, consistent with

the relevant object parameters rel

) for each object

node, and use the object CDFs

|rel

)) as the

Figure 5: 10000 3D samples (white) created using a GMM

with uniform weighting of the components, equidistant

means (red) and the same diagonal covariance for all com-

ponents. Spherical objects (green, yellow, blue) in close

proximity to the sampling area deﬁne which of the compo-

nents of the GMM are activated for the sampling process,

by using a distance threshold based on the sphere dimen-

sion and the standard deviation of the GMM components.

factors in the joint density function deﬁnition. Static

object nodes are thereby always without parents, and

the parameters are static, so that density functions of

these objects are deﬁnes as 1 for the static parameters,

otherwise 0. The JDF over all object parameter P then

becomes:

f (P) =

∏

i∈O

|rel

))

∏

i∈O

), (6)

with

f (P

) =

∏

i∈O

|rel

)), (7)

where f (P

) depicts the conditional JDF of all

dynamic object parameters P

, given the static object

parameters P

. Here, P

is considered as a free vari-

able and P

as a constant value.

So far we have jointly and probabilistically mod-

eled the transformation of the objects, and in case

of humans also the choreography semantics. What

is still missing is the modeling of the expert knowl-

edge, that objects don’t collide (Fig.2, Left, Center).

In order to model this, we ﬁrst must be able to al-

ter the line models in case of an object entering the

sampling area. Fig.5 shows a rectangular line model

in the 2D plane, with distinct objects in the sampling

area, meaning samples drawn from this model could

collide with the object. Therefore in order to pre-

vent this from happening, we use a distance thresh-

olding scheme based on both object bounding boxes,

which can be spherical or rectangular shaped, and the

standard deviation of the model components, in order

to deactivate components which could produce col-

liding samples. For the deactivation of certain com-

ponents, we simply set their weight to zero and uni-

formly reweight the active components (Fig.5).

For this concept, we need a prioritization of the

objects, in order to deﬁne the transformation depen-

GRAPP2015-InternationalConferenceonComputerGraphicsTheoryandApplications

170

dencies between and within the object classes. There-

fore, we ﬁrst deﬁne a priority over the classes, and

then over the single objects in the classes. For in-

stance, because of the higher priority, the transfor-

mation of human objects will always be sampled be-

fore a chair objects’ transformation is sampled, which

means, that the sampling of the chair transforma-

tion can be constrained by the position of the human.

Also, if the object human0 has a higher priority than

object human1 within the human object class, then the

transformation of human0 is sampled ﬁrst. Therefore,

static objects must have the highest priority.

To model the collision avoidance in the BN, we

extend the deﬁned CDFs by extending rel

) with

the higher prioritized objects. This means, we add di-

rected edges from all higher prioritized object nodes

to the object o

. The resulting CDFs are then deﬁned

by (4) and (5), with the extended conditioning and

with the adaptation of the single probabilistic area de-

scriptions f

(x|rel(o

)) based on the higher priori-

tized object transformations.

3.3 Virtual Scene Sampling

Based on the probabilistic model of the scene, we

can now generate virtual scene instances by sampling

from that model. The parameters of the static ob-

jects are thereby considered constant for all scene in-

stances, and are entered as evidence in the sampling

process.

In case of the simple approach (Section 3.2.1), be-

cause the parameters of all objects are modeled inde-

pendent, we sample each parameter individually us-

ing the uniform density functions f

, f

and f

and the distribution P

In case of the sophisticated approach (Section

3.2.2), we use the Forward Sampling algorithm for

the sampling from the BN (Koller and Friedman,

2009). Because the evidence is always given only by

the static objects, which have no parents in the BNs

graph, we can use this algorithm with no extensions.

For the actual sampling, we then must sample from

each object CDF in the right order, which is given by

the object prioritization. This in turn means, that we

sample from the area descriptions which are GMMs

with multivariate normal components. For the sam-

pling from the multivariate normal density functions,

we used the implementation from (Press et al., 2007).

4 APPLICATION

For the illustration of our generic approach described

in Section 3.2.2, we instantiate the abstract formula-

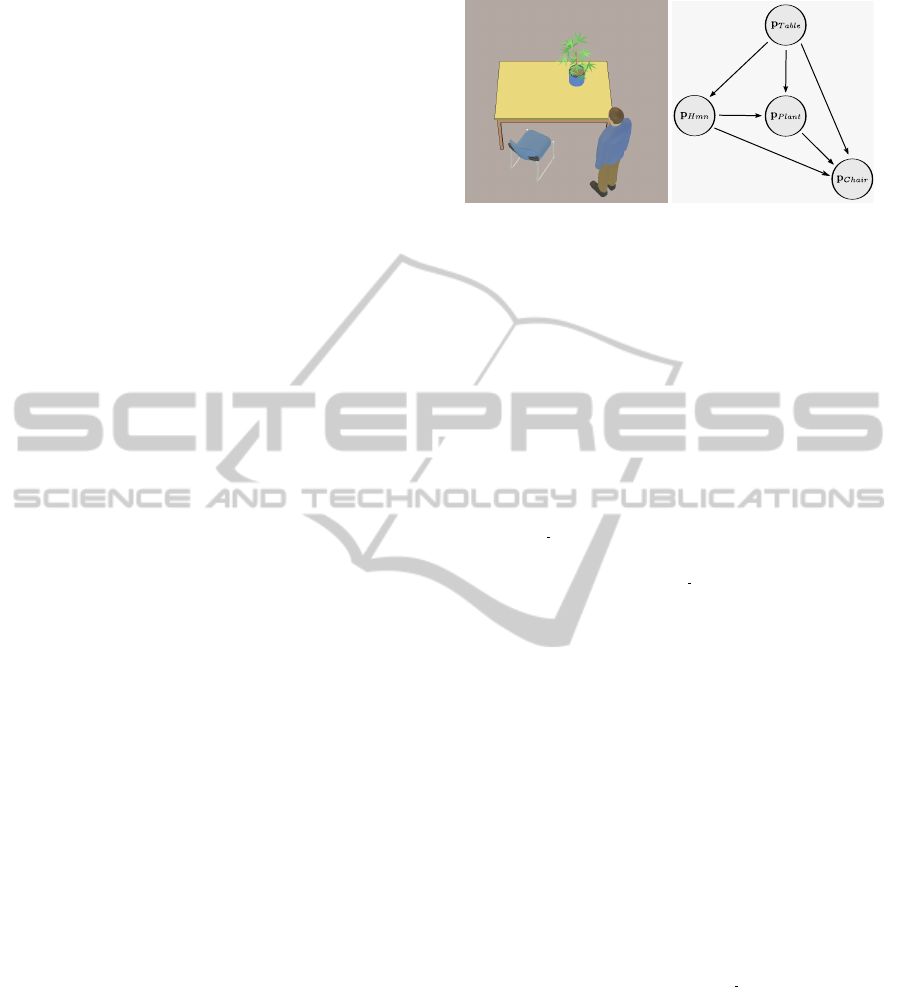

Figure 6: Left: Sample conﬁguration of the scene type

example (Section 4), which is consistent with the deﬁned

scene knowledge. Right: Resulting Bayesian Network,

which is based on the probabilistic scene and expert knowl-

edge modeling of the use case. The nodes depict the ob-

ject parameter of the table (p

Table

), human (p

Hmn

), plant

Plant

), and chair (p

Chair

), modeled as random objects.

tions using a simple non-complex scene type exam-

ple. Here, the object classes are table, human, lap-

top and plant, with one object instance per class. The

table is the only static object and is centered in the

room, all other objects are dynamic. The probabilis-

tic area descriptions f

are the area around the whole

table f

Table Surr

(Fig.4, Center), the room ﬂoor without

the table space and its surrounding area f

Room

(Fig.4,

Left) and the tabletop f

Table Top

(Fig.4, Center). As

scene experts we postulate, that the plant is always

on the table, the chair is always in close proximity to

the table and the human is either close to the table

or somewhere in the room. The prioritization is de-

ﬁned in descending order: table, human, plant, chair.

For simplicity, the choreography semantics of the hu-

man is omitted in this example. Fig.6, Left depicts

a sample conﬁguration of the scene objects, which is

consistent with the postulations.

Based on this expert knowledge about the scene

type, we now model the JDF of the parameters as a

Bayesian Network, which is depicted in Fig.6, Right.

The human object CDF is then deﬁned as:

Hmn

(p|o

Table

) = f

Hmn

(x|o

Table

) · u

0:2π

(α),

Hmn

(x|o

Table

) = 0.75 · f

Table Surr

(x|o

Table

)

+ 0.25 · f

Room

(x|o

Table

), (8)

where we state that the human is three times more

likely somewhere around the table than somewhere

else in the room, by setting the weights accordingly.

The ﬁrst line of Fig.7 shows the results of the

scene sampling when using the model from the sim-

ple approach (Section 3.2.1). The independence of all

object parameters in the probabilistic model results in

completely random parameter conﬁgurations of the

scene objects, without expert knowledge encoded in

ProbabilisticModelingofReal-worldScenesinaVirtualEnvironment

171

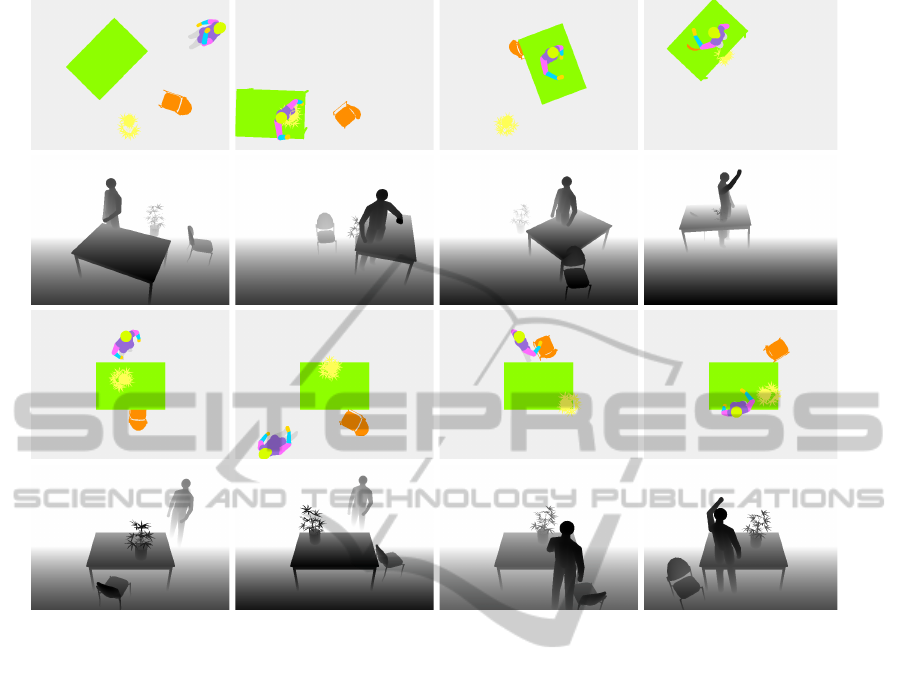

Figure 7: The ﬁrst line depicts constellations of four objects: table, human, chair and plant, in a virtual scene. The object

parameters are thereby sampled using the JDF from the simple approach (Section 3.2.1) The second line shows depth frames

created by a synthetic RGB-D sensor in the virtual environment, which observes the scene and thereby the sampled object

constellations. The third and fourth line show constellations and depth frames, of the same objects and virtual scene, respec-

tively. Here the sampling was conducted using the generic model from the sophisticated approach (Section 3.2.2), where the

object conﬁgurations were probabilistically modeled in accordance to the the scene type example in Section 4.

the possible object constellations and with object col-

lisions.

The third line of Fig.7 shows the results of the

scene sampling when using the before described so-

phisticated model. Because of the expert knowledge

implemented in the model, the chair is always close

to the table, the human is either close to the table or

somewhere in the broader surrounding area of the ta-

ble, and the plant is always on top of the table. Also

object collisions do not occur, except for the scene

sample depicted in the outermost right image, where

the human slightly collides with the table, which is

a consequence of the probabilistic modeling, where

collisions are highly unlikely but not impossible.

The second and fourth line of Fig.7 show depth

frames produced by a synthetic RGB-D sensor in the

virtual environment, which observes the scene and the

object constellations. In case of the second line, the

simple approach was used for scene sampling, and in

case of the fourth line, the sophisticated approach was

used for scene sampling.

It is the authors opinion, that when using synthetic

data for the training of statistical and machine learn-

ing approaches for computer vision tasks, it is im-

portant that the training samples are extracted from

virtual scenes which are in accordance with the real-

world context, where the trained approaches will be

deployed. For instance, in case of pixelwise object

class segmentation or detection, the features used for

training do not only contain information about the ob-

ject of interest, but also information about the back-

ground. When deployed in the real-world, the learned

background context should then ﬁt to the background

presented to the classiﬁer. Therefore, depth frame

samples based on the sophisticated approach (Fig.7,

Fourth line) should be favored over the samples based

on the simple approach (Fig.7, Second line), for clas-

siﬁer training. This motivates the usefulness of real-

world modeling in virtual environments for the sam-

pling of scene instances, or respectively, synthetic

training data.

GRAPP2015-InternationalConferenceonComputerGraphicsTheoryandApplications

172

5 CONCLUSIONS

In this paper we presented a generic approach for the

probabilistic modeling of real-world scenes in a vir-

tual environment. Also, the sampling of consistent

scene instances was described, and both the modeling

and the sampling was illustrated and demonstrated us-

ing a simple scene type. The resulting synthetic data

was used to try to motivate the usefulness of the ap-

proach for the improved training of computer vision

approaches.

Future work will be the quantitative and qualita-

tive evaluation of the approach, using different scene

types and computer vision approaches, in order to

proof the conjectures.

REFERENCES

E. Rohmer, S. P. N. Singh, M. F. (2013). V-rep: a versa-

tile and scalable robot simulation framework. In Proc.

of The International Conference on Intelligent Robots

and Systems (IROS).

Frasch, J. V., Lodwich, A., Shafait, F., and Breuel, T. M.

(2011). A bayes-true data generator for evaluation of

supervised and unsupervised learning methods. Pat-

tern Recognition Letters, 32(11):1523–1531.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we

ready for autonomous driving? the kitti vision bench-

mark suite. In Computer Vision and Pattern Recogni-

tion (CVPR), 2012 IEEE Conference on, pages 3354–

3361.

Haltakov, V., Unger, C., and Ilic, S. (2013). Framework

for generation of synthetic ground truth data for driver

assistance applications. In German Association for

Pattern Recognition, editor, Proc. of the 35th German

Conference on Pattern Recognition GCPR 2013.

Jie, Y., Farin, D., Krueger, C., and Schiele, B. (2010). Im-

proving person detection using synthetic training data.

In Image Processing (ICIP), 2010 17th IEEE Interna-

tional Conference on, pages 3477–3480.

Koller, D. and Friedman, N. (2009). Probabilistic Graph-

ical Models: Principles and Techniques - Adaptive

Computation and Machine Learning. The MIT Press.

Kondermann, D. (2013). Ground truth design principles.

In Spampinato, C., Boom, B., and Huet, B., editors,

VIGTA ’13 Proceedings of the International Workshop

on Video and Image Ground Truth in Computer Vision

Applications, pages 1–4. ACM Press.

Martin, D., Fowlkes, C. C., Tal, D., and Malik, J. (2001). A

database of human segmented natural images and its

application to evaluating segmentation algorithms and

measuring ecological statistics. In Computer Vision,

2001. ICCV 2001. Proceedings. Eighth IEEE Interna-

tional Conference on, volume 2, pages 416–423.

Meister, S., J

ahne, B., and Kondermann, D. (2012). Out-

door stereo camera system for the generation of real-

world benchmark data sets. Optical Engineering,

51(02):021107.

Meister, S. and Kondermann, D. (2011). Real versus realis-

tically rendered scenes for optical ﬂow evaluation. In

Electronic Media Technology (CEMT), 2011 14th ITG

Conference on, pages 1–6.

Neumann-Cosel, K. v., Roth, E., Lehmann, D., Speth, J.,

and Knoll, A. (2009). Testing of image processing

algorithms on synthetic data. In Software Engineer-

ing Advances, 2009. ICSEA ’09. Fourth International

Conference on, pages 169–172.

Press, W. H., Teukolsky, S. A., Vetterling, W. T., and Flan-

nery, B. P. (2007). Numerical Recipes 3rd Edition:

The Art of Scientiﬁc Computing. Cambridge Univer-

sity Press.

Rachkovskij, D. A. and Kussul, E. M. (1998). Datagen:

a generator of datasets for evaluation of classiﬁcation

algorithms. Pattern Recognition Letters, 19(7):537–

544.

Shotton, J., Fitzgibbon, A., Cook, M., Sharp, T., Finocchio,

M., Moore, R., Kipman, A., and Blake, A. (2011).

Real-time human pose recognition in parts from sin-

gle depth images. In Computer Vision and Pattern

Recognition (CVPR), 2011 IEEE Conference on.

Utasi,

A. and Benedek, C. (2012). A multi-view annota-

tion tool for people detection evaluation. In Spamp-

inato, C., editor, Proceedings of the 1st International

Workshop on Visual Interfaces for Ground Truth Col-

lection in Computer Vision Applications, pages 1–6,

New York and NY. ACM.

ProbabilisticModelingofReal-worldScenesinaVirtualEnvironment

173
