A Toolchain for Model-based Design and Testing of Access Control

Systems

Said Daoudagh

, Donia El Kateb

, Francesca Lonetti

, Eda Marchetti

and Tejeddine Mouelhi

Istituto di Scienza e Tecnologie dell’Informazione “A. Faedo”, CNR, Pisa, Italy

Interdisciplinary Centre for Security, Reliability and Trust (SnT), University of Luxembourg, Luxembourg, Luxembourg

itrust consulting, Niederanven, Luxembourg

Keywords:

XACML Language, Model-based-testing, Access Control Systems.

Abstract:

In access control systems, aimed at regulating the accesses to protected data and resources, a critical compo-

nent is the Policy Decision Point (PDP), which grants or denies the access according to the deﬁned policies.

Due to the complexity of the standard languag-e, it is recommended to rely on model-driven approaches

which allow to overcome difﬁculties in the XACML policy deﬁnition. We provide in this paper a toolchain

that involves a model-driven approach to specify and generate XACML policies and also enables automated

testing of the PDP component. We use XACML-based testing strategies for generating appropriate test cases

which are able to validate the functional aspects, constraints, permissions and prohibitions of the PDP. An

experimental assessment of the toolchain and its use on a realistic case study are also presented.

1 INTRODUCTION

Nowadays many IT systems are required to satisfy

several properties orthogonal to the main functional-

ities, one of them is security. Resources, e.g., data,

machines or services, could be sensitive and valu-

able, and hence a proper security support must be put

in place to protect them against unauthorized, mali-

cious, improper or erroneous usage. For ICT systems,

authorization mechanisms provide the procedures for

managing data and resources according to the security

policy requirements.

Commonly adopted authorization systems, based

on XACML (eXtensible Access Control Markup Lan-

guage), rely on the same architectural model which

includes in a simpliﬁed version three main compo-

nents: a Policy Enforcement Point (PEP), a Policy

Decision Point (PDP) and an Attribute Manager. PEP

is an application dependent component which inter-

cepts and transmits any incoming access request to

the Policy Decision Point (PDP). The latter, using

speciﬁc attribute values collected by the application

dependent Attribute Manager, will grant or deny the

access based on a set of established rules deﬁning us-

age decision process. The critical core of the access

control system is therefore the PDP which is an appli-

cation independent component in charge of regulating

the accesses to the protected data and resources.

Several PDP have been deﬁned in scientiﬁc litera-

ture, and some implementations of this component,

both academic, free and commercial, are currently

available, such as the SUN’s XACML engine (Sun

Microsystems, 2006), named Sun PDP in the rest of

the paper. However, even if these implementations

could be ready-to-use solutions for the access control

system development, in the last years the adoption of

domain speciﬁc PDPs, able to not impact on the over-

all performance of IT systems and to be compliant

with speciﬁc implementation constraints becomes a

more common attitude. The use of either a ready-to-

use solution or a customized version of the PDP com-

ponent would require careful veriﬁcation and testing

process before its integration into the access control

system: any fault or problem in the PDP may result

in a critical failure of the overall security system. Un-

fortunately, PDP testing is per se a time and effort

consuming activity that hardly matches the strict ICT

market requirements.

To this purpose this paper presents a ﬁrst attempt

of a toolchain for automatic testing of the PDP com-

ponent. The toolchain provides different facilities:

i) a model-driven approach to specify and generate

security policies; ii) a test case generation strategy

and automated execution of the test suite on the tar-

get PDP; iii) a model-based oracle and an automated

checker able to derive the expected results and com-

411

Daoudagh S., El Kateb D., Lonetti F., Marchetti E. and Mouelhi T..

A Toolchain for Model-based Design and Testing of Access Control Systems.

DOI: 10.5220/0005330604110418

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 411-418

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

pare them with test results; iv) a set of predeﬁned

policies with the associated test cases and expected

results. An experimental assessment of the toolchain

and its use for testing a speciﬁc PDP implementation,

the Sun PDP (Sun Microsystems, 2006), are also pre-

sented.

The remainder of this paper is structured as fol-

lows: Section 2 presents background about XACML

language. In Section 3 we present the toolchain and

its underlying functions, while a case study shows

how to use the different components of the toolchain

for testing Sun PDP in Section 4. Finally, Section 5

outlines related work whereas Section 6 concludes the

paper also hinting at future work.

2 THE XACML LANGUAGE

XACML (OASIS, 2005) is a de-facto standard-

ized speciﬁcation language that deﬁnes access con-

trol policies and access control decision requests/re-

sponses in an XML format. An XACML policy de-

ﬁnes the access control requirements of a protected

system. An access control request triggers a policy

evaluation and aims at accessing a protected resource.

The PDP evaluates the request against the rules in

the policy and returns the access response (Permit/-

Deny/NotApplicable/Indeterminate) according to the

speciﬁed XACML policy. An XACML policy can

contain one or more policy set or policy elements. A

policy set or policy includes a target (containing a set

of subjects, a set of resources, a set of actions and ﬁ-

nally a set of environments) and one or more rules.

A rule contains a decision type (Permit or Deny) and

a target. A rule contains a condition element, i.e., a

boolean function that speciﬁes constraints on the sub-

jects, resources, actions and environments values so

that if the condition evaluates to true, then the rule’s

decision type is returned. A combining algorithm is

used to select which policy (policy-combining algo-

rithm) or rule (rule-combining algorithm) has to be

considered in case the request matches more than one

policy (or rule). For instance, the ﬁrst-applicable

combining algorithm will select the ﬁrst applicable

policy (or rule). An access request contains subject,

resource, action, and environment attributes. At the

decision making time, the Policy Decision Point eval-

uates an access request against a policy, by compar-

ing all the attributes in an access request against the

attributes in all the target and condition elements of

the policy set, policy and rule elements. If there is a

match between the attributes of the request and those

of the policy, the effect of a matching rule is returned,

otherwise the NotApplicable decision is drawn.

3 TOOL CHAIN ARCHITECTURE

In this section we present the proposed toolchain, that

consists of three main parts:

Model-driven Policy Design composed by:

• a modeling framework for specifying security re-

quirements, i.e. a graphical security model aim-

ing at simplifying the designing of security con-

straints (Ecore Model);

• an automated translation of the graphical security

model into an XACML policy, so to avoid the

common errors and problems due to the writing

of XACML policies (Ecore2XACML);

• an automated model driven oracle for deriving the

expected response of each request (Oracle).

Test Case Generation and Execution composed

by:

• an automated tests generation according to differ-

ent testing strategies to speed up and improve the

testing process by reducing as much as possible

time and effort due to test cases speciﬁcation (X-

CREATE);

• an automated execution of test cases on the SUT

PDP i.e. a selected access control engine (Test

Executor);

• an automated analysis of test results against the

expected ones (Checker).

Test Archive which consists of a repository of

predeﬁned policies, test sets and expected responses

(Test Archive).

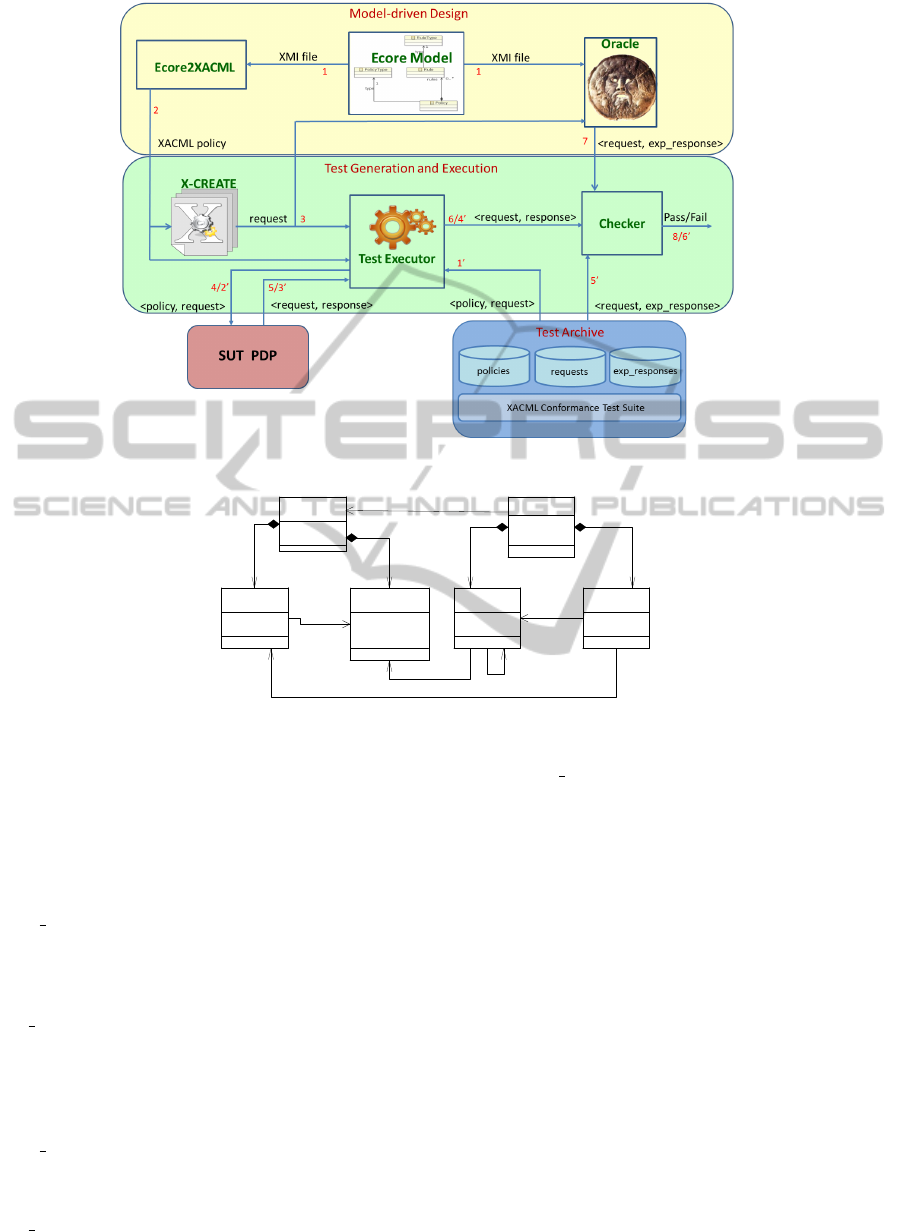

Figure 1 schematizes the architecture of the pro-

posed toolchain that can be used either for model-

driven testing (steps from 1 to 8) or adopting prede-

ﬁned test sets (steps from 1’ to 6’). More technical

details about the components of the toolchain are pro-

vided in the following sections.

3.1 Model Based Speciﬁcation

Figure 2 illustrates the security policy metamodel

adopted in the proposed toolchain. The metamodel is

deﬁned using the following classes: i) POLICYType:

it deﬁnes a set of element types ElementType and a

set of rule types RuleType; ii) Parameter: it has a type

which must belong to the ElementType of the Policy-

Type; iii) RuleType: it has a set of Parameters that are

typed by ElementTypes.

The meta-model allows the deﬁnition of a generic

security policy model and the deﬁnition of a security

policy formalism according to this security model.

The security policy metamodel can be instantiated

into an XACML metamodel which targets the main

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

412

Figure 1: Toolchain.

PolicyType

name:String

RuleType

1..*

ruleTypes

hierarchy: boolean

ElementType

1..*

elementTypes

Policy

Parameter

parameters

1..*

Name: String

Rule

1..*rules

parameters

1..*

* children

1 type

type

1..*

parameters

Figure 2: Security Policy Metamodel.

speciﬁc elements and constraints of XACML lan-

guage.

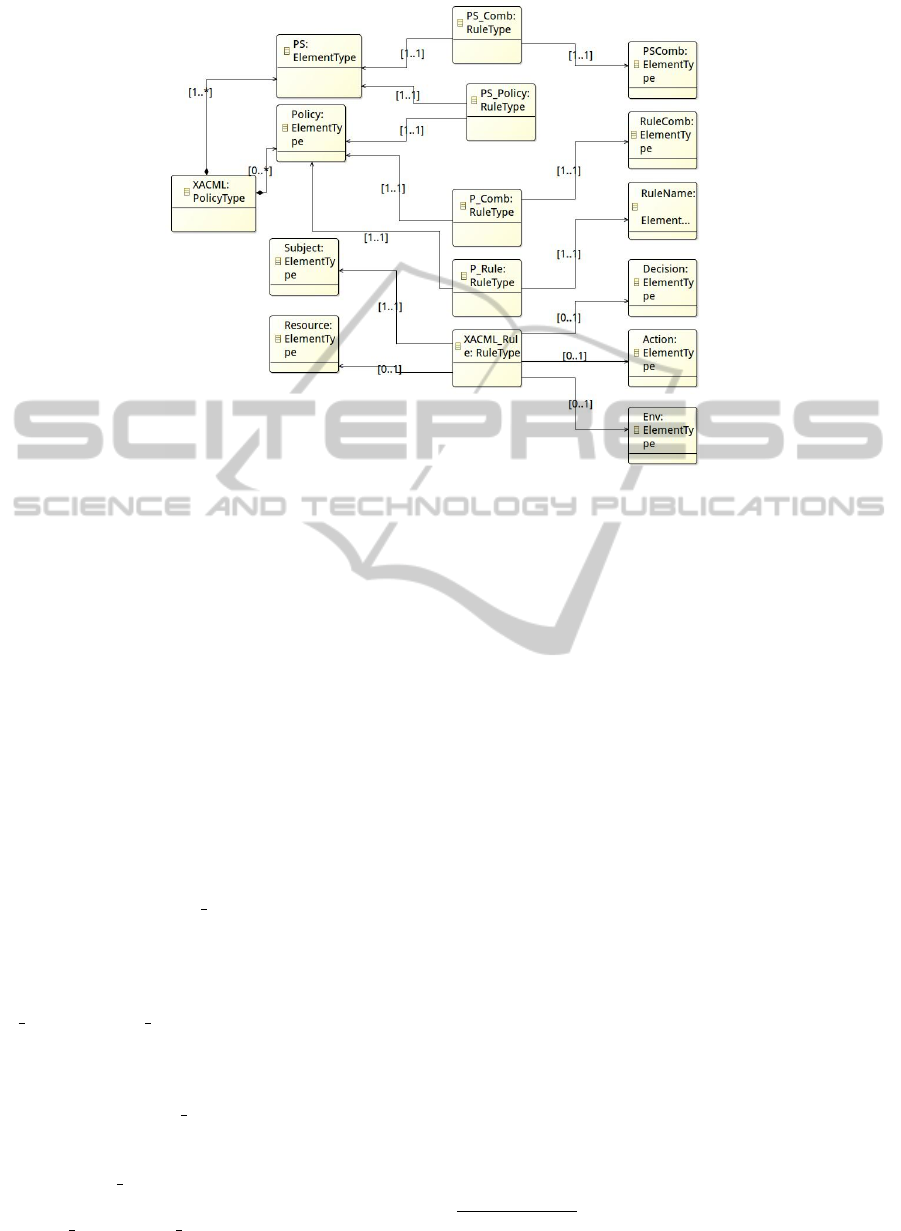

Figure 3 presents the XACML metamodel, which

is an instance of the security policy metamodel de-

picted in Figure 2. As shown in the Figure, there are

ﬁve RuleType elements:

• PS Comb: it is composed of a policySet (PS),

which is the name of the policy set, and the policy

combining algorithm (PSComb) associated to the

policySet;

• P Comb: it contains a policy name (Policy) and

the associated rule combining algorithm (Rule-

Comb). According to the XACML language spec-

iﬁcation the deﬁnition of at least one policy is

mandatory;

• PS Policy: it is composed of a policySet name

(PS), and the policy name (Policy) that is con-

tained in that policySet;

• P Rule: it contains a policy name (Policy) and the

rule name contained in that policy (RuleName);

• XACML Rule: it contains a subject (Subject), an

action (Action), a resource (Resource), an envi-

ronment (Env), a decision (Decision) and a rule

name (RuleName).

In order to deﬁne an XACML policy model, we need

to create an instance of the XACML metamodel ac-

cording to the following steps:

• deﬁne the policy structure, that is to create a list of

all XACML policy elements: subjects, actions, re-

sources, environments, policies, rules names, pol-

icy sets names, decision (predeﬁned values: per-

mit and deny), policy and rule combining algo-

rithms (predeﬁned values according to XACML

standard);

• deﬁne a set of rules that is: 1) deﬁne a set of policy

sets, policies, and policy combining algorithms;

2) deﬁne which policy set contains which poli-

cy/ies, and which policy contains which rule/s; 3)

create XACML rules.

The XACML metamodel is implemented as an

AToolchainforModel-basedDesignandTestingofAccessControl

Systems

413

Figure 3: XACML Metamodel.

Ecore model and comes with an associated editor al-

lowing users to easily specify new XACML policy

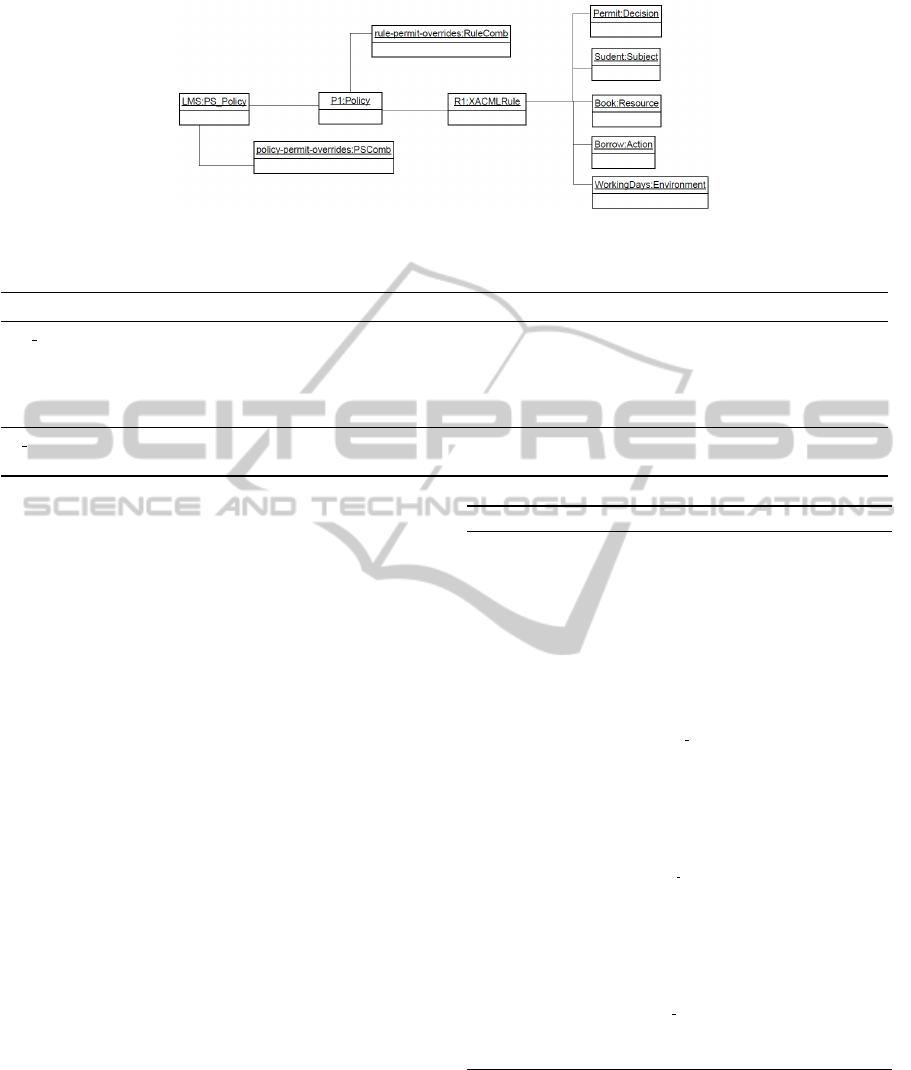

models. In Figure 4 an extract of the Library Manage-

ment System (LMS) access control model (Pretschner

et al., 2008) is presented. It instantiates the meta-

model of Figure 3 specifying a rule allowing a student

to borrow a book during the working days.

3.2 Model2XACML Transformation

This section describes the transformation algorithm

implemented into the Ecore2XACML component of

Figure 1 for deriving the XACML policy. This al-

gorithm is implemented using the Kermeta language

equel et al., 2011).

First of all, the algorithm collects the metamodel

rules having the type “PS Policy”. Based on these

rules the algorithm creates the full list of policies con-

tained in the global policy set. Then, the algorithm

collects the combining algorithms for the policy set

and its policies (using the rules having the rule type

“PS Comb” and “P Comb” respectively). Once this

step is performed, the algorithm generates the initial

tags (policy set and policies). The XACML rules con-

tained in each policy are built based on the metamodel

rules having the type “P Rule” (that links a rule with

the policy containing it). Finally, for each rule, the

subject, action, resource and environment are created

using “XACML

Rule” and the corresponding rule is

generated. As an example Table 1 reports the transla-

tion of PS Comb and P Comb into the XACML lan-

guage.

It is important to note that some parts of the

XACML code is generated by default. As shown in

Table 1, the “xmlns” and “xmlns:xsi” have default

values that are added automatically. Considering for

instance the LMS access control model described in

Section 3.1, the transformation algorithm derived the

LMS XACML policy which contains a PolicySet, a

Policy, 42 rules, 8 subjects, 3 resources, 10 actions

and 3 environments

3.3 Oracle

The oracle deﬁned in our toolchain takes as input an

XMI ﬁle that represents the Ecore model of the secu-

rity policy and an XACML request. Subject, action,

resource, environment attributes are extracted from

the request using an attribute extraction tool. Based

on the relevant attributes in the request and on the pol-

icy model, the oracle provides as an output a response

for the input request. The algorithm that deﬁnes the

oracle behavior is described in Algorithm 1. It takes

as input an XACML request req and the ecore model

of the XACML policy mod (line 1), extracts policy

from the model (line 4) and creates a set of applicable

rules (lines 5-9). A rule R is applicable to a request

req if and only if the values of Subject, Resource,

Action and Environment in R are equal to those con-

tained in the request req. If the set of applicable rules

is empty the oracle decision is NotApplicable (lines

For space limitation we cannot provide here the source

ﬁle.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

414

Figure 4: LMS model.

Table 1: Model2XACML transformation example.

Metamodel XACML

PS Comb: (LMSPolicySet, deny-overrides) < PolicySetxmlns = “urn : oasis : names : tc : xacml : 2.0 : policy :

schema : os

xmlns : xsi = “htt p : //www.w3.org/2001/XMLSchema −

instance

PolicySetId = “LMSPolicySet

PolicyCombiningAlgId = “urn :

oasis : names : tc : xacml : 1.1 : policy − combining − algorithm :

deny − overrides

P Comb: (BookPolicy, permit-overrrides) < PolicyPolicyId = “BookPolicy

RuleCombiningAlgId = “urn : oasis : names :

tc : xacml : 1.1 : rule −combining − algorithm : permit −overrides

10-12), otherwise the Oracle takes a decision accord-

ing to the Rule Combining Algorithm deﬁned in the

model. In particular, lines 13-21 determine the de-

cision in case of the rule-permit-overrides algorithm;

lines 22-30 deﬁne the oracle behavior in case of rule-

deny-overrides algorithm and ﬁnally lines 31-34 cal-

culate the decision in case of rule-ﬁrst-applicable al-

gorithm.

The following example illustrates the oracle rea-

soning: a request R, with the attributes values “Stu-

dent”, “Borrow”, “Book”, “WorkingDays” related re-

spectively to the subject, action, resource and envi-

ronment attributes is evaluated against the following

rule in the policy: i) Name: StudentRule; ii) Type:

XACML RULE; iii) Parameters: Element R1, Ele-

ment Permit, Element Student, Element Borrow, El-

ement Book, Element WorkingsDays. The request R

is evaluated in this case according to the decision ele-

ment Permit.

3.4 X-CREATE

The policy derived by the Ecore2XACML component

is then used for the automatic generation of test cases

(step 2 in Figure 1). In particular, among the available

tools for test cases generation, in this toolchain we in-

tegrated X-CREATE (Bertolino et al., 2010; Bertolino

et al., 2012a; Bertolino et al., 2013). Experimental re-

sults presented in (Bertolino et al., 2010; Bertolino

et al., 2012a; Bertolino et al., 2013) showed that the

fault detection effectiveness of X-CREATE test suites

is similar or higher than that of comparable tools (like

for instance Targen (Martin and Xie, 2006)).

Algorithm 1: Oracle Algorithm.

1: Input: Request req, Model mod

2: Output: Decision ∈ {Permit, Deny, NotApplicable}

3: Set applicableRules :=

4: Policy P := mod.getPolicy()

5: for all Rule R ∈ P do

6: if R.isApplicable(req) then

7: applicableRules.add(R)

8: end if

9: end for

10: if applicableRules =

0 then

11: Decision := NotApplicable

12: end if

13: if P.RuleCombiningAlgorithm = permit overrides then

14: if ∃ R ∈ applicableRules s.t. R.effect = Permit then

15: Decision := Permit

16: else

17: if ∃ R ∈ applicableRules s.t. R.effect = Deny then

18: Decision := Deny

19: end if

20: end if

21: end if

22: if P.RuleCombiningAlgorithm = deny overrides then

23: if ∃ R ∈ applicableRules s.t. R.effect = Deny then

24: Decision := Deny

25: else

26: if ∃ R ∈ applicableRules s.t. R.effect = Permit then

27: Decision := Permit

28: end if

29: end if

30: end if

31: if P.RuleCombiningAlgorithm = ﬁrst applicable then

32: Rule R := applicableRules.getFirstRule()

33: Decision := R.effect

34: end if

In the toolchain implementation among the var-

ious X-CREATE proposals, we decided to use the

Multiple Combinatorial test strategy (Bertolino et al.,

2013). As described in (Bertolino et al., 2013) for

each policy this strategy generates four sets: the

SubjectSet, ResourceSet, ActionSet, and Environ-

mentSet, containing the values of elements and at-

AToolchainforModel-basedDesignandTestingofAccessControl

Systems

415

tributes of the subjects, resources, actions and envi-

ronments respectively. The elements and attributes

values in each set are then combined in order to ob-

tain the subject, resource, action, environment enti-

ties. Speciﬁcally, a subject entity is deﬁned as a com-

bination of the values of elements and attributes of the

SubjectSet set. Similarly the resource entity, the ac-

tion entity and the environment entity represent com-

binations of the values of the elements and attributes

of the ResourceSet, ActionSet, and EnvironmentSet

respectively.

The XACML requests are then generated by

combining the subject, resource, action and envi-

ronment entities applying ﬁrst a pair-wise, then a

three-wise, and ﬁnally a four-wise combination, ob-

taining all possible combinations. In this process

X-CREATE automatically eliminates the duplicated

combinations. For more details we refer to (Bertolino

et al., 2010; Bertolino et al., 2012a; Bertolino et al.,

2013).

Considering the LMS XACML policy, derived as

described in Section 3.2, 1800 XACML requests are

generated. In the following an example of XACML

request derived from LMS policy, expressed in JSON

format.

{"XacmlRequest":{

"Subject":["Student"],

"Resource":["Book"],

"Actions":["BorrowBook"],

"Environment": ["WorkingDays","HolyDays"],

}

This request denotes that a student wants to bor-

row a book during the working and holy days.

3.5 Test Executor

The Test Executor interacts directly with the SUT

PDP either in case of model-driven testing, i.e. when

the set of requests is derived by the X-CREATE com-

ponent (steps 1, 2, 3 of Figure 1), or when a prede-

ﬁned test set is considered, (step 1’ of Figure 1). In

both cases the Test Executor takes as inputs the set of

requests and the related policy and one by one it sends

the requests to the SUT PDP together with the related

XACML policy (steps 4 and 2’ of Figure 1).

The Test Executor intercepts the obtained PDP re-

sponse and derives the couple (request, response) use-

ful to the Checker component for the ﬁnal test verdict

deﬁnition (step 6 and 3’ of Figure 1).

3.6 Checker

The Checker deﬁnes a verdict for a given test case. As

the Test Executor, it works either in case of model-

driven testing, in this case the set of expected re-

sponses is generated by the Oracle component (step

7 of Figure 1), or when the predeﬁned test set is con-

sidered, in this case the expected responses are taken

from the database (step 5’ of Figure 1). In both cases,

the Checker takes as inputs the couple (request, re-

sponse) obtained by the execution of the request on

the SUT PDP (step 6 and 4’ of Figure 1), and the cou-

ple (request, expected response) containing the cor-

rect PDP output. Thus for each request if the response

is equal to the expected one then the Checker’s verdict

is Pass, otherwise is Fail (step 8 and 6’ of Figure 1).

The separation between the oracle and the checker in

our model enables the checker to take as input any

oracle response in the form of (request, expected re-

sponse).

3.7 Test Archive

The last component of the proposed toolchain is the

Test Archive which lets the possibility to test the SUT

PDP by means of a predeﬁned set of XACML poli-

cies. This kind of testing could be performed as an

alternative (or in association) to the model-driven test-

ing approach to improve the possibility to ﬁnd faults

in the SUT PDP.

The Test Archive is a repository of policies, each

one with an associated set of requests and the cor-

responding expected responses. In particular the

Test Archive integrates the XACML conformance test

suite (OASIS Committee, 2005) and a set of real

world policies (Bertolino et al., 2013). Details of this

set of policies are summarized in Table 2, while the

associated requests and expected responses provided

by the X-CREATE tool are showed in Table 3.

As shown in Figure 1, the Test Archive interacts

both with the Test Executor and the Checker. In par-

ticular the policies selected by the toolchain user are

sent one by one to the Test executor with the asso-

ciated set of requests (step 1’ of Figure 1), then the

associated couple (request, expected response) is sent

to the Checker for computing the ﬁnal verdict (step 5’

of Figure 1).

4 EXPERIMENTAL RESULTS

In this section we describe the experimental results

collected by a class of 14 master degree students in

Computer Science, using the proposed toolchain for

testing a speciﬁc PDP implementation, the Sun PDP

(Sun Microsystems, 2006).

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

416

Table 2: Structure and description of XACML Policies.

Policy # PolicySet # Policy # Rule # Cond # SubAttDes # ResAttDes # ActAttDes # EnvAttDes # Funct

XACMLrules 3 7 17 10 2 35 10 0 4

create-document 0 1 3 2 1 2 1 0 3

delete-document 0 1 3 2 1 3 1 0 3

demo-11 0 1 3 2 2 5 1 0 5

demo-26 0 1 2 1 1 5 1 0 4

demo-5 0 1 3 2 2 5 2 0 4

read-document 0 1 4 3 2 4 1 0 3

read-information-unit 0 1 2 1 0 2 1 0 2

read-patient 0 1 4 3 2 4 1 0 3

student-application-1 0 1 2 0 7 2 2 0 2

student-application-2 0 1 2 0 19 2 2 0 2

university-admin-1 0 1 3 0 33 3 3 0 2

university-admin-2 0 1 3 0 32 3 3 0 2

university-admin-3 0 1 3 0 32 3 3 0 2

Using Test Archive. In this ﬁrst experiment we

asked the students to deploy the Sun PDP in the com-

puters available in our students lab and to perform the

testing of this engine using the predeﬁned set of data

available for the validation. Thus referring to Figure

1, the students followed the path labeled from 1’ to 6’.

Speciﬁcally, interacting with the toolchain each stu-

dent selected either the execution of one or more ele-

ments from the set (policies, requests, exp reponses)

or to execute the conformance test suite. At this point

the toochain starts the Sun PDP testing by: sending

one by one the policy and the associated set of re-

quests to the Test Executor, (step 1’ of Figure 1);

executing each request on the Sun PDP and collect-

ing the associated response (step 2’ and 3’ of Fig-

ure 1); comparing the set of couples (requests, ex-

pected responses), (requests, responses) for comput-

ing the ﬁnal verdict (step 4’, 5’ and 6’ of Figure 1).

In Table 3, for space limitation we report only the re-

sults collected for the real world policy set. In this

case the execution of the requests on the Sun PDP

does not evidence any inconsistency between the col-

lected responses and the expected ones. This means

that all the requests having as expected response Per-

mit (third column) (Deny (fourth column), NotApp

(ﬁfth column), Indet (sixth column) respectively) in

Table 3, have risen the same response when executed

over the Sun PDP. Even if no failure have been dis-

covered (mainly due to the overall good quality of

the Sun PDP implementation), the experiment was a

good benchmark for the proposed toolchain and the

derived suggestions were useful for improving the us-

ability of the user interface and the data collection of

the toolchain.

Using Model-based Approach. In this second ex-

periment we asked the students to perform the test-

ing of the Sun PDP by using the Library Manage-

ment System (LMS) access control model (Pretschner

Table 3: PDP Under Test results using Multiple Combina-

torial strategy.

PDP Under Test

Policy # Req # Permit # Deny # NotApp # Indet

XACMLrules 17250 1035 16215 0 0

create-document 3 2 0 1 0

delete-document 7 3 0 3 1

demo-11 98 28 28 42 0

demo-26 7 1 3 3 0

demo-5 861 394 98 369 0

read-document 42 16 0 21 5

read-information-unit 3 1 0 1 1

read-patient 42 13 0 21 8

student-application-1 7 3 4 0 0

student-application-2 63 4 59 0 0

university-admin-1 1159 22 1137 0 0

university-admin-2 1159 176 983 0 0

university-admin-3 13908 88 4544 9276 0

et al., 2008) (see Section 3.1). Referring to Figure

1, the students followed the path labeled from 1 to

8 of the proposed toolchain. In particular, a set of

1800 XACML requests has been derived by using the

tool X-CREATE from the LMS policy. The result

of the requests execution was: 18 Deny, 24 Permit

and 1758 NotApplicable. By using the Checker com-

ponent, the students compared each couple (request,

response) with the corresponding couple of (request,

expected response). As in the previous experiment,

all the verdicts got the Pass value and therefore no

failure has been discovered.

5 RELATED WORK

This section addresses several existing initiatives in

applying model-based approaches for security test-

ing. A standard language for designing test models

is UML Testing Proﬁle (UML-TP) (OMG, 2004) that

represents a lightweight extension of UML with spe-

ciﬁc concepts (stereotypes) to support the design of

testing artifacts. In (Lodderstedt et al., 2002), UML

models have been used to generate security infrastruc-

AToolchainforModel-basedDesignandTestingofAccessControl

Systems

417

tures through SecureUML language which is based on

Role based Access Control Model (RBAC).

Model-based testing has been investigated for

the XACML policy testing (Le Traon et al., 2007;

Pretschner et al., 2008). The approaches proposed

in (Le Traon et al., 2007; Pretschner et al., 2008) are

based on the representation of policy implied behav-

ior by means of models. Differently from these works

model based testing in this paper addresses testing of

the PDP engine. The authors of (Li et al., 2008) ad-

dress testing of the XACML PDP by running different

XACML implementations for the same test inputs and

detecting not correctly implemented XACML func-

tionalities when different outputs are observed. Dif-

ferently from our proposal, this approach randomly

generates requests for a given policy and requires

more PDP implementations for providing an oracle

facility by means of a voting mechanism. Our fo-

cus is to provide an integrated toolchain including test

case generation as well as policy and oracle speci-

ﬁcation for the PDP testing. A different solution in

the context of usage control is presented in (Bertolino

et al., 2012b) where the authors provide a fault model

and a test strategy able to highlight the problems,

vulnerabilities and faults that could occur during the

PDP implementation. This solution is speciﬁcally de-

signed for PolPA language, then it cannot be used for

XACML PDP testing.

6 DISCUSSION AND

CONCLUSION

This paper presented a toolchain for testing an

XACML PDP. The main facilities of the proposed

toolchain are: a model-based speciﬁcation of the

XACML policy, a test suite generation and execution

engine, and the oracle deﬁnition. Two different ex-

periments conﬁrmed the effectiveness of the toolchain

for testing a real PDP engine (Sun PDP). Concern-

ing the validity of the experiments, i.e. the amount of

conﬁdence on the reported results, an important key

factor is the employed test set: we used X-CREATE

for deriving test suites, but it is likely that other test

sets may produce different results. In this paper, we

have applied our model based approach for deriving

LMS policy which includes 42 rules. Therefore, big-

ger policies need to be considered to guarantee the

scalability of the proposed approach. For future work,

we plan to extend the Test Archive including XACML

policies having a large number of rules, consider dif-

ferent test suites and improve the toolchain to support

the XACML 3.0.

ACKNOWLEDGEMENTS

The authors would like to thank Antonia Bertolino

and Yves Le Traon for their suggestions and useful

discussions.

REFERENCES

Bertolino, A., Daoudagh, S., Lonetti, F., and Marchetti, E.

(2012a). Automatic XACML requests generation for

policy testing. In Proc. of SECTEST, pages 842–849.

Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., Mar-

tinelli, F., and Mori, P. (2012b). Testing of PolPA Au-

thorization Systems. In Proc. of AST, pages 8–14.

Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., and

Schilders, L. (2013). Automated testing of extensible

access control markup language-based access control

systems. IET Software, 7(4):203–212.

Bertolino, A., Lonetti, F., and Marchetti, E. (2010). Sys-

tematic XACML Request Generation for Testing Pur-

poses. In Proc. of EUROMICRO (SEAA), pages 3–11.

equel, J.-M., Barais, O., and Fleurey, F. (2011). Model

driven language engineering with kermeta. In Gen-

erative and Transformational Techniques in Software

Engineering III, pages 201–221. Springer.

Le Traon, Y., Mouelhi, T., and Baudry, B. (2007). Testing

security policies: going beyond functional testing. In

Proc. of ISSRE, pages 93–102.

Li, N., Hwang, J., and Xie, T. (2008). Multiple-

implementation testing for XACML implementations.

In Proc. of TAV-WEB, pages 27–33.

Lodderstedt, T., Basin, D., and Doser, J. (2002). Se-

cureUML: A UML-based modeling language for

model-driven security. In The Uniﬁed Modeling Lan-

guage, pages 426–441. Springer.

Martin, E. and Xie, T. (2006). Automated Test Generation

for Access Control Policies. In Supplemental Proc. of

ISSRE.

OASIS (1 Feb 2005). eXtensible Access Control Markup

Language (XACML) Version 2.0.

OASIS Committee (2005). XACML Version 2.0 Confor-

mance Tests.

OMG (2004). UML 2.0 Testing Proﬁle Speciﬁcation.

http://utp.omg.org/.

Pretschner, A., Mouelhi, T., and Traon, Y. L. (2008).

Model-based tests for access control policies. In Proc.

of ICST, pages 338–347.

Sun Microsystems (2006). Sun’s XACML Implementation.

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

418
