Context-sensitive Indexes in RDBMS for Performance Optimization

of SQL Queries in Multi-tenant/Multi-application Environments

Arjun K. Sirohi

and Vidushi Sharma

PSR (Performance, Scalability, Reliability) Engineering, Oracle U.S.A. Inc., Bellevue, WA, U.S.A.

School of Information and Communication Technology, Gautam Buddha University, Greater Noida, India

Keywords: Indexes, Mixed-load Queries, Multi-tenant Queries, Multi-application Queries, SQL Performance

Optimization.

Abstract: With the recent shift towards cloud-based applications and Software as a Service (SaaS) environments,

relational databases support multi-tenant and multi-application workloads that query the same set of data

stored in common tables, using SQL queries. These SQL queries have very different query constructs and

data-access requirements leading to different optimization needs. However, the business-users' expect sub-

second response times in getting the data that they requested. The current RDBMS architectures where

indexes “belong” to a table without any object privileges of their own, and, therefore, must be considered and

used by the optimizer for all SQLs referencing the table(s), pose multiple challenges for the optimizer as well

as application architects and performance tuning experts, especially as the number of such indexes grows. In

this paper, we make the case for “Context-Sensitive Indexes”, whereby applications and tenants could define

their own indexes on the shared, transactional database tables to optimize the execution of their SQL queries,

while at the same time having the optimizer keep such indexes isolated from other applications and

tenants/users for the purposes of query optimization.

1 INTRODUCTION

Today, there is an increasing need for relational

database management systems (RDBMS) to support

mixed-load and multi-tenant queries. Additionally,

the changing landscape of enterprise business

applications, coupled with the easy availability of

cloud services and software-as-a-service paradigm,

many small and medium sized businesses who could

not afford to implement applications like Customer

Relationship management (CRM) in-house, have

now started adopting these applications through cloud

providers as hosted application services. All this is

leading to a situation where the back-end databases

need to support multiple concurrent applications that

send SQL queries against the same schema and data,

albeit with very different query constructs, data

access requirements and optimization goals. The

providers of SaaS and Cloud environments also face

the challenge to support multi-tenancy, wherein the

applications’ schema in the database may be shared

and yet the data stored in those schema tables is

isolated and protected from each other. What is not

changing, though, is the business-users' expectations

of sub-second response times in getting the data that

they requested of the database. Cloud and SaaS

providers are finding themselves implementing

various solutions that can act as a differentiator.

Most commercial enterprise business applications

use a relational database like Oracle at the back end

and all processing of data is managed through SQL

queries. At the lowest grain, the performance of such

SQL queries often dictates the performance and

scalability of the application, among other factors. In

this paper we examine the existing application and

database approach towards use of indexes and their

impacts on the performance of SQL queries. A large

number of performance problems arise from the fact

that most SQL queries are dynamically generated at

run-time by middleware SQL-generation engines

based on an abstract layer of the logical data model,

which results in complex queries. It has been

lamented that the use of indexes in the database to

help performance of SQL queries is as old as

relational databases and yet we find inadequacy and

poor quality of indexes (Leach and Lahdenmaki,

2005). So we feel that it is time to take a fresh look at

the humble indexes in the context of multi-tenant and

259

K. Sirohi A. and Sharma V..

Context-sensitive Indexes in RDBMS for Performance Optimization of SQL Queries in Multi-tenant/Multi-application Environments.

DOI: 10.5220/0005350802590270

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 259-270

ISBN: 978-989-758-096-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

multi-application environments to see how indexes

can be better leveraged to improve query

performance.

This paper begins by providing the motivation and

background work done on this topic. Next, we discuss

the contributions of our paper followed by a

discussion of existing architectures and their

limitations as related to the topic of our research. This

includes highlighting the two most important

limitations in existing architectures. Next, we discuss

our proposal of context-sensitive indexes and their

implementation aspects, including maintenance. The

paper then presents results from experiments

conducted to support the proposal. The paper

concludes with ideas for taking action and possible

directions for implementation.

2 MOTIVATION AND

BACKGROUND WORK

Modern business applications have to process

increasing volumes of data stored in transactional

databases. This means that SQL queries have to

process more data but still achieve acceptable query

processing times. This has added increased pressure

on RDBMS providers to come up with new

techniques to handle increased volumes of data on

one hand and to keep query processing times within

acceptable limits, if not improve further, on the other.

Adding to this complexity are the Cloud and SaaS

offerings from independent service and application

providers. To support such application models,

database vendors have tried to make changes and

adjustments to the database architectures. For

example, the offerings and multi-tenant scenarios

from IBM, like separate databases for tenants, shared

database but different schemas or shared database and

shared schema for multiple tenants have been

discussed (Chong, 2012). There are similar offerings

made by Microsoft Corporation (Chong, Carraro and

Wolter, 2006). Oracle’s latest database release 12c

also provides many enhancements to support multi-

tenancy (Oracle, 2014). All such offerings and

architectures are focused around the use and sharing

of database instances, databases, schemas and

applications. Most research has been focused on

optimizing such architectures in order to achieve user

satisfaction in terms of query processing times.

Improving query processing time is an ongoing,

complex research subject and advancements have

been made in recent years by RDBMS vendors in

many different areas of query optimization. One such

area of advancement is the use of various types of

indexes used in query optimization. We find that most

of the existing work done by researchers on indexes

has been mostly on the aspects of internal

implementation of various types of indexing

mechanisms. For example, the issues related to

optimizing of multidimensional index trees for main

memory access were researched and addressed by

using two-dimensional CR-tree index structure that

performs searches much faster than the ordinary R-

tree and at the same time consuming less memory

space (Kihong and Sang, 2001). These researchers

have focused on the physical design structures of

indexes and better algorithms to optimize storage and

access. The impacts of multiple and different types of

applications like OLTP applications and

transactional business intelligence applications

sending a mixed and varied query load to the

database, on the performance and scalability of

queries has not been the focus of much research. The

origins of mixed query workloads like OLTP and

analytics workloads and their characteristics have

been researched and discussed earlier (Powley,

Martin and Bird, 2008). However, much of the

research has been directed at finding ways and means

to somehow shield the transactional business

applications’ queries from the effects of analytical

and business intelligence type of queries. For

example, in one solution, it was proposed to adjust the

memory allocation in order to meet response time

goals for mixed workloads (Brown, Mehta, Carey,

and Livny, 1994). Another solution proposed was an

algorithm for memory allocation and prioritization

based on resource usage, workload characteristics and

performance statistics (Pang, Carey and Livny, 1995).

Other researchers put their focus on creating

benchmark standards that could effectively bench

such mixed-load applications (Krueger, Tinnefeld,

Grund, Zeier, and Plattner, 2010). To the best of our

knowledge, there is no current published research on

query optimization through creation and use of

context-sensitive indexes, whereby

tenants/users/schemas and applications could decide

which indexes should be used as input by the

optimizer to arrive at the best access paths for their

SQL queries instead of the optimizer being burdened

with this task of evaluating all available indexes on a

given table.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

260

3 CONTRIBUTIONS OF THIS

PAPER

In this paper, we present a novel way to optimize

query processing for the shared environments where

a single shared-database, shared-schema approach

provides multi-tenancy or multi-applications

environments or both. In these approaches, multiple

instances of an application and/or multiple different

applications point to the shared database and shared

schema tables that hold the applications’ data. The

tenants are identified by a unique column in every

table that stores the application data, most commonly

named “Tenant_Id”. While this shared approach

provides considerable cost savings in terms of

infrastructure and operational costs, there are

performance and scalability considerations and

concerns arising out of this architecture. Similarly,

even in single-tenant database environments, there

are often multiple applications and modules within

applications with different optimization goals and

SQL query constructs that are a cause for

performance concerns.

In this paper, we propose the creation and

handling of indexes in a manner that can lead to better

optimized query processing, thereby resulting in

better performance and scalability of such multi-

tenant and/or multi-applications environments. We

focus on improving the performance of SQL queries

in a mixed-load and/or multi-tenant enterprise

business application through the creation and use of

context-sensitive indexes, owned by an application

and/or tenant/user, shared with other

applications/tenants/users if needed, and used by the

RDBMS optimizer solely for SQL queries originating

from these owner applications’ modules and actions

and/or tenants/users.

For the purposes of this paper, we refer to the

Oracle database’s implementation of schema and

indexes in order to compare with our proposed

solution since Oracle is the most widely used

commercial database. Also, in this paper, we use the

term “context-sensitive indexes” to describe indexes

that are only visible to and/or owned by specific

applications, schemas and/or tenants and used by the

RDBMS optimizer ONLY to optimize access paths

for queries originated by the specific

tenant/user/schema and/or applications’ modules and

sub-modules termed as Actions. These have the

potential to significantly improve the performance of

the SQL queries in a shared, multi-tenant and/or

multi-application architecture and as a result improve

the performance and scalability of such applications.

A word on the limits of the scope of our research

and this paper’s proposal is in order here. We want to

clarify that we do not delve into the physical

implementation characteristics and optimizations of

table and index structures. We also do not propose

any new type of index structures. What we have

researched and what we propose is a methodology for

the segregation of ownership of the tables that contain

application data from the creation and use of context-

sensitive indexes that support the search and retrieval

of data from such tables by multiple

tenants/users/schemas and/or applications’ Modules

and Actions.

4 EXISTING ARCHITECTURES

AND LIMITATIONS

In this section, we provide a snapshot of the existing

architectures and their limitations as related to the

topic of our research. For example, in Oracle

database, tables and indexes are schema objects that

exist in different namespaces. (Oracle Database SQL

Language Reference 12c, 2014). A query is defined

as an operation that retrieves data from one or more

tables or views. In this reference, a top-level SELECT

statement is called a query. Further, Oracle

documentation defines indexes as structures that

allow fast access path to data and are meant to reduce

disk I/O, thereby improving query performance.

Indexes are independent of the data in the tables and

can be created or dropped without affecting the data.

Similarly, SQL statements are written independent of

the indexes and are not affected by any changes in

indexes. (Oracle® Database Concepts, 2014).

Indexes can be created in one’s own schema well

as in another schema, with appropriate privileges.

One key property of indexes in Oracle database that

affects query optimization is whether the index is

visible or invisible to the optimizer. An invisible

index is maintained by Data Manipulation Language

(DML) operations, but it is not used by the optimizer

during query hard parsing and optimization unless

explicitly asked for.

Similarly, in IBM’s DB2 UDB database, an index

is described as "a set of pointers that are logically

ordered by the values of one or more keys. Indexes

are used to improve performance and ensure

uniqueness" (IBM DB2, 2014). In the Hierarchy of

DB2 UDB authorities and privileges on database

objects like tables and indexes, the only privilege that

can be granted on indexes is "CONTROL", which

grants the privilege to drop the index (Wasserman,

Context-sensitiveIndexesinRDBMSforPerformanceOptimizationofSQLQueriesinMulti-tenant/Multi-application

Environments

261

2012). DB2 UDB documentation further states that

“Although the query optimizer decides whether to use

a relational index to access relational table data, it is

up to you to decide which indexes might improve

performance and to create those indexes” (IBM DB2,

2014).

The optimizer is described as built-in database

software that determines the most efficient way to

execute a SQL statement by considering factors

related to the objects referenced and the conditions

specified in the statement. The Oracle database

optimizer receives the parsed query and generates a

set of potential plans for the SQL statement based on

available access paths and hints. It estimates the cost

of each plan based on statistics in the data dictionary.

Optimizer statistics are created for the purposes of

query optimization and are stored in the data

dictionary. The cost of plans is an estimated value

proportional to the expected resource use needed to

execute the statement with a particular plan. It

compares the costs of plans and chooses the lowest-

cost plan, known as the query plan. As documented,

“To choose an access path, the optimizer first

determines which access paths are available by

examining the conditions in the statement's WHERE

clause and it’s FROM clause. The optimizer then

generates a set of possible execution plans using

available access paths and estimates the cost of each

plan, using the statistics for the index, columns, and

tables accessible to the statement. Finally, the

optimizer chooses the execution plan with the lowest

estimated cost” (Oracle® Database Performance

Tuning Guide, 2014).

In the existing architecture, we note that the

RDBMS optimizer is burdened with all the analysis

and decision-making that goes into finding the most

optimal index access paths for the data being sought

by an SQL query. The popular RDBMS

implementations like Oracle, DB2 UDB and SQL

Server provide limited control to the applications and

developers, by way of SQL constructs, using index

hints or altering session properties that can influence

the optimizer’s access path selection in using specific

indexes built on tables. During its query plan

generation, the optimizer takes into consideration all

indexes created on tables with few exceptions like

cases where in Oracle an index has been made

unusable or invisible. We find that one limitation in

the existing architecture is that during this process,

the optimizer does not consider the already available

contextual metadata in terms of index ownership and

the application’s module/action from which the SQL

originated. The documented reason for this is that

“some schema objects, such as clusters, indexes,

triggers, and database links, do not have associated

object privileges” (Oracle® Database Security Guide,

2014)

This is best illustrated with examples. Let’s say in

Oracle database, a user/schema ‘B’ representing a

specialized application, has read access and index

creation privileges on table ‘T1’ which is owned by

another user/schema ‘A’. Now indexes can be created

on table ‘T1’ and owned by user/schema ‘B’ such as

‘B.T1-IDX1’. Suppose that user/schema ‘A’ has two

other existing indexes on table ‘T1’, namely ‘A.T1-

IDX2’ and ‘A.T1-IDX3’. Now, when a SQL from

user/schema ‘A’ comes to the optimizer that involves

data access from table ‘T1’, the optimizer takes into

consideration all three indexes - ‘A.T1-IDX2’, ‘A.T1-

IDX3’ as well as ‘B.T1-IDX1’. It does not matter that

index ‘B.T-IDX1’ was created by application

designers to only support specific SQLs coming from

user/schema ‘B’ for a specific application’s module

and action. Under this current architecture where

indexes “belong” to a table without any object

privileges of their own, and, therefore, must be

considered and used by the optimizer for all SQLs

referencing the table, we find two performance

related problems as described in the following

sections.

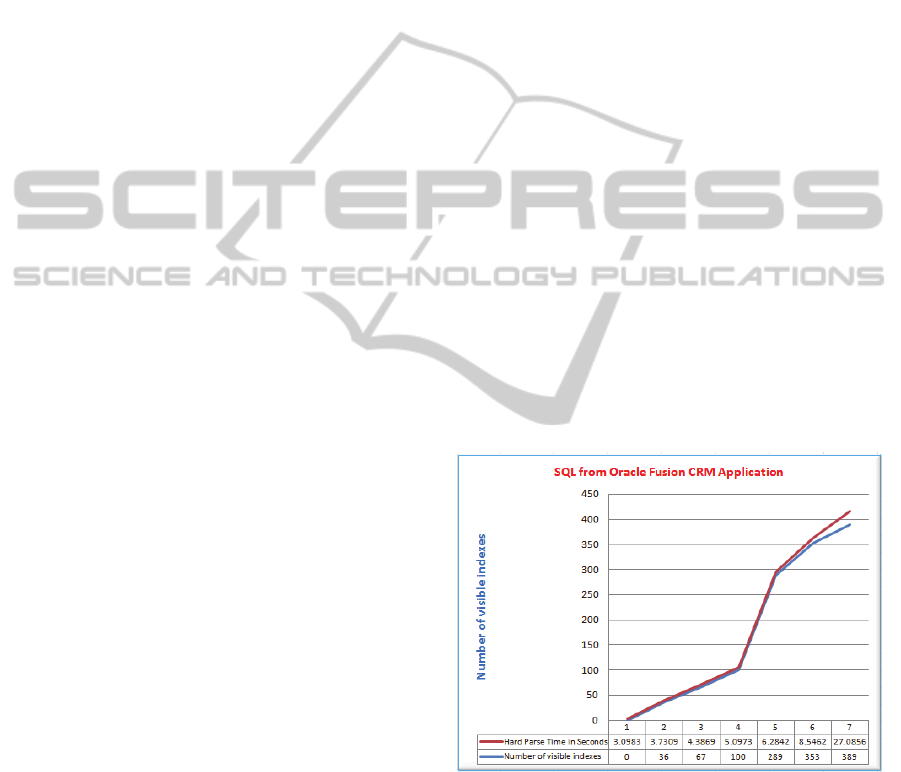

4.1 Higher Hard Parse times

The first problem in the existing architecture where

indexes “belong” to tables and thus all indexes on all

tables referenced in the query must be evaluated by

the optimizer during hard parse, is that this can often

lead to higher hard parse times and locking

contentions, especially when multiple hard parse

requests come in to the database concurrently

accessing the same objects. In most N-Tier modern

business applications, the SQLs are dynamically

generated by middleware SQL-generation engines

based on an abstracted logical data model layer. As a

result of and due to various limitations in the process

of run-time dynamic SQL generation, the number of

tables referenced in SQLs has been getting larger. In

addition, the number of indexes created on each table

has also increased significantly due to the number and

type of applications that need to be supported. For

example, in the latest Oracle Fusion Applications, we

frequently find SQLs referencing 20 to 40 tables, each

with a large number of indexes. The final result is that

the number of indexes for all tables in a SQL that need

to be considered and evaluated by the optimizer has

increased manifold. In addition, the optimizer goes

through more permutations at hard parse time to get

the most optimal execution plan due to many more

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

262

query transformations in newer releases of RDBMSs

like Oracle, DB2 UDB and SQL Server. In cases

where there is a cost tie between different plans, the

optimizer needs to decide which of the competing

indexes to use. For example, Oracle database

optimizer sorts index names alphabetically as the

method of choosing one index over another, when

both have the same cost. This results in increased

query hard parse time.

4.2 Potential for Sub-optimal Plans

The second problem relates to sub-optimal execution

plans chosen by the optimizer for some SQL queries,

in part due to the large number of, and sometimes,

competing indexes. The problem itself emanates from

the combined effects of the complexity and size of the

dynamically generated SQLs, the increased number

of tables referenced in these SQLs, the large number

of indexes created on these tables, the increased

complexity and newer features of the optimizer code

itself. The net result is that the optimizer has to now

evaluate many more potential access paths and

combinations of optimizations to satisfy the data

requested by SQL queries. This results in a higher

probability of the optimizer making some sub-

optimal choices, which can be very detrimental to an

application’s performance and scalability. The

contribution of the large number of indexes to this

problem of sub-optimal plan choices is quite

significant and thus, cannot be ignored. Oracle

documents this problem in Oracle® Database

Performance Tuning Guide under Section 14.1.1

titled ‘Tuning the Logical Structure’ as follows:

“Note that creating an index to tune one statement can

affect the optimizer's choice of execution plans for

other statements. For example, if you create an index

to be used by one statement, then the optimizer can

choose to use that index for other statements in the

application as well. For this reason, re-examine the

application's performance and execution plans, and

rerun the SQL trace facility after you have tuned those

statements that you initially identified for tuning”

(Oracle® Database Performance Tuning Guide,

2014). We note that this is a very limiting factor that

creates additional testing and analysis workload for

application architects and performance tuning experts

when they want to create a new index for a specific

application’s module and/or action as noted in the

documentation above.

We also note that in databases like Oracle, a lot of

useful information about a SQL query is captured for

reporting and performance analysis purposes but is

currently not utilized by the optimizer as additional

inputs into the metadata and statistics on which it

relies to generate efficient query plans. For example,

applications typically pass certain parameters along

with the SQL request to the database including

MODULE and ACTION using the package

DBMS_APPLICATION_INFO.SET_MODULE.

However, this information is not currently utilized

by the optimizer for the purposes of optimizing query

plans, though it is used for certain other functions

including Enterprise Manager’s performance graphs,

Active Session History (ASH) and Automatic

Workload Repository (AWR) reports.

In brief, when run-time, dynamically generated

SQLs from multiple applications’ modules and

actions execute SQL queries against the same tables,

with very different SQL constructs and optimization

goals, we find that this current architecture puts undue

burden on the optimizer to make the access plan

choices that can sometimes result in sub-optimal

performance of such queries and resultant poor

application performance.

We would like to note one additional limitation

with the current architecture. Databases like Oracle

have traditionally provided ‘HINTS’ to be used in

SQLs as a way to influence the optimizer’s decision-

making and choices in the selection of access paths,

including indexes. The hints include ways to specify

that the optimizer should use named indexes as

provided in the hint section of a SQL query. As

documented, “The INDEX hint instructs the

optimizer to use an index scan for the specified table.

You can use the INDEX hint for function-based,

domain, B-tree, bitmap, and bitmap join indexes.”

(Oracle Database Online Documentation, 2014).

While this approach worked for older applications

that used hand-crafted SQLs, the approach has many

serious pitfalls for the run-time, dynamically

generated SQLs that are produced by SQL-generation

engines based on an abstracted logical data model,

that are more the norm in N-tier application

architectures that we see in the industry today.

Adding hints in such dynamically generated SQLs

has been found to be very risky in terms of unintended

consequences for optimizer plan selection and

performance of SQL queries. For example, in one

implementation of Oracle Fusion Applications,

addition of hints in ADF View Objects (VOs) by

some developers and performance tuning experts, to

tune one set of queries, resulted in many other queries

originating from other modules/actions to suddenly

perform extremely poorly. Subsequent performance

analysis of such SQLs showed that the added hints

were the root cause of performance degradation.

Context-sensitiveIndexesinRDBMSforPerformanceOptimizationofSQLQueriesinMulti-tenant/Multi-application

Environments

263

To the best of our knowledge and in our research,

we do not find any current implementation of our

proposed concept of “Context-Sensitive Indexes”.

We describe "Context-Sensitive Indexes" as database

index structures built on tables that are used in a

manner which provides methods for the RDBMS

optimizer to establish the context in terms of

Tenant/User/Schema as well as Applications'

MODULE and ACTION for the optimizer to use such

established context for minimizing the number of

indexes evaluated during hard parse with the aim of

achieving the most optimal access paths and

execution plan possible for the SQL query with

reduced hard parse.

5 CONTEXT-SENSITIVE

INDEXES FOR SQL QUERY

PERFORMANCE

There are many factors that affect the performance of

SQLs. Our focus in this paper is on making the use of

indexes context-sensitive by the optimizer to arrive at

the most optimal execution plan for a given

tenant/user/schema or application’s module/action.

The idea behind our proposal is two-fold. One,

reducing the hard parse time by limiting the number

of indexes that the optimizer needs to evaluate while

arriving at query plans. Two, minimizing the

possibility of the optimizer not choosing the most

appropriate index and thus using an inefficient

execution plan, by providing the optimizer a

restricted list of indexes based on the application

owner/architect’s knowledge of the application and

data model including data shape in tables.

Context for indexes can be defined in terms of

any one or more of the following:

1. Tenant context in case of multi-tenant

applications or Schema/User context in case of

multiple schemas/users accessing data from the same

tables in the database.

2. Application Module context in both cases of

single and multi-application environments.

3. Application Module’s Action context in case of

both single and multi-application module

environments.

For example, the new Fusion Applications from

Oracle comprise of a number of different applications

like CRM (Customer Relationship Management),

HCM (Human Capital Management), CDM

(Customer Data Management), OTBI (Oracle

Transactional Business Applications), and Business

Intelligence Applications (BI Apps) among others.

Within each of the applications, there are various

Modules, each with one or more Actions. As

mentioned earlier, the SQLs are dynamically

generated at run time, by ADF and BI Server. Within

these applications, a number of schema tables are

shared not only within applications’ modules but also

across the applications. Even though the tables are

shared, each application has some unique

requirements that necessitate use of specific indexes

for SQLs originating from those applications’

modules and actions. For example, SQLs for the

Fusion CRM Applications generated for the

transactional application and User Interface (UI) can

be quite different from the SQLs generated by the

Business Intelligence Server (BI Server) for OTBI

and BI Apps Extract, Transform, Load (ETL) queries,

which have entirely different SQL constructs and

optimization goals due to their very nature. Even

within the Fusion CRM applications, modules that

serve the UI use cases are very different from uses

cases like Microsoft Outlook integration using web

services. In one internal implementation of Fusion

Applications in Oracle, there are over four hundred

module-action combinations. In a large number of

such cases, “context-sensitive indexes” will provide

application architects a very useful way of defining

and creating indexes to serve specific use cases

without the fear of interfering with the performance

stability of queries from other applications and

modules. All this becomes possible with our proposal

to make indexes context-sensitive. In the next few

paragraphs, we discuss how context for indexes is

important in different scenarios.

5.1 The Multi-tenant/User/Schema

Context-sensitive Indexes

Oracle 12c has introduced the concept of pluggable

databases (PDB), whereby one PDB could be used for

each tenant in the multi-tenant architecture (Oracle

Database Online Documentation, 2014). However,

for the use cases where multiple tenants share the

same database and schema, whether in Oracle or other

RDBMS systems, it has been a challenge for

application architects and developers to achieve high

performance. Our proposed concept of context-

sensitive indexes provides for allowing the

tenant/user/schema context in the creation and use of

indexes. In our proposed architecture, it should be

possible for RDBMSs to provide a methodology to

not only segregate the ownership of specific indexes

amongst tenants/users/schemas but also

partition/filter the common indexes based on tenant

id. This is possible if we move away from the

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

264

historical architecture of indexes belonging to a table,

rather than belonging to a tenant/user/schema and

then providing visibility of those partitions to specific

tenants/users/schemas whose data is indexed in those

partitions.

In the context of tenants/users/schemas, we

propose that the indexes (or index partitions) on

common tables should be created and owned by

tenants/users/schemas and the indexed data in such

indexes should only contain filtered data based on

tenant id.

Our proposed architecture is slightly different

from the existing concept of partitioned tables and

indexes. The existing global partitioned indexes in

databases provide the means to create indexes on

different partitioning keys and it is currently possible

to partition the tables and/or indexes by tenant key.

By creating such partitioned indexes, we can take

advantage of the optimizer’s ability to use partition-

pruning and technique known as partition-wise joins

to improve performance. However, this approach

requires the creation and maintenance of such

partitioned indexes for all tenants. This current

methodology works for use cases where the indexes

on the same columns are required for use by all

tenants. However, it does not work in use cases where

different tenants require indexes on different sets of

columns. For example, let us say there are 100

tenants and an index named Index1 on Colum1,

Column2 and Column3, partitioned by Tenant-ID. In

the current architecture, this index would result in

creation and maintenance of 100 partitions of Index1.

If this index were needed only by 10 tenants, then the

remaining 90 partitions will not only add to the

maintenance overhead but we also put these 90

tenants confronting the problems of higher hard parse

time and instable execution plans that we have

described earlier in the paper due to high number of

indexes. In our proposal, tenants/users/schemas

would have the flexibility to create indexes that they

need and have the index filtered down to only their

own data. Other tenants/users/schemas would

therefore not be burdened with such indexes that they

do not have a need for. Overall, the database will also

have lower cost of index maintenance by restricting

the number, size and partitions of indexes.

It may be argued that our proposed methodology

may lead to more number of indexes overall and

arguably slightly higher cost of maintenance.

However, this need not be the case if due diligence is

done by application architects in creating a scheme of

visible/invisible indexes from amongst the existing

indexes itself. Also, the performance gains for queries

from tenants/users will more than offset the slightly

increased maintenance costs, if any. Such tenant

specific filtered indexes (or index partitions) will be

smaller in size and possibly have lower heights, with

fewer levels and fewer leaf blocks because these only

contain index entries for a specific tenant.

Specifically, index fast full scan operations will

benefit because their performance is directly

proportional to the index size. There will be lesser

number of index splits due to inserts, updates and

deletes because now such operations will be divided

and spread across the many different tenant/user

indexes. DML operations like insert, update and

delete done by a specific tenant/user will not require

the updating of indexes for another tenant/user,

thereby isolating index maintenance costs to the

specific tenant.

Another key advantage in our proposed

architecture is that tenants/users will get the freedom

to create their own indexes that help with their

specific types of queries and data shapes without

burdening the optimizer from considering their

indexes during creation of query plans for other

tenants/users. This is very significant in terms of

index creation and maintenance and will provide

further isolation between tenants/users. The

performance gains for SQL queries will therefore

come from savings in hard parse time due to the fewer

number of indexes to be evaluated by the optimizer,

from potentially more stable, optimal execution plans

as well as from better execution times due to the

smaller traversal paths through such smaller and more

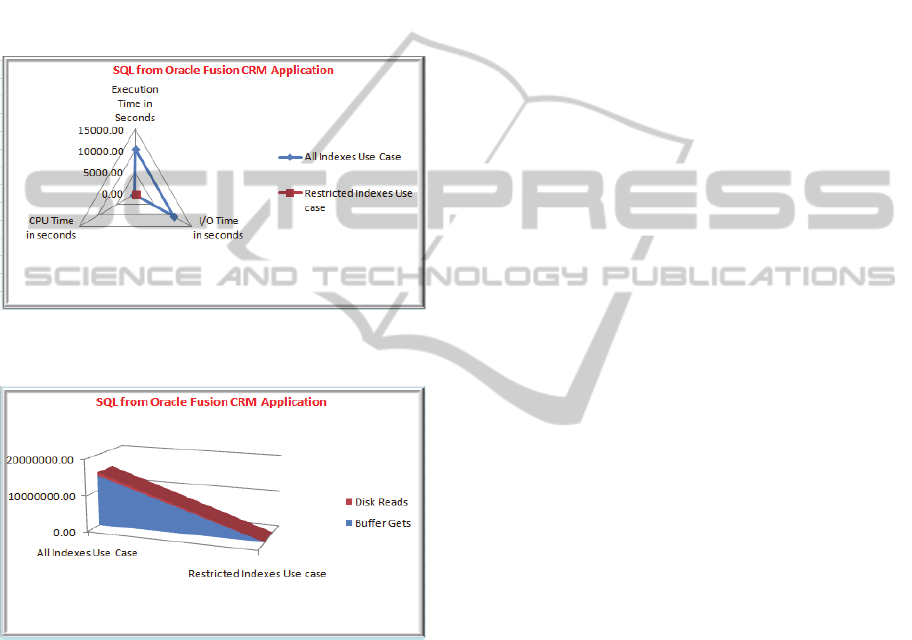

compact indexes. We establish the performance

advantages of our proposed architecture in the

experimental results presented in Section 6 of this

paper.

5.2 Applications’ Module and Action

Context-sensitive Indexes

To recall, in the current RDBMS architectures,

indexes do not have object privileges and for the

purposes of the optimizer’s choice of SQL execution

plan, it must consider all available indexes for tables

referenced in the SQL query. Often, a large number

of indexes get created on a table to support many

different SQL queries to support multiple

applications, modules and sub-modules (Actions).

When this happens, the optimizer, in some cases, is

unable to choose the best possible query plan due to

the large number of competing indexes. We propose

that indexes should be treated as database objects on

which privileges can be granted and revoked. The

reason for this proposal is to give application

architects the ability to make the fine-grained choices

Context-sensitiveIndexesinRDBMSforPerformanceOptimizationofSQLQueriesinMulti-tenant/Multi-application

Environments

265

about which indexes they wish to have access to for

the purposes of optimization of their applications’

SQL queries and which indexes to ignore as irrelevant

for the optimization of their SQL queries. A common

use case scenario these days is the different types of

applications accessing data in the same tables, but

with different SQL constructs and optimization goals.

For example, in Oracle’s Fusion Applications, the

needs of the transactional Fusion Application’s

queries are very different from the requirements of

OTBI queries. There are also many additional types

of applications like mobile applications, bulk data

loading, and BI Apps ETL for pulling data to the data

warehouse. By modifying the RDBMS architecture to

allow database objects like indexes to have object

privileges, we can facilitate the creation of an

application’s Module and Action context which can

then be used by the optimizer to limit the indexes it

considers for optimization of SQL query plans.

The same concept can be further expanded to

different Modules and Actions within modules of an

application, whereby, it should be possible for

application architects to specify to the RDBMS

optimizer, which indexes should be considered while

parsing and optimizing SQL queries originating from

specific modules/actions of an application. Our

proposed solution improves upon and provides a

more generic and broader way to guide the optimizer

in choosing efficient query plans over the existing

methodology of specifying particular index usage

hints in the text of specific SQLs, which is becoming

very hard to achieve for dynamically generated SQLs.

It can be argued that one down-side of this feature

could be generation of multiple child cursors for the

same SQL because of the context and possibly

resulting in increased number of hard parses.

However, the effects of this feature would be similar

to the effects of existing database features like

adaptive cursor sharing, which create new child

cursors based on factors like bind-peeking etc. Thus,

the benefits of reduced hard parse times and more

optimal execution plans should outweigh the effect of

some additional hard parsing and creation of child

cursors. Similar to any other database optimizer

feature like adaptive cursor sharing, this new feature

could also have a parameter to switch it on or off.

5.3 Implementation Aspects of

Context-sensitive Indexes

In the current RDBMS architectures, indexes do not

have object privileges. For the purposes of the

optimizer’s choice of SQL execution plan, it must

consider all available indexes for a given table

referenced in the SQL query. Our proposed

architecture can be achieved by RDBMS vendors in

multiple ways. The first and foremost requirement is

to upgrade the status of indexes in databases by

declaring indexes as database objects on which

VISIBLE privilege can be granted and revoked.

“Context-Sensitive Indexes” implementation will

need to be done at two levels of context as discussed

in subsequent sections.

5.3.1 Tenant/User/Schema Context

The first enhancement to implement “context-

sensitive indexes” would be to declare indexes as

database objects on which an object privilege,

VISIBLE, can be granted or revoked. This can be

implemented similar to currently used privileges on

objects like TABLE (SELECT, INSERT etc). By

granting VISIBLE privilege on specific indexes to

tenants/users/schemas, the optimizer can eliminate

from evaluation certain indexes during hard parse on

which the tenant/user/schema does not have

VISIBLE privilege. This will give

tenants/users/schemas the ability to make the fine-

grained choices about which indexes they wish to

have access to for the purposes of optimization of

their SQL queries and which indexes to ignore as

irrelevant. In addition, a Global Visible scheme for

indexes can help application architects to grant

VISIBLE to all Tenants/Users/Schemas for some or

all indexes as needed. Alternately, the default

privilege could be VISIBLE for all

tenants/users/schemas on all indexes, as in current

RDBMS implementations. Database

administrators/application architects could then

selectively revoke VISIBLE privilege on specific

indexes that they do not wish to be used by the

optimizer for their SQLs. This will achieve

tenant/user/schema context-sensitive indexes. For

example, say there are two users ‘A’ and ‘B’. The

following statements will grant and revoke VISIBLE

privilege:

GRANT VISIBLE ON <index_name> TO

<User B>;

REVOKE VISBILE ON <index_name> FROM

<User A>;

The VISBILE privilege’s grant and revoke

architecture can address the implementation of

context-sensitive indexes for multi-tenant and multi-

user/schema environments as depicted in Figure 1.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

266

DeclarativeSchemeforUser/SchemaContext‐SensitiveIndexes

Context/Index TABLE1.IDX1 TABLE1.IDX2 TABLE1.IDX3 TABLE1.IDX4 TABLE1.IDX5

TableOwnerUser/Schema Yes Yes Yes Yes Yes

User/Schema2 Yes Yes Yes No Yes

User/Schema3 Yes No No No No

User/Schema4 Yes Yes No No Yes

User/Schema5 Yes No Yes Yes Yes

User/Schema6 Yes No No Yes Yes

Figure 1: Declarative Scheme for Tenant/User/Schema

Context.

5.3.2 Applications’ Module and Action

Context

The aim is to make it possible for creating and

declaring indexes that should only be used by

specified applications’ modules and actions. Hence,

the visibility of such context-sensitive indexes will

need to be controlled by an additional, optional

scheme of granting or revoking visibility on indexes

to/from specific combinations of Applications,

Modules and Actions. This would require creation

and maintenance of metadata related to application

Modules and Actions by the RDBMS. For example,

new object types – MODULE and ACTION – can be

created that could be owned by tenants/users/schemas

and stored in dictionary tables, for example,

DBA_MODULES, DBA_MODULE_ACTIONS.

These modules and actions could be granted

VISIBLE privilege on indexes. Further, metadata for

index visibility privileges could be stored in a new

dictionary table, for example, DBA_IDX_PRIVS,

similar to existing table privileges in

DBA_TAB_PRIVS.

Application architects and owners can then

with/in the database in the same manner as other

objects are currently created. Once created/registered,

the application modules and actions could be used for

index visibility grants. VISIBLE grant could be

granted to an application’s specific module and action

once registered with the database using CREATE

MODULE and CREATE ACTION statements. For

example, user/schema ‘A’ could create/register

MODULE1 and ACTION1, ACTION2 under that

module and then control the visibility on indexes as

under:

CREATE MODULE <Module1> FOR USER <User

A>;

CREATE ACTION <Action1> FOR MODULE

<User A>.<Module1>;

CREATE ACTION <Action2> FOR MODULE <User

A>.<Module1>;

GRANT VISIBLE ON <User A>.<Idx3> TO

<Module1.Action1>;

REVOKE VISIBLE ON <User A>.<Idx3> TO

<Module1.Action2>;

The above example would allow the index IDX3

to be used by the optimizer for SQLs originating from

MODULE1.ACTION1 for user ‘A’ but not used for

SQLs originating from MODULE1.ACTION2 for the

same user. Providing such a granular, declarative way

for the implementation of context-sensitive indexes to

application architects and performance tuning

professionals, the RDBMS optimizer’s burden of

making the right index choices will be reduced. As a

result, the optimizer will do less work, save on time

and database resources and arguably produce

efficient, stable execution plans for SQL queries.

Based on testing and performance review,

applications’ architects, database administrators and

SQL tuning professionals will be able to make

adjustments to the context-sensitive indexes

declarative scheme to further fine-tune the matrix for

optimal performance

A simplified chart example of such a declarative

scheme of context-sensitive indexes is shown in

Figure 2.

DeclarativeSchemeforIndexVisibilitytoApplications'Module‐Action

Context/Index TABLE1.IDX1 TABLE1.IDX2 TABLE1.IDX3 TABLE1.IDX4

Application1.Module1 Yes Yes No No

Application1.Module2 Yes No Yes No

Application1.Module1.Action1 Yes Yes No Yes

Application1.Module1.Action2 Yes Yes Yes No

Application1.Module2.Action1 Yes No Yes Yes

Application1.Module2.Action2 Yes Yes Yes No

Application2.Module1.Action1 Yes No No Yes

Application2.Module1.Action2 Yes Yes Yes No

Application2.Module1.Action3 Yes No No Yes

Application2.Module2.Action1 Yes No No No

Figure 2: Declarative Scheme for Application Module/

Action Context-Sensitive Indexes.

Our other proposed methodology described above -

of making indexes as objects on which grants can be

given or revoked using tenants/user/schemas for the

purposes of granting privileges on indexes - would

co-exist with the applications’ module/action context

declarative scheme under our proposed granular

architecture. Such context-sensitive indexes will go a

long way in addressing the problems of performance

and execution plan stability for SQL queries in a

multi-tenant and/or multi-application mixed-load

environment.

Context-sensitiveIndexesinRDBMSforPerformanceOptimizationofSQLQueriesinMulti-tenant/Multi-application

Environments

267

5.3.3 Maintenance of Context-sensitive

Indexes

It could be argued that the proposed context-sensitive

indexes may increase the maintenance overhead.

However, we feel that the overhead in managing

context-sensitive indexes is expected to be quite

insignificant, especially in the context of packaged

enterprise business applications which have many

applications/modules/actions and

users/schemas/tenant. The database optimizer,

though very sophisticated, does not have a better

understanding of the applications, their modules and

actions than the application and SQL-tuning

architects, especially when there are separate

architects dedicated to different applications,

modules and actions. Even under the present

arrangement, the database optimizer does not play

any significant role in the index design process. It is

the application and SQL-tuning architects who design

indexes and go through the SQL-tuning process

iteratively, to add, remove and modify indexes. They

do so, trying to find the elusive fine balance of just

the right indexes that can serve all applications,

modules and actions as well as

tenants/users/schemas. This is simply based on their

deep knowledge of the data model, application flows

and SQL queries for those applications. What we

have observed in the case of enterprise business

applications like Oracle Fusion Applications, is that

the design and development teams for different

applications and modules/actions often have to add or

modify indexes to tune the queries for their respective

applications. Based on the review and analysis of

hundreds of poorly performing SQL queries in Oracle

Fusion Cloud Applications, we observe that very

often, such actions to add or modify indexes,

inadvertently cause adverse effects on the

performance of many other applications' queries,

which does not come to be realized until late in the

release cycle, very often after customer complaints of

sudden performance degradation after an upgrade or

patch cycle. In addition, with the current architecture,

it is not only very expensive to carry out meaningful

regression testing for all

applications/modules/actions when one or more

indexes are added by developers for tuning one

particular application/module/action but is nearly

impractical to do so. The proposed context-sensitive

indexes will provide a simple methodology for

application and SQL-tuning architects to add, modify

or remove indexes for the purposes of the optimizer's

consideration while optimizing the execution plans

by simply making the indexes visible or invisible.

There is no additional overhead than what application

architects currently do except deciding which indexes

to use out of all the available ones.

6 EXPERIMENTAL RESULTS

We sampled some SQLs from Oracle’s currently

deployed 0 indexes visible or invisible. The following

commands were used:

ALTER INDEX <Index Name> INVISIBLE;

ALTER INDEX <Index1> VISIBLE;

6.1 Benchmark Results: Higher Hard

Parse times Use Case

We benchmarked representative SQLs from Oracle

Fusion CRM Application against Oracle 11.2.0.3

database to find the co-relation between the number

of visible indexes and the SQL hard parse time. One

such SQL had 34 tables referenced, which had a

combined total of 389 indexes. As the graph in Figure

3 demonstrates, the hard parse time closely followed

the graph line for the number of visible indexes.

Similar results were recorded for many SQLs

benchmarked in a similar manner. What we found is

that the higher the number of visible indexes, the

higher the hard parse time.

Figure 3: Co-relation between number of visible indexes

and hard parse time.

6.2 Benchmark Results: Sub-optimal

Plan Use Case

In the current Oracle Fusion Cloud Applications, high

hard parse time and sub-optimal execution plans are

very significant problems that cause poor user

experience. The optimizer not picking the right

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

268

indexes is a frequent finding in the slow SQL tuning

analysis. We benchmarked such a representative SQL

from Oracle Fusion CRM Application against Oracle

11.2.0.3 database to highlight use cases where the

optimizer may choose the wrong indexes resulting in

sub-optimal execution plan and extremely poor

performance. The benchmarked SQL references 27

tables which have a total of 272 indexes. As Figure 4

and 5 demonstrate, performance in terms of execution

time, CPU time and logical I/Os (buffer gets) is

dramatically better in the use case where the number

of visible indexes was restricted.

Figure 4: Co-relation between number of visible indexes

and execution, CPU and I/O time.

Figure 5: Co-relation between number of visible indexes

and Buffer Gets and Disk Reads.

7 CONCLUSIONS

The use of indexes in various forms and physical

implementations has long been established as an

industry standard practice for RDBMSs and is used in

many types of applications including enterprise

business applications. However, indexes have largely

been treated as being tightly coupled with tables for

the purposes of privileges and visibility to the

optimizer for use in generation of query execution

plans. The effects of having a large number of indexes

on the optimizer’s performance have also been much

researched. However, treating indexes as schema

objects on which privileges and grants can be given

has not been the focus of much research. In this paper

we have researched, documented and presented a

novel architecture whereby indexes can be made

context-sensitive to accommodate a declarative

scheme of telling the optimizer which indexes to

consider for specific tenants/users/schema and/or

applications’ modules and actions. The current

methodology of the optimizer taking into

consideration all indexes created on a table without

regard to the context in which a SQL query has been

sent to the database, poses performance problems and

can be a risk to the success of enterprise business

applications. We have proposed a solution that takes

into account context attributes for indexes under

which the optimizer should process SQL queries to

improve the performance of such SQLs, for which a

US Patent application has been filed (ORA150617-

US-PSP). Adoption of the proposed solution by

RDBMS vendors can thus provide significant

performance improvements in RDBMS optimizer

query plan generation, thereby improving the

performance and scalability of enterprise applications

on one hand and consuming fewer database resources

on the other.

REFERENCES

M. Leach, T. Lahdenmaki, 2005. Relational database index

design and the optimizers: DB2, Oracle, SQL Server et

al, John Wiley & Sons, Inc, Page: 4, 2005, ISBN-13

978-0-471-71999-1.

Chong, R. F., 2012. Designing a database for multi-

tenancy on the cloud - Considerations for SaaS

vendors.

https://www.ibm.com/developerworks/data/library/tec

harticle/dm-1201dbdesigncloud.

Chong F., Carraro G., and Wolter R., 2006. Multi-Tenant

Data Architecture http://msdn.microsoft.com/en-

us/library/aa479086.aspx#mlttntda_topic2.

Oracle White Paper - Application Development with Oracle

Database 12c, http://www.oracle.com/

technetwork/database/multitenant/overview/index.htm

K.S.K. Kihong, K. C. Sang, 2001. Optimizing

Multidimensional Index Trees for Main Memory. In

proceedings of the 2001 ACM SIGMOD international

conference on Management of data.

W. Powley, P. Martin, and P. Bird, 2008. Dbms workload

control using throttling: experimental insights. In

Proceedings of the conference of the center for

advanced studies on collaborative research, pages

1{13, New York, NY, USA, 2008. ACM.

Context-sensitiveIndexesinRDBMSforPerformanceOptimizationofSQLQueriesinMulti-tenant/Multi-application

Environments

269

Brown, K. P., Mehta, M., Carey, M. J., and Livny, M.,

1994. Towards Automated Performance Tuning for

Complex Workloads. In VLDB.

Pang, H., Carey, M. J., and Livny, M., 1995. Multiclass

Query Scheduling in Real-Time Database Systems. In

IEEE Trans. on Knowl. And Data Eng.

Krueger, J., Tinnefeld, C., Grund, M., Zeier, A., & Plattner,

H., 2010. A case for online mixed workload processing.

In DBTest.

Oracle® Database SQL Language Reference 12c Release

1(12.1)

http://docs.oracle.com/cd/E16655_01/server.121/e172

09/sql_elements008.htm#SQLRF51129.

Oracle® Database Concepts 12c Release 1 (12.1).

http://docs.oracle.com/cd/E16655_01/server.121/e176

33/indexiot.htm#CNCPT721.

IBM DB2 10.1 for Linux, UNIX, and Windows

documentation.

http://pic.dhe.ibm.com/infocenter/db2luw/v10r1/index

.jsp?topic=/com.

Wasserman, Ted J., 2012. DB2 UDB security, Part 4:

Understand how authorities and privileges are

implemented in DB2 UDB.

http://www.ibm.com/developerworks/data/library/tech

article/dm-0601wasserman/

Oracle® Database Performance Tuning Guide 11g Release

2 (11.2) Chapter 11 The Query Optimizer.

https://docs.oracle.com/cd/E29597_01/server.1111/e1

6638/optimops.htm.

Oracle® Database Security Guide 12c Release 1 (12.1).

http://docs.oracle.com/cd/E16655_01/network.121/e17

607/authorization.htm#DBSEG99910.

Oracle Database Online Documentation 11g Release 2

(11.2) / Database Administration, Database SQL

Language Reference. https://docs.oracle.com/cd/

E11882_01/server.112/e41084/sql_elements006.htm#

SQLRF51098.

Oracle® Database Performance Tuning Guide 11g Release

2 (11.2) Chapter 19 Using Optimizer Hints.

https://docs.oracle.com/cd/E11882_01/server.112/e41

573/hintsref.htm#PFGRF005.

Oracle Database Online Documentation 12c Release 1

(12.1) / Database Administration Chapter 17

Introduction to the Multitenant Architecture.

https://docs.oracle.com/database/121/CNCPT/cdbovrv

w.htm#CNCPT89234.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

270
