Interactive Control of Dance Groups Using Kinect

Asako Soga and Itsuo Yoshida

Faculty of Science and Technology, Ryukoku University, 1-5 Yokotani, Oe-cho, Seta, Otsu, Japan

Keywords: Kinect, Motion Data, Dance Groups, Gesture Recognition.

Abstract: This paper describes a system that can control the CG animation of dance groups in a virtual world by

recognizing gestures using Kinect in real time. The system can change the formation of CG dancers by right-

arm gestures and their motions by left-arm gestures. Moreover, a virtual camera is controlled by the gestures

of both arms. The rotational data of the joints are used to recognize each arm gesture to control the dance

groups, and the translational data of the joints are used to control the virtual camera. Since the system

recognizes both arm gestures at the same time, users can control two or more objects by a combination of

gestures.

1 INTRODUCTION

In recent years, many cultural ceremonies and

traditional dances have been archived with digital

technologies. Motion capture technologies are used

for archiving traditional dances, and digital contents

with realistic motion have been widely used. Many

researches support about education and the creation

of traditional dances using archived motion data.

The purpose of this research is to develop systems

that can intuitively control CG animations by human

actions using motion data and interactive techniques.

We have been developing simulation systems for

dance groups to simulate multiple CG characters

(Soga, 2010) (Soga, 2012). In this paper, we describe

a control system for dance groups using Kinect in real

time.

Simulation systems for groups and crowds have

already been developed (Kwon, 2008). Many studies

have used such general human motion data as

walking and running as well as interactive authoring

of human groups (Ulicny, 2004). However deriving

complex human motions in composition remains a

challenge.

Since it is easy to capture human body motion

with Kinect devices, applications using them are

being used for entertainment, rehabilitation, and

dance training (Marquardt, 2012). Our system

simulates dance groups and can change human

motions as well as the formation of dance groups. By

recognizing human gestures with Kinect, a user can

interactively change the formations and the motions

of CG dancers arranged in 3D space. This paper

describes a method to recognize gestures by Kinect

and to control dance groups.

2 SYSTEM OVERVIEW

This system simulates the motion of multiple dancers.

The motion or formation of dance groups in the

virtual world is changed by gestures that are

recognized by capturing human motions and tracking

them by a Kinect device in real time. The camera

view in the 3D world is also changed by gestures.

Since the system simultaneously recognizes both arm

gestures, users can control two or more objects by a

combination of gestures. They can also change the

formation of the groups by right-arm gestures and the

motions of virtual dancers by left-arm gestures.

Therefore, users can manipulate the virtual dancers

like a stage director and control the dance motions

and formations by the postures that are often used in

ballet.

Our system runs on a personal computer with a

Windows OS and is operated with a Kinect. We

developed it using Visual C++, DirectX, and Kinect

for Windows SDK. The DX Library handles DirectX.

Figure 1 shows the system configuration.

Dance animations were obtained from a

professional dancer using an optical motion capture

system. Motion clips of classical ballet steps for the

dance groups were prepared for the system. Users can

arbitrarily select the dance motions of virtual dancers.

362

Soga A. and Yoshida I..

Interactive Control of Dance Groups Using Kinect.

DOI: 10.5220/0005357303620365

In Proceedings of the 10th International Conference on Computer Graphics Theory and Applications (GRAPP-2015), pages 362-365

ISBN: 978-989-758-087-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

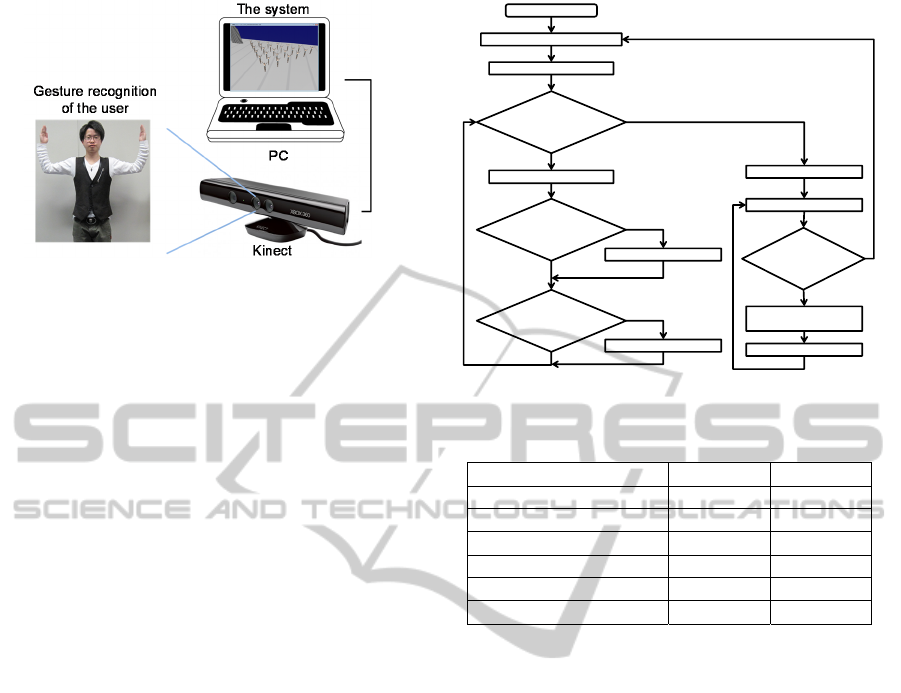

Figure 1: Configuration of system.

3 GESTURE RECOGNITION

3.1 Process

Figure 2 shows the process of gesture recognition.

This system has two modes: group control and

camera control. Although users usually operate it in

the group control mode, they can switch to the camera

control mode by recognizing a specific pose only if

they want to change to the camera view. In the gesture

recognition process, first, the system tracks the

skeletons of users and gets the positions of each joint.

If the system recognizes the gesture for changing the

mode, the mode is changed; otherwise the system

runs the process of the selected mode.

In the group control mode, each joint angle is

calculated by the captured joint positions. For

example, if the system recognizes a gesture defined

by the angles of the right arm, it changes the

formation of the dance groups. In the same way, if it

recognizes a gesture defined by the angles of the left

arm, it changes the motion of the dance groups. These

processes are executed for each frame.

In the camera control mode, the system recognizes

the position of the captured joint to adapt the moving

distance to the camera angle. First, the system records

the positions of both hand joints when the mode is

changed to this mode and calculates the distance

between the recorded and current positions. The angle

of the camera view is changed based on the moving

distance.

3.2 Gesture Recognition by Angles

In the control mode of the dance groups, joint angles,

which are used to recognize gestures, are calculated

by the inner product of vectors between the joints of

the base pose and the captured joints. The rotational

angles of the shoulder and elbow joints are calculated

Figure 2: Process of gesture recognition.

Table 1: Arm gestures and their rotational angles.

gesture shoulde

elbow

horizontal 0 0

upper circle -45 -45

lower circle 45 45

le 0 -90

upper oblique -45 0

lower oblique 45 0

with the positions of the shoulder, elbow, and hand

and used to recognize the arm gestures. These

gestures are recognized by comparing these angles to

the angles of each pose that are predefined in the

template file. Table 1 shows the predefined six

gestures and their rotational angles for the Z-axis. All

angles for the X and Y-axes are defined as zero degree.

Figure 3 shows examples of arm gestures.

The rotational angles are calculated by the

average angle of ten frames to avoid misrecognition.

The recognition succeeds if the difference between

the predefined angle and the calculated average angle

is less than 15 degrees since users have difficulty

inputting the complete pose.

3.3 Gesture Recognition by Positions

In the camera control mode or the mode change, the

relational positions of joints are used to recognize

gestures. When an arm is stretched outward, the mode

is changed to the translation mode. When both hands

are placed in front of the chest, the mode is changed

to the rotation mode.

To switch to the rotation mode, the pose must

satisfy three conditions; the distance of both hands is

narrower than that of the shoulders, both hands are

Control mode: dance groups

Skeleton tracking

Calculation of joint angle

Change the formation

Skeleton tracking

Start

Mode change

gesture is

recognized

Right-arm gesture

is recognized

Calculation of

translation data

YES

Change motions

Change viewpoint

Right-arm gesture

Is recognized

Control mode: camera

Mode change

gesture is

recognized

InteractiveControlofDanceGroupsUsingKinect

363

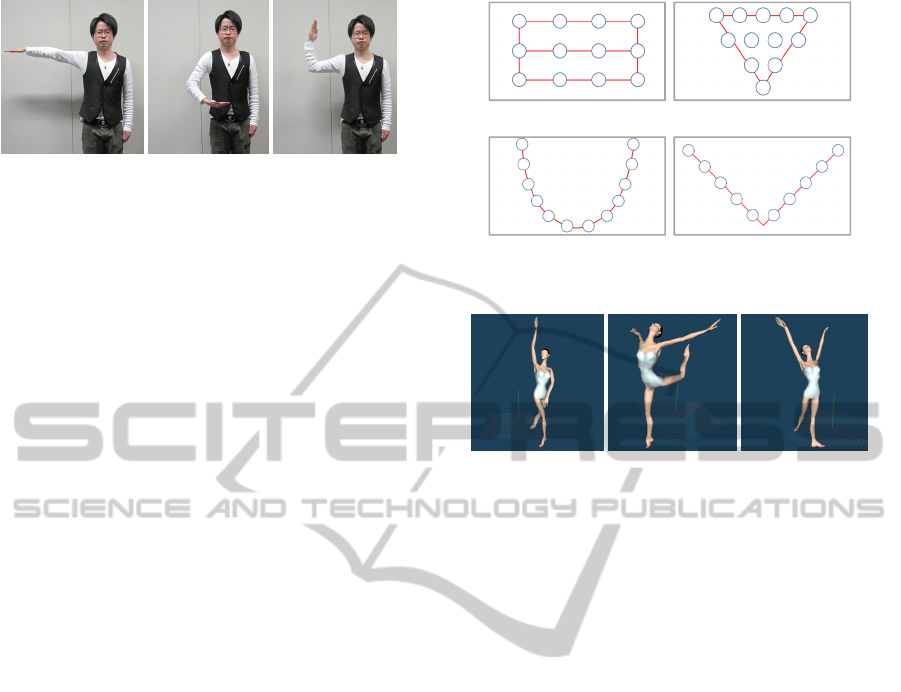

(a) horizontal (b) lower circle (c) right angle

Figure 3: Examples of arm gestures.

placed in front of the torso, and the height of each

hand is between the chest joint and the top of the head.

To switch to the translation mode, the pose must

satisfy two conditions; a hand is placed in front of the

torso, and the depth distance of the hand from the

torso is longer than the half of the arm.

To release these modes, the following conditions

are required. To release the rotation mode, the

distance between both hands has to be wider than that

of the shoulders. For the translation mode, the

distance between both hands should be less than ten

centimeters. After switching to the camera control

mode, the virtual camera can be moved and rotated

by the hand in each direction, such as up-down and

right-left.

When switching the mode, the system records the

hand position, and the distance between the recorded

and current positions is applied to the translation or

the rotation of the camera. In the rotation mode, the

moving distance for each axis is adapted to the

rotation angle, and in the translation mode, the

moving distance for the XZ plane is adapted to the

translation of each axis. To release the camera mode,

both hands are required to overlap.

4 INTERACTIVE CONTROL BY

GESTURES

The user changes the formation of the CG dancers by

right-arm gestures and their motions by left-arm

gestures. When a right-arm gesture is recognized,

each CG dancer moves to the defined position based

on the formation and the number of CG dancers.

When a left-arm gesture is recognized, the motion of

each CG dancer is changed based on the gesture.

We prepared six typical formation patterns:

straight line, circle, rectangle, triangle, curve, and V-

letter line. Figure 4 depicts examples of the formation

patterns. The system automatically calculates the

dancer positions based on the number of dancers.

Easy and intuitive gestures are assigned to the six

formations. For example, horizontally stretching the

right arm arranges the CG dancers in a line. Ballet

(a) rectangle (b) triangle

Figure 4: Formation patterns for dance groups.

(a) pose (b) attitude (c) port de bras

Figure 5: Examples of dance motions.

motions likely to be performed with the formation are

assigned to the six left-arm gestures, since it is easy

to perform the same gestures for both arms. Figure 5

shows examples of the dance motions. If the user

makes the same gesture for both arms, the CG dancers

perform ballet steps that are often seen in a formation

corresponding to the right-arm gesture.

Table 2 shows the gestures and the corresponding

formations and ballet motions. Figure 6 shows a

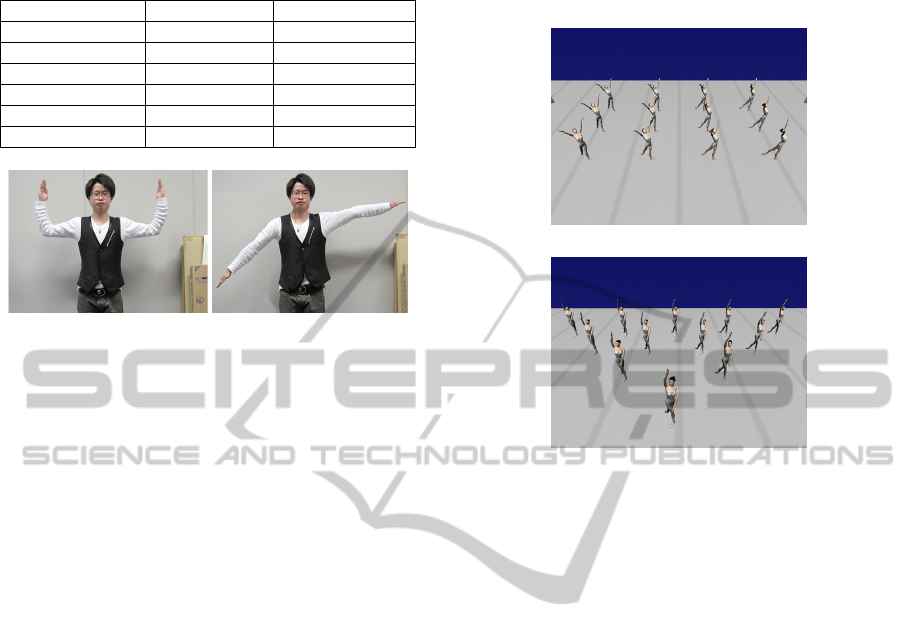

combination of gestures. Figure 6(a) is an example of

the same gestures for both arms, and Figure 6(b) is

different gestures for both arms. The corresponding

results are shown in Figure 7.

5 EXPERIMENT

We conducted an experiment with nine students who

seldom play videogames with Kinect. After

explaining the experiment process, the required task,

and the system usage, they tried the system and

performed the task. Then the unused functions of the

system were explained, and they answered

questionnaires. They mainly tried the formation

change, the dance motion change, and manipulations

of both arms. As a task, the students arranged the CG

dancers in the indicated formation and with the

required dance motion. The following three factors

were evaluated on five levels (1: bad, 5: good): (a)

suitability of manipulation and gestures, (b)

GRAPP2015-InternationalConferenceonComputerGraphicsTheoryandApplications

364

Table 2: Gestures and corresponding formations and ballet

motions.

Gestures Formation Dance

horizontal strai

ht line

ose

er circle circle attitude

lower circle curve arabes

le rectan

ort de bras

er obli

ue V-letter line

as de chat

lower obli

ue trian

as de buorrée

(a) identical gestures (b) different gestures

Figure 6: Examples of gestures of both arms.

simplicity and memorability of manipulation, and (c)

velocity and suitability of reactions.

The averages of the nine students were (a) 3.6, (b)

3.8, and (c) 2.7. In terms of (a) the suitability of

manipulation and gestures and (b) the simplicity and

memorability of the manipulation, the results were

mostly good. However, (c) the velocity and the

suitability of the reactions was worse than the others.

User feedback suggested that we include finger

gestures, but different gestures for both arms were

acceptable. Negative comments complained that the

manipulations were complex, and that the gestures

were difficult to memorize. However, most students

seemed to use our system easily after they got used to

its manipulations.

6 CONCLUSIONS

This paper described a system that can control the CG

animation of dance groups in a virtual world by

recognizing gestures using Kinect in real time. By

recognizing human gestures, a user can interactively

change the formations and motions of CG dancers

arranged in 3D space. Moreover, a virtual camera is

controlled by the gestures of both arms. We

experimentally verified that (a) the suitability of the

manipulation and the gestures and (b) the simplicity

and the memorability of the manipulation of the

system are better than (c) the velocity and the

suitability of the reactions.

However, this system only recognizes human

poses and cannot recognize human motions. In future

work, the recognition of the motions of arms and legs

will be supported to improve our system. In addition,

the motions of the person who is controlling the dance

groups might become a type of motion or enhance the

prepared motion.

(a) identical gestures

(b) different gestures

Figure 7: Results for controlling dance groups.

REFERENCES

Soga, A., Boulic, R. and Thalmann, D., 2010. Motion

Planning and Animation Variety using Dance Motion

Clips, In CW '10, Proceedings of the 2010 International

Conference on Cyberworlds, pp. 421-424.

Soga, A., Yoshida I., 2012. A Simulation System for Dance

Groups using a Gamepad, In GRAPP2012, Proceedings

of 7th International Conference on Computer Graphics

Theory and Applications, pp.365-368.

Kwon, T., Lee, K. H., Lee, J. and Takahashi, S., 2008.

Group Motion Editing. In ACM Transactions on

Graphics, Vol. 27, No. 3, Article 80.

Ulicny, B., Ciechomski, P. H. and Thalmann, D., 2004.

Crowdbrush: Interactive Authoring of Real-time Crowd

Scenes. In SCA '04, Proceedings of the 2004 ACM

SIGGRAPH/Eurographics Symposium on Computer

Animation, pp. 243-252.

Marquardt, Z., Beira, J., Em, N., Paiva, I. and Kox, S., 2012.

Super Mirror: A Kinect Interface for Ballet Dancers. In

CHI EA '12, Proceedings of the 2012 ACM Annual

Conference on Human Factors in Computing Systems

Extended Abstracts, pp. 1619-1624.

InteractiveControlofDanceGroupsUsingKinect

365
