A User-centered Approach for Modeling Web Interactions Using Colored

Petri Nets

Taffarel Brant-Ribeiro

, Rafael Ara

ujo

, Igor Mendonc¸a

, Michel S. Soares

and Renan G. Cattelan

Faculty of Computing, Federal University of Uberl

andia, Uberl

andia, MG, Brazil

Department of Computing, Federal University of Sergipe, S

ao Crist

ao, SE, Brazil

Keywords:

Web Interaction Modeling, Formal Methods, Colored Petri Nets, Human-Computer Interaction.

Abstract:

Interactions are communication acts which take place between at least two agents and result in information

interchange. To represent these activities, formal methods can be used to model interaction ﬂows and Colored

Petri Nets (CPNs) are a handy formal language with graphical notation for modeling systems. This paper

introduces wiCPN (Web Interaction Modeling Using Colored Petri Nets), a language based on CPNs for rep-

resenting Web interactions with improved notation. Our proposal is ﬁrst presented with its proper reﬁnements

over traditional CPNs. Next, we have applied the approach for modeling the interaction of Classroom eXperi-

ence’s (CX) Web front-end, a real u-learning environment. As CX is an educational system developed to assist

instructors and students during academic activities, we veriﬁed the developed model’s reachability to ensure

it was able to represent users different access levels. We also validated our proposal with user experiments,

comparing it with UML. Our designed model represented CX’s interaction correctly, considering user access

levels and maintaining an understandable notation. Results indicate advantages of wiCPN over UML for mod-

eling interactive interfaces. By gathering strengths of Petri Nets with a higher level graphical notation, wiCPN

propitiated better understanding of the model, representing interaction in a structured and intuitive way.

1 INTRODUCTION

Interactive issues tend to go far beyond creating nice

layouts, addressing relevant aspects such as usability

features, ways of presenting information correctly and

cultural characteristics of users (Clemmensen, 2012).

To perceive such requirements and to develop prod-

ucts that work properly when in touch with users, in-

teraction modeling is a software engineering activity

able to assist software production process, being sig-

niﬁcant during speciﬁcation phases and over devel-

opment and veriﬁcation steps of systems deployment

processes (Sommerville, 2010).

Application of formal methods for modeling in-

teractions can provide beneﬁts, including the guaran-

tee of consistency across platform designs and the in-

corporation of a user interface design phase into the

formally-based procedure of software development

(Bowen and Reeves, 2007). In this scope, a Petri Net

is a formal and mathematical graphic language, ap-

propriate for modeling distributed and concurrent sys-

tems (Jensen, 1994). Colored Petri Nets (CPNs) are

high level Petri Nets whose tokens have colors and

can represent data values. This extension increases

the descriptive power of modeling, since the trigger-

ing of transitions is made depending on the availabil-

ity of these colored tokens (Jensen et al., 2007).

A CPN model describes the possible states a mod-

eled system can reach and the transitions which may

occur among these states. Therefore, they are an

effective formalism for describing concurrency, syn-

chronization and causality, being suitable for model-

ing, analyzing and prototyping dynamic issues of in-

teractions (Jensen, 1994). CPNs have been studied in

a wide range of application areas and many projects

have been documented in the literature while imple-

mented in industry, e.g., hardware and software de-

signs (Kim et al., 2012), security analysis of network

protocols (Choosang and Gordon, 2014), parallel ﬁle

systems (Nguyen and Apon, 2012) and distributed

computing systems (Weidlich et al., 2013).

In this work, we applied CPNs as a conceptual ba-

sis, since they have relevant characteristics for mod-

eling interactions, such as: (i) well-deﬁned seman-

tics, (ii) graphical portrayal, (iii) possibility of formal

analysis and (iv) hierarchical modeling. Thereby, we

introduce wiCPN (Web Interaction Modeling Using

Colored Petri Nets), a language for representing in-

Brant-Ribeiro T., Araújo R., Mendonça I., S. Soares M. and Cattelan R..

A User-centered Approach for Modeling Web Interactions Using Colored Petri Nets.

DOI: 10.5220/0005365100370048

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 37-48

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

teractions between users and Web interfaces which

extends traditional CPNs to better depict Web inter-

actions in a dynamic and uncomplicated way.

As a practical example of wiCPN’s use, we mod-

eled the Web interface of a real U-Learning Envi-

ronment (ULE) system. To validate our proposal,

we compared wiCPN with UML by running user ex-

periments and, according to results, wiCPN evinced

to be a concise notation, without losing expressive-

ness. With wiCPN, only a single diagram is required

to represent the same interactive ﬂow that, in UML,

would require multiple diagrams, overwhelming the

design team and potentially generating inconsisten-

cies in case of changes in one diagram that would

need to be propagated to other ones. Within this sit-

uation, wiCPN notation enables a mapping between

an interactive element (e.g., a given screen or a Web

page) and its functionality, allowing users to identify

their exact location, context and interaction options.

The remaining of this article is structured as fol-

lows: in Section 2, we detail CPNs components and

usage; in Section 3, we present wiCPN, a language

developed for representing Web interactions; in Sec-

tion 4, we ﬁrst introduce Classroom eXperience (CX),

our educational platform, and then we utilize it as

a case study for demonstrating wiCPN proposal; in

Section 5, we present user experiments and results,

comparing our technique with UML; in Section 6, we

discuss related work; and, ﬁnally, in Section 7, we

present our conclusions and ﬁnal remarks.

2 COLORED PETRI NETS

CPNs provide a full abstraction to design, specify and

validate systems (Jensen, 1994). Like ordinary Petri

Nets, they are represented as graphs with places, tran-

sitions, arcs and tokens. However, in CPNs tokens

are not blank markers, but have data attached to them.

A token’s color is a type’s speciﬁcation. Places are

assigned with one or more colors (called sets or mul-

tisets) and arcs are either speciﬁed with schemas or

associated to boolean conditions. Also, as arcs simul-

taneously enter and exit places, they have functions

to determine which set or multiset elements shall be

removed or put into places they are bound. Besides,

there are boolean expressions, named guards, which

are associated with transitions and enforce conditions

over CPN elements.

Figure 1 shows a model’s slice in which it is pos-

sible to observe two places (Login and LoginScreen),

a transition (inLog) and some arcs with schemas.

Places Login and LoginScreen are, respectively, as-

signed with a set Active and a multiset LoginScreen.

The former holds act, a token which belongs to color

Active. The latter possesses three tokens, being two

of them (dUserTrue and dUserFalse) parts of set

dUser – which pertains to color UserData –, while

the other one (newUser) is related to set nUser – and

is associated to color newUserData. As place Login-

Screen can be ﬁlled with tokens of different colors,

it is assigned with a homonym multiset composed

by the union of colors UserData, newUserData and

Active. Also, transition inLog is connected to both

places through arcs that can only transport a single

token, act, in accordance with their schemas.

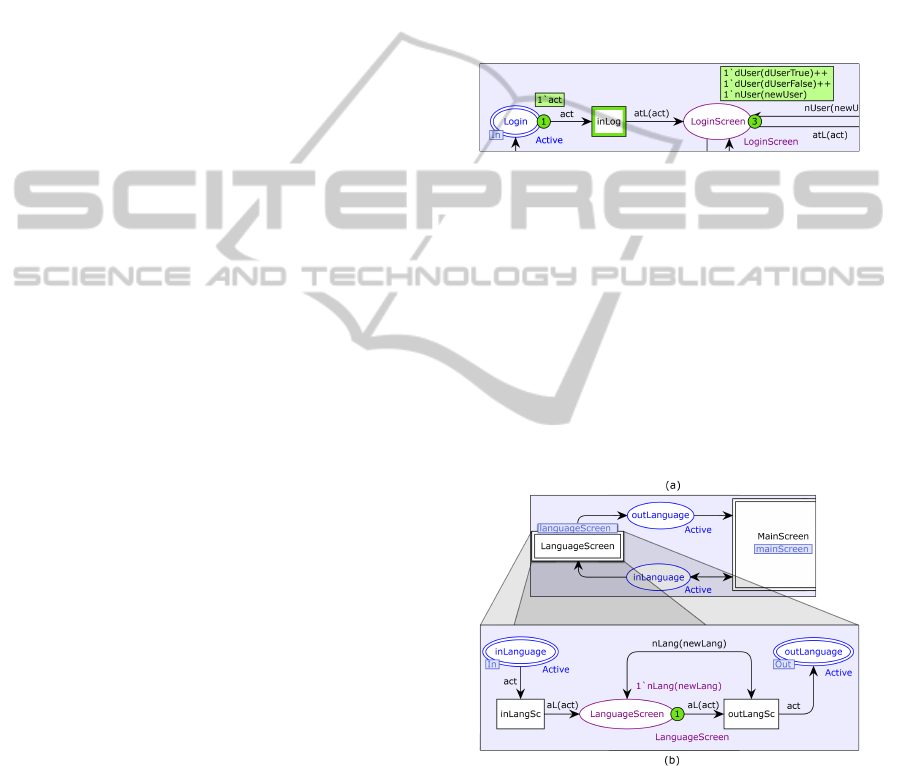

Figure 1: A model’s slice with places, arcs and a transition.

CPNs also can be organized into hierarchic mod-

ules (Jensen et al., 2007). This concept is settled on

a many-level structural mechanism, which sustains

both a top-down as well as a bottom-up working man-

ner. New associated modules can be created from

prevalent ones and reused in other parts of models.

Figure 2 shows a hierarchy where two slices of a

model can be spotted: (a) an upper part where tran-

sition LanguageScreen is highlighted and (b) a lower

module containing the whole activity that takes place

inside of LanguageScreen.

Figure 2: Two hierarchic modules.

The formal deﬁnition of a Colored Petri Net

(Jensen, 1994) is represented as a 9-tuple: CPN = ( Σ,

P, T, A, N, C, G, E, I ); where: Σ denotes a ﬁnite and

non-null set of colors or types, P retracts a ﬁnite set

of places, T represents a ﬁnite set of transitions, A

portrays a ﬁnite and disjunct set of arcs, N denotes

node functions, C retracts color sets and multisets, G

represents guards, E portrays expression functions (or

arc schemas) and I is an initialization function.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

CPN models can be used to verify system features

and properties, i.e., to demonstrate that desirable at-

tributes are accomplished or unwanted characteristics

are absent. Veriﬁcation of system properties is sus-

tained by a set of State Space Methods, which are

automatically generated and with them it is possible

to respond a large set of veriﬁcation issues related

to system behaviors, such as absence of deadlocks,

assurance of always reaching a certain state and the

guaranteed delivery of determined services.

Practical application of CPN modeling and analy-

sis leans deeply on the existence of tools which sup-

port creation and manipulation of models. In this con-

text, CPN Tools

is a tool suite for creating, editing,

simulating and analyzing CPN models (Gehlot and

Nigro, 2010). This suite was chosen for its possibility

of creating graphical representation of models – as it

possesses an editor that allows users to create and ar-

range CPN components – and for having tooling that

calculates state space of models and verify their prop-

erties automatically. Figures 1 and 2 – as well as all

others ﬁgures that illustrate system modeling in this

paper – were designed making use of CPN Tools.

3 wiCPN: WEB INTERACTION

MODELING USING COLORED

PETRI NETS

Our work focused on creating a method for repre-

senting interactions that take place between users and

Web front-ends. Thus, a couple of interactive issues

were considered while elaborating a model that would

support these needs, such as the way interactive ﬂows

occur in Web interfaces (Rogers et al., 2011) and the

fact that determined screens and functions must only

be accessed by certain users (Sommerville, 2010).

To ﬁgure out these needs, we considered an orga-

nizational aspect that propitiated better understanding

of CPN modules. In this scope, models must support

both ﬂows – presenting links among system screens –

and navigation – indicating actions associated to pos-

sible ﬂows –, what allows the models to present inter-

action in an uncomplicated and dynamic way.

As a result, to better depict Web interactions while

making use of CPNs, we present wiCPN (Web In-

teraction Modeling Using Colored Petri Nets), a lan-

guage for representing interactions between users and

Web interfaces. wiCPN is an extension of CPNs,

maintaining several of its characteristics, but with re-

ﬁnements such as: classiﬁcation of places into re-

sources, system screens and ports; differentiation be-

http://cpntools.org/

tween ordinary and conditional transitions and usage

of a color to represent interactive ﬂow. Explaining our

model accurately, a Web Interaction Modeling Using

Colored Petri Nets is a 9-tuple: wiCPN = ( Σ

, P

, A

, N

, C

, G

, S

, I

); where:

• Σ

= < Col, Active >, a non-null set of col-

ors and types, compound by Col – a ﬁnite group

of colors or types that determines the functions

which can be used in the net – and Active – a re-

served color that must be used in the modeling;

• P

= { < r

, r

, ... , r

> ∪ < s

, s

, ... , s

∪ < p

, p

, ... , p

> }, a set of places formed

by three subsets: available resources (r), system

screens (s), and input/output ports (p);

• T

= { < f

, f

, ... , f

> ∪ < c

, c

, ... , c

> },

a set of transitions formed by two subsets: ﬂow

transitions (f ) and conditional transitions (c);

• A

= a ﬁnite and disjunct set of arcs, such that

∩ T

= P

∩ A

= A

∩ T

• N

: A

→ P

× T

∪ T

× P

, a set of nodal

functions that maps every arc into a resulting pair

whose ﬁrst element is the source node and the sec-

ond one is the destination node;

• C

: P

→ Σ

, a group of color functions which

map each place into color sets or multisets;

• G

: c → bool, a set of guards which map each

conditional transition into a boolean expression;

• S

: A

→ colSet ⊂ Σ

, a set of arc schemas

that map each arc into a color set expression sub-

set of Σ

;

• I

= an initialization function which maps each

place into an expression whose result is a multiset

over the places’ colors.

After these descriptions, it is possible to recognize

some elements’ characteristics in nets modeled with

the wiCPN approach using CPN Tools:

• Places are speciﬁed as (a) resources, (b) sys-

tem screens or (c) (d) input/output ports – which

are depicted in Figure 3 and distinguished by

green, purple and blue colors, respectively. Re-

sources represent conditions and system require-

ments, such as security issues that enable users to

access speciﬁc system screens. Input/output ports

can be stylized in two ways: (c) with a single bor-

der – while appearing in upper parts of the model

– or (d) with a double border and an in/out tag

– in lower parts of the model, representing inter-

connectivity among modules. Input/output ports

represent paths that connect system screens, such

as interface buttons and links.

AUser-centeredApproachforModelingWebInteractionsUsingColoredPetriNets

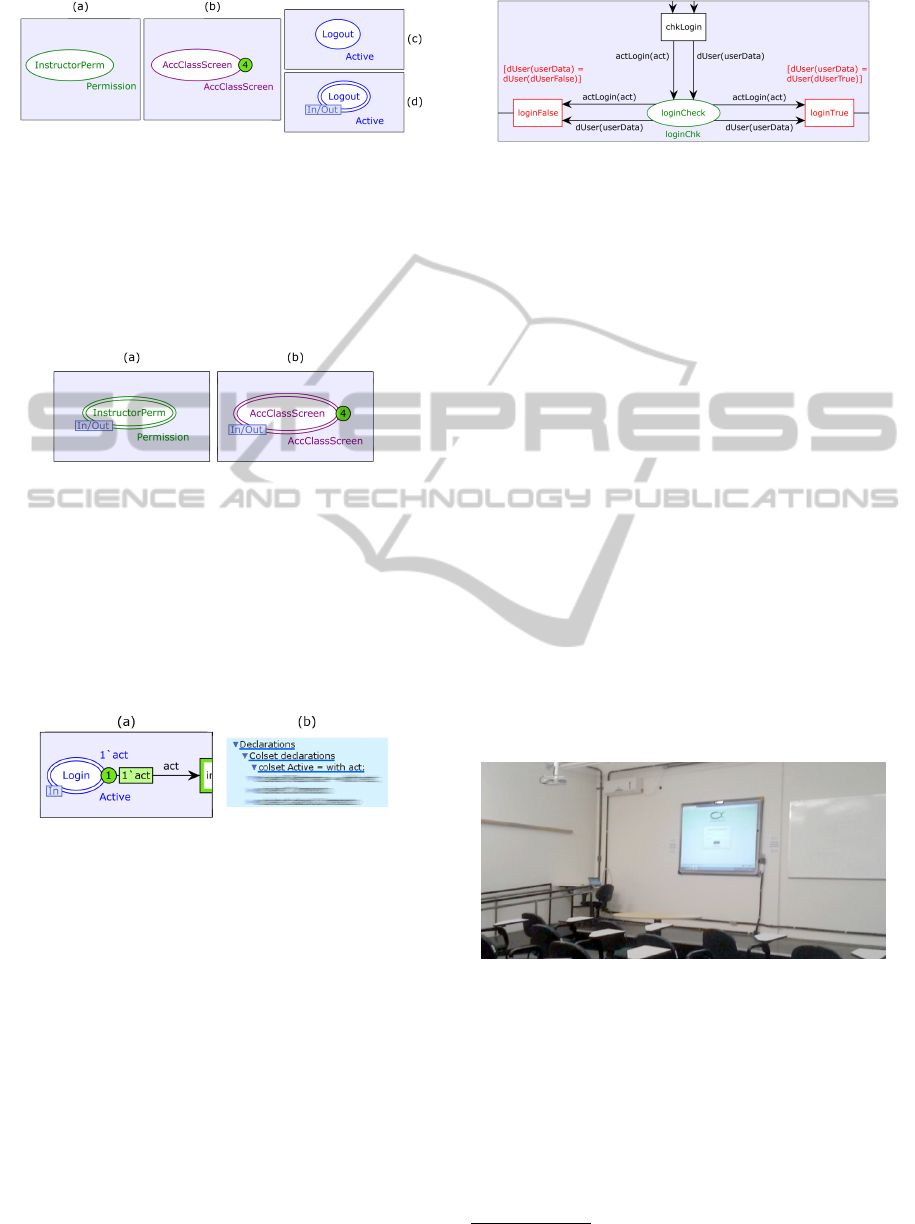

Figure 3: Some places modeled using wiCPN.

• Places can depict resources and input/output ports

simultaneously (Figure 4(a)) or system screens

and input/output ports (Figure 4(b)). This hap-

pens when resources or system screens are bound

to hierarchic transitions and, in this case, they are

stylized with a double border while appearing in

lower modules of the model.

Figure 4: Places portraying a double role.

• Color Active is reserved and must be assigned

only in two cases: to input/output ports connected

to hierarchical transitions – as seen in Figures 3(c)

and 3(d) – and to a single token that controls the

interaction activity of the model. Both cases can

be observed in Figure 5, where (a) portrays Lo-

gin assigned to color Active and (b) depicts the

color’s declaration while being attributed to act.

Figure 5: Declaration and usage of color Active.

• Lastly, transitions (Figure 6) depict two kinds of

ﬂows: ordinary ones, which are stylized in black

and called ﬂow transitions (e.g., chkLogin), and

those that depend on conditions, which are de-

picted in red and named conditional transitions

(e.g., loginFalse and loginTrue). Flow transitions

show up in the whole modeling in order to depict

existing common ﬂuxes, while conditional tran-

sitions appear in circumstances where system re-

sources are checked by the model.

With these reﬁnements, it is possible to observe

that wiCPN approach proposes a new manner of rep-

resenting interactions during software modeling ac-

tivities. While using this extension, generated models

are visualized as navigation maps, able to illustrate

existing interactive ﬂows in systems interfaces.

Figure 6: Some transitions modeled using wiCPN.

4 PUTTING wiCPN TO WORK

In order to validate wiCPN, we modeled the Web

front-end interaction of Classroom eXperience (CX),

a ubiquitous educational system that currently is used

in a real ULE. To explain how it proceeded, we ﬁrst

present CX and then demonstrate how we applied

wiCPN to model CX’s interaction, verifying the de-

veloped model by making use of a state space method.

4.1 Classroom Experience

is a ubiquitous computing platform for captur-

ing, storing and accessing content from educational

environments (Ferreira et al., 2012). CX allows in-

structors to lecture in a dynamic and unobtrusive way,

also assisting students while accessing captured con-

tent (Ara

ujo et al., 2013). As a typical Capture and

Access (C&A) platform, CX aims at recording live

experiences and making their information available

for later access. Currently, CX has been used in class-

rooms equipped with video cameras, microphones,

projectors and electronic whiteboards (Figure 7).

Figure 7: Classroom equipped with camera, microphone,

multimedia projectors and an electronic whiteboard.

Instructors are able to interact with the electronic

whiteboard as if they were using a traditional white-

board or a chalkboard. During a regular interaction

ﬂow of the system, instructors could, for instance,

access CX’s Web front-end and set up some infor-

mation before the class, such as lecture title, key-

words, abstract, duration and slides ﬁle. When ar-

riving into classroom to start lecturing, they access

http://cx.facom.ufu.br/

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

the Web front-end and download the lecture content

to present it to students. At this moment, they teach

without changing their conventional style while CX

captures content being presented by means of special-

ized hardware and software components. After the

recording phase, captured media streams are synchro-

nized, stored and made available for students.

CX provides a customized access based on per-

sonal information to display lectures according to

user needs. Students can interact with captured con-

tent through tags and comments made over the lec-

ture content. Such annotations are shared with other

students, thus extending and enriching the originally

captured information. Moreover, instructors are able

to register the assignments’ dates and subjects, which

will be displayed to students and used for content rec-

ommendation and personalization.

As can be noticed, students and instructors are dis-

tinct user roles, implying in different system permis-

sions. While the former can solely get enrolled in

courses to access captured lessons and interact with

other users, the latter can also create courses, register

lectures and perform their capture, besides being able

to register metadata such as the lesson difﬁculty level

or the aforementioned assignments calendar.

4.2 Modeling CX’s Interface

With wiCPN ’s reﬁnements in mind, we modeled the

interaction of CX’s Web front-end, employing our

method’s characteristics to achieve better visualiza-

tion and understanding of the model. As a result, Fig-

ure 8 depicts the high modeling level. Hierarchical

transitions (e.g., LoginScreen, MainScreen, among

others) represent screens and are composed by sub-

nets which contain the whole activity that takes place

inside of each transition. This happens because every

system screen becomes hierarchical – as each one of

them has an inherent ﬂow with particular conditions

– and these characteristics are substantial in order to

enable the correct modeling of CX’s interactions.

It is also possible to recognize the input/output

ports in Figure 8. As they are currently in the top

level of the modeling, they are directly connected to

the module’s hierarchical transitions. Nevertheless,

when the abstraction level goes deeper, input/output

ports get stylized with double blue borders, in addi-

tion to their In, Out and In/Out markings, which can

be observed in Figure 9. Indeed, Figure 9 depicts the

whole interaction ﬂow which happens inside of Main-

Screen. As already depicted in Figure 8, MainScreen

is connected to many other pages, so in Figure 9 it is

assigned with a homonym multiset composed by the

union of colors which lead to each one of the other

system screens presented in the module.

Exemplifying an ordinary interaction ﬂow, the

ﬁrst thing a user does during a common attempt to

represented in Figure 8 as the hierarchical transition

LoginScreen. When this action happens, LoginScreen

becomes active, as the token “act” sensitizes a tran-

sition named inLog – previously shown in Figure 1

(which illustrates a slice of LoginScreen module’s in-

teraction ﬂow).

After being authenticated, the user reaches the in-

put port Initial – identiﬁable on Figure 8 as the place

just after LoginScreen’s transition and on Figure 9 as

the ﬁrst element of MainScreen’s module. At this mo-

ment, the ﬂow proceeds to another validation, where

the system checks whether the user is a student or an

instructor. In case the user is a student, the condi-

tional transition StuAut becomes sensitized, carrying

the token “act” to the leading screen of the system –

represented as place MainScreen in the model. How-

ever, if the user is an instructor, transition InstAut be-

comes sensitized instead and the token “act” reaches

the system’s leading screen at the same time the to-

ken “perm” arrives into place InstructorPerm, ﬁlling

it with resources and enabling instructors to access

more features than students.

In this scope, a student can never access the func-

tionality for creating a new class – since this activity is

an instructor’s duty only –, and our model fully sup-

ports this restriction, as the In/Out port inAddClass

(visible in Figure 9) is not reachable by students, be-

cause the transition inAddC never gets sensitized.

4.3 Verifying the Model

While making use of CPN Tools, it is also possible

to explore the modeled system’s behaviors using net

simulations, model checking and state space methods

(Jensen et al., 2007). In fact, a full state space can por-

tray all practicable executions of an analyzed model,

computing every reachable state and their changes,

while representing these in a directed graph. The fun-

damental concept behind a state space is to set up a

graph which has an arc for each binding element and a

node for every reachable marking. A modeling’s state

space is calculated automatically and this enables to

prove with mathematical meanings that it possesses

determined formal properties.

Figure 10 presents the graph we generated using

CPN Tools’ state space tool. The ﬁrst node depicts

the marking previously shown in Figure 1 (the mo-

ment when a user accesses the login page). After this,

in node 2, user information can be inserted in order

to log into the system or introduced to register a new

AUser-centeredApproachforModelingWebInteractionsUsingColoredPetriNets

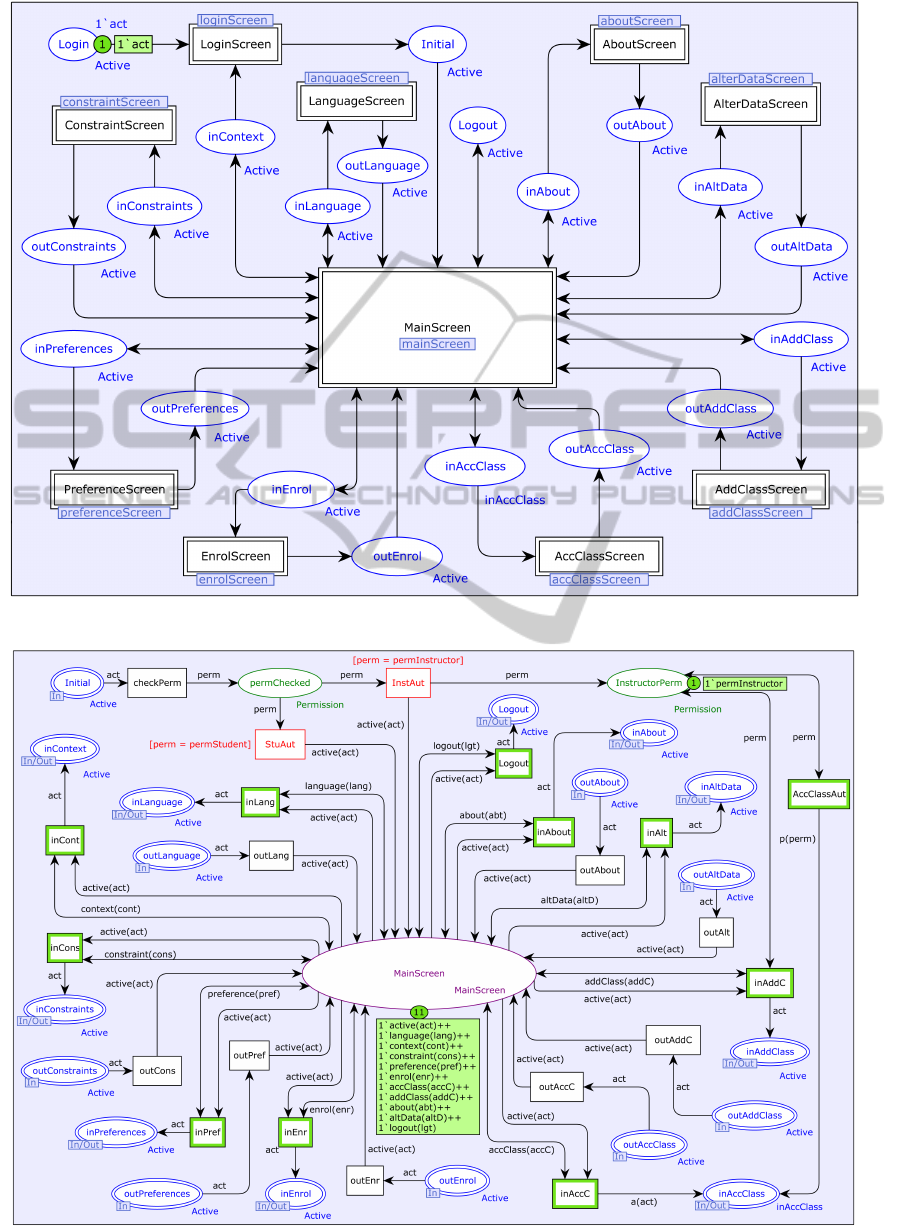

Figure 8: The top level of the modeling.

Figure 9: The MainScreen’s interaction ﬂow when the user is an instructor.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

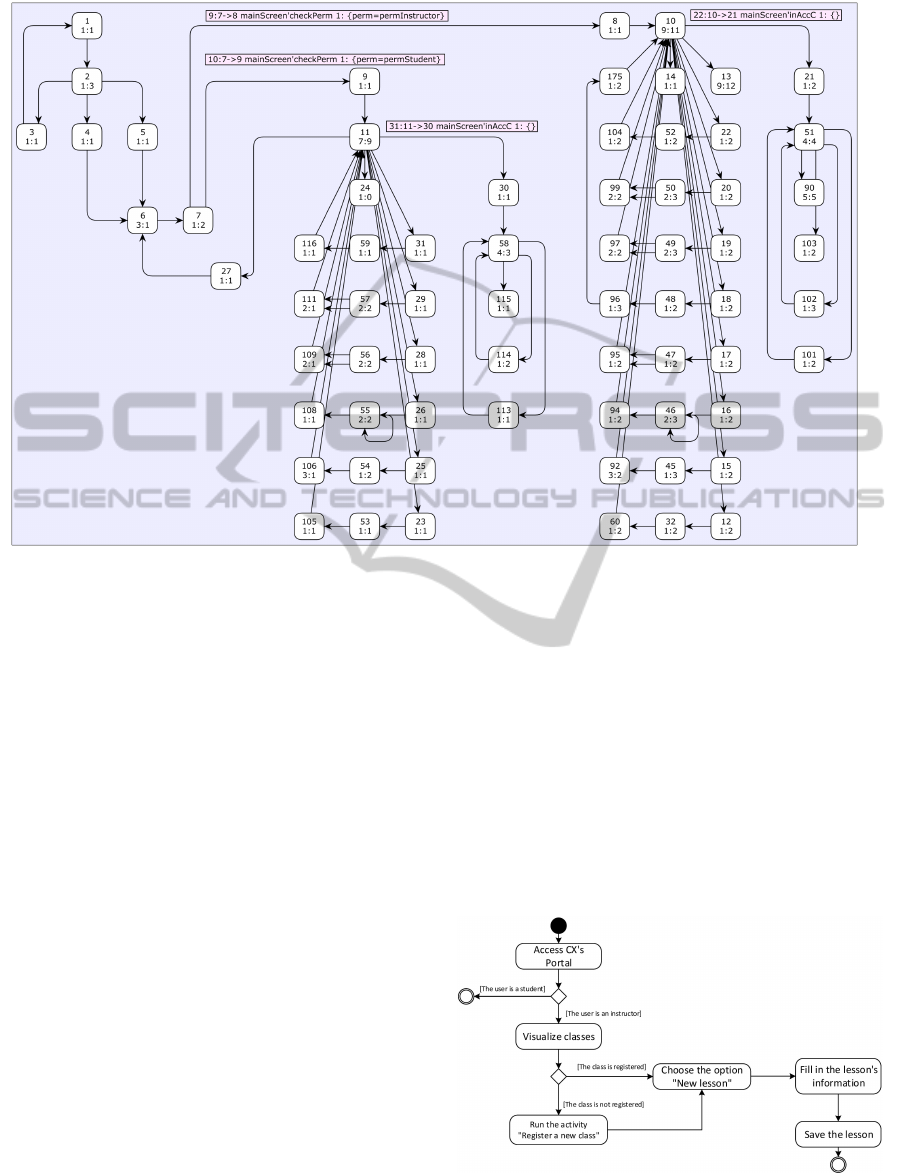

Figure 10: CX’s graph of reachability.

user – that is why the graph trifurcates. Consequently,

while nodes 4 and 5 respectively denote a successful

6 –, node 3 represents an unsuccessful login and re-

turns the user to the login page (node 1).

Right ahead, node 7 represents when the system

validates whether the user is a student or an instructor,

as depicted in Figure 9. In case he/she is an instruc-

tor, the interaction proceeds to node 8, while a stu-

dent ﬂow would advance to node 9. At this moment,

it is perfectly clear to notice that a student reachabil-

ity is inferior if compared to the states an instructor

can reach. Also, nodes 10 and 11 illustrate the sys-

tem’s main screen, but in different user perspectives.

While in node 10 an instructor can access every sys-

tem screen, node 11 shows that students reach a re-

duced amount of pages.

5 USER EXPERIMENTS

For the user-based experiments, we applied a ques-

tionnaire to 30 undergraduate Computer Science stu-

dents enrolled in a Human-Computer Interaction

(HCI) course. Students were used to work with in-

teractive ﬂows on a regular basis, in the context of the

HCI course. A few of them have had previous expe-

rience with UML language, but no student have had

previous contact with Petri Nets.

We separated students into two groups of 15. To

the ﬁrst group, we presented a 15-minute brieﬁng

about UML language and then presented a couple of

interactive ﬂows modeled with UML activity and use

case diagrams (some of the models that were used can

be seen in Figures 11 and 12). To the second group,

we also presented a 15-minute brieﬁng about wiCPN

and presented the same interactive ﬂows, but modeled

with wiCPN. Since we aimed to analyze users under-

standing capability of several interactive issues, we

did not employ swimlanes, but instead we modeled

activity ﬂows as clear as possible in UML diagrams.

Figure 11: “Register a new class” UML activity diagram.

After studying their corresponding (either UML

AUser-centeredApproachforModelingWebInteractionsUsingColoredPetriNets

Figure 12: “Access captured lesson” UML activity diagram.

or wiCPN ) diagrams, each student answered a ques-

tionnaire to assess his/her understanding about the

modeling of the interactive ﬂows. The questionnaire

comprised 12 afﬁrmatives to which the student should

mark his/her agreement level in a 1-to-7 Likert scale

(being 1 - Completely disagree, 2 - Disagree, 3 - Par-

tially disagree, 4 - Neutral, 5 - Partially agree, 6 -

Agree, and 7 - Completely agree):

1. The modeling of the interactive ﬂows is intuitive.

2. In the presented modeling, there are screens with-

out well-deﬁned purposes.

3. I can understand which activities are available for

each type of user.

4. Information about my current screen is not always

available in the model.

5. From my current screen, I can always realize

which other screens I can access.

6. It is not possible to implement all functions pre-

sented in the model.

7. I cannot understand the interactive ﬂow repre-

sented in the model.

8. I can understand the purpose of all screens in the

presented modeling.

9. The permissions granted for each type of user are

not clear.

10. I always know my current screen in the model.

11. I cannot ﬁgure out which screens I can access

from my current screen.

12. The modeling provides all information necessary

to implement the presented functions.

We employed a reversed and negated items

method for detecting insufﬁcient effort in responding

our survey in order to legitimate user answers (Huang

et al., 2012). As can be noticed in our questionnaire,

pairs of different afﬁrmatives express the same ideas

with opposite meanings: pair 1-7 examines general

understanding of the modeling, pair 2-8 veriﬁes the

intended purpose of screens, pair 3-9 is related to the

proper identiﬁcation of user options and permissions,

pair 4-10 contemplates current user location in the in-

teractive ﬂow, pair 5-11 covers the screen reachability,

and pair 6-12 regards model completeness.

We assumed that students would respond to each

pair with opposite opinions. This way, to evaluate the

questionnaire items properly, the second afﬁrmative

of each pair should be reversed in the Likert scale (i.e.,

a 1 becomes a 7, a 2 becomes a 6, and so on). After

invalidating contradictory answers, we then computed

the mean ( ¯x), standard deviation (s) and coefﬁcient of

variation (CV) for each pair of answers among the two

groups of students. Results are presented in Table 1.

Table 1: Mean, standard deviation and coefﬁcient of varia-

tion of students’ responses to questionnaires.

Afﬁrmatives

UML wiCPN

¯x ± s CV (%) ¯x ± s CV (%)

1 and 7 4,20±2,01 47,79 5,40±1,06 19,55

2 and 8 5,13±1,85 35,97 2,40±0,83 34,50

3 and 9 5,33±1,72 32,22 6,00±0,85 14,09

4 and 10 3,20±1,08 64,91 2,27±0,96 42,40

5 and 11 4,87±2,10 43,15 6,27±0,70 11,23

6 and 12 3,60±2,03 56,34 2,33±1,35 57,65

Each pair’s second afﬁrmatives had their results inverted

and incorporated into the ﬁrst ones, in order to nullify

or highlight responses given in ﬁrst items; UML: Uniﬁed

Modeling Language; wiCPN : Web Interaction Modeling

Using Colored Petri Nets; ¯x ± s: Mean and standard de-

viation; CV : Coefﬁcient of variation.

Results show that students from the second group

(wiCPN) presented mean values with higher partial-

ity and lower deviations than students from the ﬁrst

group (UML). Besides that, for most pairs, CV val-

ues were lower for wiCPN – except for the last pair,

which surpassed it in 1.31%. Such results demon-

strate that wiCPN scored adjacent and uniform levels,

ensuring high homogeneity in opinions and reinforc-

ing that our approach was well-accepted and evalu-

ated among students that used it.

Figure 13 shows the frequency of answers ob-

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

tained in questionnaires. Since the afﬁrmatives pre-

sented in questionnaires alternated positive and neg-

ative ideas, we expected students to express agree-

ments in pairs 1-7, 3-9 and 5-11, while pairs 2-8, 4-

10 and 6-12 were expected to be susceptible to dis-

agreements. Following the same order of pairs in both

samples, scores given by students that used wiCPN

were more tendentious than those from students that

used UML. While in the ﬁrst column (UML) stu-

dent opinions appear to be divided, the second column

(wiCPN) shows strong trends (either to agreement or

disagreement) in each pair of given answers.

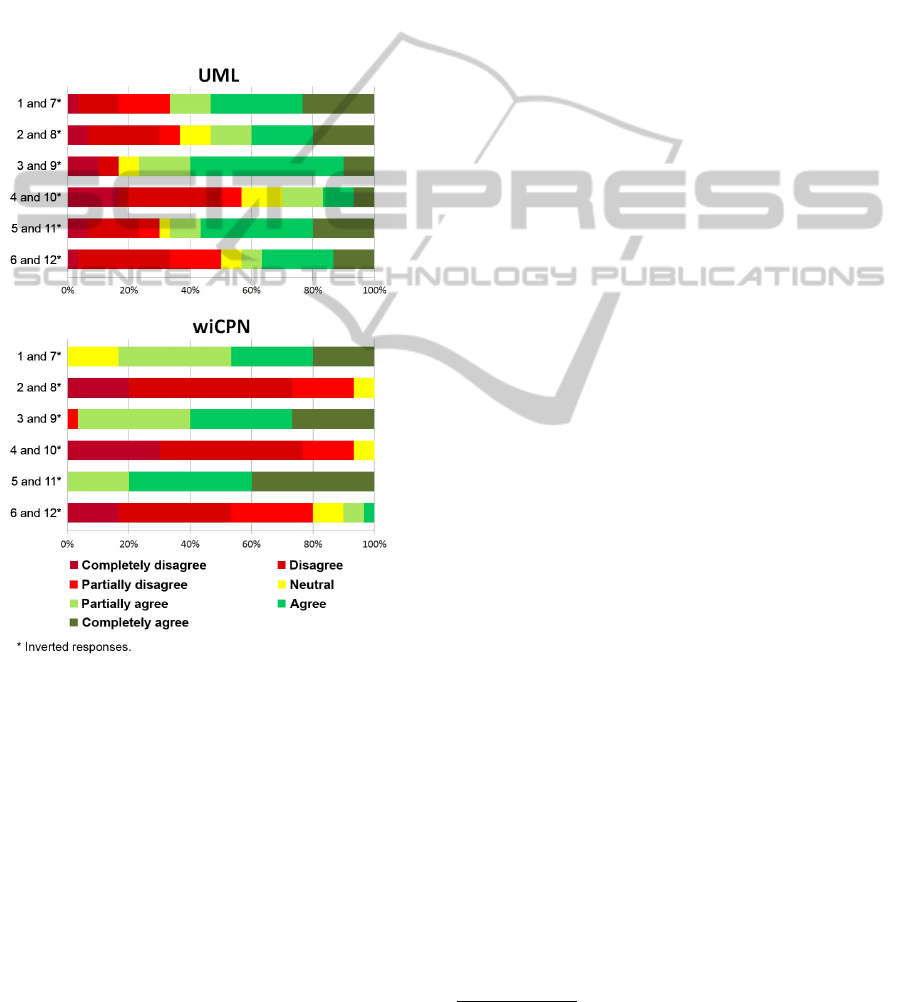

Figure 13: Frequency of answers obtained in student ques-

tionnaires. UML scores showed divided opinions, while

wiCPN presented clear tendencies for agreement in pairs

1-7, 3-9 and 5-11, and disagreement in 2-8, 4-10 and 6-12.

More than 30% of students from the ﬁrst group

(UML) afﬁrmed that the modeling of interactive ﬂows

was not intuitive. In the same group, half of the stu-

dents informed that screens had no clear purpose – no

similar answer was observed among students from the

second group (wiCPN ). Furthermore, almost 20% of

the students that used UML declared they could not

understand which activities were available for each

type of user, while only 5% of students that used

wiCPN reported the same difﬁculty.

Among those who used UML, about 30% revealed

having trouble to identify their current screen and,

from there, to which other screens they could move

in the modeling. No student using wiCPN reported

such problems. Finally, more than 40% of students

asserted that it was not possible to implement all

the functionalities using only the provided UML di-

agrams, something pointed out by less than 5% of the

students that used wiCPN.

6 RELATED WORK

An interesting work found in literature is UITD (User

Interface Transition Diagram), a modeling notation

for representing shifts that happen in interfaces, be-

ing also able to trigger determined transitions based

on their speciﬁc conditions (G

omez and Cervantes,

2013). UITD notation results in pseudo-digraphs (di-

rected graphs whose transitions have a possibility of

looping), where vertexes denote user interface presen-

tations and directed edges depict transitions.

Since UITD is a variation of well-acquainted State

Transition Diagrams – also known as State Charts

(Harel, 1987) – and its notation extends State Charts’

modeling scope to an interaction range, existing tool

support (such as Yakindu

) is not able to fully repre-

sent UITD ’s graphs. Noticeably, the approach we in-

troduce in this work is also based on an existing mod-

eling language: CPNs. Nevertheless, wiCPN makes

use of a speciﬁc tool suite for generating, editing, sim-

ulating and making full analysis of CPN models. As

UITD does not have an exclusively CASE tool for

supporting its generated graphs, its modeling activi-

ties end up being performed on applications originally

developed for other purposes or, even, without mak-

ing any use of proper tools.

MoLIC (Modeling Language for Interaction as

Conversation) comprises a model focused on HCI

speciﬁcations (Sangiorgi and Barbosa, 2009). Pro-

posed to be incorporated into the UML family,

MoLIC represents interactions as conversation top-

ics. However, since each conversation thread is repre-

sented by scenes constructed using natural languages

and user perspectives, the model is subjugated to am-

biguity and subjectivity.

Another approach for modeling applications by

making use of UML and with focus on representing

mobile Web interfaces was also encountered (Vera

et al., 2012). Based on processes deﬁned by OOHDM

(Object Oriented Hypermedia Design Method), their

work uniﬁed activities of interaction modeling by us-

ing two UML diagrams: a component diagram for

http://statecharts.org/

AUser-centeredApproachforModelingWebInteractionsUsingColoredPetriNets

representing interface navigation and a class diagram

for the domain modeling. Both diagrams were ex-

panded by making use of tag values and stereotypes.

As a conclusion, these extensions added further in-

formation to models and allowed their conﬁguration,

what contributed to make code generation an easier

task during the development process. Although their

proposed methodology clearly brought formalization

gains, it is focused merely on the speciﬁcation of mo-

bile Web applications. Otherwise, wiCPN method

conﬁgures a different scope, focusing on user interac-

tions which may originate from several different de-

vices, such as computers, notebooks, cellphones and

tablets – requiring only the need of a Web browser

installed in these equipments.

Being recently adopted as a new standard by

OMG (Object Management Group), IFML (Interac-

tion Flow Modeling Language) was developed to rep-

resent user interactions, application contents and con-

trol behaviors of software front-ends (Rossi, 2013).

IFML includes a set of graphical notations capable of

generating visual models which aim at depicting in-

teraction ﬂows and interface behaviors, with a main

focus on structure and front-end activities perceivable

by users. An IFML diagram consists of view con-

tainers that represent user interface windows or Web

pages. These containers can have elements called

view components which can hold input and output

parameters. Both containers can be associated with

events, in order to express their support to user inter-

actions. However, despite being dedicated to specify

user interaction dynamics in interface applications,

IFML’s hypertext modeling is recent and lacks an

appropriate and organized base of notations, concep-

tions and design methods (Gal-Chis, 2013). Also,

IFML does not address the modeling of presentation

issues, e.g., layouts and styles of application front-

ends (Rossi, 2013). This may have occurred because

IFML is an extension of WebML (Web Modeling

Language), a Web designing notation ﬁrst deﬁned in

early 2000’s and which experienced just about ten

years of use. As IFML is currently in Beta version,

adjusts are likely to be performed for giving the lan-

guage more conﬁdence in its ﬁeld. Our approach, on

the other hand, makes use of CPNs – which are based

on Petri Nets, a language for describing systems ﬁrst

documented in 1962 (Petri, 1962) and widely spread

and extended since then (Silva, 2013) –, what quite re-

inforces the strengths and breadth of usage that Petri

Nets bring to the systems modeling domain.

Another work found in the literature presented

an interaction model of a smart community cyber-

physical system called Net-in-Net (Ma et al., 2010).

As elucidated by the authors, cyber-physical systems

are environments which integrate physics with Inter-

net in order to provide efﬁcient, conﬁdential and op-

portune interactions between applications and users.

Since their work aims at representing interaction

ﬂows of a complex system characterized by security,

stability and reliability issues, it should have been for-

malized by making use of a proper robust and veriﬁ-

able language. However, Net-in-Net interactivity was

modeled by making use of simple ﬂow charts, result-

ing eventually in subjective models.

This subjectivity also happens in another work,

where a vocabulary for web user interface design is

proposed (Tena et al., 2013). As it compiles terms

that are constantly changing and being substituted,

its reuse becomes nearly impractical (since the re-

sult is at the mercy of time misconceptions) and the

generated vocabulary has wispy usage for other re-

searches. A cognitive model for representing inter-

actions between drivers and vehicles was also found

(Ciardelli et al., 2011). Proposed to consider user be-

haviors and detect potential dangerous situations, the

work presented an approach to the analysis and mod-

eling in automotive applications and exploited a sim-

ulation platform and a sensor network assembled in

vehicles. As a conclusion, authors showed prelimi-

nary results demonstrating the method practicability

and discussed how a continued research could bring

improvements for human safety oriented applications.

With a few resemblances to our approach while

concerning to Petri Nets theory, ICOs (Interactive Co-

operative Objects) is an object Petri Nets-based inter-

face description language for engineering and devel-

opment of applications (Martinie et al., 2014). ICOs’

associated CASE tool, named Petshop (which stands

for Petri net workShop), is able to provide support for

the design, speciﬁcation, prototyping, and validation

processes of interactive software.

While sharing the beneﬁts of a concrete ba-

sis in formal language notations, ICOs also makes

use of concepts borrowed from the object-oriented

paradigm, such as dynamic instantiation, encapsu-

lation and inheritance. For a correct use of such

paradigm, an object Petri Net dialect had to be used

in order to comprehend the object-orientation’s whole

scope. Therefore, plenty of skills – not only in user

interface design, but also in object-oriented program-

ming, Java language, implementation and Petri Nets-

based modeling – are required to represent correctly

the interactive applications while using ICOs, what

inevitably induces a high learning curve for making

engineers able to work on the projects.

In another work, a Petri Net based framework to

support design, implementation and veriﬁcation of

animated interfaces in a two-levels process is pre-

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

sented (Mirlacher et al., 2012). While the higher level

view of the approach focuses on interactive objects,

considering their properties and composition of ani-

mations, the lower level stands for temporal aspects,

caring about usage of interpolation and possible con-

nection issues with rendering hardware. This model

gets rather complex as it handles both inter-objects’

animated properties and the whole orchestration of

animation shifts that may happen when systems per-

formance is lower than expected. Designing inter-

faces that concern about potential degradation is a

heavy burden for engineers who have to be aware of

computer animation issues and numeric analysis ap-

plication, to distinguish in a quick and efﬁcient way

which and how animations should be degraded.

Unlike these last works, wiCPN approach was

made to be visual and intuitive – while making use of

a formal modeling language capable of veriﬁcation.

This way, our work comprehends a method for gen-

erating models that professionals from various ﬁelds

can understand and clearly see how their interaction

ﬂows behave, thus being able to contribute better with

the underlying processes of systems modeling.

To synthesize the discussions held in this section,

Table 2 presents all related works concerned to inter-

action modeling that were perceived throughout the

text. A criteria-based evaluation conducted by our re-

searchers was able to show that all approaches have

positive traits and certain gaps that justify why they

are used in more speciﬁc contexts. The approaches

were judged based on six different criteria: (a) ex-

istence of a speciﬁc CASE Tool that fully supports

the method; (b) approach’s ability of modeling the

interaction of Web front-ends; (c) generated models’

ease of understanding; (d) no prior obligation to learn

other contents to properly use the technique; (e) if the

approach was based on a formal language; and (f)

method’s ability to comprise security requirements,

such as user authentication. For measuring each cri-

terion, three levels of incidence were stipulated: an

empty circle (#) for approaches that lack a speciﬁc

criterion; a circle in half (G#) to works which partially

fulﬁll a criterion; and a full circle ( ) to those ones

that entirely comprehend a established criterion.

As noted in Table 2, the approaches of (Ma et al.,

2010), (Tena et al., 2013) and (Ciardelli et al., 2011)

do not have exclusive CASE Tools for applying their

methods. This absence may lead to inconsistencies,

such as erroneous representations of interactive ﬂows,

inducing problems of misunderstanding models. Fur-

thermore, most works demonstrate some ability to

represent interactions of Web interfaces, even if par-

tially. However, several details of interactivity are lost

in some studies – such as in (Sangiorgi and Barbosa,

Table 2: Evaluation of analyzed approaches.

Works (a) (b) (c) (d) (e) (f)

omez and Cervantes, 2013) G# G# G#

(Sangiorgi and Barbosa, 2009) G# G# G# #

(Vera et al., 2012) G# G# #

(Rossi, 2013) G# G#

(Ma et al., 2010) # G# G# #

(Tena et al., 2013) # G# # #

(Ciardelli et al., 2011) # # G# G# # #

(Martinie et al., 2014) G# # #

(Mirlacher et al., 2012) # #

wiCPN G# G#

2009), (Vera et al., 2012) and (Ciardelli et al., 2011) –

and this occurs because not all formalization methods

were exclusively created for this purpose.

Among listed approaches, (Martinie et al., 2014)

and (Mirlacher et al., 2012) were the ones that gen-

erated models with the highest difﬁculty level of un-

derstanding. This is justiﬁed by the fact that these

works also involve the greatest amount of knowledge

required in different areas to be previously understood

by professionals who aim to use them. Furthermore,

half of the works did not present any grounding or

usage of formal methods in their approaches. Dur-

ing cases of complex systems speciﬁcation, such as

in (Ma et al., 2010) and (Ciardelli et al., 2011), the

use of veriﬁable formalizations shows up as a rele-

vant practice, thanks to the possibility of perceiving

and ﬁxing errors during early stages of software de-

velopment processes.

7 CONCLUSION

This paper introduced wiCPN (Web Interaction Mod-

eling Using Colored Petri Nets), a language for rep-

resenting Web interactions with improved notation

and semantics. Designed as an extension of CPNs,

wiCPN brings together the strengths of CPNs with a

high level graphical notation that was able to reﬁne

the model components and represent interaction in a

structured and intuitive way. By allowing the creation

of hierarchies, wiCPN stimulates the reﬁnement and

better organization of the generated models.

As a case study, our approach was tested in a

real ULE with modeling and veriﬁcation of Class-

room eXperience’s Web front-end. Generated mod-

els were replicated in UML and, together, served as

a basis for a detailed user experiment. Results from

AUser-centeredApproachforModelingWebInteractionsUsingColoredPetriNets

user experiments demonstrated wiCPN to be a con-

cise and intuitive notation, capable of simplifying the

design process and, thus, avoiding redundancies and

inconsistencies. With good expressiveness, our lan-

guage was able to propitiate better understanding of

the whole interactive process, by presenting both the

connections among the system screens and the actions

associated to every possible ﬂow.

Furthermore, wiCPN was also capable of portray-

ing the many access levels of different user types, re-

specting the roles they play in the system and the con-

tent and activities they are allowed to see and perform.

This point demonstrated the language’s capability of

comprehending issues that concern to systems secu-

rity requirements and can also serve as a basis for fu-

ture work in this scope.

ACKNOWLEDGEMENTS

We would like to thank the Brazilian research

agencies FAPEMIG (grant APQ-04627-10), CAPES,

CNPq (grant 445500/2014-0) and PROPP/PPGCO

for supporting this work.

REFERENCES

Ara

ujo, R. D., Brant-Ribeiro, T., Cattelan, R. G., Amo, S.

A. d., and Ferreira, H. N. (2013). Personalization of

Interactive Digital Media in Ubiquitous Educational

Environments. In Proc. of the IEEE SMC’13, pages

3955-3960, Manchester, UK.

Bowen, J. and Reeves, S. (2007). Using formal models to

design user interfaces: A case study. In Proc. of the

21st BCS HCI, pages 159-166.

Choosang, S. and Gordon, S. (2014). A Coloured Petri

Net Methodology and Library for Security Analysis

of Network Protocols. JCP, 9(2):243-256.

Ciardelli, L., Bixio, L., and Regazzoni, C. (2011). Inter-

action Modeling in Automotive Applications: a Cog-

nitive Approach. In Proc. of the IEEE CogSIMA’11,

pages 248-251.

Clemmensen, T. (2012). Usability Problem Identiﬁcation in

Culturally Diverse Settings. Inform Syst J, 22(2):151-

175.

Ferreira, H., Ara

ujo, R., de Amo, S., and Cattelan, R.

(2012). Classroom Experience: A Platform for Mul-

timedia Capture and Access in Instrumented Educa-

tional Environments. In Proc. of the SBSC’12, pages

59-64.

Gal-Chis, C. (2013). Web Application Methodologies With

RE Tools Support. IJCT, 11(3):2314-2320.

Gehlot, V. and Nigro, C. (2010). An Introduction to Sys-

tems Modeling and Simulation with Colored Petri

Nets. In Proc. of the WSC’10, pages 104-118.

omez, M. and Cervantes, J. (2013). User Interface Transi-

tion Diagrams for Customer-Developer Communica-

tion Improvement in Software Development Projects.

JSS, 86(9):2394-2410.

Harel, D. (1987). Statecharts: A Visual Formalism for

Complex Systems. Sci Comput Program, 8(3):231-

274.

Huang, J., Curran, P., Keeney, J., Poposki, E., and DeShon,

R. (2012). Detecting and Deterring Insufﬁcient Effort

Responding to Surveys. J Bus Psychol, 27(1):99-114.

Jensen, K. (1994). An Introduction to the Theoretical As-

pects of Coloured Petri Nets. In A Decade of Con-

currency, Lecture Notes in Computer Science, pages

230-272. Springer-Verlag.

Jensen, K., Kristensen, L., and Wells, L. (2007). Coloured

Petri Nets and CPN Tools for Modelling and Valida-

tion of Concurrent Systems. STTT, 9(3):213-254.

Kim, D., Cimren, E., Havey, R., and Zaidi, A. K. (2012).

Improving Cluster Tools Performance Using Colored

Petri Nets in Semiconductor Manifacturing. In Proc.

of the WSC’12, pages 205:1-205:12.

Ma, L., Yao, J., Xu, M., Yuan, T., and Shao, M. (2010). Net-

in-Net: Interaction Modeling for Smart Community

Cyber-Physical System. In Proc. of the 7th UIC/ATC,

pages 250-255.

Martinie, C., Navarre, D., and Palanque, P. (2014). A Multi-

Formalism Approach for Model-based Dynamic Dis-

tribution of User Interfaces of Critical Interactive Sys-

tems. Int J Hum-Comput St, 72(1):77-99.

Mirlacher, T., Palanque, P., and Bernhaupt, R. (2012). En-

gineering Animations in User Interfaces. In Proc. of

the 4th ACM SIGCHI EICS, pages 111-120.

Nguyen, H. and Apon, A. (2012). Parallel File System Mea-

surement and Modeling Using Colored Petri Nets. In

Proc. of the 3rd ACM/SPEC, pages 229-240.

Petri, C. A. (1962). Communication With Automata. PhD

thesis, Universit

at Hamburg.

Rogers, Y., Sharp, H., and Preece, J. (2011). Interaction

Design: Beyond Human-Computer Interaction. Wiley

Publishing, Chichester, UK, 3rd edition.

Rossi, G. (2013). Web Modeling Languages Strike Back.

Internet Computing, IEEE, 17(4):4-6.

Sangiorgi, U. and Barbosa, S. (2009). MoLIC Designer:

Towards Computational Support to HCI Design with

MoLIC. In Proc. of the 1st ACM EICS, pages 303-308.

Silva, M. (2013). Half a Century After Carl Adam Petri’s

Ph.D. Thesis: a Perspective on the Field. Annual Re-

views in Control, 37(2):191 - 219.

Sommerville, I. (2010). Software Engineering. Addison-

Wesley Publishing Company, Boston, USA, 9th edi-

tion.

Tena, S., D

ıez, D., D

ıaz, P., and Aedo, I. (2013). Standard-

izing the Narrative of Use Cases: a Controlled Vocab-

ulary of Web User Tasks. IST, 55(9):1580-1589.

Vera, P., Giulianelli, D., Rodriguez, R., and Pons, C. (2012).

User Interface and Navigation Modeling Methodol-

ogy for Mobile Hypermedia Systems. In Proc. of the

7th CCC, pages 1-6.

Weidlich, M., Mendling, J., and Gal, A. (2013). Net-

Based Analysis of Event Processing Networks: the

Fast Flower Delivery Case. In Proc. of the Petri

Nets’13, pages 270-290.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
