PM-DB: Partition-based Multi-instance Database System for Multicore

Platforms

Fang Xi

, Takeshi Mishima

and Haruo Yokota

Department of Computer Science, Tokyo Institute of Technology, Tokyo, Japan

Software Innovation Center, NTT Japan, Tokyo, Japan

Keywords:

DBMS, Multicore, Middleware, TPC-W.

Abstract:

The continued evolution of modern hardware has brought several new challenges to database management

systems (DBMSs). Multicore CPUs are now mainstream, while the future lies in massively parallel comput-

ing performed on many-core processors. However, because they were developed originally for single-core

processors, DBMSs cannot take full advantage of the parallel computing that uses so many cores. Several

components in the traditional database engines become new bottlenecks on multicore platforms. In this pa-

per, we analyze the bottlenecks in existing database engines on a modern multicore platform using the mixed

workload of the TPC-W benchmark and describe strategies for higher scalability and throughput for exist-

ing DBMSs on multicore platforms. First, we show how to overcome the limitations of the database engine

by introducing a partition-based multi-instance database system on a single multicore platform without any

modiﬁcation of existing DBMSs. Second, we analyze the possibility of further improving the performance

by optimizing the cache performance of concurrent queries. Implemented by middleware, our proposed PM-

DB can avoid the challenging work of modifying existing database engines. Performance evaluation using

the TPC-W benchmark revealed that our proposal can achieve at most 2.5 times higher throughput than the

existing engine of PostgreSQL.

1 INTRODUCTION

In recent years, the technology of multicore proces-

sors has been improving dramatically. On the mul-

ticore platform, software cannot beneﬁt from the in-

creasing of clock speed anymore, but has to improve

performance by exploiting thread-level parallelism.

Thus, greater emphasis is placed on the paralleliza-

tion of software than ever before.

Most database management systems (DBMSs)

were designed in the 1980s, when only uniprocessors

were available. Queries were optimized and executed

independently of each other in a query-at-a-time pro-

cessing model with few of the queries actually run-

ning simultaneously. Moreover, traditional DBMSs,

which are dedicated to improving database perfor-

mance through I/O optimization, fail to utilize mod-

ern processor and memory resources efﬁciently. The

increasingly powerful concurrent processing ability

of multicore platforms is stressing these DBMSs.

An increasing number of concurrent database pro-

cesses share resources both at the hardware (caches

and memory) and at the software (locks) levels, and

any inefﬁcient resource sharing will create new bot-

tlenecks in database systems (Cieslewicz and Ross,

2008). Therefore, performance analysis and opti-

mization for existing DBMSs on multicore platforms

has become an important research topic (Hardavellas

et al., 2007), (Ailamaki et al., 1999).

Tremendous efforts have been invested in the efﬁ-

cient utilization of many processor cores for different

database applications. There are proposals for over-

coming the memory–CPU gap for complex sort and

join operations for OLAP applications (Kim et al.,

2009), (Ye et al., 2011), and there has been research

on solving contention in lock and log functions for

concurrent updates in OLTP applications (Johnson

et al., 2009). Moreover, the development of multicore

platforms has motivated some work to analyze how

and when to employ sharing for concurrent queries

rather than optimizing each query independently for

different kinds of workloads. For example, a proposal

to provide work sharing between concurrent queries

(Psaroudakis et al., 2013), and a solution for im-

proving processor cache performance for concurrent

queries (Xi et al., 2014) have been proposed.

128

Xi F., Mishima T. and Yokota H..

PM-DB: Partition-based Multi-instance Database System for Multicore Platforms.

DOI: 10.5220/0005370901280138

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 128-138

ISBN: 978-989-758-096-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

However, mixed workloads such as those modeled

in the TPC-W benchmark (Menasce, 2002) are differ-

ent from both typical OLAP and OLTP applications

(Giannikis et al., 2012), (Salomie et al., 2011). There

are neither as many complex queries as in OLAP ap-

plications, nor as many severe update operations as

in typical OLTP workloads. To this end, the opti-

mization of mixed workloads on multicore platforms

is still a challenge for existing database engines.

In this paper, we have analyzed the performance

of a mixed workload on a modern Intel E7 multicore

platform, and proposed new middleware called PM-

DB to improve the performance for database systems

on multicore platforms by treating the multicore ma-

chine as an extremely low latency distributed system.

PM-DB provides a single database image to the users

while coordinating query executions across several

shared-nothing database instances deployed on a sin-

gle multicore machine. Moreover, PM-DB can man-

age the binding relationships between the database

engines and the underlying processor cores to im-

prove the throughput further by reducing processor

cache misses. Because it requires no modiﬁcations to

existing DBMSs or OSs, our PM-DB is simpler and

more practical than most existing proposals.

Our research was motivated by a performance

analysis of the TPC-W workload on a modern mul-

ticore platform. The experiment showed that the

shared-memory function of existing engines is be-

coming the system bottleneck. We therefore pro-

posed a middleware of PM-DB to maintain multiple

database engines running in parallel on the multicore

machine, rather than a single database engine, to re-

duce the shared-memory contention and provide high

scalability. The main contribution of this paper is

to demonstrate how a partition-based multi-instance

database system performs on modern multicore plat-

forms. By introducing the system architecture that

was originally widely used by distributed database

systems to a single multicore platform, the contention

in a single database instance is solved and the comput-

ing capacity of the multicore platforms is more fully

exploited. Experiments show our proposal can pro-

vide much better throughput and scalability on multi-

core platforms.

Moreover, the PM-DB can further reduce the

contentions in cache levels by maintaining better

cache locality for each core’s private cache. As the

processor–memory gap is becoming larger on mod-

ern multicore platforms, we analyzed the possibility

of optimizing the processor cache performance for

concurrent queries. Optimizing cache performance

to achieve better overall performance is a challenge,

and it often requires very careful tuning of the data

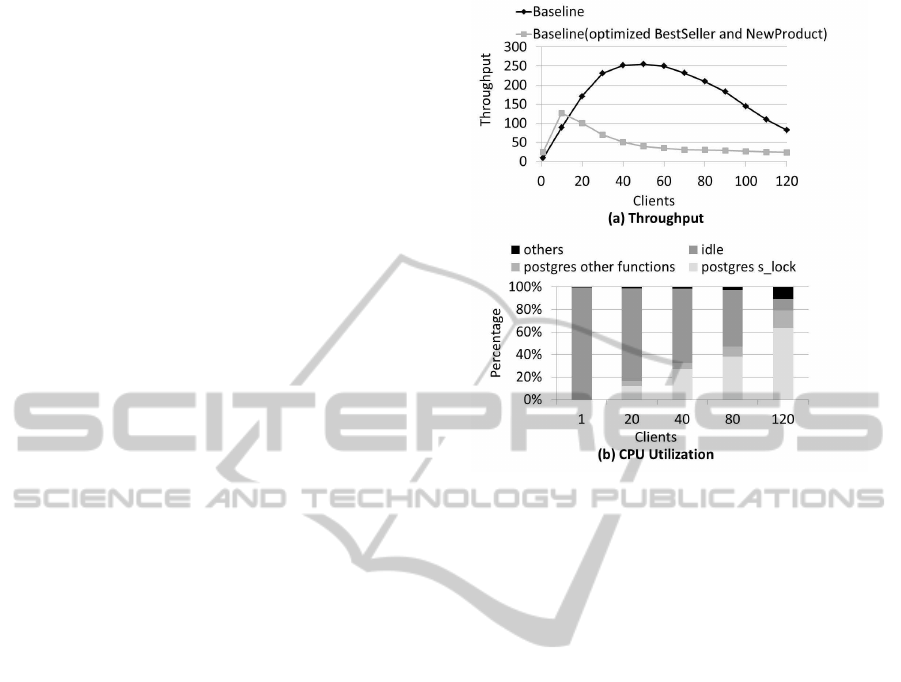

Figure 1: Scalability of TPC-W on a multicore platform.

structures and algorithms. However, we have pro-

posed a solution to this problem that requires no

changes to existing software implementations and we

reduced the cache misses by improving the corun-

ning strategies for better data sharing between con-

current queries in different processor cache levels. We

pointed out that by assigning simple queries and com-

plex queries to differentcores, we could achievemuch

better cache performance and higher system through-

put. Our detailed analysis of cache performance at

different levels provides several insights on multicore

processor cache optimization for mixed workloads.

The remainder of this paper is organized as fol-

lows: In Section 2, we describe our motivating ex-

periments. In Section 3, we describe our proposed

PM-DB in detail. In Section 4, we discuss the cache

optimization solution for the basic PM-DB system.

We conducted extensive experiments to show the ef-

ﬁciency of our proposal in different aspects and these

are described in Section 5. Finally, Section 6 con-

cludes the paper.

2 MOTIVATION

We analyzed the scalability of the mixed workload us-

ing the TPC-W benchmark with the Browsing work-

load mix on a modern Intel E7 multicore platform

with 80 hardware contexts. A detailed description of

the hardware platform and the workload can be found

in Section 5. We evaluated the PostgreSQL DBMS

PM-DB:Partition-basedMulti-instanceDatabaseSystemforMulticorePlatforms

129

separately with the default query plan and the opti-

mized query plan, in which we greatly reduced the

response time for the “Best Seller” and “New Prod-

uct” transactions, which are two relatively complex

queries with high frequencyof occurrence in the TPC-

W benchmark. However, we must emphasize that

our optimization is based on the execution of a sin-

gle query as we usually do in traditional performance

tuning. The throughput of these two Baseline systems

while increasing the number of concurrent clients is

shown in Figure 1 (a).

This ﬁgure shows that both systems encounter se-

vere scaling problems. There are 80 hardware threads

on the multicore platform, although the Baseline sys-

tem could only scale to 40 concurrent clients. More-

over, the optimized Baseline system cannot achieve

better throughput than the unoptimized system and it

can only scale to 10 concurrent clients. We believe

that the scaling problem is not caused by overload in

the system, as the 80 hardware contexts are far beyond

the needs of the software. The system must encounter

some bottlenecks that waste CPU time or force the

CPU to be idle. We further analyzed the CPU utiliza-

tion for the optimized Baseline system using the per-

formance monitoring tool Perf (de Melo, 2010), and

the results are shown in Figure 1 (b). As the number

of concurrent clients increases, the “s

lock function”

in PostgreSQL becomes the system bottleneck.

Each database engine holds one shared buffer

in memory and the concurrent loads access the

shared memory space through speciﬁc synchroniza-

tion functions. The “s

lock” function is the hardware-

dependent implementation of a spin lock and it is used

to control access to the shared memory-critical sec-

tions in PostgreSQL. For example, every page search

in the memory buffer must access several critical sec-

tions: one to lock the hash bucket to prevent the page

being moved to other buckets during the search, one

to pin the page to prevent its eviction from the mem-

ory buffer, and ﬁnally one to request a latch on the

page to prevent concurrent modiﬁcation to this page.

For hot pages (metadata and high-level index pages),

the critical sections become the bottleneck, as many

threads compete for them, even if they access the page

in read mode (Johnson et al., 2009). Even though the

“Best Seller” and “New Product” transactions have no

update operation, they access a large number of pages

when they perform their join operations. Moreover,

these queries lock a large amount of memory-critical

sections. With these queries running concurrently in

the workload, the database becomes blocked from ac-

cessing the hot pages in the shared memory space.

This problem was also observed by Salomie (Salomie

et al., 2011) and Boy-Wickizer (Boyd-Wickizer et al.,

2010). They reported similar bottlenecks for other

database engines besides PostgreSQL or MySQL.

From these experimental results, we can conclude

that the contention for the shared memory signiﬁ-

cantly degrades the scalability of the database en-

gine on a multicore platform that could otherwise

offer rich true concurrency not provided on single-

core platforms. One solution to this problem is to

rewrite existing database engines to ﬁx all synchro-

nization problems. The existing system SharedDB

(Giannikis et al., 2012) takes this roadmap by creat-

ing a query plan for the whole workload, and the new

engine merges the concurrent queries into one sin-

gle query to reduce the concurrent access to the hot

pages in the shared memory space. However, these

kind of proposals require a complete rewrite of ex-

isting database engines. Considering the complexity

of most commercial database engines, the rewriting

will be a very challenging and time-consuming task.

The other solution is to exploit the parallelism offered

by multicore through the combined performance of

a collection of unmodiﬁed database engines, rather

than through the optimization of a single engine mod-

iﬁed to run on multicores as the proposal of Multimed

(Salomie et al., 2011). Salem et al. proposed in-

troducing multidatabase instances on a single multi-

core platform to solve the single instance contention

and evaluated their proposal as Multimed, which is

a master–slave structure conventionally used in com-

puter clusters. However, their proposal requires much

memory space, as they hold a whole or partial copy

of the database on each slave.

In this paper, we analyzed a different way to de-

ploy the multi-instance architecture and introduced a

partition-based multi-instance solution that was orig-

inally used in shared-nothing parallel database sys-

tems (Mehta and DeWitt, 1997). The proposed PM-

DB has less contention in shared memory compared

with the single instance database system since con-

current queries which compete for the shared mem-

ory critical sections are distributed to execute on sev-

eral different instances. With less queries simultane-

ously accessing the critical sections in each single in-

stance, the concurrent queries will not be blocked in

the “s

lock” function in our PM-DB system. Our pro-

posal requires much less memory space and avoids

the complex work of maintaining consistency for

master and slaves compared with the Multimed so-

lution. Moreover, our solution can be implemented

as middleware, thus avoiding the hard work of mod-

ifying existing database engines as required by the

SharedDB proposal.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

130

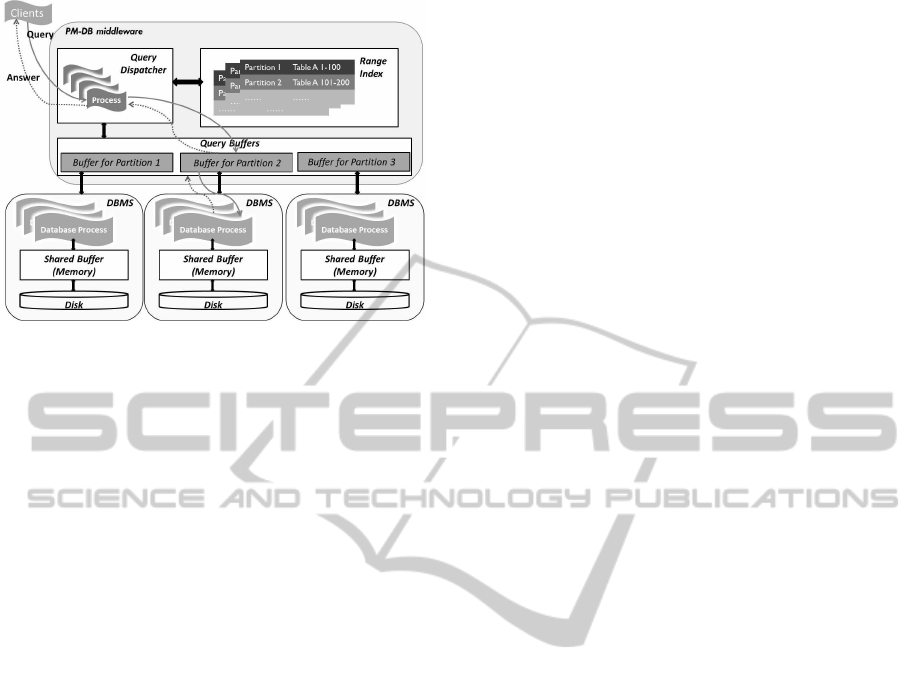

Figure 2: PM-DB system deployed on a single multicore

platform.

3 THE PARTITIONED

MULTI-INSTANCE SYSTEM

The multi-instance architecture was originally widely

used in distributed systems and database clusters.

However, in this paper, we are introducing this archi-

tecture into a multicore platform to overcome bottle-

necks in existing database engines. We propose the

PM-DB middleware to manage the database partition

information in the different database instances, and to

coordinate query execution between all of the under-

lying database instances. By distributing concurrent

queries to different database instances, our proposal

can ease the pressure on a single database engine.

3.1 Architecture Overview

The architecture of the PM-DB system deployed on a

single multicore platform is shown in Figure 2. We set

up several database instances rather than one on the

multicore platform and partition the whole database

into the different database instances. The detailed

database partition information is stored in the local

data structure as a Range Index. The PM-DB of-

fers a single system image to the clients, which do

not require any knowledge about the partition infor-

mation in the underlying database instances, and the

only change to the client is that it communicates with

the middleware instead of directly connecting to the

database engine. The database instances then receive

queries from the middleware and execute the queries

in their dedicated query buffers.

The partitioned architecture has some advantages

compared with the master–slave architecture used in

the related research Multimed (Salomie et al., 2011).

The biggest advantage is that the partitioned architec-

ture saves memory space. In the master–slave archi-

tecture, some tables will be copied many times in the

memory space, as each slave holds an independent

copy in its local shared memory. This can easily cause

the system to have insufﬁcient memory. However, in

the partitioned architecture, each database only holds

part of the whole table and this saves a lot of mem-

ory space. On the other hand, in the master–slave ar-

chitecture, the system must use snapshot isolation as

a consistency criterion. Each update must be copied

into all of the slaves. Queries are assigned a times-

tamp and dispatched to the appropriate slave that has

all the updates committed up to that timestamp. This

mechanism increases the complexity of the middle-

ware. In the partitioned solution, this complex snap-

shot isolation mechanism is unnecessary, and we fol-

low a simple two-phase commit protocol (Samaras

et al., 1993) to manage update transactions in the

multi-instances.

3.2 Query Processing in PM-DB

In our approach, the middleware manages multiple in-

stances on a single multicore platform and each in-

stance holds only part of the whole database. For a

speciﬁc transaction, the required data are only stored

in one speciﬁc database instance; therefore, in our

middleware, we must dispatch the transactions to the

instance that holds the required data; this is done by

PM-DB’s Query Dispatcher function. If we can parti-

tion the whole database cleanly between the database

instances so that the data required by each transaction

are all stored by a single instance, our middleware can

simply dispatch each transaction to one speciﬁc in-

stance. However, for some applications, it will be dif-

ﬁcult to provide such a clean partition; that is, some

transactions will require data that are stored in differ-

ent instances. Therefore, our middleware must man-

age the transaction execution over multiple database

instances. We offer a variety of optimized mecha-

nisms to handle these cross-instance transactions, as

any inefﬁcient management of queries over multiple

instances will cause large overheads and the loss of

the advantage of the multi-instance architecture on

multicore platforms.

First, for the update transactions that access mul-

tiple instances, we use the two-phase commit pro-

tocol to ensure that either all the instances are up-

dated or none of them; therefore, the database in-

stances can remain synchronized with each other. The

multicore-based two-phase commit has much lower

overhead than that in traditional distributed environ-

ments, as the data communication is much faster

PM-DB:Partition-basedMulti-instanceDatabaseSystemforMulticorePlatforms

131

through the interconnections in the single multicore

platform than in network communications. Second,

even though we can achieve faster data transfer in

multicore platforms, large amounts of data transmis-

sion will cause contentionin the interconnections. For

applications with frequent crossing-instance join op-

erations, the data transfer between different instances

will slow down the transactions and cause a system

bottleneck. Therefore, our middleware provides data

duplication to avoid intensive data transfers between

different instances by redundantly storing the data for

joins in different database instances. Moreover, the

update queries accessing the redundant data will be

propagated to all of the related database instances by

our middleware, following the two-phase protocol ac-

cording to the data duplication information. With this

efﬁcient management of concurrent queries over mul-

tidatabase instances, our middleware can achieve dra-

matic advantages compared with the Baseline system,

with smaller overheads on the multicore platform.

The Query Dispatcher component in PM-DB uses

these mechanisms to coordinate transaction execu-

tion between the different database instances. The

Query Dispatcher process receives requests from the

clients and ﬁnds the required data by parsing each

query. Then the Query Dispatcher process refers to

the database partition information stored in the Range

Index and selects the appropriate instance to receive

the query, and then queues the query in the database

instance’s Query Buffer. Each database instance’s

process monitors its Query Buffer, and takes the query

from the buffer when it arrives. After execution, the

query result will be written back into the query buffer

and the Query Dispatcher then returns the answer to

the client.

3.3 Database Partition

A horizontal partition is adopted for each table and a

suitable ﬁeld for a table is chosen as its partition key.

Theoretically, any ﬁeld of a table can serve as a parti-

tion key. In practice, however, our experiments have

shown that the ﬁelds of the primary key of the table or

even a subset of them can achieve good results. For

multiple tables, it is better to choose common keys

that can be used to partition most of the main (i.e.,

comparatively big and frequently accessed) tables.

A good partition solution is to minimize the cross-

partition update transactions and join operations.

For example, we partition the TPC-W database us-

ing the “Customer ID” and the “Item Subject”. The

“Customer ID” based partition can minimize the cross

partition update operations. The order and order-

line information related to a speciﬁc customer will

be stored in a single database partition. Adding a

new customer only requires access to a single parti-

tion. On the other hand, the “Item Subject” based par-

tition can distribute the concurrent complex queries

with join operations to different database instances.

The two queries with join operations, which are the

“Best Seller” and “New Product” transactions, have

as their selection criteria the column Subject of the

Item table. If we partition this table according to the

column Subject, the “Best Seller” and “New Product”

queries can be distributed into different database in-

stances and each query can be answered using a sin-

gle database instance. With less concurrent complex

queries in each database engine, the shared memory

contention can be reduced in each instance.

Different partition solutions may result in differ-

ent performances. As the TPC-W benchmark mon-

itors the typical application of an online book store,

a large range of similar Web applications can follow

the same partition method as we used in the TPC-

W example. Moreover, we can ﬁnd much help with

achieving good partition solutions from the existing

research on distributed database systems (Mehta and

DeWitt, 1997), (DeWitt and Gray, 1992), (DeWitt

et al., 1990), (Chen et al., 2013).

For the “Best Seller” and “New Product” queries,

the Item table must join with the Author table and

the Order-line table. Therefore, we must redundantly

store part of the Author table and the Order-line table

in all of the partitions to avoid cross-partition joins.

Moreover, the “New Order” query, which updates the

Order-line table, will accordingly be sent to all of the

partitions.

Even though we must redundantly store some ta-

bles in our system, we still require much less mem-

ory space than does the existing Multimed (Salomie

et al., 2011), with its master–slave architecture. In

Multimed for the same TPC-W benchmark, in the

memory-optimized setting, each slave requires 5.6

GB of memory for a database with 20 GB of data. If

Multimed uses a four-instance system, it requires a to-

tal of 36.8 GB of memory, which is 84% more mem-

ory than is required for the original single-instance

system. In our architecture, for a 10 GB database, the

four-instance system requires 11 GB of total mem-

ory, which is only 10% more memory space. As a

partitioned-based solution can avoid to redundantly

store the big tables several times, our proposal needs

less memory space compared with the Multimed for

nearly all of the applications. Therefore, with the

same memory size, our system has the advantage to

handle much more database instances and provide the

possibility to higher scalability and throughput.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

132

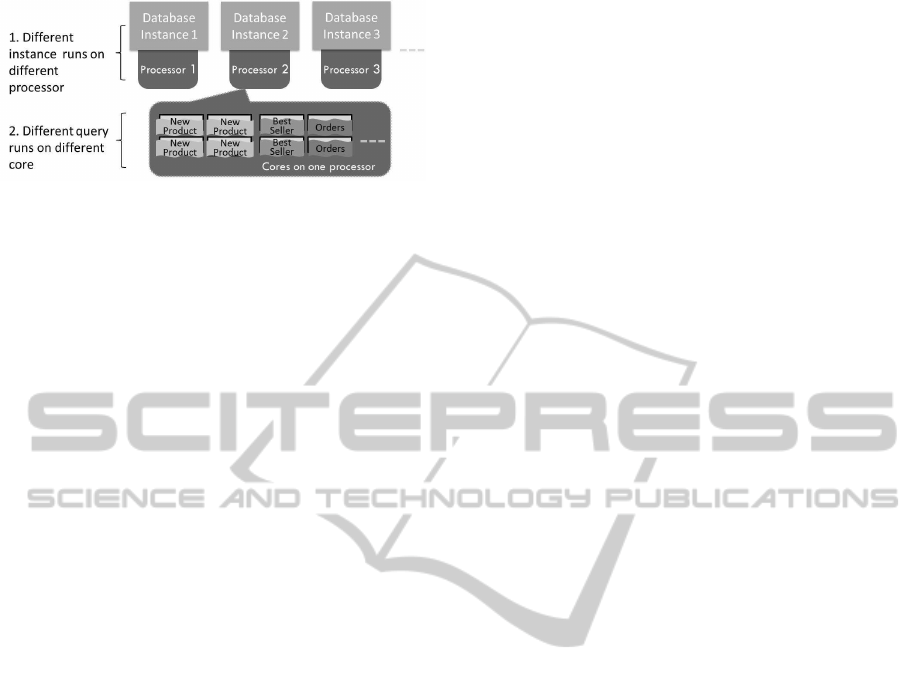

Figure 3: Cache-optimized query scheduling strategy.

4 CACHE OPTIMIZATION

Memory sizes have increased rapidly along with mi-

croprocessor performance, and memory can now play

the role of the disk for many applications. How-

ever, memory bandwidth has not kept pace with

the increasing number of cores and has become an-

other bottleneck for higher performance. Therefore,

the cache levels become critical for overcoming the

processor–memory gap. Cache-efﬁcient solutions for

arranging the execution of concurrent queries on mul-

ticore platforms are very attractive, as better data shar-

ing in cache levels can reduce the time-consuming

memory access operations and improve the system

performance. We analyzed how to improvecache per-

formance by binding different database processes to

different processor cores (Muneeswari and Shunmu-

ganathan, 2011). The optimized core binding strategy

is shown in Figure 3.

We consider a modern multisocket and multicore

platform, and propose two strategies to manage the

running of the concurrent database processes on the

multicore platform.

• First, we propose to run the database processes

that access the data in different database instances

on different processors. This strategy can avoid

forcing queries that access data in different data

partitions to compete for Last Level Cache (LLC)

resources.

• Second, for the database processes in each

database instance, we propose to separate differ-

ent types of queries to run on different processor

cores. This strategy can increase the performance

of private cache levels.

With modern multicore processors, it is usual to

provide two levels of cache for the private use of each

processor core (private cache levels) in addition to a

shared LLC. The simple queries which access several

table lines, usually do an index based data search. If

we run simple queries together on the same proces-

sor core, there will be a higher possibility that these

queries can share high-level index data in the private

cache levels. However, if complex queries (with join

operations) run together with simple queries on the

same core, the one-time accessed hash data or a big

range of table data of complex query will evict the

frequently used index data of simple queries from the

private cache. Therefore, we suggest to assign queries

with different types to different cores. As shown

in Figure 3, we assign the of “New Product” query,

“Best Seller” query, “Orders” query to different pro-

cessor cores.

We create separate queues for queries of different

types, and assign a group of database processes to ex-

ecute only the queries in a speciﬁc queue. We then

bind the database processes that access the different

query queues to different processor cores. The efﬁ-

ciency of these cache-efﬁcient core binding strategies

are analyzed in the experiment section in detail.

5 PERFORMANCE EVALUATION

In this section, we analyze the efﬁciency of our pro-

posed PM-DB system on a modern Intel multicore

platform. We implemented our middleware in the

C language for the Linux operating system and the

PostgreSQL DBMS, and compared the performance

with an unchanged PostgreSQL system that serves as

the Baseline system. Both systems used the TPC-W

benchmark. Our experiments cover different data sets

with different sizes and workloads with different sce-

narios. The detailed hardware, software settings and

results are introduced in the following subsections.

5.1 Experimental Setup

We introduce the hardware, software and benchmark

used in the following experiments in this subsection.

The hardware of the DB server is a 40-core Intel Xeon

system that serves as 80 virtual CPUs with Hyper-

Threading. It has four processor sockets and one 10-

core Intel Xeon E7-4860 processor per socket (Intel,

64). Each core runs at a clock speed of 2.27 GHz with

a 64 KB L1 cache (32 KB data cache + 32 KB instruc-

tion cache) and a 256 KB L2 cache. All 10 cores of

one processor share a 24 MB L3 cache. The server

that we used to evaluate the benchmark has 32 GB of

off-chip memory, and a 200 GB Hard Disk Drive. The

client part is four machines and each machine has an

Intel Xeon E5620 CPU and 24 GB of memory.

We use the TPC-W benchmark throughoutthis pa-

per, which monitors the Web application of an on-

line book store (Menasce, 2002). There are typical

OLTP transactions of ordering new books and simple

analysis transactions to collect detailed information

PM-DB:Partition-basedMulti-instanceDatabaseSystemforMulticorePlatforms

133

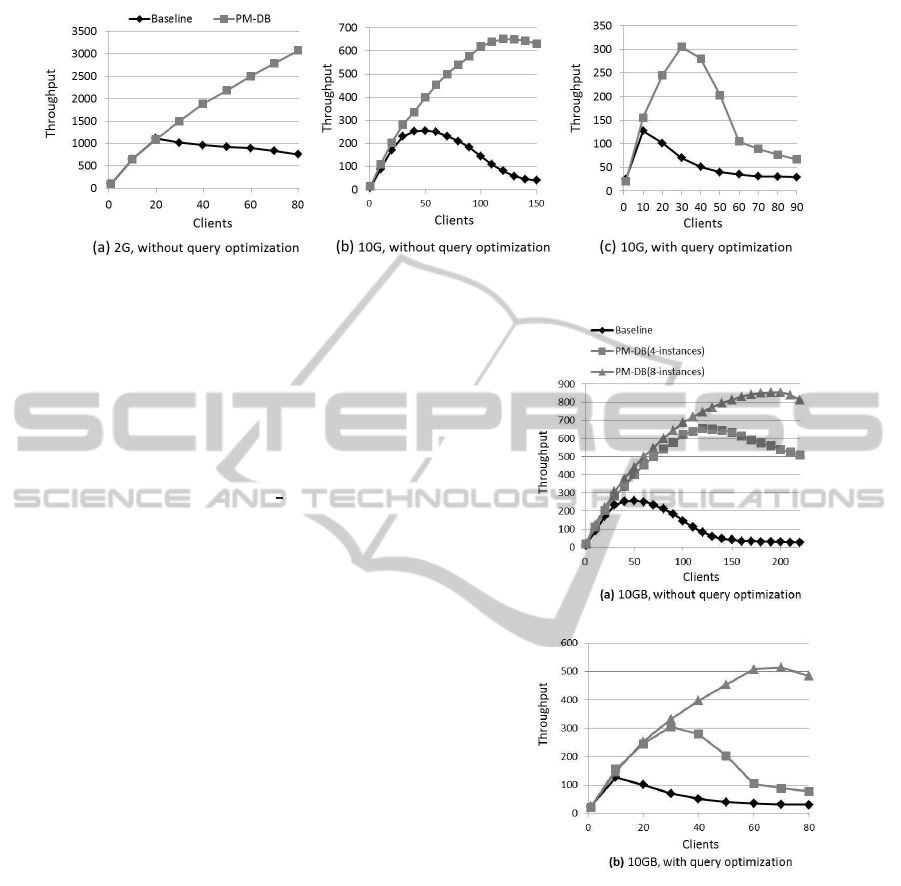

Figure 4: Throughput for the Baseline and the PM-DB systems.

about the latest new books and best-selling books on

a speciﬁc topic (the “New Product” and “Best Seller”

transactions). The benchmark speciﬁes three work-

load mixes: the Browsing mix (5% updates), Shop-

ping mix (20% updates) and Ordering mix (50% up-

dates). The Ordering mix with heavy concurrent up-

date operations stresses the log and I/O of the whole

system before the system faces the s lock contention.

Therefore, we focus on the two scenarios of Brows-

ing mix and Shopping mix. Our evaluation used data

sets of 2 GB and 10 GB. The benchmark speciﬁes

both the application and the database level and we im-

plemented only the database level to avoid the inﬂu-

ence of the application layers. The system throughput

and transaction response time are all calculated by the

client machines.

5.2 Efﬁciency of the PM-DB

In this experiment, we set up a four-instance PM-

DB system to demonstrate the effectiveness of our

approach. The experiments cover two different data

sets, and optimized and unoptimized Baseline sys-

tems. In the optimized system, we optimized the

“Best Seller” and “New Products” queries as we have

done in the motivation experiments. By creating

appropriate indexes and tuning the query plan, we

greatly reduced the execution time for both queries.

However, we did not do any cache-efﬁcient core bind-

ing for either the Baseline or the PM-DB systems.

Figure 4 shows the throughput results with varying

loads of the three different systems for the Browsing

mix.

Our proposal shows dramatic advantages over all

of the different settings. Figure 4 shows that our

proposal can provide better scalability and higher

throughput. In Figure 4 (a), the Baseline sys-

tem scales to 20 concurrent clients, while our four-

instance system can scale to 80 concurrent clients.

Moreover, the PM-DB system can improve the

Figure 5: PM-DB systems with different database instances.

throughput by 1.8 times compared with the Baseline

system. We can also observe the dramatic advantage

of our proposal for the larger data set of 10 GB in

Figure 4 (b) and Figure 4 (c).

As we observed in the motivation section, the tra-

ditional single-query optimization cannot provide bet-

ter performance (comparing the Figure 4 (b) and Fig-

ure 4 (c)). When more queries run together con-

currently, the interactions between the queries be-

come severe and the optimization should consider all

the concurrent queries. The traditional single-query-

based optimization may negatively impact on other

concurrent queries and slow down the whole system.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

134

Figure 6: Highest throughputs and response times.

We do not limit the maximum number of connec-

tions in our PM-DB system as it is the same situa-

tion in the Baseline system. Therefore, even though

our four-instance system can ease the pressure on

the single database engine, the original contention in

the shared memory of each instance will also affect

the bottleneck when there are too many concurrent

queries. This is why we observed a performance de-

crease in our PM-DB system when there were more

than 40 concurrent clients in Figure 4 (c).

5.3 Increased Database Instances in

PM-DB

The above results show that a four-instance PM-DB

system achieved both higher scalability and through-

put than the Baseline system, demonstrating the ef-

fectiveness of our proposal. However, in the early ex-

periments, we observed that the four-instance system

could not handle large numbers of clients for some

settings. Therefore, in this subsection, we introduce

eight-instance and 12-instance systems to explore the

possibility of achieving better performance.

Figure 5 shows that more database instances can

provide further improvement to the scalability and

the throughput. The throughput of the PM-DB eight-

instance systems are separately 3.3 times (Figure 5

(a)) and 3.5 times (Figure 5 (b)) as high as that of the

Baseline system.

We then further analyzed the throughput of a 12-

instance PM-DB system with the 10 GB data set and

optimized queries (Figure 6 (a)). The 12-instance

system does not achieve higher throughput than the

eight-instance system. The “Best Seller” and the

“New Product” transactions, which access a large

amount of the table and index data, beneﬁt greatly

from our proposal (Figure 6 (b-1) and Figure 6 (b-

2)). However, we observed that the queries that access

multi-instances following the two-phase commit pro-

Figure 7: Performance for the scenario Shopping mix.

tocol take much more time in the 12-instance system

and these queries slowed down the system. For exam-

ple, the typical update transaction of “Buy Conﬁrm”,

which adds a customer’s new order to the database,

must be copied to all of the database instances. With

more database instances, the “Buy Conﬁrm” transac-

tion requires much more execution time as shown in

Figure 6 (b-3).

These experimental results indicate that increas-

ing the number of database instances in the PM-DB

system can further reduce the contention in each sin-

gle instance and increase the possibility of achiev-

ing higher throughput and scalability. On the other

hand, increasing the number of instances in the PM-

DB system will increase the middleware overhead.

Therefore, more instances do not necessarily equate

to higher performance in our PM-DB system, and the

users should ﬁnd the most appropriate settings based

on their speciﬁc applications.

5.4 Different Scenarios

We changed the scenario from the Browsing mix to

the Shopping mix, which has more update operations.

We evaluated the throughput of the Shopping mix

PM-DB:Partition-basedMulti-instanceDatabaseSystemforMulticorePlatforms

135

with the 10 GB data set and unoptimized transactions.

Figure 7 shows that our proposal retains its advan-

tage with increased update operations and the four-

instance PM-DB system increased the throughput by

1.4 times over the Baseline system.

5.5 Cache Optimizations

In this section, we analyze the efﬁciency of our cache-

efﬁcient core binding strategies. The experiments are

based on the four-instance PM-DB system. We bound

the database processes of the four different database

instances to four processors and each of those pro-

cessed the queries from a speciﬁc database instance.

With the 10 GB database without query optimization,

we observed that the “New Product” transaction oc-

curs very frequently and it has a longer response time

than the other transactions. That is, the “New Prod-

uct” transaction is relatively more complex than the

other transactions. Therefore, we bound the “New

Product” transaction and other transactions to be exe-

cuted to different processor cores.

The appropriate core numbers for different trans-

actions are strongly related to the speciﬁc applica-

tion. We analyzed the core binding (10, 10) system

in which the “New Product” transactions were bound

to 10 virtual CPUs and another 10 virtual CPUs were

used for the other transactions in each processor. We

also analyzed two other core binding systems with in-

creased core numbers assigned to the “New Product”

transaction; these are the core binding (14, 6) and core

binding (16, 4) systems.

The throughput with 60 concurrent clients is

shown in Figure 8. We found that our cache-efﬁcient

core binding strategies further improved the through-

put for the naive PM-DB system by 21% (with Core

binding (14, 6)). The response times of the “New

Product” and the “Best Seller” transactions are shown

in Figure 9. We observed that the response time of

the “Best Seller” transaction could be greatly reduced

by the cache-efﬁcient solution. This is because, by

assigning this relatively simple query to run on dif-

ferent cores from the complex “New Product” query,

much more reusable data could be cached in the pri-

vatecache levelsand the “Best Seller” query beneﬁted

greatly from this improved data caching.

The cache performances are shown in Figure 10,

which was calculated using Oproﬁle (Levon and Elie,

2004). We evaluated the cache miss ratio (the per-

centage of cache misses in the total number of cache

requests) for the different cache levels. As we ex-

pected, the cache miss ratio in the private cache of

the L2 cache is reduced by 18.37%. By binding the

database processes of different database instances to

Figure 8: Efﬁciency of cache-efﬁcient core binding strate-

gies.

Figure 9: Response times for different cache-efﬁcient core

binding strategies.

Figure 10: Cache performance for different cache-efﬁcient

core binding strategies.

different processor sockets, the miss ratio in the L3

cache was also reduced by 26.78%.

Comparing the different core binding systems, we

found the response time of the “New Product” trans-

action becomes worse in the core binding (10, 10)

system (Figure 9). This is because 10 cores are not

sufﬁcient for dealing with so many concurrent “New

Product” transactions in the system. As we used more

cores to process the “New Product” transactions in

the core binding (14, 6) system, the response time of

the “New Product” transaction was greatly reduced.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

136

The proper setting of the core numbers for different

queries can be found by performing load balancing

on our system. However, we leave these studies to

future work.

6 CONCLUSIONS

In this paper, we have proposed the middleware of

PM-DB to improve the performance of database sys-

tems on modern multicore platforms. The strongest

advantage of our proposal is that it can be im-

plemented as middleware using existing OSs and

DBMSs, so it is more practical than some other pro-

posals, which require existing database engines to

be rewritten. Moreover, the shared-nothing architec-

ture used in PM-DB requires much less memory than

the solutions using the master–slave architectures as

Multimed. The PM-DB middleware can provide a

partition-based multi-instance architecture on a single

multicore platform to solve the contention in shared

memory functions for existing database systems. The

middleware can efﬁciently manage query execution

over multiple instances by offering the two-phase

commit protocol and partial data replication. By dis-

tributing the concurrent queries to different database

instances, our proposal can ease the pressure on a sin-

gle database instance and provide better utilization of

modern multicore platforms. Moreover, PM-DB can

further improve the performance of database appli-

cations through cache-efﬁcient query scheduling on

multisocket multicore platforms. The introduced ex-

periences can provide a useful reference as optimiz-

ing a variety of database applications on modern and

upcoming multicore platforms.

By setting up more database instances, the con-

tention in the single database engine can be reduced

and experiments using the typical mixed workload of

TPC-W benchmark show that our proposal achieved

at most 2.5 times higher throughput than the Baseline

system. However, increasing the number of database

instances will not always lead to higher system per-

formance, as we observed the middleware overhead

in synchronizing the transactions across different in-

stances will also be increased by setting up more

database instances. Moreover, the cache-efﬁcient

query dispatching for concurrent queries provided by

the PM-DB can further improve the system through-

put by 21% and result in 26.78% less L3 cache miss.

In future, we plan to introduce load-balancing so-

lutions into our middleware, and provide a dynamic

performance tuning function to automatically gen-

erate the proper settings for different applications.

We believe not only the PostgreSQL, but also other

database engines can beneﬁt from our proposal and

for another future work, we intend to verify the ad-

vantage of PM-DB with different DBMSs.

REFERENCES

Ailamaki, A., DeWitt, D. J., Hill, M. D., and Wood, D. A.

(1999). DBMSs on a modern processor: Where does

time go? In VLDB, pages 266–277.

Boyd-Wickizer, S., Clements, A. T., Mao, Y., Pesterev,

A., Kaashoek, M. F., Morris, R., and Zeldovich, N.

(2010). An analysis of linux scalability to many cores.

Chen, S., Ng, A., and Greenﬁeld, P. (2013). A performance

evaluation of distributed database architectures. Con-

currency and Computation: Practice and Experience,

25(11):1524–1546.

Cieslewicz, J. and Ross, K. A. (2008). Database optimiza-

tions for modern hardware. Proceedings of the IEEE,

96(5):863–878.

de Melo, A. C. (2010). The new linux perf tools. In Slides

from Linux Kongress.

DeWitt, D. and Gray, J. (1992). Parallel database sys-

tems: the future of high performance database sys-

tems. Communications of the ACM, 35(6):85–98.

DeWitt, D. J., Ghandeharizadeh, S., Schneider, D. A.,

Bricker, A., Hsiao, H.-I., and Rasmussen, R. (1990).

The gamma database machine project. Knowl-

edge and Data Engineering, IEEE Transactions on,

2(1):44–62.

Giannikis, G., Alonso, G., and Kossmann, D. (2012).

SharedDB: killing one thousand queries with one

stone. In VLDB, pages 526–537.

Hardavellas, N., Pandis, I., Johnson, R., Mancheril, N. G.,

Ailamaki, A., and Falsaﬁ, B. (2007). Database servers

on chip multiprocessors: Limitations and opportuni-

ties. In CIDR, pages 79–87.

Intel, I. (64). IA-32 architectures software developers man-

ual volume 3b: System programming guide. Part,

1:2007.

Johnson, R., Pandis, I., Hardavellas, N., Ailamaki, A., and

Falsaﬁ, B. (2009). Shore-MT: A scalable storage man-

ager for the multicore era. In EDBT, pages 24–35.

Kim, C., Kaldewey, T., Lee, V. W., Sedlar, E., Nguyen,

A. D., Satish, N., Chhugani, J., Blas, A. D., and

Dubey, P. (2009). Sort vs. hash revisited: fast join im-

plementation on modern multi-core cpus. In VLDB,

pages 1378–1389.

Levon, J. and Elie, P. (2004). Oproﬁle: A system proﬁler

for linux.

Mehta, M. and DeWitt, D. J. (1997). Data placement in

shared-nothing parallel database systems. The Inter-

national Journal on Very Large Data Bases, 6(1):53–

72.

Menasce, D. (2002). TPC-W: A benchmark for e-

commerce. Internet Computing, IEEE, 6(3):83–87.

Muneeswari, G. and Shunmuganathan, K. L. (2011). A

novel hard-soft processor afﬁnity scheduling for mul-

PM-DB:Partition-basedMulti-instanceDatabaseSystemforMulticorePlatforms

137

ticore architecture using multi agents. European Jour-

nal of Scientiﬁc Research, 55(3):419–429.

Psaroudakis, I., Athanassoulis, M., and Ailamaki, A.

(2013). Sharing data and work across concurrent ana-

lytical queries. In VLDB, pages 637–648.

Salomie, T. I., Subasu, I. E., Giceva, J., and Alonso, G.

(2011). Database engines on multicores, why paral-

lelize when you can distribute? In EuroSys, pages

17–30.

Samaras, G., Britton, K., Citron, A., and Mohan, C.

(1993). Two-phase commit optimizations and trade-

offs in the commercial environment. In Data Engi-

neering, 1993. Proceedings. Ninth International Con-

ference on, pages 520–529. IEEE.

Xi, F., Mishima, T., and Yokota, H. (2014). CARIC-DA:

Core afﬁnity with a range index for cache-conscious

data access in a multicore environment. In DASFAA,

pages 282–296.

Ye, Y., Ross, K. A., and Vesdapunt, N. (2011). Scalable ag-

gregation on multicore processors. In DaMoN, pages

1–9.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

138
