Simple, Not Simplistic

The Middleware of Behaviour Models

Vladimir Estivill-Castro and Ren

e Hexel

School of Information and Communication Technology, Grifﬁth University, Nathan, QLD, Australia

Keywords:

Model-driven Engineering, Software Modelling, Behaviour Models, Middleware.

Abstract:

There are many areas where software components must interact witch each other and where middleware pro-

vides the appropriate beneﬁts of robustness, decoupling, and modularisation. However, there is a potential

performance overhead that, for autonomous robotic and embedded systems, may be critical. Proposals for

robotic middleware continue to emerge, but surprisingly, they repeatedly follow the publish-subscriber model.

There are several disadvantages to the push paradigm of the publisher-subscriber approach; in particular, its

implication of a closer coupling where the subscriber must be active and able to keep up with the pace of

events. We propose an alternative pull model, where consumers of messages handle information at their own

time. We show that our proposal aligns with fundamental, time-triggered design principles, and produces sim-

ple module communication that reduces thread management and can enable rapid prototyping, validation, and

formal veriﬁcation.

1 INTRODUCTION

Nowhere is the need for middleware more apparent

than in the world of mobile robotics (Brugali, 2007).

The system on board a mobile robot consists of the in-

tegration of drivers of a multitude of simple and com-

plex sensors that deliver data at different rates and in

different volumes, with varying degrees of accuracy.

Filtering, sensor-fusion, information processing, and

analysis modules compute and construct the picture

that reﬂects the state of the robot and the world. Based

on this, locomotion, localisation, planning, reasoning,

and behaviour modules can collaborate in generating

the corresponding commands to output modules that

direct actuators and effectors to achieve complex mis-

sions and tasks. Thus, it is not surprising that in recent

years, several major projects have resulted in the pro-

duction of such robotic middleware. Currently, one of

the most popular suites is ROS (Quigley et al., 2009)

and some very recent analyses (Chitic et al., 2014)

place ROS somewhat ahead of the others when con-

sidered under the criteria for middleware. Neverthe-

less, there continue to be emerging proposals (Anza-

lone et al., 2014; Huang et al., 2010).

What motivates our argument here is that, from

the perspective of software engineering, these frame-

works have some important, common characteristics.

While they all use a blackboard control architec-

ture as the paradigm central to integrate the mod-

ules (agents) performing cognitive processes, han-

dling behaviours and managing adaption and prob-

lem solving tasks, they largely re-incarnate the pub-

lisher/subscriber pattern. While this pattern elim-

inates the need to create complex communication

mechanisms, the blackboard control architecture al-

lows a further level of decoupling by being data-

centric (vs. component-centric) not only in the value

domain, but also the time domain, which is impor-

tant for timing-critical systems such as robots, but re-

grettably, often overlooked. The provider may sup-

ply information for unknown consumers who may not

even be active at the time the information is provided.

There is no need to be aware of a consumer’s inter-

face, only the interface to the blackboard is necessary.

The blackboard also can be considered a repository

architecture (Sommerville, 2010, Page 159) as well

as the knowledge base of an artiﬁcial agent.

From the perspective of software architectures, the

ﬂexibility of a blackboard is also incorporated into the

notion of a broker. Thus, it is not surprising that this

pattern has also emerged as the CORBA standard (of

the Object Management Group, OMG) with the aim

of facilitating communication on systems that are de-

ployed on diverse platforms. In simple terms, these

types of infrastructures enable a sender to issue what

we will refer to as an add message(msg : T ) which is

189

Estivill-Castro V. and Hexel R..

Simple, Not Simplistic - The Middleware of Behaviour Models.

DOI: 10.5220/0005371101890196

In Proceedings of the 10th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2015), pages 189-196

ISBN: 978-989-758-100-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

a non-blocking call. In a sense, posting msg to the

blackboard is simple. Such a posting may or may

not include additional information, e.g. a sender sig-

nature, a timestamp, or an event counter that records

the belief the sender has of the currency of the mes-

sage. But when it comes to retrieving the message,

there are essentially two modes.

subscribe(T, f ): The receiver subscribes to mes-

sages of a certain type T (of an implied class) and

essentially goes to sleep. Subscription includes

the name f of a function. The blackboard will no-

tify the receiver of the message msg every time

someone posts for the given class T by invok-

ing f (msg) (usually queued in a type T speciﬁc

thread). This is typically called PUSH technology.

get message(T ): The receiver issues a

get message to the blackboard that supplies

the latest msg received so far for the type T . This

is usually called PULL.

For example, ROS’ PUSH technology names a com-

munication channel, a ROS::topic (corresponding to

what we call a type). The modules posting or getting

messages are called nodes. Posting a message in ROS

is also called publishing

Development of robot-controlling software mod-

ules under the PUSH approach assumes predictable

communication latency. For instance, standard algo-

rithms in robotics, like the Kalman ﬁlter, would be

signiﬁcantly less effective if the time between the sen-

sor reading and the execution of the ﬁltering step was

randomly perturbed. The motion model would not be

able to make sufﬁciently accurate predictions, and the

integration of information provided by the next obser-

vation with the prediction would be jeopardised. Sim-

ilarly, issuing commands to actuators heavily depends

on the issuer having reasonably accurate information

of the position of the actuator at the time of issuing the

next command. If sensor information or control com-

mands are unboundedly delayed, the safety of actions

is seriously compromised, even with mobile robots

that are not considered hard real-time systems.

Surprisingly, the PUSH (subscriber with call-back)

approach is ubiquitous among all these proposals of

robotic middleware. Its choice implies several con-

sequences. First, the overall approach to behaviour

In fact, there is another mechanism for communica-

tion, called ROS-services, which is essentially a remote-

procedure call, the requester/client (an example appears

later in Figure 3) invokes though the middleware a function

(client.call which is blocking) and obtains a data struc-

ture as a response (or a failure signal) from a call-back in a

server (an example appears alter in Figure 4). This also im-

plies signiﬁcant handshaking, and sadly, the responses can-

not be objects; that is, not members of a class with methods.

#include <sys/types.h>

#ifndef temperature_msg_h

#define temperature_msg_h

struct wb_temp

{

int8_t degC; ///< temperature in Centigrade

# ifdef __cplusplus

/** constructor */

wb_temp(int8_t temp = 0): degC(temp) {}

# endif

};

#endif // temperature_msg_h

Figure 1: a simple blackboard message in C, containing a

single temperature value (in Centigrade).

control becomes event-driven. That is, the treatment

is that events are deposited into the middleware which

relays them to call-backs from the subscribers or ser-

vice providers. This also implies an optimistic ap-

proach; namely, there is the assumption that there will

be sufﬁcient computational resources to enact all the

threads generated and to execute the subscribers’ call-

backs. Moreover, events would occur with enough

sparsity that call-backs would be completed by the

time they are executed again, or alternatively require

to handle concurrency issues. Both of these aspects

actually are not uncommon, e.g., middleware provid-

ing facilities for queuing events for call-backs, or al-

ternatively, developers performing real-time analyses

to establish conﬁdence in the correctness of the sys-

tem by evaluating the duration of a call-back. Per-

haps more dramatic are the coupling and timing con-

sequences: ultimately this approach assumes that sub-

scriber modules react or act on the data immediately,

thus data is presumed to be as fresh and as recent as

possible. Not only is timeliness taken for granted,

but so are sequencing and reliability of data. Such an

optimistic approach works in best-case and, perhaps,

average-case scenarios but it is well known to suffer

dramatically in the worst-case. It leads to more cou-

pling as senders must eventually be slowed down or

complex handshaking protocols have to be deployed

in order to raise tolerance to message loss.

2 SPHERE OF CONTROL

We look ﬁrst at a typical scenario of data-driven in-

formation exchange, and we contrast using the PUSH

versus the PULL model. Later, we look at more com-

plex scenarios, but for simplicity, we start with a uni-

directional message. Figure 1 shows a simple C data

structure that contains a single value of a tempera-

ture sensor. Superﬁcially, following the PUSH model

seems intuitive. A recipient might simply subscribe

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

190

to the temperature message in order to receive up-

dates whenever the temperature changes. However,

when analysing this further, a lot of questions arise.

First, who is to say when messages are posted? Is

this deﬁned by the subscriber, by the publisher, or

by the API? The convention to only post changes ap-

pears obvious at ﬁrst glance, but what is it that consti-

tutes a change? Does the sensor module need to poll

the hardware or is there an interrupt that gets gener-

ated whenever the temperature changes? Can differ-

ent hardware (e.g. with different temperature resolu-

tion) cause different message update rates? Will the

subscriber be able to keep pace with the publisher un-

der all circumstances? The answer to these questions

depends on the sphere of control (Kopetz, 2011) for

the relevant message. The PUSH paradigm of the pub-

lisher/subscriber model puts messages in the sphere of

control of the publisher. The subscriber will need to

keep up in order to not lose any messages, no mat-

ter whether that speciﬁc update rate is necessary or

convenient for the receiver. In other words, the tim-

ing of the subscriber is determined by (or tightly cou-

pled with) the publisher. While it would be possible

for the interface to not only specify the value domain

(e.g. int8 t, degrees Celsius), but also the time do-

main (e.g. an update rate of once per second), this

only increases the complexity of the interface (rais-

ing the question how the update rate should be veri-

ﬁed or enforced). Furthermore, this approach does not

loosen the level of coupling. Quite the opposite, while

the pace of the subscriber is still dictated by the rate

with which messages are posted, now the pace of the

publisher is also mandated (by the temporal interface

speciﬁcation). This does little to reduce the complex-

ity of the recipient, but may now add complexity to

the sender (e.g. hardware-driven transmitter modules

may now need to throw away messages that do not

comply with the interface’s timing speciﬁcation).

We argue here that the sphere of control should

remain within the respective component. This means

that a publisher should be able to post a message

whenever practicable for the publisher (e.g. when the

hardware reports a new temperature value, or periodi-

cally, whenever the the software reads the temperature

value) while the recipient should be able to query the

current temperature whenever needed. This kind of

decoupling allows for an independent development of

components without the requirement for a full, tem-

poral speciﬁcation of all interfaces upfront. While this

approach does not necessarily prevent an impedance

mismatch between the sender and the recipient, the

remedy is fairly simple and straightforward. If, for

example, the temperature sensor module does not pro-

vide sensor data fast enough, it can simply be replaced

by a faster module that plugs into the same interface.

On the other hand, if the recipient cannot keep up with

the sender, it can simply read the temperature values

at a lower pace that is more suited to the processing

that is done by that module.

3 SEPARATION OF CONCERNS

While in the previous section we looked at a model

where no synchronisation is required between two

components, the question arises whether the decou-

pled model is also suitable in situations where actions

need to be synchronised. A typical example is a con-

troller that sends a message for an action to be ini-

tiated and then waits for that action to have started

(or completed) before continuing. This example is

akin to the rendezvous model in the message passing

world, or a synchronous remote procedure call (RPC).

int32 desiredSpeed

---

int32 reportedSpeed

Figure 2: Speed controller ROS-service deﬁnition.

We now contrast an example that illustrates how this

can be achieved using the PULL paradigm without

having to resort to the tight coupling caused by the

PUSH paradigm. On the PUSH side (server with call-

back), we preset in Figure 2 a ROS-service deﬁnition

for a speed controller that takes a speed value (e.g.

in mm/s) and returns the current speed. The relevant

C++ code for a client for this service can be found in

Figure 3. The important bit is client.call(srv),

which is a synchronous RPC call that returns true if

the service call was successful. The actual response

from the service can be found in the response data

structure (i.e., reportedSpeed as per the deﬁnition

in Figure 2). Again, from a simplistic client’s per-

spective, this code structure can be viewed as ideal;

if, for example, the RPC call does not return until the

actuator has reached the desired speed, the example

code might be sufﬁcient for the client to just check

the return value of the RPC call and then continue

accordingly. In practice, this paradigm has funda-

#include "ros/ros.h"

#include "speed_controller/Speed.h"

#include <cstdlib>

int main(int argc, char **argv)

{

ros::init(argc, argv, "speed_demo");

if (argc != 2)

{

ROS_INFO("usage: speed_demo desired_speed");

return EXIT_FAILURE;

}

ros::NodeHandle n;

ros::ServiceClient client = n.serviceClient

<speed_controller::Speed>("speed");

speed_controller::Speed srv;

srv.request.desiredSpeed = atoi(argv[1]); // set speed

if (client.call(srv))

ROS_INFO("Speed: %d", (int)srv.response.reportedSpeed);

else

{

ROS_ERROR("Failed to call service speed_controller");

return EXIT_FAILURE;

}

return EXIT_SUCCESS;

}

Figure 3: ROS speed controller client.

Simple,NotSimplistic-TheMiddlewareofBehaviourModels

191

#include "ros/ros.h"

#include "speed_controller/Speed.h"

bool set(speed_controller::Speed::Request &req,

speed_controller::Speed::Response &res)

{

res.reportedSpeed = req.desiredSpeed;

// <set actuator to desiredSpeed> //

return true;

}

int main(int argc, char **argv)

{

ros::init(argc, argv, "speed_controller_server");

ros::NodeHandle n;

ros::ServiceServer service = n.advertiseService("speed", set);

ROS_INFO("Ready to set speed.");

ros::spin();

return EXIT_SUCCESS;

}

Figure 4: ROS speed controller server.

mental problems when it comes to translating from

a pure software perspective (e.g. in a distributed ob-

ject middleware system) to sensors and actuators in

the physical world. A key structural issue becomes

apparent when we look at a typical, simple server im-

plementation for this ROS speed controller (Figure 4).

Here we can see that the server does not even report

the actual speed (but simply copies the desired speed

back, as an acknowledgement of the speed that it is

aiming at). The reason for this is that in reality, ac-

tuators and sensors are often separate. It therefore

makes sense that, for simplicity, sensor and actua-

tor software modules are also kept separate. Adding

sensor functionality to an actuator module violates a

very important system development principle of sepa-

ration of concerns. Even if we assume that the actua-

tor module can easily access sensor data and therefore

replace the response code with res.reportedSpeed

= sensor.measuredSpeed; this would not help the

client, as the reported speed would represent the speed

when the command was issued, not when the actual

speed was reached. Such semantics neither justiﬁes

the added complexity imposed on the actuator mod-

ule (server), nor does it justify the overhead of a syn-

chronous RPC. It would, of course, be possible to add

further complexity to the actuator module by making

it wait until the desired speed is reached. However,

this not only makes the actuator module more com-

plex as now sensor accuracy and the possibility of

a timeout have to be taken into account (what hap-

pens, e.g., if a robot is physically blocked? How

long should the actuator wait for the target speed to

be reached?). Such a design would also signiﬁcantly

increase the complexity and coupling of the system as

a whole as a key question now becomes what should

happen if a new request comes in while the RPC from

the previous request has not yet returned. ROS queues

up these requests and does not service a subsequent

request until the current request has completed.

This

makes adding of, e.g., emergency stop functionality

impossible through the same interface. If the RPC

service, on the other hand, allowed re-entrancy, this

would negate the simplicity of the client, as any com-

ROS enables programatic mechanisms to deﬁne the

queues and their behaviour and calls to enable the call-backs

like ros spin() and ros spin one().

// speed.h

// temperature

// Created by Rene Hexel on 24/11/2014.

#ifndef temperature_speed_h

#define temperature_speed_h

#include <sys/types.h>

struct wb_speed

{

/// speed in mm/s

int32_t speed;

};

#endif

Figure 5: The speed actuator/sensor blackboard message.

class:wb_speed, atomic, Speed_Control, "Speed_Control", Actuator

class:wb_speed, atomic, Speed_Status, "Speed_Status", Sensor

Figure 6: Separate control and status message slots.

mand might now be interrupted and overridden by a

subsequent command, even before the previous com-

mand RPC had returned (adding signiﬁcant handling

complexity to the client).

We argue here that physical sensors and actuators

often impose an end-to-end control and veriﬁcation

requirement that cannot conveniently be hidden by a

simplistic interface. In fact, such end-to-end control

can naturally be mapped to an asynchronous PULL

model where concerns of sensor and actuator (server)

components are separated from each other and from

the concerns and functionality of control components

(acting as RPC clients). Figure 5 shows a blackboard

message for the speed controller (akin to the tempera-

ture message in Fig. 1, but without boilerplate code

and C++ convenience constructor). The key differ-

ence to the ROS-service deﬁnition is that only a single

speed ﬁeld is deﬁned for both the (actuator) request

and the (sensor) response. Instead of modelling a syn-

chronous RPC with a parameter and a return value,

two idempotent, asynchronous messages are used, a

Control message for the actuator and a Status mes-

sage for the sensor (Figure 6). Both the actuator and

the controller components us the PUSH paradigm to

query their corresponding message slots.

This approach facilitates decoupling through nat-

ural encapsulation of concerns (e.g., an actor soft-

ware module only needs to be concerned with actu-

ator hardware; other concerns such as reading sensor

values are factored out into a sensor module, and con-

trol and error handling can be moved into a separate

controller module). Moreover, the control/status ap-

proach complements very well deterministic arrange-

ments of logic-labeled ﬁnite-state machines (LLF-

SMs) (Estivill-Castro and Hexel, 2013a; Estivill-

Castro and Hexel, 2013b; Estivill-Castro et al., 2014)

where each LLFSM is a module, as the arrangement

1. is scheduled sequentially (e.g., in a single thread),

so messages are automatically atomic and do not

require explicit synchronisation, and

2. transitions in LLFSMs are labeled by Boolean

expressions, not events (so they are not event-

driven).

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

192

4 CASE STUDIES

4.1 ROS, bride and smach vs Simpler

Model-driven Development

As we mentioned, the ROS framework has become the

de-facto standard for component-based robotics and

robotic software frameworks. It also offers a soft-

ware environment for networked robotics. In a sense

it completely covers all areas of software engineering

for experimental robotics (Brugali, 2007).

Its main tools for describing and developing be-

haviours on robots are smach (Bohren and Cousins,

2010) (a ROS-independent Python library to build hi-

erarchical state machines) and bride (a model driven

engineering tool chain based on Eclipse). We com-

pare control/status messages (with LLFSM) in the

exact scenario presented in the bride-tutorial: the

predator/prey setting. The corresponding model can

be developed with control/status messages with just 3

logic-labeled ﬁnite-state machines (LLFSMs). This is

demonstrated in a one-minute video.

The impact of

status/control messages can be observed in this video.

Moreover, the three ﬁnite-state machines execute in

only one thread, and they constitute an executable

model; that is, they are exactly the software that is

actually running. The complete system is visible and

transparent.

One LLFSM is dedicated to the behaviour of the

prey, a second one to the behaviour of the predator,

and the third one controls the ROS simulator that cre-

ates the animation. Since the simulator is a central

tool in ROS, we are forced to use ROS-msg and ROS-

srv to interact with the turtle simulator. However, the

controller LLFSM (that keeps track of the status of the

simulation) uses our approach of separation of con-

cerns using status and control messages. It spawns the

prey, spawns the predator and receives a control sig-

nal when the predator ﬁnds the trace of the prey (in

order to delete the prey from the simulator and halt

the simulator).

By contrast, the bride model-driven approach

generates some of the code, mostly the corresponding

signatures and methods with empty bodies, and many

code sections that are not necessary and unused. The

software developer is required to then edit the code

and complete several other functions and procedures

in an environment invisible to the modelling tools.

That is, it is a one-way direction, the models generate

templates of the code, but once the code is completed,

one cannot use the modelling tools anymore.

youtu.be/fX7ANt03Xsc

The tool used to design the machines in the prey-

More drastic is the contrast of the complexity of

artefacts. The bride tutorial requires the developer

to become familiar with

1. Node and computation speciﬁcation diagrams for

capacity building; and as already mentioned, ex-

pertise to ﬁll in the code in the generated tem-

plates.

2. Interconnection diagrams for system deployment.

3. smach diagrams for coordination building.

The bride-tutorial results in at least 5 (ﬁve) ROS

nodes (one predator, one prey, one turtle manager,

one turtle mover, and one paint detector), and 6 (six)

communication protocols. Each node implies at least

one thread, each communication protocol implies at

least one message and topic type and channel, corre-

sponding to management of 6 message-queues, and

corresponding call-back coding. The story does not

ﬁnish there, we further need a smach model with two

ﬁnite-state machines who also need instruments for

synchronisation and the connection diagram!

Also, a very serious problem is that, in this and

earlier bride-tutorials, many aspects of the rates of

publishing and call-back response are hidden. In fact,

if the launch does not get lucky, messages may be lost,

and the simulation may fail!

We believe this case study alone provides justi-

ﬁcation to the title of this paper. While bride and

smach are tools going in the right direction, they start

to suffer a blowing up effect similar to UML’s. Tools

should be simple to support (but not simplistic as to

actually complicate) the tasks at hand. One would

perhaps suggest that more sophisticated and compli-

cated tools are necessary for large, and more com-

plicated challenges and missions of ﬁeld and service

robotics. However, our point here is that if the cog-

nitive map of even simpler systems is so large, and

its semantics so cumbersome, the actual potential for

fragile, error-prone scenarios in large systems is a real

obstacle. We are of the opinion that such tools would

not scale. Software developers would then simply re-

sort back to tools closer to the programming code.

Part of this is the simplistic (but unworkable) pub-

lish/subscriber model whose issues we analysed ear-

lier (see Sections 2 and 3). A simplistic approach

attempts to hide fundamental issues without solving

them (and therefore, they eventually re-emerge).

Another aspect is the enormous consumption of

resources that the resulting software typically requires

predator demo of LLFSM for clfsm is called MiCASE. It

offers many levels of abstraction, allowing to close an open

states, some features of MiCASE appear in another video

youtu.be/F8K4V78vUbk.

Simple,NotSimplistic-TheMiddlewareofBehaviourModels

193

due to the optimistic nature of the underlying assump-

tions. In other words, in order to keep the probability

of failure (due to resource over-utilisation) low, CPU

and other resources have to be over-speciﬁed. More

dramatically, since multithreading and uncontrollable

multitasking is happening under the hood and behind

the scenes, it is close to impossible to validate and

formally verify the behaviour of such systems (and

as a consequence, even with massive resource over-

speciﬁcation, the system as a whole remains a best-

effort system that cannot formally guarantee respon-

siveness under speciﬁc load or fault scenarios).

The expertise required with ROS tools like bride

and smach is not unattainable by system integrators or

application engineers, but certainly will exclude end

users and application architects from direct participa-

tion in specifying projects for robotic systems. Sim-

pler tools (control/status messages and LLFSMs) al-

low communicating behaviour to a broader audience

than those traditionally involved with the design, im-

plementation, and deployment of robotic behaviour.

We argue that this will become an even greater neces-

sity in the foreseeable future with a dramatic increase

in the number of applications in service robotics.

4.2 Teleo-reactive Models vs LLFSMs

Another trend in modelling software that describes

behaviour in robots is that of teleo-reactive pro-

grams (Nilsson, 2001; Morales et al., 2014). This for-

malism has been expanded in many directions, more

recently in an attempt to enable the formal veriﬁcation

for robotics that must meet real-time deadlines (Don-

gol et al., 2014). The formalism is considered central

to describing behaviour in goal-oriented agents. We

argue that such a formalism suffers from similar chal-

lenges as modelling tools such as Behaviour Trees

in that their semantics for concurrent elements seems

simple, but, in fact, results in serious complications

because of its open concurrency model. Besides the

possibility of undeﬁned behaviour (Hayes, 2008), the

problems are similar to those of UML state-diagram

semantics (Estivill-Castro and Hexel, 2013a).

In particular, teleo-reactive programs can nest

to create concurrency (Dongol et al., 2014, Fig 2).

Namely, a teleo-reactive behaviour is a description of

guarded programs of the form c → M where c is a

state predicate (synthesised involving a Boolean ex-

pression on the sensors of the robot, and the state of

the world) and M is either a (primitive) durative ac-

tion of a sequence of guarded programs. Thus, for

example, in the Herbert’s world (Brooks et al., 1988),

(Billington et al., 2011) discusses the concurrency is-

sues of Behaviour Trees and how LLFSMs eliminate them.

codiﬁcation by teleo-reactive programs (Dongol et al.,

2014, Fig 2) we have the top sequence description

behaviour (named robot) execute the sub-behaviour

collect if the environment variables indicate

(¬holding ∧ depot empty)∨¬open ∧ at depot.

But then, the collect behaviour has its own sub-

behaviour, fetch, that happens when the environ-

ment variable see can, is true. We have 3 behaviours

running concurrently, observing shared variables de-

scribing the environment and creating all sorts of race

conditions, because as soon as the conditions be-

come false in the top-level teleo-reactive program, the

collect behaviour is to be suspended, which in itself

is to suspend the fetch behaviour.

Moreover, in implementations like ROS, the PUSH

model (with call-backs to subscribers or servers) suf-

fers the challenges illustrated earlier with our speed-

controller example (Figures 3 and 4), but now with

actual information about 5 aspects of the world

(holding – the sensor that determines if there is a

can in the grasper, depot empty – the sensory in-

formation about whether there is space in the table,

open – the sensor that determines if the joint of the

grasper is closed, at depot – the sensory informa-

tion of the robot’s location, and see can – whether a

can is visible in the front camera). The clariﬁcation of

the semantics of concurrency like this is usually terri-

bly laborious and cumbersome. Just see the lengthly

description in the UML standard on nested states, the

inconsistent semantics regarding launching threads in

Behaviour Trees, or complicated formulation of the

semantics of teleo-operated programs. We believe all

this leads to ineffective model-driven engineering.

Herbert’s world (at least at the level of (Don-

gol et al., 2014, Fig 2) where grasping a can of

soda is considered a primitive action) can be solved

with three concurrent LLFSMs executing in a single

thread, using the sequential semantics of LLFSMs.

The video youtu.be/qs-jmjxOXLI demonstrates this.

Again, the modelling is rather simple. One

LLFSM is responsible for searching through spin-

ning. This behaviour is slightly different if it is to

ﬁnd a soda can or to ﬁnd the table. When ﬁnding a

can, the robot spins to its left. When aligning itself

to the table, because of odometry, it can turn to the

side that is shorter (in the video, after picking up the

second can, it spins to its right). What to look for in

the search behaviour is controlled by a super-LLFSM

that governs the overall behaviour. The communica-

tions is via control/status messages.

Also, the localisation information of the robot is

communicated via status/control messages. The dis-

tance to an object in the environment (in polar coor-

dinates for the table) is the content of these messages.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

194

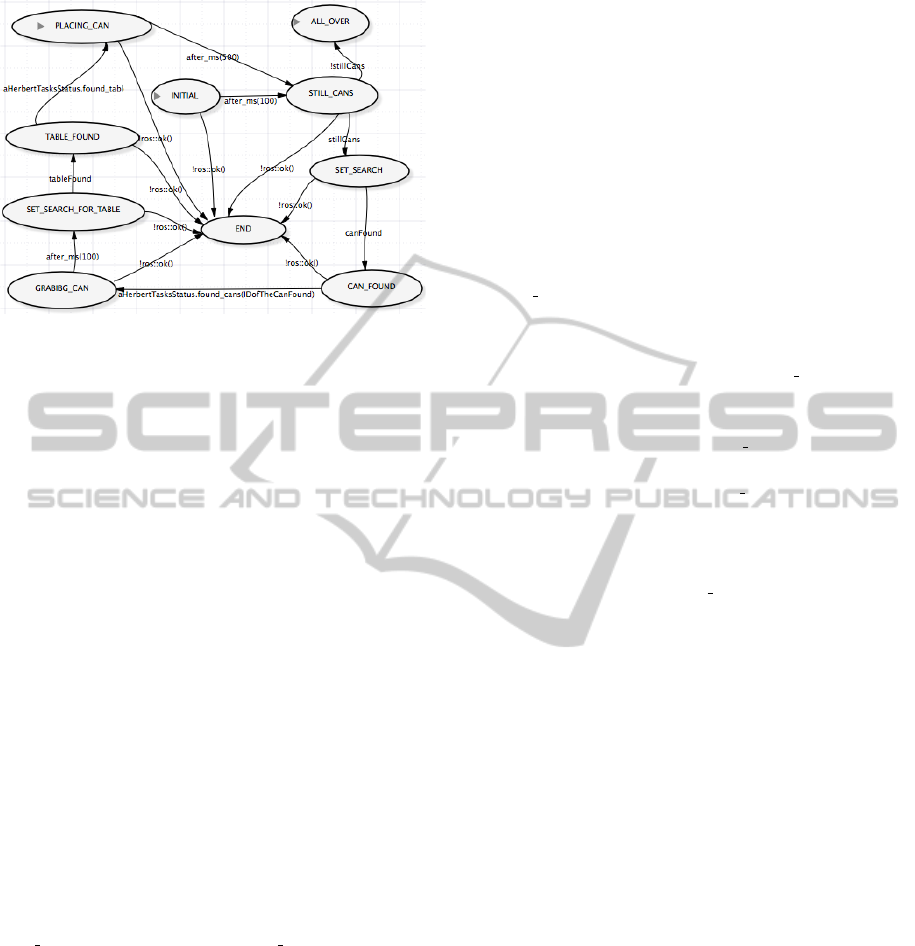

Figure 7: The master LLFSM of Herbert’s world shows the

use of status messages in some of the transitions.

Thus, this highly decoupled paradigm does pay off.

The master behaviour also resumes the LLFSM

that drives the robot to a soda can, or back to the ta-

ble. This sub-LLFSM behaviour that walks in the di-

rection of a target is also different if aiming for a can

(in which a reactive control keeps the robot aligned

with the target strictly in front), while for the table, the

behaviour is more tolerant about keeping the table in

front (and although not immediately obvious, travels

faster). Again, the modelling with LLFSMs exploits

the decoupled but reliable communication that the

control/status messages provide. The master LLFSM

can issue requests to its sub-behaviours, using a con-

trol message, and the sub-behaviours can report their

progress with the status message.

The generic states of the master-llfsm for this

case study are shown in Figure 7. We also use

control/status messages for indicating whether a

can has been found, and more importantly, since

gusimplewhiteboard (Estivill-Castro et al., 2014)

enables messages to be C++-objects, we can in-

voke getters and setters on them. This is shown

in Figure 7, where the transition from the state

CAN FOUND to the state GRABBING CAN uses the vari-

able IDofTheCanFound to extract only one compo-

nent of the status message.

Moreover, this case study is a direct replication

of the classic robotic mission that gave fame to the

subsumption architecture (Brooks et al., 1988). We

still have to use some ROS-msg and some ROS-srv be-

cause the video was produced using the ROS-drivers

of the Kuka robot which is the standard platform for

the RoboCup@Work league. The video has been pro-

duced in the ROS interface of the Gazebo simulator.

Teleo-reactive programs are considered useful for

model checking, but we show here that the LLFSMs

can also be readily formally veriﬁed. Our tools trans-

late LLFSMs for standard model-checking tools such

as NuSMV. For instance:

1. The robot does not walk towards a can of soda

unless it has found one.

2. The robot does not walk towards the table unless

is has collected a can of soda.

Formal representation of these properties as CTL or

LTL formulas reveals that one has to be more precise.

Nevertheless, we prove the ﬁrst one as follows.

If the value of ros:ok() holds true at least

until we reach the OnEntry section of state

SET SEARCH (where we resume spinning

looking for a can), then

• as long as ros:ok() holds true

– we could stay in the state SET SEARCH

looking for a can for an indeﬁnite amount

of time (possible forever) or

– all transitions out of SET SEARCH (with

target some other state) in fact lead to the

OnEntry section of CAN FOUND (where

we resume the walking straight).

We emphasise the insights that model-checking

brings, as the LLFSM in Figure 7 actually implies 6

types of transitions from SET SEARCH (plus the pos-

sibility of not taking any). For each of the two tran-

sitions we have an exit point after the OnEntry sec-

tion, after the OnExit section without the execution of

the Internal section and after the execution of a ﬁnite

number of times of the Internal section and once the

OnExit section. Although this may seem elaborate, it

is certainly simpler than the teleo-reactive programs,

which are models that actually do not execute.

5 CONCLUSIONS

In distributed systems, the notion of idempotent

messages is crucial, ranging from embedded sys-

tems (Kopetz, 2011) to the scale of cloud comput-

ing. This means, the accidental or faulty re-sending

of a message should not damage or impede commu-

nication or adversely impact a protocol. However, the

PUSH approach does not achieve this. With PUSH,

you need to wait for an acknowledgement to ensure

your message was received exactly once, causing a

plethora of issues on how long to wait for such an ac-

knowledgement. The PULL model implements idem-

potence through the control/status approach. More-

over, the literature on fault-tolerant systems (Laprie,

1992) has already established that the PULL tech-

nology is robust to messages being lost, while the

PUSH technology relies on delivery guarantees. With

Simple,NotSimplistic-TheMiddlewareofBehaviourModels

195

PUSH, you must have a channel that absolutely

never loses messages.

In Section 3, we used the example of the ther-

mometer to highlight how the PUSH technology im-

plicitly creates more coupling and affects the sphere

of control in unsatisfactory aspects. Also, the PUSH

approach does not scale up well. If the effect of a

command is to be observed by more than one entity,

the PUSH approach becomes susceptible to concur-

rency issues, e.g. if different subsystems have differ-

ent priorities. Moreover, in the case of middleware,

our implementations and their treatment of the case

studies here illustrates that end-to-end control through

the PULL approach is a simpler and more effective ap-

proach than the simplistic PUSH mechanism using a

subscriber/server with call-backs. This is exempliﬁed

in in the ﬁrst case study, where the PUSH approach

results in 6 times the number of treads of the PULL

approach. In the second case study, even if it were

implemented, the teleo-operated approach would im-

ply three times more threads. Minimising threads is

crucial to enabling model-checking and formal veriﬁ-

cation. Additional threads exponentially explode the

state space.

REFERENCES

Anzalone, S. M., Avril, M., Salam, H., and Chetouani,

M. (2014). IMI2S: A lightweight framework for dis-

tributed computing. Simulation, Modeling, and Pro-

gramming for Autonomous Robots - 4th Int. Conf.,

SIMPAR, Bergamo, v. 8810 LNCS, p. 267–278.

Springer.

Billington, D., Estivill-Castro, V., Hexel, R., and Rock, A.

(2011). Requirements engineering via non-monotonic

logics and state diagrams. Evaluation of Novel Ap-

proaches to Software Engineering, v. 230, p. 121–135,

Berlin. Springer Verlag.

Bohren, J. and Cousins, S. (2010). The SMACH high-level

executive [ROS News]. IEEE Robotics & Automation

Magazine, IEEE, 17(4):18–20.

Brooks, R., Connell, J., and Ning, P. (1988). Herbert:

A Second Generation Mobile Robot : By Rodney

A.Brooks, Jonathan H.Connell and Peter Ning. A.I.

memo. Massachusetts Institute of Technology.

Brugali, D., ed. (2007). Software Engineering for Exper-

imental Robotics, v. 30 Springer Tracts in Advanced

Robotics. Springer-Verlag.

Chitic, S.-G., Ponge, J., and Simonin, O. (2014). Are mid-

dlewares ready for multi-robots systems? Simulation,

Modeling, and Programming for Autonomous Robots

- 4th Int. Conf., SIMPAR, Bergamo, v. 8810 LNCS,

p. 279–290. Springer.

Dongol, B., Hayes, I. H., and Robinson, P. J. (2014). Rea-

soning about goal-directed real-time teleo-reactive

programs. Formal Asp. Comput., 26(3):563–589.

Estivill-Castro, V. and Hexel, R. (2013a). Arrangements

of ﬁnite-state machines semantics, simulation, and

model checking. Int. Conf. on Model-Driven Engi-

neering and Software Development MODELSWARD,

p. 182–189, Barcelona. SCITEPRESS.

Estivill-Castro, V. and Hexel, R. (2013b). Module isola-

tion for efﬁcient model checking and its application

to FMEA in model-driven engineering. ENASE 8th

Int. Conf. on Evaluation of Novel Approaches to Soft-

ware Engineering, p. 218–225, Angers Loire Valley,

France. INSTCC.

Estivill-Castro, V., Hexel, R., and Lusty, C. (2014). High

performance relaying of C++11 objects across pro-

cesses and logic-labeled ﬁnite-state machines. Sim-

ulation, Modeling, and Programming for Autonomous

Robots - 4th Int. Conf., SIMPAR, v. 8810 LNCS,

p. 182–194, Bergamo, Springer.

Hayes, I. J. (2008). Towards reasoning about teleo-reactive

programs for robust real-time systems. SERENE

RISE/EFTS Joint Int. Workshop on Software Engi-

neering for REsilient SystEms, p. 87–94, Newcastle

Upon Tyne, UK. ACM.

Huang, A., Olson, E., and Moore, D. (2010). Lcm:

Lightweight communications and marshalling. Intelli-

gent Robots and Systems (IROS), IEEE/RSJ Int. Conf.

on, p. 4057–4062.

Kopetz, H. (2011). Real-Time Systems - Design Principles

for Distributed Embedded Applications. Real-Time

Systems Series. Springer.

Laprie, J. (1992). Dependability: Basic concepts and termi-

nology. Laprie, J., ed., v. 5 Dependable Computing

and Fault-Tolerant Systems, p. 3–245. Springer Vi-

enna.

Morales, J. L., S

anchez, P., and Alonso, D. (2014).

A systematic literature review of the teleo-reactive

paradigm. Artif. Intell. Rev., 42(4):945–964.

Nilsson, N. J. (2001). Teleo-reactive programs and the

triple-tower architecture. Electron. Trans. Artif. In-

tell., 5(B):99–110.

Quigley, M., Conley, K., Gerkey, B. P., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). Ros: an

open-source robot operating system. ICRA Workshop

on Open Source Software.

Sommerville, I. (2010). Software engineering (9th ed.).

Addison-Wesley Longman, Boston, MA, USA.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

196
