Automatic Matching of Software Component Requirements using

Semi-formal Specifications and a CBSE Ontology

Andreas S. Andreou

and Efi Papatheocharous

Department of Computer Engineering & Informatics, Cyprus University of Technology, Lemesos, Cyprus

SICS Swedish ICT, Swedish Institute of Computer Science, Kista, Sweden

Keywords: Components, Reuse, Semi-formal Specifications Matching, Ontology.

Abstract: One of the most significant tasks of component-based software development is concerned with finding

suitable components for integration. This paper introduces a novel development framework that promotes

reusability and focuses on assessing the suitability level of candidate components. A specifications profile is

first created using a semi-formal natural language that describes the desired functional and non-functional

properties of the component(s) sought. A parser automatically recognizes parts of the profile and translates

them into instance values of a dedicated CBSE ontology, the latter addressing issues of components’

reusability. Available components on the market are also stored as instances of the CBSE ontology.

Matching between required and offered component properties takes place automatically at the level of the

ontology items and a suitability ratio is calculated that suggests which components to consider for

integration.

1 INTRODUCTION

Component-based software engineering (CBSE) is

the scientific area involved with software

development and reuse of existing components.

According to Szyperski (2002), “A software

component is a unit of composition with

contractually specified interfaces and explicit

context dependencies only. A software component

can be deployed independently and is subject to

composition by third-parties”. This is particularly

interesting in the real world as by increasing the

possibility of reuse leads to more qualitative systems

and reduces their time-to-market. The alliances

formed between software creators, vendors and

owners, however, depend heavily on the methods

and techniques to support the development process.

The most significant advantages of reusing existing

software parts, either small units (functions, classes)

or fully-fledged systems (COTS) may be summed

up to the acceleration of the development process,

the increased dependability of the reused software

and the reduction of the associated process risk. Mili

et al. (2002) define software reuse as “the process

whereby an organization defines a set of systematic

operating procedures to specify, produce, classify,

retrieve and adapt software artefacts for the purpose

of using them in its development activities.”

Although the software components industry is

steadily growing with multiple brokers to serve

reusers (followed up tightly with open source

communities as well), there is still great need for

methodological approaches to improve and automate

the processes of searching, retrieving and analysing

candidate components for integration. To this end,

the present paper proposes a new component

reusability framework, which focuses on the

identification of components and their assessment in

terms of required features (functional or non-

functional) that demonstrates their suitability for

integration according to a prescribed (or desired)

profile. The main novel aspects of this approach

consist of: (i) an EBNF-based profiling of the

components, which describes desired properties of

the components sought, and (ii) an automatic search

and retrieval mechanism. The latter utilizes the

profiling scheme and without human intervention it

delivers the most suitable components in three

simple steps: parsing the ontology profiles of the

requested and available components, executing the

matching algorithm and recommending (retrieving)

the closest matches. To the best of our knowledge

existing approaches do not offer such automated

118

S. Andreou A. and Papatheocharous E..

Automatic Matching of Software Component Requirements using Semi-formal Speciﬁcations and a CBSE Ontology.

DOI: 10.5220/0005378301180128

In Proceedings of the 10th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2015), pages 118-128

ISBN: 978-989-758-100-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

management of components’ reuse processes.

The rest of the paper is organized as follows:

Section 2 provides a brief literature review on the

subject. The proposed approach for profiling and

matching components is described in section 3. The

section starts with an overview of the reusability

framework, continues with a presentation of the

semi-formal description of components

specifications and ends with the presentation of the

details of the matching process, including the

dedicated CBSE ontology and the matching

algorithm. Section 4 describes a preliminary

experimental investigation and reports some

interesting findings on the assessment of the

proposed approach. Finally, section 5 concludes the

paper and suggests further research steps.

2 LITERATURE OVERVIEW

The relevant component search and retrieval

literature is rich with studies about COTS, while

Quality of Service (QoS) is one of the most

frequently used mechanisms for component

matching. In addition, ontologies have offered

common ground to the CBSE process, either for

describing metrics or properties for assessing

components, or supporting their matching process.

A brief outline of some of those studies follows.

Zaremski and Wing (1997) were among the first

to use formal specifications to describe the behavior

of software components and to determine whether

two components match. Chung and Cooper (2004)

presented an approach that supports iterative

matching, ranking and selection of COTS

represented as sets of functional and non-functional

requirements. The work of Iribarne et al. (2002)

presented an extension of approaches dealing with

component search and service matching in which

components offer several interfaces. More

specifically, they addressed service gaps and

overlaps extending the traditional compatibility and

substitutability operators to deal with components

that support multiple interfaces. Yessad and

Boufaida (2011) proposed a Quality of Service

(QoS) ontology for describing software components

and used this ontology to semantically select

relevant components based on the QoS specified by

the developer. Pahl (2007) presented an approach

for component matching by encoding transitional

reasoning about safety and liveness properties into

description logic and a Web standards compliant

ontology framework. Yan et al. (2010) attempted to

address the lack of semantic description ability in

component searching and retrieval by introducing a

conceptual ontology and a domain ontology. The

authors represented a component ontology library by

a conceptual and a component graph. During the

retrieval process, the retrieval pattern graph was

matched with the component graph using a

component retrieval algorithm based on graph

patterns. Kluge et al. (2008) suggested an approach

for matching functional business requirements to

standard application software packages via

ontologies. Seedorf and Schader (2011) introduced

an enterprise software component ontology to

establish a common understanding of enterprise

software components, i.e., their types and

relationships to entities in the business domain.

Alnusair and Zhao (2010) proposed a semantic-

based approach for retrieving relevant components

from a reuse repository utilizing an ontology model

comprising of three axes, source-code, component,

and domain-specific ontology. Their experiments

suggested that only pure semantic search that

exploits domain knowledge tends to improve

precision.

Althought it is evident that matching of

component specifications through the use of

ontologies is not new, the above studies show that it

is also promising and worth pursuing. The above

studies, however, do not cover adequately the

practical perspective of component reusability as

they: (i) either express component services in

abstract ontology forms and/or provide matching

algorithm descriptions sometimes with and other

times without the use of ontology information, (ii)

do not provide concrete yet simple descriptors of the

component properties, which may be reused by tools

or methods that could further aid the reuse process.

The present paper aspires to fill this gap by

introducing an integrated framework for

components’ reuse, which offers a layered approach

that guides the reuse process. The first layer of the

framework is the key component to the process as it

is responsible to profile component specifications

using an expressive and easily understood (by

reusers and component developers) semi-formal

natural language structure, able to capture properties

useful for components’ matching. This profile is

then transformed into a more formalized ontological

representation and a simple, yet efficient way, to use

this representation for automatically matching

components, based on the suitability level of

candidate components calculated by comparing

ontology tree instances.

AutomaticMatchingofSoftwareComponentRequirementsusingSemi-formalSpecificationsandaCBSEOntology

119

3 AUTOMATIC MATCHING OF

COMPONENT

SPECIFICATIONS

3.1 Reusability Framework Overview

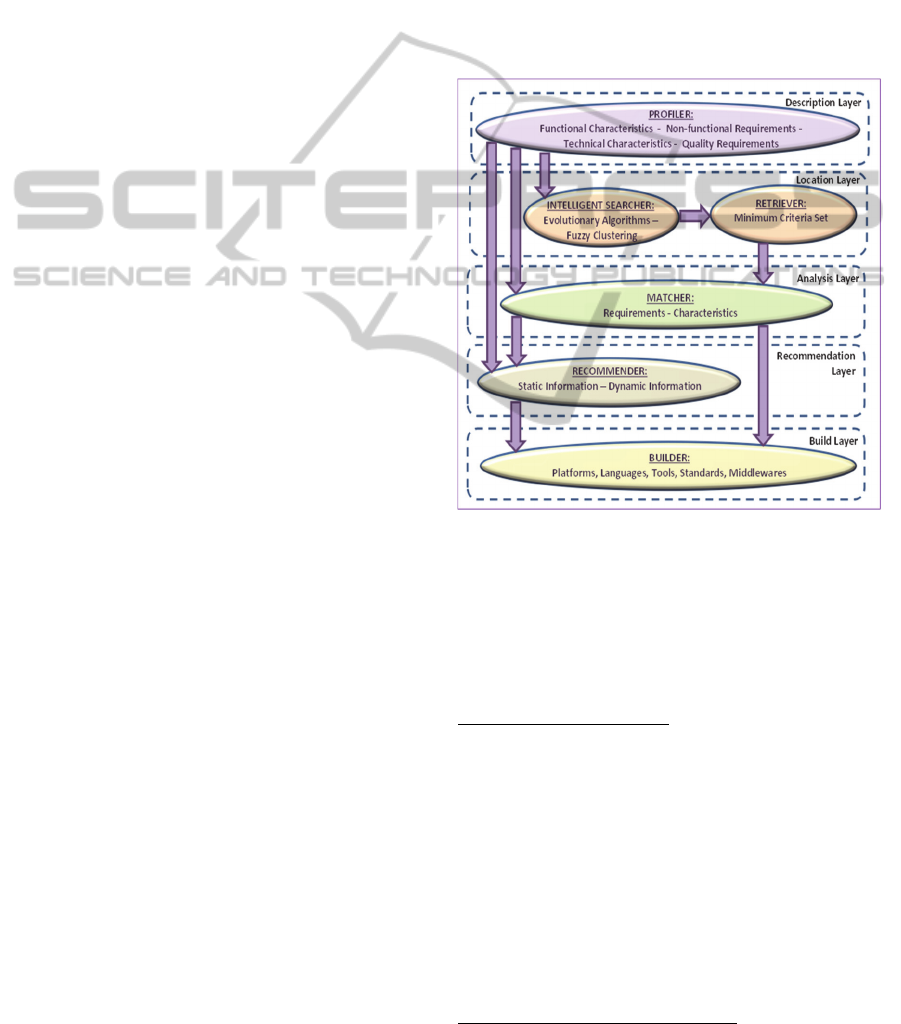

The proposed framework is depicted in Figure 1 and

consists of five layers (sub-systems), each

supporting a part of the component-based software

development process as follows: (i) The Description

layer is responsible for creating a profile which

includes relevant information that describe the

component(s) sought or offered. A stakeholder

(reuser or component developer/vendor) defines the

functional and non-functional requirements that

must be fulfilled or that are offered depending on the

role. The former essentially provides the anticipated

or desired properties in terms of functionality,

performance, availability, reliability, robustness etc.,

and the latter sketches the functional behaviour of

the ready-made software part. (ii) The Location

layer offers the means to search, locate and retrieve

the component(s) of interest that match the profile.

(iii) The Analysis layer provides the tools to evaluate

the level of suitability of the candidate component(s)

and yield matching results that will guide the

selection of components for reuse. (iv) The

Recommendation layer uses the information

received from the profiling activities and produces

suggestions to reusers as to which of the candidate

component(s) may be best integrated and why,

through a cost-benefit analysis. (vi) Finally, the

Build layer essentially comprises a set of integration

and customization tools for combining component(s)

and build larger systems.

One of the challenges this framework proposes

to addresses is related to narrowing down the

component requirements for searching and locating

appropriate components, considering a minimal set

of criteria and associating the various candidates

with a ratio value of suitability; the latter will enable

reaching to a plan (or recommendation) on how to

progress with a project, and how to integrate

components into one fully-functioning system.

This work concentrates only on the collaboration

of the Description and the Analysis layers, and

describes a new way for automatic matching

between desired and available components based on

structured natural language and ontologies. Next, the

steps of the process are provided: The first step

involves describing the desired functional and non-

functional properties of the component(s) sought in

a specifications profile using a semi-formal natural

language. In the second step, the profile is

automatically parsed and certain textual parts are

recognized, which are then translated into instance

values of a dedicated CBSE ontology. This ontology

is built so as to reflect various development issues

from the components reusability aspects. The third

and final step performs matching between required

and offered components’ properties, the latter being

stored also as instances of the CBSE ontology. This

matching takes place automatically at the level of

ontology items and a suitability ratio is calculated

that suggests which components to consider next for

possible integration.

Figure 1: The layered architecture of the proposed

reusability framework.

3.2 Components Profiling

Each component is profiled with information

revolving around three axes, functional, non-

functional and reusability properties, as follows:

(i) Functional Properties: One or more functional

aspects included in the component are described

here. More specifically, the services offered by the

component are outlined, accompanied with the

structure of the published interface (i.e., provides/

requires, detailing what services must be made

available for the component to execute and what

services are offered by the component during

execution). Component contracts are also reported

with the related Pre-conditions, Post-conditions,

Invariants and Exception handling descriptions (i.e.,

cases where pre/post-conditions or invariants might

be violated per method).

(ii) Non-functional Properties: Non-functional

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

120

constraints and quality properties are reported here.

Performance indicators, resources requirements

(e.g., memory and CPU) and other quality features

(i.e., quality attributes based on the ISO 9126

standard, like availability (MTBF) and reliability).

(iii) Reusability Properties: It involves general

information about the component which describes

its context and way of use, its flexibility and other

factors that are considered useful to reusers.

Properties here include: application domain(s) for

which the component is suitable, programming

language(s), operating system(s) that is able to

execute on, type of openness/extensibility (black,

glass, grey, white), market price, some developer

info (if available and reported for offered

components), list of protocols and standards

supported (e.g., JMS/Websphere, DDS/NDDS 4.0,

CORBA/ACE TAO, POSIX, SNMP and .NET), as

well as accompanying documentation (if any), like

design, administration and user manuals and test

cases documentation.

The component properties descriptions are

written in the Extended Backus-Naur Form (EBNF).

Expressing the component descriptions in the EBNF

allows us to formally prove key properties, such as

well-formedness and closure, and hence help

validate the semantics. The proposed grammar has

been developed with the Another Tool for Language

Recognition (ANTLR) parser generator

(http://www.antlr.org/). ANTLR is a parser and

translator generator tool that allows language

grammars’ definition in an EBNF-like syntax.

Table 1 presents the EBNF description of a

component. As previously mentioned, this

description is used as a template from both the

component vendor who provides information to

increase its number of successful reuses and the

interested reuser who tries to locate the most

appropriate component for integration. There are

some differences in the two cases, though, that are

denoted with comments (text in green which starts

and ends with the symbol ‘*’) and refer mostly to

information about contracts, developer details and

documentation, which are not among the key

information that reusers need to define when

searching for components; they rather constitute

peripheral information which is offered by the

component developer/vendor, in the case that such

information is (made) available.

While reading the profile from top to bottom, the

reuser/developer will find the definitions used for

the component items. The reuser/developer starts by

filling-in this information with giving a name and

selecting a list of (one or more) services the

component has to offer. Each service is defined by a

primary functionality type, a secondary informative

type and thirdly, an optional description. Primary

types include general functionality offered, like I/O,

security and networking, while the secondary type

explicitly express the kind of function it executes,

like authentication, video streaming, audio

processing etc. For example, a service could be

[Security, Login Authentication]. If a service is

sought for, then the reuser assigns a Requirement

value, either Constraint, which means it is

absolutely necessary and a candidate component is

rejected if it does not offer it, or Desired, which

simply adds points to the suitability value of a

candidate component. Interfacing information comes

next where each service is decomposed into the

various methods that implement its logic; a method

is analyzed to its constituent parts of Pre-conditions,

Post-conditions, Invariants and Exceptions (if any).

This piece of information can be provided by the

component developer/vendor. Non-functional

requirements or properties are defined next by the

reuser and developer/vendor respectively, the former

denoting what the search is for (and can be either

defined as mandatory or desired), and the latter

denoting what the component has to offer.

Finally, both the reuser and the component

developer/vendor fill-in general information useful

for reusability purposes (application domain,

programming language, OS etc.) with the reuser

again denoting the level to which a certain feature is

required (defined as mandatory or optional). It

should also be mentioned that certain features in the

sought profile may be assigned to specific values

along with a characterization as to whether this

feature should be minimised (i.e. the value denotes

an upper acceptable threshold) or maximised (i.e.

the value denotes a lower acceptable threshold) in

the suitable components offered. For example, if

performance should be confined under 15 seconds,

then next to the performance indicator the values

(15, minimise) should be entered.

3.3 Automatic Components Matching

3.3.1 CBSE Ontology

A dedicated CBSE ontology is developed to reflect

development issues based on the reusability of

components. The ontology essentially addresses the

same property axes and adheres to the same

semantic rules of the component profile so that an

automatic transformation of the latter to instances of

AutomaticMatchingofSoftwareComponentRequirementsusingSemi-formalSpecificationsandaCBSEOntology

121

Table 1: Profile of a component in EBNF.

DIGIT ⇐ 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 ; INTEGER ⇐ DIGIT {DIGIT};

CHAR ⇐ A | B | C | ... |W | a | b | c | ... | W | ! | @ | # | … ; STRING ⇐ CHAR {CHAR} ;

Variable_type ⇐ CHAR | INTEGER | … ; Variable_name ⇐ STRING

Details_Description ⇐ CHAR { CHAR } ;

Min_Max_Type ⇐ ‘ Minimise ’ | ‘Maximise’ |

Required_Type ⇐ ‘ CONSTRAINT ’ | ‘ DESIRED ’ |

Service ⇐ ‘ S ’ INTEGER Primary_Type, Secondary_Type { Details_Description } Required_Type ;

Service_List ⇐ Service { Service }

Condition ⇐Variable_Name Operator { Value } { Variable }

Precondition ⇐ Condition { Condition }; (* IF THESE ARE PROVIDED BY DEVELOPER/VENDOR

Postcondition ⇐ Condition { Condition }; (* IF THESE ARE PROVIDED BY DEVELOPER/VENDOR *)

Invariants ⇐Condition { Condition }; (* IF THESE ARE PROVIDED BY DEVELOPER/ DEVELOPER/VENDOR *)

Exceptions ⇐ Condition { Details_Description } { Exceptions }; (* IF THESE ARE PROVIDED BY

DEVELOPER/VENDOR *)

Method ⇐ ‘ M ’ INTEGER { Variable Variable_Type } { Precondition } { Postcondition } { Invariant } { Exception }

; (* IF THESE ARE PROVIDED BY COMPONENT DEVELOPER/VENDOR *)

Service_analysis ⇐ ‘ Service ’ INTEGER ‘ : ’ ‘ Method ’ INTEGER ‘ : ’ STRING Method { Method } ;

Performance_indicators ⇐ [‘ Response time ’ (INTEGER) Min_Max_Type Required_Type | ‘ Concurrent users ’

(INTEGER) Min_Max_Type Required_Type | ‘ Records accessed ’ (INTEGER) Min_Max_Type

Required_Type | … ] { Performance_indicators } ;

Resource_requirements ⇐ [ ‘ memory utilization ’ (INTEGER) Min_Max_Type Required_Type | ‘ CPU reqs ’

(INTEGER) Min_Max_Type Required_Type | … ] { Resource_requirements } ;

Quality_features ⇐ [ ‘ Availability ’ (INTEGER) Min_Max_Type Required_Type | ‘ Reliability ’

(INTEGER) Min_Max_Type Required_Type | … ] { Quality_features }

Application_domain ⇐ ‘ Medical ’ Required_Type | ‘ Financial ’ Required_Type | ‘ Business ’ Required_Type | …

{Application_domain} ;

Programming_language ⇐ ‘ C ’ Required_Type | ‘ C++ ’ Required_Type | ‘ Java ’ Required_Type

| ‘ VB ’ Required_Type | … ; { Programming_language}

Operating_systems ⇐

‘ Windows ’ Required_Type | ‘ Linux ’ Required_Type | ‘ Unix ’ Required_Type | ‘ IOS ’

Required_Type | ‘ Android’ Required_Type | … { Operating_systems } ;

Openness ⇐ ‘ black ’ Required_Type | ‘ glass ’ Required_Type | ‘ grey ’ Required_Type | ‘ white ’ Required_Type;

Price ⇐ INTEGER ;

Development_info ⇐STRING; Developer ⇐ STRING; Version ⇐ STRING; (* IF THESE ARE PROVIDED BY

DEVELOPER/VENDOR *)

Protocols_Standards ⇐ [ ‘ JMS/Websphere ’ Required_Type | ‘ DDS/NDDS ’ Required_Type | ‘ CORBA/ACE TAO ’

Required_Type | ‘ POSIX ’ Required_Type | ‘ SNMP ’ Required_Type |… { Protocols_Standards

}];

Documentation ⇐ [ ‘ Manuals ’ Required_Type | ‘ Test cases ’ Required_Type | … ] ; (* IF THESE ARE PROVIDED

BY DEVELOPER/VENDOR *)

SPECIFICATIONS PROFILE :

‘Specifications Profile ’ STRING ; ‘Descriptive title ’ STRING ;

‘Functional Properties :’ Service_List ;

‘Interfacing :’ Service_analysis { Service_analysis };

‘Non-functional Properties :’ Performance_indicators Resource_requirements Quality_features ;

‘Reusability Properties :’ Application_domain Programming_language Operating_systems Openness Price

Protocols_Standards Documentation ;

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

122

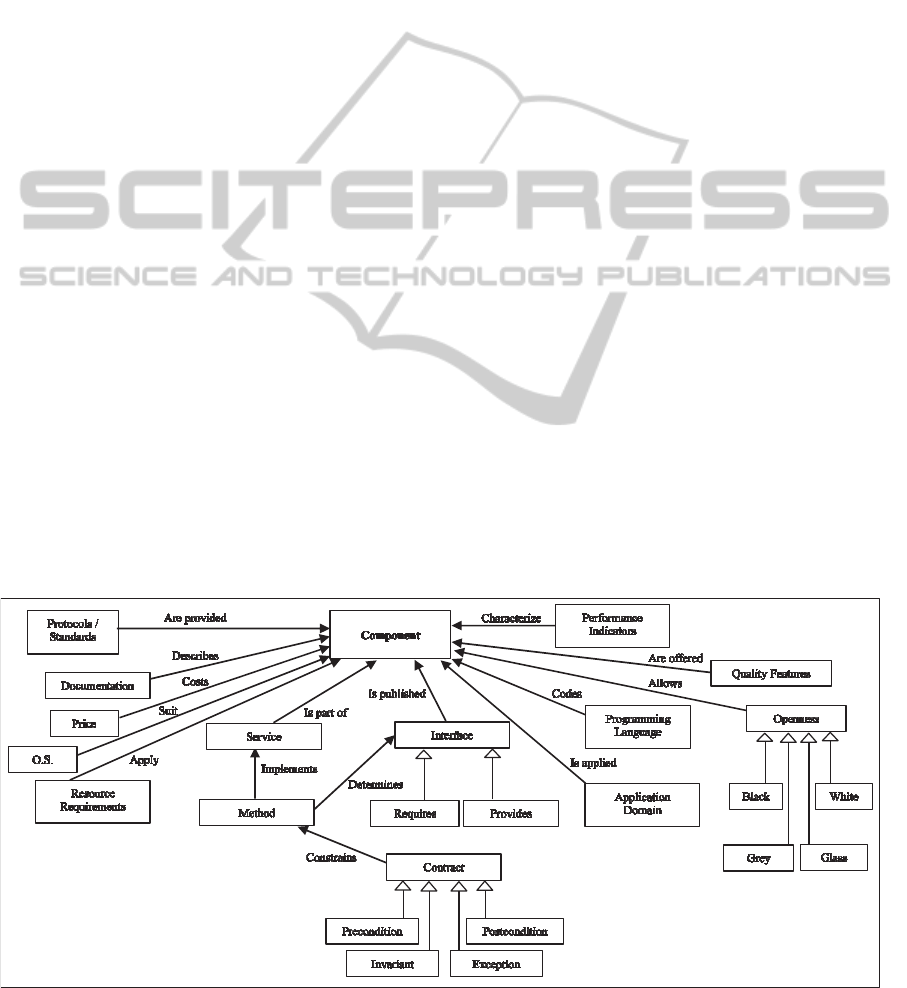

the ontology is feasible. Figure 2 depicts the largest

part of the ontology; some details have been

intentionally left out due to figure size and space

limitations. A component is fully described by

instances of the ontology items and can therefore be

used as the basis for the matching process that is

described next. This process works at the level of

the ontology tree rather than the textual descriptions

of the profile as comparison between required and

available components is easier and more profound,

both computationally and graphically (visually).

3.3.2 Matching Process

Some researchers focus on components retrieval

issues and propose different methods for description

processing, like simple string (e.g. Mili et al., 1994),

signature matching (e.g. Zaremsky and Wing, 1993)

and behavioural matching (e.g. Zaremsky and Wing,

1997). The proposed approach may be considered as

a hybrid method comprising of string and

behavioural matching but in a different manner than

the aforementioned studies. More specifically, the

cornerstone of the matching process is a dedicated

parser which identifies parts of the profile

(functional and non-functional behaviour, interfaces,

performance indicators, etc.) and translates them

into the CBSE ontology. The parser first checks

whether the profile is properly described in the

context and semantics of the structure (presented in

Table 1 using the ANTLR framework). Once

successful, the parser proceeds with recognizing the

parts of the profile and building the ontology tree of

instances following the algorithm presented in

Figure 3. The parser essentially builds ontology tree

instances which describe the requested and the

available components. The next step is the matching

of properties between ontology items. The tree

instance of the required component is projected on

top of all other candidates assessing the level of

requirements’ fulfilment in multiple stages. The first

stage requires that all constraints are satisfied. In this

case, the list of services sought must be at least a

subset of the services offered. The second stage,

executed once all constraints are satisfied, calculates

the level of suitability of each candidate component.

A demonstration example for this stage is given in

the experimental section.

A requested component P

defines in its profile a

set of constraints K that must be satisfied including

number and type of services, performance and

quality factors, resource requirements,

protocols/standards and documentation. The

matching between the discrete items in the profile of

and those of a candidate component P

determined through the following rules:

(A) P

is a suitable candidate for P

if and only if

every item k ∈ K is satisfied by the corresponding

item in P

. We denote this by 



≡



(B) P

is an exact match of P

if and only if every

item l defined in P

is offered by P

. We denote this

by 



≡



It is clear that rule (B) subsumes rule (A). The level

of suitability is calculated for each suitable

candidate as the ratio of matched profile items

required (i.e. that are actually offered by the

candidate component) to the total items outlined in

. More specifically, a dissimilarity value is

calculated which indicates, in case of multiple

suitable candidates, which one is closer to what has

been requested.

Figure 2: A CBSE ontology based on three axes, (i) Functionality, (ii) Non-functional aspects, (iii) Reusability properties.

AutomaticMatchingofSoftwareComponentRequirementsusingSemi-formalSpecificationsandaCBSEOntology

123

LetMethod(i)=setofmethodsimplementingServicei

Trace‘SpecificationProfile’storeSTRINGName

CreateNodeName

StartParsing

Trace‘ServiceList’

ReadNServices

Trace‘Interfacing’

Fori=1toN

{CreateInstanceofServiceiundernodeName

Foreachmethodj∈Method(i

)do

{CreateMethodjasnodeattachedtoServicei

DetermineArgumentsAofMethodj

CreateAaspartofInterfacenode

DetermineContractsforAandj’slogic

Create Preconditions, Post conditions, Invariants,

Exceptionsforj}}

Trace‘Non‐functionalProperties’



ReadNOT_NULLnon‐functionalproperties

ForallNOT_NULLnon‐functionalpropertiesdo

CreateInstancesPerformanceindicators,

Resourcerequirements,Qualityfeatures

Trace‘ReusabilityProperties’

ReadNOT_NULLreusabilityproperties

ForallNOT_NULLreusabilitypropertiesdo

CreateInstancesApplicationdomain,

Programminglanguage,Operatingsystems,

Openness,Price,Protocols

andStandards,

Documentation

EndParsing

Figure 3: Algorithmic approach for the parsing process

and ontology transformation.

We distinguish two types of properties, one of

binary type (offered ‘yes’/‘no’) and one of numerical

type (e.g. price, response time). Matching properties

of the former type presumes that all constraints are

by default satisfied and its level is calculated simply

by following the equations described hereafter: The

binary dissimilarity is calculated as:











∑



,,





(1)

where



,,





0, 







1, 









(2)

and M the number of binary properties defined in P

The numerical type is associated with minimum

and maximum acceptable values. Therefore,

matching of numerical properties is essentially

another assessment of dissimilarity, which is

performed by measuring how far from the optimal

value (either maximum or minimum) lies the offered

property value. We distinguish two cases:

(i) The property is mandatory (constraint). The

candidates in this case satisfy the lower or upper

bound of the defined feature value. Therefore, the

distance between the values of the required and

offered components is calculated by:



,

























(3)

for feature value maximization, and



,

























(4)

for minimization, while the total numerical

dissimilarity for the constraints is calculated as:



,







∑



,,





(5)

(ii) The property is, not mandatory, but desired. In

this case some of the values of the candidates satisfy

the bounds defined in the desired components and

some do not. Therefore, the distance between the

desired property values v

and the values offered by

the candidate components v

is calculated by:



,

1













,





(6)



,

1













,





(7)

for feature value maximization and minimization

respectively. The total numerical dissimilarity for

the desired features is then calculated as:



,







∑



,,





(8)

In the above equations, 



,





is the maximum

value of the property between all candidates and the

desired component, while T and M are the numbers

of numerical properties that are mandatory and

desired respectively.

The total value for the numerical properties is:









,



,



(9)

The total dissimilarity value for a suitable candidate

component is then calculated as:

















(10)

It is clear from the above that the closer the

dissimilarity value to zero the better the suitability

level of a component. The recommendation task

ranks suitable components in ascending order of

dissimilarity and suggests the top n candidates.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

124

4 EXPERIMENTAL

EVALUATION

A preliminary experimental process was conducted

aiming at addressing the following three key

questions regarding the proposed approach: (i) How

easy and straightforward is it to locate appropriate

components? (ii) How “complete” is the process?

(iii) How accurate are the results (i.e. recommended

components)? The word complete appears in quotes

in the second question as completeness is not a

property that may easily be quantified; nevertheless,

for the purposes of this evaluation, we assume that

completeness will denote the level to which the

proposed process supports the profiling (and

therefore the processing) of all possible sources of

information describing component properties.

The experiments were carried out by 25 subjects,

20 of which were graduate (master) students at the

Cyprus University of Technology and 5 were

software practitioners. The students held an

undergraduate degree in Computer Science and/or

Engineering that included courses in Software

Engineering (SE) and at the time of the

experimentation they followed an advanced SE

course with emphasis on CBSE and reusability. The

practitioners consisted of software developers, 3 of

which extensively make use of component reuse for

the last 5 years and 2 produce components for

internal reuse in their company for the last 3 years.

All subjects underwent a short period of training (2

hours) on the proposed approach focusing mostly on

the profiling scheme and the semi-formal structures

of the natural language used. A total of 100 synthetic

components were randomly generated with the help

of the practitioners who inspected the elements

produced and suggested corrections so as to

correspond to realistic cases resembling real-world

components. The components created were divided

into 7 major categories: Login (10), Calendar (10),

Address Book (10), Calculator (10), Task/Notes

Manager (10), Clock (10) and GUI Widgets

(Wallpapers (15), Window Style (15),

Background/Fonts Style (10)). The multiple

instances of the synthetic components for each

category differed on attributes such as programming

language, OS, openness, protocols/ standards and

documentation, as well as on the performance

indicators. The EBNF profile of each component

was then created, followed by its transformation into

an ontology instance of the component tree. Each

subject was then asked to perform 10 different

searches using a simple form (see Figure 4) where

basically they inputted the desired functionality

(primary, secondary), the values for certain

performance indicators and their level of

requirement (mandatory or desired). This

information was also transformed in EBNF and then

the ontology tree instance of the search item

(component) was also created. Each search tree

instance was then automatically matched against the

available component instances in the repository. As

this process is essentially an item-to-item matching

of the tree instances, the classic metrics of precision

and recall are not applicable here since the

components retrieved were only those that satisfied

all constraints for functionality and the rest of the

features. Therefore, the candidate components

returned were only the suitable ones which then

competed on the basis of satisfying the rest of the

properties sought for, calculating the level of

suitability, as defined in eq.(10).

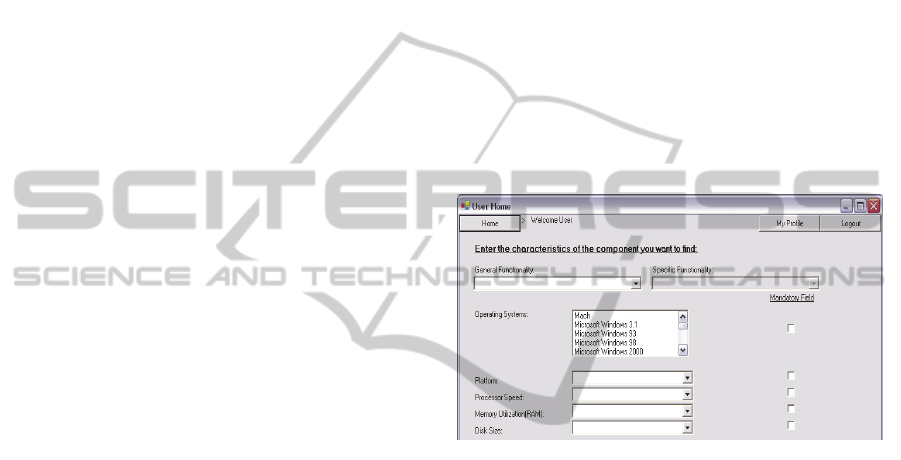

Figure 4: Excerpt of the component search form.

Table 2 shows part of the experimental process

when searching for a Task Manager component,

with functionality and features in the first column,

preferences for the required component in the right

most column and the five candidates in the columns

in between. The lower part of this table lists the

figures for the dissimilarity calculation described in

eqs.(1)-(10). The figures clearly suggest that

Component #2 is the candidate that best satisfies the

search preferences, followed by Components #1, #4

and #5, that having similar characteristics to each

other. This process was executed 10 times by each

subject for each component category and the results

were gathered and assessed qualitatively under the

three questions described in the beginning of the

present section related to ease of use, completeness

and accuracy. At the end, the participants in the

experimental study were asked to rate the approach

on a five-point Likert scale ranging from 1-Very

Low to 5-Very High for the focal point of each

question.

The findings of the preliminary experimental

results suggested the following: (i) The components

AutomaticMatchingofSoftwareComponentRequirementsusingSemi-formalSpecificationsandaCBSEOntology

125

Table 2: Candidates’ evaluation when seeking for a Task Manager component (C denotes constraint and D desired).

Task Manager 1 2 3 4 5

FOR

Service Primary input input input input input Input (C)

Service Secondary

Data

processing

Data

processing

Data

processing

Data

processing

Data

processing

Data

processing

(C)

Response Time (sec) (min) 10 12 8 8 9 12 (C)

Concurrent Users (max) 50 100 40 80 100 20 (C)

Memory utilization (KB) (min) 2 3 4 1 2 4 (C)

Total task supported (max) 200 1800 700 1900 2000 1500 (D)

Download history time (sec)

(min)

6 8 22 4 20 18 (D)

Reliability (max) 90 95 92 93 90 90 (C)

Availability (max) 95 98 97 99 96 95 (C)

Application domain ANY ANY ANY ANY ANY ANY (C)

Programming language C/C++ C/C++ Java C/C++ .NET C/C++ (D)

Operating systems Windows Windows

Windows

Android

Windows

Linux

Windows Windows (C)

Openness white white black grey white White (D)

Documentation

Manual,

Test Cases,

Code,

Comments,

Design doc

Code,

Comments,

Design doc

Manual,

Test

Cases

Manual,

Test

Cases

Manual,

Test

Cases,

Code,

Comments

Code (D),

Comments

(D),

Design doc

(D)

Evaluation

bin

0 0 0,714286 0,571429 0,285714

num

0,8244589 0,47316 0,811688 0,270996 0,59632

tot

0,4122294 0,23658 0,762987 0,421212 0,441017

retrieved by the proposed approach were found

suitable and among the top alternatives for all cases.

It was also observed that the components returned as

best candidates did not always possess the optimal

numerical values in the corresponding properties

sought, that is, the best values for the specific

features (i.e. lowest time performance); they rather

exhibited a good balance between numerical

properties and also presented good ratings for the

binary properties. This is clear in Table 2 where the

optimal numerical values offered by the suitable

components are marked in boldface and italic; it is

evident that #4 holds the majority of optimal

numerical values, yet it is not among the top 2. (ii)

All subjects agreed that the method was quite easy to

follow once trained, with a median rating of 4

(High). Especially with the use of the dedicated

supporting tool, as some of the subjects stated, after

their first few searches they felt quite comfortable

with the approach and faced no problems in using it.

(iii) Completeness was the feature that raised some

questioning. Initial values by students rated this

aspect with 4 (High), while practitioners gave the

value of 2 (Low). Practitioners claimed that the

approach should follow the same metrics and

properties met in Service Level Agreements (SLA)

which tend to become standard in the software

industry, like those suggested by Czajkowski et al.

(2002) and Mili et al. (2003). As this category of

users was extremely important, a round of

discussion was conducted through which the open

nature of the profile scheme for a component was

soon recognized as being able to cover any possible

features or properties a reuser may seek, as long as

the structured form followed for describing

components encompasses these items. Therefore,

practitioners agreed that the approach offers great

flexibility in this respect and rated again

completeness giving a median value of 4 (High).

(iv) The discussion mentioned in the previous point

gave birth to a suggestion for a possible extension to

the approach: A priority or weighting scheme should

be supported for the properties so that the reuser is

able to define those features considered as more

significant and therefore the assessment of candidate

components will take this significance into account

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

126

too, along with the rest similarity factors.

5 CONCLUSIONS

This paper addressed the issue of automatically

matching specifications between components. A

new component reusability framework was briefly

introduced with a focus on the activities for

matching required and offered properties. The

matching process starts with the production of a

special form of natural-language-based profile

written in EBNF. The profile describes functional

and non-functional aspects of components, as well

as general reusability properties. A dedicated parser

walks through the profile, recognizes certain

sections and elements, and then translates them into

instances of a special form of component-based

ontology developed to support the component

specification matching activities. A reuser uses the

profile to describe what he or she looks for in a

component using the EBNF notation, the latter being

highly descriptive, while it allows to formally prove

key properties and validate the semantics. Available

components need also to be described by their

developers/vendors under the same profiling details.

The transformation of the profiles to ontology trees

enables comparison at the level of instances which is

used to assess if hard constraints are violated (i.e.,

absolutely necessary properties required are not

offered by candidates) and if not, to calculate a

dissimilarity metric that dictates the level of

appropriateness of components for possible

integration. Preliminary experimental results

suggested that the proposed approach is accurate and

suitable for adoption in the everyday practice of

software reuse.

This work described a new idea with ample room

for extensions and enhancements. Therefore, future

work will include several research steps, some of

which are outlined here: First of all, a more thorough

experimentation will be carried out to validate the

applicability and efficacy of the proposed

framework. To this end, a series of experiments will

be conducted utilizing open source components.

Second, the retrieval parts will be enhanced by

optimization techniques (e.g., evolutionary

algorithms) for automating the process of locating

candidate components. Third, the suggestions made

during the experimentation phase will be

incorporated in the approach, such as the

prioritisation of the properties, which will guide the

assessment of suitable components. Fourth, several

aspects of the proposed approach will be

parameterized so as to enable use customization and

adaptation (e.g., weighting scheme of the matching

algorithm). Last but not least, the dedicated software

tool that supports the whole framework will be

extended with capabilities for EBNF editing and

ANTLR parsing during the construction of

component profiles, as well as, graphical

representation and visual inspection/comparison of

ontology tree instances.

ACKNOWLEDGEMENTS

The work is partially supported by a research grant

for the ORION project (reference number

20140218) from The Knowledge Foundation in

Sweden.

REFERENCES

Alnusair, A., Zhao, T., 2010. Component search and

reuse: An ontology-based approach. In Proceedings of

the IEEE International Conference on Information

Reuse and Integration (Las Vegas, USA, August 4-6,

2010). IRI2010, 258-261.

Czajkowski, K., Foster, I., Kesselman, C., Sander, V.,

Tuecke, S., 2002. SNAP: A protocol for negotiating

service level agreements and coordinating resource

management in distributed systems. In Job scheduling

strategies for parallel processing, 153-183, Springer

Berlin Heidelberg.

Chung, L., Cooper, K., 2004. Matching, ranking, and

selecting components: a COTS-aware requirements

engineering and software architecting approach. In

Proceedings of the International Workshop on Models

and Processes for the Evaluation of COTS

Components at 26th International Conference on

Software Engineering, (Edinburgh, Scotland, UK, May

23-28, 2004). ICSE, 41-44.

Iribarne, L., Troya, J.M., Vallecillo, A., 2002. Selecting

software components with multiple interfaces. In

Proceedings of the 28th Euromicro Conference

(Dortmund, Germany, September 4-6, 2002).

EUROMICRO’02, 26-32. IEEE Computer

Society Press.

Kluge, R., Hering, T., Belter, R., Franczyk, B., 2008. An

approach for matching functional business

requirements to standard application software

packages via ontology. In Proceedings of the 32nd

Annual IEEE International Computer Software and

Applications Conference (Turku, Finland, July 28 -

August 1, 2008). COMPSAC '08, 1017-1022. DOI=

10.1109/COMPSAC.2008.147.

Mili, H., Mili, A., Yacoub, S., Addy, E., 2002. Reuse

based software engineering: techniques, organization,

and measurement. Wiley-Blackwell.

AutomaticMatchingofSoftwareComponentRequirementsusingSemi-formalSpecificationsandaCBSEOntology

127

Pahl, C., 2007. An ontology for software component

matching. Int. J. Softw. Tools Technol. Trans. 9, 2,

169-178.

Seedorf, S., Schader, M., 2011. Towards an enterprise

software component ontology. In Proceedings of the

17th Americas Conference on Information Systems

(Detroit, Michigan, August 4-7, 2011) AMCIS.

Szyperski, C., 2002. Component Software: beyond object-

oriented programming, 2nd ed., Addison Wesley.

Yan, W., Rousselot, F., Zanni-Merk, C., 2010. Component

retrieval based on ontology and graph patterns

matching. Journal of Information & Computational

Science, 7, 4, 893-900.

Yessad, L., Boufaida, Z., 2011. A QoS ontology-based

component selection. International Journal on Soft

Computing (IJSC), Vol.2, No.3, August 2011, 16-30.

DOI : 10.5121/ijsc.2011.2302.

Zaremski, A.M., Wing, J.M., 1997. Specifications

matching of software components. ACM T Softw Eng

Meth, 6, 4, October 1997, 333–369.

Zaremski, A. M., Wing, J.M., 1993. Signature matching:

A key to reuse (Vol. 18, No. 5, pp. 182-190). ACM.

Mili, H., Ah-Ki, E., Godin, R., Mcheick, H., 2003. An

experiment in software component retrieval.

Information and Software Technology, 45(10), 633-

649.

Mili, H., Radai, R., Weigang, W., ... Elzer, P., 1994.

Practitioner and SoftClass: a comparative study of two

software reuse research projects. Journal of Systems

and Software, 25(2), 147-170.

Keller, A., Ludwig, H., 2003. The WSLA framework:

Specifying and monitoring service level agreements

for web services. Journal of Network and Systems

Management, 11(1), 57-81.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

128
