OnTheme/Doc

An Ontology-based Approach for Crosscutting Concern Identification from

Software Requirements

Paulo Afonso Parreira Júnior

1, 2

and Rosângela Aparecida Dellosso Penteado

Departament of Computer Science, Federal University of São Carlos, São Carlos, Brazil

Computer Science Course, Federal University of Goiás/Campus Jataí, Jataí, Brazil

Keywords: Aspect-Oriented Requirements Engineering, Ontologies, Early-aspects, Crosscutting Concerns.

Abstract: Context: Aspect-Oriented Requirements Engineering (AORE) is a research field that provides the most

appropriate strategies for identification, modularization and composition of CrossCutting Concerns (CCC).

Problem: in last years, researchers have developed several AORE approaches. However, some

experimental studies have found problems with the accuracy of these approaches, regarding to the CCC

identification recall. This mainly occurs, due to: (i) the lack of knowledge presented by the users of these

approaches about the crosscutting nature of CCC; and (ii) the lack of resources to support users of these

approaches during to CCC identification. Goal: this work aims to improve the values of the recall and

precision metrics of a well-known AORE approach, called Theme/Doc, with regard to CCC identification.

To do this, we propose an extension of this approach, called OnTheme/Doc, in which the CCC identification

activity is supported by ontologies. Experimental results: the data obtained from an experimental study

performed on OnTheme/Doc showed a significant increasing of recall, without negative effects on the

precision and execution time of the approach.

1 INTRODUCTION

1.1 Contextualization

A set of software requirements related to the same

goal/purpose is defined as a “concern” (Chitchyan et

al., 2005). Ideally, each software concern should be

allocated in a single module, whose responsibility is

satisfying the requirements related to this concern

(Dijkstra, 1976).

However, there are some kinds of concerns for

which this clear allocation into modules is not

possible using only the usual abstractions of

software engineering, such as use cases, views-

points, goals, scenarios, among others (Rashid et al.,

2003). For instance, a security concern may contain

requirements related to the encryption and/or access

permissions control. An encryption requirement, in

its turn, may affect some requirements related to

orders management concern.

The previous example describes a well-known

problem, called “concern tangling”, that occurs

when requirements of one concern affect

requirements of other distinct concern(s); this

problem may make hard the software understanding

and evolution (Soeiro et al., 2006). Aspect-Oriented

Requirements Engineering (AORE) (Araújo et al.,

2004; Baniassad and Clarke, 2004; Rashid et al.,

2003; Grundy, 1999) is the field that joins efforts on

developing methods, techniques and tools for

dealing with this problem from the initial phases of

the software development cycle.

In AORE, a CrossCutting Concern - CCC (also

called “Early Aspect”) is a concern whose

requirements affect (is tangled to) the requirements

of other software concerns.

In last years, researchers have developed several

AORE approaches (Parreira Júnior and Penteado,

2014). Most of these approaches include the

Concern Identification and Classification activity,

which is responsible for identifying the software

concerns, as well as classifying them as base, i.e.,

concerns that do not affect requirements of other

concerns, or as crosscutting ones.

1.2 Problem and Motivation

Some experimental studies, conducted on the main

188

Afonso Parreira Júnior P. and Aparecida Dellosso Penteado R..

OnTheme/Doc - An Ontology-based Approach for Crosscutting Concern Identiﬁcation from Software Requirements.

DOI: 10.5220/0005398301880200

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 188-200

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

AORE approaches (Sampaio et al., 2007; Herrera et

al., 2012), have pointed out the concern

identification and classification as a bottleneck

activity in the AORE process. The authors state that

identifying CCC is harder than identifying base

concerns. Some of the possible causes for this are

(Sampaio et al., 2007; Herrera et al., 2012):

Base concerns are better known and

understood by the scientific community than the

CCC ones and many approaches are based only on

the experience of software engineers who apply

them. Some approaches support the software

engineers during the concern identification and

classification through guidelines, such as catalogues,

but these guidelines generally are complex to be

read and understood by humans and they are not

prepared for automated semantic processing.

Moreover, most of these approaches does not

present a process that instruct the software engineer

on how to use the proposed guidelines; and

Some CCC are not explicitly mentioned in the

requirements document, i.e., they emerge from

other concerns and some AORE approaches are

based only on searching for keywords in the

requirements document, what may affect the

identification of implicit concerns. For instance, if

the software requires a good performance to persist

its data, a possible strategy is using concurrency

mechanisms, such as connection pooling. Hence, the

“Concurrency” concern is observed from the

existence of two other CCC: “Persistence” and

“Performance” (Sampaio et al., 2007).

Theme/Doc (Clarke and Baniassad, 2005;

Baniassad and Clarke, 2004) is an AORE approach

that has been used, evolved and evaluated in several

recent studies (Herrera et al., 2012; Ali and Kasirun,

2011; Penim and Araújo, 2010; Kit et al., 2006).

This approach proposes that concern identification

and classification activity be performed using a set

of keywords identified by the software engineer

from the software requirements. This strategy makes

Theme/Doc highly depended on the software

engineers’ experience, what may lead to low levels

of recall and precision, as stated in some

experimental studies (Herrera et al., 2012).

1.3 Goal

The main goal of this work is increasing the recall

and precision provided by the Theme/Doc approach,

regarding to the concern identification and

classification. To do this, an ontology for CCC

(OntoCCC) and an extension of the Theme/Doc

(OnTheme/Doc), in which the concern identification

and classification activity is supported by the usage

of OntoCCC instances, are proposed.

An ontology defines a specific vocabulary that

captures the concepts and relationships of a domain

and a set of explicit decisions (axioms), which

describe the meaning of this vocabulary (Falbo et

al., 2007; Guarino, 1998). Hence, the purpose of the

OntoCCC ontology is capturing the specific

concepts and relationships of crosscutting concerns

domain, which have been documented in several

AORE approaches in the literature (Agostinho et al.,

2008; Sampaio et al., 2005; Chitchyan et al., 2006;

Zheng et al., 2010; Liu et al., 2009; Soeiro et al.,

2006; Moreira et al., 2005; Chernak, 2012; Whitlle

and Araújo, 2004; Alencar et al., 2010; Brito and

Moreira, 2003; Mussbacher et al., 2010).

In this work, we consider that the usage of

OntoCCC ontology may improve the recall and

precision provided by the Theme/Doc approach as

follows:

Regarding to the Dependence of Software

Engineers’ Experience: the knowledge base of the

OntoCCC ontology may be used for the definition of

better keywords, aiming to minimize the dependence

of the professionals’ experience; and

Regarding to the Implicit CCC: the mutual

influence that exists between different CCC may be

documented in the OntoCCC ontology, aiming to

allow the identification of CCC that are not

explicitly described in the requirements document.

It is important to state that the usage of

ontologies in the context of requirements

engineering has been widely explored (López et al.,

2008). However, according to a recent systematic

mapping of the literature, conducted by the authors

of this paper, the usage of ontologies for concern

identification and classification has not been fully

exploited yet.

1.4 Evaluation and Contributions

To verify the goal proposed in this paper, an

experimental study involving undergraduate and

graduate students in Computer Science from two

Federal Universities in Brazil was conducted.

The study was planning and implemented

according to the procedure proposed by Wohlin et

al., (2012). As results, it was observed that, with

99.9% of significance level, the values of recall

provided by the OnTheme/Doc approach is higher

than those provided by Theme/Doc, regarding to the

CCC identification. Besides, it was observed no

significant differences with regard to the precision

provided by both approaches, neither for the time

OnTheme/Doc-AnOntology-basedApproachforCrosscuttingConcernIdentificationfromSoftwareRequirements

189

spent by the participants of the experiment during

the application of these approaches.

The main contributions of the paper are

threefold: (i) the proposed ontology can help

software engineers to better understand the main

concepts and relationships of CCC; (ii) the proposed

ontology can allow software engineers to perform

automatic processing on it, what it is not easy to do

with other kinds of approaches, like catalogues,

vocabularies, thesaurus, among others; and (iii) the

proposed approach presents how to use ontologies in

the context of CCC identification and gives

indications that this usage can improve the accuracy

of this activity.

This paper is organized as follows: (i) Section 2

presents the main concepts about domain ontologies

and the Theme/Doc approach; (ii) Section 3

describes the OnTheme/Doc approach, as well as the

OntoCCC ontology; (iii) in Section 4, the planning,

execution, results and threats to validity of the

experimental study performed in this work are

presented; (iv) Section 5 discusses the main works

related to the proposal of this paper; and (v) finally,

Section 6 presents the final remarks of this work and

some proposals for future works.

2 BACKGROUND

2.1 Ontologies

A domain ontology can be defined as a simplified

and abstract view of a domain that includes the

concepts of some area of interest and the

relationships between them (Gruber, 1995; Fensel,

2001). One important feature of an ontology is its

must be shared, i.e., the knowledge captured by an

ontology must be consensual, not limited to a

specific individual. This section presents the three

main concepts of domain ontologies: Classes,

Properties and Individuals (Horrige et al., 2011;

Hernandes, 2009; Lima and Carvalho, 2005). To

illustrate these concepts, parts of the OntoCCC

ontology (Section 3) are presented.

Classes are concrete representations of a

concept. In practical terms, classes are interpreted as

sets that contain individuals (Horrige et al., 2011).

For example, the CCC class (represent by an oval

shape in Figure 1) represents all individuals that are

crosscutting concerns. Classes can be arranged in

superclass-subclass hierarchies. In Figure 1, the

FunctionalCCC and NonFunctionalCCC classes are

subclasses of CCC (described by the “is-a”

relationship), what means that all functional and

non-functional CCC also are crosscutting concerns.

Properties are binary relationships that connect

two individuals, two classes, an individual and a

value or a class and a value. There are two main

kinds of properties: “Object Properties” and

“DataType Properties”. The “Object Properties” are

used to define relationships between classes. For

example, the hasKeywords property (Figure 1)

connects the CCC class to the Keywords class. This

property defines that a crosscutting concern,

functional or non-functional, may contain a set of

keywords that can be used to identify it. The

hasSubconcerns property indicates that a CCC can

be decomposed into sub-concerns, which also are

CCC. Similarly, the hasSynonymes property

recursively connects the Keywords class to itself,

representing that a keyword may contain synonyms.

A “DataType Property” connects a class to a

primitive value (e.g. an integer or a string value).

For example, the CCC class has the name and

description properties (Figure 1), which can be

connected to strings values; these properties specify,

respectively, the name of a particular CCC and its

description.

It is possible to enhance the meaning of the

properties through the usage of attributes, such as

“transitivity”, “symmetry”, among others. Due to

space limitations, the definition of them was

omitted; more details can be found in Horrige et al.

(2011).

Individuals, also known as “instances” or “class

instances”, represent objects of the domain of

interest. In the OntoCCC ontology, examples of

individuals are instances of CCC already identified

and well-known by the scientific community (for

example, security, logging, among others).

An example with six individuals is illustrated in

Figure 2: four individuals are instances of the

NonFunctionalCCC class and two of the Keywords

class (classes are highlighted in gray and

individuals, in white). In this example, the non-

functional CCC are “Logging”, “Persistence”,

“Connection” and “Transaction”; “Connection” and

“Transaction” are sub-concerns of “Persistence”. In

addition, the “Logging” concern is related to two

keywords, called “logged” and “log”, which are

synonymous.

2.2 Theme/Doc Approach

The Theme approach supports the AORE field in

two levels. At requirements level, the approach is

called Theme/Doc and allows the software engineers

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

190

to: (i) identify the software concerns from a set of

keywords and software requirements; and (ii) refine

the views provided by the approach to reveal which

concerns are base and which are crosscutting ones.

At design level, the approach is called Theme/UML

and allows the software engineers to model, through

specific notations, base and crosscutting concerns

and specify how they can be combined.

Figure 1: Part of the OntoCCC ontology.

Figure 2: Instantiation of the OntoCCC ontology.

The focus of this paper is on concern

identification and classification activity. Hence, to

illustrate the main features of the Theme/Doc

approach, an example of a Course Management

Software – CMS (Baniassad and Clarke, 2004),

whose requirements are outlined in Table 1, is used.

To identify concerns, Theme/Doc offers a

visualization resource, called “action-view”. Two

inputs are required to build an action-view: (i) a list

of key-actions, which consists of verbs identified by

the software engineer from the software

requirements; and (ii) a set of software requirements.

Based on these inputs, the software engineer

performs an analysis of the requirements document

and generates a preliminary action-view.

Table 1: Requirements description of a course

management software (Baniassad and Clarke, 2004).

Requirements Description

R1 Students can register for courses.

R2 Students can unregister for courses.

When a student registers then it must be logged in their

record.

R4 When a student unregisters it must also be logged.

R5 Professors can unregister students.

When a professor unregisters a student it must be

logged.

R7 Professors can give marks for courses.

When a professor gives a mark this must be logged in

the record.

A preliminary action-view is a view in which

actions were not classified as base or crosscutting

ones yet. Figure 3 illustrates the preliminary action-

view created from the requirements and the list of

key-actions of the CMS software (highlighted

words, in the text of Table 1). The key-actions are

represented by diamonds and the requirements by

boxes with rounded edges.

If a requirement contains a key-action in its

description, then it is associated with this action by

an arrow that starts in the requirement and ends in

the key-action. The set of key-actions should be

identified by the software engineer based on his/her

experience with regard to the domain for which the

software is being developed. There are situations

where a requirement may refer to more than one

key-action. For instance, the requirement “R3”

(Figure 3) refers to register and logged actions. In

Theme/Doc approach, CCC are identified by

analyzing such requirements.

To perform the classification of actions as base

or crosscutting ones, the preliminary action-view

and the set of software requirements are required.

The software engineer initially must examine the

requirements that refer to more than one action and

determine what is the primary action (more

important action) of these requirements. In the case

of requirement “R3”, the primary action is logged,

since the requirement was written to specify the

implementation of logging behavior. As the register

action is not the primary action of this requirement,

we say that this action is being affected by the

behavior of the logged action. Hence, the logged

action is classified as a crosscutting action and

information, an arrow with a point at one of its ends

is drawn from the logged action to the register,

indicating that logged affects the register action.

The software engineer should examine all

requirements that share the logged action and decide

if they also are affected by its behavior. In addition,

the software engineer should keep on examining the

other requirements that share more than one action.

Finally, after analyzing all requirements and actions,

an extended action-view is generated (Figure 4),

with three base actions (unregister, give and

cut-across all the three base actions. The main

strengths of the Theme/Doc approach are: (i) it uses

visualization resources as a strategy for concern

identification, what allows the software engineering

to have a better view of the software concerns; (ii) it

is independent of the requirements document

language; and (iii) it has been widely used, evolved

OnTheme/Doc-AnOntology-basedApproachforCrosscuttingConcernIdentificationfromSoftwareRequirements

191

and evaluated in recent works (Herrera et al., 2012;

Ali and Kasirun, 2011; Penim and Araújo, 2010; Kit

et al., 2006).

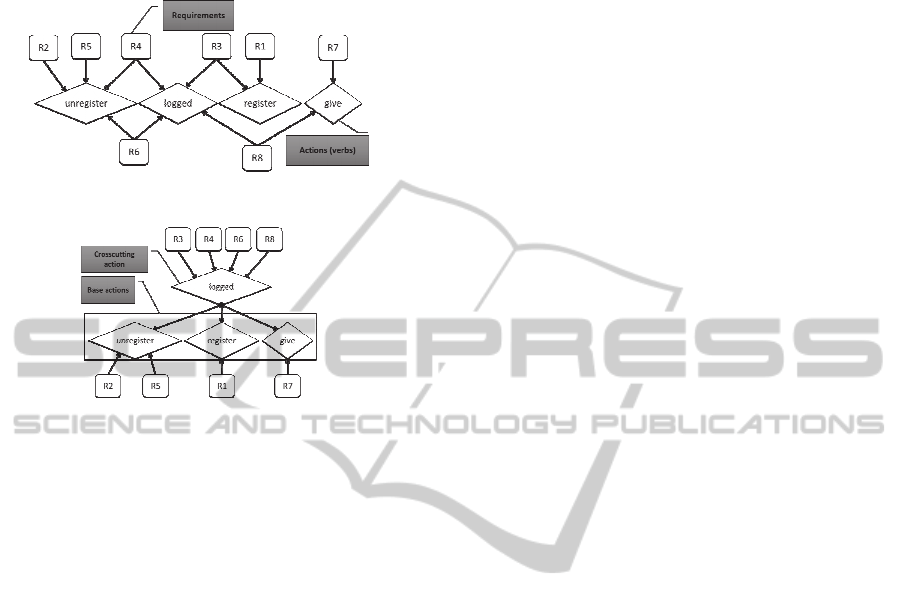

Figure 3: Preliminary action-view.

Figure 4: Extended action-view.

As limitations, it is possible to note that

Theme/Doc: depends on the usage of keywords;

depends on the software engineers’ experience;

and does not support the software engineering

during the identification of implicit concerns.

Section 3 of this paper presents an extension of

the Theme/Doc approach, called OnTheme/Doc, as

well as an ontology for CCC, called OntoCCC. The

main goal of the OnTheme/Doc and OntoCCC is to

minimize the weaknesses of Theme/Doc and, hence,

to improve the values of recall and precision provide

by this approach.

3 OnTheme/Doc APPROACH

As described in Section 2, Theme/Doc requires that

the software engineer works using only his/her prior

knowledge about the problem domain and the

concepts of concern identification and classification.

This makes the approach highly dependent on the

experience of its users.

According to the extension proposed in this

paper, besides his/her prior experience, the software

engineer has the support of the knowledge

represented in one or more instances of the

OntoCCC ontology.

It is important to note that although Theme/Doc

supports the identification of base and crosscutting

concerns, this paper is worried only with the CCC

identification, because, as already stated in this

paper, this has been the bottleneck in the AORE

process (Sampaio et al., 2007; Herrera et al., 2012).

3.1 OntoCCC Ontology

OntoCCC ontology is responsible for representing

well-known and already published concepts and

relationships on CCC. The concepts and

relationships of the OntoCCC ontology describes the

main features of a CCC, such as the name

commonly used to identify it in the scientific

community, its description, if it is a functional or

non-functional CCC, as well as its possible

relationships with other concerns.

To build the OntoCCC ontology, several studies

that addressed the concern identification and

classification subject were analyzed (Agostinho et

al., 2008; Sampaio et al., 2005; Chitchyan et al.,

2006; Zheng et al., 2010; Liu et al., 2009; Soeiro et

al., 2006; Moreira et al., 2005; Chernak, 2012;

Whitlle and Araújo, 2004; Alencar et al., 2010; Brito

and Moreira, 2003; Mussbacher et al., 2010).

In a systematic mapping conducted by the

authors of this paper (Parreira Júnior and Penteado,

2014), thirty-eight AORE approaches were

identified. Among these, ten included the concern

identification and classification activity and

proposed the usage of guidelines to support the

software engineers during the execution of this

activity. The main features of these guidelines were

used to construct the OntoCCC ontology; this was

performed to guarantee that the OntoCCC captures a

consensual knowledge.

For each concept/relationship defined in

OntoCCC, we describe what work served as

inspiration for it. The full version of OntoCCC

ontology is presented in Figure 5.

The concepts represented by CCC,

FunctionalCCC, NonFunctionalCCC and Keywords

classes, as well as the name, description,

hasSubconcerns, hasKeywords and hasSynomymes

properties were briefly commented in Section 2.1.

The CCC and NonFunctionalCCC concepts are

well-known in AORE community and are reported

in all analyzed studies. The FunctionalCCC concept,

however, was taken from work of Moreira et al.

(2005), which was the first study to report that

functional requirements also can cut-across other

software requirements. Hence, the FunctionalCCC

class represents the concerns related to functional

features of the software that cut-across requirements

of other concerns, for example, “Orders

Management” and “Virtual Shopping Cart”.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

192

The concept of keywords appears in several

AORE approaches (Agostinho et al., 2008; Sampaio

et al., 2005; Chitchyan et al., 2006), including the

Theme/Doc.

However, only the proposal of Agostinho et al.,

(2008) presented a template to store the keywords

used for identifying specific concerns.

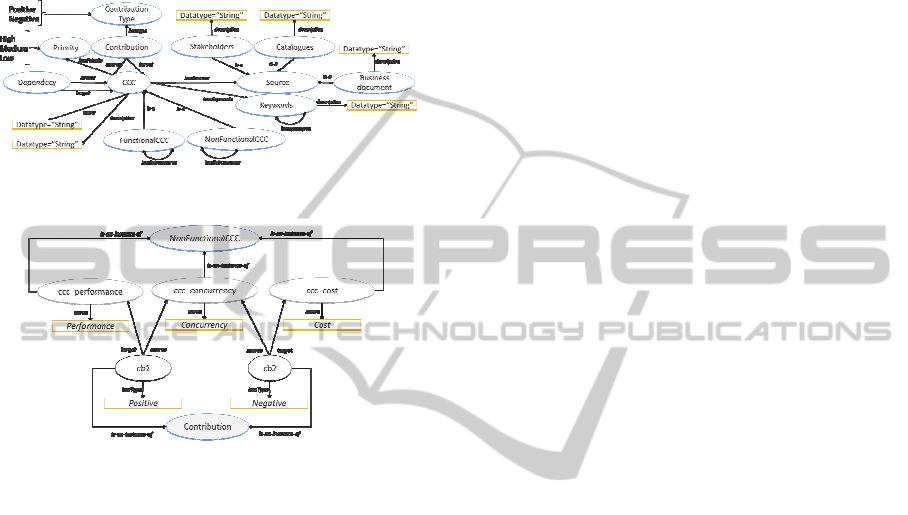

Figure 5: OntoCCC ontology.

Figure 6: Contributions between different CCC.

It is important because these keywords contain

knowledge about these concerns that can be reused

for concern identification in future projects.

The Keywords class was designed to store the

keywords (and its synonyms) commonly used to

identify a particular CCC. The hasSynonyms

property can be useful when the software engineer

wants to know how many distinct words (not

synonymous) are present in the requirements

document. We believe the more distinct keywords

about a CCC presented in a requirements document,

the stronger the indications of the presence of this

CCC in the software.

The idea of decomposing concerns into sub-

concerns, represented by the hasSubconcerns

property, is new one and was not found in the

analyzed studies. This property was considered

important, since a given concern may be too large

and complex that may complicate the reasoning of

the software engineer. Hence, by decreasing the

granularity of these concerns, treating them as sub-

concerns, it is possible to know what kinds of

concerns really are in the software and what are the

most appropriate strategies to modularize them.

The concept represented by the Source class

appears in some AORE approaches, such as

proposed by Agostinho et al., (2008), Moreira et al.,

(2005) and Whitlle and Araújo (2004). A source can

be: (i) a suggestion of a stakeholder, e.g. the project

manager – Stakeholder class; (ii) a catalog, for

instance, the catalog of non-functional requirements

proposed by Chung and Leite (2000) – Catalogues

class; or (iii) a business document, such as a security

protocol of a company, among others – Business

Document class. A CCC may be related to several

sources through the hasSources property. Each kind

of source has a description property that may store

more information on it.

The two main types of relationships between

CCC are defined by Dependency and Contribution

classes. Dependency class defines a dependency

relationship between two CCC: a source and a

target. This means if “A” (source) depends on “B”

(target) and “A” appears in the software

requirements document, then “B” need to be there

too. This type of information is important because:

(i) it allows the software engineer to explore other

CCC, before unrecognized by him/her, i.e., by

saying that “A” depends on “B”, he/she should also

look for keywords related to “B” concern in the

requirements document; and (ii) it allows the

software engineer to verify inconsistencies in the

requirements document, because, if a CCC “A”

depends on “B” and “B” is not described in the

software requirements and is not an implicit

concern, then the requirements document may be

inconsistent.

Another important concept about CCC is

represented by the Contribution class. It represents a

mutual influence between different CCC. This kind

of influence is reported in the catalog Chung and

Leite (2000), but only for non-functional

requirements. In AORE field, Moreira et al., (2005)

address this type of influence on their work. To do

this, the authors proposed a “contribution matrix”,

which is created by the software engineer, based on

his/her experience and on some catalogues of non-

functional requirements. In this matrix, it is possible

to visualize the kind of contributions (negative or

positive) between different CCC of the software.

However, the knowledge about the contribution

between several CCC is limited to the project under

analysis and there are no clearly defined

mechanisms to reuse it in later projects.

A contribution can be Negative or Positive as

defined by the ContributionType class and the

hasType property. For example, the “Information

Retrieval” and “Mobility” concerns are related as

OnTheme/Doc-AnOntology-basedApproachforCrosscuttingConcernIdentificationfromSoftwareRequirements

193

follows (Moreira et al., 2005): the higher the

mobility, the greater the difficulties of retrieving

information. This means that “Mobility” negatively

contributes to “Information Retrieval”. The inverse

contribution is also negative, since the more

complex is the information to be retrieved, the less

mobile the software can be, since some wireless

networks have limited bandwidth size.

Another example is the case of the

“Concurrency”, “Performance” and “Cost”

concerns. The implementation of concurrency

mechanisms in the software can positively

contribute to the software performance, but not to

the cost of the project.

The knowledge presented in both previous

examples can be represented in the OntoCCC

ontology by means of Contribution,

ContributionType and CCC classes and hasType,

source and target properties. Figure 6 presents an

instance of the OntoCCC ontology, in which the

contribution between “Concurrency”,

“Performance” and “Cost” concerns is presented.

Finally, each CCC has a hasPriority property

that relates a CCC to an instance of the Priority

class. The priority can be defined by stakeholders or

experts in CCC and may assume the following

values: “High”, “Medium” or “Low”. This

information is important when one specific CCC

“A” is negatively influenced by other two different

CCC “B” and “C”, or when one specific CCC “A”

exerts negative and positive influences on two

different CCC “B” and “C”; in these cases, the

software engineer must decide on what concern will

be addressed and he/she need to know what are the

impacts of his/her decision.

In the example of “Concurrency”, “Performance”

and “Cost” concerns, the software engineer will

have to decide between prioritizing cost or

performance; the Priority class and the hasPriority

property may provide more information for the

software engineer to make his/her decision. Priority

is a concept discussed in the work of Moreira et al.,

(2005), but it is used only in the conflict detection

and resolution activity – one of the last activities in

the AORE process. We believe that treating this

issue in the beginning of the AORE process is

important, because it can reduce the rework, as well

as the propagation of errors throughout this process.

Using the concepts and relationships of

OntoCCC ontology, commented above, it is possible

to store the existing knowledge about specific types

of CCC, creating instances of this ontology. Small

examples of OntoCCC instances for the

“Persistence”, “Connection”, “Transaction”,

“Logging”, “Concurrency”, “Performance” and

“Cost” concerns were described in Figure 2 and

Figure 6.

Instances of OntoCCC ontology can be created

from: (i) catalogues of crosscutting concerns; (ii)

other kind of catalogues, e.g., the catalogue of non-

functional requirements, such as those proposed by

Cysneiros (2014) and Chung and Leite (2000); (iii)

the knowledge of experts on AORE; or (iv)

historical data of previous projects, among others.

3.2 OnTheme/Doc

We believe that the knowledge represented by the

instances of the OntoCCC ontology may help the

software engineers to perform the concern

identification and classification activity in a more

effective way. Hence, it was proposed an extension

of Theme/Doc approach, called OnTheme/Doc.

The execution of OnTheme/Doc approach

follows the same flow of the Theme/Doc. However,

there are two new activities to be performed by the

software engineers (“Checking Dependencies” and

“Checking Contributions”), and the procedure for

key-actions identification was redefined.

“Identifying Key-actions”: the software engineer

should analyze each CCC defined in the OntoCCC

instance, searching for the keywords presented in

this instance in the requirements document.

“Checking Dependencies”: for each identified

CCC, the software engineer should verify the

relationships of it with other CCC, in order to detect

possible dependencies between them. If there are

dependencies between a CCC “A” with “B” e “C”,

the software engineer should also consider the

keywords of “B” and “C”. If there are no keywords

related to “B” and “C” in the requirements, they may

be implicit concerns and should be analyzed in the

“Checking Contributions” activity, or the

requirements document is inconsistent; and

“Checking Contributions”: after building an

action-view, the software engineer should analyze

the CCC ontology again looking for possible

contributions of a CCC over other ones. In this

activity, new CCC, before unidentified, may appear

due to the mutual influence between different CCC.

In addition, it may be necessary to resolve conflicts

between different CCC. For this, the value of the

priority property of each conflicting CCC must be

observed. If the conflict persists (for example, when

the priority levels of two CCC are the same),

meetings with stakeholders may be necessary.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

194

4 EXPERIMENTAL STUDY

The evaluation goal of this work is: “To analyze:

the OnTheme/Doc approach. In order to: evaluate.

With respect to: recall and precision provided by

this approach. From the point of view of: software

engineers. In the context of: a group of

undergraduates and graduate in Computer Science.”.

4.1 Planning

The planning of this experimental study was defined

according to the Wohlin’s proposal (Wohlin et al.,

2012) and involves the following steps: (i) context

selection; (ii) hypotheses formulation; (iii) variables

selection; (iv) participants selection; and (v) design

and execution of the experimental study.

a) Context Selection. This experimental study was

conducted with fourteen undergraduate and graduate

students in Computer Science from two Federal

Universities in Brazil.

An information system that aims to record

complaints in health area, called Health Watcher

(2014), was used in this study. It is a well-known

application in the AORE field and was chosen

because it has a suitable requirements document for

CCC identification. Its requirements document

presents several CCC, such as security, persistence,

concurrency, among others. In addition, all CCC of

this application have already been identified and

cataloged by experts (Health Watcher, 2014),

serving as an oracle to verify the answers given by

the participants of this experimental study.

b) Hypotheses Formulation. An important part of

an experimental study is to specify the metrics

that will be used. Based on these metrics, the

researcher may establish hypotheses and draw

conclusions from the results of the experiment.

In this work, three metrics were used, whose

formulas and description are presented in Table 2:

recall, precision and f-Measure (a harmonized

average of the recall and precision).

These metrics are commonly used for measuring

the effectiveness of products and processes in

several research areas, such as information retrieval,

natural language processing, among others. They

also are widely used at works on concern

identification and classification (Herrera et al., 2012;

Sampaio et al., 2007). In this work, the

interpretation of these metrics is very trivial, the

higher the value of recall, precision and f-Measure,

the better the effectiveness of the approach. Based

on these metrics, six hypotheses were developed for

this study, two related to the recall metric, two for

precision and two for f-Measure (Table 3).

Table 2: Metrics of the experimental study.

Metrics

Recall (Re) Precision (Pr) f-Measure (fM)

100Re 















CIC

100Pr 















TIC

CIC



















PrRe

*2fM

Description

CIC (Correctly Identified Concerns): amount of correctly

identified concerns, i.e., without the false positives.

Re (Recall): percentage of correctly identified concerns,

regarding to the amount of existing concerns.

EC (Existing Concerns): amount of existing concerns.

TIC (Total of Identified Concerns): amount of identified

concern, i.e., including the false positives.

Pr (Precision): percentage of correctly identified concerns,

regarding to the amount of identified concerns.

fM (f-Measure): a

harmonized average of the recall and

precision values.

c) Variables and Participants Selection.

Independent variables are those manipulated and

controlled during the experimental study. In this

study, the independent variable is related to the

approaches for concern identification and

classification. The dependent variables are those

under evaluation and whose variations must be

observed. In this experiment the recall, precision

and f-Measure metrics are considered as

dependent variables. The participants of this

study were selected through non-probability for

convenience sampling.

d) Design and Execution of the Experimental

Study. The distribution of the participants was

performed aiming to form two homogeneous

groups, with regard to the participants’

experience and the amount of available

participants in each group. Each group had seven

participants and the participants’ experience was

verified by the application of a profile

characterization questionnaire. It takes into

account the knowledge of the participants about

AORE and Theme/Doc approach. In addition, the

experimental study was planned in phases

(training and execution) to minimize the effect of

participants’ knowledge of the dependent

variables.

Before starting the execution of the experimental

study, a training was conducted, in order to

homogenize the knowledge of participants on AORE

and Theme/Doc and OnTheme/Doc approaches.

During the training, it was not informed to the

participants what approach was developed by the

authors of this paper.

OnTheme/Doc-AnOntology-basedApproachforCrosscuttingConcernIdentificationfromSoftwareRequirements

195

Table 3: Hypotheses of the experimental study.

Hypotheses for Recall Hypotheses for Precision Hypotheses for f-Measure

0Re

: there is no difference of using

OnTheme/Doc or Theme/Doc, regarding

to the recall. H

0Re

: Re

OnThD

= Re

ThD

0Pr

: there is no difference of using

OnTheme/Doc or Theme/Doc, regarding to

the precision. H

0Pr

: Pr

OnThD

= Pr

ThD

0fM

: there is no difference of using

OnTheme/Doc or Theme/Doc, regarding to

the f-Measure metric. H

0fM

: fM

OnThD

ThD

1Re

: there is difference of using

OnTheme/Doc or Theme/Doc, regarding

to the recall. H

1Re

: Re

OnThD

≠ Re

ThD

1Pr

: there is difference of using

OnTheme/Doc or Theme/Doc, regarding to

the precision. H

1Pr

: Pr

OnThD

≠ Pr

ThD

1fM

: there is difference of using

OnTheme/Doc or Theme/Doc, regarding to

the f-Measure metric. H

1fM

: fM

OnThD

≠

ThD

OnThD

, where X is a metric, means: the value of X obtained by a specific participant using the OnTheme/Doc approach.

ThD

, where X is a metric, means: the value of X obtained by a specific participant using the Theme/Doc approach.

In the execution phase, the participants had to

identify the CCC existing in the requirements

document of the Health Watcher application. To do

this, the Group 1 used the Theme/Doc approach and

the Group 2, the OnTheme/Doc. The part of the

requirements document analyzed by the participants

had seven types of non-functional CCC: “Security”,

“Concurrency”, “Usability”, “Performance”,

“Distribution”, “Availability” and “Persistence”.

“Distribution” and “Competition” were implicit

concerns, i.e., there were not keywords in the

requirements document with regard to them.To

calculate the values of the recall, precision and f-

Measure metrics, it was considered the amount of

CCC identified by each participant, individually.

The participants of the Group 2 also received an

instance of the OntoCCC ontology, created by the

authors of this paper, from the catalogs of Moreira et

al., (2005), Chung and Leite (2000) and Cysneiros

(2014). This instance was omitted of this paper due

to the limitation of space, but can be found at

https://db.tt/Wqx2xWh3.

4.2 Results

Table 4 presents the results of this experimental

study. The first (lines 1-10) and the second (lines 11-

20) parts of this table, respectively, present the

results for the Theme/Doc and OnTheme/Doc

approaches. The first column presents the codes that

identify each participant; the second, third and

fourth columns refer to the values of recall, precision

and f-Measure; the last column of this table shows

the time (in minutes) that each participant took to

finalize the CCC identification.

The values for the recall, precision and f-

Measure metrics emphasize a statement made by

Sampaio et al. (2007) in their experimental study on

AORE approaches: “Generally the AORE

approaches do have good precision (…). However,

the majority of these approaches do have limitations

when considering recall”. This means that there is

little incidence of false positives, but the amount of

correctly identified concerns is low. The precision

values of both groups were higher than the recall

values.

Table 4: Experimental results.

Approach Theme/Doc

Participant Re (%) Pr (%) fM (%)

Time

(min)

P1 42,85 80,00 55,80 43

P2 42,85 100,00 59,99 48

P3 42,85 100,00 59,99 49

P4 28,57 80,00 41,48 48

P5 57,14 80,00 66,66 36

P6 42,85 100,00 59,99 31

P7 28,57 100,00 44,44 34

Average 40,81 91,42 55,48 41

Approach: OnTheme/Doc

Participant Re Pr fM

Time

(min)

P8 71,42 80,00 75,47 62

P9 85,71 100,00 92,30 39

P10 85,71 100,00 92,30 54

P11 71,42 100,00 83,32 37

P12 57,14 80,00 66,66 43

P13 71,42 80,00 75,47 42

P14 71,42 100,00 83,32 42

Average 73,46 91,42 81,26 45

Taking into account the values for recall,

participants who used the OnTheme/Doc approach

had, on average, more promising results than those

who used the Theme/Doc.

Table 5: Concerns identified by each participant.

Participants

Theme/Doc

Participants

OnTheme/Doc

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1 X X 28 X X X X X 57

2 X X X X X X X 100 X X X X X X X 100

3 X 14 X X X X X 71

4 X X X X 57 X X X X X X 85

5 X X X 43 X X X X X 71

6 X X X 43 X X X X X 71

7 0 X X X 43

Average 41 Average 71

Legend: (1) Persistence; (2) Security; (3) Concurrency; (4) Usability; (5)

Performance; (6) Availability; (7) Distribution

To improve the discussion about the recall

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

196

values, Table 5 presents: (i) the list of CCC of the

Health Watcher application - first column; (ii) the

CCC identified by each participant who used the

Theme/Doc approach - from second to eighth

columns; (iii) the percentage of participants who

identified each CCC - ninth column; and (iv) the

same information previously described to the

OnTheme/Doc approach – from tenth to the

eighteenth columns.

Based on this table, it is possible to note that

only one of the participants who used the

Theme/Doc approach was able to identify the

“Concurrency” concern and none of them has

identified the “Distribution” concern;

“Concurrency” and “Distribution” were implicit

concerns. Regarding to the participants who used

OnTheme/Doc approach, just one participant did not

identify the two implicit concerns. For all concerns,

the percentage of participants who identified them is

always greater for OnTheme/Doc approach than for

the Theme/Doc. Consequently, on average, the

percentage of participants who identified any

concern using OnTheme/Doc approach (71%) is

higher than that one who used Theme/Doc (41%).

Finally, it is important to note that even using

ontologies, the percentage of participants who

identified the “Distribution” concern is not

satisfactory (43%). This indicates that the strategy

used to represent the mutual influence between

different concerns must be reviewed.

Based on Table 4 again, it is possible to note that

there is no difference between the two approaches

with regard to the precision. This means that there

was not a high incidence of false positives during the

CCC identification for both approaches.

Regarding to f-Measure metric (Table 4), the

average value obtained by the participants who used

OnTheme/Doc was higher than that one obtained to

the Theme/Doc approach. This occurs, because the

precision provided by the two approaches is similar

and the recall provided by OnTheme/Doc approach

is higher than that one provided by Theme/Doc.

Table 4 still presents that the average time for

execution of OnTheme/Doc (45 min) was higher

than that one provided by Theme/Doc approach (41

min). This is due to the participants who used the

OnTheme/Doc approach had another artefact to

analyzed, i.e., the instance of the OntoCCC

ontology, as well as two new activities to be

performed: “Checking Dependencies” and

“Checking Contributions”. However, we noted that

the difference (4 minutes) is not significant.

Although the participants who used the

OnTheme/Doc approach had to perform additional

tasks, the usage of the ontology and the proposed

process may have led the participants to perform the

concern identification activity in a more focused

way. This may have minimized the impact on the

time of execution of the OnTheme/Doc approach.

4.3 Hypothesis Tests

Although the values presented in Section 4.2

indicate that the usage of OnTheme/Doc approach

provides good recall and f-Measure values with

regard to CCC identification, it is necessary to

perform statistical analyses by means of hypothesis

tests, in order to ensure the reliability to the

statements expressed in this paper. The hypotheses

related to the precision metric was not tested, since

the two analyzed samples did not show differences

with regard to the values of this metric.

The purpose of a hypothesis test is to verify if the

null hypothesis (H

) may be rejected, with some

significance level; when H

is rejected, the

alternative hypothesis H

may be accepted. Before

applying a hypothesis test, it is necessary to know in

what type of probability distribution the data

collected in the study is organized. This occurs

because many hypothesis tests, such as the t-test

(Montgomery, 2000), have as a prerequisite the need

that data be normally distributed.

To verify if the data is normally distributed, we

have applied a test known as Shapiro-Wilk test

(Montgomery, 2000) and the values for recall, f-

Measure and time metrics were considered

normalized with a significance level of 99.9%.

To verify the hypotheses defined in Table 3, the

t-test was applied. Comparing the average values for

recall provided by the approaches Theme/Doc

(average = 40.81) and OnTheme/Doc (average =

73.46), the H

0Re

null hypothesis can be rejected with

significance level of 99.9% (p-value = 0.0004). This

means that, with 99.9% of confidence, we can say

that the recall provided by OnTheme/Doc approach

is higher than that one provided by Theme/Doc.

Similarly, comparing the average values of f-

Measure metric of both approaches - Theme/Doc

(average = 55.48) and OnTheme/Doc (average =

81.26) - the null hypothesis H

0fM

can be rejected

with significance level of 99.9% (p = 0.0002).

Regarding to the average time spent by the

participants to perform the activities in the

Theme/Doc (average = 41 min) and in the

OnTheme/Doc (average = 45 min), it was not

possible to obtain statistical evidences, with

significance level equal or higher than 95%, to say

that these values are different.

OnTheme/Doc-AnOntology-basedApproachforCrosscuttingConcernIdentificationfromSoftwareRequirements

197

In summary, hypothesis tests have revealed that

there are significant differences between the values

for recall and f-Measure metrics measured for the

two approaches in analysis, and the OnTheme/Doc

approach presented better results. However, it is not

possible to say that there are significant differences

between the values for precision provided by both

approaches, as well as for the time required to

perform their activities.

4.4 Threats to Validity

Wohlin et al., (2012) state that an experimental

study may face situations that threaten the validity of

its results. The main threats addressed in this study

are:

1) Conclusion Validity. This kind of threat refers

to issues that affect the ability to draw correct

conclusions about the experimental results. An

example of this kind of threat is the choice of

appropriate statistical methods for data analysis.

In the case of this study, one of the statistical

tests used was the t-test, which requires normally

distributed data. To verify the normality of the

data and minimize this threat, the Shapiro-Wilk

test was applied and the result was positive for

the samples.

2) Internal Validity. It refers to issues that may

affect the ability to ensure that the results were,

in fact, obtained from the treatments (i.e. the

AORE approaches: OnTheme/Doc and

Theme/Doc) and not by coincidence. A threat of

this kind can be related to the strategy used to

select and group the participants of the

experimental study. To mitigate this threat, we

did not demonstrate expectations for any

approach during the training phase. In addition,

the participants were grouped according to their

levels of experience.

3) External Validity. This kind of threat refers to

issues that affect the ability to generalize the

results of an experiment to a wider context. In

this case, the relevant factors that could have

influenced the results of this study are: (i) the

application used in the study, i.e., Health

Watcher; (ii) the quality of the resources (the

CCC ontology and the requirements document)

presented to the participants; (iii) the amount of

participants of the study; and (iv) the use of

undergraduate and graduate students in

Computer Science. In order to mitigate these

potential threats, we intend to replicate this

experiment with other groups of participants and

different applications.

5 RELATED WORK

Several AORE approaches have been proposed in

last years; among them, many approaches address

the concern identification and classification activity.

In a systematic mapping (SM), conducted by the

authors of this work (Parreira Júnior and Penteado,

2014), it was noted that until 2013, there were thirty-

eight different AORE approaches and twenty-two of

them were related to this activity. Among these, ten

provided resources to support software engineers

during this activity (Agostinho et al., 2008; Sampaio

et al., 2005; Chitchyan et al., 2006; Zheng et al.,

2010; Liu et al., 2009; Soeiro et al., 2006; Moreira et

al., 2005; Chernak, 2012; Whitlle and Araújo, 2004;

Alencar et al., 2010; Brito and Moreira, 2003;

Mussbacher et al., 2010).

These approaches aimed to support the software

engineer during the concern identification and

classification through guidelines, such as catalogues

of Non-Functional Requirements (NFR) (Chung and

Leite, 2000; Cysneiros, 2014) or catalogues of CCC

that were extensions of NFR catalogs (Moreira et al.,

2005). Some problems with regard to the usage of

these catalogs are (López et al., 2008): (i) they are

complex to be read and understood by humans; and

(ii) they are not prepared for automated semantic

processing. In addition, most of these approaches

does not present a process that helps the software

engineer on how to use the guidelines.

Another problem that was noted from the

systematic mapping is that only five of these ten

AORE approaches (Sampaio et al., 2005; Soeiro et

al., 2006; Moreira et al., 2005; Chernak, 2012; Brito

and Moreira, 2003) were evaluated with some kind

of experimental study. Hence, there is no way of

knowing on the effectiveness of these approaches.

In another recent SM conducted by the authors of

this study, it was found that several ontology-based

approaches have been proposed for the requirements

engineering field, however, none of them is specific

to the context of AORE. Maybe, one of the closest

works, related to this paper, is that one proposed by

López et al., (2008). In this work, the authors

presented an ontology for sharing and reusing NFR

and design decisions. The proposed ontology aims to

store the knowledge related to the NFR and design

decisions, based on the description of NFR

catalogues. The researcher can create instances,

from this ontology, that address the NFR and design

decisions of interest.

The proposal of López et al., (2008) differs from

that one proposed in this paper as following: (i) their

work is not related to the AORE field, therefore, it

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

198

does not address specific features of CCC, such as

the classification of a CCC as non-functional or

functional one, the relationships between CCC and

keywords, the decomposition of concerns into sub-

concerns, among others; (ii) their work does not

present a process or a set of guidelines that helps the

software engineer on how to use the proposed

ontology; and (iii) the work does not present any

kind of an experimental study on the proposal.

6 FINAL REMARKS

Based on the problems reported in recent work

(Herrera et al., 2012; Sampaio et al., 2007), and

already mentioned in this paper, it is possible to note

that the concern identification and classification

activity from requirements documents is a relevant

and challenging research subject yet.

This paper presented an extension of a well-

known AORE approach (Theme/Doc), called

OnTheme/Doc; the aim of this extension is to

improve the values for recall and precision with

regard to the concern identification and

classification. The main innovation of

OnTheme/Doc approach is the usage of ontologies

(OntoCCC) to support the users during the CCC

identification. An experimental study conducted on

OnTheme/Doc showed that the usage of ontologies

may improve the values for recall, without

negatively impact on the execution time and

precision of the approach.

As future work proposals, we intend to: (i)

OntoCCC ontology; (ii) create a computational tool

for concern identification, based on instances of the

OntoCCC ontology; and (iii) extend the OntoCCC

ontology to include the concepts and relationship of

base concerns (non-crosscutting concerns).

REFERENCES

Agostinho, S. et al. A Metadata-driven approach for

aspectoriented requirements analysis. In: 10th Int.

Conf. on Enterprise Inform. Syst. Barcelona, Spain, p.

129-136, 2008.

Alencar, F. et al. Towards modular i* models. In: ACM

Symposium on Applied Computing, p. 292-297, 2010.

Ali, B. S.; Kasirun, Z. M. D. An approach for crosscutting

concern identification at requirements level using

NLP. Int. Journal of Physical Sciences, v. 6(11), p.

2718-2730, 2011.

Araújo, J.; Whittle, J.; Kim, D. K. Modeling and

composing scenario-based requirements with aspects.

In: Requirements Engineering Conference.

Washington, USA, 2004.

Baniassad, E.; Clarke, S. Theme: An approach for aspect-

oriented analysis and design. 26th Int. Conf. on Soft.

Eng. USA, 2004.

Brito, I.; Moreira A. Towards a Composition Process for

Aspect-Oriented Requirements. EA Workshop. Boston,

USA, 2003.

Chernak, Y. Requirements Composition Table Explained.

In: 20th IEEE Int. Requirements Engineering

Conference. Chicago, Illinois, USA, pp. 273-278,

2012.

Chitchyan, R.; Sampaio, A.; Rashid, A.; Rayson, P. A tool

suite for aspect-oriented requirements engineering. In:

Int. Workshop on Early Aspects at ICSE. p. 19-26,

2006.

Chitchyan, R. et al. Report synthesizing state-of-the-art in

aspect-oriented requirements engineering,

architectures and design. Technical Report. Lancaster

University. 259 p., 2005.

Chung, L.; Leite, J. S. P. Non-Functional Requirements in

Software Engineering: Springer, 441 p., 2000.

Clarke, S.; Baniassad, E. Aspect-Oriented Analysis and

Design: The Theme Approach. Addison-Wesley, 2005.

Cysneiros, L. M. Catalogues on Non-Functional

Requirements. Available at: http://www.math.yorku.

ca/~cysneiro/nfrs/nfrs.htm. Last access: Nov. 2014.

Dijkstra, E. W. A Discipline of Programming. Pearson

Prentice Hall, 217 p., 1976.

Falbo, R. A. et al. Um Processo de Engenharia de

Requisitos Baseado em Reutilização de Ontologias e

Padrões de Análise. In: Jornada Iberoamericana de

Eng. del Soft. e Engeniería del Conocimiento, Lima,

Perú, 2007 (in Portuguese).

Fensel, D. Ontologies: silver bullet for knowledge

management and electronic commerce. Springer-

Verlag. 138 p., 2001.

Gruber, T. R. Towards Principles for the Design of

Ontologies used for Knowledge Sharing. In: Int.

Journal of Human-Computer Studies, v. 43(5-6), p.

907-928, 1995.

Grundy, J. Aspect-Oriented Requirements Engineering for

Component-based Software Systems. In: 4th IEEE Int.

Symp. on Requirements Eng. Limerick, Ireland, p. 84-

91, 1999.

Guarino, N. Formal Ontology in Information System. In:

First Int. Conf. on Formal Ontology in Inf. Sys. Italy,

p.3-15, 1998.

Health Watcher. Available at: http://www.cin.ufpe.br/

~scbs/testbed/requirements/aore/. Last access: Nov.

2014.

Hernandes, E. C. M. Um processo automatizado para

tratamento de dados e conceituação de ontologias com

o apoio de visualização. Master dissert. UFSCar, 2009

(in Portuguese).

Herrera, J. et al. Revealing CCC in Textual Requirements

Documents: An Exploratory Study with Industry

Systems. In: Braz. Sym. on Soft. Eng. Natal, BR, 2012.

Horrige, M. et al. A Practical Guide to Building OWL

Ontologies Using Protégé 4 and CO-ODE Tools.

OnTheme/Doc-AnOntology-basedApproachforCrosscuttingConcernIdentificationfromSoftwareRequirements

199

Tutorial. Univ. of Manchester, 2011.

Kit, L.K.; Man, C.K.; Baniassad, E. Isolating and relating

concerns in requirements using latent semantic

analysis. In: ACM SIGPLAN Notices, v. 41(10), p.

383-396, 2006.

Lima, J. C.; Carvalho, C. L. Ontologias - OWL. Tech.

Report. Federal Univ. of Goiás, Brazil. 2005.

Liu, X.; Liu, S.; Zheng, X. Adapting the NFR framework

to aspectual use-case driven approach. In: Int. Conf.

on Soft. Eng. Research, Manag. and Applic. Hainan

Isl., China, 2009.

López, C., Cysneiros, L. M., and Astudillo, H. NDR

Ontology: Sharing and Reusing NFR and Design

Rationale Knowledge. In: Int. Work. on Managing

Req. Knowl. USA, p. 1-10, 2008.

Montgomery, D. C. Design and Analysis of Experiments,

5ª ed., Wiley, 2000.

Moreira, A.; Rashid, A.; Araújo, J. Multi-dimensional

Separation of Concerns in Requirements Engineering.

In: 13th Int. Conf. on Req. Eng. Paris, France, p. 285-

296, 2005.

Mussbacher, G.; Amyot, D.; Araújo, J.; Moreira, A.

Requirements modeling with the aspect-oriented user

requirements notation (AoURN): A case study. In:

Transactions on Aspect-Oriented Software

Development. Springer-Verlag, Berlin, Heidelberg, p.

23-68, 2010.

Parreira Júnior, P. A.; Penteado, R. A. D. Aspect-Oriented

Requirements Engineering: A Systematic Mapping.

In: XVI International Conference on Enterprise

Information Systems, 2014, Lisboa/Portugal, 2014.

Penim, A.S.; Araújo, J. Identifying and modeling

aspectual scenarios with theme and MATA. In: ACM

Symposium on Applied Computing. Switzerland, p.

287-291, 2010.

Rashid, A.; Moreira, A.; Araújo, J. Modularisation and

composition of aspectual requirements. In: 2nd Int.

Conf. on Aspect-Oriented Soft. Development. New

York, USA, 2003.

Sampaio, A.; Greenwood P.; Garcia, A. F.; Rashid, A. A

Comparative Study of Aspect-Oriented Requirements

Engineering Approaches. In: Int. Symp. on Empirical

Soft. Eng. and Measurement. Madrid, Spain, p. 166-

175, 2007.

Sampaio, A.; Chitchyan, R.; Rashid, A.; Rayson, P. EA-

Miner: a Tool for Automating Aspect-Oriented

Requirements Identification. In: Int. Conf. Automated

Soft. Eng. California, USA, p. 353-355, 2005.

Soeiro E.; Brito, I. S; Moreira, A. An XML-Based

Language for Specification and Composition of

Aspectual Concerns. In: 8th Int. Conf. on Enterprise

Inf. Sys. Paphos, Cyprus, 2006.

Whittle J.; Araújo, J. Scenario Modeling with Aspects. In:

IEEE Software, v. 151(4), p. 157-172, 2004.

Wohlin, C. et al. Experimentation in Software

Engineering: an introduction. Springer. 249 p, 2012.

Zheng, X.; Liu, X.; Liu, S. Use case and non-functional

scenario template-based approach to identify aspects.

Int. Conf. on Comp. Eng. and Applications.

Indonesia, p. 89-93, 2010.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

200
