Unveiling the Architecture and Design of Android Applications

An Exploratory Study

Edmilson Campos

1,2

, Uirá Kulesza

, Roberta Coelho

, Rodrigo Bonifácio

and Lucas Mariano

1,2

Department of Informatics and Applied Mathematics, Federal University of Rio Grande do Norte, Natal-RN, Brazil

Federal Institute of Education, Science and Technology of Rio Grande do Norte, Natal-RN, Brazil

Computer Science Department, University of Brasilia, Brasilia, Brazil

Keywords: Mobile Applications, Android’s Applications and Design Pattern.

Abstract: This work presents an exploratory study whose goal was to investigate the architectural characteristics of

Android’s applications. We selected twelve popular and open-source applications available on the official

Android’s store for analysing. Then, we applied techniques of the reverse engineering to each target

application in order to investigate three main aspects: (i) architecture of each application; use of the (ii) design

patterns; and (iii) expecting handling policies. Support tools were used in order to identify dependencies

between architectural components implemented in each target application, and to graphically present those

dependencies. Then, based on this analysing, we present a qualitative analysis carried out on the extracted

architectures. One of the outcomes consistently detected during this study was an overview of the main

architectural choices that have been adopted by Android developers, resulting on formulation of a preliminary

conceptual architecture for Android applications.

1 INTRODUCTION

Over the past few years, there was a rapid growth in

the usage and demand of mobile applications

development. According to recent data survey from

the Worldwide Quarterly Mobile Phone Tracker

(IDC, 2014) more than 1 billion smartphones were

sold worldwide in 2013 (Caputo, 2014). The survey

also showed that 78.6% of such devices used the

Android as operating system, which represents 793.6

million units sold in that year, an increase of 58.7%

compared to sales of the same system in 2012.

In a similar rate, there is an increasing demand for

mobile applications (usually called as apps) to

address the needs of such new users. The number of

applications available for download only on Google

Play Store – the Android official store – has grown to

over 1 million applications in the first semester of

2014 (Caputo, 2014). However, despite the growing

number of applications developed daily, there is a

lack of studies about the architecture and design

strategies adopted on such mobile applications.

Recent research works (Ruiz et al., 2012; Mojica et

al., 2013; Linares-Vásquez et al., 2014; Linares-

Vásquez et al., 2013; Bavota et al., 2014) focused on

implementation characteristics of such applications.

For instance, Ruiz et al., (2012) and Mojica et al.,

(2013) analysed the degree of code reuse in such

applications; Linares-Vásquez et al., (2014) studied

the source code idioms associated with the energy

consumption of such applications; and other research

works (Linares-Vásquez et al., 2013; Bavota et al.,

2014) reported studies analysing the fault and change-

proneness of APIs used by Android applications.

However, the existing research works do not explored

how Android mobile applications have been designed

and whether it is possible to derive architecture styles

or guidelines that can be reused for other applications

form the same domain.

In this context, this paper presents an exploratory

study that investigates how Android applications

have been designed and implemented, and in

particular, we investigate the decisions related to the

implementation of the exception handling concern.

Our study analyses twelve open-source applications

(each of which contains on average 1/2 million

downloads in the Play Store) from different

categories. To identify which architectural and design

patterns have been adopted in the target applications

and how the exception handling concern have been

implemented, we carried out a static analysis of the

applications’ source code using both JDepend (Clark,

201

Campos E., Kulesza U., Coelho R., Bonifácio R. and Mariano L..

Unveiling the Architecture and Design of Android Applications - An Exploratory Study.

DOI: 10.5220/0005398902010211

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 201-211

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2012) and Graphviz (Ellson et al., 2002) tools.

The remainder of this paper is organized as

follows. Section 2 explains the study settings. Section

3 presents the results of the exploratory study

realized, and Section 4 summarizes them. Section 5

discuss existing related research work. Finally,

Section 6 presents the conclusions and possible future

works.

2 STUDY DESIGN

This section details the methodology used in the

exploratory study. Our study involved the analysis of

open-source applications developed for the Android

platform, for analysing architectural and design

patterns that have been adopted by their developers.

2.1 Study Aim and Research Questions

This exploratory study aims at analysing open-source

Android applications (hereafter target systems) to

identify the architectural patterns and solutions,

which have been adopted by developers. In particular,

the exploratory study was developed in order to

answer the following research questions (RQs):

RQ1. Which architectural patterns have been

adopted in the Android applications, and how

they have implemented the components of

their architecture?

RQ2. Which design patterns have been adopted and

implemented in the Android applications?

RQ3. How is the exception handling concern

implemented in the Android applications?

2.2 Selection of the Applications

One of the requirements for the selection of the target

systems for our study is that they must be available

on an open source repository. The selection of such

applications has been performed manually by random

sampling of the major applications available at the

official Android store which were also: (i) available

as an open source project, (ii) a popular application,

with a minimum of 1/2 million of downloads at the

official store application; and/or (iii) had professional

character, or as official applications developed

enterprise solutions.

Table 1 presents the selected applications for this

study, showing their names, corresponding

categories, and the number of installations of each

one. All data were extracted directly from the official

store of the Android platform.

Table 1: Analysed applications.

# Category App N. Downloads

Books and

references

Wikipedia 10 ~ 50 MM

02 iFixit 0,5 ~ 1 MM

03 FBReader 10 ~ 50 MM

Communicati

Firefox 50 ~ 100 MM

05 ZapZap 1 ~5 MM

06 ConnectBot 1 ~ 5 MM

Game

Frozen Bubble 1 ~ 5 MM

08 OpenSudoku 1 ~ 5 MM

09 Freeciv 0,1 ~ 0,5 MM

General

Wordpress 1 ~ 5 MM

11 c:geo 1 ~ 5 MM

12 My Tracks 10 ~ 50 MM

2.3 Analysis Procedures

In order to answer our research questions, we have

conducted an architecture reconstruction of the

selected applications using the JDepend (Clark, 2012)

and Graphviz (Ellson et al., 2002) tools. JDepend was

used to identify dependencies between architectural

components implemented in each selected

application, while Graphviz was used to show

graphically those dependencies. After that, we have

read and investigated the source code of the

applications to study how specific components,

design patterns, and the exception handling policies

have been implemented.

The analysis of architecture, design and code of

the Android applications were guided by the

systematic identification of specific issues, which are

listed below:

(i) Architecture of Applications (RQ1):

 Identification and analysis of the architecture

style (MVC, Layers, etc.) adopted by

application;

 Identification and analysis of how the main

architecture components interact and are

implemented.

(ii) Design Patterns (RQ2):

 Identify and analysis of the official solution or

specific to Android platform;

 Identify and analysis of which (and with what

purpose) design patterns are implemented.

(iii) Exception Handling (RQ3):

 Identify which one policy exception handling

has been adopted by such applications.

3 MAIN STUDY RESULTS

This section presents and discusses the main results

of the study. They are presented according to the

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

202

criteria of analysis adopted in our study.

3.1 Architecture of the Android

Applications (RQ1)

This section details the obtained results during the

analysis of the architecture of Android mobile

applications.

3.1.1 Adoption of the MVC in Android

The Model-View-Controller (MVC) (Gamma et al.,

1994) pattern organises a given software application

into three interconnected parts that separate internal

representations of information (model) from the ways

that information is presented to (view) or accepted

(controller) from the user. MVC is one of most

popular software architectural pattern. Nevertheless,

although Android applications do not need

necessarily be based on the MVC, in our study we

observed that most of the selected applications adopt

the MVC pattern by structuring their architecture

using the pattern components. We also analysed

existing dependencies between the MVC components

from the reverse engineering accomplished using the

JDepend (Clark, 2012) and Graphviz (Ellson et al.,

2002) tools. During this analysis, we identified that

most of existing applications follow the MVC pattern,

but we also found some architectural violations to the

pattern. Next we present and discuss such results.

a) Adoption of the MVC Pattern

Table 2: Implementation of the MVC Components.

App

MVC Components

Model View Controller

Entity Service Data XML Java Activity Fragment

#01 -- -- -- -- -- -- --

#02 X X -- X X X X

#03 X X X X X X X

#04 X X X X X X X

#05 X X X X X X X

#06 -- X -- X X X --

#07 X X -- X -- X --

#08 -- -- X X -- X --

#09 -- -- -- X -- X --

#10 X -- X X X X X

#11 X -- X X -- X X

#12 X X X X -- X X

Table 2 shows that the MVC pattern was adopted

by most of the investigated applications, although we

found some variations in the way that the pattern

components were implemented. Since XML files are

used to implement the graphical user interface in

Android applications, most of the applications tend to

have at least the view component clearly defined and

separated from the controller classes. In our study, we

only found some Android applications, where the

model and controller components were not clearly

modularized.

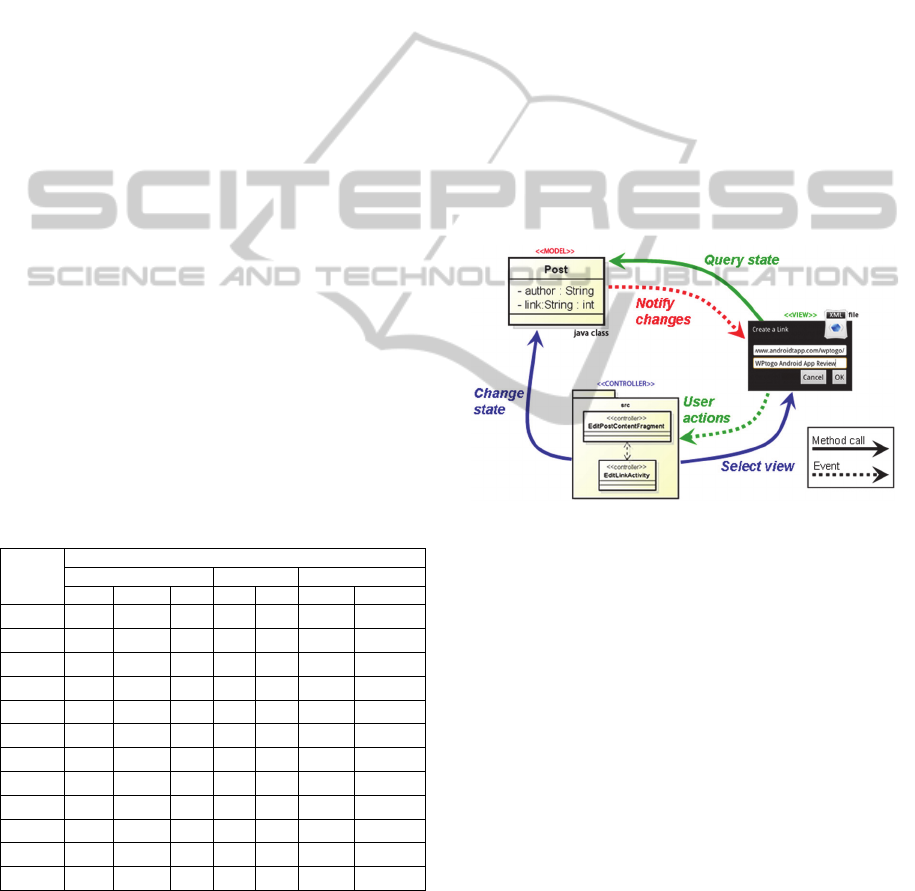

Figure 1 presents an overview of the WordPress

(#10) architecture, which illustrates a full adoption of

the MVC pattern. It shows an XML file responsible

for creating a link in a post that implements the view

component. The visual elements (i.e. listings and

buttons) of this XML file are captured by a controller

class (EditLinkActivity). This class calls another

controller class (EditPostContentFragment),

which interacts with the model (Post class). Finally,

this model class notifies changes for the view,

communicating with the Java view class that

customizes the XML file. Next we discuss how each

MVC component has been implemented for the

investigated applications.

Figure 1: MVC structure of the WordPress app.

Model Implementation. In our study, we found that

the Model component was implemented using one or

more of the following modules - Entity, Service and

Data. The Entity module is responsible to implement

the domain classes. The Service contributes to expose

the services provided by the model component.

Finally, the Data classes provides implementation for

data storage of the domain classes. As we can see in

Table 2, most of applications have implemented the

Entity or the Service modules. The only exception is

the OpenSudoku (#08), which implemented only the

data classes in the model component.

View Implementation. In the Android applications,

the view component is usually implemented by XML

files. These view components contain Android API

default visual elements (e.g. button, listview, etc.) that

are accessed by Java controller classes, which are

responsible for manipulating model classes and

updating the XML views. This XML implementation

was adopted by almost all application (see Table 2),

UnveilingtheArchitectureandDesignofAndroidApplications-AnExploratoryStudy

203

except the Wikipedia (#01), that not adopted MVC

pattern (see topic about non-adoption). Developers

can also customize their own visual elements creating

custom views (Java classes that extend the View

class), which can be more robust and reusable. Tabl

shows, for example, that the Firefox (#04), ZapZap

(#05), and other four applications customized Java

classes that inherits from the View class, in order to

support the creation of their own view components.

On the other hand, WordPress (#10) mainly used this

alternative of customized view implementation view,

with almost no XML based codification.

Controller Implementation. Finally, the Controller

component presents the more uniform

implementation among others. It is developed using

activities and/or fragments classes from the Android

platform. All investigated applications (see Table 2)

implemented activities classes, while fragments

classes were only implemented by application that

adopted the Multi-Panel Layout pattern (see section

about Android specific pattern). Both activities and

fragment classes access elements of the XML files to

provide data to the graphical user interface with

which users can interact when running the

application. Because XML element (View) cannot

directly access classes of the model component, it is

need to find a new way to recover/transfer data

between the view and the model components. Thus,

the controller classes are as bridge between these

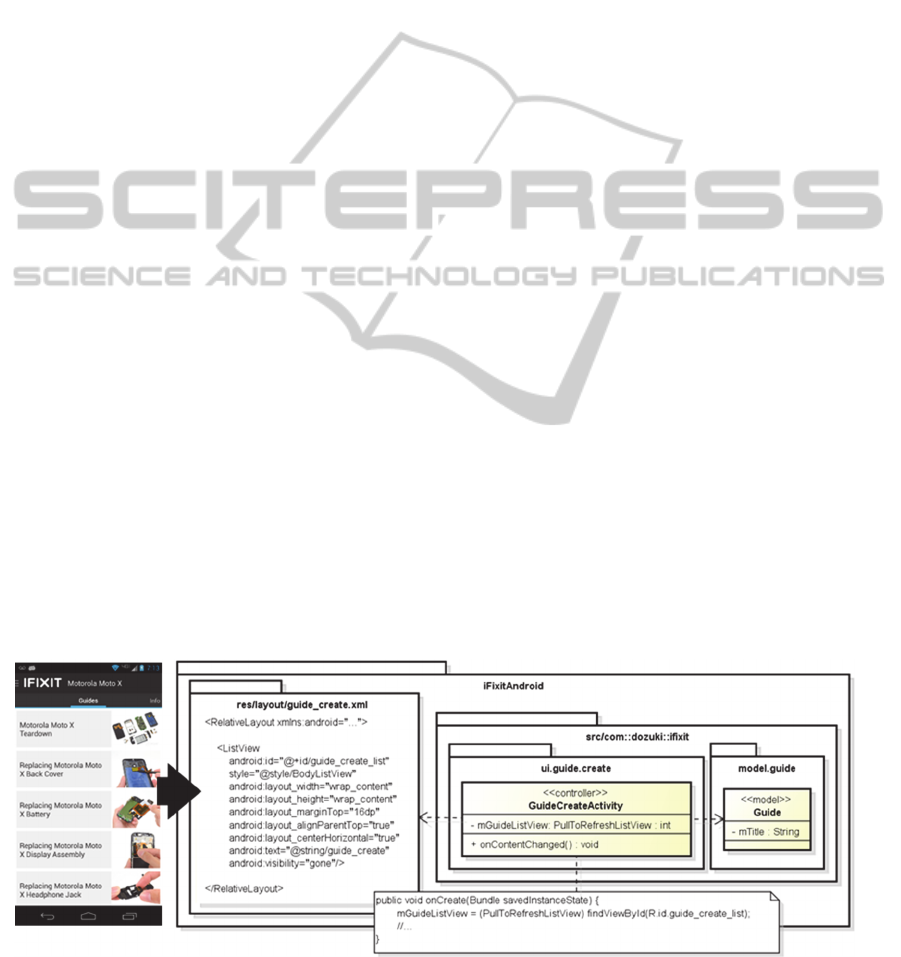

components. Figure 2 shows a code fragment of iFixit

(#02) architecture that exemplifies how this

communication occurs. It shows the structure of file

“guide_create.xml” with its visual elements. In the

example, the

GuideCreateActivity

controller class

accesses a listview element of the interface passing its

id, by class

, for method

findViewById()

. In Android,

the data provided in the visual elements (buttons,

textfields, etc.) specified in the XML files of the view

component can be recovered through the activity and

fragment classes of the controller component using

the class

(resource). For example, Figure 2 shows

also the

GuideCreateActivity

controller class

accessing the

Guide

model class to recover/transfer

data for the view component.

b) Non-adoption of the MVC Pattern

Despite most applications have adopted the MVC

pattern, not all architectures of the applications

adhere to the MVC pattern, like Wikipedia (#01) and

Freeciv (#09).

Wikipedia (#01) was the only target applications

that did not implement any of these types of classes

or any model component. It has adopted a specific

framework – PhoneGab (PhoneGab, 2014) – for

building its graphical user interface (GUI) and enable

the code generation of the view component. It was

also the only selected application that used web

artefacts (HTML and CSS) to implement its GUI,

instead of using XML files.

Freeciv (#09) is an untypical case where the

application structure consists of a set of monolithic

classes. These classes group almost all project code in

a few classes, thus this application does not present a

well-modularized architecture.

c) Violations of the MVC Pattern

During our analysis of the dependency graphs of the

MVC components generated by JDepend and

Graphviz tools, we also found some violations to the

MVC pattern. Although most of these violations do

not represent a clear threat to the evolution of the

architecture of the existing applications, they need to

be monitored in order to avoid future maintenance

difficulties. Next we present and discuss some of

them.

Figure 2: Fragment of the iFixit architecture.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

204

Model-to-View Violation. The first found scenario

was a violation of the independence of the model

component, where model classes have direct calls to

classes of the View component. Figure 3 illustrates an

example of this violation in the context of the c:geo

(#11) application. It shows a code fragment that

implements an example of a model class (

CGeoMap) in

application. The sample illustrates a typical violation

between model and view components. The

CGeoMap

class (model) imports the R class in order to recover a

visual element (view) aiming to update directly an

information on the view.

package cgeo.geocaching.maps;

//..

import cgeo.geocaching.R;

public class CGeoMap extends AbstractMap{

private String mapTitle;

private void setTitle (String title) {

final TextView titleview =

ButterKnife.findById(activity,

R.id.actionbar_title);

if (titleview != null) {

titleview.setText(title);

}

//...

}

//...

}

Figure 3: Model-to-View violation example.

Model-to-Controller Violation. Similar to the

previous kind of violation, this second case implies

the rupture of independence of the model component,

since this component is dependent of the controller

component. We have identified this kind of violation

is some existing service classes of the model

components from the WordPress (#10) and ZapZap

(#05) applications. Figure 4 shows an example of this

Model-to-Controller violation of the ZapZap (#05)

application. Code fragment presents a Model class

(

ScreenReceiver) that implements a service

referencing a Controller class (ApplicationLoader) in

order to set the application screen. It is a violation due

to Model class is referencing Controller class.

3.1.2 Data Access in Android

Most applications need to have some kind of data

persistence. Android provides the data storage

options following (Android, s.d.): (i) Shared

Preferences — commonly used to save private value

pairs of primitive data types; (ii) Internal Storage —

when data are saved directly on the device’s internal

storage, using cache files; (iii) External Storage —

store public data on the shared external storage; (iv)

SQLite Databases — a self-contained database,

compact, with native support in Android, which does

not require special configuration or installation; and

(v) Network Connection — data are stored on the web

and the communication with the remote database

often occurs through web services or remote address

for the server.

package org.telegram.messenger;

//...

import org.telegram.ui.ApplicationLoader;

public class ScreenReceiver

extends BroadcastReceiver {

@Override

public void onReceive(

Context context, Intent intent) {

if (intent.getAction()

.equals(Intent.ACTION_SCREEN_OFF)){

//...

ApplicationLoader

.isScreenOn = false;

} else if (intent.getAction()

.equals(Intent.ACTION_SCREEN_ON)){

//...

ApplicationLoader

.isScreenOn = true;

}

//...

Figure 4: Model-to-Controller violation example.

The choice for a these solution depends of the

specific needs of each application/device, such as

performance, memory availability and practicality of

the implementation. In our study, we analysed the

storage options adopted in each application selected

in order to identify common purpose between

application that have adopted the same type of

strategy. Table 3 shows a summary of the adoption

these persistence alternatives analysed.

SharedPreferences was a strategy more adopted

between the investigated applications. This was

already somewhat expected because it is mainly used

to save some app configuration. Moreover, this data

storage strategy is very simple and allows saving only

primitive data that are persistent across user sessions.

Cache and FileBackupHelper are type of internal

storage which is saved in files with access (by default)

only to own application and that are removed when

the user uninstalls the application. Cache file was

specially, for example Firefox (#04), ZapZap (#05)

and c:geo (#11) applications used to store other types

of data that could not be saved with primitive

variables, such as historic data. On the other hand,

instances of

FileBackupHelper class were used to

realize backup of databases on own device internal

storage.

UnveilingtheArchitectureandDesignofAndroidApplications-AnExploratoryStudy

205

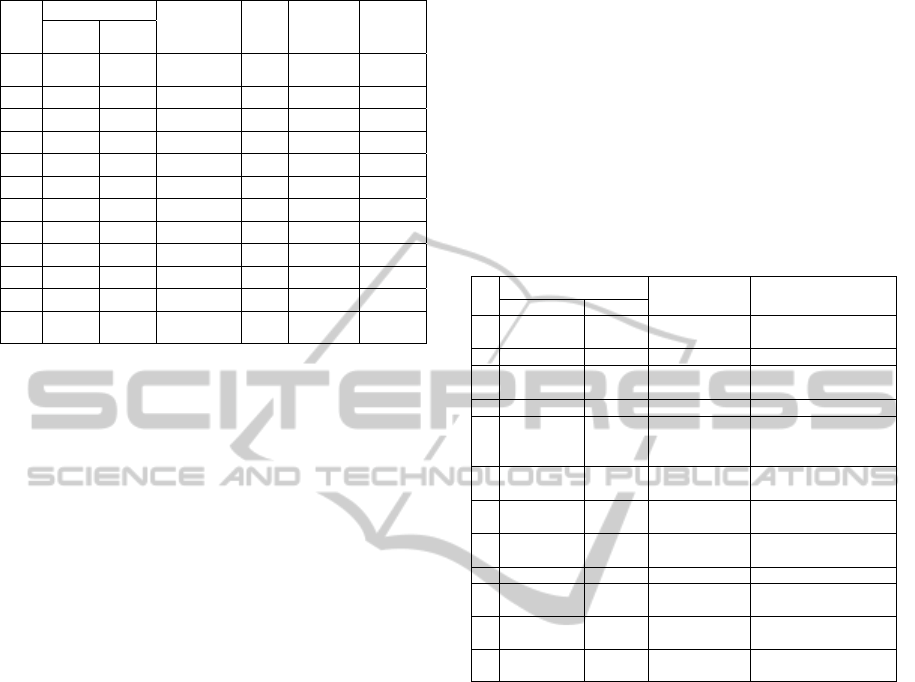

Table 3: Implementation of the persistence type.

App

SQLite database

Shared

preferences

Cache

Files

FileBack-

upHelper

Other

strategy

helper

class

create

method

#01

- - X X -

Javascript

persistence

#02

X - X - -

#03

- X - X -

#04

X - X X -

#05

- - X X -

#06

X - X - X

#07

- - X - -

#08

X - X - -

#09

- - - - -

Dropbox

#10

X - X X -

#11

- X X X X

#12

X - X X X

Google

Drive

Moreover, we identified several applications

using the SQLite, but varied the way to implement it.

Some applications implemented using a helper class,

such as WordPress (#10) ConnectBoot (#06) and

OpenSudoku (#08), which is responsible mainly the

version database control. Other applications, such as

FBReader (#03) also used the SQLite library to store

data in its projects, however without use the

SQLiteOpenHelper class to create its SQLite database.

Instead of this, they used the method

openOrCreateDatabase. This method allows developer

to create a database passing a name or path and

application context as parameter directly in code.

This non-official implementation is simpler that using

the class

SQLiteOpenHelper, however less

recommended when the app realizes changes

constantly in its databases.

Other solutions different from the previous

presented were found on Wikipedia (#01), Freeciv

(#09) and My Tracks (#12). In the first, Wikipedia,

the persistence is realized in the web layer, directly in

the Javascript files, since that this app was

implemented using the framework PhoneGab

(PhoneGab, 2014). The last applications (#09, #12)

developers used the DropBox and Google Drive API,

respectively, to synchronize data in files stored in

cloud servers.

3.1.3 Package Structure

We also analysed the package organization of each

selected application in order to identify whether the

separation into architectural components as reflected

in the package structure. This also brings positive

influence to the maintenance and evolution of the

applications. In addition, we were also interested in

identifying packages/layers common to all

applications investigated, aiming to extract and

idealize a default structure for Android applications.

After this analysis, we observed that many

applications grouped their classes based on the MVC

components, creating a separated package for each

architectural component (model, view or controller).

On the other hand, some applications have grouped

their classes according to the business concern. In this

case, different classes of the same architectural

component (e.g. model classes) are spread over

multiple and different packages, according to any

particular business criteria of the application.

Table 4: Package Structure of Android applications.

App

MVC components

Specific package

for DAO layer

Main packs.

single packg. separated

#01

-- --

org.wikepedia

(single pack.)

#02

X --

ui, util, model

#03

-- X

core.view, view,

model, util, network

#04

-- X

Yes

firefox

#05

X --

Yes

objects, ui, SQLite,

messenger, and

PhoneFormat

#06

X --

bean, util, service,

and transport

#07

N/a N/a

frozenbubble(single

pack.)

#08

N/a N/a

Yes

game, command, utils,

gui, and db

#09

N/a N/a

No main

#10

X --

Yes

models, dataset, ui, util,

xmlrpc

#11

-- X

Yes

activity, maps, ui,

conector, utils

#12

X --

Yes

Content, util, fragments,

io, maps

A common characteristic of the package structure

of most applications was the usage of a package

“

util” for utilities classes and methods. This kind of

package was found in all the selected applications and

has been used for different purposes. For example,

app OpenSudoku (#06) has used the

utilpackage to

organize the version code, on the other hand the app

ZapZap (#05) defines the phone formatters in this

package. Overall, the util package contains the

helpers, parsers, formatters, classes with specific

applications rules, among other auxiliary and utility

class in general considering the analysed applications.

Table 4 presents a summary of the analysis of the

package structure realized, focusing on analysis of

packages that implement the MVC components and

the DAO layer.

3.2 Design Patterns (RQ2)

Our study also examined the use of specific design

patterns for the Android platform (Android, s.d.), and

traditional design patterns (Gamma et al., 1994). Next

subsections detail the results for this pattern analysis.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

206

3.2.1 Specific for the Android Platform

The Android Developer’s Official Guide (Android,

s.d.) provides some patterns to manage variabilities in

the platform, such as different languages, screens

(resolution and size), and platform’s versions

(Android, s.d.). These deployment patterns handle

common problems in Android development and

propose solutions whose implementation allows

adaptations. Our study found that most of these

solutions are actually implemented, albeit partially,

by the developers of the analysed applications. Next

we present some of the patterns identified in the

study.

a) Multiple-View Layout

The Android’s Guide proposes a design pattern

known as Multiple-View Layout (Android, s.d.) to

deal with different screen on devices. The pattern

provides the implementation of XML files

fragmented that are programmatically composed (at

run time) to form the layout of the application. Each

fragment can be reused and combined to assemble a

composed adjusted view, confirming orientation

(horizontal or vertical) and size of device screen.

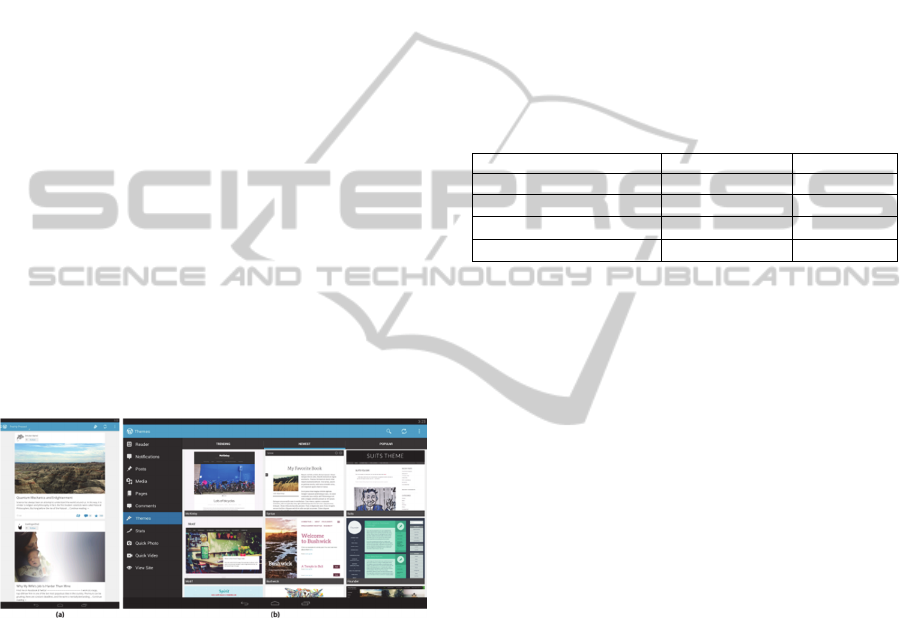

Figure 5 illustrates an example with different

composite views from the implementation of this

pattern in the WordPress (#10) application.



Figure 5: Example of the orientation type: (a) vertical and

(b) horizontal.

The main roles in this pattern are:



Fragment

(

ArticleFragment

): Fragment represents

a part of the screen that to be composed to create

different views for the user. It defines its own

lifecycle, receives its own input events, and

allows add or remove it while the activity is

running. It must extend the class of Android’s API

or similar class (when using external or

compatibility API);



Manager

(

FragmentManager

): Responsible for

performing an operation such as adding or

removing a fragment. You must instantiate a

FragmentTransaction

, which provides APIs to

add, remove, replace and perform other opera-

tions.

The iFixit application (#02) used an external library,

known as Sherlock API, in order to implement

fragments. This API enables, among other things, the

execution of fragments on devices with pre-3.0

versions of Android, since Android API provides

native support only for appliances from this version.

However, there is also an official Android’s

Compatibility API, known as Support Library, which

launched later. This API was used in 33,4% of the

studded applications (see Table 5). In terms of

implementation, the main change in each one of these

classes occurs only in inherited classes for creating

fragments.

Table 5: Implementation of fragments in apps.

Apps

N. apps (%)

Android Native API

#10 1 app (8,3%)

Android Support Library

#04, #05, #11, #12 4 apps (33,4%)

Sherklock API

#02 1 app (8,3%)

Do not use fragments

all others 6 apps (50%)

Figure 6 presents a code fragment which

implemented the Multi-Panel Layout pattern in the

ZapZap (#05). In this example, if instead of using the

native Android API to implement the pattern it had

been used the Sherlock API, the class

BaseFragment

would be changed by the

SherLockFragment

class.

presents the amount of applications that implemented

fragments with information about the adopted API.

Only half of the applications adopted this pattern. The

other apps do not use any alternative implementation.

We also found that the gain with the adoption of this

pattern is directly related to the treatment of the

variability of multiple screens and indirectly to reuse

screens, which are composed to form different views.

b) Content Provider

Content providers (Android, s.d.) are roles of another

official Android pattern, responsible for managing

access to a structured set of data. They encapsulate

the data, and provide mechanisms for defining data

security. Content provider is the design pattern that

connects data in one process with code running in

another process. In our study, this pattern was iden-

tified in the following applications: Firefox (#04),

WordPress (#10) and My Tracks (#12).

WordPress (#10) uses a content provider for

managing access to its data repository. This is an

Android recommendation (Android, s.d.). A content

provider might be implemented as one or more

classes in an Android application, along with

elements in the manifest file. In the example, the

StatsContentProvider

class extends a

ContentProvider

class, which connect your provider

UnveilingtheArchitectureandDesignofAndroidApplications-AnExploratoryStudy

207

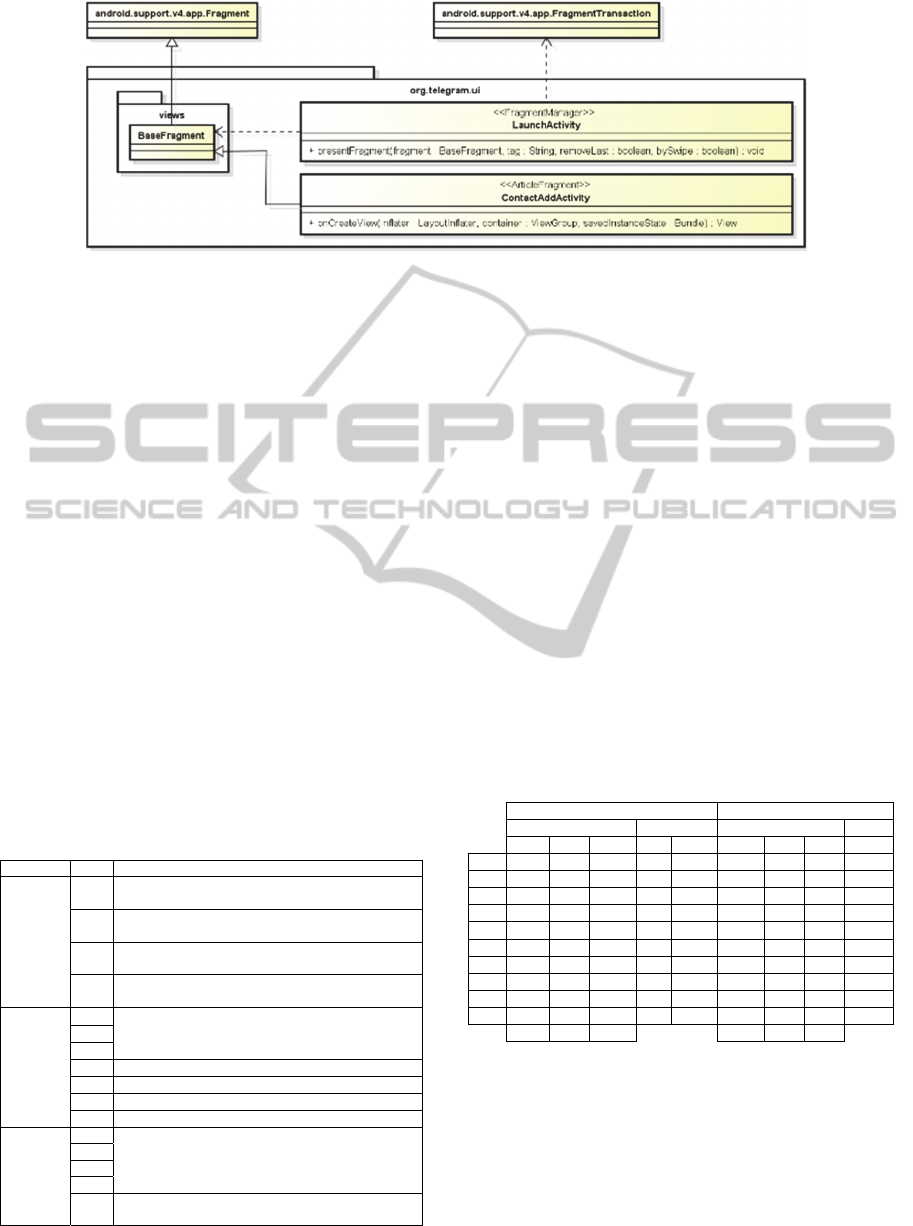

Figure 6: Multi-Panel Layouts on the ZapZap.

and other applications. Although this content provider

is used to make data available to other applications,

you may of course have activities in your app that

allow the user to query and modify the data managed

by a content provider.

Other official solutions have been adopted, such

as the use of strings and resources to manage different

languages and platform versions. These solutions was

adopted by all target applications that need to deal

with such kind of variabilities, behaving more like a

common way to implement this type of problem than

a design pattern.

3.2.2 Traditional Design Patterns

Our study also aims to identify the implementation of

other patterns of traditional designs that have been

adopted in the development of Android applications.

In this context, we identified the use of some platform

independent patterns, such as Provider Model

(Howard, 2004), Factory Method (Gamma et al.,

1994), and Adapter (Gamma et al., 1994).

Table 6: Traditional Design Patterns.

Patterns Apps Purpose

Provider

Model

#02

Provide a common interface for setting of search

autosuggestion feature

#10

Provide a common interface for records in the

application of statistical table

#11

Provide common interfaces for setting plug-ins used

to capture maps

#12

Provide common interfaces for configuration of the

search engine

Factory

#02

Implement a factory of connection

(data and network)

#03

#05

#06 Factory of transport protocol

#08 Factory for importing using XML Parser

#11 Factory of interfaces of maps

#12 Factory to manage sensors

Adapter

#02

Extend the package “android.widget” through of

the interfaces BaseAdapter and ArrayAdapter to

customize the visual components of the app, such as

its widget and ListView

#04

#05

#11

#12 Deal with different APIs

Table 6 presents an overview of these patterns

with the respective applications that have adopted

them and purpose.

Other patterns identified: Singleton (#02, #07),

Facade (#07), Strategy (#07, #12), Command (#02,

#08), Publish-Subscribe (#02), and Observer (#08,

#12).

3.3 Exception Handling (RQ3)

Another aspect investigated in our study was how the

exception handling concern was implemented for

such existing applications. We have identified and

investigated manually: (i) the amount of handlers

(try/catch) and signallers (throws) present in the code

of each application; (ii) which components more

commonly thrown and handle exceptions; and (iii)

what is the main type of exception handling

performed inside the exceptions catches.

Table 7: Among of handlers and signallers.

handlers (try/catch) signallers (throws)

% by component ∑ % by component ∑

M V C

try catch M V C throws

#07 57% 0% 43% 7 6 0% 0% 0% 0

#09 50% 0% 50% 12 17 100% 0% 0% 1

#01 0% 0% 100% 8 9 10% 0% 90% 1

#08 27% 0% 73% 22 21 10% 0% 90% 10

#02 83% 0% 17% 63 64 99% 0% 1% 85

#10 54% 14% 32% 159 182 85% 2% 14% 59

#03 80% 0% 20% 305 286 83% 0% 17% 374

#11 59% 10% 32% 304 284 83% 17% 0% 41

#05 52% 10% 38% 389 390 93% 5% 2% 61

#06 69% 0% 31% 80 81 98% 0% 2% 44

53% 3% 44%

66% 2% 22%

Table 7 presents the amount of handlers and

signallers identified, as well as the percentage of

occurrence by component in each application

analysed. Based on these results, we can see more

predominance of exceptions handlers and signallers

in controller and model components, with the latter

component being mainly used to throw exceptions

(66%) and the controller component for handling

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

208

them (53%). The low number of exception handling

in the view layer is justified by the use of XML files

without access to the Java classes that implement this

component.

Moreover, our study also analysed the specific

strategy used for handling the exceptions of the

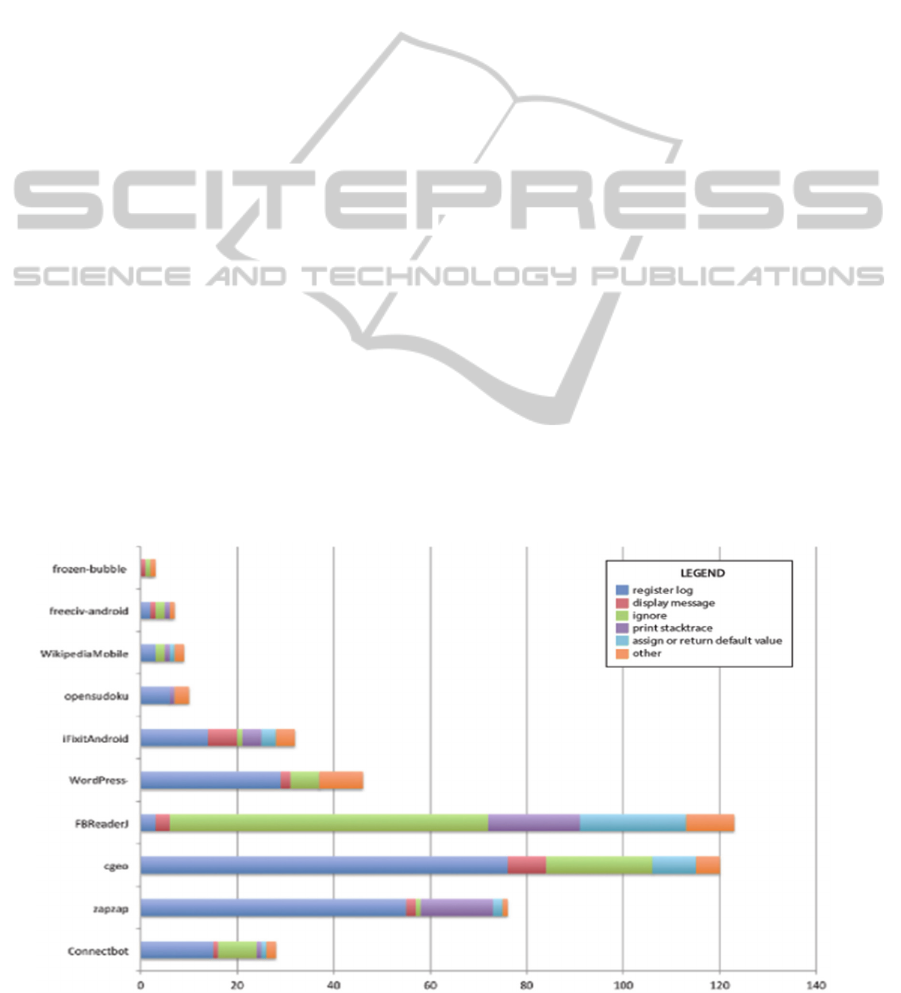

applications. The following strategies were found in

our analysis: (i) registration of the exception in log

file; (ii) display of error or warning message to the

user; (iii) printing stack trace; (iv) no action (ignore

the treatment - only capture); (v) returns default value

(blank, null or false); (vi) among others. Graphic 1

bellow presents a summary of this analysis. As we

can see, there is a great number of exceptions that are

only logged (blue color) or are not adequately

manipulated being ignored (green color). Only a few

exceptions of each application are really displayed to

the user (red color), which can mean that most of

mobile application errors are not exposed to them.

4 DISCUSSIONS AND LESSONS

LEARNED

In this section, we present and discuss some

preliminary lessons learned from our exploratory

study.

Architecture of Applications (RQ1). In our study, we

have found that most of the analysed Android

applications are structured by following the MVC

architectural pattern. However, there are many

applications where the relationships between the

MVC components do not follow the traditional ones.

This usually happens due to the implementation

views on Android platform using XML files, which

prevents access to Java classes from the View

component of the MVC, thereby requiring reverse

order communication between the components in

relation to this. There are also cases where we found

architectural violations in the relationships of the

MVC components, which can impair the adequate

evolution and maintenance of such Android

applications. As a result, our study has revealed that

even open-source and popular Android applications

are not adequately using the MVC architectural

pattern when structuring their classes, which requires:

(i) the definition of specific implementation strategies

for the MVC in Android platform; and (ii) the usage

of automated supported tools (e.g., static analysis) to

detect violations of existing applications.

Data Persistence (RQ1). Regarding the data

component, we have observed that most of studied

applications define data access classes, but they adopt

different strategies for the implementation of such

component. Based on our results, we can infer that:

(a) shared preferences was a strategy more adopted to

storage short data, such as configuration information.

(b) internal storage was implemented using cache and

backup files preferably in order to store private values

with larger size, such as navigation historic. (c)

SQLite has been used as main database for several of

investigated applications, but varies its

implementation. The recommend implementation by

Android, which provides the implementation of the

Graphic 1: Exception Handling Strategies.

UnveilingtheArchitectureandDesignofAndroidApplications-AnExploratoryStudy

209

helper class, was also more adopted by applications

with constantly evolving their databases.

Design Patterns (RQ2). Our study made possible to

identify a significant number of design patterns that

are used in the Android applications. The Adapter

pattern, for example, was commonly used to adapt

existing Android classes to create customized views.

On the other hand, regarding the Android specific

patterns, we have noticed that there are many of them

that are not being used by existing applications,

although they are recommended as best practices by

the Android community. Our results also lead to the

conclusion that many Android patterns were used in

order to implement known variabilities, such as

languages, devices and screen size. Moreover, it also

varies the implementation them, with some of them

using external API.

Exception Handling (RQ3). Our study also identified

that existing exception handling policies of Android

apps are absent or very simple – with only the logging

of the thrown exception. Only a few applications

provide an adequate exception handling by

displaying, for example, explicit messages for the

user. Our findings also show that there is no pattern

on the way the exceptions are thrown and handled by

the MVC components. The study data revealed, for

example, that the model and controller components

are both responsible to throw and handle exceptions

for most of the investigated applications.

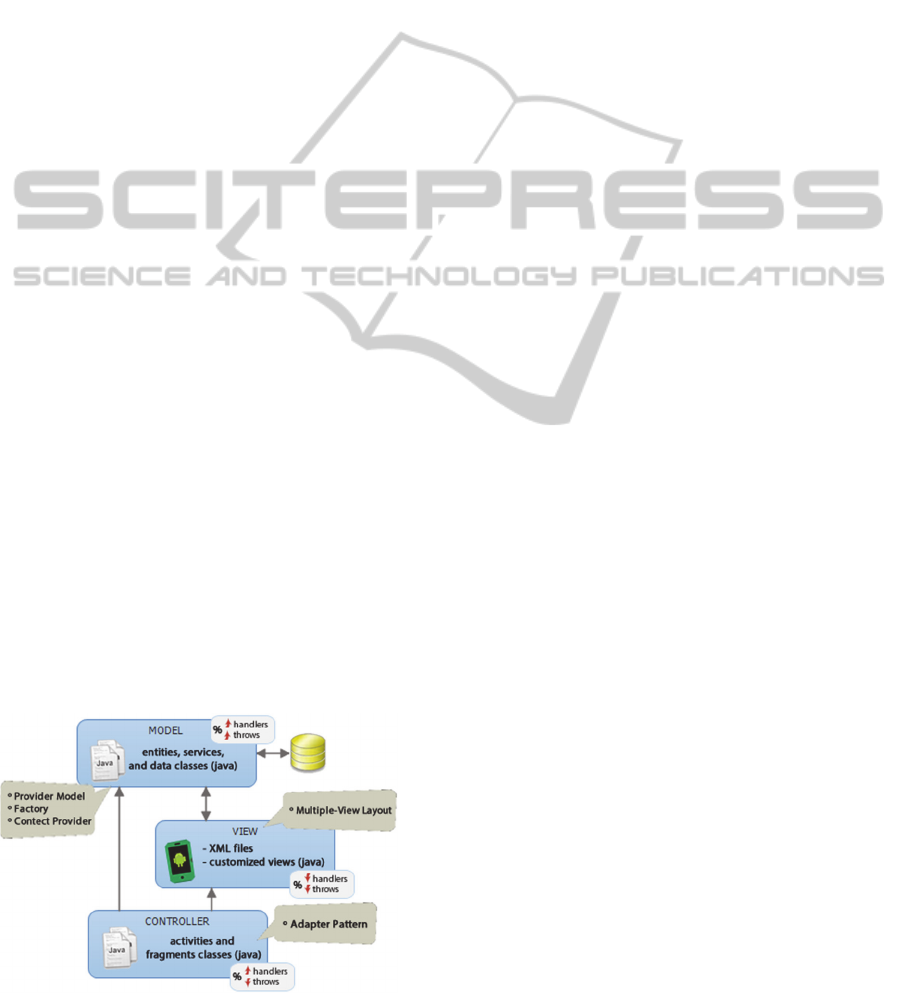

Figure 7 presents a diagram with the resulting

conceptual architecture of our study. It illustrates the

common MVC architecture adopted for most

applications by indicating the explicit Android

technologies used in each of the components,

including the data objects. In addition, it gives an

overview of the design patterns used in different

components. Finally, it indicates which specific

components of the architecture are usually

responsible to throw and handle exceptions during the

execution of the Android applications.

Figure 7: Conceptual Android Architectural.

5 RELATED WORK

This section presents some research works related to

ours. Andreou et al., (2005) performed a pioneer

study on design of the mobile applications. This work

studied current design methodologies and proposed

an approach for designing and developing mobile

commerce (m-commerce) services and applications.

The proposed process focuses on user requirements

and needs as well as on constraints associated with

current mobile and wireless technology. While this

work proposed a set of engineering phases to guide

mobile engineers in m-commerce development, our

work explores the state of practice of a set of mobile

applications from different categories available in

Android official store. In another pioneer work about

mobile applications, Nilsson (2009) performed a

study which investigated the usage of design patterns

for mobile applications. However, his work focused

on patterns for user interface (UI), aiming at creating

a design guideline to aid developing more user-

friendly applications on mobile devices in general.

This work did not restrict the analysis to Android

applications. In a more recent work, Neil (2014)

presented a more extensive catalogue of UI patterns

for mobile devices. In our work, we investigated the

adoption of design patterns in mobile applications,

and not UI patterns as the works described before.

Other research works (Ruiz et al., 2012; Mojica et

al., 2013; Linares-Vásquez et al., 2014; Linares-

Vásquez et al., 2013; Bavota et al., 2014) also focused

on the analysis of characteristics of Android

applications. Linares-Vásquez et al., (2014)

investigate the usage of patterns in Android

applications focusing on API for energy-greedy, with

the purpose of understanding particular instances of

API calls and API usage patterns that cause

(unusually) high energy consumption. Ruiz et al.,

(2012) and Mojica et al., (2013) mined application

downloaded directly Play Store in order to analyse

software reuse in the Android mobile application

market along two dimensions: (a) reuse by

inheritance, and (b) class reuse. On other hand,

Bavota et al., (2014) and Linares-Vásquez et al.,

(2014) also analysed Android applications, but in

order to study how the fault and change-proneness of

APIs used by free Android applications relates to

applications’ lack of success, estimated from user

ratings. As in our work, those works investigated a

limited set of applications, although the studies

cannot be generalized they provide interesting

insights about the state of practice on mobile

development. The purpose of our study differs from

the previously mentioned studies, since it focused on

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

210

identification of architectural characteristics, such as

design pattern adoption and exception handling

structuring.

6 CONCLUSIONS

This paper presented the results of an exploratory

study which aimed at identifying common

architectural characteristics of a set of twelve real

Android applications. During this study, we could

observe that Android development does not need

necessarily be based on the MVC or any other model.

The choice of architecture model in Android

development should be a consequence of the

developer experience. One of the main contributions

of this study was to perform a qualitative analysis on

the extracted architectures. The results of the analysis

were divided into three main groups discussions: (i)

architectural analysis; (ii) use of platform

independent design patterns or design patterns

specific for the Android platform; and (iii) exception

handling policy adopted. The architectural analysis

shown that MVC pattern was adopted by most

applications, even partially. Furthermore, we

observed the adoption of known design patterns and

we identified that more components handlers and

thrown exceptions. Finally, based on analyses of

these results, we created a conceptual architectural

diagram that synthesizes the main findings of our

study. The diagram is based on the MVC architecture

indicating the main classes’ relationship, patterns and

exception handling strategies adopted by each

component.

As possible future work, we intend to extend the

studies on Android applications, refining the search

engines and selection of applications and automating

the analysis. Furthermore, we intend to deepen our

study about solutions adopted by Android platform

developers in order to investigate also types of

variability in this application scenario.

REFERENCES

Andreou, A. S. et al., 2005. Key issues for the design and

development of mobile commerce services and

applications. Journal International Journal of Mobile

Communications, December, 3(3), pp. 303-323.

Android, s.d. Design Patterns. [Online] Available at:

https://developer.android.com/design/patterns/

Android, s.d. The Developer's Guide. [Online] Available at:

https://developer.android.com/guide/

Bavota, G. et al., 2014. The Impact of API Change- and

Fault-Proneness on the User Ratings of Android Apps.

IEEE Transactions on Software Engineering (TSE).

Caputo, V., 2014. Android e iPhone foram 93,8% dos

aparelhos vendidos em 2013. [Online] Available at:

http://exame.abril.com.br/tecnologia/noticias/android-

e-iphone-foram-93-8-dos-aparelhos-vendidos-em-

2013 [Acesso em 29 Julho 2014].

Clark, M., 2012. JDepedn homepage, s.l.: s.n.

Ellson, J. et al., 2002. Graphviz— Open Source Graph

Drawing Tools. Vienna, Springer Berlin Heidelberg,

pp. 483-484.

Gamma, E., Helm, R., Johnson, R. & Vlissides, J., 1994.

Design Patterns: Elements of Reusable Object-

Oriented Software. New York: Addison-Wesley

Professional.

Howard, R., 2004. Provider Model Design Pattern and

Specification, Part 1. [Online] Available at:

http://msdn.microsoft.com/en-

us/library/ms972319.aspx [Acesso em 29 Julho 2014].

IDC Worldwide Mobile Phone Tracker, 2014. Worldwide

Smartphone Market Grows 28.6% Year Over Year in

the First Quarter of 2014, Framingham: s.n.

Linares-Vásquez, M. et al., 2014. Mining Energy-Greedy

API Usage Patterns in Android Apps: An Empirical

Study. Hyderabad, s.n., pp. 2-11.

Linares-Vásquez, M. et al., 2013. API Change and Fault

Proneness: A Threat to the Success of Android Apps.

Saint Petersburg, s.n., pp. 477-487.

Mojica, I. J. et al., 2013. A Large-Scale Empirical Study on

Software Reuse in Mobile Apps. IEE Software, 31(2),

pp. 78-86.

Neil, T., 2014. Mobile Design Pattern Gallery: UI Patterns

for Smartphone Apps. 2ª ed. Sebastopol: O'Reilly

Media.

Nilsson, E. G., 2009. Design patterns for user interface for

mobile applications. Designing, modelling and

implementing interactive systems, December, Volume

40, pp. 1318-1328.

PhoneGab, 2014. [Online] Available at: http://

phonegap.com/

Ruiz, I. J. M., Nagappan, M., Adams, B. & Hassan, A. E.,

2012. Understanding reuse in the Android Market.

Passau, IEEE, pp. 113-122.

UnveilingtheArchitectureandDesignofAndroidApplications-AnExploratoryStudy

211
