Extending WSLA for Service and Contract Composition

Antonella Longo, Marco Zappatore and Mario A. Bochicchio

Dept. of Innovation Engineering, University of Salento, via Monteroni, Lecce, 73100, Italy

Keywords: SLA Management, SLA Measurement, SLA Composition, SLA Design.

Abstract: Cloud Services (CSs) nowadays experience constantly improving successes in IT scenarios. Dynamic

allocation of network, storage and computational resources, the hiding of visibility of internal IT

components, as well as the pay-per-use paradigm are becoming more and more widespread ways to provide

and consume services. The complexity of CSs is often due to service chains into which third-party services

are aggregated in order to satisfy user requests. This confirms the need of modeling both contracts and

corresponding Service Level Agreements (SLAs) referring to services provided to customers. Similarly,

time-related variability issues in CSs require run-time performance monitoring and reporting solutions

capable of comparing SLAs and feeding requesters with effective resource reservation and allocation

policies. A detailed analysis in contracts and SLAs management has revealed a lack of expressivity in SLA

specification and a consequent inadequacy in tools for describing and managing SLAs and contract

composition. Therefore, we propose an extension of WSLA, a widely known SLA description language. We

aim at modeling contracts and SLAs with additional details to support contract owners during service

composition and its monitoring. The proposed approach has been adopted to develop and validate a tree-

graph-based tool, to simplify SLA and contract composition.

1 INTRODUCTION

In modern IT environments, a wide variety of tasks

requires services to be created and provided to end-

users. A non-trivial problem concerns the definition

of service terms that have to be agreed between

parties and rendered as viable contracts. Arguably,

these contracts have to be at the same time

strategically effective and operationally feasible. In

this scenario, Service Level Agreements (SLAs)

(Telemanagement (TM) Forum, 2008) play a key-

role in describing service relevant features of a

service. Indeed, SLAs specify the agreements

between service producers and consumers in terms

of Quality of Service (QoS), service level

guarantees, Service Level Objectives (SLOs),

compliance to users’ requests, service time-

sustainability. They also define measurements and

criteria to be used when services fail or deviate

beyond specific tolerability thresholds from the

agreed-upon contract terms.

SLAs exhibit different types of complexity,

ranging from single to multiple, co-operating

providers and from single to bulks of diverse

customers; each SLA may concern single or

combined services, and the SLA specification may

be very qualitative and difficult to be transformed in

machine-readable elements. SLA specification

complexity may be inherent with each of the SLA

elements (i.e. contract duration, working window,

multiple targets for a single SLA, etc.).

SLAs usually refer to scenarios where a provider

and a customer agree upon the delivery of single

services with SLAs. Current IT scenarios, instead,

involve cloud paradigm or Business Process

Outsourcing (BPO), thus requiring paying much

more attention to service composition issues.

However, available methodologies and frameworks

lack in formalizing how IT managers can effectively

compose services, contracts they are defined into

and the corresponding SLAs.

The issues arising from both service composition

and corresponding SLAs has a significant relevance

in Cloud Computing (CC) and they affect service

providers and customers as well. On the one hand,

since CC must provide on-demand access to

customizable computational resources, IT managers

and service providers need to assess precisely

Service Levels (SLs) when they design the overall

contract for the delivered service. On the other hand,

307

Longo A., Zappatore M. and Bochicchio M..

Extending WSLA for Service and Contract Composition.

DOI: 10.5220/0005401503070315

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 307-315

ISBN: 978-989-758-098-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

service consumers require fast service provisioning,

reliable resource exploitation, reduced management

efforts and frequent interaction with providers, thus

generating a great variety of SLOs that makes more

difficult to negotiate and finalize service selection.

Moreover, consumers require visibility on SLAs

monitoring data and demand auditing tools.

Since CC services impose aggregating many sub-

services into more complex, higher-level services,

IT managers must supervise the way such services

are functionally composed and also to combine SLs

into the delivered final output in order to effectively

satisfy business needs. The selected composing

contracts and specifications should allow users to

obtain easily the terms and conditions of the overall

contract without being domain-specific.

All these aspects may severely hinder specific

features in CC, such as providers’ accountability

when services do not match with their defined levels

or when delivered services exhibit failures beyond

the allowed guarantees. Therefore, IT cloud

managers need tools to assess how much they adhere

to the promised SLOs for the service chains they

manage, especially if resources are dynamically

reconfigured at run-time and customers must be

guaranteed through customized SLAs.

SLA technologies have been profitably applied

so far in Service-Oriented Architectures (SOAs)

(Baker and Dobson, 2005) thanks to their suitability

to model domain information better than ad-hoc

representations. Indeed, SLAs are: a) flexible and

potentially language-independent; b) capable of

defining both measurable quantities (e.g., accuracy,

availability, latency, cost) and non-measurable

aspects (e.g., reputation). Therefore, many formal

specifications have been developed to model SLAs

and their subject of application: WSLA (Keller and

Ludwig, 2002), SLANG (Lamanna et al., 2003),

BPEL (Xiang et al., 2004) are amongst the most

widely known. We focus on WSLA because it is

based on XML and its template is general enough to

cover different domain scenarios.

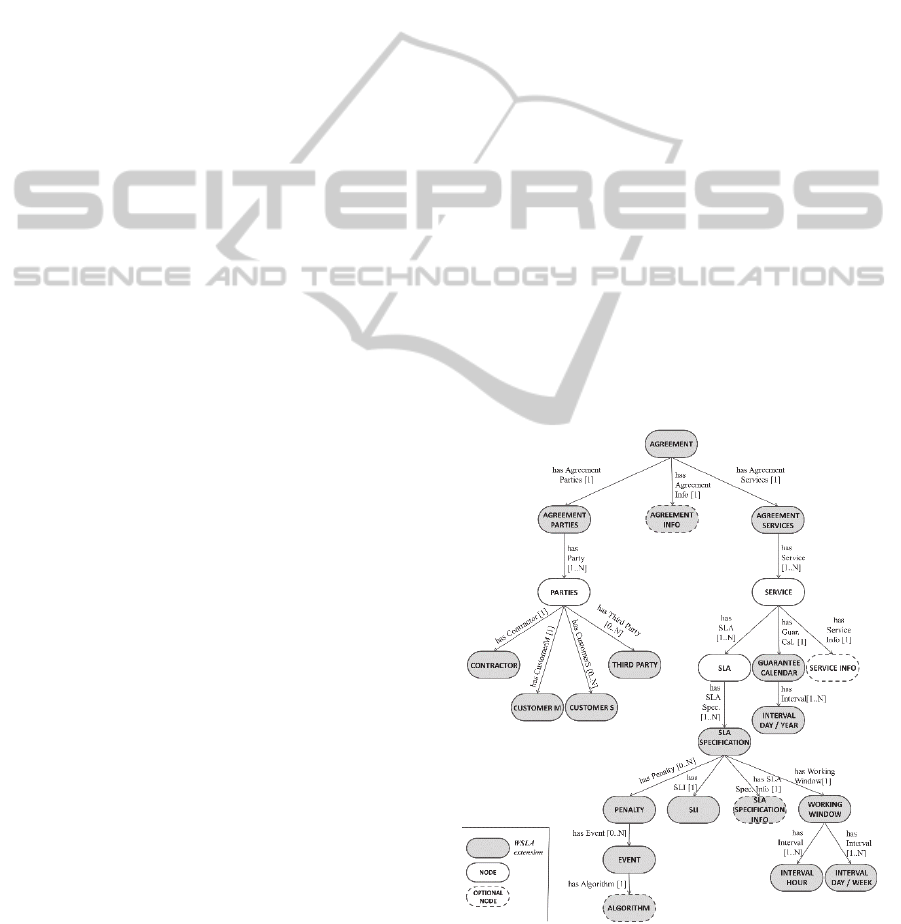

From such premises, this paper proposes a

descriptive template for contract and SLA

composition in service chains within the CC

environments. We started from WSLA and we have

extended it in order to overcome WSLA expressivity

limitations when dealing with SLA specification and

composition. The new model will allow Cloud

service providers to automatically manage contracts.

As a side positive effect of having such a more

suitable template for describing service composition,

SLAs and delivered services allow identifying

accountability issues more efficiently in CC

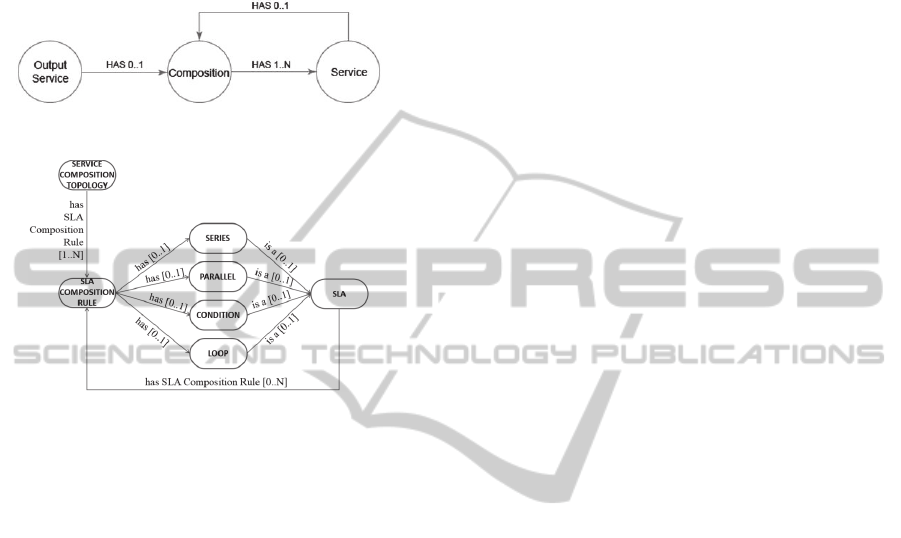

scenarios. The proposed template introduces

significant new aspects such as composition rules

and topologies and a more detailed SLA

specification description.

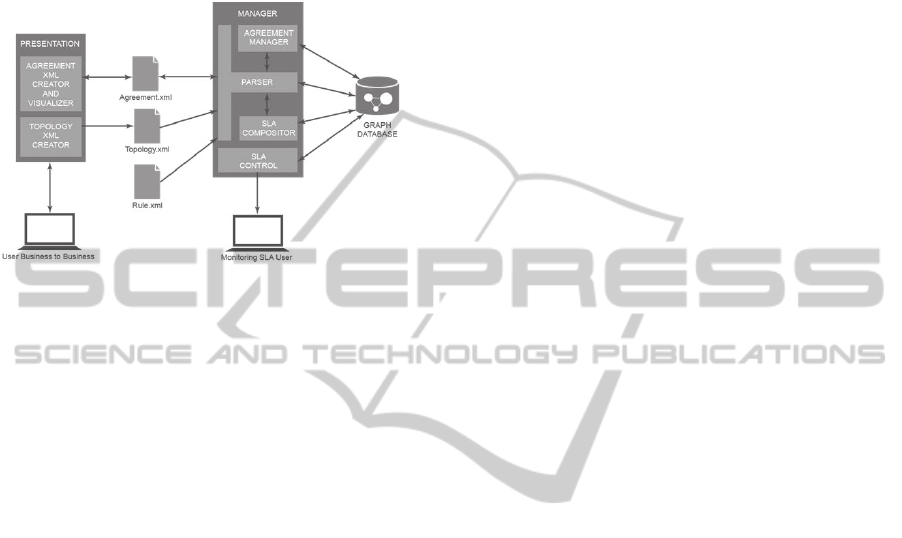

We also propose a tool (Contract-Aware Service

Composer, CASCO) easing contract composition

design and visualization as well as the collaboration

amongst different IT professionals. In order to

validate the proposed model, five different Key

Performance Indicators (KPIs) from CC (i.e.

availability, response time and Mean Time To

Response (MTTR), Mean Time Between Failure

(MTBF), Mean Time To Failure (MTTF)) have been

implemented in CASCO.

The paper is organized as follows. Section 2

analyses existing works on contract representation

models and SLA data management. Section 3

presents our extension of WSLA. The design and

implementation of the supporting tool are described

in Section 4. Section 5 applies the model to a real

use case scenario. Section 6 hosts conclusions.

2 RELATED WORKS

A SLA referring to a specific service should

consider descriptive aspects (agreeing parties, QoS,

obligations); matching between delivered services

and QoS; collected metrics (when and by whom);

penalties for service failures and unmatched SLs;

actions for undelivered services; providers’

responsibilities; technology re-alignments affecting

SLAs and delivered services. SLAs are enforced by

service management policies, thus ad-hoc IT

frameworks are needed, such as the Information

Technology Infrastructure Library (ITIL). These

solutions ensure that deployed applications and

services meet the required SLs at deployment,

operation, support and maintenance stages (Allen,

2006). SLAs need to be machine-readable, since

they are essential in SOAs, in order to support

service discovery, selection and processing w.r.t.

QoS. This originates numerous language

specifications to define SLAs. Some of them

combine high-level modeling languages and

knowledge representation techniques. The TAPAS

project (Lodi et al., 2007) proposed the SLAng

language, where SLAs are defined by mixing

Natural Language (NL), Object Constraint Language

(OCL) and Meta-Object Facility (MOF). In (Paschke

, 2008) a Rule-Based SLA (RBSLA) approach is

described: SLA management policies are provided

as RuleML constructs (Boley et al., 2001) and then

processed by a specific tool. PANDA (Anon., 2007),

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

308

is a Multi-Agent System focused on contract

negotiation, monitoring and Virtual Organization

evaluation. Although it provides some appealing

features (e.g., SLA template storage, partner profile

catalogue), it is primarily limited to Enterprise

Resource Planning Systems (ERP). Despite the high-

level of expressivity, those approaches do not offer

the best suitability to machine processing. Another

drawback is their difficult integration with

documents that traditionally describe Web Services,

as WSDL (Christensen et al., 2001).

XML-based implementations, more amenable to

be machine-readable have emerged, such as the

WSLA framework (Keller and Ludwig, 2002),

firstly introduced into the not anymore available

Web Services ToolKit (IBM Corp., 2006), for

defining and monitoring SLAs for Web Services. It

offers an extensible language and a runtime

architecture comprising several SLA monitoring

services, which may be outsourced to third parties to

ensure maximum objectivity. WSLA language main

elements are: subjects, services and obligations,

SLOs, action guarantees. Although WSLA allows

defining, negotiating, deploying, monitoring and

enforcing SLAs, it has some limitations: 1) contracts

signed by only two parties; 2) no ways to describe

over-/under-achievement of contract obligations; 3)

small support to corrective management actions.

Cremona architecture (Ludwig et al., 2004), by

IBM, is a SLA middleware supporting contracts

monitoring, with a three-level architecture but it

does not offer decision-making capabilities based on

agreement terms and does not support workflow

handling for service interactions.

The Open Grid Forum (OGF) proposed the Web

Service Agreement (WS-Agreement) (Andrieux et

al., 2007) as a protocol to establish agreements

between providers and consumers, built on top of

Cremona. It is detached by WSLA in order to meet

the need for a standard by the OASIS organization

(OASIS, 2014). It allows describing agreement

contexts and a set of attributes for a specific service

(i.e., name; context; Service Description Terms,

SDT; guarantee terms; constraints). It allows

customers to ask for service requirements via XML

files and providers to evaluate available resources.

However, it does not allow to model third parties’

contributions and no metrics are available for

monitoring service choreographies.

A widely agreed, standardized model would

enable to apply templates to every type of contracts

and SLAs, and to categorize contract terms for

different service domains. Therefore, based on

WSLA and WS-Agreement, in (Stamou et al.,

2013.10) a SLA digraph model (where nodes and

edges represent SLA content) for automating SLA

formulation and data handling was proposed,

tailored to SLA data management over distributed

web resources. The model was tested in (Stamou et

al., 2013.6) in a SOA client-server scenario, where

the server behaves as a cloud service marketplace

using SLA templates for service offers. Customers

submit their requirements over HTTP and the

marketplace returns SLA templates matching the

requests. The representation of SLA is broader, it

includes e-business outsourcing contracts (Ward et

al., 2002) and inter-organizational scenarios, where

service and contract compositions occur, such as

Cloud Computing. Modelling and monitoring

aspects related to service chains and networks in

many business ecosystems are usually based on

graph models. BPMN (Dijkman et al., 2008) models

represent another viable alternative, due to their

suitability to be translated in BPEL (Xiang et al.,

2004) but are effective for domain-skilled

professionals, thus limiting their usage for non-

technical stakeholders. At the moment there are no

significant attempts to model service chains in Cloud

Computing taking into account stakeholders

perspectives. Moreover, researchers have focused

their investigations on the Quality of Service (QoS)

composition (Ben Mabrouk et al., 2009), (Cardoso et

al., 2004) on modeling dependability among SLAs

(Bodenstaff et al., 2008), or on aggregation patterns

of SLAs (Ul Haq and Schikuta, 2010). These

approaches consider metric composition or abstract

aggregation patterns, but none so far has

investigated on how to compose specific features of

contract and SLA (e.g., working windows, start/end

date, guaranteed calendar), together with QoS

values. Indeed, SLA standardization policies are still

in their infancy, thus providing IT professionals with

just static or semi-structured information.

This relevant issue is related with the entire SLA

data management process (Stamou et al., 2013.10)

but also involves service elements (e.g., metrics,

descriptions, provisioning guarantees). SLA content

belongs to several domains, and various

vocabularies of provisioning terms represent a

primary cause of semantic and structural SLA

heterogeneity, which complicates comparison and

hinders SLA handling in distributed service markets

(Stamou et al., 2013.10). Therefore, we believe that

the digraph model employed in (Stamou et al.,

2013.6), as well as the WSLA framework, represent

a suitable foundational base for our approach.

ExtendingWSLAforServiceandContractComposition

309

3 WSLA MODEL EXTENSION

IT and CC service contracts often results from the

composition of underpinning service contracts (and,

in turn, of their specifications). Starting from them,

the final provider’s goal is to automatically obtain

overall contract terms, after defining composition

rules. A service-based approach enables to derive

the final contract from composition rules, and

contract specifications by applying these rules on the

parameters of each low-level contract and service.

Consequently, services from different providers can

be used and composed. Since service composition is

“the ability to take existing services” (or building

blocks) “and combine them to form new services”

(Piccinelli, 1999), if obligations must be guaranteed

in service composition, service contracts (and SLAs)

must be defined accordingly.

From such premises, we can define contract

composition as the derivation of a contract, obtained

by integrating other contracts, signed with different

providers (Bochicchio et al., 2013). Terms and

conditions of the composite contracts come from

those of each component, after applying composition

rules. Similarly, the definition of contract

composition implies that a provider of a composite

contract is able to extract and feed clients with terms

related to the component contracts according a

specific applied rule. Moreover, the final contract

provider need evidence about service accountability

of underpinning providers if necessary. It is evident

that contract composition is the result of a service-

oriented approach applied on Contract Management,

since it is directly based upon service composition.

The contract model can be considered as built by

three levels of abstraction, depending on whether we

are considering the signed contracts, the

provided/requested services or the resources needed

to provide services. Inter-level links represent

dependencies. Intra-level links represent resource or

service compositions. In order to test the feasibility

of our approach in SLA composition design, we

prefer to strictly focus on service and SLA

aggregation. In this way, we just consider contracts

in terms of basic composing elements, thus

forwarding the service-to-resource mapping to

further research developments.

These aspects cannot be fully described by

current SLA models and frameworks, therefore we

define a WSLA extension that considers service

level management aspects, according to (Stamou et

al., 2013.6). Our template presents contracts as

composed by three sections.

The Agreement Info handles general contract

information such as name, description, start date and

expiry date. The Agreement Parties models

information related to parties involved in the

contract. It is composed by at least two parties (i.e.,

a service provider, or contractor, and a service

consumer, or customer), but additional participants

can be added as well. The Agreement Services

manages services information and it can be referred

to one or more services. Each service exposes

specific properties: a description, a guarantee

calendar and its SLA, which is the core element of

this component as well as of the entire template.

Each SLA exhibits specific features: reference

period, description, report date, specification.

SLAs specifications refer to multiple parameters:

cost, start/end date, sample period, SLO (i.e.,

threshold value for SL), working window (i.e., time

range during which SL must be generated), penalty,

Service Level Indicators (SLIs) (i.e., metrics and

algorithms to calculate SLA for service monitoring).

Directed tree graphs (digraph), (Bang-Jensen and

Gutin, 2008) can be used to model this contract

template. Figure 1 proposes the overall digraph,

(nodes: template components; oriented edges:

available properties; edge labels: node cardinalities).

In order to extend WSLA for describing SLA

and contract composition, composition topologies

and rules have been introduced.

Figure 1: Contract template as a digraph.

Topologies allow chaining services to satisfy end

users’ requests. We adopted a four-pattern modeling

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

310

strategy (Ul Haq and Schikuta, 2010). Series:

services execute jobs in sequence, so a service starts

when the previous ends. Parallel: services execute

jobs simultaneously. Loop: a service needs several

cycles to complete its job. Condition: a parallel

topology, with an initial choice for a specific path.

Figure 2: Composition topology model.

Figure 3: Composition rule model.

Topologies can be further composed (in a way

similar to circuit elements are cascaded in circuit

theory): by doing so, the final service can be

obtained by recursively choosing the available

topology patterns. Each composition requires one

(loop pattern) or more services (other patterns) to be

built and each final service may (or may not) derive

from a topological composition. Figure 2 depicts the

relation between services and composition.

After composition, SLAs must be modelled

starting from input services SLAs. This is the main

reason for the definition of a third model that

specifies the formula for a given SLA and topology.

This formulation has been called Composition Rule.

Figure 3 illustrates this model as well as its

relationship with SLAs and composition topologies.

4 TOOL DESCRIPTION

The main goal of CASCO is to test the model

proposed in Section 3 and to help the users in

composing SLAs for services contracts. Indeed, it

can be useful for customer and service providers

both in design and execution phases. During the

design phase, composition can be simulated to verify

the compliance with requested SLs, as well as to

obtain SLA of composed services starting from

elemental ones. During the execution phase the

system offers an engine that is able to calculate the

result of composite SLAs at run time.

The tool has been designed by starting from

stakeholders and goals elicitation steps. We have

identified multiple stakeholders for a generic service

providing/consuming company, encompassing

managers (i.e., general, technical, business,

department, human resource, service, contract) and

administration personnel, each having different

tasks. For instance, a service manager can use the

tool in order to 1) insert contracts signed with other

companies to buy primary services; 2) access and

visualize the service catalogue; 3) insert new

primary services; 4) create a new service by

composing services from the catalogue; 5) create

new contracts to be signed with other firms or users.

From an architectural point of view (Figure 4),

the tool is based on the widely-adopted Model-

View-Controller (MVC) pattern for web

applications, whose purpose is to achieve a clean

separation between data management, user interface

and business logic. According to this pattern,

CASCO is based on a three-layer architecture, as

represented in Figure 4.

In order to separate contract visualization issues

from user-agent interaction during composition, the

tool splits the front end (Presentation module) and

the back end (Business Logic and Data Management

module) by using three XML files, which provide

information about agreements, topologies and rules.

The Presentation module is responsible for user

operations management and input parsing, in order

to generate the XML files that will be accessed by

both Presentation and Manager modules

The Manager module is further divided in four

subsections. The Parser allows extracting and

manipulating XML data from agreement, topology

and rule files in order to store them in the graph

database (DB). The Agreement Manager handles

contracts and operations that must be performed on

them. The SLA Compositor is responsible for the

creation of composed services, for the definition of

corresponding metrics and parameters as well as for

the storage of output services into the database. The

SLA Control allows accessing services information

and parameters for resources/services monitoring

The digraph model (Section 3) has been used as a

basis for the adoption of a NoSQL graph DBMS

(Neo4j v.1.9.6/v.2.0.0 (Neo Technology, Inc., 2014)),

in order to store SLA and contracts information as

well as composition topologies and rules.

The tool has been developed in PHP, for the front

end part, respecting the HTML5 format, in order to

ExtendingWSLAforServiceandContractComposition

311

be natively compatible with mobile device, and Java

for the back end. Moreover we used Spring-data-

neo4j (v2.3.4) (Pivotal Software, Inc., 2014), a

framework for mapping classes with the elements

stored in Neo4j, and Neo4jPHP (v.0.1.0) (Adell,

2012), a PHP library for accessing Neo4j database.

Figure 4: MVC-based architecture for CASCO tool.

5 APPLICATION SCENARIO

We refer to a set of five significant SLA metrics in

CC, in order to check whether our template can

capture all the relevant information for SLA

composition. The metric computation phase

demonstrates that all the elements needed to manage

contracts have been correctly modeled and included

within the proposed template. SLA values are

calculated with respect to metrics capable of

measuring whether a service is compliant with the

contract terms and whether the service can achieve

the desired business objectives. If we consider a

service composition scenario, metrics must be the

same and their measurement units must be

commensurable and compatible (e.g., all time-related

or all percentages, etc.).

The selected metrics are: Availability, Response

Time, Mean Time To Failure (MTTF), Mean Time

Between Failures (MTBF), Mean Time To Repair

(MTTR). In order to better understand MTTF,

MTTR and MTBF, some quantities must be defined.

Service Downtime (T

): it is the time span between

the i-th occurrence of a service failure, t

d,i

, and the i-

th occurrence of its reactivation, t

u,i

Service Uptime (T

): it is the time range between

the i-th occurrence of the service start, t

u,i

, and the

i+1-th occurrence of its failure t

d,i+1

Therefore, the time lapse between two downtime

periods (Time Between Failures, TBF) is the sum of

the time needed to have the service up again (Time

To Repair, TTR) and the time elapsed before another

failure occurs (Time To Failure, TTF).

We have defined the metrics as specified below.

1. Availability (Av): it describes the percentage of

time a service S

is available in a certain time lapse

corresponding to the temporal window of analysis.

Being T

the duration of the temporal window of

analysis and T

the service downtime period, the

availability Av is expressed as in (1):

























∗100/





(1)

2. Response Time (RT): it quantifies how long it

takes to a service S

to answer client’s request. If we

consider N client requests, each having its own

response time rt

(t)

, the overall RT is the average of

the distinct response times, as defined in (2):











 

















/



(2)

3. MTTF: it measures the mean time between two

consecutive failures for the same service S

. Let us

N denotes the set of monitored events (i.e., service

failures and restorations). Let us t

u,i

indicates the

time from which the service is up for the i-th time

and t

d,i+1

the time at which the same service fails

again. Then, MTTF is expressed by (3):











 





,







,









/

(3)

4. MTTR: it measures the mean time needed to

repair a specific service S

for N times. Let be t

d,i

the time from which the service is down and t

u,i

the

time from which the same service is up again, MTTR

is given by (4):











 





,







,







/

(4)

5. MTBF: it measures the mean time occurred

between two consecutive failures of the same

service. It can be simply considered as the sum

between (4) and (3), as depicted in (5):











 





















(5)

New composed services (Cardoso et al., 2004)

exhibit different metrics, depending on the

composition rules and topologies selected during the

design phase. Let us explain the five selected metrics

w.r.t. series and parallel topologies, in the case we

have two different services S

and S

that have to be

composed sequentially and whose respective metrics

are known before the composition is performed. As

for the series topology, we assume separate services

are independent (i.e., stochastically modelled as

independent variables (Ben Mabrouk et al., 2009).

This means that the Av of a composed service is the

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

312

product of the availability of each component, RT of

the composed service is the sum of response time of

each component service and MTTF is the reverse of

the sum of single components’ MTTFs.

Regarding the value associated with parallel

compositions we consider the worst values of all the

possible composition executions. For instance, to

determine RT of parallel activities, we consider the

activity with the longest RT. Table 1 resumes the

rules mentioned above, for Av, RT and MTTF. These

examples are independent from the specific domain.

Table 1: Examples of composition rules.

Metric Rule (Series Topology) Rule (Parallel Topology)

















































































,





MTTF

= 1 / (( MTTF(S

)) +

(MTTF(S

)))

MTTF

= MTTF(S

) + MTTF(S

) –

MTTF

In service composition the time window (and the

service calendar) in which the composite service is

guaranteed depends on the composing services. It

defines the time and calendar the composite service

level is guaranteed. For example S

is guaranteed

from 8:00 to 20:00 in business days and S

guaranteed from 7:00 to 23:00 only in odd days

(e.g., front office openings). When S

and S

are

composed into S

, the guaranteed windows changes

according to composition topology: if S

= (S

series

), then S

guaranteed service calendar is the

intersection of S

and S

calendars. If S

= (S

// S

)

and S

are homogeneous (the same kind of

service), then guaranteed windows is the union of S

and S

calendars. If S

and S

are heterogeneous, S

guaranteed calendar is the intersection of S

and S

service hours. If the S

has an empty guaranteed

window, it cannot be guaranteed.

Each component service within the SLA owns a

specific measurement period: the composite

measurement period is constrained by the

corresponding component services. In general, it is

the least common multiple (l.c.m.) of each

component’s measurement period, if component

services start simultaneously. Otherwise, the two

measurements periods need to be aligned. For

example, let us suppose that S

and S

have a 2-

month and a 3-month measurement period

respectively. The measurement period of S

should

be the l.c.m. of S

and S

that is 6. If we suppose that

started a month later than S

, then they will be out

of phase and only after a 2-month transition S

would be measured with a 6-month period.

Similarly, the S

contractual duration is the

intersection of the duration of S

and S

The tool has been verified and validated. A set of

agreements has been simulated, proving that all the

SLAs aspects necessary to calculate and composed

SLAs are represented in the model. Moreover,

system results conform to the rules described before.

Our approach starts from the assumption that the

user uses a Graphical User Interface (GUI) to submit

services and contract terms and conditions. The GUI

helps the user to express the request in terms of

services and SLAs requirements, translated into

machine-understandable specifications by the tool.

This is the reason why specific tests have been

executed to evaluate the tool usability for IT

managers and contract owners.

We selected 20 Italian users as testers, aging

from 30 to 50 years old and belonging to technical

and juridical areas. The candidates have been

assigned with a series of tasks representative of a

concrete deployment scenario. Task#1: to retrieve a

service purchased by a company. Task#2: to register

an agreement and to compose a new output service.

Task#3: to evaluate the application completeness

and user-friendliness. The users were required to fill

a questionnaire to assess their mood against the

proposed system and the features it exposes.

A 10-point psychometric Likert scale (Allen and

Seaman, 2007) has been used to measure users’

responses in evaluating each task, according to the

easiness in retrieving information, navigational

clarity and message clarity. In this way, users were

allowed to express their opinion within a numerical

scale ranging from 1 to 10, where 1 stands for the

worst possible evaluation and 10 represents the best

one. Table 2 enlists average scores for the features

evaluated when performing a specific task and it

also shows task mean execution times across all

tested users). At the end of the questionnaire, users’

comments were collected, thus observing their

concerns was only about explanatory labels and the

localization of the application (which actually is in

English to better match references about service

contracts and composition) and do not refer to

possible issues in contract and SLA design or

missing modelling functions.

Table 2: Overall average scores (AS) from voters’ pool

and mean execution times (MTE) for each task.

Evaluated Feature AS MTE

Task1

Easiness in retrieving information 6.45 / 10

42.3

[s]

Clarity of navigation and messages 6.8 / 10

Task2

Clarity of agreement registration reqs. 8.5 / 10

183

[s]

Easiness of composite service creation 6 / 10

Task3

Clarity of content presentation 9.25 / 10

352

[s]

Clarity of graphical representation 9,35 / 10

ExtendingWSLAforServiceandContractComposition

313

6 CONCLUSIONS

A model for managing SLA information when

dealing with contracts and SLA composition in

service-based IT environments has been presented in

this paper. Starting from the widely known, WSLA

framework, we have proposed an extension capable

of overcoming two main issues in managing SLAs.

At first, we tackle the lack in standard models

representing service contracts and their SLAs in

SOA and service network environments. We mainly

address contract and SLA composition aspects, by

proposing a flexible template for IT service contracts

that can be applied to several domains. The original

WSLA model has been complemented by

considering two new aspects: composition

topologies and rules to cope with Cloud Computing

scenarios, where IT resources are usually reserved

and allocated dynamically according to users’

requests. Moreover, cloud services are provided to

customers as the composition of multiple, third-party

services, thus requiring specific attention to the

corresponding contracts that have to be signed and

their terms and guarantees.

Secondly, we target the possibility to make SLAs

effectively machine-readable, thus allowing easier

design and monitoring policies for IT professionals

managing service networks. The choice of WSLA,

due to its XML-based structure has been done right

in that direction. In order to ease SLA machine

readability, we modeled the contract template as a

digraph. The implementation has been done by

revolving to a NoSQL graph-based DBMS.

A specific tool, named CASCO (Contract-Aware

Service COmposer), has been designed, developed

and implemented in order to provide IT

professionals with a solution allowing contract and

SLA evaluation and assessment during the design

phase. A set of five SLA metrics has been selected

to evaluate template feasibility via to our tool. We

have ascertained that WSLA extension can handle

all the information for describing contracts of

composed services and their SLAs.

In the near future, this research will be widened

and by considering three additional aspects: 1)

template extension to describe SLAs related to BPO

contracts; 2) ontological formalization of the

template; 3) adoption of rule-based policies to

perform real-time monitoring of the composed

services as in Complex Event Processing.

REFERENCES

Adell, J., 2012. Neo4jPHP. (Online) Available at:

https://github.com/jadell/neo4jphp (Accessed Nov.

2014).

Allen, P., 2006. Service Orientation - Winning Strategies

and Best Practices. Cambridge Univ. Press.

Allen, E. & Seaman, C., 2007. Likert Scales and Data

Analyses. Quality Progress, pp.64-65.

Andrieux, A. et al., 2007. GFD-R-P.107 Web Services

Agreement Specification. Memo. (GRAAP) WG.

Anon., 2007. http://www.panda-project-com/ PANDA:

Collaborative Process Automation Support using

Service Level Agreements and Intelligent Dynamic

Agents in SME Clusters. IST-Panda Reseach Project.

Baker, S. & Dobson, S., 2005. Comparing Service-

Oriented and Distributed Object Architectures. In Int.

Symp. on Distributed Objects and Applications., 2005.

Bang-Jensen, J. & Gutin, G.Z., 2008. DIgraphs: Theory,

Algorithms and Applications. 2nd ed., Springer.

Ben Mabrouk, N. et al., 2009. QoS-aware Service

Composition in Dynamic Service Oriented

Environments. Middleware 2009 - ACM/IFIP 10th

Int. Conf., 2009.

Bochicchio, M.A., Longo, A. & Giacovelli, S., 2013.

SARA: a Tool for Service Levels-Aware Contracts. In

IFIP/IEEE Int. Symp. on Integrated Network

Management, 2013.

Bodenstaff, L., Reichert, M. & Jaeger, M.C., 2008.

Monitoring Dependencies for SLAs: the MoDe4SLA

Approach. In IEEE Service Computing Conference.,

2008.

Boley, H., Tabet, S. & Wagner, G., 2001. Design

Rationale of RuleML: A Markup Language for

Semantic Web Rules. In SWWS-2001, 2001.

Cardoso, J. et al., 2004. Quality of Service for Workflows

and Web Service Processes. Journal of Web

Semantics, 1, pp.281-308.

Christensen, E., Curbera, F., Meredith, G. &

Weerawarana, S., 2001. http://www.w3.org/TR/wsdl

Web Service Description Language (WSDL) 1.1. W3C

Note.

Cortellessa, V. & Grassi, V., 2007. A Modeling Approach

to Analyze the Impact of Error Propagation on

Reliability of Component-based Systems., 2007.

Dijkman, R.M., Dumas, M. & Ouyang, C., 2008.

Semantics and Analysis of Business Process Models in

BPMN. Inform. and Software Tech., 50(12), pp.1281-

94.

IBM Corp., 2006. IBM Web Services Toolkit (WSTK).

(Online) (2.3 (discontinued)) Available at:

http://www.alphaworks.ibm.com/tech/webservicestool

kit.

Keller, A. & Ludwig, H., 2002. RC22456 The WSLA

Framework: Specifying and Monitoring Service Level

Agreements. Technical Paper. IBM Research.

Lamanna, D., Skene, J. & Emmerich, W., 2003. SLAng: a

Language for Defining Service Level Agreements.

FTCDS 2003, 2003.

Lodi, G., Panzieri, F., Rossi, D. & Turrini, E., 2007.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

314

SLA-Driven Clustering of QoS-Aware Application

Servers. IEEE Trans. on Software Eng., 33(3), pp.186-

97.

Ludwig, H., Dan, A., Kearney, R. & Heights, Y., 2004.

Cremona: an Architecture and Library for Creation

and Monitoring of WS Agreements. Res. Rep. IBM.

Neo Technology, Inc., 2014. Neo4j. (Online) (2.1.6)

Available at: http://www.neo4j.org/ (Nov. 2014).

OASIS, 2014. OASIS -Advancing open standards for the

information society. (Online) Available at:

https://www.oasis-open.org/ (Accessed November

2014).

Paschke, A., 2008. Knowledge Representation Concepts

for Automated SLA Management. Decision Support

Systems, 46(1), pp.187-205.

Piccinelli, G., 1999. HPL-1999-84 Service Provision and

Composition in Virtual Business Comm.. Tech. Rep.

Pivotal SW, Inc., 2014. Spring Data Neo4J. (Online)

http://projects.spring.io/spring-data-neo4j (Nov.

2014).

Saeedi, K., et al., 2010. Extending BPMN for Supporting

Customer-Facing Service Quality Requirements. In

IEEE Int. Conf. on Web Services., 2010.

Stamou, K., Kantere, V. & Morin, J.H., 2013.10. SLA

Data Management Criteria. In IEEE Big Data.,

2013.10.

Stamou, K., Kantere, V. & Morin, J.H., 2013.6. SLA

Template Filtering: a Faceted Approach. In 4th Int.

Conf. on Cloud Computing, GRIDs and

Virtualization., 2013.6.

Telemanagement (TM) Forum, 2008. SLA Handbook

Solution Suite v2.0.

Ul Haq, I. & Schikuta, E., 2010. Aggregation Patterns of

Service Level Agreements. FIT'10, 2010.

Ward, C., et al., 2002. A Generic SLA Semantic Model for

the Execution Management of e-Business Outsourcing

Contracts. In 3rd Int. Conf. on e-Commerce and Web

Technologies., 2002.

Xiang, F., Tevfik, B. & Jianwen, S., 2004. Analysis of

Interacting BPEL Web Services. In WWW '04, 2004.

Zheng, Z. & Lyu, M.R., 2010. Collaborative Reliability

Prediction of Service-Oriented Systems. In 10th ICSE.

Cape Town, South Africa, 2010. ACM.

ExtendingWSLAforServiceandContractComposition

315
