Interactive System for Objects Recognition using 3D Camera, Point

Cloud Segmentation and Augmented Reality User Interface

Matej Nikorovic

1,2

, Radoslav Gargalik

1,2

and Zoltan Tomori

Institute of Computer Science, Faculty of Natural Science, P. J. Safarik University, Kosice, Slovakia

Institute of Experimental Physics, Slovak Academy of Science, Kosice, Slovakia

1 ABSTRACT

Depth-sensing cameras are frequently used in com-

puter vision and augmented reality applications as a

key component of the point cloud acquisition system

as well as a natural user interface tool. We integrated

both these functions into the automatic objects recog-

nition system based on the machine learning. Ac-

quired point cloud is segmented by the region grow-

ing algorithm exploiting smoothness constraint as a

homogeneity criterion. Segmented objects lying on

the ground plane are recognized via the supervised

machine learning and the corresponding label is is

projected near to the object. Natural user interface

controls the learning process as well as the mode of

operation. System is proper for speciﬁc environments

like e.g. science center (museum).

2 STAGE OF THE RESEARCH

Recently (September 2014), the ﬁrst author of this pa-

per became a PhD student at the Department of Com-

puter Science, P. J. Safarik University, Kosice, Slo-

vakia. This paper brings a review of literature, techni-

cal background and some preliminary results related

to future PhD work.

3 OUTLINE OF OBJECTIVES

We plan to develop a simple and low-cost objects

recognition system based on the supervised machine

learning and install it in the science museum taking

into account following speciﬁc conditions:

• Most of visitors are groups of children requiring

simple, robust and self-explanatory control of the

exhibits.

• No extra hardware such as keyboard, mouse, ca-

bles etc. is acceptable.

• The interaction with exhibits should exploit the

virtual menu based on the same camera as the ex-

hibit itself.

• The function of menu must be very simple – usu-

ally just select the mode of operation.

• Periodical innovation and upgrade of exhibits is

the necessary condition to achieve repeating visits

of the same people.

• The museum is open daily for more than 100 of

visitors per day so the time for the installation and

testing of exhibits in real conditions is limited.

Machine learning libraries became a part of

popular open-source libraries (like OpenCV) which

opened the new possibilities in analyzing and under-

standing images. New low-cost 3D cameras like Mi-

crosoft Kinect, Creative Senz3D or Asus Xtion can

acquire both RGB and depth images at the same time.

If these devices are properly calibrated, then we are

able to create a set of 3D points (point cloud) from

acquired images.

Our objective is to propose and implement a low-

cost objects recognition system proper for the above

mentioned speciﬁc conditions of science center (mu-

seum). It means the human interaction is required

only in the supervised learning stage. Our goal is to

implement the recognition system into two existing

exhibits of ”Steel Park” science center – ”Interactive

statue” and ”Interactive sandbox” described in (To-

mori et al., 2015)

4 RESEARCH PROBLEM

To achieve the above mentioned goal, we have to deal

with all stages of the process consisting of:

1. Acquisition of point cloud.

2. Segmentation in 3D.

3. Features extraction.

4. Recognition (classiﬁcation).

Nikorovic M., Gargalik R. and Tomori Z..

Interactive System for Objects Recognition using 3D Camera, Point Cloud Segmentation and Augmented Reality User Interface.

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

5. Visualization and interactive control via natural

user interface.

The critical part of our research is the segmenta-

tion as a process of grouping image pixels into a set of

segments hopefully representing our objects of inter-

est. Subsequent object recognition classiﬁes the ob-

jects into some classes using pre-speciﬁed rules in the

supervised learning stage. Natural User Interface is

necessary for communication between the human and

the machine.

The last stage is visualization which shows pro-

jected objects’ labels on the ground-plane shown on

Figure 1.

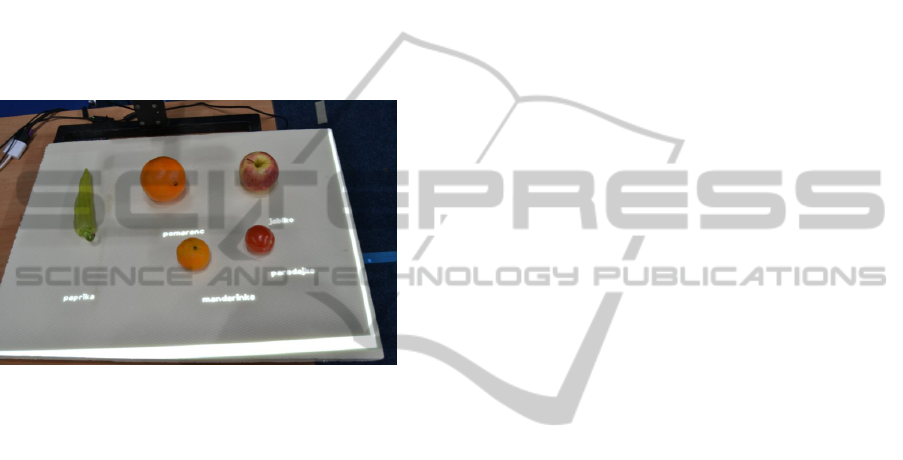

Figure 1: Objects’ labels in Slovak language are shown on

the ground-plane. We can see that although the dominant

descriptor is color, due to other descriptors mentioned later

it is able to distinguish orange from mandarin having the

similar color.

5 STATE OF THE ART

The traditional RGB image segmentation was one of

the most intensively studied part of computer vision.

However, the importance of point cloud segmentation

methods increases along with appearance of depth-

sensing cameras.

(Sedlacek and Zara, 2009) and (Golovinskiy and

Funkhouser, 2009) solve simpliﬁed point cloud seg-

mentation task. The goal is to divide point cloud into

the object of interest and the background. The authors

developed an interactive application in which the user

have to specify parts of point cloud belonging either to

the object of interest or to the background. Remaining

points are classiﬁed by the algorithm based on the en-

ergy minimization function using the weighted graph

constructed from the point cloud. The user speciﬁed

points inﬂuence weights in the graph and the algo-

rithm searches for the minimal cut (Boykov and Kol-

mogorov, 2004). The resulting graph is divided into

source part (object of interest) and sink part (back-

ground).

(Dal Mutto et al., 2010) described segmentation

as grouping the data with similar attributes using ma-

chine learning principles. Six dimensional vectors,

consisting of point location and point color in uni-

form color space, are used as the input of the k-means

method (Arthur and Vassilvitskii, 2007) to ﬁnd seg-

ments in a point cloud. The result of segmentation

contains also a lot of noisy segments and therefore

some post-processing method is used.

In contrast (Rabbani et al., 2006), (Wang and

Shan, 2009), (Vosselman, 2013), (Castillo et al.,

2013), (Dupuis et al., 2014), (Zhan et al., 2009)

use seeded region-growing method to segment the

point cloud. They choose the starting seeds and let

segments grow respecting the homogenity criterion.

Their approaches differ in the way how to select the

starting seeds and which attributes are used in a ho-

mogenity criterion (e.g. close distance, similar color,

similar surface normal, similar curvature or their com-

bination between 2 points in a neighborhood). Our

work is based on this principle too.

6 METHODOLOGY

Our concept of point cloud grouping into segments

and subsequent recognition of the segments should

respect speciﬁc conditions mentioned in the Outline

of Objectives and should use low-cost hardware and

open source software.

6.1 Hardware

Projection-based augmented reality (Mine et al.,

2012) can project images onto the real surface using

one or several projectors.

For the prototyping purposes and for experi-

ments with projector-based augmented reality we

constructed the setup shown on Figure 2. Projector

P and 3D camera C share the same mount attached to

the massive stand. A calibration matrix compensates

the translation and possible rotation between them.

The objects of interest are located on a solid planar

plate, which is placed inside the ﬁeld of view of the

camera.

We exploited projector BENQ MX613ST and

depth-sensing camera Microsoft Kinect for Xbox 360

(Windows v1). We used OpenNI library to acquire

RGB and depth images. The library offers to trans-

form these images into point cloud.

For experiments with ”Interactive statue” (Figure

3 left) we constructed its minimized version (Figure 3

right) using the identical hardware (Creative Senz3D

VISIGRAPP2015-DoctoralConsortium

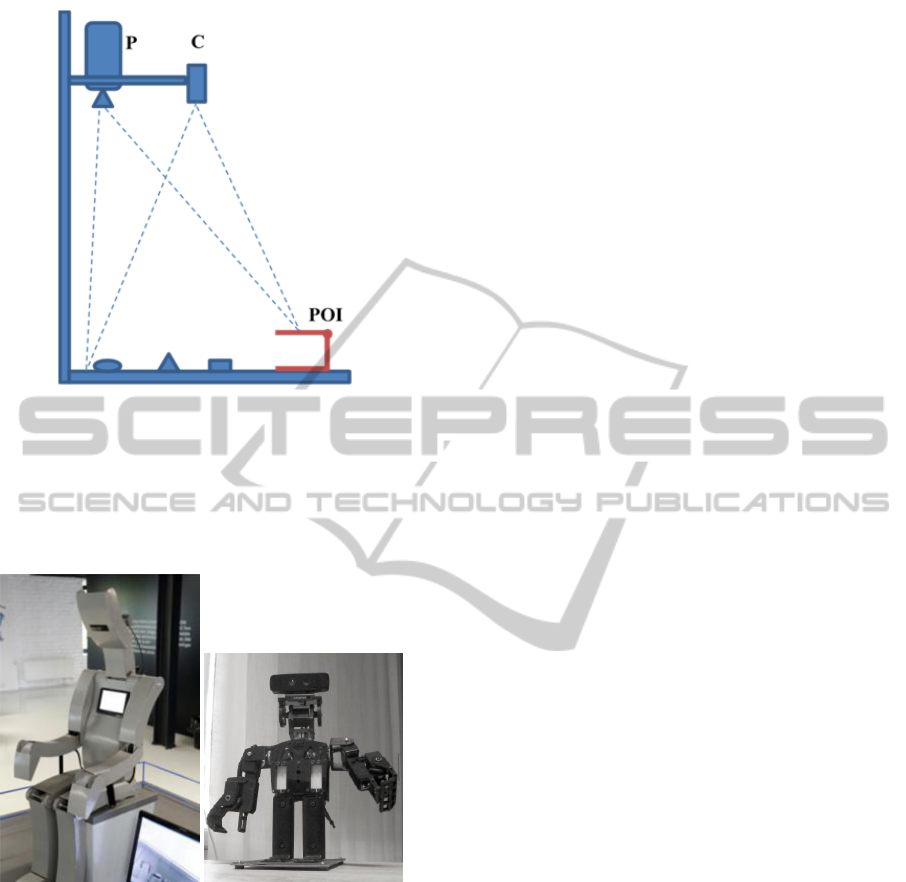

Figure 2: Setup for Projection-Based Augmented Reality

Experiments. P – Projector, C – 3D Camera, POI – Plane of

Interaction.

camera supplied by Intel along with PC SDK soft-

ware, servomotors Hitec HS-645MG controlled by

Phidgets servo motor controller).

Figure 3: Small robot is used as a prototype of the bigger

one located in science center.

6.2 Point Cloud Segmentation

Finding segments correlated with the real objects is a

non-trivial process described in the following subsec-

tions.

6.2.1 Point Cloud Reduction

We have to process the large amounts of data (point

cloud) and therefore it is important to reduce them.

VoxelGrid ﬁlter divides 3D space containing the point

cloud into small voxels (3D boxes in space) and every

voxel is approximated by its centroid in a new point

cloud. The new point cloud is the reduced version of

the original one, points are uniformly distributed and

additive noise is suppressed.

6.2.2 Nearest Neighbors Search

Local neighborhood of a single point consists of all

surrounding points that are closer than a given small

radius. Two approaches can be used to obtain it:

1. select k-nearest neighbors (kNN),

2. select ﬁxed distance nearest neighbors (FDNN).

We have uniformly distributed points, therefore

FDNN is the better choice (in contrast to (Rabbani

et al., 2006)).

Clustering method is the effective implementation

of the nearest neighbors search. The method uses

VoxelGrid to group the points into clusters omitting

far points as neighbors (it is sufﬁcient to check only

the surrounding voxels to ﬁnd the local neighborhood

of the point).

6.2.3 Surface Normal Estimation

We can estimate the surface normal in a point by its

local neighborhood. Paper (Klasing et al., 2009) com-

pare surface normal estimation methods. The most ro-

bust one is PlanePCA based on Principal component

analysis (PCA), which is the statistical procedure to

ﬁnd perpendicular vectors of the biggest variance of

data. PCA will return 3 eigenvectors if data is 3 di-

mensional. Two of them having the greatest eigen-

value are direction vectors of estimated plane and the

last one is plane (surface) normal.

Accuracy of the surface normal estimation de-

pends on the size of its local neighborhood. Too few

points means that the surface normal estimation will

be inaccurate (under-ﬁtting). The opposite state is

over-ﬁtting. The compromise between under-ﬁtting

and over-ﬁtting was experimentally tested in (Rabbani

et al., 2006). Good estimation is approx. 50 points in

a local neighborhood.

Automatic selection of the neighborhood radius

(our approach) consists of:

1. Select k points by the point cloud randomly uni-

formly.

2. Create a new distance list.

3. For each point ﬁnd 50th nearest neighbor and add

its distance to the list.

4. Return upper quartile from the list.

InteractiveSystemforObjectsRecognitionusing3DCamera,PointCloudSegmentationandAugmentedRealityUser

Interface

6.2.4 Region-growing

We try to ﬁnd independent segments in point cloud by

a seeded region-growing algorithm (in graph theory

it is also called breadth-ﬁrst search). Growing is the

process of adding actual seed’s neighbors with similar

attributes (using homogeneity criterion) to the same

segment.

Smoothness constraint by (Rabbani et al., 2006)

modiﬁes homogeneity criterion to allow region-

growing algorithm to ﬁnd smooth connected objects.

The constraint is based on the small difference be-

tween surface normals of adjacent points. A new seed

point is selected according to the lowest surface cur-

vature of the non-visited point in the point cloud. We

approximate surface curvature in the point by mean

square distance (1, 2) between the points in the neigh-

borhood and a plane created by the point’s location

and surface normal.

distance(ρ, P) =

Ax +By +Cz + D

√

+ B

, (1)

where P = (x, y, z) is point, ρ is plane and (A, B,C, D)

are ρ’s general plane equation’s parameters.

mean square distance =

∑

i=1

distance(ρ, P

)

(2)

6.2.5 Plane Detection

RANSAC (RAndom SAmple Consensus) is iterative

algorithm to ﬁnd the best model in data. It is fre-

quently used to detect planes but in large point clouds

it requires a lots of iterations to work properly.

We can detect all planes in the point cloud much

quicker by using region-growing algorithm. If we add

plane distance constraint to the ﬁrst seed point into

homogeneity criterion then it will able to detect all

planes in point cloud.

6.2.6 Ground-plane Removal

Ground-plane is usually the biggest plane of point

clouds acquired by a depth-sensing camera and there-

fore we simply remove the biggest plane from the

point cloud (similar idea was mentioned in (Dupuis

et al., 2014).

The ﬁrst seed point can contain additive noise and

therefore it is necessary to reﬁne the plane. Averaging

surface normals of the segment is one possibility how

to create plane more precise and to add next points

lying on the plane.

6.2.7 Segment Detection and Noise Removal

After removing the ground-plane we can ﬁnd seg-

ments in point cloud by region-growing algorithm as

deﬁned above.

The result of segmentation is a list of segments

and its list of the points. A lot of segments con-

tain only a few points (less than a threshold) and we

should remove them as a noise. The selected thresh-

old is the average point count of in the segments. Re-

sult is shown on Figure 4.

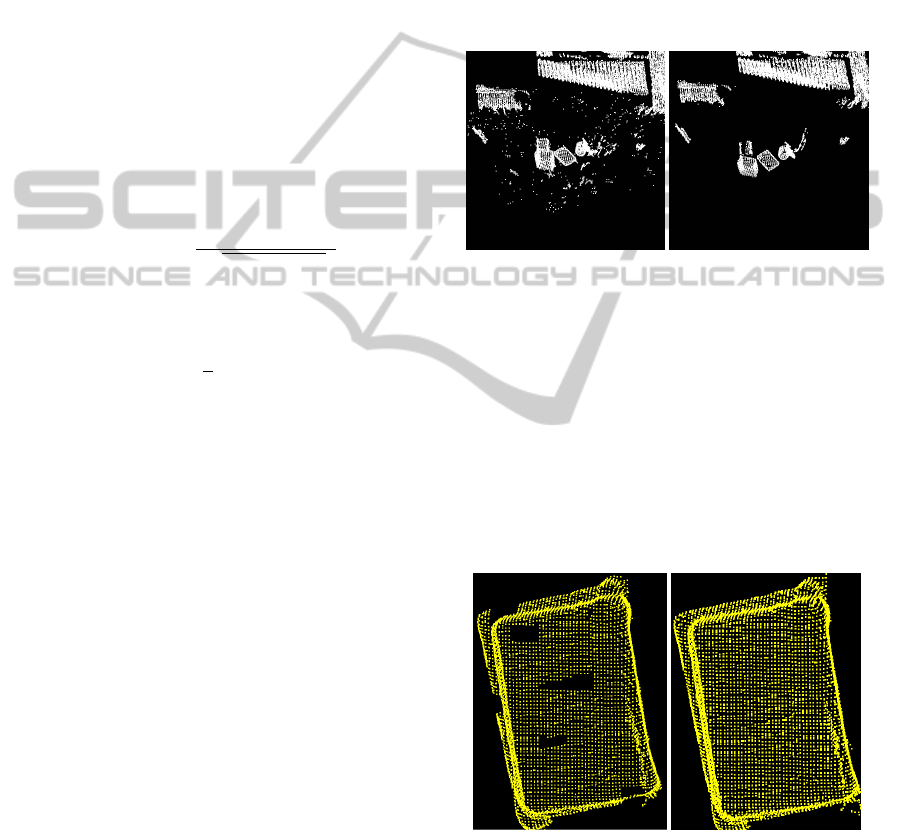

Figure 4: Removing noise segments using thresholding.

Removed noise segments left holes in the seg-

ments created by inaccurate surface normal estima-

tion. We proposed method to ﬁll holes in segments

inspired by median ﬁlter:

1. Find all points removed by thresholding only.

2. For each removed point ﬁnd the most frequent

segment in local neighborhood and reassign point

into this segment.

3. Repeat steps 1-2 until no change occurs.

Result is shown on Figure 5.

Figure 5: Filling holes in segments by reassigning removed

points.

6.3 Object Recognition

The result of segmentation is a list of the segments

which we consider as a list of the objects. Object

recognition is based on the proper choice of descriptor

VISIGRAPP2015-DoctoralConsortium

and classiﬁer (”No free lunch” theorem). For our pur-

poses we use k-nearest neighbors classiﬁer and 100

dimensional vector described in further subsection.

6.3.1 Descriptor Extraction

Successful object recognition requires a powerful de-

scriptor covering color and geometric attributes of

the object. Traditional features like average color,

roundness or size do not exploit full power of three-

dimensional information available in the object’s

point cloud. Moreover, the descriptor has to be ro-

bust, because Microsoft Kinect for Windows v1 is not

very accurate (was designed for other purposes).

(As’ari et al., 2013) studied the problems of

descriptors for object recognition based on depth-

sensing devices. We proposed a 100 dimensional vec-

tor based on their idea. The ﬁrst 50 numbers contain

shape histogram (geometric properties) and the others

contain color histogram (color properties).

Shape histogram is formed by counting the ob-

ject’s points’ distances to the object’s centroid. At

ﬁrst, we have to determine the maximum recognition

distance. We uniformly divide the distance into 50 in-

tervals. If an acquired distance (from a point to the

centroid) is within the pre-deﬁned interval then the

interval counter will be incremented (see Figure 6).

Then the resulting vector is normalized to unit length.

Color histogram is formed by counting the ob-

ject’s points’ hue similarly as in the shape histogram.

At ﬁrst, we transform points’ colors from the RGB

color space into the HSL color space. Subsequently

we remove under-lighted (ﬁrst quartile) and over-

lighted (fourth quartile) points to minimize the sensor

distortions. The other colors (second and third quar-

tile) we take into the histogram and normalize to the

unit length too.

Figure 6: The shape and color histogram.

6.3.2 Learning Process

During supervised learning we assume only one seg-

mented object lying on the ground-plane. The objects

not lying on the ground-plane are identiﬁed as back-

ground. We can choose the object closest to the center

of the ground-plane as the object of interest (remain-

ing objects are background). The user should identify

the selected object of interest and label it by using vir-

tual keyboard menu options as described later.

6.4 Natural User Interface

It is difﬁcult to control our system by mouse and key-

board (see speciﬁcs in the initial chapter). This situa-

tion can be solved by augmented reality ”virtual key-

board” system consisting of projector and camera. A

part of ground-plane is deﬁned as Plane of Interaction

(POI) shown on Figure 2), which is able to interact

with the user as can be seen on Figure 7.

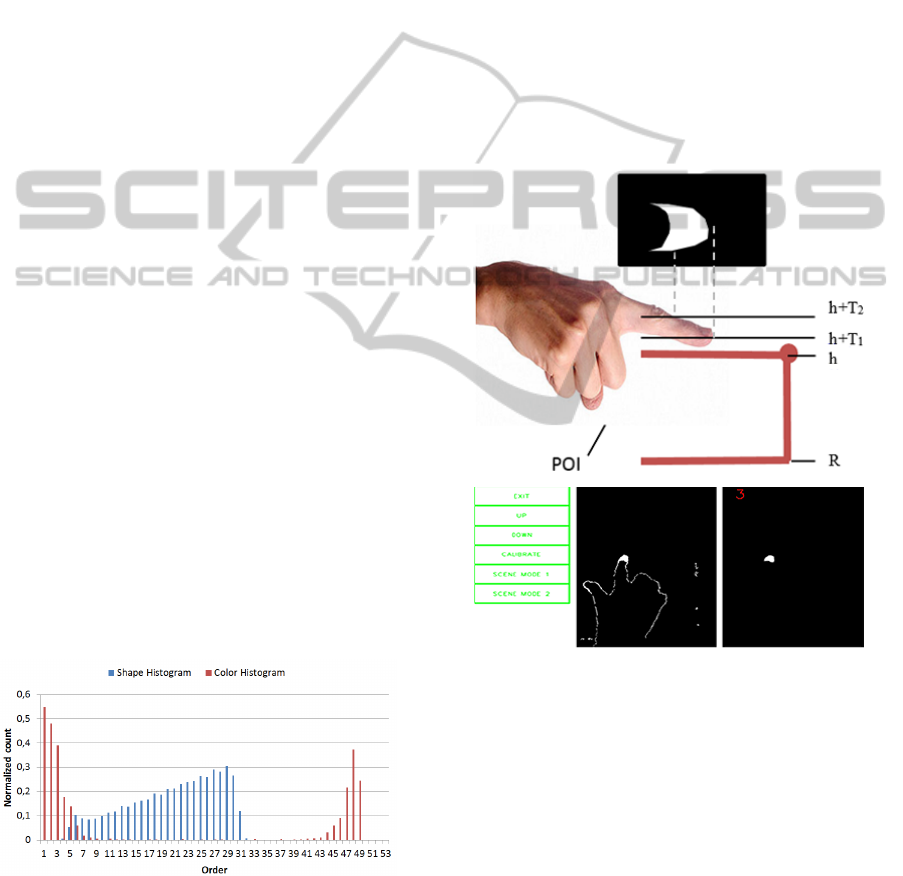

Figure 7: Virtual keyboard projected onto the plane of in-

teraction. Fingertip detection principle (top). In-memory

image of menu buttons (left), projected binary image of de-

tected ﬁngertip with noise (middle) and detected ﬁngertip

after noise removal (right).

Two threshold levels T 1 and T 2 represent the

range of sensitive distances from POI. 3D points

having z-coordinate (depth) from the interval < h +

T 1, h + T 2 > create a binary image representing a

rough approximation of the ﬁngertip. To ﬁnd out

which button is clicked, we ﬁrst project point cloud

of the ﬁngertip approximation into the ground-plane.

The result of this step is binary image (middle on Fig-

ure 7).

To ﬁnd out which virtual button has been pushed,

we count projected points in each virtual button rect-

InteractiveSystemforObjectsRecognitionusing3DCamera,PointCloudSegmentationandAugmentedRealityUser

Interface

angle from the point cloud and we select the one,

which has the maximum number of projected points

in its rectangle. If the button is selected during few

frames, then we declare the button as clicked.

It should be noted that the orientation of the hand

is not critical to this approach, which is clearly an ad-

vantage.

The precise projection into the ground-plane re-

quires to calibrate projector with camera by deﬁning

ground plane in projector’s coordinate system. For

simple tasks (like projection of labels into the neigh-

borhood of objects) a 3-point calibration is sufﬁcient.

The more complicated tasks will require more sophis-

ticated geometric transformation exploiting a grid of

calibration points.

7 EXPECTED OUTCOME

Currently, we experiment with algorithms using pro-

totype hardware. We expect the successful results of

experiments with objects recognition system would

increase the ”intelligence” (and attractiveness) of ex-

hibits in science center (technological museum) in our

city.

ACKNOWLEDGEMENT

This work has supported by Slovak research grant

agency APVV (grant 0526-11).

REFERENCES

Arthur, D. and Vassilvitskii, S. (2007). k-means++: The

advantages of careful seeding. In SODA ’07 Proceed-

ings of the eighteenth annual ACM-SIAM symposium

on Discrete algorithms.

As’ari, M., Sheikh, U., and Supriyanto, E. (2013). 3d shape

descriptor for object recognition based on kinect-like

depth image. In Image and Vision Computing. Sci-

enceDirect.

Boykov, Y. and Kolmogorov, V. (2004). An experimental

comparison of min-cut/max-ﬂow algorithms for en-

ergy minimization in vision. In Pattern Analysis and

Machine Intelligence, IEEE Transactions.

Castillo, E., Liang, J., and Zhao, H. (2013). Point cloud

segmentation and denoising via constrained nonlin-

ear least squares normal estimates. In Innovations for

Shape Analysis. Springer Berlin Heidelberg.

Dal Mutto, C., Zanuttigh, P., and Cortelazzo, G. M. (2010).

Scene segmentation by color and depth information

and its applications.

Dupuis, J., Paulus, S., Behmann, J., Plumer, L., and

Kuhlmann, H. (2014). A multi-resolution approach

for an automated fusion of different low-cost 3d sen-

sors. In Sensors 2014.

Golovinskiy, A. and Funkhouser, T. (2009). Min-cut based

segmentation of point clouds. In IEEE Workshop on

Search in 3D and Video (S3DV) at ICCV.

Klasing, K., Althoff, D., Wollherr, D., and Buss, M. (2009).

Comparison of surface normal estimation methods for

range sensing applications. In Robotics and Automa-

tion. IEEE.

Mine, M., Rose, D., Yang, B., Vanbaar, J., and Grundhofer,

A. (2012). Projection-based augmented reality in dis-

ney theme parks. In Computer 45, 7, pages 32–40.

Rabbani, T., van den Heuvel, F. A., and Vosselman, G.

(2006). Segmentation of point clouds using smooth-

ness constraint. In Robotics and Automation. ISPRS

Commission V Symposium ’Image Engineering and

Vision Metrology’.

Sedlacek, D. and Zara, J. (2009). Graph cut based point-

cloud segmentation for polygonal reconstruction. In

Advances in Visual Computing.

Tomori, Z., Vanko, P., and Vaitovic, B. (2015). Using of

low-cost 3d cameras to control interactive exhibits in

science center. In Sincak, P., Hartono, P., Vircikova,

M., Vascak, J., and Jaksa, R. (Eds.): ‘Emergent Trends

in Robotics and Intelligent Systems: Where is the role

of intelligent technologies in the next generation of

robots? Springer.

Vosselman, G. (2013). Point cloud segmentation for urban

scene classiﬁcation. In International Archives of the

Photogrammetry, Remote Sensing and Spatial Infor-

mation Sciences. ISPRS2013-SSG.

Wang, J. and Shan, J. (2009). Segmentation of lidar point

clouds for building extraction. ASPRS 2009 Annual

Conference.

Zhan, Q., Liang, Y., and Xiao, Y. (2009). Color-based seg-

mentation of point clouds. In Laser scanning 2009.

IAPRS.

VISIGRAPP2015-DoctoralConsortium
