Recognition of Reading Activities with

Read Aloud Voice on Japanese Text Presentation System

Kyota Aoki

Graduate school of Engineering, Utsunomiya University, 7-1-2 Yoto, Utsunomiya, Japan

Keywords: Reading Difficulty, Text Presentation, Assessment, Activity Analysis.

Abstract: There are many pupils with reading difficulty in Japanese schools. The dyslexia is the disability about reading

and writing texts. In Japanese public elementary schools, every pupil may use an ICT device individually and

simultaneously. In the cases, a few teachers must teach all pupils. The ICT devices must help users to use the

ICT devices by itself for effective usage. For help the users, the ICT devices must understand the state of the

user. This paper proposes a method to recognize the reading activity of a user with read aloud voices. The

proposed method is implemented. Experiments confirm the performance for measuring the reading activity

of a user.

1 INTRODUCTION

Information and communication technology (ICT)

spreads in Japanese public elementary schools. In

Japanese public elementary schools, every pupil may

use an ICT device individually and simultaneously.

In the cases, a few teachers in most cases one teacher

must teach all pupils. A class have 40 pupils at most

in Japanese public elementary schools. The median of

the numbers of pupils is about 32 in Utsunomiya

Japan.

The usage of the ICT devices makes many

problems. There are many easy problems. However,

one teacher cannot handle all of the problems about

the usage of ICT devices individually and

simultaneously.

We will cover the easy problems with the ICT

device itself. In Japan, a normal class includes about

32 pupils. About 20% of pupils have some problems

about using ICT devices. We will cover the 80% of

the problems with ICT device itself. In the case, the

teachers can treat only two pupils that have the

problems not covered by the ICT device itself.

For treating the problems caused with the usage of

ICT devices and helping a user, the ICT systems must

recognize the user’s activities. The Japanese text

presentation system was proposed for helping the

pupils with or without reading difficulty. (Aoki, K.,

Murayama, S., Harada, K., 2014) In the Japanese text

presentation system, the activities of a user are key

touches, eye movements, and read aloud voices.

The pupil may leave the ICT system. Our system

does not have arms. It cannot prevent to leave the

pupils from the front of the ICT system. However,

teachers can treat this kind of problems. Many pupils

use the ICT system well. However, many simple

problems prevent to use the system well.

In Japan, if a pupil shows two years delay of

reading ability, we say that the pupil has reading

difficulty. Some Japanese normal public elementary

schools have about 20% of pupils with light reading

difficulty. Of course, there are pupils with heavy

reading difficulty. The pupils with heavy reading

difficulty attend special support education classes or

schools.

The reading ability is most important ability for

learning in a school. Almost all materials are text

books. Recently, multimedia materials have

increased gradually. However, in multimedia

materials, texts have an important role. The pupils

with reading difficulty have a large handicap in all

subjects. Even if a pupil has enough intelligence, with

reading difficulty the pupil has difficulty about

learning all subjects. The helping method for the

pupils with reading difficulty is important.

This paper proposes the method to recognize the

activities of the user on the Japanese text presentation

system that helps to read Japanese texts with or

without reading difficulty, and the system decreases

the work of teachers who help the pupils.

There are many pupils with reading difficulty in

Japanese elementary schools. There are many

Aoki K..

Recognition of Reading Activities with Read Aloud Voice on Japanese Text Presentation System.

DOI: 10.5220/0005427900250035

In Proceedings of the 7th International Conference on Computer Supported Education (CSEDU-2015), pages 25-35

ISBN: 978-989-758-107-6

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

difficulties. The big and first one is reading Japanese

characters. Japanese characters are the construction of

hiragana (phonetic character), katakana (another type

of a phonetic character), kanji (Semantic character)

and other characters. In the period of elementary

school, pupils learn 48 characters of hiragana, 48

characters of katakana and 1008 characters of kanji.

Almost all pupils learn hiragana and katakana easily.

However, the huge number of kanji is difficult to

learn for some pupils in normal classes. (Murayama,

S., Aoki, K., 2012)

The next one is the difficulties about recognizing

the sentence structures. In Japanese sentences, there

is no spacing between words. For easing the

difficulties about reading kanji characters, we can

replace kanji characters with the hiragana characters.

We can write hiragana characters that represent the

pronunciation of the kanji characters at the side of the

kanji characters.

We recognize the words constructing the Japanese

text in the help of kanji. There are a large number of

words starting from the character of kanji. We

recognize the chunk of characters that constructs a

word for the complex of hiragana, katakana and kanji.

Replacing kanji characters with hiragana

characters, we have the sequence of hiragana

characters only. In a long sequence of hiragana, it is

difficult to recognize the chunk of characters

constructing a word. It has no problems of this kind

to write hiragana characters at the side of kanji

characters.

In an elementary school, pupils learn hiragana and

katakana at first. In the first stage in elementary

schools, the Japanese text-books have a space

between words for the ease of understanding the

structures of the sentences. However, normal

Japanese texts have no space between words.

Every pupil has those two difficulties at first. In a

long school life, they acquire the skill to conquer

those difficulties. Anyway, those two difficulties are

large barriers for reading and understanding Japanese

sentences.

Every infant has no knowledge about the Japanese

characters. Every pupil has a little knowledge about

the huge number of kanji characters at first. Then,

they learn hiragana, katakana and kanji characters in

a long elementary-school life.

In Japanese elementary schools, reading difficulty

means two years delay of reading abilities. A few of

pupils with dyslexia learn in special support

education classes or schools. However, there are

many pupils with reading difficulties in normal

elementary schools. Of course, some pupils have

difficulty about remembering kanji characters. Most

of the pupils remember kanji characters gradually.

However, pupils with a learning disability tendency

have difficulty with reading Japanese sentences in the

case that they can remember the kanji characters. In

the case, they may be dyslexia.

There may be many causes of the difficulties on

reading Japanese texts. We do not discuss the causes.

We only pay attentions to the methods for easing their

difficulties. We call their difficulties as “reading

difficulty” in this paper.

The research about teachers shows that the pupils

with ADSH tendency have difficulty about following

the characters sequentially and recognizing the

grammatical structures (Murayama, Aoki, 2009). Of

course, there are many types of reading difficulties.

There are many causes of the reading difficulties. The

resulting reading difficulties show the similar

symptoms. They are the difficulties about following

the characters sequentially, recognizing grammatical

structures and reading kanji characters.

We have developed a visual text presentation

system for persons with reading difficulty in windows

environments. The system records every operation of

a user. With the recorded operations, we assess the

difficulty of the user.

The Japanese text presentation system was

proposed and implemented for the pupils with reading

difficulties (Aoki and Murayama 2012). The system

provides the multi-level highlighting. The system

makes the precise record of the operations. With the

operational record, we can assess the reading abilities

and difficulties on objective base.

For treating the problems caused with the usage of

ICT devices and helping a user, the ICT systems must

recognize the user’s activities. In the Japanese text

presentation system, the activities of a user are key

touches, eye movements, and read aloud voices.

The pupil may leave the ICT system. Our system

does not have arms. It cannot prevent to leave the

pupils from the front of the ICT system. However,

teachers can treat this kind of problems. Many pupils

use the ICT system well. However, many simple

problems prevent to use the system well.

This paper proposes the method to recognize the

activities of the user with the read aloud voices for

decreasing the work of teachers who help the pupils

with or without reading difficulties.

First, this paper proposes the Japanese text

presentation system with user’s activity recognition

based on the read aloud voices. Then, we discuss

precisely the plan of the Japanese text presentation

system recognizing reading activities with read aloud

voices in a normal Japanese class room. Next, we

discuss the implementation of the system. Then, we

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

show the experimental results. And last, we conclude

this work.

2 JAPANESE TEXT

PRESENTATION SYSTEM

WITH RECOGNITION OF

READ ALOUD VOICES

The Japanese text presentation system records all the

operations of a user. The Japanese text presentation

system moves the high-lighted part in a text with the

key-input of the user. However, with only the key

operations, we cannot recognize precisely the reading

activities of a user. For instance, a user may only type

a proper key with a proper interval without no reading

activities. For recognizing a reading activity and

helping the user, the system needs to observe the

reading activity with a more direct method. In the

usage of the system, the user read aloud Japanese

sentences. One direct observation method of the

reading activity is the measurement of a read aloud

voice. The read aloud voice is a direct result of

reading activity. The eye movement is important for

understanding a reading activity. However, with eye

movements, we cannot have an information about

reading results. So, we start from the analysis of read

aloud voices. The read aloud voice is the result of

reading activity itself. We can evaluate the

performance of reading activity directly.

In the usage of the Japanese text presentation

system, the user directs the move to the next high-

lighted part with a key-input. The Japanese text

presentation system records the key operations with

the precise time. With the record, we can measure the

time for reading the high-lighted part.

With the proper operations, the resulting

information is important for understanding the

reading activities of a user. For confirming the proper

operation of the Japanese text presentation system,

we use the voice of reading aloud.

2.2 User’s Activity about Reading

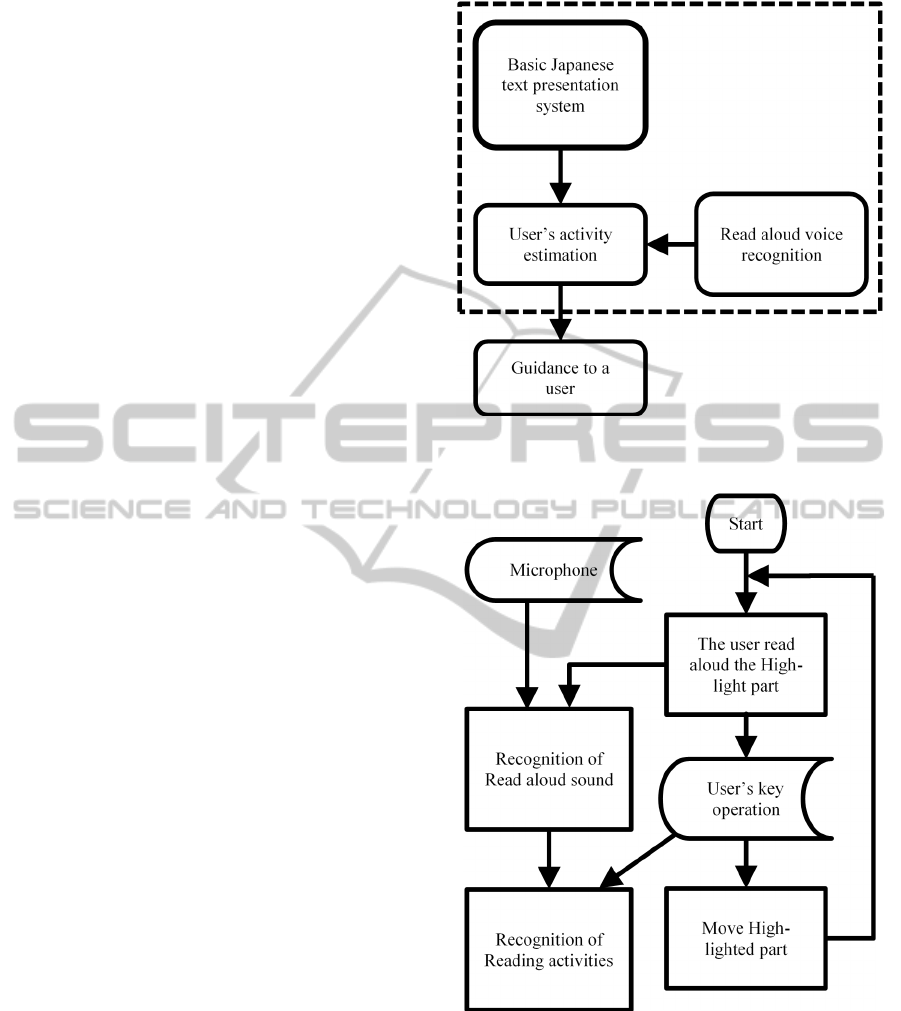

Using Japanese text presentation system, the usage is

simple as shown in figure 1. A user read a high-

lighted part of a text, then types a key to move the

high-lighted part. In the simple process, a user looks

at the display, follows the text, recognizes the

characters, understands the high-lighted chunk of

characters, read aloud and types a key. Figure 2 shows

more precise flow of reading aloud. The Japanese text

presentation system cannot help a user to look a

Figure 1: Basic system operation.

Figure 2: Precise reading activity.

display. However, the Japanese text presentation

system helps to find a proper sentence on the display

with high-lighting the sentence and masking other

sentences weakly. The system helps the user to find a

chunk of characters with high-lighting also. We

cannot observe the process of understanding.

However, we can observe the read aloud actions and

eye movements. We can observe the expressions on a

user’s face and body movement also. For guiding and

helping the user of the Japanese text presentation

system, the eye movement and the read aloud voice

are important. The read aloud activity is a direct result

of a reading. We target the read aloud activity at first.

With the recognition of read aloud activities, we can

assess the reading ability directly.

Display texts with high-lighting

and masking

Start

Read the high-

lighted part

Key input

Move the high-

lighted part

Start

Look a display

Find a text

Find a chunk of characters

Look the high-lighted part

Understand the part

Generating voice

End

RecognitionofReadingActivitieswithReadAloudVoiceonJapaneseTextPresentationSystem

Figure 3: Relation between reading time and the length.

Figure 4: Relation between reading time and the length

without out-lire data.

2.2 Reading Activity Measurement

based on the Reading Aloud Voices

For assessing, we use the relation between the reading

time and the length of the high-lighted part. For

measuring the length of a high-lighted part of texts,

there are many measures. One is the number of

characters, and the other is the number of phonemes.

In our pre-experiments, it shows clear relations

between the reading time and the number of

characters. We use the number of characters for

measuring the length of a text. In Japanese texts, there

are kanji characters, hiragana characters and etc. As a

result, there is a change of phonemes in a character.

However, the number of character shows better

relation to the reading time.

The Japanese text materials differ in the target age

of the readers. For elder pupils, the materials include

more kanji characters. A single kanji character

represents a same word that is represented using

many hiragana characters. The elder pupils read faster

than the younger pupils do. As a result, there are

constant relations between the number of characters

and the reading time of a material.

Without reading difficulties, there is a linear

relation between the reading time and the length of

the high-lighted part. However, in real reading, there

are many miss-operations and reading difficulties.

Figure 3 shows the example of the relation between

the reading time and the length of the high-lighted

part. There are points on a linear function and out-lire

points.

We decide the out-lire points in the reading time

per character of the high-lighted part. We use a simple

threshold for this process. We decide that the reading

time per character without reading difficulties are

between 0.1S and 0.3S. We plot the pairs of the length

and the reading time of the high-lighted parts after

filtering with the threshold in figure 4.

The out-lire points may represent a reading

difficulty or some error operations. It is important for

understanding the reading activity to distinguish a

reading difficulty and error operations. Only from the

key operations, we have no information for

distinguish them.

With read aloud voices, we can easily recognize

the reading activities. However, it is difficult to

recognize the relation between the read aloud voice

and the high-lighted part of a text. The observed voice

may be only a talking to oneself. The observed voice

may be a correct read aloud of the high-lighted part

of a text. The read aloud voice includes some error

pronunciations of the high-lighted part of a text.

However, pupil is not an announcer. Their

pronunciations are not clear.

Normal speech recognition is powerful now. With

the power of a web cloud, our smart phones recognize

our speech well. However, dictations of long

sentences are difficult. With a long sentence, a speech

recognition makes some errors.

In Japanese elementary schools, the Internet

connection is more or less restricted for keeping

security. In the environment, powerful cloud-based

speech recognition cannot work. We must use the

poor speech recognition system that works without

the Internet connection. In the environment, the

Japanese text presentation system must recognize the

reading activity of a user with error some results of

speech recognitions.

In figure 4, the pairs of the length and the reading

time have the relation of linear function clearly. With

the reading difficulties, the pupil needs much more

reading time. As a result, the high-lighted parts where

the user has difficulties for reading are plotted upper

regions over the linear function.

The plotted points over the normal linear function

direct the reading difficulties. The corresponding part

of the text shows the kinds of reading difficulties.

500

1000

1500

2000

2500

3000

3500

4000

0 5 10 15 20 25

y = 177.14x - 13.256

R² = 0.901

500

1000

1500

2000

2500

3000

3500

4000

0 5 10 15 20 25

2013-0704-1541

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

3 IMPLEMENTATION OF

JAPANESE TEXT

PRESENTATION SYTEM WITH

RECOGNITION OF USER

ACTIVITY

3.1 ICT Environments

A normal personal computer has a microphone to be

able to catch the voices of user’s read aloud. The basic

function of the Japanese text presentation system is to

present the Japanese text properly for easing the

reading difficulties of a user without any stress. The

system must move the high-lighted part without no

delay after a key-input.

Speech recognition needs some processing time.

A key operation and a reading aloud are

asynchronous activities. So, the system processes the

task around the key operations and one around voice

recognition simultaneously.

In Japanese elementary schools, the Internet

connection is more or less restricted for keeping

security. In the environment, powerful cloud-based

speech recognition cannot work. We must use the

poor speech recognition system that works without

the Internet connection. In the environment, the

Japanese text presentation system must recognize the

reading activity of a user with error some results of

speech recognition.

The assessment process needs large amount of

teacher contributions. In reading with the Japanese

text presentation system, teachers monitor the process

of the readings. After that, teachers see the

operational records. This assessment results an

objective estimation of the reading difficulties of the

user. However, there is a little difference of the

teacher contributions between the assessment using

the Japanese text presentation system and the

classical assessment methods.

Figure 5: Ratio among pupils need helps for using the ICT

device properly.

Table 1: Problems about ICT usability in a special aid

school in Japan.

There is a load concentration into the teacher, who is

good at ICT.

There are a few educational materials for the DAISY.

They do not use the SAVE AS DAISY.

Using OCR for preparing educational materials for

pupils with a learning disability tendency, the

recognition errors make a large check and correct work.

There are large works for replacing difficult kanji

characters with hiragana.

Using classical ICT tools as the DAISY, we need to

prepare educational materials for each pupil who has a

different age and a different disability.

It is difficult to evaluate the performance.

Table 2: The plan for covering the problems.

New/Old Feature

New Automatic reading activity estimation.

New

Writing hiragana characters at the side of

kanji characters.

Old Automatic operation observations.

Old

Automatic assessment of reading

difficulties.

Old

A collection of simple software is better

than complex multi-functional software.

Old Avoid the usage of OCR.

Old

An educational material presentation

system that does not need the special material

preparations.

Old

An evaluation method/function for

evaluating the performance of a pupil.

In the reading processes, a pupil may read the part

that is not high-lighted. A pupil may make un-correct

pronunciation. Those events make no marks in the

operational record. The observing teachers guide the

pupil for proper operations of the Japanese text

presentation system. The teachers also record the un-

correct pronunciations.

The Japanese text presentation system tries to help

every pupil with reading difficulties in a normal class

room. In Japanese elementary schools, there are a few

pupils with reading difficulties. The teacher must

make a class for the majority of normal pupils. The

teachers need the day by day assessments of reading

difficulties for evaluating their teaching to ease the

reading difficulties of a pupil. With the present

Japanese text presentation system, teachers can assess

the difficulties about reading. However, the Japanese

text presentation system needs many works with

teachers. For enabling day by day assessments of

reading difficulty, we must decrease the teachers’

contributions for assessing the reading difficulties.

16%

80%

RecognitionofReadingActivitieswithReadAloudVoiceonJapaneseTextPresentationSystem

3.2 Class Room

There are many problems for utilizing the ITC

technology in Japanese elementary schools

(Murayama, Aoki and Morioka, 2009). The problems

are listed in Table 1. For solving the problems, the

proposed text presentation system treats only the

electronic text. In Japan, a law forces to prepare the

electronic readable texts of text books (Law). And,

there are many documents accessible through the

Internet. There is no paper document for an input in

the proposed system.

Many pupils may remember the full text of the

many times used materials as text books. Those

remembered materials cannot be used for evaluating

the reading performance of a pupil. The reading of the

materials cannot help to enforce the reading abilities

of the pupil.

In normal class rooms, many pupils use the

Japanese text presentation system simultaneously. In

Japan, a class of a public elementary school has about

30 pupils and a teacher. With the instructions of the

teacher, we estimate that about 80% of the pupils

work with the Japanese text presentation system

properly. There are 20% of pupils who need a help to

use the Japanese text presentation system properly. It

is difficult to support 6 pupils by a teacher

simultaneously. Our new system will support 80% of

pupils that have some problems to use the system by

itself. Then, 2% of the pupils in a class there are one

or two pupils who need helps. A teacher can support

the pupils. In the case, all of the pupils in a class work

properly with the Japanese text presentation system.

Figure 5 shows these relations graphically. There is

no need of the complete support for all the pupils in a

class. The 80% support for pupils is enough in a

normal class.

3.3 System Design

The proposed system has the features listed in Table

2. The proposed Japanese text presentation system

has only 2 new functions. We restrict the functions of

the proposed system. The new proposed system has

the function writing hiragana characters at the side of

kanji characters, and the function of analysis of user’s

voices. With those new functions, the new Japanese

text presentation system makes easy to estimate the

user’s reading difficulties. This is discussed in

previous section. The teachers around the pupil with

reading difficulties need the objective measurements

of the performance of the reading ability of the pupil.

For the pupils without reading difficulties, the

objective measurements of performance show the

Figure 6: The Japanese text presentation system with

recognition of user’s activity.

Figure 7: Outline of the new Japanese text presentation

system.

progress of the user. For this purpose, the proposed

system provides the operation logging function. The

operation logs describe the reading speed at each

meaningful chunk of characters.

The proposed Japanese text presentation system

enables to use one-time materials for measuring the

performance of a pupil. The real-time presentation

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

generation enables to use any new plain text materials

at any time with personalized presentation.

This real-time presentation generation enables to

adapt the presentation for each pupil with different

reading difficulties. DAISY has no function about

adaptation for each pupil.

For adapting the variety of pupils’ ages and

disability grade, the presentation system has the

function to replace the un-studied kanji characters

with hiragana characters. The phonic hiragana

character is first studied character. There is a little

difficulty about reading hiragana.

For easing the difficulty about kanji characters,

the new system has another function that adds

hiragana characters that represent the pronunciations

of the kanji characters at the side of the kanji

characters. This presentation helps users to recognize

the relation between the kanji characters and their

pronunciation.

The operations to the presentation system have

the information about the user. The proposed system

logs every operation at the time. This log represents

the fluency of the reader.

The new system has the function that analyses the

voice of read aloud of the user. With the voice of the

reading aloud, the new proposed system estimates the

pronunciation. With the estimated pronunciations, the

new system estimates the reading activity of the user.

With the reading activities estimated, the new system

can change the presentation. The new system guides

the user for proper usage of the system. With the

recorded voice, the teacher may check the

pronunciations afterward.

The new system has the features listed in Table 2.

The first and the second rows are new added features.

They decrease the work by a teacher about using the

Japanese text presentation system. For wide use of the

Japanese text presentation system, the system does

not need large-scale contributions of teachers. The

network problem is important in Japanese schools.

There is a large limitation about the Internet access.

As a result, some cloud based implementation cannot

work. The proposed system must work without the

Internet access.

3.4 System Implementation

3.1.1 Language and Library

We implement the new Japanese text presentation

system with Python. The new system uses Julius and

Mecab. Julius is a Japanese speech recognition

system (Julius). Mecab is a morphological analyser

for Japanese sentences (Mecab). There are Python’s

interfaces for Julius and Mecab. Our Python based

system integrates Julius and Mecab. For Japanese test

presentation, the system uses Pyglet. Pyglet provides

an object-oriented programming interface for

developing games and other visually-rich

applications (Pyglet). With Pyglet functions, the new

system enables to display any collections of display

formats.

3.1.2 Multiprocessing

The new Japanese text presentation system has two

major processes. One process takes a work for

presenting Japanese text. The other process takes a

work for estimating user’s activities. With separating

a text presentation and an activity estimation, the text

presentation works freely from the time-consuming

speech recognition. This implementation ensures the

light display of texts. Figure 6 shows the basic

structure of the new Japanese text presentation

system. The dashed line box is the range of current

implementation. The guidance generation is left for

future. Figure 7 shows the outline of the new Japanese

text presentation system.

3.1.3 Phoneme Recognition

The Japanese speech recognition system Julius can

recognize a speech well with proper preparations.

However, in simultaneous use without proper

preparations, the Julius cannot show its good

performance. In the case, there are many error

recognitions. With the error some recognition results,

the new system makes the estimation of user’s

activity with error some speech recognition results.

The new system equates similar sounds with each

other. The new system recognizes the part where the

user read aloud in a text. The correctness of reading

is not evaluated. With the recognition of the part of

reading aloud, the system recognizes that the user

uses the system properly or not.

The Japanese speech recognizer Julius recognizes

the chunk of voices. There are many errors in the

recognized results. The new system only uses the

phonemes.

The new system evaluates the length of phonemes

recognized. The number of phonemes is robust in

noisy environments. Using the number of phonemes

recognized, the new system estimates the

correspondence between the phonemes of a high-

lighted part of texts and the phonemes recognized

from voices based on the length of the phonemes. The

new system evaluates the difference between the

phonemes of the high-lighted part of texts and the

recognized phonemes using Levenshtein distance

RecognitionofReadingActivitieswithReadAloudVoiceonJapaneseTextPresentationSystem

(Levenshtein 1966). With the Levenshtein distance,

the new system estimates the correctness of the

reading aloud voices for the high-lighted part in the

text. In the implementation, the insertion and the

deletion take 2 for their edit distances. The

substitution’s cost is 4 for normal substitutions.

Between the nearly same phonemes, the

substitution’s cost is 2. For instance, ‘shi’ and ‘hi’ are

nearly same in Japanese. With a threshold, the new

system decides the read aloud voice is proper

pronunciation of the high-lighted part of a text, or not.

Figure 8 shows the precise flow of phoneme analysis.

4 EXPERIMENTS

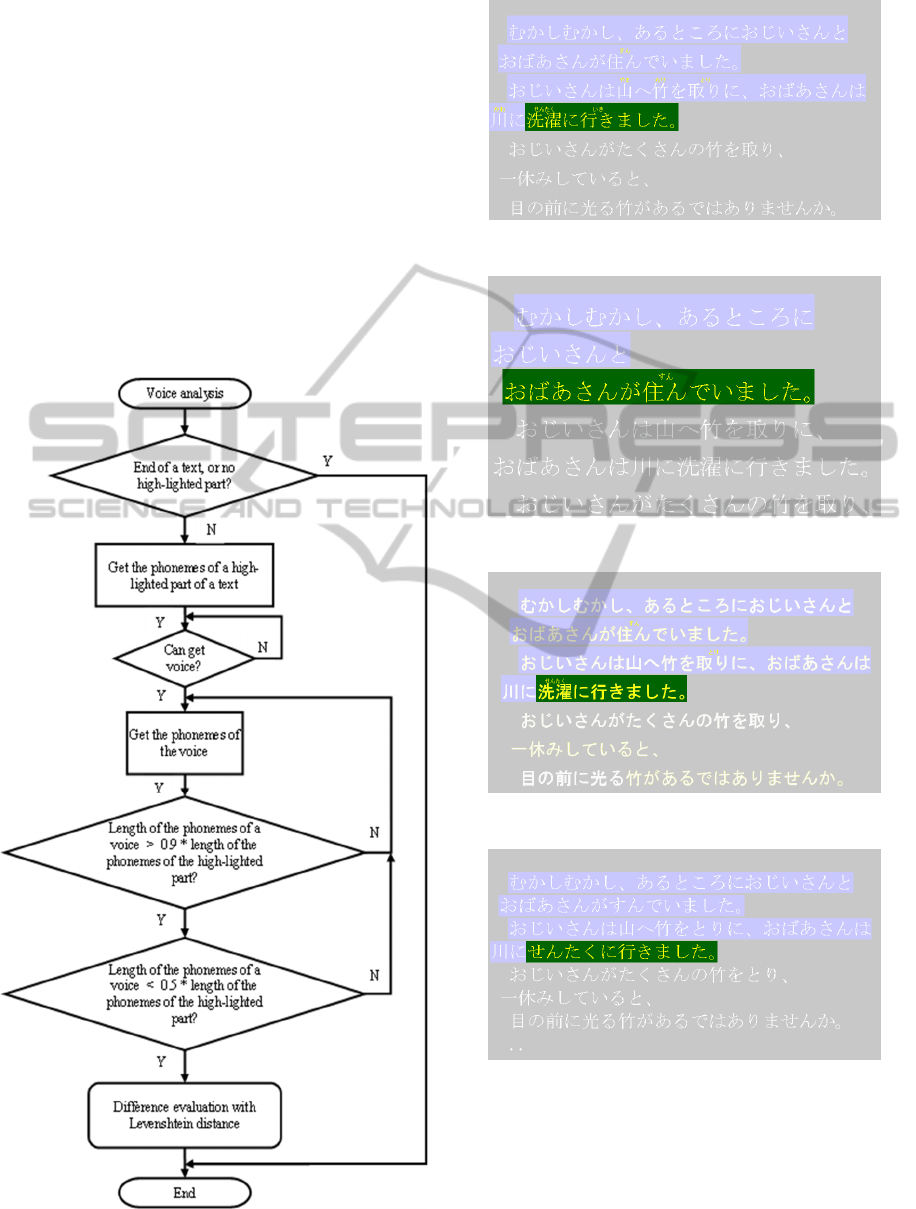

Figure 8: Flowchart of voice analysis.

Figure 9: Presentation example.

Figure 10: Presentation example using large fonts.

Figure 11: Presentation example using other fonts.

Figure 12: Presentation example without writing hiragana

characters at the side of kanji characters.

We will help the user by the Japanese text

presentation itself. For this purpose, we implement

the reading activity estimation with the voice of

user’s read aloud. The new system records the voice.

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

The new Japanese text presentation system includes

the original Japanese text presentation system. The

new system includes the function to estimate the

reading activity with user’s reading aloud voice and

the function to make reading difficulty assessment.

4.1 Text Presentation Varieties

The new Japanese text presentation system enables

much more varieties of text presentation. The new

function displays hiragana characters at the side of

kanji characters. In Japan, it is popular helping

method for easing the difficulty of reading kanji

characters to write hiragana characters at the side of

kanji characters.

The placement of hiragana characters at the side

of kanji characters has many methods. Our

implementation places the hiragana characters at the

center of the word of kanji characters. Figure 9 shows

an example of presentation of Japanese texts with

hiragana characters writing at the side of kanji

characters. The current sentence is high-lighted, and

the current part of the sentence is high-lighted with

other formats. Other parts of the text in Figure 10 are

examples using larger fonts. Figure 11 shows an

example using other types of fonts. Figure 12 is an

example without writing hiragana characters at the

side of kanji characters.

4.2 Read Aloud Voice Recognition

We have eight students in our laboratory for the

experiments. They include three students that mother

tongs are not Japanese. It is easy to measure the

strength of the voice of a user in experimental

environments. With the voice of a single person, it is

difficult to evaluate the precise pronunciations.

However, it is easy to evaluate the strength of the

voice.

In normal class room, there are many other sounds

other than the voice of the user. In the environments,

it is not easy to separate the voice among other voices

and noises. We use the recorded voice for checking

the pronunciations by the teachers.

In the experiment, the new Japanese text

presentation system decides about 80% of the voices

as correct pronunciations of the high-lighted parts.

This result depends on the threshold. We can tune

these results. Figure 13 shows the part of the

recognition results. In the figure, ‘mukashimukashi’

is the phonemes of the first part of the text in figure

9. The phenomes of a text and the phenomes of a

voice are same in figure 13.

Figure 13: Phoneme analysis logs.

Table 4: Reading time of all subjects.

Subject A B C D E F G H

Correctness 0.80 0.60 0.67 0.87 0.87 0.67 0.47 0.47

Reading time (S) 25.1 24.0 26.2 30.2 23.5 28.1 38.1 45.3

Utterance time (S) 21.0 14.5 19.5 20.5 14.0 17.5 15.5 18.0

Silence time (S) 4.1 9.5 6.7 9.7 9.5 10.6 22.6 27.3

RecognitionofReadingActivitieswithReadAloudVoiceonJapaneseTextPresentationSystem

Table 3: Error examples in voice recognition.

# Text Voice

1 oji:saNto ojisaNto

2 oba-

saNgasuNdeimashita

obasaNgasuru

3 takeotorini kakyo:toriniru

4 takeotorini shibakarini

5 hitoyasumishiteiruto ichiyasumishiteiruto

6 hitoyasumishiteiruto hitoriyasumi/shiqteruto

Table 3 shows the examples of voice recognitions

that have some errors. In the table, the column ‘Text’

is the correct phonemes of a text. The column ‘Voice’

is the recognized phonemes from the voice reading

the text.

At the first row, a long vowel is not recognized.

That is represented as ‘:’. At the second row, also a

long vowel is not recognized. And, a gap between

words is not properly recognized. At fifth row, two

phonemes are not recognized properly. At sixth row,

a phoneme ‘ri’ is inserted in the result of voice

recognition.

The errors as the first row are recovered with the

help of the Levenshtein distance. The errors as the

second row are difficult to recover in this stage.

4.3 Estimation of User’S Activity

Table 4 shows the analysed results of users’ activities

using phoneme analysis. The subjects are male, and

span from 22 years old to 27 years old. The subjects

D, G and H are subjects that mother tongs are not

Japanese. They can read, write, and speak Japanese

well. Other subjects are Japanese. The subject D, G

and H need more reading time than other Japanese.

Table 4 shows the experiments of 8 subjects. The

correctness in the table is the correct recognition rate

Figure 14: Reading time and utterance time.

of the decision about correctly reading aloud or not.

In Table 3, the subjects D, G and H need more silence

time than other subjects need. With the utterance

analysis, we have much more precise information for

understanding the user’s reading activity.

Figure 14 shows the relations between reading

time and the utterance time. In the graph, the vertical

measure’s unit is second. There are varieties of

reading activity. In the graph, the increase in a silence

time causes the increase in a reading time. The subject

‘A’ needs a little silence time. The subject ‘H’ needs

a large silence time. With a long silence time, the

reading speed increases.

5 CONCLUSIONS

The proposed new Japanese text presentation system

estimates the precise reading activities of the user to

the teacher. The report includes not only the key

operations, but also the analysis of reading aloud

voices. The reading aloud voices are direct

descriptions of the user’s reading activities. We

implement the analysis of user’s voices. Our

experiments confirm that the function works well.

The new Japanese text presentation system with

phoneme analysis in read aloud voices enables to be

used simultaneously in a class room. In normal class

room, a teacher s many pupils, including ones with

reading difficulties.

The new proposed system decreases the works

with a teacher for using the Japanese text presentation

system in a class. All of pupils in a class utilize the

Japanese text presentation system properly with the

help of teachers and the system itself. Teachers do not

need to check all record of the user’s reading

activities. The system detects the points where the

reading difficulty is. This enables easier use of the

Japanese text presentation system in normal class

rooms.

The much more precise record of the user’s

activities helps to make the precise understanding of

the reading activity with less teacher’s work. We will

add user guidance function discussing with teachers.

We must discuss about the sequence of a silence

time and an utterance time. This leads us to the more

precise understanding of reading activity.

ACKNOWLEDGEMENTS

Mr. Shu Aoki has supported the implementation and

the experiments. This work is supported with

JSPS25330405.

ABCDEFGH

Reading time (S) Utterance time (S)

Silence time (S)

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

REFERENCES

Aoki, K., Murayama, S., Harada, K., 2014. Automatic

Objective Assessments of Japanese Reading Difficulty

with the Operation Records on Japanese Text

Presentation System. CSEDU2014, vol. 2, pp.139-146,

Barcelona, Spain.

DeMeglio, M., Hakkinen, M., Kawamura,H., 2002.

Accessible Interface Design: Adaptive Multimedia

Information System (AMIS). Computers Helping

People With Special Needs, Lecture Notes in Computer

Science. Springer.

Law.

http://www.bunka.go.jp/chosakuken/pdf/tokuteitosyo_f

ukyu_gaiyo.pdf.

Murayama, S., Aoki, K., 2010. Real Time Image

Presentation System for Persons with a Learning-

Disabled Tendency. IEICE-ET, vol. 109, no. 387,

ET2009-96, pp. 25-29, 2010. IEICE.

DAISY. http://www.daisy.org/

Murayama, S., Aoki, K., Morioka, N., 2009. Image

processing to make teaching aids for learning disability

persons. IEICE-108, IEICE-WIT-488, IEICE.

Aoki, K., Murayama, S., 2012. Japanese Text Presentation

System For Persons With Reading Difficulty -Design

and Implementation-. CSEDU2012, vol.1, pp. 123-128,

Porto, Portugal.

Murayama, S., Aoki, K., 2012. Japanese Text Presentation

System for pupils with Reading Difficulties, ICCHP

2012, Lecture Notes in Computer Science, vol. 7382,

Computers Helping People with Special Needs, pp.507-

514, Linz, Austria.

OpenCV. http://opencv.org/. retrieved at 2014.

Mecab. https://code.google.com/p/mecab/. retrieved at

2014.

Julius. http://julius.sourceforge.jp/. retrieved at 2014.

Pyglet. http://www.pyglet.org/. retrieved at 2014.

Levenshtein A., 1966. Binary Codes Capable of Correcting

Deletions, Insertions and Reversals, Soviet Physics

Doklady, vol. 10, no. 8, pp. 707-710.

RecognitionofReadingActivitieswithReadAloudVoiceonJapaneseTextPresentationSystem
