Towards Cross-layer Monitoring of Cloud Workﬂows

Eric K

ubler and Mirjam Minor

Institute of Informatics, Goethe University, Robert-Mayer-Str.10, Frankfurt am Main, Germany

Keywords:

Cloud Applications Performance and Monitoring, Workﬂow, OpenShift.

Abstract:

Prospective cloud management requires sophisticated monitoring capabilities. In this paper, we introduce a

novel monitoring framework for cloud-based workﬂow systems called cWorkload. cWorkload integrates mon-

itoring information from different layers of the cloud architecture. The paper puts its focus on the two-layer

monitoring regarding the workﬂow layer and the PaaS layer. We present the layered monitoring architec-

ture, an implementation of the two-layer cross-monitoring part, and an experimental evaluation with sample

workﬂow data. Further, we discuss related work on cloud monitoring divided into one-layer, multi-layer, and

cross-layer approaches. Our plans for future work on extending the implementation by further layers towards

a cross-layer, prospective monitoring for prospective cloud management are described.

1 INTRODUCTION

Cloud management (CM) aims at an optimal resource

and capacity planning. Cloud monitoring becomes es-

sential to predict and keep track of the evolution of all

the parameters involved in the process of assuring the

Quality of Service (QoS) (Aceto et al., 2013). Mon-

itoring capabilities facilitate cloud service providers

to fulﬁll service level agreements (SLAs). Service

consumers may use monitoring capabilities to audit

whether SLAs have been violated. Today, monitor-

ing services such as Amazon CloudWatch (Amazon,

2014b) provide data on the current state of particu-

lar cloud resources. However, they facilitate a rather

reactive management of resources. The increasingly

complex structure of cloud systems made of several

layers requires more complex monitoring systems in

future (Aceto et al., 2013).

We identiﬁed a research gap for prospective cloud

monitoring capabilities. Such approaches that go be-

yond monitoring capabilities provided by cloud ven-

dors might improve CM signiﬁcantly. In this pa-

per, we introduce the novel cross-layer monitoring

framework cWorkload that integrates process moni-

toring and cloud monitoring capabilities. cWorkload

is part of our process-oriented cloud management

model whose fundamental ideas have been published

in our previous work (Schulte-Zurhausen and Minor,

2014; Minor and Schulte-Zurhausen, 2014). The

cloud management model has been inspired by the

multi-tier model for cloud management introduced by

Maurer et al. (Maurer et al., 2013), which we have

extended by the business process perspective. An in-

tegrated monitoring solution that is aware of the on-

going business processes contributes to a better es-

timation of approaching workloads. Cloud monitor-

ing information from existing tools is integrated with

process monitoring. As a consequence, interventions

can be planned in advance and executed in a timely

manner. This improvement of the cloud management

yields beneﬁts for both, a cloud service provider and

a cloud user perspective. The novel monitoring ap-

proach might reduce the amount of overprovisioned

resources extremely, which is required to maintain

compliance with SLAs.

The Workﬂow Management Coalition (Workﬂow

Management Coalition, 1999) deﬁnes a workﬂow as

“the automation of a business process, in whole or

part, during which documents, information or tasks

are passed from one participant to another for action,

according to a set of procedural rules”. A task also

called activity is deﬁned as “a description of a piece

of work that forms one logical step within a process.

An activity may be a manual activity, which does not

support computer automation, or a workﬂow (auto-

mated) activity. A workﬂow activity requires human

and/or machine resources(s) to support process execu-

tion” (Workﬂow Management Coalition, 1999). Sev-

eral instances of the same workﬂow can be executed

at the same time. A cloud workﬂow is a workﬂow

that is executed within a cloud environment (or within

several cloud environments). For instance, a video

surveillance process comprising of several analysis

steps for recorded video sequences, such as identi-

389

Kübler E. and Minor M..

Towards Cross-layer Monitoring of Cloud Workﬂows.

DOI: 10.5220/0005434703890396

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 389-396

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

fying image changes that may correspond to humans

moving within the observed area, provides a sample

scenario for a cloud workﬂow. In this paper, we make

use of the workﬂow notion to deﬁne workload as fol-

lows: A workload is a task (of a workﬂow instance)

with its input data, its number of users, and a task type

(CPU intensive, network intensive, memory intensive,

storage intensive). While the workload of an ongo-

ing task is well-speciﬁed the future workloads might

be known only approximately, i.e. the workloads are

still underspeciﬁed. Underspeciﬁed workloads are re-

ﬁned as soon as all properties of their according tasks

are speciﬁed, such as input data and number of users.

The overall workload of a cloud system at a particular

execution time is then characterized by the set of cur-

rent workloads (from different tasks being executed).

The remainder of this paper is organized as follows.

In Section 2, we present related work. Section 3 sum-

marizes our cloud management and cross-layer mon-

itoring approach. Section 4 contains our hypothe-

ses, the experimental setup, and results of our exper-

iments. We draw a conclusion in Section 5 and point

out future work.

2 RELATED WORK

In order to compare cWorkload and other cloud

monitoring platforms, we classify the related work

into three types: single-layer monitoring, multi-layer

monitoring, and cross-layer monitoring. A single-

layer monitoring tool monitors only a single layer

of the cloud architecture. This could be, for exam-

ple, the application layer or the IaaS layer. A multi-

layer monitoring platform is able to obtain and man-

age monitoring information from different layers at

the same time. However, the collected information

from each layer is not related to other layers. Thus,

multi-layer platforms are per se not capable to ob-

serve workloads across layers in an integrated man-

ner. A cross-layer monitoring platform receives mon-

itoring information from several layers and is able to

track the impact of a workload from layer to layer,

for instance, to determine the resource utilization by

a cloud workﬂow at lower layers. In the following,

we present a selection of cloud monitoring platforms.

The selection and grouping of work is an extension of

the list of monitoring platforms discussed by Aceto et

al. (Aceto et al., 2013).

Obviously, the related work on cross-layer mon-

itoring forms the closest afﬁnities to our approach.

AzureWatch (Paraleap Technologies, 2014) in combi-

nation with other third-party monitoring services is

capable of monitoring the application, PaaS and IaaS

layer and of aggregating the information. Monitor-

ing values from leading indicators for scaling, such as

queue depths or rate of change in demand, are com-

bined with values from trailing indicators, such as

CPU utilization, requests per second, or bandwidth.

Thus, AzureWatch is a cross-layer platform. How-

ever, AzureWatch is restricted to technical solutions

based on Windows Azure. The workﬂow paradigm

is not addressed. vRealize Hyperic (vmware, 2014)

is a cross-layer monitoring platform from VMWare.

It monitors several cloud layers and is able to point

out resource utilization peaks across the layers. This

is called metric drill down. In contrast to our work,

vRealize Hyperic does not consider a workﬂow layer.

Multi-layer monitoring approaches are also of in-

terest for our work since they collect monitoring in-

formation from different layers. Some of them visual-

ize the acquired monitoring values in common dash-

boards. CloudWatch (Amazon, 2014b) uses metrics

from the Amazon Web Services (AWS), which are

distributed on the PaaS and IaaS layer. CloudWatch is

also capable of obtaining and evaluating monitoring

information from other applications. Thus, Cloud-

Watch is a multi-layer monitoring platform. However,

due to the lack of aggregation of the pieces of infor-

mation, CloudWatch is not a cross-layer monitoring

platform. Monitis (monitis, 2014) is an application

based on an agent paradigm. It is mainly for AWS

and, similar to CloudWatch, is a multi-layer platform

with a common dashboard for monitoring informa-

tion from different layers. Further multi-layer ap-

proaches for PaaS and IaaS are, for instance, Lattice

(Palmieri et al., 2012), Gmone (Montes et al., 2013)

or the monitoring component of Aneka (Manjrasoft,

2014). Nimsoft Monitoring Solution (ca technologies,

2014) is a multi-layer monitoring platform primarily

for the hardware and IaaS layer but it is also able to

obtain pieces of information from other monitoring

platforms. However, it does not track events across

the layers. A similar approach for multi-layer IaaS

and hardware monitoring is GroundWork (Ground-

Work, 2014) which uses the tool Nagios (Nagios,

2014) for the hardware layer. The CLAMS frame-

work (Alhamazani et al., 2014) is a multi-layer ap-

proach with a special focus on integrating monitor-

ing information from cloud environments of different

vendors. Please note that the authors use an alterna-

tive notion of cross-layer monitoring regarding multi-

clouds. Maurer et al. (Maurer et al., 2013) present

an approach to manage a cloud conﬁguration at dif-

ferent layers. They divide the resource allocation into

three levels for scaling called escalation levels. Low-

level metrics from the cloud infrastructure, such as

free disk and packets sent, are mapped to high-level

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

390

monitoring parameters with the aim to fulﬁll the Ser-

vice Level Agreements (SLAs) by automated scaling.

We consider this a multi-layer approach since the in-

formation from a lower layer is propagated towards

higher layers. A cross-layer monitoring would require

receiving monitoring information from different lay-

ers.

Single-layer monitoring approaches are slightly

related to our work. Monitoring one layer is a pre-

requisite for multi-layer and cross-layer monitoring.

OpenShift, for instance, can be monitored in a single-

layer manner by a monitoring component for each

particular PaaS container called monitoring cartridges

(Pousty and Miller, 2014). For sample work on mon-

itoring at a single IaaS layer, we refer to the literature

(OpenNebula, 2014; rackspace, 2014; LogicMonitor,

2014; Kung et al., 2011; Alcaraz Calero and Gutier-

rez Aguado, 2014).

3 MONITORING

ARCHITECTURE

The cloud management problem could be mapped

into the MAPE cycle (Monitoring - Analysis - Plan-

ning - Execution) (I.B.M. Corporation, 2006). The

ﬁrst step is to monitor the resources. The analysis

step is to detect an event. This could be the threat-

ening violation of an SLA, for instance. Another ex-

ample for an event is the occurrence of a high work-

load that provides an indicator for scaling resources

in order to decrease the required execution time. Step

three is the search for a solution in the planning step.

A solution is a reconﬁguration of the cloud conﬁgu-

ration. This might include changes in the distribution

of workloads for a better ﬁt of the resources to the

requirements. This could be achieved by using con-

ﬁguration activities across the layers while activities

at higher levels are preferable. In addition, different

problem solving strategies could be considered, such

as meta-heuristics (Beloglazov et al., 2012), genetic

algorithms (Hu et al., 2010), or case based reasoning

(Richter and Weber, 2013).

In the following, we will brieﬂy summarize our

cloud management approach that has been published

in our previous work (Minor and Schulte-Zurhausen,

2014). Based on this, we will introduce the novel

monitoring architecture. A multi-tier model sepa-

rates physical from virtual resources in different lay-

ers. It allows cascading conﬁguration activities from

layer to layer. The model of our monitoring archi-

tecture is inspired by the cloud management model

from Maurer at al. (Maurer et al., 2013) which con-

sists of three layers for hierarchical conﬁguration ac-

tivities. In our previous work (Minor and Schulte-

Zurhausen, 2014), we have introduced a workﬂow tier

on top of the three tiers from Maurer et al.’s model in

order to achieve a process-oriented perspective (see

left hand side of Figure 1). The physical machine tier

at the bottom is manipulated by conﬁguration activ-

ities like add and remove compute nodes. The vir-

tual machine tier allows activities like to increase or

decrease incoming and outgoing bandwidth of a vir-

tual machine (VM), its memory, its CPU share, or

to add or remove allocated storage by x%. Further,

VMs can be migrated to a different physical machine

or moved to and from other clouds in case of out-

sourcing/insourcing capabilities. The application tier

is dedicated to management activities for individual

applications. The same set of activities as for VMs

can be applied but with an application-speciﬁc scope.

This tier can also be a PaaS platform while the VM

tier can be an IaaS platform. Obviously, the migra-

tion and insourcing/outsourcing activities refer to the

placement of applications on VMs at the application

tier. The workﬂow tier addresses the placement of

workﬂow tasks on VMs. Tasks can be migrated to an-

other VM or tailored, i.e. split into replicated tasks

with a portion of the input data each.

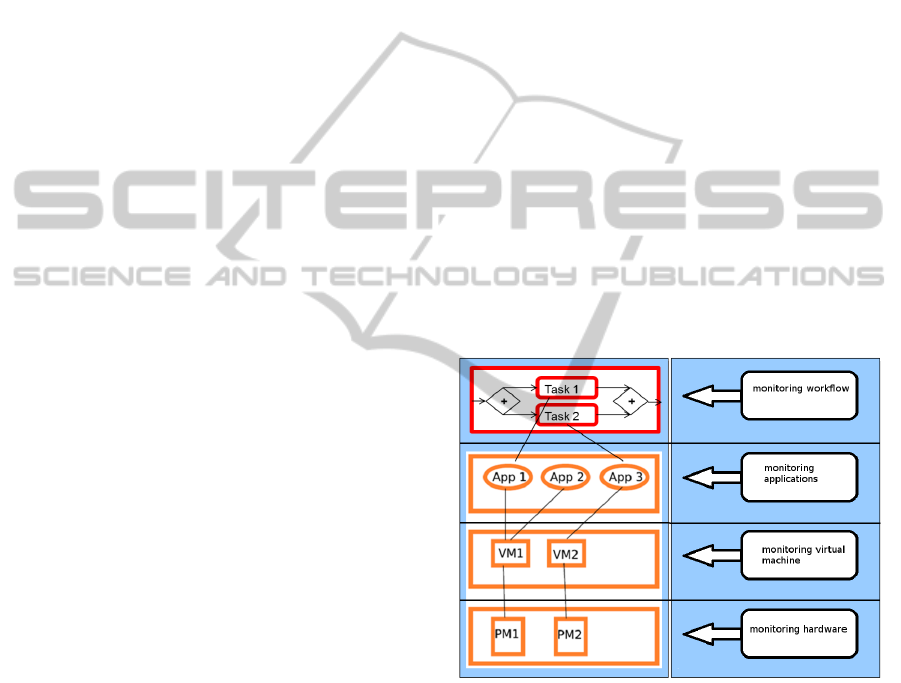

Figure 1: Process-oriented model for cloud management

extending (Maurer et al., 2013).

cWorkload is a novel part of the cloud man-

agement architecture for cross-layer monitoring (see

right hand side of Figure 1). In case of the workﬂow

layer, it monitors the workﬂow state of instances and

tasks. States reported frequently in the literature are

for example “running”, “active” or “suspended”. We

aim at using this information for a prediction of work-

loads as a core feature of cWorkloads. The monitoring

results can be used to improve the management ca-

pabilities from a reactive towards a prospective man-

agement. To obtain the workload of an instance, we

monitor the input and output data of the tasks. With

TowardsCross-layerMonitoringofCloudWorkflows

391

the information on the workloads we will be able to

estimate the effort. This estimation will serve in our

model as a means to forecast the need for scaling. We

are planning to run simulations to collect information

about the efforts of domain speciﬁc workloads and

build an empiric knowledge repository about typical

efforts.

At the PaaS layer, we aim to monitor the resources

that are offered by the run-time environment. Gener-

ally, there are different tools and ways to accomplish

this task depending on the used PaaS platform. In

our implementation, we use OpenShift (Pousty and

Miller, 2014) as a cloud environment. The cloud

workﬂow is executed by a workﬂow engine running

within OpenShift. Each workﬂow task is performed

by one web service (Singh and Huhns, 2005). The

workﬂow engine and the web services are operated on

different containers. Monitoring information from all

containers that are involved is gathered by the linux

tool top (Unix Top, 2014).

Similar to the PaaS layer, the IaaS layer offers dif-

ferent tools to monitor the health of the VMs. In fu-

ture work, we will use Eucalyptus (Eucalyptus Sys-

tems, 2014) or the Amazon web services (Amazon,

2014a), probably with CloudWatch (Amazon, 2014b)

as a monitoring tool.

At the hardware layer, there are monitoring metrics

available such as for the cpu utilization, the energy

consumption and the temperature.

The long-term goal of cWorkload is to reduce the

overprovisioning of resources. To achieve this goal,

we will integrate the monitoring information by a

smart handling of resources depending on workload

forecasts. We will combine the information from dif-

ferent monitoring layers to obtain a better understand-

ing of the state of our cloud.

In the remainder of this paper, we will present on the

integration of the workﬂow and the PaaS layer. One

essential part of this concept is the task placement.

We deﬁne a task placement as the assignment of auto-

mated tasks to VMs and furthermore the assignment

of VMs to physical machines (PMs). Figure 2 illus-

trates an example for a task placement. The place-

ment includes two PMs and three VMs. The ﬁgure

illustrates which VM is executed on which PM, for

example “VM3” is running on “PM2”. This schema

is repeated for the runtime environments of the PaaS

layer and for the web services at the workﬂow layer.

For instance, “s3” is executed on the “runtime3”,

which is executed on “VM2”. On the right hand side,

an example workﬂow is depicted that uses “s1” and

“s5”.

The integration of the PaaS and the workﬂow layer

is performed by cross-linking the metrics at the PaaS

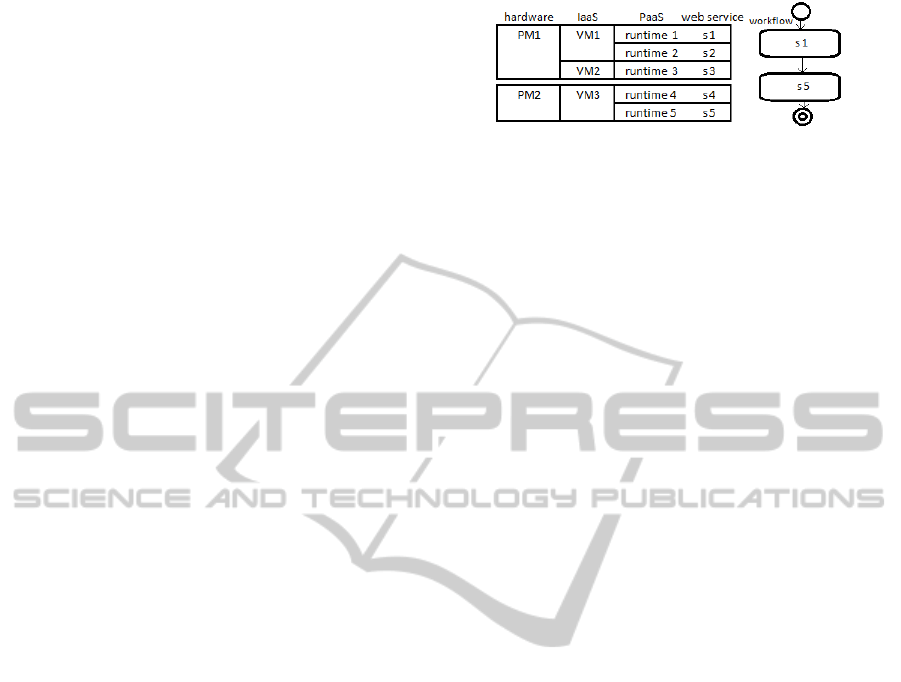

Figure 2: Sample task placement for a workﬂow.

layer with the monitored task states at the workﬂow

layer. Each task in the state “running” is assigned to a

measuring point for the cloud resource that has been

assigned for execution. The measured values from

both layers are aggregated into a multi-dimensional

representation form based on time stamps from both,

the workﬂow execution log and from the time of

measuring recorded at the PaaS level. The aggre-

gated information can be interpreted by an automated

cloud management mechanism or visualized for a hu-

man being in a multi-dimensional presentation. For

instance, in our preliminary implementation within

OpenShift, each PaaS container comprises of exactly

one web service that is assigned to a PaaS container

via its URL. However, the same web service can be

used by multiple workﬂow instances containing the

same task that is performed by the web service. As a

consequence, the measured metrics at the PaaS layer

have to be partitioned in order to determine the por-

tion of the measured values for each task. For exam-

ple, if “s1” that is deployed on “runtime1” is used by

three workﬂow instances at the same time and if the

CPU utilization of “runtime1” is 100% we should not

simply conclude that each instance uses 33% of the

CPU because the CPU utilization for each instance

depends on the input data. At the moment, we con-

sider the measured values at the PaaS layer as an

amalgam if multiple workﬂow task instances are run-

ning on the same PaaS container. A partition function

is required to approximate the share of effort for each

instance. We will address this in our future work in or-

der to aggregate the values from the PaaS layer with

the workﬂow layer more precisely than in our simpli-

ﬁed experiments (see below).

4 EVALUATION

The cWorkload framework is implemented in a pilot

system with a focus on the two-layer monitoring

of the workﬂow and the PaaS layer. Integrating

the monitoring capabilities of the workﬂow and the

PaaS layer is an important step towards a cross-layer

monitoring. A prerequisite for this is to check

whether monitoring values from both layers can

be aggregated in principle. The feasibility of the

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

392

two-layer approach has been investigated by running

some experiments with sample workﬂows on the pilot

system. Preliminary evaluation results have been

achieved guided by the following three hypotheses:

H1: The Utilization of Cloud Resources Can

Be Aligned with a Workﬂow Instance.

The core of the hypothesis is that it is possible to

identify the PaaS resources used by a particular

workﬂow task that has been executed. This includes

recognizing the PaaS container that has been used,

the utilization of the resources of the container and

the duration of using the container. The hypothesis

addresses a simple but critical point. Only with

the capability to monitor the resources required by

a task, a deep integration of workﬂow and cloud

management can by achieved. Obviously, the PaaS

resources can be monitored but for a workﬂow

instance it is not straightforward to identify the

resources (and shares of resources) that have been

used by a particular workﬂow task during execution

in a cloud environment.

H2: The More Workﬂow Instances Are Run-

ning on a PaaS the Higher Is the Demand for

Resource Scaling.

Each workﬂow instance within a PaaS should be

independent from each other. In order to avoid inter-

ferences between instances the resources might be

scaled. The need for scaling might increase with the

number of ongoing workﬂow instances. We assume

that the sharing of resources actually occurs and that

scaling is performed by a heuristically method, for

instance by rules observing the number of open I/O

connections to a PaaS container. The conﬁrmation

of the hypothesis is not obvious because if tasks are

running on different physical machines they might

not have any impact on each other.

H3: The Higher the Workloads from Ongo-

ing Workﬂow Tasks on a PaaS the Higher Is the

Demand for Scaling.

In addition to the number of running workﬂow

instances, the type of workload that is processed

within an instance has an impact on the demand

for scaling. Again, we assume that resources are

shared heuristically on the PaaS. If the workload

is distributed advantageously it is possible to run

several workﬂow instances without any interference

between them. On the other hand, disadvantageous

distributions of workload might lead to obstructions.

To observe such effects, knowledge about the type of

workloads is required.

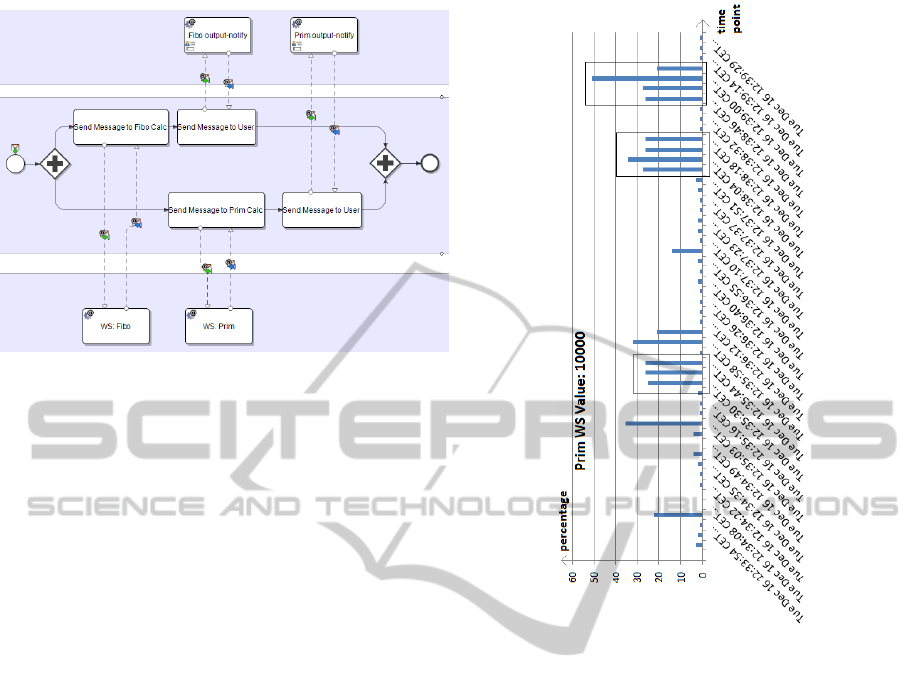

We have designed two different, artiﬁcial work-

ﬂows for the experiments. A sample modelled in

BPMN (Grosskopf et al., 2009) is depicted in Fig-

ure 3. The trigger for starting a workﬂow instance

is a message from the user as indicated by the en-

velope symbol. Two sample web services are in-

cluded. The ﬁbo web service (“WS: Fibo”) calcu-

lates the Fibonacci number for a given number. The

prim web service (“WS: Prim”) calculates all prime

numbers from 2 to n for a given n. The web ser-

vices are executed in parallel as indicated by the plus

symbol. The workﬂows have been modelled using the

workﬂow designer Intalio—BPM (Intalio, 2014). Our

work considers the task types of the workloads such

as CPU intensive, storage intensive, memory inten-

sive or network intensive tasks. The prim and ﬁbo

web services are clearly of the type CPU intensive

since they mainly require CPU as a resource, do not

require any storage, and use only a tiny quantity of

memory and network capacities. The web services are

deployed on the OpenShift online platform (Pousty

and Miller, 2014) that provides a public cloud solution

of a PaaS. Each web service is running on an Open-

Shift small gear, i.e. a small-size container of the run-

time environment providing 512MB RAM, 1GB hard

disc and a single CPU with 2.5GHz. The prim web

service is deployed on gear no. 1 and the ﬁbo web

service on gear no. 2. We use a WildFly 8 application

server (redhat, 2014b) as a cartridge, i.e. as a pre-

conﬁgured application on top of a gear. The system

Intalio—BPM 6.5 serves as a workﬂow engine run-

ning on a 4-core CPU with 3.4GHz and 16GB RAM.

The instances are started by hand. The CPU utiliza-

tion for each gear is logged via the Linux tool top

(Unix Top, 2014). Our cWorkload framework records

the terminal output at regular intervals. In addition,

Intalio—BPM logs the progress of the workﬂows. We

run the simulation with several workloads and com-

pare the results of the different runs. In case of the

prim web service, the input data is a given number,

for example 10. The result for this example is the set

of prime numbers {2, 3, 5, 7}. The input data for the

ﬁbo web service is also a number. For example, the

result is 55 for the number 10. The higher the input

number the higher is the workload. Consequently, this

requires a higher computational effort.

Within an initial test phase, we couldn’t observe

any interference between the web services. Most

probably, this was due to the fact that two gears on

different Amazon EC2 instances had been selected

automatically by the load balancer used by OpenShift

online. Thus, we will discuss the results for the par-

ticular web services separately. In order to investi-

gate hypothesis H1, cWorkload monitors the CPU uti-

lization of the gears for new workﬂow instances that

TowardsCross-layerMonitoringofCloudWorkflows

393

Figure 3: Workﬂow with a parallel call of web services.

have been started at irregular frequencies. Figure 4

and Figure 5 depict two sample sequences of values

measured for the CPU utilization of gear 1 and gear

2. The sample input data was 45 for the ﬁbo web

service and 100,000 for the prim web service. There

are some recognizable peaks within the time series.

We have highlighted the areas where a web service is

supposed to run according to the logs of the workﬂow

engine. It can be observed that the log information

matches the recognizable peaks. We conclude from

the investigated samples that the utilization of cloud

resources measured by the Top tool can be aligned

with the CPU utilization of the gears consumed by the

particular web service tasks. However, there are fur-

ther single peaks in the time series. We assume that

they are artifacts originating either from the Top tool,

from the WildFly cartridges or from competing gears

running on the EC2 instance. Hypothesis H1 has been

conﬁrmed by the measured samples.

For hypothesis H2, we have started a variable

number of workﬂow instances simultaneously. The

logs of the workﬂow engine have been analyzed to de-

termine the throughput time of the web services, i.e.

the duration of executing the workﬂow task. We have

repeated this test for 5 samples with input 100,000 for

the prim web service and 43 for the ﬁbo web service.

The average values are depicted in Figure 6 and Fig-

ure 7. The results show that with an increasing num-

ber of instances calling the same web service in paral-

lel the throughput time increases signiﬁcantly. At this

point, our preliminary results are not yet a proof but

a promising indicator that our hypothesis 2 is valid.

In order to investigate hypothesis H3, we have logged

the number of successfully executed requests for the

ﬁbo web services. A request is considered successful

if the service has returned the result before receiving

a time out. For instance, the Intalio workﬂow engine

Figure 4: CPU utilization of prim.

throws such time outs after 60 seconds. We created

different workloads from the same web service task

by varying the input data. We have chosen an input

value between 30 and 50. Each sample was repeated

between 3 and 20 times. For input values of 43 and

below, all executions have been successful. For input

values of 48 and above, the execution was not suc-

cessful. For values between, the success of the exe-

cution depends on the number of instances and on the

system state. According to our experience, the dura-

tion of execution increases with the input value. Hav-

ing executed 5 instances with input value 43 success-

fully makes it promising to run 5 instances with value

42 successfully as well. A systematic experimental

proof of this experience as well as the development

of a quantiﬁcation function for workloads will be part

of our future work. The preliminary results provide

a ﬁrst hint that the demand for scaling resources can

be predicted approximately by means of the input val-

ues that should be calculated and, thus, by the work-

loads to be expected. Hypothesis H3 is not yet ﬁnally

conﬁrmed. Rather, the experiments play the role of

a plausibility check. Based on the promising results,

a partition function can be elaborated and hypothe-

sis H1 can be investigated for multiple workﬂow in-

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

394

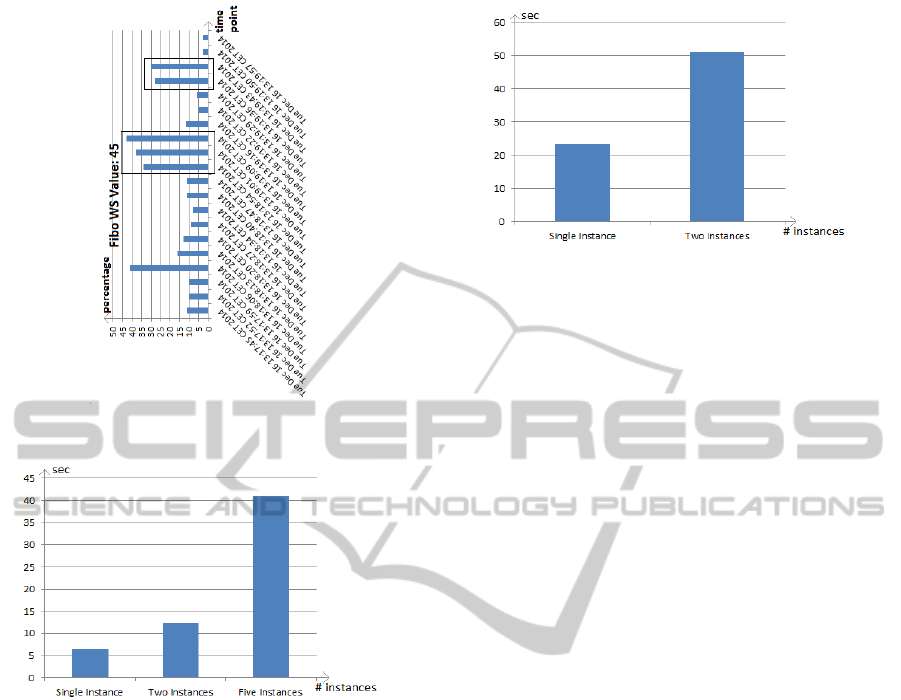

Figure 5: CPU utilization of ﬁbo.

Figure 6: Average execution times for instances of ﬁbo.

stances running in parallel in future.

5 CONCLUSION AND FUTURE

WORK

In this paper, we have introduced cWorkload a novel

monitoring framework for cross-layer monitoring of

cloud workﬂows. The layer architecture of the

cWorkload framework is designed in accordance with

the layers of the cloud-based workﬂow system to be

monitored. A workﬂow execution layer on top of the

PaaS cloud system is monitored by means of the mon-

itoring capabilities of the underlying PaaS layer. To

achieve this two-layer integration, the resource uti-

lization of the workﬂow tasks is determined by mea-

suring values from the cloud resources and assigning

the measured values according to the particular work-

loads of the workﬂow tasks. A preliminary evaluation

of cWorkload is based on experiments with artiﬁcial

workﬂow samples. The execution of CPU intensive

Figure 7: Average execution times for instances of prim.

workﬂow samples has provided that the CPU utiliza-

tion of the cloud resources can be aligned with the

workﬂow instances comprising of computationally

intensive tasks. Further, we observed that the more

workﬂow instances are running the higher are the uti-

lization values of the according cloud resources. We

conclude from the samples that the demand for scal-

ing resources is increased by this. In addition, the

higher the workloads from ongoing workﬂow tasks

are the higher is the demand for scaling resources.

The beneﬁt of a cross-layer monitoring solution is that

it provides deeper insights on the state of the system

than single-layer monitoring approaches. In case of

our two-layer approach that integrates the workﬂow

layer with the PaaS layer, this results in a better un-

derstanding of the placement of workloads on PaaS

containers such as OpenShift gears. Consequently,

the assignment of workloads to containers can be im-

proved, for instance by grouping tasks of different

types on one gear or by selecting containers with an

optimal size for a workload. Thus, the overprovi-

sioning of resources might be reduced. The contribu-

tion of this paper and especially the preliminary ex-

periments on the two-layer monitoring integrating the

workﬂow and the PaaS layer provide quite promising

results. The work is an important step towards the

cross-layer monitoring of cloud workﬂows. However,

it raises several novel research questions as follows.

In our future work, we will address mainly two

issues. First, the experimental platform will be im-

proved by a different technical environment. The

workﬂow engine Intalio will be replaced by a work-

ﬂow engine such as JBPM (redhat, 2014a) that facil-

itates the automated triggering of workﬂows and pro-

vides machine-readable logging information. Both

will support us to conduct further experiments with a

broader scope and with a deeper, automated analytics.

The public cloud PaaS solution OpenShift Online will

be substituted by a private installation of OpenShift in

order to achieve better control of further layers below

the PaaS layer. The two-layer integration will be ex-

TowardsCross-layerMonitoringofCloudWorkflows

395

tended to a cross-layer monitoring with multiple lay-

ers. Second, we will investigate how to predict fu-

ture demands for scaling from expected workloads.

The workﬂow notion will provide this information ei-

ther based on the set of tasks to be triggered next or

by a clocked simulation of further workﬂow execu-

tion. As a ﬁrst step, a partition function for measured

values on PaaS containers hosting multiple workﬂow

task instances has to be implemented. A comparison

study of the prospective solution with non-predictive

cloud management approaches will highlight the im-

portance of our approach.

REFERENCES

Aceto, G., Botta, A., de Donato, W., and Pescap, A. (2013).

Cloud monitoring: A survey. Computer Networks,

57(9):2093–2115.

Alcaraz Calero, J. and Gutierrez Aguado, J. (2014). Mon-

PaaS: An adaptive monitoring platform as a ser-

vice for cloud computing infrastructures and services.

IEEE Trans. on Services Computing, 8(1):65–78.

Alhamazani, K., Ranjan, R., Mitra, K., Jayaraman, P.,

Huang, Z., Wang, L., and Rabhi, F. (2014). CLAMS:

Cross-layer Multi-cloud Application Monitoring-as-

a-Service Framework. In 2014 IEEE Int. Conference

on Services Computing (SCC), pages 283–290.

Amazon (2014a). Amazon web services.

http://aws.amazon.com/, 12-19-14.

Amazon (2014b). Cloudwatch. http://aws.amazon.com/

cloudwatch/, 12-18-14.

Beloglazov, A., Abawajy, J., and Buyya, R. (2012). Energy-

aware resource allocation heuristics for efﬁcient man-

agement of data centers for cloud computing. Future

Generation Computer Systems, 28(5).

ca technologies (2014). Nimsoft. http://www.ca.com/us/

opscenter/ca-uniﬁed-infrastructure-

management.aspx, 12-11-14.

Eucalyptus Systems (2014). https://www.eucalyptus.com/,

12-19-14.

Grosskopf, A., Decker, G., and Weske, M. (2009). The

Process: Business Process Modeling Using BPMN.

Meghan Kiffer Pr.

GroundWork (2014). http://www.gwos.com/features/, 12-

19-14.

Hu, J., Gu, J., Sun, G., and Zhao, T. (2010). A schedul-

ing strategy on load balancing of virtual machine re-

sources in cloud computing environment. In 2010

Third Int. Symposium on Parallel Architectures, Algo-

rithms and Programming (PAAP), pages 89–96.

I.B.M. Corporation (2006). An architectural blueprint

for autonomic computing. http://www-

03.ibm.com/autonomic/pdfs/AC Blueprint White

Paper V7.pdf, 11-01-14.

Intalio (2014). http://www.intalio.com/, 12-18-14.

Kung, H. T., Lin, C.-K., and Vlah, D. (2011). CloudSense:

continuous ﬁne-grain cloud monitoring with compres-

sive sensing. USENIX Hot-Cloud.

LogicMonitor (2014). http://www.logicmonitor.com/, 12-

19-14.

Manjrasoft (2014). Aneka. http://www.manjrasoft.com/,

12-18-14.

Maurer, M., Brandic, I., and Sakellariou, R. (2013). Adap-

tive resource conﬁguration for cloud infrastructure

management. Future Generation Computer Systems,

29(2):472–487.

Minor, M. and Schulte-Zurhausen, E. (2014). Towards

process-oriented cloud management with case-based

reasoning. In Proc. ICCBR 2014, LNCS 8766, pages

303 – 312. Springer.

monitis (2014). http://www.monitis.com/, 12-19-14.

Montes, J., S

anchez, A., Memishi, B., P

erez, M. S., and

Antoniu, G. (2013). Gmone: A complete approach to

cloud monitoring. Future Generation Computer Sys-

tems, 29(8):2026 – 2040.

Nagios (2014). http://www.nagios.org/, 12-19-14.

OpenNebula (2014). http://docs.opennebula.org/, 12-19-14.

Palmieri, R., di Sanzo, P., Quaglia, F., Romano, P., Peluso,

S., and Didona, D. (2012). Integrated monitoring

of infrastructures and applications in cloud environ-

ments. In Euro-Par 2011, pages 45–53. Springer.

Paraleap Technologies (2014). Azurewatch.

http://www.paraleap.com/azurewatch, 12-19-14.

Pousty, S. and Miller, K. (2014). Getting Started with Open-

Shift. ”O’Reilly Media, Inc.”.

rackspace (2014). Cloudkick. http://www.rackspace.com/

cloud/monitoring/, 12-15-14.

redhat (2014a). jbpm. http://www.jbpm.org/, 11-26-14.

redhat (2014b). WildFly. http://www.wildﬂy.org/, 12-18-

14.

Richter, M. M. and Weber, R. (2013). Case-Based Reason-

ing: A Textbook. Springer.

Schulte-Zurhausen, E. and Minor, M. (2014). Task place-

ment in a cloud with case based reasoning. In

CLOSER 2014, pages 323 – 328, Barcelona, Spain.

SciTePress.

Singh, M. P. and Huhns, M. N. (2005). Service-oriented

computing - semantics, processes, agents. Wiley.

Unix Top (2014). http://www.unixtop.org/, 12-18-14.

vmware (2014). http://www.vmware.com/products/

vrealize-hyperic/, 12-19-14.

Workﬂow Management Coalition (1999). Glossary & ter-

minology. 5-23-14.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

396
