Computers in the CS1 Classroom

William T. Tarimo, Fatima Abu Deeb and Timothy J. Hickey

Computer Science Department, Brandeis University, 415 South Street, Waltham MA 02453, U.S.A.

Keywords: Flipped Classroom, Blended Learning, Computer-Mediated-Communication, Pedagogy Design, Teaching

Introductory Computer Science, Educational Technologies, Web-based IDEs.

Abstract: There are two basic approaches to flipping an introduction to programming class (CS1). One involves

requiring all students to bring computers to class and to work alone or in groups to solve programming

problems. The other approach is to ban computers from the classroom and to require students to solve

programming problems on paper. In both approaches the students’ attempts are shared with the class and

discussed. In this work, we describe an experiment in which we compared these two approaches for a large

programming class. We found that the use of computers had no statistically significant effect on the

students’ learning outcomes, enjoyment of the material, self-assessment of their understanding, use of

teaching assistant resources, or self-estimate of how many hours they invested outside of the classroom. We

did find that a statistically significant number of students preferred problem solving with friends using

computers rather than on paper. We also found that the instructor had much more detailed information about

individual student’s interaction in class when computers were used, since all student interaction with the

coding tools could be logged and analysed. We conclude that, although many faculty are wary of requiring

computer use in large classes, there is evidence that students prefer it, it does not negatively affect learning

outcomes, and with appropriate tools and pedagogy, it gives the instructor a much deeper and more nuanced

view of student performance in the class.

1 INTRODUCTION

There is a growing body of evidence which

demonstrates that active learning pedagogies

improve learning outcomes in a wide variety of

courses, including introductory programming

courses (Amresh et al, 2013; Bates et al, 2012;

Stone, 2012). It is very natural to allow students to

use their laptops in class during active learning

sessions of an introductory computer science course.

Many faculty, however, are wary of requiring

computer use during class sessions since they feel

students might become distracted.

In recent years we have seen many new

developments in the way teaching and learning are

accomplished inside and outside of the classroom.

The last decade has seen research, development and

adoption of new pedagogies, classroom technology

and software applications. One such new pedagogy

technique has been the ‘inverted’ or ‘flipped’

classroom in which static content is covered outside

of class (through readings or videos) and class time

is devoted to more interactive and engaging

activities. Even though most approaches have

leveraged the ubiquity of technology, flipping a

classroom does not necessarily require the use of

computers or other networked technology.

In this work we present our case study of partly-

flipping a large CS1 class. The course was an

Introduction to Programming in Java and C in which

we used a partly-flipped pedagogy that combines

both in-class lectures and in-class programming

challenges often using a Think/Pair/Share technique

(Kagan, 1989). Since the course was taught in two

sections (of about 150 students each), we were able

to design an experiment to evaluate the effect of two

approaches to partly-flipping the classroom. The

first approach is to require all students to bring a

laptop or tablet to class and use their computers for

various interactions, to answer questions and to

solve coding challenges. The second approach is to

ban computers from the classroom and to require

students to solve problems with pen and paper and to

be prepared to present and discuss their solution to

the class if called upon.

In the computer-mediated sessions students used

two web-based applications, TeachBack (Hickey

and Tarimo, 2014) and Spinoza (Abu Deeb and

Hickey, 2015), to interact and solve programming

T. Tarimo W., Abu Deeb F. and J. Hickey T..

Computers in the CS1 Classroom.

DOI: 10.5220/0005436600670074

In Proceedings of the 7th International Conference on Computer Supported Education (CSEDU-2015), pages 67-74

ISBN: 978-989-758-108-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

problems and share their solutions with the

instructor and the class. In the non-computer

sessions, we endeavoured to replicate the same

pedagogy using pen, paper, blackboards and the

instructor’s computer projected on a screen. Both

sessions covered exactly the same material and used

exactly the same pedagogy. Students received nearly

identical lectures and were given the same

programming challenges. The only difference is that

one section was allowed to use their computers to

solve the programming problems, while the other

section had to use pen and paper only.

In the following sections we present the

experimental design that was used to compare the

computer and non-computer approaches to the

pedagogy. We then proceed to describe the

pedagogy used and we compare the way it was

implemented using the computer-mediated and pen-

and-paper based approaches. Finally we present the

results of the experiment and discuss its implications

for computer use in the partly flipped introductory

programming classroom.

2 THE EXPERIMENT

Introduction to Programming in Java and C is the

first course in the Computer Science major in our

department. Students who performed well in an

equivalent CS1 course in high school may skip the

course, but all other potential majors are required to

take it. It was taught in two sections (self-selected by

the students). One section had 136 students and the

other had 148. Both sections had the same instructor,

exams, homeworks, teaching assistants, and daily

lesson plans. For both sections, we provided screen

recordings of each class that students could review

at their leisure.

The course was divided into 4 units, each lasting

about 3 weeks. Each unit culminated in a 90-minute

exam that provided a summative assessment of

student mastery of the material for that unit. In the

first two units students were required to bring their

computers to class and to interact with the instructor

using TeachBack and Spinoza. Ten percent of their

final grade was based on the number of TeachBack

formative assessment questions they answered

(whether the answers were correct or not). During

Units 1 and 2, students were required to bring

computers to class and use them to interact with the

instructor and their peers. During Unit 3, computers

were banned from section 1 while still being

required in section 2. During Unit 4, the protocol

was reversed. Computer were required in section 1

and banned in section 2. This provided us with two

units of control in which both sections used

computers, and two experimental units where one

section required computer use and the other banned

its use.

3 THE ACTIVE-LEARNING

PEDAGOGY

Before each week of classes students were assigned

topics or subtopics to read and as a weekly

homework - submit a short reflection on what they

learned and any confusing ideas in the reading. Each

class had lectures intermixed with class-wide

interactive activities. The lectures involved

PowerPoint slides, notes from the class website, live

coding demonstrations by the instructor, and visits to

various websites. The interactive activities included

short answer questions as well as programming

challenges.

In this section we discuss the main pedagogical

techniques used in the two versions of the class and

along the way we introduce the TeachBack and

Spinoza tools. TeachBack (Hickey and Tarimo,

2014) is a web-application with three main features:

a supervised back-channel forum (called the Forum)

where students can ask and answer questions with

each other and with TAs who are always present

during classes, a pie chart and timeline plot (called

the Feedback) where students can indicate if they are

confused, engaged, or bored and include a 50

character explanation of their affect and cognition

(i.e. emotional and comprehension) states, and a

clicker-type application (called the iResponder)

which allows the instructor and TAs to collect and

grade student answers to formative assessment

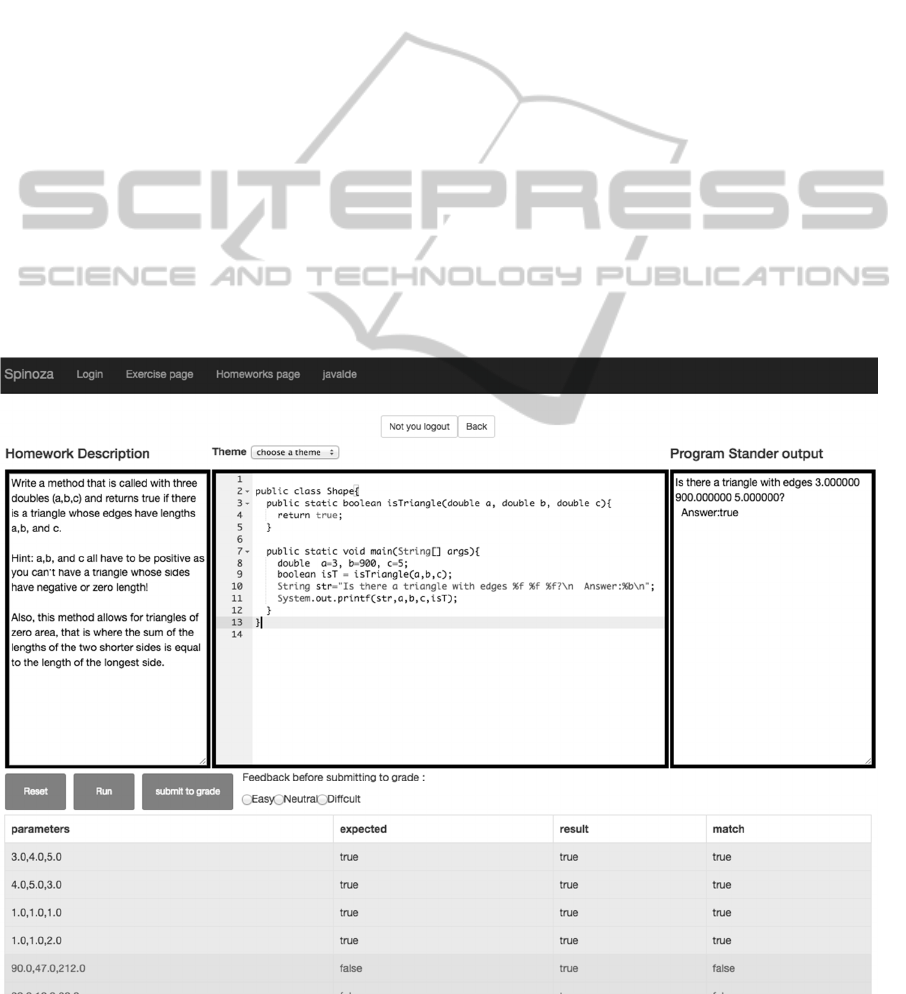

questions during the class. Spinoza (Abu Deeb and

Hickey, 2015) is a web-based Java IDE that allows

students to solve simple programming problems

online and provides the instructor with a real-time

view of the progress of the class with similar

solutions grouped together.

3.1 PowerPoint Lecture Activity

Although the students were required to read the text

before class, we often began a class with a

PowerPoint overview of the main ideas presented in

the readings. In the computer-based version of the

class, students could view the PowerPoint slides on

their computers and ask questions of the teaching

assistants using the TeachBack Forum. In the pen-

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

and-paper version they could print out the slides on

paper before class and ask questions by raising their

hands and interrupting the class flow.

3.2 Live-Coding Activity

Another lecture-style activity is when the instructor

solves or demonstrates a programming problem

using a Java IDE and the class watches (or in the

computer-mediated version, follows along). This

can be made interactive by asking students to

provide suggestions for how to solve the problem.

In the computer-mediated version when students are

following along with the coding using Spinoza and

they encounter syntax errors they can interact with

the TAs using the TeachBack Forum without

interrupting the class.

3.3 Answering Student Questions

during Class

In both versions of the class, students were

encouraged to ask questions if they were confused.

In the pen-and-paper version, students would raise

their hands and engage with the instructor while the

class paused. In the computer-mediated version,

students used the Forum feature of TeachBack to ask

questions online, and have their questions answered

by TAs assigned to the course, or sometimes by

other students who were monitoring the forum. The

instructor would briefly review the forum with the

class at the end of most activities.

3.4 Posing Questions for Students to

Discuss and Answer

After a lecture activity, we would usually pose a

series of questions and ask the students to think for a

minute about a solution, then to talk with their

neighbors about their solution, and finally to share

their solutions with the class. Typical examples

would be predicting the result of evaluating a

snippet of code, or finding a bug in a piece of code

shown on the projector. In the computer-based

version, we used the iResponder feature of

TeachBack. Figure 1 shows a typical activity in

which the instructor projected a method on the

screen and asked students to predict the return value

for various calls. iResponder allows the instructor

and TAs to not only see the solutions (grouped) but

to grade them and assign points and comments.

Once a sufficiently large number of students have

submitted an answer, the instructor reviews the most

common solutions and leads a short class discussion

on the different approaches and the different kinds

of errors. In the pen-and-paper version, it is difficult

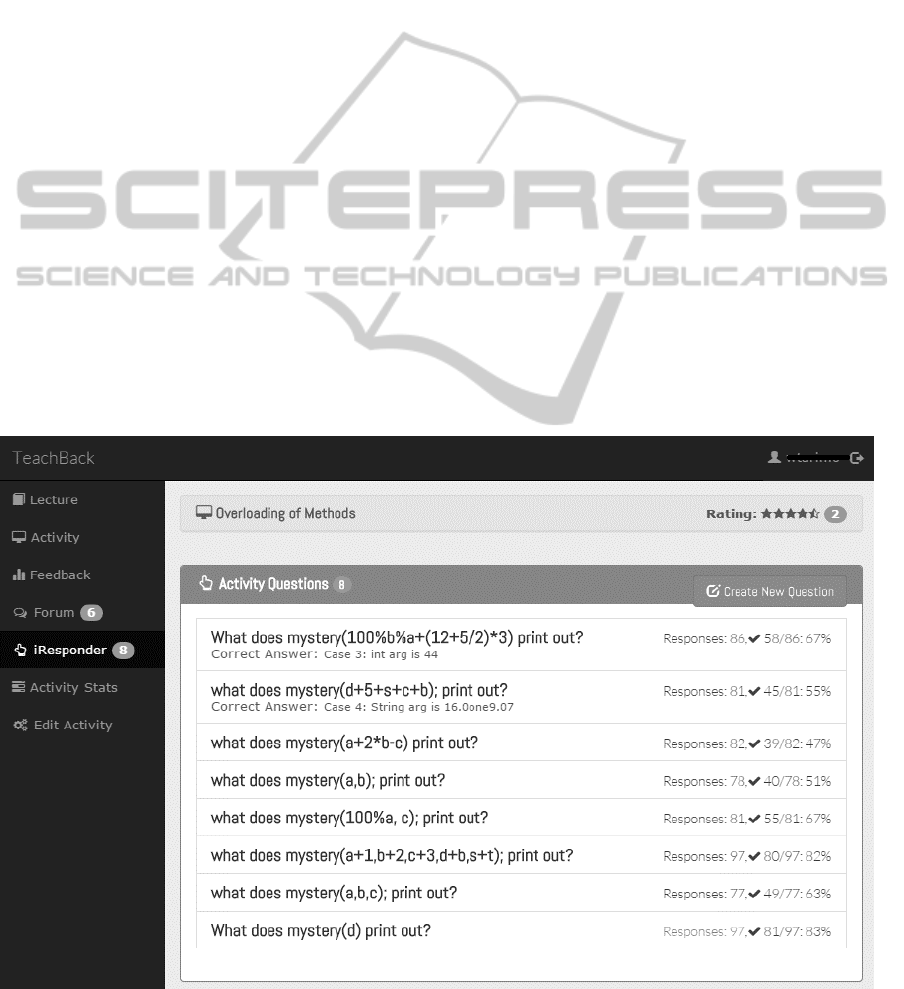

Figure 1: A typical iResponder screen.

ComputersintheCS1Classroom

to determine how many students have completed the

activity and it is hard to tell what the most common

solutions and errors were. Students were motivated

to solve problems in the pen-and-paper class by

randomly selecting students to describe their

solutions (possibly on the board or typing into the

instructor's computer).

3.5 Programming Problems

In this activity, students are given a programming

problem and asked to think about how they would

solve it and then work with their neighbours to come

up with a solution. For example, students could be

asked to write a method with three integer

parameters that returns true if the parameters all

have different values.

In the computer-mediated version of the class,

we used a web-based Integrated Development

Environment (IDE) called Spinoza that allows

instructors to quickly create a programming

problem. Figure 2 shows the student view of a

Spinoza programming problem which provides a

description of the problem on the left, some initial

scaffolding code in the centre, a “Run” button

below, space for the output on the right, and the

results of an instructor supplied set of unit tests at

the bottom. Students can then write, run, and debug

the problem using the web-based IDE. Spinoza has

an instructor’s view which shows the number of

students that have hit the “Run” button and it groups

the programs together based on a similarity function

(ignoring white space, variables names, etc.). The

instructor can see in real-time the most popular

proposed solutions to the problem and can view and

debug those solutions in front of the class. The

debugging process itself can be formulated as a

Think/Pair/Share model (Kagan, 1989), where

students try to find and discuss the bugs (both

syntactic and logical) in small groups before sharing

with the class.

In the pen-and-paper version of the class,

programming problems are displayed on the screen

and students are asked to write their solutions on

paper. The instructor then randomly selects students

to share their solutions. The disadvantage of this

approach is that the instructor doesn’t know what the

most common solutions or errors are and the process

of sharing a solution with the class is more time

consuming.

Figure 2: The student view of a Spinoza problem.

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

3.6 Feedback

After new material has been introduced we often ask

the students for feedback, typically at the end of an

activity or class. We ask whether they are confused,

bored, or engaged by the material and also ask for a

short comment. In the computer-mediated version,

this is done using the TeachBack Feedback feature,

which displays a pie chart showing the three

responses. Hovering over one of the pie slices

reveals a list of the comments students provided. We

often find 20%-50% of students report feeling

confused when a class introduces new material (e.g.

arrays or the for-each loop). This provides an

excellent opportunity to reassure them that it is

natural to feel confused when learning new material.

The comments also show what confused them or

expand on their affect. At this point the instructor

also clarifies the various confusion issues. Since it is

so easy to get and analyse feedback from students

using TeachBack, we often get feedback after each

activity in a single class. TeachBack also provides

an instructor/TA view of the daily progress of

individual students using performance and

participation statistics at an activity, lecture and

course levels.

In the pen-and-paper version, we ask students to

put this information on a small card or piece of

paper, which is then reviewed by the instructor after

the class. One disadvantage of this approach is that

we can’t report the results until the following day

and it can take 30 minutes to an hour to read through

a few hundred separate comments.

4 DATA COLLECTION

After each unit, students were asked to complete a

survey where they self-assessed their level of

understanding of the material in that unit as well as

their level of enjoyment of the material in that unit.

In units 3 and 4 they were also asked to rate each of

the different styles of pedagogy employed in terms

of its effectiveness for their own learning.

We kept track of the number of students from

each section that visited TAs during each of the units

and asked students to estimate how many hours they

spent working on the course outside of class. We

also kept track of each student’s participation in

various components of TeachBack during each class,

each unit, and the semester. Finally, grades on the

four unit quizzes as well as course grades were used

to measure mastery of the material by unit and over

the entire course.

5 RESULTS

We found four main results from our analysis of the

data which we summarize below:

5.1 The Use of TeachBack/Spinoza in

Class Does Not Harm Learning

Outcomes

In Unit 3, computers were banned in section 1 and

required in section 2. In Unit 4, the reverse policy

held, computers were required in section 1 and

banned in section 2. We found that there was no

statistical differences between the two sections

during those units in terms of quiz scores, student

satisfaction, student self-assessment of

understanding, or student use of teaching assistants.

From the surveys at the end of each unit, students

self-reported their levels of learning and satisfaction

in the range [1-5]. As seen in figures 3 and 4, the

averages on each section do not indicate any

significant influence from the changes of pedagogies

in units 3 and 4.

Figure 3: Average perceived enjoyment.

Figure 4: Average perceived understanding.

Unit 1 Unit 2 Unit 3 Unit 4

Average Unit Enjoyment

Section 1 Section 2

Unit 1 Unit 2 Unit 3 Unit 4

Average Unit Understanding

Section 1 Section 2

ComputersintheCS1Classroom

Figure 5: Average end-of-unit quiz grades.

Section 1 generally indicated a higher level of

enjoyment, understanding, and mastery than section

2, for all units, but that increased level of

understanding was not statistically significant.

For example, in Figure 4, the difference between

the average understanding in unit 3 between sections

1 and section 2 was 0.17 but the p-value for the two-

tailed unpaired T-test for those means was .20 which

is not significant. Likewise, in Figure 3 the

difference of average enjoyment for unit 4 between

sections 1 and 2 was 0.23 but the p-value was .12,

again indicating no significant difference. None of

the apparent differences in section 1 and section 2

shown in these three figures was significant at the

.10 level.

If use of computers was especially distracting,

we would expect to see Section 1 outperform

Section 2 in Unit 3, and the opposite occur in Unit 4.

No such effect was found.

5.2 Most Students Prefer using

Computers in Class

When asked about the two different styles of active

learning - writing programs with your neighbours on

paper versus writing programs on your computer

while talking with your neighbours, the use of

computers was thought to be more effective and the

results are statistically significant. Students used a

five point scale to rank effectiveness of learning

from 1 = not effective to 5 = very effective. Solving

programming problems with friends using pen-and-

paper was ranked at 2.96/5 and solving programs

using Spinoza with friends at 3.65/5 with a

difference of 0.69. This is significant at the 0.001

level using a two-tailed paired T-test. The 95%

confidence interval of the difference is 0.5 to 0.88.

Below are some typical comments from students

after unit 4. Here is a section 1 student, happy to be

able to use his computer again in class:

-“I really enjoyed when we got to live code in class.

It was helpful to either follow along with what

[professor] was typing or work on building up the

program with the people around us. It allowed me to

see what thought process has to go into building up

a program.”

And here are comments from students in section 2

explaining why they were disappointed about not

being able to use computers in class:

-“The lack of computers makes following along a lot

less interesting and understanding class material

becomes much more difficult.”

-“Taking notes on paper and not being able to

practice coding in class slowed down acquisition of

the material greatly. It [took] much longer for this

unit than others to master the material. I also

disliked being asked to work in teams or to talk to

people in class, but that's because I'm shy …”

-“We can't use computer[s] to do real-time

programing in class. To make it up, I have to go

back home and watch the class recordings to brush

my memory on what programing topics we went

through in class that day. It is really time

consuming.”

5.3 Some Students Were Distracted by

Computers in Class

A close examination of the student comments about

each unit demonstrated that there was a group of

students who did not feel they learned as well with

computers as they did without. Indeed there were a

few students who would attend the lectures from the

other section when the pedagogy was switched

because they felt they could not learn well when

required to interact with a computer in class. These

were mostly students who reported being easily

distracted in general. Below are some comments

from students indicating what they liked about unit 4

when computers were not allowed.

-“Not using a computer, it lead me to better

concentrate.”

-“Not being allowed to use our computers helped for

concentration and focus.”

Most students, however, didn’t report being

distracted by the use of computers in the class,

contrary to the worries of many instructors. This

observation is largely due to the nature of the

pedagogy. The division of the class time into short

interactive activities allowed students to always be

engaged with the material, their peers or the

instructor. There was no time for students to get

side-tracked into distraction with non-class related

endeavours.

Unit 1 Unit 2 Unit 3 Unit 4

Average Quiz Grades

Section1 Section2

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

5.4 Students Generally Approved of

the Active Learning Approach

In general, students appreciated the pedagogy used

in the class, whether or not we were using

computers. Here are some illustrative comments.

-“The class was very lenient towards our learning

and it’s a great feeling to know that the teaching

staff is very forgiving for us ‘newbies’. Learning is

the number one goal.”

-“I was forced to try to learn the material to the best

of my ability beforehand to be as prepared as

possible whether or not I was using my computer or

notebook.”

6 RELATED WORK

A recent study involving flipping an introductory

computer science class was performed by (Amresh

et al, 2013), where students would watch prepared

lecture videos before classes, and have interactive

discussions in class. Through summative

assessments, this flipped model was found to

produce higher average test scores. However, due to

many years of traditional classrooms, students found

this new approach to be overwhelming at times,

especially as the videos and reading became boring

and less engaging. In regard to this, (Bates et al,

2012) point out that successful flipped classes

require the acceptance and embracing of this new

unstructured and contingent lecture approach where

the instructor is a coach of learning. In this case

study in an introductory physics class, students were

assigned pre-class readings and quizzes, and class

meetings involved discussions driven by clicker

questions. An important factor for success is to have

access to or create sufficient clicker questions for

good discussions. If students can be motivated to

complete the work outside of class, flipped

classrooms can enable more and deeper

understanding without necessarily covering less

content. Since students are more exposed to the

materials in pre-class and in-class activities, the

flipped pedagogy has the advantages of developing

life-long learners, increasing engagement during

classes, and increasing interactions among students

and the instructors (Stone, 2012).

Systems similar to the Spinoza system used in

this study have been developed to facilitate teaching

introductory programming classes. JavaBat

(Parlante, 2007) is a web application that helps

students to build coding skills by providing

immediate feedback to small problems in which they

write code for the bodies of single methods. The

system generates several tests (handwritten by the

instructor) and shows students the results of those

automatic tests. Students can specify a teacher who

can then see their work and follow their progress,

but the teacher cannot write comments or otherwise

communicate with the students through the tool.

Another system is Informa (Hauswirth and Adamoli,

2009), a clicker software system for teaching

introductory programming with Java. Informa has

been used in flipped classrooms as a way to support

active learning of programming skills. It supports

several different types of questions, including

problems requiring students to write Java code, but it

does not run the students’ code and it is not web-

based, it requires a Java app to be downloaded and

installed. It also allows students to download and

comment on other students' solutions. Spinoza

allows instructors and TAs to view and comment on

student programs, but does not currently allow

students to comment on other students’ code.

7 CONCLUSIONS

The results of our study demonstrate that the use of

computers did not affect learning outcomes in any

statistically significant way. One explanation for this

surprising finding is that the key factor in student

learning is the pedagogy itself, not whether the

students had computers in class or not. The thought

process involved in trying to solve programming

problems can be pursued just as effectively using

pen-and-paper as using computers. The highly

interactive pedagogy itself encouraged students to

maintain high levels of interaction, engagement and

motivation with the material whether they used

computers or not.

We know from previous studies that active

learning in flipped classes is a more effective

pedagogy than straight PowerPoint lectures (Amresh

et al, 2013) and the results from this paper suggest

that this pedagogy can be delivered either with or

without a computer.

The various avenues of interaction offered by

tools like TeachBack and Spinoza offer increased

participation and involvement rates. But that is not

all, like most computer-mediated communication

tools, TeachBack and Spinoza allow content and

conversations to be stored and accessed at later

times. Moreover, participants don’t have to be in the

same physical locations, and users can engage in

multiple conversations at once. In a way, these tools

ComputersintheCS1Classroom

liberate learning and teaching from constraints of

time and distance (Hickey and Tarimo, 2014; Reed,

2000) where barriers such as distance, disabilities,

shyness and cultural difficulties are overcome. Our

proposed computer-mediated pedagogy features

various interactive and engaging activities that do

not give students the opportunities to get distracted.

However, as we have discovered in this study, there

are a few students who are ill equipped to handle

computer-mediated interactions and online

environments. Our results suggest that it might be

worthwhile to offer two versions of the CS1 class,

one which is fully computer-mediated providing the

instructor with high quality and timely information

about student performance, and one that is not

computer-mediated to accommodate those students

who are prone to distraction when given access to a

computer in class. Another alternative approach is to

teach a hybrid class, where computers are only

allowed during certain in-class activities and are

banned at other times.

From the instructors’ point of view, the use of

computer-mediated pedagogy does have many

benefits. As mentioned above, it provides a detailed

record of the activity of each student in the class

including which questions they answered, whether

their answers were correct, how they tried to solve a

programming problem, what their level of confusion

was after each activity, etc. In this experiment, we

did not try to use this additional data to customize

our support for individual students in the class. We

strongly suspect that this detailed information about

individual students could be used to provide

individualized support for at-risk students in a way

that would make a statistically significant difference

in learning outcomes. We plan to test this hypothesis

in future experiments.

REFERENCES

Abu Deeb, Fatima and Hickey, Timothy J. “Spinoza: The

Code Tutor” Proceedings of the International

Conference on Computer and Information Science and

Technology, May 11-12

2015, Ottawa, Canada.

Amresh, Ashish, Adam R. Carberry, and John Femiani.

"Evaluating the effectiveness of flipped classrooms for

teaching CS1." Frontiers in Education Conference,

2013 IEEE. IEEE, 2013.

Bates, Simon, and Galloway, Ross. “The inverted

classroom in a large enrolment introductory physics

course: a case study.” Proceedings of the HEA STEM

Learning and Teaching Conference (2012). April

2012.

Erlich, Zippy, Iris Erlich-Philip, and Judith Gal-Ezer.

"Skills required for participating in CMC courses: An

empirical study." Computers & Education44.4 (2005):

477-487.

Hauswirth, Matthias and Adamoli, Andrea. 2009. “Solve

& evaluate with Informa: a Java-based classroom

response system for teaching Java.” Proceedings of the

7th International Conference on Principles and

Practice of Programming in Java (PPPJ '09).

Hickey, Timothy J. and Tarimo, William T. "The

Affective Tutor." Journal of Computing Sciences in

Colleges 29.6 (2014): 50-56.

Kagan, Spencer. "The structural approach to cooperative

learning." Educational Leadership 47.4 (1989): 12-15.

Parlante, Nick. Nifty reflections. SIGCSE Bull. 39, 2

(June 2007), 25-26.

Reed, April. "Computer-mediated communication (CMC)

and the traditional classroom." Teaching with

Technology Today 5.6 (2000).

Stone, Bethany B. "Flip your classroom to increase active

learning and student engagement." Proceedings from

28th Annual Conference on Distance Teaching &

Learning, Madison, Wisconsin, USA. 2012.

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation
