A Modular and Flexible Identity Management Architecture for National

eID Solutions

Thomas Lenz and Bernd Zwattendorfer

Egovnernment Innovation Center - Austria, Inffeldgasse 16a, Graz, Austria

Keywords:

Identiﬁcation, Authentication, Identity Provider, Federation.

Abstract:

Identiﬁcation and authentication are essential processes in various areas of application where access to sensi-

tive data needs to be protected and regulated. To achieve this, usually identity-management systems are put into

place, where an identity provider manages digital identities and handles the identiﬁcation and authentication

process for a service provider, which hosts the protected data. Identity management is no new topic and hence

several identity management systems have evolved over time. However, new rising requirements also demand

modiﬁcations and improvements in the ﬁeld of identity management. In particular, the need for exchanging or

federating identities across domains or even borders requires new interoperable solutions and ﬂexible identity

management architectures. In this paper we present a ﬂexible and modular identity management architecture

which focuses on federation and interoperability capabilities based on plug-able components. Due to that,

new arising requirements such as the support of different authentication protocols can be easily fulﬁlled by

implementing appropriate plug-ins. Hence, our proposed architecture is especially applicable for high quali-

ﬁed identiﬁcation systems such as national eIDs and their federation across borders. We further illustrate the

applicability of our architecture by implementing it to be used as an identity provider for Austrian eGovern-

ment applications, on the one side being applicable for national authentications and, on the other side, in a

cross-border context.

1 INTRODUCTION

Electronic identity (eID) is indispensable for a vari-

ety of Internet services and online applications. Once

the identity of communication entities is established

with a level of certainty matching the value associ-

ated with the service, the communication partners can

gain the conﬁdence and trust needed for mutual trans-

actions. Such transactions can include social network

interactions, but also more security-sensitive services

such as a tax declaration or an eHealth application

that protects personal medical data. In each case, be-

sides using an electronic identity authentication is ad-

ditionally required to prove a claimed identity to be

authentic. Consequently, this authentication step link

the identity information to a person, which uses a PIN

or password to proved that he or she is the owner of

that identity information.

The more transactions are performed by using on-

line applications processing sensitive data, the higher

is the importance for a high level of assurance by

secure means of authentication linked to qualiﬁed

identity. eGovernment is such an area, where high

assurance in the citizen’s identity is needed. With

respect to eGovernement, several countries have al-

ready developed and deployed electronic identity sys-

tems since the beginning of the 21st century. Given

these identity systems were deployed about more than

a decade ago and since they are still in operation, it

is not too hard to guess that requirements on identity

management solutions have changed over time and

new technologies have emerged. Such technologies

and requirements are not only things like new authen-

tication protocols, which support a higher level of se-

curity, or new identiﬁcation and authentication mech-

anisms, but moreover are requirements targeting us-

ability, interoperability, or identity-management fed-

erations.

Particularly, identity-management federations

such as nationally federated eID solutions or even

cross-boarder eID federations became more and more

important in the last couple of years. In the case of

cross-boarder eID, the European Commission has

recently published the EU regulation on Internal

Market electronic identiﬁcation and trust services

(eIDAS)(European Union, 2014), which builds the

321

Lenz T. and Zwattendorfer B..

A Modular and Flexible Identity Management Architecture for National eID Solutions.

DOI: 10.5220/0005443103210331

In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 321-331

ISBN: 978-989-758-106-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

legal framework for cross-border eID acceptance

within the EU. However, the eIDAS regulation is

currently only the latest step towards the implemen-

tation of a pan-European eID federation. The aim on

cross-border eID recognition dates already back to

2005, as the aim was mentioned in the Manchester

Ministerial Declaration(European Union, 2005),

followed by the EU Service Directive (European

Union, 2006) in 2006 and the eID large scale pilot

projects STORK

and STORK 2.0

, which is still

running.

National eID systems have been deployed since

nearly a decade. In order to meet these new or

changed requirements on e.g. cross-border feder-

ation, an improved and enhanced architecture for

identity-management systems is inevitable for meet-

ing those requirements. Therefore, we present an im-

proved identity-management architecture in this pa-

per, which will meet current requirements and which

is open to future extensions.

This paper is structured as follows. In Section 2

general requirements for identity-management solu-

tions are deﬁned. In Section 3, we describe related

work and discuss it with respect to the deﬁned re-

quirements of Section 2. In Section 4, we propose an

enhanced architecture of an identity-management sys-

tem which is capable of meeting all the requirements.

Afterwards, in Section 5 we demonstrate the practical

applicability of our proposed identity-management

architecture by implementing an identity provider for

Austrian eGovernment applications supporting three

main identity-management use cases. Finally, con-

clusions are drawn in Section 6.

2 REQUIREMENTS

Identiﬁcation and authentication are by far no new

issues, thus several different identity-management

systems have already evolved (Bauer et al., 2005).

In most of these identity-management systems, user

identiﬁcation and authentication are handled by an

identity provider, which ﬁnally transfers the user

information and authentication data to the service

provider. Based on these information and data, the

service provider is able to decide whether to grant or

deny access to its protected resources. Consequently,

the identity provider constitutes a very important en-

tity within an identity-management system. Espe-

cially if the service provider is a public-sector applica-

tion providing eHealth or eGovernment services, the

https://www.eid-stork.eu/

https://www.eid-stork2.eu/

support of qualiﬁed citizen identiﬁcation and secure

authentication by the identity provider is essential.

Hence, such an identity provider needs to fulﬁll cer-

tain requirements to meet the high level of assurance

and security required by public-sector applications.

For that reason, the following requirements should be

fulﬁlled and kept in mind, if an identity provider for

public-sector applications is designed.

• Security: An identity provider for public-sector

applications is typically used in a security-

sensitive area, which handles with highly personal

date, like medical information. Public-sector ap-

plications require a highly secure identiﬁcation

and authentication process to protect these con-

ﬁdential and sensitive data against unauthorized

access. Furthermore, a public-sector identity

provider needs to be resistant against attacks that

threaten to illegally inﬂuence the identiﬁcation or

authentication result.

• Reliability and Testability: Service providers

that make use of the identity provider must be able

to rely on the results of the identiﬁcation and au-

thentication processes carried out by the identity

provider. In addition, it should be possible for the

service provider to test and validate the authenti-

cation information to check if the information was

provided from a trusted identity provider and not

from a attacker.

• Flexibility: From a service provider’s point of

view, an identity provider should be able to pro-

vide different standardized interfaces for service-

provider communication, to offer a wide range of

possible connection scenarios. Therefore, ﬂexi-

bility with respect to service providers can reduce

the deployment costs for them. From a citizen’s

point of view, an identity provider should provide

different identiﬁcation and authentication meth-

ods, in order to being able to support a large num-

ber of users and to enable a simple usage of dif-

ferent secure tokens.

• Interoperability: An identity provider should

be work interoperable with other architectures,

e.g. if the communication with other identity-

management systems is necessary. The require-

ment of interoperability increases because the in-

terconnection of heterogeneous identity manage-

ment systems is important for identity federa-

tion. Especially, this requirement is important for

cross-border acceptance of identity-management

solutions and to interconnect national eID sys-

tems, like a pan-European eID federation.

• Adaptability: In many countries national legal

requirements or eID solutions serving domestic

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

322

needs exist, which an identity provider has to

comply with. Such solutions – which cannot be

implemented by generic standards – could be a

special secure token or a proprietary national in-

frastructure. Therefore, an identity provider sup-

porting public-sector applications needs to build

on an adaptable framework to fulﬁll national char-

acteristics and to support proprietary protocols or

architectures.

• Easy-to-Use Technology: The usage of an secure

identiﬁcation and authentication process should

not impede usability and accessibility for both cit-

izens and service providers. Therefore, an identity

provider should provide a recognizable user inter-

face and enable a safe and known usage with this

security-relevant application. Furthermore, this

requirement covers several more aspects such as

hiding complexity for service providers or plat-

form independence to reduce deployment costs.

• Modularity: An identity provider should have

a modular architecture, because modularity is in

line with ﬂexibility and interoperability. There-

fore, a modular architecture facilitates the imple-

mentation of new functionalities to meet new re-

quirements with respect to interoperability, stan-

dardized interfaces, or new identiﬁcation or au-

thentication methods.

There exists some other works, which handles

with requirements for identity management systems

olsch et al., 2011; Ferdous and Poet, 2012). There-

fore, we use requirements of this related work in com-

bination with our own experience to deﬁned a non-

exhaustive enumeration of requirements. This deﬁned

requirements are rather generic to be not bound to a

special national identity-management system. In the

next section, available identity-management systems

are surveyed and their capabilities to meet the above

deﬁned requirements are assessed.

3 RELATED WORK

Numerous identity-management initiatives and sys-

tems exist, therefore we will brieﬂy introduce a cou-

ple of systems that gained importance either due to

their broad use, or as they established relevant stan-

dards.

First systems used simple directory based solu-

tions, like LDAP (Lightweight Directory Access Pro-

tocol), to perform identity management for single

organisations. Since the borders between organi-

sations decrease, interoperable identity-management

becomes more and more important. In order to man-

age this, identity management has to be dynamic and

adaptable in different and more complex situations to

handle more then one speciﬁc context. This resulted

in more adaptable solutions, like Kerberos (Neuman

et al., 2005), which is one of the earliest systems that

allows secure authentication in unsecure TCP/IP net-

works.

With the increasing popularity of the World Wide

Web, more sophisticated identity-management solu-

tions, which allow secure authentication on applica-

tion level, became popular. Therefore, within the Web

new identity-management systems emerged, such as

Shibboleth

or the Kantara initiative

(formerly the

Liberty Alliance Project). Both projects inﬂuenced

the development of the current version of the Security

Assertion Markup Language (SAML 2.0) (Lockhart

and Campbell, 2008). SAML has been developed by

OASIS and deﬁnes one of the most important stan-

dards dealing with Single Sign-On or identity federa-

tion. A similar framework constitutes WS-Federation

(Kaler and McIntosh, 2009), being part of the WS-

Security (Nadalin et al., 2006) framework. Another

decentralized authentication system on the Web de-

ﬁnes OpenID

All above mentioned identity-management solu-

tions could be used to perform a secure identiﬁca-

tion and authentication process, but most of them are

limited to a single or few authentication protocols or

standardized interfaces, which are used for service

provider communication. Another issue is that they

may not meet national legal requirements for qualiﬁed

identiﬁcation or authentication in security-sensitive

areas of application as those identity-management

systems have been designed generic. For instance,

several countries use proprietary protocols or special

eID infrastructures, like electronic mandate services

for example, which can be used to add additional in-

formation to an authentication process. Furthermore,

interoperability and federation with other eID solu-

tions gains importance. While some of the previously

described identity-management systems support fed-

eration, this is only possible when interconnecting

systems with the same basic architecture or underly-

ing protocol. However, currently used national eID

systems have a heterogeneous structure, which means

that different communication and variegated imple-

mentations are in use which hinder interoperability

and identity federation.

In summary, there is currently no perfect solution

available, which directly is able to fulﬁll all require-

ments stated in Section 2. To overcome this problem,

http://shibboleth.net/

http://kantarainitiative.org/

http://openid.net/

AModularandFlexibleIdentityManagementArchitectureforNationaleIDSolutions

323

we propose an enhanced and ﬂexible architecture for

identity-management systems using the example of

an Austrian identity provider. The architectural de-

sign of the proposed solution is presented in the next

section.

4 ARCHITECTURAL DESIGN

The proposed solution of an advanced identity

provider is based on a sophisticated modular archi-

tecture to satisfy the identiﬁed requirements. Figure

1 illustrates our proposal for a modular and adaptable

architecture for an Austrian identity provider, which

can be used for public and private sector applications

authentication. Therefore, our architectural solution

could not only be used in eGovernment applications

(public sector), but also are for a highly secure authen-

tication on commercial applications (private sector),

like a social network or an online shop.

The key component of the solution is the Core

Logic, which coordinates the different steps of an

identiﬁcation and authentication process. An iden-

tiﬁcation and authentication process can be divided

into different phases. To better illustrate the features

of the architecture, we will describe it using the ex-

ample of a generic identiﬁcation and authentication

process. This generic identiﬁcation and authentica-

tion process describes the components and modules of

our proposed solution on architecture level, but does

not include every single communication step between

the user’s browser and the identity provider, service

provider or other involved entities.

In the ﬁrst phase, the authentication process is

initiated by a communication between the applica-

tion and the identity provider via a well deﬁned au-

thentication protocol. This communication task is

accomplished by the Protocol Adapter Engine. For

each supported authentication protocol, an appropri-

ate Protocol Plug-in can be implemented. This mod-

ular Protocol Plug-in approach allows the usage of

protocols which are concerted to every single appli-

cation with respect to protocol security and the re-

quired scope of operation. Such protocols could be

SAML 2.0, which is widely in use, OpenID Con-

nect (Sakimura et al., 2014), SAML 1.1 (Maler et al.,

2003) or a national protocol, like the Austrian PVP

2.1 protocol (Rainer et al., 2014), for example.

In the second phase, a user could select the au-

thentication method, which he or she wants to use,

if the identity provider supports more the one iden-

tiﬁcation and authentication solutions. This task is

carried out by a Template Generator, which gener-

ates a speciﬁc HTML Web interface providing the

appropriate user interface depending on the selected

authentication method. Every Web interface is gen-

erated dynamically depending on actually supported

Authentication Plug-ins and application-speciﬁc in-

formation. This dynamically generated Web interface

satisﬁes the requirement of an Easy-to-Use technol-

ogy, because it provides a uniform interface to enable

a safe and known usage of this security-relevant pro-

cess step.

The third phase performs the technical identiﬁca-

tion and authentication operations. Our solution sup-

ports different high secure identiﬁcation and authen-

tication methods, which are collected and handled by

an Authentication Source Engine. An identiﬁcation

or authentication step is realized as a single Plug-in.

Such Plug-ins implement the communication with a

secure token, like a smart-card, a hardware security-

module (HSM), or the communication with another

identity-management system, by using a well-deﬁned

interface, like STORK for example. A Process Flow

Engine combines the single Plug-ins and these func-

tionality to a well deﬁned identiﬁcation and authen-

tication process ﬂow. Every process ﬂow, which is

offered by the Process Flow Engine, is speciﬁed in

a XML based conﬁguration ﬁle by using an expres-

sion language. This expression language can be used

to deﬁne single identiﬁcation or authentication task,

transactions between single tasks, and conditions for

every transaction.

An additional Attribute Engine can be used in

a fourth phase. This Attribute Engine manages At-

tribute Provider Plug-ins, which can be used to col-

lect additional authentication attributes. Such at-

tributes could be an electronic mandate in case of

an authentication on behalf of somebody or other in-

formation collected from a national register, like the

Austrian Source-Pin Register, which could be used to

receive an additional unique identiﬁer for this user.

In the last phase, the collected authentication in-

formation is processed to generate an authentication

protocol speciﬁc authentication token, which is trans-

mitted to the application by using a Protocol Plug-in.

This modular approach allows the deﬁnition of vari-

ous slightly different identiﬁcation and authentication

processes which satisfy the requirement of every ap-

plication.

An additional feature of our architecture is a

generic interface, which can be used to add new func-

tionality to the Core Logic. The generic interface also

uses Plug-ins to add new features to the core func-

tionality. Such Plug-ins could implement features

like Single Sign-On methods, monitoring and testing

functionality, or a plug-in, which collects anonymised

statistics information for quality assurance. To ful-

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

324

Private Sector

Applications

Public Sector

Applications

Identity Provider

Auth

Sour

-ces

STORK

V-IDP

BKU

Protocol

Adapter Eninge

SAML PVP OpenID

Mandate

Service

Template

Generator

Citizen card

CORE

LOGIC

Source PIN

Configuration

Configuration WEB-GUI

GUI

CORE

LOGIC

Session

Information

Statistics

Single Sign-On

Single LogOut

Statistic

Module

Monitoring &

Testing

Module

Configuration

Module

C-PEPS

Other

IDP

Interfederated

IDP

Attribut

Engine

Process

Flow

Engine

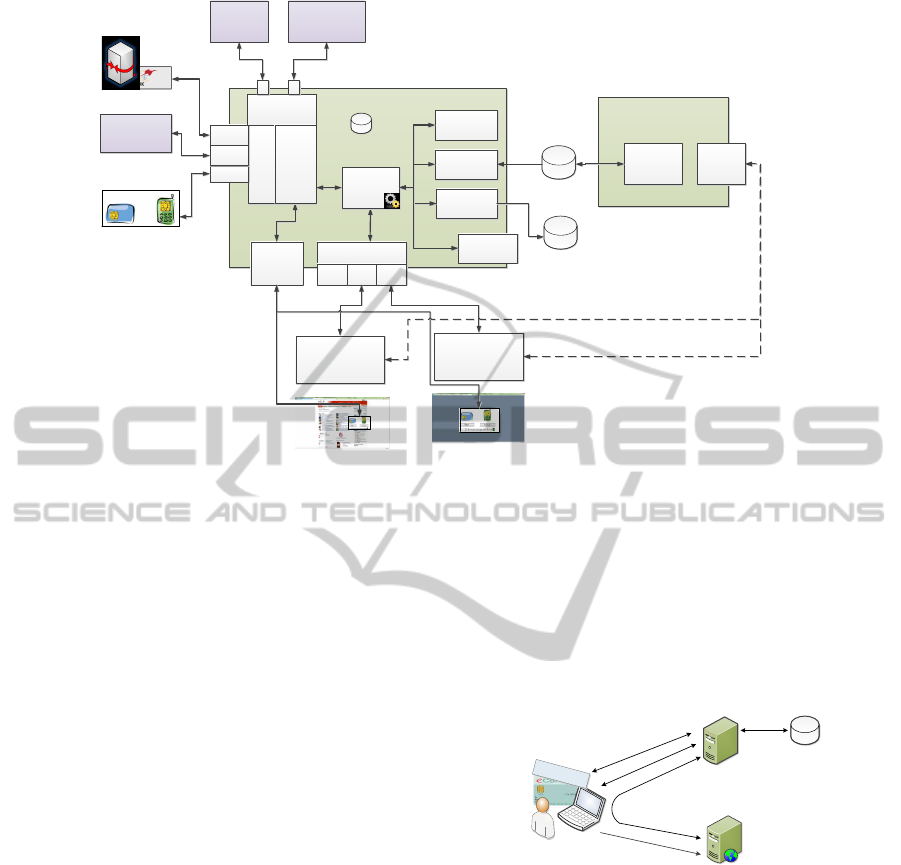

Figure 1: Enhanced architecture of the Austrian public sector identity provider.

ﬁll the requirement of an Easy-to-Use technology, a

Web based management application, which provides

a graphical interface to application administrators,

can be used to conﬁgure the identity provider.

5 IMPLEMENTATION

The practical applicability of the proposed architec-

tural design has been evaluated by realizing and im-

plementing an identity provider in practice. To illus-

trate that, we have implemented an identity provider

for Austrian eGovernment applications. Our imple-

mentation is based on Java, thus achieving platform

independence and an easy deployment on heteroge-

neous server infrastructures. The next sub-sections

discuss three practical use cases and their implemen-

tation by using our architecture in more detail.

5.1 Use Case 1: Austrian Citizen

Authenticating at an Austrian

Service Provider

In Austria, unique citizen identiﬁcation and secure au-

thentication is based on the technology-neutral con-

cept of the Austria citizen card (Leitold et al., 2002).

Currently, the Austrian citizen card is implemented

as a client-side approach using smart cards and as

a server-side approach involving the citizen’s cell

phone. Unique identiﬁcation of a citizen is done by

using a special XML data structure which is stored

on the citizen card. Authentication is based by the

creation of a qualiﬁed electronic signature. Since the

Austrian citizen card is the ofﬁcial eID in Austria, a

basic functional requirement of an Austrian identity

provider is the support of the Austrian citizen card.

Figure 2 illustrates the involved entities and their in-

teractions in case of an identiﬁcation and authentica-

tion process.

Service Provider

Identity Provider

Citizen

Browser

Client Middleware

)

Additional

Attributes

5.)

Figure 2: Involved entities in an identiﬁcation and authenti-

cation process in Austria.

According to Figure 2, the process of identiﬁca-

tion and authentication involves the following steps:

1. A citizen wants to access a protected area on a

service provider, by using a HTTP GET or HTTP

POST request. This area requires citizen card au-

thentication.

2. Therefore, the service provider starts an authenti-

cation process by triggering the identity provider.

The identity provider is triggered by the service

provider, which sending an authentication request

via a speciﬁed authentication protocol. Most

authentication protocols use HTTP POST or an

HTTP Redirect with GET parameters to send an

AModularandFlexibleIdentityManagementArchitectureforNationaleIDSolutions

325

authentication request from service provider to

identity provider via the user’s browser. To fulﬁll

the requirements of ﬂexibility and interoperabil-

ity and to support service providers, which use a

diversiﬁed set of software implementations, our

practical solution implements different authenti-

cation protocol plug-ins and hence is able to re-

ceive authentication request using different pro-

tocol formats. Actually, we implemented four

protocol plug-ins to support SAML 2.0, OpenID

Connect (Sakimura et al., 2014), the Austrian-

speciﬁc PVP 2.1 S-Proﬁle (Rainer et al., 2014)

and SAML 1.0

(Maler et al., 2003)

3. After the authentication request has been pro-

cessed by the identity provider, the identity

provider asks the citizen to select her preferred

authentication method. Therefore, the Template

Generator module, which is part of the identity

provider, generates a web form to illustrate the

different authentication solutions, which are sup-

ported by the identity provider. For Austria as ex-

ample, a smart card based solution and a mobile

phone based solution exists. After the citizen has

selected the preferred solution, the identiﬁcation

and authentication process is started.

4. The proper identiﬁcation and authentication pro-

cess is performed by the Process Flow Engine in

combination with the Authentication plug-ins. We

have implemented different Authentication plug-

ins to realize different processes for citizen iden-

tiﬁcation and authentication. In the following two

sub-steps, we describe the process, which uses the

Austrian citizen card for this purpose, as an exam-

ple. Therefore, a client middleware, which is just

a piece of software (either installed on the citi-

zen’s PC or hosted on a server), facilitating access

to the underlying citizen card implementation. In

this example, a server hosted solution is used to

deploy a JAVA Applet based client middleware

in the citizens browser (Orthacker and Zefferer,

2011).

(a) First, the identity provider identiﬁes the citizen

by using the XML data structure from the cit-

izen card through the client middleware. This

corresponds to the identiﬁcation step. The cor-

responding plug-in implements the communi-

cation with the middleware and veriﬁcation of

the XML data structure, which comprises citi-

zen identiﬁcation information.

(b) Second, the identity provider requests the cit-

izen, via the client middleware, to create a

In Austria, SAML 1.0 is widely used as legacy protocol by

existing service providers.

qualiﬁed electronic signature for authentica-

tion. This task is also realized as a plug-in

which implements the task speciﬁc communi-

cation and validation operations. Especially,

validation is important to comply with the high

security requirements for eGovnernment appli-

cations. Therefore, the electronic signature

must be veriﬁed by the plug-in involving appro-

priate certiﬁcate revocation mechanisms, for

example.

5. After identiﬁcation and authentication are com-

pleted, the identity provider could use the At-

tribute Engine to collect additional authentication

information of the citizen. Such additional in-

formation could be electronic mandates, for ex-

ample, which are often used in Austria (R

ossler

et al., 2006). In our architecture, such additional

information can be easily added to the authentica-

tion process by realization of an Attribute Engine

plug-in. Therefore, we implement the communi-

cation with the Austrian electronic mandate ser-

vice by using the Attribute Engine functionality.

6. If all authentication information is collected prop-

erly, the identity provider generates a protocol

speciﬁc data structure. This data structure in-

cludes all authentication information that the ser-

vice provider has requested and is transferred to

the service provider.

7. Based on the received authentication information,

the service provider is able to provide the pro-

tected resource to the citizen.

5.2 Use Case 2: Identity Federation

This scenario covers the case, where authentication

information should be transferred from one identity

provider to another identity provider. Such function-

ality brings considerable advantages to heterogeneous

service models, in which service providers are linked

to differed identity providers. Such advantages, for

example are federated single sign-on (SSO) or inter-

action of identity providers which implements differ-

ent identiﬁcation and authentication methods. Figure

3 illustrates the actors and their relations in a feder-

ated service model. In this use case, every service

provider is registered at a speciﬁc identity provider,

similar to Use Case 1 described in Section 5.1, but

in this use case there is the possibility of an authen-

tication data transfer between the individual identity

providers. To transfer the authentication data between

the concerned identity providers, a secure and trusted

communication channel has to be established. We

use the SAML 2.0 protocol to establish a trustworthy

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

326

communication channel by using the SAML2 Web-

SSO Proﬁle (Hughes et al., 2005) and an exchange of

SAML2 metadata (Cantor et al., 2005). An advantage

of this solution is a high interoperability with other

identity-management systems or identity provider im-

plementations, because SAML2 is supported by al-

most all identity management solutions.

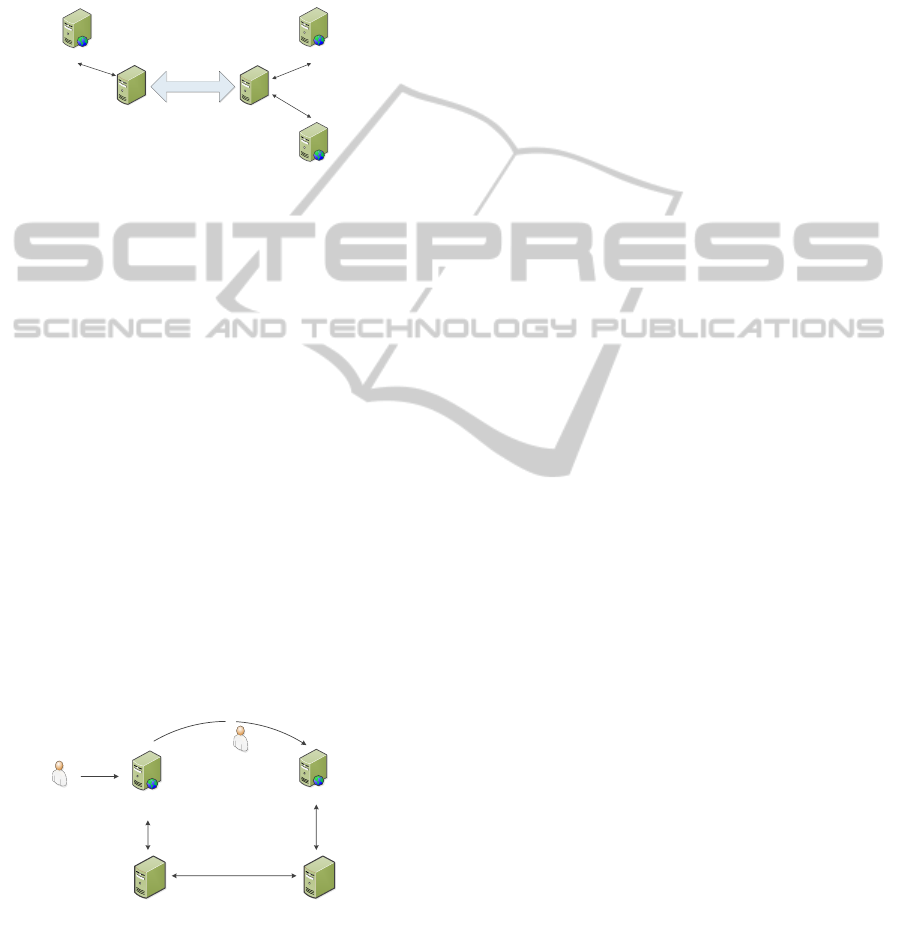

Service Provider 2

Identity Provider

Service Provider 3

Service Provider 1

Trust relationship

Identity Provider

Figure 3: Overview - Identity federation.

This functionality brings a lot of advantages for

citizens and service providers. In the Austrian eGov-

ernment, there actually exists practical applications

for such an identity federation. We will present two

of these applications next, one for citizens and one for

employees of a public authority.

5.2.1 Federated Single Sign-On (SSO)

eGovernment applications in Austria use a decen-

tralized identity management approach, which means

that service providers deploy there own identity

provider for authentication locally in their service

provider domain. This decentralized approach has ad-

vantages in case of availability and scalability but it is

difﬁcult to provide modern user-friendly functional-

ity, like single sign-on for example. To overcome this

disadvantage, we implement a single sign-on federa-

tion mechanism. Figure 4 illustrates such an applica-

tion scenario graphically.

eHealth Service

Identity Provider

Service Portal

Identity Provider

Service Portal

eGovernment

Service Portal

eGovernment

Service Portal

Identity Provider

eHealth

Identity Provider

eHealth

Citizen

1.)

1.1.)

2.)

Citizen

3.), 5.)

4.)

Single Sign-On

Figure 4: Federated Single Sign-On for citizens

According to Figure 4, the login process for fed-

erated single sign-on involves the following steps:

1. The citizen authenticates a single sign-on session

on an eGovernment Service Portal by using the

identity provider, which is dedicated to this appli-

cation. This service portal could be a One-Stop-

Shop for different eGovernmant applications, like

an eHealth Service for example.

2. Second, the citizen wants to use an eHealth Ser-

vice, which operates as a self-contained web ap-

plication. For this purpose, the citizen clicks a

link in the service portal which starts an identi-

ﬁcation and authentication process on the eHealth

Service. This link URL include the information of

a possible active SSO session on the service portal

IDP as a HTTP GET parameter, which contains a

unique identiﬁer for the service provider IDP.

3. The eHealth Service requests authentication from

its dedicated identity provider, but in contrast to

Use Case 5.1 the information of an active SSO

session at the Service Portal identity provider is

provided.

4. If an active SSO session information is received,

the identity provider starts an authentication pro-

cess at the declared identity provider and requests

all information, which the eHealth service needs.

The SAML2 WebSSO Proﬁle is used to transfer

authentication data between the identity providers

in an encrypted way. The encryption keys are

shared by using the information in SAML2 meta-

data, which are provided from each IDP. After

successful authentication at the declared identity

provider, the authentication information is trans-

mitted to the eHealth identity provider.

5. At last, the eHealth identity provider could gener-

ate an eHealth Service speciﬁc authentication pro-

tocol response and transmit it to the eHealth Ser-

vice.

By using our federated solution, it is possible to com-

bine the user-friendliness of single sign-on solutions

with the availability of decentralized services. Ad-

ditionally, this solution requires no service-provider

modiﬁcations because all functionality can be imple-

mented on identity provider side.

5.2.2 Public-Authority Network Gateway

eGovernment services are not only used by citizens,

they are also used by public ofﬁcials during there oc-

cupation in public administrations. Such public ad-

ministrations are carried out from a private govern-

ment network on public eGovernment services. How-

ever, such administrative operations often require ex-

tensive privileges or additional attributes for security

reasons. Figure 5 shows this use case in a graphical

example. In this example, a public ofﬁcial would use

AModularandFlexibleIdentityManagementArchitectureforNationaleIDSolutions

327

an eHealth Service as part of his work as a civil ser-

vant. Here, the public ofﬁcial could be identiﬁed and

authenticated in the secure private network area and

maybe some additional information attributes could

be collected. After this, he could be authenticated

as a civil servant at the eHealth service without full

re-authentication on the eHealth identity provider, by

using identity federation. An advantage of this so-

lution is that there is no adjustment at the eHealth

service necessary because the functionality for pub-

lic ofﬁcials is encapsulated in the identity provider

functionality and can be also used for other services

providers.

eHealth Service

Identity Provider

eHealth

Identity Provider

eHealth

Identity Provider

Public authority

Identity Provider

Public authority

Public

Officials

Public

Officials

Additional

Attributes

Public Network Area

Private Network Area

2.), 7.)

4.) 5.)

Figure 5: Authentication of public ofﬁcials on public eGov-

ernment applications.

Both application scenarios can be implemented

easily by using our architectural design and actually

there is a trial period for establishment in Austrian

eGovernement applications.

5.3 Use Case 3: European Citizen with

European Service Provider

The third use case tackles the requirement of a se-

cure and seamless cross-border electronic identiﬁca-

tion, which is part of the European eIDAS regulation

or the STORK 2.0 large scale pilot (Leitold et al.,

2014). Due the mobility of citizens, cross-border in-

teroperability of national electronic identity systems

in the European eID landscape has become more and

more important in the last couple of years. Actu-

ally, every EU member state has implemented its

own identity management service infrastructure. This

circumstance leads to a heterogeneous environment

when these individual solutions should be coupled to

a cross-border electronic identiﬁcation solution. The

STORK large scale pilots treated with an interoper-

ability framework, which can be used to couple dif-

ferent national eID solutions.

The STORK interoperability framework deﬁnes

two different models, which can be used to build up

an interoperability layer between national eID solu-

tions. These models are the Pan European Proxy Ser-

vice (PEPS) model, which is shown in Figure 6(a) and

the middleware (MW) model illustrated in Figure 6(b)

(Zwattendorfer et al., 2013).

The PEPS model uses a proxy-based approach to

encapsulate speciﬁcs of the national eID infrastruc-

ture. In this model, a PEPS is a national gateway and

a single point of service for other countries, which im-

plements the cross-border authentication functional-

ity. In contrast to the PEPS model, in the middleware

model citizens are directly authenticated at the service

provider. Therefore, the service provider has to de-

ploy a so-called V-IDP in the service provider infras-

tructure. This V-IDP is the server-side middleware,

which provides all necessary functionality for citizen

identiﬁcation and authentication. Actually, STORK

implements both models and all possible combina-

tions between them because there are advantages and

drawbacks in both interoperability framework mod-

els. (Zwattendorfer et al., 2013).

Therefore, we implement a solution for our Aus-

trian identity provider, which can be used in both

models in order to enable the widest possible utilisa-

tion. From a national point of view, the implemented

functionality can be separated into two process ﬂows.

5.3.1 European eID to National Service Provider

Flow

This process ﬂow covers the case in which a European

citizen, which does not have an Austrian eID, should

be identiﬁed and authenticated to use an Austrian ser-

vice provider. Therefore, we implement an authenti-

cation plug-in, which offers all functionality for PEPS

communication to support the PEPS model, and func-

tionality to identify and authenticate foreign citizens

directly, which is identical to the middleware model.

This direct identiﬁcation and authentication is actu-

ally implemented for some European member states.

Additionally, a mapping from European authentica-

tion information to national authentication informa-

tion is required to fulﬁll Austrian legal requirements

and to provide all necessary information to Austrian

service providers (Stranacher, 2010).

eHealth Service

Identity Provider

eHealth

Identity Provider

eHealth

PEPS

Citizen

1.)

2.), 5.)

3.2.)

Austria

Member State

ZOLL

DOUANE

Additional national

Attributes

Additional national

Attributes

Figure 7: Process ﬂow to authenticate an European citizen

at an Austrian service provider.

Figure 7 illustrates this inbound process ﬂow.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

328

Service Provider

C-PEPS

Citizen

Member State B

Member State A

ZOLL

DOUANE

S-PEPS

Trust

(a) STORK - PEPS Model.

Service Provider

Citizen

Member State B

Member State A

ZOLL

DOUANE

VIDP

Trust

(b) STORK - Middleware Model.

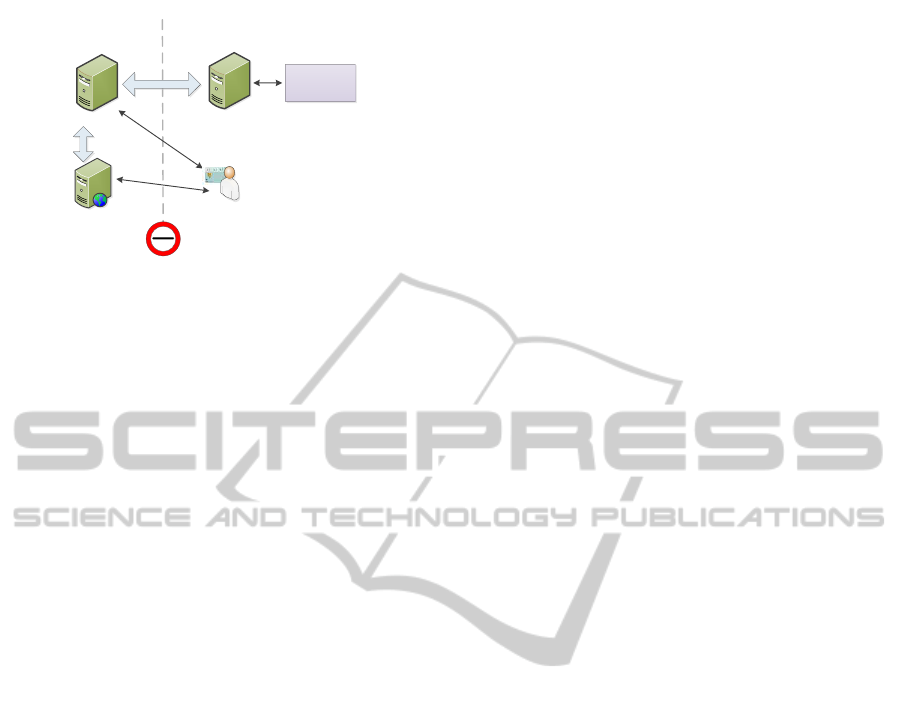

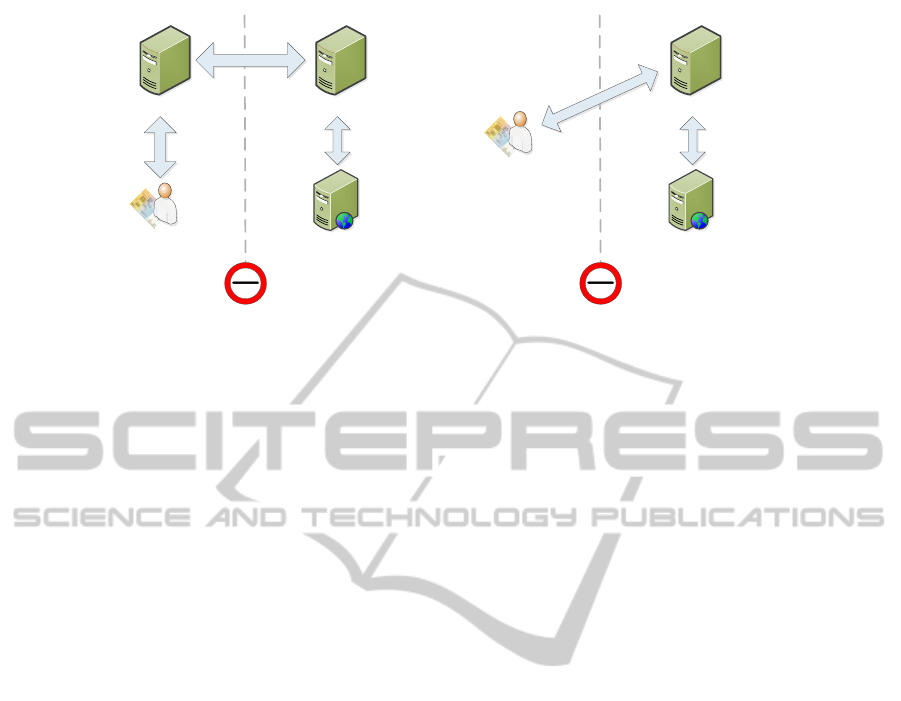

Figure 6: STORK interoperability framework models

1. A citizen of a member state wants to access a pro-

tected area at an Austrian service provider.

2. The citizen is redirected to the identity provider

and there the citizen has to select the his or her

favourite identiﬁcation and authentication model.

3. After selection, one of the following solutions is

performed.

(a) Middleware Model: In this case, the identiﬁ-

cation and authentication process is performed

at the Austrian identity provider by using the

citizen’s secure token directly. Consequently,

only information that can be provided by the

secure token can be used for identiﬁcation and

authentication.

(b) PEPS Model: In this case, the citizen is redi-

rected to the PEPS in the citizen’s member state

and there the identiﬁcation and authentication

process is performed. By using this model,

some additional attributes could also be pro-

vided by using member state attribute infras-

tructure, which is connected to the PEPS. Af-

terwards, the authentication information is re-

turned by using the STORK communication

protocol.

4. To fulﬁll Austrian legal and technical require-

ments, the authentication data has to be processed

by the Austrian identity provider. Therefore, we

use the attribute plug-in functionality of our ar-

chitecture to implement a register query plug-in,

which uses the Austrian attribute mapping service

to fulﬁll these legal and technical requirements.

5. At last, the authentication information is transmit-

ted to the Austrian service provider and the citizen

can access the protected resource.

5.3.2 National eID to European Service Provider

Flow

The second process ﬂow characterises the identiﬁ-

cation and authentication of an Austrian citizen to

access protected resources at a European service

provider. To perform this assignment, we imple-

mented a new protocol plug-in, according to our ar-

chitecture, which implements the STORK communi-

cation protocol for service provider communication.

Therefore, this protocol plug-in can be used to authen-

ticate an Austrian citizen by using his secure token.

If our solution is deployed as a single point of

contact in Austria (C-PEPS) according to the PEPS

model (see 6(a)), then the member state service

provider and the intermediate service provider PEPS

(S-PEPS) can use the functionality of our identity

provider just like an Austrian service provider can do.

In this case all national legal requirements for addi-

tional attribute consuming, like the usage of electronic

mandates, can be easily fulﬁlled.

The situation is different if the middleware model

is used and our identity provider is deployed as a V-

IDP which operates in the service provider infrastruc-

ture outside of Austria, because some national legal

requirements cannot be achieved directly in this de-

ployment situation. This circumstances affect mainly

the attribute plug-ins, which are used to provide addi-

tional information after identiﬁcation and authentica-

tion steps. In order to solve this problem, we beneﬁt

from our modular architecture design because the af-

fected plug-ins can be easily replaced by a modiﬁed

implementation, which are used in case of V-IDP de-

ployment.

Figure 8 illustrates this deployment, in which a

modiﬁed attribute plug-in for electronic mandate col-

lection is used, as example. In contrast to the PEPS

AModularandFlexibleIdentityManagementArchitectureforNationaleIDSolutions

329

Service Provider

Austria

Member State

ZOLL

DOUANE

VIDP

eMandate

IDP

eMandate

IDP

Mandate

Service

eMandate

Trust

Austrian

Citizen

Austrian

Citizen

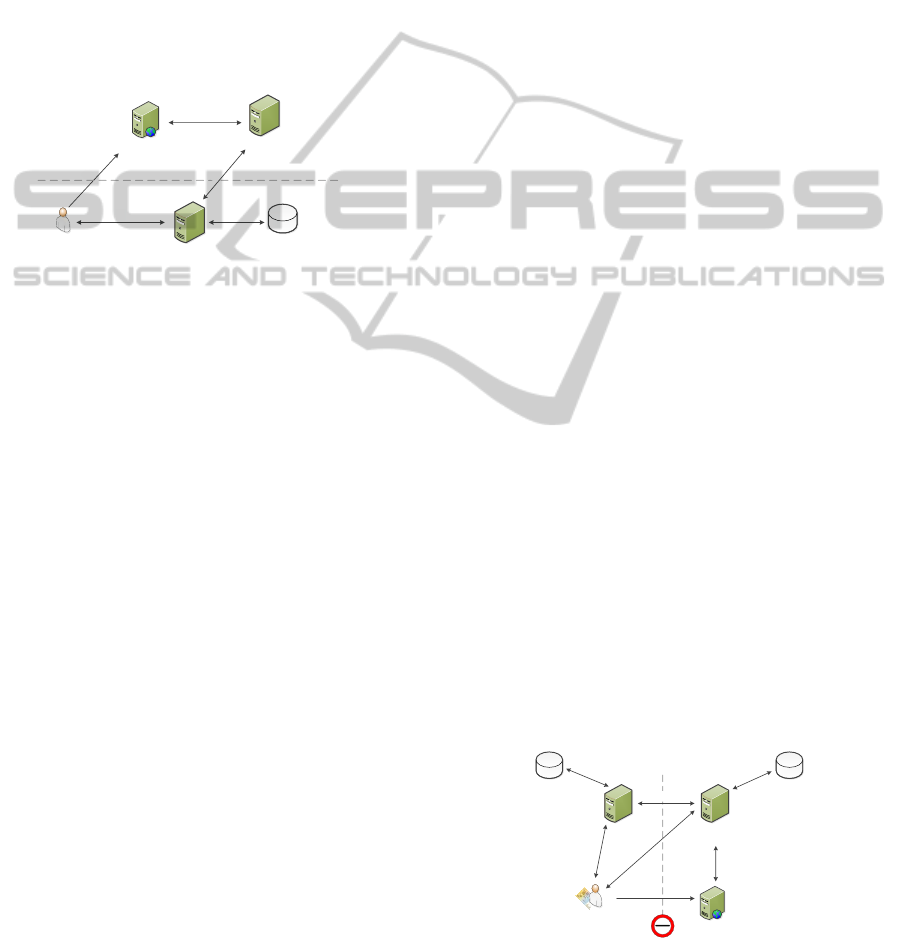

Figure 8: Our IDP solution used as V-IDP with modiﬁed

attribute plug-in.

deployment, a request to the Austrian infrastructure

is only necessary if requested authentication informa-

tion cannot be provided by the V-IDP directly. The

advantage of this solution is obtained by combining

the beneﬁts of the middleware model with the entire

functionality of an Austrian identity provider.

By combining the inbound and outbound process

ﬂow, our solution can also be used to authenticate

an European citizen to an European service provider.

According to this, our implemented solution is also

directly usable in other European states and not only

in the Austrian national eID infrastructure.

6 CONCLUSIONS

Identiﬁcation and authentication of citizens is an in-

tegral component for a variety of Internet services

and online applications. The capability for secure

and reliably identiﬁcation and authentication accord-

ing to national legal requirements is important for ser-

vice providers, which process private and individual-

related data, like eGovernment applications. In

this paper, we have presented a new architecture

for identity-management systems, to provide a ﬂex-

ible, interoperable and easy-to-use identity provider

for service provider identiﬁcation and authentication.

Our solution relies on an adaptable and modular ar-

chitecture that facilitates future extensions. Although

the presented solution has been developed to meet

special requirements of the Austrian eID infrastruc-

ture and Austrian legal requirements, its general ar-

chitectural design and implementation is also appli-

cable in other contexts.

We have demonstrated the practical applicability

and ﬂexibility of the architectural design by imple-

menting solutions for different use cases, which need

to be covered by an Austrian identity provider. These

use cases cover the use of the presented solution to

identify and authenticate Austrian citizens and pub-

lic ofﬁcials in various ways and assure interoperabil-

ity of our solution in a European context. Actually,

the practical implementation of use case 1 is used for

productive applications in the Austrian eGovernment.

The implementation of the use cases 2 and 3 are actu-

ally evaluated in different national and European pilot

programs. The realization of further use cases or addi-

tional functionality, like two-factor authentication in

case of single sign-on, that make use of the presented

architecture is regarded as future work.

REFERENCES

Bauer, M., Meints, M., and Hansen, M. (2005). D3.1:

Structured overview on prototypes and concepts of

identity management systems.

Cantor, S., Moreh, J., Philpott, R., and Maler, E. (2005).

Metadata for the OASIS Security Assertion Markup

Language (SAML) V2.0. Technical report.

European Union (2005). Ministerial declaration, Manch-

ester, United Kingdom, on 24 november 2005. Euro-

pean Union.

European Union (2006). Directive 2006/123/ec of the euro-

pean parliament and of the council of 12 december

2006 on services in the internal market. European

Union.

European Union (2014). Regulation (eu) no 910/2014 of

the european parliament and of the council of 23 july

2014 on electronic identiﬁcation and trust services for

electronic transactions in the internal market and re-

pealing directive 1999/93/ec. European Union.

Ferdous, M. S. and Poet, R. (2012). A comparative analysis

of identity management systems. In Smari, W. W. and

Zeljkovic, V., editors, HPCS, pages 454–461. IEEE.

Hughes, J., Cantor, S., Hodges, J., Hirsch, F., Mishra, P.,

Philpott, R., and Maler, E. (2005). Proﬁles for the OA-

SIS Security Assertion Markup Language (SAML)

V2.0. Technical report.

Kaler, C. and McIntosh, M. (2009). Web Services Federa-

tion Language (WS-Federation) Version 1.2.

olsch, T., Zibuschka, J., and Rannenberg, K. (2011). Pri-

vacy and identity management requirements: An ap-

plication prototype perspective. In Camenisch, J.,

Leenes, R., and Sommer, D., editors, Digital Privacy,

volume 6545 of Lecture Notes in Computer Science,

pages 735–749. Springer Berlin Heidelberg.

Leitold, H., Hollosi, A., and Posch, R. (2002). Secu-

rity architecture of the austrian citizen card concept.

In Computer Security Applications Conference, 2002.

Proceedings. 18th Annual, pages 391–400.

Leitold, H., Lioy, A., and Ribeiro, C. (2014). Stork 2.0:

Breaking new grounds on eid and mandates. In

GmbH, M. M. F., editor, Proceedings of ID World In-

ternational Congress, pages 1 – 8.

Lockhart, H. and Campbell, B. (2008). Security As-

sertion Markup Language (SAML) V2.0 Technical

Overview. Technical report.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

330

Maler, E., Mishra, P., and Philpott, R. (2003). Asser-

tions and Protocol for the OASIS Security Assertion

Markup Language (SAML) V1.1. Technical report.

Nadalin, A., Kaler, C., Monzillo, R., and Hallam-Baker, P.

(2006). Web Services Security: SOAP Message Secu-

rity 1.1. Technical report.

Neuman, C., Yu, T., and Hartman, S und Raeburn, K.

(2005). The Kerberos Network Authentication Ser-

vice (V5).

Orthacker, C. and Zefferer, T. (2011). Accessibility chal-

lenges in e-government: an austrian experience. In

Stuart Cunningham, Vic Grout, N. H. D. O. R. P., edi-

tor, Proceedings of the Forth International Conference

on Internet Technologies and Applications (ITA 11),

pages 221 – 228.

Rainer, H., Pﬂ

aging, P., Zwattendorfer, B., and Pichler, P.

(2014). Portalverbundprotokoll Version 2 S-Proﬁl.

ossler, T., Hollosi, A., Liehmann, M., and Schamberger,

R. (2006). Elektronische Vollmachten Speziﬁkation

1.0.0.

Sakimura, N., Bradley, J., Jones, M., de Medeiros, B., and

Mortimore, C. (2014). OpenID Connect Core 1.0.

Stranacher, K. (2010). Foreign identities in the austrian e-

government - an interoperable eid solution. In Cen-

ter, T. N. C., editor, IDMAN 2010 - 2nd IFIP WG-

11.6 International Conference on Identity Manage-

ment, pages 31 – 40.

Zwattendorfer, B., Sumelong, I., and Leitold, H. (2013).

Middleware architecture for cross-border identiﬁca-

tion and authentication. Journal of information as-

surance and security, 8:107 – 118.

AModularandFlexibleIdentityManagementArchitectureforNationaleIDSolutions

331
