Comparing Tool-supported Lecture Readings and Exercise Tutorials in

Classic University Settings

Tenshi Hara

, Felix Kapp

, Iris Braun

and Alexander Schill

Chair of Computer Networks, Faculty of Computer Science, Technische Universit¨at Dresden, Dresden, Germany

Chair of Learning and Instruction, Department of Psychology, Faculty of Science,

Technische Universit¨at Dresden, Dresden, Germany

Keywords:

Audience Response System, Virtual Whiteboard, Q&A System, Discussion System, Panel, Comparison,

Lecture Reading, Exercise Tutorial, Auditorium, AMCS.

Abstract:

Teaching in classic courses offers too little interaction between docents and students and should be improved.

Addressed approaches include a range from Simple Voting Systems to Clickers and Audience Response Sys-

tems, and interaction and Student motivation may be improved in them. However, different university course

settings are affected in different ways by these systems. Therefore, this paper presents a comparison of a

selected range of these systems (implemented as tool kits) within two course settings, namely readings and

tutorials. These tools are Audience Response Systems, Question and Answer Systems (Q&A Systems), Dis-

cussion Systems (Panels), as well as Virtual Whiteboard Feedback Systems. A synopsis of feasibility for

different settings is provided and concluded with important results on the distinguishability of Q&A Systems

and Panels.

1 INTRODUCTION AND

RELATED WORK

University courses at German universities aim to ex-

pand students’ knowledge through the structured pre-

sentation of expertise by a docent, which goes beyond

textbook knowledge, and by guiding students through

the knowledge acquisition process. Teaching in clas-

sic courses has been criticised for offering too little

interaction between docents and students. Learning

as an active, constructive and highly individual pro-

cess (Seel, 2003) is nearly impossible in huge read-

ings and can be improved in most of the small course

units, as well. As a consequence of missing interac-

tivity and engagement, many students fail at learning

- they do not manage to build adequate mental models

of the domain taught.

There are several approaches to increase interac-

tivity in classes. The spectrum ranges from simple

voting systems (Duncan, 2006) to the method of Peer

Instruction (Mazur, 1997). A large variety of systems

are subsumed under the concept “Personal Response

Systems” (Moss and Crowley, 2011), “Audience Re-

sponse Systems” (ARS) (Caldwell, 2007) or “Click-

ers” (Bradyet al., 2013). ARS provide feedback to the

docent by giving the audience the possibility to par-

ticipate during the course unit by voting on questions.

By presenting questions during the course unit stu-

dents get more involved in the lecture and the docent

in turn gets some information about the audience’s

knowledge and attitude. Almost all of these systems

work as follows: before starting the course unit, the

docent deﬁnes one or more questions which are then

presented on a screen during the course unit; the stu-

dents are asked to answer via specialised technical de-

vices (Clickers) or their smartphones. All answers are

aggregated and immediately presented on the screen.

The docent can include the audience’s answers into

the lecture, provide timely feedback, or adapt the lec-

ture to special interests or needs. Some studies show

that ARS are capable of increasing the interactivity

in lectures (Mayer et al., 2009). A core instructional

component of projects with ARS are learning ques-

tions (Mayer et al., 2009), (Weber and Becker, 2013)

and live feedback features as in (Feiten et al., 2013).

Various studies have shown, that ARS lead to

an increase of motivation (e.g., (Prather and Bris-

senden, 2009)) as well as to an increase of achieve-

ment (Duncan, 2006). According to (Caldwell, 2007)

and (Beatty et al., 2006) ARS with questions can

a) direct attention and raise awareness, b) stimulate

cognitive processes, and c) help evaluating progress.

When instructional designers have these underlying

244

Hara T., Kapp F., Braun I. and Schill A..

Comparing Tool-supported Lecture Readings and Exercise Tutorials in Classic University Settings.

DOI: 10.5220/0005451402440252

In Proceedings of the 7th International Conference on Computer Supported Education (CSEDU-2015), pages 244-252

ISBN: 978-989-758-108-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

processes in mind when designing ARS questions,

they can provide feedback to the students and can be

used by the instructor as a source for feedback, as well

(e.g. (Lantz, 2010)).

(Lantz, 2010) reviewed several studies about

Clickers and concludes that providing questions

within university lectures with the help of ARS has

effects on attention, attendance, class preparation and

depth of processing. Again, the questions provide im-

mediate feedback to the students and can be used by

the instructor as a source for feedback.

Existing Clicker Systems provide the possibility

to increase the interactivity in university classes. In

the following contribution we compare two systems

which go beyond the classical Clicker System fea-

tures with regard to their usefulness for the university

readings and tutorials. The systems used in the exist-

ing literature vary with respect to their functions and

the technical possibilities. We consider it useful to

differentiate these functionalities into four categories:

Audience Response Systems, Question and Answer

Systems, Discussion Systems and Virtual Whiteboard

Feedback Systems. The aim of the paper is twofold,

as we aim to 1) present two systems developed in or-

der to support students in university courses, and 2)

emphasise that different content and course unit set-

tings require tools to integrate distinct functions in or-

der to help docents and students in successfully en-

hancing mastery of the learning process.

2 SETTING

As we intend to analyse a very focussed set of teach-

ing and learning environments as well as situations,

and draw conclusions on a comparison thereof, the

considered settings shall be brieﬂy outlined in this

section.

The research conducted is based at a German uni-

versity and topics are taught through readings, tu-

torials, practicals, as well as combinations thereof.

All three types are based on units spanning 90 min-

utes. Purposed for knowledge presentation, readings

present a learning environment in which an arbitrary

number of a few to up to several hundred mostly pas-

sive students follow a docent presenting a subject. Tu-

torials and practicals are favourable means of knowl-

edge consolidation. With respect to the knowledge

presented in the readings, tutorials incorporate theo-

retical repetition and continued derivation, whereas

practicals focus on the practical application of said

knowledge. Typically, tutorials are designed to ac-

commodate seven to up thirty students, whereas prac-

ticals often are designed for arbitrarily sized groups

partitioned into units of three to eight students.

Due to a low utilisation degree of practicals at our

alma mater, we want to focus on courses consisting

of weekly readings accompanied by weekly or fort-

nightly tutorials. In this focus, both can be consid-

ered for tool-less and tool-supported realisation. The

tool-less conduct shall be considered “classic”, signi-

fying allowed presentation means are limited to voice,

books, blackboard, pointer, demonstrators, as well as

overhead and LCD projectors. Tool-supported reali-

sations add to or replace parts of these means with in-

teractive tools allowing two-way interactions between

students and docents. The tools used are integrated

into the curriculum and their primary objective is the

enhancement of knowledge presentation and/or repe-

tition.

Within the outlined focus, an intermediate reali-

sation is of special interest for us, namely a course

that can be conducted in a “classic” setting, but is

amended by tool-support. I.e. these tools are not

mandatory in order to achieve the course’s goal. –

Hence, this realisation shall be deﬁned as “pseudo-

classic”.

Table 1: Test settings for the two systems AMCS and

ETTK.

Topic Dur.

AMCS

Lecture 1 Psychology 90min

Lecture 2

Cloud

Computing

90min

Lecture 3

Computer

Networks

90min

∼ 120

Lecture 4 Economics 90min

∼ 200

Lecture 5 Economics 90min

197

ETTK

Exercise

Tutorial 1

Computer

Networks

10×

90min

13-26

Exercise

Tutorial 2

Computer

Networks

7×

90min

7-14

In our investigation, we conducted tests in ﬁve

readings with 15 to 180 students and seventeen tu-

torials with 7 to 26 students. An overview is provided

in Table 1.

For the reading environment we utilised our sys-

tem Auditorium Mobile Classroom Service (AMCS)

(Kapp et al., 2014b), (Kapp et al., 2014c), (Kapp

et al., 2014a) with its integrated ARS and meta-

cognitive activation features. The meta-cognitive

prompts allow easy addressing of different target

groups or even individual students within the audi-

ence.

http://goo.gl/2UhsFn

– accessed 25 March 2015

ComparingTool-supportedLectureReadingsandExerciseTutorialsinClassicUniversitySettings

245

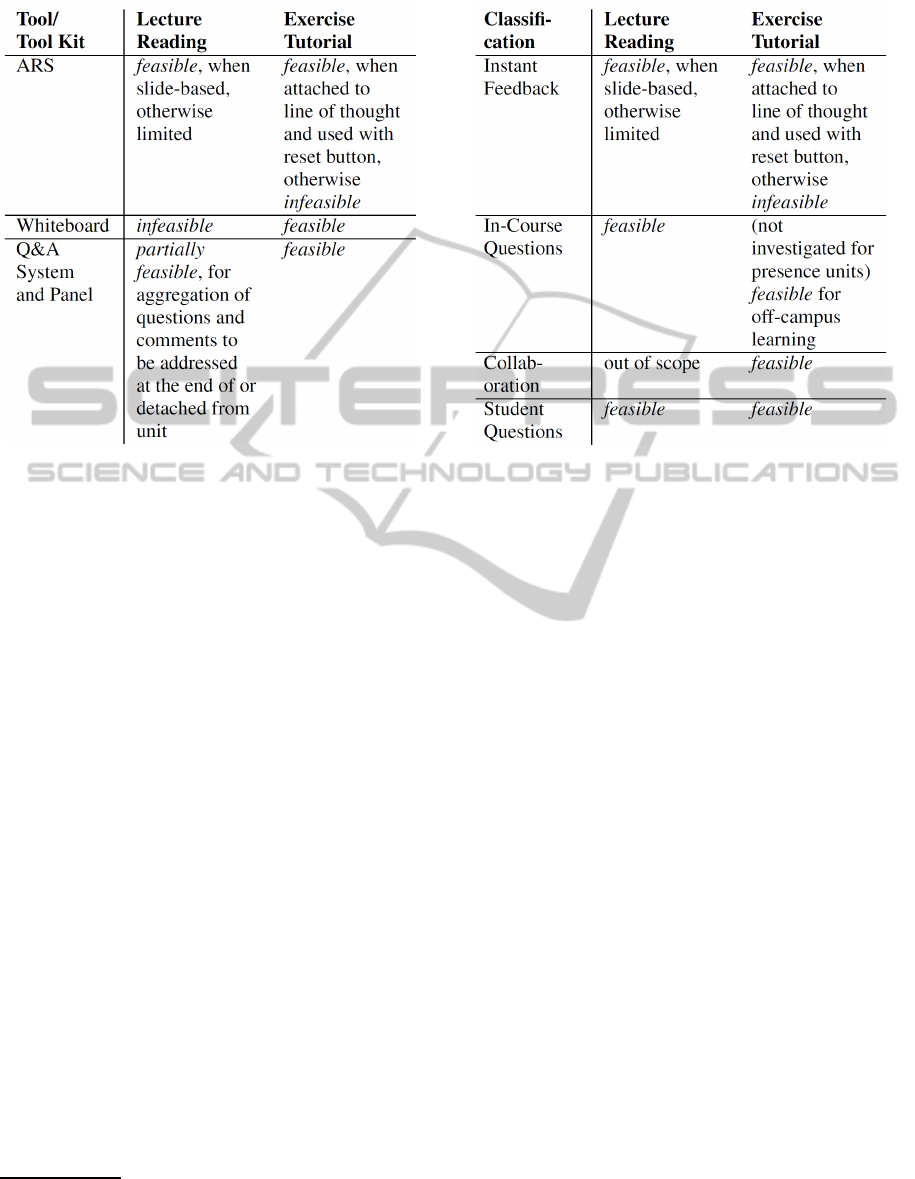

Table 2: Synopsis of the technical comparison.

Within the environment of tutorials two proto-

types were utilised, namely RNUW

with real time

ARS and Q&A System, and ExerciseTool

with time

decoupled ARS, Q&A System and Whiteboard. For

both prototypes the Q&A System also served as a

Panel as discussed later.

As for the applicability of the results and easier

reading experience, we shall pool RNUW and Ex-

erciseTool as one (virtually single) tutorial tool kit

(“ETTK”).

From a more technical perspective, the four en-

hancing tools elevating our classic setting to pseudo-

classic tested and discussed within this paper are: Au-

dience Response Systems, Virtual Whiteboard Feed-

back Systems, Question and Answer Systems, as well

as Discussion Systems.

3 COMPARISON

Before outlining the comparison, we wish to forestall

that our results are expectable; however,to our knowl-

edge no original work has yet provided a diligent but

routine piece of work on result provisioning.

The considered systems with their embedded tools

naturally differ from each other due to their design

and implementation, making a direct comparison dif-

ﬁcult. However, on a conceptual level, suitable com-

parison conclusions can be drawn along the techni-

cal tools, or along classiﬁcations such as instant feed-

http://exercisetool.inf.tu-dresden.de/

– accessed 2 September 2014

Table 3: Synopsis of the classiﬁcation-based comparison.

back, questions during the course (prepared lecturer’s

questions during the course), in-course collaboration

(with Whiteboards), as well as questions asked by the

students. The technical comparison suffers from par-

tial indistinguishability of result allocation, whereas

the classiﬁcation comparison discriminates the tech-

nical aspects. – A synopsis of the technical compar-

isons is given in Table 2, and one of the classiﬁcation-

based comparisons in Table 3.

3.1 Audience Response System (ARS)

ARS present the audience of a course with the abil-

ity of providing direct and indirect feedback on the

course’s setting or its content. We considered two

types of ARS, one providing presentation feedback

(speech parameters) to the docent, and one for pro-

ﬁling of the audience and providing targeted hints to

individual audience members. Both types are avail-

able concurrent to the course’s presentation.

The ﬁrst type allows students to provide instant

feedback on parameters of the docent’s presentation,

i.e. speed and volume (in the tutorials we additionally

tested explanation clarity). The university’s semestral

evaluation provides deferred feedback and is rarely

ﬁnished and published before the end of the semester,

hence the provided feedback does not beneﬁt the eval-

uating students, but their successors in the next exe-

cution of the course. Therefore, motivation to pro-

vide qualitatively suitable feedback for the evaluation

is low. Having the feedback available instantaneously

allows docents to react in a timely manner.

The second type allows docents to prepare a set

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

246

of timed questions and surveys linked to the presen-

tation. These questions and surveys allow – when an-

swered by the students – automated student proﬁling

which in turn allows individualised system responses

and learning experiences for each student. They also

allow identiﬁcation of learning demands, which in re-

turn helps the students focus on knowledge deﬁcits

when learning. Questions can range from a simple

“Why are you attending this course”, targeted at pro-

viding the docent with a gross overview of the com-

position of their audience, to individualised control

questions like “Earlier you stated you were having

difﬁculties to understand the DNS. Based on what has

just been presented, [...]”. Surveys present a distinct

type of questions, i.e. linking the feedback of the en-

tire audience, or a subset thereof, to form an opin-

ion cross section which can be presented to the audi-

ence. E.g. the result of the before mentioned audience

composition question could be presented to the audi-

ence in order of providing students a sense of cohe-

sion or (intentional) rivalry amongst different degree

programmes.

With respect to instant feedback, one of the main

incentives is anonymity while providing feedback.

The inhibition threshold to provide feedback – espe-

cially such that may reﬂect negatively on oneself – is

considerably lowered when anonymity is introduced.

This effect is considerably more noticeable in larger

audiences, i.e. in readings compared to tutorials.

Another important aspect that could be veriﬁed

in both environments is the immediacy of feedback

and reaction. However, the extent of the immediacy

varies between both environments. As the investi-

gated readings’ presentations were based on Power-

Point or Keynote, the ARS-based feedback was on

a per-slide basis, meaning that students were able to

provide feedback with the ARS at any time, but the

feedback values were coupled to individual slides and

reset after each change of slides. The docents as well

as the students were able to see the ARS activity in

real time, providing a topical audience report. The

docents were at liberty to react to the feedback at their

own discretion. However, processing of and reacting

to the feedback proved to be most practical just before

changing slides. This is vested in the available adver-

tence of the docents who in general were occupied

with the presentation, as well as the expected reaction

time on the side of the students.

Ongoing availability of feedback was tested, as

well. This however proved to make the correlation

of feedback to presentation challenging. E.g. an “un-

able to follow” feedback could be submitted by the

audience, but the docent’s reactions could be delayed

until moments later; i.e. in readings a few slides.

This is important to note as within the tutorials per-

slide basis was infeasible, as the investigated tutori-

als mainly used blackboards as their means of pre-

sentation. Hence, we investigated several different

possibilities of feedback processing and reaction. An

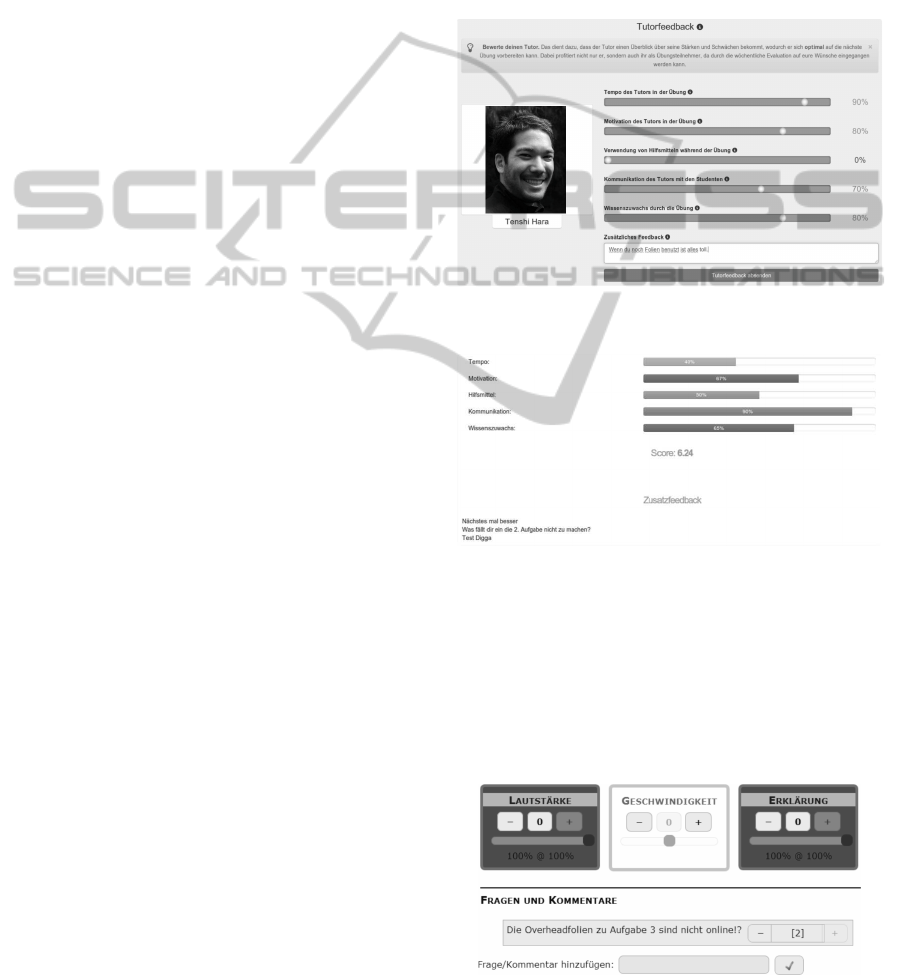

exemplary time decoupled ARS voting screen is de-

picted in Figure 1, where students could vote on the

performance of the docent. The aggregated voting re-

sults are presented in Figure 2.

Figure 1: Students’ voting screen allowing feedback on the

docent’s performance, as well as additional feedback.

Figure 2: Docents’ result screen allowing acknowledge-

ment of their performance in the evaluated tutorial.

Hence, we investigated real time ARS feedback

on the time bases of 5, 15 and 30 minutes in the tuto-

rials. – An exemplary screenshot of the student view

is provided in Figure 3. The Q&A System also de-

picted will be discussed further in Subsection 3.2 and

Subsection 3.3.

Figure 3: Students can use ARS (top) and Q&A System

(bottom) functions.

ComparingTool-supportedLectureReadingsandExerciseTutorialsinClassicUniversitySettings

247

The time decoupled ARS proved to be impractical

for the requirements of the audience. Students were

able to provide feedback for the tutorial units on the

unit-level, providing the opportunityof improvements

in the next unit; but, motivation to participate was as

low as with the paper-based semestral evaluations, if

not even lower. We therefore changed the feedback

to a docent evaluation where students could visually

rate the docent’s performance in each unit. Unfor-

tunately, due to a small number of samples (3), the

performance result are of limited signiﬁcance.

For the time-based ARS feedback (as a reminder:

bases 5, 15 and 30 minutes), our ETTK allowed an

analysis of docent and student acceptance. However,

strict obedience to the ﬁxed time intervals proved im-

practical. Varying time consumption of different exer-

cise tasks made a reasonable feedback correlation ex-

tremely challenging, especially when having the do-

cent face the blackboard and forcing them to attend

to the feedback by turning around, interrupting line

of thought. Furthermore, it was hardly possible for

the students to appreciate any feedback-based change

in the presentation when the correlation to the orig-

inal reason for the feedback was surpassed or lost.

Therefore, we introduced a “reset button” which as-

tonishingly proved to be very practical. It eliminated

the time-constraints of the system while still allowing

attributable reactions to the provided feedback. Nev-

ertheless, the point in time of the reaction proved to

be crucial. Having the docents react to feedback as

soon as they realised there was feedback irritated the

students as reactions in the midst of a line of though

distracted both, the students and the docents. Next,

having the docent react to feedback between differ-

ent tasks was practical, but some students judged this

referred response as being too slow; however, it gen-

erally improved acceptance. Lastly, we investigated

having the docent react to the feedback as soon as a

line of though was ﬁnished and positioning of the do-

cent (as a person relative to the audience) allowed per-

ception of the feedback. This compromise proved to

be worthwhile to the students as irritations were lim-

ited since docents tend to emphasise changes of lines

of thought by changes in intonation, speed, etc. any-

way.

Back to the in-course learning questions, student

participation and attentiveness can be improved by

presenting students with those during a course unit.

An example of such questions in combination with

instant feedback features is shown in Figure 4.

In readings in-course questions can provide an in-

dividualised learning experience for students, even

though the docent does neither actively, nor inten-

tionally address individual students over the course

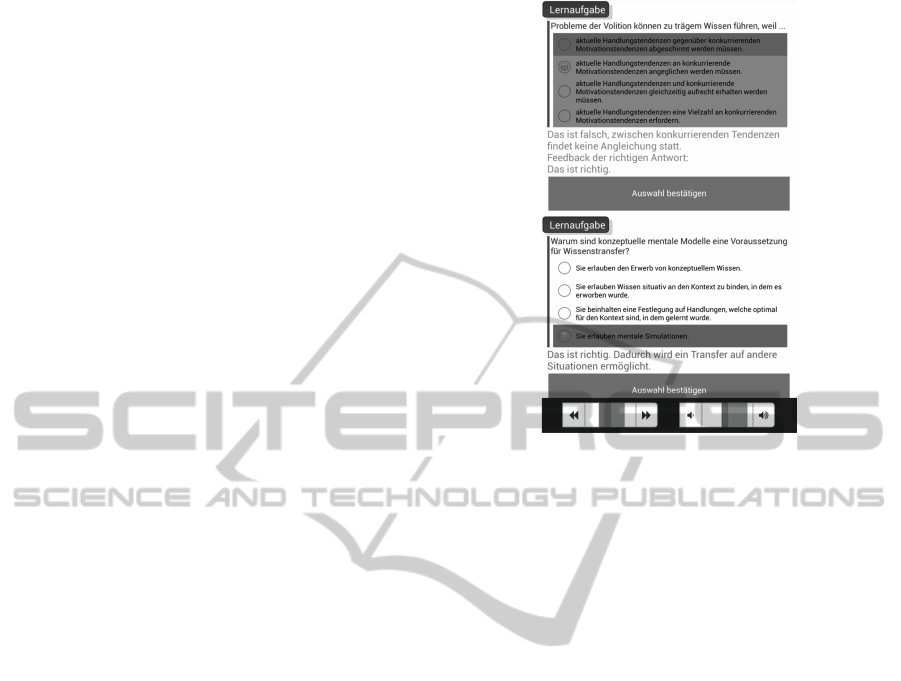

Figure 4: Individualised learning question arranged with

single choice answers. The question on top has been an-

swered incorrectly; an individualised prompt is given. In

parallel, feedback on speed (bottom left) and volume (bot-

tom right) of the presentation can be provided.

of a reading unit. The in-course questions must be

prepared beforehand and currently cannot be gener-

ated out of the course material automatically. How-

ever, once questions are stored in the ARS along-

side the course material – in our AMCS prototype

they were stored within the PowerPoint and Keynote

ﬁles as notes –, maintaining/revisingthem can be con-

ducted alongside maintenance/revision of the actual

course material. As mentioned earlier, AMCS allows

meta-cognitive prompts. These are generated based

on the answers submitted by students, and their pro-

ﬁles. A docent may prepare prompts for a selected

subset of the audience, which is practical if the au-

dience consists of students from different degree pro-

grammes, and individual prompts are not targeted at

all programmes. Other targetable preconditions in-

clude whether students attend the course because of

it being mandatory to their schedule or out of actual

interest; such students are more likely susceptible for

prompts on research proposals or available thesis top-

ics.

In general, students reacted positively to the ac-

tivating aspects of in-course questions and deemed

them a valuable addition to readings. For example,

students of the ﬁrst reading (Psychology) were asked

if they considered the functionalities (learning ques-

tions, messages and feedback to the lecturer) useful.

They mostly agreed (M = 4.19, SD = .68, n = 22;

scale from 1 “I do not agree” to 5 “I fully agree”).

In line with that statement participants of the fourth

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

248

reading (Economics) rated learning questions within

the lecture as very useful (refer to Figure 5. Unfor-

tunately, with a rising number of student attendance,

server load exponentially grows, which yielded severe

performance problems in the third reading (Computer

Networks), but could be purged later on. Basic learn-

ing questions and direct feedback do not cause these

problems, but frequent database or in-memory checks

on complex model correlations (beyond “correct” or

incorrect answers) for individual messages to be sent

to all system users can be disadvantageous.

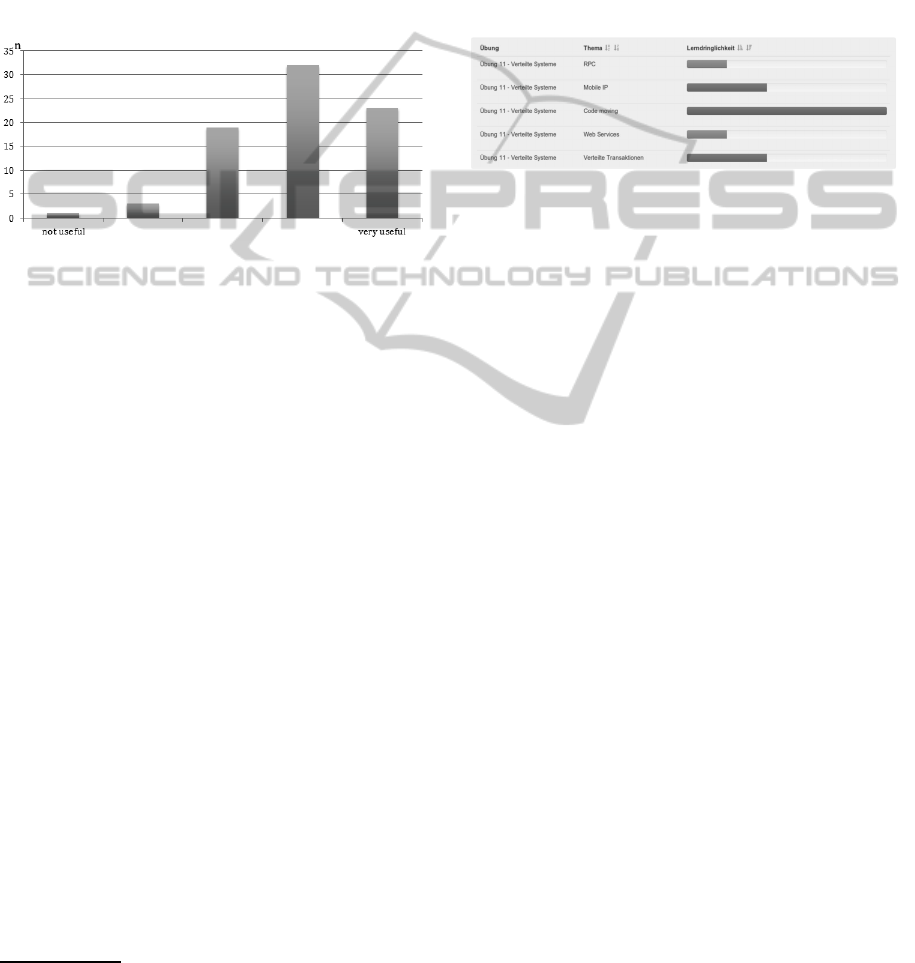

Figure 5: Students’ usefulness assessment on Likert scale

(1 “not useful” to 5 “very useful”) of learning questions,

messages and feedback to the lecturer. (n = 78).

For tutorials, utilisation of in-course questions is

ambiguous. On one hand, they allow continued acti-

vation of fast/good students by presenting them addi-

tional learning questions as soon as they have ﬁnished

topical tasks, hence reducing their idle times. On the

other hand, this additional demand channel

endan-

gers overall attentiveness as the docent continues ask-

ing verbal questions towards the general audience or

individuals within the audience. No matter what psy-

chology modelone believesin, either multi tasking, or

single tasking humans, the additional demand channel

either takes from the shared attention pool and gener-

ates additional administrative effort in the multi task-

ing model, or it reduces the available attention spread

in the single tasking model. This theoretical demur

could be conﬁrmed for in-course questions within a

presence unit. However, stretching the deﬁnition of

in-course, prepared questions for off-campus learn-

ing proved very useful. Especially the combination

of before and after unit questions allows individu-

alised identiﬁcation of learning demands. Within our

ETTK we presented students with conﬁdence ques-

tions before each unit, simply asking them whether

they felt conﬁdent in successfully ﬁnishing each sin-

gle exercise tasks. For this, only the headings of

the tasks were presented with a 5-step Likert scale

(ranging “very uncertain” (1) to “very conﬁdent” (5)).

In a psychological perception model, asking questions

yield an answer demand. In the model, each means of ques-

tion asking is a demand channel.

After each tutorial unit the students were then pre-

sented the same questionnaire, allowing the ETTK

system an automated comparison of before and af-

ter unit conﬁdence in a ﬁrst step, and deriving indi-

vidual learning demand for each student in a second

step. Ultimately, a third step generated recess infor-

mation on the course group’s learning/understanding

progress, providing repetition proposals to the do-

cent. An exemplary individualised learning demand

appraisal presented to a student is depicted in Fig-

ure 6.

Figure 6: Individualised learning demand appraisal pointing

out deﬁcits the student should focus on.

3.2 Virtual Whiteboard Feedback

System (Whiteboard)

Whiteboards are a means of collaborative develop-

ment and provisioning of sketch areas. In our setup

we utilised a Whiteboard for student hand-ins during

tutorials; utilisation in readings would not be feasible

due to the size of the audience as well as their focus

on passive presentation. The expectable amount of

feedback would be more than challenging for the do-

cent to comprehend. Of course, Whiteboards can be

used as a scratch pad by reading attendants, but this

scenario was not considered in our tests.

For a given task students would normally prepare

hand-ins which in turn would be either selectively

or in total put to discussion among the group, dis-

tributed among learning groups, effectively permut-

ing a course’s hand-ins within the course, or evalu-

ated by the docent out of course units and have the re-

sults presented in the next unit. Loosening these con-

straints, Whiteboards allow a quasi-real time anony-

mous discussion of hand-ins without handling paper

submissions. The docent can either share the evalua-

tion process with the group, which would be equal to

the prior mentioned discussion, or they could evalu-

ate submitted hand-ins as they appear in the system

and mark “noteworthy” submissions for later con-

densed discussion. This helps conserve valuable tu-

torial time.

Although Whiteboards allowing students to sub-

mit hand-ins are infeasible for readings, it can be ar-

gued that they can be utilised for other forms of feed-

back submissions. While this is true for students tak-

ing down notes and sharing them among each other,

ComparingTool-supportedLectureReadingsandExerciseTutorialsinClassicUniversitySettings

249

they could only be utilised for time-decoupled hand-

ins from the docents’ point of view. However, in our

setting tutorials are the environment for hand-ins. In

addition, having other feedback like questions sub-

mitted via Whiteboard inhibits automated handling in

database archiving, etc., which is possible with ARS

and Q&A Systems. Consequently, Whiteboards in

readings are infeasible and their task can be satisﬁed

by ARS and Q&A Systems.

With respect to tutorials Whiteboards can provide

additional, valuable feedback possibilities. As dis-

cussions on topics are targeted, the ability to provide

feedback and/or hand-ins that need not adhere to text-

based restrictions (Q&A System) or pre-selection val-

ues (ARS) is a valuable amendment to tutorials. Stu-

dents can swiftly hand-in tables, sequence and state

diagrams, or other UML and sundry diagrams. As

described in Section 2, the hand-ins are designed to

be discussed in a timely manner, so the aspect of au-

tomated handling, etc. as discussed for readings is

not as important. Generally, Whiteboard submissions

would be erased after an tutorial unit and its associ-

ated discussions had concluded.

3.3 Question and Answer System (Q&A

System) and Discussion System

(Panel)

We assume the concepts of Q&A Systems and Panels

are well known and do not require a deﬁnition here,

so we can concentrate on the student questions.

Since 2011 we are utilising an advanced combi-

nation of Q&A System and Panel with Auditorium

(Beier et al., 2014), (Beier, 2014), which was origi-

nally developed as a student project. A simple Q&A

System was tailored to tutorials by including it into

an exercise tool kit with ARS as well as Whiteboard.

This Q&A System allowed tutorial participants to

anonymously ask questions, and up- or down-vote

questions submitted by other students. The docent

would – time permitting – answer the highest ranked

questions at the end of an tutorial unit. However,

actual deployment of the Q&A system lead to some

modiﬁcations to this idea that shall be discussed here

(and in Section 4), notably its “misuse” as a Panel.

Based in the design of readings, only a few ques-

tions can actually be addressed during a reading unit.

Tacitly agreed upon, only imperative questions of ut-

most importance are asked during the reading, as this

interrupts the docent. Students tend to note down

questions and approach the lectern after a reading unit

https://auditorium.inf.tu-dresden.de

– accessed 24 March 2015

has concluded.

Deriving from the so described situation, Q&A

Systems can only help to a certain extend. However,

having a Q&A System serve the Q as well as the A

aspect is surely infeasible for readings as the A as-

pect still contributes to interruptions of the reading.

However, the Q aspect can serve well as it allows stu-

dents to immediately note down questions they might

have. These questions can then either be answered

by the docent later (qualiﬁed answer), or they can be

answered during the reading by other students who

might have already understood the topic (or think they

have) of the question or aspects thereof (solicited an-

swer). Solicited answers can later still be revised or

amended by qualiﬁed answers. Hence, Q&A Systems

can augment readings, but only if the Q and A aspects

are loosely coupled in terms of qualiﬁed answers in a

timely manner. – Our Auditorium system addressed

these aspects in the classic way a forum would, by

also allowing vested discussions on topics.

Combining the aspects of system knowledge on

individualised learning, our system was able to join

assumed knowledge on individual learning progress

with student question demand. AMCS fostered stu-

dents to ask relevant questions by sending push no-

tiﬁcations to their smartphones. Based on their indi-

vidual proﬁles, AMCS sent messages, e.g. “You still

had some problems with [topic]. You should ask the

docent about [identiﬁed deﬁcit].”

On the side of tutorials similar considerations as

for readings can apply. Tutorials are designed for stu-

dents to actively engage in the topic materials. As

course contents are mandated by the predeﬁned cur-

riculum, time constraints mostly affect tutorials and

limit the presentation/discussion ratio; some coverage

of subject matter is mandatory, as all units are limited

to the time frame of 90 minutes. So the basic prob-

lem is ﬁnding a solution to how many questions can

be answered within 90 minutes without endangering

the goal of covering all required topics. In classic tu-

torials students would raise their hands and the do-

cent would either fairly apply FIFO

processing, or

unfairly by arbitrarily (i.e. at their discretion) picking

students. This can lead to stress and disappointment

for the students as questions perceived as important

might not be addressed or sufﬁciently answered.

Having introduced Q&A Systems into the de-

scribed situations allowed maintaining a comprehen-

sive list of submitted questions students either don’t

want to discuss openly because they are ashamed of

exposing themselves, or deem important enough to

ask, but not important enough to be addressed imme-

First In First Out — Students are processed in the order

of them raising their hands

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

250

diately. Sometimes time constraints can force the do-

cent to only allow a few questions at the end of the

tutorial. Whether all questions can be answered is a

secondary concern.

Introducing a fair rule for immediate and delayed

answering of question might just do the magic. By

allowing all questions – once again anonymously – to

be seen and voted on by all students allows swift ag-

gregation of issues important to the majority of stu-

dents. In means of self-regulating communities as

e.g. in stackoverﬂow

students are allowed to up-

or down-vote questions, and therefore deciding them-

selves, which questions are “worthy” (important) and

“non-sensical” (unimportant). Permitting time at the

end of the tutorial unit, the docent can then immedi-

ately answer the top-X (e.g. 5) questions, while post-

poning answers to the other questions to an off-unit

discussion. – Refer back to Figure 3 for an exemplary

voting.

However, during our tests we observed that stu-

dents would tend to not actually vote down questions,

but use a comment feature designed for an utterly

different purpose: our prototype allowed students to

amend their questions with additional clariﬁcation of

their problem. But, due to an implementation error

all students were able to amend all posted questions,

effectively transforming the feature into a comment-

ing system. Making use of this error, students tended

to negatively comment on “non-sensical” questions

rather than voting them down. This could manifest

into an extend close to mobbing the initial question

poster to revoke

their question. On a more posi-

tive side, the “commenting system” was intensively

utilised by idle students to try to explain and present

their understanding of solutions and providing an-

swers. This in turn lead to even higher grade up-vote

results, as well discussed but still unresolved ques-

tions would tend to lead the ranks of “worthy” ques-

tions imperatively mandating answers by the docent.

– For the idle students, who in general are the better

among the group, this provided a stage to test them-

selves by attempting to help others without exposing

themselves as strivers or nerds. Once again, the aspect

of self-regulating communities supported the system

as disturbers were swiftly engaged by the other stu-

dents.

As seen, our investigations show that it is not ad-

visable to strictly separate Q&A System aspects from

Panel aspects.

http://stackoverﬂow.com/

– accessed 25 March 2015

Students were able to revoke their question at any time.

Revoked questions were deleted from the system, making

them also inaccessible to the docent.

4 RESULTS AND FUTURE WORK

Our comparison for the investigated tools show only

few new noteworthy aspects ﬁndings when applied to

a course curriculum consisting of readings and tuto-

rials. However, when considering both settings sepa-

rately with respect to the investigated tools and their

combination, several remarkable aspects could be ob-

served. – We wish to focus on two results here,

namely “Panelisation” of Q&A Systems in tutorials,

and readings and tutorials complementing eachother

in their utilisation of tools.

The attendants of tutorials acting as a self-

regulating (online) community within the tool kit pro-

totypes was unexpected and needs to be investigated

further. This implies that less “community manage-

ment” effort is required from the docent, due to the

students’ situation awareness. Nevertheless, the ex-

tent of attentiveness for such “community tasks” in

parallel to the actual tutorial activities needs to be

fathomed.

Our design decision to utilise separate tools for

readings and tutorials was founded in the well estab-

lished Auditorium/AMCS for readings on one hand,

and the desire for fast prototyping for the tutorials on

the other hand, allowing week-to-week incorporation

of subject (student) feedback. This decision proved to

be poor, as this approach not only confused students

and docents, but also discouraged both from using the

tool kits. In future, we will research the effect of pro-

viding readings and tutorials using a single tool kit for

both, readings and tutorials, by assimilating the best

aspects of our ETTK prototype into AMCS. However,

at the same time both application settings must be fur-

ther investigated since their different contexts require

different tool and/or system aspects. The usefulness

of certain features remains dependant on the context

of the application setting, so our system will need

to adapt adequately. As our current systems can be

utilised together with other e-learning tools or in com-

bination with MOOCs, we wish to investigate the im-

pact of our combined single system on those, as well.

Especially as those e-learning tools and MOOCs often

incorporate isolated applications speciﬁc to readings

or other formats.

ACKNOWLEDGEMENTS

The authors wish to thank Hermann K¨orndle (owner

of the Chair of Learning and Instruction, TUD) for his

valued contributions that made our research possible,

Eric Schoop (owner of the Chair of Wirtschaftsinfor-

matik Information Management, TUD), as well as

ComparingTool-supportedLectureReadingsandExerciseTutorialsinClassicUniversitySettings

251

Lars Beier, Sebastian Herrlich, Mathias Kaufmann,

Tommy Kubica, Martin Weißbach, and Huangzhou

Wu (graduatestudents at TUD) for their programming

efforts.

REFERENCES

Beatty, I. D., Gerace, W. J., Leonard, W. J., and Dufresne,

R. J. (2006). Designing effective questions for class-

room response system teaching. American Journal of

Physics, 74(1):31–39.

Beier, L. (2014). Evaluating the Use of Gamiﬁcation in

Higher Education to Improve Students Engagement.

Diploma thesis, Technische Universit¨at Dresden.

Beier, L., Braun, I., and Hara, T. (2014). auditorium - Frage,

Diskutiere und Teile Dein Wissen! In GeNeMe 2014

- Gemeinschaften in Neuen Medien. GeNeMe.

Brady, M., Seli, H., and Rosenthal, J. (2013). “clickers”

and metacognition: A quasi-experimental compara-

tive study about metacognitive self-regulation and use

of electronic feedback devices. Computers & Educa-

tion, 65:56–63.

Caldwell, J. E. (2007). Clickers in the large classroom:

Current research and best-practice tips. CBE-Life Sci-

ences Education, 6(1):9–20.

Duncan, D. (2006). Clickers: A New Teaching Aid with Ex-

ceptional Promise. The Astronomy Education Review,

5(I):70–88.

Feiten, L., Weber, K., and Becker, B. (2013). Smile: Smart-

phones in der lehre – ein r¨uck- und

Uberblick. IN-

FORMATIK, P(220):255–269.

Kapp, F., , Braun, I., and K¨orndle, H. (2014a). Aktive

Beteiligung Studierender in der Vorlesung durch

den Einsatz mobiler Endger¨ate mit Hilfe des Au-

ditorium Mobile Classroom Services (AMCS). In

Symposium auf dem 49. Kongress der Deutschen

Gesellschaft f¨ur Psychologie; Verbesserung

von Hochschullehre: Beitr¨age der p¨adagogisch-

psychologischen Forschung. E. Seifried, C. Eckert, B.

Spinath & K.-P. Wild (Chairs).

Kapp, F., Braun, I., K¨orndle, H., and Schill, A. (2014b).

Metacognitive Support in University Lectures Pro-

vided via Mobile Devices. In INSTICC; Proceedings

of CSEDU 2014.

Kapp, F., Damnik, G., Braun, I., and K¨orndle, H. (2014c).

AMCS: a tool to support SRL in university lectures

based on information from learning tasks. In Sum-

merschool Dresden 2014.

Lantz, M. E. (2010). The use of clickers in the classroom:

Teaching innovation or merely an amusing novelty?

Computers in Human Behavior, 26(4):556–561.

Mayer, R. E., Stull, A., DeLeeuw, K., Almeroth, K., Bim-

ber, B., Chun, D., Bulger, M., Campbell, J., Knight,

A., and Zhang, H. (2009). Clickers in college class-

rooms: Fostering learning with questioning methods

in large lecture classes. Contemporary Educational

Psychology, 34(1):51–57.

Mazur, E. (1997). Peer Instruction: A User’s Manual. Pren-

tice Hall, Upper Saddle River, NJ, series in educa-

tional innovation edition.

Moss, K. and Crowley, M. (2011). Effective learning in

science: The use of personal response systems with

a wide range of audiences. Computers & Education,

56(1):36–43.

Prather, E. E. and Brissenden, G. (2009). Clickers as data

gathering tools and students attitudes, motivations,

and beliefs on their use in this application. Astronomy

Education Review, 8(1).

Seel, N. M. (2003). Psychologie des Lernens: Lehrbuch

f¨ur P¨adagogen und Psychologen, volume 8198. UTB,

M¨unchen, 2 edition.

Weber, K. and Becker, B. (2013). Formative Evaluation

des mobilen Classroom-Response-Systems SMILE.

E-Learning zwischen Vision und Alltag (GMW2013

eLearning).

APPENDIX

All tools and tool kits we utilised were web-based and

operated from standard web servers at our alma mater

in Dresden, SN, Germany and in Saint Louis, MO,

USA. Access was made possible for web browsers

as well as dedicated iPhone and Android apps for

AMCS, and took advantage of socket-based bidirec-

tional real time communication.

CSEDU2015-7thInternationalConferenceonComputerSupportedEducation

252
