Using Cloud-Aware Provenance to Reproduce Scientific Workflow

Execution on Cloud

Khawar Hasham, Kamran Munir and Richard McClatchey

Centre for Complex Computing Systems (CCCS), Faculty of Environment and Technology (FET),

University of the West of England (UWE), Bristol, U.K.

Keywords: Cloud Computing, Scientific Workflows, Provenance, Reproducibility, Repeatability.

Abstract: Provenance has been thought of a mechanism to verify a workflow and to provide workflow reproducibility.

This provenance of scientific workflows has been effectively carried out in Grid based scientific workflow

systems. However, recent adoption of Cloud-based scientific workflows present an opportunity to

investigate the suitability of existing approaches or propose new approaches to collect provenance

information from the Cloud and to utilize it for workflow reproducibility on the Cloud infrastructure. This

paper presents a novel approach that can assist in mitigating this challenge. This approach can collect Cloud

infrastructure information along with workflow provenance and can establish a mapping between them to

provide a Cloud-aware provenance. The reproducibility of the workflow execution is performed by: (a)

capturing the Cloud infrastructure information (virtual machine configuration) along with the workflow

provenance, (b) re-provisioning the similar resources on the Cloud and re-executing the workflow on them

and (c) by comparing the outputs of workflows. The evaluation of the prototype suggests that the proposed

approach is feasible and can be investigated further. Since there is no reference model for workflow

reproducibility on Cloud exists in the literature, this paper also attempts to present a model that is used in

the proposed design to achieve workflow reproducibility in the Cloud environment.

1 INTRODUCTION

The scientific community is processing and

analysing huge amounts of data being generated in

modern scientific experiments that include projects

such as DNA analysis (Foster et al., 2008), the Large

Hadron Collider (LHC) (http://lhc.cern.ch), and

projects such as neuGRID (Mehmood et al., 2009)

and its follow-on neuGRIDforUsers (Munir et al.,

2013, 2014). In particular the neuGRID community

is utilising scientific workflows to orchestrate the

complex analysis of neuro-images to diagnose

Alzheimer disease. A large pool of compute and data

resources are required to process this data, which has

been available through the Grid (Foster et al., 1999)

and is now also being offered by the Cloud-based

infrastructures.

Cloud computing (Mell and Grance, 2011) has

emerged as a new computing and storage paradigm,

which is dynamically scalable and usually works on a

pay-as-you-go cost model. It aims to share resources

to store data and to host services transparently among

users at a massive scale (Mei et al., 2008). Its ability

to provide an on-demand computing infrastructure

enables distributed processing of scientific

workflows (Deelman et al., 2008) with increased

complexity and data requirements. Recent work

(Juve and Deelman 2010) is now experimenting with

Cloud infrastructures to assess the feasibility of

executing workflows on the Cloud.

An important consideration during this data

processing is to gather provenance (Simmhan et al.,

2005) information that can provide detailed

information about both the input and the processed

output data, and the processes involved in a

workflow execution. This information can be used to

debug the execution of a workflow, to aid in error

tracking and reproducibility. This vital information

can enable scientists to verify the outputs and iterate

on the scientific method, to evaluate the process and

results of other experiments and to share their own

experiments with other scientists (Azarnoosh et al.,

2013). The execution of scientific workflows in the

Cloud brings to the fore the need to collect

provenance information that is necessary to ensure

the reproducibility of these experiments on the Cloud

infrastructure

A research study (Belhajjame et al., 2012)

Hasham K., Munir K. and McClatchey R..

Using Cloud-Aware Provenance to Reproduce Scientiﬁc Workﬂow Execution on Cloud.

DOI: 10.5220/0005452800490059

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 49-59

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

conducted to evaluate the reproducibility of

scientific workflows has shown that around 80% of

the workflows cannot be reproduced, and 12% of

them are due to the lack of information about the

execution environment. This information affects a

workflow on two levels. It can affect a workflow’s

overall execution performance and also job failure

rate. For instance, a data-intensive job can perform

better with 2GB of RAM because it can

accommodate more data in RAM, which is a faster

medium than hard disk. However, the job’s

performance will degrade if a resource of 1GB RAM

is allocated to this job as less data can be placed in

RAM. Moreover, it is also possible that jobs will

remain in waiting queues or fail during execution if

their required hardware dependencies are not met.

This becomes a more challenging issue in the

context of Cloud in which resources can be created

or destroyed at runtime.

The dynamic and geographically distributed

nature of Cloud computing makes the capturing and

processing of provenance information a major

research challenge (Vouk 2008, Zhao et al., 2011

Since the Cloud presents a transparent access to

dynamic execution resources, the workflow

parameters including execution resource

configuration should also be known to a scientist

(Shamdasani et al., 2012) i.e. what execution

environment was used for a job in order to reproduce

a workflow execution on the Cloud. Due to these

reasons, there is a need to capture information about

the Cloud infrastructure along with workflow

provenance, to aid in the reproducibility of workflow

experiments. There has been a lot of research related

to provenance in the Grid (Foster et al., 2002,

Stevens et al., 2003) and a few initiatives (Oliveira et

al., 2010, Ko et al., 2011) for the Cloud. However,

they lack the information that can be utilised for re-

provisioning of resources on the Cloud, thus they

cannot create the similar execution environment(s)

for workflow reproducibility. In this paper, the terms

“Cloud infrastructure” and “virtualization layer” are

used interchangeably.

This paper presents a theoretical description of an

approach that can augment workflow provenance

with infrastructure level information of the Cloud and

use it to provision similar execution environment(s)

and repeat a given workflow. Important points

discussed in this paper are as follows: section 2

presents some related work in provenance related

systems. Section 3 presents a reproducibility model

designed after collecting guidelines used and

discussed in literature. Section 4 presents an

overview of the proposed approach. Section 5

presents an evaluation of the developed prototype.

And finally section 6 presents some conclusions and

directions for future work.

2 RELATED WORK

Significant research (Foster et al., 2002, Scheidegger

et al., 2008) has been carried out in workflow

provenance for Grid-based workflow management

systems. Chimera (Foster et al., 2002) is designed to

manage the data-intensive analysis for high-energy

physics (GriPhyN) (GriPhyN 2014) and astronomy

(SDSS) (SDSS 2014) communities. It captures

process information, which includes the runtime

parameters, input data and the produced data. It

stores this provenance information in its schema,

which is based on a relational database. Although

the schema allows storing the physical location of a

machine, it does not support the hardware

configuration and software environment in which a

job was executed. Vistrails (Scheidegger et al.,

2008) provides support for scientiﬁc data exploration

and visualization. It not only captures the execution

log of a workflow but also the changes a user makes

to refine his workflow. However, it does not support

the Cloud virtualization layer information. Similar is

the case with Pegasus/Wings (Kim et al. 2008) that

supports evolution of a workflow. However, this

paper is focusing on the workflow execution

provenance on the Cloud, rather than the provenance

of a workflow itself (e.g. design changes).

There have been a few research studies (Oliveira

et al., 2010, Ko et al., 2011) performed to capture

provenance in the Cloud. However, they lack the

support for workflow reproducibility. Some of the

work in Cloud towards provenance is directed to the

file system (Zhang et al., 2011, Shyang et al 2012)

or hypervisor level (Macko et al., 2011). However

such work is not relatable to our approach because

this paper focuses on virtualized layer information of

the Cloud for workflow execution. Moreover, the

collected provenance data provides information

about the file access but it does not provide

information about the resource configuration. The

PRECIP (Azarnoosh et al., 2013) project provides an

API to provision and execute workflows. However,

it does not provide provenance information of a

workflow.

There have been a few recent projects (Chirigati

et al., 2013, Janin et al., 2014) and research studies

(Perez et al., 2014a) on collecting provenance and

using it to reproduce an experiment. A semantic-

based approach (Perez et al., 2014b) has been

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

proposed to improve reproducibility of workflows in

the Cloud. This approach uses ontologies to extract

information about the computational environment

from the annotations provided by a user. This

information is then used to recreate (install or

configure) that environment to reproduce a

workflow execution. On the contrary, our approach

is not relying on annotations rather it directly

interacts with the Cloud middleware at runtime to

acquire resource configuration information and then

establishes mapping between workflow jobs and

Cloud resources. The ReproZip software (Chirigati

et al., 2013) uses system call traces to provide

provenance information for job reproducibility and

portability. It can capture and organize files/libraries

used by a job. The collected information along with

all the used system files are zipped together for

portability and reproducibility purposes. Since this

approach is useful at individual job level, this does

not work for an entire workflow, which is the focus

of this paper. Moreover, this approach does not

consider the hardware configuration of the

underlined execution machine. Similarly, a Linux-

based tool, CARE (Janin et al., 2014), is designed to

reproduce a job execution. It builds an archive that

contains selected executable/binaries and files

accessed by a given job during an observation run.

3 WORKFLOW

REPRODUCIBILITY

MODEL ON CLOUD

As per our understanding of the literature, there is

not a standard reproducibility model proposed so far

for scientific workflows, especially in Cloud

environment. However, there are some guidelines or

policies, which have been highlighted in literature to

reproduce experiments. There is one good effort

(Sandve et al., 2013) in this regard, but it mainly

talks about reproducible papers and it does not

consider execution environment of workflows. In

this section, we have gathered basic points to present

an initial workflow reproducibility model in Cloud

that can provide guidelines for future work in this

regard. These points are discussed as follows.

• Share Code and Data

The need for data and code sharing in computational

science has been widely discussed (Stodden 2010).

In computational science conservation, in particular

for scientific workflow executions, it is emphasized

that the data, code, and the workflow description

should be available in order to reproduce an

experiment.

• Execution Infrastructure details

The execution infrastructure provided by the Grid or

Cloud to execute a workflow is composed of a set of

computational and storage resources (e.g. execution

nodes, storage devices, networking). The physical

approach, where actual computational hardware are

made available for long time period to scientists,

often conserves the computational environment

including supercomputers, clusters, or Grids (Perez

et al., 2014b). As a result, scientists are able to

reproduce their experiments on the same hardware

environment. However, this luxury is not available

in the Cloud environment in which resources are

virtualized and provisioned dynamically on-demand.

A little focus is given to the underlying

infrastructure, especially Cloud, in computational

conservation in literature. This challenge has been

tackled in this paper by collecting this information at

runtime from the Cloud infrastructure. From

resource provisioning point of view, parameters such

as RAM, vCPU and Hard Disk are important in

selecting appropriate resource especially on the

Cloud and should be made part of the collected

provenance. All these factors contribute to the job's

execution performance as well as to its failure rate.

For instance, a job will fail if it is scheduled to a

resource with insufficient available RAM.

• Software Environment

Apart from knowing the hardware infrastructure, it

is also essential to provide information about the

software environment. A software environment

determines the operating system and the libraries

used to execute a job. Without the access to required

libraries information, a job execution will fail. For

example, a job, relying on MATLAB library, will

fail in case the required library is missing. One

possible approach (Howe et al., 2012) to conserve

software environment is thought to conserve VM

that is used to execute a job and then reuse the same

VM while re-executing the same job. One may argue

that it would be easier to keep and share VM images

with the research community through a common

repository, however the high storage demand of VM

images remains a challenging problem (Zhao et al.,

2014). In the prototype presented in this paper, the

OS image used to provision a VM is conserved and

thought to present all the software dependencies

required for a job execution in a workflow.

Therefore, the proposed solution should also retrieve

the image information to build a virtual machine on

which the workflow job was executed.

UsingCloud-AwareProvenancetoReproduceScientificWorkflowExecutiononCloud

• Workflow Versioning

Capturing only a provenance trace is not sufficient

to allow a computation to be repeated – a situation

known as workflow decay (Roure et al., 2011). The

reason is that the provenance systems can store

information on how the data was generated, however

they do not store copies of the key actors in the

computation i.e. workflow, services, data. This paper

(Sandve et al. 2013) suggests to archive the exact

versions of all programs and enable version control

on all scripts used in an experiment. This is not

supported in the presented prototype, but it will be

incorporated in next iterations.

• Provenance Comparison

The provenance traces of two executed workflows

should be compared to determine workflow

reproducibility. The main idea is to evaluate the

reproducibility of an entire execution of a given

workflow, including the logical chaining of activities

and the data. To provide the strict reproducibility

functionality, a system must guarantee that the data

are still accessible and that the corresponding

activities are accessible (Lifschitz et al. 2011). Since

the focus of this paper is on workflow

reproducibility on the Cloud infrastructure, the

execution infrastructure should also be part of the

comparison. Therefore the provenance comparison

should be made at different levels; workflow

structure, execution infrastructure, and workflow

input and output. A brief description of this

comparison is given below.

a) Workflow structure should be compared to

determine that both workflows are similar.

Because it is possible that two workflows are

having similar number of jobs but with

different job execution order.

b) Execution infrastructure (software

environment, resource configuration) used on

the Cloud for a workflow execution should also

be compared.

c) Comparison of input and output should be

made to evaluate workflow reproducibility.

There could be a scenario that a user repeated a

workflow but with different inputs, thus

producing different outputs. It is also possible

that changes in job or software library result

into different workflow output. There are a few

approaches (Missier et al. 2013), which

perform workflow provenance comparison to

determine differences in reproduced

workflows. The proposed approach in this

paper incorporates the workflow output

comparison to determine the reproducibility of

a workflow.

• Pricing Model

This point can be important for experiments in

which cost is also a main factor. The resource

provisioned on the Cloud has associated cost, which

is based on the resource type and the amount of time

it has been used for. This information can assist in

reproducing an experiment with the same cost as

was incurred in earlier execution. This point is not

incorporated in the proposed design at the moment.

4 CLOUD-AWARE

PROVENANCE APPROACH

An abstract view of the proposed architecture is

presented in this section. This architecture is

designed after evaluating the existing literature and

keeping in mind the objectives of this research

study. The proposed architecture is inspired by the

mechanism used in a paper (Groth et al., 2009) for

executing workflows on the Cloud. Figure 1

illustrates the proposed architecture that is used to

capture the Cloud infrastructure information and to

interlink it with the workflow provenance collected

from a workflow management system such as

Pegasus. This augmented or extended provenance

information compromising of workflow provenance

and the Cloud infrastructure information is named as

Cloud-aware provenance. The components of this

architecture are briefly explained below.

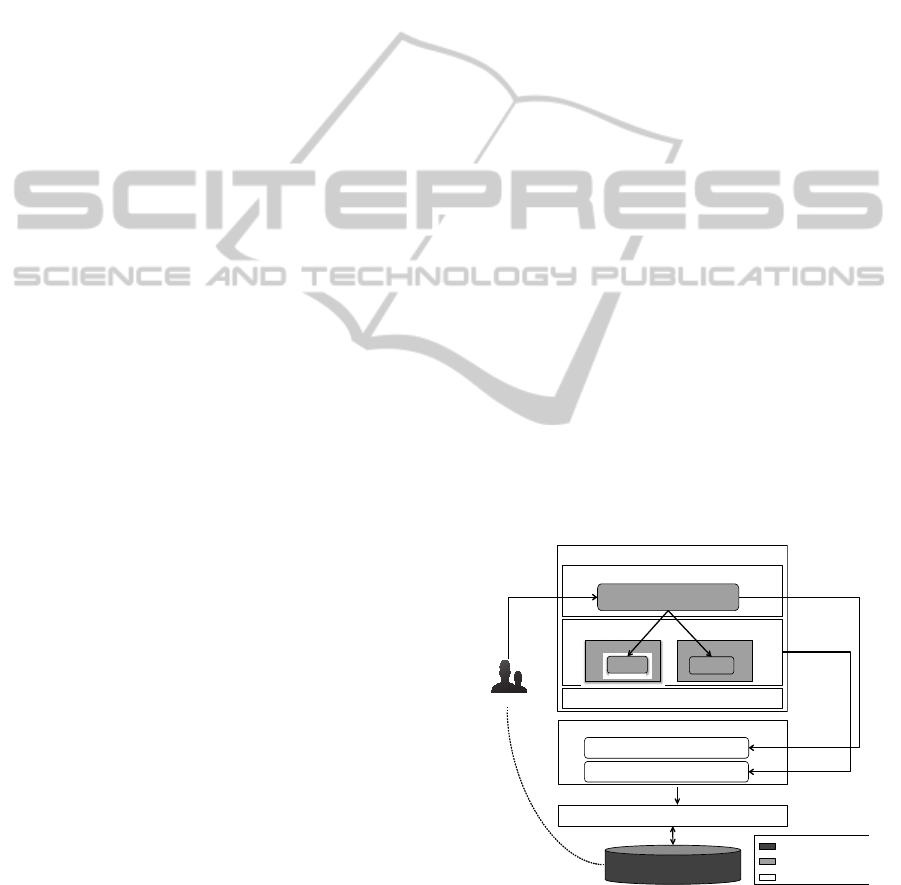

Figure 1: An abstract architecture of the proposed

approach.

• Workflow Provenance: This component is

responsible for receiving provenance captured at

Workflow

Management

System

Condor

Physical

Layer

Virtualized Layer

Application Layer

Submits

workflow

Provenance Aggregator

Cloud

Layer

Provenance

Workflow

Provenance

Workflow

provenance

Provenance

API

Workflow

Provenance

Store

Cloud-aware

provenance

VM1

VM2

Scientist

Existing tools

Prototype components

Prototype Storage

Infrastructure

information

Cloud environment

Stores/

selects

existing

workflow

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

the application level by the workflow management

system (Pegasus). Since workflow management

systems may vary, a plugin-based approach is

used for this component. Common interfaces are

designed to develop plugins for different

workflow management systems. The plugin also

translates the workflow provenance according to

the representation that is used to interlink the

workflow provenance along with the information

coming from the Cloud infrastructure.

• Cloud Layer Provenance: This component is

responsible for capturing information collected

from different layers of the Cloud. To achieve re-

provisioning of resources on Cloud, this

component focuses on the virtualization layer and

retrieves information related to the Cloud

infrastructure i.e. virtual machine configuration.

This component is discussed in detail in section

4.1.

• Provenance Aggregator: This is the main

component tasked to collect and interlink the

provenance coming from different layers as shown

in Figure 1. It establishes interlinking connections

between the workflow provenance and the Cloud

infrastructure information. The provenance

information is then represented in a single format

that could be stored in the provenance store

through the interfaces exposed by the Provenance

API.

• Provenance API: This acts as a thin layer to

expose the provenance storage capabilities to other

components. Through its exposed interfaces,

outside entities such as the Provenance Aggregator

would interact with it to store the workflow

provenance information. This approach gives

flexibility to implement authentication or

authorization in accessing the provenance store.

• Workflow Provenance Store: This data store is

designed to store workflows and their associated

provenance. This also keeps mapping between

workflow jobs and the virtual compute resources

in the Cloud infrastructure. This also keeps record

of the workflow and its related configuration files

being used to submit a user analysis on the Cloud.

This information is later retrieved to reproduce the

execution. However, it does not support workflow

evolution in its current design.

4.1 Job to Cloud Resource Mapping

The CloudLayerProvenance component is designed

in a way that interacts with the Cloud infrastructure

as an outside client to obtain the resource

configuration information. As mentioned earlier, this

information is later used for reprovisioning the

resources to provide a similar execution

infrastructure to repeat a workflow execution. Once

a workflow is executed, Pegasus collects the

provenance and stores it in its own internal database.

Pegasus also stores the IP address of the virtual

machine (VM) where the job is executed. However,

it lacks other VM specifications such as RAM,

CPUs, hard disk etc. The CloudLayerProvenance

component retrieves all the jobs of a workflow and

their associated VM IP addresses from the Pegasus

database. It then collects a list of virtual machines

owned by a respective user from the Cloud

middleware. Using the IP address, it establishes a

mapping between the job and the resource

configuration of the virtual machine used to execute

the job. This information i.e. Cloud-aware

provenance is then stored in the Provenance Store.

The flowchart of this mechanism is presented in

Figure 2.

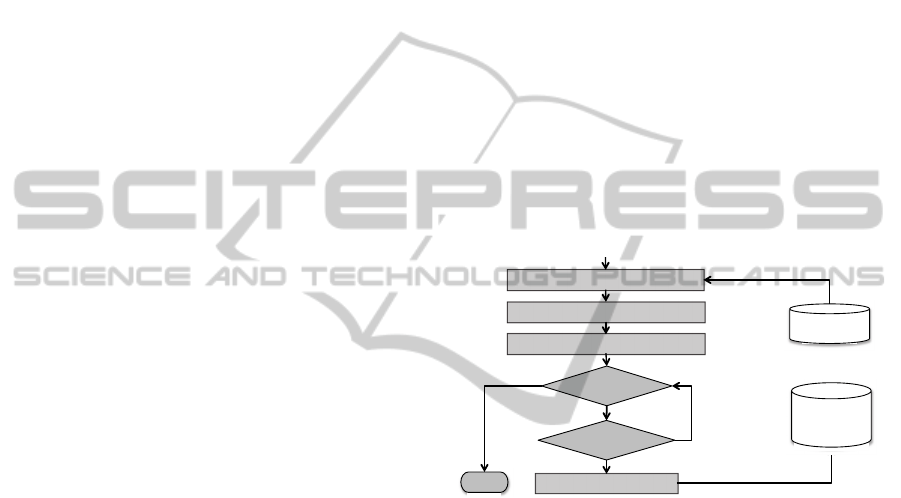

Figure 2: flowchart of job to Cloud resource mapping

performed by ProvenanceAggregator component.

In this flowchart, the variable wfJobs –

representing a list of jobs of a given workflow – is

retrieved from the Pegasus database. The variable

vmList – represents a list of virtual machines in the

Cloud infrastructure – is collected from the Cloud. A

mapping between jobs and VMs is established by

matching the IP addresses (see in Figure 2).

Resource configuration parameters such as flavour

and image are obtained once the mapping is

established. flavour defines resource configuration

such as RAM, Hard disk and CPUs, and image

defines the operating system image used in that

particular resource. By combining these two

parameters together, one can provision a resource on

the Cloud infrastructure. After retrieving these

parameters and jobs, the mapping information is

then stored in the Provenance Store (see in Figure.

2). This mapping information provides two

important data (a) hardware configuration (b)

Get

Workflow

Jobs

(wfJobs)

Start (wfid)

Get

list

from

Cloud

(vmList)

Pegasus

Establish

mapping

(wfJobs,

vmList)

VM.ip

job.ip

Insert

Mapping

Yes

Next record

Insert mapping (job, flavour, image)

Has

jobs?

Yes

End

Workflow jobs

Workflow

Provenance

Store

UsingCloud-AwareProvenancetoReproduceScientificWorkflowExecutiononCloud

software configuration using VM name. As

discussed in section 3, these two parameters are

important in recreating a similar execution

environment.

4.2 Workflow Reproducibility using

Cloud-Aware Provenance

In section 4.1, the job to Cloud resource mapping

using provenance information has been discussed.

This mapping is stored in the database for workflow

reproducibility purposes. In order to reproduce a

workflow execution, researcher first needs to

provide the wfID (workflow ID), which is assigned

to every workflow in Pegasus, to the proposed

framework to re-execute the workflow using the

Cloud-aware provenance. It retrieves the given

workflow from the Provenance Store database (step

2(a) in Figure 3) along with the Cloud resource

mapping stored against this workflow (step 2(b) in

Figure 3). Using this mapping information, it

retrieves the resource flavour and image

configurations, and provisions the resources (step 3

in Figure 3) on Cloud. Once resources are

provisioned, it submits the workflow (step 4).

At this stage, a new workflow ID is assigned to

this newly submitted workflow. This new wfID is

passed over to the ProvenanceAggregator

component to monitor (step 5) the execution of the

workflow and start collecting its Cloud-aware

provenance information (see step 6 in Figure 3) This

is important to recollect the provenance of the

repeated workflow, as this will enable us to verify

the provisioned resources by comparing their

resource configurations with the old resource

configuration.

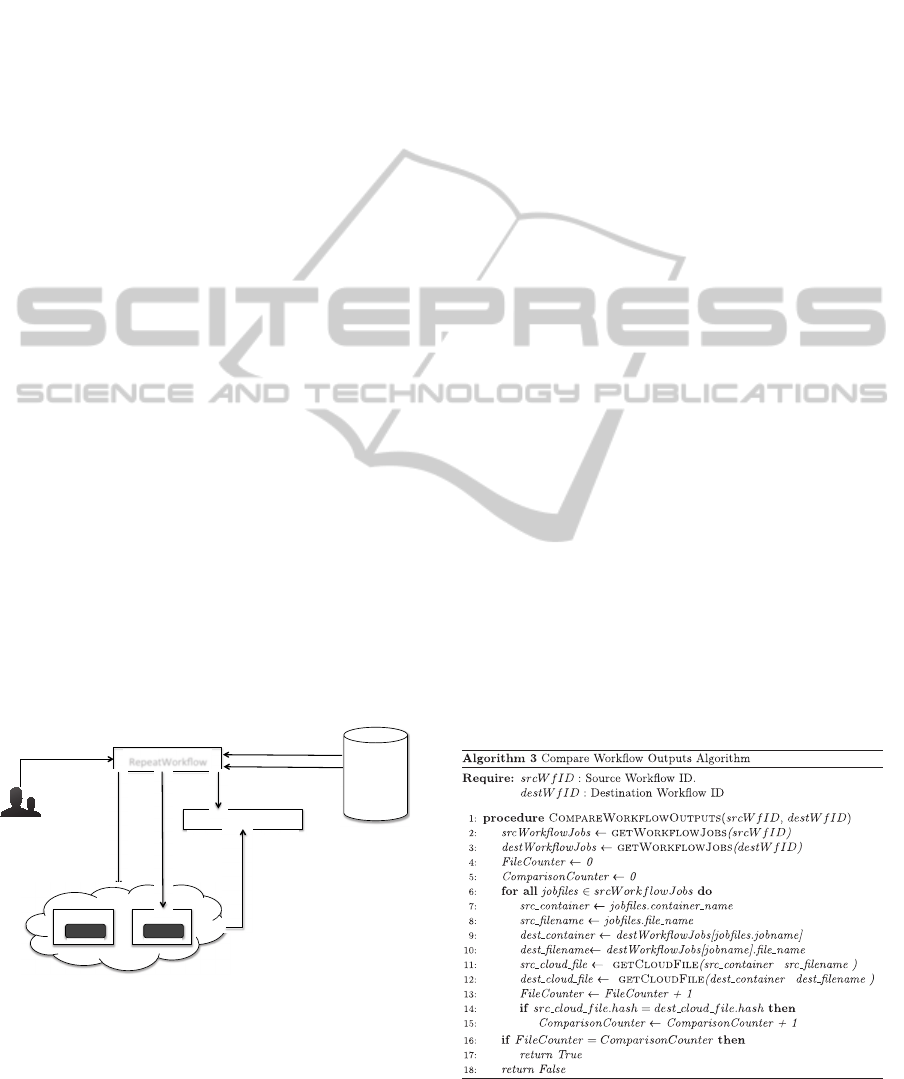

Figure 3: The sequence of activities to illustrate workflow

repeatability in the proposed system.

4.3 Workflow Output Comparison

Another aspect of workflow repeatability is to verify

that it has produced the same output that was

produced in its earlier execution (as discussed in

section 3). In order to evaluate workflow

repeatability, an algorithm has been proposed that

compares the outputs produced by two given

workflows. It uses the MD5 hashing algorithm

(Stalling 2010) on the outputs and compares the

hash value to verify the produced outputs. The two

main reasons of using a hash function to verify the

produced outputs are; a) simple to implement and b)

the hash value changes with a single bit change in

the file. If the hash values of two given files are

same, this means that the given files contain same

content.

The proposed algorithm (as shown in Figure 4)

operates over the two given workflows identified by

srcWfID and destWfID, and compares their outputs.

It first retrieves the list of jobs and their produced

output files from the Provenance Store for each

given workflow. It then iterates over the files and

compares the source file, belonging to srcWfID, with

the destination file, belonging to destWfID. Since the

files are stored on the Cloud, the algorithm retrieves

the files from the Cloud (see lines 11 and 12). Cloud

storage services such as OpenStack Swift, Amazon

Object Store use the concept of a bucket or a

container to store a file. This is why src_container

and dest_container along with src_filename and

dest_filename are given in the GetCloudFile

function to identify a specific file in the Cloud. The

algorithm then compares the hash value of both files

and increments ComparisonCounter. If all the files

in both workflows are the same,

ComparisonCounter should be equal to FileCounter,

which counts the number of files produced by a

workflow. Thus, it confirms that the workflows are

repeated successfully. Otherwise, the algorithms

returns false if both these counters are not equal.

Figure 4: Pseudocode to compare outputs produced by two

given workflows.

RepeatWorkflow

1) Repeat

Workflow (wfid)

Scientist

Workflow

Provenance

Store

2(a) get Workflow (wfid)

2(b) get Cloud

Resource (wfid)

Cloud

3) Provision resource

(flavour, image,

name)

Condor

ProvenanceAggregator

4) Submit

workflow

5) monitor

6) Collect

provenance

information

. . .

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

5 RESULTS AND DISCUSSION

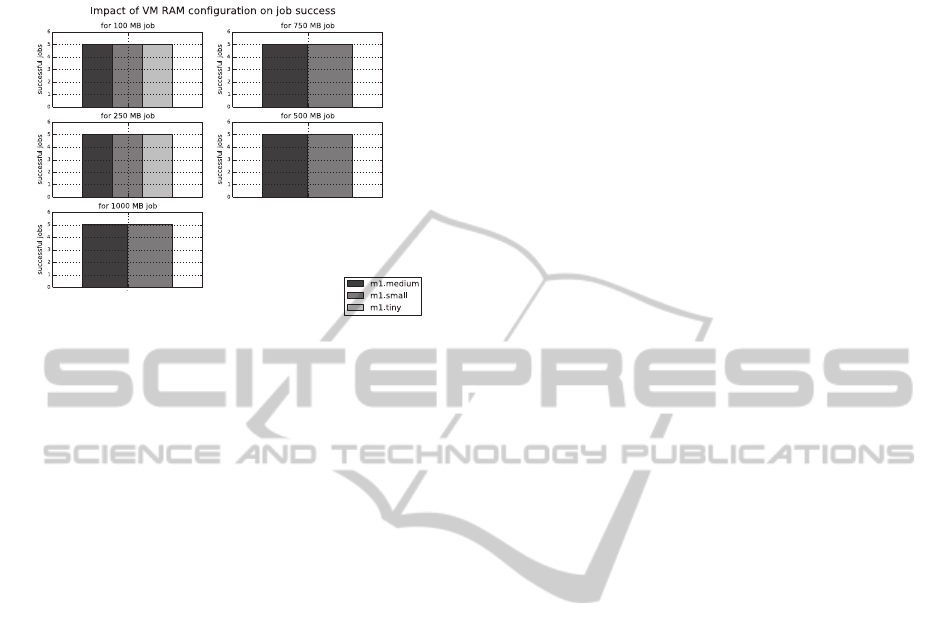

Figure 5: Cloud resource's RAM configuration impact on

job success.

To demonstrate the effect of Cloud resource

configuration such as RAM on job failure rate, a

basic memory-consuming job is written in Java

language. The job attempts to construct an alphabet

string of given size (in MB), which is provided at

runtime. To execute this experiment, three resource

configurations, (a) m1.tiny, (b) m1.small and (c)

m1.medium, each with 512 MB, 2048 MB and 4096

MB RAM respectively were used. Each job is

executed at least 5 times with a given memory

requirement on each resource configuration. The

result in Figure 5 shows that jobs fail if required

RAM (hardware) requirement is not fulfilled. All

jobs with RAM requirement less than 500 MB

executed successfully on all resource configurations.

However, the jobs start to fail on Cloud resources

with m1.tiny configuration as soon as the job’s

memory requirement approaches 500 MB because

the jobs could not find enough available memory on

the given resource. This result confirms the

presented argument (discussed in section 1 and also

in section 3) regarding the need for collecting Cloud

resource configuration and its impact on job failure.

Since a workflow is composed of many jobs, which

are executed in a given order, a single job failure can

result in a workflow execution failure. Therefore,

collecting Cloud-aware provenance is essential for

reproducing a scientific workflow execution on the

Cloud.

To evaluate the presented mapping algorithm,

which collects the Cloud infrastructure information

and interlinks it with the workflow provenance, a

Python based prototype has been developed using

Apache Libcloud (Apache Libcloud –

http://libcloud.apache.org), a library to interact with

the Cloud middleware. The presented evaluation of

the prototype is very basic currently. However, as

this work progresses further a full evaluation will be

conducted. To evaluate this prototype, a 20 core

Cloud infrastructure is acquired from the Open

Science Data Cloud (OSDC)

(https://www.opensciencedatacloud.org/). This

Cloud infrastructure uses the OpenStack middleware

(openstack.org)

to provide infrastructure-as-a-

Service capability. A small Condor cluster of three

virtual machines is also configured. In this cluster,

one machine is a master node, which is used to

submit workflows, and the remaining two are

compute nodes. These compute nodes are used to

execute workflow jobs. Using the Pegasus APIs, a

basic wordcount workflow application composed of

four jobs is written. This workflow has both control

and data dependencies (Ramakrishnan and Plale,

2010) among its jobs, which is a common

characteristic in scientific workflows. The first job

(Split job) takes a text file and splits it into two files

of almost equal length. Later, two jobs (Analysis

jobs), each take one file as input, and then calculate

the number of words in the given file. The fourth job

(merge job) takes the outputs of earlier analysis jobs

and calculates the final result i.e. total number of

words in both files.

This workflow is submitted using Pegasus. The

wfID assigned to this workflow is 114. The collected

Cloud resource information is stored in database.

Table I. shows the provenance mapping records in

the Provenance Store for this workflow. The

collected information includes the flavour and image

(image name and Image id) configuration

parameters. The Image id uniquely identifies an OS

image hosted on the Cloud and this image contains

all the software or libraries used during the job

execution. As an image contains all the required

libraries of a job, this prototype does not extract the

installed libraries information from the virtual

machine at the moment for workflow reproducibility

purpose. However, this can be done in future

iterations to enable the proposed approach to

reconfigure a resource at runtime on the Cloud.

The reproducibility of the workflow using the

proposed approach (discussed in section 4.2) has

also been tested. The prototype is requested to repeat

the workflow with wfID 114.

Upon receiving the request, it first collects the

resource configurations, captured from earlier

execution, from the database and provisions the

resources on the Cloud infrastructure. The name of

re-provisioned resource(s) for the repeated workflow

has a postfix ‘-rep.novalocal’ e.g. mynova-

UsingCloud-AwareProvenancetoReproduceScientificWorkflowExecutiononCloud

Table 1: Cloud infrastructure mapped to the jobs of workflow with ID 114.

Table 2: Cloud infrastructure information of repeated workflow (wfIDs: 117 and 122) after repeating workflow 114.

Table 3: Comparing outputs produced by workflows 114 (original workflow) and 117 (repeated workflow).

rep.novalocal as shown in Table 2. It was named

mynova.novalocal in original workflow execution as

shown in Table 1. From Table 2, one can assess that

similar resources have been re-provisioned using the

proposed approach to reproduce the workflow

execution because the RAM, Hard disk, vCPUs and

image configurations are similar to the resources

used for workflow with wfID 114 (as shown in

Table 1). This preliminary evaluation confirms that

the similar resources on the Cloud can be re-

provisioned with the Cloud-aware provenance

information collected using the proposed approach

(discussed previously in section 4). Table 2 shows

two repeated workflow instances of original

workflow 114.

The other aspect to evaluate the workflow

reproducibility (as discussed in section 3) is to

compare the outputs produced by both workflows.

This has been achieved using the algorithm

presented in Figure 4 (discussed in section 4.3). Four

jobs in both the given workflows i.e. 114 and 117

produce the same number of output files (see Table

3). The Split job produces two output files i.e.

wordlist1 and wordlist2. Two analysis jobs,

Analysis1 and Analysis2, consume the wordlist1 and

wordlist2 files, and produce the analysis1 and

analysis2 files respectively. The merge job

consumes the analysis1 and analysis2 files and

produces the merge_output file. The hash values of

these files are shown in the MD5 Hash column of

wfI D Host I P nodename

Flavour

minRAM

(M B)

minH D

(GB)

vCPU


name


114 172.16.1.49 osdc-vm3.novalocal 2 2048 20 1 wf_peg_repeat f102960c- 557c-4253-8277-2df5ffe3c169

114 172.16.1.98 mynode.novalocal 2 2048 20 1

wf_peg_repeat

102960c- 557c-4253-8277-2df5ffe3c169

wfID Host IP nodename

Flavour

minRAM

(M B)

minH D

(GB)

vCPU


name


117 172.16.1.183 osdc-vm3-rep.novalocal 2 2048 20 1 wf_peg_repeat f102960c- 557c-4253-8277-2df5ffe3c169

117 172.16.1.187 mynode-rep.novalocal 2 2048 20 1

wf_peg_repeat

f102960c- 557c-4253-8277-2df5ffe3c169

122 172.16.1.114 osdc-vm3-rep.novalocal 2 2048 20 1 wf_peg_repeat f102960c- 557c-4253-8277-2df5ffe3c169

122 172.16.1.112 mynode-rep.novalocal 2 2048 20 1 wf_peg_repeat f102960c- 557c-4253-8277-2df5ffe3c169

Job WF ID Container Name File Name MD5 Hash

Split

114

wfoutput123011 wordlist1 0d934584cbc124eed93c4464ab178a5d

117 wfoutput125819 wordlist1 0d934584cbc124eed93c4464ab178a5d

114 wfoutput123011 wordlist2 1bc6ffead85bd62b5a7a1be1dc672006

117 wfoutput125819 wordlist2 1bc6ffead85bd62b5a7a1be1dc672006

Analysis

114

wfoutput123011 analysis1 494f24e426dba5cc1ce9a132d50ccbda

117 wfoutput125819 analysis1 494f24e426dba5cc1ce9a132d50ccbda

Analysis

114

wfoutput123011 analysis2 127e8dbd6beffdd2e9dfed79d46e1ebc

117 wfoutput125819 analysis2 127e8dbd6beffdd2e9dfed79d46e1ebc

Merge

114

wfoutput123011 merge_output d0bd408843b90e36eb8126b397c6efed

117 wfoutput125819 merge_output d0bd408843b90e36eb8126b397c6efed

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

the Table 3, here both given workflows are

compared with each other. For instance, the hash

value of wordlist1 produced by the Split job of

workflow 117 is compared with the hash value of

wordlist1 produced by the Split job of workflow

114. If both the hash values are same, the algorithm

returns true. This process is repeated for all the files

produced by both workflows. The algorithm

confirms the verification of workflow outputs if the

corresponding files in both workflows have the same

hash values. Otherwise, the verification process

fails.

6 CONCLUSION AND FUTURE

DIRECTION

In this paper, the motivation and the issues related to

workflow reproducibility due to workflow execution

on the Cloud infrastructure have been identified. The

dynamic nature of the Cloud makes provenance

capturing of workflow(s) and their underlying

execution environment(s) and their reproducibility a

difficult challenge. A workflow reproducibility model

(discussed in section 3) has been presented after

analysing the literature and workflow execution

scenario on the Cloud infrastructure. A proposed

architecture has been presented that can augment the

existing workflow provenance with the information of

the Cloud infrastructure. Combining these two can

assist in re-provisioning the similar execution

environment to reproduce a workflow execution. The

Cloud infrastructure information collection

mechanism has been presented in this paper in section

4.1. This mechanism iterates over the workflow jobs

and establishes mappings with the resource

information available on the Cloud. This job to Cloud

resource mapping can then be used to reproduce a

workflow execution. The process of reproducing a

workflow execution with the proposed approach has

been discussed in section 4.2. In this paper, the

workflow reproducibility is verified by comparing the

outputs produced by the workflows. An algorithm has

been discussed in section 4.3 (see Figure 4) that

compares the outputs produced by two given

workflows. A python-based prototype was developed

for evaluating the proposed approach. The results

show that the proposed approach can capture the

Cloud-aware provenance information (as discussed in

section 4) by collecting the information related to

Cloud infrastructure (virtual machines) used during a

workflow execution. It can then provision a similar

execution infrastructure i.e. same resource configure-

tion on the Cloud using the Cloud-aware provenance

information to reproduce a workflow execution. In

future, the proposed approach will be extended and a

detailed evaluation of the proposed approach will be

conducted. Different performance matrices such as

the impact of the proposed approach on workflow

execution time, impact of different resource

configuration on workflow execution performance,

and total resource provision time will also be

measured. In this paper, only workflow outputs have

been used to compare two workflows’ provenance

traces. In future, the comparison algorithm will also

incorporate workflow structure and execution

infrastructure (as discussed in section 3) to verify

workflow reproducibility. The proposed approach has

not addressed the issue of securing the stored Cloud-

aware provenance. In future, the presented

architecture will be extended by adding a security

layer on top of the collected Cloud-aware provenance.

ACKNOWLEDGEMENTS

This research work has been funded by a European

Union FP-7 project, N4U – neuGrid4Users. This

project aims to assist the neuro-scientific community

in analysing brain scans using workflows and

distributed infrastructure (Grid and Cloud) to

identify biomarkers that can help in diagnosing the

Alzheimer disease. Besides this, the support

provided by OSDC by offering a free Cloud

infrastructure of 20 cores is highly appreciated. Such

public offerings can really benefit research and

researchers who are short of such resources.

REFERENCES

(2014). GriPhyN: http://www.phys.utb.edu/griphyn/ [Last

visited 30-12-2014].

(2014). SDSS: http://www.sdss.org [Last visited 30-12-

2014].

Azarnoosh, S., Rynge, M., Juve, G., Deelman, E., Niec,

M., Malawski, M., and da Silva, R. (2013).

Introducing precip: An api for managing repeatable

experiments in the cloud. In 5

IEEE Conference on

Cloud Computing Technology and Science

(CloudCom), volume 2, pages 19–26.

Belhajjame, K., Roos, M., Garcia-Cuesta, E., Klyne, G.,

Zhao, J., De Roure, D., Goble, C., Gomez-Perez, J.

M., Hettne, K., and Garrido, A. (2012). Why

workflows break - understanding and combating decay

in taverna workflows. In Proceedings of the 2012

IEEE 8th International Conference on E-Science (e-

UsingCloud-AwareProvenancetoReproduceScientificWorkflowExecutiononCloud

Science’12), pages 1–9, USA. IEEE Computer

Society.

Stodden, V. C. (2010). Reproducible research: Addressing

the need for data and code sharing in computational

science. Computing in Science & Engineering, 12.

Chirigati, F., Shasha, D., and Freire, J. (2013). Reprozip:

Using provenance to support computational

reproducibility. In Proceedings of the 5th USENIX

Workshop on the Theory and Practice of Provenance,

TaPP ’13, pages 1–4, Berkeley, USA. USENIX

Association.

Oliveira, D., Ogasawara, E., Bai ̃ao, F., and Mattoso, M.

(2010). Scicumulus: A lightweight cloud middleware

to explore many task computing paradigm in scientific

workflows. In Cloud Computing (CLOUD), 2010

IEEE 3rd International Conference on, pages 378–385.

Deelman, E., Blythe, J., Gil, Y., Kesselman, C., Mehta, G.,

Patil, S., Su, M.-H., Vahi, K., and Livny, M. (2004).

Pegasus: Mapping scientific workflows onto the grid.

In Dikaiakos, M., editor, Grid Computing, volume

3165 of Lecture Notes in Computer Science, pages

11–20. Springer Berlin Heidelberg.

Deelman, E., Gannon, D., Shields, M., and Taylor, I.

(2008). Workflows and e-science: An overview of

workflow system features and capabilities.

Foster, I. and Kesselman, C., editors (1999). The Grid:

Blueprint for a New Computing Infrastructure.

Morgan Kaufmann Publishers Inc., USA.

Foster, I., V ̈ockler, J., Wilde, M., and Zhao, Y. (2002).

Chimera: a virtual data system for representing,

querying, and automating data derivation. In Scientific

and Statistical Database Management, Proceedings.

14th International Conference on, pages 37–46.

Foster, I., Zhao, Y., Raicu, I., and Lu, S. (2008). Cloud

computing and grid com- puting 360-degree

compared. In Grid Computing Environments

Workshop, 2008. GCE ’08, pages 1–10.

Groth, P., Deelman, E., Juve, G., Mehta, G., and

Berriman, B. (2009). Pipeline- centric provenance

model. In Proceedings of the 4th Workshop on Work-

flows in Support of Large-Scale Science, WORKS

’09, pages 4:1–4:8, USA. ACM.

Howe, B. (2012). Virtual appliances, cloud computing,

and reproducible re- search. Computing in Science

Engineering, 14(4):36–41.

Janin, Y., Vincent, C., and Duraffort, R. (2014). Care, the

comprehensive archiver for reproducible execution. In

Proceedings of the 1st ACM SIG- PLAN Workshop

on Reproducible Research Methodologies and New

Publication Models in Computer Engineering, TRUST

’14, pages 1:1–1:7, USA. ACM.

Juve, G. and Deelman, E. (2010). Scientific workflows

and clouds. Crossroads, 16(3):14–18.

Kim, J., Deelman, E., Gil, Y., Mehta, G., and Ratnakar, V.

(2008). Provenance trails in the wings-pegasus system.

Concurr. Comput. : Pract. Exper., 20(5):587–597.

Ko, R., Lee, B., and Pearson, S. (2011). Towards

achieving accountability, auditability and trust in

cloud computing. In Advances in Computing and

Communications, volume 193 of Communications in

Computer and Information Science, pages 432–444.

Springer Berlin Heidelberg.

Lifschitz, S., Gomes, L., and Rehen, S. K. (2011). Dealing

with reusability and reproducibility for scientific

workflows. In Bioinformatics and Biomedicine

Workshops (BIBMW), 2011 IEEE International

Conference on, pages 625–632. IEEE. 38, 69.

Macko, P., Chiarini, M., and Seltzer, M. (2011).

Collecting provenance via the xen hypervisor. 3rd

USENIX Workshop on the Theory and Practice of

Provenance (TAPP).

Mehmood, Y., Habib, I., Bloodsworth, P., Anjum, A.,

Lansdale, T., and McClatchey, R. (2009). A

middleware agnostic infrastructure for neuro- imaging

analysis. In Computer-Based Medical Systems, 2009.

CBMS 2009. 22nd IEEE International Symposium on,

pages 1–4.

Mei, L., Chan, W. K., and Tse, T. H. (2008). A tale of

clouds: Paradigm comparisons and some thoughts on

research issues. In Proceedings of the 2008 IEEE

Asia-Pacific Services Computing Conference, APSCC

’08, pages 464–469, USA. IEEE Computer Society.

Mell, P. M. and Grance, T. (2011). Sp 800-145. the nist

definition of cloud computing. Technical report,

Gaithersburg, MD, United States.

Missier, P., Woodman, S., Hiden, H., and Watson, P.

(2013). Provenance and data differencing for

workflow reproducibility analysis. Concurrency and

Computation: Practice and Experience.

Munir, K., Kiani, S. L., Hasham, K., McClatchey, R.,

Branson, A., and Sham- dasani, J. (2013). An

integrated e-science analysis base for computation

neuroscience experiments and analysis. Procedia -

Social and Behavioral Sciences, 73(0):85 – 92.

Proceedings of the 2nd International Conference on

Integrated Information (IC-ININFO 2012), Budapest,

Hungary, August 30 – September 3, 2012.

Munir, K., Liaquat Kiani, S., Hasham, K., McClatchey, R.,

Branson, A., and Shamdasani, J. (2014). Provision of

an integrated data analysis platform for computational

neuroscience experiments. Journal of Systems and In-

formation Technology, 16(3):150–169.

Ramakrishnan, L. and Plale, B. (2010). A multi-

dimensional classification model for scientific

workflow characteristics. In Proceedings of the 1st

International Workshop on Workflow Approaches to

New Data-centric Science, Wands ’10, pages 4:1–

4:12, USA. ACM.

Roure, D. D., Manuel, J., Hettne, K., Belhajjame, K.,

Palma, R., Klyne, G., Missier, P., Ruiz, J. E., and

Goble, C. (2011). Towards the preservation of

scientific workflows. In Procs. of the 8th International

Conference on Preservation of Digital Objects (iPRES

2011). ACM.

Sandve, G. K., Nekrutenko, A., Taylor, J., and Hovig, E.

(2013). Ten sim- ple rules for reproducible

computational research. PLoS Comput Biol,

9(10):e1003285.

Santana-Perez, I., Ferreira da Silva, R., Rynge, M.,

Deelman, E., P ́erez- Hern ́andez, M., and Corcho, O.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

(2014a). A semantic-based approach to attain

reproducibility of computational environments in

scientific work- flows: A case study. In Parallel

Processing Workshops, volume 8805 of Lecture Notes

in Computer Science, pages 452–463. Springer

International Publishing.

Santana-Perez, I., Ferreira da Silva, R., Rynge, M.,

Deelman, E., Perez- Hernandez, M. S., and Corcho, O.

(2014b). Leveraging semantics to improve

reproducibility in scientific workflows. In The

reproducibility at XSEDE workshop.

Scheidegger, C., Koop, D., Santos, E., Vo, H., Callahan,

S., Freire, J., and Silva, C. (2008). Tackling the

provenance challenge one layer at a time. Concurr.

Comput. : Pract. Exper., 20(5):473–483.

Shamdasani, J., Branson, A., and McClatchey, R. (2012).

Towards semantic provenance in cristal. In Third

International Workshop on the role of Se- mantic Web

in Provenance Management (SWPM 2012).

Simmhan, Y. L., Plale, B., and Gannon, D. (2005). A

survey of data provenance in e-science. SIGMOD

Rec., 34(3):31–36.

SMS, C., CE, P., D, O., MLM, C., and M., M. (2011).

Capturing distributed provenance metadata from

cloud-based scientific workflows. Information and

Data Management, 2:43–50.

Stallings, W. (2010). Cryptography and Network Security:

Principles and Prac- tice. Prentice Hall Press, Upper

Saddle River, NJ, USA, 5th edition.

Stevens, R. D., Robinson, A. J., and Goble, C. A. (2003).

myGrid: personalised bioinformatics on the

information grid, Bioinformatics, 19:i302–i304.

Tan, Y. S., Ko, R. K., Jagadpramana, P., Suen, C. H.,

Kirchberg, M., Lim, T. H., Lee, B. S., Singla, A.,

Mermoud, K., Keller, D., and Duc, H. (2012).

Tracking of data leaving the cloud. 2013 12th IEEE

International Confer- ence on Trust, Security and

Privacy in Computing and Communications, 0:137–

144.

Tannenbaum, T., Wright, D., Miller, K., and Livny, M.

(2002). Beowulf cluster computing with linux. chapter

Condor: A Distributed Job Scheduler, pages 307–350.

MIT Press, Cambridge, MA, USA.

Vouk, M. (2008). Cloud computing #x2014; issues,

research and implementa- tions. In Information

Technology Interfaces, 2008. ITI 2008. 30th Interna-

tional Conference on, pages 31–40.

Zhang, O. Q., Kirchberg, M., Ko, R. K., and Lee, B. S.

(2011). How to track your data: The case for cloud

computing provenance. In Cloud Computing

Technology and Science (CloudCom), 2011 IEEE

Third International Conference on, pages 446–453.

IEEE.

Zhao, X., Zhang, Y., Wu, Y., Chen, K., Jiang, J., and Li,

K. (2014). Liquid: A scalable deduplication file

system for virtual machine images. Parallel and

Distributed Systems, IEEE Transactions on,

25(5):1257–1266.

Zhao, Y., Fei, X., Raicu, I., and Lu, S. (2011).

Opportunities and challenges in running scientific

workflows on the cloud. In Cyber-Enabled Distributed

Computing and Knowledge Discovery (CyberC), 2011

International Con- ference on, pages 455–462.

UsingCloud-AwareProvenancetoReproduceScientificWorkflowExecutiononCloud
